FORMENTI & GIOVENZANA PROVIDES FUNCTIONAL SOLUTIONS FOR FURNITURE TO MEET THE REAL NEEDS OF A LARGE NUMBER OF CUSTOMERS.

All products are conceived and supplied with care and quality and are offered to the market at a competitive price. In this way, Formenti & Giovenzana contributes globally to increase the satisfaction of the customers buying furniture, giving access to pleasing features and improving the quality of life of the consumers.

INTRO

REASONS TO CHOOSE RIGO

RIGO DRAWER H80

RIGO DRAWER H120

RIGO DRAWER H150

RIGO DRAWER H200

RIGO STEEL BACK PANELS

INSTRUCTION OF USE

Rigo

SINGLE WALL STEEL DRAWER

ULTRA SLIM SHAPE

INNOVATIVE AND TRENDY EMBOSSED COLOURS

COMPATIBLE WITH EXCEL SLIDE AND ONETOUCH+SLOWMOTION TECHNOLOGY.

Rigo is a single steel drawer characterized by a very thin, linear and stylish shape. A comprehensive range of heights and lengths covers all usual applications with an high level of quality features.

The innovative and trendy embossed finishing in White and Storm Grey colours confers to the Rigo drawer an extra touch of elegance.

The compatibility with Excel slides single or full extension and Plug-In or Easy-Fix fastening, generates an universal and versatile mix of solutions.

Reasons to choose Rigo

ELEGANT AND MINIMALISTIC DESIGN

Rigo is an versatile steel drawer solution. With an extra slim and minimalistic design together with an innovative and trendy embossed finishing available in White and Storm Grey colours, Rigo allows a complete program of drawer solutions with modern features and high-end look.

TECHNICAL DETAILS THAT MAKE THE DIFFERENCE

Thanks to only 1.5mm side thickness, Rigo drawer guarantees an high volume capacity and an optimized inner space throughout the range. Rigo is an universal and versatile product available in four different heights H80, H120, H150, H200 mm in a wide range of depths from 250 to 550 mm and with optional steel back panel to ensures a consistent appearance and robust construction.

MOTION AT ITS BEST

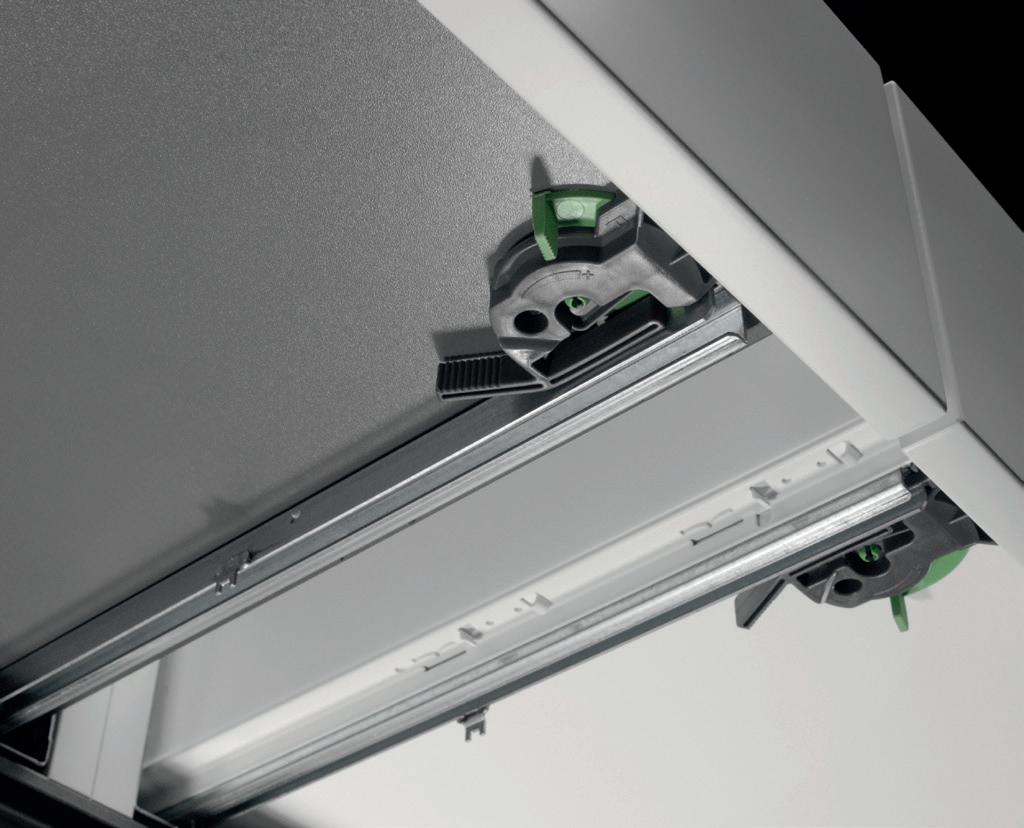

Compatible with the complete program of FGV undermount slides single or full extension and Plug-In or Easy-Fix fastening, Rigo drawer benefits from the high sliding and movement specifications about the Excel G and Excel N range of slides. Moreover a controlled and uniform closing and a smooth and soft drawer opening are based on the integrated SlowMotion and OneTouch technologies.

CREATIVE AND VERSATILE SOLUTION

Timeless shape, all required dimensions, choice of colours, attention to materials, perfect gliding and stability all in line with the new tendencies and signals of modern elegance for a drawer solution with no limit to creativity.

Innovative and trendy embossed colours

4 standard heights H80, H120, H150 and H200 mm

Extra slim shape with only 1.5mm side thickness

Compatible with Excel slides and OneTouch+SlowMotion technologies

Large range of depths from 250 to 550 mm

Steel back panel with no tool and easy fixing

PERFORMANCE

A QUALITY RANGE

Rigo is powered by quality and performance product features. The complete product range covers all usual applications with pleasant look and design together with latest technological solutions.

Rigo is a synonymous of a modern space conception. Thanks to only 1.5mm side thickness, Rigo guarantees optimized inner space, high volume capacity and maximum storage all in one solution.

Motion at its best with Excel slide

Extra slim design

Single wall metal drawer

Embossed trendy colours

Rigo Drawer H80

Code Description Packing

To be combined with slides: Excel G 515H, G 515B, G 550H, N 615H, N 665H

58.RA^0.**.250.A000 Kit Rigo drawer H80 250 6 kits

58.RA^0.**.300.A000 Kit Rigo drawer H80 300 6 kits

58.RA^0.**.350.A000 Kit Rigo drawer H80 350 6 kits

58.RA^0.**.400.A000 Kit Rigo drawer H80 400 6 kits

58.RA^0.**.450.A000 Kit Rigo drawer H80 450 6 kits

58.RA^0.**.500.A000 Kit Rigo drawer H80 500 6 kits

58.RA^0.**.550.A000 Kit Rigo drawer H80 550 6 kits

^ Front vertical adjustment: 1 = with screws / 3 = with CAM ** colour codes: G1 = Embossed White / G8 = Embossed Storm Grey. Packing in kit composed by: 1 right side, 1 left side, 2 cover caps, 2 plastic brackets for Plug-In slides.

Code Description Packing

To be combined with slides: Excel G 550B

58.RA^0.**.260.A000 Kit Rigo drawer H80 260 6 kits

58.RA^0.**.290.A000 Kit Rigo drawer H80 290 6 kits

58.RA^0.**.340.A000 Kit Rigo drawer H80 340 6 kits

58.RA^0.**:390.A000 Kit Rigo drawer H80 390 6 kits

58.RA^0.**.440.A000 Kit Rigo drawer H80 440 6 kits

58.RA^0.**.490.A000 Kit Rigo drawer H80 490 6 kits

58.RA^0.**.540.A000 Kit Rigo drawer H80 540 6 kits

^ Front vertical adjustment: 2 = with screws / 4 = with CAM ** colour codes: G1 = Embossed White / G8 = Embossed Storm Grey. Packing in kit composed by: 1 right side, 1 left side, 2 cover caps.

Technical Specifications:

• Single wall steel drawer height 80mm with 1.5mm extra slim side thickness

• Large range of depth from 240 to 550 mm

• Bottom fixing via ClawFix or screws without processing on the panel

• Available front fixing standard version with screws and secure fixing, or version with CAM for vertical adjustment

• Horizontal adjustment in the front fixing bracket

• Decorative cover cap with possibility of customisation

• Metal embossed finish in White and Storm Grey colours for high-end look

• Versatile drawer solution with elegant design features

• Compatible with Excel slides G515, G550, N615, N665 with SlowMotion and OneTouch Technologies

Version with CAM

Standard Version

Drilling

& dimensions

Drawer dimensions

NL Nominal length

X Bottom panel width*

K Internal cabinet width

Z Bottom panel length

*Bottom panel width = Back panel width

Fastening for Easy-Fix slide Fastening for Plug-In slide

Rigo Drawer H120

Code Description Packing

To be combined with slides: Excel G 515H, G 515B, G 550H, N 615H, N 665H

58.RB^0.**.250.A000 Kit Rigo drawer H120 250 6 kits

58.RB^0.**.300.A000 Kit Rigo drawer H120 300 6 kits

58.RB^0.**.350.A000 Kit Rigo drawer H120 350 6 kits

58.RB^0.**.400.A000 Kit Rigo drawer H120 400 6 kits

58.RB^0.**.450.A000 Kit Rigo drawer H120 450 6 kits

58.RB^0.**.500.A000 Kit Rigo drawer H120 500 6 kits

58.RB^0.**.550.A000 Kit Rigo drawer H120 550 6 kits

Code Description Packing

To be combined with slides: Excel G 550B

58.RB^0.**.260.A000 Kit Rigo drawer H120 260 6 kits

58.RB^0.**.290.A000 Kit Rigo drawer H120 290 6 kits

58.RB^0.**.340.A000 Kit Rigo drawer H120 340 6 kits

58.RB^0.**:390.A000 Kit Rigo drawer H120 390 6 kits

58.RB^0.**.440.A000 Kit Rigo drawer H120 440 6 kits

58.RB^0.**.490.A000 Kit Rigo drawer H120 490 6 kits

58.RB^0.**.540.A000 Kit Rigo drawer H120 540 6 kits

^ Front vertical adjustment: 2 = with screws / 4 = with CAM ** colour codes: G1 = Embossed White / G8 = Embossed Storm Grey. Packing in kit composed by: 1 right side, 1 left side, 2 cover caps.

Technical Specifications:

• Single wall steel drawer height 120mm with 1.5mm extra slim side thickness

• Large range of depth from 240 to 550 mm

• Bottom fixing via ClawFix or screws without processing on the panel

• Available front fixing standard version with screws and secure fixing, or version with CAM for vertical adjustment

• Horizontal adjustment in the front fixing bracket

• Decorative cover cap with possibility of customisation

• Metal embossed finish in White and Storm Grey colours for high-end look

• Versatile drawer solution with elegant design features

• Compatible with Excel slides G515, G550, N615, N665 with SlowMotion and OneTouch Technologies

Version with CAM

Standard Version

Drilling & dimensions

NL Nominal length X Bottom panel width* K Internal cabinet width Z Bottom panel length

panel width = Back panel width

Fastening for Plug-In slide

Fastening for Easy-Fix slide

Rigo Drawer H150

Code Description Packing

To be combined with slides: Excel G 515H, G 515B, G 550H, N 615H, N 665H

58.RF^0.**.250.A000 Kit Rigo drawer H150 250 6 kits

58.RF^0.**.300.A000 Kit Rigo drawer H150 300 6 kits

58.RF^0.**.350.A000 Kit Rigo drawer H150 350 6 kits

58.RF^0.**.400.A000 Kit Rigo drawer H150 400 6 kits

58.RF^0.**.450.A000 Kit Rigo drawer H150 450 6 kits

58.RF^0.**.500.A000 Kit Rigo drawer H150 500 6 kits

58.RF^0.**.550.A000 Kit Rigo drawer H150 550 6 kits

Code Description Packing

To be combined with slides: Excel G 550B

58.RF^0.**.260.A000 Kit Rigo drawer H150 260 6 kits

58.RF^0.**.290.A000 Kit Rigo drawer H150 290 6 kits

58.RF^0.**.340.A000 Kit Rigo drawer H150 340 6 kits

58.RF^0.**:390.A000 Kit Rigo drawer H150 390 6 kits

58.RF^0.**.440.A000 Kit Rigo drawer H150 440 6 kits

58.RF^0.**.490.A000 Kit Rigo drawer H150 490 6 kits

58.RF^0.**.540.A000 Kit Rigo drawer H150 540 6 kits

^ Front vertical adjustment: 2 = with screws / 4 = with CAM

** colour codes: G1 = Embossed White / G8 = Embossed Storm Grey. Packing in kit composed by: 1 right side, 1 left side, 2 cover caps.

Technical Specifications:

• Single wall steel drawer height 150mm with 1.5mm extra slim side thickness

• Large range of depth from 240 to 550 mm

• Bottom fixing via ClawFix or screws without processing on the panel

• Available front fixing standard version with screws and secure fixing, or version with CAM for vertical adjustment

• Horizontal adjustment in the front fixing bracket

• Decorative cover cap with possibility of customisation

• Metal embossed finish in White and Storm Grey colours for high-end look

• Versatile drawer solution with elegant design features

• Compatible with Excel Slide G515, G550, N615, N665 with SlowMotion and OneTouch Technologies

Standard Version

Version with CAM

Drilling & dimensions

NL Nominal length

X Bottom panel width*

K Internal cabinet width

Z Bottom panel length

Fastening for Easy-Fix slide Fastening for Plug-In slide

Rigo Drawer H200

Code Description Packing

To be combined with slides: Excel G 515H, G 515B, G 550H, N 615H, N 665H

58.RS^0.**.250.A000 Kit Rigo drawer H200 250 6 kits

58.RS^0.**.300.A000 Kit Rigo drawer H200 300 6 kits

58.RS^0.**.350.A000 Kit Rigo drawer H200 350 6 kits

58.RS^0.**.400.A000 Kit Rigo drawer H200 400 6 kits

58.RS^0.**.450.A000 Kit Rigo drawer H200 450 6 kits

58.RS^0.**.500.A000 Kit Rigo drawer H200 500 6 kits

58.RS^0.**.550.A000 Kit Rigo drawer H200 550 6 kits

^ Front fixing version: 1 = with screws / 3 = with CAM ** colour codes: G1 = Embossed White / G8 = Embossed Storm Grey. Packing in kit composed by: 1 right side, 1 left side, 2 cover caps, 2 plastic brackets for Plug-In slides.

Code Description Packing

To be combined with slides: Excel G 550B

58.RS^0.**.260.A000 Kit Rigo drawer H200 260 6 kits

58.RS^0.**.290.A000 Kit Rigo drawer H200 290 6 kits

58.RS^0.**.340.A000 Kit Rigo drawer H200 340 6 kits

58.RS^0.**:390.A000 Kit Rigo drawer H200 390 6 kits

58.RS^0.**.440.A000 Kit Rigo drawer H200 440 6 kits

58.RS^0.**.490.A000 Kit Rigo drawer H200 490 6 kits

58.RS^0.**.540.A000 Kit Rigo drawer H200 540 6

^ Front fixing version: 2 = with screws / 4 = with CAM ** colour codes: G1 = Embossed White / G8 = Embossed Storm Grey. Packing in kit composed by: 1 right side, 1 left side, 2 cover caps.

Technical Specifications:

• Single wall steel drawer height 200mm with 1.5mm extra slim side thickness

• Large range of depth from 240 to 550 mm

• Bottom fixing via ClawFix or screws without processing on the panel

• Available front fixing standard version with screws and secure fixing, or version with CAM for vertical adjustment

• Horizontal adjustment in the front fixing bracket

• Decorative cover cap with possibility of customisation

• Metal embossed finish in White and Storm Grey colours for high-end look

• Versatile drawer solution with elegant design features

• Compatible with Excel Slide G515, G550, N615, N665 with SlowMotion and OneTouch Technologies

Version with CAM Standard Version

Rigo Steel back panels

Code Description Packing

To be combined with slides: Excel G 515H, G 515B, G 550H, N 615H, N 665H

58.RAPH.**._ _.°.0000 Rigo back panel - H80 version H 20 pcs

58.RBPH.**._ _.°.0000 Rigo back panel - H120 version H 20 pcs

58.RFPH.**._ _.°.0000 Rigo back panel - H150 version H 20 pcs

58.RSPH.**._ _.°.0000 Rigo back panel - H200 version H 20 pcs

** colour codes: G1 = Embossed White / G8 = Embossed Storm Grey

_ _ back panel widht: 30/45/60/90 (example 30 stands for 300 mm cabinet width)

° cabinet side panel thickness: 6 = 16mm / 8 = 18mm

Technical Specifications:

• Steel back panel for streamlined, elegant and robust overall drawer construction

• Available in four heights: 80, 120, 150, and 200, perfectly matching drawer versions

• Standard widths ranging

• No tool fixing system to the drawer lateral panels

• Thick material for strong construction and stability

• Metal embossed finish in White and Storm Grey colours for high-end look

Rigo Steel back panels

Drilling & dimensions

Rigo H80

Rigo H120

Rigo H150

Rigo H200

APPLICATIONS | Plastic brackets for Plug-In slides
