WALL HANGING BRACKETS
WALL HANGING SOLUTIONS COVERING EVERY APPLICATION WITH A COMPLETE RANGE OF FIXING METHODS, AN EXHAUSTIVE PROGRAM OF TECHNICAL SPECIFICATIONS, A WIDE OFFER OF COLOUR FINISHES FOR A NOT INVASIVE COVERS LOOK.

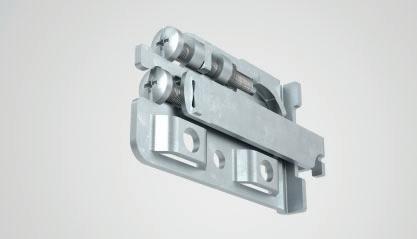

Leva, the FGV wall hanging brackets line, offers simplicity and immediacy, harmony and functionality: all the characteristics of a reliable solution for fixing a cabinet. The range differs according to the fixing system: with screws or dowels; to the assembling system: hidden or visible (also available cover plates in a large range of colours and finishes); and to a wide range of adjustments allowing an ideal use in any condition and furniture.
Technical Specifications:
• Complete range of fixing systems: Leva 723 fixing with Euro Screws (included) Leva 725 fixinng with Selftapping Screws (included) Leva 729 fixing with Ø10 Knock-in Dowels (premounted) for automatic machine
• Made in metal, zinc finish
• Asymmetrical hook
• Adjustment screw easy to access
• In&Out adjustment with special screw to avoid accidental dismounting
• 45kg static load UNI EN 15939
• Cover available in modern colours: Coffee Black, Storm Grey and Polar White
• Optional Anti-Lift device in green plastic to be ordered separately
• Full program of fixing plates & bars (page 13)
Leva 723 - Euro Screws fixingCover
Leva 729 - Ø10 Dowels fixing
Leva 723 - 725Leva 729
CodeDescriptionPacking
53.719.°.**.S0R.0000 Wall hanging bracket Leva 719 – right 200 pcs
53.719.°.**.S0L.0000 Wall hanging bracket Leva 719 – left 200 pcs
°
CodeDescriptionPacking
53.719.°.**.A0R.0000 Wall hanging bracket Leva 719 – right 200 pcs
53.719.°.**.A0L.0000 Wall hanging bracket Leva 719 – left 200 pcs ° Lip for back milled cabinet:
Technical Specifications:
• Fixing with Ø10 Dowels for automatic machine
• Housing made in ABS
• Available with symmetrical or asymmetrical hook
• Version with lip for back milled cabinet and version without lip for cabinet without back milled
• Adjustment screw easy to access
• In&Out adjustment with special screw to avoid accidental dismounting
• 35-40kg static load UNI EN 15939
• Small cover cap available in modern colours:
Coffee Black, Storm Grey and Polar White
• Full program of fixing plates & bars (page 13)
CodeDescriptionPacking
53.71VC.**.0000000 Small cover cap in ABS 5000 pcs
Drilling position and Adjustment
Leva 719
Leva 719 – With symmetrical hook Cover
Leva 719 – With asymmetrical hook
Leva 715 – With symmetrical hook
CodeDescriptionPacking
53.715.°.**.S0R.0000 Wall hanging bracket Leva 715 – right 200 pcs
53.715.°.**.S0L.0000
Leva 715 – With asymmetrical hook
CodeDescriptionPacking
53.715.°.**.A0R.0000 Wall hanging bracket Leva 715 – right 200 pcs
53.715.°.**.A0L.0000 Wall hanging bracket Leva 715 – left 200 pcs
Drilling position and Adjustment
Technical Specifications:
• Fixing with Selftapping Screws
• Housing made in ABS
• Available with symmetrical or asymmetrical hook
• Version with lip for back milled cabinet and version without lip for cabinet without back milled
• Adjustment screw easy to access
• In&Out adjustment with special screw to avoid accidental dismounting
• 30-35kg static load UNI EN 15939
• Cover available in modern colours: Coffee Black, Storm Grey and Polar White
• Full program or fixing plates & bars (page 13)
CodeDescriptionPacking
Cover
Technical Specifications:
• Fixing with Ø10 Dowels for automatic machine
• Housing made in ABS
• Symmetrical hook
• Available versions with or without Anti-Lift system
• Adjustment screws to avoid accidental dismounting
• 40kg static load UNI EN 15939
• Full program or fixing plates & bars (page 13)
Leva 701
Leva 701 – With Anti-Lift system
Leva 701 – Without Anti-Lift system
CodeDescriptionPacking
53.C703.**.01.N00
Technical Specifications:
• Fixing with Selftapping Screws
• Housing made in ABS
• Symmetrical hook
• Adjustment screws to avoid accidental dismounting
• 40kg static load UNI EN 15939
• Full program or fixing plates & bars (page 13)
Leva 703
Leva 703
CodeDescriptionPacking
Drilling position and Adjustment
Technical Specifications:
• Fixing with Ø10 Dowels for automatic machine
• Made in PA
• Symmetrical hook with pre-blocked adjustment
• Adjustment screw easy to access
• In&Out adjustment with special screw to avoid accidental dismounting
• Cover available in modern colours: Coffee Black, Storm Grey and Polar White
• 35kg static load UNI EN 15939
• Full program or fixing plates & bars (page 13)
CodeDescriptionPacking
Leva 709
Leva 709
CodeDescriptionPacking
53.D707.**.01.000 Wall hanging bracket Leva 707 – right250 pcs
53.D707.**.02.000 Wall hanging bracket Leva 707 – left250 pcs
** Colour code: N2 = Coffee Black /S8 = Storm Grey /F1 = Polar White
CodeDescriptionPacking
53.C787.**.01.000 Wall hanging bracket Leva 787 – right250 pcs
53.C787.**.02.000 Wall hanging bracket Leva 787 – left250 pcs
Drilling position and Adjustment
Technical Specifications:
• Fixing with Dowels
• Made in ABS
• Symmetrical hook
• Adjustment screws to avoid accidental dismounting
• Cover available in modern colours: Coffee Black, Storm Grey and Polar White
• 35kg static load UNI EN 15939
• Full program or fixing plates & bars (page 13)
CodeDescriptionPacking

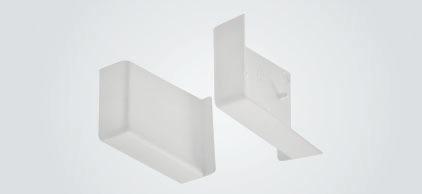

53.07C7.**.01.000 Cover in high-impact polystyrene – right 250 pcs
53.07C7.**.02.000 Cover in high-impact polystyrene – left 250 pcs
** Colour code: N2 = Coffee Black /S8 = Storm Grey /F1 = Polar White
Leva 707 - 787
Leva 707 - Ø10 Dowels fixing
Leva 787 - Ø8 Dowels fixing
CodeDescriptionPacking
Technical Specifications:
• Concealed hanging bracket fastened to the back of the cabinet
• 2 fixing options: with Ø10 dowels or with self-tapping screws
• Reduced installation space only 15mm
• Higher holes for additional security screws
• Molded adjustment pins to avoid accidental dismounting

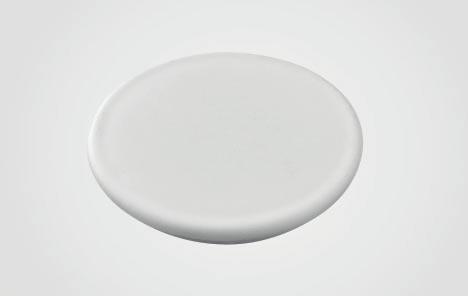

• Cover: Ø35 round and oval
• 45kg static load UNI EN 15939
• Full program or fixing plates & bars (page 13)
Leva
Leva 740
Plate 301
Wall hanging bracket plate of 50mm. 1.8mm of thickness. EN15939 Certification.
CodeDescriptionPacking
53.301.0.M70000000 301 wall hanging bracket plate 500 pcs
Finish: zincate
Plate 301A
Wall hanging bracket plate of 50mm. 1.8mm of thickness. With lateral anti-fall pins. EN15939 Certification.
CodeDescriptionPacking
53.301.A.M70000000 301A wall hanging bracket plate 500 pcs
Finish: zincate
Plate 027
Wall hanging bracket plate of 50mm. 1.8mm of thickness. EN15939 Certification.
CodeDescriptionPacking
Plate 028
Wall hanging bracket double plate of 130mm. 1.8mm of thickness. Precut for application with side cabinets. EN15939 Certification.
CodeDescriptionPacking
53.0700.70.13000028 wall hanging bracket plate 500 pcs
Finish: zincate
Bar 029
Wall hanging bracket bar. Drilling and pre-cutting arrangement with 50mm pitch. UNI10768 Certification. Available different lengths.
CodeDescriptionPacking
53.0029.07.02000 Wall hanging bracket bar 200mm 200 pcs
53.0029.07.10000 Wall hanging bracket bar 1000mm 10 pcs
53.0029.07.15000 Wall hanging bracket bar 1500mm 10 pcs
53.0029.07.20000 Wall hanging bracket bar 2000mm 10 pcs
53.0029.07.30000 Wall hanging bracket bar 3000mm 10 pcs
Finish: zincate
