Asphalt Pavers

Weiler P285 Commercial

Engineered and built to exceed the demands of commercial paving, the Weiler P285 incorporates proven designs with new innovations to provide performance, reliability and outstanding mat quality in a wide range of applications. The Weiler designed 2,800 lb (1270 kg)screed delivers outstanding mat quality and a wide paving range. The 7’ 8” (2.3m) front mount screed is hydraulically extendable to 15’ (4.6 m). Highway class chains, conveyor and auger bearings provide long-term reliability.Remote grease lines located on the front counterweight provides easy daily maintenance. The P285 has three different operating positions allowing for optimal visibility while the adjustable, magnetic-resistance intelligent steering system allows for reliable control. All this and more!

SUPER 1703-3i Universal Class paver with VF 500 screed

The SUPER 1703-3i 8 ft paver meets the demands placed on asphalt pavers in the North American road construction industry, especially when combined with the VF 500 front-mounted screed.With its compact dimensions and Pivot Steer brake, the wheeled paver features excellent maneuverability, and enables pave speeds of up to 250 ft per minute. Achieving a maximum laydown rate of 770 tons per hour and pave widths ranging from 8 ft to 15 ft 6 in, and fitted with bolt-on extensions up to 19 ft 6 in, the Universal Class paver is ideal for large commercial applications. The paver and screed are equipped with the user-friendly ErgoPlus 3 operating system for automated grade and slope control.

Asphalt Rollers

Wacker Neuson RD 27 Series

The redesigned RD 27 2.5-ton double drum vibratory roller incorporates a multi-functional lever that contains buttons for all vibration options, water on/off and even the horn.

• Features a tapered front frame for optimal visibility to the front drum and ergonomically designed operator’s station with easy-to-read dashboard and control panel

• 5,470-lb. RD 27-100 comes with a 39.4-in. drum width and and produces a low/high total centrifugal force of 15,589/16,860 lbs.

• 5,950-lb. RD 27-120 has a 47.2-in. drum width and produces 15,285/20,232 lbs. of low/high centrifugal forces

Dynapac CP1200W Pneumatic-Tired Roller

The new Dynapac CP1200 pneumatic-tired roller features a flexible steel ballast is distributed evenly between tires for consistent ground pressure between the front and rear tires.

• Spacious platform, ergonomic controls and a rotating, sideway-sliding seat and steering assembly

• Tier 4 Final compliant engine

• Dual-circuit braking system maintains full braking effect even if one circuit is disabled

• Can be equipped with a cab with Automatic Climate Control

• Compacting width of 5.77 feet and maximum operating weight of 26,400 pounds

• Optional temperature sensor and DCA-A analyzer can play back the rolling pattern and produce a printout of all relevant information

Dynapac SD2500CS PROTAC

The SD2500CS PROTAC spray paver is primarily designed for two application areas. The first is for the application of thin asphalt surface layers using “Thin layer in hot paving on sealant”. The second is for road repair, as well as for new road construction and everyday asphalting tasks. The use of thin asphalt surface layers, especially for maintenance construction, is ideal for weathered, but intact substrates. Thanks to the sealing via a binder film, it provides a permanent protection layer against moisture as well as offering more grip. The result: roads with significantly longer service lives.

Caterpillar B Series Tandem Vibratory Rollers

The CB44B and CD44B offer 4-ft. 9-in drums and fit in the 7.7- to 11-ton size class, while the CB54B and CD54B have 5-ft. 5-in. drums and fall in the 8.8- to 12.5-ton class.

• Choice of solid- or split-drum designs

• 100-hp Cat C3.4B (CB44B) and 131hp C4.4 (CB54B) diesel engines

• Center-articulating hitch allows 6° of oscillation

• Offset option of up to 6 in.

• Versa Vibe provides four amplitudes and two frequencies

• Hand wheel steering technology

• Standard Eco mode and automatic speed control for added fuel savings

BOMAG BW190ADO-5 Tandem Vibratory Roller

• TanGO directs vibration forces horizontally and the drum maintains continuous ground contact to deliver efficient compaction results after only a few passes

• Mainline 78.3-in. rolling width

• Front drum offers dual vibration frequencies (3,000/4,200 vpm) and dual amplitudes (0.036/0.013 in.)

• Rear drum boasts a highly wearresistant drum wrapper surface

• 114-hp Kubota liquid-cooled diesel engine

The BW190ADO-5 tandem vibratory roller offers traditional front-drum vibration and TanGO rear-drum tangential oscillation, increasing the machine’s flexibility.

Case DV209D & DV210D Double Drum Asphalt Rollers

Case’s DV209D and DV210D deliver 100% tractive effort due to a balanced drum design and a variety of standard features.

• 100-hp Deutz engine with EGR, DOC and SCR after-treatment technologies

• Updated cooling system and automatic idle control reduce fuel consumption by up to 15% compared to previous models

• Automatic vibration control

• Crab steering hydraulically offsets rear drum up to 6.7 in.

• Oscillating articulated roller joint oscillates +/- 6 degrees

• Pressurized triple-filtration water system

Caterpillar CB54 XW Tandem Vibratory Roller

The CB54 XW Tandem Vibratory Roller offers compaction performance, application versatility and operator comfort to maximize productivity while providing exceptional product quality.

• Standard compaction width: 79-in.

• Max travel speed: 8-mph

• 137.0 hp Cat C4.4 engine with ACERT

• Machines are capable of performing effectively on a variety of mix types, while keeping pace with the paver, helps customers maximize resources and lower their capital investment

Sany SSR120C-8 Roller Compactor

The 26,455-lb. SSR120C-8 roller compactor provides 62,947/40,015 lbs.-ft. of excitation force, 32/36-Hz vibration frequency and .07/.035-in. nominal amplitude.

• Features an 84-in. drum width and 59-in. diameter and offers 55% gradeability

• 160-hp Cummins QSB4.5 Tier 4 Final diesel engine

Dynapac Generation VI

Asphalt Rollers

The Generation VI articulated tandem rollers feature temperature sensors on the front and rear drums so operators can better manage temperature drop while compacting.

• Tier 4 engines with optional ECO Mode system

• 7-in. LCD touch screen displays

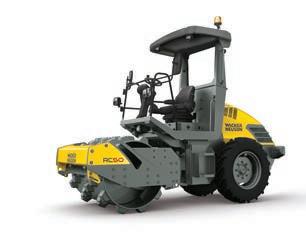

Wacker Neuson RC50 and RC70 Soil Compactors

The 5-ton RC50 has a 54-in. drum width and 15,512 lbs. of centrifugal force at a rate of 1,800 vpm, while the 7-ton RC70 has a 66-in. drum and 28,100 lbs. of centrifugal force. Both are available with a smooth drum for compaction of granular materials or padfoot drum for compaction of cohesive soils. Power is supplied by a 73.2-hp Kubota engine with a 32-gal. fuel tank. The threepoint articulated pendulum joint allows navigation of curves and turns as well as maneuverability on uneven ground. The rear wheels are driven by independent motors for more ground clearance and traction in a variety of conditions.

Sakai GW754 Vibratory Pneumatic Tire Roller

A versatile roller that can be used on a variety of materials including hot mix asphalt and soil. The roller is a smaller size, weighing 22,440 lbs., and offers quiet operations. Its vibrating rubber tires massage materials dynamically and provide uniform compaction, and the GW754’s versatility and high compactive efforts help cut operating cost on the jobsite. The SW9994ND oscillatory/vibratory tandem roller, features dual drum oscillation and vibration. Versatility is achieved by switching “on the fly” from vibration for high compaction efforts to oscillation for smooth finish of the pavement surface.
