PRODUCTION PRODUCTS PLANT COMPONENTS

ADM RAP Recycle System

Improve the cost efficiency of your plant and boost RAP utilization with the ADM Recycle System.

• Available in various portable and relocatable configurations, designed to tackle the many mix specifications you handle

• System allows your operation to produce hotmix asphalt with as much as 50 percent recycled material

• Multiple capacities available to suit almost any operation

PHCo Lo-Density All-In-One Asphalt Tank Heater Kit

A complete system that can provide direct heat to the asphalt tank, while also supplying hot oil for the plant.

• The primary feature of the system is the drywell-style electric heating elements that provide and maintain heat to keep liquid asphalt cement at the desired temperature

• System circulates oil through scavenger coils and thermostatcontrolled electric booster heating elements to provide hot oil to heat jacketed lines, pumps and valves, drags, silo cones, and other plant components

• Includes a high-temperature centrifugal pump

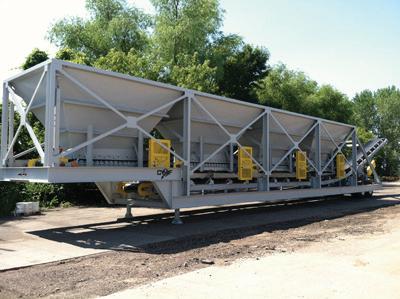

CWMF Cold Feed Bins

Designed to withstand the harsh elements of an HMA facility in portable, stationary and skid-mounted systems.

• Unique feeder belt mount design allows for belt removal/replacement without requiring to remove feeder

• ¼-in. bin wall construction

• 10-ft. x 14-ft. & 10-ft. x 16-ft. are standard sizes

• 60° sloped walls minimize build-up

• Adjustable slide gates to allow accurate metering

• Self-relieving throats allow for proper flow of material

• Multiple options available

• All-welded recycle bin can be reinforced with optional grizzly bars for superior durability

CMI Roadbuilding Hot Mix Storage

Starting with the HMS140, they're also available in 200, 260 and 320 ton sizes.

• Designed with features to economically store hot mix asphalt for extended periods of time, CMI’s silos are also designed with special features to reduce segregation

• Rugged slug feeders designed to reduce segregation are fitted with AR steel liner plates

• Also featured are CMI’s dual discharge gates of 48-in. x 12-in. wide with elastomer seals configured perpendicular to the driveway to reduce material segregation

• Safety gates with a 4-in. floor structure closes with a clam gate failure or loss of silo power.

• Drag conveyors armored with chromium carbide steel

Gencor Cold Feed Systems

Ruggedly built for years of use under the harshest conditions.

• Unique bin design provides steep sided tapered bin walls and a selfrelieving throat to virtually eliminate bridging and material flow problems

• A rugged rack and pinion gate design provides easy material height adjustment to suit a variety of material gradations

• All feeders include two material flow indicators

• Other optional features

Astec Warm Mix Systems

Reduced energy consumption, lowered emissions, and elimination of visible smoke, and the latest generation simplifies production.

• Lower temperature and lower cost by eliminating the need for additives or special asphalt cement

• Injects a small amount of water into the liquid AC to create microscopic steam bubbles

• Reduces the viscosity of the liquid AC, allowing the mix to be worked at lower temperatures

BROCK Dryer/Mixer Drum

One of only two companies building this style of dryer/mixer drum.

• As a result, BROCK now offers the market a viable option for drum replacement and/ or refurbishment in this style drum

• BROCK also offers in field construction services for hot mix asphalt plants including repairs, maintenance and plant relocation services

Webster Combustion HDRARF Aggregate Burner

Developed in response to plant operators’ need for a better technology than existing burners.

• 125,000,000 BTU/hour multifuel burners delivers increased efficiencies and reduced cost

• This multi-fuel register-style burner for asphalt rotary dryers allows users to shape the flame by automatically controlling the register vanes to optimally fit their dryer and combustion zone

• The HDRA-RF is the first burner to introduce dynamic flame shaping to the aggregate drying industry

Gencor RAP Feed Bins

Designed to eliminate material bridging, with steep sided ¼-in. tapered walls, selfrelieving throat and welded beater plates on the sides of the bins.

• With the rack and pinion gate design, material height can be easily adjusted to suit any feed rate

• Variable speed drives assure steady consistent flow at varying production rates

• Feature unitized heavy I-beam construction and are available in portable, stationary, or skid-mounted configurations

• Dual no-flow sensors

• Variable-Frequency or Eddy Current drive system

• Lifetime lubricated idlers

• Self-cleaning tail pulley

CMI Portable Split-Level Control House

Incorporates an individual motor control center and operators control room on one chassis.

• Control room is designed so that the operator has a higher vantage point to oversee plant operations with the added benefit of extra space underneath for storage

• Both the motor control center and control room have their own independent climate control
