Easby Electronics - Geniatech Brochure

Industrial IoT and Embedded Solutions Single Board Computers (SBCs) Embedded PCs

System On Modules (SoMs)

Connectivity Gateways

Industrial Solutions

IN PARTNERSHIP WITH

For more information contact: sales@easby.com

YOU PARTNER FOR TECHNICAL INNOVATION

Easby Electronics & Geniatech With over 40 years of experience in the electronic components industry, Easby Electronics have the knowledge and expertise to support your business in the dynamic and ever evolving IoT arena.

Our partnership with Geniatech strengthens an already strong IoT and embedded solutions product offering, allowing us to offer a full range of high performance Single-board Computers (SBC), System on Modules (SoMs), Embedded PCs & Connectivity Gateways.

The Geniatech range gives our customers a powerful, reliable, and user-friendly alternative to what is already available in the market - at a competitive price point.

40+ years industry experience UK based stock & distribution facility UK based technical support Customer focused solutions & services World leading IoT & embedded solution partners

Short lead times

Founded in 1997, with HQ in Shenzhen, China - Geniatech is a leading design and manufacturing company with extensive experience in the Industrial IoT & Embedded field.

26 Years industry experience

2,000+

enterprise customers

100+ R&D team

30,000m2

factory & manufacturing facility

1Million monthly capacity

Single-board Computers (SBC)

A RICH PRODUCT MATRIX

Geniatech Offering

Single Board Computers

System On Modules - OSM

System On Modules - SMARC

ARM PCs

IoT Gateways

Industrial Solutions

SoC PARTNERS Geniatech has established long-term strategic partnerships with several SoC manufacturers.

These partnerships provide greater access to the latest technological information, technical resources, and competitive chip pricing.

COMPATIBLE OPERATING SYSTEMS (OS) Depending on your application, project goals and your personal preferences, Geniatech offer SBCs and SoMs that are compatible with a range of operating systems.

Single-board Computers (SBC)

Single Board Computers - SBCs

UK Based Stock

XPI-3128

XPI-3566

SoC

Rockchip RK3128

Rockchip RK3566

CPU

Quad-core Cortex-A7

Quad-core Cortex-A55

RAM

512MB, 1GB, 2GB DDR3

1GB, 2GB, 4GB, 8GB LPDDR4

8GB, 16GB eMMC

8GB, 16GB eMMC

I/O

40 Pin GPIO extension interface, HDMI Out x1, USB 2.0 x5 (with one built-in), TF Card x1, DCIN 5V/2A

40 Pin GPIO extension interface, MIPI CSI x1, MIPI DSI x1, HDMI Out x1, USB 3.0 x1, USB 2.0 x4 (with one built-in), TF Card x1, DCIN 5V/3A,0

Network

Supports 100m Ethernet, WiFi Dual Band 2.4G Supports GB Ethernet, WiFi Dual Band 2.4G & & 5.8G, Bluetooth 4.0 (Optional) 5.8G, Bluetooth 4.0 (Optional)

OS

Supports Raspbian OS Emulator, Android 7.1, Debian 10

Supports Raspbian OS Emulator, Android 11.0, Debian 10

Temp

0°C ~ 60°C

0°C ~ 60°C

Size

85 x 56mm

85 x 56mm

Storage

Single-board Computers (SBC)

Single Board Computers - SBCs

UK Based Stock

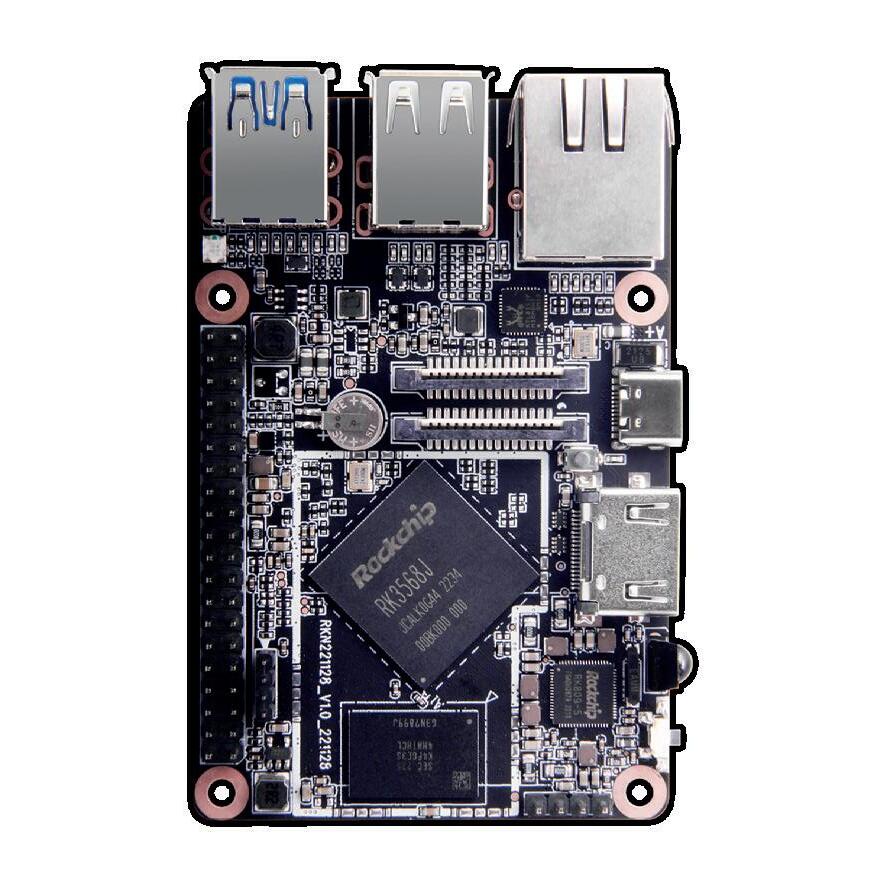

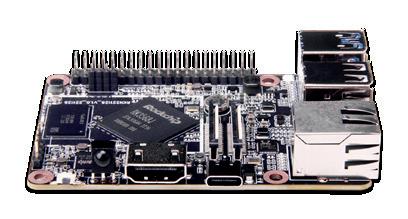

XPI-3568/3568J

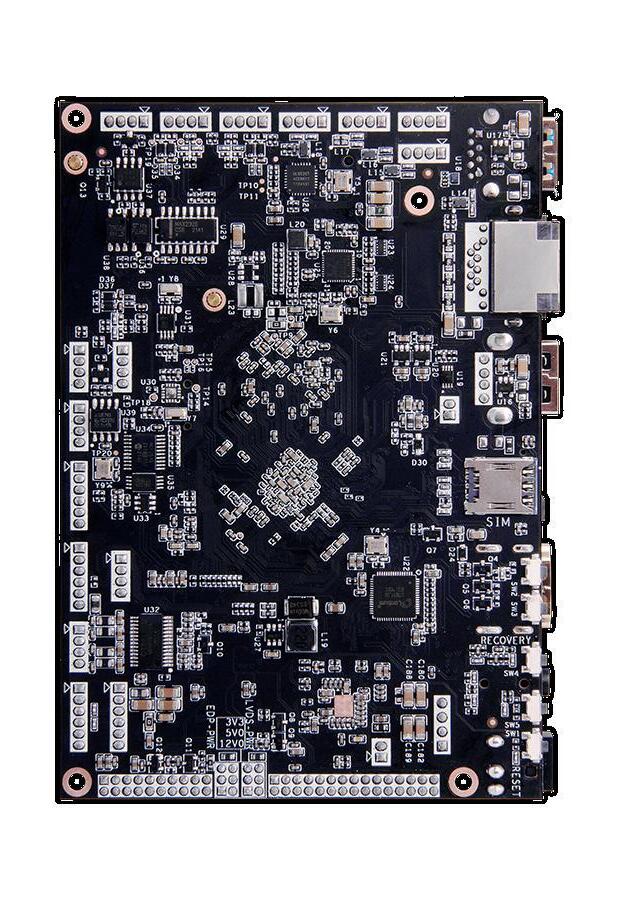

DS3566

SoC

Rockchip RK3568/3568J

RockChip RK3566

CPU

Quad-core Cortex-A55

Quad-core Cortex-A55

RAM

2GB, 4GB, 8GB LPDDR4

2GB/4GB/8GB LPDDR4

Storage

32GB, 64GB, 128GB eMMC

8GB/16GB/32GB/64GB eMMC

I/O

40 Pin GPIO extension interface, MIPI CSI x1, MIPI DSI x1, HDMI Out x1, USB 3.0 x1, USB 2.0 x4 (with one built-in), TF Card x1, DCIN 5V/3A

HDMI x1, LVDS x1, eDP x1, MIPI CSI x1, MIPI DSI x1, Mini-PCIe x1, PDM x1, USB x7, UART x3, RS485 x1, CAN x1, GPIO x8, I²C x1, PDM x1, SPK x1, Mic in x1, Headphone x1

Network

Supports Gigabit Network, WiFi 802.1a/b/ g/n/ac, Bluetooth 4.0

Supports Dual GB Ethernet, Wi-Fi Dual Band 2.4G/5.8G, 4G LTE, Bluetooth 4.0 (Optional)

OS

Supports Raspbian OS Emulator, Android 11.0, Debian 10, Buildroot

Supports Android 11.0, Debian 10

Temp

0°C ~ 60°C (Optional -40°C ~ 85°C)

0°C - 60°C

Size

85 x 56mm

124×85mm

Single-board Computers (SBC)

Single Board Computers - SBCs

UK Based Stock

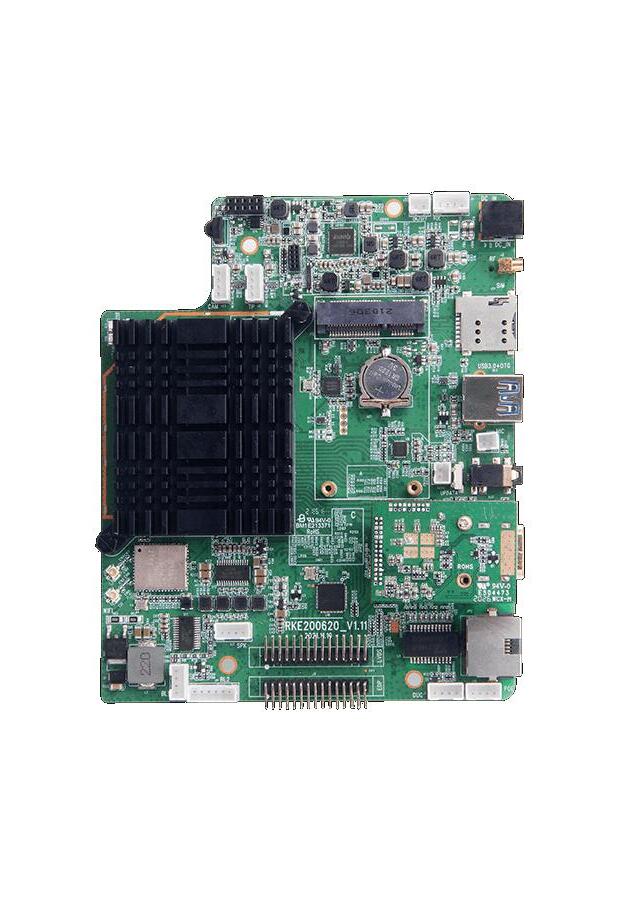

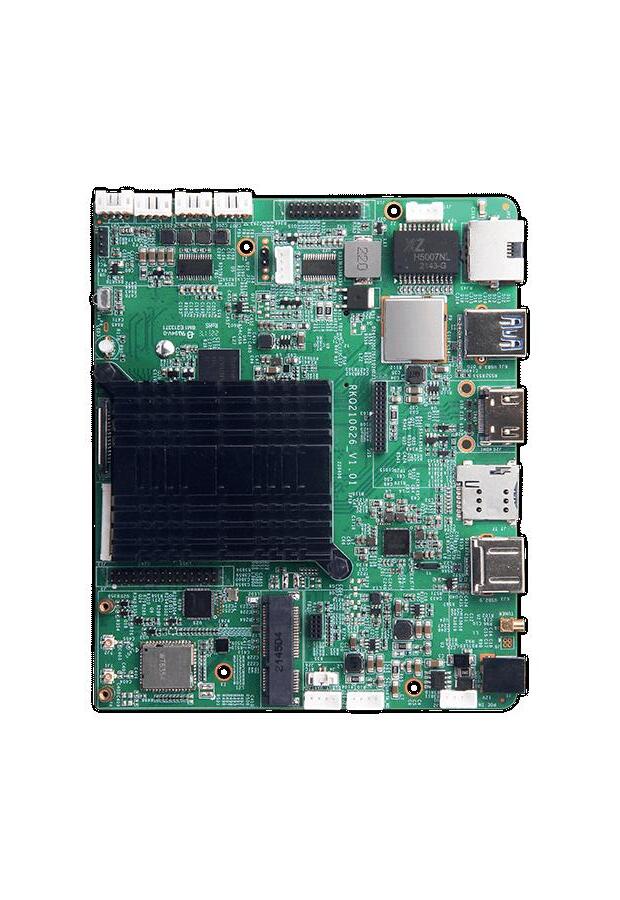

K3-3568

K2-3399

SoC

RockChip RK3568

RockChip RK3399

CPU

Quad-core Cortex-A55

Dual-core Cortex-A72 + Quad-core Cortex-A53

RAM

2GB/4GB/8GB LPDDR4

2GB/4GB LPDDR4

8GB/16GB/32GB/64GB eMMC

16GB eMMC (8GB/32GB/64GB Optional)

HDMI in x1, HDMI outx1, LVDS x1, eDP x1, MIPI DSI x1, Mini-PCIe x1, RF x1, USB3.0 x1, USB2.0 ×5, UART x1, M.2 x1, POE x1, GTIoT x1, I²C ×1, SPK x1, Mic in x1, Speaker ×1

HDMI x1, LVDS x1, eDP x1, RF x1, USB x4, RS232 x1, IR IN x1, GPIO x5, GTIoT x1, SPK ×2, Earphone ×1

Supports GB Ethernet，Wi-Fi Dual Band 2.4G/5G, 4G LTE，Bluetooth(Optional)

Supports GB Ethernet，Wi-Fi Dual Band 2.4G/5.8G, 4G LTE，Bluetooth 5.0

OS

Supports Android 11.0, Debian 10

Supports Android 11.0, Debian 10

Temp

0°C - 80°C

0°C - 60°C (Optional -20°C - 85°C)

Size

142×117mm

124×85mm

Storage

I/O

Network

Single-board Computers (SBC)

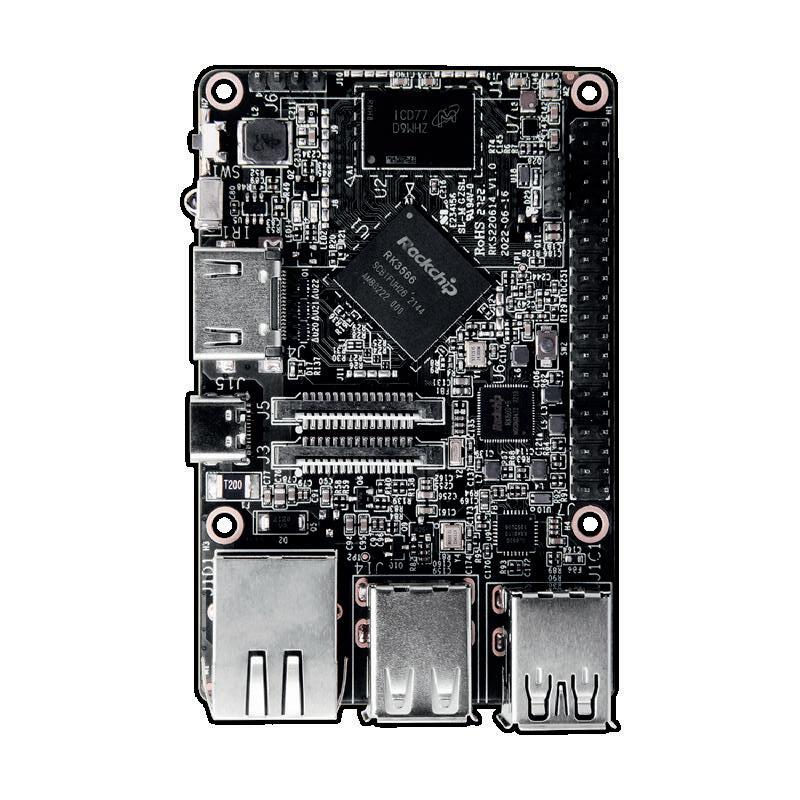

SBC Product Comparison XPI-3566 vs Raspberry Pi 4 Model B

7+ years life cycle

Available in different form factors

UK based technical support

Model

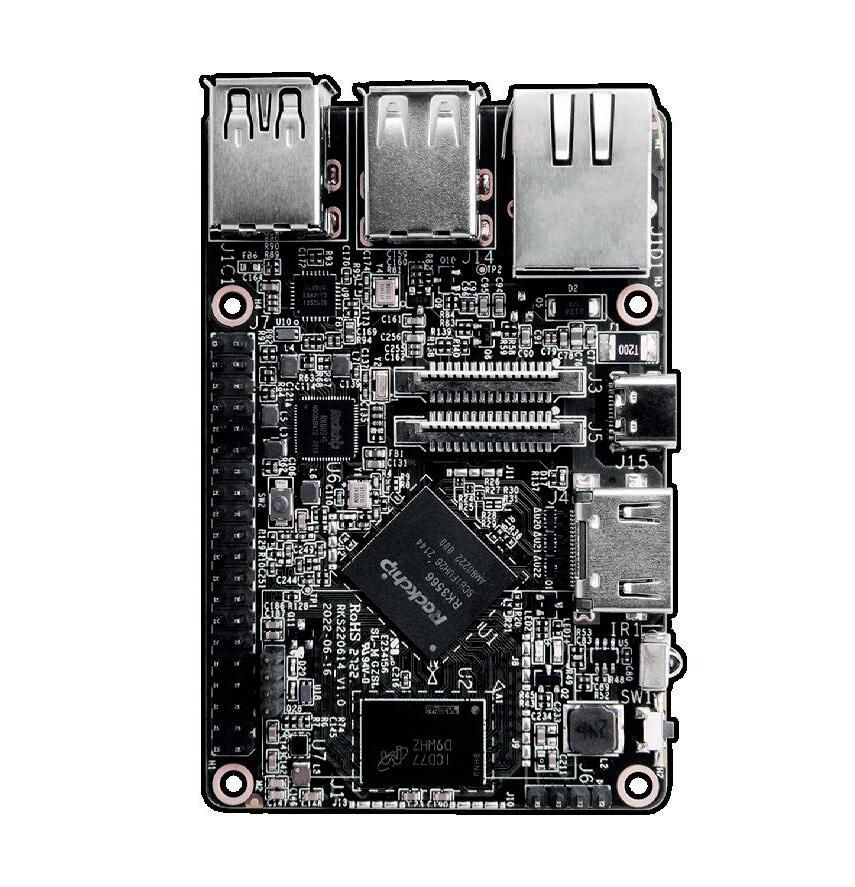

XPI-3566

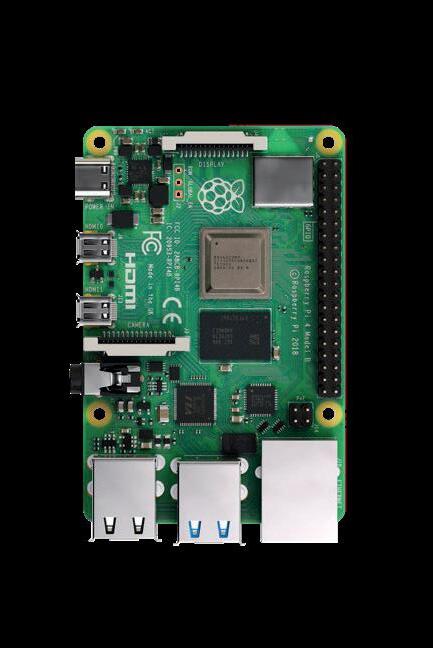

Raspberry Pi 4 Model B

Processor

Rockchip RK3566, Quad Core ARM Cortex A55 (ARMv8) 64bit @ 1.8GHz, 22nm process

Broadcom BCM2711, Quad Core Cortex A72 (ARM v8) 64bit SoC@ 1.5GHz, 28nm process

Memory

2GB RAM (1GB/4GB/8GB Optional) LPDDR4

2GB RAM (1GB/4GB/8GB Optional) LPDDR4

16GB (8GB/32GB/64GB Optional)

N/A

USB

1x USB 3.0 HOST ports, 2x USB 2.0 HOST ports, 1x USB 2.0 OTG port

2x USB 3.0 HOST ports, 2x USB 2.0 HOST ports

HDMI

1x HDMI port (Up to 4Kp60 supported)

2x Micro-HDMI ports (Up to 4Kp60 supported)

I/O

MIPI DSI, MIPI CSI, 40 pin GPIO header

MIPI DSI, MIPI CSI, 40 pin GPIO header

Network

2.4G/5G Dual Band WiFi, Bluetooth, Gigabit Ethernet

2.4GHz & 5GHz IEEE 802.11ac Wireless, Bluetooth, Gigabit Ethernet

Power

5V 3A DC via USB-Connector

5V DC via USB-Connector (Minimum 3A)

85 x 56mm

85 x 56mm

OS

Linux Debian 10, Android 11, or Raspbian OS emulator

Raspbian OS

Temp

0°C ~ 60°C

0°C ~ 50°C

eMMC Storage

Dimentions

For more information contact: sales@easby.com

System On Modules - OSM Geniatech OSM system-on-modules (SoM) comply with the latest industry-standard Open Standard Module (OSM) established by SGET. OSM is one of the first standards for directly solderable and scalable embedded computer modules, revolutionizing modular COM/ carrier designs and replacing credit card-sized modules with postage-stamp-sized ones.

Compliant with OSM industry standards, Powerful compatibility and scalability Full range of one-stop customized services, Rapidly achieve mass production of projects Long life cycle, no less than 10 years of delivery

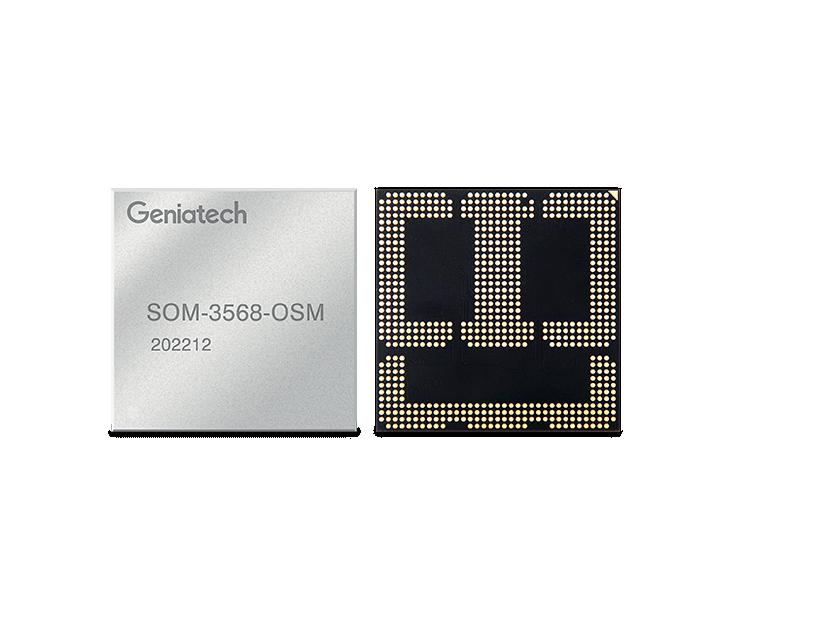

SOM-3568-OSM

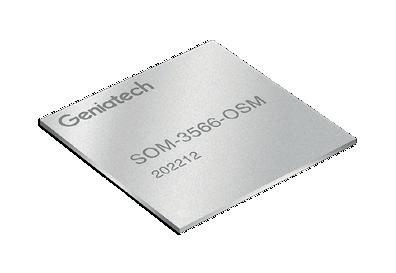

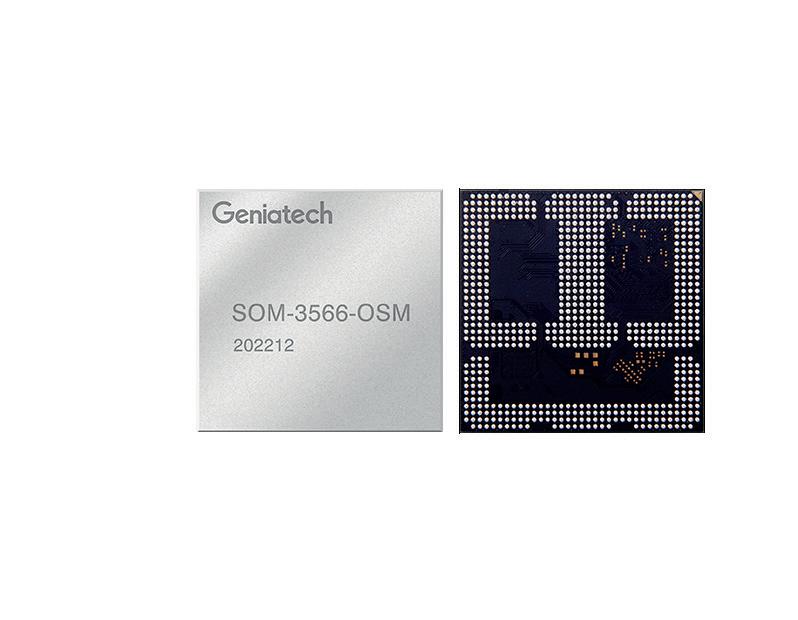

SOM-3566-OSM

SoC

RockChip RK3568/RK3568J

RockChip RK3566

CPU

Quad-core Cortex-A55

Quad-core Cortex-A55

RAM

2GB/4GB/8GB LPDDR4

2GB

Storage

32GB/64GB/128GB eMMC

16GB (8GB/32GB Optional)

Network

Supports dual Gigabit Ethernet

Supports GB Ethernet, Wi-Fi 802.1 a/b/g/n/ac, Bluetooth 5.0

OS

Supports Android 11.0, Ubuntu Desktop, Debian10, Buildroot, RT Linux

Supports Android, Linux

Temp

0°C - 60°C (Optional -40°C - 85°C)

0°C - 60°C

Size

45.0x45.0mm

45.0×45.0mm

For more information contact: sales@easby.com

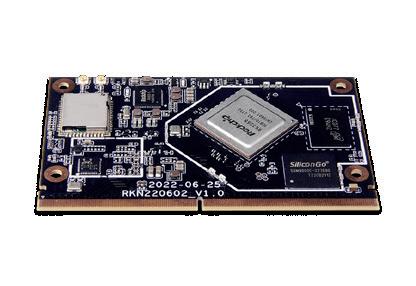

System On Modules - SMARC Geniatech’s SMARC 2.1 modules are compliant with the Smart Mobility ARChitecture (SMARC) standard by SGET, perfect for small form-factor embedded systems that require low power, low costs, and high performance.

Geniatech also offers custom services to help customers meet unique project requirements.

Compliant with SMARC2.1 industry standards, Powerful compatibility and scalability Full range of one-stop customized services, Rapidly achieve mass production of projects Long life cycle, no less than 10 years of delivery

SOM-3568-SMARC

SOM-3399-SMARC

SoC

RockChip RK3568

RockChip RK3399

CPU

Quad-core Cortex-A55

Dual-core Cortex-A72+Quad-core Cortex-A53

RAM

2GB/4GB/8GB LPDDR4

2GB LPDDR4 (4GB Optional)

Storage

32GB/64GB/128GB eMMC

16GB eMMC (32GB/64GB Optional)

Network

Supports Dual GB Ethernet, Wi-Fi 802.1 a/b/g/n/ac, 5G/4G LTE, Bluetooth 5.0

Supports Dual GB Ethernet

OS

Supports Android 10.0, Ubuntu Desktop, Debian11, Buildroot, RT Linux

Supports Android & Linux

Temp

0°C - 60°C (Optional -40°C - 85°C)

0°C - 60°C (Optional -20°C - 85°C)

Size

82.0×50.0mm

82.0×80.0mm

For more information contact: sales@easby.com

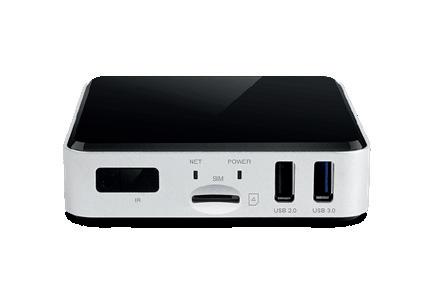

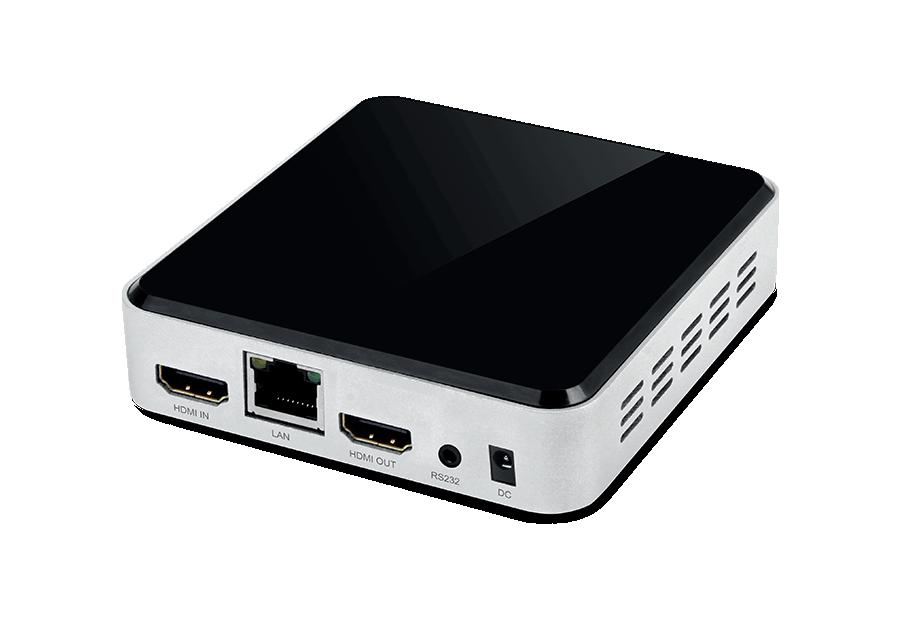

ARM PCs Geniatech offers a diverse selection of fanless mini PC boxes designed for industrial use, equipped with the latest Arm-based CPUs and embedded systems, ensuring high performance and reliability. With small form factors, low power consumption, and rich expansion slots, they are an ideal choice for space-constrained applications.

Compliant with OSM industry standards, Powerful compatibility and scalability Full range of one-stop customized services, Rapidly achieve mass production of projects Long life cycle, no less than 10 years of delivery

APC3588

APC820

SoC

RockChip RK3588

RockChip RK3566

CPU

Quad-core Cortex-A76 + Quad-core Cortex-A55

Quad-core Cortex-A55

RAM

4GB LPDDR4 (8GB~32GB Optional)

2GB/4GB/8GB LPDDR4

Storage

32GB eMMC (8GB~128GB Optional)

8GB/16GB/32GB/64GB eMMC

HDMI in x1, HDMI out x2, DP x1, USB3.0 x1, USB2.0 x5, M.2 x1, Mini PCIe x1, SATA x1, RS232/TTL x2, RS-485 x1, CAN x1, GPIO x4, DC Out x1, TF Card x1, SIM x1, LED x4, build-in GTIoT

HDMI in x1, HDMI out x1, USB3.0 x1, USB2.0 x1, Mini PCIe x1, GPIO, RS-232 x1, IR Blaster x1, build-in GTIoT(Support Z-WAVE / Zigbee / LoRa / LTE / GPS / WiFi / BT5.0)

Network

Supports GB Ethernet, Wi-Fi6 Dual Band 2.4G&5G, 2G/3G/4G LTE, Bluetooth 5.0

Supports GB Ethernet, Wi-Fi 802.1 a/b/g/n/ac, 4G LTE, Bluetooth

OS

Supports Android12, Ubuntu, Debian11, Buildroot, RTLinux

Support Android 11.0 (Linux Debian Optional)

Temp

0°C - 80°C

0°C - 60°C

Size

207×105×41mm (Wire not included)

106×100×25mm (Wire not included)

I/O

For more information contact: sales@easby.com

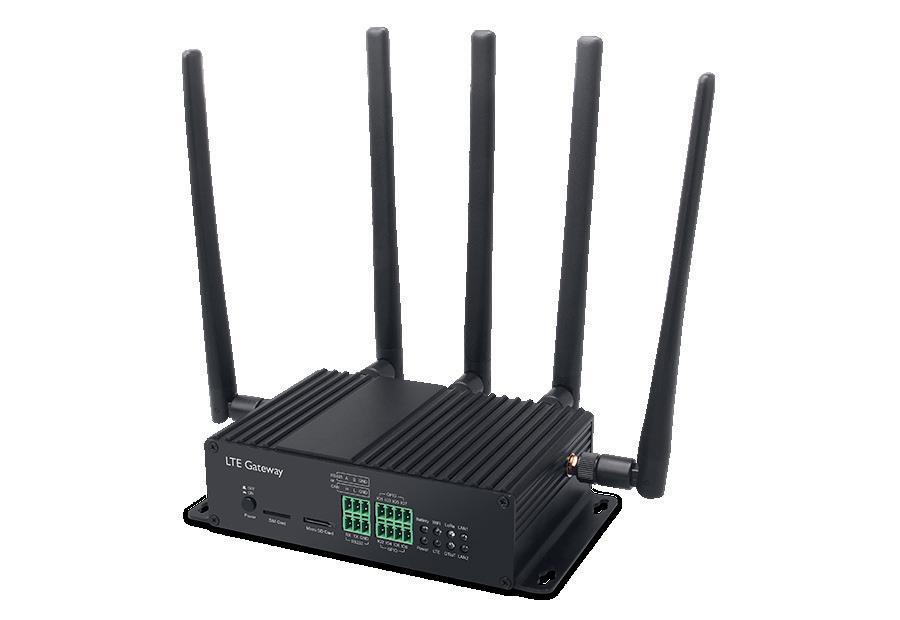

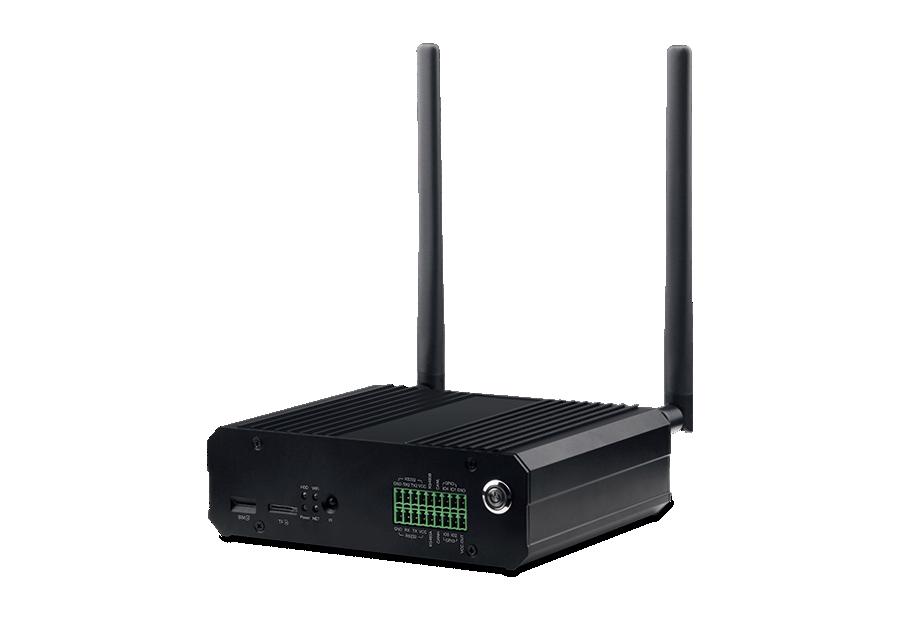

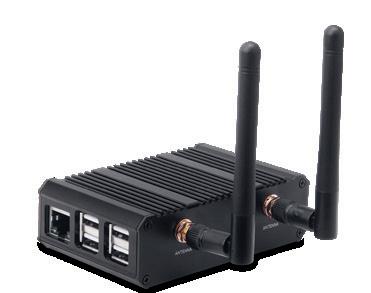

IoT Gateways Industrial grade casing with excellent stability and heat dissipation

Geniatech portfolio of industrial IoT gateways offers highly customisable and cost-effective connectivity solutions for IoT devices.

Geniatech gateways platform interfaces with Zigbee, BLE, WM-Bus, Z-WAVE, LoRa, Wi-Fi, 4G/3G/2G cellular networks and other communication protocols.

Open SDK & APIs, allow customers to develop their gateway applications or integrate cloud platforms Long life cycle, no less than 10 years of delivery

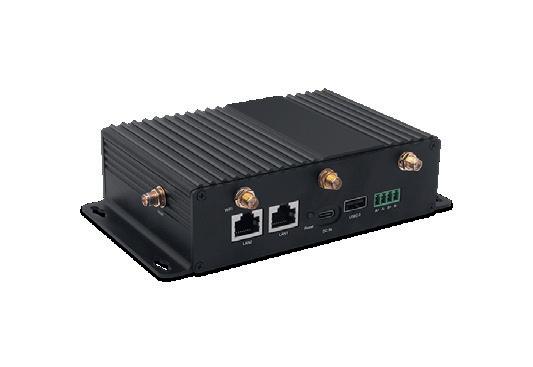

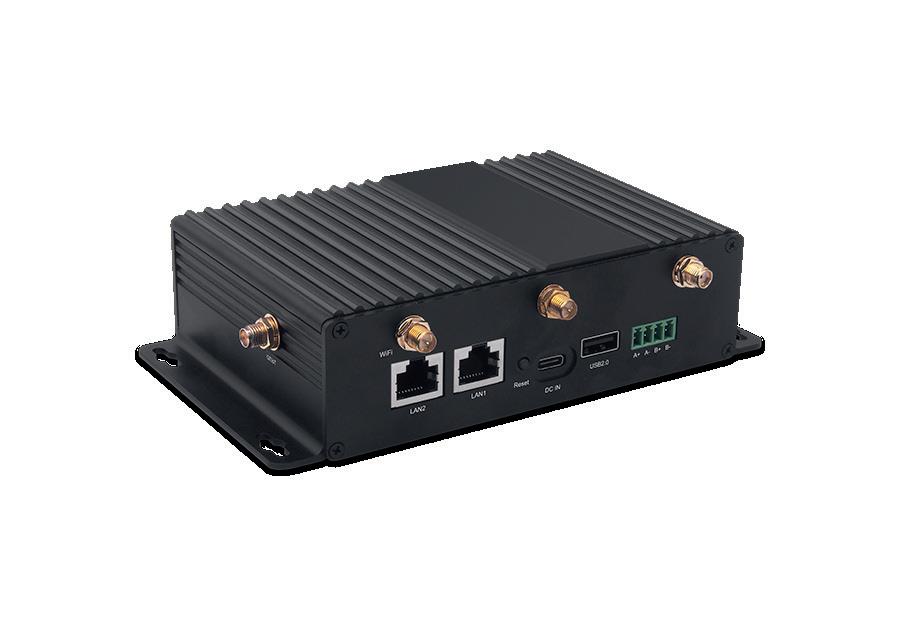

GTW361 SoC

NXP i.MX6ULL

CPU

ARM Cortex-A7 792MHz~900MHz

RAM/ROM

"512MB(256MB/1GB optional) DDR3 8GB(4GB optional) EMMC"

Protocol

Supports LoRa, ZigBee3.0, BLE5.0, Z-Wave, wM-Bus

I/O

USB2.0 x1, RS232 x1, RS485/CAN x1, GPIO x8, Relay x2, GTIoT, SD Card x1, SIM Card x1, Debug/Reset button

Network

Supports Dual 10/100M Ethernet, Wi-Fi 802.1 a/b/g/n, 4G LTE (Optional)

OS

Support Linux Yocto

Temp

Commercial: 0°C - 80°C, Industrial: -40°C - 85°C

Size

168×95.7×41.2mm (Wire not included)

suttle

425g

sales@easby.com www.easby.com +44 (0) 1748 850 555
