Easby Electronics Quarterly NPI - October 2023

Quarterly NPI Update

Keep track of product launches & updates Click to skip to featured content

New product: 7” RFB4700C Display from Raystar

Single-Board Computers from Geniatech

MORNSUN launch LIHF Series of Power Supplies

New Connectors from Connfly & Degson

Holtek Sensors & Microcontrollers

Driving ideas with innovative solutions

Easby Electronics - Displays

For more information contact: sales@easby.com

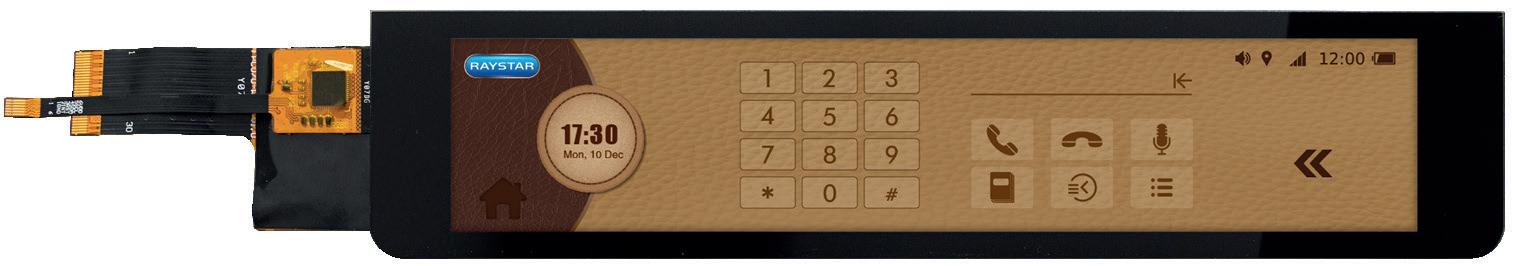

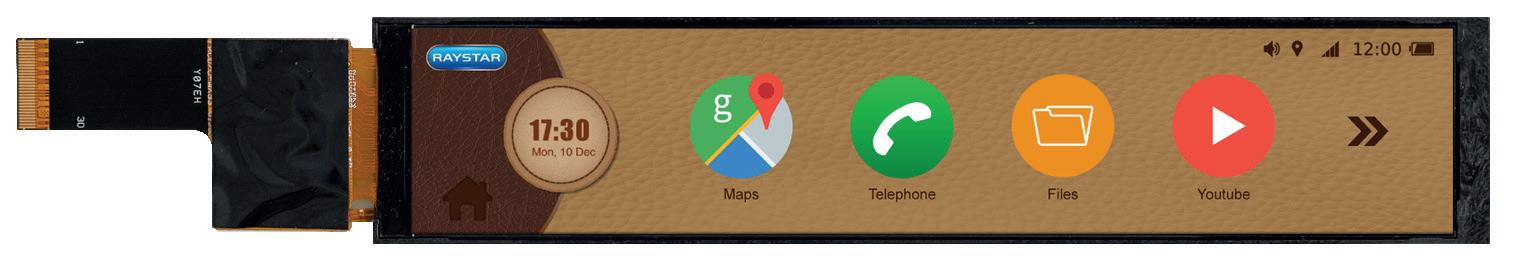

RFB4700C Display

7” 280x1424 MIPI DSI Bar TFT LCD Display

RFB4700C3-AYW-MNN

RFB4700C3-AYW-MNC1

New from Raystar, the 7” 1424x280 pixel count RFB4700C display.

KEY FEATURES

With overall dimensions of 186.62mm x 28.2mm and an active area of 33.60mm x 1780.88mm, this device has a 1:5 aspect ratio. Designed for, but not limited to Medical, Security and Industrial applications.

• 80/80/80/80 Viewing Angles

• 7” Letter Box Style Format • 1424 x 280 Pixels • 1:5 Aspect Ratio • 4-Lane MIPI Interface • Capacitive Touch Available • Driver IC OTA7290B (or equivalent)

If you would like more information about display module offering contact our sales team who will assist with your requirements.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - IoT

For more information contact: sales@easby.com

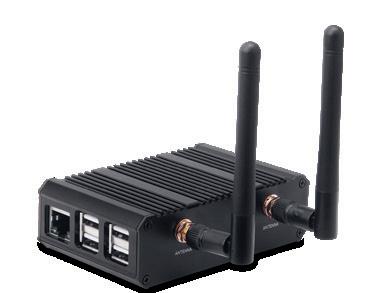

Geniatech

Industrial IoT and Embedded Solutions

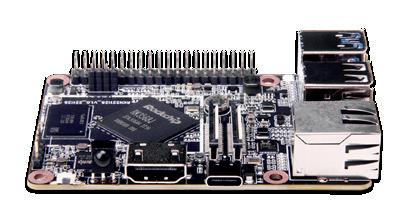

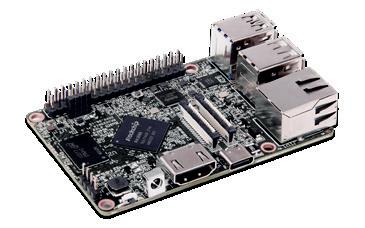

Single Board Computers

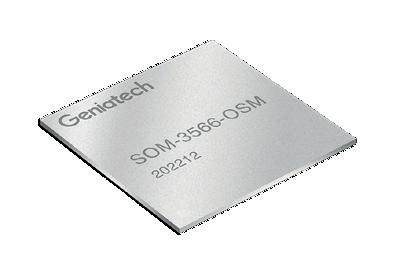

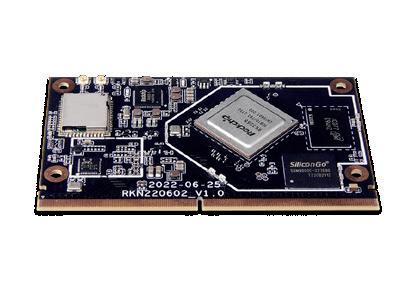

System On Modules - OSM

System On Modules - SMARC

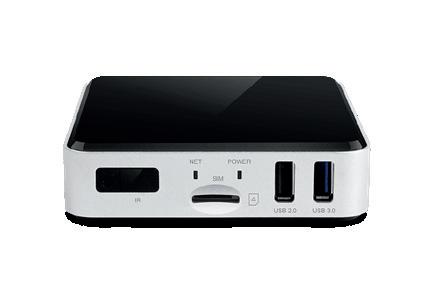

ARM PCs

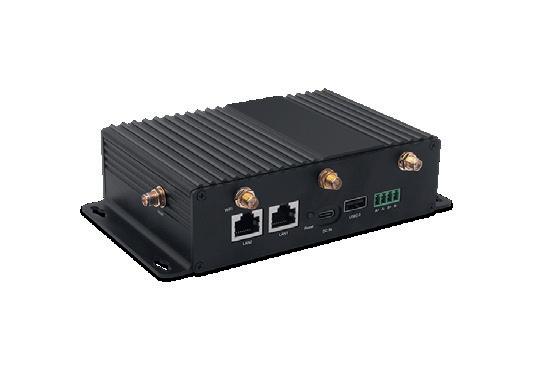

IoT Gateways

Industrial Solutions

Easby now offer Geniatech’s range Industrial IoT and Embedded Solutions Our partnership with Geniatech strengthens an already strong IoT and embedded solutions product offering, allowing us to offer a full range of high performance Single-board Computers (SBC), System on Modules (SoMs), Embedded PCs & Connectivity Gateways.

The Geniatech range gives our customers a powerful, reliable, and user-friendly alternative to what is already available in the market - at a competitive price point.

KEY FEATURES • Compatable with a several operating systems including Raspbian OS Emulator, Android 11.0, Debian 10, Buildroot & more • 7+ years life cycle • Available in different form factors • World leading IoT & embedded solution partners • UK based technical support • UK based stock & distribution facility

To learn more about Geniatech’s range of IoT solutions contact our sales team who will assist with your requirements.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Semiconductors

For more information contact: sales@easby.com

Topdiode - New Releases

General purpose audio power amplifiers

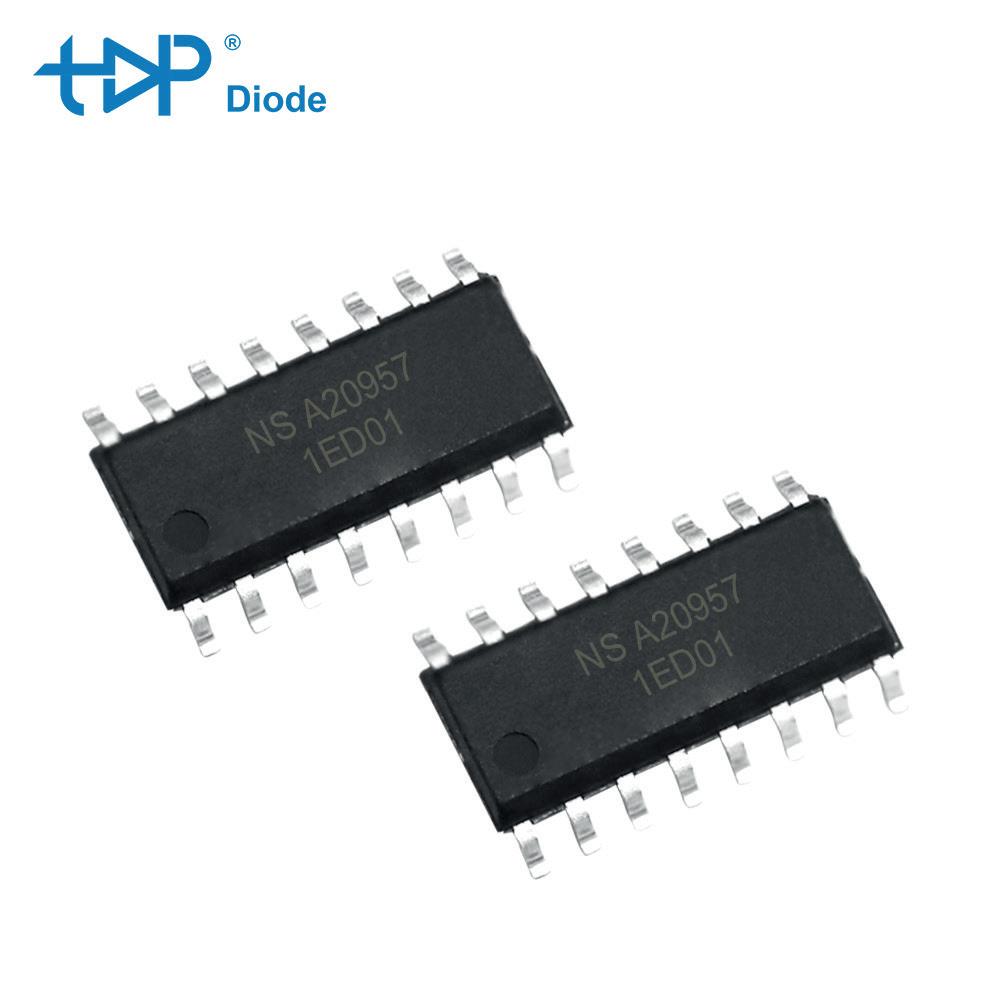

TNSA20957

The TNSA20957 is a high voltage, high speed MOSFET driver with a floating PWM input designed for Class D audio amplifier applications. This device is ideal for home theatre systems, powered speaker systems and general purpose audio power amps.

KEY FEATURES • Floating PWM input • High Noise Immunity >50V/ns • Operates up to 800KHz • Wide Temperature Range -40C to +125C • Up to 500W output power

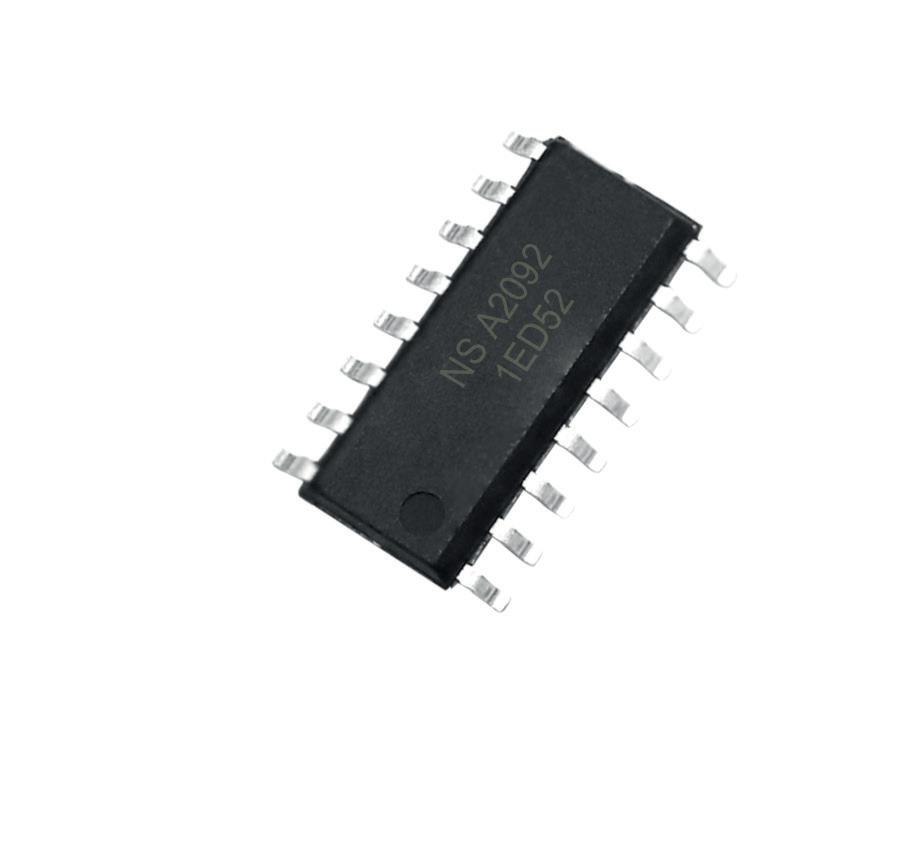

TNSA2092

The TNSA2092 is a high voltage, high performance Class D audio amplifier driver with PWM modulator and protection. Whilst designed for Class D audio amplifier systems that require large output power, this device is also ideal for motor control, air conditioning and general purpose Inverter applications.

KEY FEATURES • Error Amplifier Open Loop gain >60dB • High Noise Immunity >50V/ns • Operates up to 800KHz • Wide Temperature Range -40C to +125C • Up to 500W output power

If you would like more information about Topdiode’s range of Discrete Semiconductors contact our sales team who will assist with your requirements.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Semiconductors

For more information contact: sales@easby.com

Taiwan Semiconductor Schottky Barrier Rectifier

Single and Common cathode configuration available

Taiwan Semiconductor has expanded its portfolio of Schottky Barrier Rectifiers with 34 new parts in ThinDPAK, offering breakdown voltages from 45V to 200V and current handling capacities from 5A to 20A. Single and common cathode versions are available, making them ideal for a variety of applications.

KEY FEATURES

APPLICATIONS

• Moisture sensitivity level: level 1, per J-STD-020

• Low voltage, high frequency, inverter • DC/DC converter • Freewheeling diodes

• AEC-Q101 qualified • Low power loss, high efficiency • Ideal for automated placement • High surge current capability

• RoHS Compliant • Halogen-free

• Reverse battery protection • Car lighting

For more information about Taiwan Semiconductor’s range of products contact our sales team who will assist with your requirements.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Relays

For more information contact: sales@easby.com

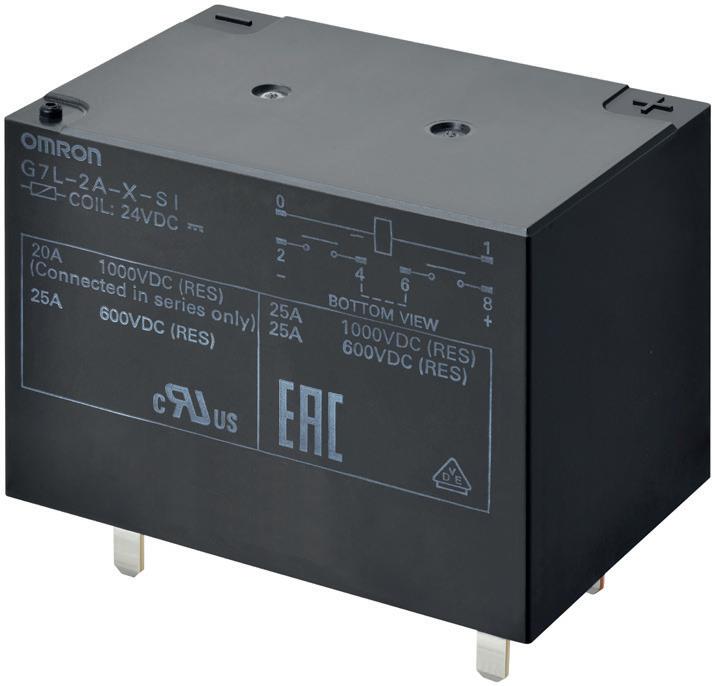

OMRON - G7L-X Compact Power Relay

New from OMRON G7L-X Compact Power Relay Omron are pleased to announce the introduction of the G7L-X series of compact power relays, capable of switching loads of up to 1000VDC. This device is ideal for PV Power systems, Energy Storage Systems and Inverters

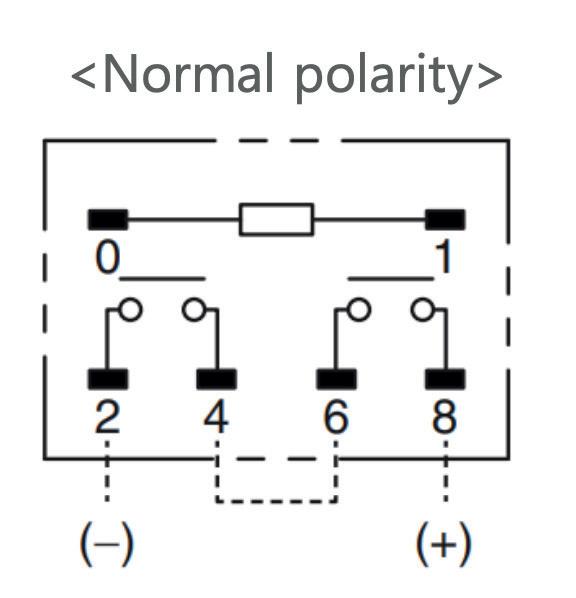

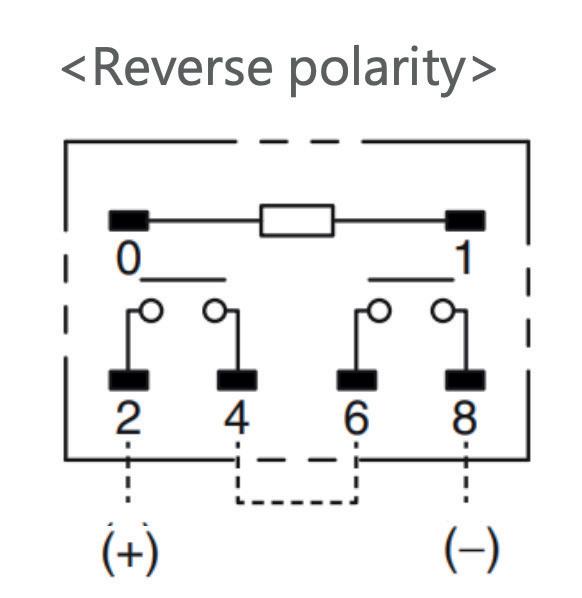

KEY FEATURES • DC high capacity switching for both normal and reverse polarity • Two poles wired in series to break or switch 600 to 1,000 VDC • Low power consumption of approx. 600 mW at 50% reduced coil voltage • Conform to UL and EN standards • Designed for safety with a 6.0-mm contact gap (two-pole series wiring)

To learn more about the OMRON’s G&L-x Compact Power Relay contact our sales team who will assist with your enquiry.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Relays

For more information contact: sales@easby.com

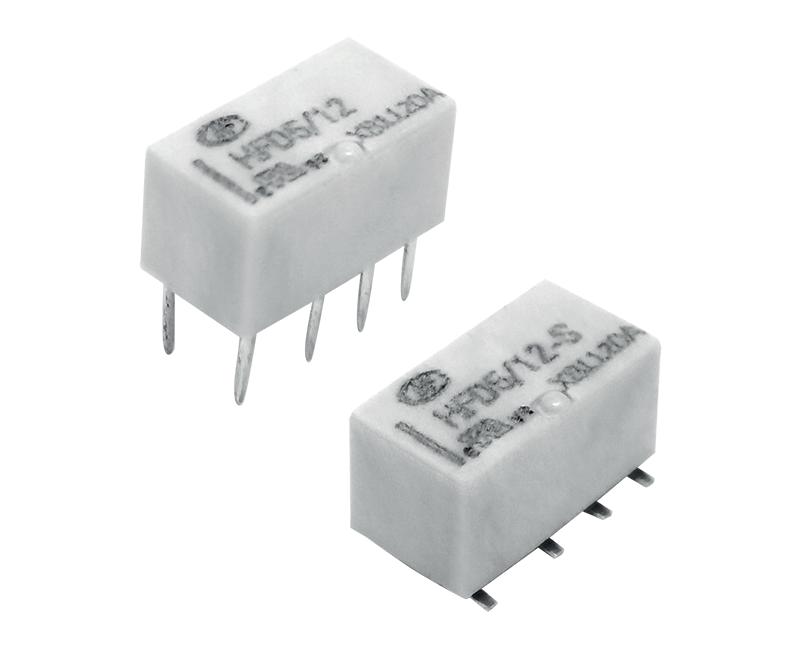

HONGFA - HFD5

5th Generation Signal Relay

HFD5/12

HONGFA release the world’s first 5th Generation Signal Relay.

Available in DIP or SMT packages, this device with overall dimensions of 9.0(L) x 3.8(W) x 3.9(H)mm is tiny, and perfect for innovative applications in the fields of medical technology, testing, measurement, and inspection equipment.

Compared to the 4th Generation, the HFD5 has a footprint reduction of 34%, and a total weight of ≤ 0.5g reduced by 37%.

HFD5/12-S

KEY FEATURES • Low coil power of 50 mW • Bifurcated contacts for high contact reliability • High mechanical endurance: >100 million ops; >200 million ops version available • Smaller moving parts generate less operation noise • Monostable and latching coil system • THT and SMT versions

If you would like more detail about the 5th Generation Signal Relay from HONGFA contact our sales team who will assist with your enquiry.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Power Supplies

For more information contact: sales@easby.com

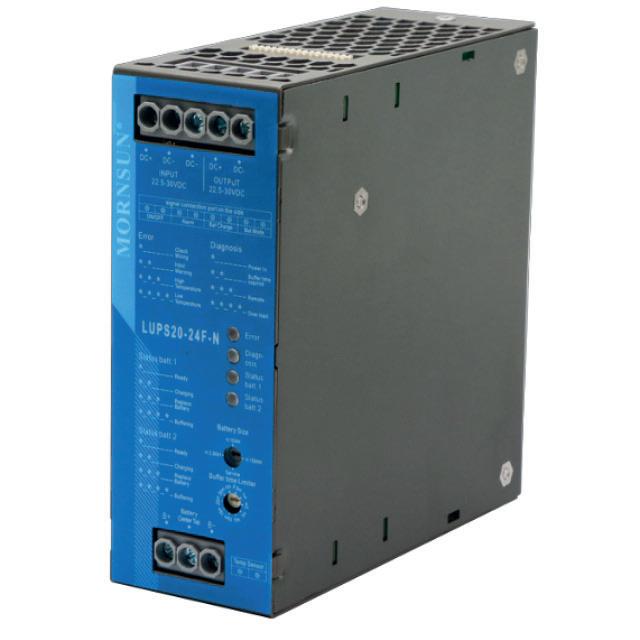

LUPS20-24F-N - 480W DC-UPS Uninterruptible Power Supply

LUPS20-24F-N

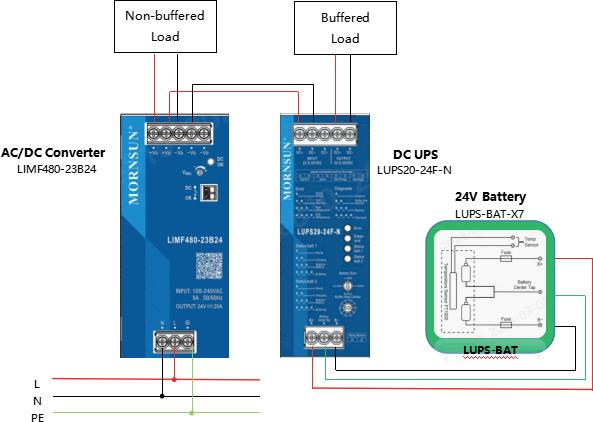

Introducing the DC-UPS module from MORNSUN. LUPS20-24F-N is used to provide uninterrupted power to back-end loads, equipped with an external battery and installed between the output end of the guide power supply and the load.

It can be used with 480W DIN rail power supply and is widely used in high-end fields of security, military-industrial, aerospace, nuclear power, wind power, petrochemical, precision manufacturing, and more!

KEY FEATURES • Universal 22.5 - 30VDC Input voltage • High efficiency up to 98% • Operating ambient temperature range: -40°C to+75°C,60 °C @ 100% load without derating • 1KVAC insulation voltage between input/ output-case • IEC/UL/EN62368, UL508, GB4943 approved

If you would like more technical information about MORNSUN’S DIN rail power supplies contact our sales team who will assist with your enquiry.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Power Supplies

For more information contact: sales@easby.com

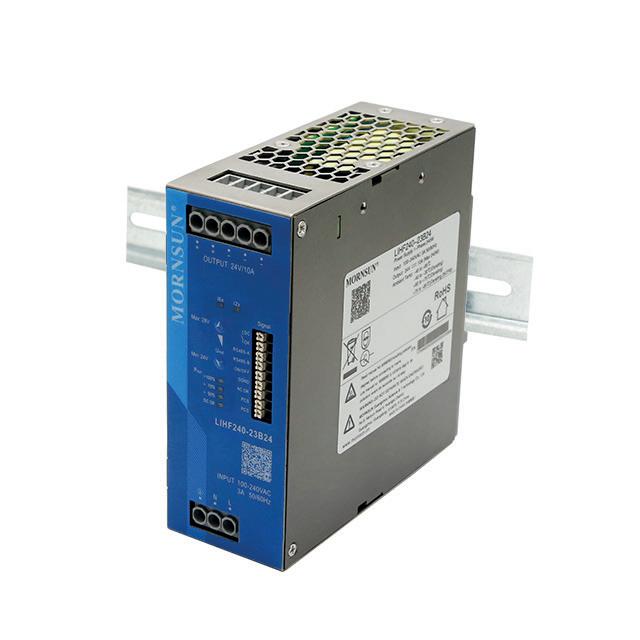

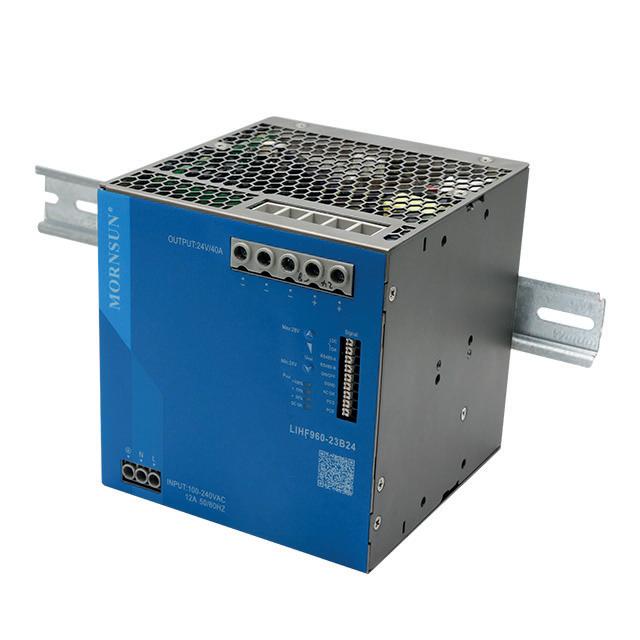

LIHF Series - 240/480/960W The Enhanced Version of LIMF

LIHF240-23Bxx

LIHF960-23Bxx

High-reliability AC/DC DIN rail Power Supplies Based on the AC/DC DIN rail power supplies high-reliability series LIMF series, MORNSUN launched the Enhanced Version with advanced function- LIHF series (LIHF240/480 -23Bxx).

These products are ideal for high-end applications, such as aerospace, nuclear power, marine equipment, metallurgy, wind power, railway, and other precision manufacturing fields.

LIHF960-23Bxx

KEY FEATURES • Universal 85 - 277VAC or 120 - 390VDC Input voltage, 305VAC/2H • Efficiency up to 95% • 150-200% peak load for 5s (240W-200%, 480W/960W-150%) • Operating temperature range: -40°C to +85°C, full load at 60°C • Easy fuse tripping - 6 times rated current for 15ms • 5 years warranty

If you would like more technical information about MORNSUN’S DIN rail power supplies contact our sales team who will assist with your enquiry.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Switches & Terminal Blocks

For more information contact: sales@easby.com

Switches & Terminal Blocks New releases from Omron & Degson

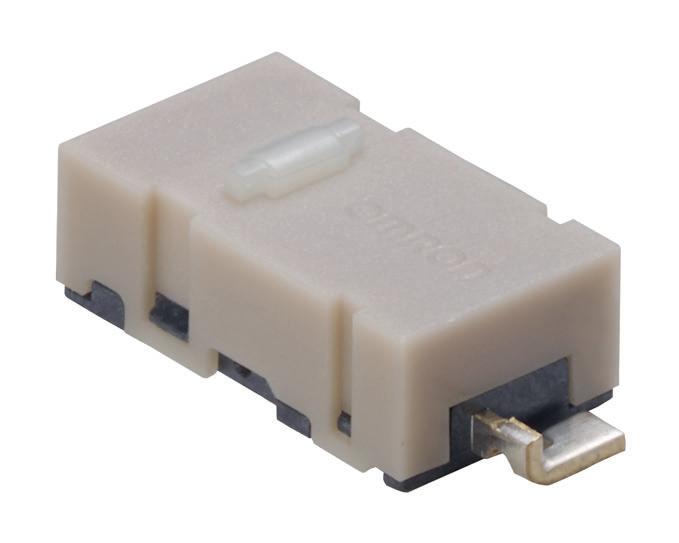

Omron expand the D2LS Ultra Subminature SMD switch range up to 10M and 20M operations retaining the same case size and Newton force.

KEY FEATURES • High operating force type achieving long durability

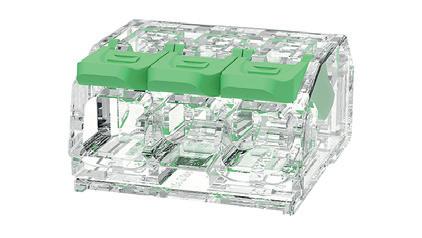

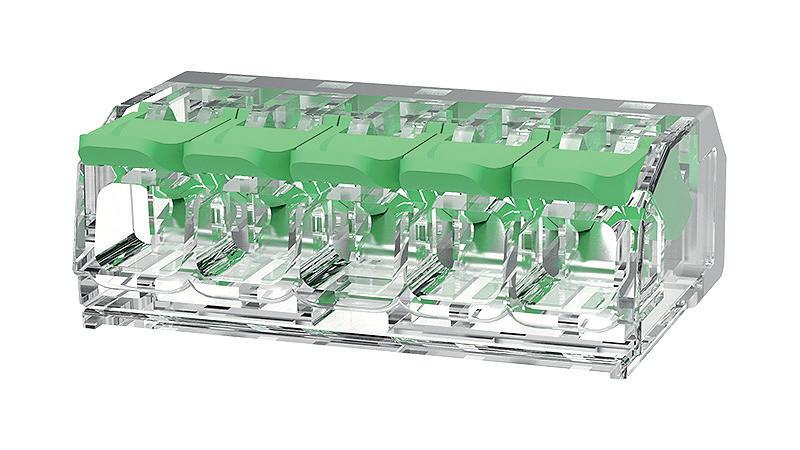

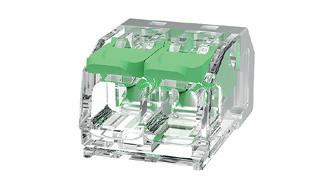

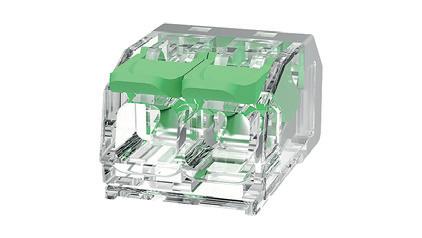

Degson DGBSC-SG01/4 Splicing Connectors Optimise efficiency by simplifying your operation and moving away from timely traditional wiring methods.

KEY FEATURES

• 0.6 & 1.2 N - 10,000,000 operations

• Easy-To-Use connect tool-free.

• 0.6 N - 20,000,000 operations

• Transparent housing easily check connection status.

• Clear click feeling • Embossed taping package for automatic mounting

• Suitable for all conductors types: Solid, Stranded and Flexible • Wire range: 0.2-4mm² / AWG 24-12

For more information about our offering of Switches and Terminal Blocks contact our sales team who will assist with your enquiry.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Connectors

For more information contact: sales@easby.com

Connectors

New releases from Connfly & TE

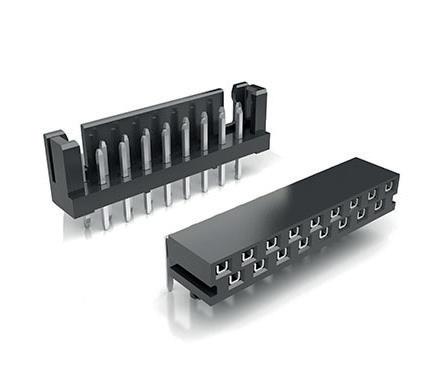

Connfly DS1013-02 Series New from Connfly the DS1013-02 series 1.25mm pitch board to board PCB box and header.

Vertical male to right angle female, from 5 to 33 contacts at 1A current rating.

Ideal when PCB real-estate is at a premium.

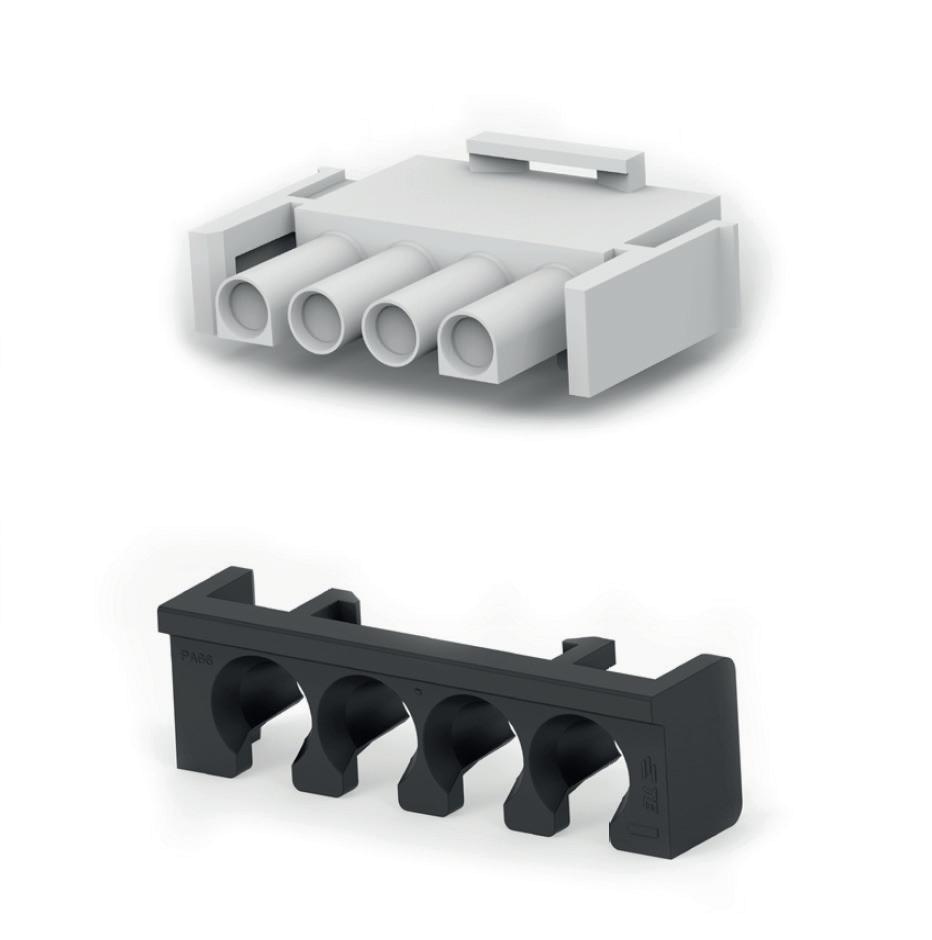

Universal MATE-N-LOK plug and receptacle housings from TE Connectivity can now be secured with terminal position assurance (TPA) devices.

KEY FEATURES • Positive locking latch secures connection between plug and cap housing • Available pin & socket style contacts • TPA and housings available in materials meeting UL 94 V-0 flammability standards • 2 to 5 position single row housings options

For more information about our offering of Electromechanical products please contact our sales team who will assist with your requirements.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Microcontrollers

For more information contact: sales@easby.com

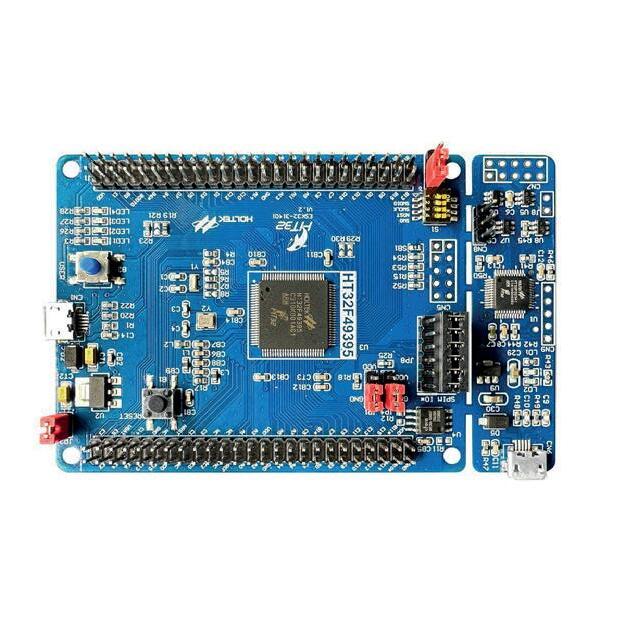

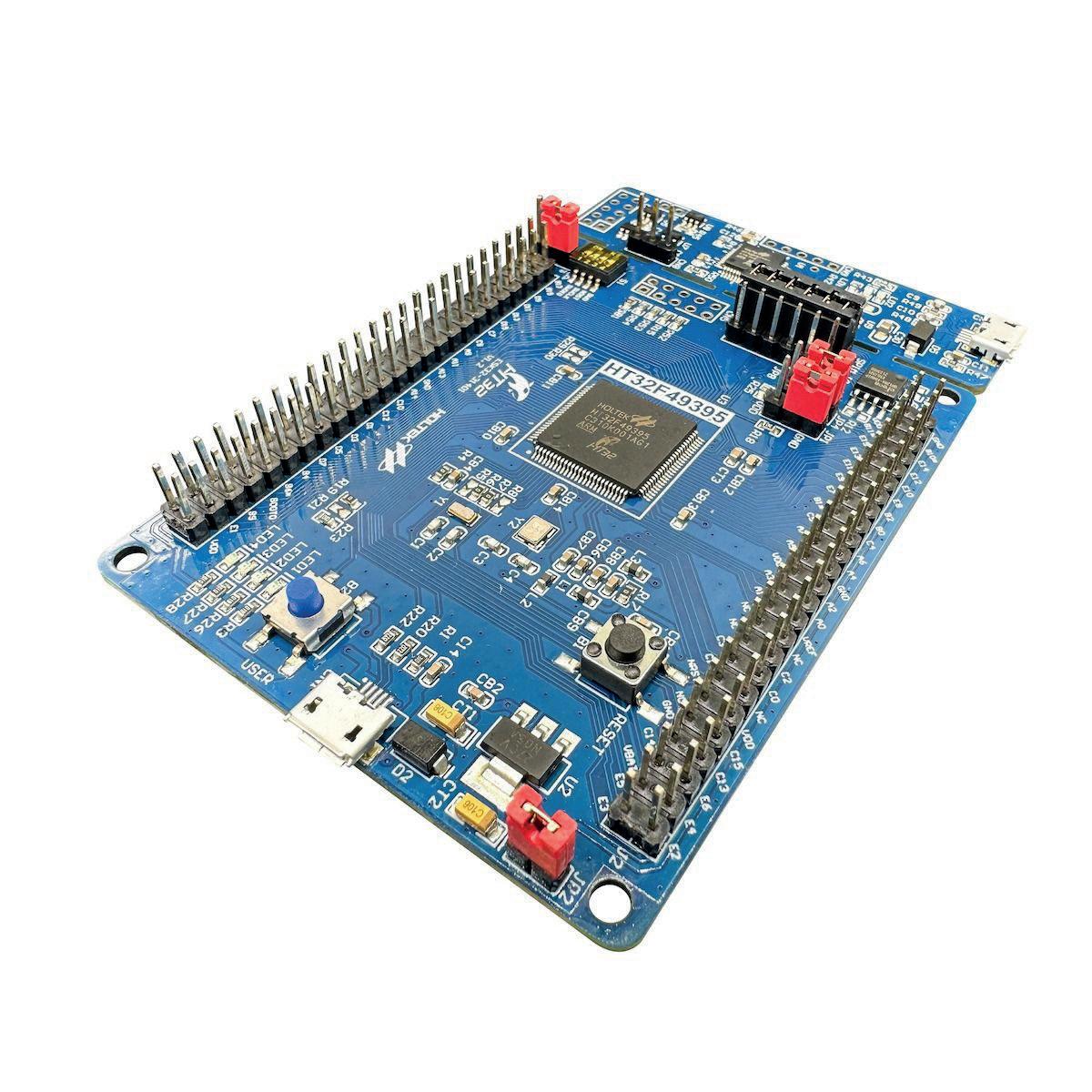

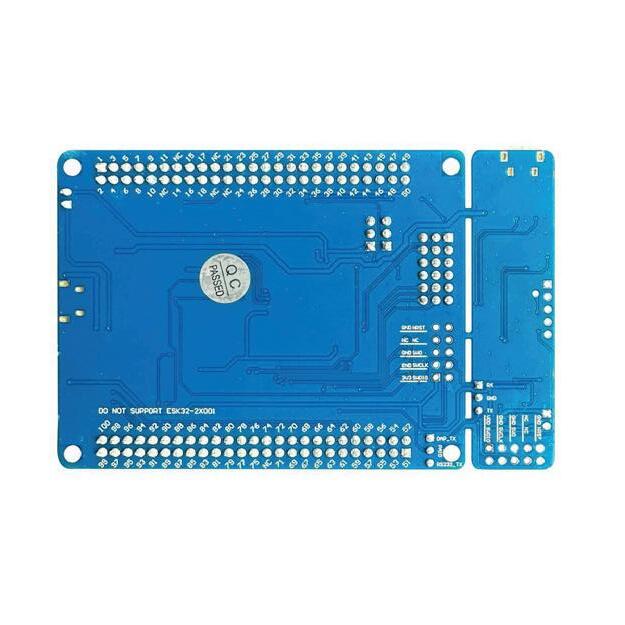

Holtek - HT32F49395

High-Performance Microcontroller

HT32F49395

New from Holtek HT32F49395 Microcontroller High-Performance Arm® Cortex®-M4F 32-bit Microcontroller offering single-precision Floating Point Unit (FPU) that supports all Arm® single-precision data processing instructions and data types, advanced Industrial interfaces and Automotive temperature operating range. Extensive embedded memory makes this Microcontroller suitable for demanding Industrial, IOT, and Medical applications.

KEY FEATURES • 240MHz Core with Floating Point Unit and DSP instructions • -40°C~105°C operating range • 2.6 V ~ 3.6 V operating range • Up to 1MB Flash and 224KB SRAM embedded memory • USB2.0 full-speed and 2 CAN Interfaces • 16-bit motor control, and 16/32-bit general-purpose timers • QFN48, LQFP48, LQFP64, LQFP100 packages

If you would like more detail about the Holtek HT32F49395 Microcontroller contact our sales team who will assist with your enquiry.

sales@easby.com +44 (0) 1748 850 555

Easby Electronics - Sensors

For more information contact: sales@easby.com

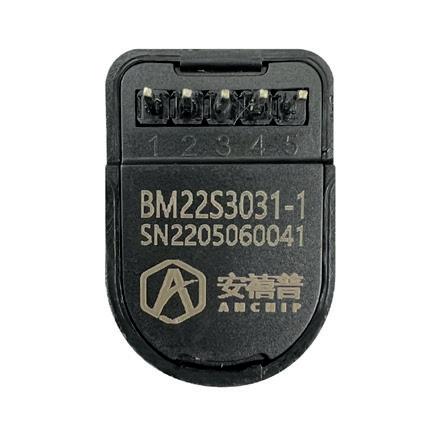

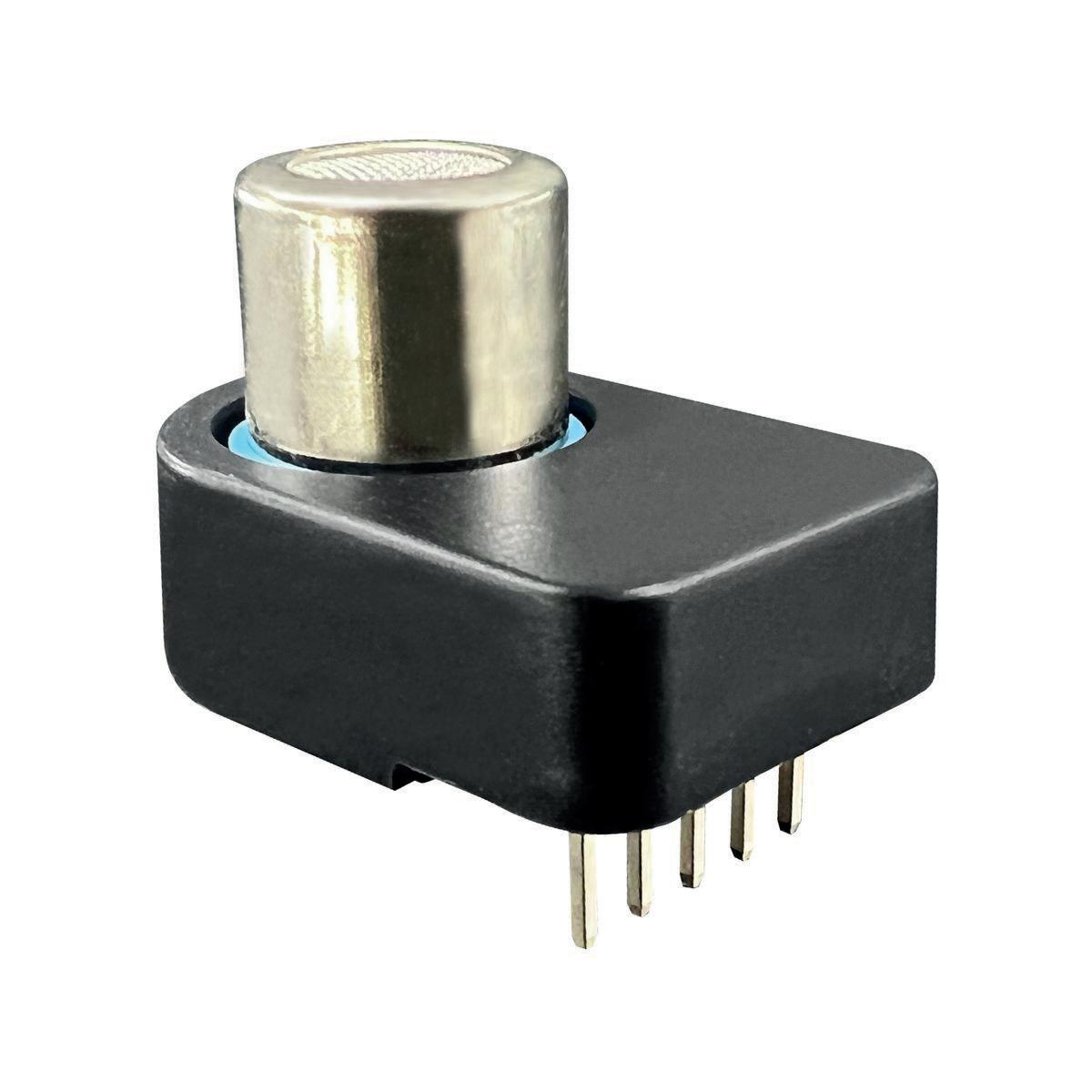

Holtek - BM22S3031-1

Catalytic Combustible Gas Detector Digital Sensor

Holtek expand range of Gas, Carbon Monoxide & Smoke detectors

KEY FEATURES

Mainly used to detect methane, when the gas concentration exceeds the default calibration concentration, the voltage output of the alarm pin changes from low level to high level, making it easy to detect gas by supplying power to this sensor and monitoring the alarm output pin.

• UART interface, 9600 baud rate

Each unit has been calibrated at the factory to maintain consistent characteristics. The calibrated alarm threshold is 9% LEL (Lower Explosion Limit), which is about 4500ppm

• Operating Voltage: 2.5V • Operating current: < 160mA • Gas concentration range: 500ppm~10000ppm • Alarm threshold (factory calibration): 4500ppm (9%LEL) (configurable) • Full range linear deviation: < 3% LEL

If you would like more detail about Holtek’s range of Sensors contact our sales team who will assist with your requirements.

sales@easby.com +44 (0) 1748 850 555
