Air Bellows Series
Max. static pressure 10 bar, working pressure 8 bar, 5.5 to 6 bar recommended for dynamic applications
NOTICE ALL DOCUMENTATIONS !
Before beginning work this operating instruction booklet has to be read through carefully. Always follow the instructions during operation. Give this operating instruction booklet to the operator.
Disconnect air and electrical supplies before attempting repair or maintenance.
See ISO 4414-1982 for safety requirements covering the installation and use of pneumatic equipment.
Débrancher les connexions pneumatiques et électriques avant réparation ou maintenance.
Voir ISO 4414-1982 pour les règles de sécurité des installations et utillisation des équipements pneumatiques.
Vor Reparatur- oder Wartungsarbeiten sind alle pneumatischen und elektrischen Versorgungsleitungen von der Pneumatikkomponente zu trennen.
Siehe ISO 4414-1982 bzw. DIN 24 558 bezüglich den Sicherheitsvorschriften für Installation und Einsatz von Pneumatikkomponenten.
Recommendations
Prima die effettuare interventi di manutenzione verificare che sia l’alimentazione elettrica che quella pneumatica siano disattivate. Attenesrsi alla nomativa ISO 4414-1982 che regola l’installazione e l’uso die componenti pneumatici.
Desconectar las conexiones neumáticas y elécricas antes de efectuar cualquier reparación o mantenimiento.
Ver ISO 4414-1982 para reglas de seguridad de las instálaciones y utilización de equipos neumaticós.
• It is not possible to combine angular misalignment with axial misalignment
• It is imperative that external mechanical stops are used to limit the stroke
• The units should not achieve maximum stroke or be allowed to ”bottom out”
• Air bellows may not be stacked, use singly only
• The thrust of the air bellows depends on the height of the bellow
• When height increases the thrust decreases because of the change in the effective area
• DO NOT INFLATE the air bellow until it is not fixed on the machines with end stops. And so DEFLATE fully the air bellows before removing from the machine
• Take care to put enough clearance around the air bellow because of the change in the section under pressure.
• Use the full surface of the end plates to bear the forces.
• Use guidance to avoid any angular or axial misalignements
4601503-Air Bellows Issue 1
www.parker.com Ref No. Insert item part number prior to installation
Air Bellows Temperature Ranges
Air Bellows Resistances
NRCR ECO
Abrasion yes on request
Anti freeze agents (ethylene glycol, glycerin) yesyesyes
Fuels on request yes
Mineral or vegetable oils on request yes
Silicone oil yes-25yes
Weak alkalis, soap solution yesyesyes
High concentration of ozone on request-20yes
Inorganic acids < 10 % and organic acidsyes yes
Saline solutions, aqueous yes on request
Water yes on request
Stroke, end stops
It is imperative that external mechanical end stops are used to limit the stroke. The air bellow should not achieve maximum or minimum heights or be allowed to ”bottom out”. Air bellows may not be stacked, use singly only.
Dismantling the bellow from the end plates
Working medium, air quality
• Suitable for operation with compresses air or other gaseous media such as nitrogen.
• Also suitable for use with oil-free compressed air for the foodstuffs industry and in painting plants.
• Reliable even in low-pressure range with hydraulic media such as water or glycol.
Mountings on end plates by threaded holes on the end plates, clamping torques for the screws
M5 int. 5 Nm
M6 int. 7 to 11 Nm
M8 int. 12 Nm
M10 ext. 20 to 28 Nm
M10 int. 25 Nm
M12 int. 20 Nm
For air bellows permissible misalignments when air bellows are used as actuators, for vibrationisolation (damping) data when air bellows are used as isolators and for air bellows dimensions and mounting restrictions, please refer to the data inside the technical catalogue PDE2576TC.
Maintenance
Free maintenance because no friction due to no part on movement. But removable air bellows can be completed dismantled and parts can be changed in case of damage.

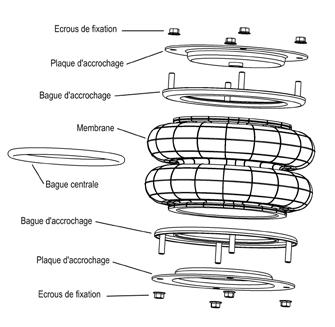

Reassembling the air bellow
Note:
The use of protective gloves is strongly recommended.
• Unscrew the nuts from the end plates or the screws if the end plates are made in aluminum and remove the plates from the clamping plates.
• Remove the clamping plates from the bellow by compressing inwards the bellow to remove the heel from the top or from the bottom face of the bellow.
• Due same for removing the central ring for the 2 or 3 convoluted versions.
Note: putting a sliding agent from a tyre manufacturer on the bellow helps the re assembly of the bellow.
• Put on the bellow the central ring for the 2 or 3 convoluted versions.
• Put on the clamping plates by taking care of the right vertical alignment of the grooves of the bellow and the position of the heel.
• Put on the end plates and screws on the nuts or the screws following the order.
1 – 2 – 3 – 4: for the approach tightening 5 – 6 – 7 – 8: for the final torque tightening
Manually press the air below up and down to ensure proper operation before re assembly on the machine and re pressurization.
2 www.parker.com/euro_pneumatic Static Dynamic -50-40-35-30-25-200+70+90+100+115+120 min (°C)max (°C)min (°C)max (°C) Standard NR-50+90 -40+70
CR-35+100 -25+90
ECO-30+120 -20+115
Chlorobutyl
Epichlore
For Order Code
3 www.parker.com/euro_pneumatic
ø (mm) (Inch size) TypeNb. conv. Standard bellow Hig temp bellow Standard rubber membrane High temp rubber membrane Qty * Plate without air port Qty * Plate with air port Qty * Clamping support Qty * Central ring ø 70 (2.3/4”) 2.3/4 x 1191090259109525 91091449109302 191090651910918129109193 2.3/4 x 2291090099109509 9109152 9109303 1 9109209 2.3/4 x 3391090109109510 91090909109304 2 ø 110 (4.1/2”) 4.1/2 x 1191094009109500 91091459109288 191091881910918729109186 4.1/2 x 2291094019109502 91091899109289 2 9109184 4.1/2 x 3391094029109503 91091479109287 3 ø 150 (6”) Alu 6 x 119109004A9109204A 91091919109391 19109070A1 9109075A 2 9109080A 6 x 229109001A9109201A 91090919109291 1 9109098A 6 x 339109007A9109207A 91091499109286 2 ø 150 (6”) Stee 8 x 1191090049109204 91091919109391 191090701910907529109080 8 x 2291090019109201 91090919109291 1 9109098 8 x 3 391090079109207 91091499109286 2 ø 200 (8”) 8 x 1191090149109214 91091929109392 19109071191090769109086 8 x 2291090119109211 91090929109292 2 1 9109099 8 x 3391090179109217 91091519109300 2 ø 250 (10”) 10 x 1191090249109224 91091469109393 1910907219109077 10 x 2291090219109221 91090939109293 29109087 1 9109100 10 x 3391090319109231 91090949109294 2 ø 300 (12”) 12 x 1191090449109244 91091959109395 191090731910907812 x 2291090419109241 91090959109295 29109088 1 9109101 12 x 3391090519109251 91090969109296 2 ø 370 (14.1/2”) 14.1/2 x 1191090649109264 91091979109397 9109074910917814.1/2 x 2291090619109261 91090979109297 29109089 1 9109170 14.1/2 x 3391090699109269 91091489109301 2 ø 410 (16”) 16 x 1191090269109226 91091429109284 191090741910917816 x 2291091719109271 91091999109298 29109089 1 9109170 16 x 33 *91091779109277 91092009109299 2 ø 550 (21.1/2”) 21.1/2 x 22 9109156 9109250 910919091092901 910906891090672 91091831 9109185 21.1/2 x 22 ** 9109253 / /- /ø 660 (26”) 26 x 22 9109159/ /1 910915591091572 91091831 9109185 26 x 22 ** 9109198 / /- /Nuts are not considered as spare parts * bag quantity is 1 piece ** Air bellows less plates Note: For stainless steel spare parts, please consult factory Nuts (see note) Nuts (see note) Nuts (see note) Plate with inlet Clamping plate Rubber membrane Central ring Clamping plate Plate without inlet
