Veri flo • Optimum purge port locations at seals • Maximum operating pressure 375 psig (250 psig 1” size) • Sizes up to 6” available • AOP available in 1”, 1-1/2” and 2” sizes • Inconel 625 bellows for increased pressure, ultra high purity and maximum cycle life in a small envelope • Lower weight reduces gas distribution system installation costs • Optimized stroke for higher Cv Contact Information: Parker Hannifin Corporation Veriflo Division 250 Canal Blvd Richmond, California 94804 phone 510 235 9590 fax 510 232 7396 veriflo.sales@parker.com www.parker.com/veriflo Mobile App: m.parker.com/veriflo Value Proposition: The Ultra High Purity (UHP) 700 Series high flow valve offers high purity and high flow for UHP gas distribution systems. The unique design reduces valve weight and, as a result, lowers installation costs. All Parker UHP bellows valves use a full flow bore that positions the bellows assembly out of the flow path when the valve is open. UHP Stainless Steel Bulk Facility Valve High Flow Bellows 700 Series Product Features:
1” - 4” VALVE (AOP 1”, 1-1/2” and 2” only. See dimensional specifications below.)
6”
VALVE (See dimensional specifications below.) a) Test procedures per ANSI/ISA S75.02-1998 and SEMI F32-0998. b) Cv values estimated by computational fluid dynamics analysis.
(AOP)PartSizeBodyCvA(in)B(in)C(in)D(in)E(in)F(in)Weight(lbs) UHP0708-A1.5"39.3(a)10.001.5016.42.006.003.8631.0 UHP0708-F1.5"41.4(a)10.001.5013.22.005.993.8619.0 UHP0712-B2"81.8(a)13.262.0014.13.006.995.5925.0 UHP0712-F2"86.1(a)13.262.0016.73.007.505.5936.0
DIMENSION TABLE
(Manual)PartSizeBodyCvA(in)B(in)C(in)D(in)E(in)F(in)Weight(lbs) UHP07081.5"41.4(a)10.001.507.92.005.003.865.0 UHP07122"86.1(a)13.262.0010.63.006.005.5911.5 UHP07163"205.9(b)16.003.0013.74.008.007.2123.0 UHP0724-324"317.2(b)20.004.0018.85.0010.0010.9436.0 UHP0724-484"293.8(b)32.986.0019.85.0010.0010.9440.4
UHP0706 1” 19 (b) 8.49 1.00 7.2 1.50 4.00 3.93 3.2 UHP0708 1.5” 41 (a) 10.00 1.50 7.9 2.00 5.00 3.86 5.0 UHP0712 2” 86 (a) 13.26 2.00 10.6 3.00 6.00 5.59 11.5
UHP0716 3” 206 (b) 16.00 3.00 13.7 4.00 8.00 7.21 23.0 UHP0724-32 4” 317 (b) 20.00 4.00 18.8 5.00 10.00 10.94 36.0 UHP0724-48 4” 294 (b) 32.98 6.00 19.8 5.00 10.00 10.94 40.4
DIMENSION TABLE
UHP0706-A 1” 19 (b) 8.49 1.00 13.7 1.50 6.00 3.93 20.7
UHP0708-A 1.5” 39 (a) 10.00 1.50 16.4 2.00 6.00 3.86 31.0
UHP0708-F 1.5” 41 (a) 10.00 1.50 13.2 2.00 5.99 3.86 19.0
UHP0712-B 2” 82 (a) 13.26 2.00 14.1 3.00 6.99 5.59 25.0
UHP0712-F 2” 86 (a) 13.26 2.00 16.7 3.00 7.50 5.59 36.0
Safety Guide and Installation and Operating Instructions available at www.parker.com/veriflo E C A ±0.12in 45° F B D
InletOutlet A +/-0.12in C F B E D 45°
Part (Manual) Size Body Cv A (inch) B (inch) C (inch) D (inch) E (inch) F (inch) Weight (lbs)
Part (AOP) Size Body Cv A (inch) B (inch) C (inch) D (inch) E (inch) F (inch) Weight (lbs)
700
Series
Dimensional Drawing
Build a 700 Series valve by replacing the numbered symbols with an option from the corresponding tables below.
Color Explanations:
Black = Standard Lead Time Configurations Blue = Extended Lead Time Configurations
For an explanation of Ordering options please reference literature 25000275 at www.parker.com/veriflo
Basic Series
0706 = 1” 1/4” purge port size
0708 = 1.5” 1/4” purge port size
0712 = 2” 1/2” purge port size 0716 = 3” 1/2” purge port size 0724 = 4” & 6” 1/2” purge port sizes
Purge Port
C = Up & downstream
Note: Purge Valves ordered separately:
1”, 1-1/2”: 830LSFSFM (54019556)*
2”, 3”, 4” & 6: 855LSFS8FM (54019557)*
* 830LSFSFM limited to 300 psig max, 855LSFS8FM limited to 250 psig max.
If high pressure purge valves are required, please contact the factory.
Operation

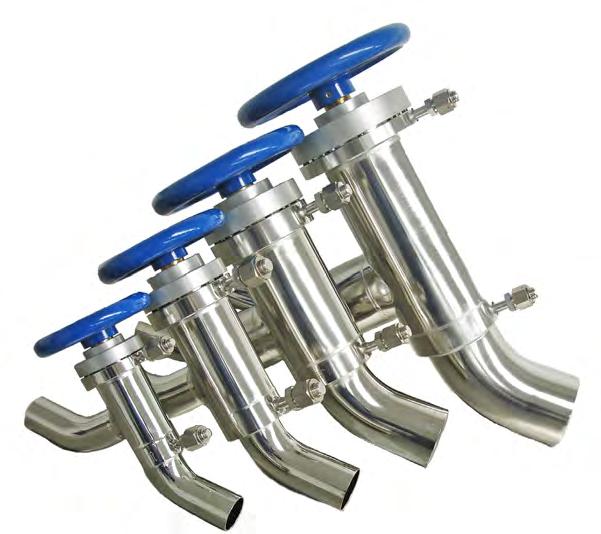

Manual Actuation
1 = Blue

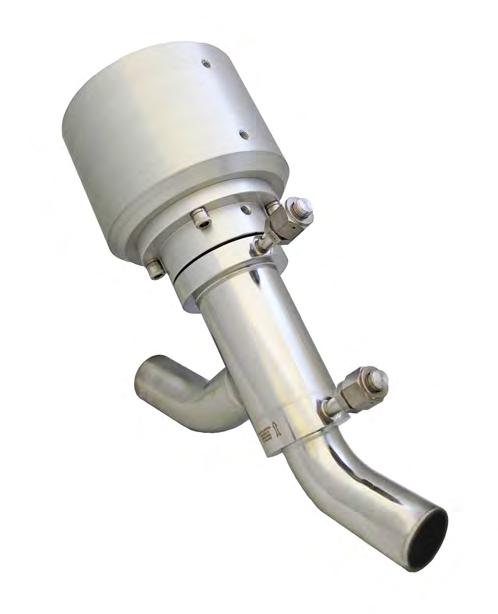

Pneumatic Actuation
A = Normally Closed - 0706 and 0708 Only.
B = Double Actuation - 0712 Only.
F = Normally Open - 0708 and 0712 Only.
Consult Factory for additional Handle Colors
700 Series Ordering Information Sample: Finished Order: High Flow, Value Priced Valve for High Purity Gas Systems
configurations available upon request 1 2 3 4 5 6 7 8 UHP 0712 C 1 1616 10 A S K UHP0712C1161610ASK
Internal Surface Finish 10 = 10 Ra Design Series A = Standard Design Purge Port Type S = Standard face seal fitting 3 4
Port Size
Seat Material K = PCTFE 5 6 7 8
Additional
0808 = 1” - 0706 Only. 1212 = 1 1/2” - 0708 Only. 1616 = 2” - 0712 Only. 2424 = 3” - 0716 Only. 3232 = 4” - 0724 Only. 4848 = 6” - 0724 Only 1 2
700 Series Specifications
Materials of Construction
Wetted
Body 316L Stainless Steel Tube Ends 316L Stainless Steel Seat Holder 0706 316 Stainless Steel 0708, 0712, 0716, 0724 316L Stainless Steel Bellows Adapter 316L Stainless Steel Bellows 0706 316L Stainless Steel 0708, 0712, 0716, 0724 Inconel® 625
Seat PCTFE Bonnet Gasket Nickel Non-wetted
Handle Aluminum Stem 316L or 17-4 Stainless Steel Driver Bronze Guide Brass Bonnet Aluminum Surface Finish 10 micro inch Ra Weight See Dimension Tables
For additional information on materials of construction, functional performance and operating conditions, please contact factory.
Notes:
A - Valves shall be installed and supported in accordance with ASME B31.31996, Chapter II, Part 5, Flexibility and Support or equivalent.
B - Rated for external leak test at 110% (412.5 psig), valve in open position.
C - Rated for external leak test at 110% (275 psig), valve in open position for 0706 only.
Functional Performance Design Pressure Proof
0706 375 psig (25.86 barg) 0708, 0712, 0716, 0724 562.5 psig (38.78 barg)
Burst
0706 750 psig (51.71 barg) 0708, 0712, 0716, 0724 1,125 psig (77.57 barg)
Installation See note A Flow Capacity See Dimensional Table Leak Rate Inboard Test Method
Internal
Rated 1 X 10-10 scc/sec He Std Production 1 X 10-9 scc/sec He
External (See notes B & C) 1 X 10-10 scc/sec He
Operating Conditions
Maximum Pressure 0706 250 psig (17.24 barg) 0708, 0712, 0716, 0724 375 psig (25.86 barg)
Minimum Pressure Vacuum AOP Actuation Pressure 100 psig (6.9 barg, nominal)
AOP Air Inlet 1/8 - 27 NPT
Temperature
Maximum 140°F (60°C) Minimum -40°F (-40°C)
Inconel® is a registered trademark of Special Metals Corporation
OFFER OF SALE:
The items described in this document are hereby offered for sale by Parker-Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions stated in the detailed “Offer of Sale” elsewhere in this document or available at www.parker.com/veriflo WARNING USER RESPONSIBILITY
!
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE. THIS DOCUMENT IS FOR REFERENCE ONLY. PLEASE CONSULT FACTORY FOR LATEST PRODUCT DRAWINGS AND SPECIFICATIONS
This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
The products described herein, including without limitation, product features, specifications, designs, availability and pricing are subject to change by Parker Hannifin Corp and it’s subsidiaries at any time without notice.
Proposition 65 Warning: This product contains chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.
Use mobile device to scan this QR Code.
LitPN: 25000209 Rev: J Date of Issue 08/2013
© 2007 Parker Hannifin Corporation Veriflo
