Value Proposition:

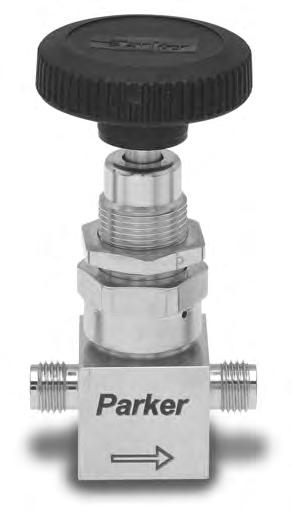

Parker Hannifin Corporation’s Veriflo Division presents the P Series manual bellows valve. These valves are multi-purpose packless externally pressurized bellows valves that may be used in a wide variety of gas or liquid systems.
The P Series manual bellows valve offers clean, reliable operation at full system pressures in either flow direction.
Veri flo Contact Information:
Hannifin Corporation Veriflo Division 250
Blvd
California 94804 phone 510 235 9590 fax 510 232 7396 veriflo.sales@parker.com www.parker.com/veriflo Mobile App: m.parker.com/veriflo
Parker
Canal
Richmond,
UHP Stainless Steel Bellows Valve Manual P
Manual Product Features: • Electropolish surface finishes available at 10 Ra; GP finishes at 20 Ra • Bottom or Panel mountable • Minimal PCTFE to reduce outgassing and moisture absorption
Series
Dimensional Drawings
1/4 FS-M INLET
Ø1.81 (46 mm)
2.31 (58.7 mm)
3.60 (91.4 mm) OPEN: 3.52 (89.4 mm) CLOSED:
1/4 FS-M OUTLET
.56 (14.2 mm)
Ø1.00 (25.4 mm) 45˚
Manual
(2X 10 - 32 UNF - 2B)
FLOW CAPACITY TABLE
Series Orifice Cv Pressure Drop to Atmosphere (∆P) Air SCFM @ 70ºF (21ºC) Water GPM @ 70ºF (21ºC)
P4 .156 Cv = .38 10 5.26 1.20 P4 .156 50 14.54 2.69 P4 .156 100 25.77 3.80 P6 .281 Cv = .87 10 12.04 2.75 P6 .281 50 33.28 6.15 P6 .281 100 59.00 8.70 P8 .312 Cv = .93 10 12.87 2.94 P8 .312 50 35.57 6.58 P8 .312 100 63.07 9.30
Safety Guide and Installation and Operating Instructions available at www.parker.com/veriflo
Inlet & Outlet Size
4 = 1/4” 6 = 3/8” 8 = 1/2”
Inlet & Outlet Type
V1 = Female VacuSeal™ Available in P4 & P8 versions only V = Male VacuSeal™ Available in P4 & P8 versions only
BW = Tube Stub T3 = Tube Stub (3” long) A = A-LOK®
Basic Series
P4, P6, P8 = Inline Pattern P4 only available with connection size 4. P6 only available with connection size 6. P8 only available with connection size 8.
Stem Tip Material
K = PCTFE VE = Vespel®
SSV
Material
configurations
1 2 3 4 5 6 1 2 3 4 5 4 V -P4 K -SSV -PE 4V-P4K-SSV-PE
Ordering Information Sample: Finished Order: 6
a P Series Manual valve by replacing the numbered symbols with an option from the corresponding tables below.
Explanations:
= Vericlean™ 316L Stainless Steel Surface Finish PE = 10 Ra Electropolish = 20 Ra Available for A type connections only Additional
available upon request.
P Series Manual
Build
Color
For an explanation of Ordering options please reference literature 25000275 at www.parker.com/veriflo Black = Standard Lead Time Configurations Blue = Extended Lead Time Configurations
Specifications P Series Manual
For additional information on materials of construction, functional performance and operating conditions, please contact factory.
Functional Performance
Flow Capacity See Table
Leak Rate Inboard Test method
Internal 4 X 10-9 scc/sec He External 2 X 10-9 scc/sec He Surface Finish Standard 10 micro inch Ra Optional 20 micro inch Ra - Type “A” Only
Maximum Pressure 1250 psig (86.9 barg)
Minimum Pressure Vacuum Temperature
PCTFE -150°F to 300°F (-101°C to 148.9°C)
Vespel® -150°F to 400°F (-101°C to 204.4°C)
Vespel® is a registered trademark of DuPont Performance Elastomers L.L.C.
VeriClean™ is a trademark of Parker Hannifin Corporation
A-LOK® is a registered trademark of Parker Hannifin Corporation
VacuSeal™ is a trademark of Parker Hannifin Corporation
