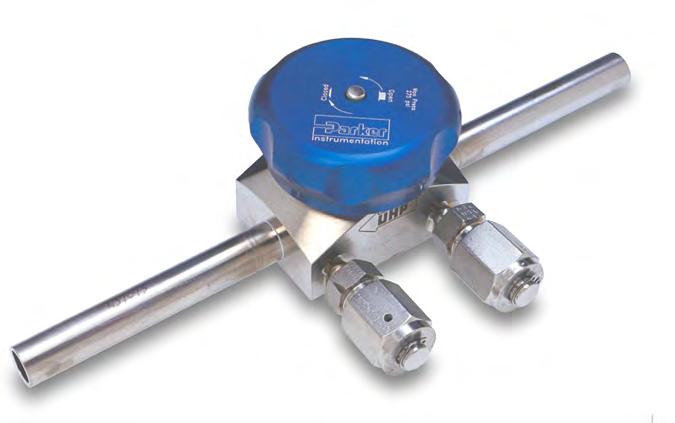

Parker Hannifin Corporation’s Veriflo Division presents the CyMax manual & pneumatic operated diaphragm
The 1004 is a positive-retraction diaphragm valve that provides superior control of gases and liquids under high flow, low pressure conditions where maximum reliability of your critical application is essential.
Contact Information: Parker Hannifin Corporation Veriflo Division 250 Canal Blvd Richmond, California 94804 phone 510 235 9590 fax 510 232 7396 veriflo.sales@parker.com www.parker.com/veriflo Mobile App: m.parker.com/veriflo Value Proposition:
valves.
UHP Stainless Steel Diaphragm Valve Manual & Pneumatic, Welded 1004 Series (CyMax) Product Features: • Standard full internal electroplish • Minimal particle generation and particle entrapment areas • Vericlean™, Veriflo’s low sulfur high purity 316L Stainless Steel enhances electropolishing, welding, and corrosion resistance • Standard surface finish of 10 micro inch Ra • Internally threadless and springless • Fully functional up to 275 psig • Serialized and heat code traceable • 100% Helium leak tested
1004 Series Dimensional Drawing
Ø .50 x .049 W.T.
.79 (20.1 mm) 3.00 (76.2 mm) 3.00 (76.2 mm)
Closed Open Max Press 275 psi Ø2.5 REF Flow 8.98
PARTIAL TABULATION FOR UHP1004********BSK
Instrumentation
.79 (20.1 mm) (228.1 mm)
M4M4 M6M6 F4F4 0404 0606
1/2" Male Face Seal 3/4" Male Face Seal 1/2" Female Face Seal 1/2" x .049 WT . Tube Stub 3/4" x .065 WT . Tube Stub
7.04 .12
6.56 .12
6.56 .12 1/2" Female F6F6
8.98 .12
End Designator Length DIM "A" Inlet/Outlet Connections 6.56 .12 7.48 .12
Safety Guide and Installation and Operating Instructions available at www.parker.com/veriflo
Configuration UHP = Straight Valve Basic Series 10 = 1000 Series Body Size 04 = 1/4” Purge Port A = None C = Up & Downstream Actuation Manual (handle color) 1 = Blue Pneumatic A = Fail Close Actuation Consult Factory for additional Handle Colors Inlet/Outlet Connections 0404 = 1/2”x.049 WT Tube Stub Internal Surface Finish 10 = 10 Ra Generation B = Second Generation Purge Port Type S = Standard Male Face Seal Fitting Seat Seal Materials K = PCTFE V = Vespel® 1 6 7 8 9 10 1 2 3 4 5 UHP 10 04 C 1 0404 10 B S K UHP1004C1040410BSK 1004 Series Ordering Information Sample: Finished Order: 2 3 4 5 6 7 8 9 10 Build a 1004 Series valve by replacing the numbered symbols with an option from the corresponding tables below. Color Explanations: For an explanation of Ordering options please reference literature 25000275 at www.parker.com/veriflo Black = Standard Lead Time Configurations Blue = Extended Lead Time Configurations
Specifications 1004 Series
Materials of Construction
Wetted
Body VeriClean™ 316L Stainless Steel
Tubing 316L Stainless Steel
Diaphragm 316L Stainless Steel
Seat Options PCTFE (std) or Vespel®
Poppet VeriClean™ 316L Stainless Steel
Non-wetted
Pneumatic
Actuator Housing Aluminum
Retainer 303 Stainless Steel
Bonnet VeriClean™ 316L Stainless Steel
Set Screw 316L Stainless Steel
Manual
Handle Aluminum
Bonnet VeriClean™ 316L Stainless Steel
Driver Bronze Set Screw 316L Stainless Steel
Bearing Brass
For additional information on materials of construction, functional performance and operating conditions, please contact factory.
Functional Performance
Flow Capacity Cv 2.5
Leak Rate Inboard Test Method
Internal ≤ 1 X 10-10 scc/sec He
External ≤ 1 X 10-10 scc/sec He
Surface Finish 10 micro inch Ra
Operating Conditions
Maximum Pressure 275 psig (19 barg)
Maximum Temperature 150°F (66°C)
Vespel® is a registered trademark of DuPont Performance Elastomers L.L.C. VeriClean™ is a trademark of Parker Hannifin Corporation
OFFER OF SALE:
The items described in this document are hereby offered for sale by Parker-Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions stated in the detailed “Offer of Sale” elsewhere in this document or available at www.parker.com/veriflo
!
WARNING USER RESPONSIBILITY
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE. THIS DOCUMENT IS FOR REFERENCE ONLY. PLEASE CONSULT FACTORY FOR LATEST PRODUCT DRAWINGS AND SPECIFICATIONS
This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
The products described herein, including without limitation, product features, specifications, designs. availability and pricing are subject to change by Parker Hannifin Corp and it’s subsidiaries at any time without notice.
Proposition 65 Warning: This product contains chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.
