SMQRM & SMQRMHF Series 1304-25000215-US

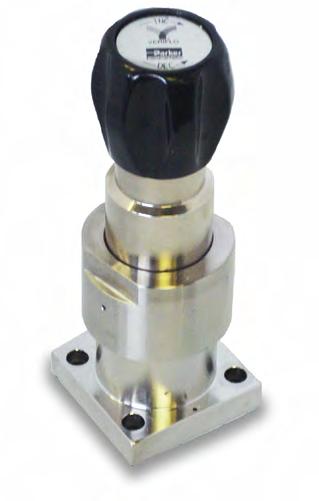

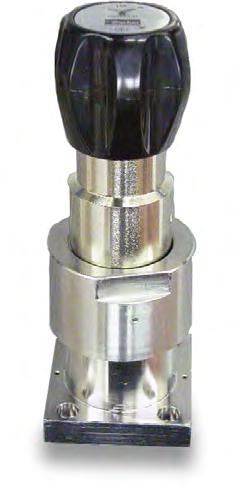

Parker Hannifin Corporation’s Veriflo Division presents the Surface Mount QRM and the Surface Mount QRM HF Series pressure regulator. The SMQRM and SMQRMHF are miniature high purity, threadless type, nontied diaphragm regulators with a footprint designed to reduce system real estate.

The design of the SMQRM and SMQRMHF provide faster purge times and extend the seat life. Precise gas regulation and performance is achieved in a miniature regulator.

SMQRM & SMQRMHF Series

(11) C-Seal High Flow - 80 psig inlet (11) C-Seal High Flow - 40 psig Inlet (60) W-Seal -80 psig Inlet (60) W-Seal - 40 psig Inlet (10) C-Seal - 80 psig inlet (10) C-Seal - 40 psig inlet

Materials

Operating Conditions Continued

Outlet Options

SMQRM

-10 psig - 30 psig (5 psia, 250 torr-2 barg) 1 - 60 psig (0.07 - 4 barg) 2 - 100 psig (0.14 - 7 barg) 3 - 250 psig (0.21 - 17 barg)

SMQRMHF

Temperature

1 - 30 psig (0.07 - 2 barg) 1 - 60 psig (0.07 - 4 barg) 2 - 100 psig (0.14 - 7 barg) 3 - 150 psig (0.21 - 10.5 barg)

Operating -40°F to 150°F (-40°C to 66°C) Storage -40°F to 150°F (-40°C to 66°C)

Burst Pressure 1,500 psig (103 barg)

Proof Pressure 750 psig (52 barg)

Flow Capacity

SMQRM Cv 0.1

SMQRMHF Cv 0.17*

Leak Rate Inboard Test Method

Internal < 4 x 10-8 cc/sec He External < 2 x 10-10 cc/sec He

Surface Finish

Standard 10 micro inch Ra Optional 5 micro inch Ra Internal Volume 4.0 cc (approximately) Approx. Weight 1 lbs. (0.45 kgm)
