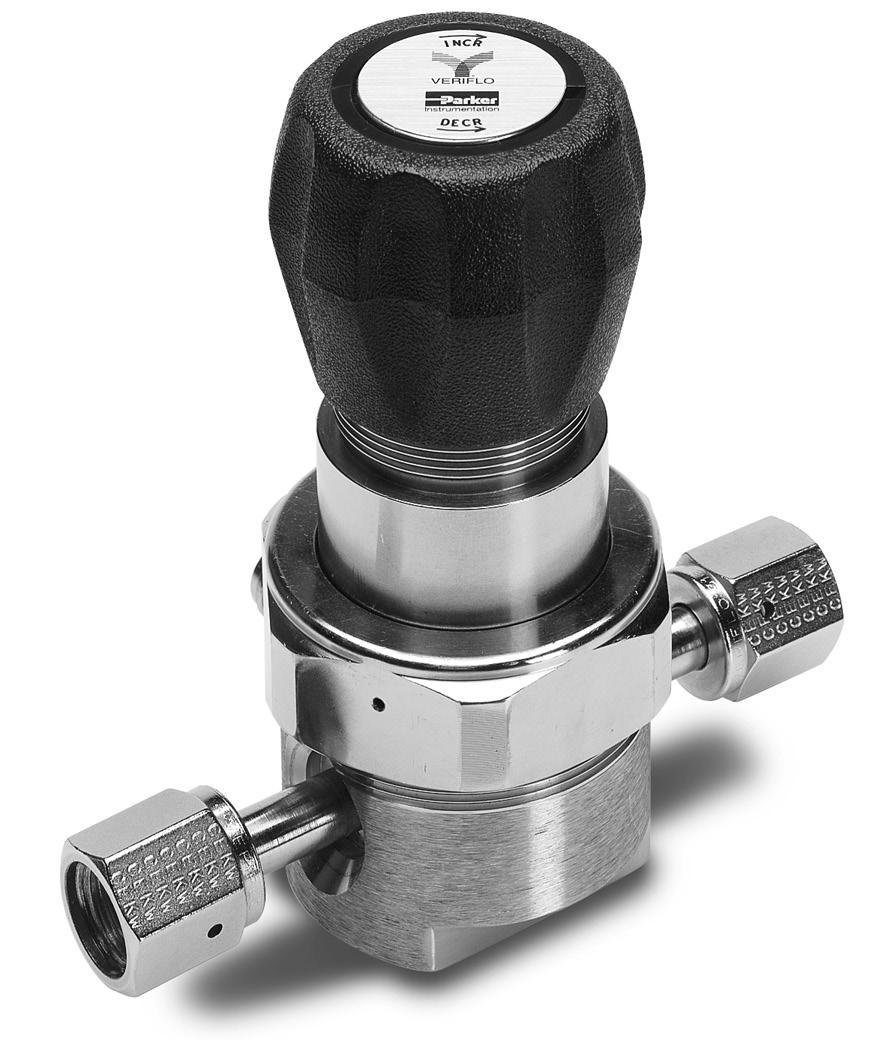

The IR4000W Series regulator offers high pressure capability with an inlet pressure up to 4,000 psig. The large convoluted Hastelloy C-22® diaphragm provides stable pressure control over the operational range of the regulator.
Close tolerances and tight alignment of moving components minimize hysteresis and improve cycle life. Convoluted, Hastelloy C-22® diaphragm provides high corrosion resistance and increases cycle life.
Veri flo 2 Contact Information: Veriflo Division phone 510 235 9590 fax 510 232 7396 veriflosales@parker.com
Value Proposition:
Single Stage, Pressure Regulator Internally Threadless, Welded, Stainless Steel IR4000W Series Product Features:
RANGE TABLE
Basic Model Max Inlet PSIG 0.06 Cv 0.02 Cv 0.15 Cv IR4000W 400 400 400 IR4001W 4000 4000 1250 IR4002W 4000 4000 1250
IR4003W 4000 4000 4000* IR4004W 4000 4000 1250 IR4005W 4000 4000 1250 IR4015W 4000 4000 4000* * 4000 PSIG max inlet pressure for PCTFE seats only (HP option). 1250 PSIG max inlet pressure for PEEK and Vespel seats.
When setting the delivery pressure, ensure that the maximum outlet pressure of the regulator is not exceeded for any operating condition including increases in delivery pressure due to flow shutoff and supply pressure effect. Supply pressure effect will result in a significant rise in outlet pressure as the inlet pressure decreases.
The stop settings will be adjusted to accommodate typical inlet and outlet pressure ranges. Please contact the factory if specific stop settings are required.
Refer to the Safety Guide 25000194 and the Pressure Regulators Installation and Operation Guide 25000169 for more information.
Safety Guide and Installation and Operating Instructions available at www.parker.com/veriflo 0 2 4 6 8 10 12 14 0 10 20 30 40 Outlet Pressure (psig) 20 Inlet psig N2 Flow (slpm) 100 Inlet psig 200 Inlet psig IR4000W .06 CV 50 Inlet psig 400 Inlet psig 0 10 20 30 40 50 60 70 0 50 100 150 200 250 300 350 400 Outlet Pressure (psig) N2 Flow (slpm) IR4002W .06 CV 2000 Inlet psig 250 Inlet psig 1000 Inlet psig 150 Inlet psig 0 10 20 30 40 50 60 70 80 90 100 110 120 0 100 200 300 400 500 600 700 Outlet Pressure (psig) N2 Flow (slpm) IR4003W 0.15 CV 1000 Inlet psig 150 Inlet psig 250 Inlet psig 500 Inlet psig PORT MOUNTING A (Std) B X 0.69 (17.5mm) 0.75 (19.1mm) Y 0.88 (22.2mm) 0.75 (19.1mm) IR4000W Series Flow Curves Dimensional Drawing 5.02 (127.6mm) 2.67 (68mm) Ø2.00 (50.8mm) 3.70 (94mm) Ø2.32 (59mm) Ø1.44 (36.6mm) HOLE REQD IN PANEL FOR MOUNTING 1.38 (34.9mm) FLATS MUFFLER FOR SELF-RELIEVING CORROSION RESISTANT OPTION COMBINATION 1.42 (36.1mm) 10-32 UNF-2B Additional flow curves available upon request 5.02 (127.6mm) 2.67 (68mm) Ø2.00 (50.8mm) 3.70 (94mm) Ø2.32 (59mm) Ø1.44 (36.6mm) HOLE REQD
IN PANEL FOR MOUNTING 1.38 (34.9mm) FLATS MUFFLER FOR SELF-RELIEVING CORROSION RESISTANT OPTION COMBINATION 1.42 (36.1mm) 10-32 UNF-2B
IR4000W Series
Ordering Information
Black = Standard Lead Time Configurations Blue = Extended Lead Time Configurations
For an explanation of Ordering options please reference literature 25000275 at www.parker.com/veriflo
Basic Series
Range Outlet Gauge
00 = 0 - 10 psig 0 - 30 psig
01 = 1 - 30 psig 0 - 60 psig
02 = 2 - 60 psig 0 - 100 psig 03 = 3 - 100 psig 0 - 200 psig 15 = 5 - 150 psig 0 - 200 psig 04 = 10 - 250 psig 0 - 400 psig 05 = 20 - 500 psig 0 - 600 psig
Outlet Gauge
Outlet Gauge Basic Series
03 = 0 - 30 psig IR4000W
OL = 0 - 60 psig IR4001W
01 = 0 - 100 psig IR4002W
2 = 0 - 200 psig IR4003W
4 = 0 - 400 psig IR4004W
6 = 0 - 600 psig IR4005W
X = No Gauge
Additional ranges available upon request
Inlet Gauge
X = No Gauge
30 = 3000 psig
4 = 400 psig with the 10 psig range 20 = 2000 psig with the 0.15 Cv option 40 = 4000 psig
Additional ranges available upon request
Port Style
4T = 1/4” A-LOK®
6T = 3/8” A-LOK®
8T = 1/2” A-LOK®
FS = 1/4” Face Seal
FS8 = 1/2” Face Seal
TS = 1/4” Tube Stub Standard only when configured as TSTS
TS6 = 3/8” Tube Stub
TS8 = 1/2” Tube Stub
Port Style
M = Male
F = Female
I = Internal
1/4” FSM Gauge Ports are standard.
1/4” NPT Gauge Ports are standard for compression ends.
Port Mounting
A = 0.69 (17.5mm) port height w/0.88 (22.2mm) mounting Standard
B = 0.75 (19.1mm) port height w/0.75 (19.1mm) mounting
Optional Features
This section can have multiple options
C = Corrosion Resistant External Stainless Steel Cap
D = Dome Loaded Not available with G or M options
G = Tamper Proof Not available with D or M options
M = Metal Knob (Black) Not available with D or G options
L = PTFE Backup O-Ring PCTFE and PEEK™ Seats Only
R = Relief Valve 4PB and 5P Only
S = Self Relieving Temperature rating -40ºF to 150ºF (-40ºC to 66ºC)
T = Hastelloy Trim Includes carrier and back-up washer.
HP = 4000 psig Max Inlet Pressure For .15 Cv IR4003 and IR4015 with PCTFE seats only
Note: Panel Mount Option:
Order Panel Nut Ring p/n: 41900363 as a separate line item.
Vent Muffler Option: Order Vent Muffler p/n: 46600581 as a separate line item.
Vent Muffler is standard for the Self-Relieving(S), Corrosion Resistant(C) option combination.
PCTFE
= PEEK™
= Vespel®
= 2 Ports No X required for gauges, inlet & outlet ports only
= 3 Ports One X for gauge port
= 4 Ports Two X’s for gauge ports
= 4 Ports One X for gauge port
= 5 Ports Two X’s for gauge ports See Regulator Porting Guide for additional options and port layouts
Body Material W = 316L Stainless Steel Flow Capacity = 0.06 Cv Standard 1 = 0.02 Cv 2 = 0.15 Cv Seat Material K =
P
V
Porting 2P
3P
4P
4PB
5P
CGA# 634, 716, 718, 724, or 728
not
the rated pressure
the CGA
1 2 3 4 5 6 7 8 9 10 12 11 1 2 3 4 5 6 7 8 9 10 11 IR40 01 W K 3P X FS MMM A L IR4001WK3PXFSMMMAL Sample: Finished Order: 12 Build an IR4000W Series regulator by replacing the numbered symbols with an option from the corresponding tables below. Color Explanations:
DISS
Do
exceed
of
connection.
IR4000W Series
Specifications
Materials of Construction
Wetted
Body
316L Stainless Steel
Compression Member Inconel 625®
Diaphragm Hastelloy C-22®
Poppet Hastelloy C-276®
Poppet Spring Inconel X-750®
Seat Options
Carrier Options
Washer Back-up Options
PCTFE (std), Vespel® or PEEK™
316L Stainless Steel (std) or Hastelloy C-22®
316 Stainless Steel (std) or Hastelloy C-276®
O-ring Back-up Options FKM (std) or PTFE
Poppet Screen Hastelloy C-22® (76 µm)
Self Relieving Seat PEEK™ Non-wetted
Cap Options
Nickel Plated Brass (std) or Stainless Steel
Nut Stainless Steel Knob Options ABS (std) (ambient temp) or Aluminum
For additional information on materials of construction, functional performance and operating conditions, see Regulator Technical Bulletin.
A-LOK® is a registered trademark of Parker Hannifin Corporation
Hastelloy C-22® and Hastelloy C-276® are registered trademarks of Haynes International, Inc.
PEEK™ is a trademark of Victrex plc.
Inconel® and Monel® are registered trademarks of Special Metals Corporation.
Vespel® is a registered trademark of DuPont Performance Elastomers L.L.C.
Functional Performance Design
Burst Pressure 12,000 psig (828 barg)
Proof Pressure 6,000 psig (414 barg)
Flow Capacity
Cv Options Cv 0.06 (std), Cv 0.02, Cv 0.15
Leak Rate
Inboard Test Method
Internal < 4 x 10-8 cc/sec He
External < 2 x 10-8 cc/sec He
Supply Pressure Effect
Based upon Cv Option
0.02 Cv 0.23 psig/100 psig (0.016 barg/7 barg)
0.06 Cv 0.6 psig/100 psig (0.04 barg/7 barg)
0.15 Cv 1.5 psig/100 psig (0.1 barg/7 barg)
Internal Volume 4.0 cc without fittings
Approx. Weight 1.5 lbs. (0.7 kg)
Operating Conditions
Maximum Inlet
Outlet Options
Temperature
Refer to Range Table for specific information
0-10 psig (.7 barg), 1-30 psig (2 barg), 2-60 psig (4 barg), 3-100 psig (7 barg), 5-150 psig (10 barg), 10-250 psig (17 barg), 20-500 psig (35 barg)
Metal Knob required for temperatures above 150°F
PCTFE -40°F to 150°F (-40°C to 66°C) PEEK™ -40°F to 275°F (-40°C to 135°C) Vespel® -40°F to 500°F (-40°C to 260°C)
Self Relieving Option -40°F to 150°F (-40°C to 66°C)
The items described in this document are hereby offered for sale by Parker-Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions stated in the detailed “Offer of Sale” elsewhere in this document or available at www.parker.com/veriflo
!
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
DOCUMENT IS FOR REFERENCE ONLY. PLEASE CONSULT FACTORY FOR LATEST PRODUCT DRAWINGS AND SPECIFICATIONS
THIS
This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
The products described herein, including without limitation, product features, specifications, designs, availability and pricing are subject to change by Parker Hannifin Corp and it’s subsidiaries at any time without notice.
Proposition 65 Warning: This product contains chemicals known to the state of California to cause cancer or birth defects or other reproductive harm.
