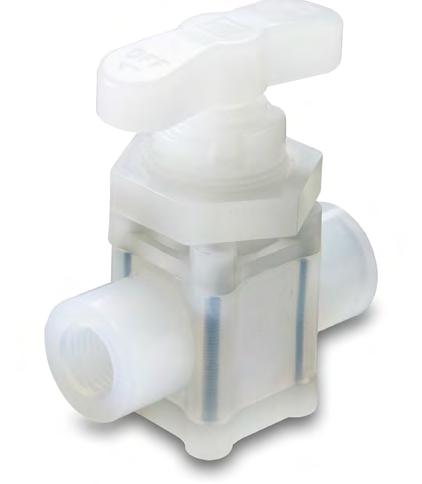

1/4” Manual PFA 2 Way and 3 Way Valves MV-10 Series
Product Overview:
The MV-10 Series is designed for semiconductor, ultra-pure water and aggressive chemical and gas applications.
The MV-10 Series utilizes a molded PFA body with precision machined sealing areas for superior chemical resistance. The design has a modified PTFE diaphragm which provides excellent flexibility, a high cycle life, lower replacements costs and less downtime.
The MV-10 Series has a full 1/4” orifice which provides maximum flow capability in a compact package.
Product Features:
• Diaphragms manufactured from modified PTFE provide over five times the flexural life as compared to conventional PTFE.
• Tongue and groove seat and diaphragm for positive through flow shut off and diaphragm to body seal.
• PVDF coated stainless steel spring reduces effects of corrosive environments.
• Quarter turn operation with removable handle for tamper resistance eliminates need for separate lockout device.
Contact
Information: Parker Hannifin Corporation Veriflo Division Partek Operation 7075 East Southpoint Road Tucson, Arizona 85756 phone 520 574 2600 fax 520 574 2700 www.parker.com/partek
2 WAY OPERATION
2.20 [55.82]
PA D V F 1/4" ERALF P R
.13 [3.30] MAX PANEL THK. 1.25 [31.78] A
LOCATING TAB POSITION .31 [7.87] PA D V
IN OUT .88 [22.35]
3 WAY OPERATION
.13 [3.30] MAX PANEL THK. .88 [22.35]
LOCATING TAB POSITION .31 [7.87]
2.20 [55.82] 1.25 [31.78] A
ERALF P R
PANEL HOLE AND MOUNTING OPTIONS
Mounting option is determined by last 2 digits of model number. For example, MV-10-XXXX-10 is for PVDF screw covers.
Ø1.00/1.02 [25.40/25.91] PANEL HOLE (NOTE: ORIENTATION OF LOCATING SLOT DEPENDENT UPON VALVE/MOUNTING CONFIGURATION.)
COM NCNO .050 R [1.30] .527 [13.39]
IN OUT
MOUNTING OPTIONS CALL OUTS LAST 2 DIGITS OF MODEL NUMBER (MV-10-6024-XX)
.40 [10.16] -01 .40 [10.16] -00
SCREW Ø1.25 [31.75] BOLT CIRCLE
SNAP-IN BASE PLATE
.40 [10.16]
HEX NUT W/ STUD .40 [10.16] -02
PVDF SCREW COVER -10
Sold separately under model number SB-10. For models with -00 and -10 mounting options only.
.76 [19.3]
1.53 [38.86]
.20 [5.08]
2X .19 [4.83] 2X .15 [3.81] 2X R.08 [2.03] SLOT TYP. 1.25 [31.75] SQ. .50 [12.7]
F 1/4"
3/8"Parflare&Pargrip 1/4"FNPT 1/4" Pargrip 1/4" Parflare MV-10 Series Flow Curve Ordering Information
Parflare models are supplied with PVDF nuts. For PFA nuts add -T to model number. Model Number Operation End Size End Type A inch mm MV-10-6024-XX 1/4 TURN 2 WAY 1/4" PARFLARE 3.55 90.17 MV-10-2034-XX 1/4” PARGRIP 3.51 89.15 MV-10-1044-XX 1/4" FNPT 2.37 60.20 MV-10-6046-XX 3/8" PARFLARE 3.71 94.23 MV-10-2046-XX 3/8” PARGRIP 3.49 88.65 MV-10-6324-XX 1/4 TURN 3 WAY 1/4" PARFLARE 3.55 90.17 MV-10-2334-XX 1/4” PARGRIP 3.51 89.15 MV-10-1344-XX 1/4" FNPT 2.37 60.20 MV-10-6346-XX 3/8" PARFLARE 3.71 94.23 MV-10-2346-XX 3/8” PARGRIP 3.49 88.65 DELTA-P (psi) 0 25 5 20 15 10 DELTA-P (bar) 1.72 1.38 1.03 .69 .34 FLOW RATE (lpm) PRESSURE DROP VS. FLOW RATE 1.93.85.77.6 11.3 9.5 FLOW RATE (gpm) 0.51.01.52.0 3.0 2.5
Specifications MV-10 Series
Materials of Construction
Wetted Options PTFE, Modified PTFE
Non-wetted Options PFA, PVDF, 18-8 SS, Viton, PVDF coated SS spring
Pressure Ranges
Forward 27” HG vacuum (913 mbar)80 PSIG (5.5 bar)
Backward 27” HG vacuum (913 mbar)80 PSIG (5.5 bar)
Pressure ranges for operation at ambient temperatures. For additional information on materials of construction, functional performance and operating conditions, please contact factory.
Temperature Ranges
Ambient 0° - 150° F (-17° - 66° C)
Fluid 0° - 266° F (-17° - 130° C)
Flow Capacity
1/4” Parflare Cv .20
1/4” Pargrip Cv .24
1/4” FNPT Cv .60
3/8” Parflare & Pargrip Cv .62
Viton® is a registered trademark of DuPont Performance Elastomers L.L.C.
OFFER OF SALE:
The items described in this document are hereby offered for sale by Parker-Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions stated in the detailed “Offer of Sale” elsewhere in this document or available at www.parker.com/veriflo
!
This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
LitPN: MV-10 Rev: - Date of Issue 01/2011 © 2009 Parker Hannifin Corporation
WARNING USER RESPONSIBILITY FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE. THIS DOCUMENT IS FOR REFERENCE ONLY. PLEASE CONSULT FACTORY FOR LATEST PRODUCT DRAWINGS AND SPECIFICATIONS
