Spares List
190-000013 Oil Separator filter unit
G3-CEMS-SHIPCEMS-A
200-000477 Kytola spare valve assembly AISI316L ZWEHPN G3-CEMS-SHIPCEMS-A
G3-CEMS-SHIPCEMS-A
400-000000
400-000001
200-000489 Oil separator installation kit G3-CEMS-SHIPCEMS-A
200-000501 Filter kit for -Oil separator filter unit-
400-000002
400-000013 AM pressure switch
400-000014 Stream select solenoid valve 3/2-24VDC
G3-CEMS-SHIPCEMS-A
/ 500824
G3-CEMS-SHIPCEMS-A
400-000015 Zero Air /calibration solenoid valve 2/2-24VDC
/ 500826
G3-CEMS-SHIPCEMS-A
G3-CEMS-SHIPCEMS-A
400-000020 Damper Kit - Analyse Module & Pump (4 pcs.)
400-000016 Sample flow indicator 0.5-7 Nl/min
400-000022 Cal.gas 40ppm SO2/8%CO2 in N2 10L incl.box
G3-CEMS-SHIPCEMS-A
G3-CEMS-SHIPCEMS-A
400-000023 Cal.gas 160ppm SO2/8%CO2/rest N2 10L in box
G3-CEMS-SHIPCEMS-A
400-000024 CAL.Gas bottle reg. complete with coil tubing
400-000017 Air reduction regulator (0-1,6bar)
G3-CEMS-SHIPCEMS-A
G3-CEMS-SHIPCEMS-A
400-000018
400-000019
400-000021
400-000025
400-000028
G3-CEMS-SHIPCEMS-A
400-000035
400-000036
400-000030
400-000038
400-000040
G3-CEMS-SHIPCEMS-A
400-000044
400-000045
400-000047
400-000049
400-000050
400-000056 Air Dryer Service kit (3-4 streams) 3 year (IA)
G3-CEMS-SHIPCEMS-A
400-000057 AM Frontplate w. Keyboard, Displ. & Bracket
400-000031 Temperature element
G3-CEMS-SHIPCEMS-A
400-000062 USE ITEM 400-000016 flow indicato 0,5-7NL/min
400-000063 O-ring kit for Sample probe filter element.
400-000065
G3-CEMS-SHIPCEMS-A
400-000069 ShipCEMS Cooler Power supply (48V)
400-000070 ShipCEMS LOGO Power supply (24V)
400-000071 Service kit for air reduction regulator
400-000072 Yoke for air filter unit
G3-CEMS-SHIPCEMS-A
G3-CEMS-SHIPCEMS-A
F64L-NNN-AR0
400-000073 Complete Oil absorbing filter for air filter unit
400-000074 Complete particle filter for air filter unit
F64G-NNN-AD1
G3-CEMS-SHIPCEMS-A
400-000075 Filter for sample probe filter element
400-000076 SCS Gas/Liquid separator 516mm
400-000077 A/C Cooler Fan (External)
400-000032
400-000033 Moisture Sensor
400-000037 Pressure regulator - Dryer air (0-10bar)
400-000043 Sample probe quill w.demister Hastelloy (500mm)
G3-CEMS-SHIPCEMS-A
400-000058 AM Communication Cable (50-2x25+2x15)
400-000059 Cap Kit for Probe, incl. Heaters
G3-CEMS-SHIPCEMS-A
400-000043 Sample probe quill w.demister Hastelloy (500mm)
400-000060 SCS Drain inspection tube
G3-CEMS-SHIPCEMS-A
G3-CEMS-SHIPCEMS-A
400-000007 Demister Filling Set (3 pcs.) SS316 (IA)
Demister Filling Set (3 pcs.), Hastelloy C (IA)
400-000014 Stream select solenoid valve 3/2-24VDC
400-000015 Zero Air /calibration solenoid valve 2/2-24VDC

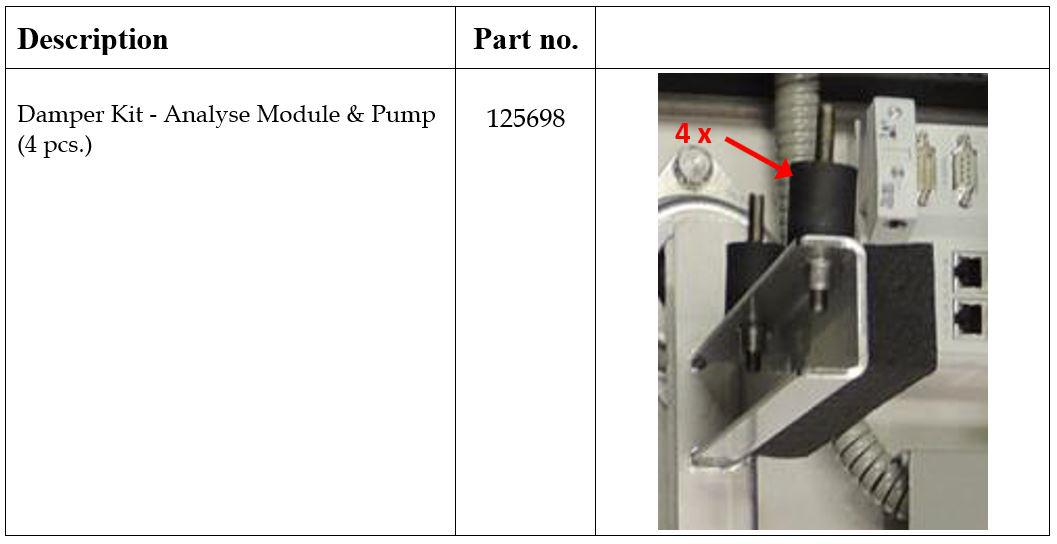

400-000020 Damper Kit - Analyse Module & Pump (4 pcs.)
400-000016 Sample flow indicator 0.5-7 Nl/min
10L in box
400-000024 CAL.Gas bottle reg. complete with coil tubing
400-000017 Air reduction regulator (0-1,6bar)
400-000018 AC cabinet temp. Thermostat

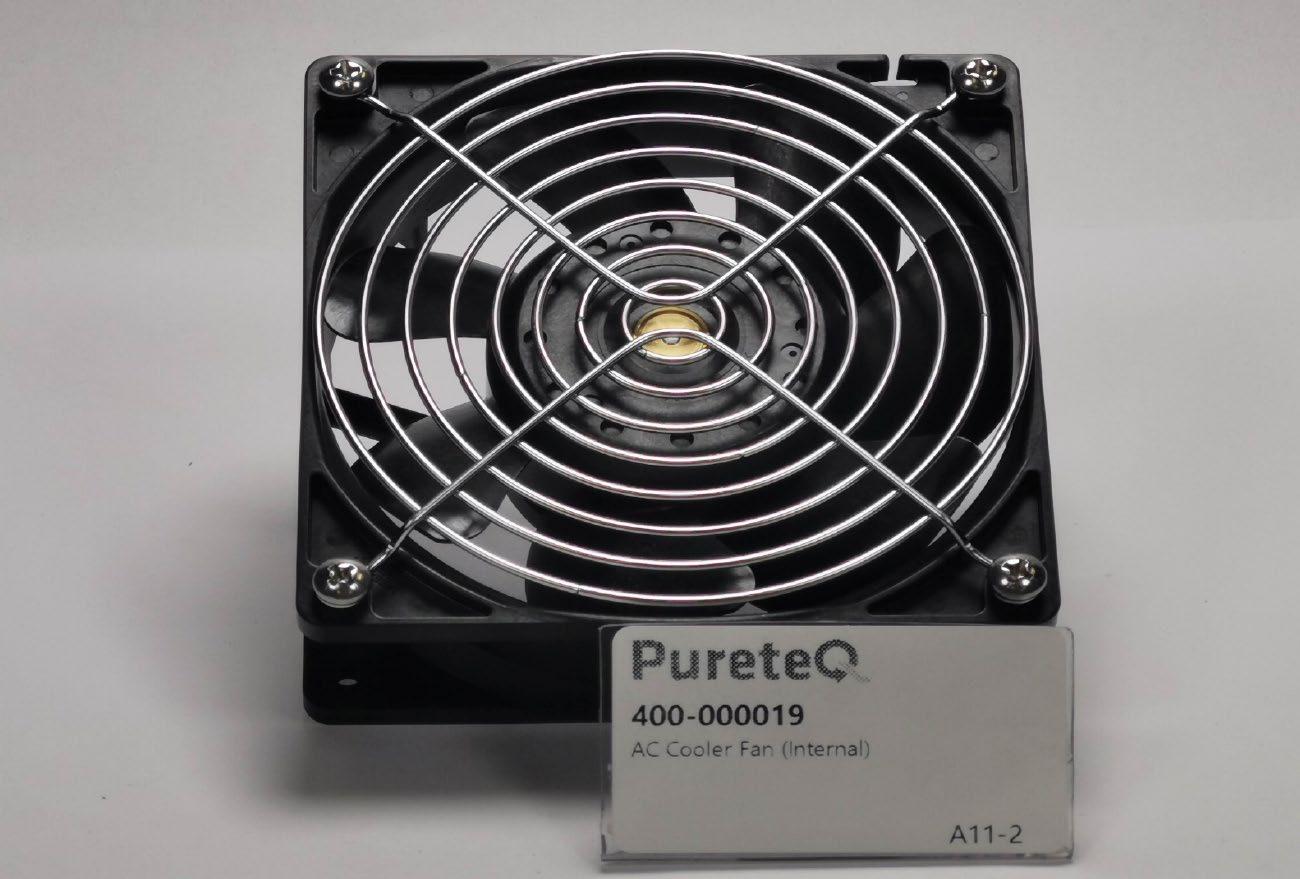

400-000019 AC Cooler Fan (Internal)
400-000021 Pressure relief valve
400-000025 Relay (R3) 5A 24VDC (Back Purge)
400-000026 Sample Gas Filter Adapter Kit (II-Type)
400-000027 Sample shut off / Backp. solenoid vlv. 2/2-230VAC
400-000028 Bypass flow indicator 1-9 Nl/min

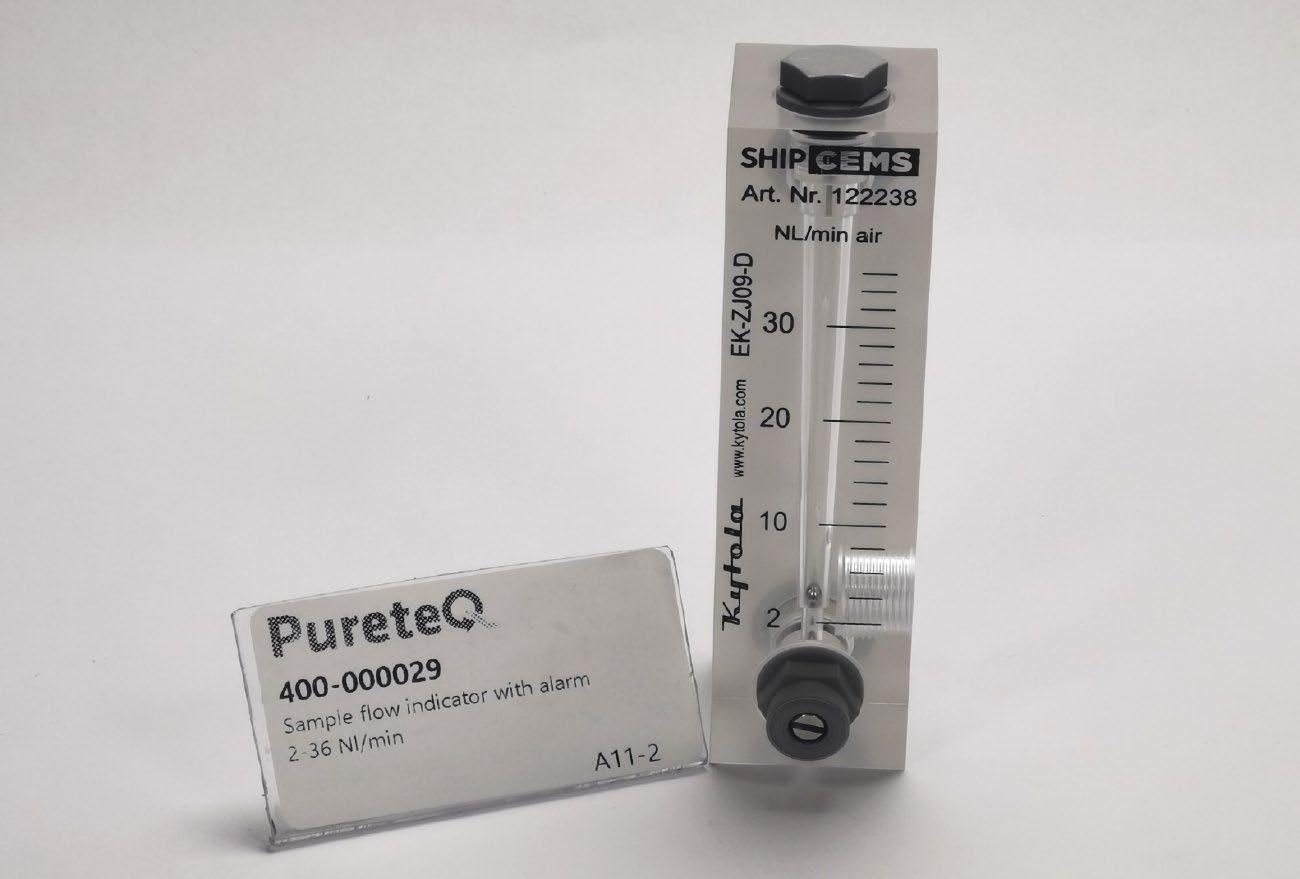

400-000029 Sample flow indicator with alarm 2-36 Nl/min
400-000034 Cabinet Heater 500W, SCS
400-000035 Cabinet Heater 500W Rebuild Kit (Heater+Tubing)
400-000036 Controller moisture detector
400-000030 Relay 5A (R1 / R2) 230 VAC
400-000038 SCS Temp. Controller incl.display (w.Program)
400-000039 SCS Flow alarm Controller 230V
400-000040 SP temperature switch
400-000044 Sample probe quill w.demister Hastelloy (1000mm)
400-000045 Sample Probe Unit DIN, SS316, 230V (120V)
400-000046 Sample Pump 230V
400-000047 Probe Cap for termination
400-000048 Probe Flange Seal (DIN)
400-000049 Probe Winter Kit
400-000050 6 mm Nuts & Ferrule Connect.
400-000051 10mm Nuts & Ferrule Connect.
400-000052 6mm Union
400-000053 Air Dryer Service kit (1-2 streams) 1,5 year (IA)
400-000054 Air Dryer Service kit (3-4 streams) 1,5 year (IA)
400-000055 Air Dryer Service kit (1-2 streams) 3 year (IA)
400-000056 Air Dryer Service kit (3-4 streams) 3 year (IA)
400-000057 AM Frontplate w. Keyboard, Displ. & Bracket
400-000031 Temperature element

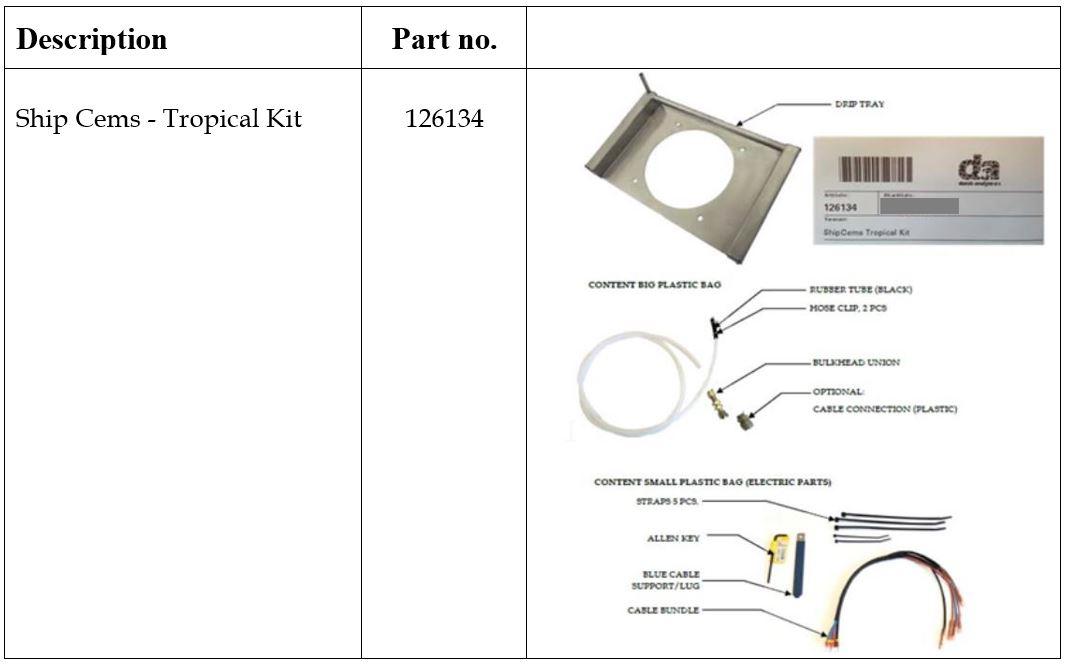

400-000061 ShipCems - Tropical Kit
400-000062 USE ITEM 400-000016 flow indicato 0,5-7NL/min
400-000063 O-ring kit for Sample probe filter element.
400-000065 ShipCEMS LOGO8 TDE Complete with firmware
400-000066 Union Tee 6mm
400-000068 ShipCEMS - Pump In-/outlet valves
400-000069 ShipCEMS Cooler Power supply (48V)
400-000070 ShipCEMS LOGO Power supply (24V)
400-000071 Service kit for air reduction regulator
400-000072 Yoke for air filter unit
400-000073 Complete Oil absorbing filter for air filter unit
400-000074 Complete particle filter for air filter unit
400-000075 Filter for sample probe filter element
400-000076 SCS Gas/Liquid separator 516mm
400-000077 A/C Cooler Fan (External)
400-000032 Flow alarm transmitter
400-000033 Moisture Sensor
400-000037 Pressure regulator - Dryer air (0-10bar)
400-000043 Sample probe quill w.demister Hastelloy (500mm)
400-000058 AM Communication Cable (50-2x25+2x15)
400-000059 Cap Kit for Probe, incl. Heaters
400-000043 Sample probe quill w.demister Hastelloy (500mm)
400-000060 SCS Drain inspection tube
