EGR Marine Water Monitoring System
EGR DISCHARGE WATER MONITORING
The PureteQ WMS011 Exhaust Gas Recirculation (EGR) Water Monitoring System ensures full compliance with MEPC 340(77) and the discharge water regulations defined in MEPC 307(73). Engineered for reliability and precision, it provides accurate measurement of key water quality parameters, giving shipowners confidence in meeting environmental standards while supporting efficient EGR system operation.
Sampling
• One cabinet, with pH, temperature, turbidity, PAH and flow sensors
• Direct sensor value read-out for discharge water from EGR water treatment systems
• The sampling results in highest accuracy and robustness of monitoring
Features
• One set of sensors
• Remote access for service and compliance assistance
• PureteQ control system and related software ease retrofitting to existing EGR systems

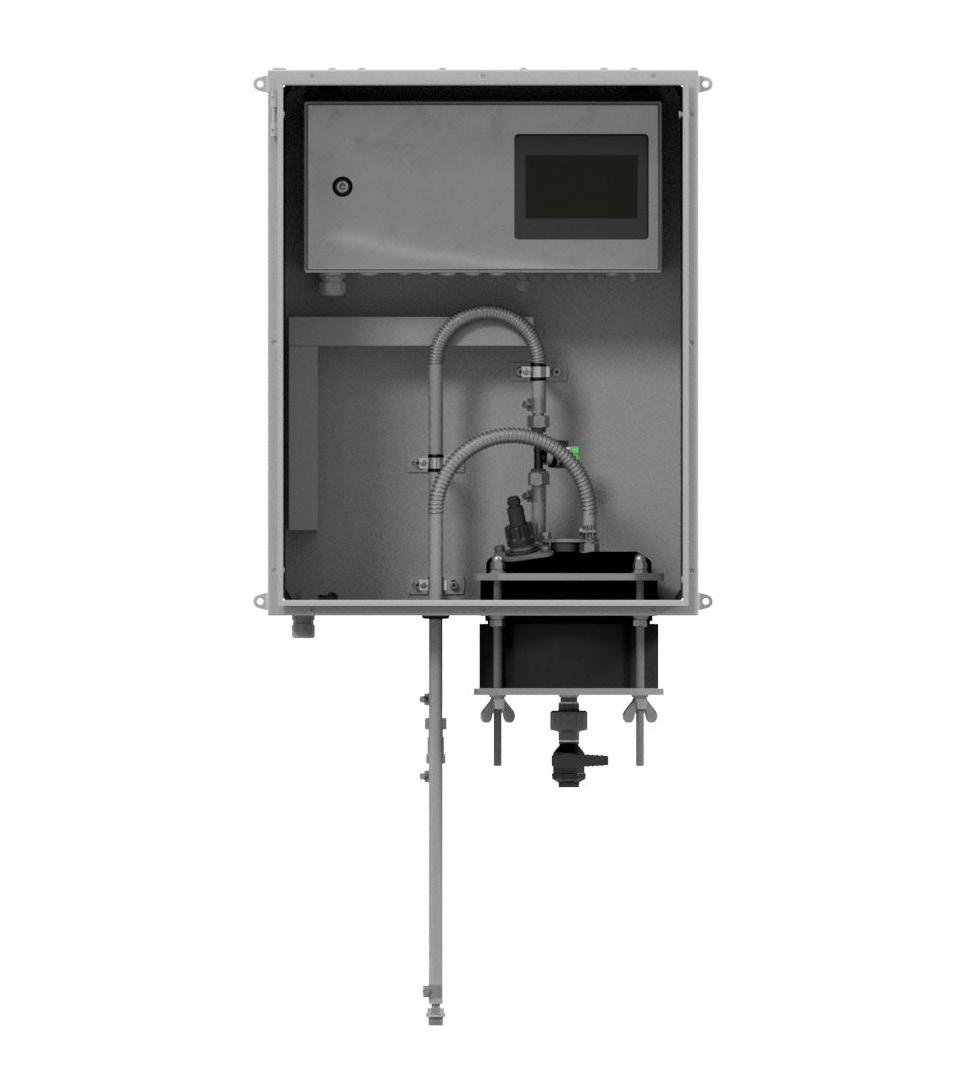

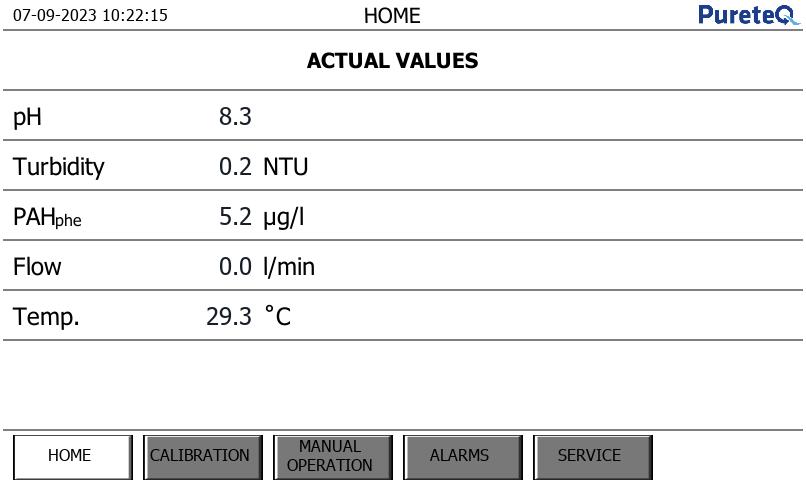

PureteQ WMS011 cabinet including user-friendly control system with software enabling retrofiting to existing EGR systems. The 7” touch screen displays pH, turbidity, PAH, flow and temperature.
PURETEQ WMS011 - DETAILS
KEY SPECIFICATIONS
Sampling 1 inlet
pH 1 sensor
Turbidity 1 sensor
PAH 1 sensor
Flow/ temperature 1 sensor
Calibration On screen guide
AMBIENT CONDITIONS
Sample flow (medium) 2 - 15 l/min
Max. 3 bar
Temp.: 0 - 45 °C
Pre-filtration < 1 mm
Ambient temperature 0 - 55 °C
Humidity 10 - 100%
INTERFACE
FUNCTIONAL CHARACTERISTICS
pH
Range: 0 - 14
Accuracy: ± 0,2
Temperature Range: -25 - 125 °C
Accuracy: ± 0,6 °C
Turbidity Range: 0 - 400 NTU
Accuracy: ± 2 NTU (5%)
PAH Range: 0-100, 101-800 µg/L
Accuracy: ± 5%, ± 10%
Calibration Dry-calibration blocks, or liquid verification
INSTALLATION & DIMENSIONS
Cabinet Painted steel (IP66)
Spring mounting support
600 x 760 x 350
64 kg
Sample connections 1/2” flexible hose
Power supply 24VDC (+-10%), 2A
Screen 7” color touch
Communication Digital, analog, and Modbus
Remote access Full data and service access (if network)
Alarms Local alarm and digital outlets available
REGULATIONS & CLASS
IMO compliance MEPC 340(77)
MEPC 307(73)
Type approval Bureau Veritas ClassNK
OPTIONAL EQUIPMENT
• Internet remote access
• Sample water supply units
• PureteQ calibration kits
