Cash Handling Solution for Retail

CASH HANDLING SOLUTIONS FOR RETAIL

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 1

WHO WE ARE For over 30 years, Consillion (formerly Banking Automation) has provided top-tier financial institutions with bespoke cash management solutions proven to maximise savings and efficiencies in their branch.

In 2017, Banking Automation came together with SprintQuip, the leading and largest independent provider of cash handling solutions in Australia and South East Asia. SprintQuip had over 30 years of experience delivering a wide range of cash handling solutions, services and software to Retail, Banking, CIT, Transport and Gaming. In 2021 the group consolidated under a single banner and re-branded as Consillion.

The wealth of knowledge, experience and strategic partnerships gained through the group’s network allows our Banking offering to be stronger and more relevant than ever.

We now offer a complete portfolio of solutions designed to optimise cash handling throughout the branch, in addition to the quality, flexibility and support we are known for.

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 2

INDEX • IN LANE SOLUTIONS • SELF-ORDERING KIOSK SERIES • SMART SAFES • NOTE COUNTERS • CASH RECYCLING • CLOUD-BASED REPORTING AND ANALYTICS PLATFORM • COINBANK • CRTi CASH REDEMPTION TERMINAL • OUR SERVICES

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 4 PAGE 6 PAGE 8 PAGE 10 PAGE 12 PAGE 14 PAGE 15 PAGE 16 PAGE 17

PAGE 3

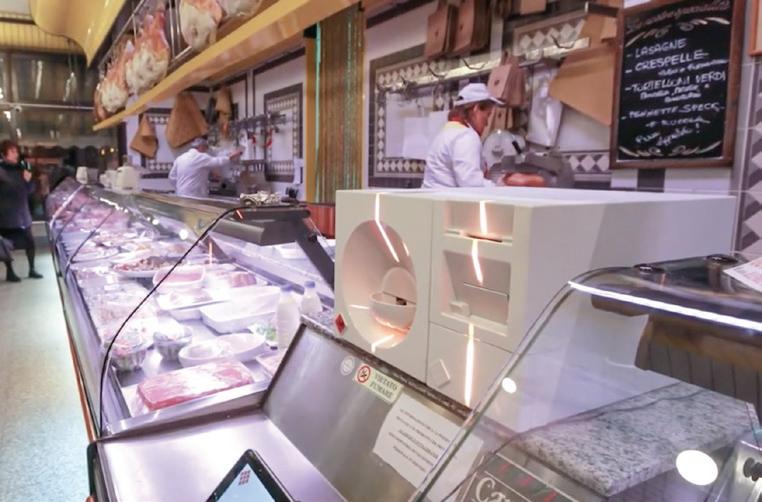

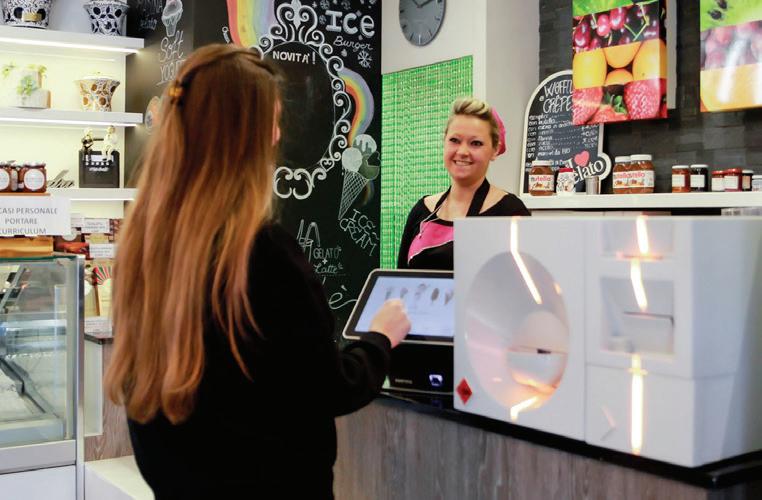

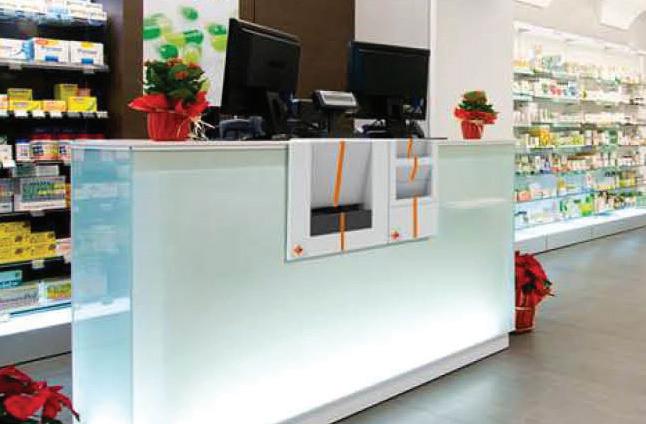

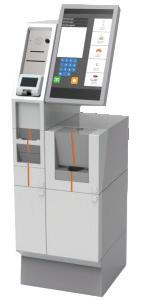

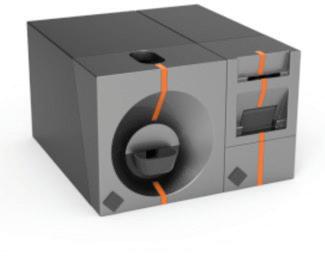

IN LANE SOLUTIONS With its compact size and flexible capacity to suit diverse requirements, our new InLane range allows to bring cash recycling directly to the point of sale counter, eliminating the need for staff to handle and manage cash.

• •

•

Eliminate costs associated with training staff on cash handling procedures, human error, discrepancy investigation, robbery and shrinkage.

Provide fast, enjoyable and safe customer experiences, by freeing staff from cash handling and till management tasks and allowing them to prepare and bag orders or purchases while customers process their payments.

Without the need for staff to handle cash or any other object from outside the shop, the counter or preparation area stays clean and sanitised at all times. This is specially important in pharmacy, grocery and food stores.

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

Less staff required behind the counter Faster service - Staff serves the Customer as they’re paying for their order Hygiene behind the counter and while preparing the order Focus on customer service and adding value at each transaction Cash is kept in a closed loop, away from malicious intent

PAGE 4

Notes

INLANE 300

INLANE 300D

TOTAL

INLANE 900

-

-

2 x RSM - 150 notes each

2 x RSM - 150 notes each

4 x RSM - 150 notes each

300 notes

300 notes

600 notes

600 notes

900 notes

Canvas Bag - 700 notes

-

350-note overflow cassette

Overflow Banking

INLANE 600 D

3 x Rolled Storage Modules (RSM) - 100 notes each

Recycling Top Recycling Low

INLANE 600

-

Canvas Bag - 1,500 notes

-

Deposit Speed

2 Notes per Second, 15 notes bundle feed

Dispense Speed

3 Notes per Second, 10 notes capacity dispense slot

Coins Recycling Top

8 Coin Hoppers - 200 to 750 coins capacity each (depending on denomination and currency)

Deposit Speed

10 Coins per Second / Coin Inlet capacity 20 coins

Dispense Speed

6 Coins per Second / Coin Outlet capacity 50 Coins

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 5

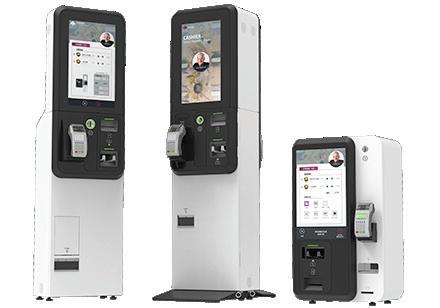

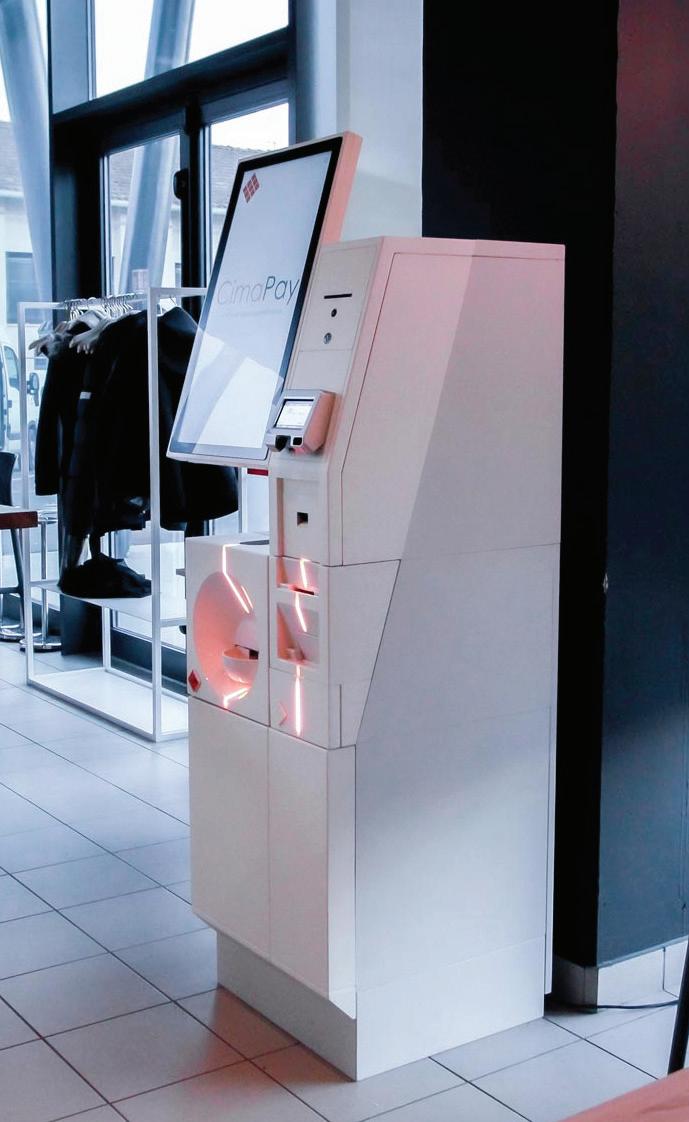

SELF-ORDERING KIOSK SERIES Self-ordering and self-pay kiosks are becoming increasingly popular, in particular environments like fast-food shops, petrol, parking and retail.

Created by combining a compact cash recycler, a large LCD touch screen and a POS module, these devices are proven to; •

Automate the ordering and payment process, increasing its speed, efficiency and accuracy whilst reducing your staffing costs

•

Eliminate the time and effort spent maaging, counting and reconciling payments at the counter

•

Allow staff to focus solely on order preparation and customer service

•

Increase throughput (and sales) thanks to a better presentation of all options to the customer, including specials, combos and menu upgrades

•

Increase customer experience by enabling a smooth ordering experience enriched with enticing imagery, personalized recommendations, and loyalty programs

•

Reduce order errors and optimize inventory by gaining valuable business insights from automated ordering reports.

•

Easy and secure self-pay options via card, Apple pay or cash

•

Reduce Cash Management costs by recycling cash in house and allowing a fast and efficient pick up/replenishment procedures

•

Real-time visibility of cash and automated reconciliation at the end of the day

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 6

Type Feed System Capacity Dimensions

KIOSK1

CASHIER

CASHIER 2

Standalone

Standalone One Sided

Standalone Doublesided

CASHIER Z Desktop or Wallmount

15 note/20 coin inlets, speed 10 coins/sec

Single note and coin feed for Users, bulk feed 200 NPM/CPM for Retailer

2 options, up to 2,500 notes/12Kg coins

Notes: 70 Notes per Drum + 500-Note Cassette | Coins: 75-80 pcs per Tube

520 x 550 x 1800 mm | TBC

305 x 450 x 1700 mm | 95Kg

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

350 x 450 x 1730 mm | 103Kg

345 x 520 x 906 mm | 60Kg

PAGE 7

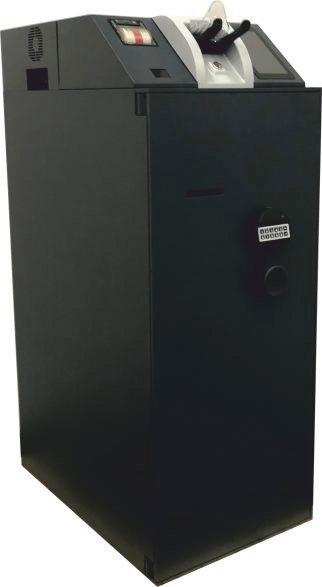

SMART SAFES Our Retail Team has a deep knowledge and an extensive experience with Smart Safes. Proven to maximise security and visibility around cash, Smart Safes enable Retailers to cut costs associated with holdings reconciliation, banking preparation, and double count checks.

When selecting our range of Smart Safes, we wanted to offer; •

Flexibility in terms of sizes, security and pricing

•

Proven and certified note validation modules for accuracy and speed

•

Industry graded safes and security features

•

Bespoke reporting and monitoring software

•

Easy integration to your CMS via API

•

Leading note processing technology and strong built

•

Quick and easy pick up procedures by the Cash Management Providers

•

Potential savings on insurance and security costs

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 8

SDM50

SDM100

SDM100+

SDM500

Under the Counter

Front/Back Office

Front/Back Office

Back Office

BV1000L, Single Banknote Feed

BV1000 ECB Certified

BV1000 ECB Certified

BV5000 ECB Certified

Processing Speed

2 Notes per Second

5-6 Notes per Second

5-6 Notes per Second

5-6 Notes per Second

Detection Sensors

--

MG, CIS, UV, IR (ECB certified)

MG, CIS, UV, IR (ECB certified)

MG, CIS, UV, IR (ECB certified)

Hopper Capacity

Single Note Feeding

30 Notes (Continuous Feed)

50 Notes (Continuous Feed)

200 Notes (Continuous Feed)

Capacity

Up to 1,200 Stacked Notes

Up to 1,500 Stacked Notes

Up to 3,000 Stacked Notes

Up to 3,000 Stacked Notes

Screen Size

7” Touch Screen

7” Touch Screen

7” Touch Screen

7” Touch Screen

Printer

60mm Thermal

58mm Thermal

59mm Thermal

58mm Thermal

Safe/Enclosure

4mm enclosure | Manual Lock

8 mm, UL291, CEN III, CEN IV

8 mm, UL291 24H, CEN L, CEN III

8 mm, UL291 24H, CEN L, CEN III

Size and Weight

200w X 495d X 610h mm

380w X 630d X 690h mm

455w X 685d X 1,182h mm

455w X 685d X 1,025h mm

Type Note Acceptor

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 9

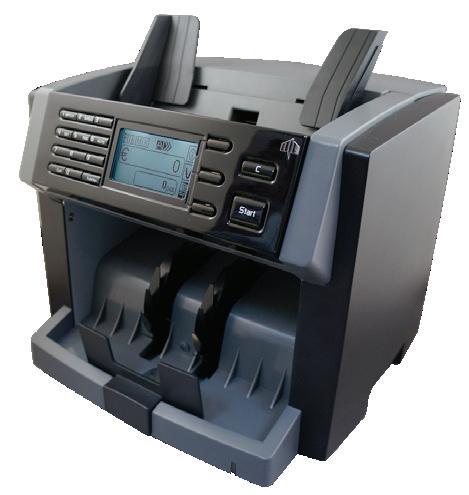

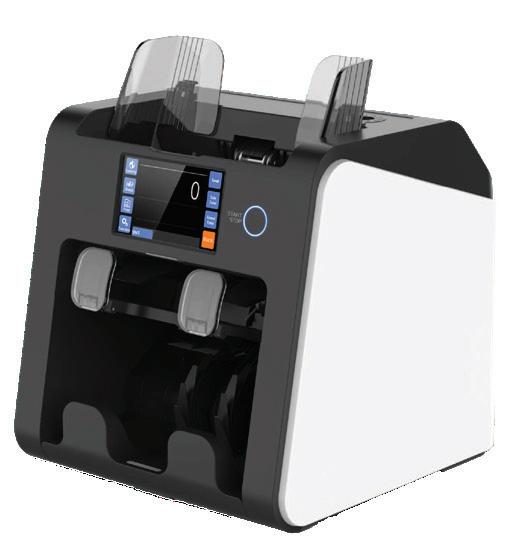

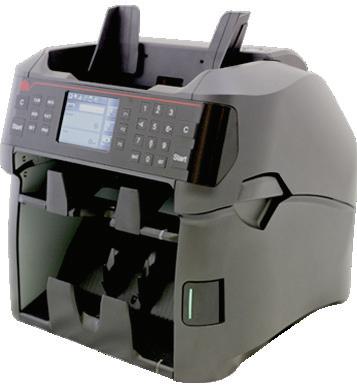

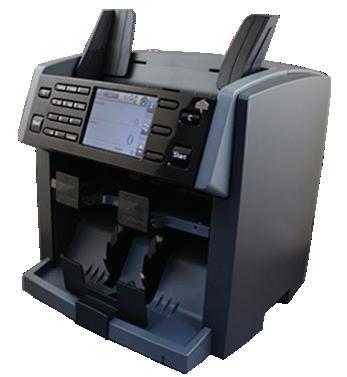

NOTE COUNTERS Our range of note counters deliver quality built components, speed, verified and ECB certified accuracy, multi-currency and multi user functionality and ease of cleaning and maintenance.

Count, validate, and sort large amounts of banknotes in seconds.

All of our note counters feature;

Immediately discriminate counterfeits, currencies, unfit or even soiled notes.

•

Competitive counting speed - between 900 and 1,300 banknotes per minute

•

User-friendly command keys and large LDC screen

•

ECB approved banknote recognition and validation module for accurate processing

•

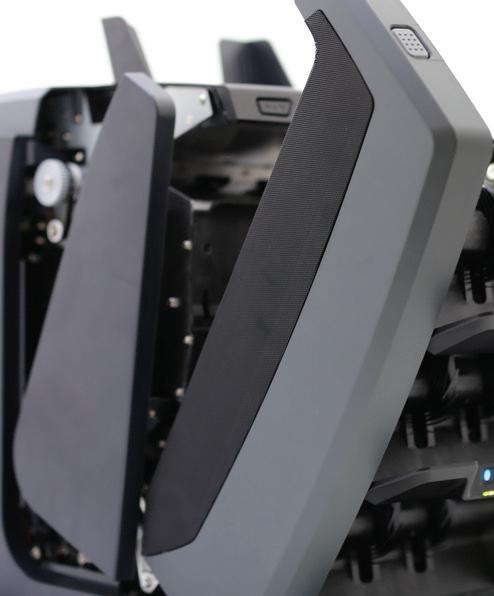

Clam-like design to easily access all parts of the machine for cleaning or jam resolution

•

Clear error messaging and issue resolution step-by-step instructions on screen

•

LAN and USB connectivity for easy download of data and software /template upgrades

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

Dual User Operation: Two people can share a unit and retain their own data, memory and settings.

Multi-currency function; the range processes and recognises multiple currencies at a time.

PAGE 10

NC3500 Functionality

NC6000

Value/Piece Count, Sort (Denom)

NC6500

NC7100

Value/Piece Count, Sort (Denom, Fitness and Orientation)

0-9 Keypad and Action Keys

User friendly screen buttons

Processing Speed

900/1,100/1,300 Notes Per Minute

800/1,000 Notes per Minute

Detection Sensors

UV, MG, and IR Optical sensors

UV, MG, IR, single CIS optical sensors

Hopper Capacity

500 Notes

1,000 Notes

500 Notes

500 Notes

Stacker Capacity

200 Notes

200 Notes

200 Notes

250 Notes

Reject Pocket

Not Available

100 Notes

50 Notes

100 Notes

Screen Size

2.8” LCD Screen

4.3” LCD Screen

3.5” Full Color TFT LCD

3.5” Full Color TFT LCD

Currencies

Up to 5 currencies at a time

Up to 5 currencies at a time

Up to 10 currencies at a time

Up to 10 currencies at a time

Features

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

As the NC3500 + Dual Operator, Check, TITO scanning 700/900/1,100 Notes per Minute

1,100/1,300/1,500 NPM

Dual CIS, MR, MG, UV, IR Reflection and Transmission + Thickness Sensors

PAGE 11

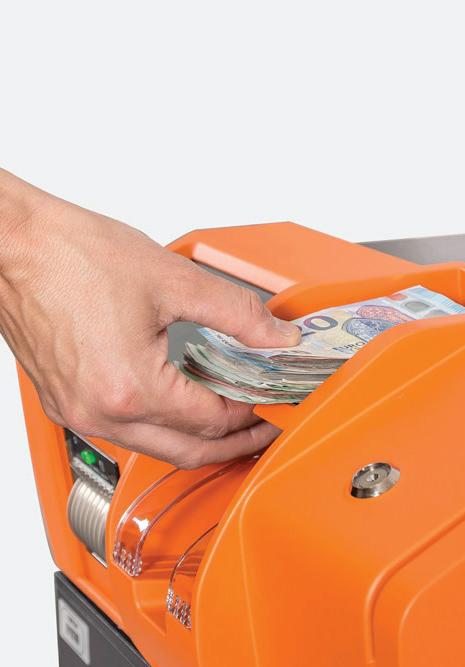

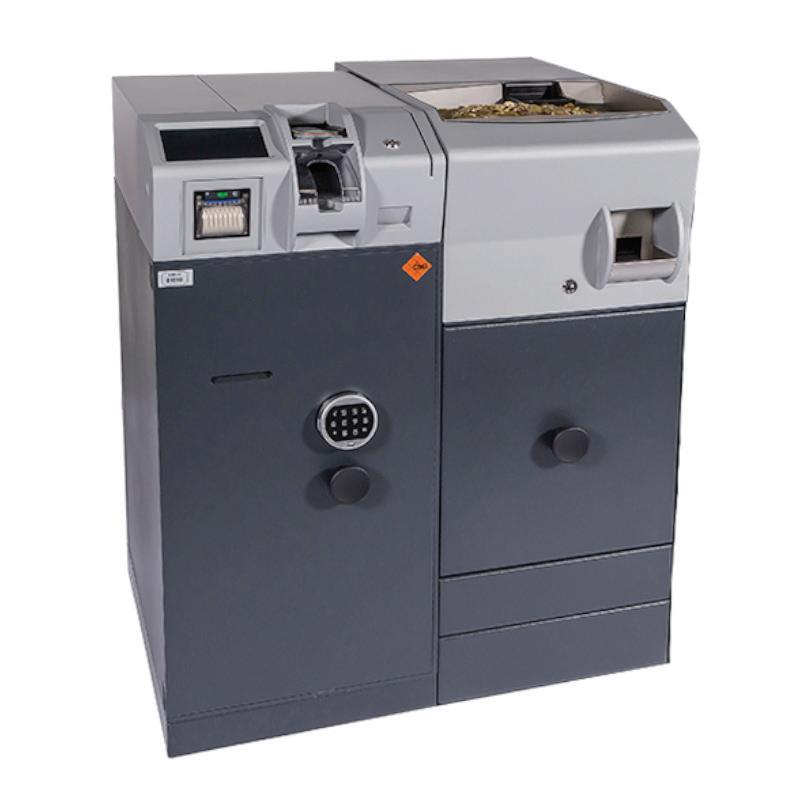

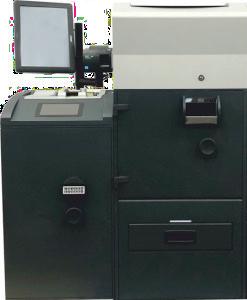

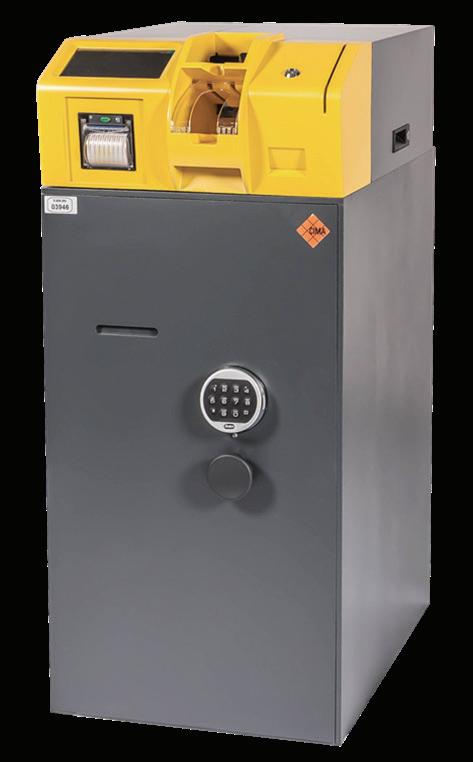

CASH RECYCLING SOLUTIONS Cash Recycling allows retailers to fully automate their cash handling procedures and recycle cash in house, providing great savings on Cash Management and manual labour costs.

Cash recyclers can dispense personalised floats in less than one minute, accept bulk deposits of end-of-day takings, manage change requests and cash skims from tills, and track petty cash or supplier payments.

Each transaction is logged by USER ID, timestamp, and amount by denomination, providing full visibility of cash in real-time via our unique cloudbased reporting and monitoring platform, CashLantern.

Our Cash Recycling Systems are proven to provide the following benefits; •

Increased visibility and control over cash

•

Optimisation of cash management

•

Savings on time, HR and cash banking/replenishment costs

•

improved operational efficiency and accountability of Staff

•

Reduced cash holdings for better security

•

Easy reconciliation and integration to POS management system

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 12

CDS803 + SDM504S

CDS804 + AST9000

Module

COIN: CDS803

NOTE: SDM504S

COIN: CDS804

NOTE: AST9000

Input Tray

1,000 mixed coins in Tray

30 Notes (Continuous Feed)

1,000 mixed coins in Tray

200 Notes (Continuous Feed)

Deposit Speed

10 coins per second

6 Notes per Second

10 coins per second

10 Notes per Second

Dispensing Speed

48 coins per second

5 Notes per Second

45 coins per second

10 Notes per Second

Recycling Capacity

18,000 Coins, 8 Coin Hoppers

Up to 2,000 Notes

46,000 Coins, 5 Coin Hoppers

Up to 13,600 Notes (4 Cassettes)

Banking Capacity

4,000 Coins in a Tray

Up to 3,000 Notes

MG, CIS, UV, IR (ECB certified)

Up to 2,800 Notes

Screen Size

--

7” Touch Screen

7” Touch Screen

7” Touch Screen

Printer

--

58mm Thermal Printer

59mm Thermal

58mm Thermal

5mm enclosure | Manual Lock

UL291, CEN L, CEN III, CEN IV

5mm enclosure | Manual Lock

UL291 24H, CEN L, CEN III, CEN IV

Safe/Enclosure Size and Weight

897w X 4765d X 1099h mm

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

1,001w X 1,021d X 1,252h mm

PAGE 13

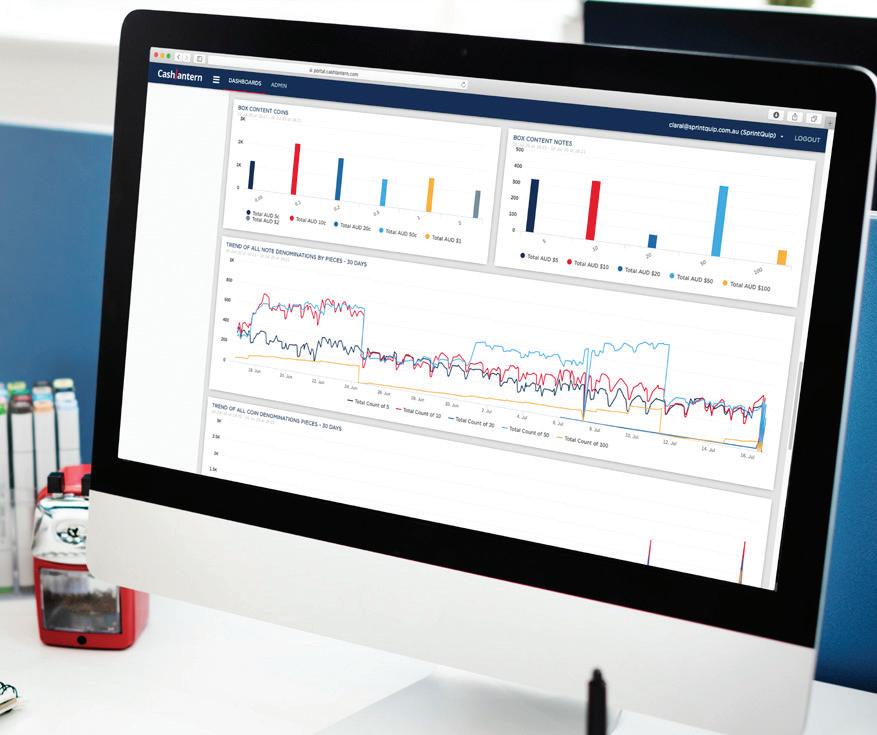

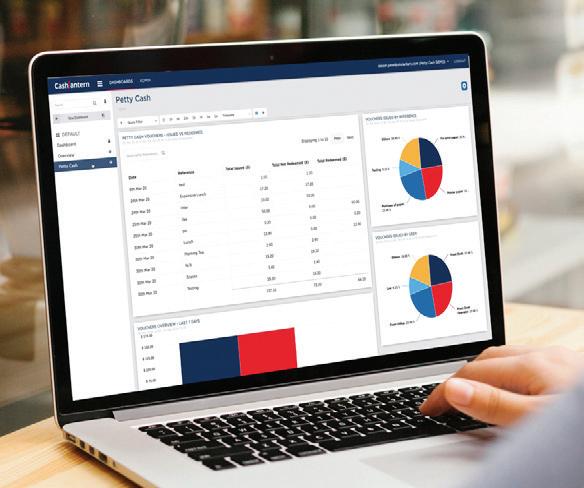

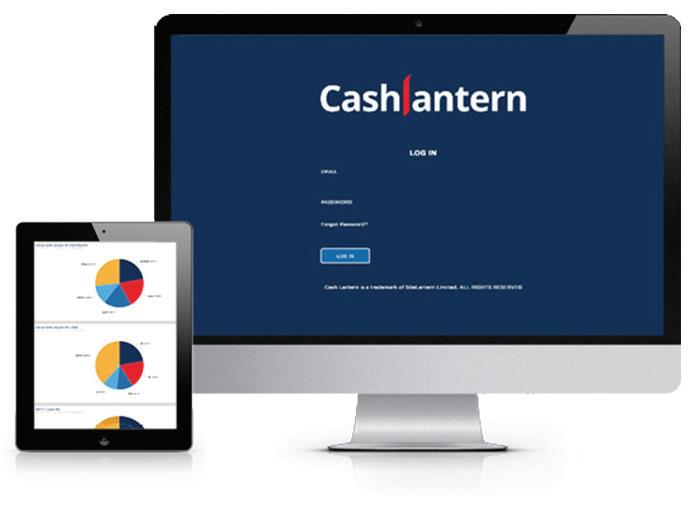

CLOUD-BASED REPORTING AND ANALYTICS PLATFORM CashLantern is a monitoring, reporting and analytics platform designed to provide full visibility of cash and complete charting, graphing and reporting capabilities.

The customisable and access-based dashboards allow full tracking and reporting down to User ID, transaction type and details of amount by denomination and machine status by module, in near real-time.

Powerful and User Friendly, CashLantern can be accessed by any device, anytime, anywhere.

Standard Features include: •

Track cash transaction data by user ID, machine, department, store, region, or any other parameter captured by the machine

•

Optimise cash levels by monitoring cash usage

•

Spot unusual transactions or trends

•

Track the expected cash deposits vs actual cash deposits

•

Report on sales, inventory, cashier performance

•

Low denomination and machine fault alerts

Compatible with our Smart Deposit devices and Cash Recycling machines.

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 14

COINBANK CoinBank helps Retailers generate revenue and increase profits by offering their customers a hassle-free solution for coin deposit that they can trust and recognise – right where they already shop.

Customers deposit their spare or saved up coins and receive a credit voucher redeemable in store.

With less than 1sqm footprint and minimal power consumption, CoinBank offers a modern look, a large 19” colour touchscreen, customisable screen flow, receipt and a LED light frame to suit your branding.

The solution includes a cloud-based, real-time remote monitoring, troubleshooting and reporting dashboard, as well as engineering support.

•

Increase store traffic by offering and useful public service

•

Boost customer spend by turning useless change in spendable vouchers

•

Maximise branding and marketing opportunities on the screen an receipts

•

Reduce cash handling costs by recycling coins rather than buying them from the Cash Management Providers

•

Generate revenue by introducing a fixed or variable processing fee

•

Promote loyalty programs by waiving processing fees only to Loyalty card holders

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 15

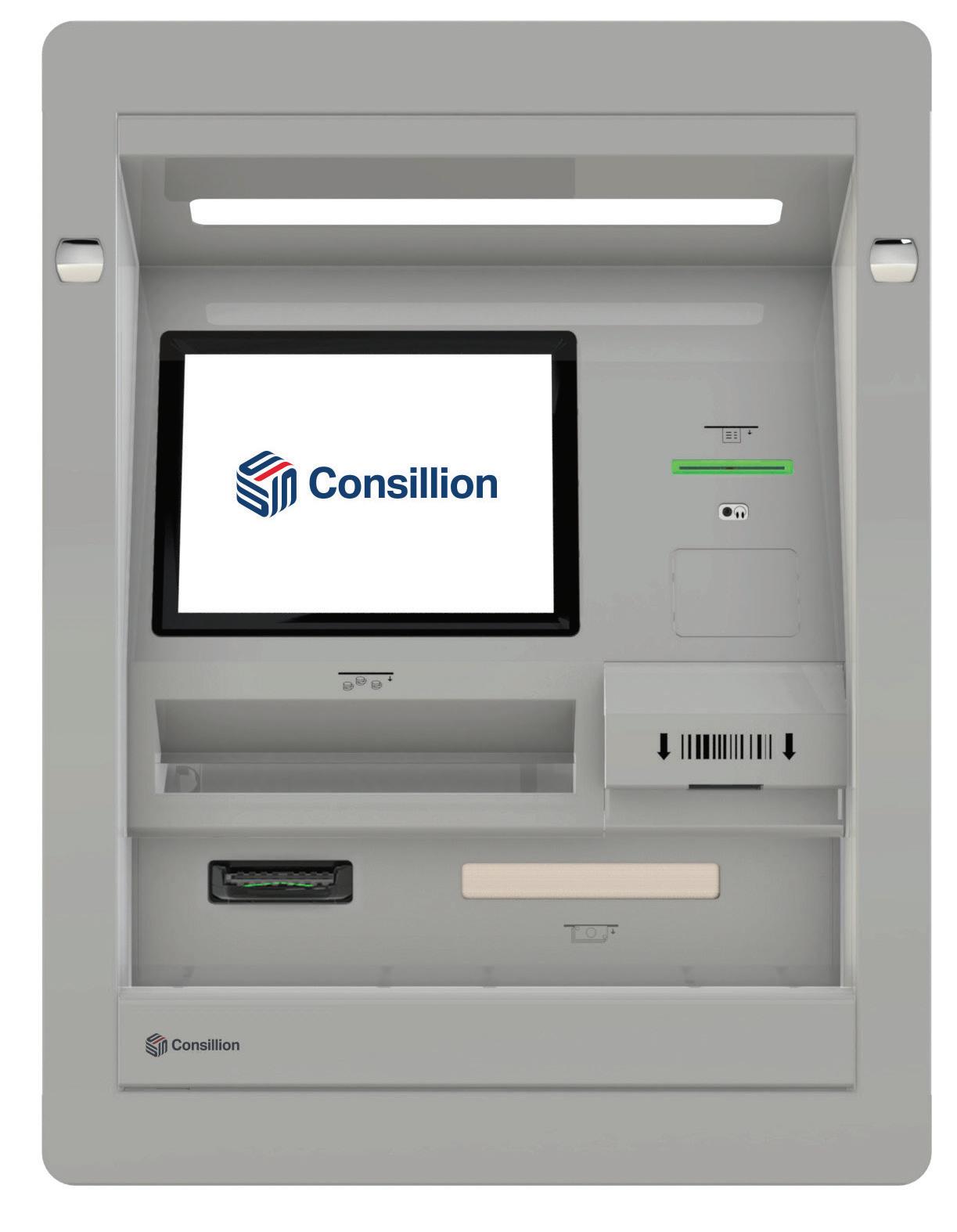

CRTi CASH REDEMPTION TERMINAL The CRTi Cash Redemption terminal is a secure and costeffective self-service voucher-to-cash converter designed to read barcoded receipts and dispense coins and notes to match the amount credited.

Initially created in collaboration with a global player of the waste recycling industry, the CRTi is perfect to automate payouts in gaming, gambling, lottery and betting, but also in Retail to help with; •

Cash-out requests

•

Voucher redemption

•

Product returns and refunds

Its high capacity and security allow the CRTi to take on all cash dispensing transactions required in store, hence reducing the amount of cash required in the tills at any point in time.

Thanks to the optional note acceptor, the CRTi can also be used as a change machine by customers and staff alike.

Our cloud-based reporting system, CashLantern, allows real-time monitoring of the device and reporting on all transactions, making the management of cash replenishments automated and optimised.

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 16

OUR SERVICE Upon purchasing a Consillion machine, our customers enjoy an exceptional support and service, with all queries taken directly to our technical support team via a friendly helpdesk. Our field and back to base service options are available to all of our customers, with those machines listed under a programmed maintenance contract enjoying the freedom and ease of regularly scheduled preventative maintenance visits.

Consillion is considered a pioneer in cash handling solutions. We build the right infrastructure and processes to support our software and hardware. We provide a full suite of solutions and services that ensure our customers receive a solution that is fit for purpose and fully supported. Our long-standing experience comes from having access to the best and most up to date cash handling technology, backed by service technicians professionally trained by our product engineers.

•

Preventative and Corrective Maintenance

•

Warehousing and Logistics

•

Quality assurance and staging

•

Phone Support and on-site/remote training

•

Consulting and process engineering

•

Service contract management

CONSILLION (UK) | RETAIL PRODUCT CATALOGUE

PAGE 17

For more information, please contact salesuk@consillion.com or call our helpdesk on +44 (0) 1189 692 224.

Unit 510, Eskdale Rd, Winnersh Triangle Wokingham, Berkshire RG41 5TU P : +44 (0) 1189 692 224 W: consillion.com
