GREEN TO COAST CONNECTION:
Using Seriers of Interventions to link Long Wharf to New Haven
PLANNING
FEEDBACK
SAFER
ESTIMATE
DESIGN REPORT
COLLABORATION
TABLE OF CONTENT GREEN TO COAST 4 URBAN ACUPUNTURE + NEW HAVEN, CT DESIGN PROCESS 6 PROCESS/ANALYSIS/ENGAGEMENT SITE ANALYSIS 8 FAMINGTON CANAL TRAIL 18 DESIGN PROPOSALS BIKE TRAIL DESIGN 20 COMMUNTY
10
12 ORANGE & CHAPEL LOT 1 22 ORANGE & CHAPEL LOT 1 24 ORANGE & CHAPEL LOT 2 26
UNDERPASS 28 ROAD MAP 16 LONG WHARF PARK 30 DESIGN/BUILD 34 DESIGN ACTION COST
36
32
38 TACTICAL URBANISM 14
UCONN LANDSCAPE ARCHITECTS
LAND 4440 COMMUNITY PLANNING DR. SOHYUN PARK FALL 2022
RORY CUTTS, CONNIE HUANG, BRIAN GARZÓN-ROMERO, VICTOR CIZIK
4 VISITS MEETINGS DESIGN LONG WHARF DOWNTOWN CITY PLANNING COMMITTEE CORDINATION FIRST DRAFTS WEEK 1 WEEK 2 WEEK 3 URBAN ACUPUNTURE + NEW HAVEN, COMMINTY OUTREACH, DESIGN PROPOSAL REGIONAL
5 YALE CAMPUS DESIGN CHARRETTE DESIGN CHARRETTE REVISIONS GAME PLAN WEEK 4 WEEK 5 WEEK 6 Esri, HERE, Garmin, SafeGraph, GeoTechnologies, Inc, METI/NASA, USGS, EPA, NPS, USDA HAVEN, CT CONTEXT
MAP REGIONAL MAP

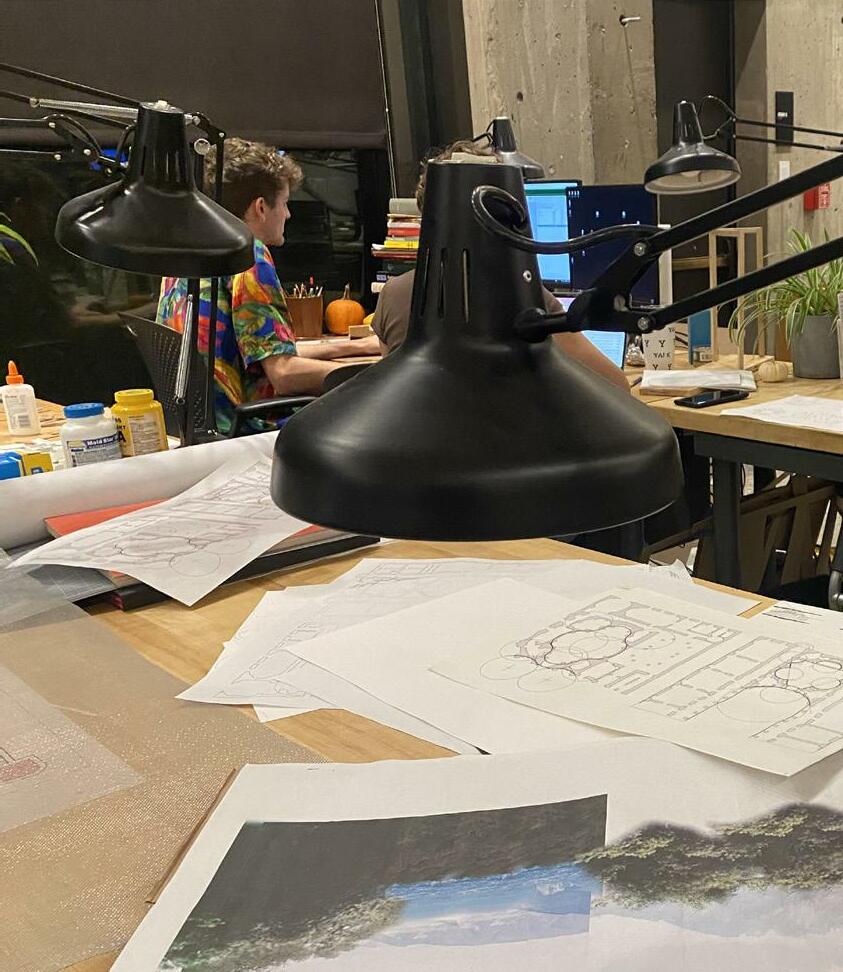

DESIGN PROCESS TEAM WORK + VISION
PROPOSED TRAIL NEW HAVEN HARBOR 9TH SQUARE
HISTORY TRENDS
SOLUTION
SITE VISIT + ANALYSIS RESEARCH FEEDBACK
SEATING/ LIGHTING TREE/ VEGETATION PUBLIC RECREATION AREAS CONNECTION
New Haven is the second largest city in Connecticut. We want to hone in objective to create a series of small-scale intervention to help link the Downtown to transform specific sites into meaningful spaces for people to rest, play the city, and implementing pop-up activities by the streets.
6
in on community engagement with the city to view its needs with the Downtown to Long Wharf. With the use of Urban Acupuncture, we aim play and connect; Focusing on seating & shading, bringing vegetation into
7 SEATING/
LIGHTING VEGETATION PUBLIC RECREATION AREAS CONNECTION SITE(S) PROPOSAL ORANGE & CHAPEL ST FARMINGTON TRAIL I-95 UNDERPASS LONG WHARF
SITE ANALYSIS
New Haven, CT

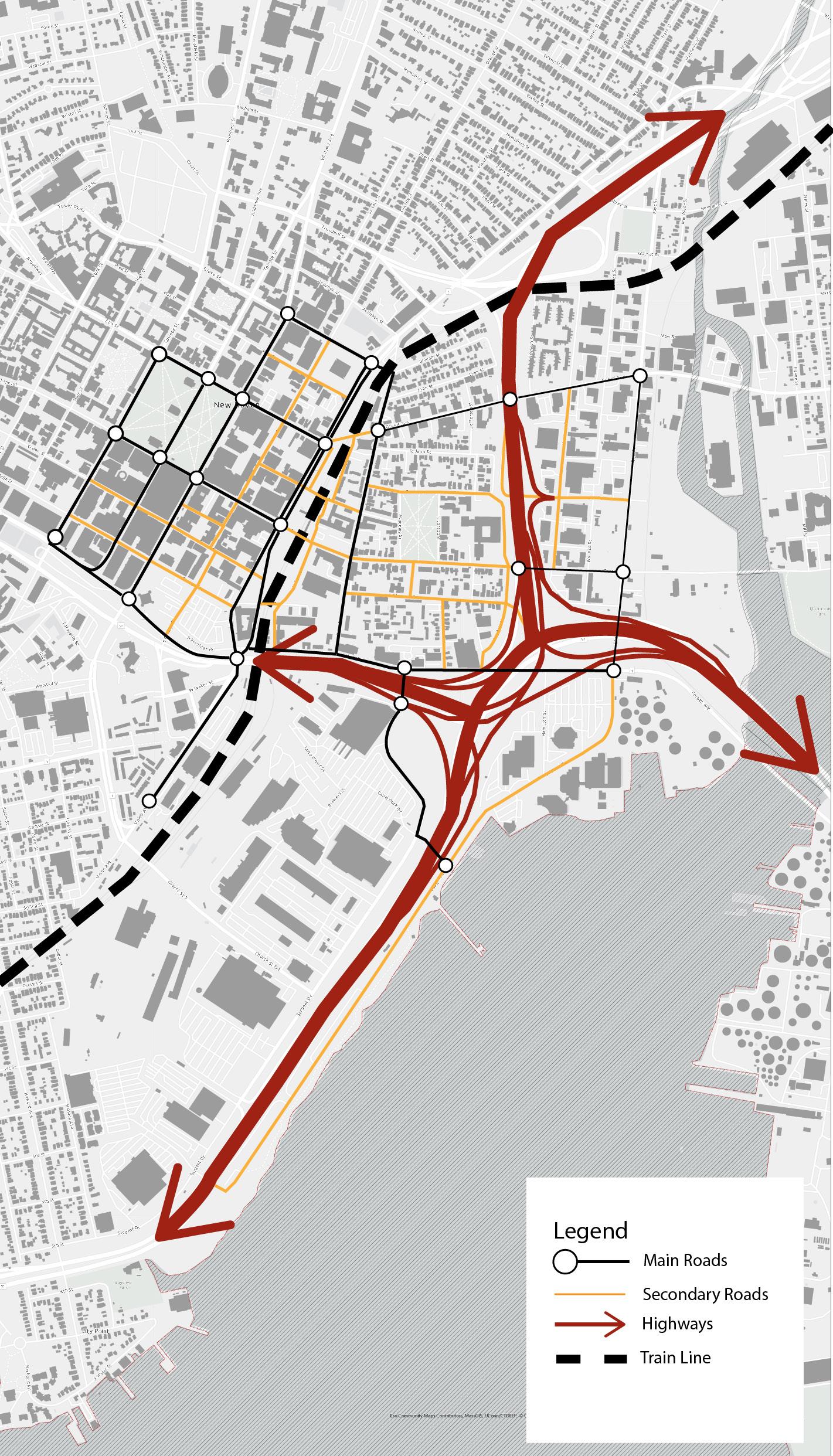

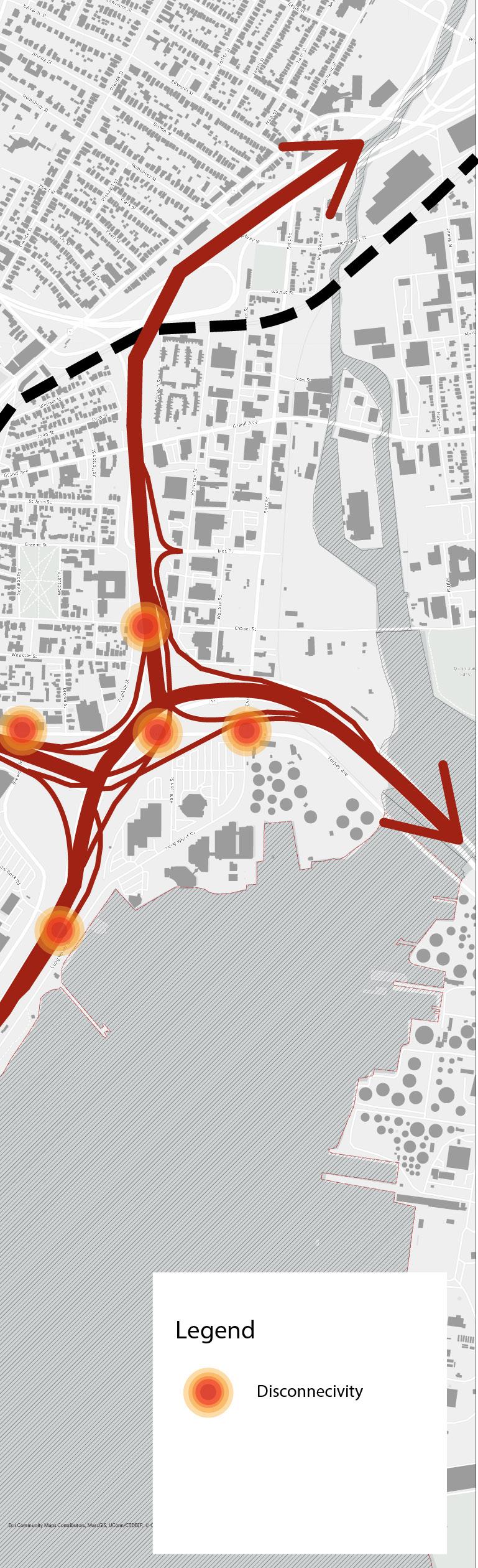

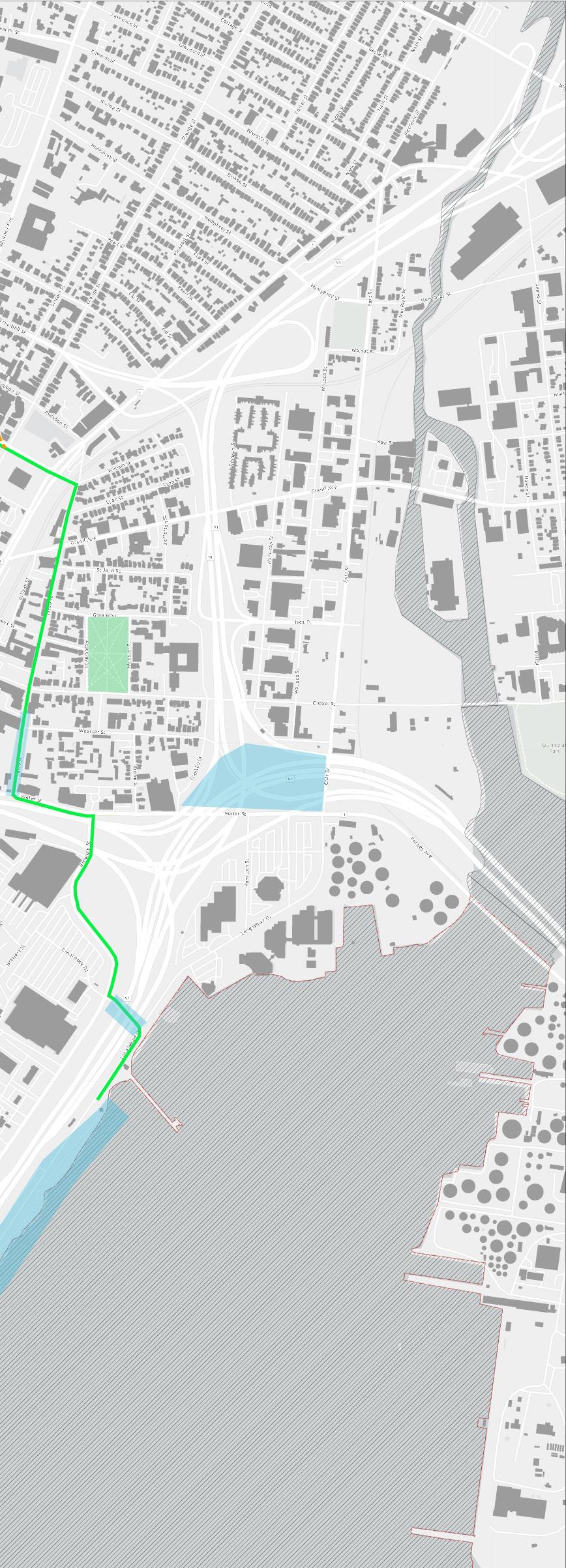

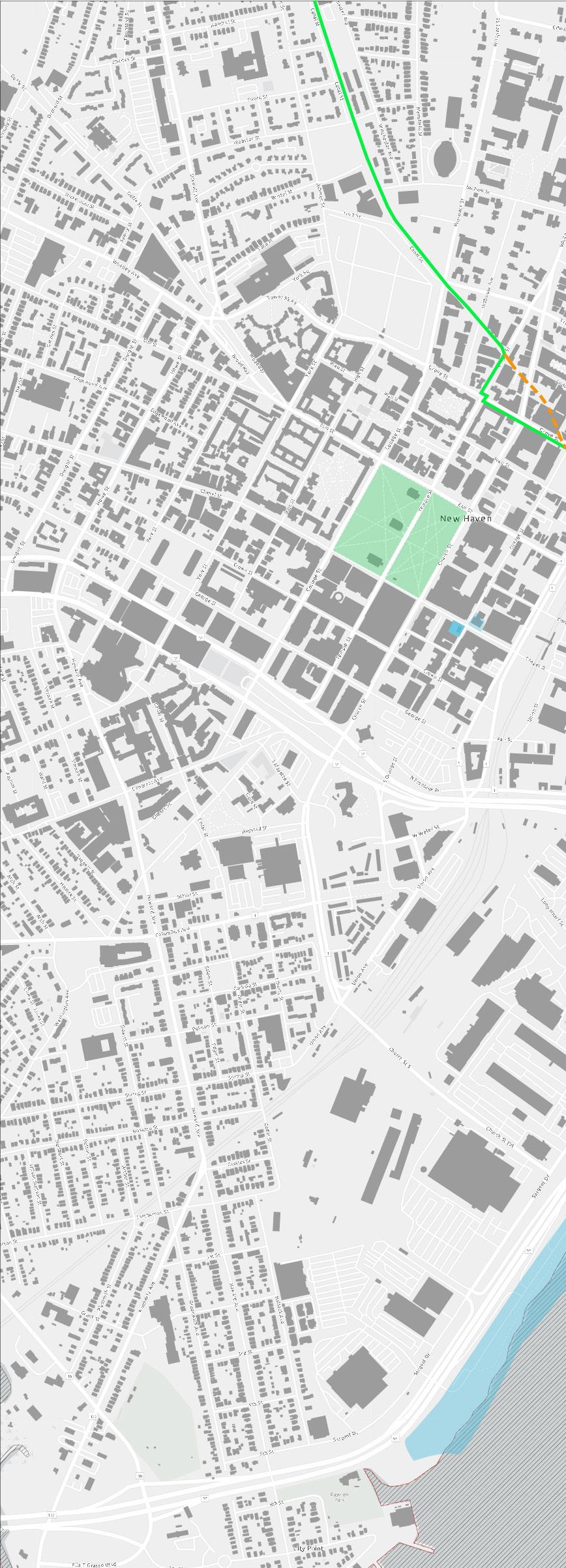

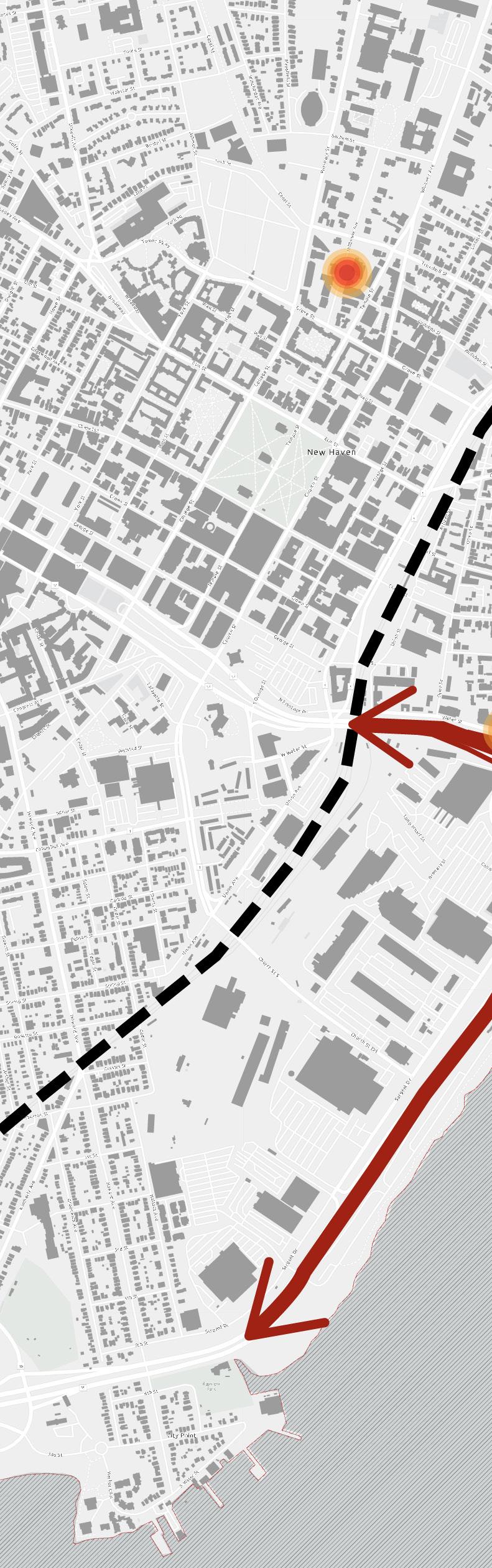

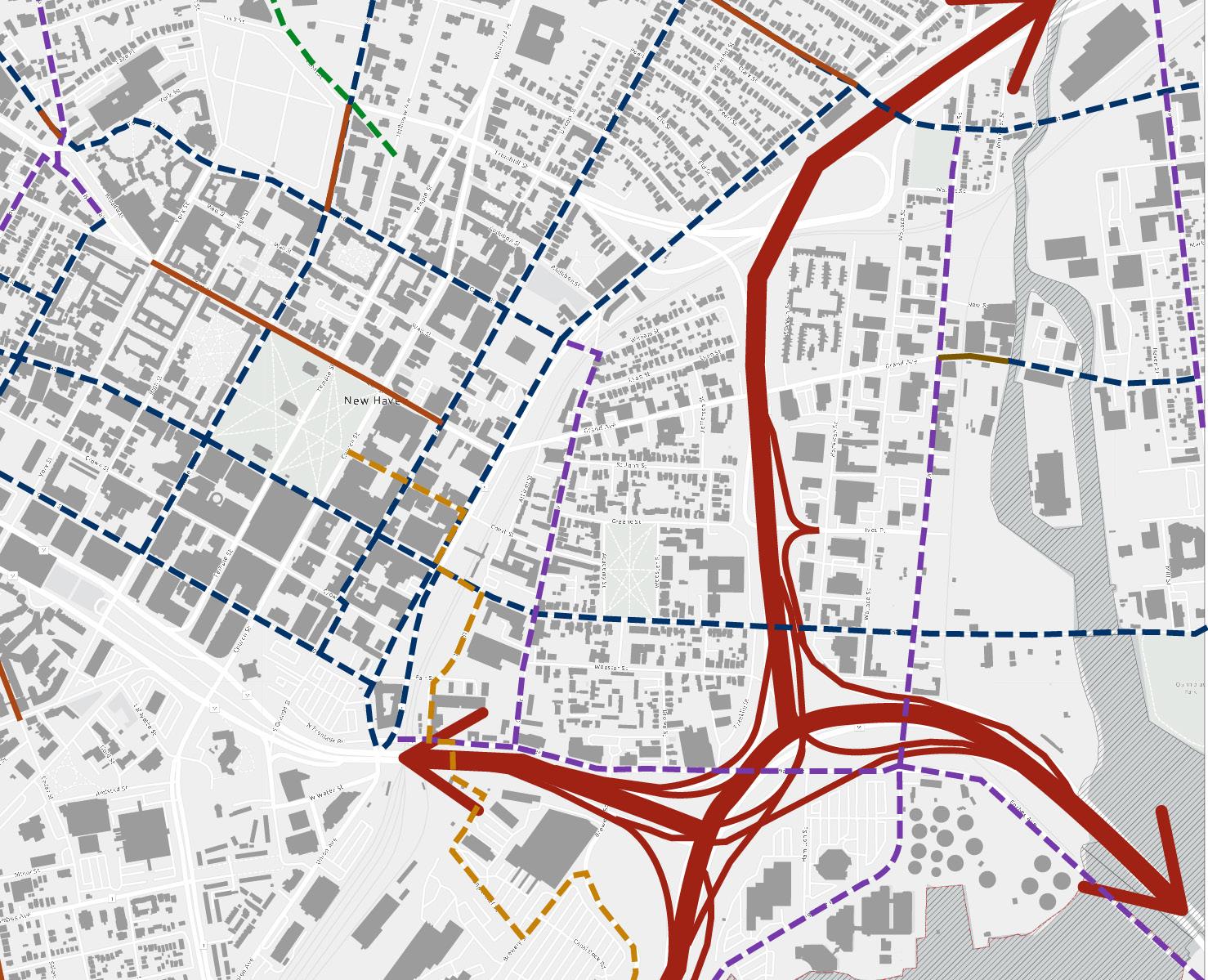

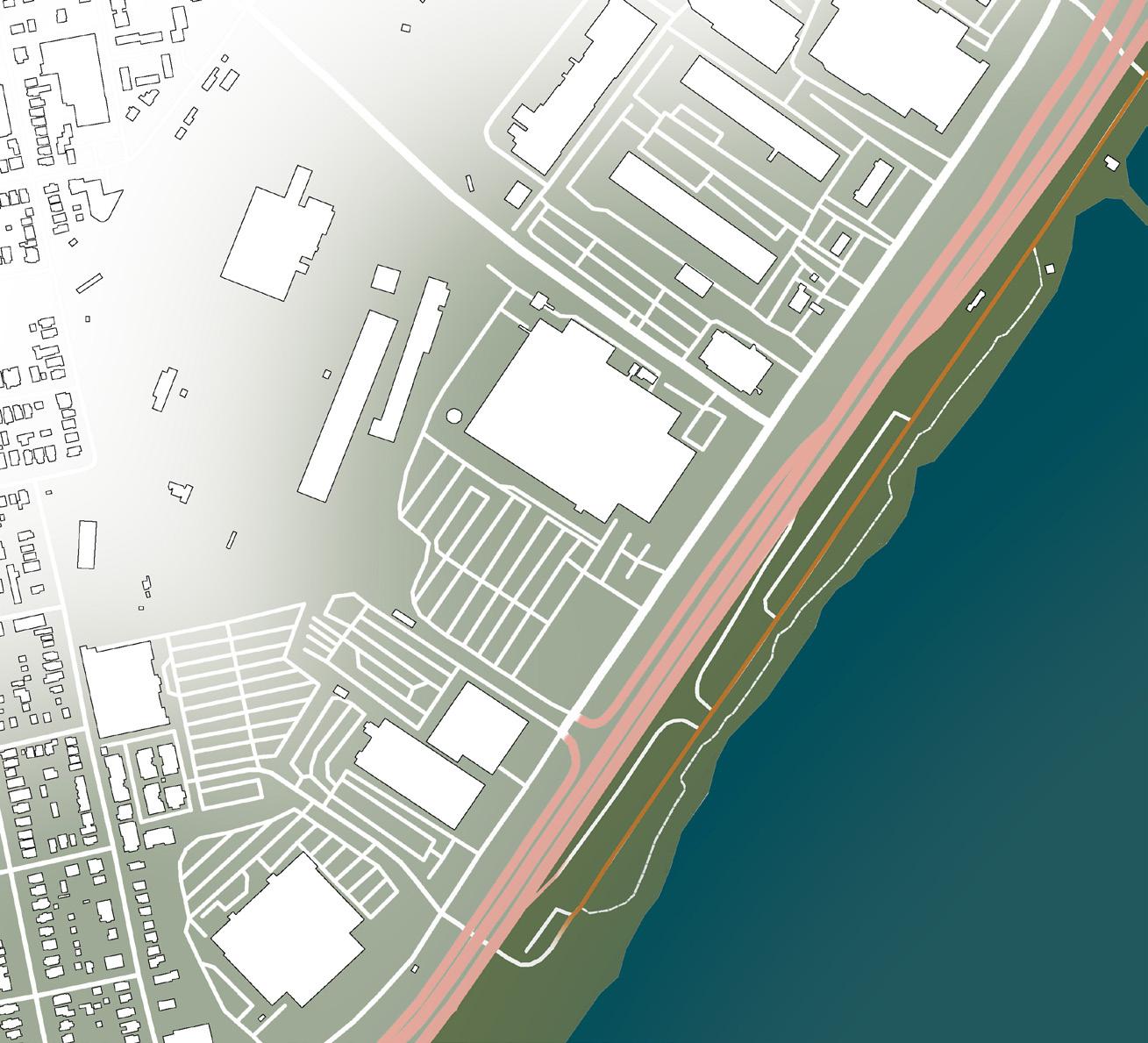

DISCONNECTIVITY MAIN & SECONDARY ROADS
8

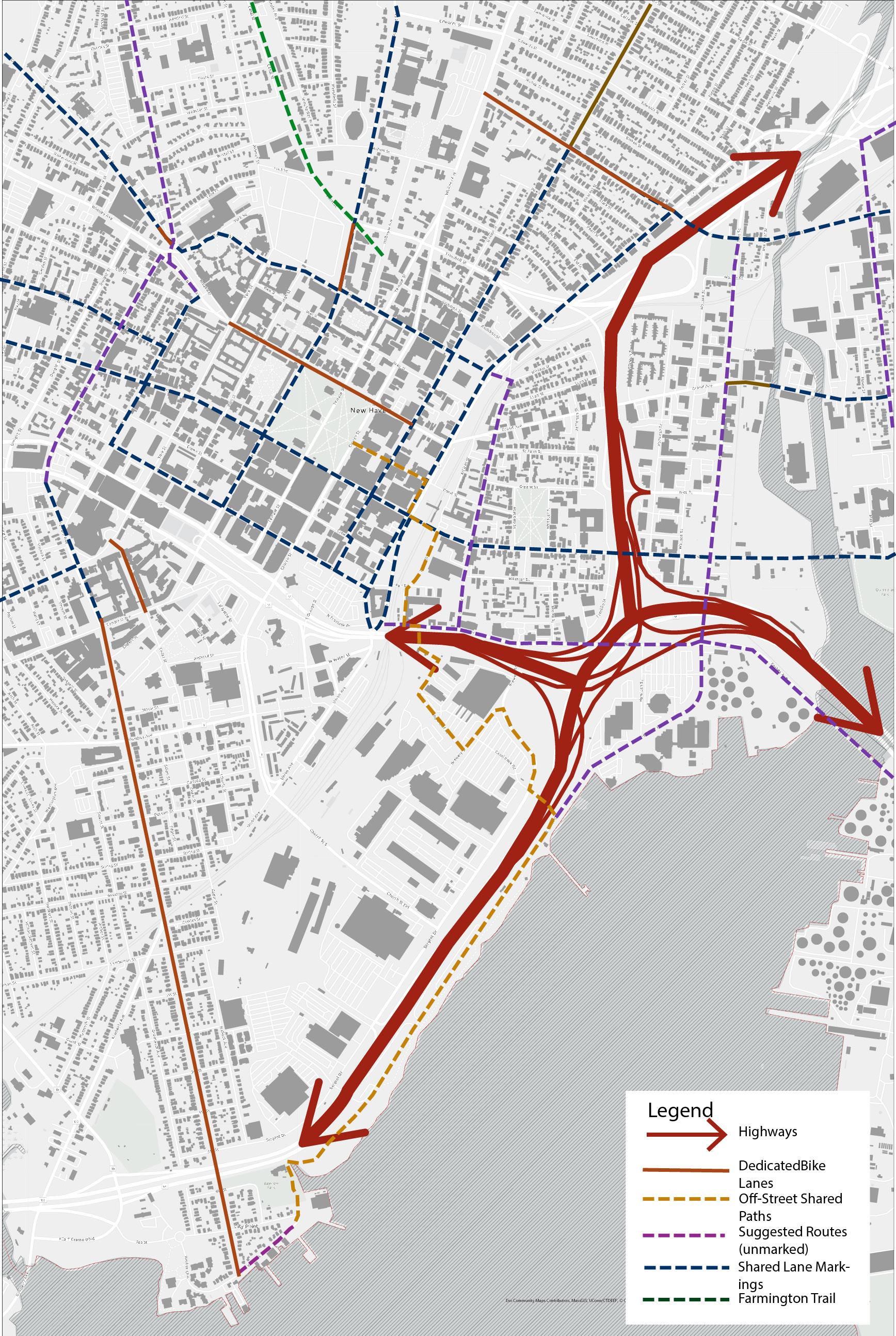

DISCONNECTIVITY BIKE LANE MAPS
9
VICTOR

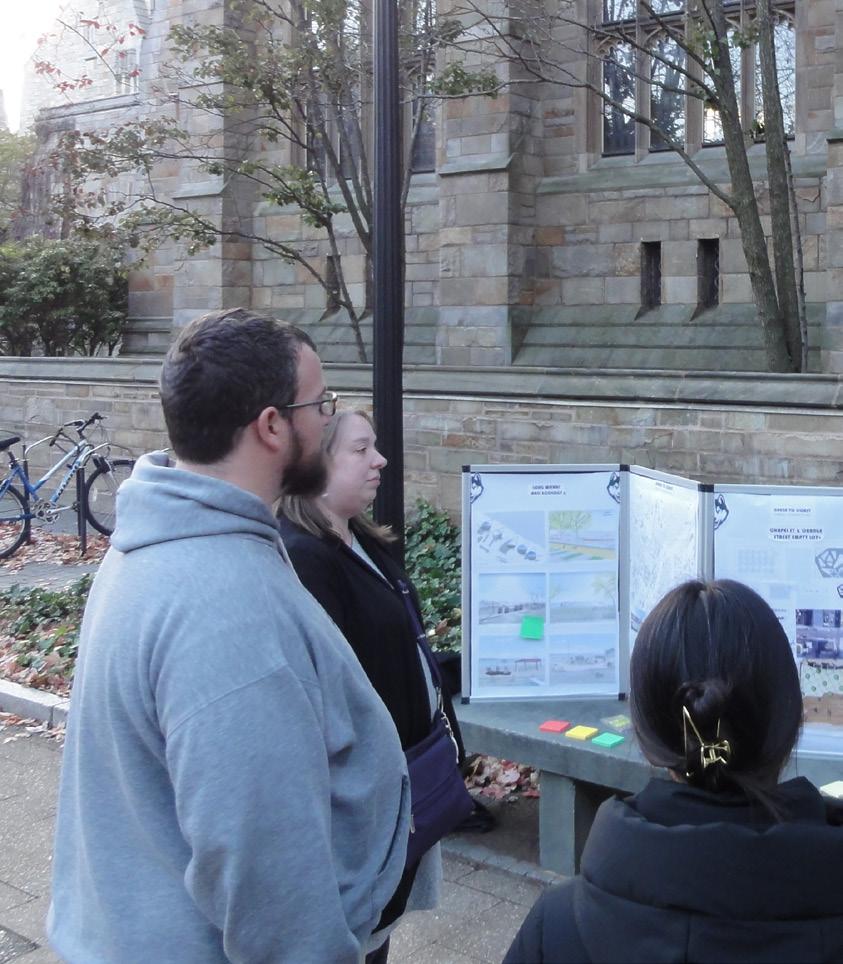

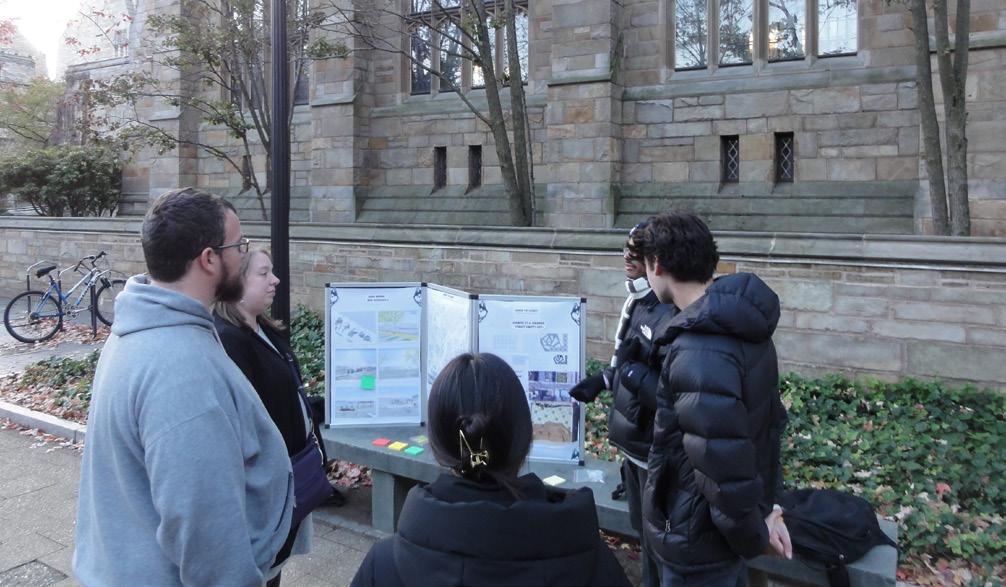

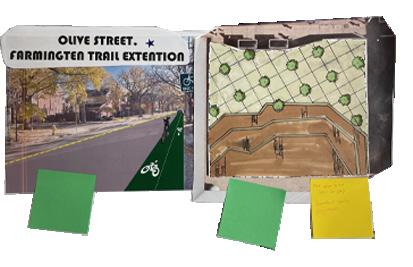

10 COMMUNITY ENGAGEMENT FEEDBACK INFORMED LIVING + DESIGN OBJECTIVES CITY PLANNING COMMITTEE MEETING POSTING FLYERS YALE EXIBIT DESIGN CHERETT STICKY FEEDBACK
RESIDENT NEEDS
Providing residents a series of stops along the Farmington Canal Trail.
SOCIAL OPPORTUNITIES
More amenities on the trail so people have areas they can socialize and meet with other residents within the city.
HISTORICAL SIGNIFICANCE

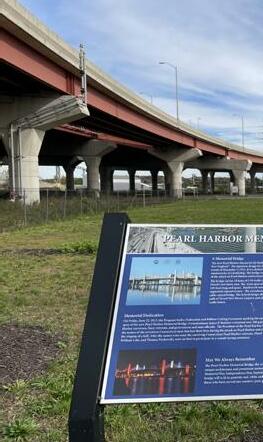

The Farmington Canal Trail follows along historic sights such as the Pearl Harbor Bridge and New Haven Harbor.
VISION TRAIL GROUP

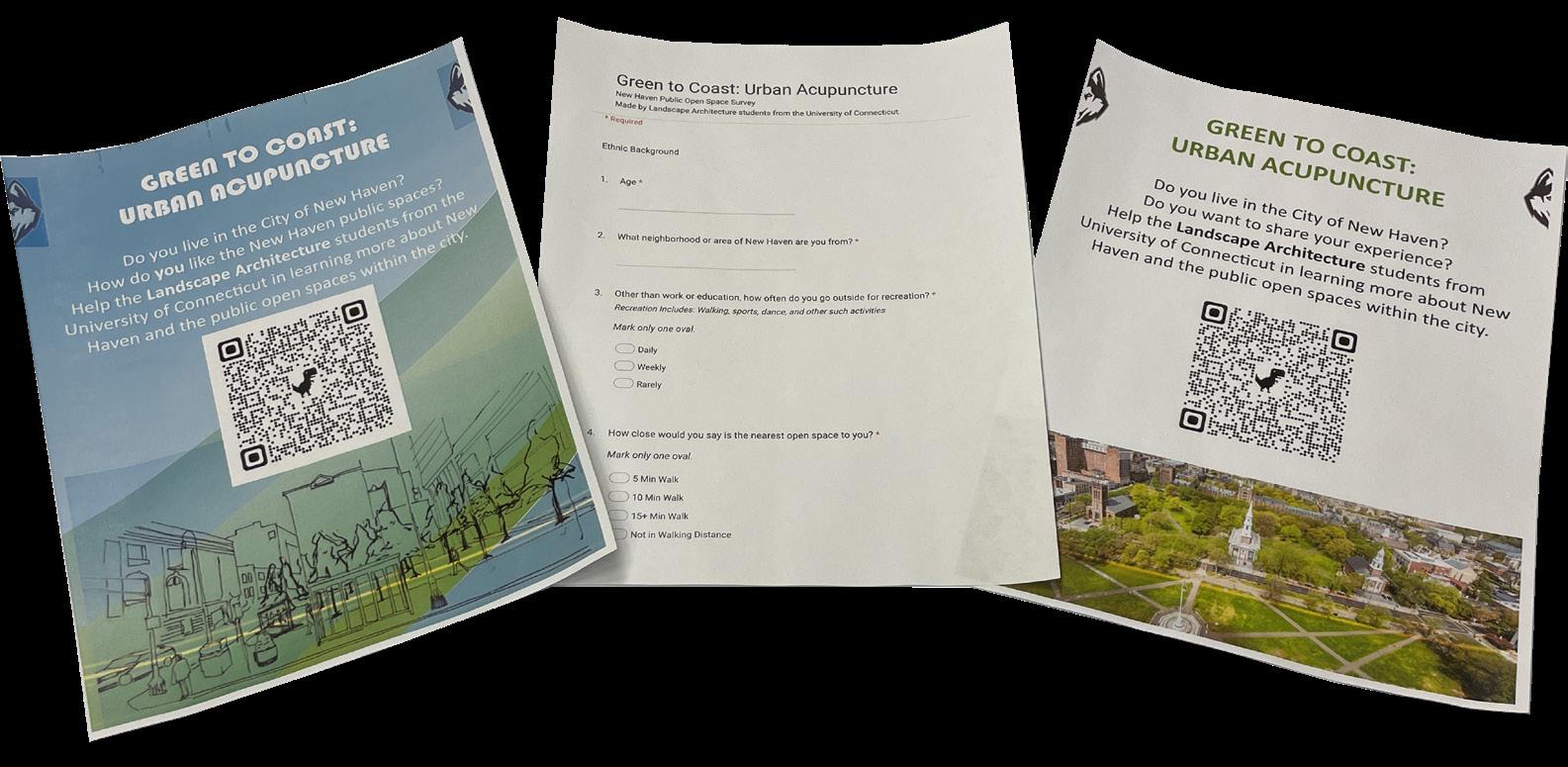

Grassroots group lobbied for expandIing New Haven’s bike lane to connect to Long Wharf. This would add to that goal. Survey Flyers
11
FEEDBACK
WHAT DID PEOPLE HAVE TO SAY?
Many pedestrians that we have came across were just visitors or Yale students who have not wandered off from the Yale campus. Many were told to be careful of wandering around past the Yale campus because of crime.
One visitor from Switzerland commented on the size of the roads and gave us their feedback on what makes them feel comfortable walking in cities.
One couple really the interventions Wharf, ones that in nature like added seating,
Overall many were in giving us feedback many were visiting others were not landscape architecture “never really thought it”
12
really enjoyed interventions on Long that are smaller tree plantings, seating, tables etc……
were hesitant feedback since visiting and in realm of architecture / thought about
One pedestrian said that the downtown area gives off a “cold” feeling. They also explained that there are no public recreational areas like basketball courts or volleyball ( Gathering SPaces )courts, which they believe contributes to the “cold” feeling.
Key Points
Connectivity Safety Accessibility Liveliness
13
TACTICAL URBANISM
14

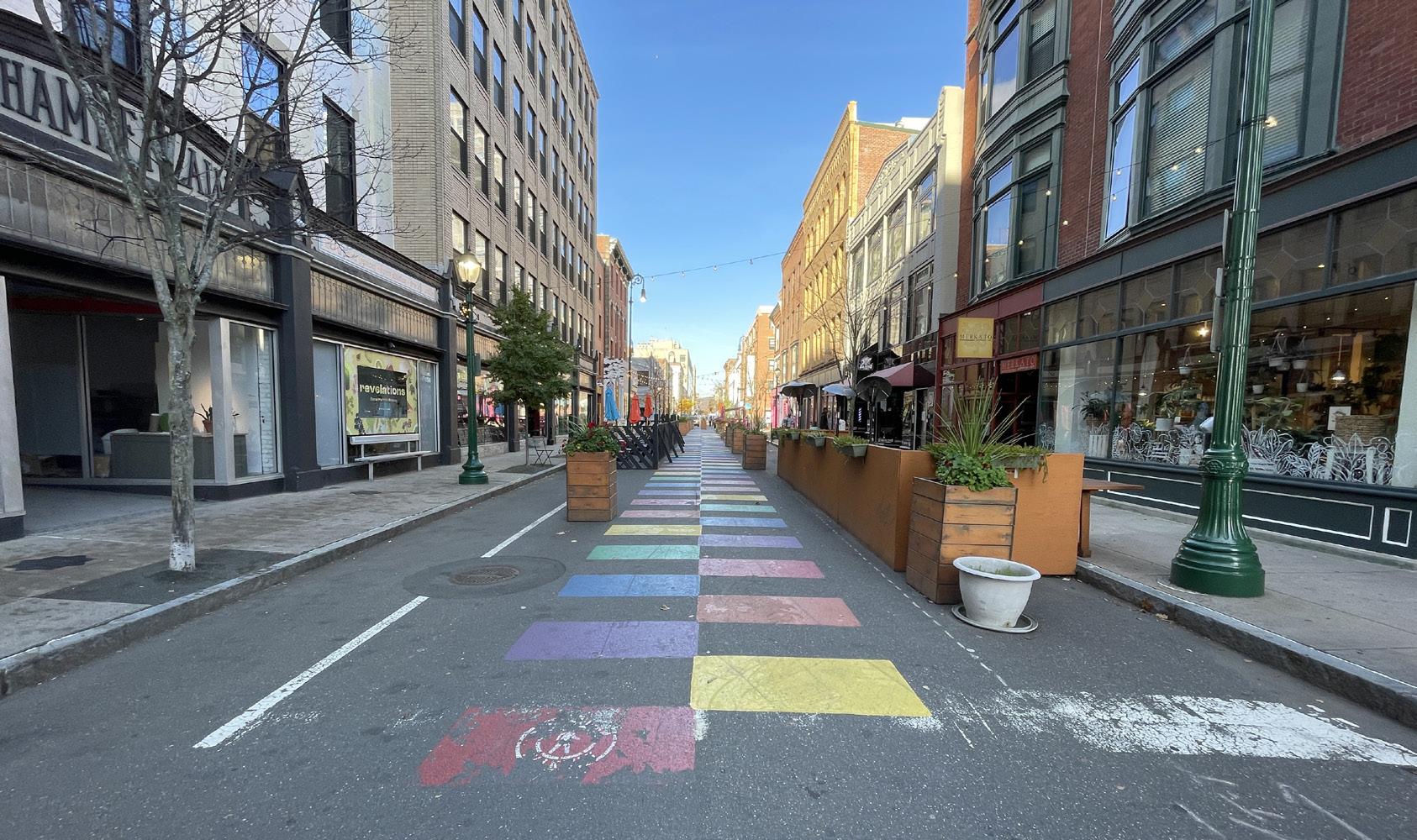

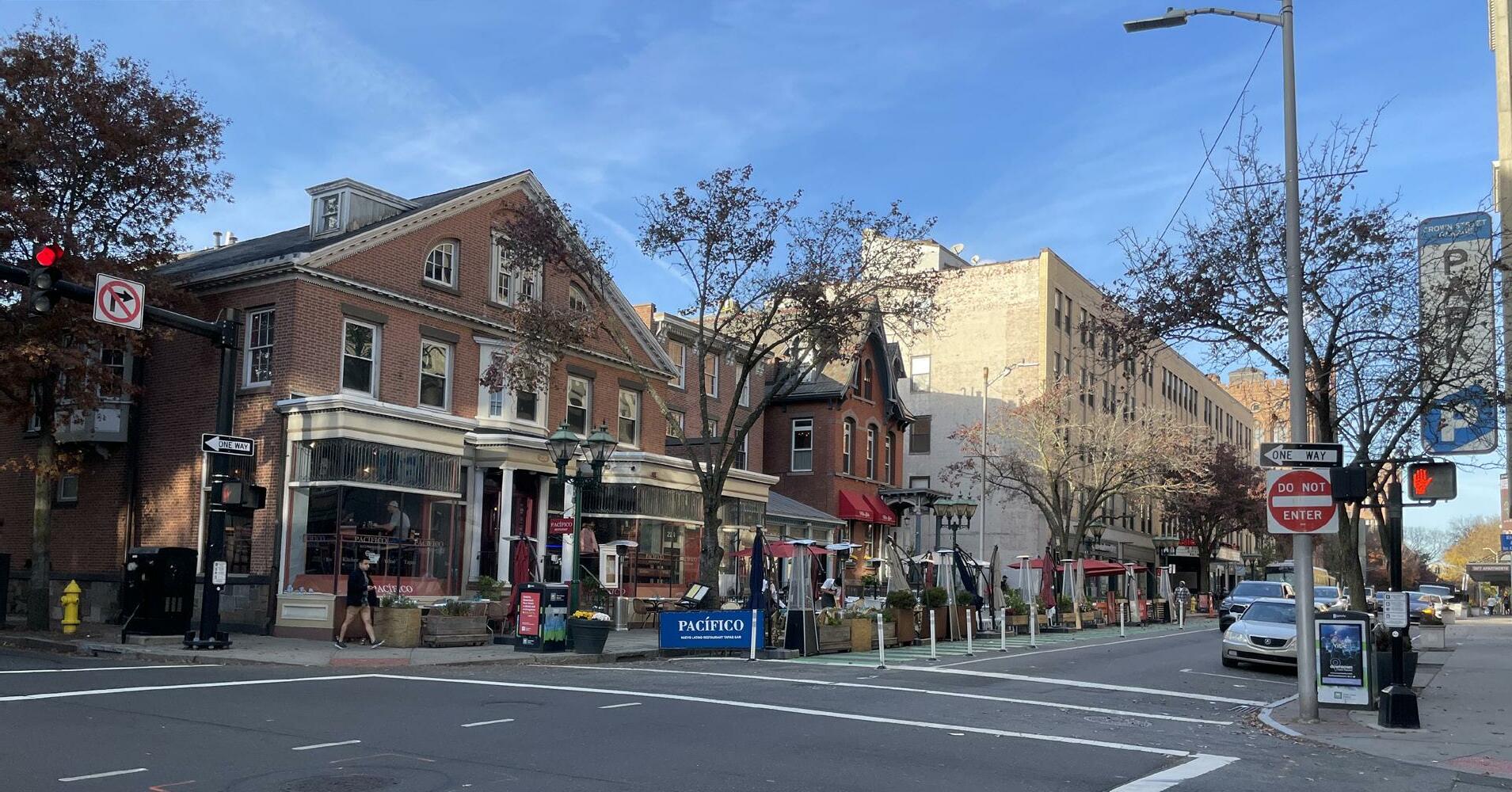

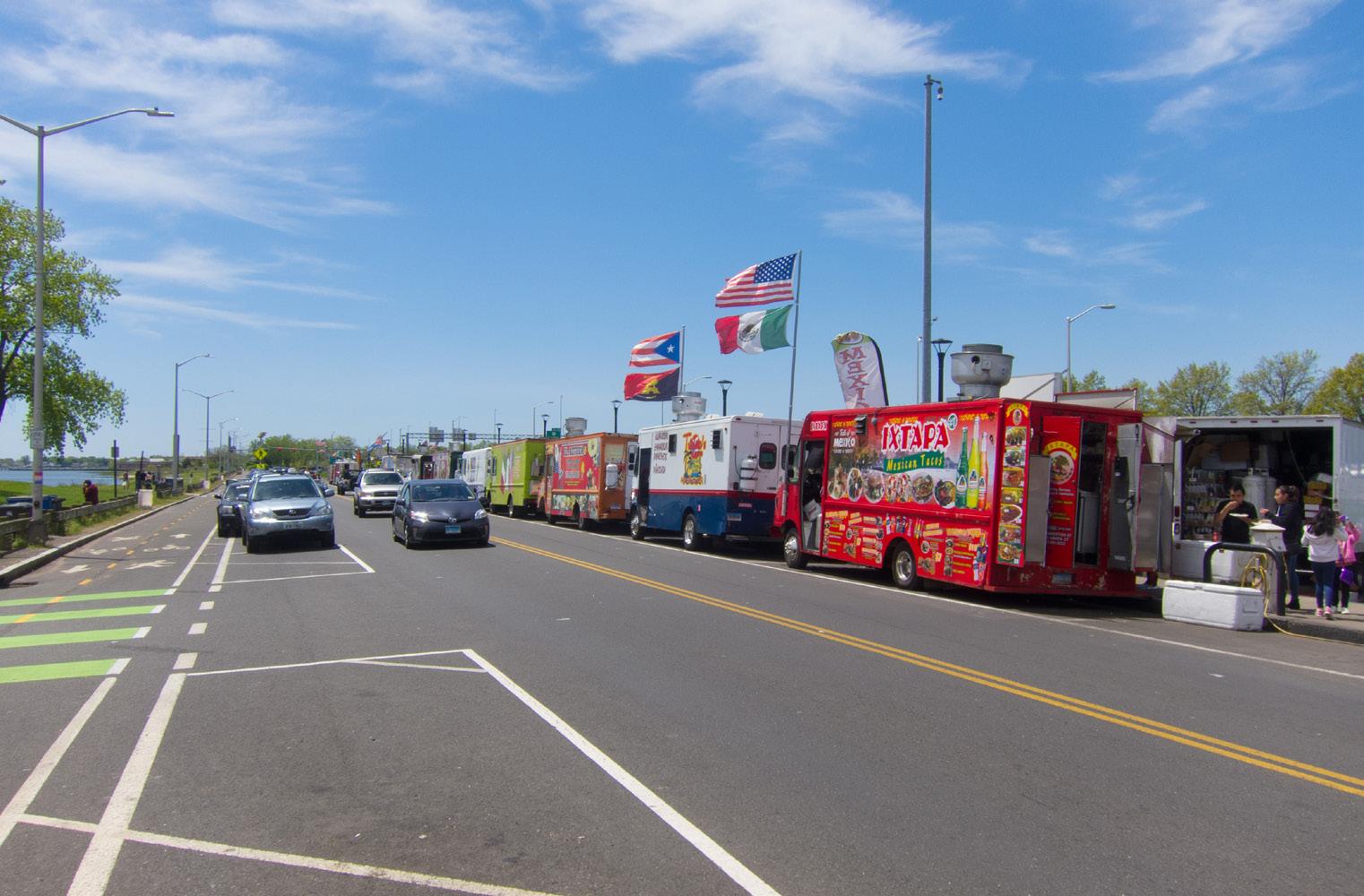

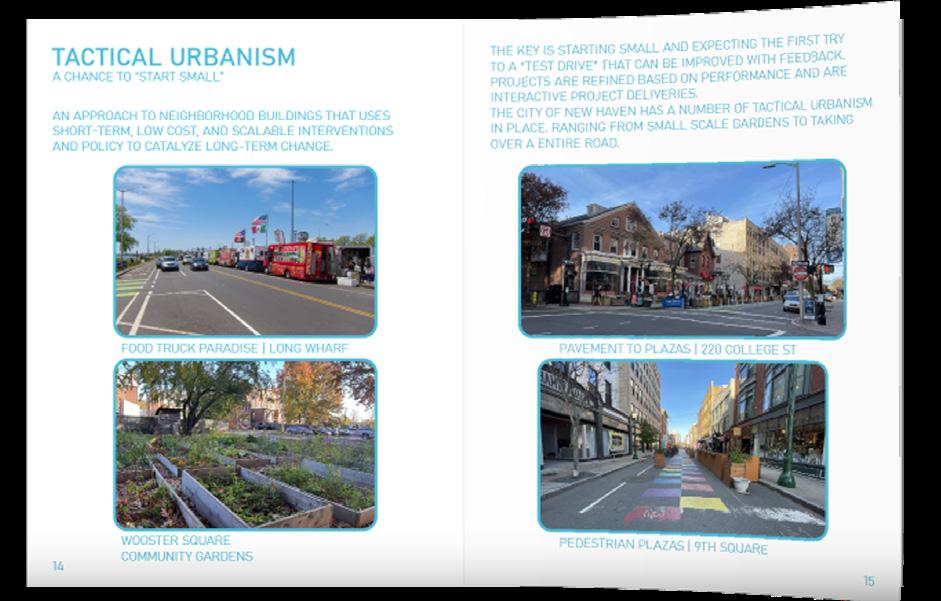

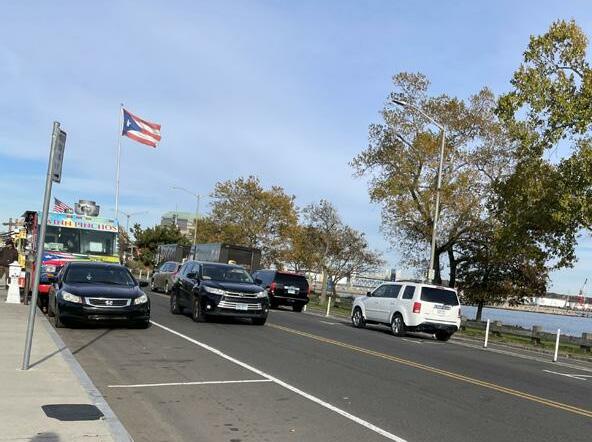

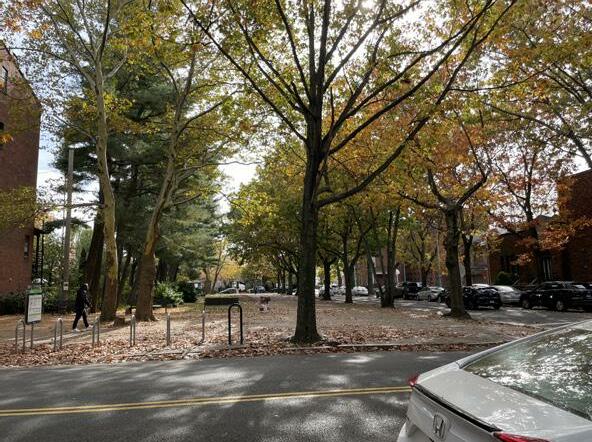

A CHANCE TO “START SMALL” AN APPROACH TO NEIGHBORHOOD BUILDINGS THAT USES SHORT-TERM, LOW COST, AND SCALABLE INTERVENTIONS AND POLICY TO CATALYZE LONG-TERM CHANGE. WOOSTER SQUARE COMMUNITY GARDENS FOOD TRUCK PARADISE | LONG WHARF
THE KEY IS STARTING SMALL AND EXPECTING THE FIRST TRY TO A "TEST DRIVE" THAT CAN BE IMPROVED WITH FEEDBACK. PROJECTS ARE REFINED BASED ON PERFORMANCE AND ARE INTERACTIVE PROJECT DELIVERIES. THE CITY OF NEW HAVEN HAS A NUMBER OF TACTICAL URBANISM IN PLACE. RANGING FROM SMALL SCALE GARDENS TO TAKING OVER A ENTIRE ROAD.

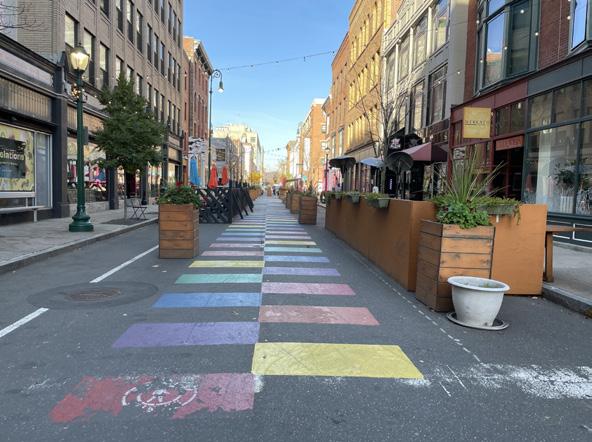

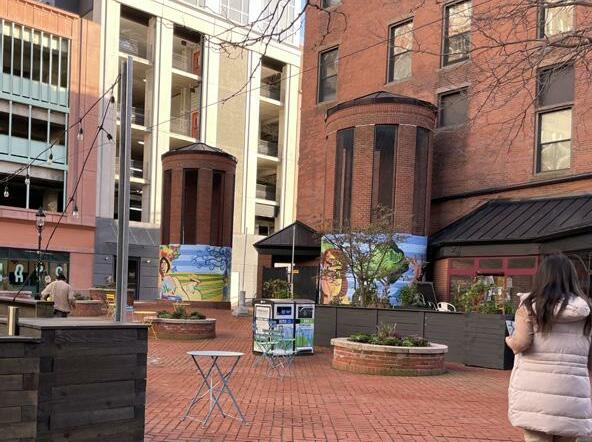

15 PAVEMENT TO PLAZAS | 220 COLLEGE ST PEDESTRIAN PLAZAS | 9TH SQUARE
16 DOWNTOWN

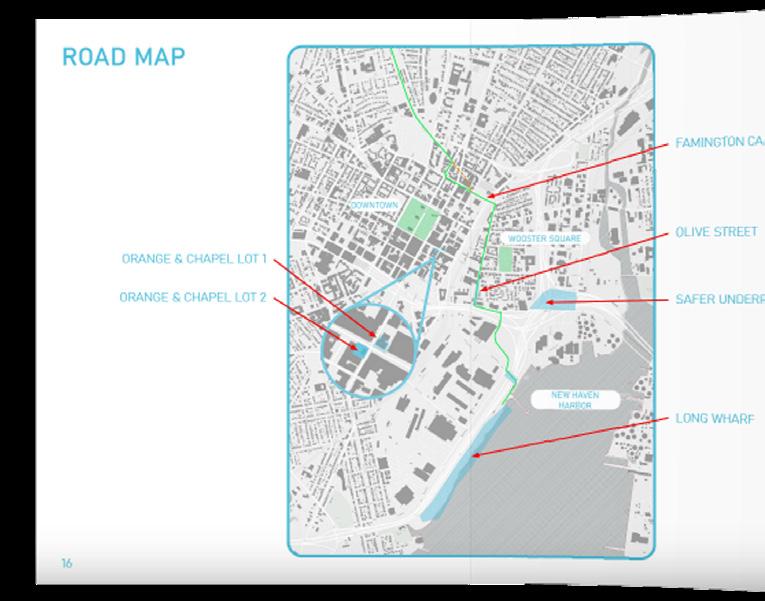

ROAD MAP ORANGE & CHAPEL LOT 1 ORANGE & CHAPEL LOT 2
17 WOOSTER
RORY
SQUARE NEW HAVEN HARBOR

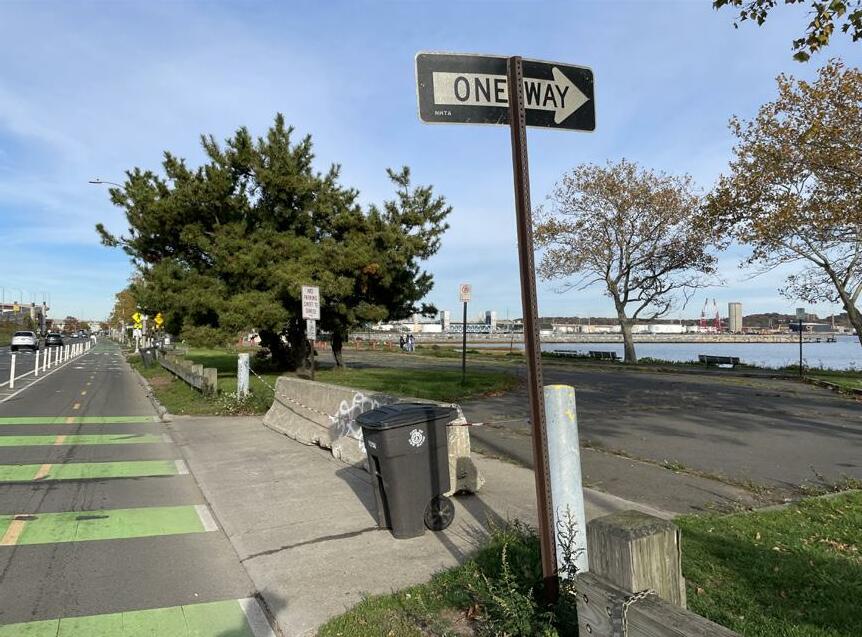

FAMINGTON CANAL TRAIL SAFER UNDERPASS ON I-95 LONG WHARF OLIVE STREET
FARMINGTON TRAIL EXTENSION

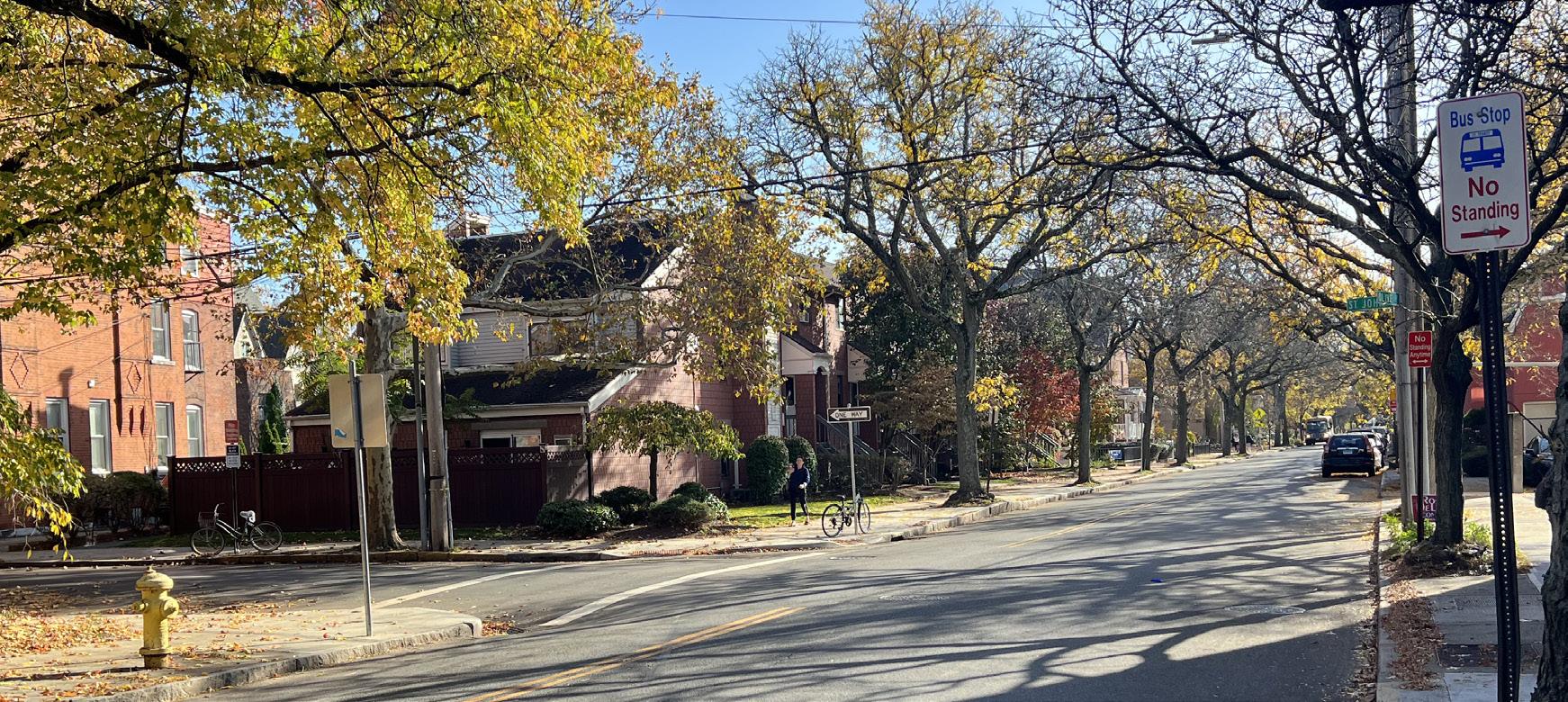

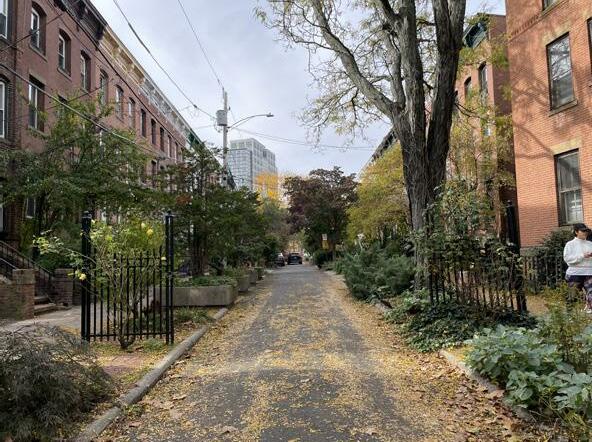

Olive Street
18
11’
PHOTO CONTEXT MAP
19 12’ 12’ 3’ 3’ 11’ SECTION & PLAN VICTOR
NEW HAVEN BIKE SYSTEM
20
BIKING

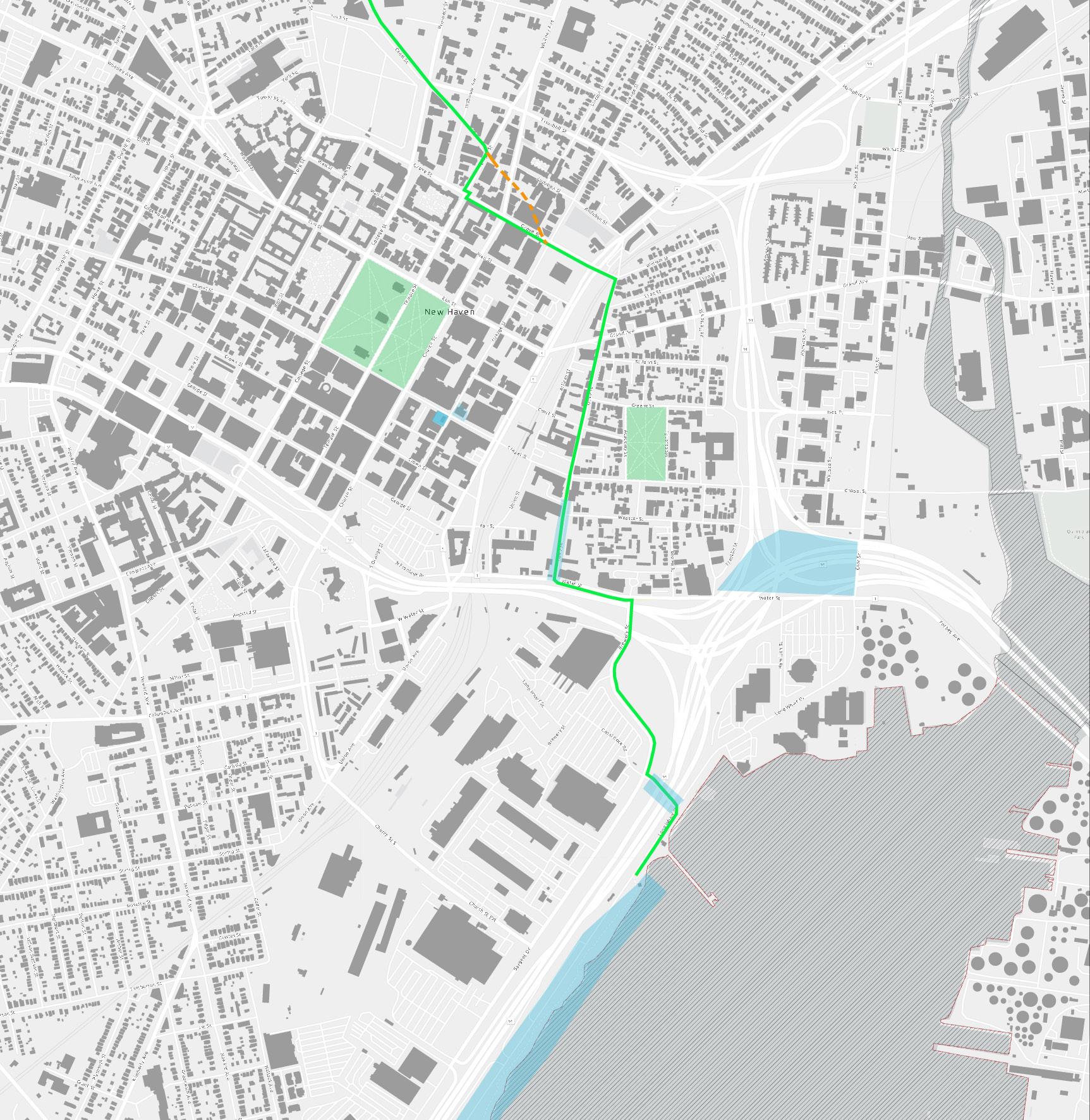

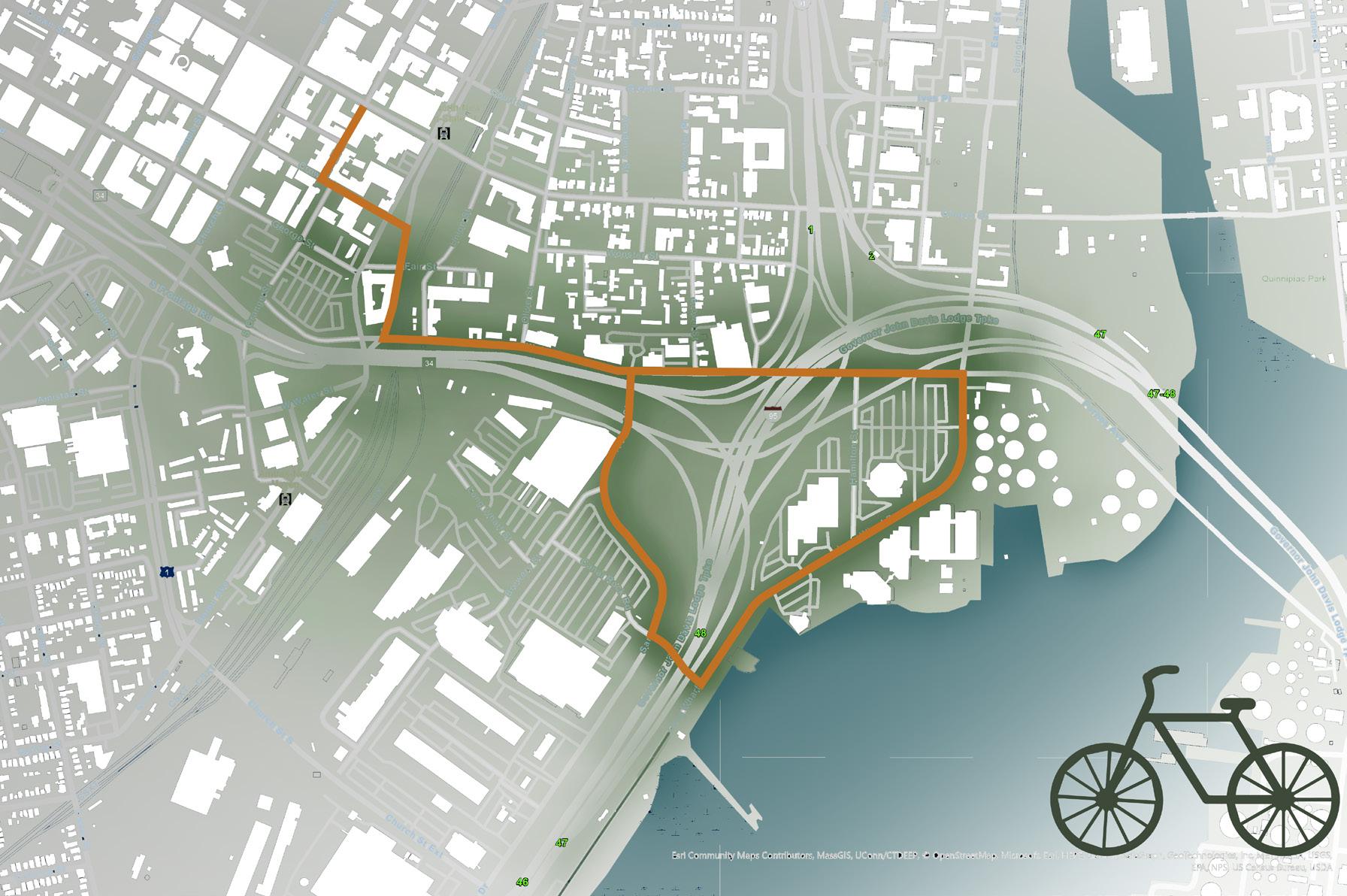

BIKE DESIGN PATH PROPOSE BIKE PATH

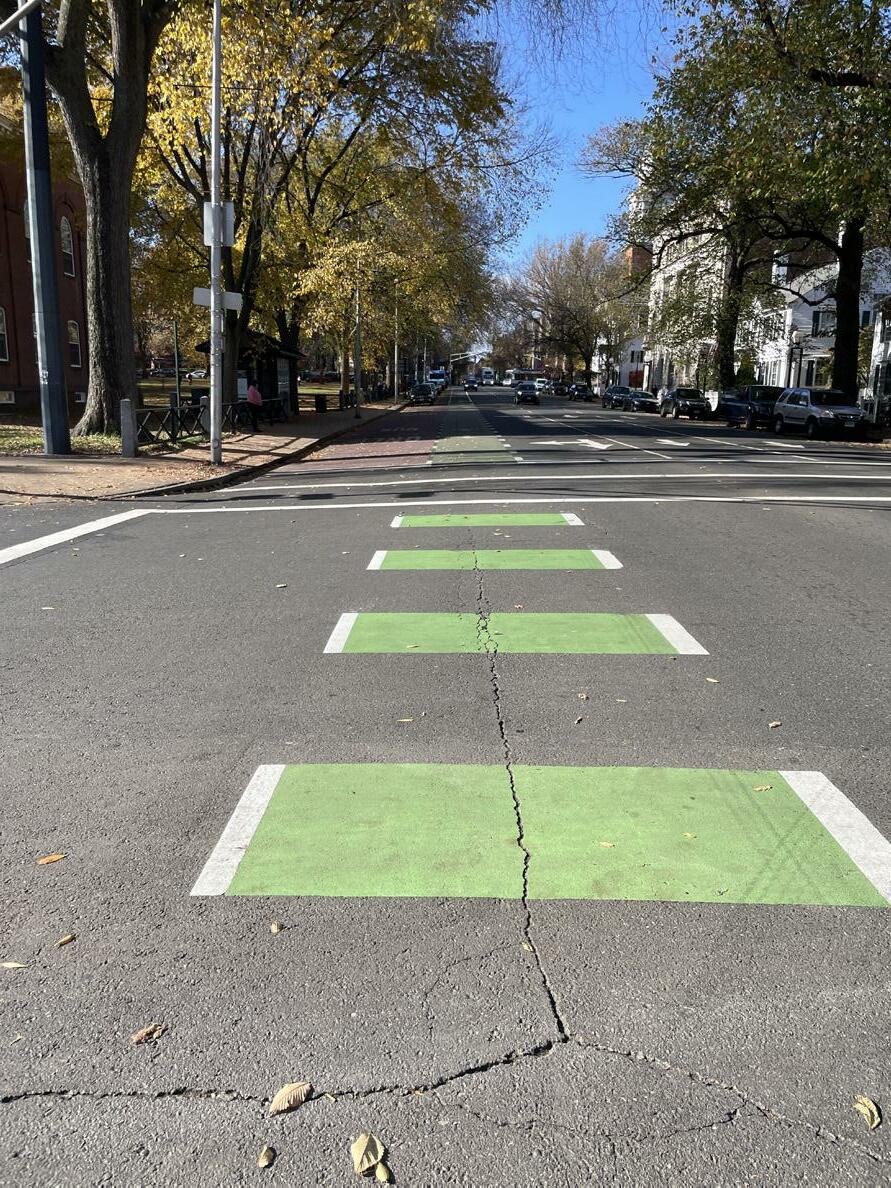

AT NIGHT PHOTOS
BIKING IN DARKER NEIGHBORHOODS
CONNECTION + SAFETY

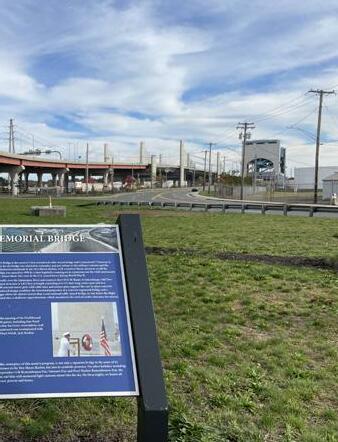

THIS PROPOSED BIKE PATH CONNECTS THE NEW HAVEN GREEN, THE CAFE NINE-STATE STREET TRIANGLE, THE PEARL HARBOR MEMORIAL PARK, AND LONG WHARF.

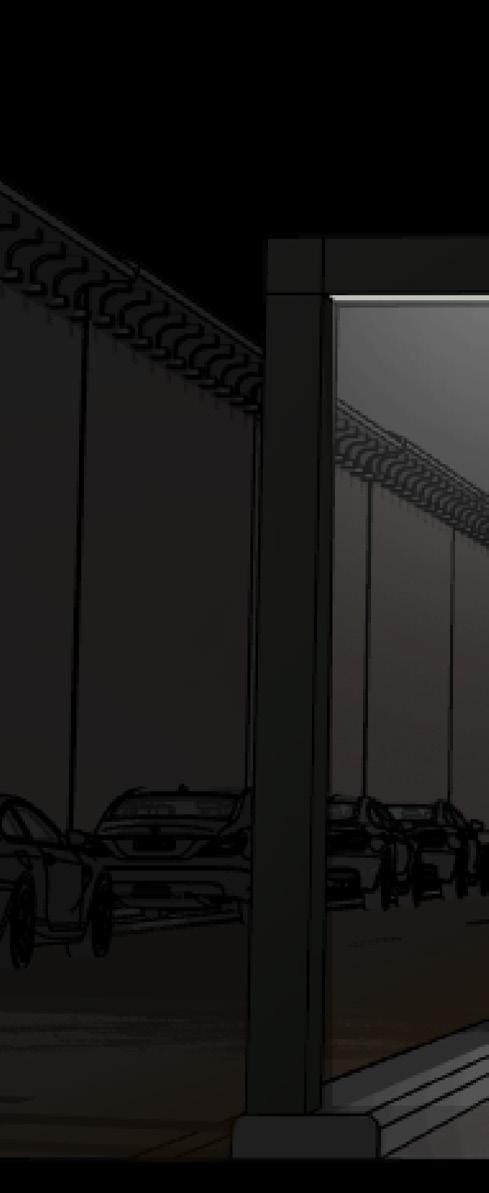

NIGHT W/ AREAS WITH LOW LIGHTING

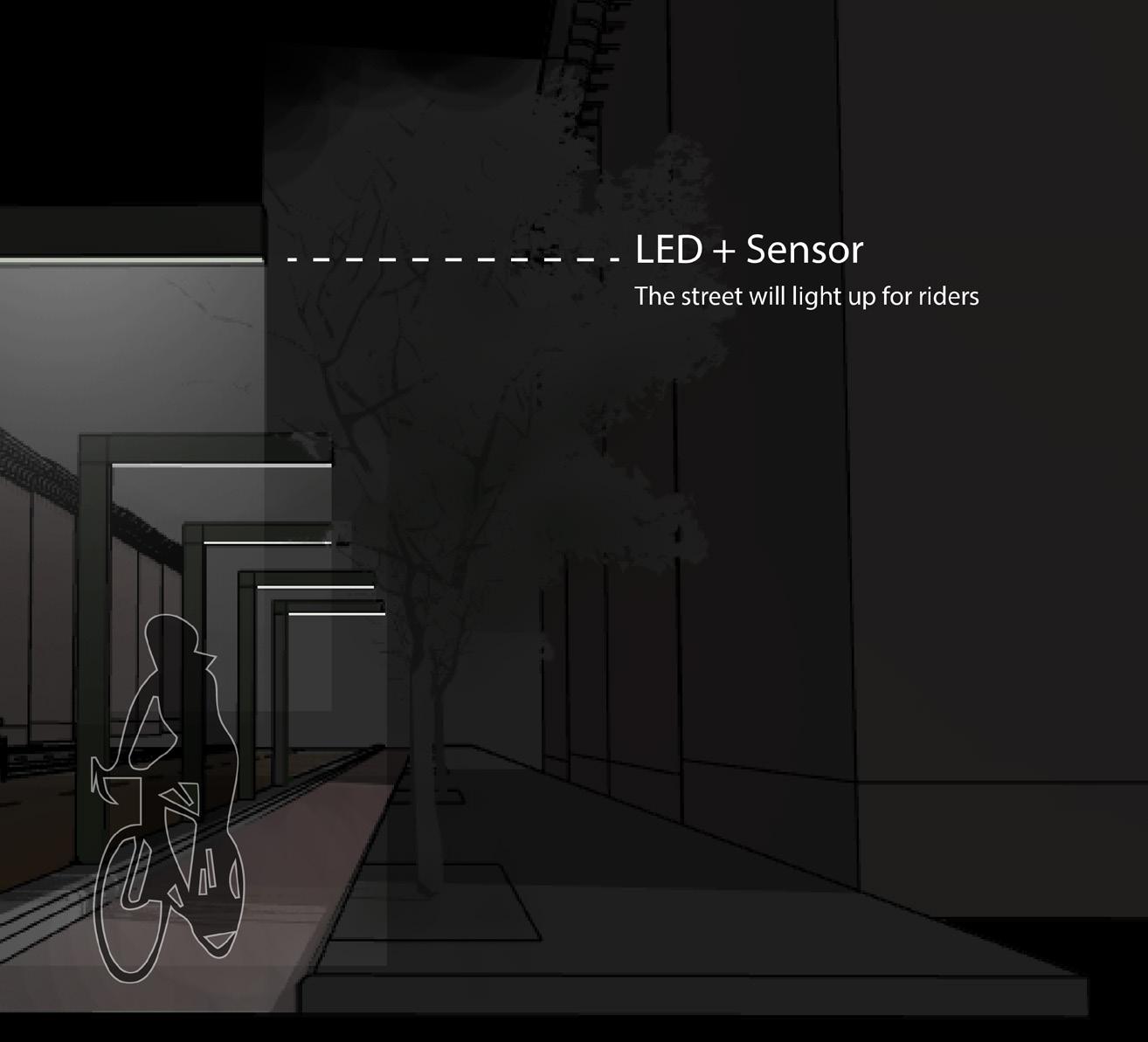

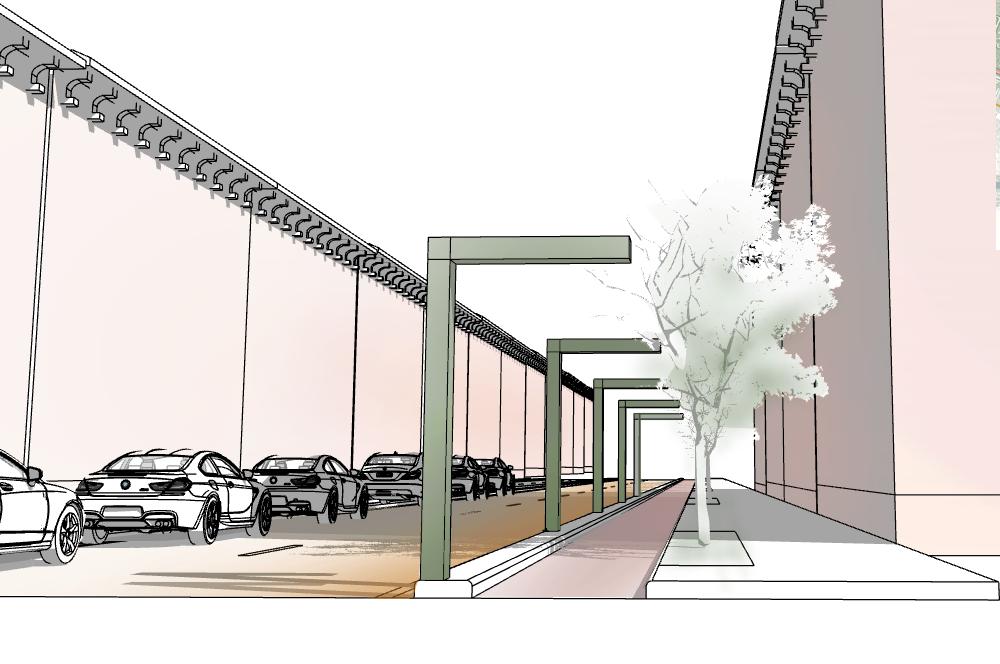

THE ENTIRE BIKE PATH IS FEATURED WITH "L" SHAPE LED TUNNELS, WHICH WILL PROVIDE GUIDENCE, LUMINOSITY, PROTECTION FROM CARS, AND SOLUTION TO INSECURITY.
21
CONNIE
22
2 1

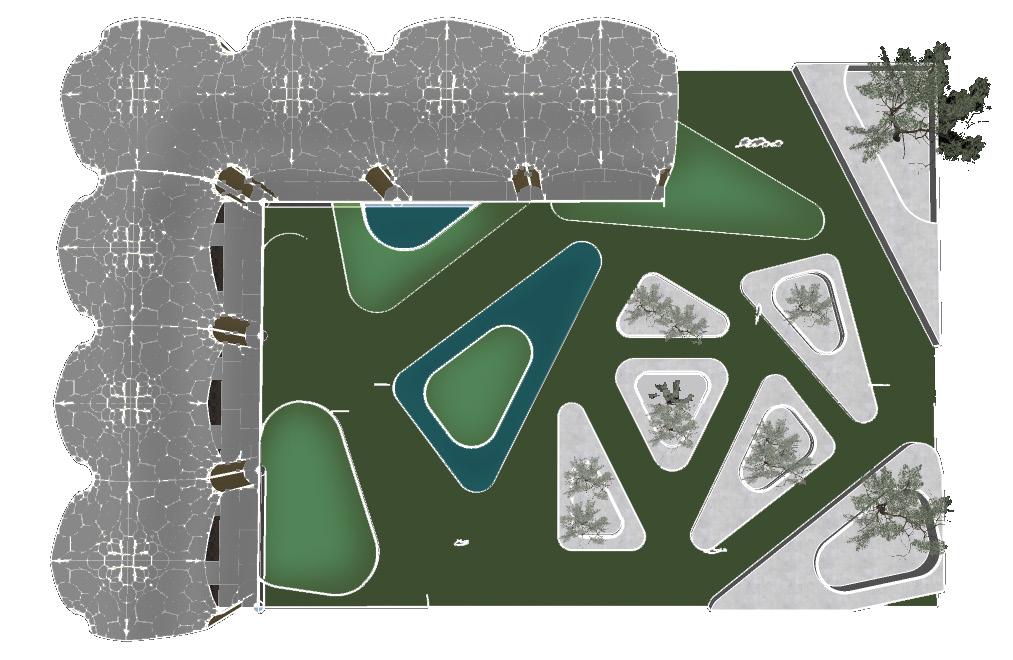

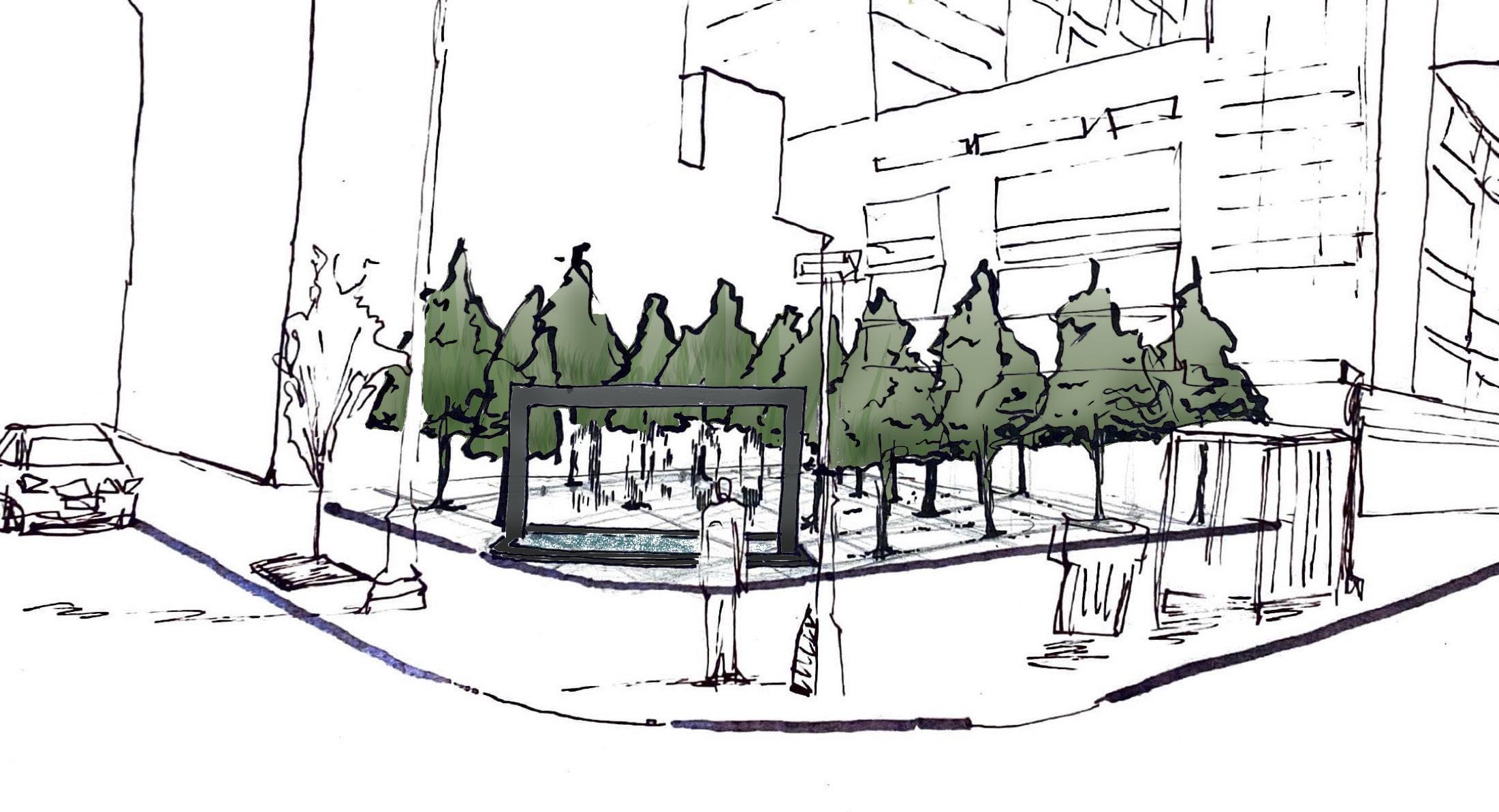

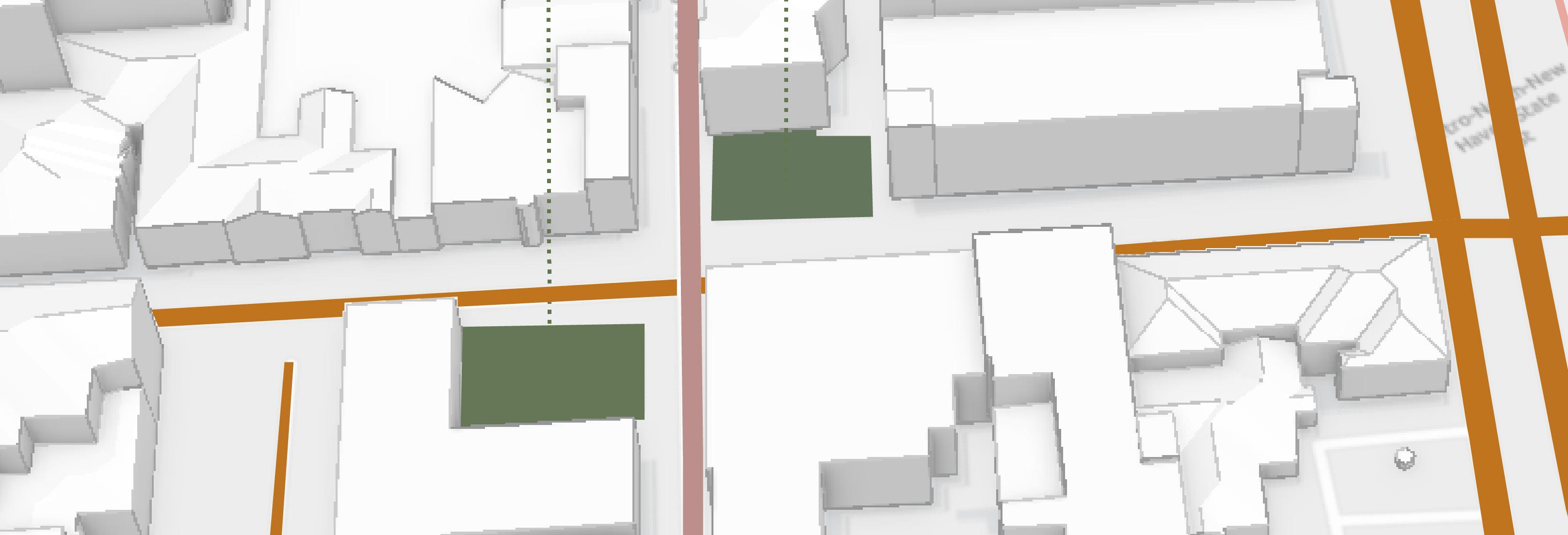

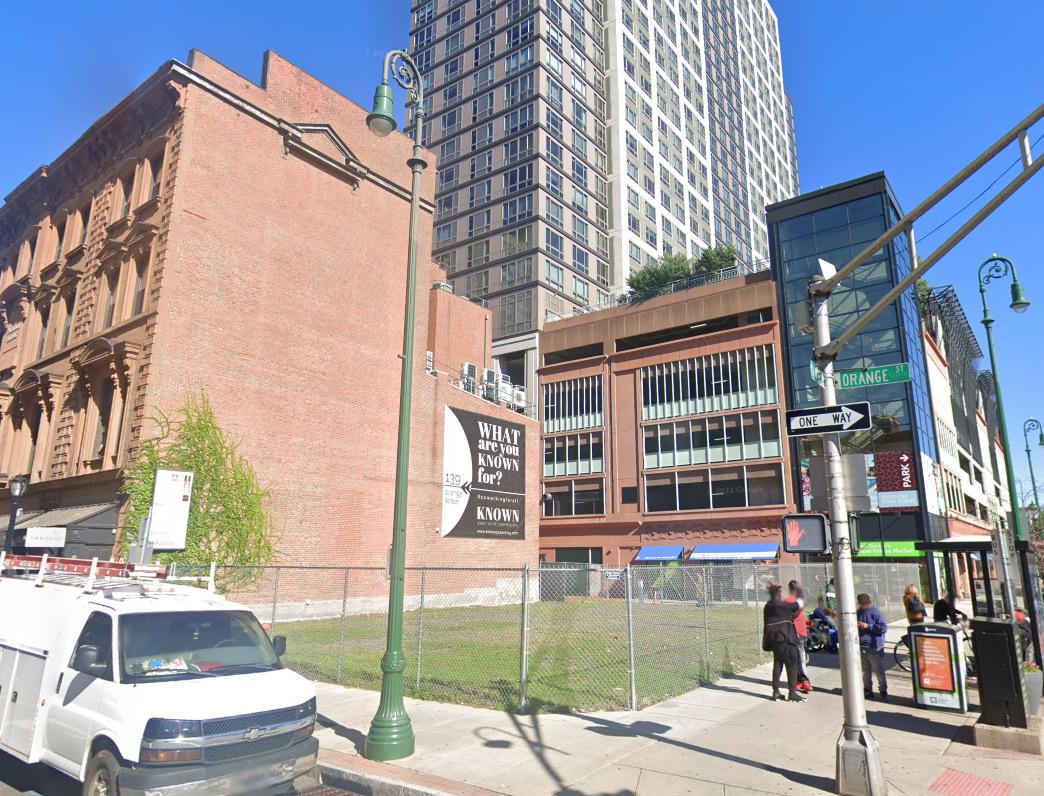

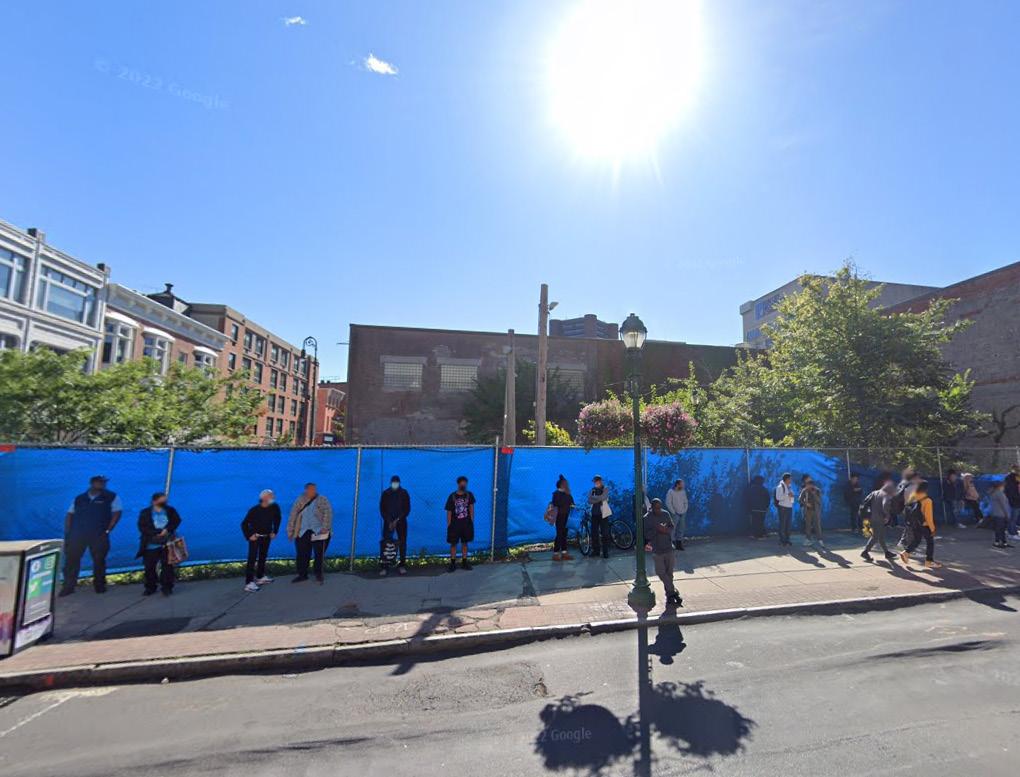

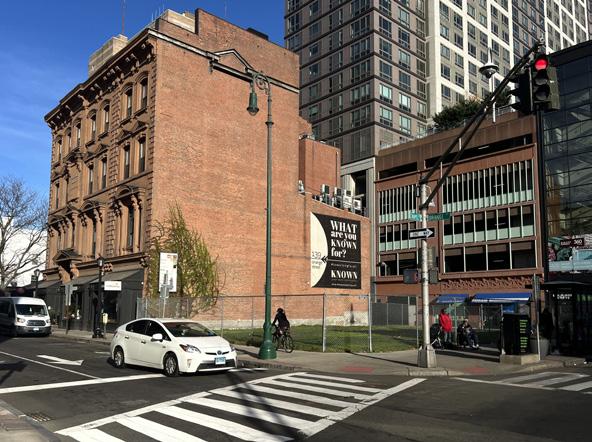

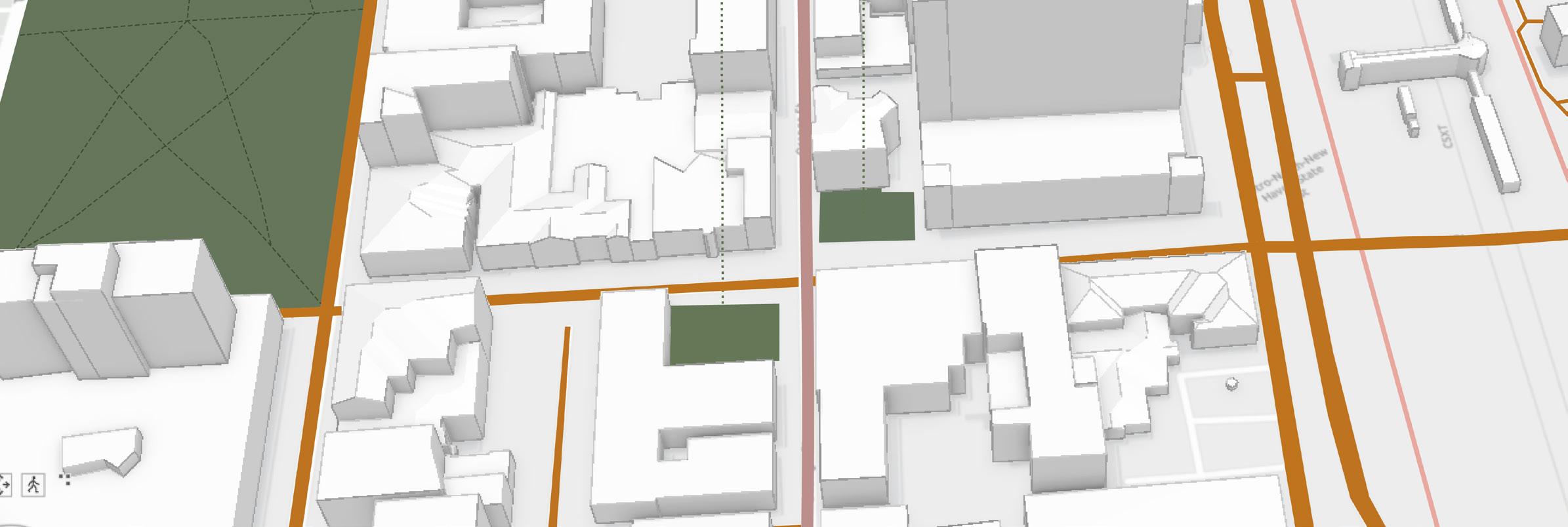

CONTEXT MAP PERSPECTIVE POCKET PARK ORANGE & CHAPEL ST.
LOT 1
LOT 2

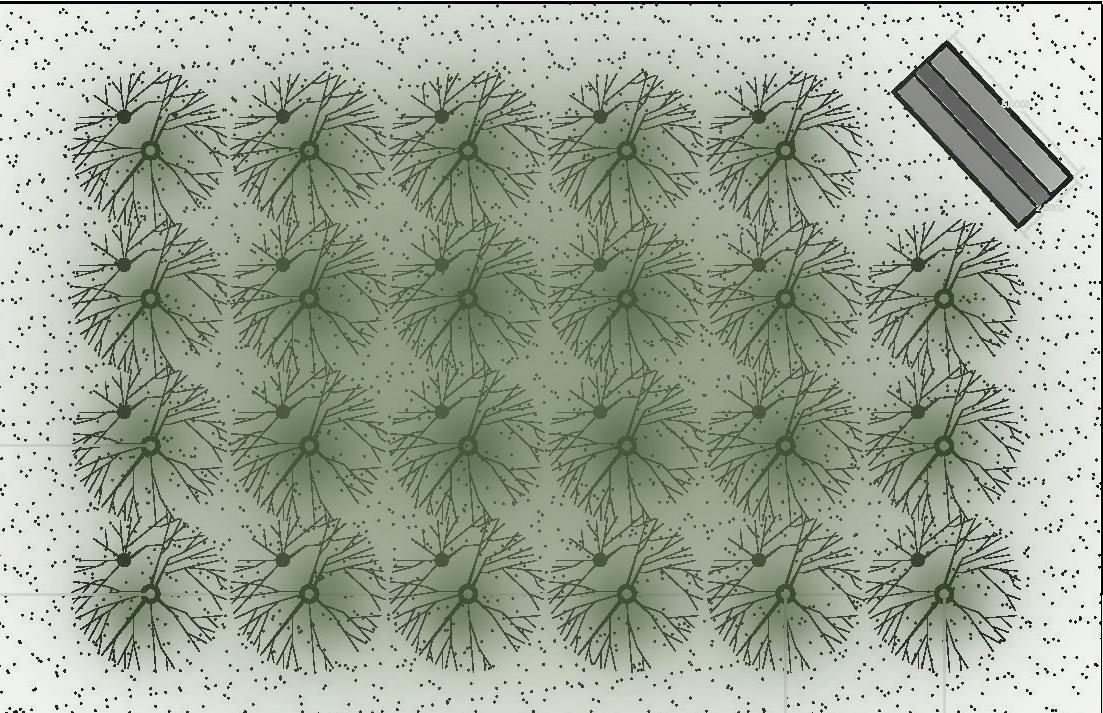

LOT 1 DESIGN
23 CONNIE

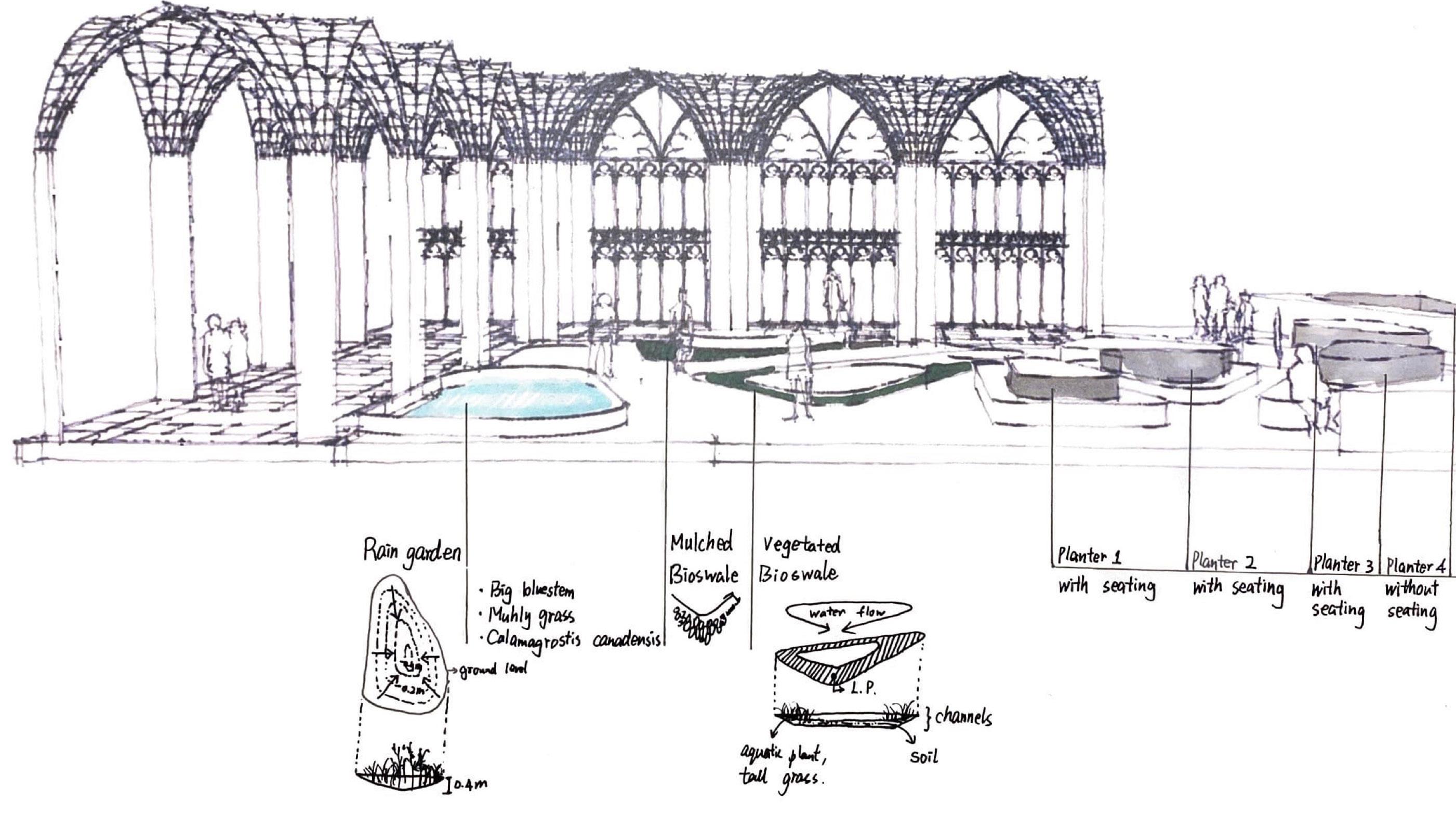

POCKET PARK ALTERNATE
24 CONTEXT
2 1
MAP PERSPECTIVE
ORANGE & CHAPEL ST.

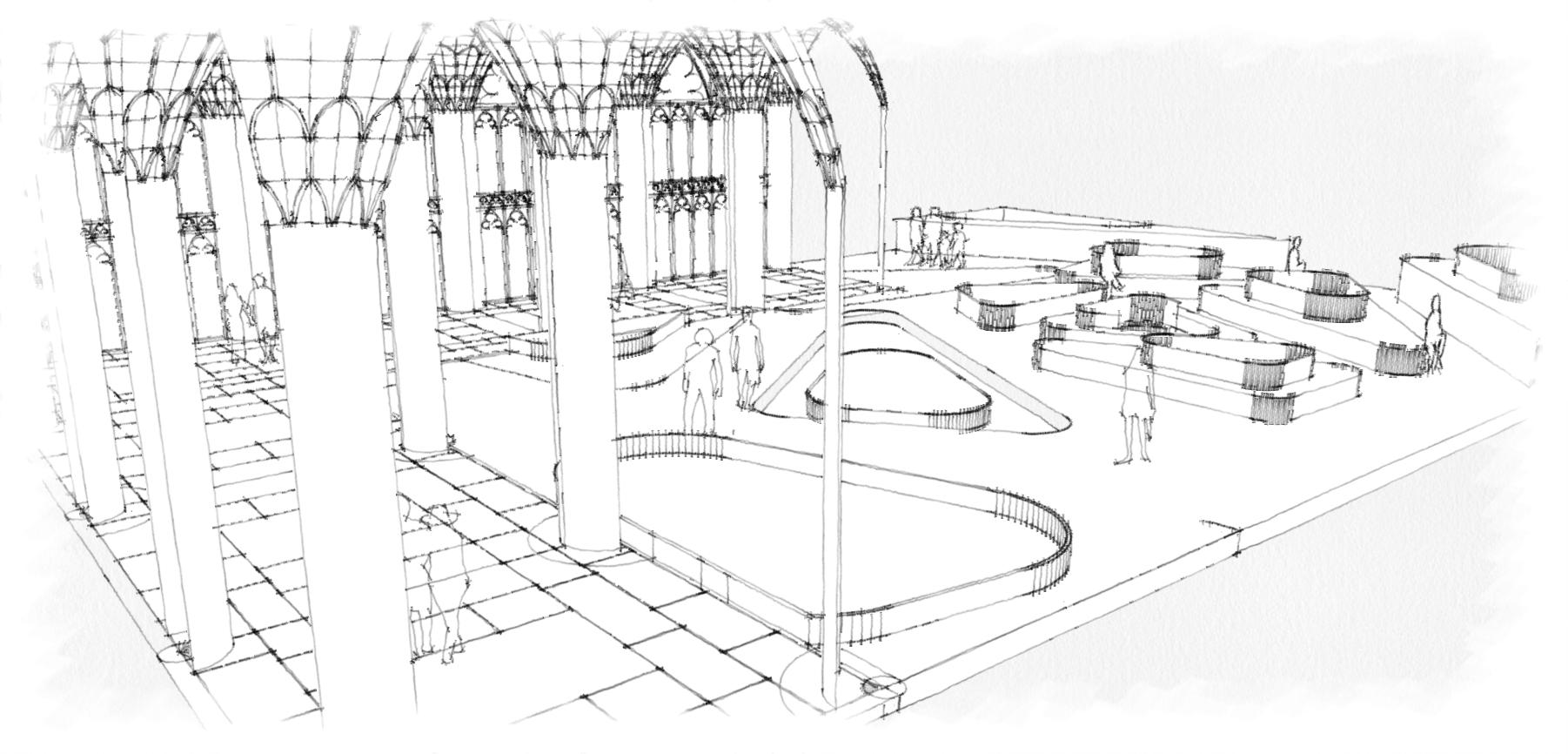

PERSPECTIVE VIEW OF ALTERNATE LOT 1 ALTERNATE DESIGN
25
CONNIE

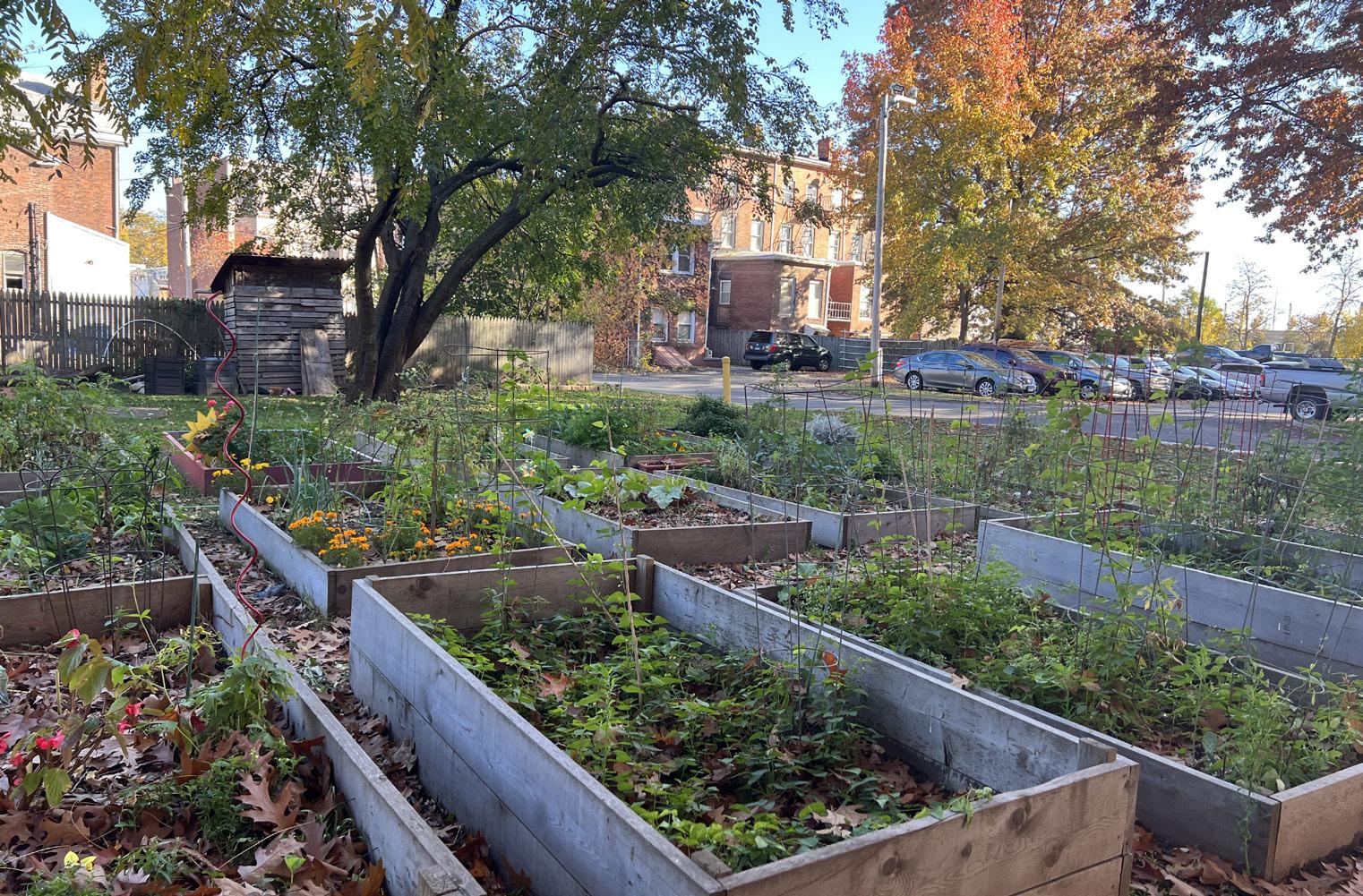

COMMUNITY GARDEN
RANGE & CHAPEL ST.
26
2 1

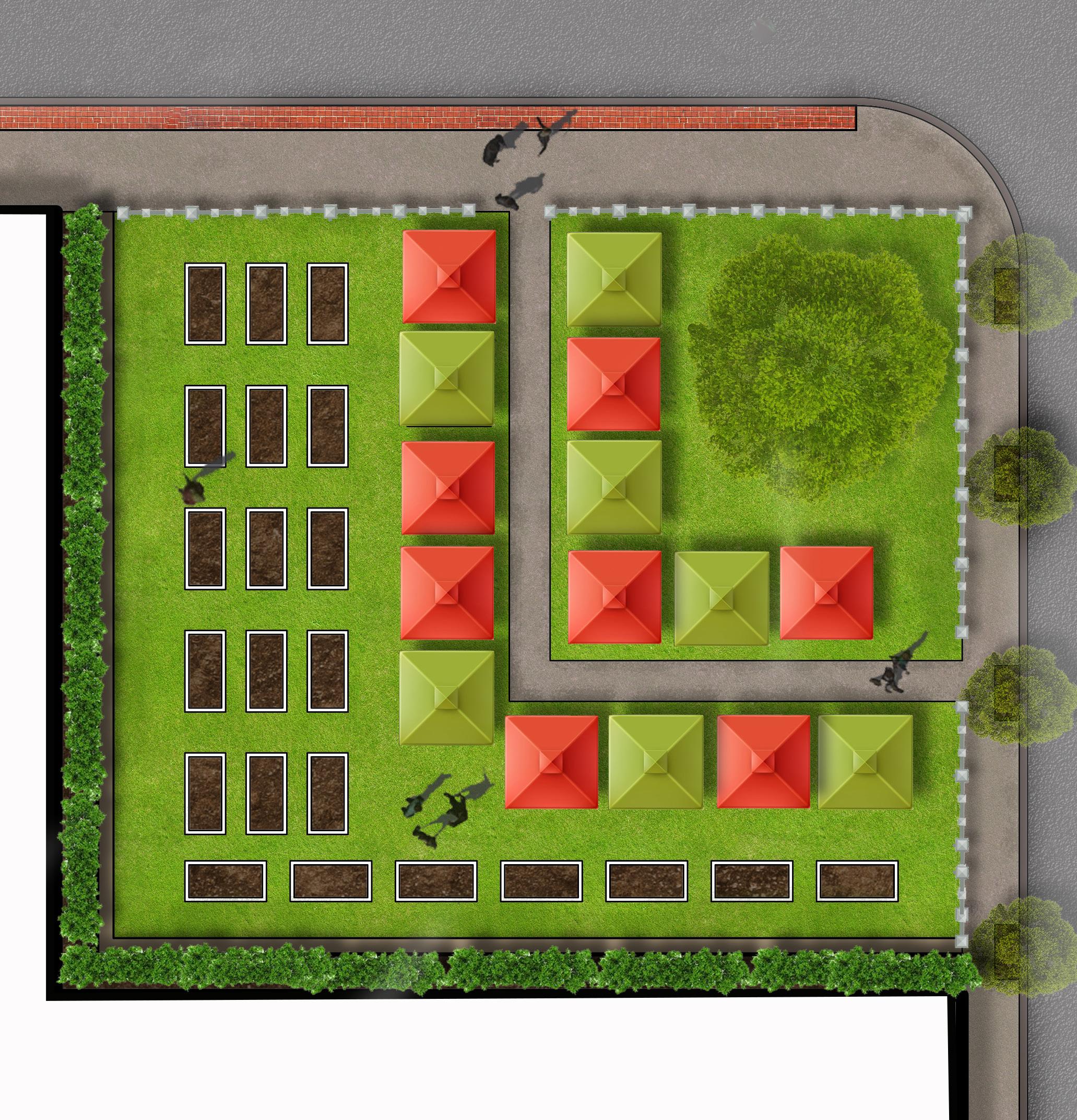

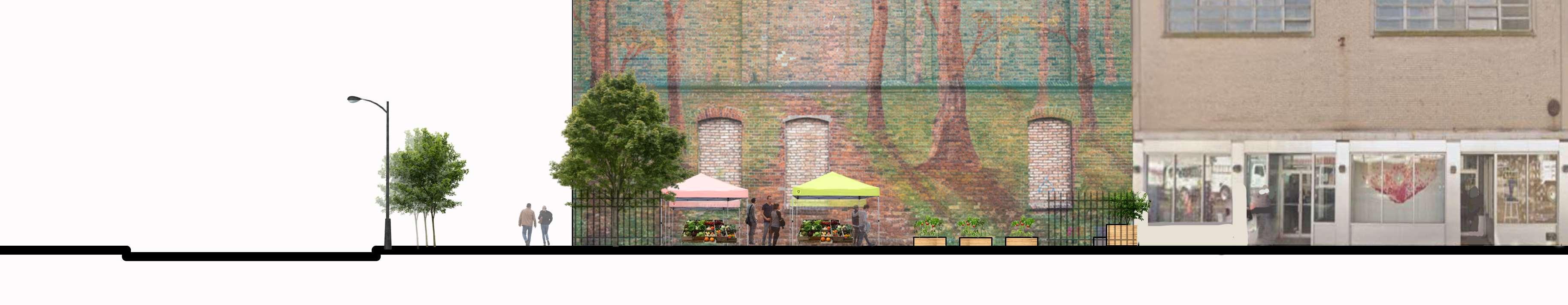

CONTEXT MAP SITE PLAN SECTION
MURAL
FARM TENTS
VEGETABLE PLOTS
VICTOR

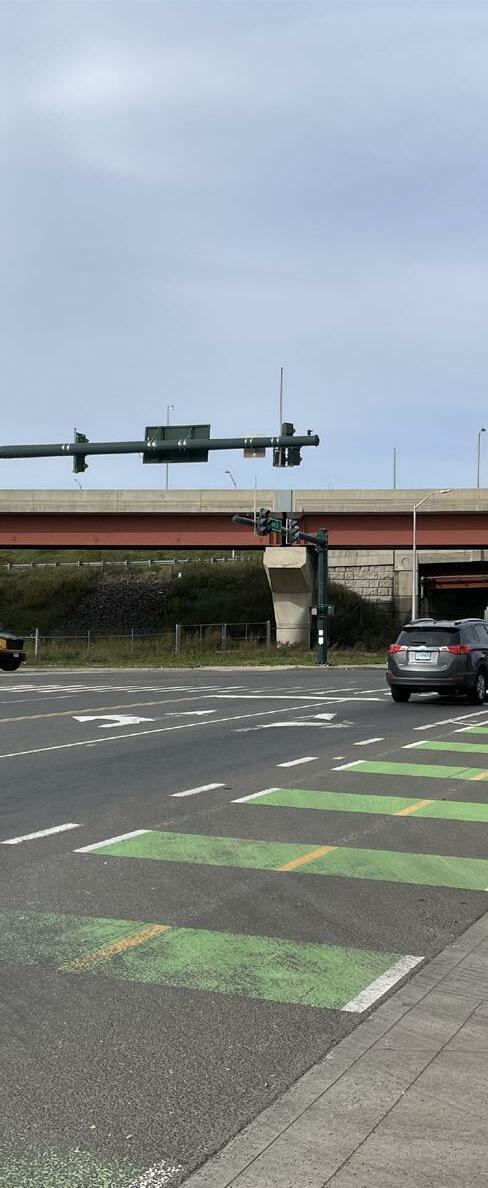

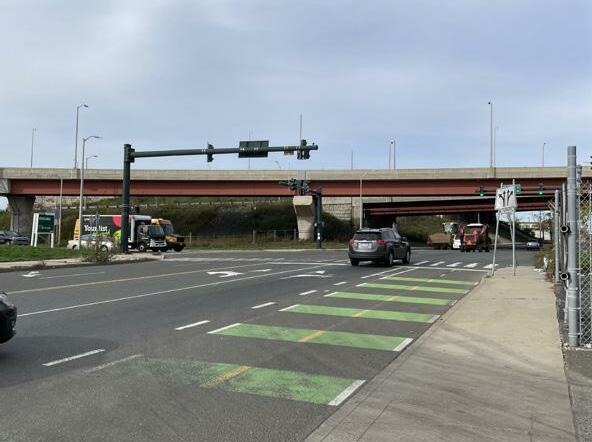

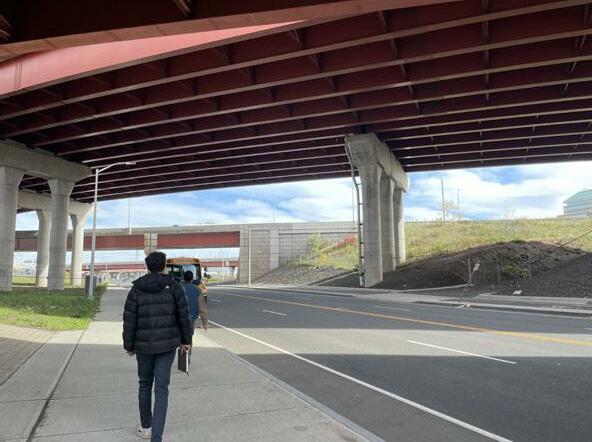

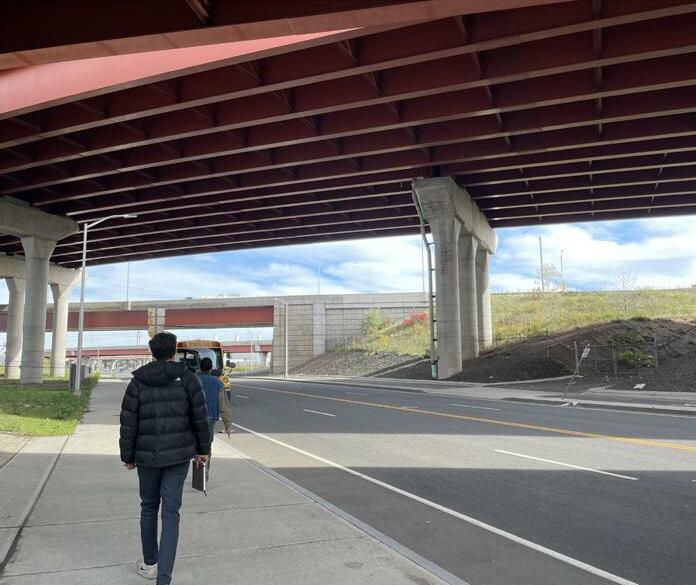

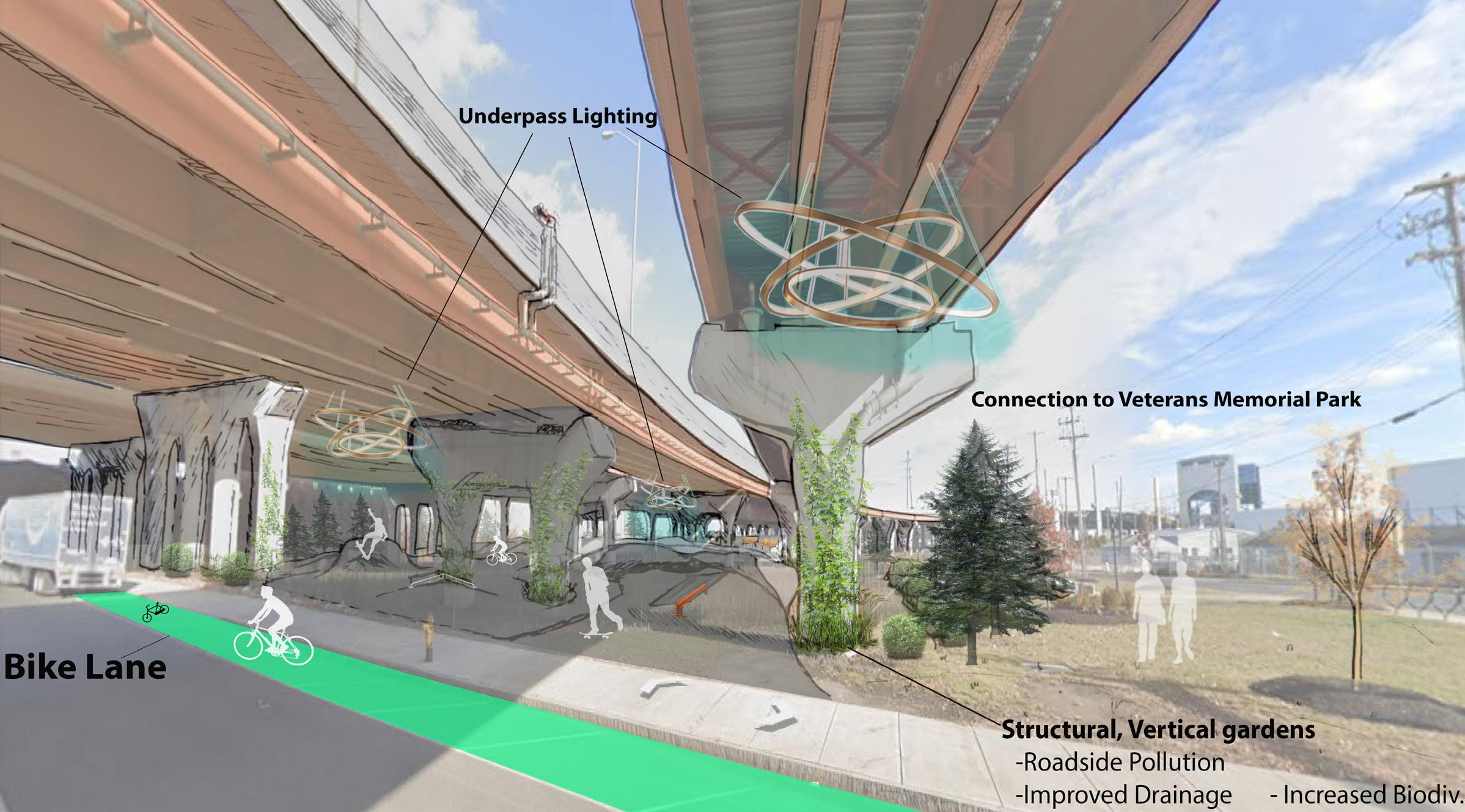

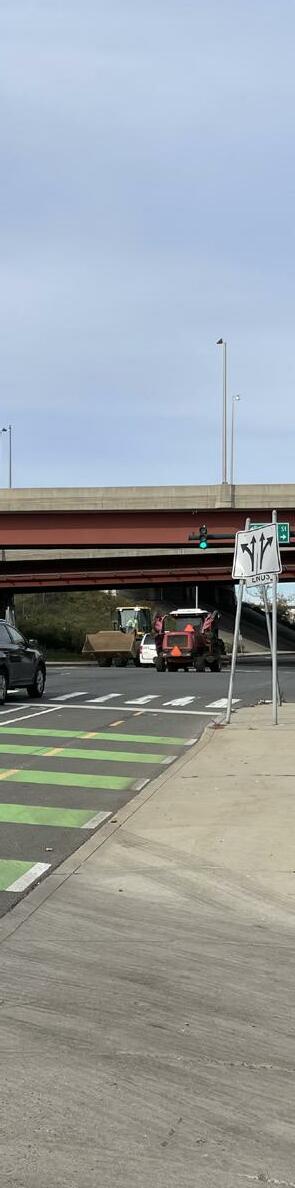

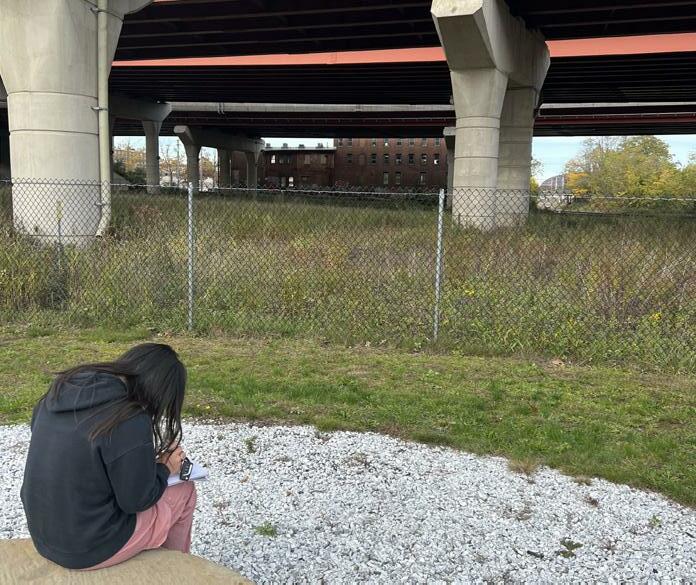

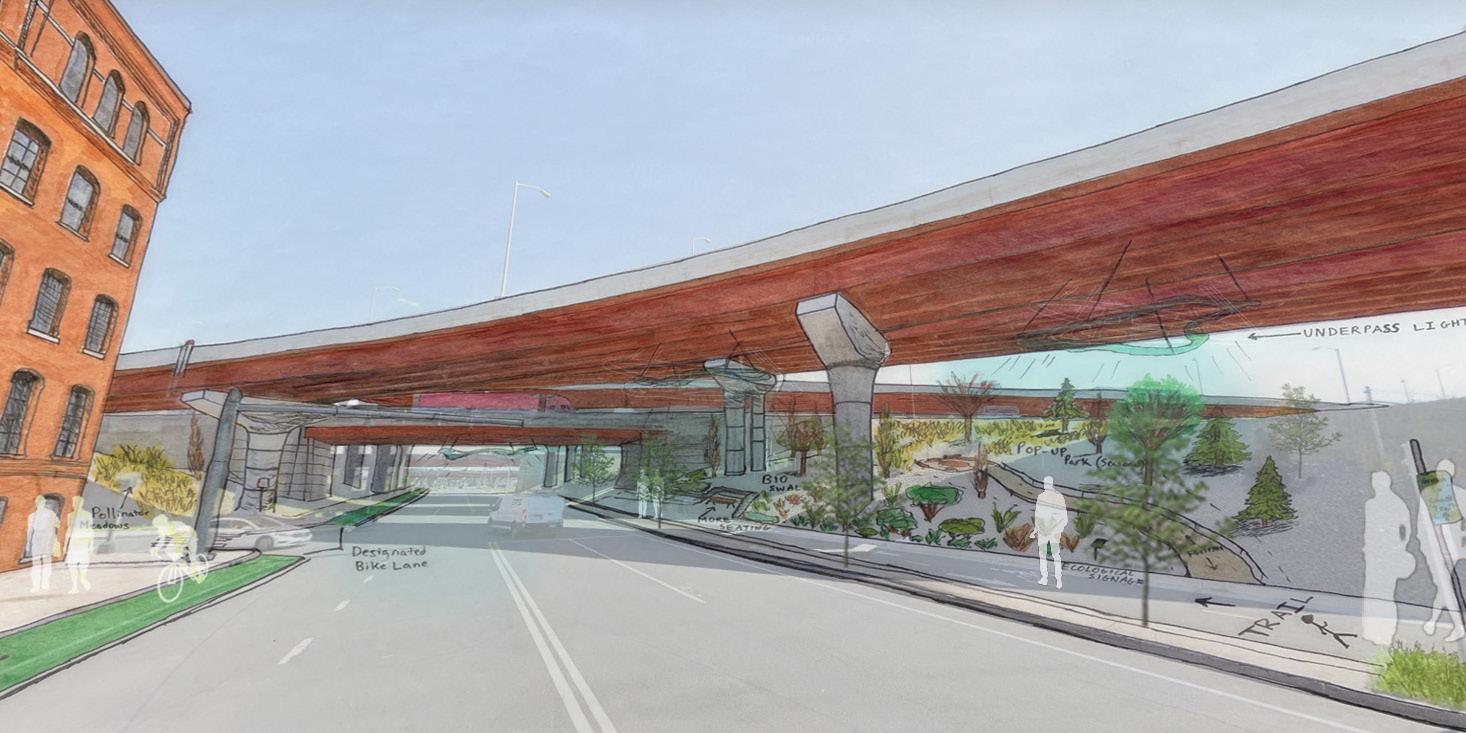

SAFER UNDERPASSES
28 CONTENT
PHOTOS 1 2

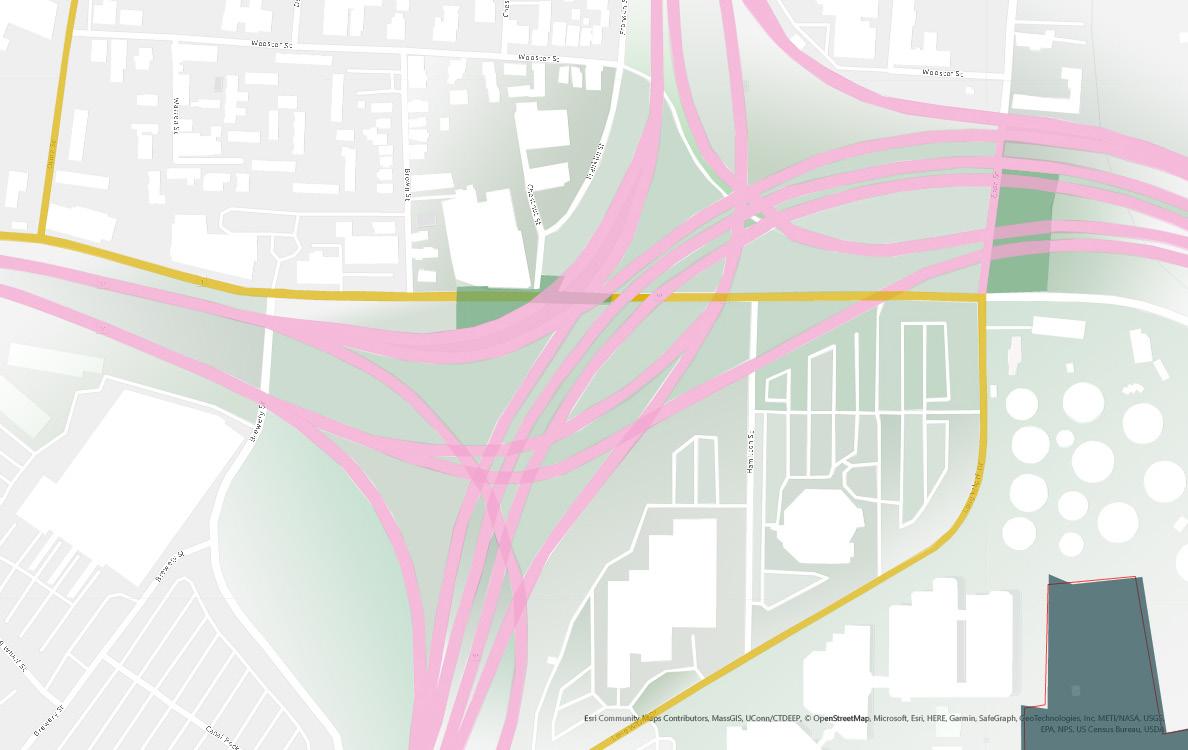

MAP
HIGHWAY I-95
29 1 | UNDERPASS
2 |
RORY
TRAIL
SKATE PARK

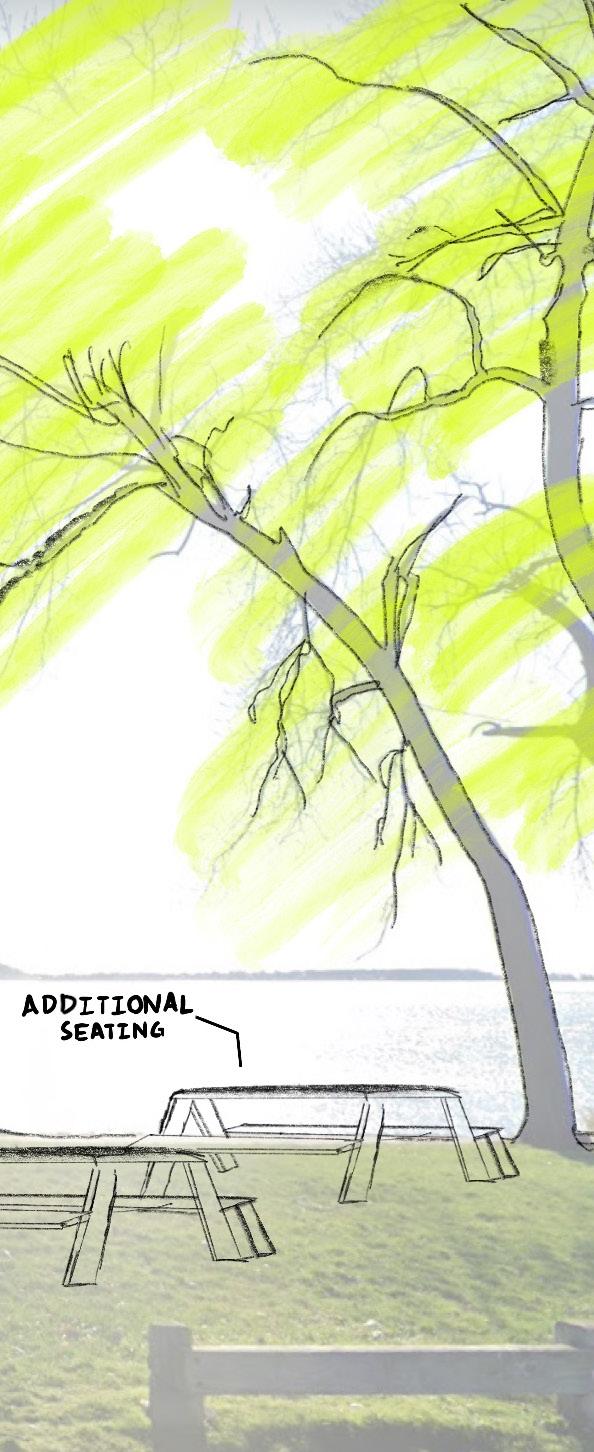

SHOREFRONT SEATING

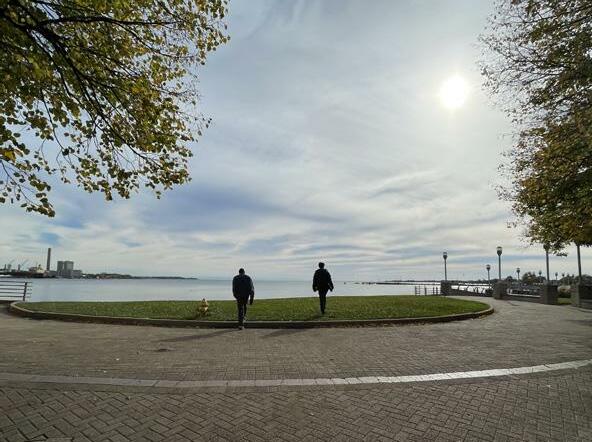

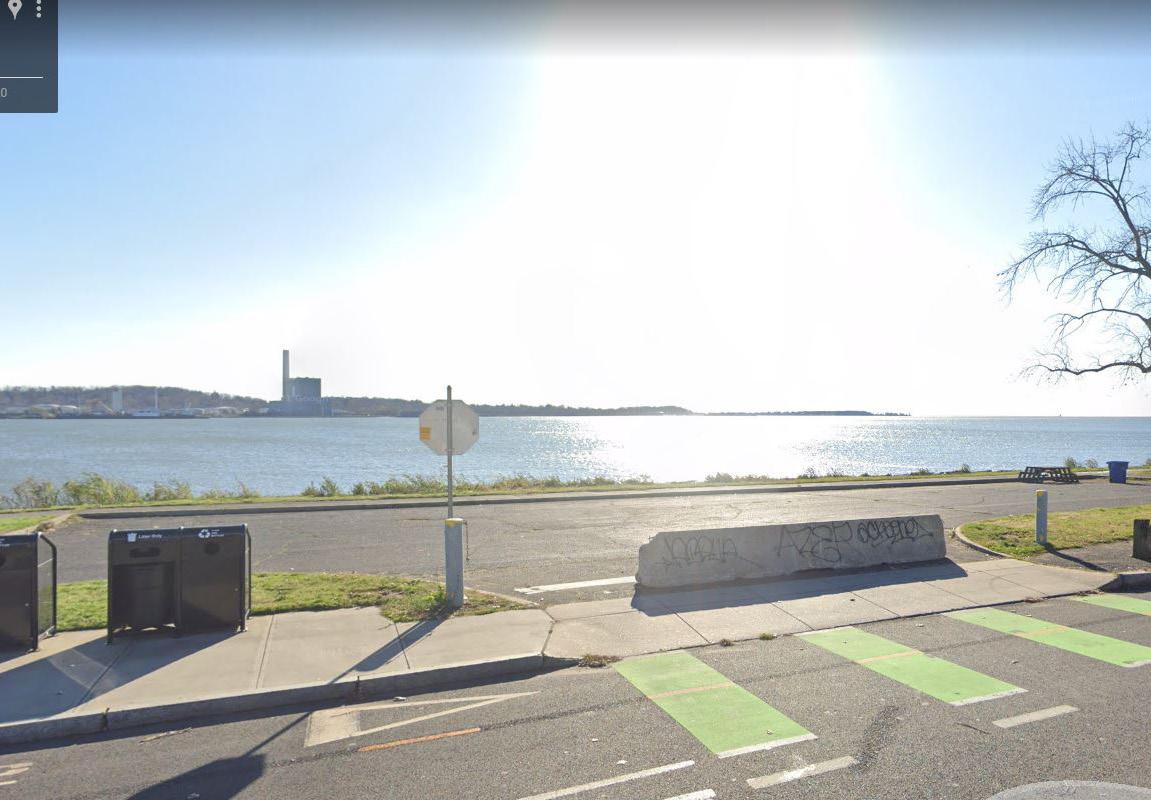

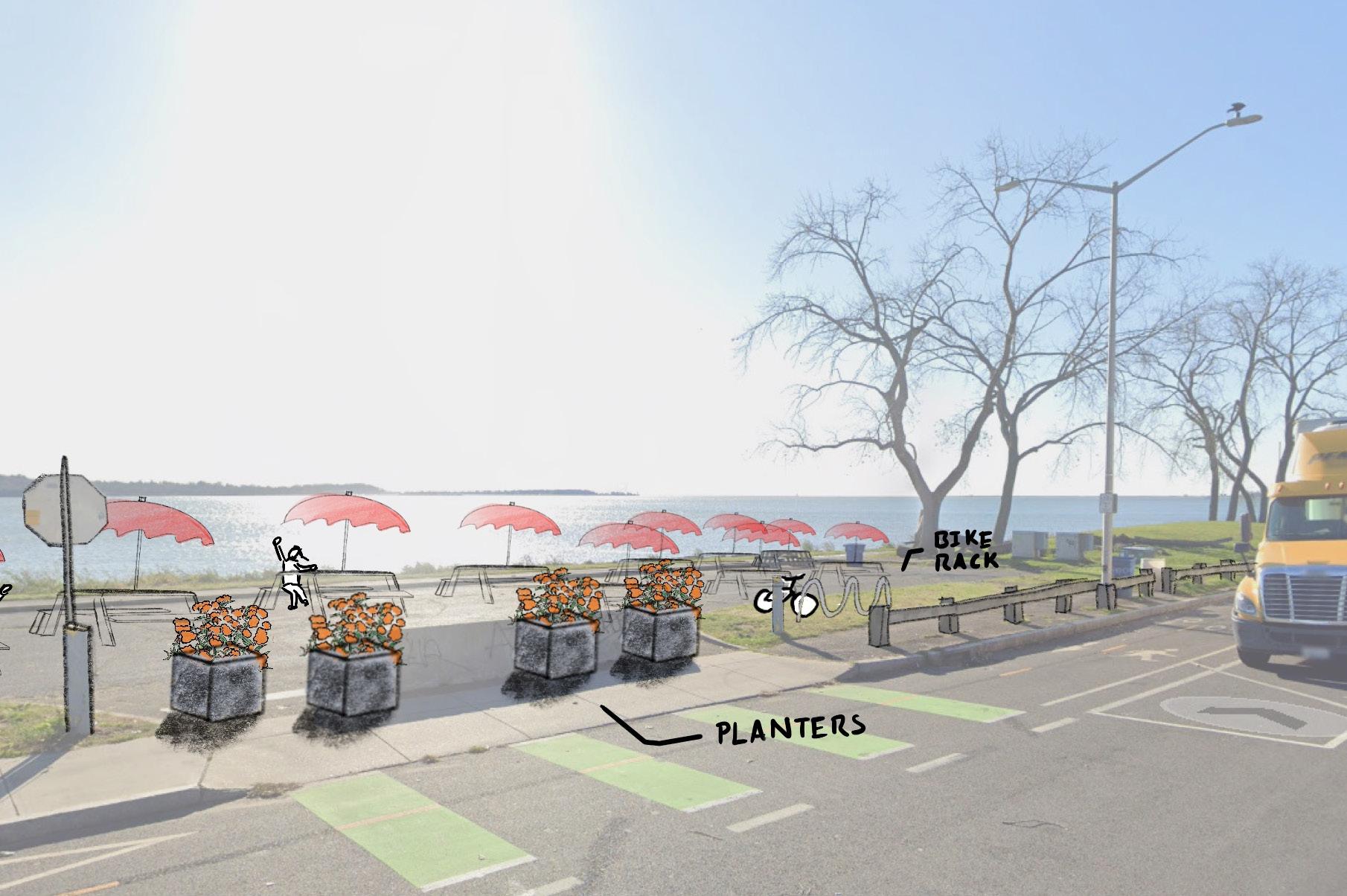

LONG WHARF PARK
KEY MAP
PHOTOS
SMALL INTERVENTIONS, SMALL STONE
30

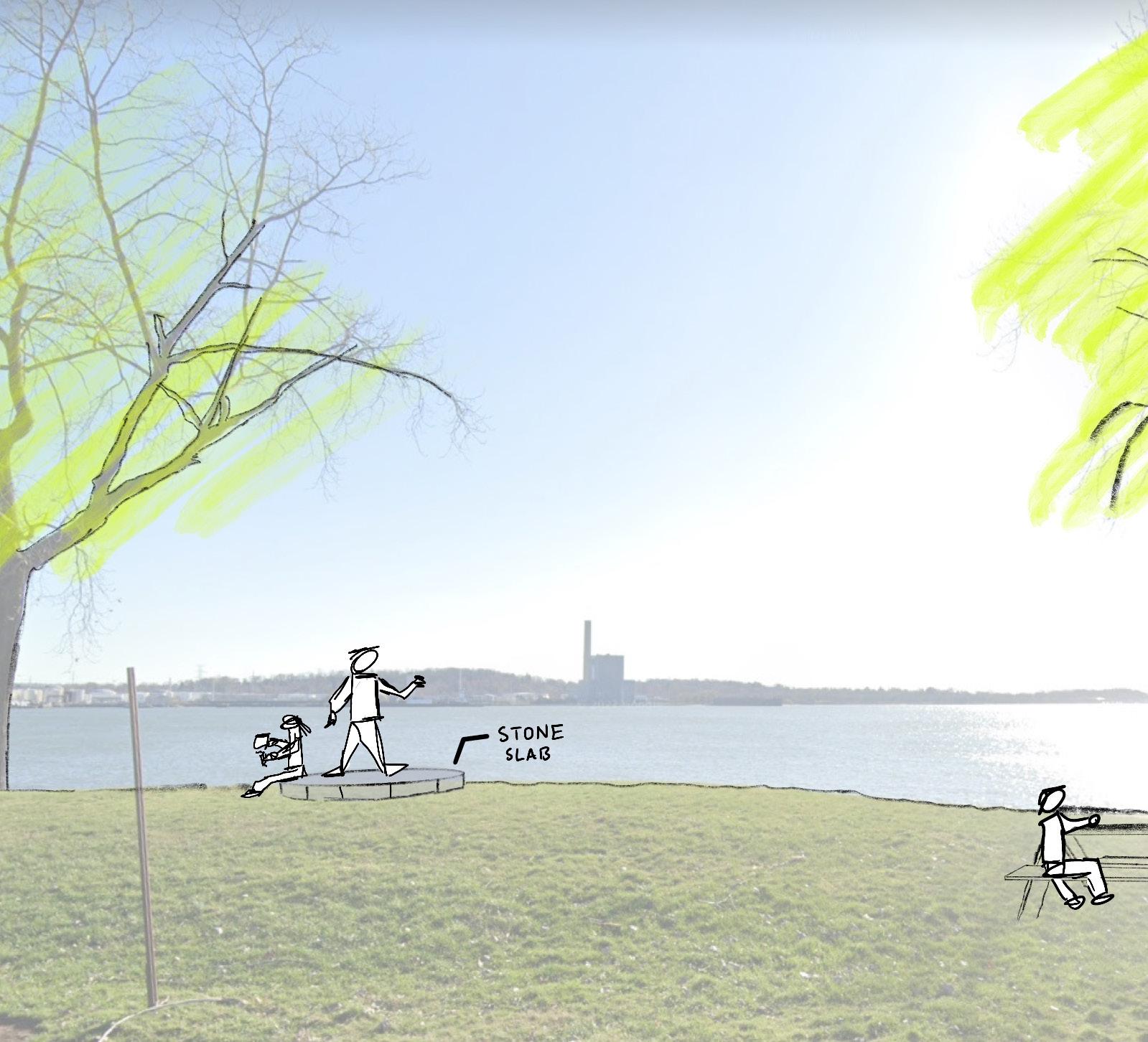

STONE SLAB

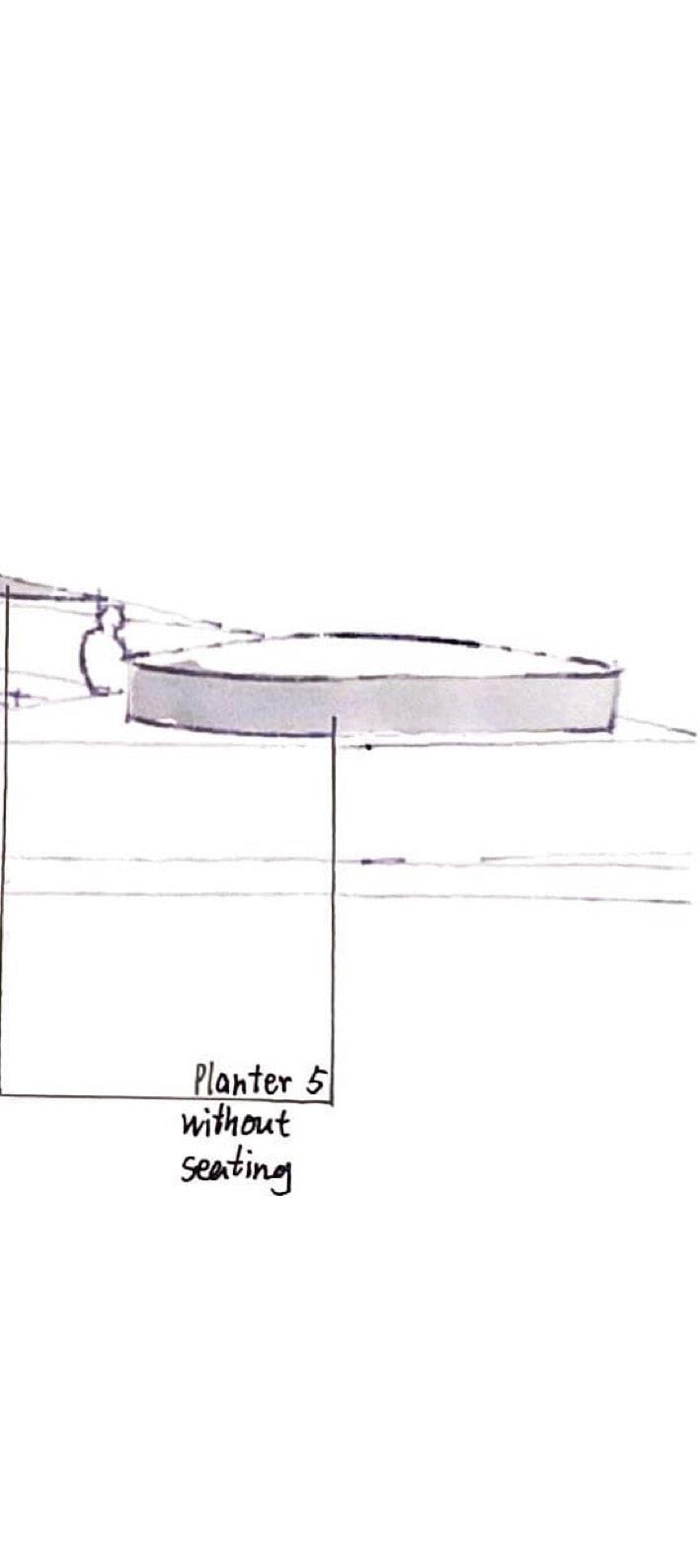

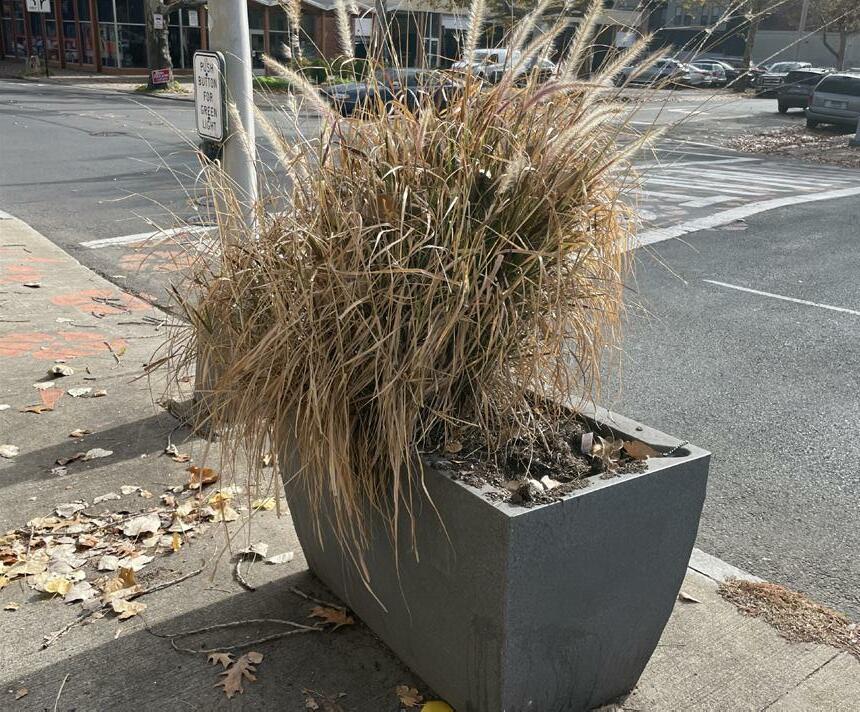

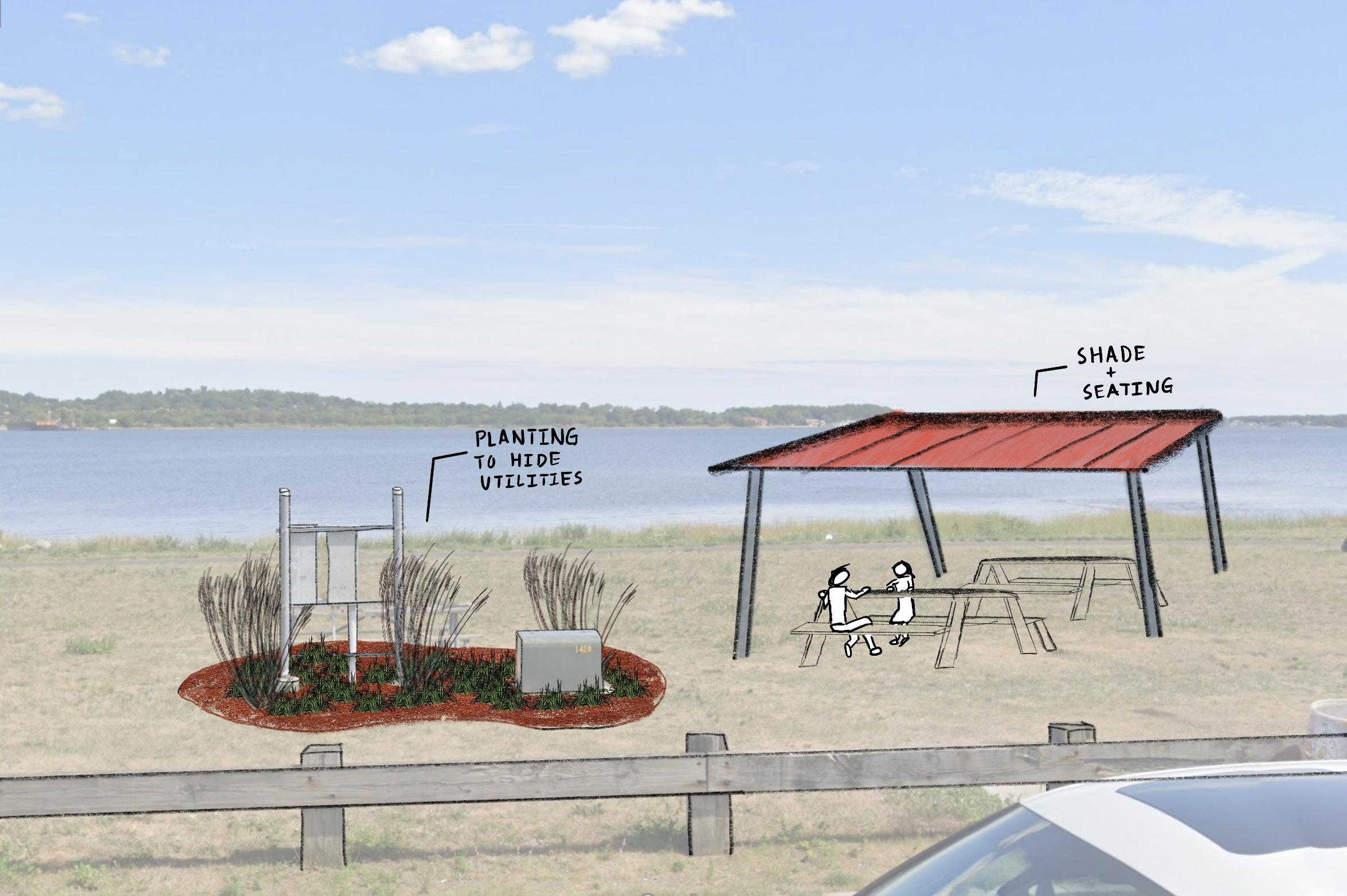

PLANTER BOARDER W/ SEATING VEGETATION TO HIDE UTILITIES
31
BRIAN
FARMINGTON CANAL TRAIL ROAD MAP
32
DESIGN REPORT DESIGN ACTION
FOLLOWING THE TRAIL PROPOSED BY THE CITY OF NEW HAVEN
33
TRAIL
TACTICAL URBANISM + DESIGN METHODS OF TACTICAL URBANISM AND DESIGN INPERATION PROPOSE DESIGN/BUILD SITES THAT WOULD BENEFIT FROM THESE SMALL INTERVENTIONS

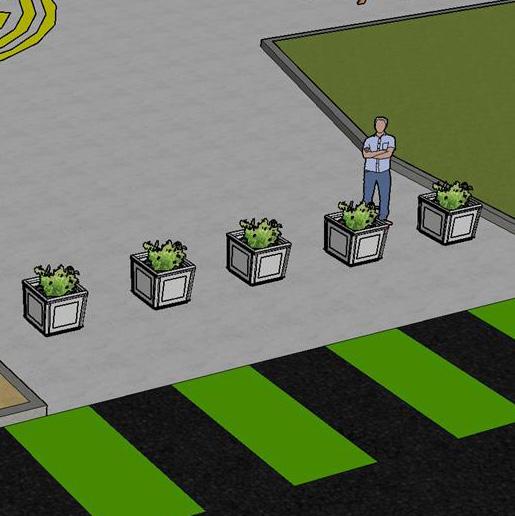

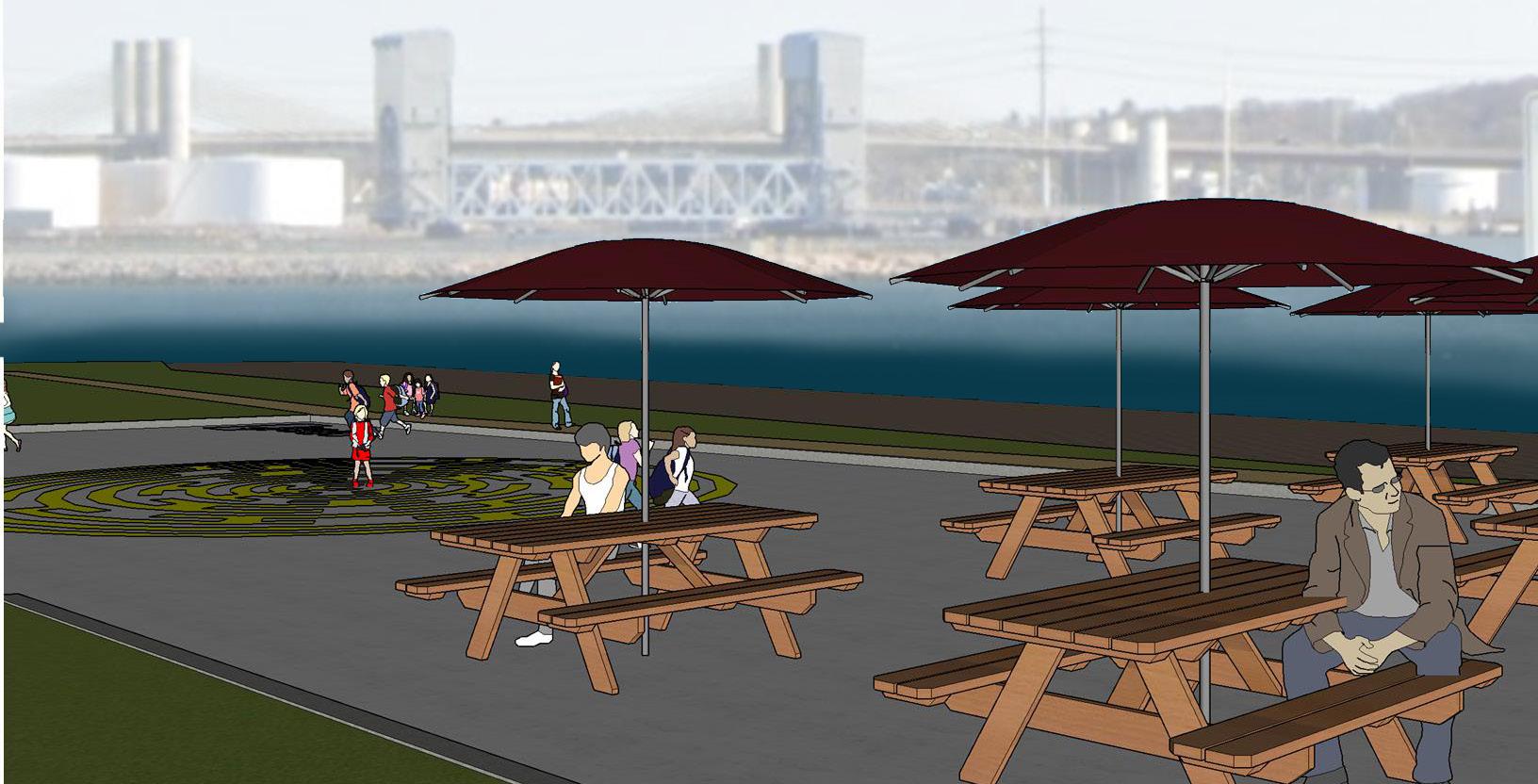

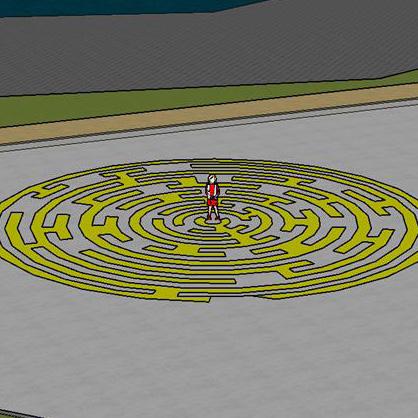

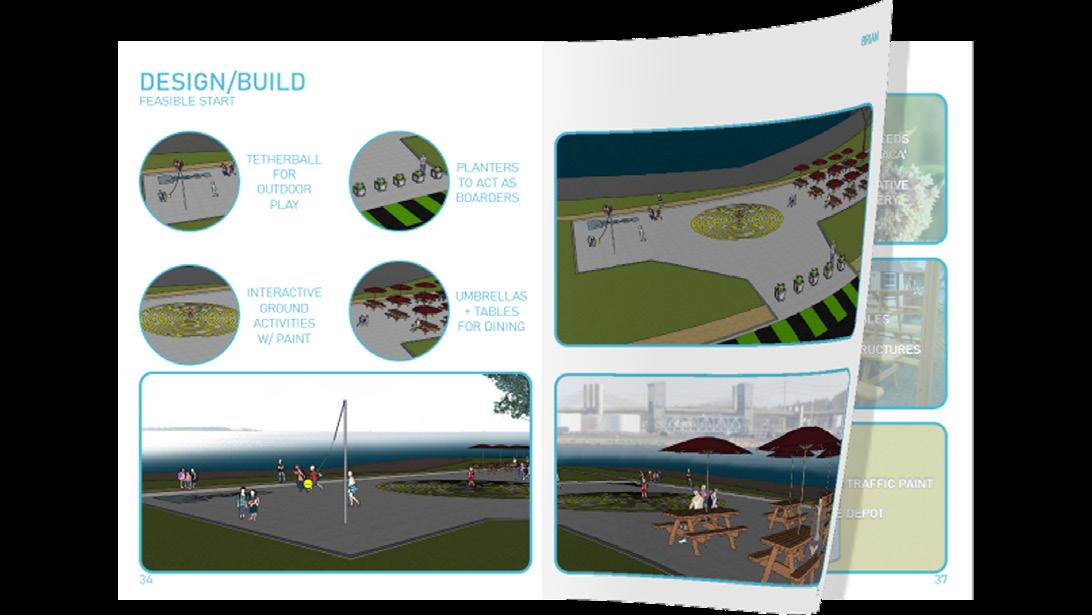

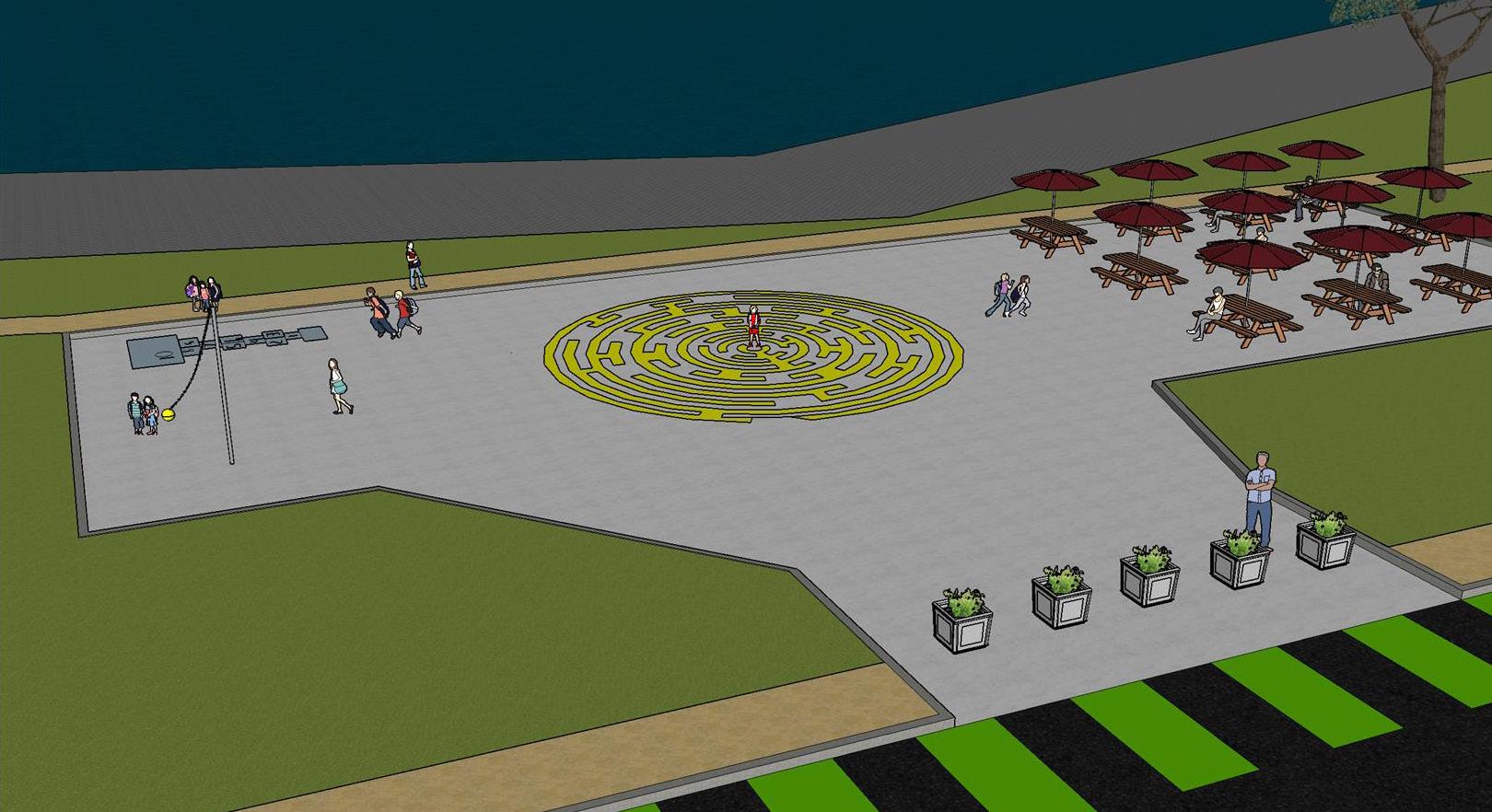

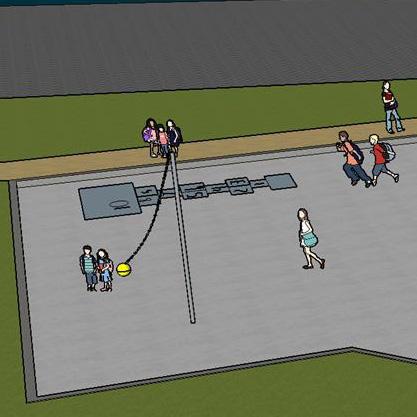

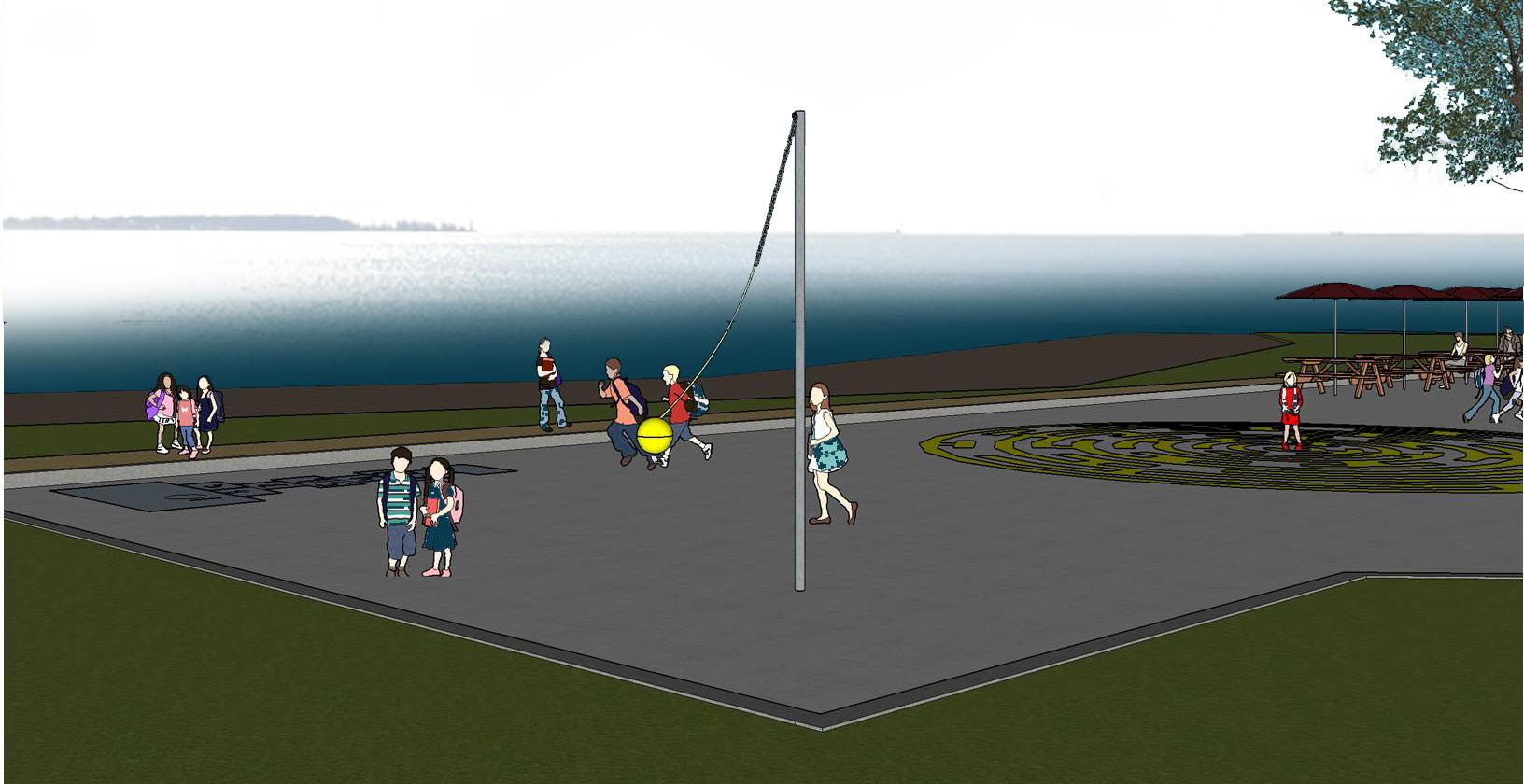

34 TETHERBALL FOR OUTDOOR PLAY PLANTERS TO ACT AS BOARDERS UMBRELLAS + TABLES FOR DINING INTERACTIVE GROUND ACTIVITIES W/ PAINT DESIGN/BUILD FEASIBLE START
35 BRIAN
36 PLANTESR: $65 x05 TBALES: $410 x12 UBRELLA: $75 x12 COST ESTIMATE 1 GAL PAINT: $74 x04 EXISTING SITE, REMOVAL OF EXISTING BOARDER PLANTS: $10 x05 TETHERBALL: $70 x01 ESTIMATED COST: COST ESTIMATE INVESTMENT 72+ HOURS OF VOLUNTEER WORK

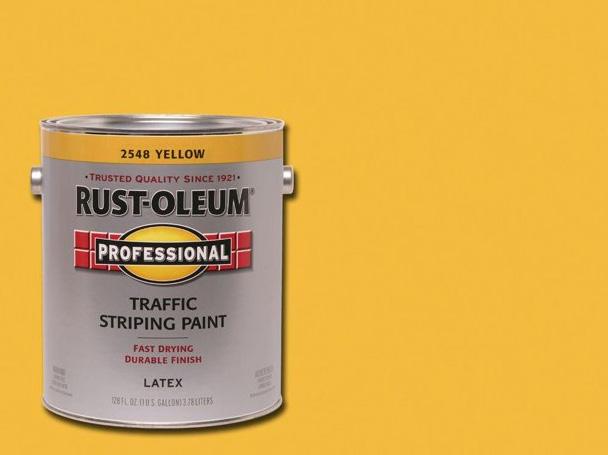

37 BOARDER COST: $6,561 WORK 4,960 SQUARE FEET OF PARKING LOT COMMON MILKWEEDS 'ASCLEPIAS SYRIACA' URBANSCAPE NATIVE PLANTS NURSERY 1 GAL. YELLOW TRAFFIC PAINT HOME DEPOT PICNIC TABLES PINE CREEK STRUCTURES
38 UNIVESITY OF CONNECTICUT FACULTY MEMBERS STUDENT VOLUNTEERS GREEN TO COAST PROJECT GROUP LOCAL BUSINESSES PROECT MANAGEMENT DESIGN
OF HANDS DESIGN INPUT LANDSCAPE ARCHITECT FIRMS CARPENTERS GUIDANCE CRITICS
PAIR
COMMUNITY PARTNERS VISION MEMBERS
COLLABORATION HOW WE CAN
CITY OF NEW HAVEN
FEDERAL
39
CAN GET IT DONE
COLLABORATION
COMMUNITY PARTNERS PURSUING DESIGNS VISION TRAIL MEMBERS
GRANTS LANDSCAPE ARCHITECT TEAM INVESTORS POSSIBLE ASSISTANTS RECOGNITION & SUPPORT DESIGN INPUT
