St. Alberts Hall - Dormitory ASPIRE Program
The objective of a retreat space is to provide respite for the user from overstimulation found in their environment. Research has shown the positive effect of such spaces particularly in learning and shared living environments (Mostafa, 2008, 204). Such spaces may include a small, portioned area or an enclosed “nook” in a quiet section of a room, or throughout a building. These spaces provide a neutral sensory environment with minimal stimulation that can be customized by the user to provide the necessary sensory input. Design techniques are carefully and surgically applied throughout the space to offer retreat spaces with an emphasis on choice of collaborative interactions. These interventions are created to build confidence and promote individuality throughout the residents of St. Albert’s Hall.
RETREAT SPACES
Indicators of Autism
A person with autism may experience difficulties interpreting and organizing input from what they see, taste, touch, hear and smell. Sensory perceptions can become frightening or even painful and can lead to high anxiety and meltdowns. Their senses seem to be too acute (hypersensitivity) or not working at all (hyposensitivity).1
Symptoms Related to Autism. Autism. CDC Autism Spectrum Disorder, 2002. ules/ph/autism/autism_print.html.https://sphweb.bumc.bu.edu/otlt/mph-mod1. Sensory sensitivity may share genetic roots with autism. Spectrum. (2018, January 17). https://www.spectrumnews.org/news/sensory-sensitiv
Sight Fragmented views, focuses more on details rather than a whole Sound Noises magnified or muffled
Hypersensitivity “over-sensitive”
Sight Poor depth perception, sharp peripheral vision, blurred central vision Sound Sound Not as strong, loud spaces may not bother them
Footnotes:ity-may-share-genetic-roots-autism/.
Touch Enjoys heavy objects and has high pain tolerance Smell Hard to smell, may resort to licking Balance Need to rock, spin Body Awareness Hard to measure proximity
HyposensitivityResearch“under-sensitive”
Initial
Touch Can be uncomfortable, textures can be an issue (supersensitive) Smell Intense and over-powering Balance Difficult to control movements, difficult when feet are not on ground Body Awareness Moves whole body
DesktopElectrodermalCyberkineticsActivityMonitors5eyetracker3Sensory
Addressinghouses.7Sensory Sensitivities
7. Reconfigurable House. (n.d.). https://house.propositions.org.uk/.
4.
The ‘Eye Tracking’ and Where It Can Be Applied. CIO Mexico January 9, 2020. https://cio.com.mx/que-es-el-eye-tracking-y-en-donde-se-
2. Noise Reduction Headphones. Noise Reduction Headset. Therapy Shoppe, 2021. https://www.therapyshoppe.com/products/P5311-noise-reduction-reducing-headset-sensory-ju nior-earmuff-auditory-defensiveness-hypersensitive-sound-noise.
CyberkineticsCyberkineticsis a kind of system that could be used in various other fields such as, mechanical, physical, biological, cognitive and social systems. Cyberkinetics is most useful when a system is analyzed on a closed loop. This means when changes are monitored by the system, that change is then reflected in that system that then produces some sort of feedback that in turn will change the system. These analyses are especially relevant when the cyberkinetics is used to address the sensory sensitivities in ASD.6
Touch 3.Footnotes:Sensing4BecerraPozas,JoseLuis.EyeTrackingPrograms.
5. Compression Vest. Squease, 2014. https://www.squeasewear.com/shop/clearance-vests/. Electrodermal Activity. What Is Electrodermal Activity? IMotions, 2021. https://imotions.com/biosensor/gsr-galvanic-skin-response-eda-electrodermal-activity/.
6. Pask G., 1969. The architectural relevance of cybernetics. [pdf] Available: < http://www.haque.co.uk/papers/architectural_relevance_of_gordon_pask.pdf> [Accessed August 26,2021].
Initial Research
Reconfigurable House Any sensor/actuator can be connected to any other sensor/actuator – it is the occupants of the house who determine the systems that run inside it. Constructed at ICC in Tokyo, Japan, and open to the public from April 2007 - March 2008, the project was a challenge to ubiquitous computing “smart homes”, which are based on the idea that technology should be invisible to prevent DIY. Smart homes actually aren’t very smart simply because they are pre-wired according to algorithms and decisions made by designers of the systems, rather than the people who occupy the with headphones 2
Existing Exterior CREATEDSITE: BY: Mallory Katen Kaylie Siwy Campus Map Site Map Upon entering one is greeted with a stone building with a large grassy landscape. The entrance is accessed through a long pathway with six garden stairs. Many large trees shade the property and surrounding area. Located on the left is a covered porch, which currently is not utilized by the University. A parking lot is also adjacent to this space, located off a quiet side street on campus. 40 Lapsley Lane, Merion Station, P.A. 19066
CIRCULATIONMaincirculation paths are located in the center of the building. This allows easy access from each floor. An emergency exit is located on the backside of the building. Additionally, there is a second interior stair not suitable for high traffic since it is narrow and steep. This staircase is easily missed, and connects to the second floor, blocking the hallway on the second floor, making this hazardous. The only ADA accessible floor is the first floor if one is lifted into the building since it is accessed with two stairs. General traffic can be seen on all floors, high circulation predominatley seen on the first floor.
Site Analysis FIRE CREATEDADACIRCULATIONNORMALCIRCULATIONHIGHSERVICEMAINSTAIRWAYSTAIRWAYSTAIRWAYACCESSIBLEBY:MayleneReyes CREATEDPRIVACYBY:Sarah
Privacy considerations were taking into place for all aspects of the design. The public spaces are ocated on the left side of the building and the least public on the right. The current space shows the main public spaces were located in the center of the building such as the lobby, stairwells, and lounges. By rearranging the order this will allow to control how loud spaces can be and where the noises will travel to.
WhileDAYLIGHTCallahanexamining the space, acknowledged was the lack of sunlight. This is often blocked by buildings nearby or vegetation. As the sun rotates around the South facade of the building, spaces located on the left side of the building will be lit for short periods of time. This leaves the right side of the building dim and cold. This can be enhanced through artificial light and can be beneficial with views of vegetation.
Summer 12:00pm
Winter 12:00pm
The use of color is important in designing the immediate environment of people with autism spectrum disorder. Studies have shown that 85% of people on the spectrum perceive colors more intensely. Duller colors with white and gray undertones have a calming effect. Moreover, cool colors such as blue and green also soothing effect while taking in tones relative to nature.8 FLEECE-CREAM Theory EXISTINGProgramPROGRAM
SW SHORE-NORTH LUCERNE-DRIVE-SCENICSWSWBM Color
CALM- SW
Left Side Bedroom: 3 Beds Bathroom: 3 Toilet Stalls, 2 Shower Stalls Back Bedroom: 1 Bed Right Side Back Bedroom: 2 Beds Right Side Front Bedroom: 2 Beds Lounge: ~10 People Ride Side Bedroom: 3 Beds Back Bedroom: 1 Bed Right Side Back Bedroom: 2 Beds Right Side Front Bedroom: 2 Beds Front Bathroom: 1 Toilet, 1 Shower Back Bathroom: 1 Toilet, 1 Shower
Left Side Bedroom: 3 Beds Right Side Bedroom: 3 Beds Front Bedroom: 2 Beds Bathroom: 1 Toilet, 1 Shower Fire Autism Spectrum.” PPG Paints, PPG, 1 Jan. 1AD, www.ppgpaints. com/paint-colors-for-autism.
LaundryOutdoorBedroomStairsExitPatioRoom ClosetFoyerBathroomLoungeHallway 8.Footnotes:Wright,William.“PaintColorsfor the
COMPOSTION
The existing program for St. Albert’s Hall contains eleven bedrooms that have 2-3 beds within them. Of the existing eleven bedrooms, seven of them reside on the second and third floors. The proposed program will eliminate two bedrooms on the first floor to add more collaborative spaces as well utilize spaces such as the addition of a larger laundry room. These changes are in the best interest of the students that will reside within the residence hall with the goal to enhance the overall college experience.
Existing
COMPOSITION
COMPOSITION
Sketches & Feedback ASPIRE Initial Discussion • Retreat from over stimulating outside world • Independent living support • Additional programming such as weekly social activities and weekend offcampus activities • Consider age range • Provide options within the space by making the user feel as if they are in control • Areas for fidgeting and stimulation • Adaptive functioning - College Success and & Careers • Peer Mentorship Proposed Kitchen Sketches Kitchenette is preferred - ASPIRE Team Possible addition of 2 burner cooktop - ASPIRE SpaceTeam to allow students to do homework while eating a snack - ASPIRE Team Some students may not have use for full kitchen because of school meal plan - Student Proposed Foyer Sketches Liked the idea of proposed greenery wallASPIRE IntroductionTeamof increased natural light is encouraged - ASPIRE Team Would prefer storage on the first floor for personal school materials - Student Pay attention to flooring materials in regard to sounds and echo - Kinney Center Resident Advisor Proposed Community Lounge Sketches Prefers a balance of private and collaborative spaces - Student Allow dimmable lighting options - Kinney Center Resident Advisor Avoid abrasive materials as well as materials that are too soft or too hard -Kinney Center Resident Advisor Proposed 3rd Floor Dormer Sketches Enjoyed the option of the privacy curtains - Student Would prefer the option of a combined reading nook and desk - Student
Scent Analysis
Further Analysis
SURFACECOUNTER
Considerations were taken when placing rooms based on scents. The kitchen was placed on the left side of the building away from the rest of lounge rooms and bedrooms. Scents of the outdoors may be preferred which are accessed on the patio. Personal smells can be items such as perfumes and colognes that will only linger among the bedrooms.
Acoustical Analysis Sound can be distracting and hard to control in a small space. Acoustical considerations are options of acoustical ceiling panels and acoustical backing for built in furniture pieces. The laundry was reorganized to be placed near the bathrooms to avoid distractions while doing work.
Cyberkinetics FF&E
Automatic/Motorized BlindsUser Tracking Dimmable MovementLightsTracking Cameras Central Information Panel Smart Thermostat
These are all items that seem small, but can improve the well being of the user. One of the most advanced pieces of cyberkinetic technology to add to St. Albert’s Hall would be a user tracking system that alerts residents how many people are in the common areas. This could eliminate noisy rooms, and overcrowding.
In order to enhance the resident experience, cyberkinetic fixtures and equipment can be added throughout the spaces. These include automatic blinds that adjust to sunlight and user preference, automatic dimming lights, as well as thermostats that can adjust to the perfect temperature in the room. These can all be integrated throughout the space internally or through the user’s smartphone.
• The back stairwell is proposed to get taken down due to hazard issues with the protruding stair on the first floor hallway, and access to the second floor. Upon entering the second floor the doorway opens into a busy hallway which is unable to see if someone is coming. Added to the space will be more retreat spaces for students to use while waiting for the bathroom or for laundry to finish.
• The room that was previously a laundry room will be demolished and turned into more space for the kitchen. The laundry room was then moved near the bathroom where plumbing will still be accessible.
• Due to this change the back bedroom was reconfigured to slightly smaller, but it crucial for ADA purposes.
Demolition Plan
• Highlighted in light blue are walls that are being proposed to be demolished. As one enters the wall to the left handside will change from a solid wall to wooden slats with a translucent glass to access more daylight.
First Floor Existing
Proposed Changes
•Scale:Considerations:1/4”=1’-0”Althoughthefacilityisnot100%
• In order to access the building a ramp was included to the front of the building.
• The bedroom located in the back of the first floor will also be ADA accessible due to not being able to reach other floors. This is in close proximity to the laundry units and ADA bathroom.
• All hallways adjusted were a minimum of 36” as well as doorways.
Flooring Materials: Plan HomeDepot-Pergo: Defense+ 7.5 in. W Classic Weathered Pine Antimicrobial Click Lock Luxury Vinyl Plank Flooring Interface: AE310 Carpet Tile AtlasConcord: Pure outland
• An elevator was not feasable for the budget therefore the ADA focus was for the first floor.
ADA due to restrictions, all new designs included took into consideration the need for Universal design.

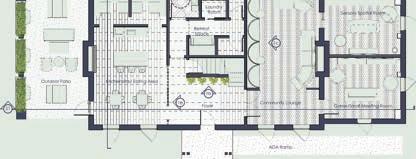

First Floor ADA
• The bathroom located on the first floor is proposed for one person use. This is due to the need of a 5’ diameter turning circle. An ADA shower, 2’6” X 5’, is now accessible on the first floor bathroom.

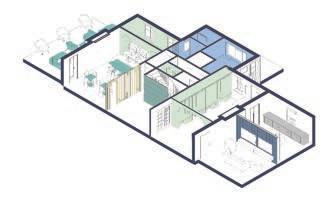

FirstAxonometricFloorADAAcousticsStorageSunlightRetreatSpaceCommunitySpaceKey:
Glass Panel Wood Slats Flooring
HomeDepot-Pergo: Defense+ 7.5 in. W Classic Weathered Pine Antimicrobial Click Lock Luxury Vinyl Plank Flooring 3form- Awash G51 Wilsonart-Manitoba Maple Laminate
Spatial Considerations: As you enter the wall on the left was opened more by wooden slats and translucent 3Form Resin. This allow more daylight to get to the center core of the building. The plant wall is inviting and encourages better wellbeing. The neutral tones make the space calming and serene. The cove lighting in the ceiling adds a simplistic element to enhance the look. Corkboard, whiteboard, and chalkboard allow to leave notes for other residents. Lobby
Lobby Wood Model Kitchen and Lobby
Spatial Considerations: The lobby is the only form of entry of the building, it will be used at all times of the day. It is vital to make sure the room is well lit when there is not access to sunlight. This cove ceiling adds one level of lighting with an additional semi-flush drum pendant in the center of the room to serve as another form of light. This enhances the idea of flexibility and users needs.
Functionality of Plant Wall:
First 1a.PlantFloor Wall 9”8’-1’-6” 8’- 7”
The plants used for the entrance wall will consist of pothos, philodendron, dracaena, and anthurium. These plants require little attention. These options were chosen due to the lack of natural light, so these plants will thrive on artificial light. The different types of plants are suitable for hanging, while providing better air quality and overall well-being to the residents.
ADA Bathroom ADA LaundryBedroomRoom Neurodiversity and Accessibility • Neutral colors and materials • Tile selected is not too textured to avoid fixation of touching. • Shower has blocked views from outdoors to avoid distraction. • Shower measurements 2’6” X 5’ADA standard regulations • Room large enough for 5’ diameter turning circle. • Grab bars located behind and next to toilet as well as in the •GeneralCyberkineticsshower.CentralInformation panel can be accessed by phone to play music or adjust temperature. • Dimmable lights can allow the user to adjust the lighting based on prefance • Wall sconces located to the sides of the mirror to evenly light face. • Storage is provided for everyday neccessities such as toilet paper, soap, and cleaning supplies. • Wood slats break up large solid surfaces to prevent sound from reverberating. • Located next to ADA bedroom for easy accessability and a shorter travel distance.
Mural: DesignTex-Silicone Nappa Flat Counter Surface Kitchen A. Wilsonart LaminateMapleManitoba HappyWall-Green mountains II wallpaperVeneerFlooring HomeDepot-Pergo: Defense+ 7.5 in. W Classic Weathered Pine Antimicrobial B. A. C. B. Meganite- blanca granite DesignTexSambra Otra Vez
Spatial Considerations: The kitchen has a mini-fridge located under island, along with a sink, and microwave. This space allows students to snack and eat as well as move tables to accommodate larger groups. The back booth areas allow for more retreat from the rest. The left booth is white and clean, while the right introduces more color for excitement. The goal is to section the kitchen from loudest to quietest as one proceeds to the back. The kicthen as well allows direct acccess to the side patio, which origionally was not available.
Wood Model Kitchen
Captured in the sun is how the wall that divides the kitchen from the lobby will now admit light into the center through all points of the day. The kitchen should also provide natural light during time of use; 8am, 12pm, and 5pm, which is accessible through the windows in the front and back of the building.
DaylightingJune8amJune5pmDec.2pmDec.8amThemodels
Sunlight is needed for bettering the users well-being which makes a big impact for college students.
sunlight was captured in December around 2pm and shows how the space will be lit.
Transverse1b.AccentSectionWall 8’-9”7’-11” 4”3’-8” 12’-4” Wilsonart-Manitoba Maple Laminate3form- Awash G51
Longitudinal Section
Game Room Perspective
The outdoor will not only allow for an additional eating space and studying atmosphere, but it is proven to enhance ones well-being. Being outside improves ones physical and mental health. This is especially needed for students who may feel overwhelmed and need a space for retreat. A few minutes outdoor can increase the students happiness making it a desirable stress-free environment.
As requested by students the game room was incorporated for a place of relaxation. Concerns for sound were addressed through the incorporation of an acoustical backing applied to the wall dividing the game room from the sensory spatial room. Carpeting applied to the floors will also help with acoustical sounds from traveling.
Outdoor Perspective
Spatial Considerations: The flexible community lounge encourages collaboration and individual retreat. The built in seating allows for seclusion, with the availability of conversation. The modular seating helps rearrange the seating to the students liking based on the group size. It can easily be pulled apart and put back in multiple configurations. The overall materials are easy to clean and have acoustical purposes to control noise levels. The lighting in the built-in seating is dimmable based on that persons desire. This room ultimately is built on flexability and room for customizing.
Carpet Community Lounge D. Wilsonart-Manitoba Maple Laminate Interface: AE310 Concertex NappaTile-Island-Pebbled
VeneerBackingAcoustical
DesignTex-Silicone Nappa Flat MomentumHobnob Ash entum-
• The backing to the seat is acoustical helping with acoustics on top of the carpet.
19’-3” 4’-8” 8’-9”5’-9”1’-6” GeneralCyberkineticsNeurodiversityInclusion of Retreat Spaces
These are ideas and are not limited to these configurations. By providing flexible seating the students can rearrange the furniture based on their needs and preferences. The seating includes ottomans with and without backs as well as side tables which can be moved around with the furniture.
• Included in the design is storage for simple school supplies. Mentioned by some students was the idea of basic school essentials to have a place to be stored that way if a pencil is forgotten they are more motivated to do work still. If it was left upstairs there was less of a chance work would then get done.
• User tracking can be accessible by phone to allow an individual to see how many people are using the space.
• The modular seating shows an arrangement of seating options.
• The built in seating was built to allow a place of retreat, but also allow for the option of conversation. The modular seating can easily be arranged around the built in seating to allow for conversation. Included in the seating is adjustable tables which can be tucked away under the seat.
• Dimmable lights are included in each of the curves in the built-in seating to allow complete control for the user
Seating Configurations 1c.Community Lounge
• Movement tracking cameras can be used in this area for security purposes.
Veneer Wilsonart-Manitoba Maple CarpetLaminate Interface: AE310 DesignTex-Bixby mint E. E.
Spatial Considerations: As one enters the room there is a sliding door. This allows the user to still be included in the lounge without completely isolating theirself, or can shut the door and be completely closed off. Included inside is bench seating for lounging and storage. Due to cleanability included in the draws can be personal sensory fidget boards that can be used when needed. A couch is provided for another form of relaxation and a T.V. can allow for watching ones favorite show or listening to music. The bubble tube allows to grasp ones attention visually, calming an overactive user and allowing them to refocus. The swing, which has been seen to be a favorite among the neurodiverse, was also included in this room.
Sensory Spatial Room
Plug-In•Thisparticular plug-in works cohesively with abstract shapes and cyberkinetic technology to create a piece that is fully customizable for the user. The plug-in is equipped with three configurations that a user can choose from. They can use an app to choose the configuration of their choice to meet their needs. These configurations include Curl-Up, Study and Lounge. HUman behaviour factors were included by allowing the user to download an app to choose the lighting settings such as bright or dark as well as warm or cool colored light. Included in the app the user will be able to play music and turn on a fan for better ventilation. When the user picks their desired combinations, the plug-in is intended to spin to meet the needs of the selection. Although the plug-in can be placed anywhere in the space, it can specifically be useful in the sensory spatial room.
CurlStudyLoungeUp
• A “plug-in” is something that does not always fit conventional design. It is intended to be created using abstract shapes and forms. When designing a plug-in the designer intends for it to be used flexibly. This means that it can be planted anywhere within a building such as St. Albert’s Hall, to improve the user’s well-being. This sets it apart from “normal” furniture.
7”1’-6” 1’-9” 07’” 6”3’02’”
Materials: BackingAcousticalWilsonart
Plug-In Deconstructed
The double lined barrel will be contructred from plywood with the addition of upholstery to the final layer. There are pegs added to the outside to allow the user to ‘click’ the drum into place based off the users desire. The internal drum rotates on turning wheel that are held into place by another plywood drum. For the users comfort there are speakers, lighting controls, and a fan for ventilation. The overall structure is braced into placed and attached to two side storage units by 2”X4” bracing. -Manitoba Maple Laminate
Concertex NappaTile-Island-Pebbled Veneer
Budget Feasability Budget is an important aspect and has been considered throughout. Each space has been categorized into A, B and C level interventions that vary in price and feasibility. A. Immediate intervention at a low cost to enhance well-being within the space B. Next level of intervention, slightly more costly C. Final level of intervention to create well-rounded design of space; Most expensive option First CommunityFloor Lounge: A. Modular Furniture B. Built-in wall seating C. Dividing wall and ceiling design Foyer: A. Green wall w/ chalkboards, cork boards and whiteboards B. Cove lighting in ceiling C. Accent dividing wall between kitchen and foyer Kitchen A. Addition of kitchenette B. Remove and relocate laundry C.roomDividing wall between main kitchen area and booths Outside Space A. Various furniture options B. Arched greenery C. Additional lighting Sensory Space A. Various seating options with TV B. Individual student storage with sensory boards C. Acoustical wall panels, bubble tube, and sliding door Bathroom: A. Material Changes C. Remove Stalls and showers to account for ADA use * All spaces are shown at “C” level to display full design capabilities A Level B Level C Level First Floor
• One of the main changes is the demolition of the bathroom and closet near the front of the building. This would be turned into a lounge that is more quiet and focussed for individual use. This gives the student the option of studying in their room or a secondary location for a change. The new demolished walls allows more natural light to the central staircase and adjacent hallways.
• The proposed RA lounge will also only have one entry point for securtiy purposes.
Demolition Plan
Second Floor Existing
• Lastly, the back stairwell that was demolished on the first floorplan will now have to demolish the doorway in which is accessed to the second floor. The hallway wall is also pulled back, which opens up the space more.
Proposed Changes
• Second change would be the demolition of the doorway into the large right room. This will create a hallway with direct access to the roof. This not only allows a more efficient room for the students, but allows a second bathroom for all since the front one will be taken away. The hallway makes more sense allowing the bedroom to have only one entrance.
Second Floor PlanScale: 1/4”=1’-0” Human Behaviour Notes: • Increase in natural daylight through the lounge can help the users of a space conserve energy, improve their well-being, increase their productivity. • Second floor shared bedroom have different desk to bed configurations. This allows to divide the space and obstruct distracting views. • Resident Assistant suite will reside on this floor making it easibly accessible from each floor. • Areas of respite offer privacy and can in turn increase workflow and collaborative effort upon returning. 2b 2a 2c 2d Flooring Materials: HomeDepot-Pergo: Defense+ 7.5 in. W Classic Weathered Pine Antimicrobial Click Lock Luxury Vinyl Plank Flooring Interface: AE310 Carpet Tile AtlasConcord: Pure outland
SecondAxonometricFloor
Key:RetreatSunlightAcousticsSpace
Wallcovering Front Bedroom Flooring HomeDepot-Pergo: Defense+ 7.5 in. W Classic Weathered Pine Antimicrobial Wilsonart-Manitoba Maple VeneerLaminate DesignTex- Sambra Otra Vez F. F. Wolfgordon-Ardley Cove

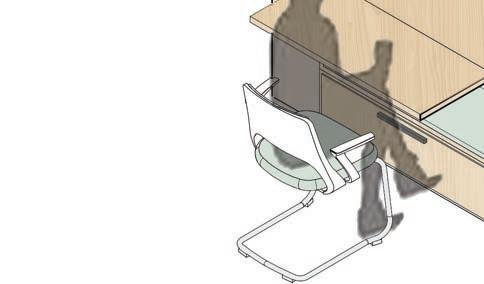

Spatial Considerations: The bedrooms are all individualized on layout. The custom piece allows for built-in desks and storage. This allows a divide for roomates. The purpose of the wall is to block distractions, such as people passing by in the hallway and the roomate. The green colors keeps the space calm and tranquil with warm wood touches. A form of cyberkinetics are the motorized shades which are included to monitor sunlight provided into the space.
Frontadjustments.Bedroom Nightime F. Wood Model Front Bedroom
Spatial Considerations: Due to the high usage at night time it was crucial to do studies on the space when there is no natural light. This shows the importance of artificial ligt and moods set by it. The warm toned light next to the beds allow that area to be more intimate and relaxing, but still allowing an overall lighting option for the space. Each user will have their own lights by their bed for personal
2a.Bed Configuration

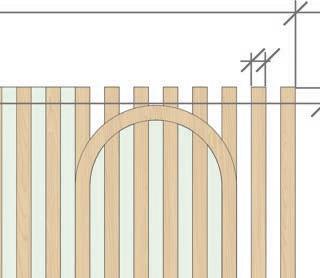

• Bed configuration 2 shows wooden slats that divides the bed from the desk. Within the slats is shleving that can be accessed from both sides of the wall. Utilized is a warm wood veneer and light wallcovering.
2b.Bed Configuration 2
Although located in the bedrooms, the newly created beds will allow for retreat not only from individuals in the dormitory, but from ones roomate as well. This is meant to block direct views and overall provide another level of privacy.
2c.Bed Configuration 3

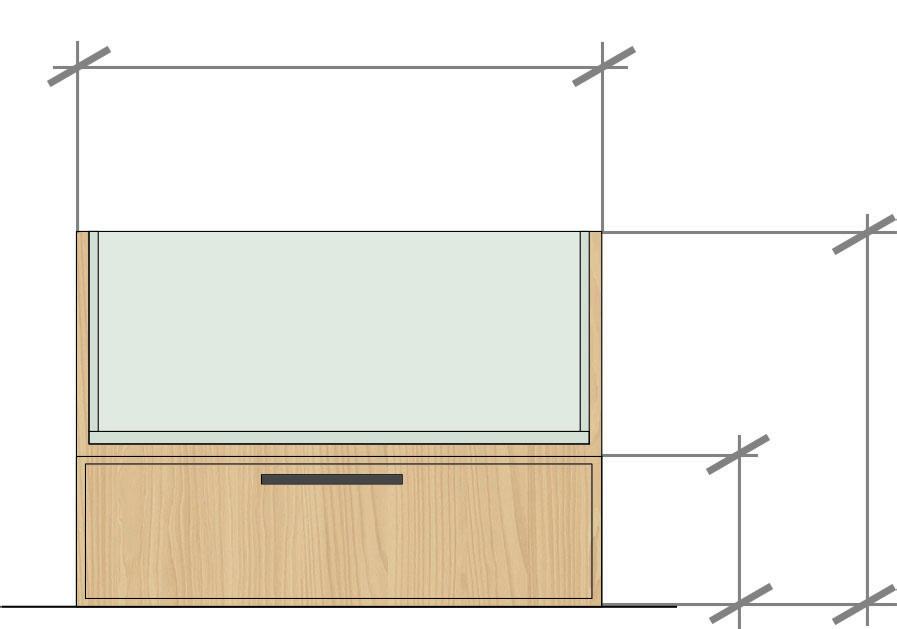

• Bed configuration 3 has a desk and dresser built in due to the lack of closets. The bed is tucked inside the built in making it feel secluded from the rest of the world. Attached on the side is a desk, and on the back is built in storage. A light wallcovering is utilized on the walls as well as a warm wood veneer.
1
• Bed configuration 1 shows a arched entrance to the bed with a desk provided with the built in. This helps obstruct views, and provides more privacy between the roomates. A wallpaper adds an accent to the room while still remaining subtle. Two shelves are provided above the foot of the bed providing for books and decoration.
Spatial Considerations:
Secondthrough. Floor Lounge G.
The second floor lounge will be utilized for individual use. This is a place where studying or reading will be encouraged. The small circle retreat spaces allows to curl up in a ball and indulge in homework. Side tables are accessible for computers to rest on. An acoustical backing is used near the circles to soften voices, stopping sound from traveling to bedrooms. Strip lighting located in the circles will allow for flexability with lighting. This new space provides natural light to the space as well as adjacent walls. This helps light the stairwell with a window allowing the light to pass H. H. G.
Wilsonart-Manitoba Maple VeneerLaminate Interface: AE310 Carpet Tile DesignTex-Silicone NappaAcousticalFlat Backing Concertex NappaTile-Island-Pebbled
Second 2d.RetreatFloor Space 3’-0” 7’-0” 8’-0” 6’-6” 3’-3” 2’-6” Wilsonart-Manitoba Maple VeneerLaminateAcoustical Backing Concertex NappaTile-Island-Pebbled
Budget Feasability Budget is an important aspect and has been considered throughout. Each space has been categorized into A, B and C level interventions that vary in price and feasibility. A. Immediate intervention at a low cost to enhance well-being within the space B. Next level of intervention, slightly more costly C. Final level of intervention to create well-rounded design of space; Most expensive option Second Floor: A.BedroomsBedconfiguration within rooms B. Individual lighting C. Built-in bed dividers with desks A.Bathrooms:Material and lighting changes C. Reconfigure hallway walls to create use of 2 bathrooms within the fl Proposedoor 2nd Floor Lounge C. Remove bathroom to create second floor lounge with built in seating and acoustical wall and *seatingAllspaces are shown at “C” level to display full design capabilities A Level B Level C Level Second Floor
Third Floor Flooring Materials: Scale: 1/4”=1’-0” • Flexibility within the desks which can lift up or pull down. • When desks are up the dormer spaces transforms into a personal window seat with a drawer underneith. • Each dormer space is provided with a custom shelving unit for personal belongings • Bed arrangements allow for 2 students per room, advise for no more due to one bathroom located on the third floor. 3aPlanHuman Behaviour Notes: HomeDepot-Pergo: Defense+ 7.5 in. W Classic Weathered Pine Antimicrobial Click Lock Luxury Vinyl Plank Flooring AtlasConcord: Pure outland
Third AxonometricFloorRetreatSpaceKey:
Third Floor Bedroom
Spatial Considerations: Located in the dormers are the desks/bench. The purpose of this is to maximize space. The desk folds down and forms a window seat. The bench was preferred by students making it a multi-use area. Shelving was placed on the sides of the dormers to add personal belongings. An adjustable light was also added in the nook for personal preference. This takes into consideration the use of a small space and the need for personal adjustments.
Flooring HomeDepot-Pergo: Defense+ 7.5 in. W Classic Weathered Pine Antimicrobial Wilsonart-Manitoba Maple VeneerLaminate DesignTex- Sambra Otra Vez F. F. Designtex-singing in the rain

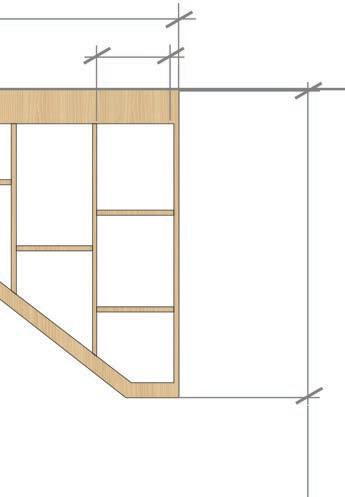

3a.Dormer Seating/Desk Third Floor 2’-6” 1’-6” 3’-6” 4’-0”5’-0” 7’-0” 1’-3”
Dormer Desk Folded Up Dormer Desk Folded DownWood Model Third Bedoom 3a.Dormer Seating/Desk Third Floor
Budget Feasability Budget is an important aspect and has been considered throughout. Each space has been categorized into A, B and C level interventions that vary in price and feasibility. A. Immediate intervention at a low cost to enhance well-being within the space B. Next level of intervention, slightly more costly C. Final level of intervention to create well-rounded design of space; Most expensive option Third Floor: A.BedroomsBedconfiguration within rooms B. Individual lighting and shelving within dormers C. Dormer seat with folding desk * All spaces are shown at “C” level to display full design capabilities A Level B Level C Level Third Floor
ReLighting flected Ceiling ThirdPlansFloor Ceiling Plan Second Floor Ceiling Plan First Floor Ceiling Plan Scale: 1/8”=1’-0” Allmodern Lyn 1- Light Hardwired Arm Sconce Allmodern Jaylin 1- Light single Dome Pendant Allmodern Dalton 3- Light Single PendantDrum *All Lighting LED for programmable options Focal Point 2.5” Downlight With and without trim Overstock Merida lampadjustableplug-inWall Southridge visa lighting Aspectled N-Series (Narrow) Flexible LED Strip Light - Ultra Bright (36 LEDs/foot) Houzz 4 Light Semi-Flush Mount Grey Ash Finish
Physical Wood Model Scale: 1/4”=1’-0”
Materials Board FLOORING FABRICS KITCHEN WALLCOVERINGACCENTSMURAL TILE VENEER

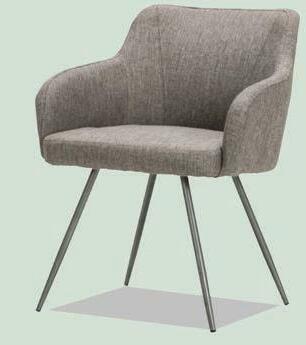

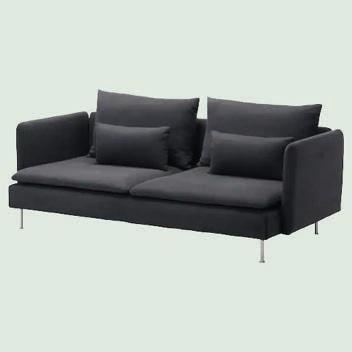

Furniture Schedule Key Quantity Brand Description Location Image Comments A8World Market Bi Caset Leather Molded Tyler Dining Chair Kitchen Selected for durability as well as comfort. Lightweight, and can be easily moved around space B4Dot & Bo vidaXL Bistro Table MDF and Steel Square, Oak Color Kitchen Square table was selected to be able to be pushed together. Lightweight yet sturdy base. C3All Modern Cyprian Counter Stool Kitchen Selected with a back rest for comfort at counter level D1Addon Furniture Modular Sofa ConnectorCommunity Lounge Lightweight with durable upholstery. Easily moveable D4Addon Furniture Modular Sofa StraightCommunity Lounge Piece without arms to create modular flexibility D2Addon Furniture Modular Sofa Curved EndCommunity Lounge Curved corner piece to create rounded edges in modular configurations E1Article Ceni Sensory Spatial Room Selected for comfort in this space. Deep-set cushions and high arms to hug the user F12InmodOliver Boucle Side Chair Bedrooms Comfortable back and high arms for comfort. Metal legs are durable with soft pads on the bottom to preserve flooring G4 EQ3Finn Side Table Second Floor Lounge Easily slides in and out from the sofa. Selected for users to place personal belongings H2All Modern Jase Velvet Recessed Arm Sofa Second Floor Lounge Allows comfort for multiple individuals or for one person to spread out. A deep seat and high arms enhance comfort
Retreat spaces are beneficial not only for the Neurodiverse, but for college students as a whole. These dedicated areas strategially designed are provided to enhance the users well-being. The many options focus on the option of choice with adjustments found inside the design such as dimmable lighting and movable furniture. The overall goal allowing users to choose based on the day to be more secluded on focused or collaborative among
CONCLUSIONothers.THANKYOU
