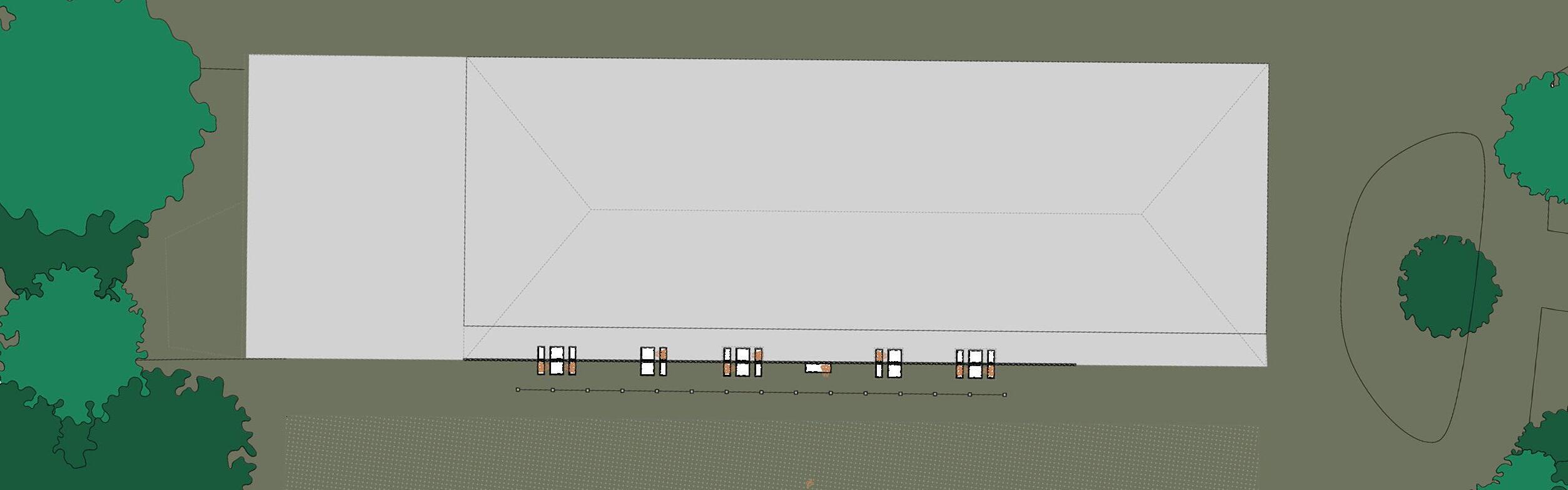

Cafe Plan and Elevation
Cafe Pitch Image
Physics Rd Plan and Elevation
Physics Rd Detail Plan & Elevation
Physics Rd Pitch Image
Walkway Plan and Elevation
Walkway Detail Plan & Elevation
Walkway Section 1 - Morning
Walkway Section 2 - Night Walkway Pitch Image
Project Themes
Reflective
Abstract
In the wake of COVID-19 many places on the University of Sydney campus have been abandoned and left derelict. This applies equally to buildings and public spaces, as is demonstrated by our chosen site. This project aims to reclaim the site as a central square in the university city, adapting Jacobs’ and Gehl’s principles of public space to generate interventions on the site which promote public use. In order to create a successful public space we must also address the aftereffects of the lockdowns and restrictions, both physically on the site and psychologically in the public psyche. This is reflected in the relational strategy, tying in the themes of Bourriaud’s Relational Aesthetics as interpreted by Bishop to design the shared human experiences being offered on the site. The resulting dialogue between the university, the proposed interventions and the public are driven by individual encounters with the site, yet shaped as we all have been by the past two years of collective isolation.
Relational & Activation Strategy

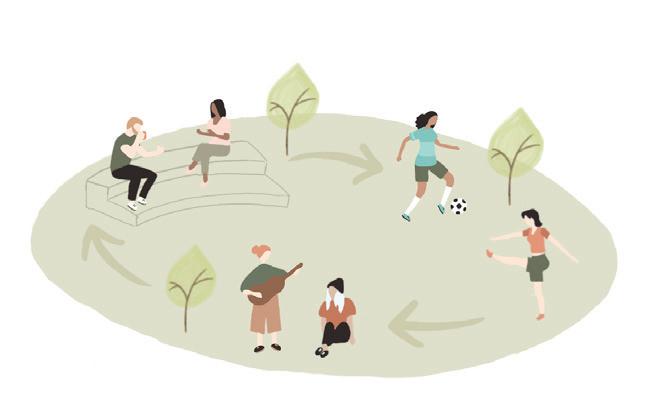

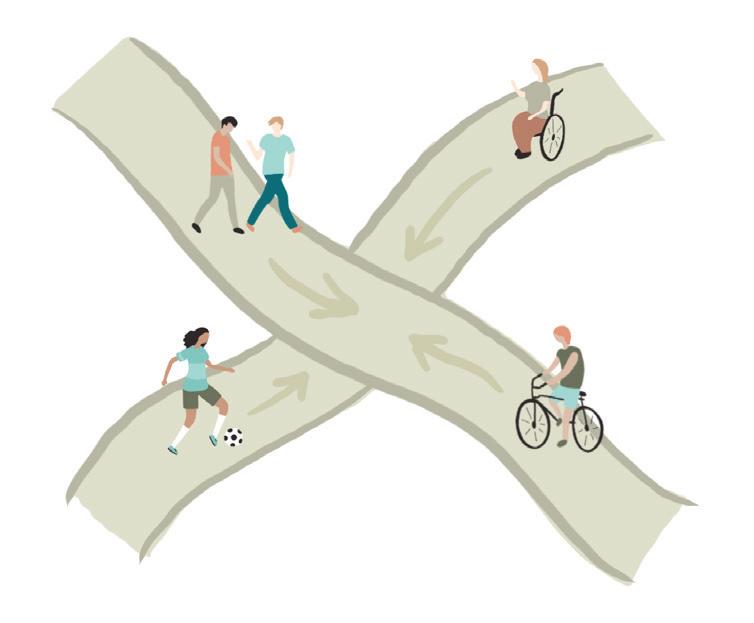

During the time of COVID we all endured an experience of shared isolation, where the only interaction we had with each other and the community was digital. This shared isolation created a profound human experience, which will leave its mark on our culture for years to come. On the site we aim to address this shared trauma, creating a relational space where people can experience separate activities in a collective space. People come to the site to partake in individual experiences, but by doing so in a communal space this transforms the previously disparate activities into a shared human experience (Bishop, 2005).
The activation strategy for this site is based on a few simple moves, which create interventions on the site in a way which creates the least amount of disruption to its current programs while inviting new ones. The introduction of shelter, seating and screening provide a place to rest, a place to meet, a place to watch and a place to stay.
Site History 1
1855-1959
Since the establishment of the University of Sydney, Camperdown Campus on northern side of city road has displayed the university’s character, while Darlington Campus has buildings with mixed uses.
The sports and leisure facilities started developing in Camperdown Campus from late nineteenth to early twentieth century due to increase in the student population. With admission for women to the University sanctioned in 1881, segregated common rooms and separate sporting fields were required by society at the time. This led to the development of a series of facilities including Manning House, women’s tennis courts and the Hockey Square.
The Hockey Square was opened in 1916 for women’s use, but not built until 1921. And the Hockey Square remained restricted to women’s use only until 1926. University of Sydney’s Women’s Hockey team is the only one of the earliest women’s hockey teams that survived, and now has a history of over 100 years.
Site
History 2
1855-1959
However, after a series of developments along the eastern side of Eastern Avenue and southern side of City Road on Darlington Campus, the Hockey Square has gradually moved away from the centre of the University from 1960s onwards.
During the last decade of 20th century, the lawn was introduced to the Hockey ground terrace and Physics Road, including the lawned stairs.
Nowadays, the Square is home to Mixed & Girls Skill Acquisition Program teams, and still used for training purposes.
The University of Sydney Site Plan 1960-2009 @ 1:8000(Based on historical maps from Grounds Conservation Management Plan of the University of Sydney)
Between 1855-1989
Between 1990-2009
Hockey Square
The site is located centrally in the University of Sydney Camperdown Campus. The walkway to the East of the site is a section of one of the main thoroughfares through the university, connecting the Footbridge and Holme Building to Manning Bar, the Colleges and through to City Road. The Footbridge is one of the main entrances to the university, connecting the northern Inner West suburbs to the university across the pedestrian bridge, and located on the popular bus routes on Parramatta Road. Holme and Manning were both popular gathering and event spaces in the time before COVID, however in recent times only Holme has been able to recover its popularity. Manning remains quiet and rarely open, despite the university opening back fully to students. Between Holme and Manning is the Graffiti Tunnel, a popular public art space which is also regularly used to advertise student-run events such as Revues. Adjacent to the site is Eastern Avenue, the main thoroughfare running North-South through the campus. However, Eastern Avenue terminates at the Quadrangle on the North of the site, so it does not have a convenient Northern entrance like Footbridge directly connected to the path of travel.
The site has the potential to become a centre of the university similar to a city square. It has a diverse neighbourhood surrounding it, with students passing through at all hours of the day. With the proposed interventions this thoroughfare can become a path to rival Eastern Avenue, and a square to rival the Quadrangle. Site Context
Contextual Map @ 1:5000 (Map developed from CADMAPPER generated file)
Site Analysis

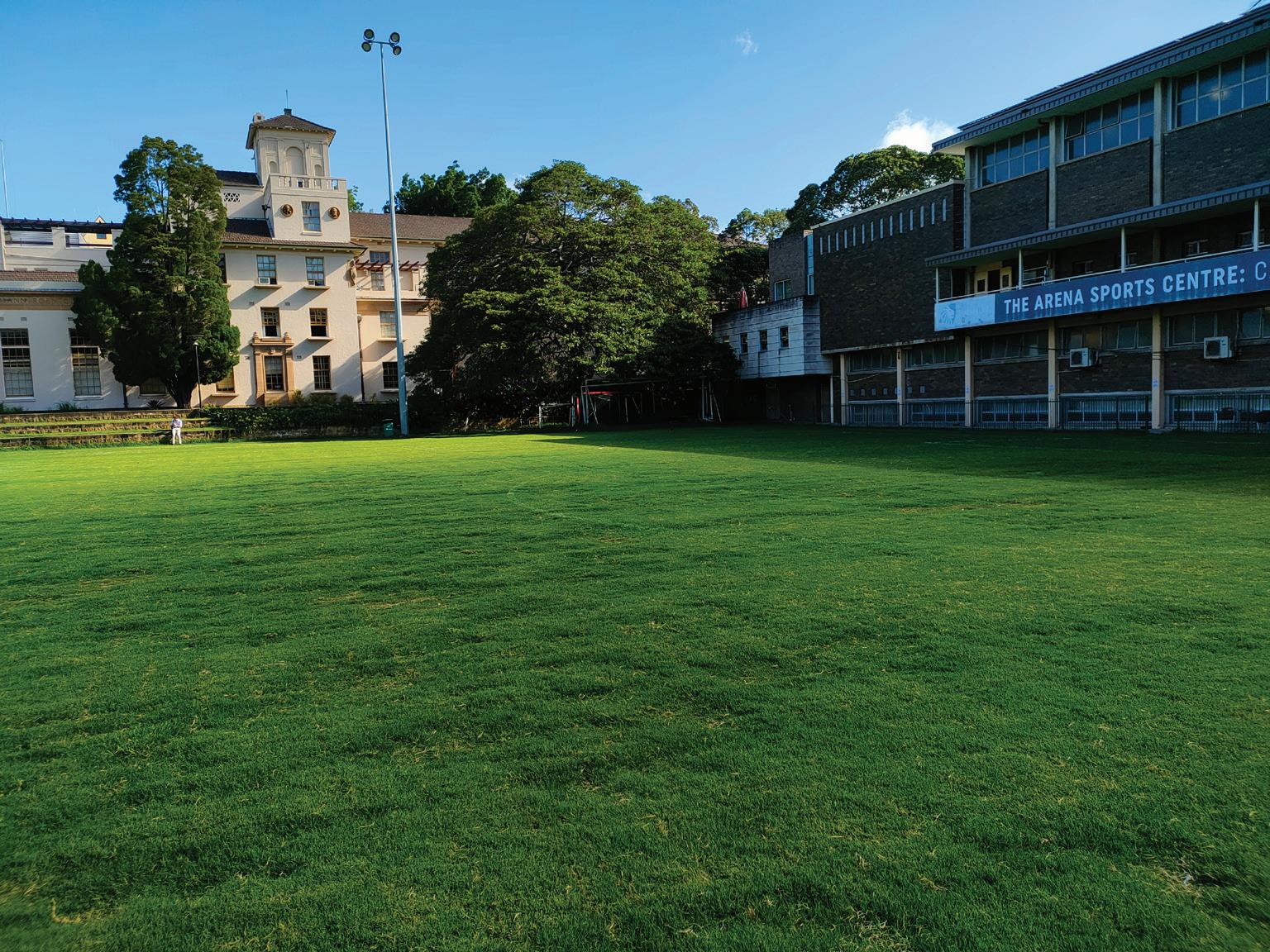

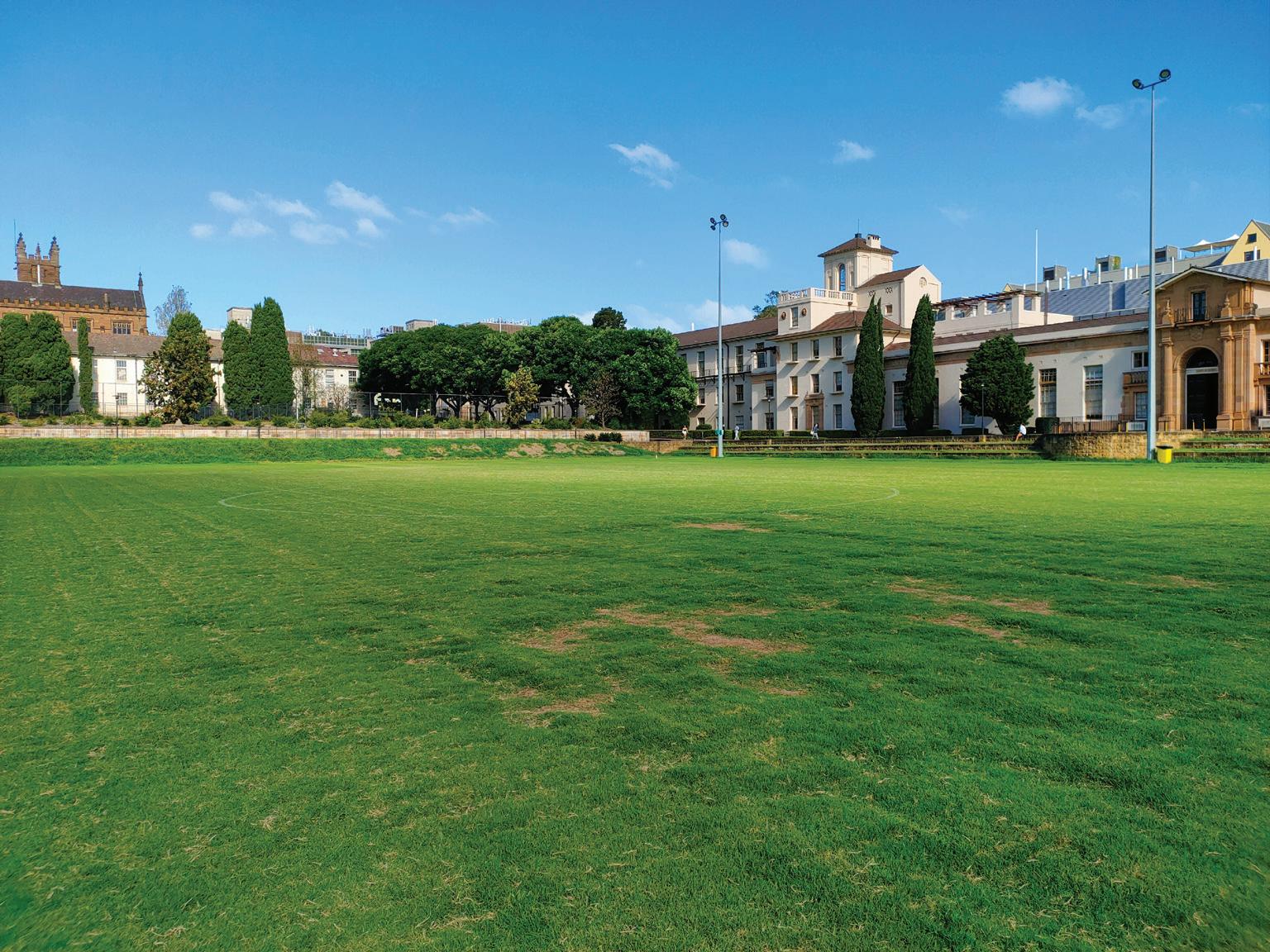

The path between the oval and the tennis courts is very exposed, with no shading or protection elements. The steps on Physics Road are similarly exposed, the only shade comes from the trees to the West of the site. Further to the East on Physics Road there are mature trees providing shade to the path at that point, which creates a much more pleasant walking experience. The walking paths across the field and on Physics Road are both very narrow, only wide enough for two people to pass each other, but not wide enough for shared pedestrian and bicycle or accessible travel.
The site is only partially sheltered from the wind, being mostly open field. Cooling summer breezes come from the North-East and the South, and cold winter winds from the North-West and South-West. There would be some noise from Western Avenue and the sports field to the West of the site, but for most of the day the site is quiet. The playing field has lights for evening practices, and the pathways are also well-lit to provide security for students on the campus at night.
Site Analysis @ 1:1500
Survey Feedback
The site is primarily used as a thoroughfare, part of the path connecting the Footbridge, Holme Building, Manning Bar and various departmental buildings through to the Southern edge of the university. This path also includes the graffiti tunnel, a popular space for public art and advertising events at the university. During past years students from the education and physics buildings would head to the food court on the ground floor of Manning Bar and eat in the courtyard there or between the Education buildings, however since the start of the COVID-19 restrictions many food outlets have closed down or operated on a reduced capacity.
The Sports Centre holds soccer practices on the field in the afternoons most weekdays and on weekends, however formal games are usually held on one of the larger fields on campus. This is the only regularly programmed use of the field, so in the mornings and evenings it is completely empty.
In between classes students occasionally use the steps on Physics Road to nap or have their lunch, but only when the weather is nice due to the lack of shelter. Prior to COVID-19, there was a bike repair kiosk to the North-East of the site, which would have attracted cyclists to use the thoroughfare.

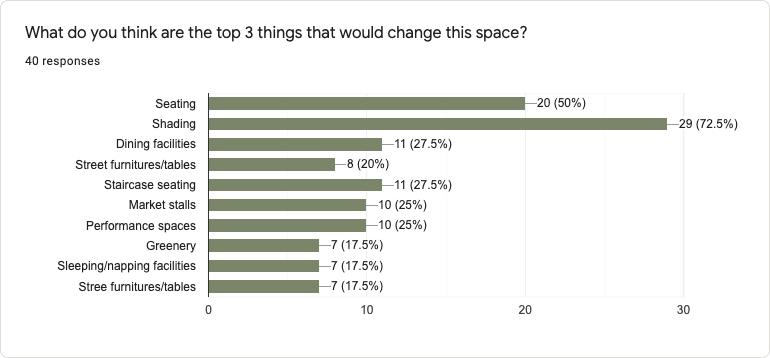

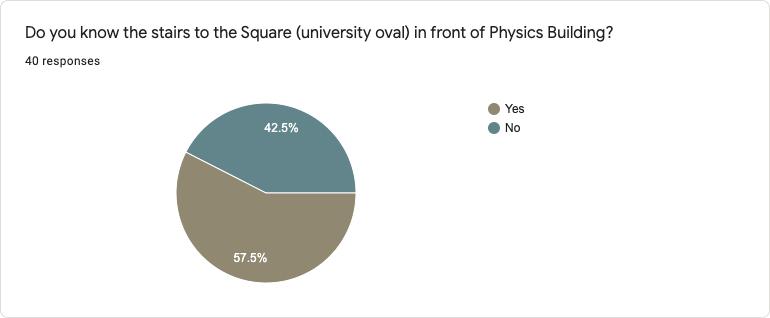

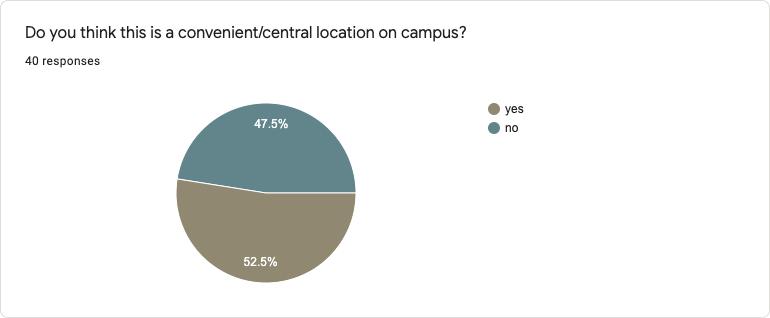

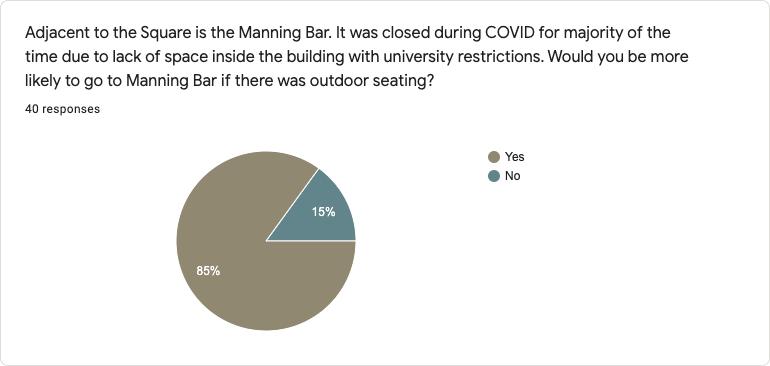

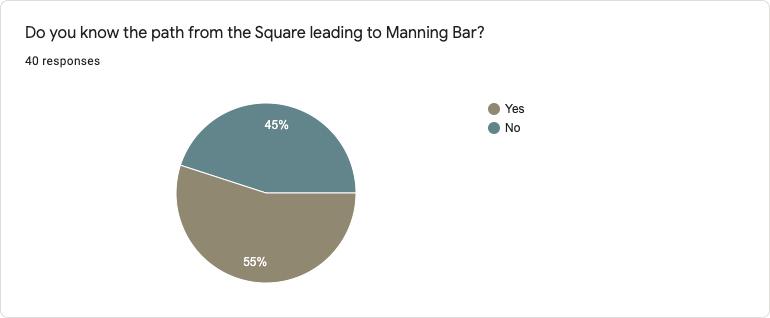

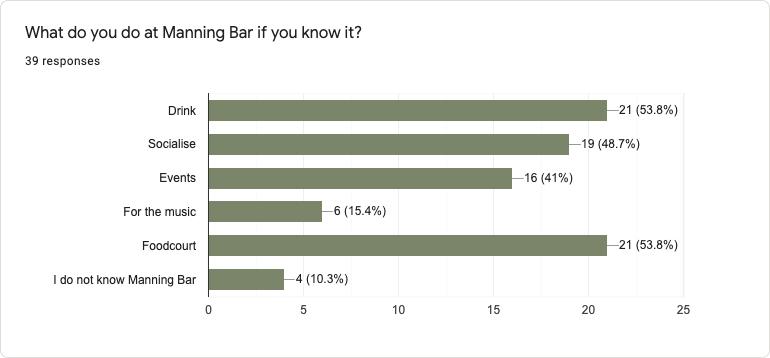

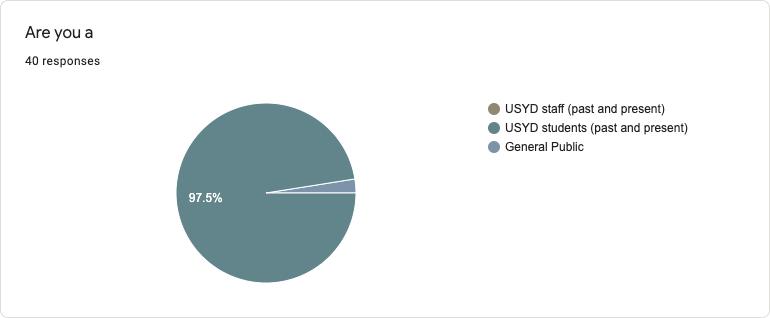

As part of the study into how COVID has affected the university campus and the community, a survey was conducted to gather the opinions of the student body. The responses confirmed our beliefs that rejuvenating the site would encourage more people to use this space for recreation, and not just to pass through on their way to a more successful public space. In particular, we were interested in how our site could have a positive impact on Manning Bar by providing it with outdoor seating in a COVID safe manner. It was clear from the responses that despite the lifting of many restrictions, the fear of infection and a sense of claustrophobia remains prevalent in people’s minds, and reflects their desires for more space when gathering in public settings.
Site Issues
Exposed
The lack of shading and screening mean that the site is fully exposed to the elements of sun, wind and rain. This makes for an uncomfortable space which people try to move through as quickly as possible.
Inaccessible
The site is not accessible to all. The steps on Physics Road are difficult to navigate, even for able-bodied people, and the incline at the edges of the oval are not safe for wheeled travel. In addition, the pedestrian paths of travel are very narrow and will not accommodate mixed use traffic.
Empty
There are no permanent or semi-permanent structures on the site which suggest possible uses to people. As per Jane Jacob’s theories in “Death and Life of the Great American Cities”, in order for people to be encouraged into using a space, they need to be given some indication of the intended program. At present, the site encourages only travel past the field.
Unsafe
There are safety issues present at the site. The lack of people at the site means that there is no passive surveillance, the “eyes of the community” which make a place feel welcoming and protected. The lack of shelter also plays a part in one feelings unsafe, as does the lack of maintenance of the perimeter greenery on the field.
Iterative Design
Our initial design proposal continued the existing stepped platforms on Physics Road to the Eastern edge of the site. This allowed us to experiment with the different edge conditions of the sports field, and from there we could form strategies to address the needs of each edge individually, while maintaining a common thread.
The addition of the ramps and more formal green spaces was designed to increase the accessibility of the site and further delineate the spaces. As Jacobs’ theory states, a city square with no clear suggestions of use or activity will see neither. To this end, we added seating and tables to provide places to eat and study. Some of the steps were left bare to indicate their pattern came from the idea of bleachers, and they can still be put to this use. Yet other areas are turfed and shaded to indicate a nice spot for a nap.
In response to feedback from the video presentations we further detailed and varied the furniture proposed on the site to accommodate the kinds of spaces we, as students, would like to see on campus. Additional shading devices and trees were included, and at the base of the trees netting to act as a hammock. Ping Pong tables were also set up on some of the platforms created by varying the edge condition of the walkway, and operable screens to mimic the ones added to the Café were placed to give further privacy to the smaller gathering spaces.

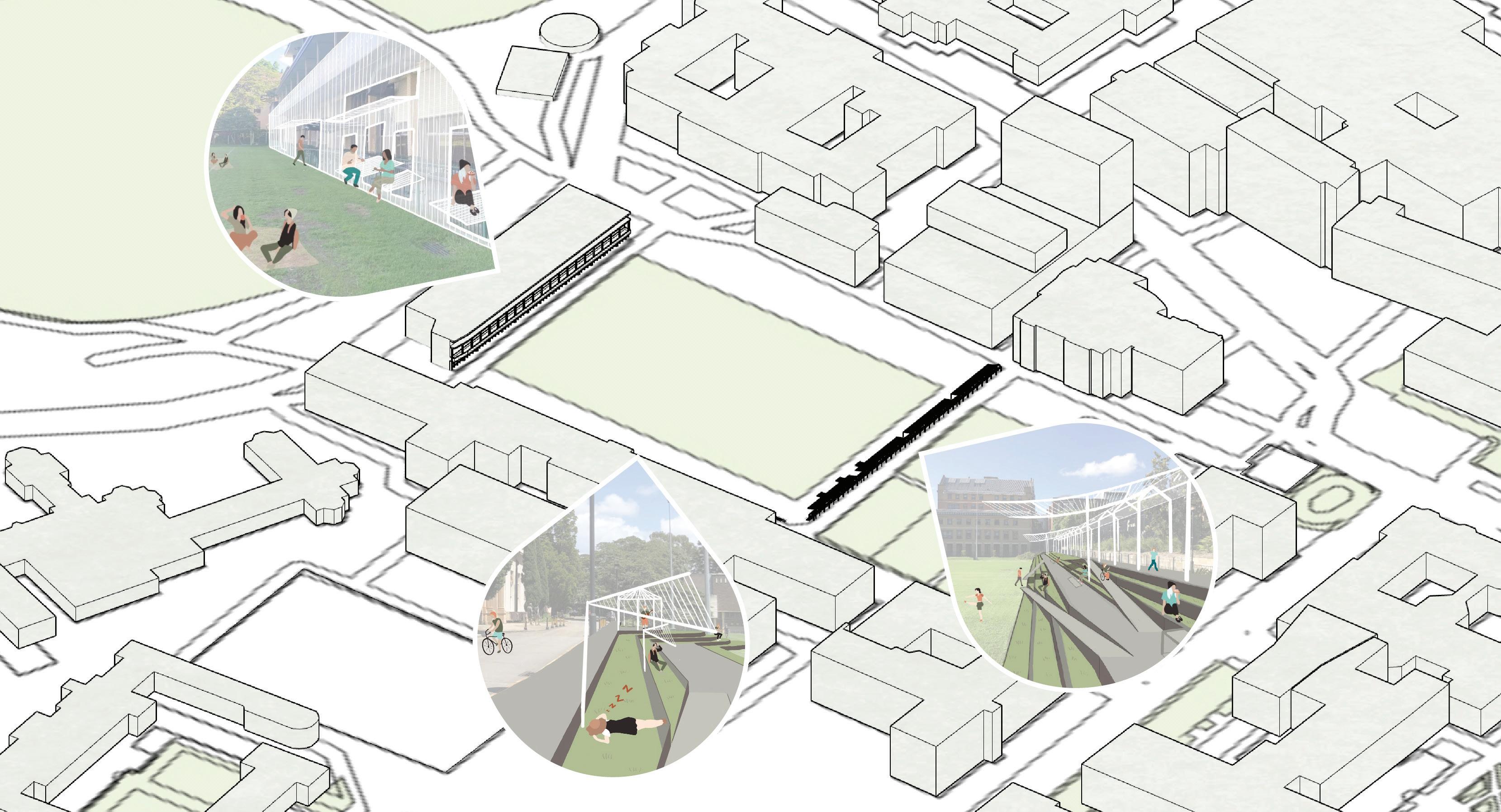

Our proposal is designed in three parts, to address the West, South and East boundaries of the site. They are programmed for different uses, but share a design language and materiality in order to show a cohesive intervention on the site.
Site Plan @ 1:800 Site Plan
Café Plan and Elevation

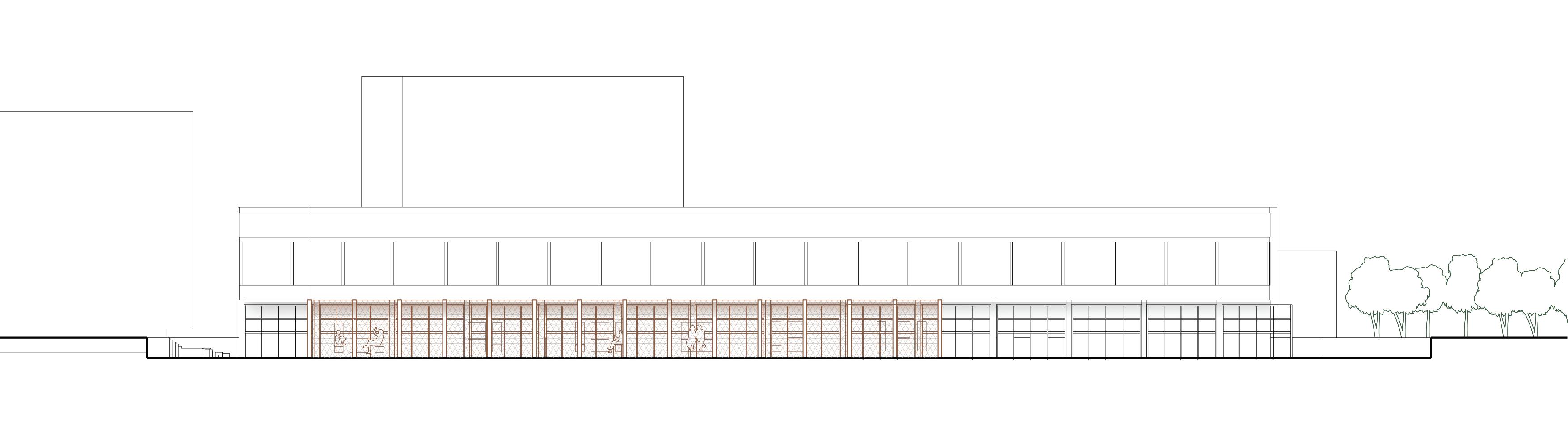

The first intervention is on the Western boundary, and focuses on the café in the Sports Centre. There is existing seating and a net to protect the café from stray soccer balls, however the entrance to the café is very hidden and the seating is not very welcoming.
Cafe Pitch Image

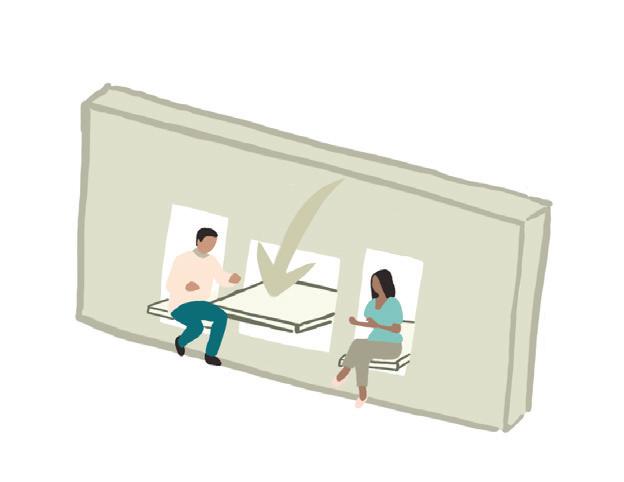

Our proposal uses a timber frame structure to protect the café from the field, with operable sections which fold out into seating. This seating draws people from the café into the field, and vice versa, creating a more welcoming entry to the café. This screening can be used anytime, not just when the café is open. The bench seating on the edge of the field serves as a barrier to the café, but can also be used by the teams practicing on the field. The netting which can be strung up on the café side of the bench will serve as protection to the Café during games.
*Not to scale
Physics Rd Plan and Elevation
In order to adapt the existing Physics Road edge condition to best suit the needs of the site, we decided to block off the street to vehicular travel and convert it into a pedestrian thoroughfare. This allows the tiered seating to extend back from the sports field, creating more generous spaces.

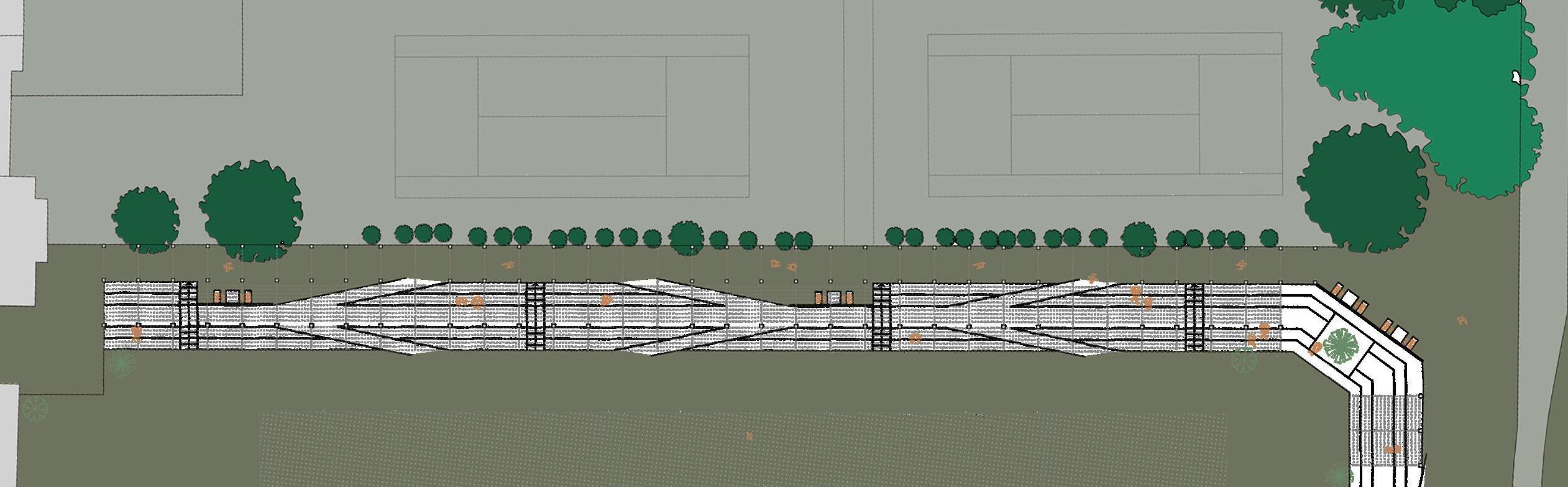

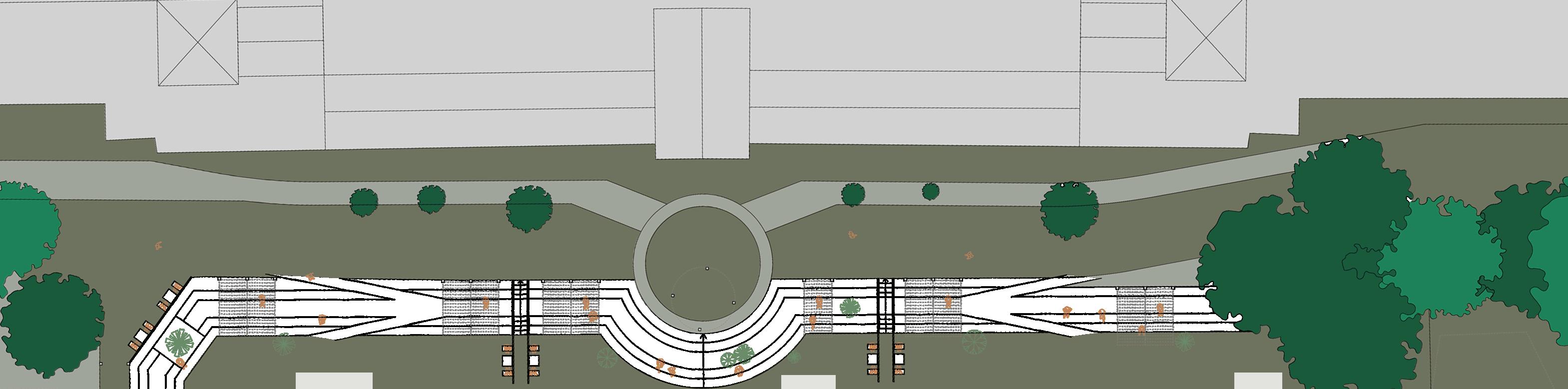

Physics Road Plan @ 1:500
Physics Road Elevation (North) @ 1:500
Physics Rd Detail Plan & Elevation
*Not to scale
Thin timber beam cladded roof for shading shelter
*Not to scale

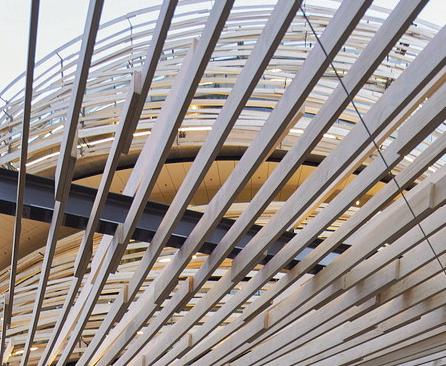

(Photo source: Martin Mischkulnig, The Darling Exchange Library & Market by Kengo Kuma and Associates, https://archeyes.com/the-darling-exchange-library-market-kengo-kuma-and-associates/.)
Physics Rd Pitch Image
The existing circular platform in front of the Physics Building entry will be turned into a more formal pavilion, with tiered seating leading down to the field. This seating is intersected with diagonal ramps to provide an accessible route of travel to the platforms and down to the field. The converted and enlarged pedestrian walkway can now host a variety of uses, from path of travel to weekend market stalls and street performances. The bases of the new trees will be netting, to provide a comfortable hammock-like resting place. This edge is left more open than the Eastern edge, to allow the stepping to become more permeable to the sports field and further encourage students to pause on their travels.
Walkway Plan and Elevation
The focal point of this project is to the East of the site. This path is one of the main thoroughfares through the university, connecting several points of interest. With the proposed intervention the site has the potential to become the most popular path of travel North-South through the university, rivaling even Eastern Avenue. This connection and increased access is the final requirement to turn this disused site into a true central space, finally living up to its name of The Square.
Walkway Detail Plan & Elevation
*Not to scale
*Not to scale

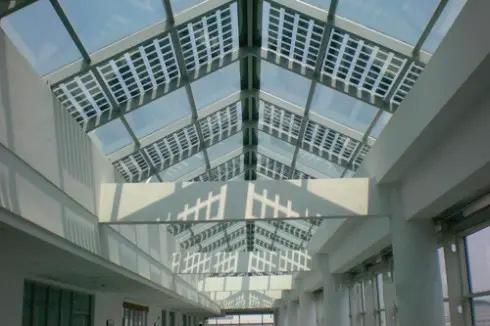

com/2012/10/19/largest-transparent-photovoltaic-roof-in-the-us/.)
Walkway Pitch Image
We have widened the pathway and provided a glass shading, with builtin solar cells to generate electricity for the field lights and surrounding buildings. The existing railing is removed to open the path up to the field, using the same stepped seating and diagonal ramps as on Physics Road. The shading devices here are more significant, and can be drawn in and out to suit the needs of the public. Flexible street furniture is also incorporated to create different configurations of spaces, to ensure the seating can be occupied throughout the day. In the evening parts of the seating will be taken over by Manning Bar and used as an outdoor terrace. The stepped seating also offers a stage for performances, either hosted by the Bar or spontaneously by the students.
Walkway Section 1 – Morning

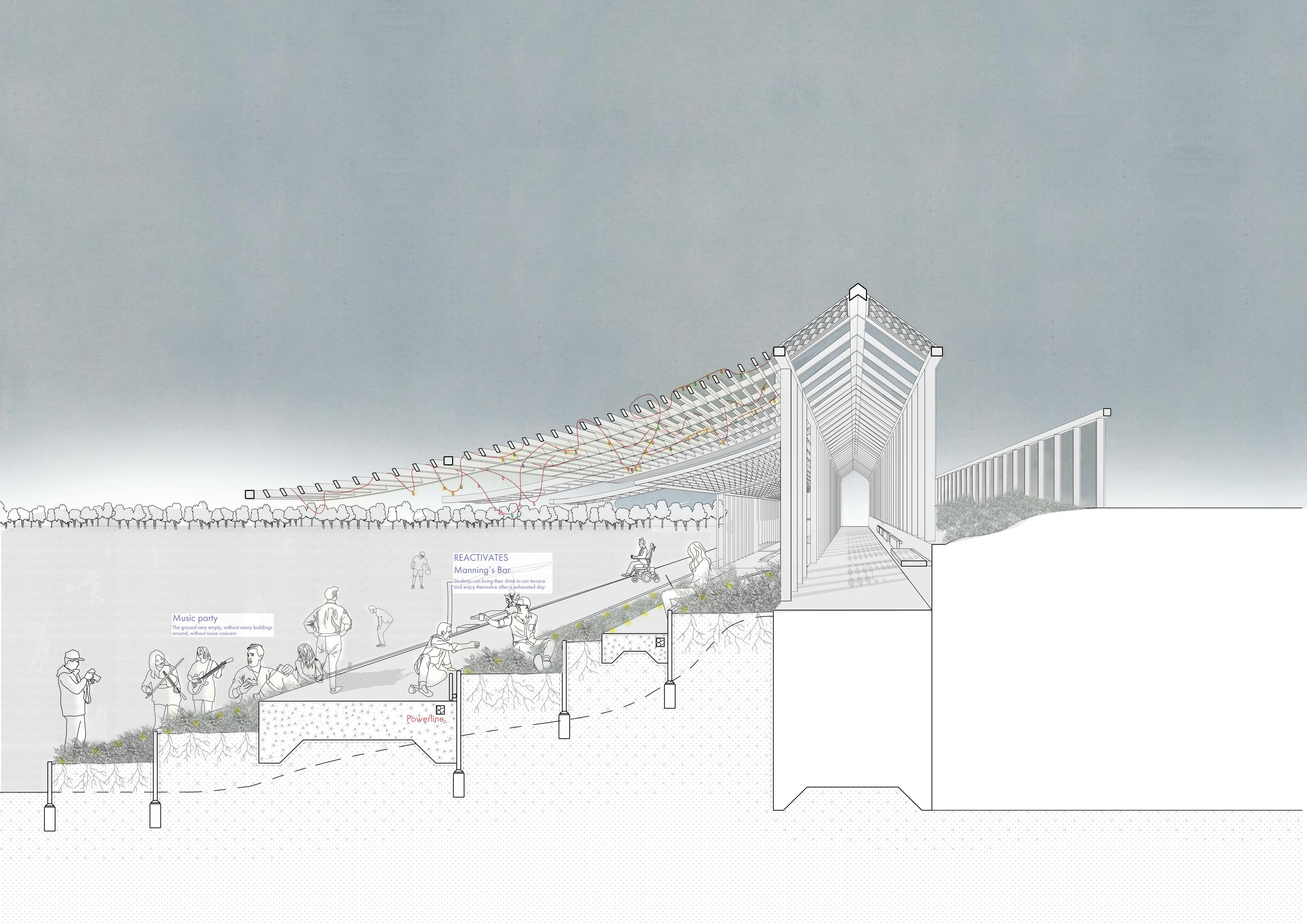

During the day the site is primarily used as a thoroughfare and gathering space for students between classes. Throughout the day people can use the site to meet, study individually or in groups, nap or relax between classes, or pass through on their way past one of the University’s central squares. Towards lunchtime students and faculty will gather with their lunches, taking the time to enjoy being outdoors. Groups can use the various performance spaces to practice their crafts, or book time on the sports field to host practices, lessons or demonstrations. On weekends the Physics Road walkway could be turned into a market street for food or goods stalls.

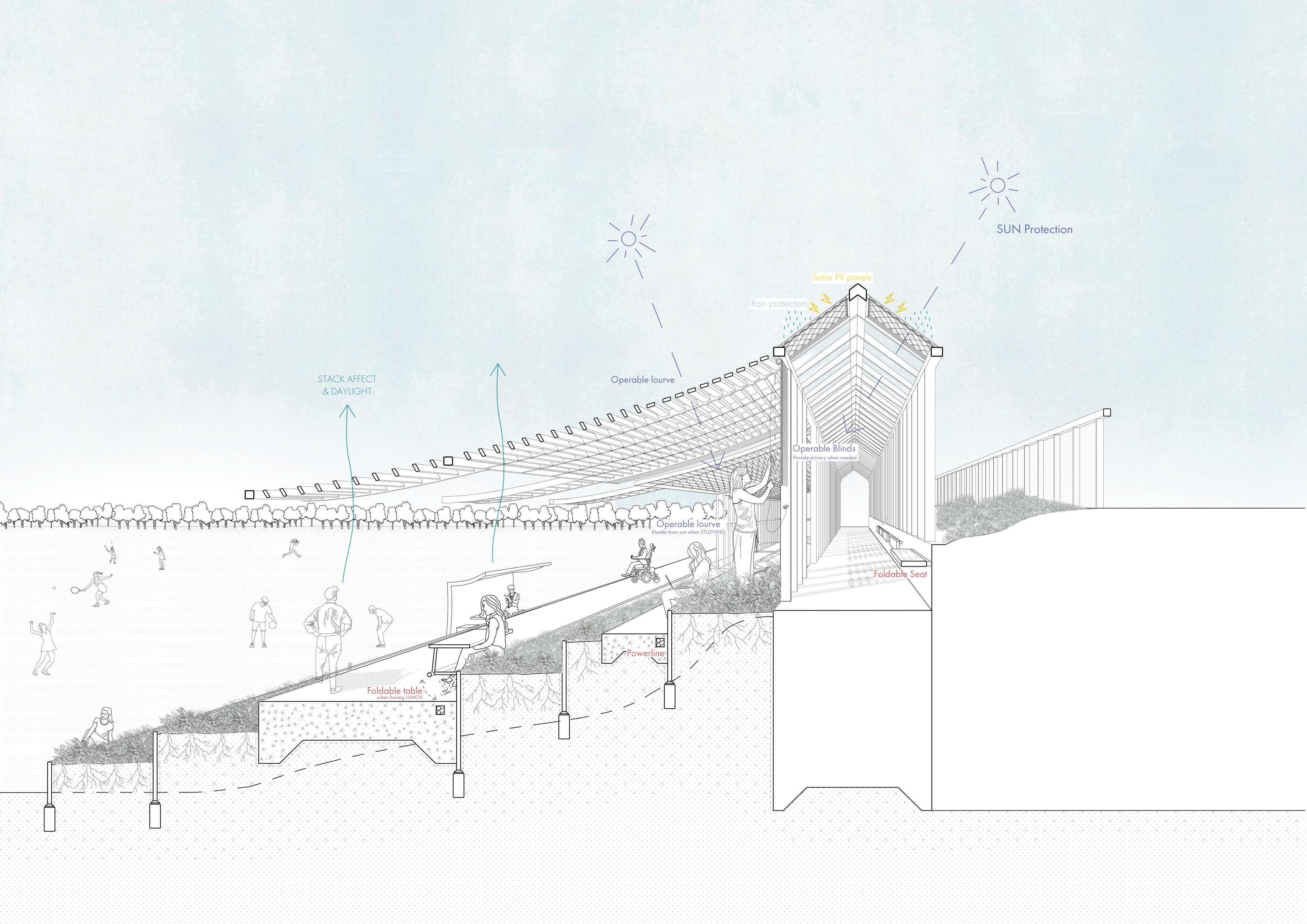

Section @ 1:400
Walkway Section 2 – Night
In the evenings the Eastern edge of the site will be taken over by Manning Bar, to serve as overflow outdoor seating. Live music or other performances can be held in the Physics Road Pavilion or on one of the mini-stage platforms, to draw in the crowds. The sports field could host practice or competition matches, drawing sports fans to the bleachers. And the new shelters and lighting will provide a safe and welcoming passage for students on their way home.
