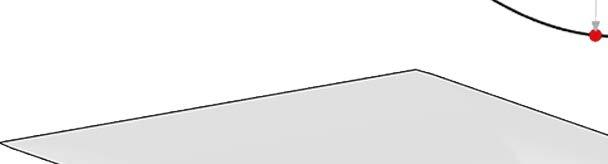

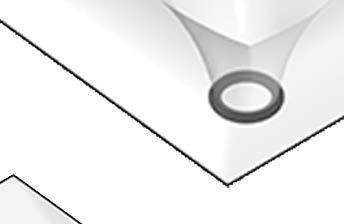

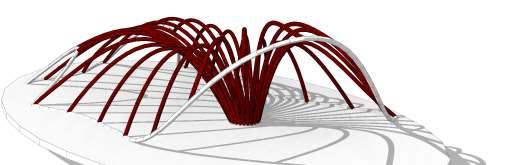

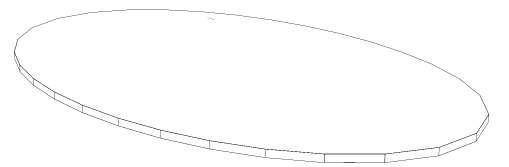

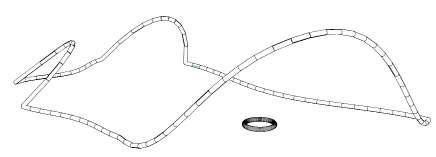

The startinggeometriesare a simple rectangle and acircle far thecentralpillarplacedat two differentheights.

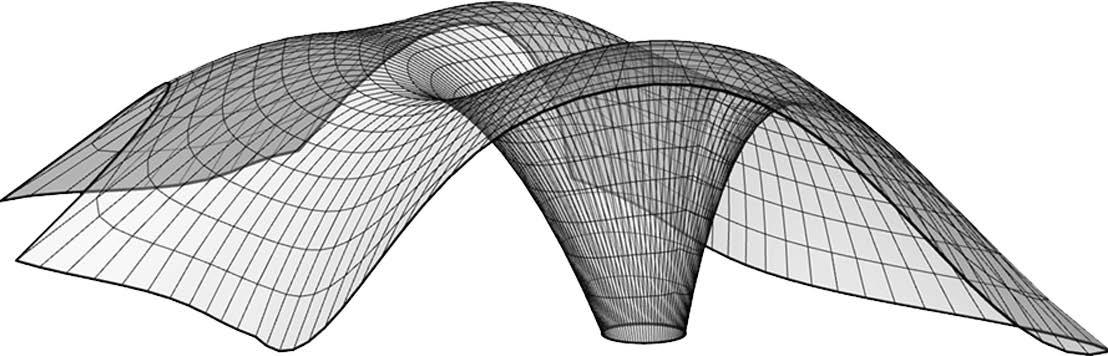

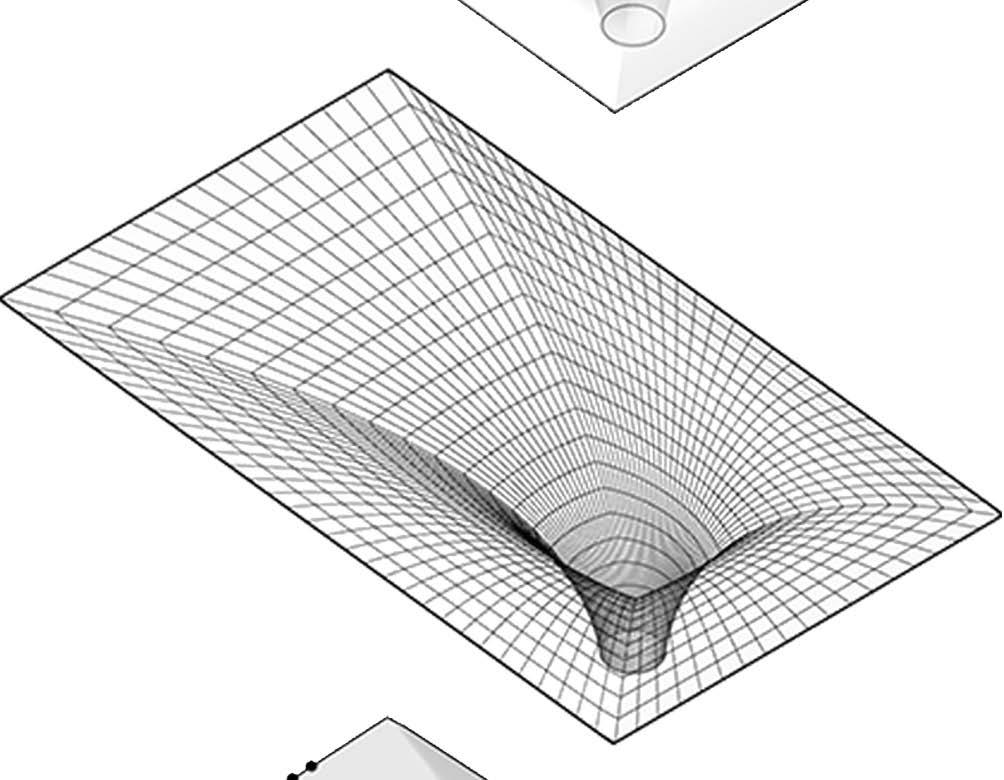

The loft between the curves has been createci.

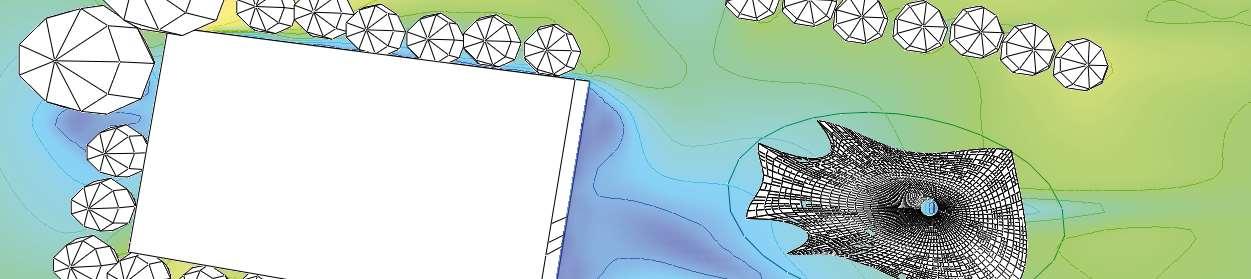

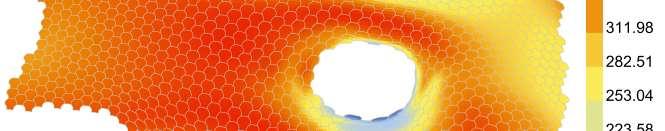

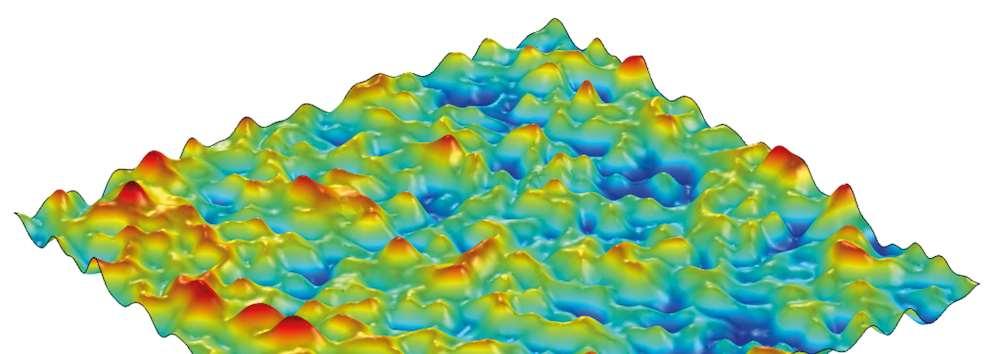

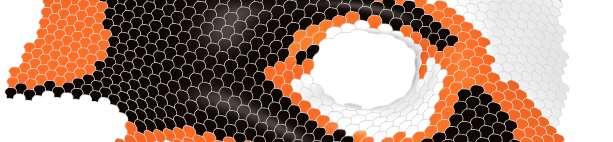

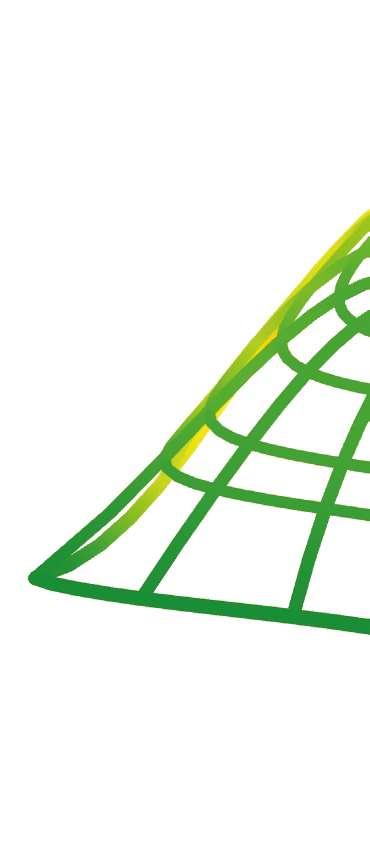

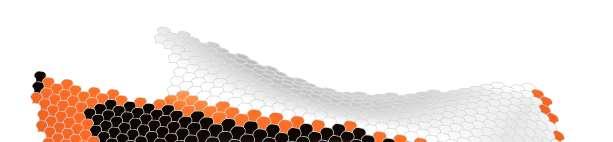

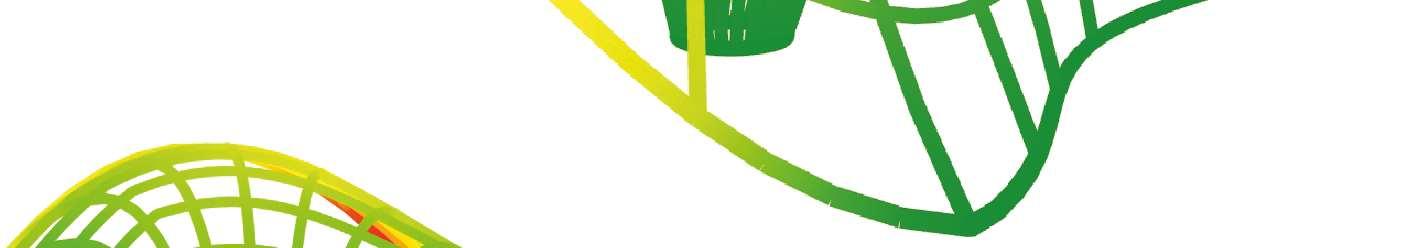

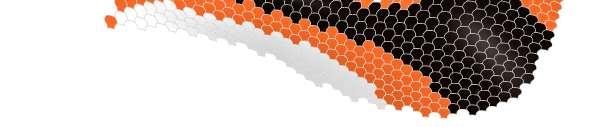

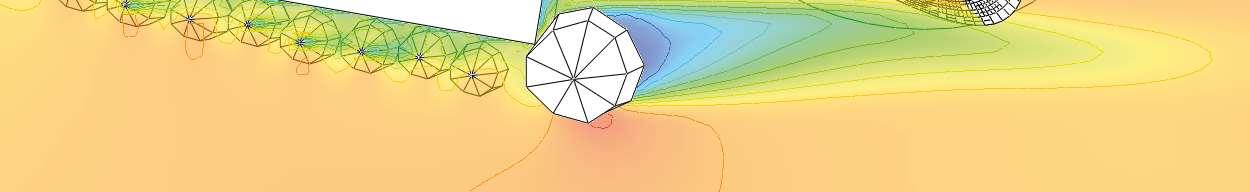

Fromthe loftwe obtained the mesh far the future analyses.
The anchorpointswere selected fromthe naked points of the mesh in ardertorealize the shapewe had in mind.

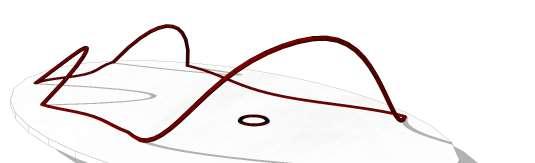

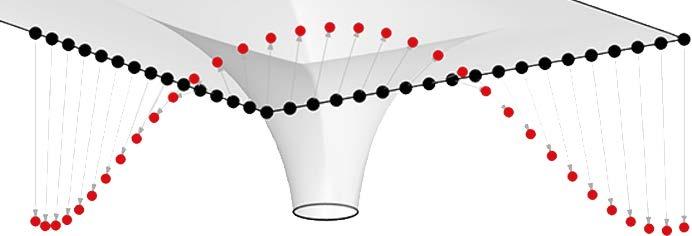

Toobtain acurved shape on the ground we assigned tothe anchor points a target with a sinuisoidal function.
The remainingpoints ofthenaked vertices wereselected tothenmove them.

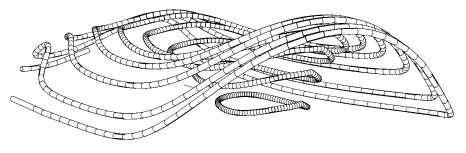

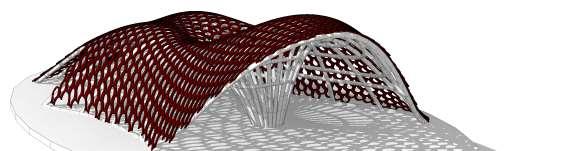

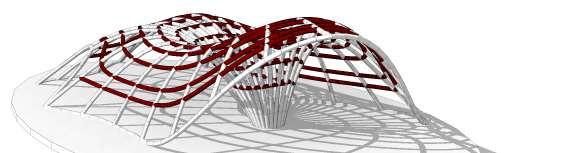

Toobtainasmoothersurfaceof the envelope, we built on the XY plane an interpolateci curve betweentheendpointsandrectanglevertex.

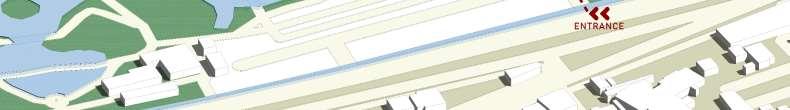

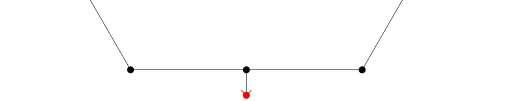

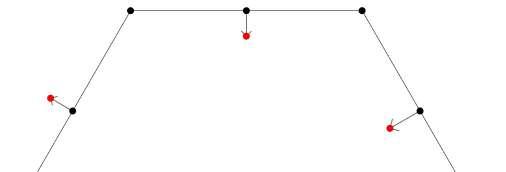

The moving points on the cantilever were projected on asinuisoidal function base on the previous interpolateci curve. While the points onthe entrances were left free to move.
