2 minute read
points of interest
EMBARCADERO DE LEGAZPI
10-MINUTE WALKABILITY BORDER
Advertisement
MUNICIPALITY BORDER
PARKS AND PUBLIC SPACES
HEALTH CENTERS
INSTITUTIONS
MAJOR COMMERCIAL CENTER
GOVERNMENT & PUBLIC SERVICES
JEEPNEY ROUTES
PORT DISTRICT TRICYCLE ACCESS
FERRY ROUTES
WATERWAY ROUTES
Site Context Map — superimposing transportation routes and points of interest at a 10km area radius to study impacted community.

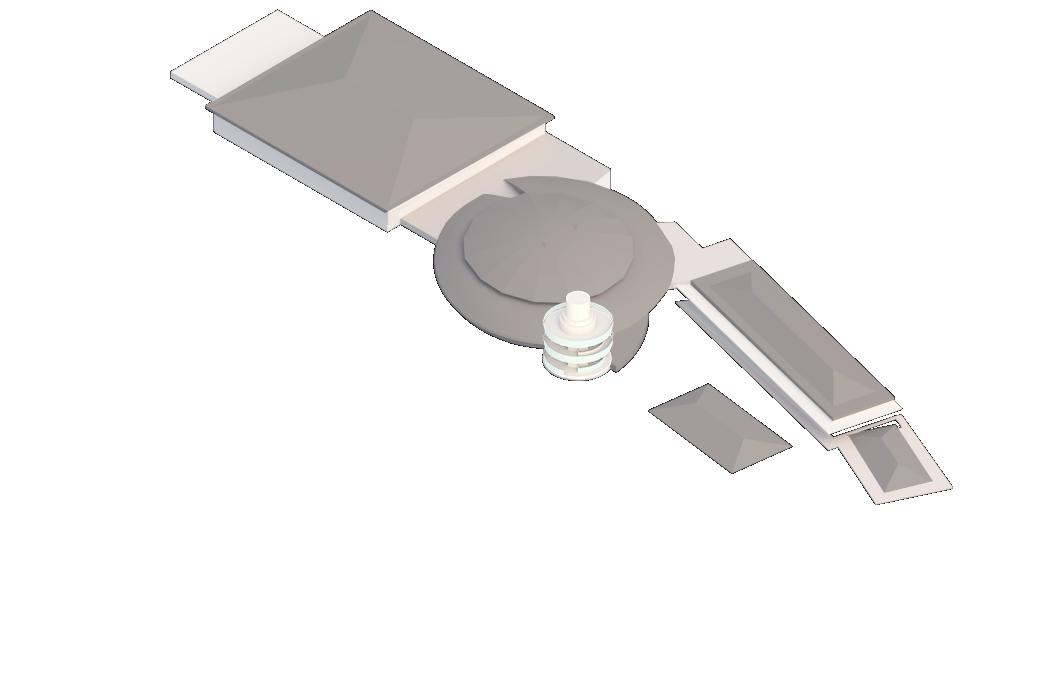

Isometric Floor Plans highlighting in color the areas of intervention and major renovation throughout the development.
Stitching the Seas – the boardwalk works as an artery along the water connecting seamlessly to the roadside docks, and neighboring terminals.
Building a series of platforms from the edge of the development allows visitors to engage intimately with the waterfront and the grandeur of the Mayon Volcano.

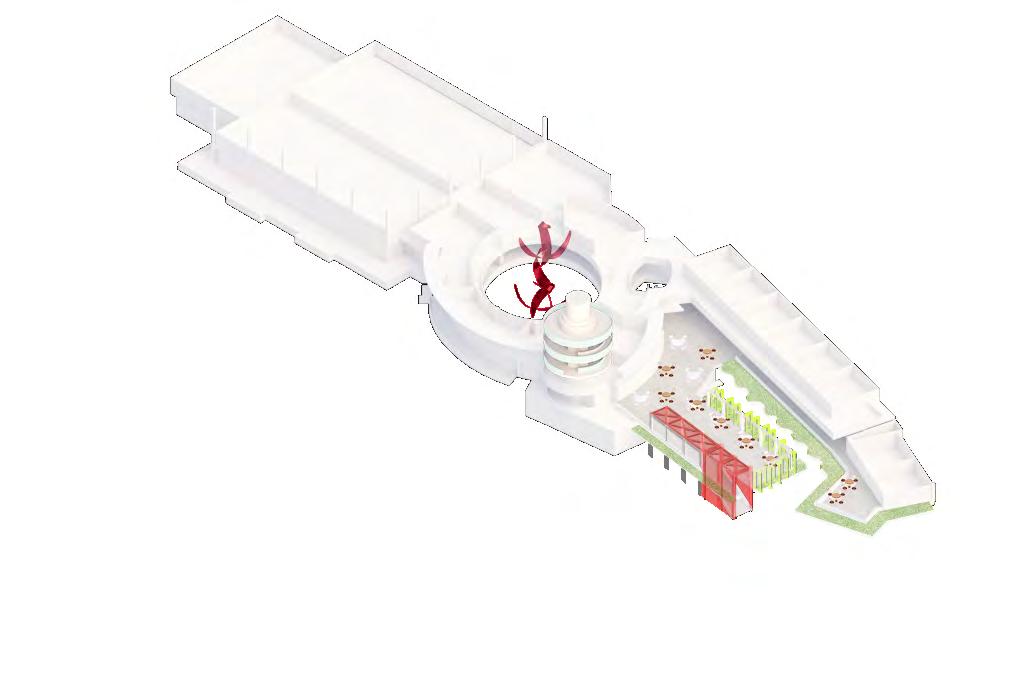

Isometric diagram — highlighting proposed areas of intervention focusing on art installations.
Entrance Promende Perspectives— creating clear visual paths encourage user exploration.
The heart of the Embarcadero is a 3-storey atrium, topped with a large domed roof, comprised of a series of intricate exposed trusses. This 360-degree space is accessible from all around and from every floor, making it the ideal space for an artist to showcase their larger than life creations.
Simply offering this space as a venue for complete freedom of expression in scale or medium can pique the interest of any number of artists. By implementing the creative use for the site, the general public may be persuaded into an untapped appreciation for the arts.
Exhibit Hall — designed bare and fully open to avoid visual distractions provides a blank canvas for artistic expression. (render by others)
