This report provides a comparative analysis of the EOS and S LUM Gen 3 lighting products. The comparison focuses on key parameters such as lumen output, body types, colour temperature options, CRI, mounting compatibility, windage, weight, and pricing.
1. Lumen Output
Advantage: S LUM Gen 3 offers a higher maximum lumen output, up to 32,000 lumens, making it more suitable for applications requiring higher brightness levels.
2. Body Types
Advantage: S LUM Gen 3 provides more body type options, offering greater flexibility for different installation requirements.
3. Colour Temperature Options
Advantage: S LUM Gen 3 offers an additional warmer colour temperature option (2.7K), which may be preferred for specific ambiance or application settings.
4. Colour Rendering Index (CRI)
Both products have an equal CRI of 70, indicating similar colour rendering quality.
S-LUM Gen 3
Comparative Report: EOS vs S LUM Gen 3 Products
5. Spigot Size and Zhaga Compatibility
Both products have identical spigot size and Zhaga mounting options, making them compatible with standard mounting systems.
Advantage: EOS has significantly lower max windage (0.025 m²) compared to S LUM Gen 3 (0.11 m²), which may translate to less wind resistance and potentially more stable installations in windy environments.
7. Max Weight:
Advantage: EOS is lighter, which could ease installation and reduce structural load, while S LUM Gen 3 is heavier, likely due to larger size or higher lumen output.
8. Pricing Comparison (Selected Examples)
Observation: EOS pricing is provided for up to Body Type 3, while S LUM Gen 3 pricing covers a wider range of body types and LED configurations, reflecting its broader product range and higher output capabilities.
6. Max Windage:
EOS Lantern Data Sheet AL20000 Series
EOS LED Lantern - Key Features
• Three lantern body sizes
• Wattage options ranging from 7 to 171W
• Six optic range
• Lumen range 1221lm - 25802lm (Net flux)
• 4000K colour temperature as standard 3000K option available upon request
• Electrical options: Class I & Class II
• Single or double Zhaga control socket options
• Two independent compartments for optics and electrical components
• Exceptional heat dissipation built into the sleek design
• High-grade powder coated finish tested for use in harsh environments - 3000hrs
ISO 9227:2017/ EN47100 Alloy
• IP66 Ingress Protection

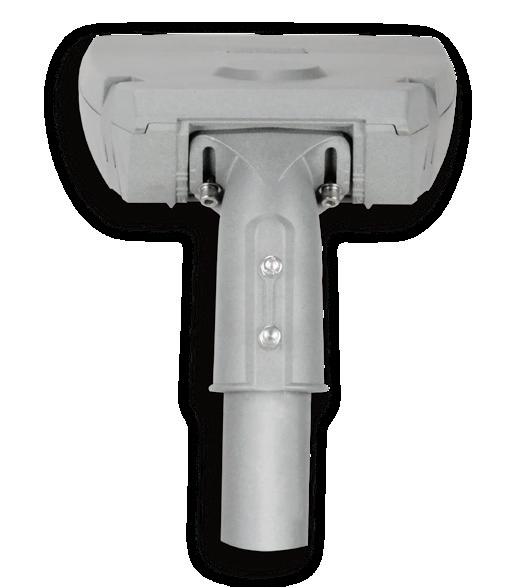

• Column top or side entry installation
• Ø60mm standard spigot size (Adaptable)
• Suitable for retro-fitting
• Optics protection from one complete 4mm tempered glass sealed unit
• Latched release electrical compartment
• Tool-less entry for quick & efficient maintenance
• Railway Platforms
• Railway Stations
• Street Lights

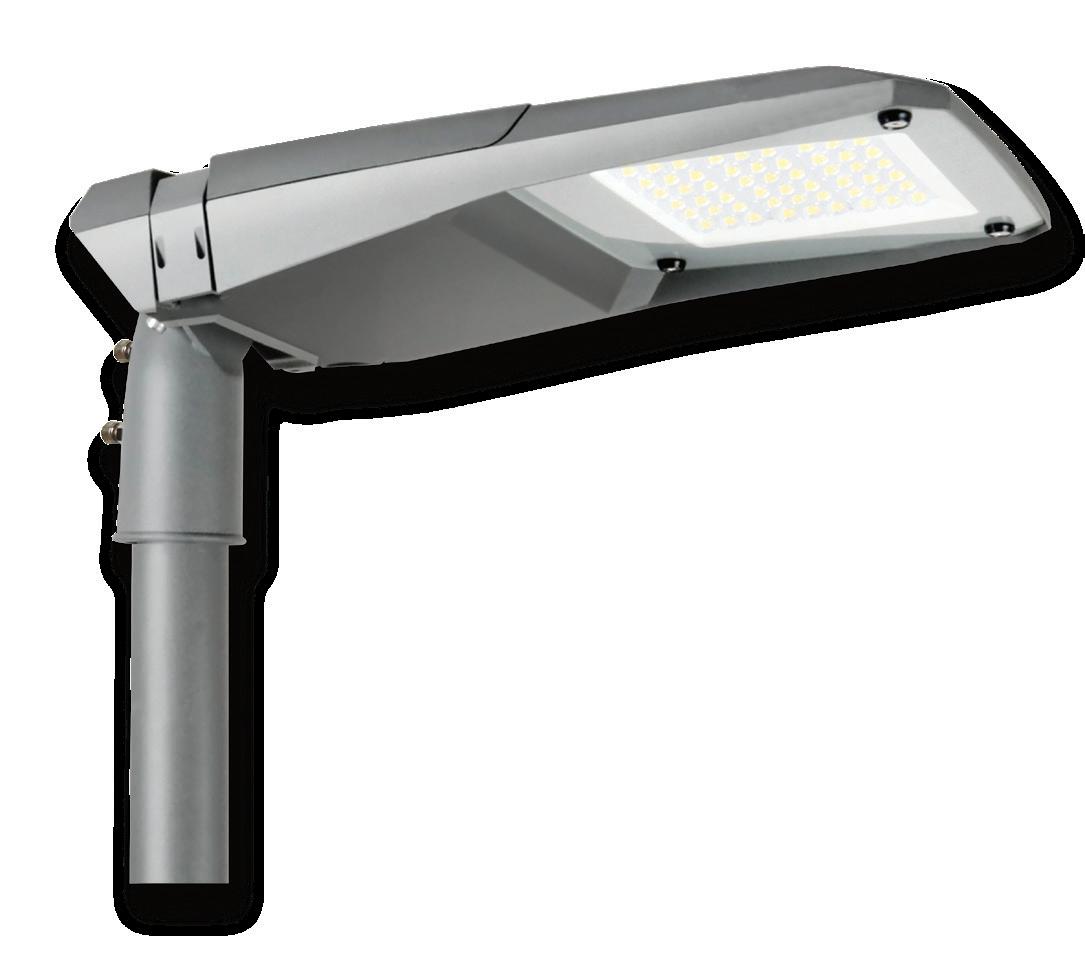

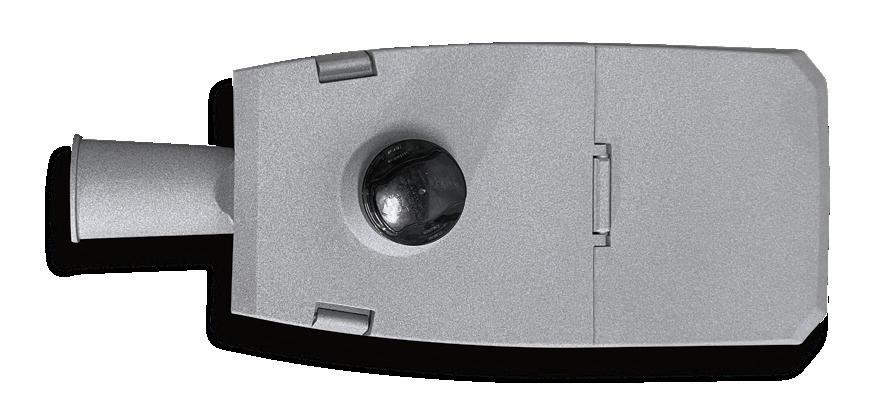

EOS LED Lantern - Product Overview
• Car Parks
• Retail Parks
• Access Roads
The EOS lantern offers an LED lighting solution suitable for both rail and road applications. It has a wide range of wattages, unit sizes, optics, and fitting options to choose from.
With a wide range of lumen outputs and three lantern body sizes, the EOS provides a lighting solution for virtually any road or rail scheme. The EOS is IP66 ingress protected with a durable outer coating tested for use in harsh environments commonly found in the rail and highways industry.
The optics are protected by a tempered glass covered, sealed unit, and are separate from the electrics to prolong the product life-cycle.

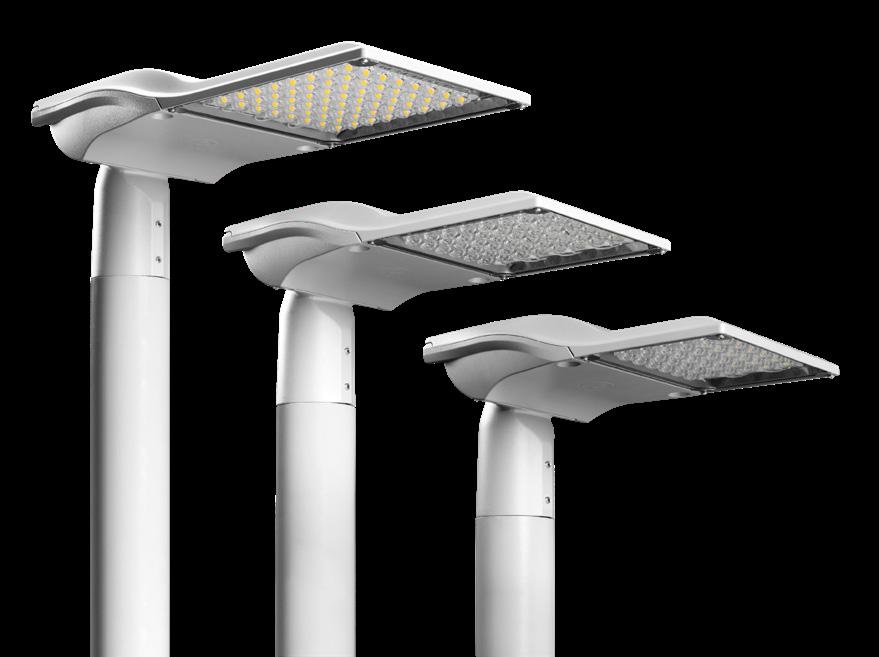

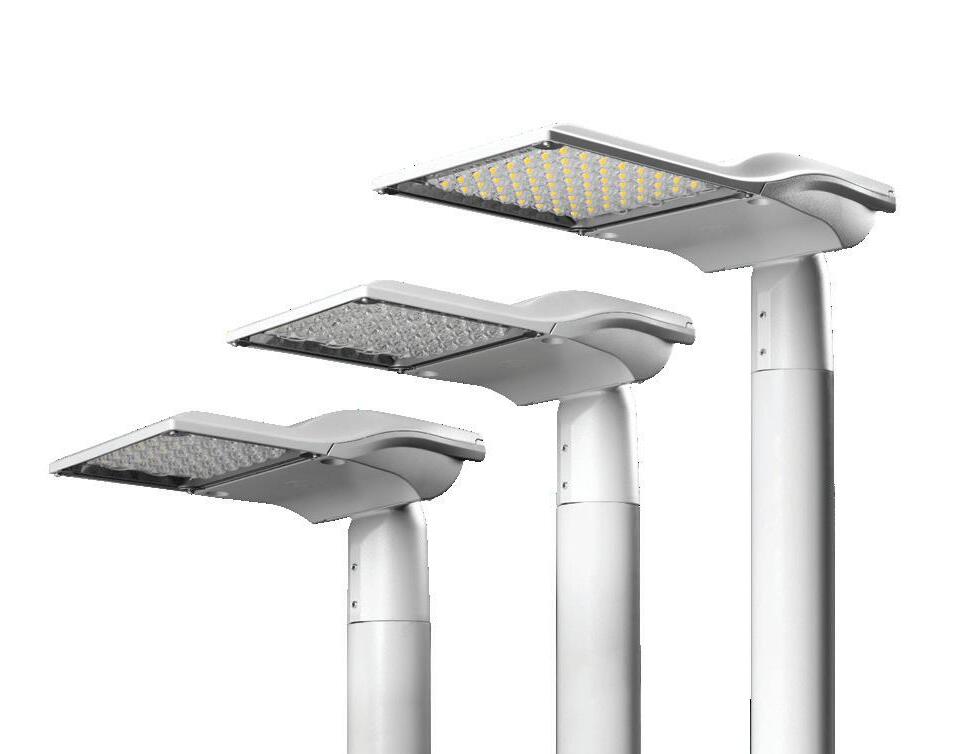

Three Lantern Body Sizes Latched

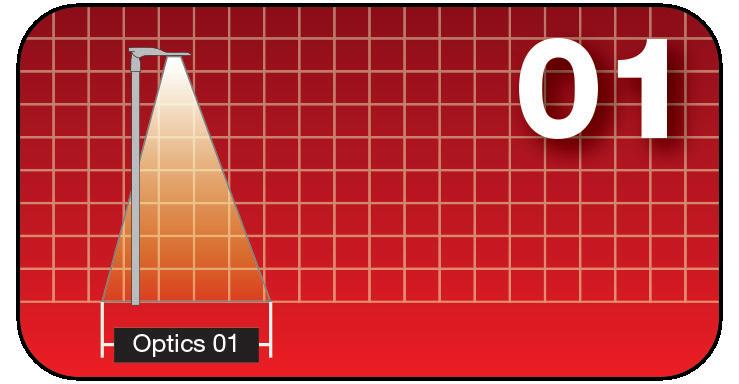

Optic 01
The 01 optic is for street lighting and is particularly suitable for situations where the installation height and the width of the carriageway ratio is less than 1
Optic 04
The 04 optic is typically used to provide light for yards, car parks, and urban areas. It is also used on the street when a significant amount of light is needed and the ratio between the depth of the area to be illuminated and the installation height of the light is considerably higher than 1. However, very high levels of lighting are not necessary
EOS LED Lantern - Optic Selection

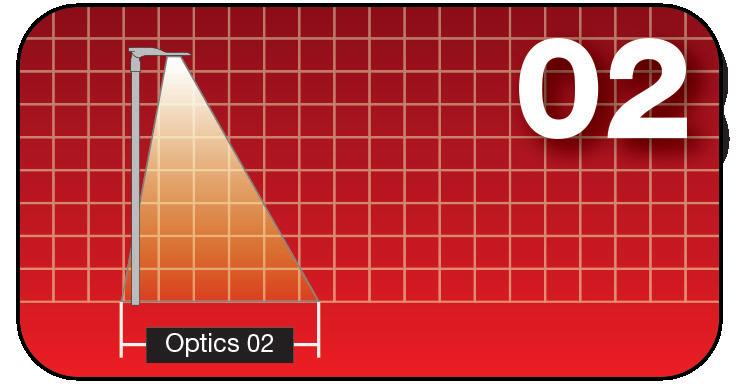

Optic 02
The 02 optic is suitable for street lighting situations where the installation height and the width of the carriageway ratio is less than 1. It is also appropriate for roads with very high inter-distances and an inter-distance/installation height ratio greater than 5

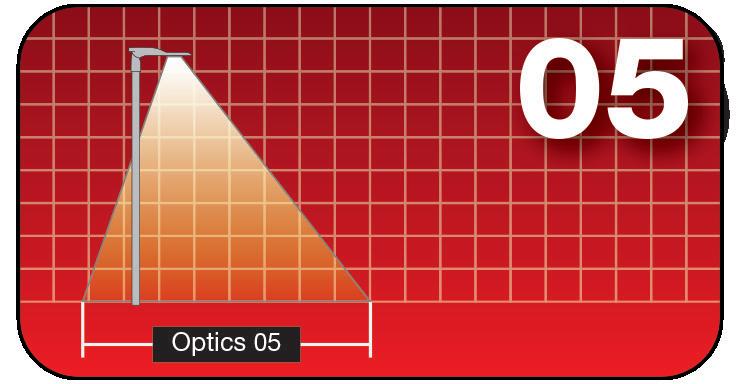

Optic 05
The 05 optic is for street lighting that can illuminate areas with varying distances and road widths equal to or less than the installation height
The
is

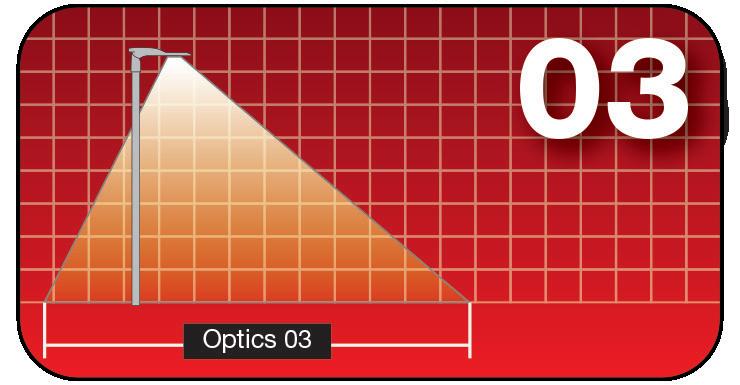

Optic 03
height-to-width ratio is over 0.85. It has a back-flow feature that helps with installations involving outreaches

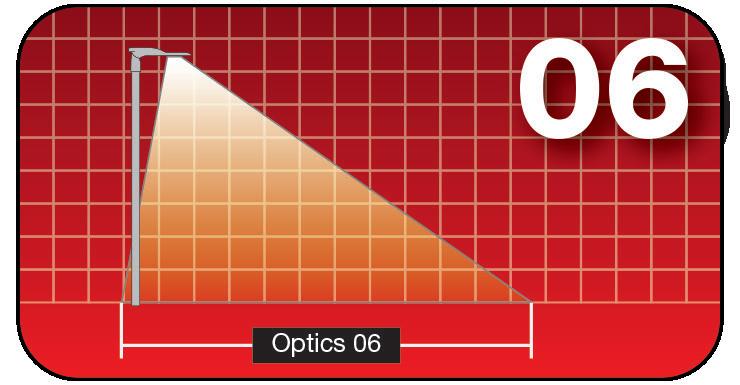

Optic 06
The 06 optic street lighting system is suitable for illuminating large areas with a ratio of installation height to track width equal to or greater than 1
EOS Lantern Data Sheet AL20000 Series

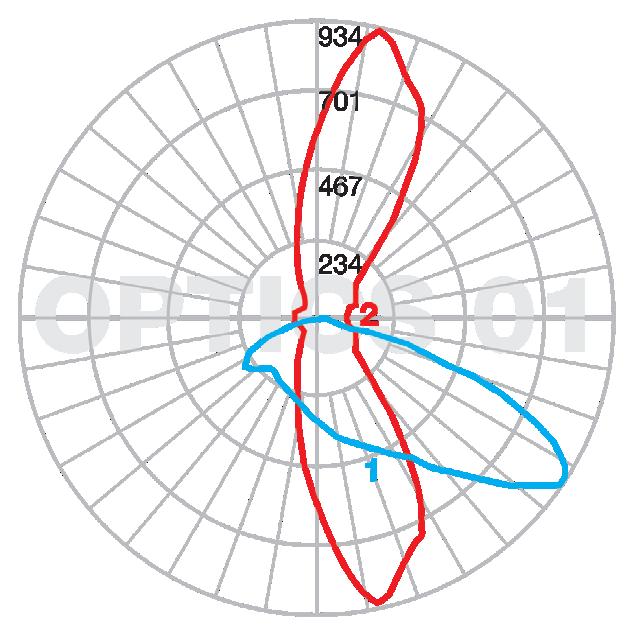

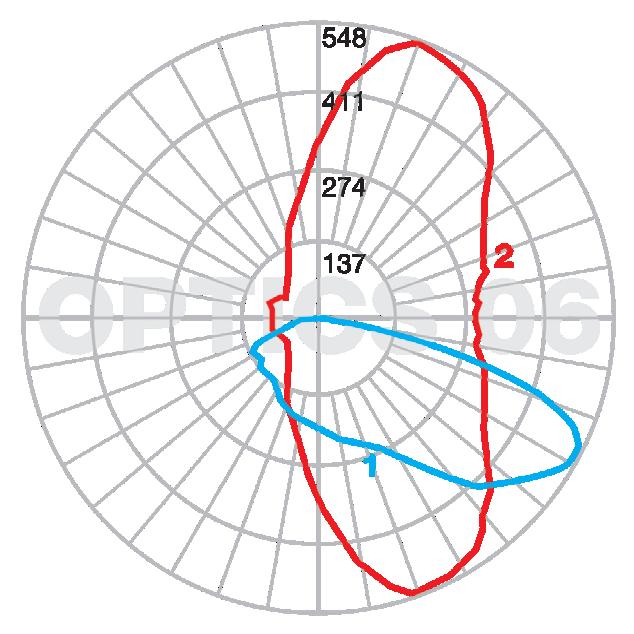

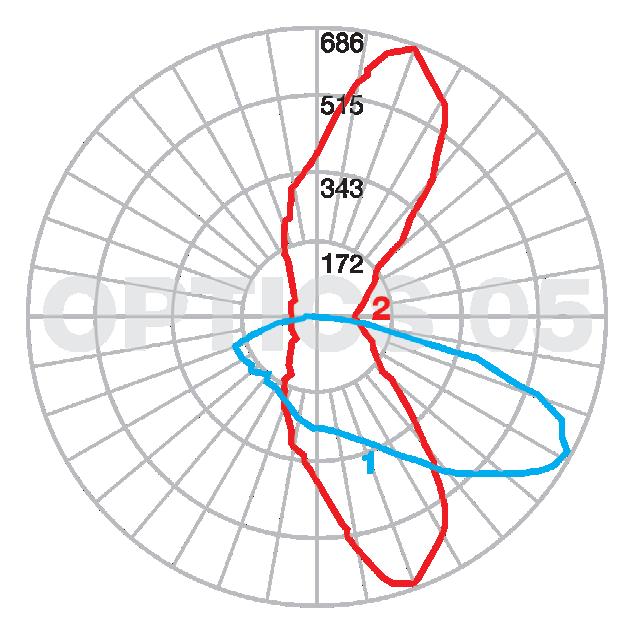

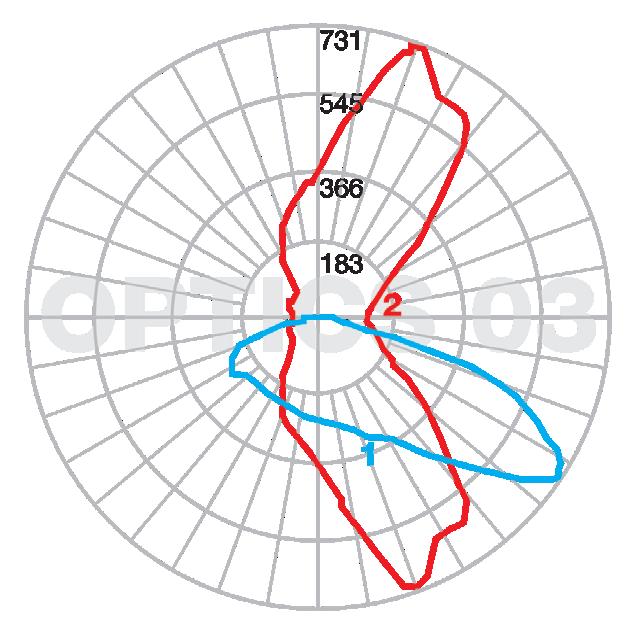

EOS LED Lantern - Photometry Polar Diagrams

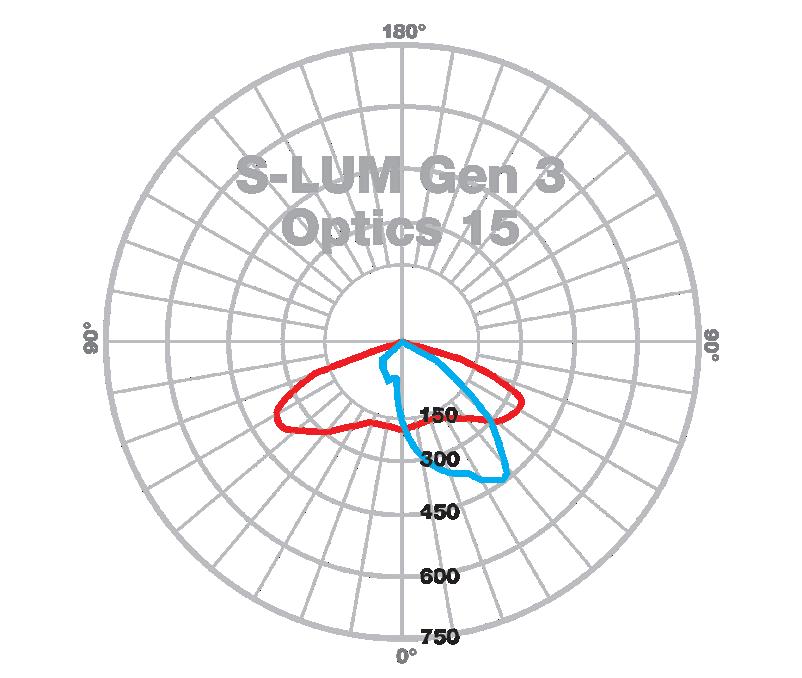

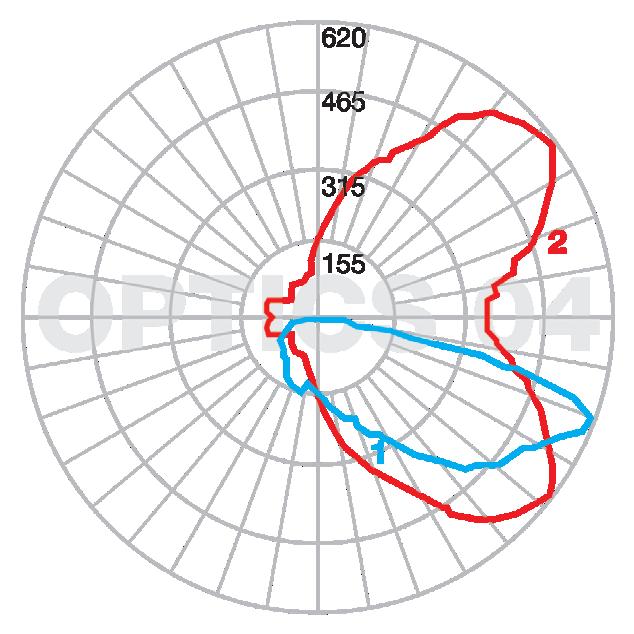

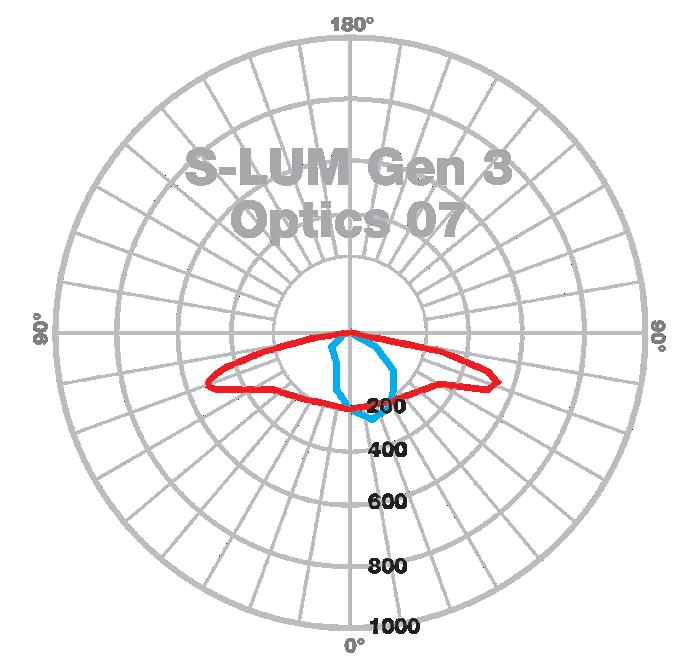

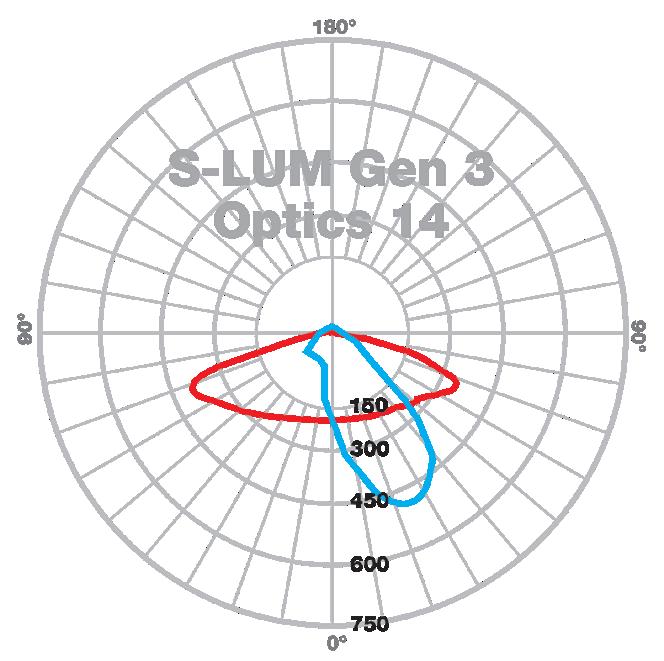

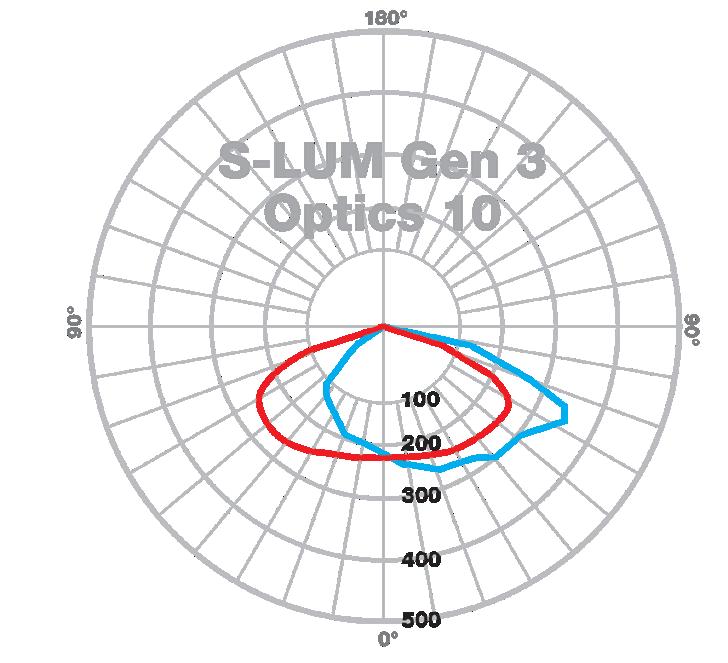

Polar curves are created using the candela values from the candela array. Plotting these values on a polar diagram illustrates the performance of the luminaire in two dimensions. The polar diagram is divided into four rings, with each ring representing a 25% increase in magnitude.
Blue Line - Vertical plane through horizontal angles (Through maximum Candela)
Red Line - Horizontal cone through vertical angle (Through maximum Candela)
EOS LED Lantern - General Product Information

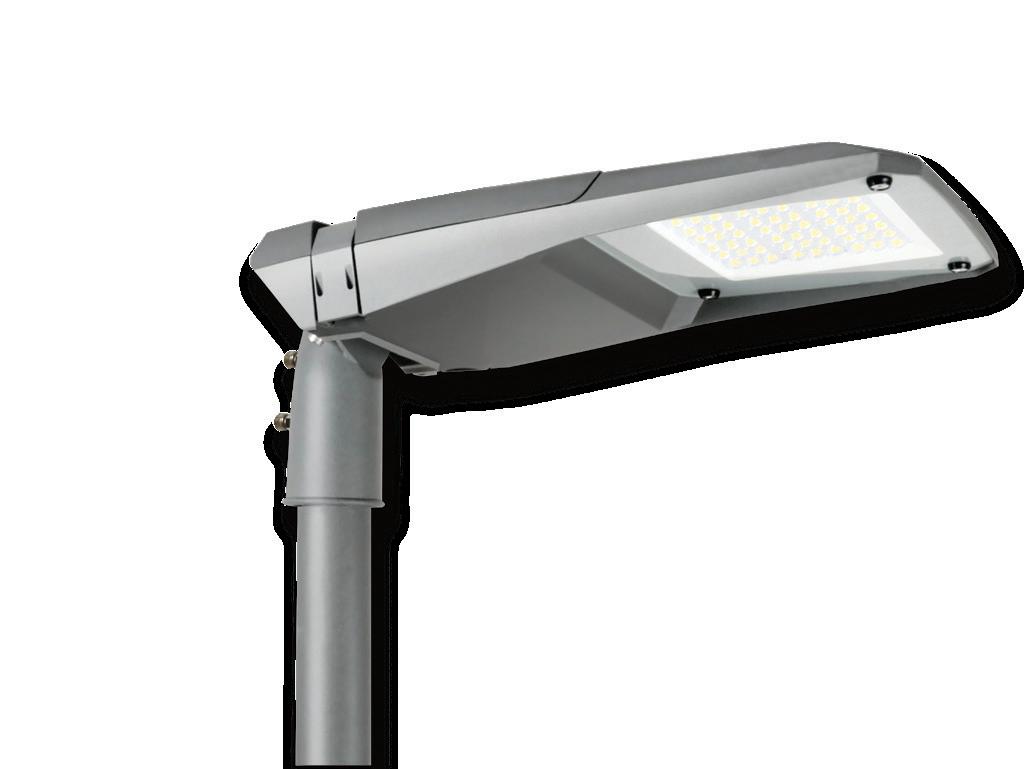

S-LUM Gen 3 - AL61300
Specifications & Key Features:
Key Features:
• Efficacy up to 165 lm/W
• Screw-less access
• Die cast aluminium
• IoT compatible
• Zhaga socket on top (Standard)
• Separate LED and driver compartments
• Integrated 5 level dimming module (optional)
• Overheat protection
• Constant light output (optional)
• Time-dependant luminous flux control
• Power reduction; flexible luminous flux
• Colour temp. 4000K as standard (options available)
• CRI ≥70 (80 optional)
• Power supply 220VAC - 240VAC
• Standard surge protection 6kV
• Mounting 60mm (Ø48 - 60mm)
• 5 year Warranty
Finish: Silver (RAL9023)
Driver:
• Dali D4i, 1-10V, RF or PLC
• IP66 and IK10 rated
• 10W - 200W data available on request

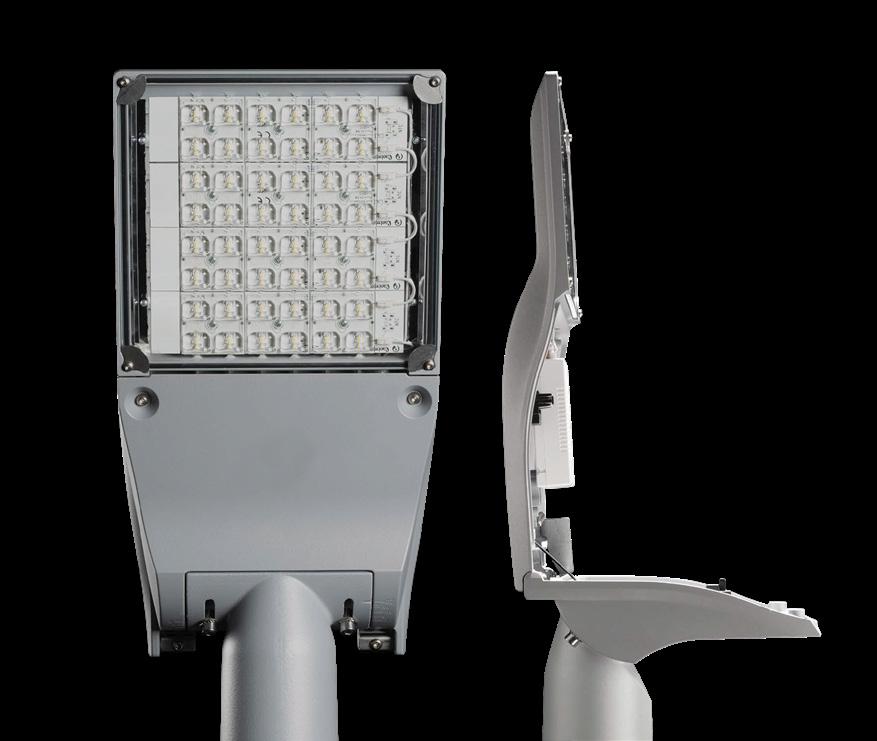

An innovative road lighting luminaire of modular construction designed with ease of maintenance in mind. Tool-less upgrades of key components such as power supply and light engine along with fieldreplaceable LED modules ensure the luminaire takes full advantage of future improvements in LED technology.
Constructed from high pressure die-cast aluminium, the AL61300 series is available in four body sizes and offers six standard lumen packages, from 1,600 to 32,000 lumens, and comes with eleven different optics.
With a lifetime of 100,000 hours combined with an efficacy up to 165 lm/W, the AL61300 series keeps both operating and maintenance costs to an absolute minimum.
