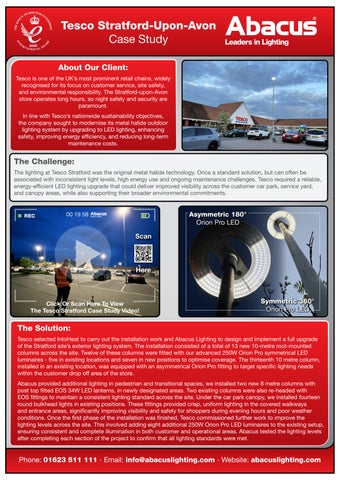

Tesco Stratford-Upon-Avon Case Study

About Our Client:

Tesco is one of the UK’s most prominent retail chains, widely recognised for its focus on customer service, site safety, and environmental responsibility. The Stratford-upon-Avon store operates long hours, so night safety and security are paramount.

In line with Tesco’s nationwide sustainability objectives, the company sought to modernise its metal halide outdoor lighting system by upgrading to LED lighting, enhancing safety, improving energy efficiency, and reducing long-term maintenance costs.

The Challenge:

The lighting at Tesco Stratford was the original metal halide technology. Once a standard solution, but can often be associated with inconsistent light levels, high energy use and ongoing maintenance challenges. Tesco required a reliable, energy-efficient LED lighting upgrade that could deliver improved visibility across the customer car park, service yard, and canopy areas, while also supporting their broader environmental commitments.

Click Or Scan Here To View

Tesco Stratford Case Study Video!

The Solution:

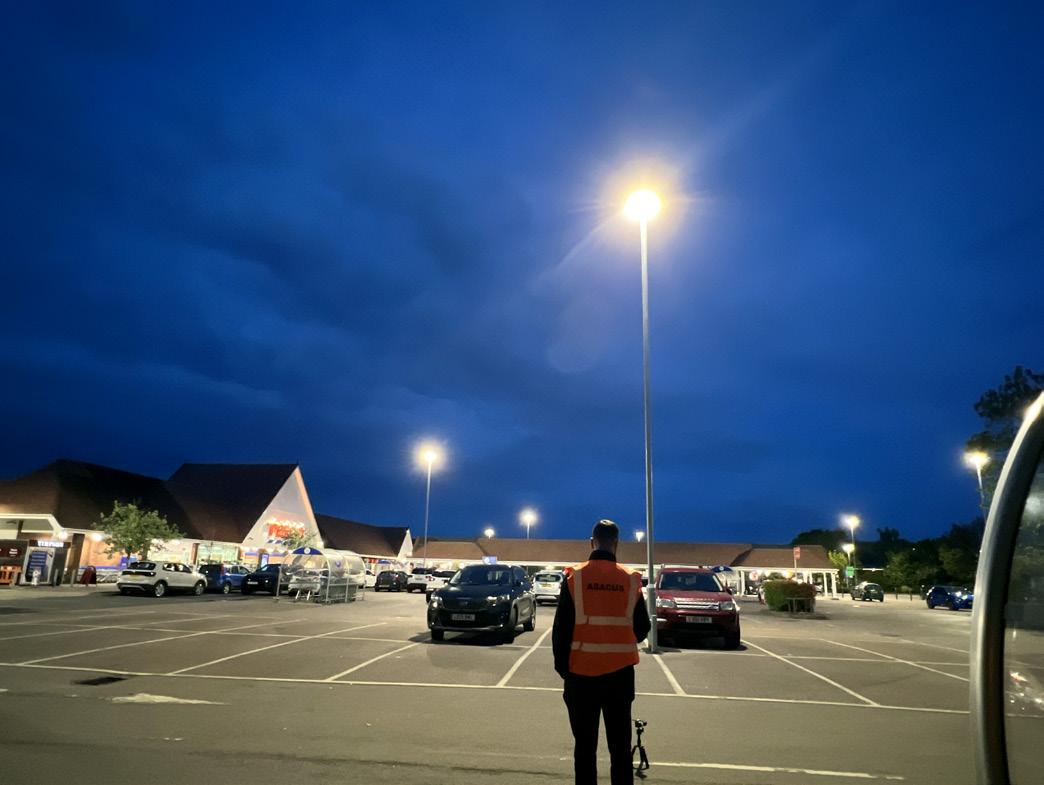

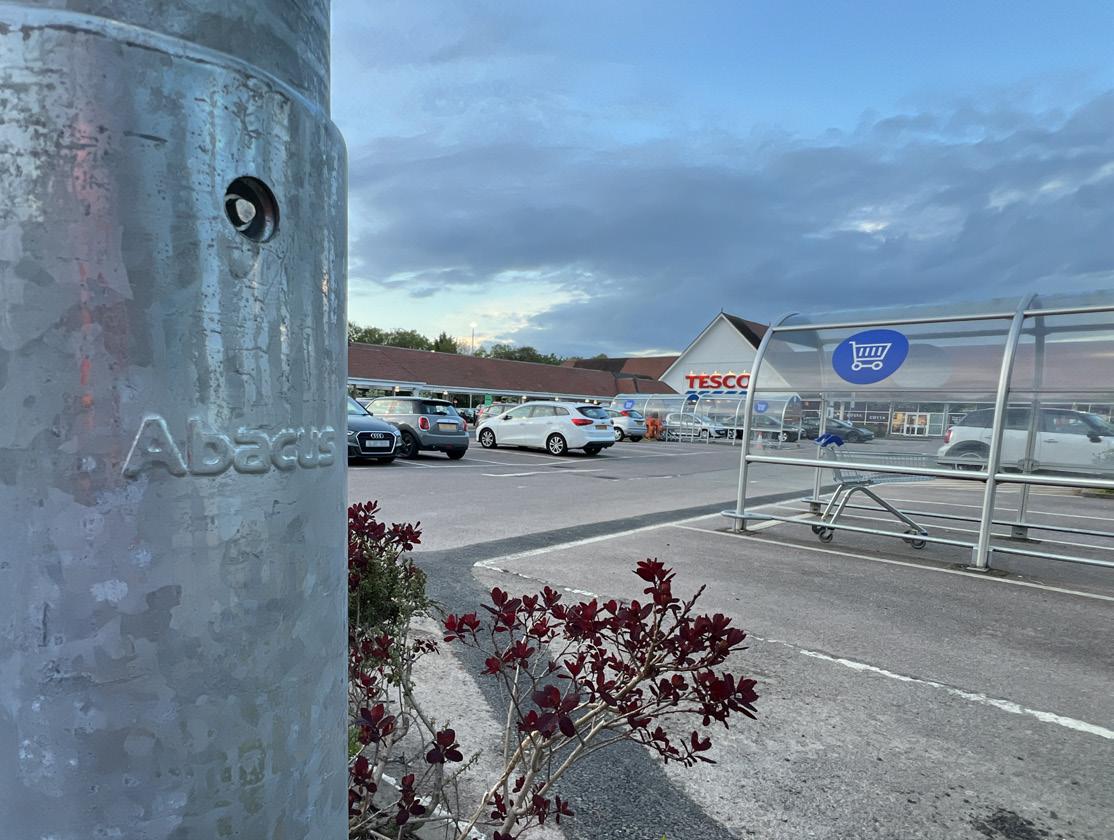

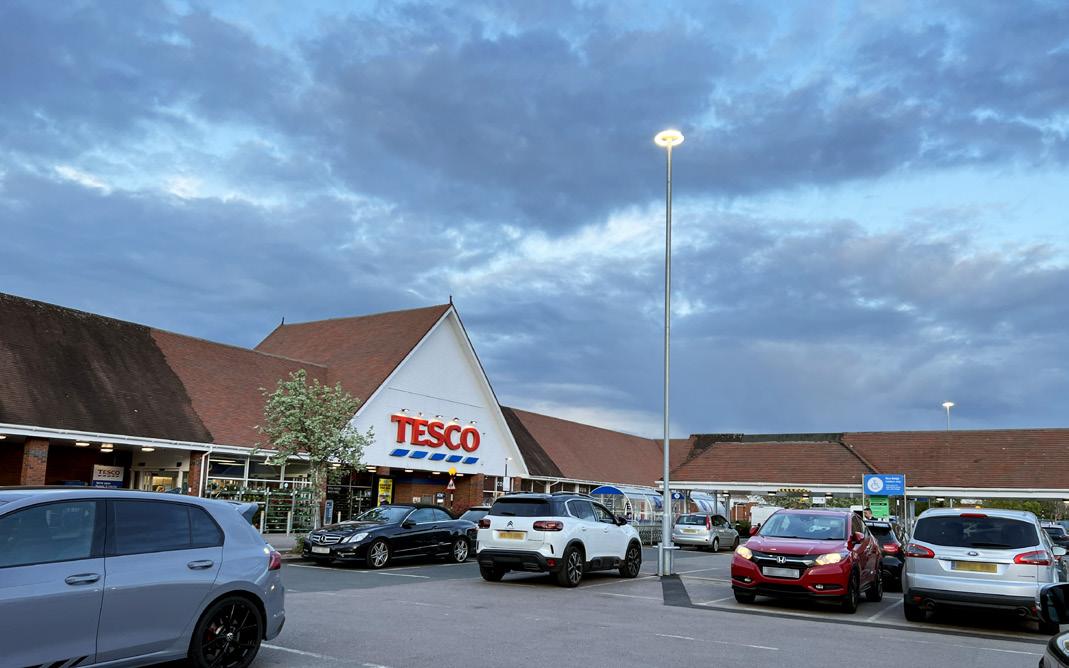

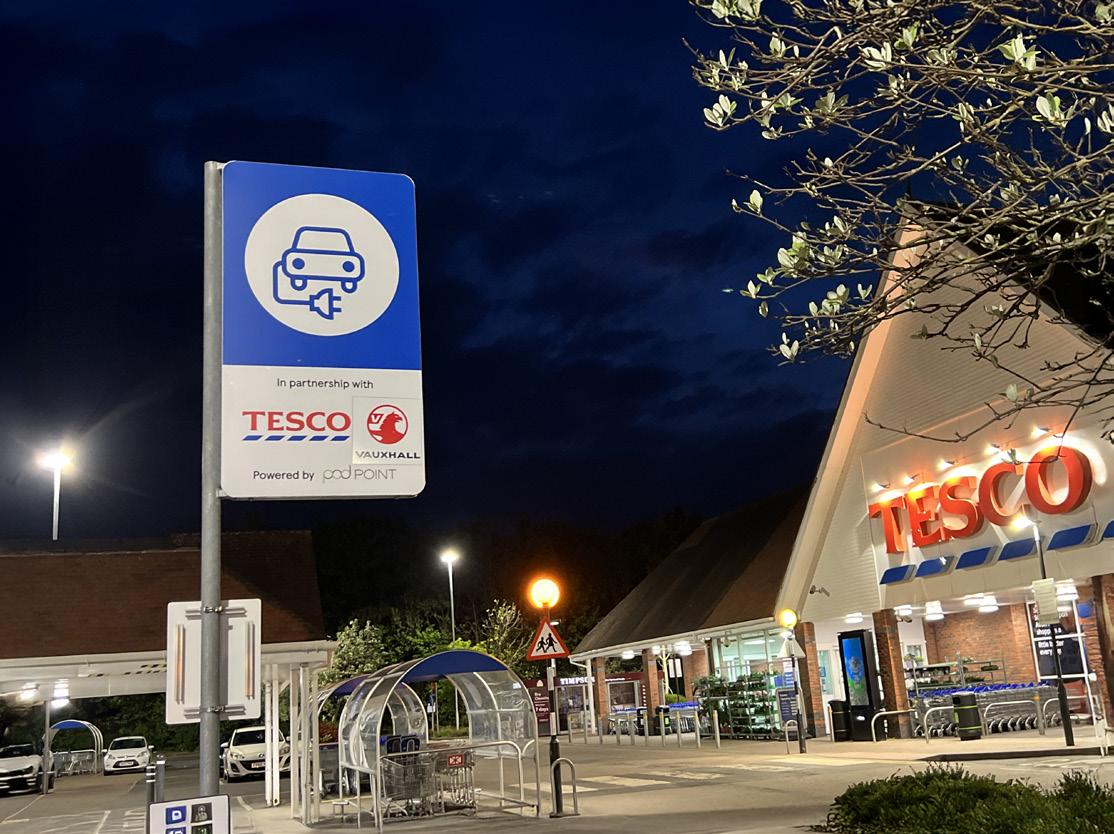

Tesco selected IntoHeat to carry out the installation work and Abacus Lighting to design and implement a full upgrade of the Stratford site’s exterior lighting system. The installation consisted of a total of 13 new 10-metre root-mounted columns across the site. Twelve of these columns were fitted with our advanced 250W Orion Pro symmetrical LED luminaires - five in existing locations and seven in new positions to optimise coverage. The thirteenth 10 metre column, installed in an existing location, was equipped with an asymmetrical Orion Pro fitting to target specific lighting needs within the customer drop off area of the store.

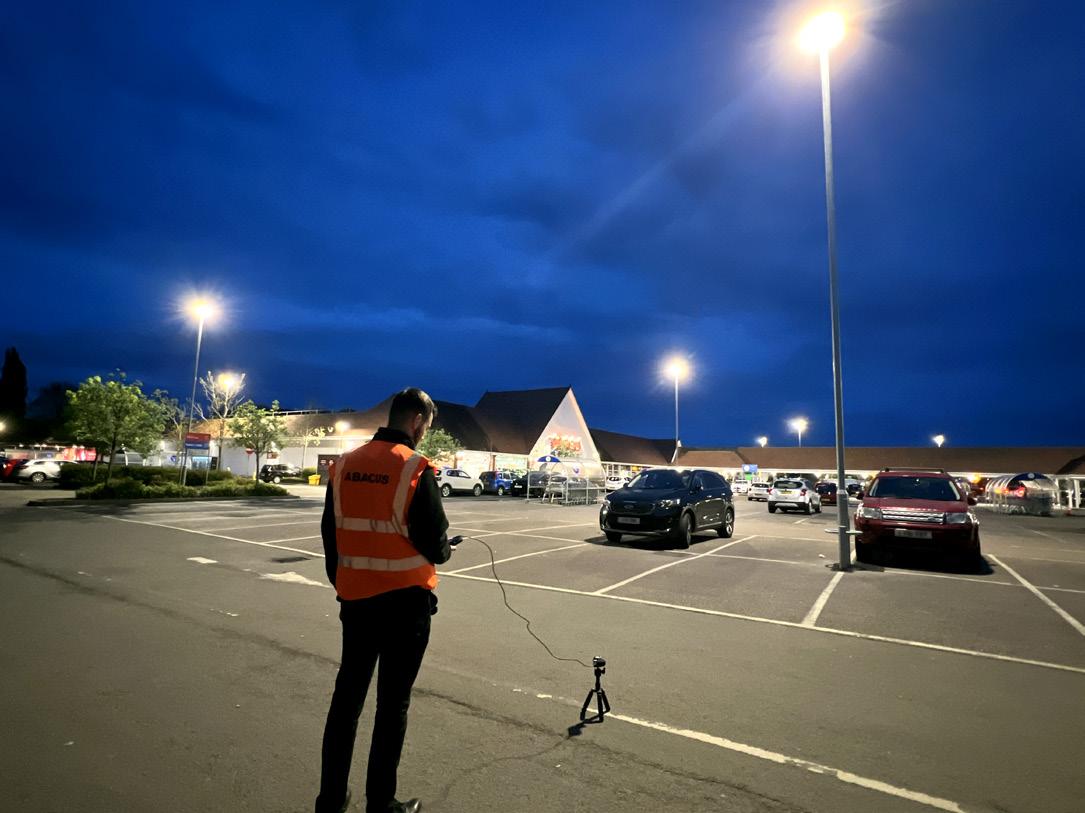

Abacus provided additional lighting in pedestrian and transitional spaces, we installed two new 8 metre columns with post top fitted EOS 34W LED lanterns, in newly designated areas. Two existing columns were also re-headed with EOS fittings to maintain a consistent lighting standard across the site. Under the car park canopy, we installed fourteen round bulkhead lights in existing positions. These fittings provided crisp, uniform lighting in the covered walkways and entrance areas, significantly improving visibility and safety for shoppers during evening hours and poor weather conditions. Once the first phase of the installation was finished, Tesco commissioned further work to improve the lighting levels across the site. This involved adding eight additional 250W Orion Pro LED luminaires to the existing setup, ensuring consistent and complete illumination in both customer and operational areas. Abacus tested the lighting levels after completing each section of the project to confirm that all lighting standards were met.

Tesco Stratford-Upon-Avon Case Study

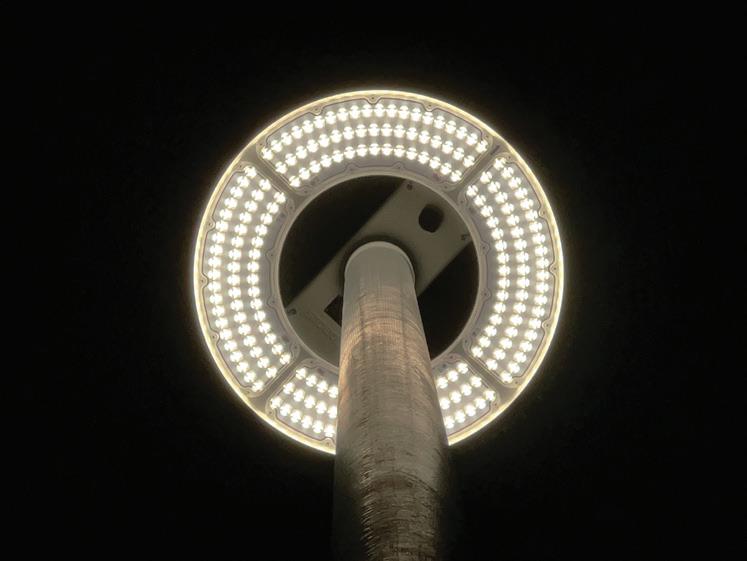

Orion Pro & EOS LED LanternThe Benefits:

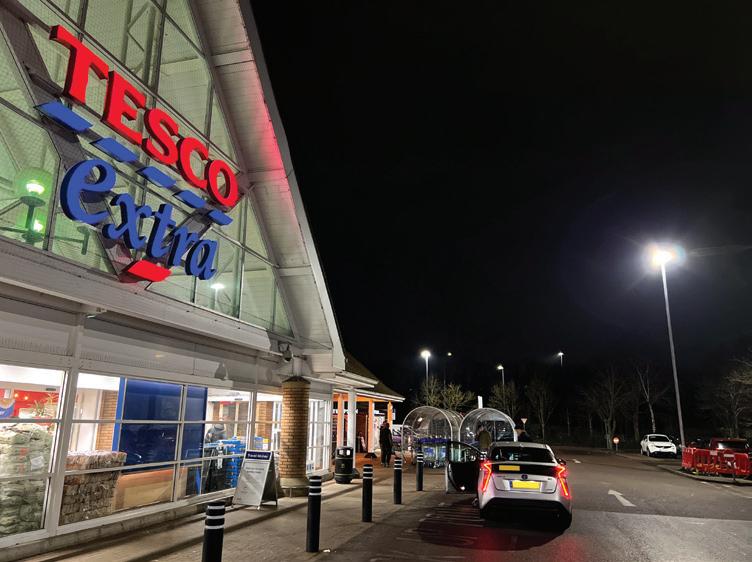

Transitioning from metal halide to LED lighting has brought immediate advantages to the site. The new LED system significantly reduces energy consumption, thereby cutting operational costs and aligning with Tesco’s sustainability targets.

The Orion Pro LED is a market leader regarding the spacing between columns, which means that fewer lights and columns are required. This results in quicker installation and maintenance, and the key benefit is that having fewer lights leads to substantial reductions in power consumption costs from day one.

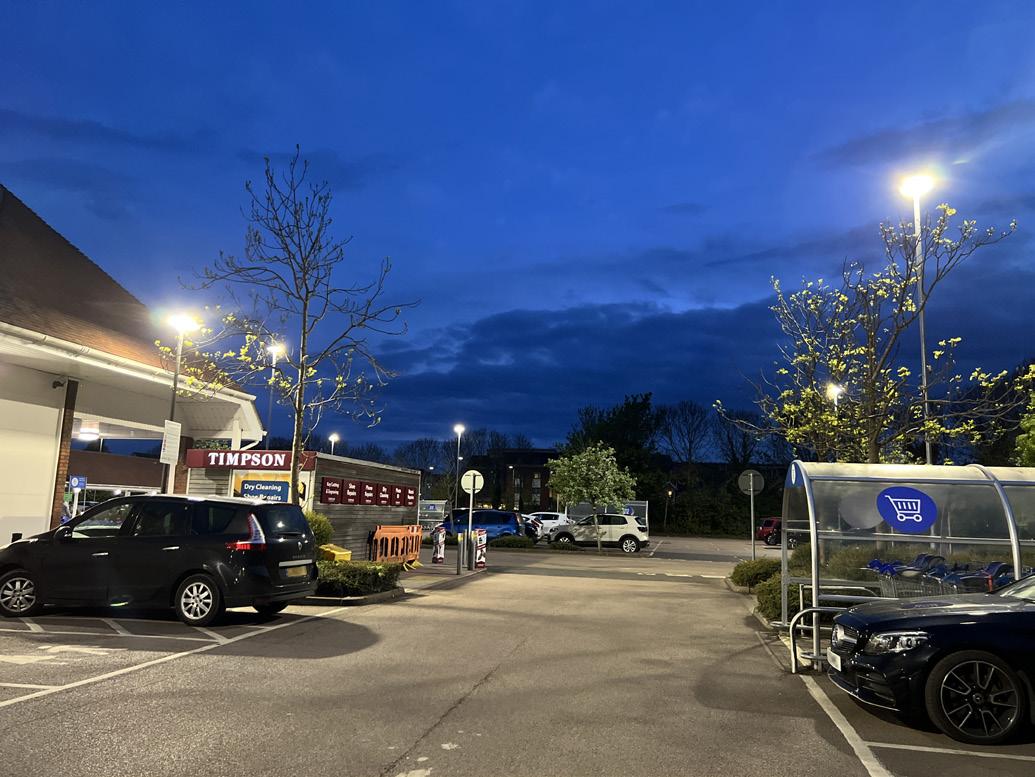

The quality of the lighting has improved dramatically, featuring enhanced colour rendering and instanton functionality that eliminates the warm-up times associated with older lamp systems. Additionally, the long lifespan of the Orion Pro and EOS luminaires means much less maintenance will be necessary in the future, reducing disruption to daily operations.

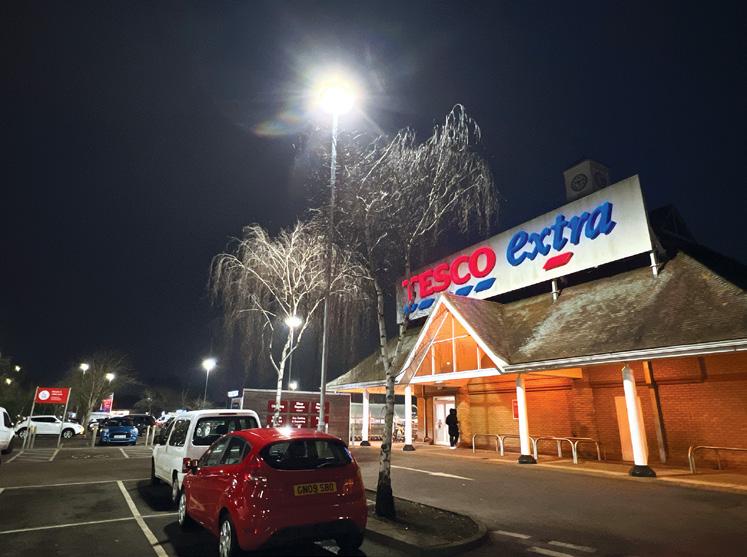

Tesco Stratford now enjoys a modern, energyefficient lighting system that enhances safety, reduces environmental impact, and supports long-term cost savings. The upgraded system has improved the customer experience, made the site safer for both pedestrians and drivers, and future-proofed the store’s external lighting with the latest high-quality, lowmaintenance LED technology.

By collaborating Abacus Lighting, Tesco has successfully transitioned to modern LED lighting, benefiting from the reliability and performance expected from a King’s Award-winning UK manufacturer.

Orion Pro LED - Market Leading Spacing Between Columns

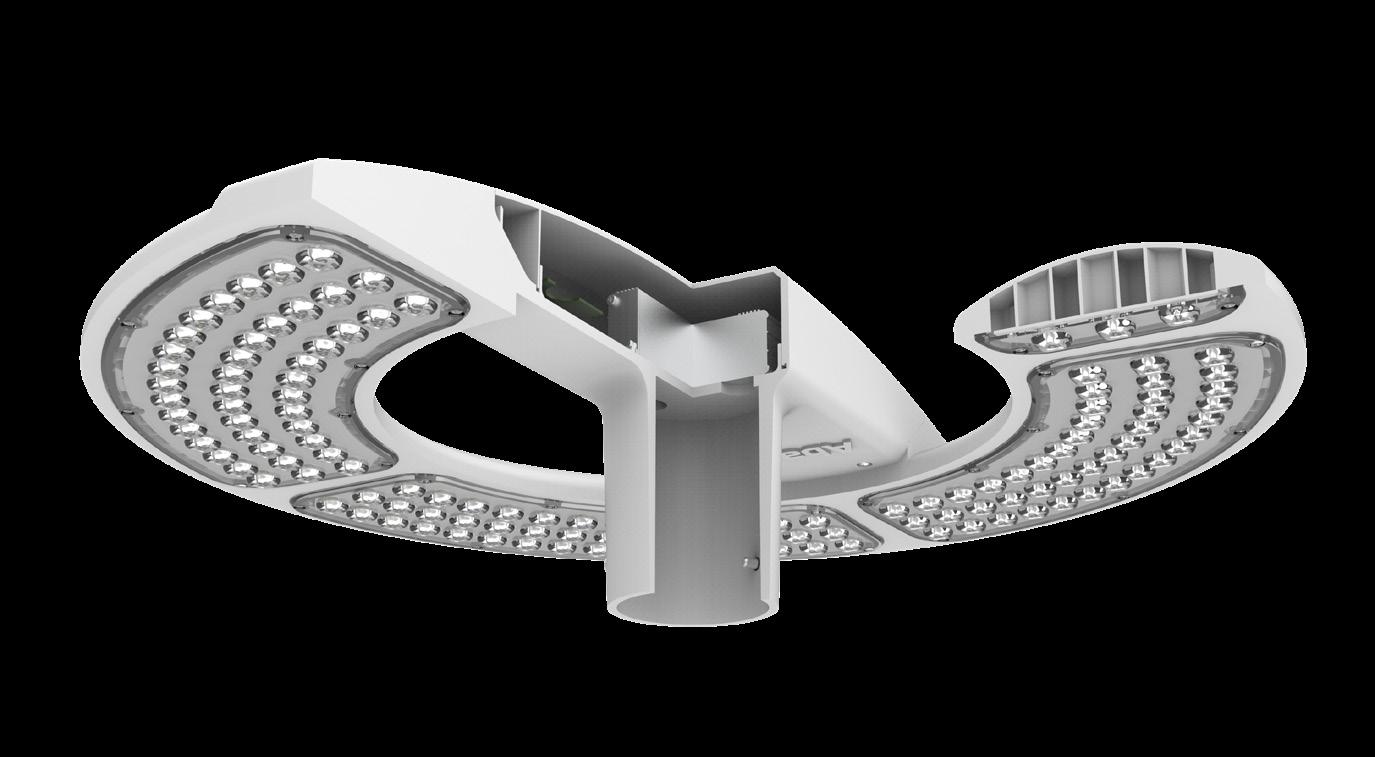

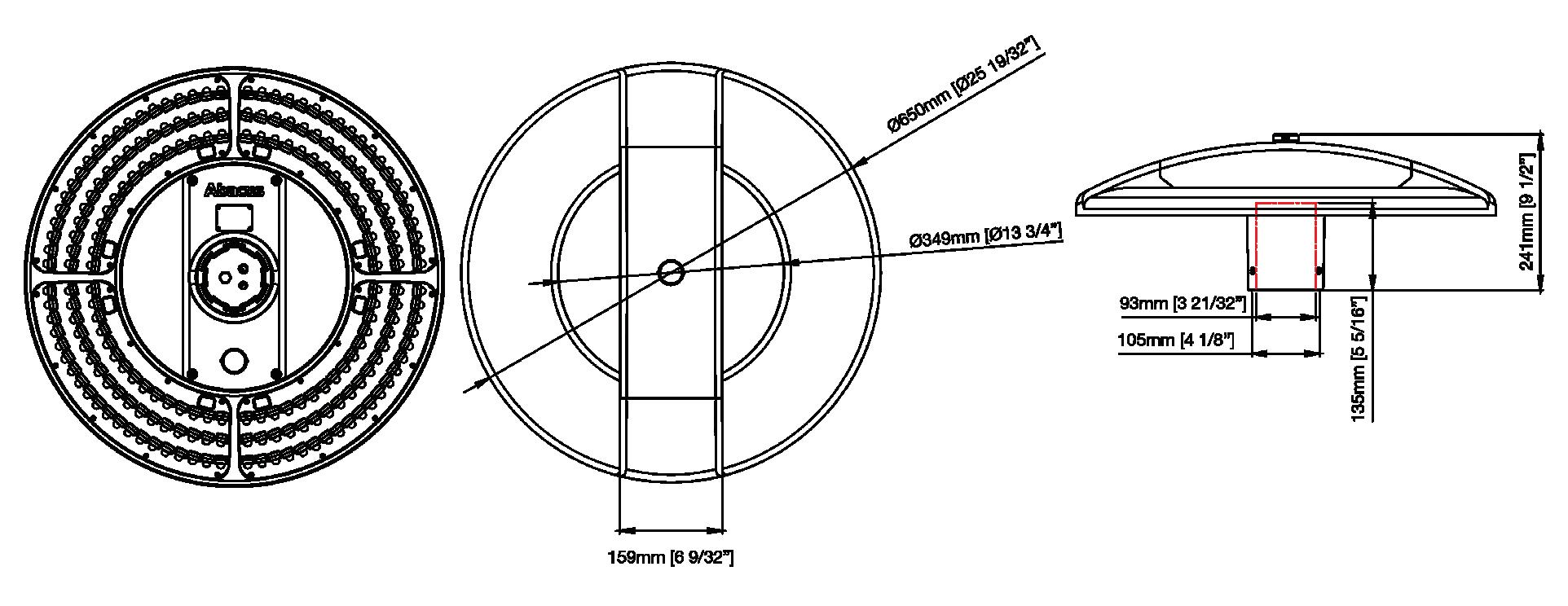

Orion Pro LED - AL4700 Series

Orion Pro LED - Key Features

• Direct retrofit to Orion 1 twin lamp 400W

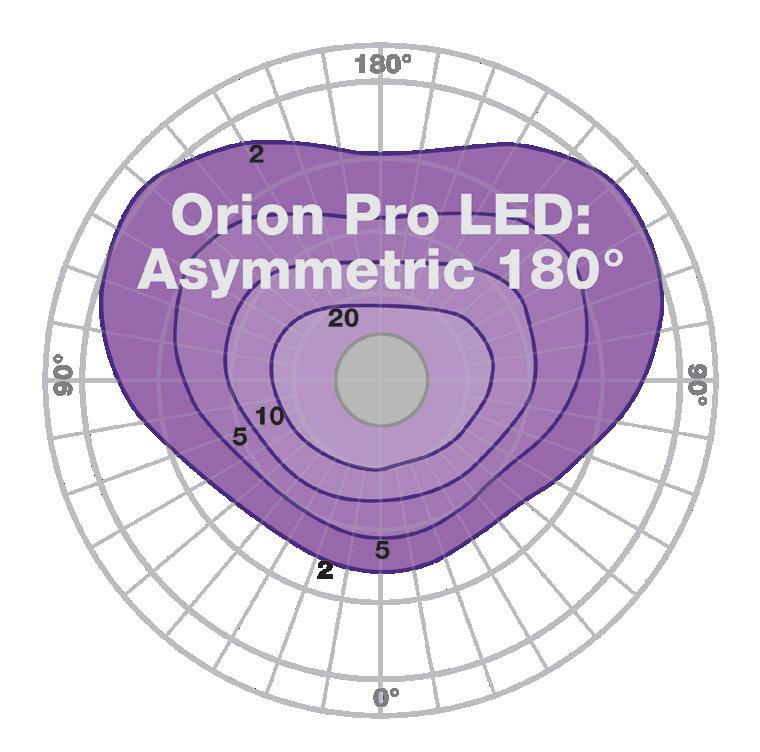

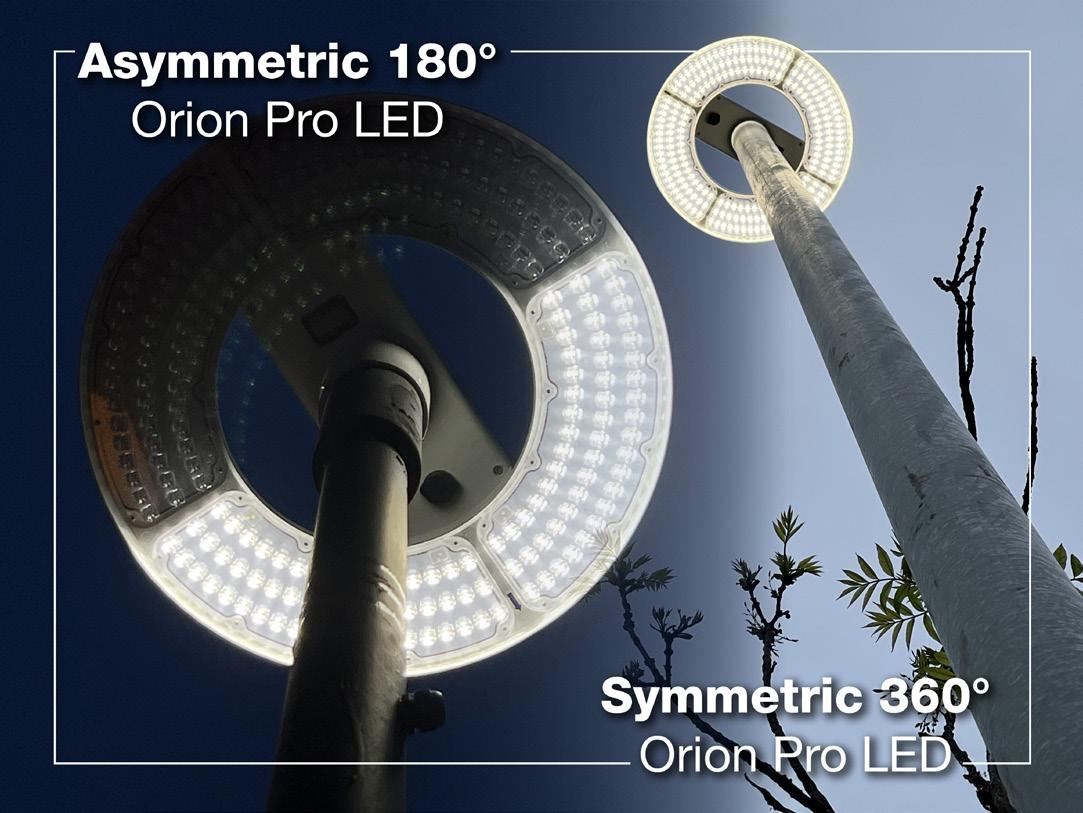

• Available in 180° asymmetrical and 360° symmetrical beam distributions

• 250W symmetrical as standard (Internal drivers)

• 125W asymmetrical as standard (Internal drivers)

• 500W symmetrical option available (Internal drivers)

• Standard working ambient temp. upto 40°C

• 50°C high working ambient temp. option available on request (External drivers)

• Colour temperature 4000K as standard (3000K option available on request)

• Less than 1% upward light

• IP66 and IK10 rated

• 2 Zhaga interfaces for flexibility

• DALI 2 and D4i as standard

• Integrated spigot - 76mm or 89mm shaft compatible

• White polyester powder coated canopy & spigot

• Programmable lumen output to suit designs

• Supplied in recyclable cardboard packaging

Product Applications

• Amenity Lighting

• Airport Parking

• Railway Stations

• Car Parks

• Retail Parks

• Open Area Parks

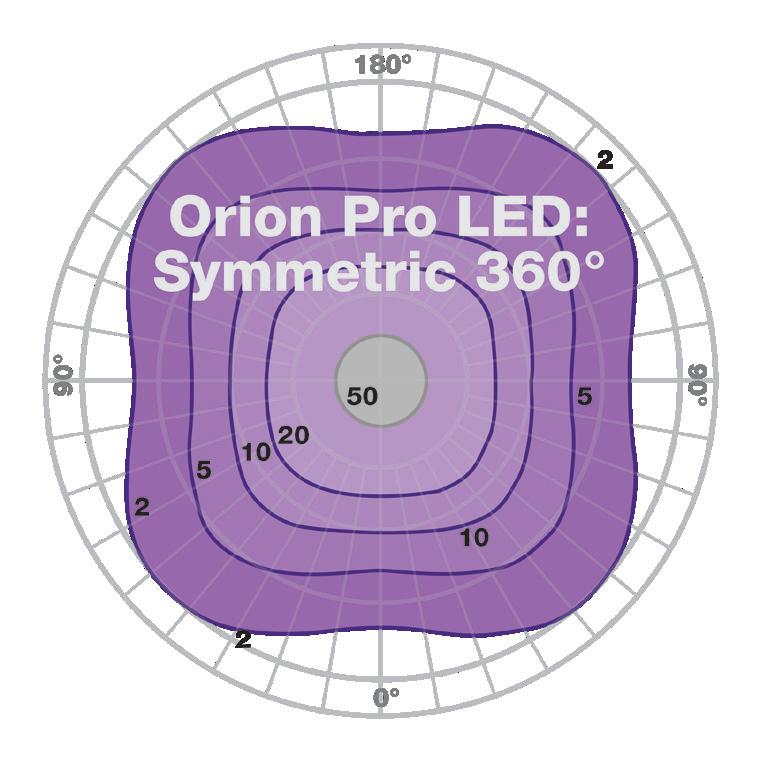

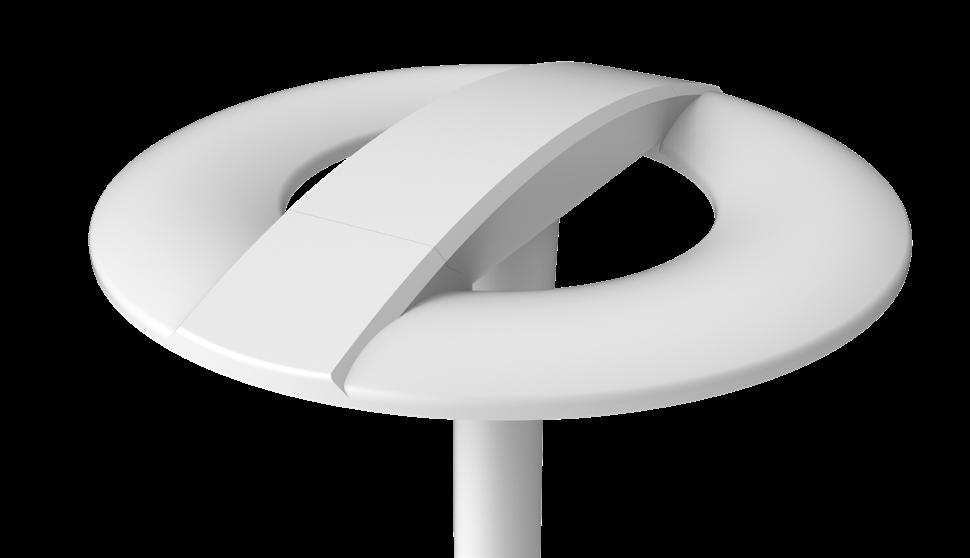

The Abacus Orion Pro LED floodlight stands out as a pioneering lighting solution, delivering efficient and high-quality illumination for a wide range of outdoor spaces. It excels in achieving British standard BS5489 and European standard BS EN12464-1, making it ideal for urban centres & public amenity areas. Thanks to its advanced LED technology, the Orion floodlight not only provides superior brightness but also achieves significant energy savings, contributing to a reduced environmental footprint.

With its high-output 360-degree light distribution and precise optics, the Orion Pro ensures excellent beam control, offering pinpoint lighting precision while minimising light pollution. Overall, the Abacus Orion Pro represents a sustainable and dependable lighting solution that seamlessly integrates performance, durability, and energy efficiency.

Orion Pro LED Retail & Amenities Light

Orion Pro LED - AL4700 Series

*The Abacus Lighting columns mentioned above serve as examples for typical installations, but we are not restricted to these options. Abacus Lighting provides a comprehensive range of columns and masts that can accommodate virtually any new or

EOS Lantern Data Sheet AL20000 Series

EOS LED Lantern - Key Features

• Three lantern body sizes

• Wattage options ranging from 7 to 171W

• Six optic range

• Lumen range 1221lm - 25802lm (Net flux)

• 4000K colour temperature as standard 3000K option available upon request

• Electrical options: Class I & Class II

• Single or double Zhaga control socket options

• Two independent compartments for optics and electrical components

• Exceptional heat dissipation built into the sleek design

• High-grade powder coated finish tested for use in harsh environments - 3000hrs

ISO 9227:2017/ EN47100 Alloy

• IP66 Ingress Protection

• Column top or side entry installation

• Ø60mm standard spigot size (Adaptable)

• Suitable for retro-fitting

• Optics protection from one complete 4mm tempered glass sealed unit

• Latched release electrical compartment

• Tool-less entry for quick & efficient maintenance

• Railway Platforms

• Railway Stations

• Street Lights

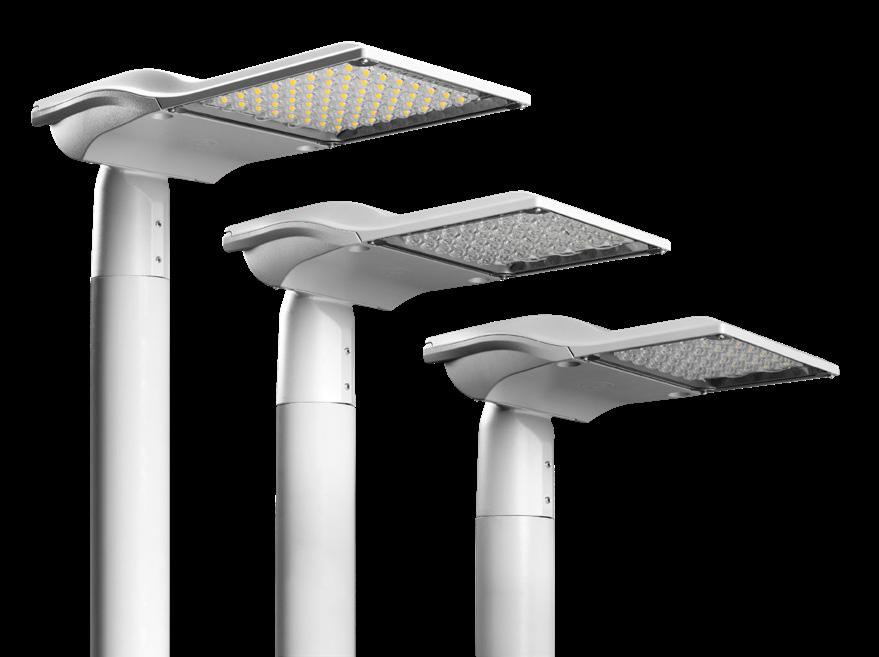

EOS LED Lantern - Product Overview

• Car Parks

• Retail Parks

• Access Roads

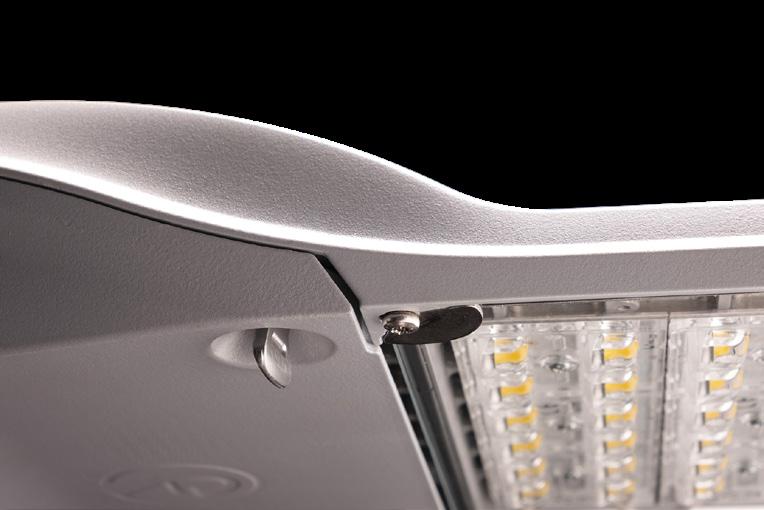

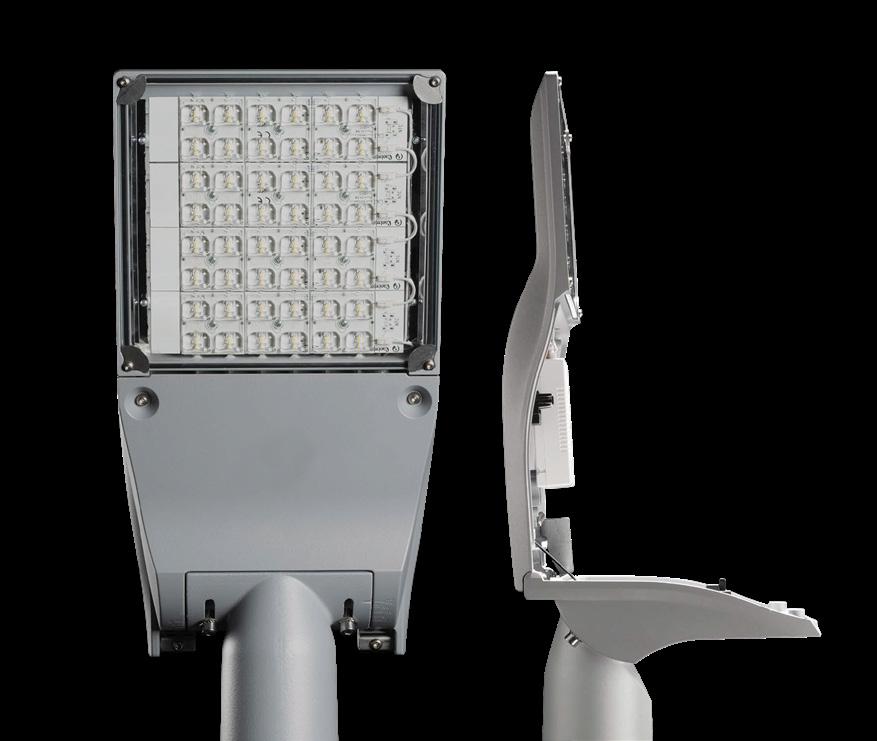

The EOS lantern offers an LED lighting solution suitable for both rail and road applications. It has a wide range of wattages, unit sizes, optics, and fitting options to choose from.

With a wide range of lumen outputs and three lantern body sizes, the EOS provides a lighting solution for virtually any road or rail scheme. The EOS is IP66 ingress protected with a durable outer coating tested for use in harsh environments commonly found in the rail and highways industry.

The optics are protected by a tempered glass covered, sealed unit, and are separate from the electrics to prolong the product life-cycle.

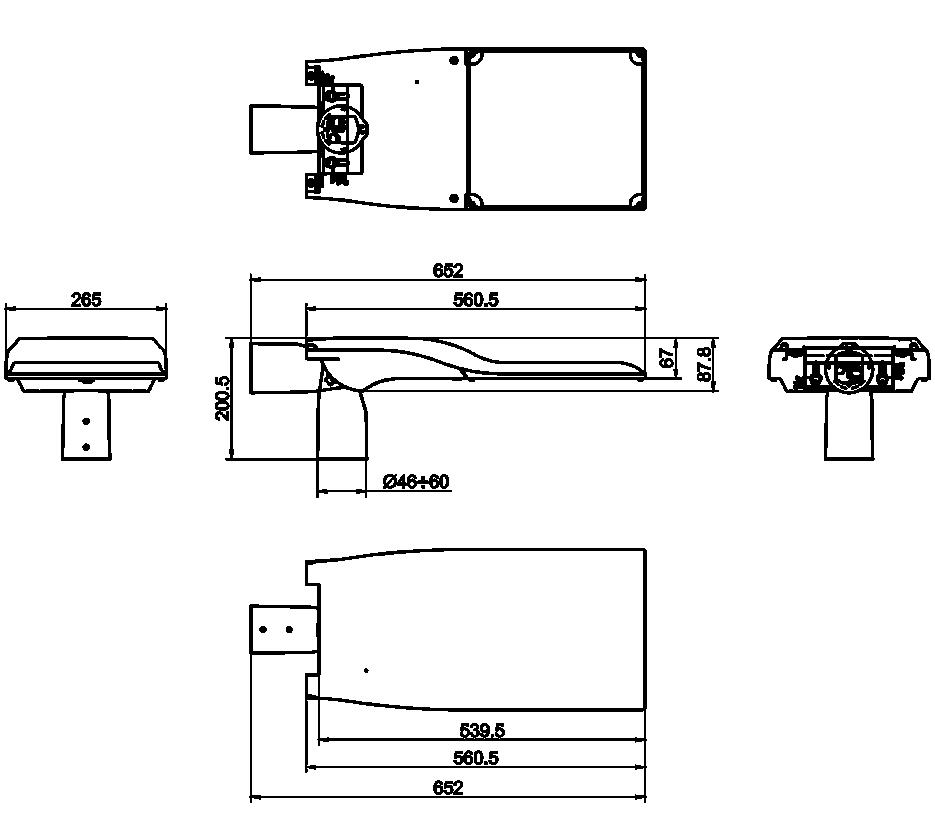

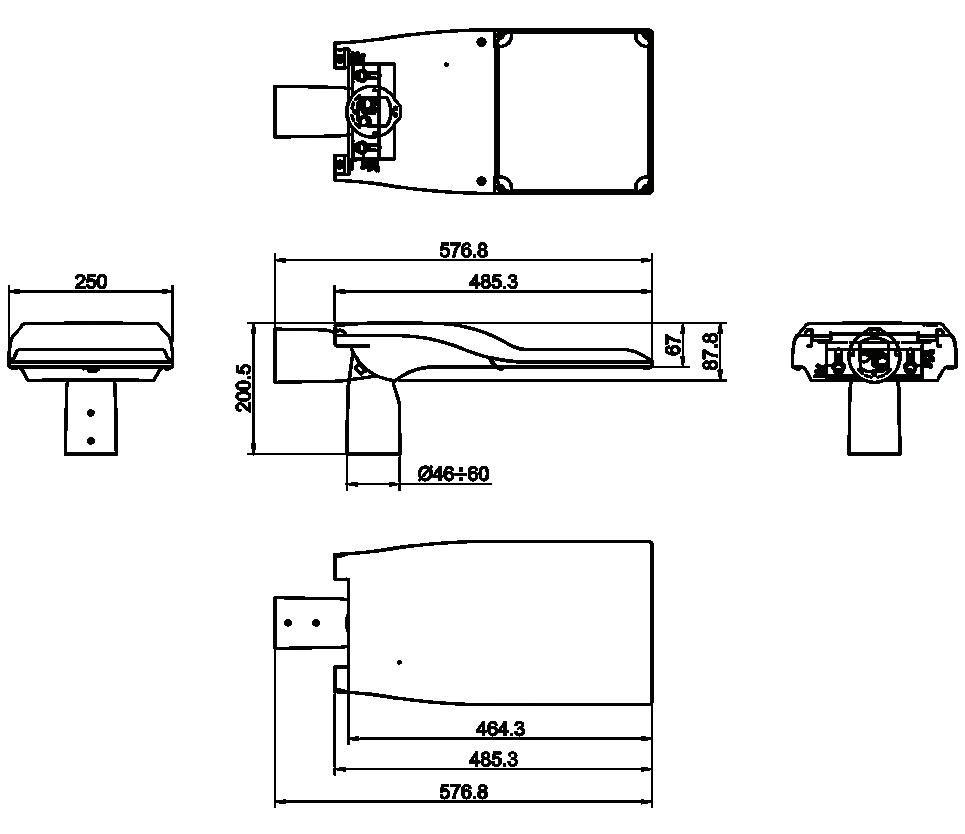

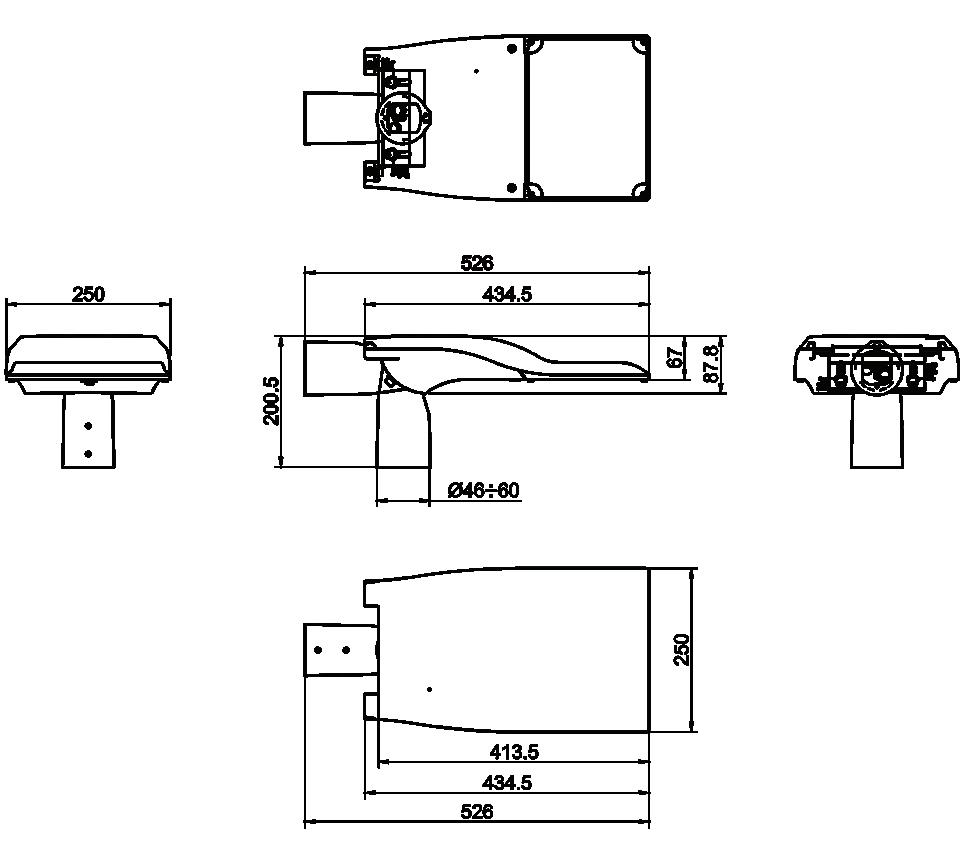

Three Lantern Body Sizes Latched

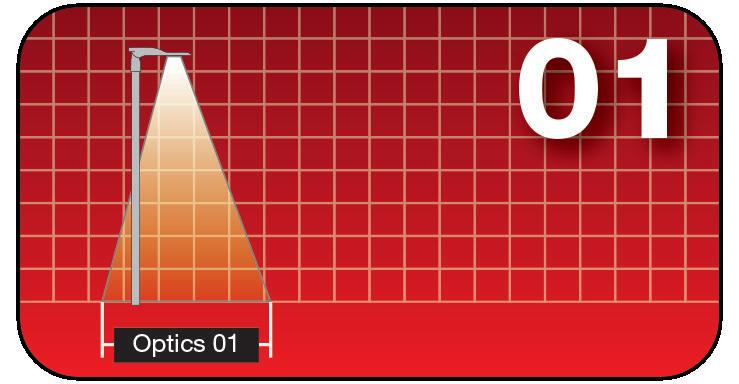

Optic 01

The 01 optic is for street lighting and is particularly suitable for situations where the installation height and the width of the carriageway ratio is less than 1

Optic 04

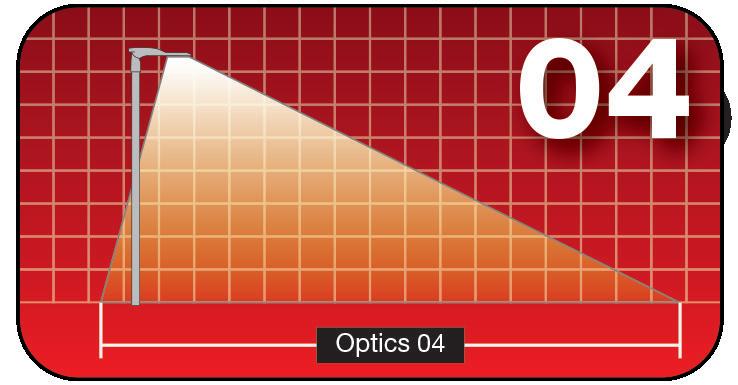

The 04 optic is typically used to provide light for yards, car parks, and urban areas. It is also used on the street when a significant amount of light is needed and the ratio between the depth of the area to be illuminated and the installation height of the light is considerably higher than 1. However, very high levels of lighting are not necessary

EOS LED Lantern - Optic Selection

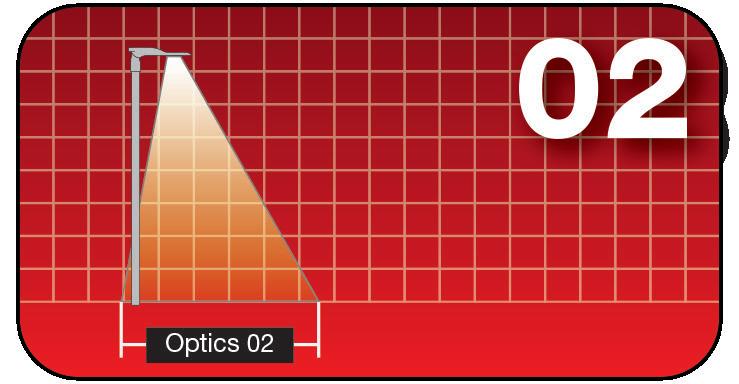

Optic 02

The 02 optic is suitable for street lighting situations where the installation height and the width of the carriageway ratio is less than 1. It is also appropriate for roads with very high inter-distances and an inter-distance/installation height ratio greater than 5

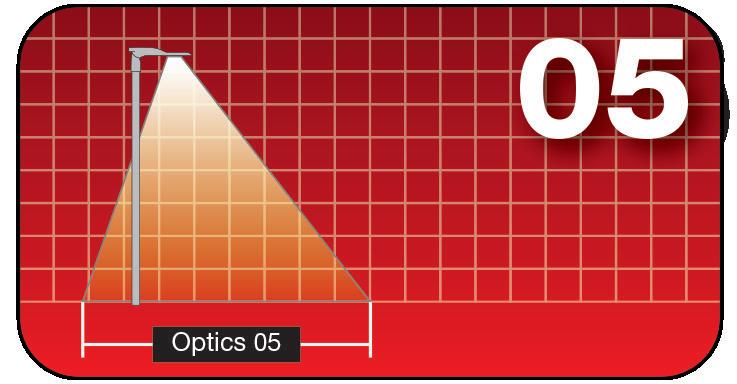

Optic 05

The 05 optic is for street lighting that can illuminate areas with varying distances and road widths equal to or less than the installation height

The

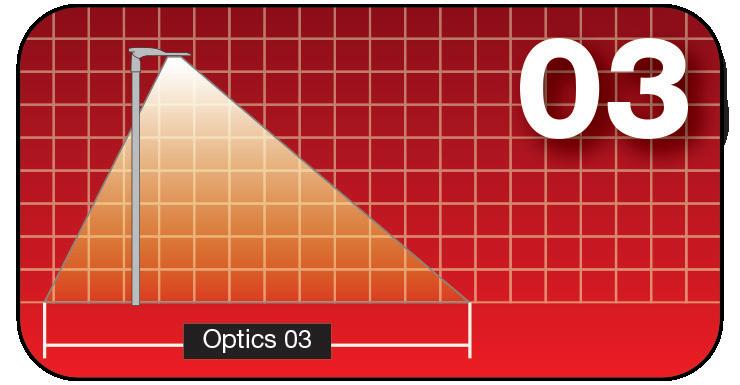

Optic 03

height-to-width ratio is over 0.85. It has a back-flow feature that helps with installations involving outreaches

Optic 06

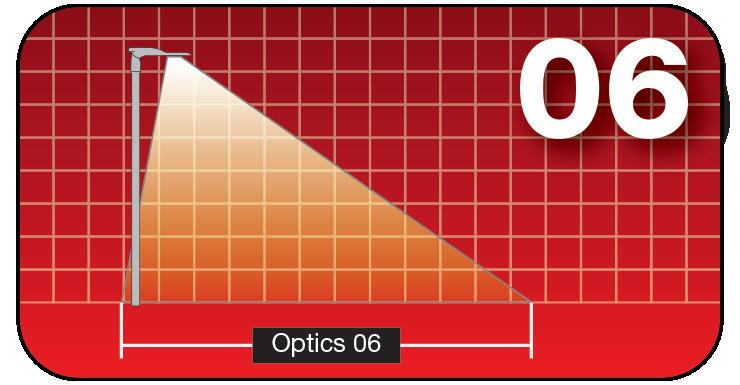

The 06 optic street lighting system is suitable for illuminating large areas with a ratio of installation height to track width equal to or greater than 1

EOS Lantern Data Sheet AL20000 Series

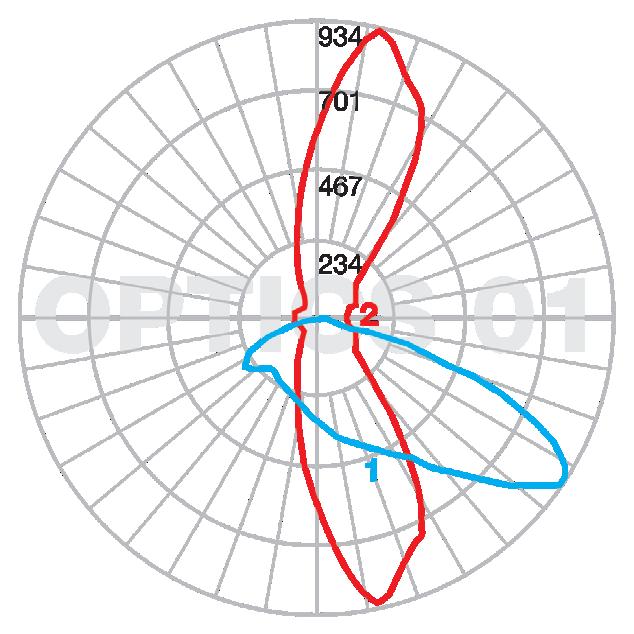

EOS LED Lantern - Photometry Polar Diagrams

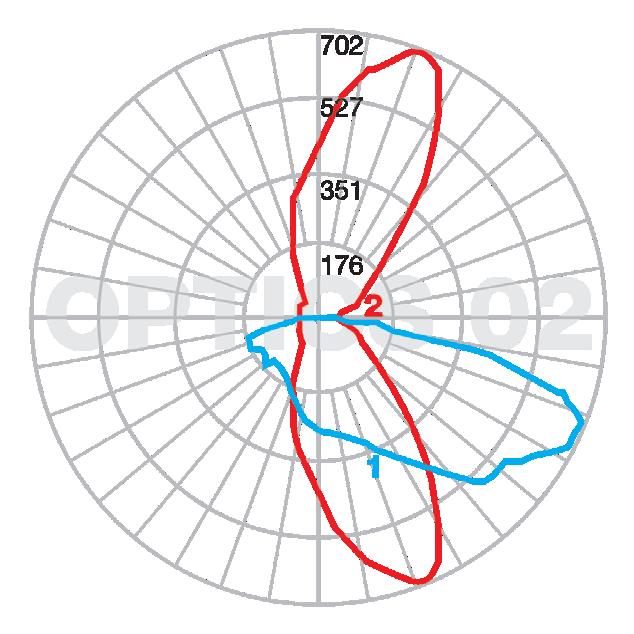

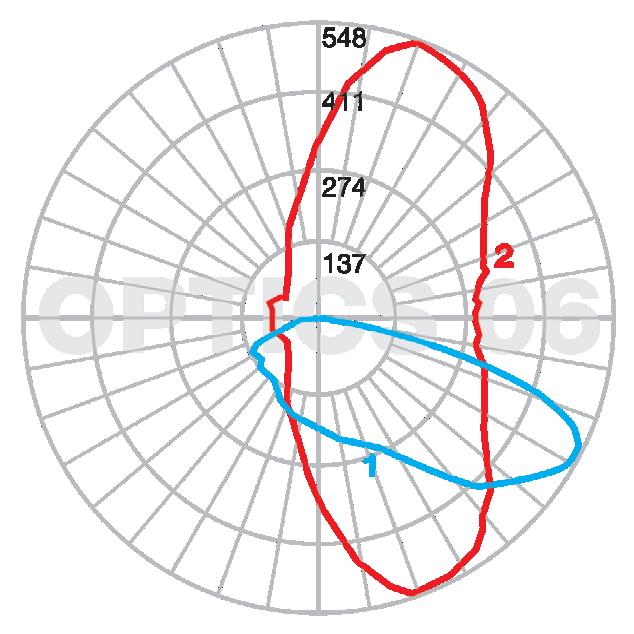

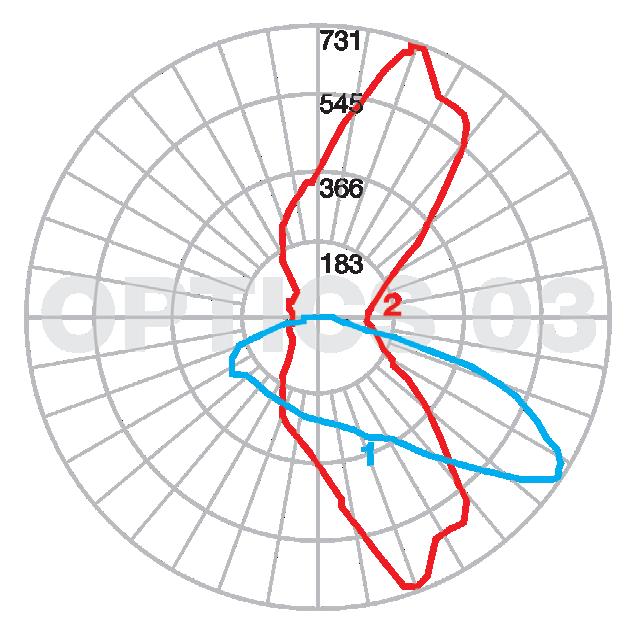

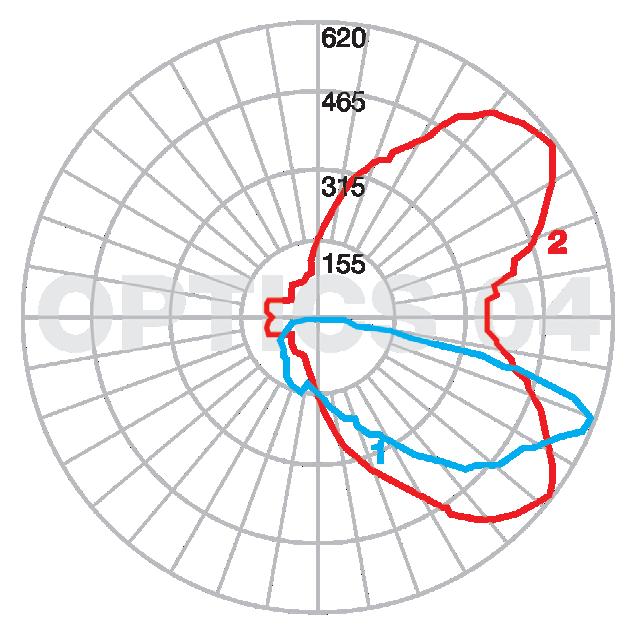

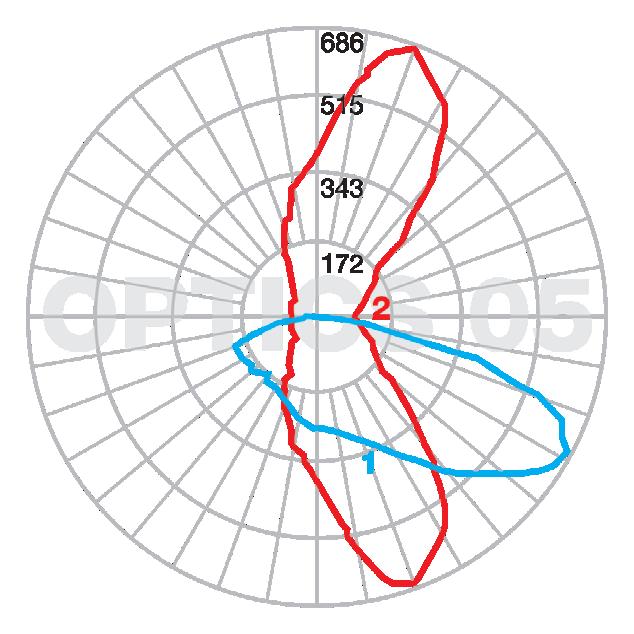

Polar curves are created using the candela values from the candela array. Plotting these values on a polar diagram illustrates the performance of the luminaire in two dimensions. The polar diagram is divided into four rings, with each ring representing a 25% increase in magnitude.

Blue Line - Vertical plane through horizontal angles (Through maximum Candela)

Red Line - Horizontal cone through vertical angle (Through maximum Candela)
