BSc Architecture and Environmental design

Selected works 2021/2024

Anthropocene Research Institute

Awarded Foster and Partners for Technical Innovation in Design

Awarded Architecture and Climate Change Action

Final Thesis Project

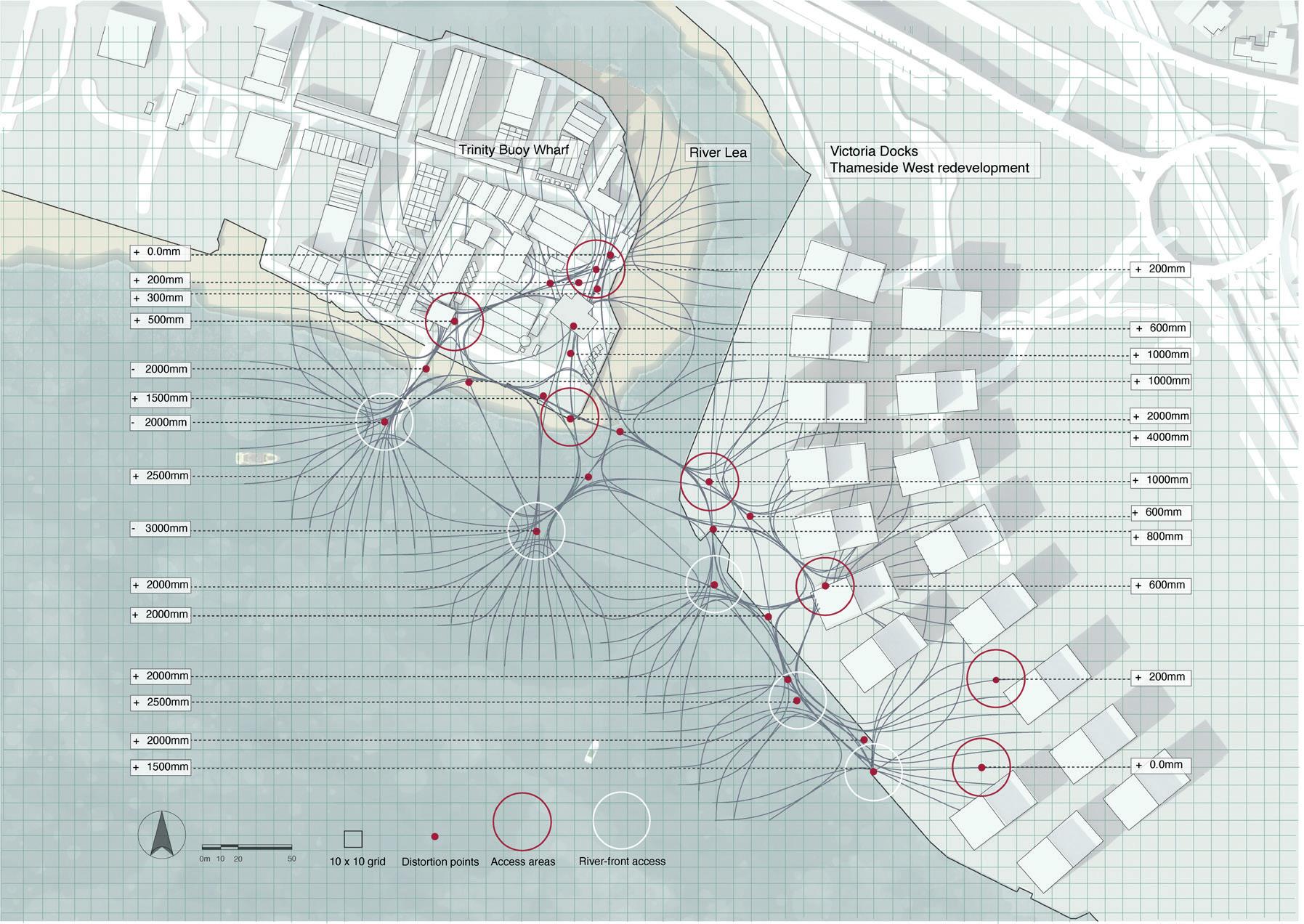

Brief: Re-Imaging Canning Town

51º30’27’’N 0º00’30’’E

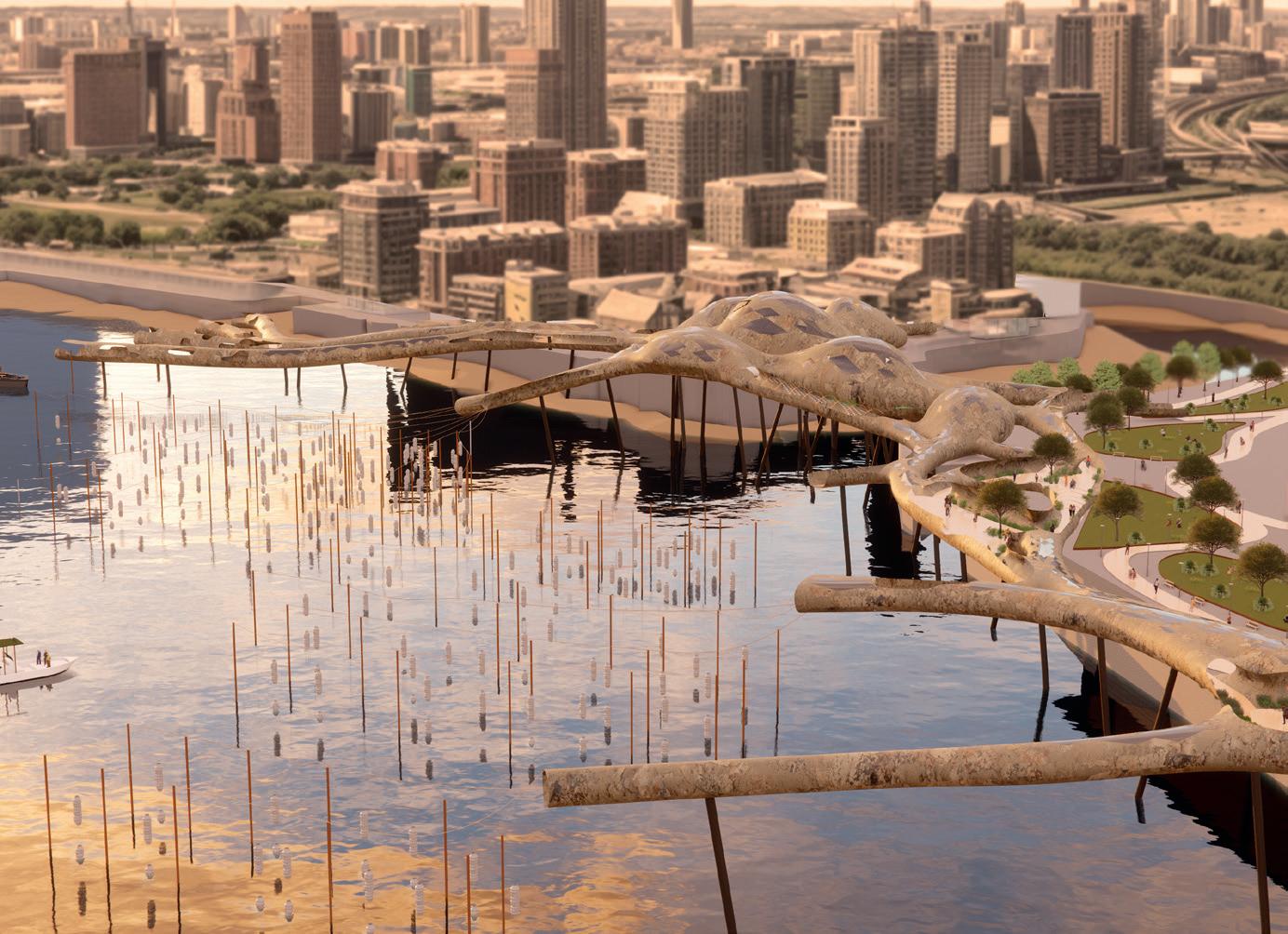

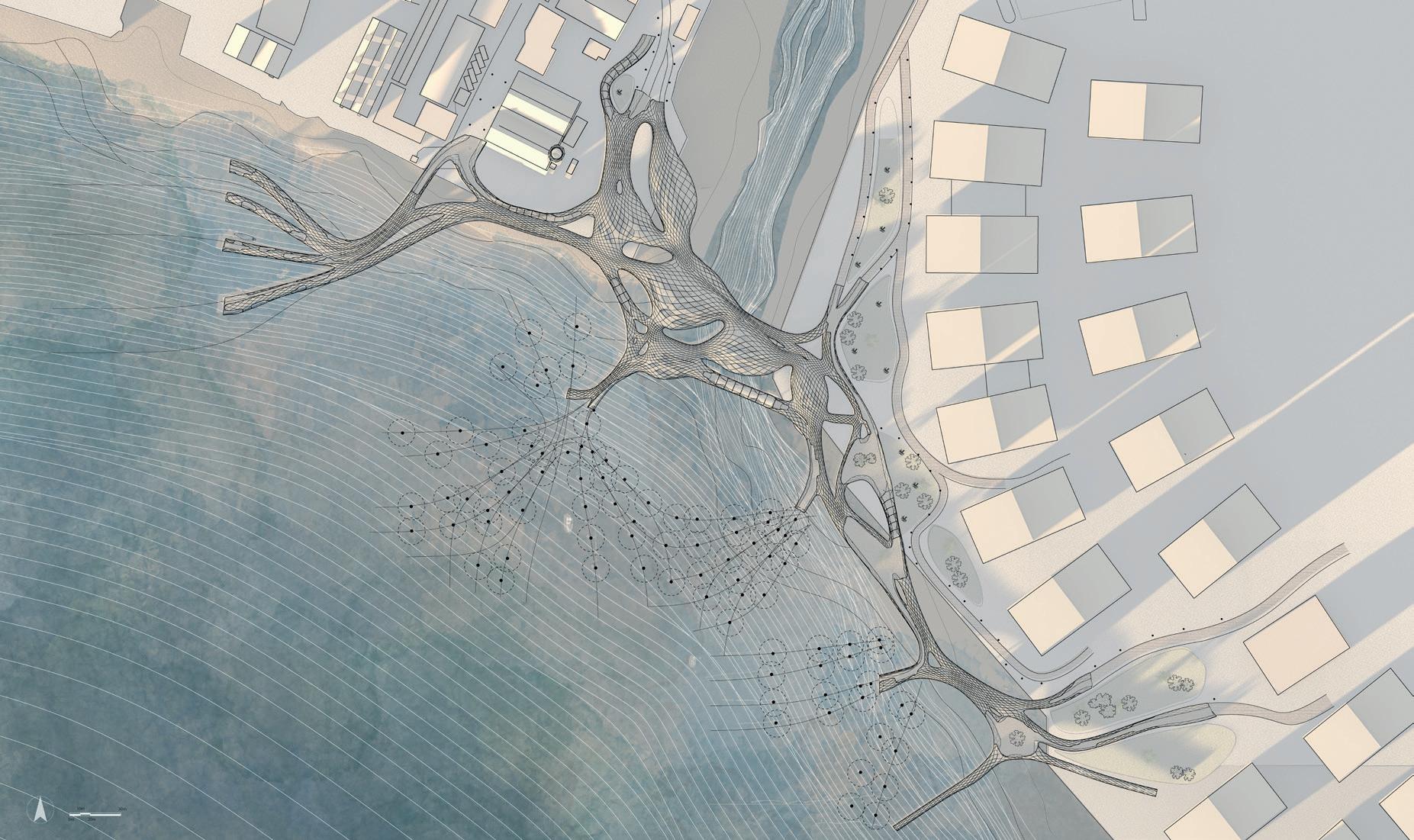

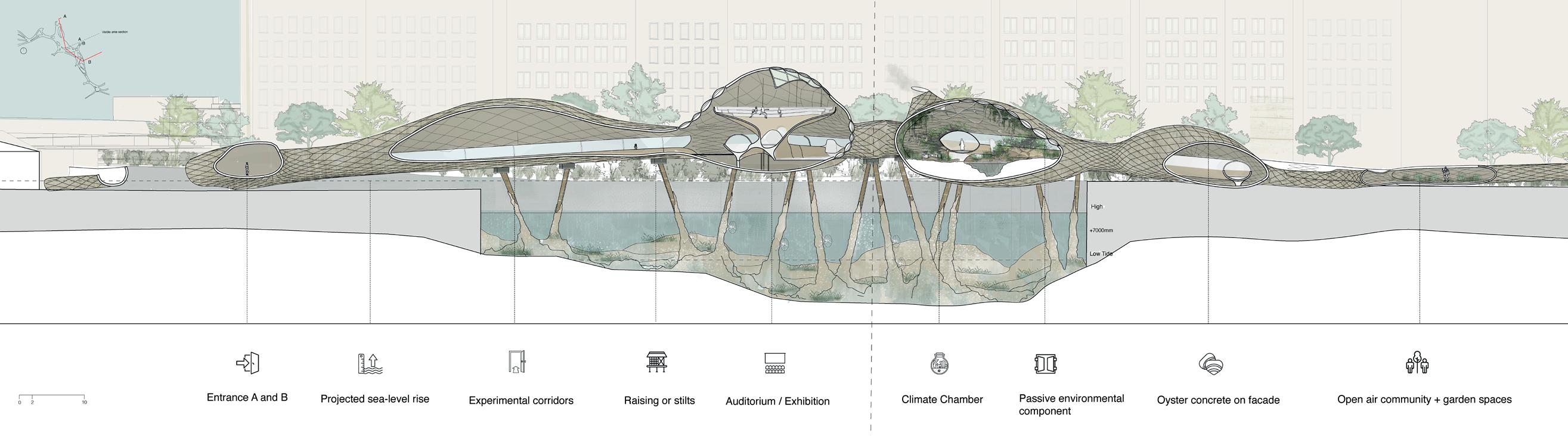

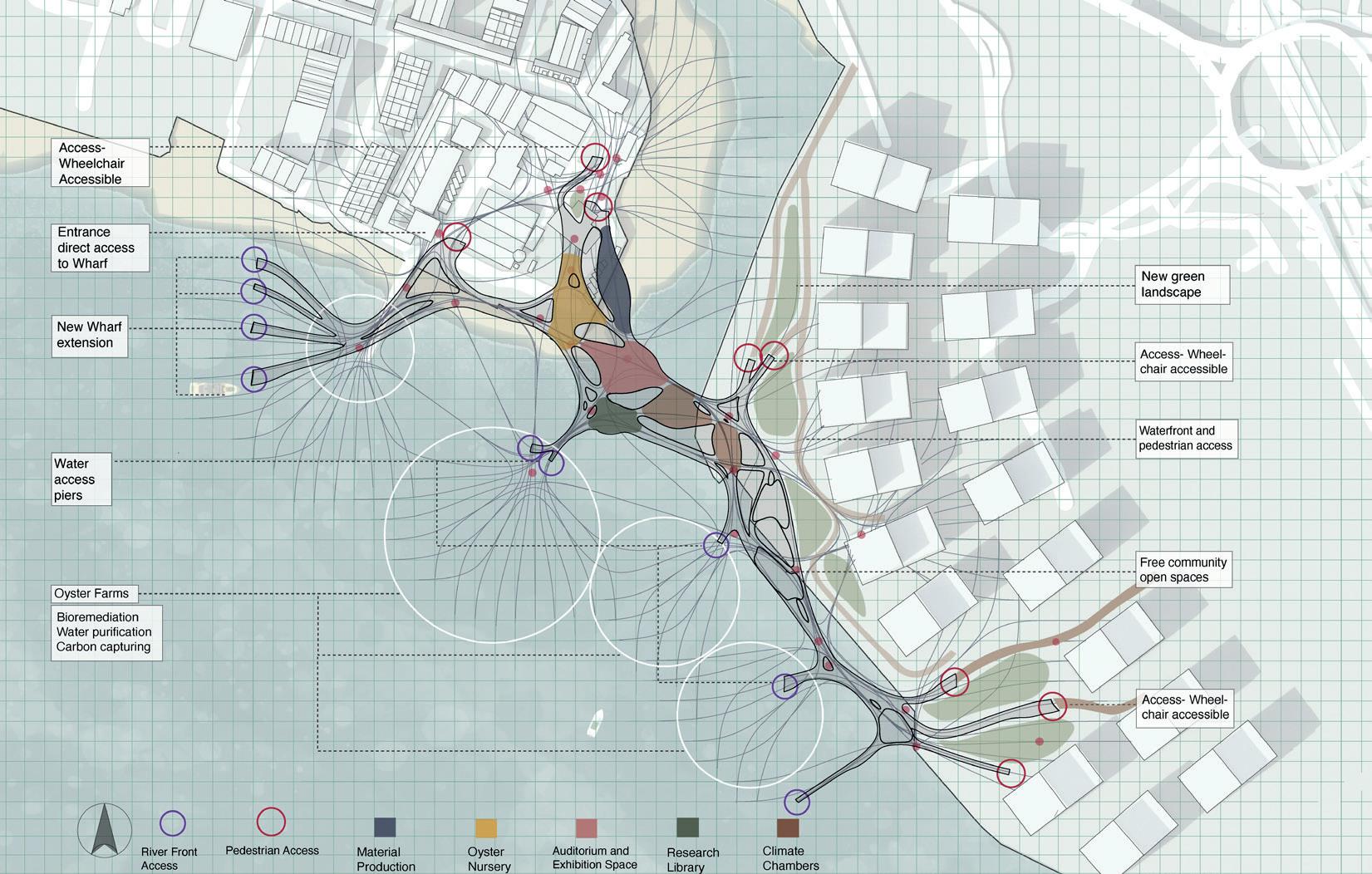

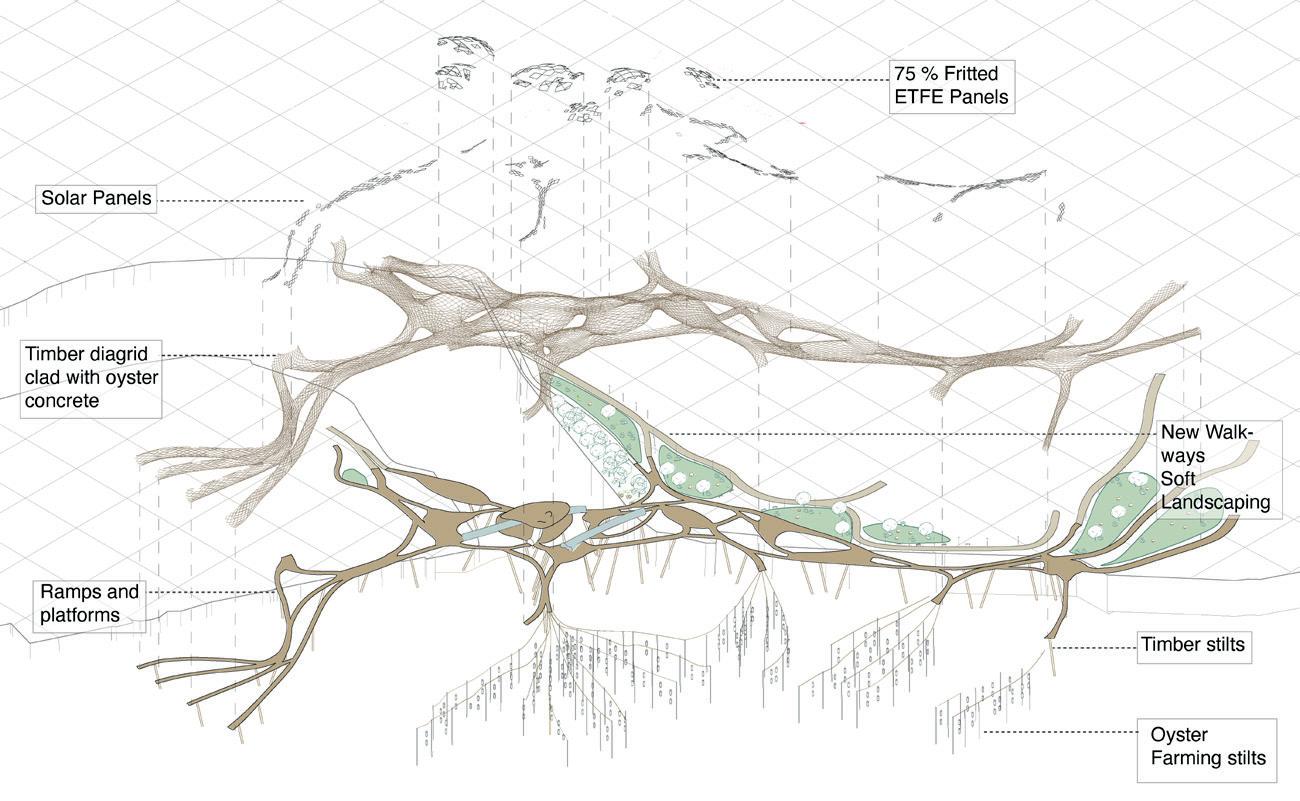

The Institute of Anthropocene Research is a hybrid public building that re-imagines climate action as a combination of sustainable material production, climate research and public realm infrastructure. Inhabited by scientists, circular economy workers, and the local community, the project accommodates an oyster farm for bioremediation and oyster-crete production centre, a series of climate testing chambers and public engagement spaces within a bridge-like structure that spans the River Lea. The timber diagrid structure shell clad with locally made oyster-crete panels is intricately woven into the experimental and artistic legacy of Trinity Buoy Wharf, where Michael Faraday’s pioneering electromagnetic and experimental lens meets a vibrant community of contemporary artists

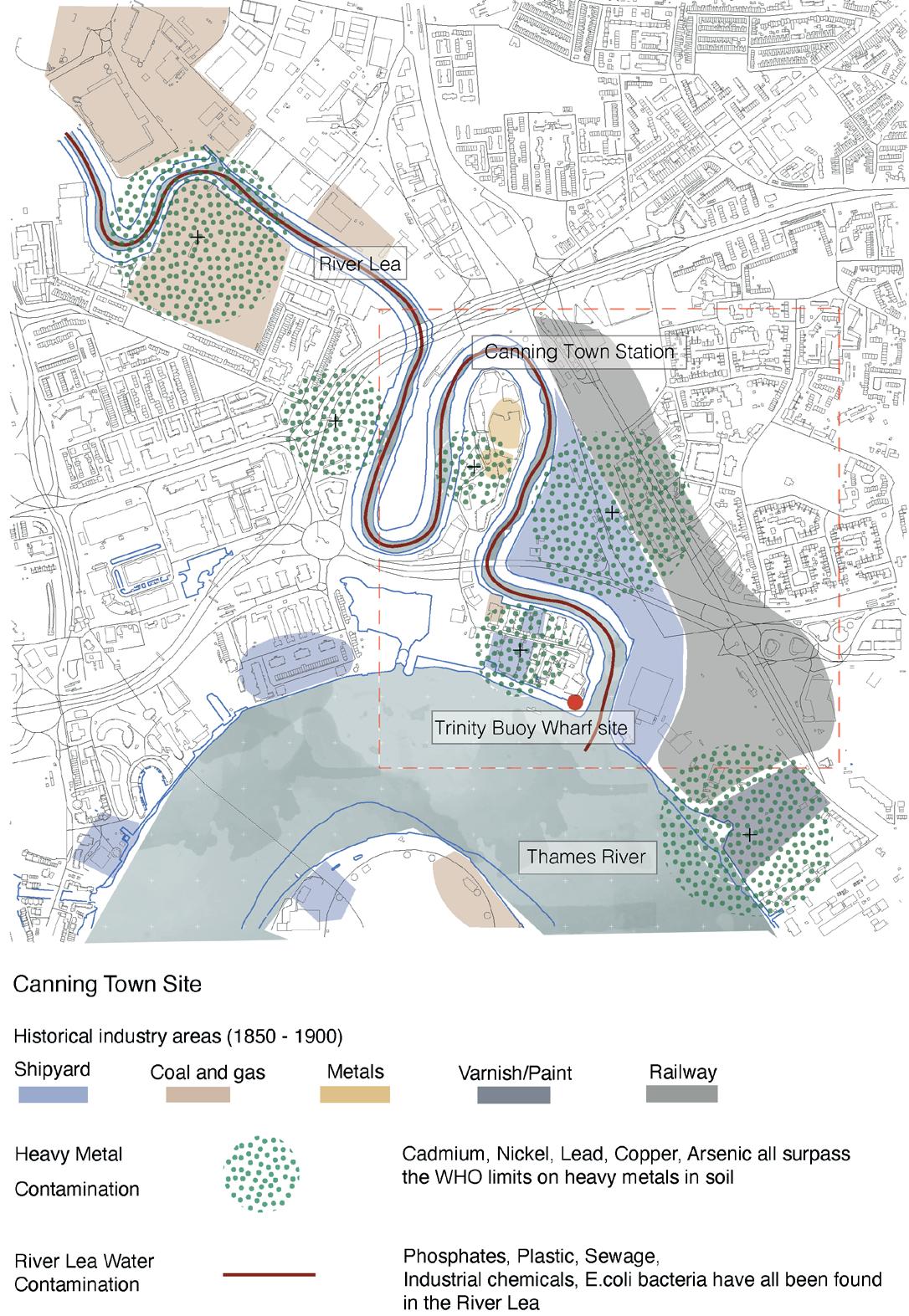

mapping and research

Tidal and flu-vial flooding map

Flooding-risk due to climate change, under RCP 8.5 case scenario on emissions showcasing areas at high risk.

Central to the ethos of the Institute is a commitment to research conducted through a community-centric approach, and a policy advocating accessibility and inclusion for all, access to all and research for all. The proposal and initial design concepts are grounded in thorough environmental and climate research, including studies on heavy metals and rising sea levels. The design addresses future flooding and sea level rise by elevating infrastructure, while also incorporating bioremediation to reduce pollution and activating a blue circular economy.

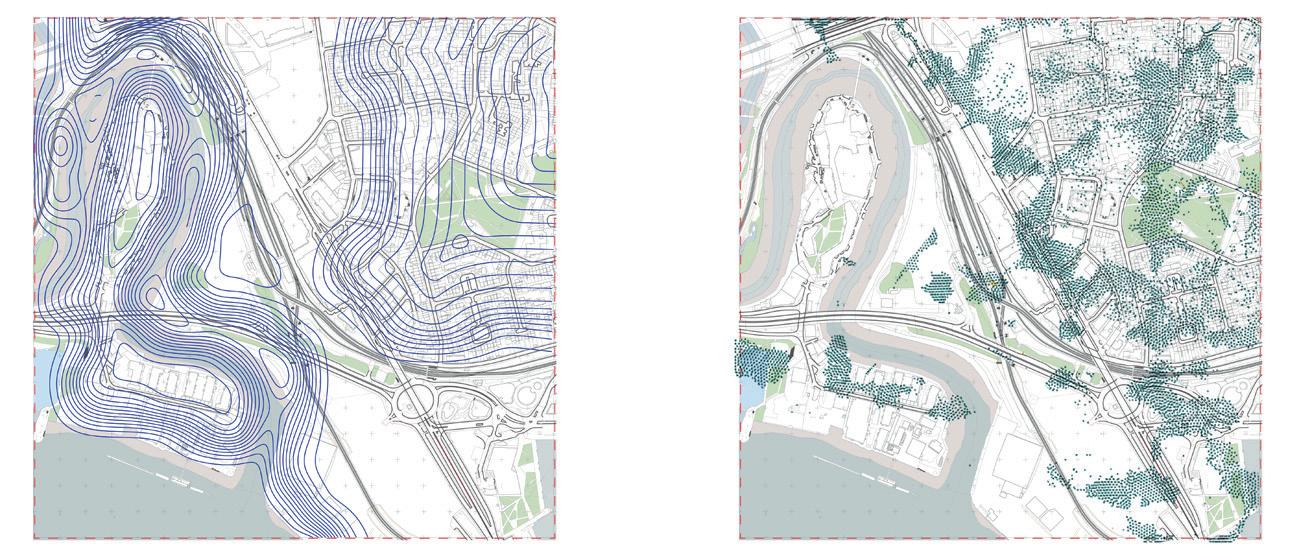

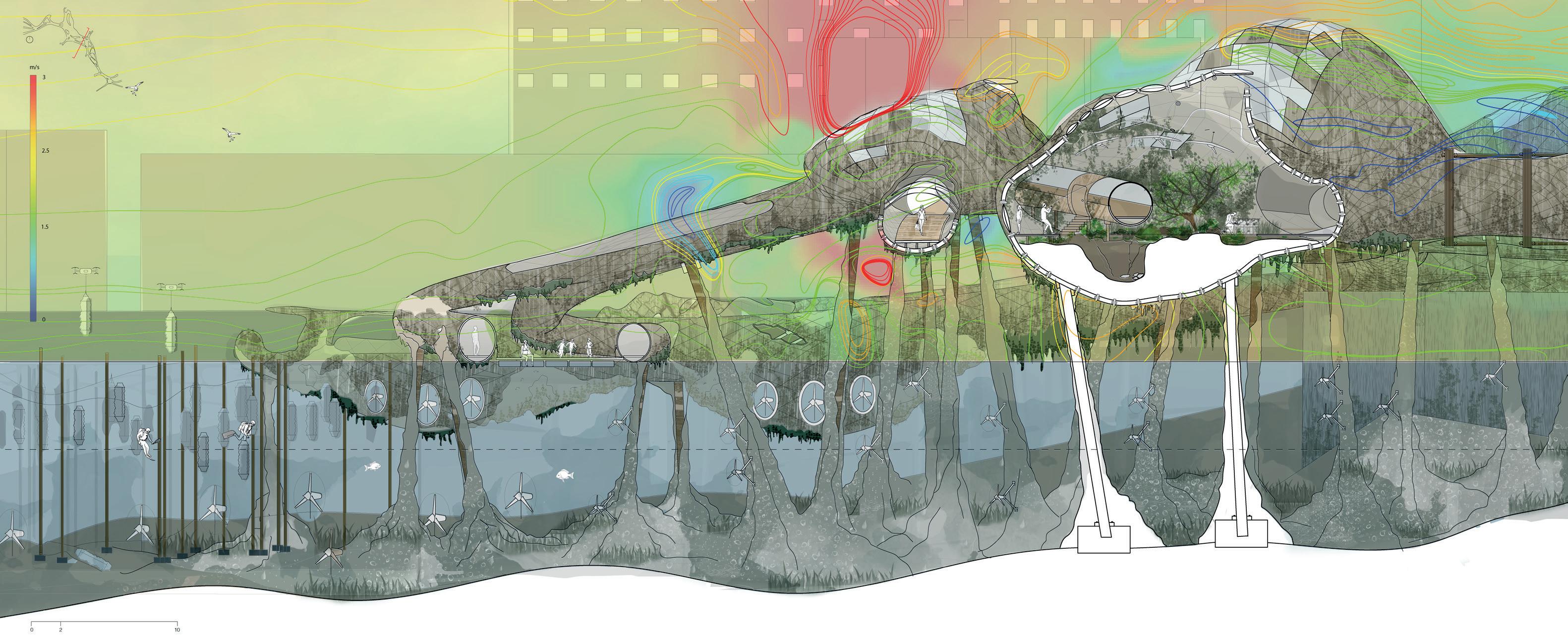

Grasshopper simulation on site showcasing high risk of rainwater accumulation due to site topography

Climate

Rain runoff simulation on site

Key features include a passive climate chamber, resembling a terrarium, designed to test building materials and natural environments. This climate chamber is engineered to simulate accelerated climate change scenarios based on the RCP 8.5 case for 2050 and 2100 by controlling wet bulb temperature. Additionally, the proposal prioritizes accessibility, acting as a bridge between two boroughs while engaging the local community in climate change research.

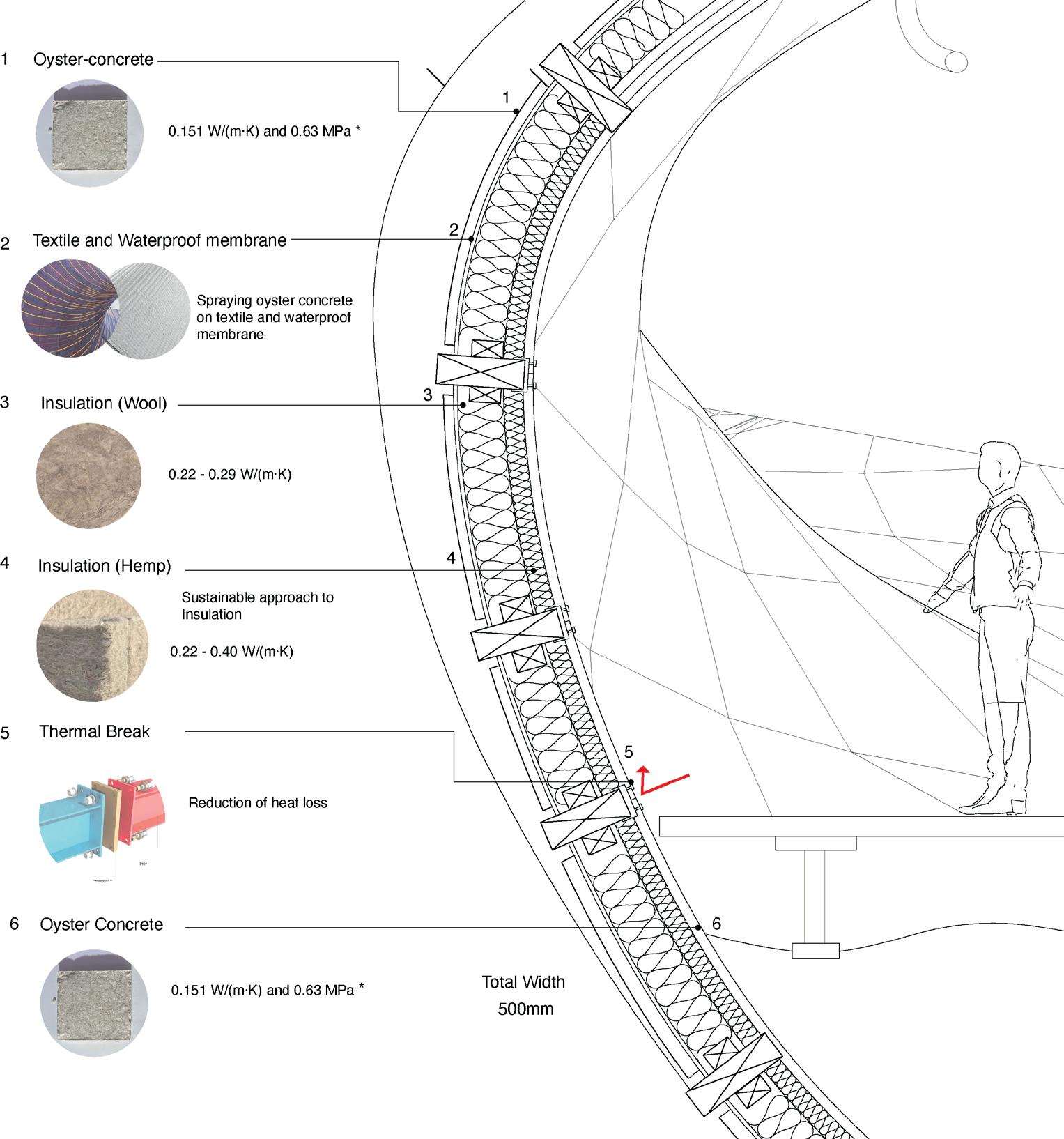

The experimental design prioritizes optimal environmental performance, reducing carbon emissions and enhancing thermal comfort. Despite unconventional elements, such as the absence of traditional flooring and roofing, the achieved UV for walls was (0.1825) and (2.6705) for ETFE roofing, 1.6 for passive openings (custom windows) meeting high standards all simulated through ISEVE. The ETFE panels use 75% fritting with a double-layer, 200 mm air cavity to balance heat mitigation and daylight control. Oyster concrete adds durability, thermal performance, and sound insulation, especially relevant given the site’s proximity to London City Airport.

Dezeen degree show 2023

Second Year: Semester Two Brief: NZEB Marylebone Tower Retrofit Youth Cultural Center and Accomodation

51º31’18’’N 0º09’17’’W

With the collaboration of Nicolas Guillot, Golnar Zofi and Triantafyllia Panagopolou

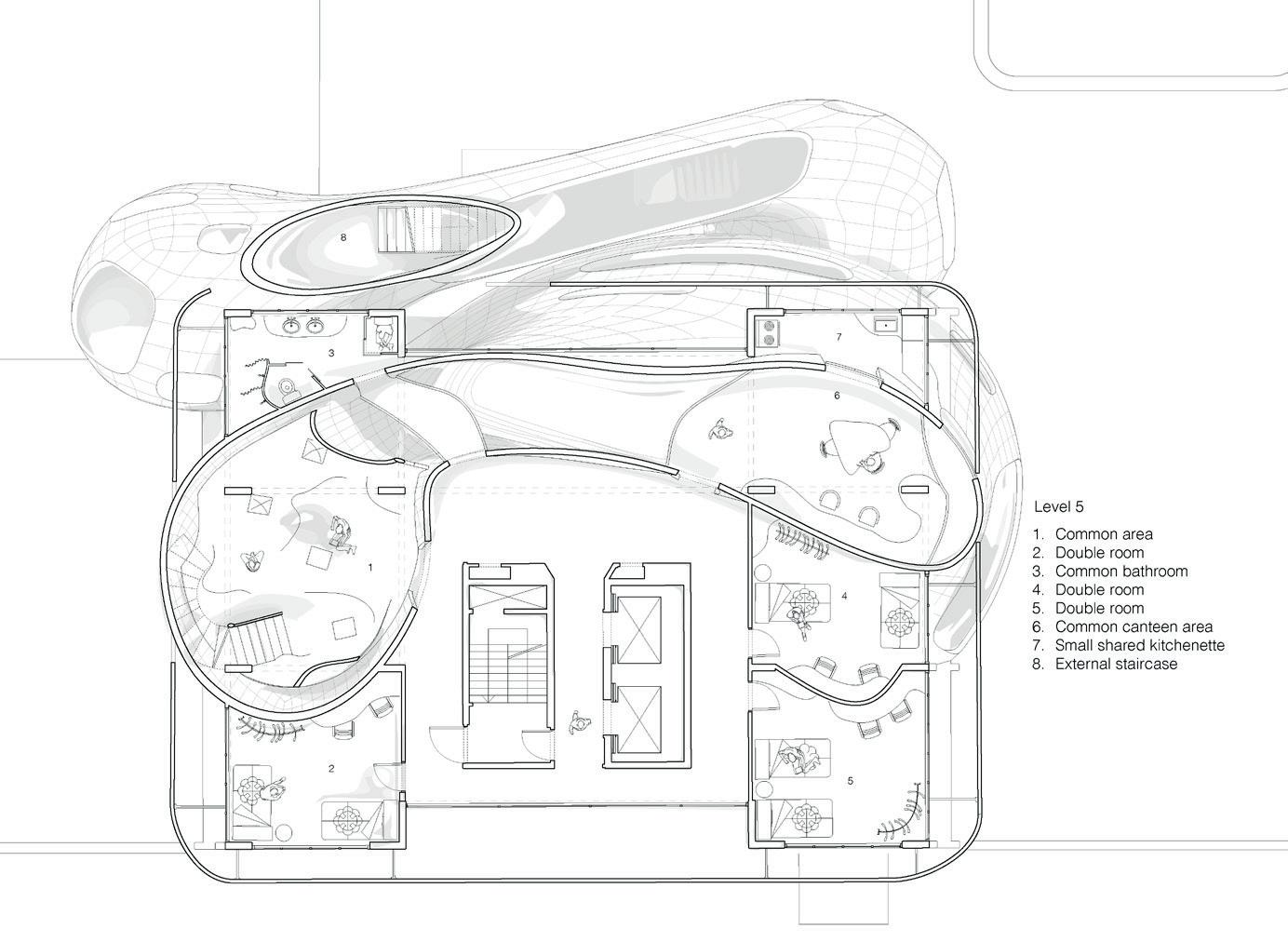

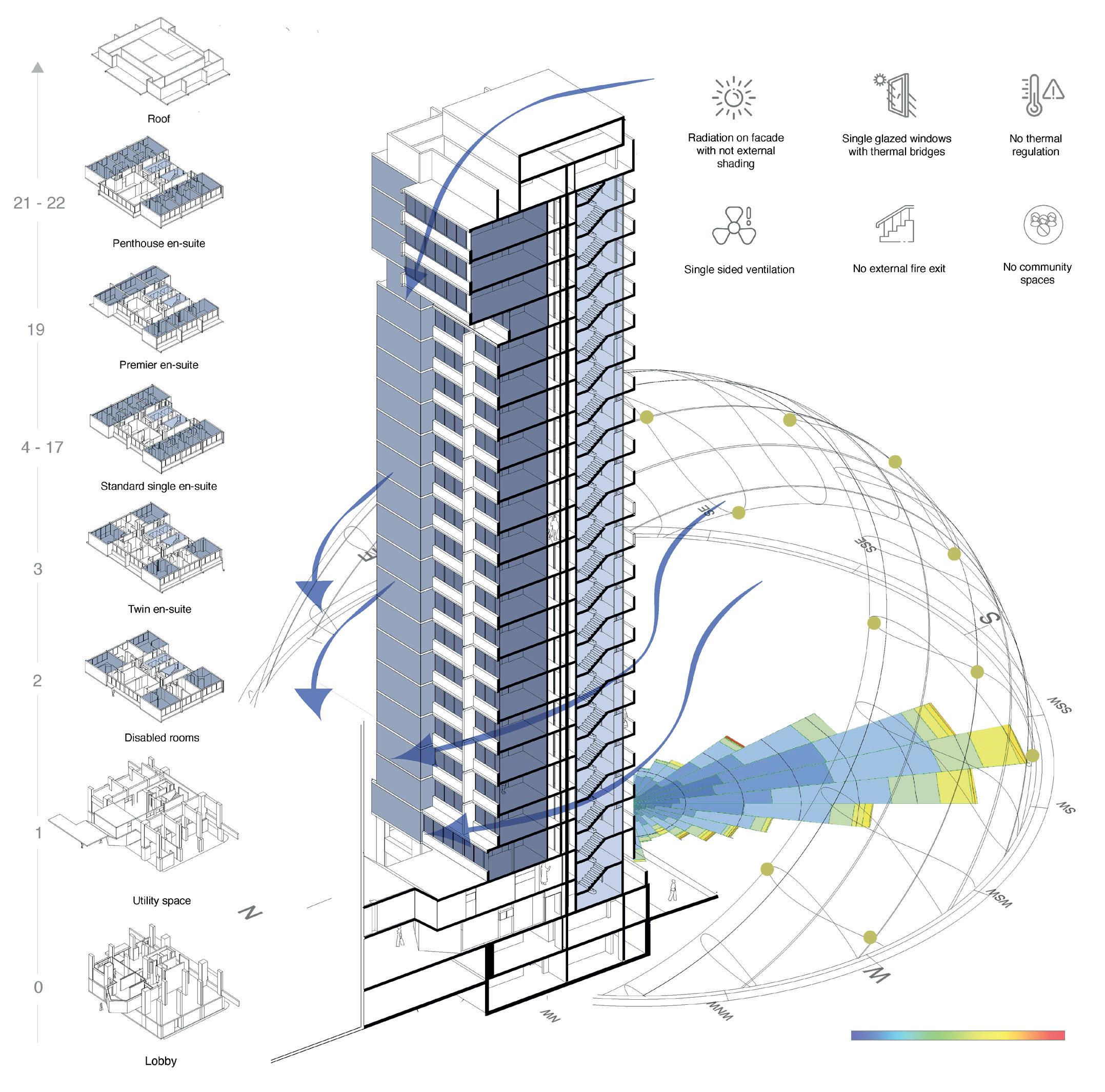

Comparing climate data from 2020 to 2080 shows an increase in radiation, particularly in summer, as well as rising surface temperatures contributing to the urban heat island effect. Wind velocity increases, supporting passive ventilation strategies, while the risk of flooding grows combined with irregular rainfall. Marylebone Tower faces issues like poor thermal regulation and single-sided ventilation, with students reporting discomfort and a lack of community spaces.The proposal combines cultural center, education spaces, places of worship, and student accommodation for 2080, fostering collaboration, mindfulness, and training for young residents. Space arrangements retain elements of the existing building, with kitchens facing north to minimize sun exposure, and rooms positioned east and west for year-round daylight exposure.

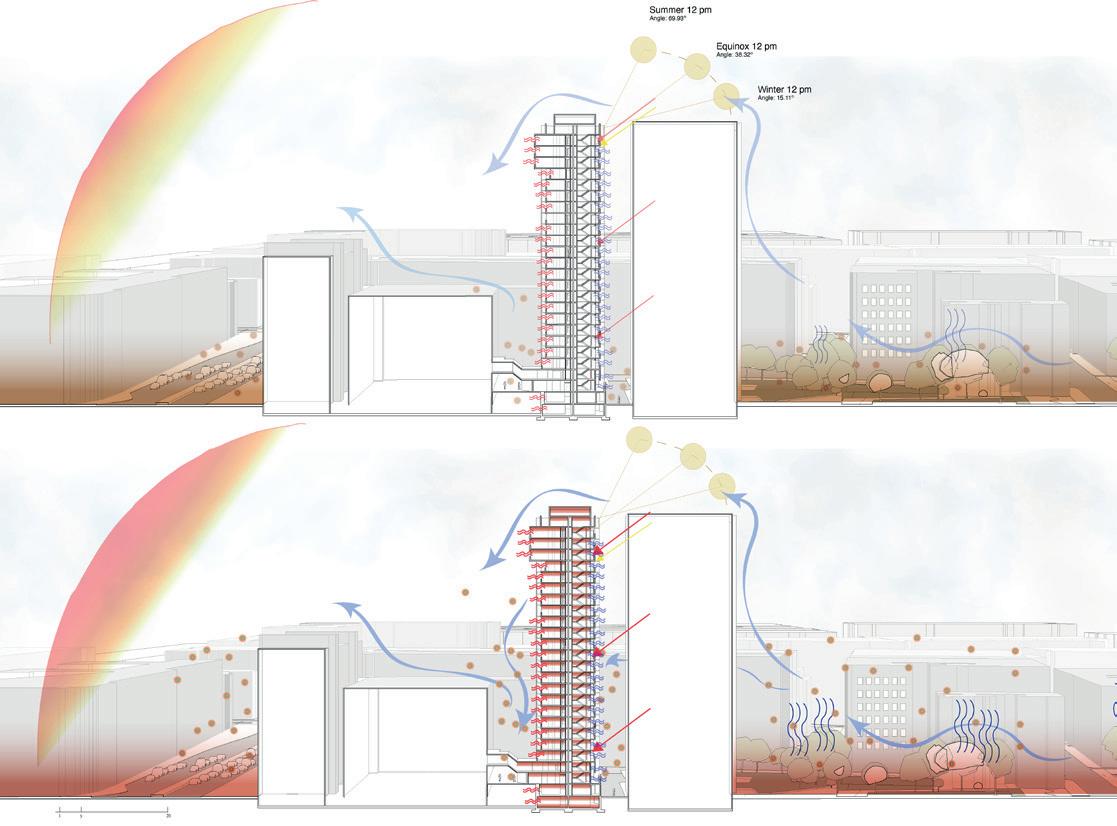

2020 and 2080 Bio-Climatic Urban Sections

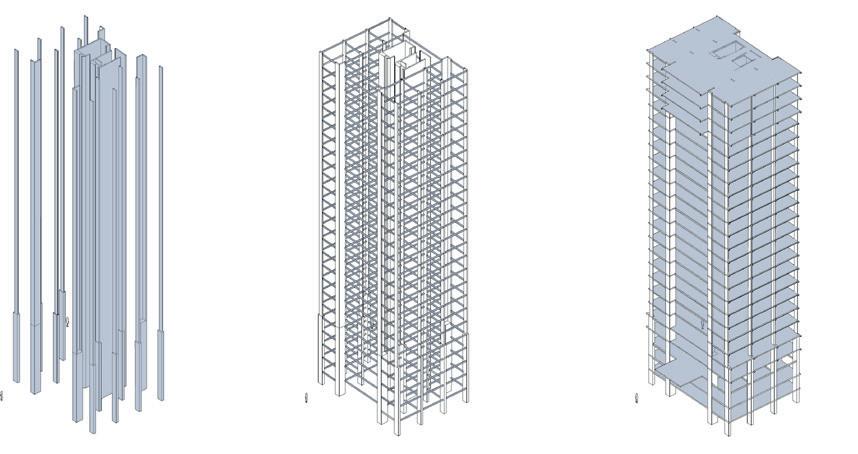

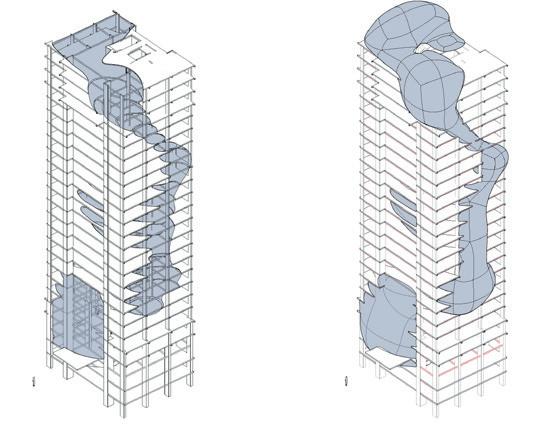

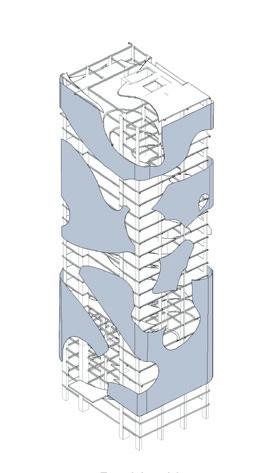

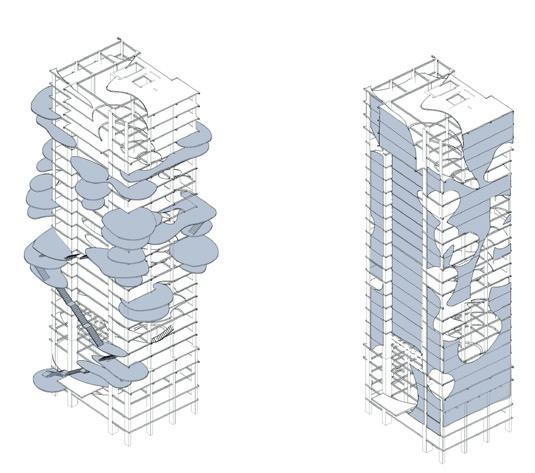

Structural columns

Structural

Bio-Photovoltaic Moss for energy production

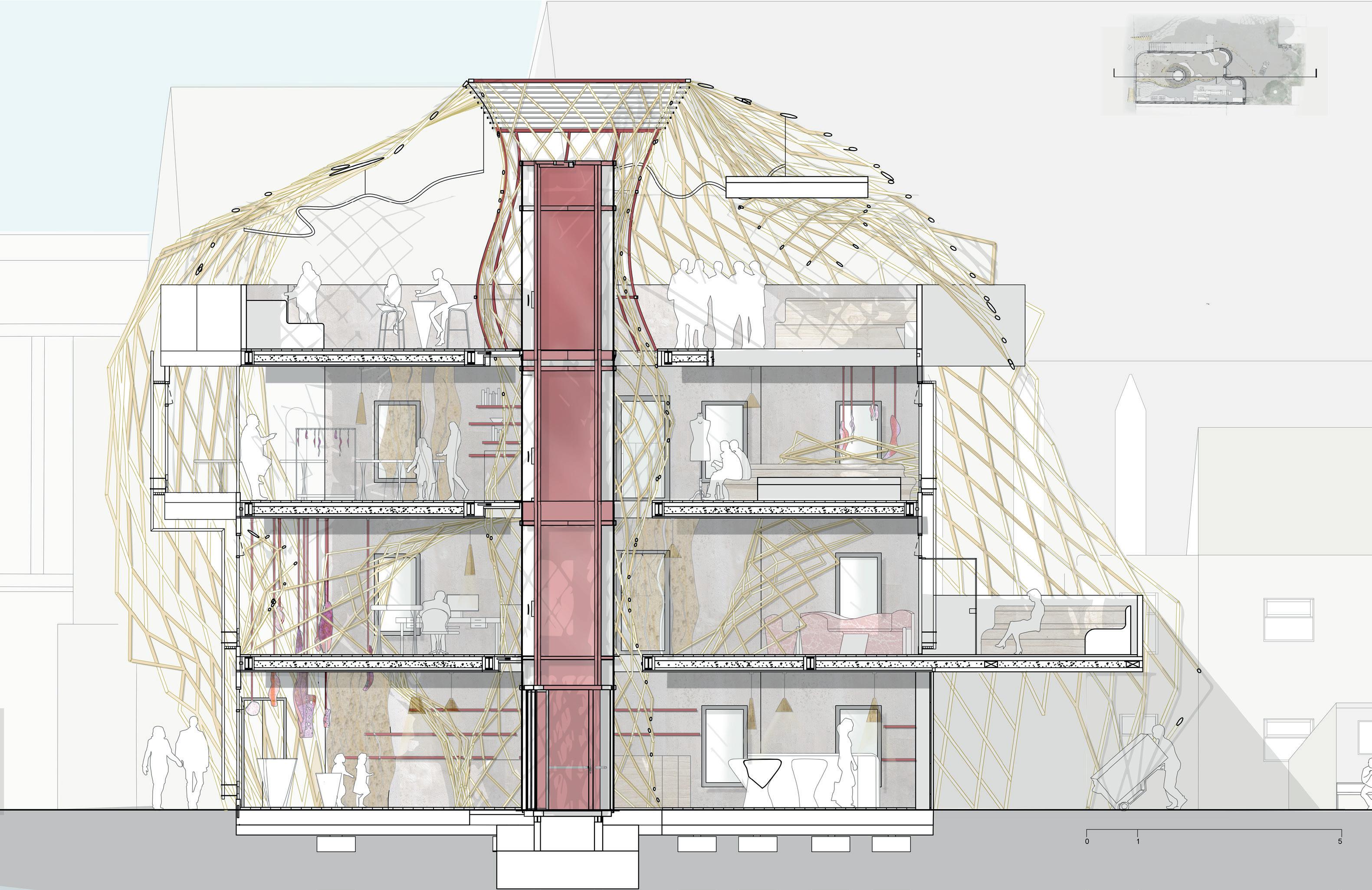

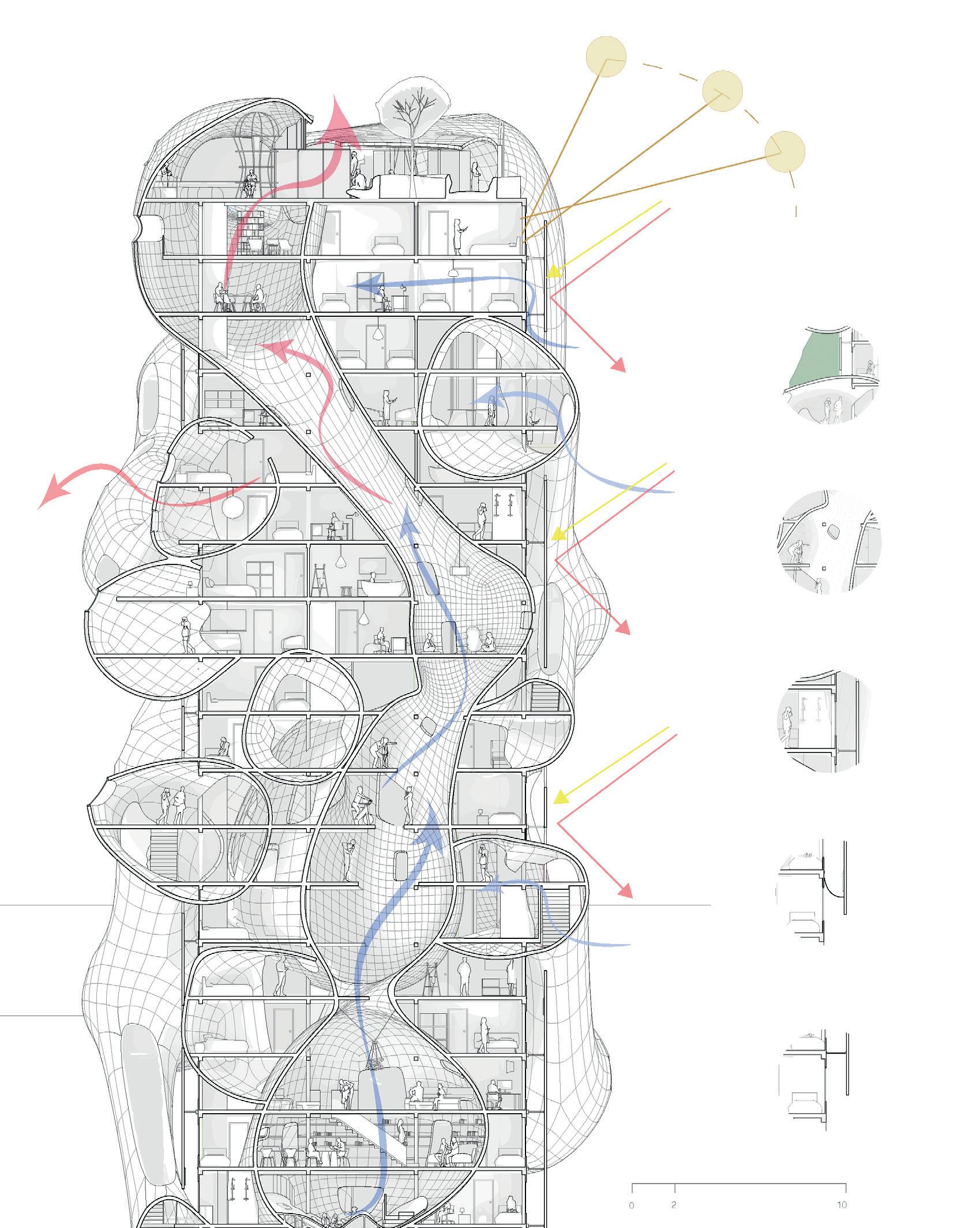

Elysium West Section

Summer Solstice

Equinox Winter Solstice

Diffused light and stack ventilation through atrium

Triple glazed windows

Double skin with louvre Summer

Double skin with louvre Winter

Urban Symbiosis

Second Year: Semester One

Brief: Inhabitable Interface Piccadilly Circus

51º30’37’’N 0º08’05’’W

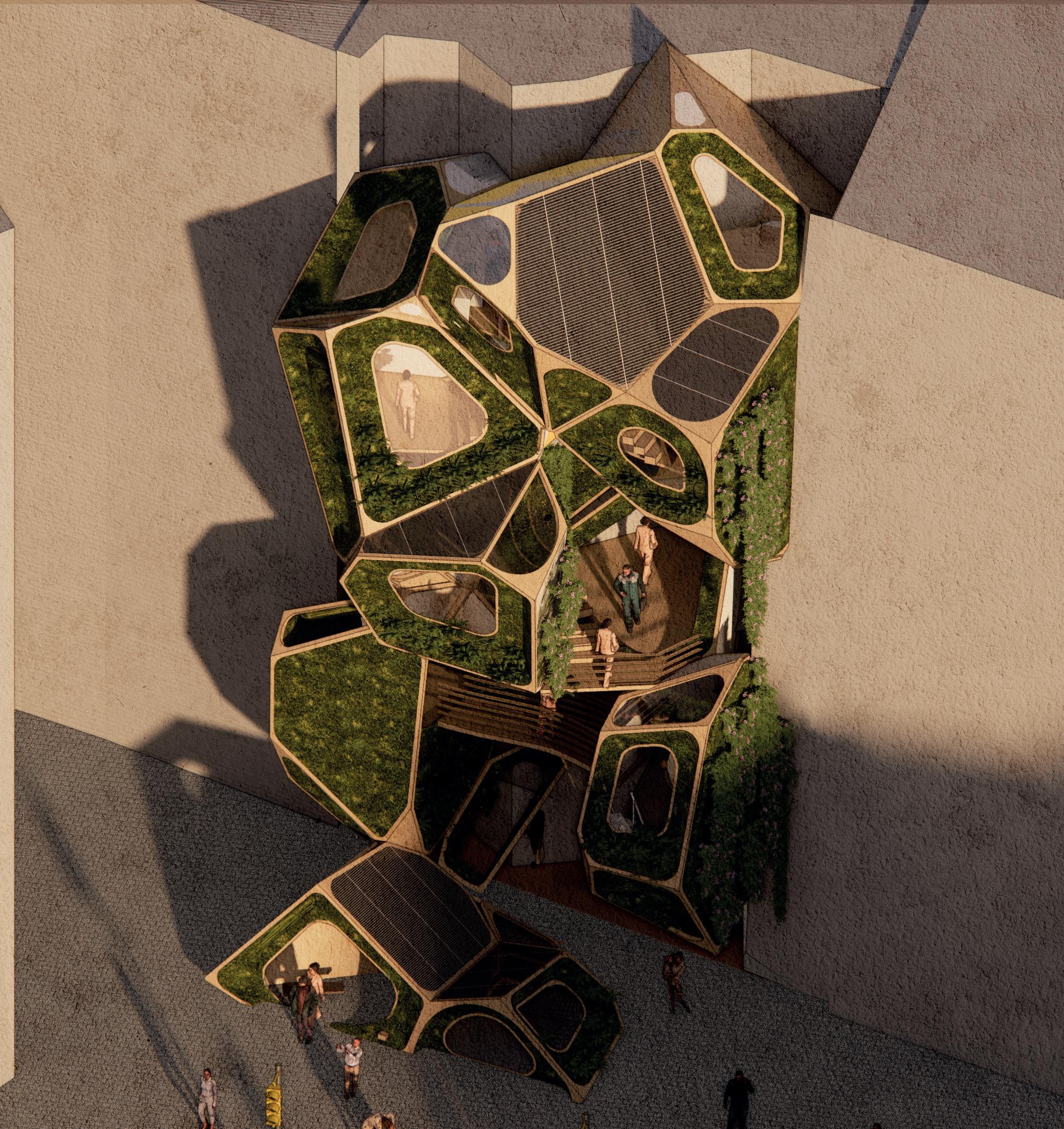

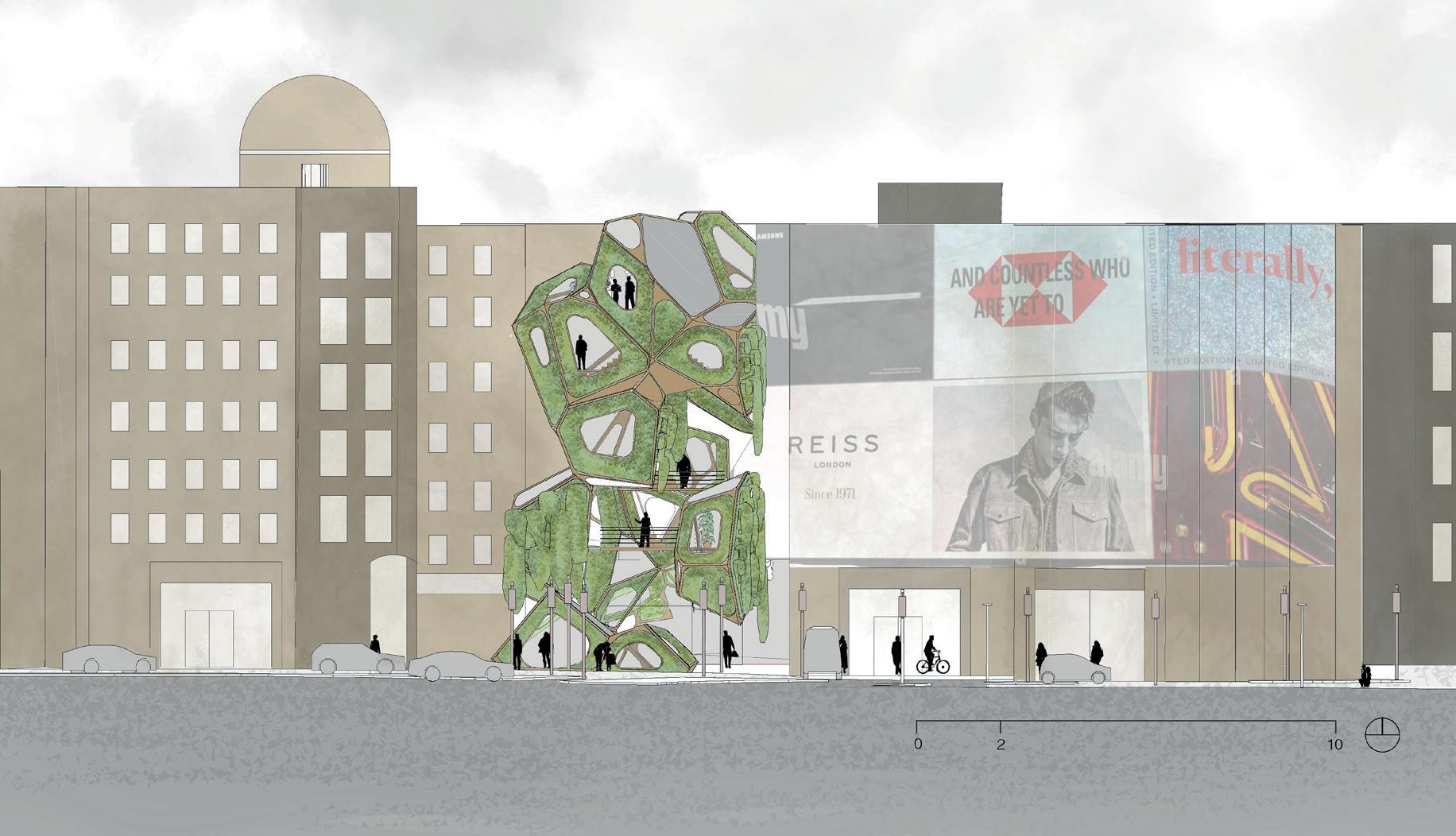

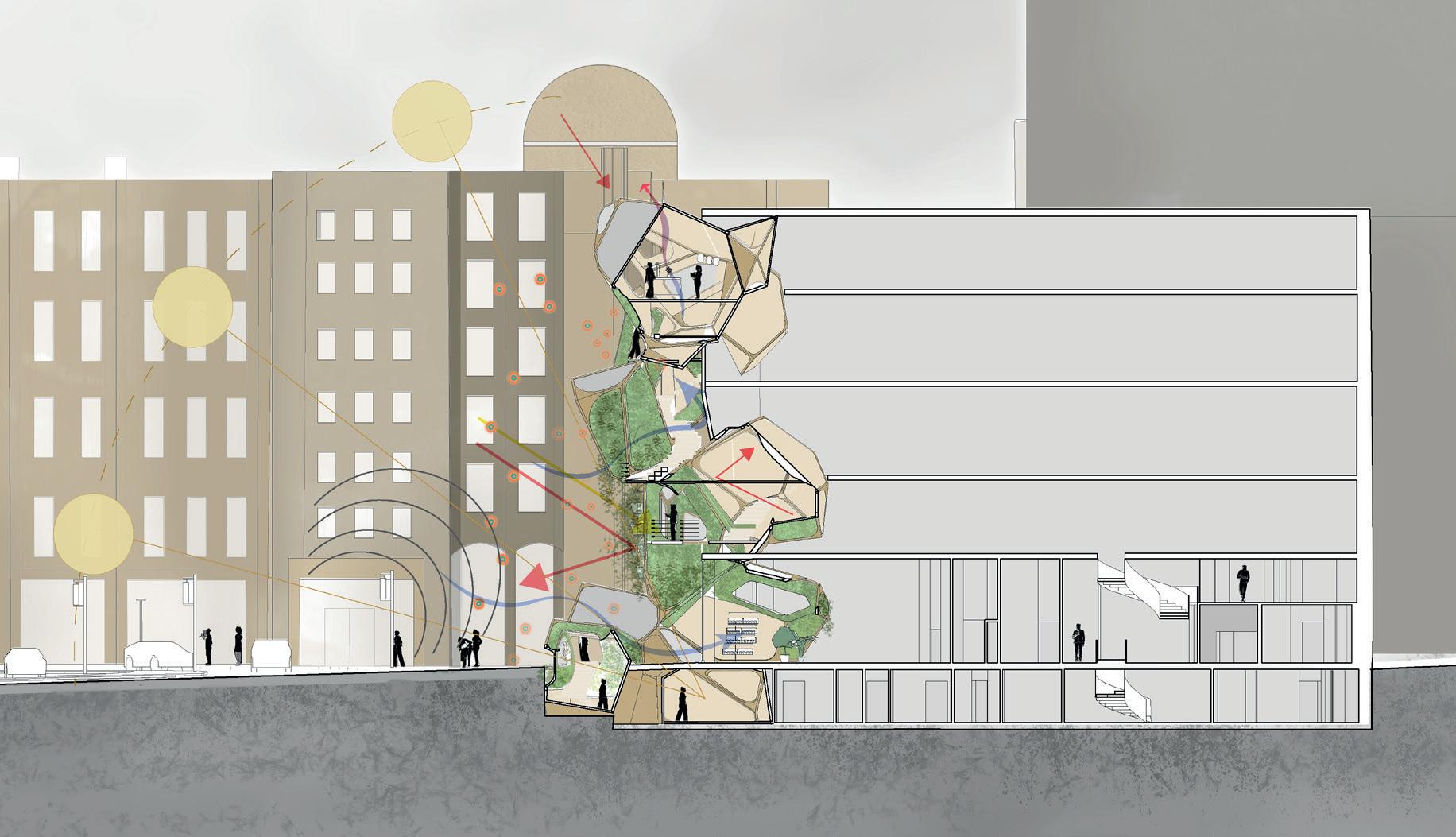

The concept of this inhabitable interface is inspired by symbiotic relationships with nature, addressing air pollution, biodiversity, and sustainable urban farming. With challenges in agriculture, such as soil degradation and climate change, a shift toward urban farming is inevitable. The proposal critiques urban planning models like Ville Radieuse and Garden City, which divided industry, residence, and agriculture, and instead merges these activities for a more integrated, symbiotic relationship. It explores the potential for urban parasitic structures

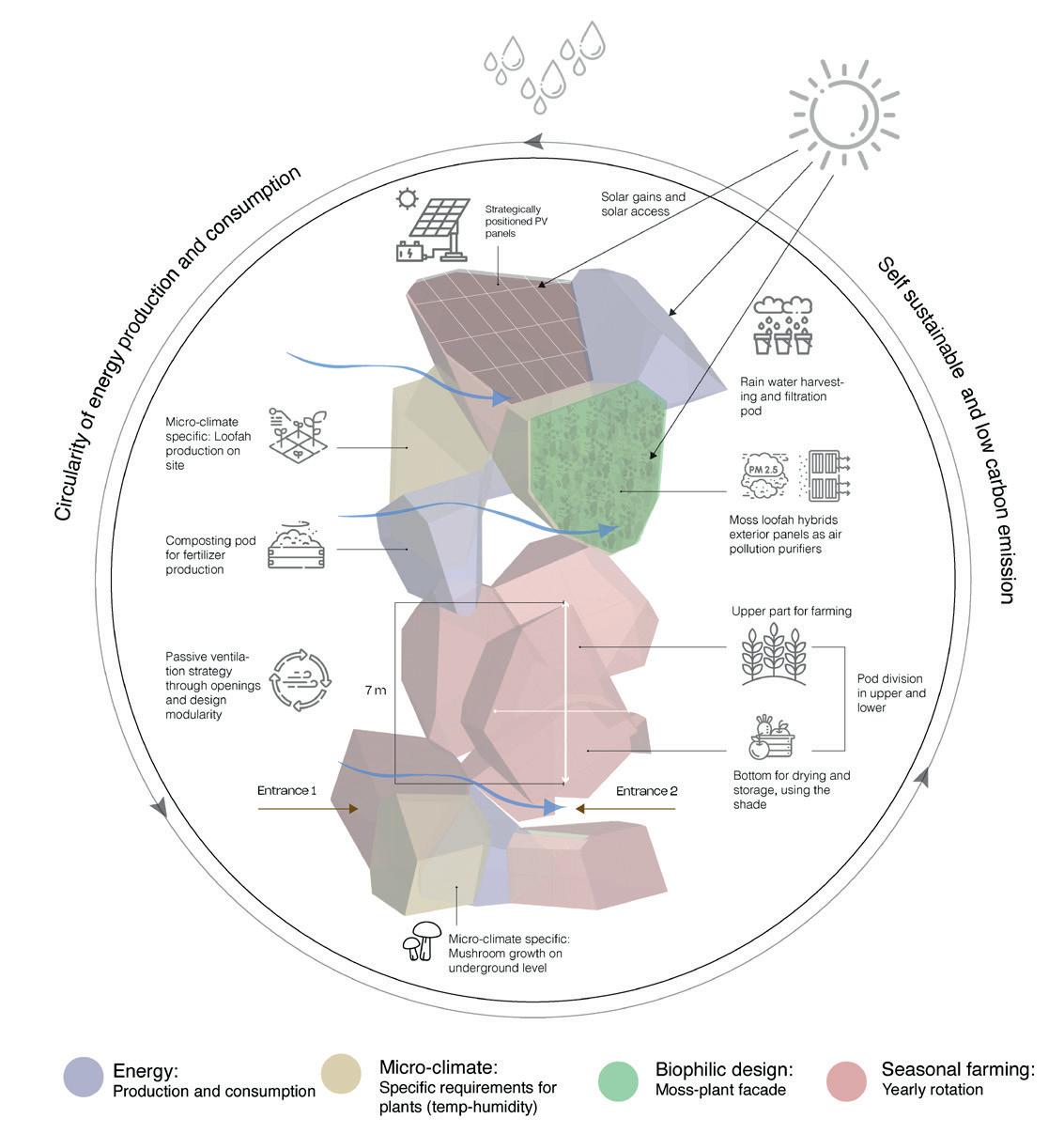

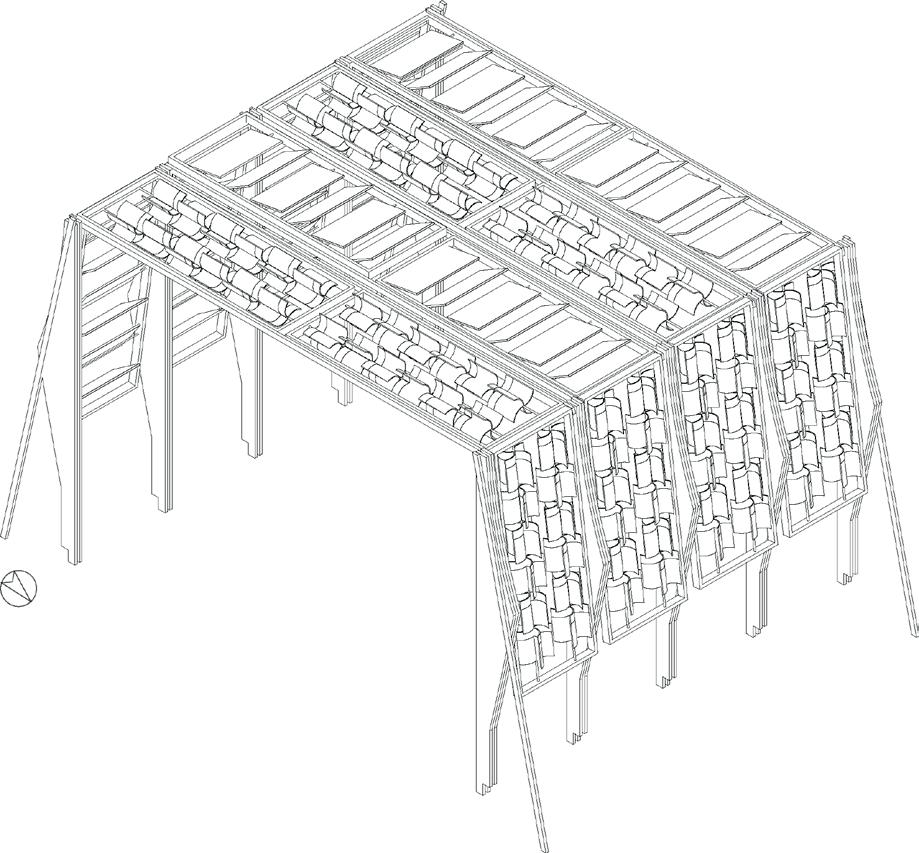

The goal of these parasitic structures is to be self-sustaining, from energy harnessing to consumption. The Voronoi morphology is designed to optimize angles for PV panels while allowing daylight to penetrate the structures. Parasitic facades also create a mix of exposed and sheltered spaces beneficial for plant farming. The geometry provides solar shading in summer and naturally cools interiors. Hybrid loofah/moss panels are incorporated for air particle absorption, while moss also contributes to sound reduction. Openable windows ensure daylight access year-round, keeping heat out in summer and retaining warmth in winter.

Flax insulation with soil and water proof panelling. With an irrigation system for English Ivy

Steel galvanized flooring, allowing for ventilation inside diffused light

Top level for growing, with access to light, (Grown with artificial light) and ventilation. Lower level for storage and shading.

CNC timber with 3D printed metal joints

Open-able glass louvres on top for air ventilation.

Loofah / moss hybrid

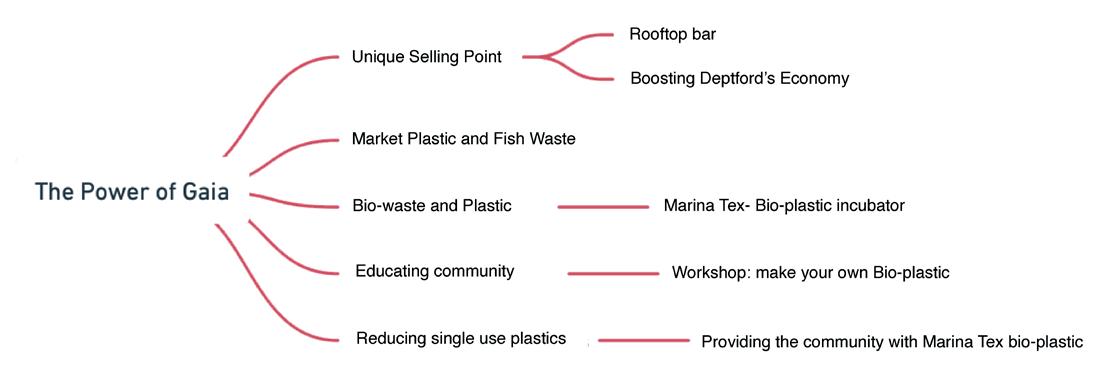

The Power of Gaia

Nomination to RIBA Best student award 2022

First Year: Semester Two Brief: Deptford Environmental Incubator: a sustainable research and development centre

51º28’42’’N 0º01’33’’W

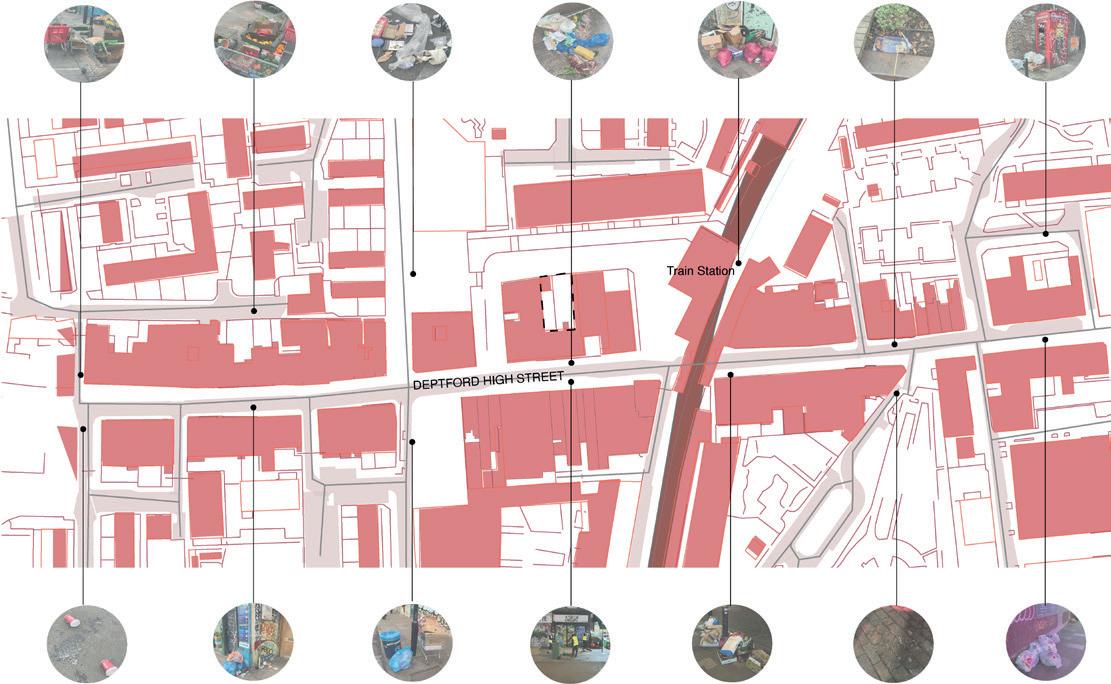

The project’s central concept revolves around self-annihilation, the climate crisis, and the infinite possibilities of the future, drawing inspiration from James Lovelock’s ‘We Belong to Gaia’. It aims to educate, attract users, and highlight the potential of new materials and technologies, all while fostering a circular economy in Deptford and supporting the local community. The design features a bio-plastic production lab (MarinaTex) with a retail space for bio-plastics, an office for MarinaTex, a workshop for creating bio-plastics, and an educational space for children and visitors. A rooftop terrace bar serves as a social hub, attracting new customers.

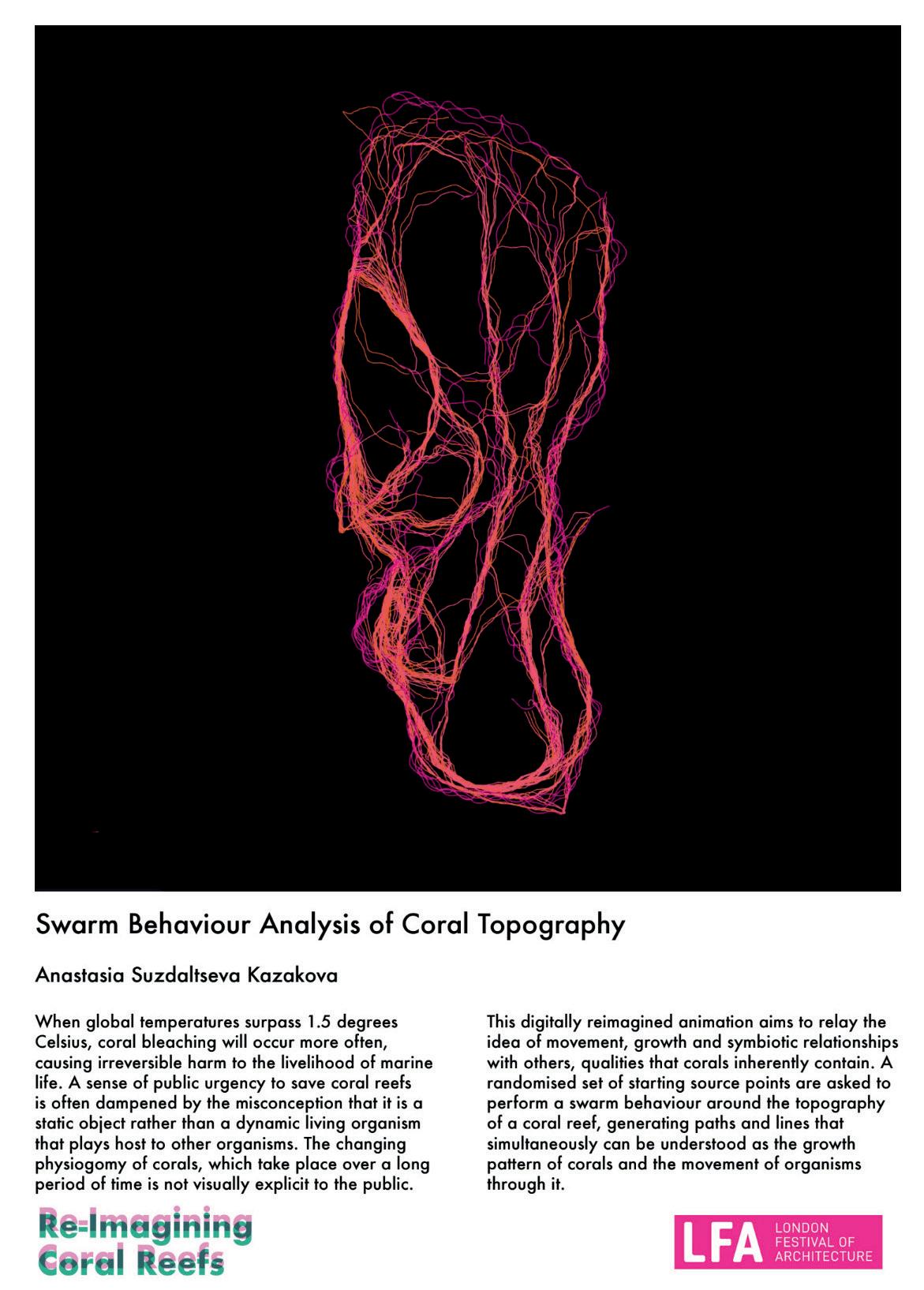

Part of London festival of Architecture 2024: Experimental Lab/Clinic

Continued work for Co-Design Lab

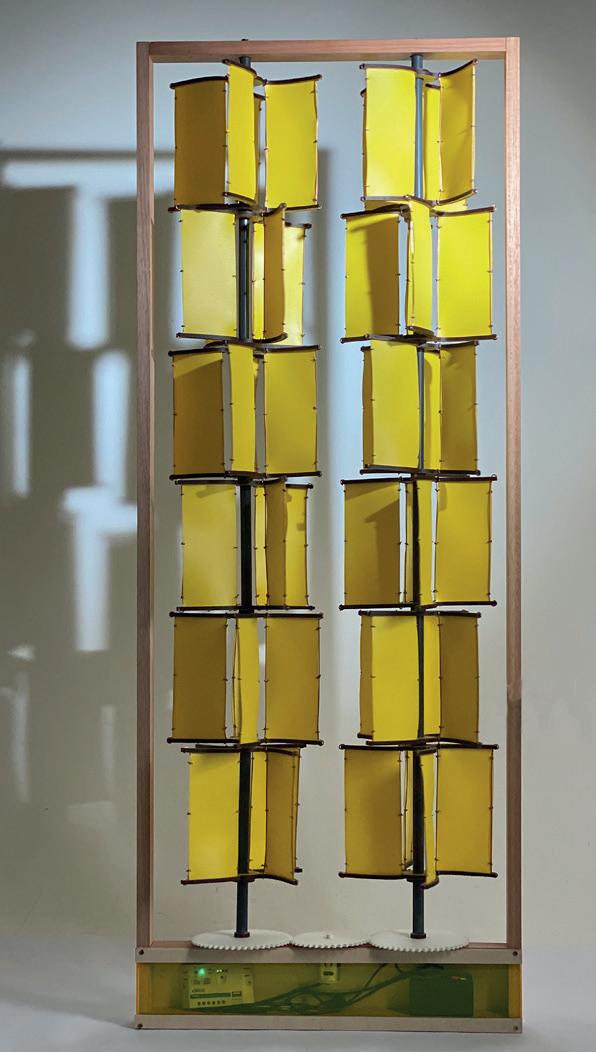

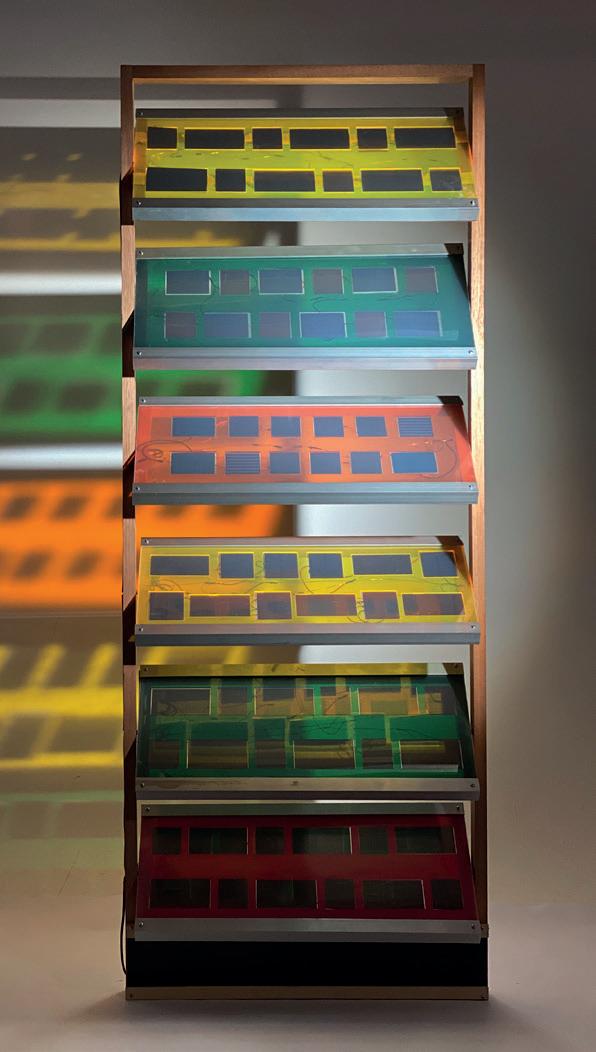

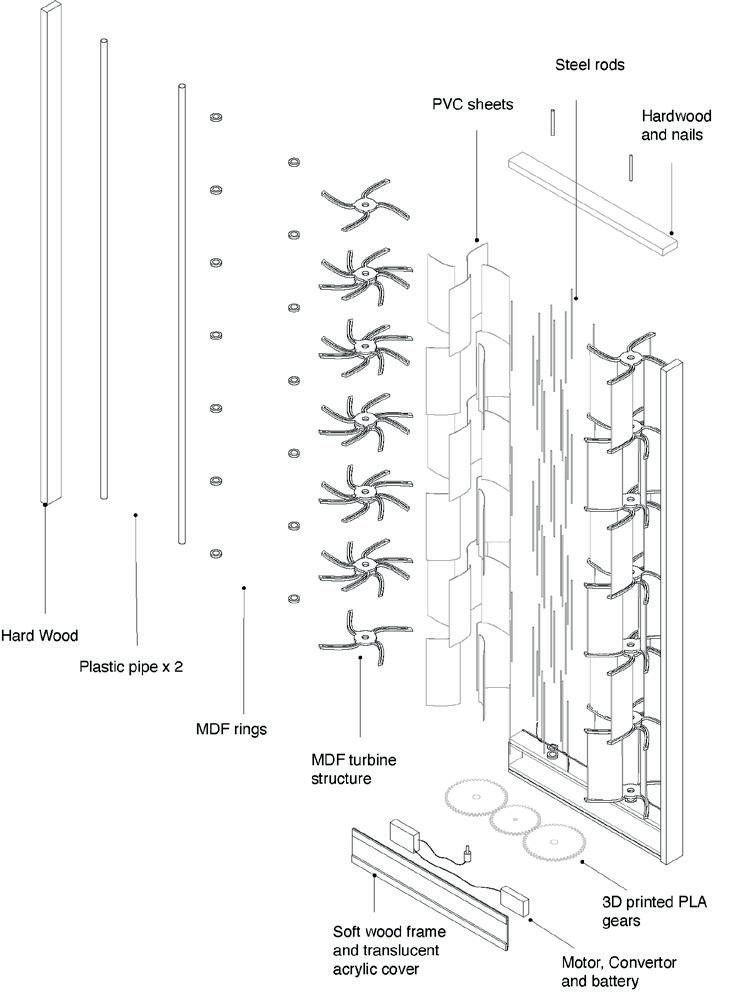

Two fully functional physical prototypes have been designed and made, featuring custom-measured elements. Further performance and fiscal testing is in progress.

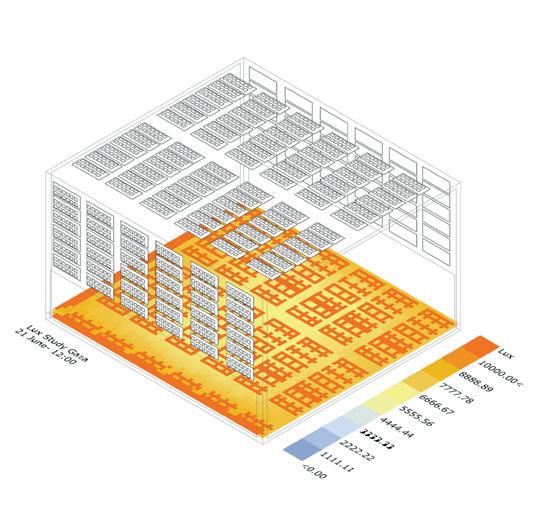

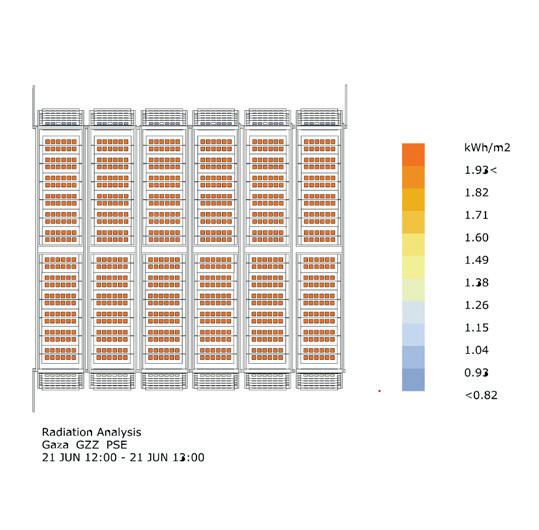

The design demonstrates how structures can deliver primary care in Gaza despite limited resources. Key elements include an environmentally per-formative skin, which integrates PV panels and wind turbines to serve as both energy sources and passive shading systems, creating a self-sustaining, off-grid clinic. Extensive testing, optimization and calculation of this per-formative skin were conducted, encompassing simulations of radiation, daylight, and wind. The design was fine-tuned to meet energy requirements of 3 kWh per day, ensuring the clinic can operate in off-grid conditions where infrastructure is insufficient.
