DESIGN PORTFOLIO
Weston Ellerbrake
Email: WestonEllerbrake@gmail.com
Phone #: 402-853-2871
1
34th STREET QTR.
PROGRAM: Retail/Living
LOCATION: Garden City, ID
YEAR: 2023
Project Architect/Principal: Jeff Hatch
Project Designers: Weston Ellerbrake, George Slaughter
PROPOSAL:
To realize the goal of Garden City to revitalize its city center, two buildings will be built to meet the demand for commerce and living. Building A was designed with respect to the French Quarter’s willingness to address the pedestrian while Building B uses modern architecture motifs to meet the city’s desire to see a contemporary aesthetic represented on their streets.
2

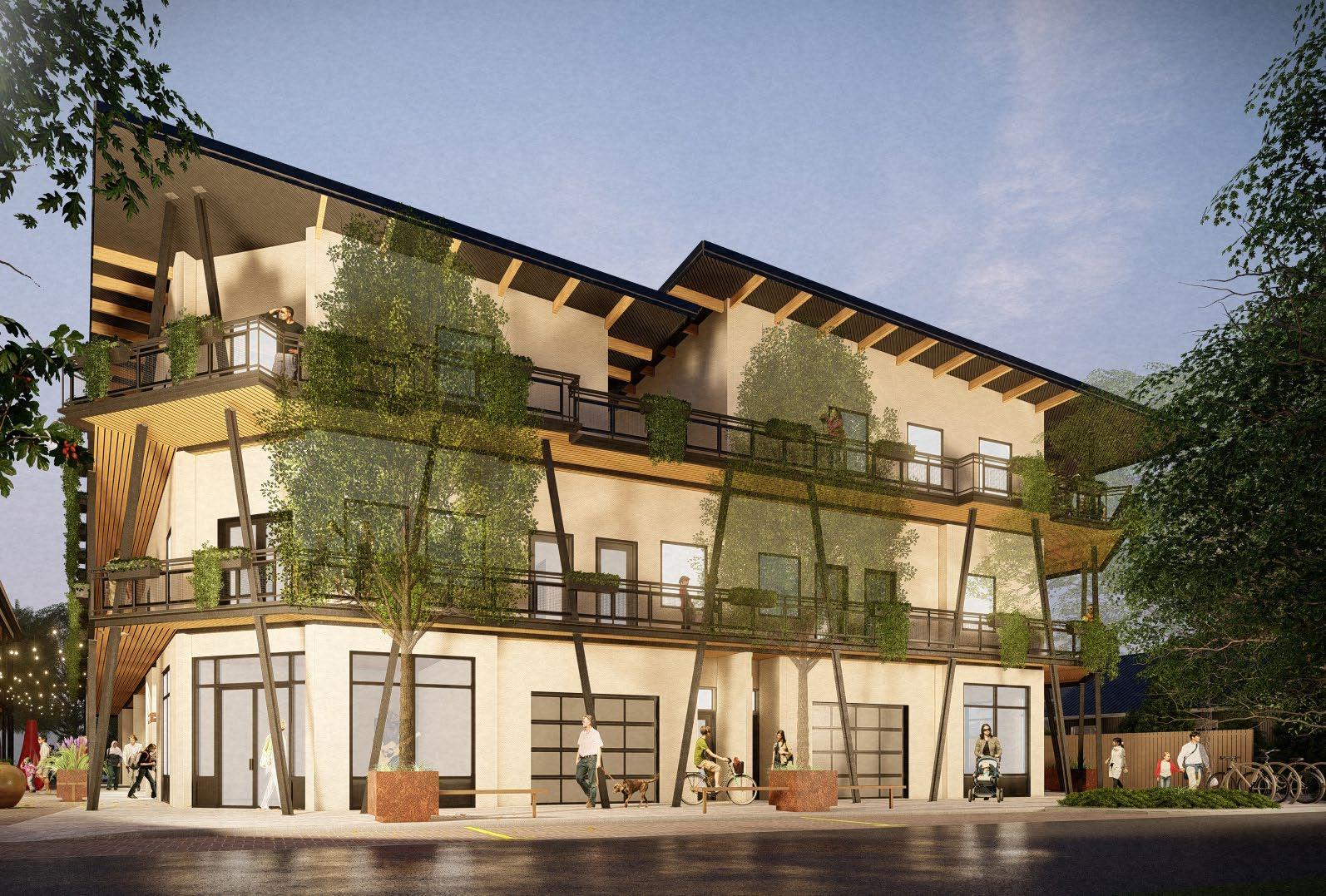

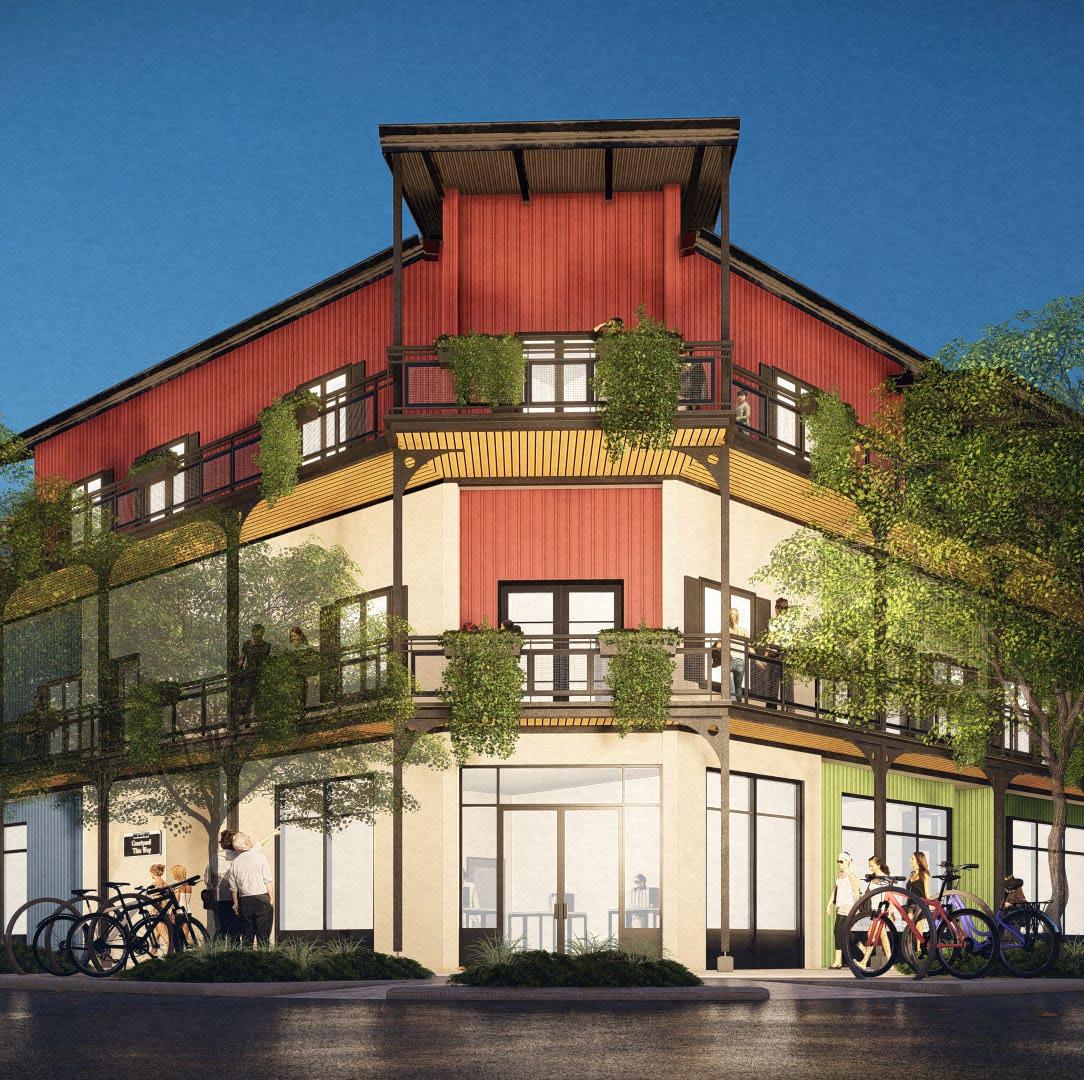

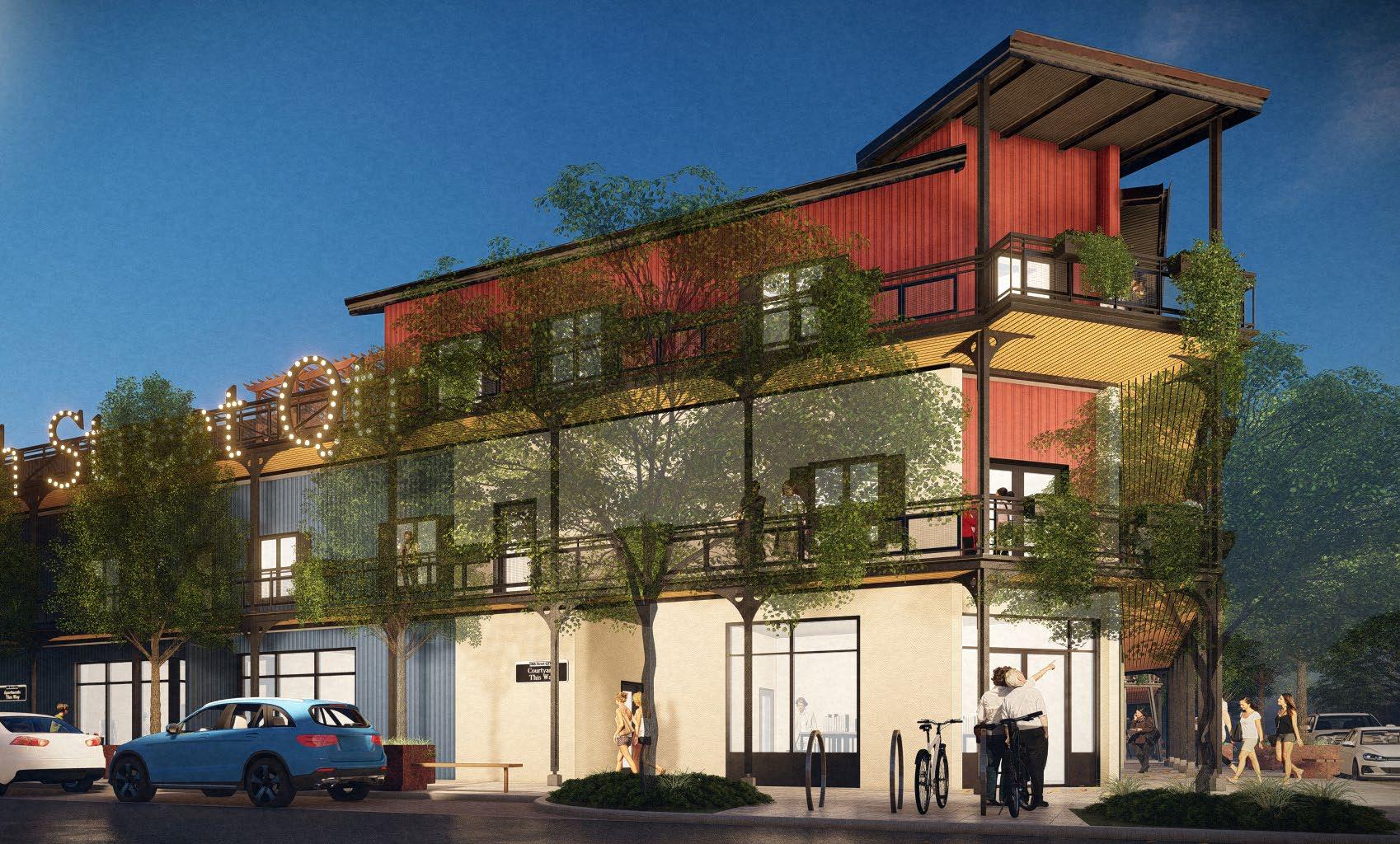

BUILDING A - EXTERIOR RENDERING RENDER BY WESTON ELLERBRAKE
3
BUILDING B - EXTERIOR RENDERING
RENDER BY WESTON ELLERBRAKE
BUILDINGA - EXTERIOR RENDERING
RENDER BY WESTON ELLERBRAKE
THE FIELD THEATER
PROGRAM: Black Box Theater
LOCATION: Boise, ID
YEAR: Fall 2022
TEAM: Weston Ellerbrake
PROPOSAL:
The Field Theater is designed with the idea of the building being secondary to the site and that site is the most important object within this situation. To explore that guests must walk through a field of light columns and find their way upwards to a building above them.
4

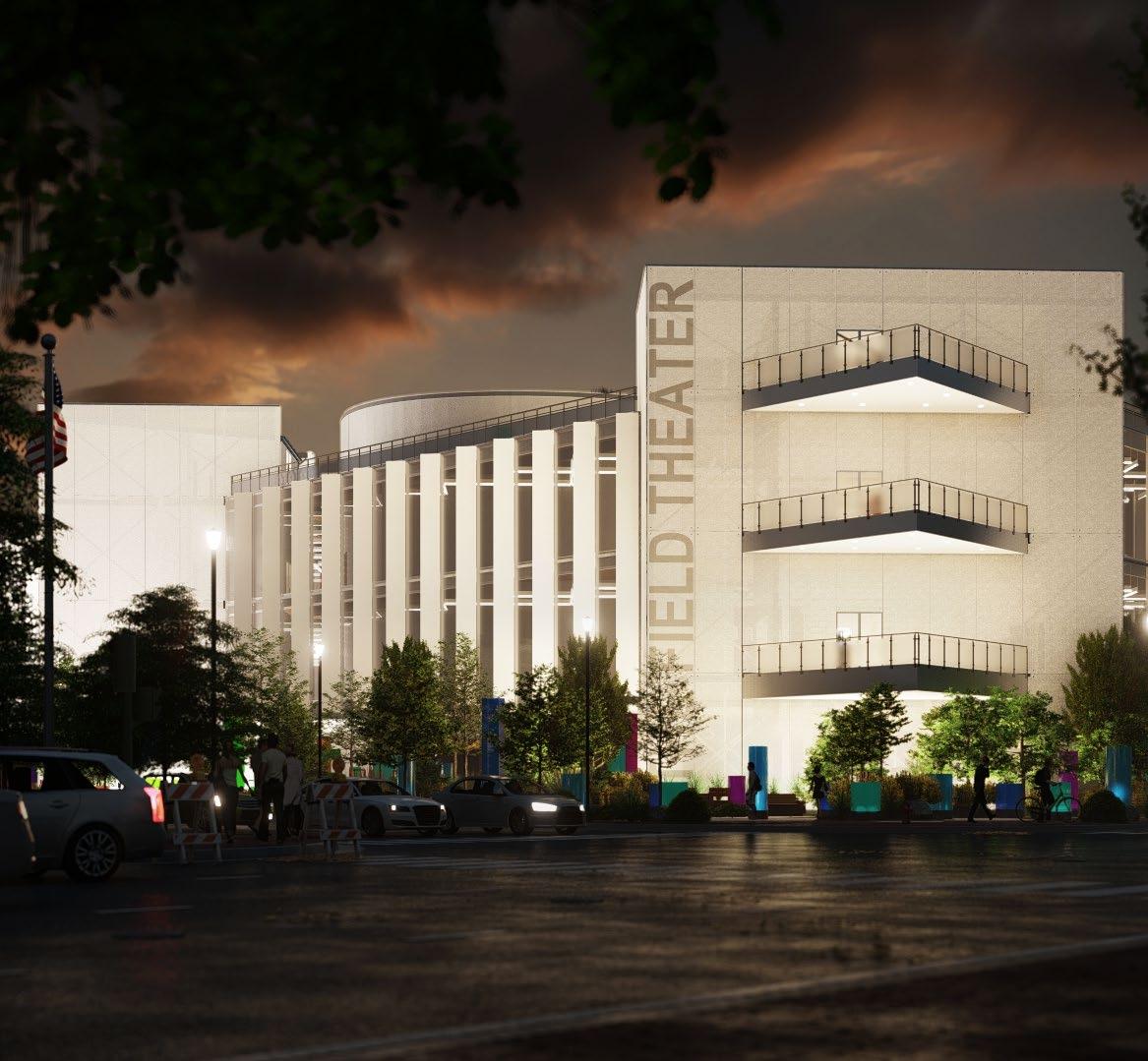

EXTERIOR STREET RENDER
5

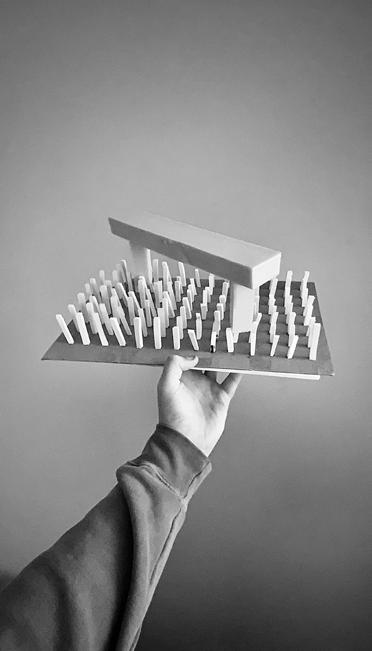

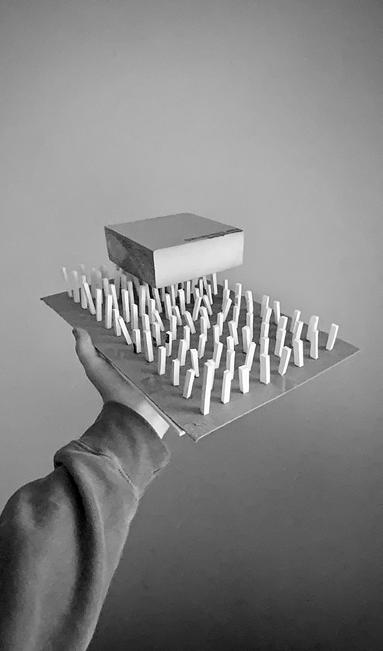

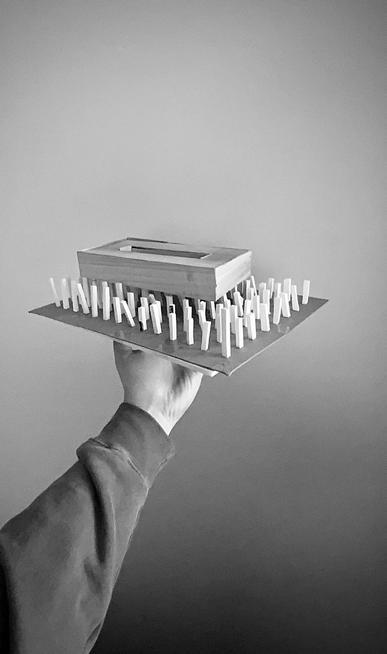

MODELS 06 06 08 08 10 10 11 11 12 12 13 13 H H G G F F E D D C C B B A A 01 01 03 03 14 14 15 15 16 16 17 17 18 18 BACKSTAGE THEATER CAFETERIA STORE COAT CHECK WOMENS RESTROOM MENS RESTROOM EXHIBITION WAITING AREA BALCONY LOBBY 1 A126 1 A126 A124 A124 BALCONY 1 A129 2HR 1HR 2HR EGRESS EGRESS 46' - 8" 102' - 1" 84' - 1"ELEVATOR ELEVATOR STAIRWELL STAIRWELL STAIRWELL SCALE: N 1/8" = 1'-0"
1 - FLOOR PLAN GROUND FLOOR PLAN LEVEL 1 FLOOR PLAN ALLEY HOTEL HOTEL HOTEL OFFICE OFFICE OFFICE WAREHOUSE WAREHOUSE WAREHOUSE BREWERY WAREHOUSE OFFICE MUSEUM WEST MYRTLE STREET NORTH CAPITOL BLVD. WEST FULTON STREET 9am 12pm 5pm n s e w SCALE: N 3/64" = 1'-0"
CONCEPT
LEVEL
SITE PLAN

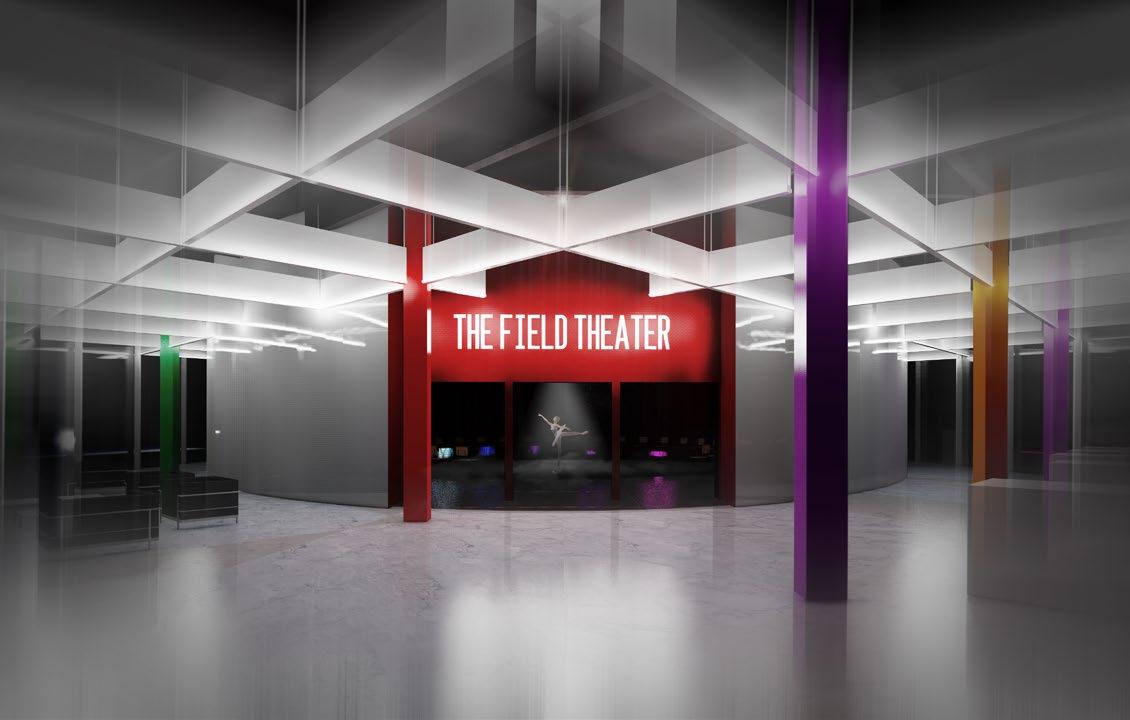

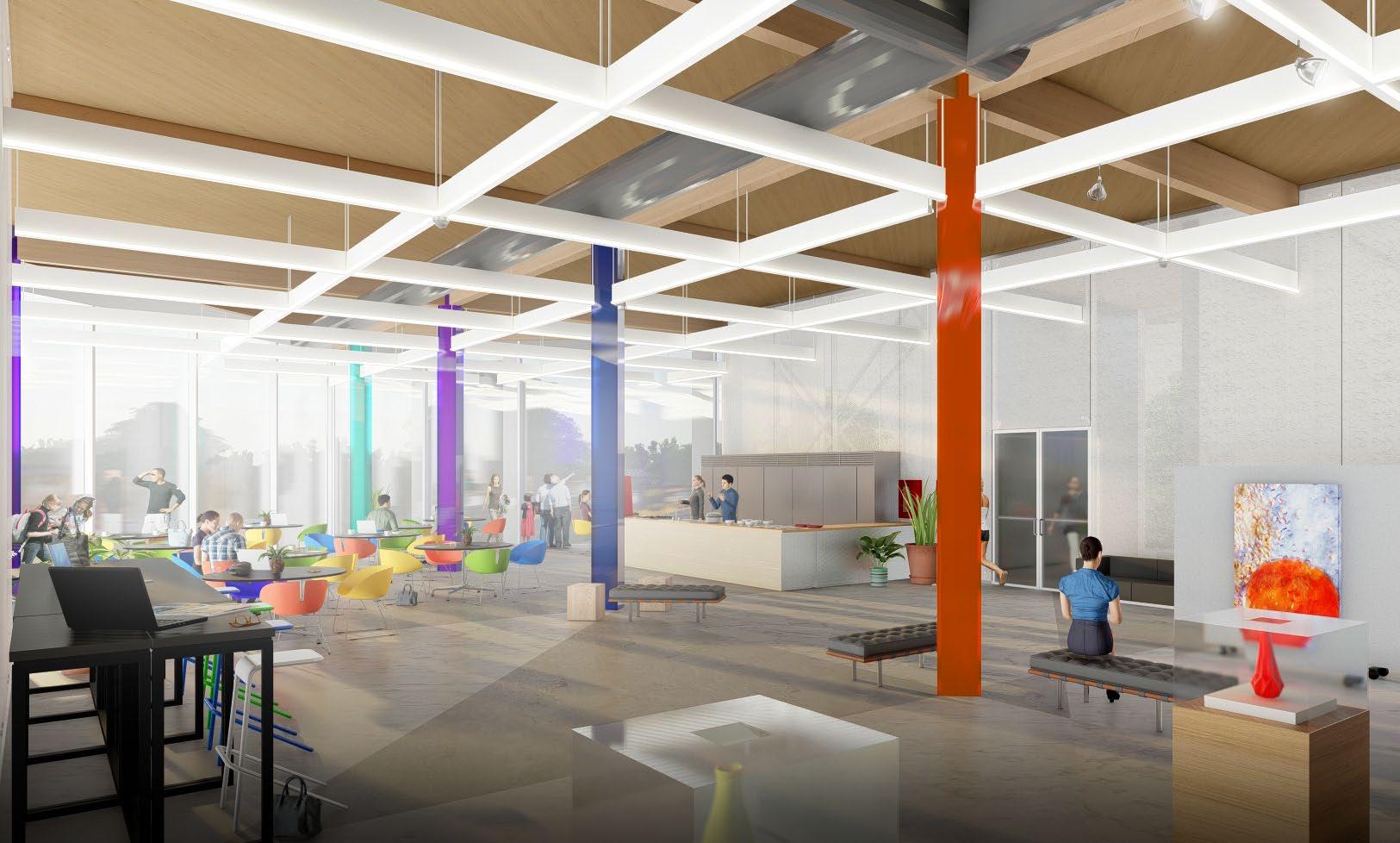

6 INTERIOR CAFETERIA RENDER INTERIOR THEATER ENTRANCE
METAL PANEL ROOFING OVER INSULATION AND CLT SLAB
MASS TIMBER BEAM
LIGHT-GAUGE
STEEL CHANNEL
GLASS PANEL RAILING
CURTAIN WALL MULLION
TPO ROOF MEMBRANE OVER RIGID INSULATION
VAPOR BARRIER SHOWN DASHED
CATWALK FLOOR WITH STEEL SUPPORT
STRUCTURAL STEEL FRAMED WALL W/ ACOUSTIC INSULATION
STAINLESS STEEL WALL PANEL
TILE FLOOR
CONCRETE OVER 7-PLY CLT SLAB
HVAC DUCT
SUSPENDED CEILING BAFFLES
TRIPLE-PANE, LOW-E, INSULATED CURTAIN WALL CLEAR GLASS PANEL
VERTICAL SHADING FIN
CONTINOUS STEEL ANGLE
CURTAIN WALL SPIDER CLAMP
METAL PANEL SOFFIT
LIGHT-GAUGE INFILL FRAMING
HEAVY TIMBER BEAM
STEEL MOUNTING PLATE
MASS TIMBER COLUMN
SITE LIGHTING ELEMENT
SITE FLOOR, PER SITE PLAN, OVER GRAVEL FILL
CONCRETE FOOTING AND FOUNDATION
SCALE: 1/2" = 1'-0"
7
WALL SECTION BUILDING

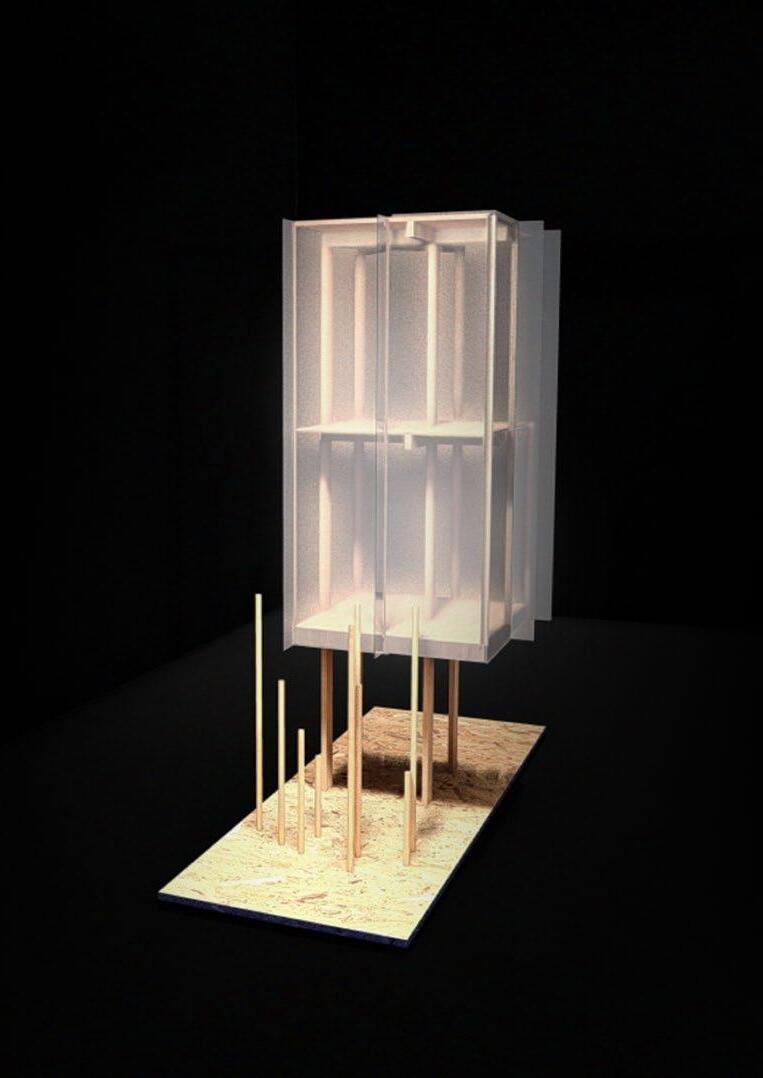

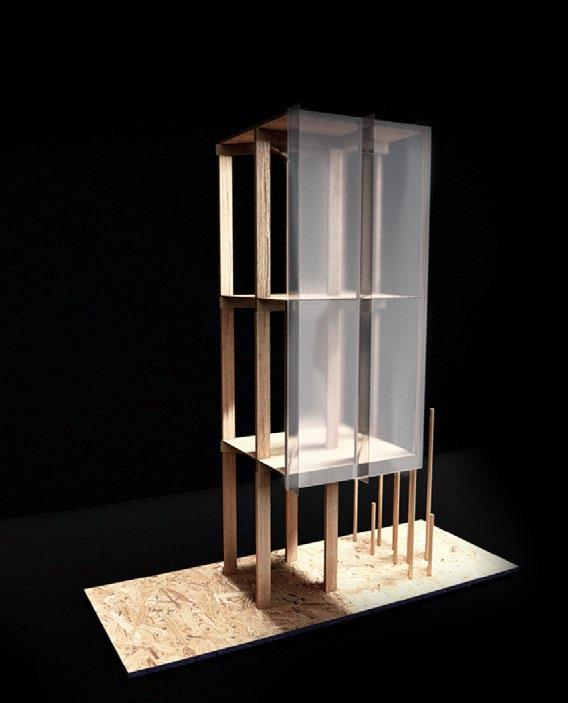

CORNER FINAL MODEL WALL SECTION @ EXTERIOR WALL
public mural
PROGRAM: Public Art
LOCATION: 200 W 36, Boise, ID 83714
YEAR: Spring 2022
DESIGNER: Weston Ellerbrake
PAINTER: Trademark Design
PROPOSAL:
Outside Hatch Design Architecture’s headquarters once stood a blank CMU wall. In an effort to revitalize the community, HDA wanted a mural that spoke to the history and culture of the greater Boise/Garden City area. Shown above and to the aside is that idea realized. Left to right highlights the city’s evolution from an agriculture area to an outdoor recreation powerhouse.
8

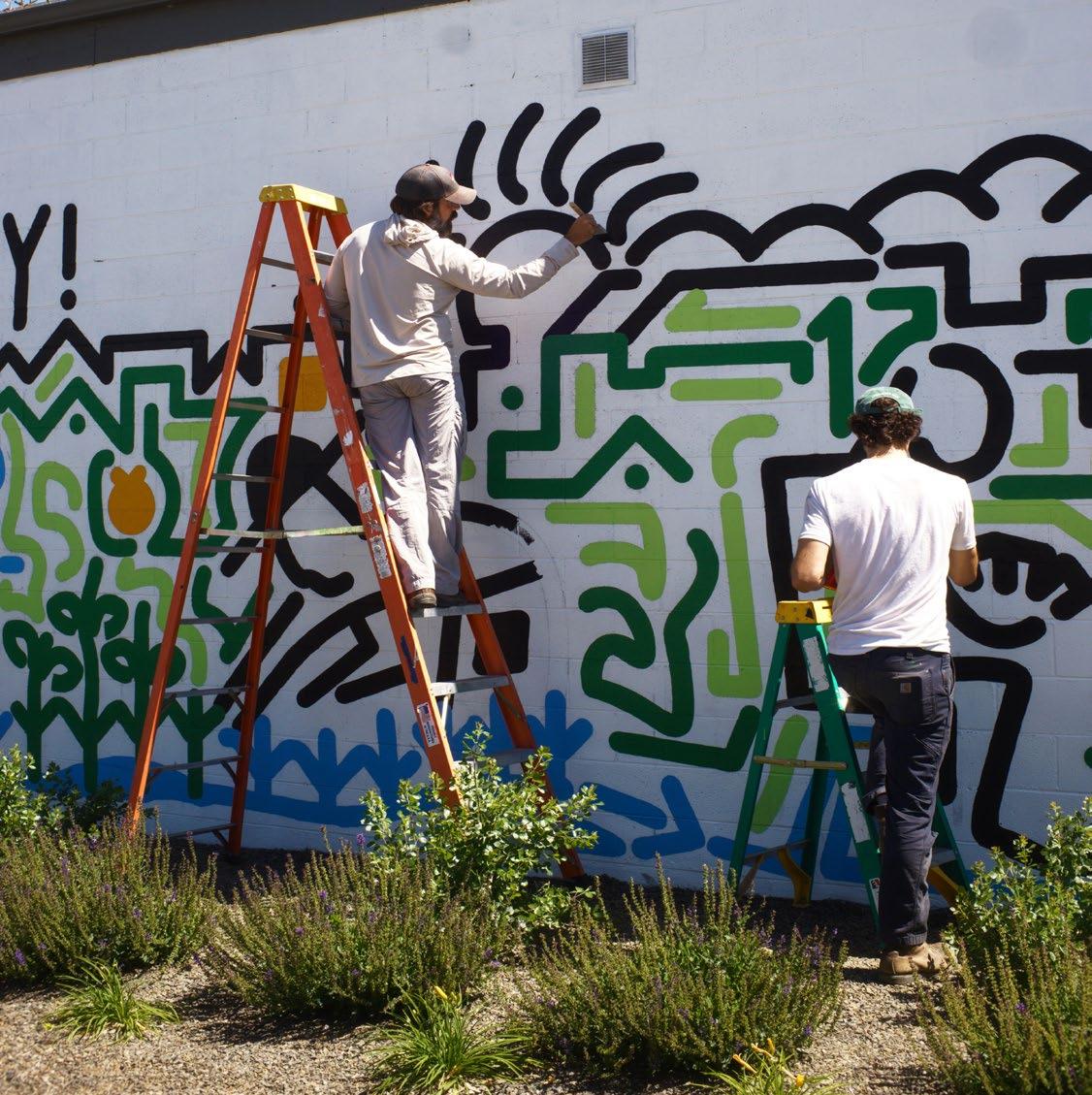

PAINTING IN-PROGRESS

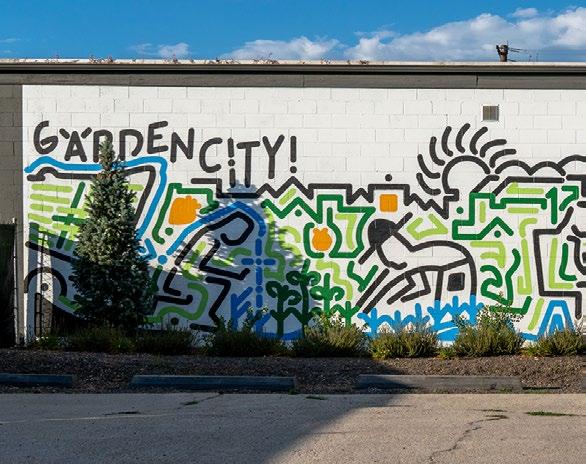

MURAL
9

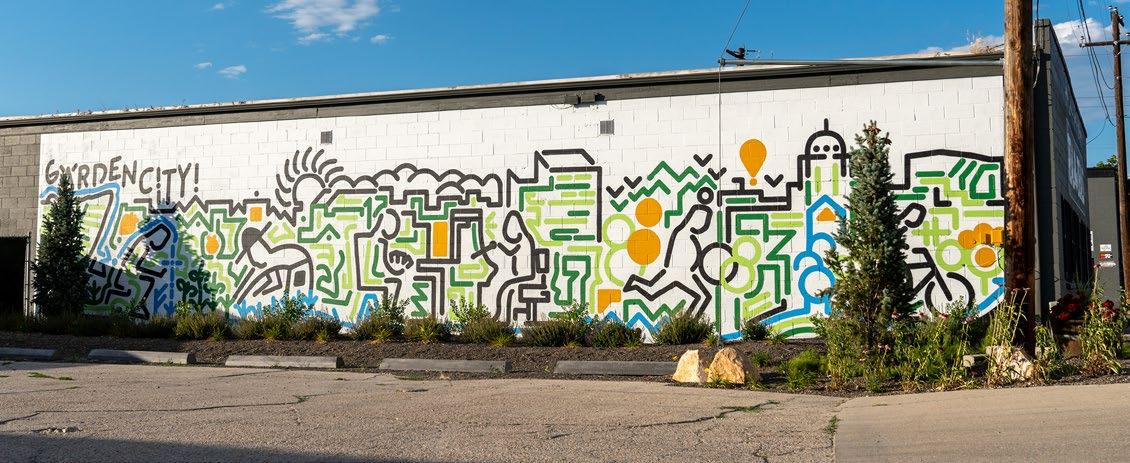

EXTERIOR WIDE-ANGLE

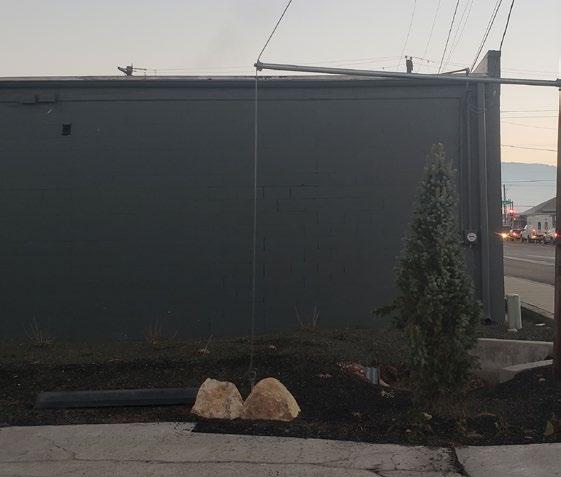

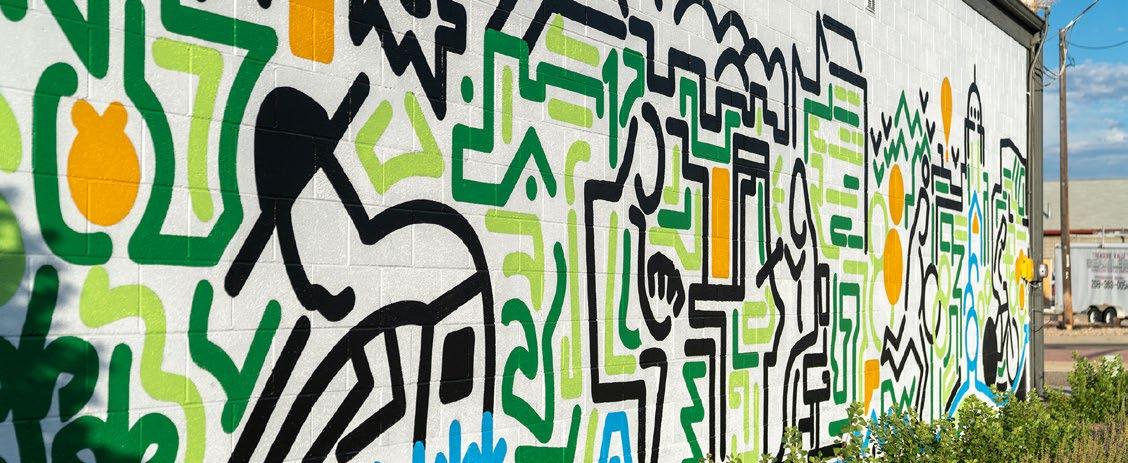

MURAL CLOSE-UP MURAL AFTER/BEFORE
club storage condos
PROGRAM: Storage Facility
LOCATION: Nampa, ID
YEAR: 2022-2023
Project Architect/Principal: Jeff Hatch
Project Designer: Weston Ellerbrake
PROPOSAL:
To change how a storage facility is primarily used, the clients reached out to discuss designing a clubhouse building so members could rent the space for events. The original inspiration and design language took from classic car manufacturers like Ferrari, Aston Martin, and Mercedes. The building went through several design iterations before finally landing on its final form that uses stone, metal panels, and LED signage to create a dramatic effect.
10

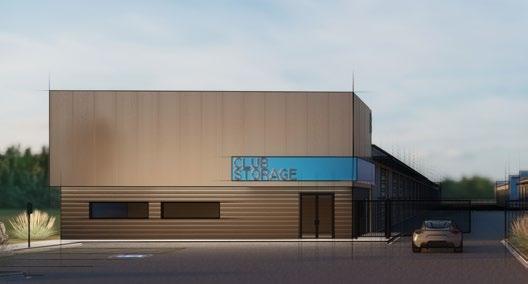

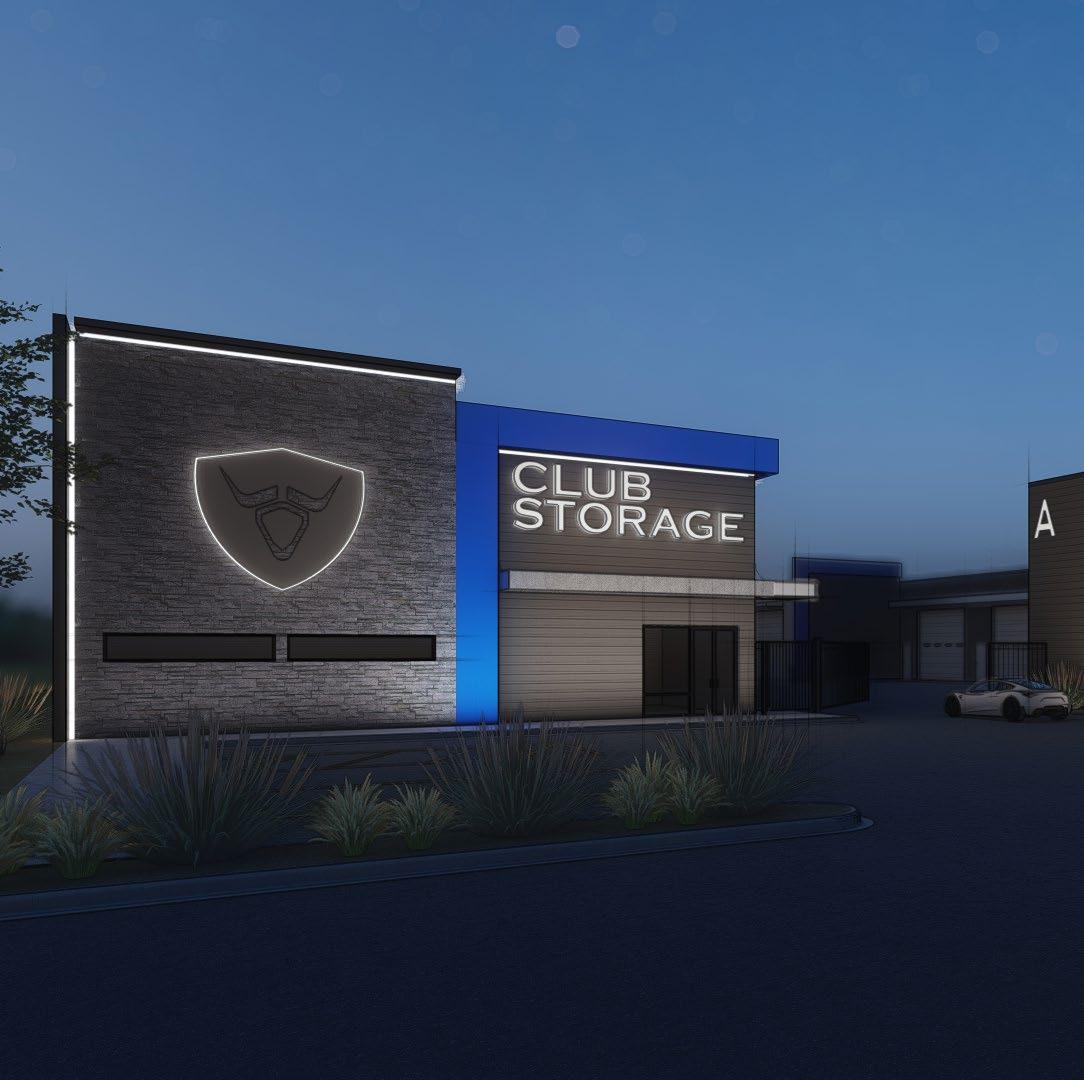

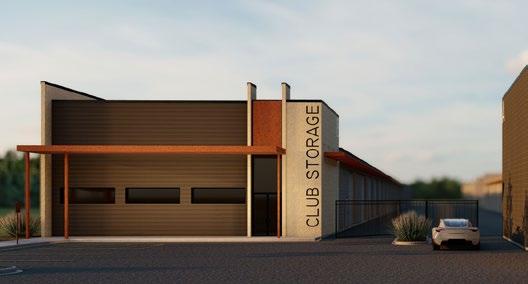

CLUB HOUSE FINAL ITERATION RENDER BY WESTON ELLERBRAKE
11

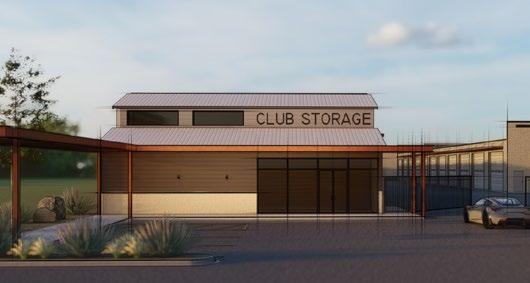

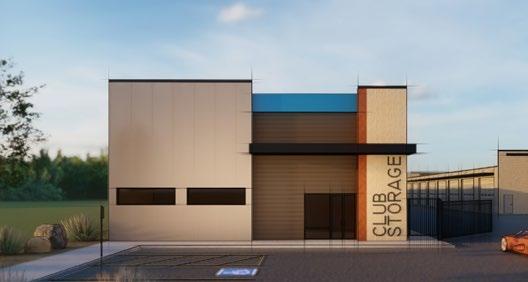

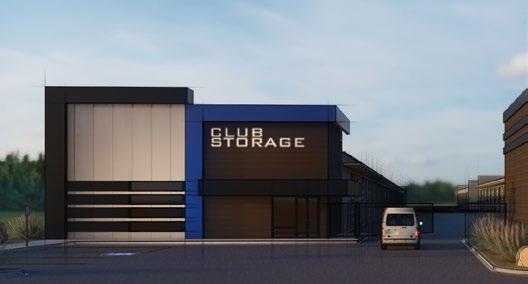

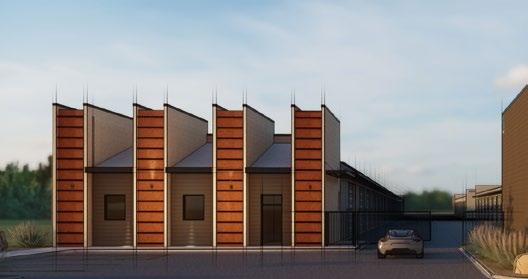

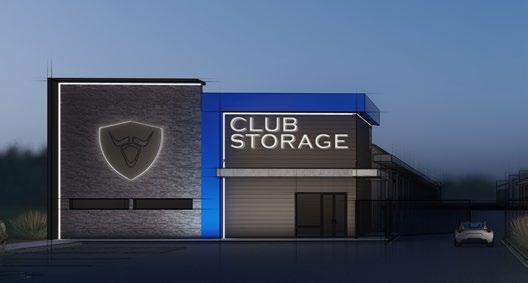

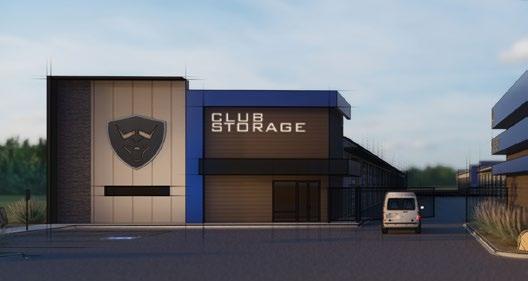

Concept 1: Modernized Lamborghini Muira
Concept 3: Barn-Find Ferrari
Concept 4: Mercedes Storage
Concept 5: Mercedes-Ferrari Fusion
Concept 7: Mercedes Meets Lamborghini
Concept 6: Mercedes Exaggerated
Concept 8: The Winner
Concept 2: Lamborghini Meets Cortan Steel
SLIP SPACE
PROGRAM: Museum Addition
LOCATION: Lincoln, NE
YEAR: Spring 2021
TEAM: Weston Ellerbrake, JoLynn Broweleit
PROPOSAL: Slip Space uses building form and construction to shift user direction and perspective. Connected under a singular roof, three buildings host different programs that promote outside interaction with the museum.
12

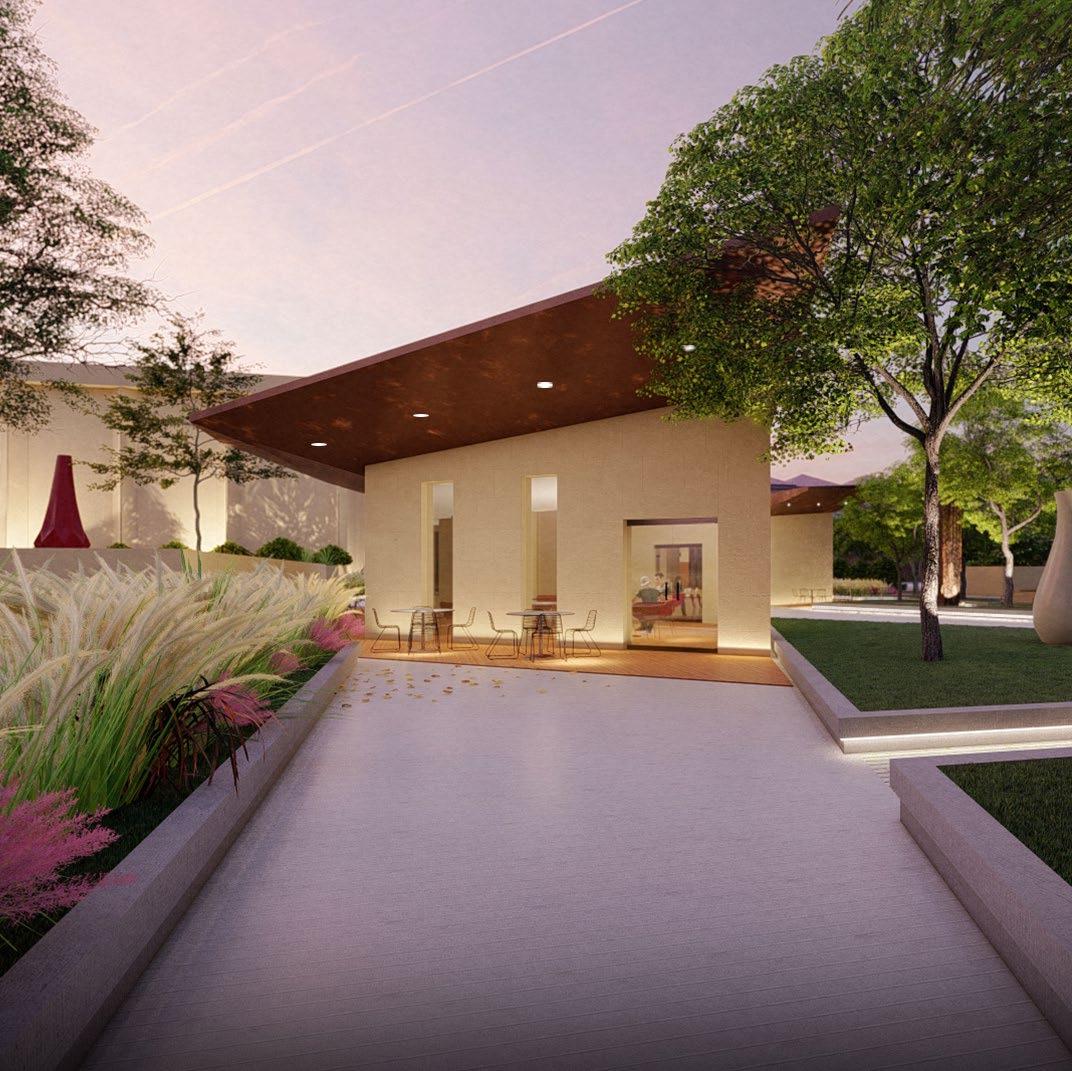

STUDENT CENTER EXTERIOR RENDER RENDER BY WESTON ELLERBRAKE

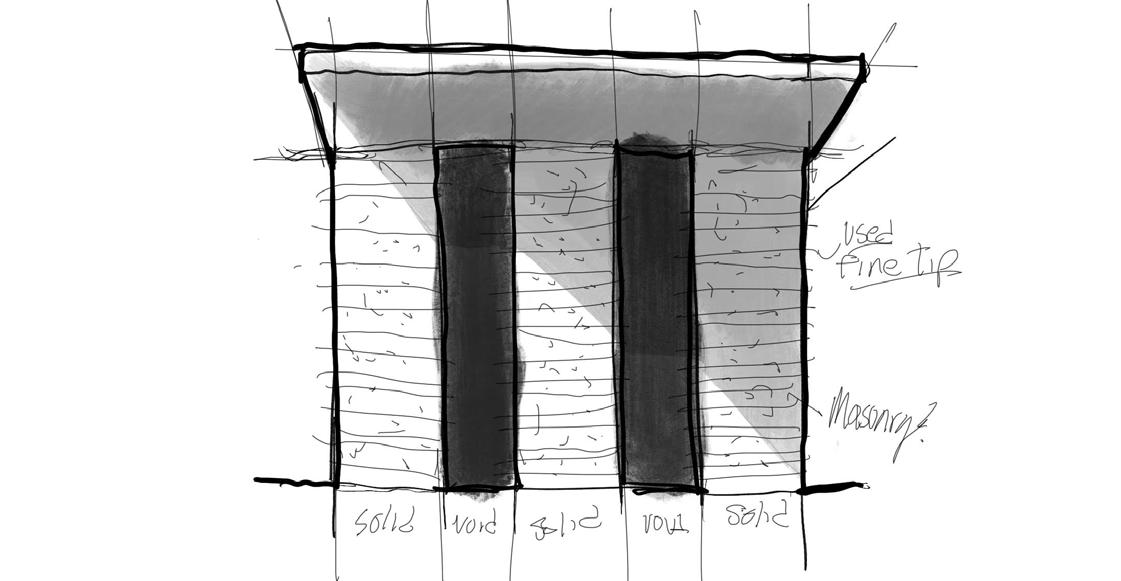

SOLID/VOID EXPLORATORY SKETCH
1
SIGHT LINES
BUILDING DIAGRAM
ZONES
13
FORM MOVEMENT
2 3 4
DRAWN BY WESTON ELLERBRAKE
STUDENT MUSEUM PUBLIC
DIAGRAM BY WESTON ELLERBRAKE
OODLES OF NOODLES
PROGRAM: Public Art Installation
LOCATION: Lincoln, NE
YEAR: Fall 2018
TEAM: Jacob Urban, Ella Knight, Gabby Argamosa
PROPOSAL:
Eighty-two pink and teal pool noodles vibrate in the wind offering relaxation in a 10’ x 18’ space. The noodles provide distraction and privacy allowing people to eat lunch, take a nap, or just relax.
14

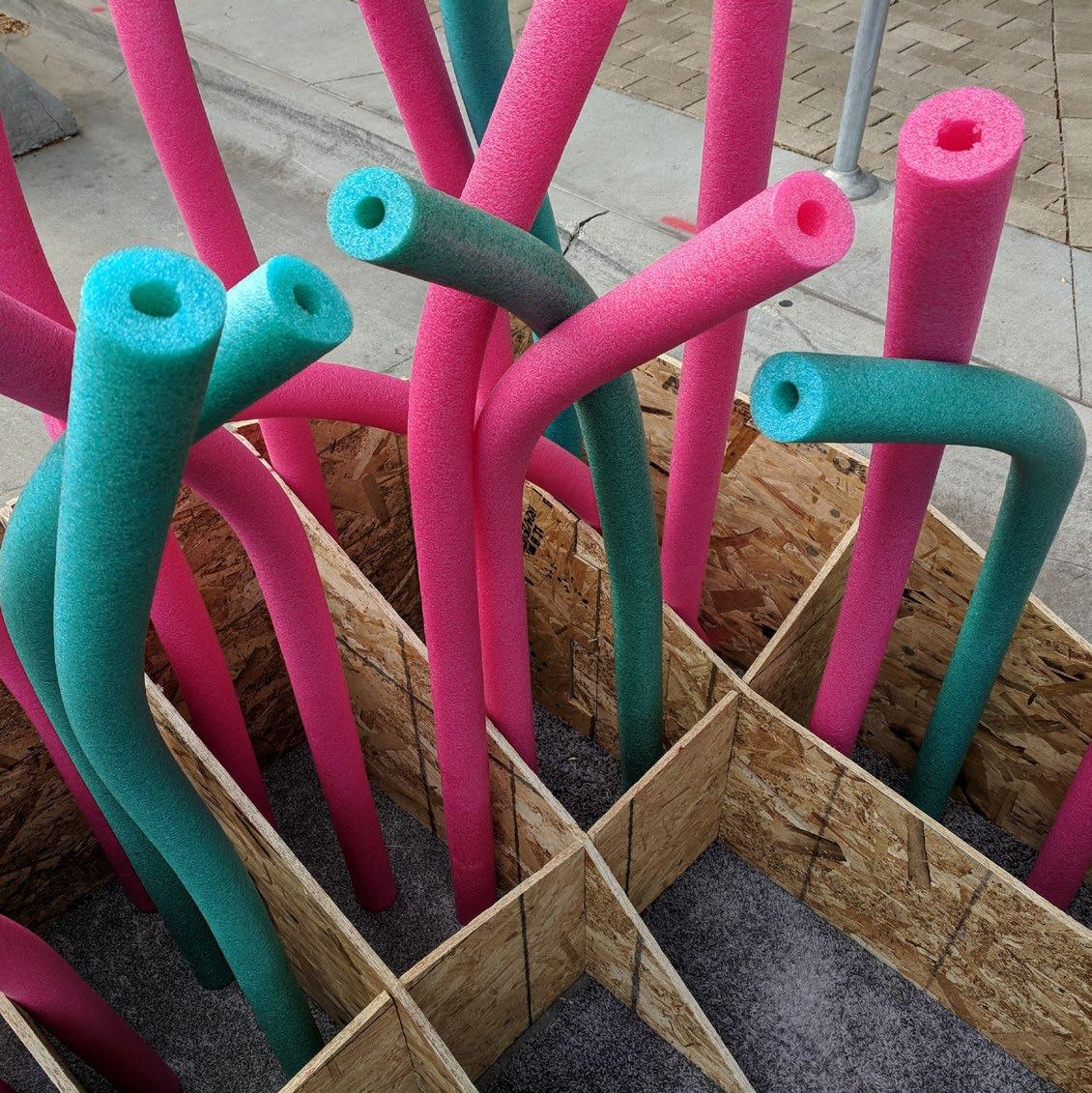

NOODLE TO OSB CONNECTION
PHOTO BY WESTON ELLERBRAKE
15

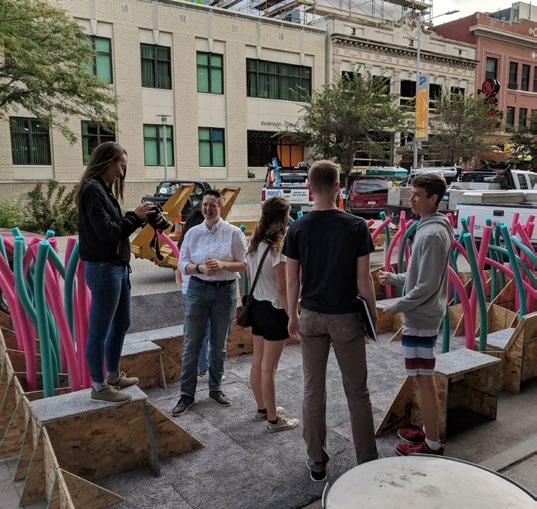

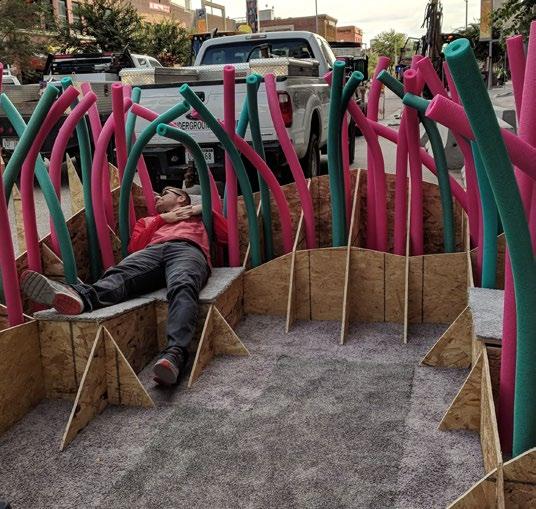

STUDENT INTERACTION
PHOTO BY WESTON ELLERBRAKE

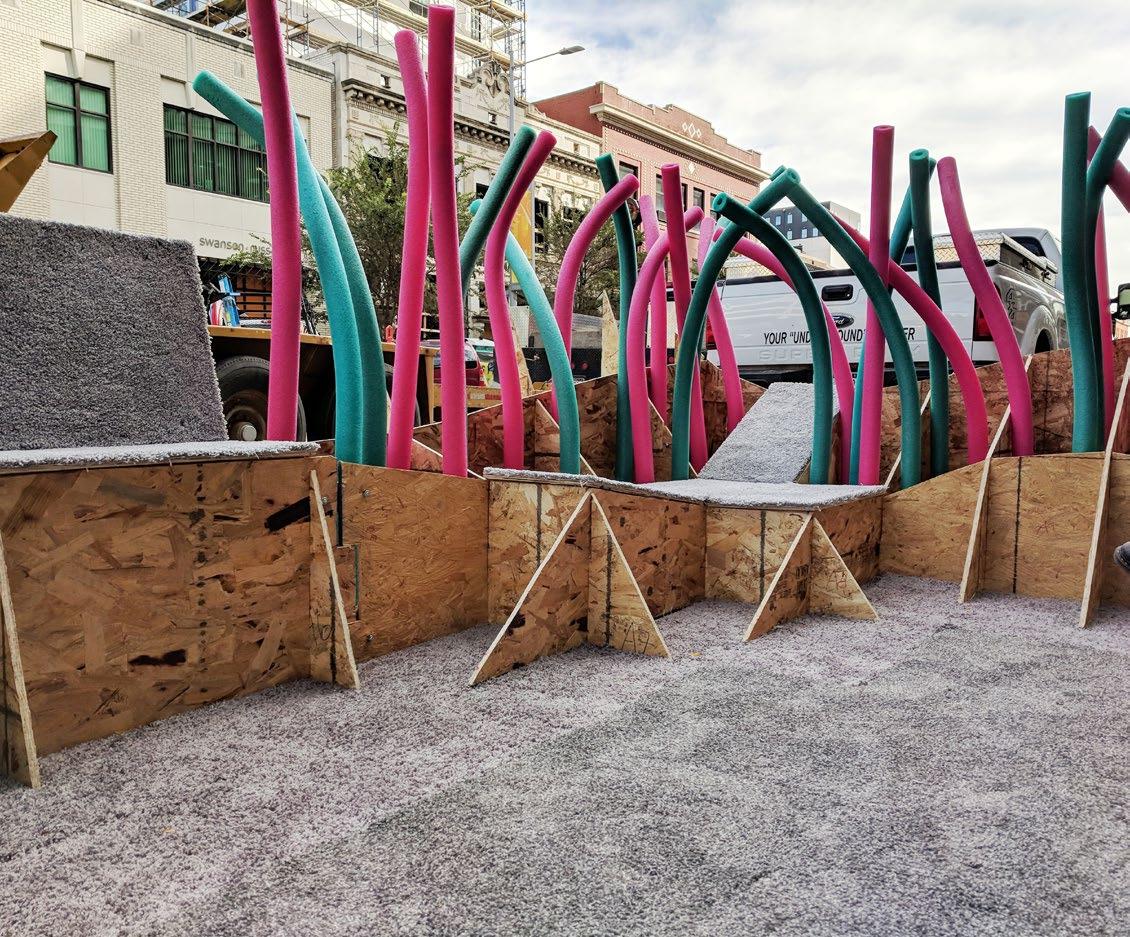

INTERIOR SEATING
PHOTO BY WESTON ELLERBRAKE
BENCH DETAIL
PHOTO BY WESTON ELLERBRAKE
BIG TEN STUDENT DESIGN COMPETITION
PROGRAM: Interior Renovation
LOCATION: Lincoln, NE
YEAR: Fall 2019
PHASE: In-Construction
TEAM: Eliza Woodside, Ari Osten, Daniel Krueger
PROPOSAL:
Three distinct study space arrangements are offered depending on the users’ preferred style of work. Subtle colors relax and calm guests, and natural materials seek to resolve issues in the students.
16

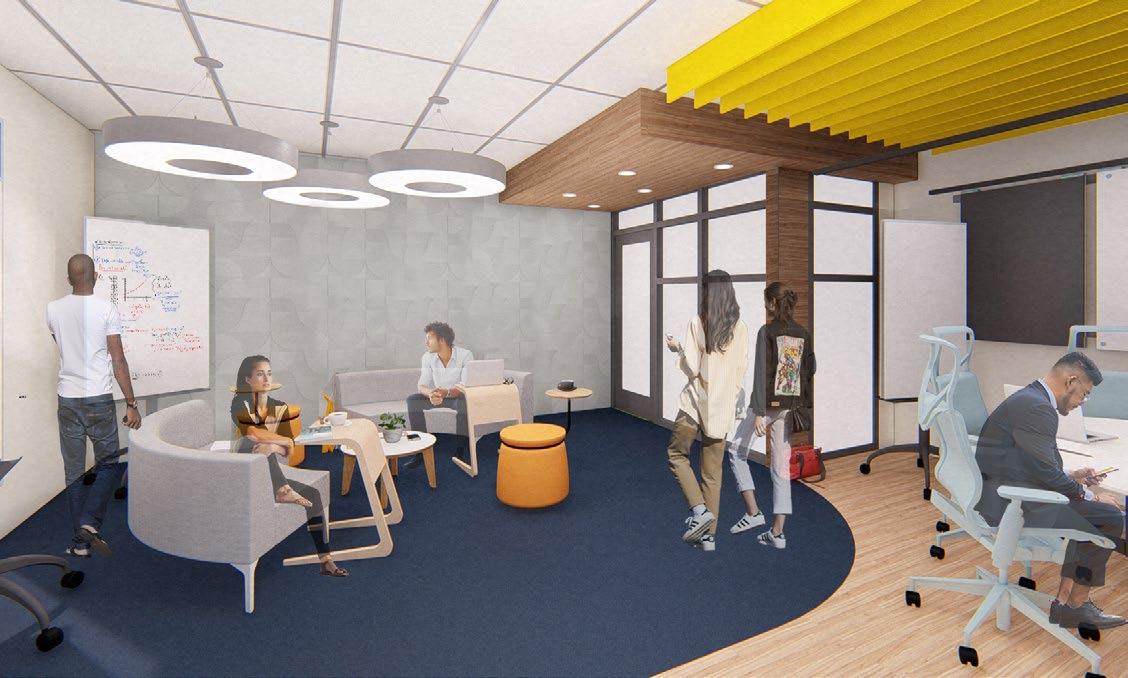

GROUP STUDY SPACE RENDER
RENDER BY WESTON ELLERBRAKE
17

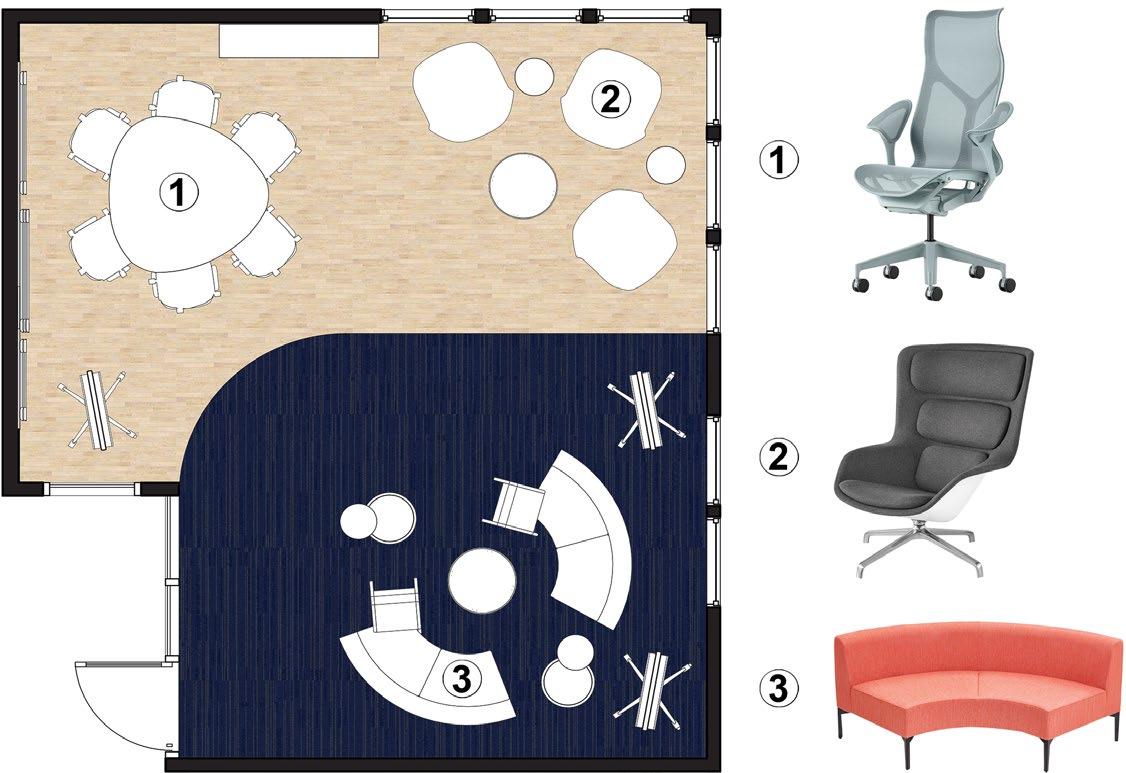

STUDY ROOM FLOOR PLAN & FURNITURE SELECTION DIAGRAM
INDIVIDUAL STUDY SPACE RENDER RENDER BY WESTON ELLERBRAKE
BY WESTON ELLERBRAKE

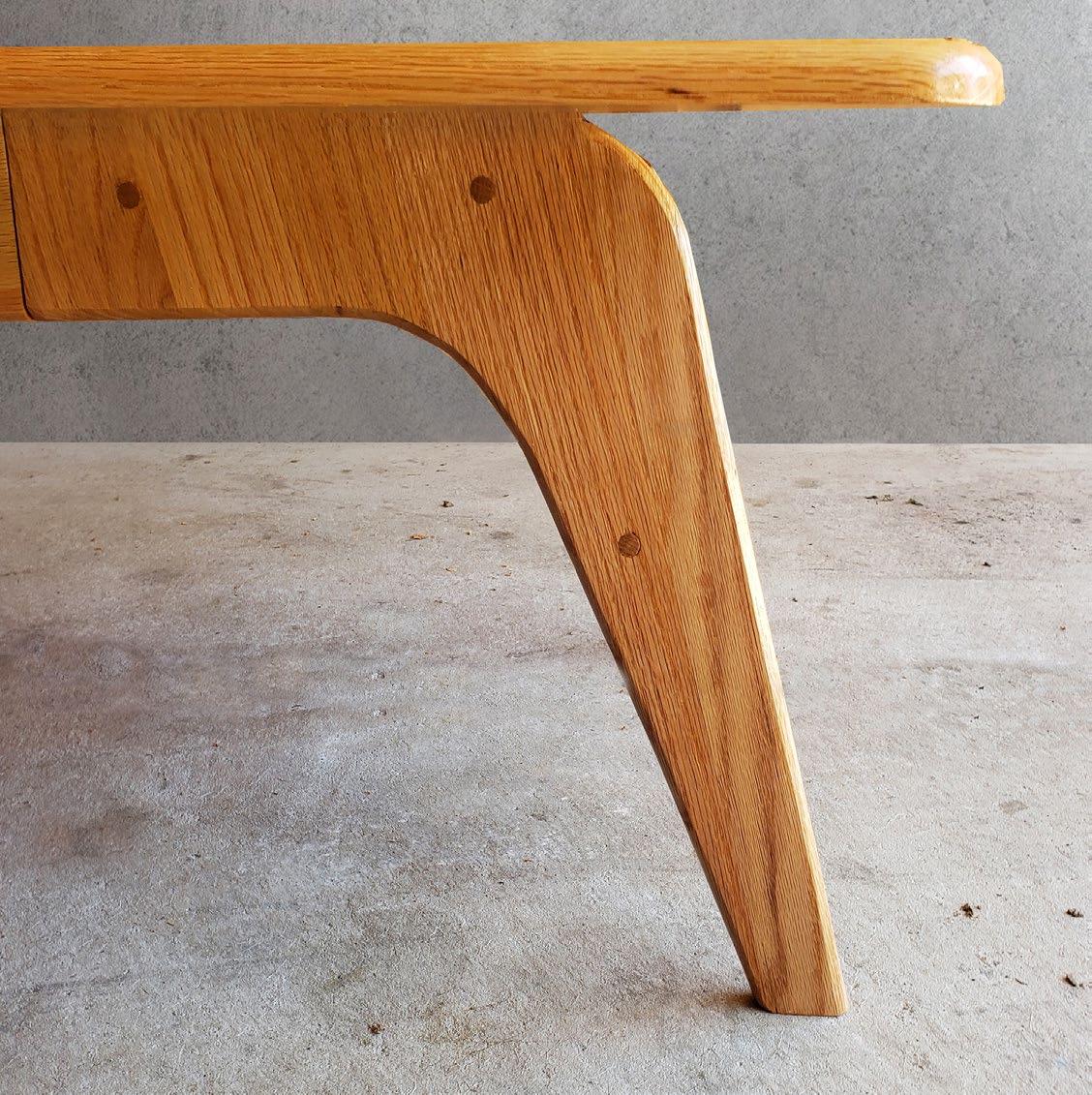

HAND SHAPED TABLE LEG

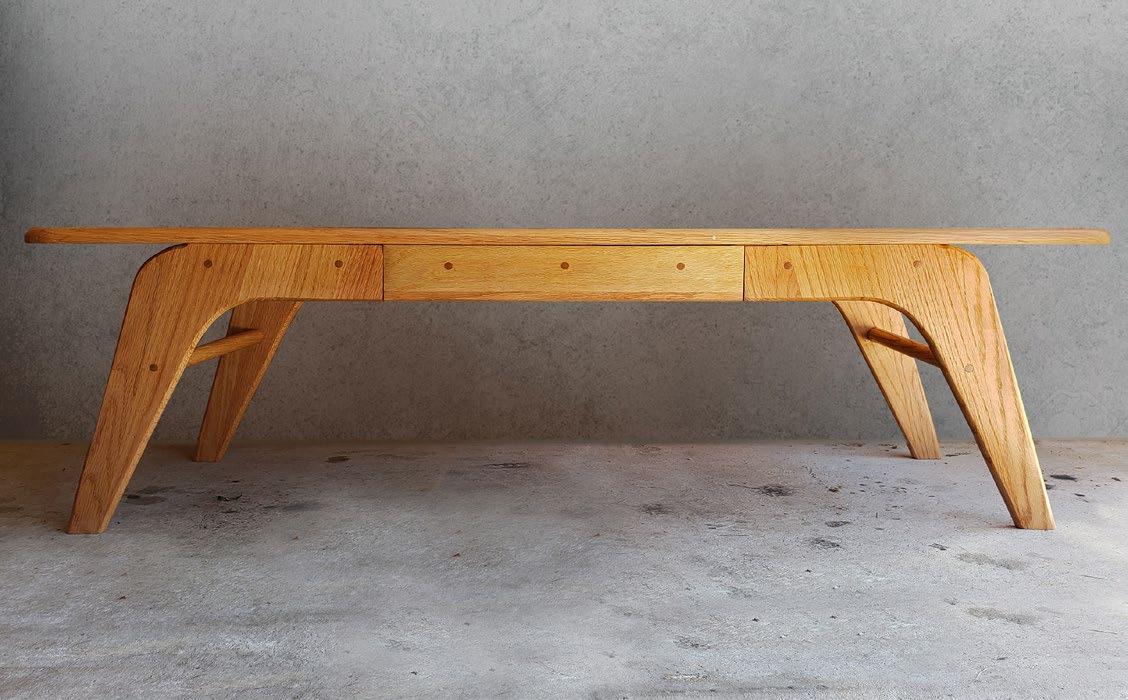

mid-century modern coffee table
PROGRAM: Mid-Century Modern Furniture
LOCATION: Living Room
YEAR: Fall 2021
DESCRIPTION: Hand Built. Golden Oak. 2’-0” x 4’-0”. Extremely durable and good looking.
18
19

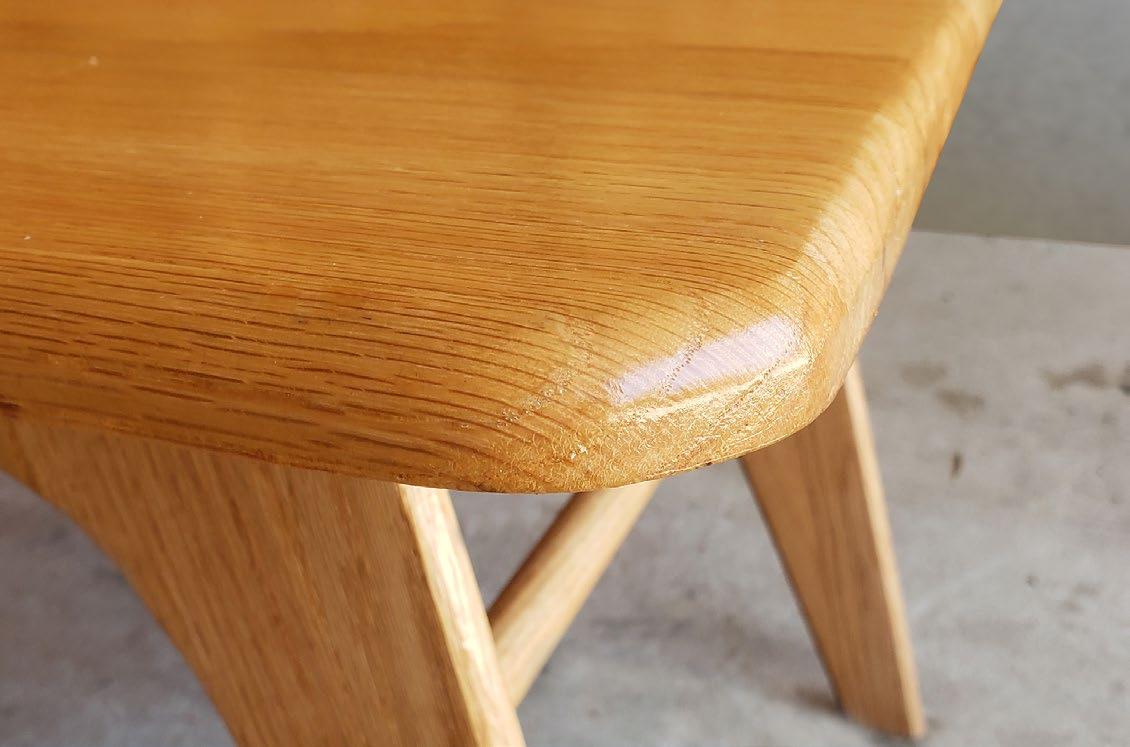

GOLDEN OAK GRAIN DETAILS
MID-CENTURY MODERN COFFEE TABLE
