THE FIELD THEATER
PROGRAM: Black Box Theater
LOCATION: Boise, ID
YEAR: Fall 2022
TEAM: Weston Ellerbrake
PROPOSAL:
The Field Theater is designed with the idea of the building being secondary to the site and that site is the most important object within this situation. To explore that guests must walk through a field of light columns and find their way upwards to a building above them.
2
EXTERIOR STREET RENDER
3 CONCEPT MODELS 06 06 08 08 10 10 11 11 12 12 13 13 H H G G F F E D D C C B B A A 01 01 03 03 14 14 15 15 16 16 17 17 18 18 BACKSTAGE THEATER CAFETERIA STORE COAT CHECK WOMENS RESTROOM MENS RESTROOM EXHIBITION WAITING AREA BALCONY LOBBY 1 A126 1 A126 A124 A124 BALCONY 1 A129 2HR 1HR 2HR EGRESS EGRESS 46' - 8" 102' - 1" 84' - 1"ELEVATOR ELEVATOR STAIRWELL STAIRWELL STAIRWELL SCALE: N 1/8" = 1'-0" LEVEL 1 - FLOOR PLAN GROUND FLOOR PLAN LEVEL 1 FLOOR PLAN ALLEY HOTEL HOTEL HOTEL OFFICE OFFICE OFFICE WAREHOUSE WAREHOUSE WAREHOUSE BREWERY WAREHOUSE OFFICE MUSEUM WEST MYRTLE STREET NORTH CAPITOL BLVD. WEST FULTON STREET 9am 12pm 5pm n s e w SCALE: N 3/64" = 1'-0" SITE PLAN
4
RENDER
INTERIOR CAFETERIA
INTERIOR THEATER ENTRANCE
METAL PANEL ROOFING OVER INSULATION AND CLT SLAB
MASS TIMBER BEAM
LIGHT-GAUGE STEEL CHANNEL
GLASS PANEL RAILING
CURTAIN WALL MULLION
TPO ROOF MEMBRANE OVER RIGID INSULATION
VAPOR BARRIER SHOWN DASHED
CATWALK FLOOR WITH STEEL SUPPORT
STRUCTURAL STEEL FRAMED WALL W/ ACOUSTIC INSULATION
STAINLESS STEEL WALL PANEL
TILE FLOOR
CONCRETE OVER 7-PLY CLT SLAB
HVAC DUCT
SUSPENDED CEILING BAFFLES
TRIPLE-PANE, LOW-E, INSULATED CURTAIN WALL CLEAR GLASS PANEL
VERTICAL SHADING FIN
CONTINOUS STEEL ANGLE
CURTAIN WALL SPIDER CLAMP
METAL PANEL SOFFIT
LIGHT-GAUGE INFILL FRAMING HEAVY TIMBER BEAM
STEEL MOUNTING PLATE SITE LIGHTING ELEMENT
MASS TIMBER COLUMN
SITE FLOOR, PER SITE PLAN, OVER GRAVEL FILL
CONCRETE FOOTING AND FOUNDATION
5
SCALE: 1/2" = 1'-0" WALL SECTION BUILDING CORNER FINAL
WALL SECTION @ EXTERIOR WALL

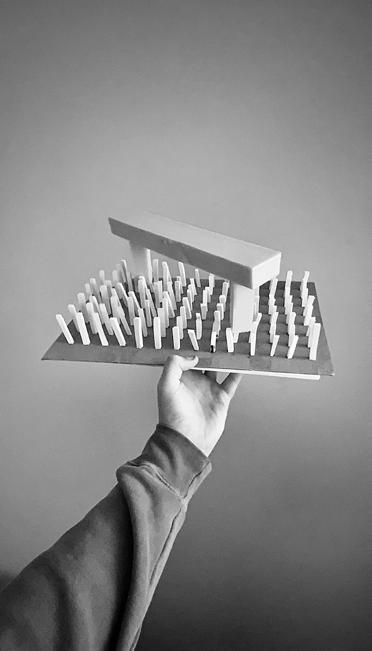

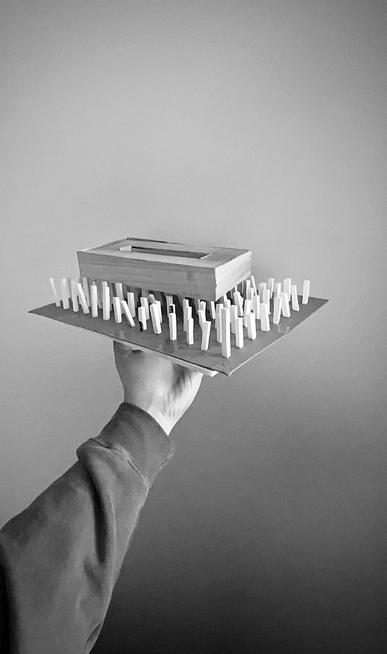

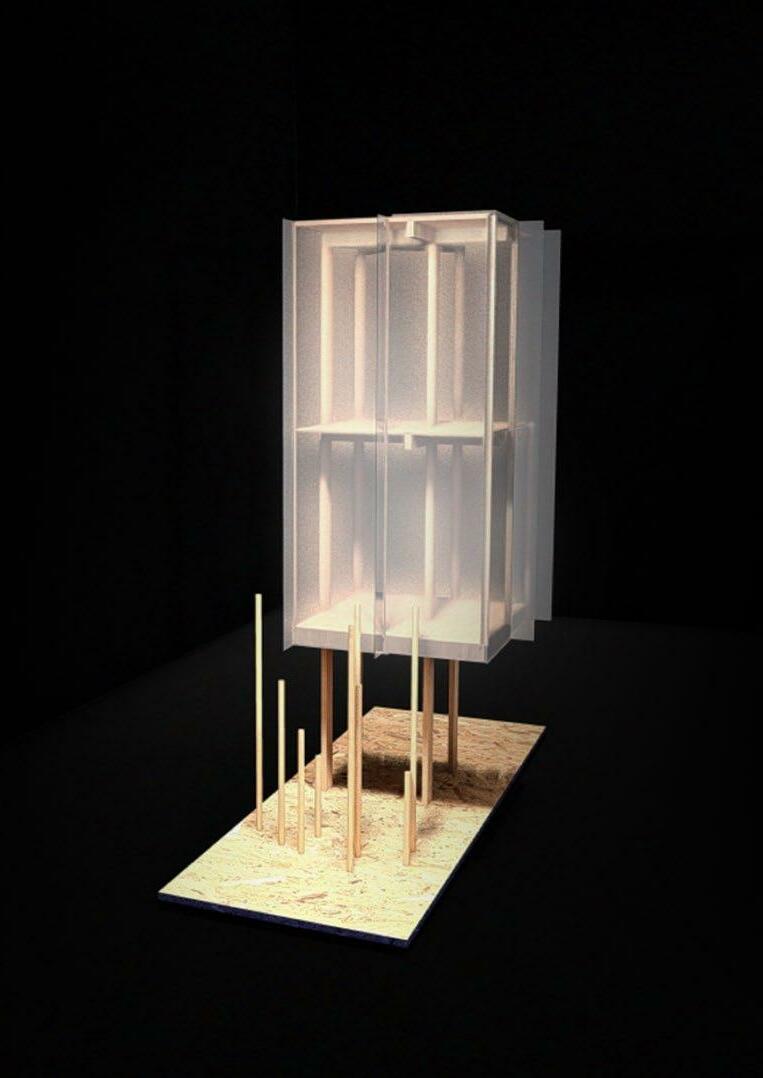

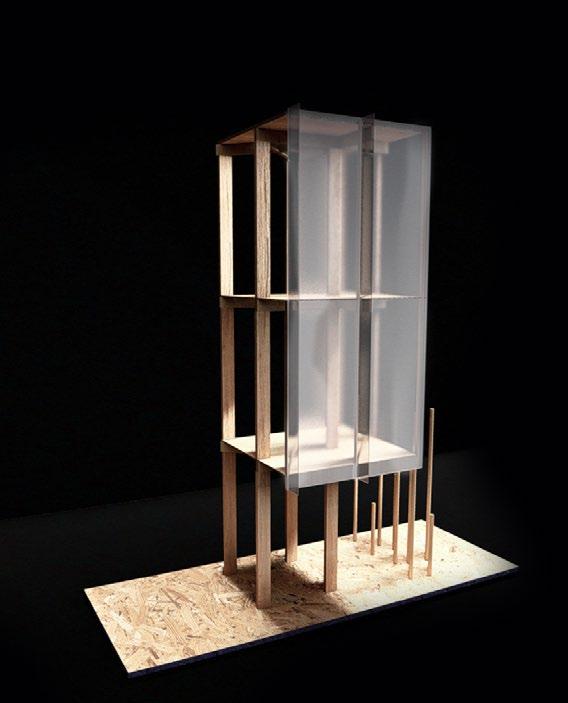

MODEL
PROPOSAL:
Outside Hatch Design Architecture’s headquarters once stood a blank CMU wall. In an effort to revitalize the community, HDA wanted a mural that spoke to the history and culture of the greater Boise/Garden City area. Shown above and to the aside is that idea realized. Left to right highlights the city’s evolution from an agriculture area to an outdoor recreation powerhouse.
6
public mural PUBLIC MURAL PROGRAM: Public Art LOCATION: 200 W 36, Boise, ID 83714 YEAR: Spring 2022 DESIGNER: Weston Ellerbrake PAINTER: Trademark Design MURAL PAINTING IN-PROGRESS
7 PUBLIC MURAL

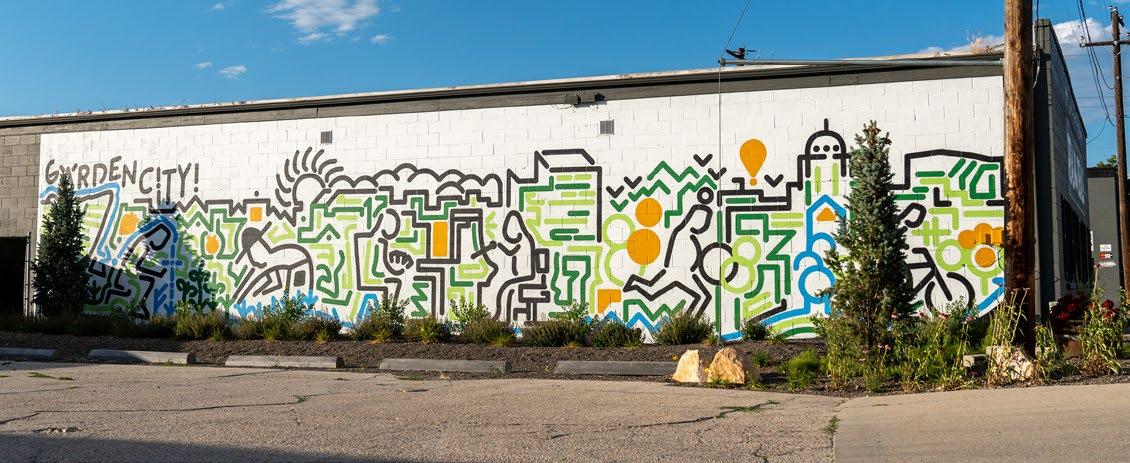

MURAL CLOSE-UP
EXTERIOR WIDE-ANGLE

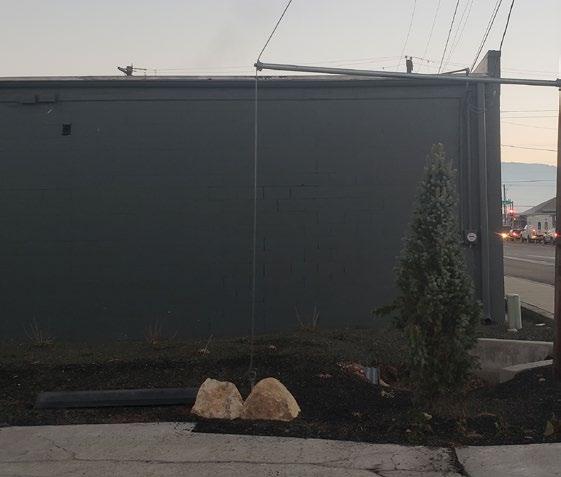

MURAL AFTER/BEFORE
SLIP SPACE
PROGRAM: Museum Addition
LOCATION: Lincoln, NE
YEAR: Spring 2021
TEAM: Weston Ellerbrake, JoLynn Broweleit
PROPOSAL:
Slip Space uses building form and construction to shift user direction and perspective. Connected under a singular roof, three buildings host different programs that promote outside interaction with the museum.
8
STUDENT CENTER EXTERIOR RENDER RENDER BY WESTON ELLERBRAKE
BY WESTON ELLERBRAKE
9 SIGHT
ZONES FORM MOVEMENT 1 2 3 4
PUBLIC
LINES

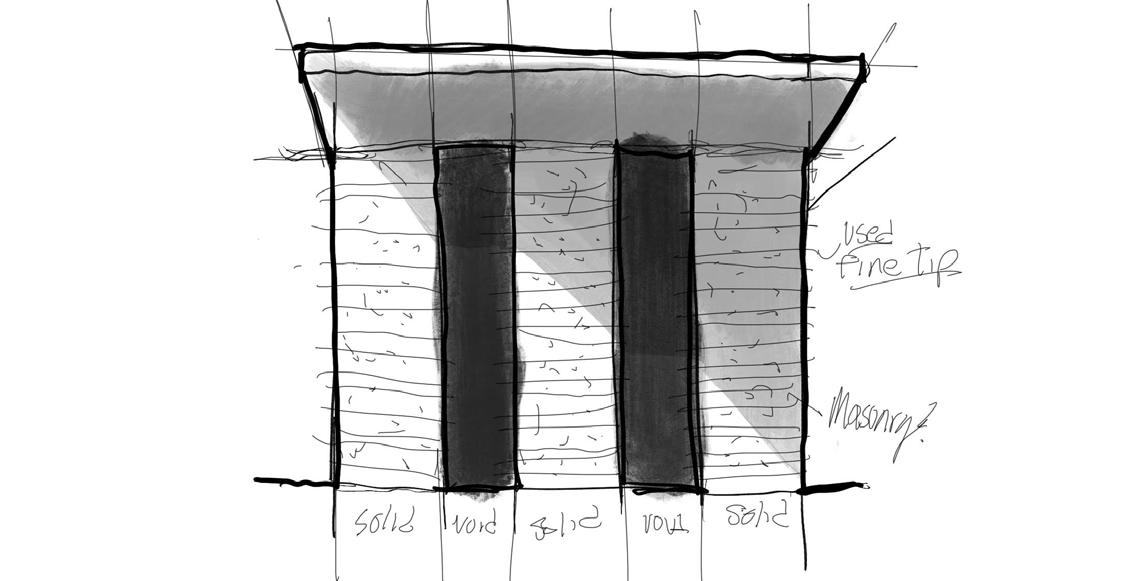

SOLID/VOID EXPLORATORY SKETCH DRAWN
BUILDING DIAGRAM DIAGRAM BY WESTON ELLERBRAKE STUDENT MUSEUM
TINY BARN
PROGRAM: Tiny House
LOCATION: Des Moine, IA YEAR: Spring 2021
PROPOSAL:
Tiny Barn was built for a couple who had recently and suddenly taken over the family farm. Instead of wasting time and money on a new house, the couple decided to build inside the existing barn. Using metal panels that would patina with age they created a home out of 800sf of barn. The design language follows a pattern of exaggeration and sharp cuts to create a contrast between the barn and the living space.
10
EXTERIOR RENDERING
11 EXTERIOR WALL CLOSE-UP
NEW/OLD FACADE SPLIT
OODLES OF NOODLES
PROPOSAL:
Eighty-two
12

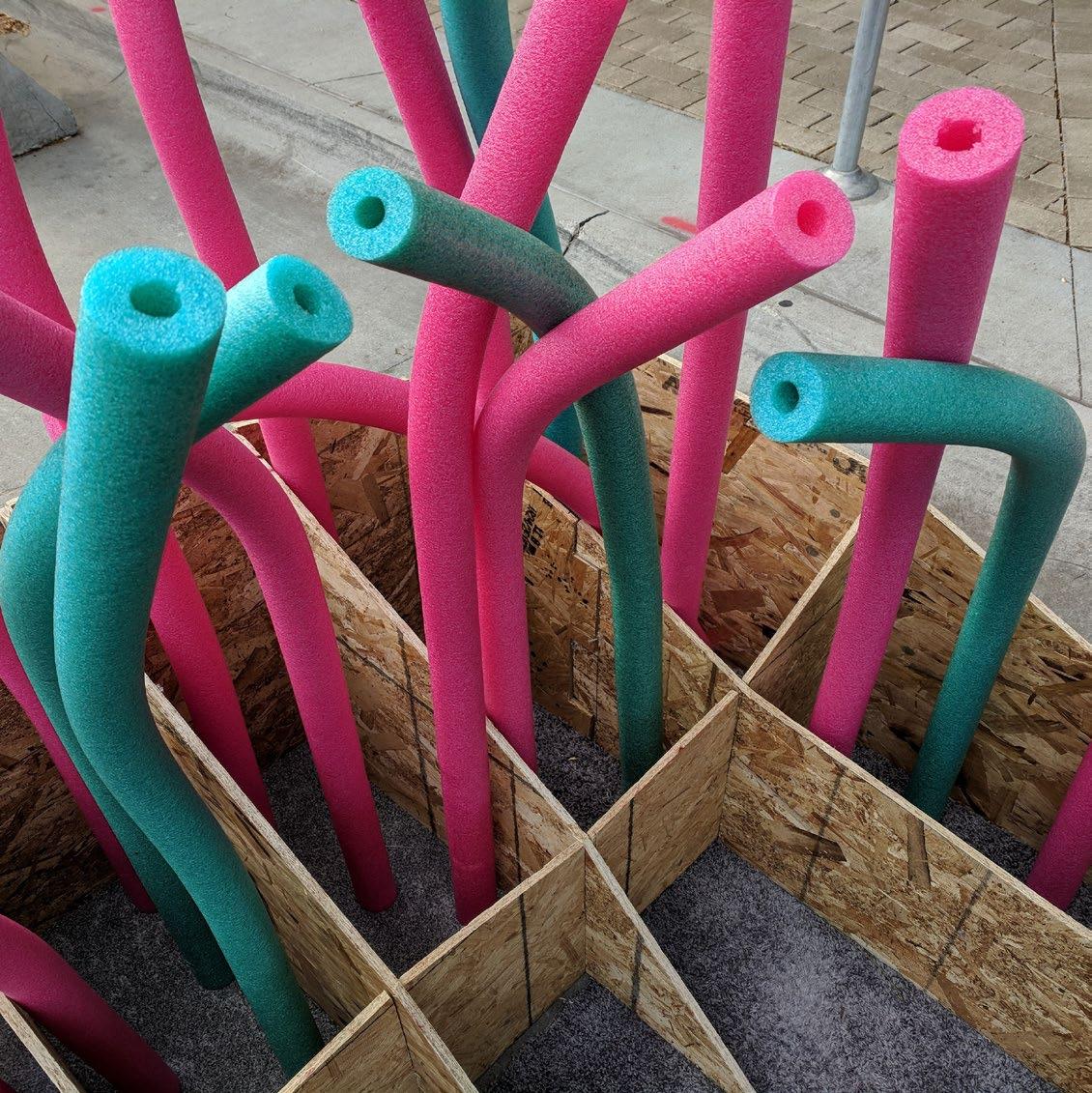

NOODLE TO OSB CONNECTION
PHOTO BY WESTON ELLERBRAKE
pink and teal pool noodles vibrate in the wind offering relaxation in a 10’ x 18’ space. The noodles provide distraction and privacy allowing people to eat lunch, take a nap, or just relax. PROGRAM: Public Art Installation LOCATION: Lincoln, NE YEAR: Fall 2018 TEAM: Jacob Urban, Ella Knight, Gabby Argamosa

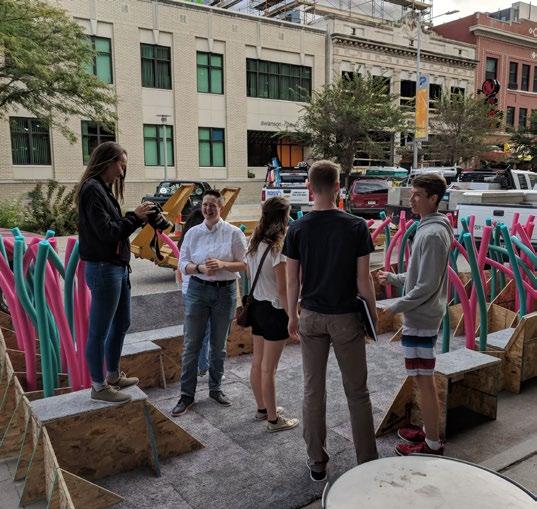

STUDENT INTERACTION
13
PHOTO BY WESTON ELLERBRAKE

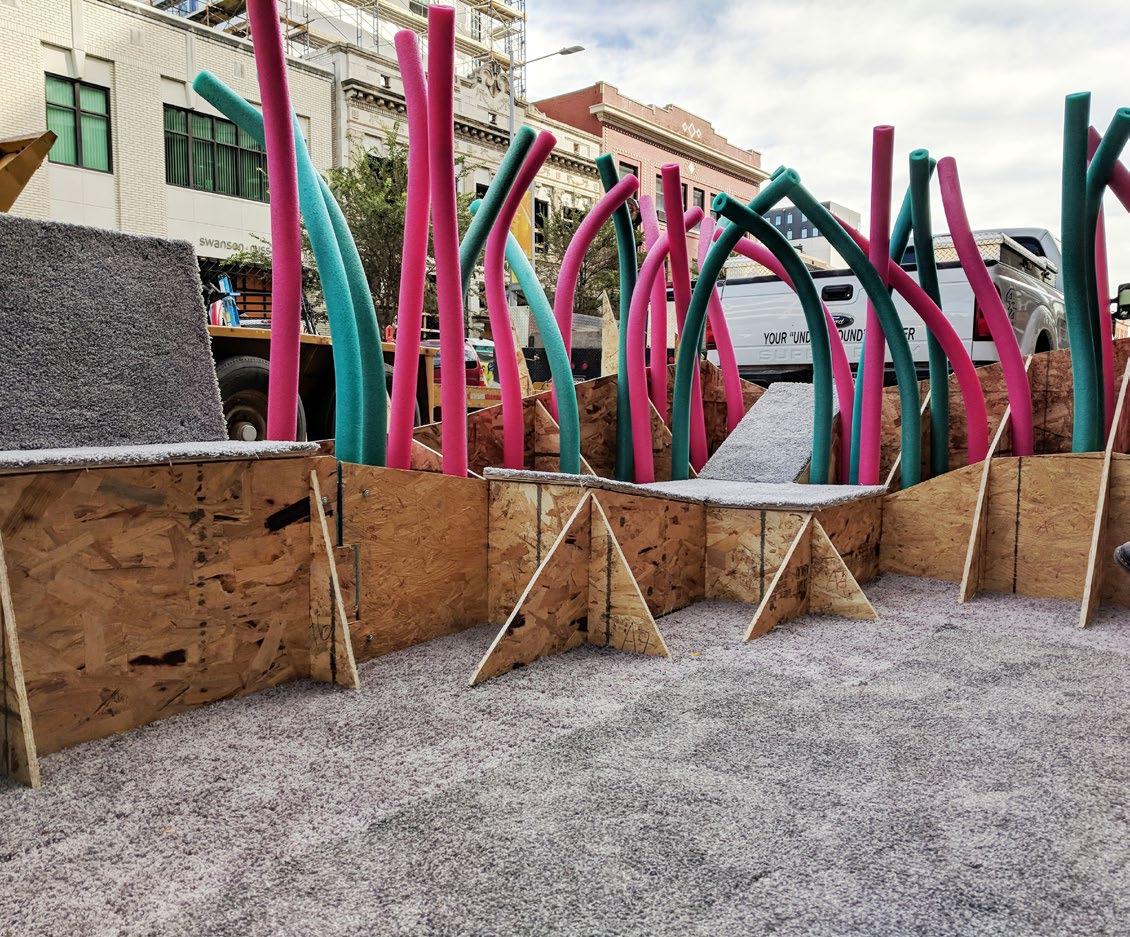

INTERIOR SEATING
PHOTO BY WESTON ELLERBRAKE
BENCH DETAIL
PHOTO BY WESTON ELLERBRAKE
BIG TEN STUDENT DESIGN COMPETITION
14
GROUP STUDY SPACE RENDER RENDER BY WESTON ELLERBRAKE
space
offered
PROGRAM: Interior Renovation LOCATION: Lincoln, NE YEAR: Fall 2019 PHASE: In-Construction TEAM: Eliza Woodside, Ari Osten, Daniel Krueger
PROPOSAL: Three distinct study
arrangements are
depending on the users’ preferred style of work. Subtle colors relax and calm guests, and natural materials seek to resolve issues in the students.
15
DIAGRAM
INDIVIDUAL STUDY SPACE RENDER RENDER BY WESTON ELLERBRAKE
STUDY ROOM FLOOR PLAN & FURNITURE SELECTION
BY WESTON ELLERBRAKE
16 PROGRAM: Mid-Century Modern Furniture LOCATION: Living Room YEAR: Fall 2021 mid-century modern coffee table HAND SHAPED TABLE LEG
Built. Golden Oak.
durable and good looking.
DESCRIPTION: Hand
2’-0” x 4’-0”. Extremely
17

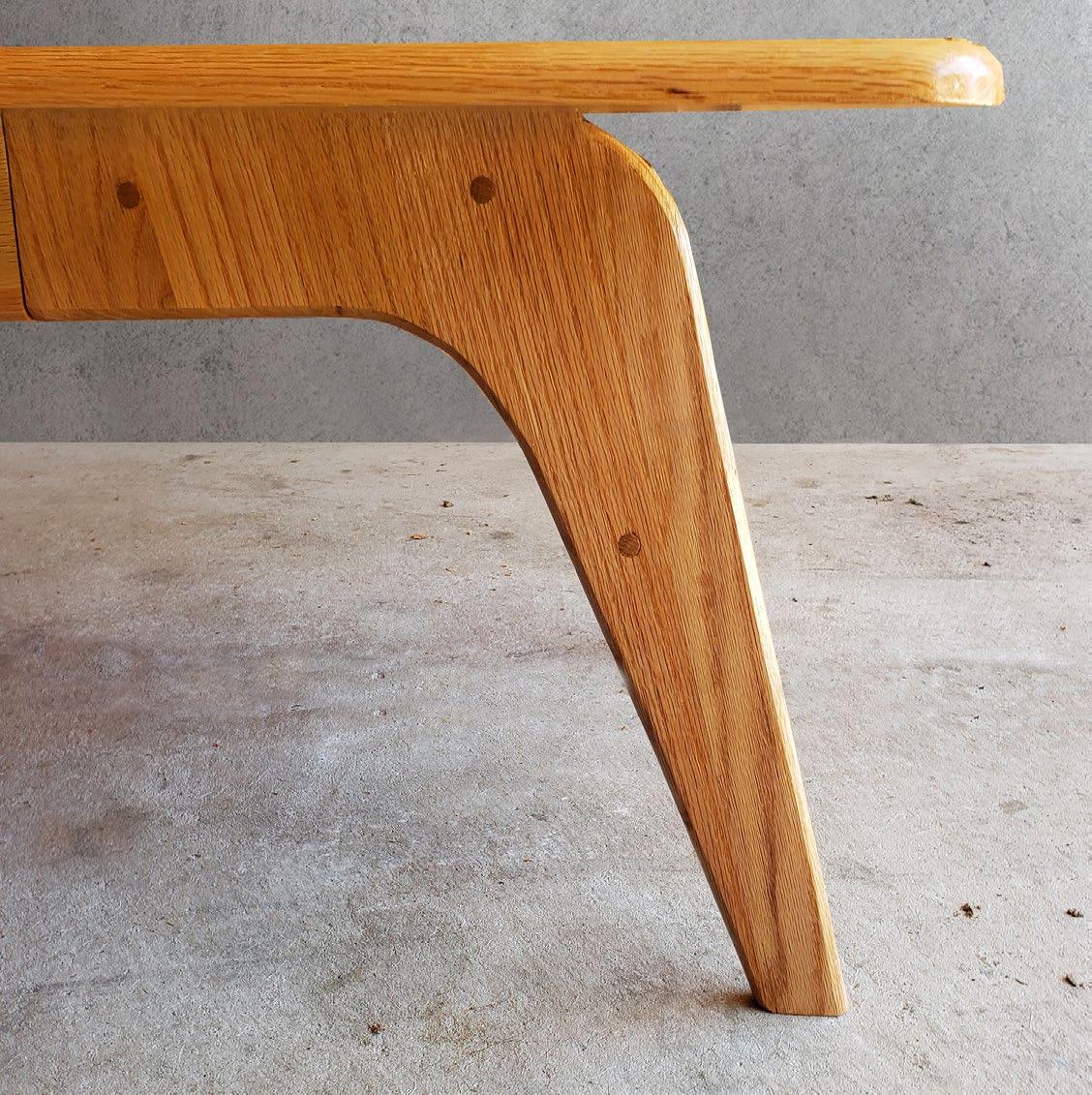

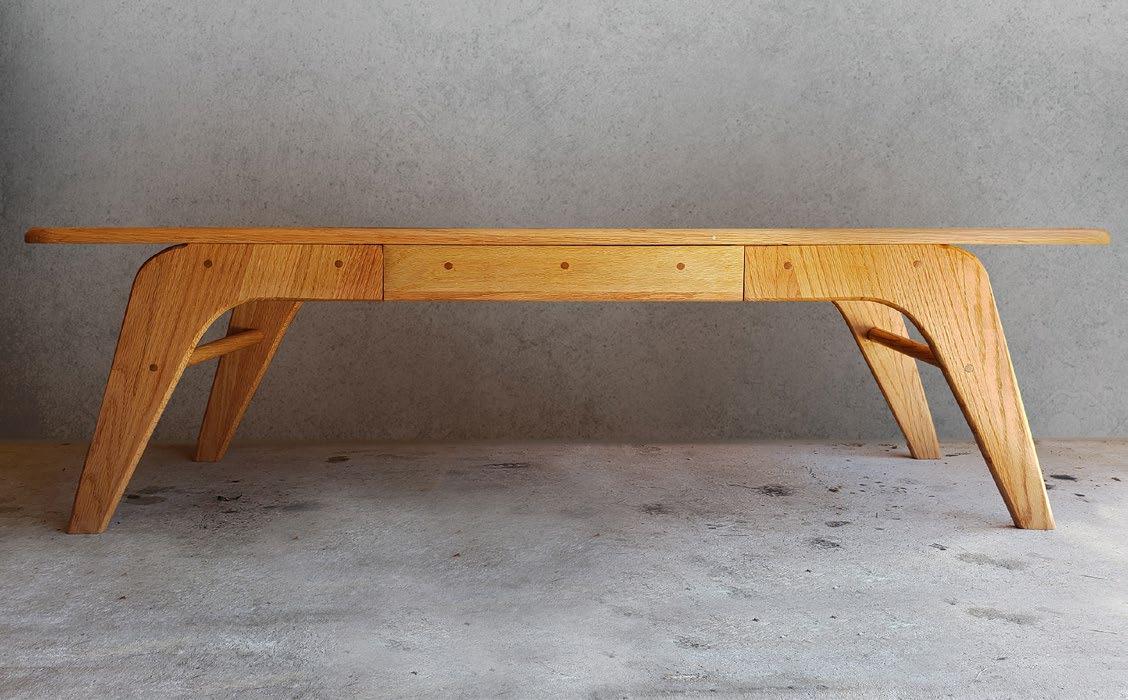

MID-CENTURY MODERN COFFEE TABLE

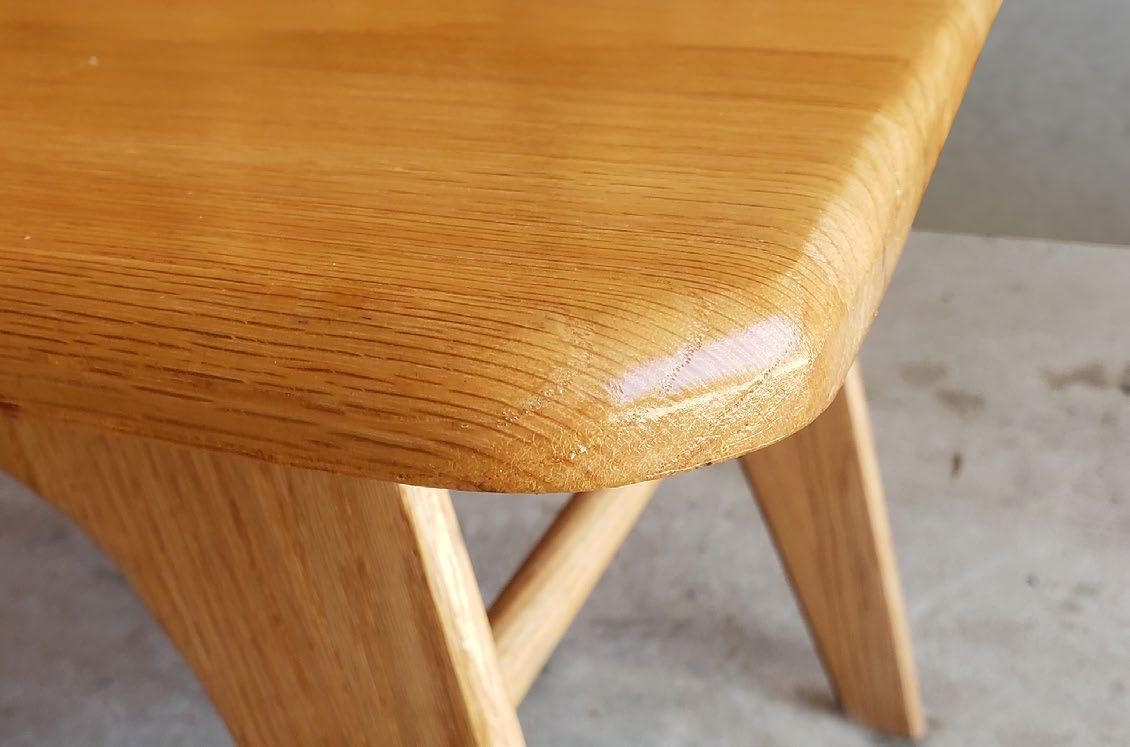

GOLDEN OAK GRAIN DETAILS
