Volume 2
Security and Surveillance Products 2025
Full Line of NDAA Compliant IP and Analog Recorders and Cameras, Security Monitors. Power Supplies and Accessories.

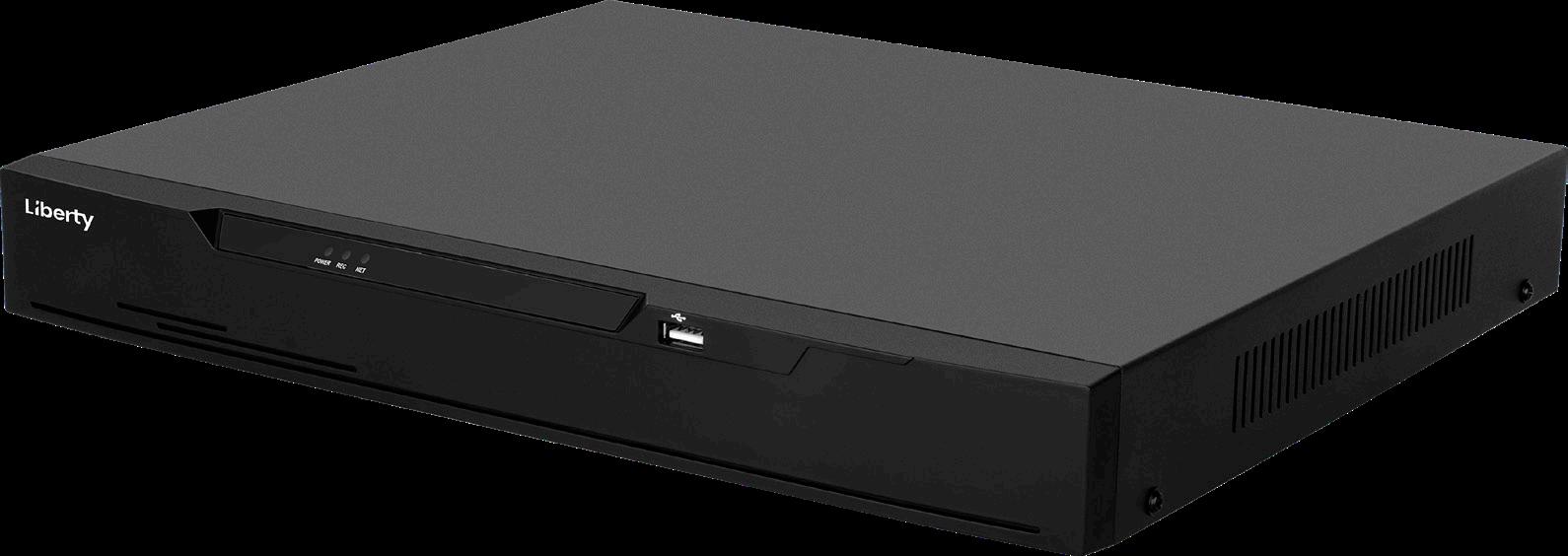

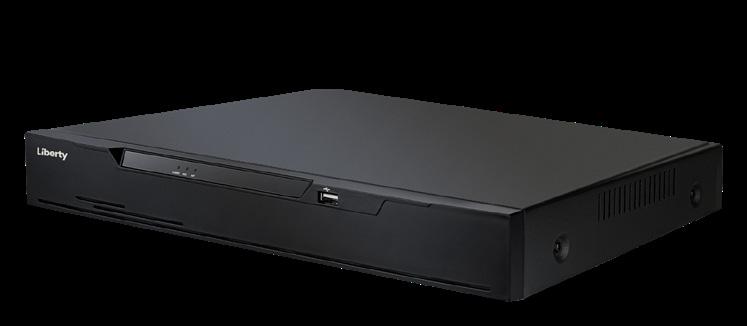

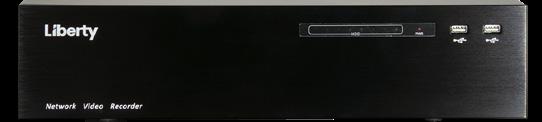

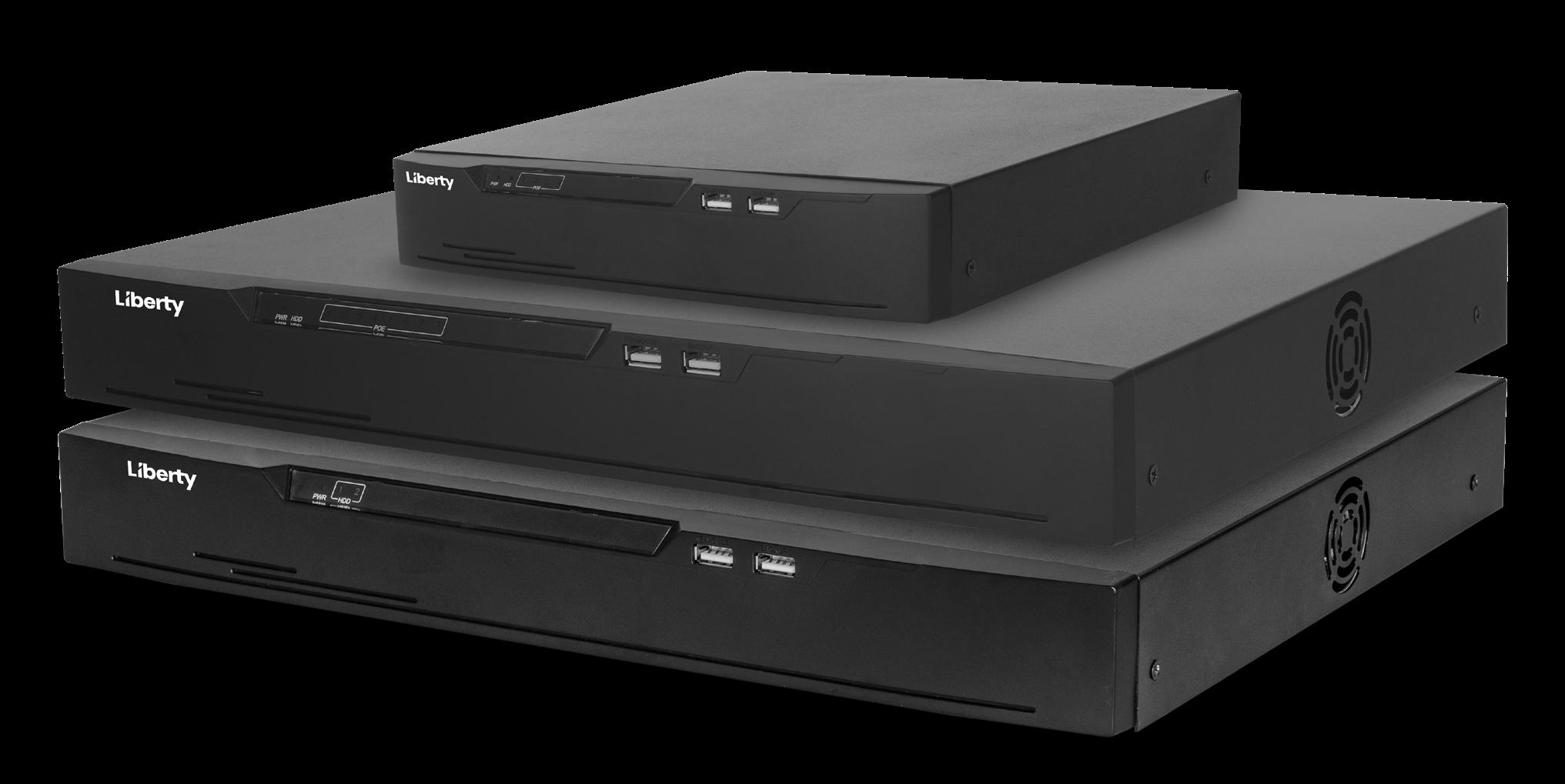

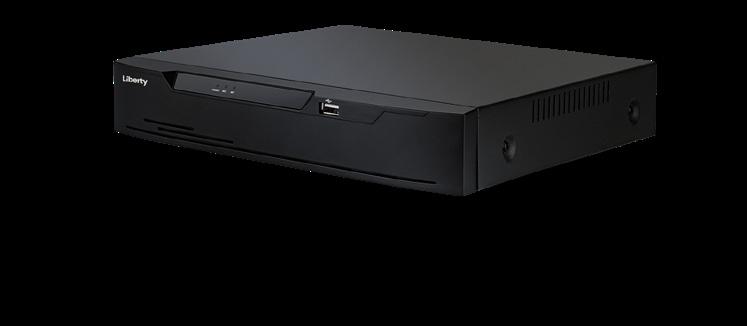

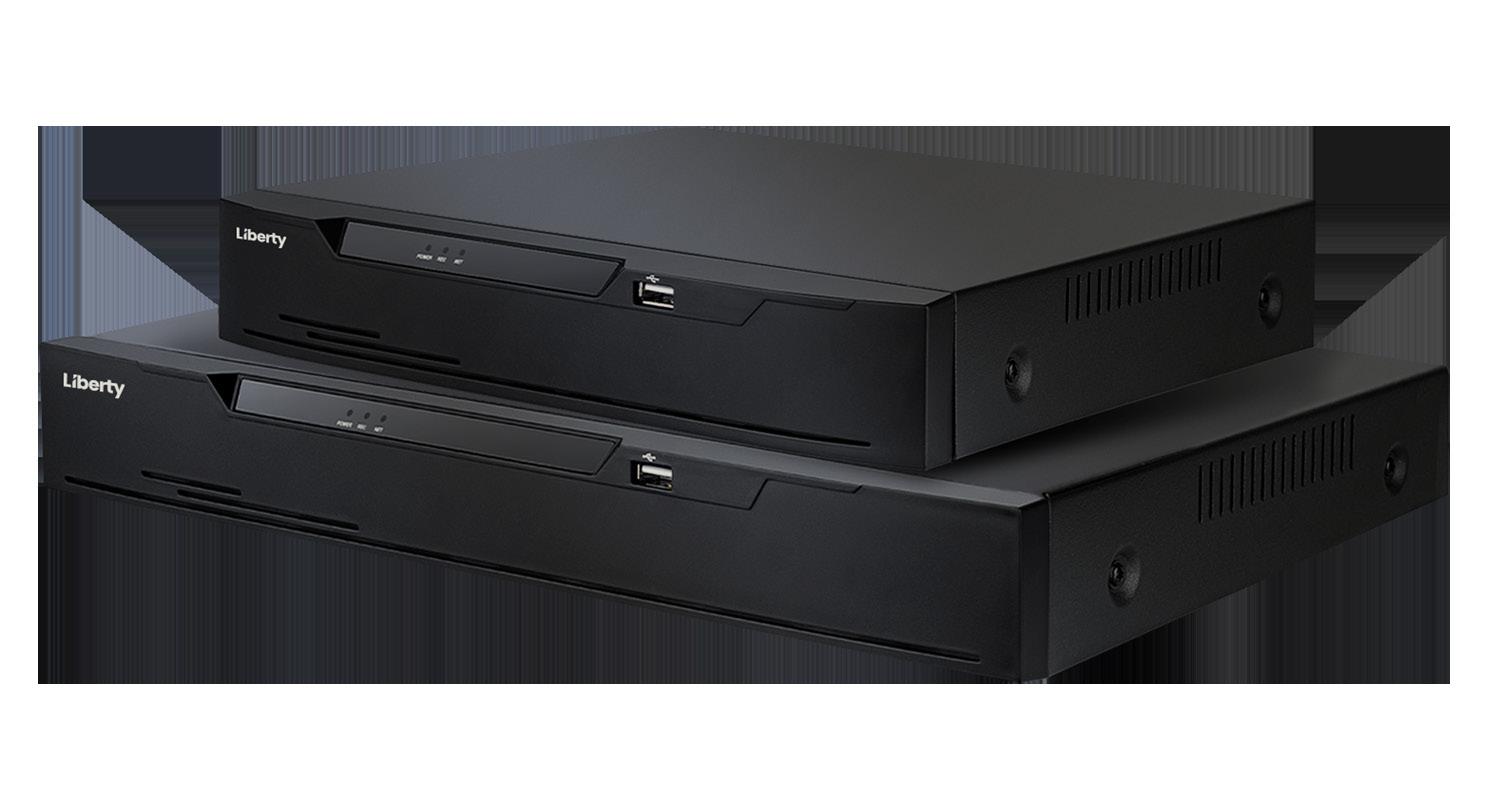

Network Video Recorders (NVR) and Kits
• Supports AI face, body and vehicle recognition
• 4, 8, 16, channel models with up to 24TB storage
• 32 and 64 channel models with up to 112TB Storage
• 4 and 8 channel NVR Kits with 4MP outdoor IP cameras
• Free Liberty-View mobile app and CMS for PC and Mac
• Intelligent analytics
• Up to 12MP recording
• NDAA compliant
SERIES AI NETWORK VIDEO RECORDERS WITH POE
Max Record Resolution 12MP (32Ch. Only), 8MP/6MP/5MP/4MP/3MP/1080p/720p/D-1
Playback
AI and Intelligent Analytics
Plug and Play Models
1Ch.-8MP/ 4Ch.-1080p@30FPS
1Ch.-8MP/ 4Ch.-1080p / 8Ch.-D1@30FPS
1Ch.-8MP/ 4Ch-1080p/9Ch.-D1/16Ch. D1@30FPS
Supports AI face, body and vehicle recognition*, perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion
All L3 Series IP cameras:
L3IP4BS, L3IP4DS, L3IP4DS4, L3IP4TS, L3IP4TS4, L3IP4VFDS, L3IP4VFBS, L3IP4PTZ30XS, L3IP4TFCS, L3IP8BS, L3IP8DS, L3IP8DS4, L3IP8TS, L3IP8TS4, L3IP8WS, L3IP8VFDS, L3IP8VFBS, L3IP8TFCS, L3IP8BDS180S, L3IP12FE360S
Record Modes
Power Supply
Multiple Outputs
Rack Mounting
Manual, schedule (regular, continuous), motion detection, alarm in
DC48V/1.25A
Simultaneous HDMI and VGA outputs
No rack mounting
AC100~240
Independent HDMI and VGA outputs
1U rack mounting
Audio 3.5 mm audio jack
Free Mobile App Free Liberty-View mobile app
Free Software Free Liberty-View mobile CMS software
* For use with Liberty L3 Series AI IP Cameras
L3
L3 SERIES AI NETWORK VIDEO RECORDERS WITH POE
IP Cameras
Channels 16 16
Max Record Resolution
Playback
AI and Intelligent Analytics
Plug and Play Models
12MP @ 20FPS / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D-1 @ 30FPS
1Ch.-12MP@20FPS / 4Ch.-4MP / 9Ch.-D1 / 16Ch.-D1@30FPS
12MP @ 25FPS, 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / D-1 @ 30FPS
1Ch.-12MP / 4Ch.-8MP / 8Ch.-4MP / 16Ch.- 1080P / 32Ch.-D 1 / 64Ch.-D1
Supports AI face, body and vehicle recognition*, perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion
All L3 Series IP cameras: L3IP4BS, L3IP4DS, L3IP4DS4, L3IP4TS, L3IP4TS4, L3IP4VFDS, L3IP4VFBS, L3IP4PTZ30XS, L3IP4TFCS, L3IP8BS, L3IP8DS, L3IP8DS4, L3IP8TS, L3IP8TS4, L3IP8WS, L3IP8VFDS, L3IP8VFBS, L3IP8TFCS, L3IP8BDS180S, L3IP12FE360S Incoming
Poe Power
Record Modes
Power Supply
Multiple Outputs
Rack Mounting
Manual, schedule (regular, continuous), motion detection, alarm in Manual, schedule (regular, continuous), event
DC48V/1.25A
Simultaneous HDMI and VGA outputs
rack mounting
AC 100-240
rack mounting
Audio 3.5 mm audio jack 3.5 mm audio jack - for two-way audio only
Free Mobile App Free Liberty-View mobile app
Free Software Free Liberty-View mobile CMS software
* For use with Liberty L3 series AI IP cameras
L3 SERIES IP KIT MODELS
L3 SERIES 4 AND 8 CHANNEL AI NVR KITS
Cameras Included 4 6
NVR Max IP Channels 4-Channel 8-Channel
NVR Storage 2TB built-in storage
NVR Compression H.265 and H.264 compression formats
NVR Record Modes Manual, schedule (regular, continuous), motion detection, alarm in
NVR Power Supply
External 48 Volt DC
Internal 120-240 Volt AC
NVR Audio 3.5 mm in/out for two-way audio
Incoming Bandwidth 40 Mbps 80 Mbps
Camera Resolution 4MP (2560 x 1440)
Camera Lens 2.8 mm fixed focal IR lens
Camera Audio Built-in microphone
Camera IR LED Range 2 high power IR LEDs/100' IR range
Weatherproof Rating IP66
Free Mobile App Liberty-View mobile app for iPhone, iPad, Android and Android tablets
Free Software Liberty CMS, utility tool
OPTIONAL ACCESSORIES AND CAMERAS
24" Security Monitor
28” 4K Security Monitor
32" Security Monitor

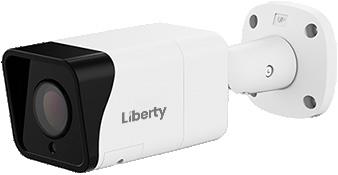

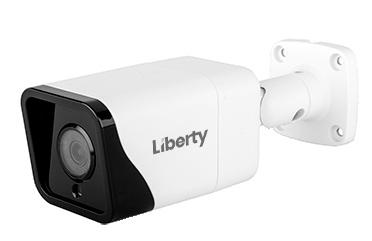

4MP or 8MP Autofocus IP Bullet

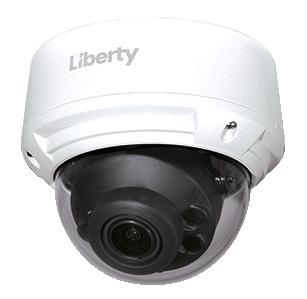

4MP or 8MP Autofocus IP Dome

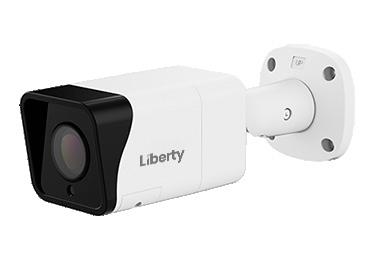

4MP or 8MP Fixed Lens Bullet
4MP or 8MP Fixed Lens Turret
LSM24R — 1080p, HDMI/VGA/BNC inputs, IR remote
LSM4K28 — 3840 x 2160 , 3x HDMI, VGA, display Port, IR remote
LSM32R — 1080p, HDMI/VGA/BNC inputs, IR remote
L3IP4VFBS/L3IP8VFBS — 2.7-13.5 mm, 120' IR
L3IP4VFDS/L3IP8VFDS — 2.7-13.5 mm, 120' IR
L3IP4BS/L3IP8BS — 2.8 mm Bullet, 100' IR
L3IP4TS/L3IP8TS — 2.8 mm turret, 100' IR | L3IP4TS4/L3IP8TS4 — 4 mm turret, 100' IR
8MP Fixed Lens Wedge L3IP8WS — 2.8 mm wedge, 45' IR

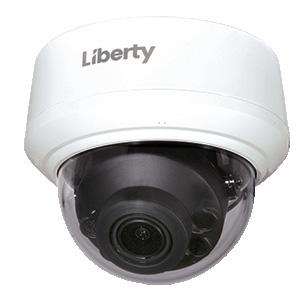

4MP or 8MP Fixed Lens Dome

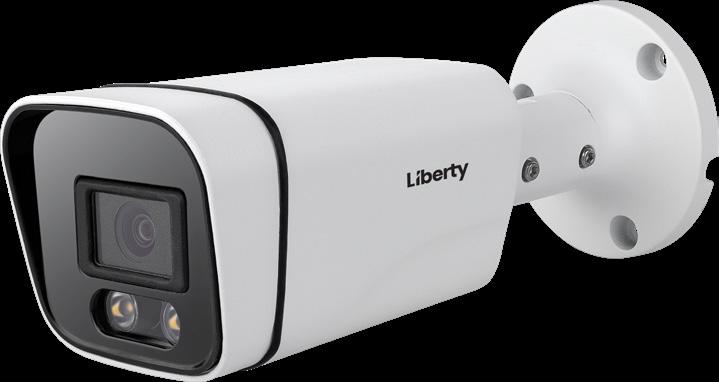

Full Color 4MP/8MP Fixed Lens Turret
L3IP4DS/L3IP8DS — 2.8 mm dome, 100' IR | L3IP4DS4/L3IP8DS4 — 4 mm dome, 100' IR
L3IP4TFCS/L3IP8TFCS — 2.8 mm turret, 100’ white LED
L3NVR4KIT4C
L3NVR8KIT6C

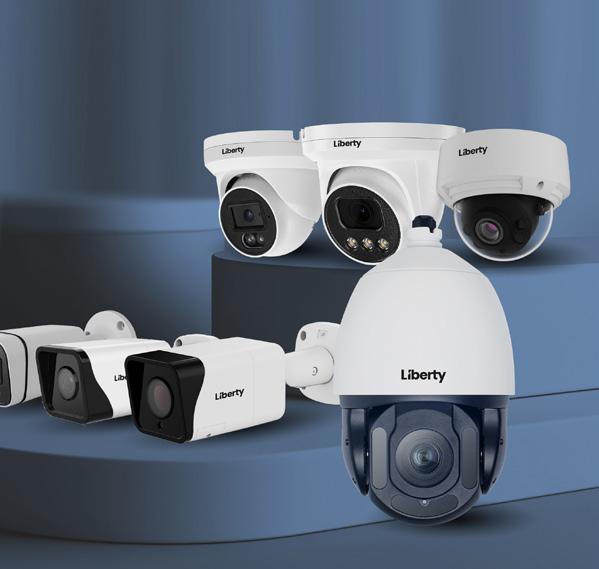

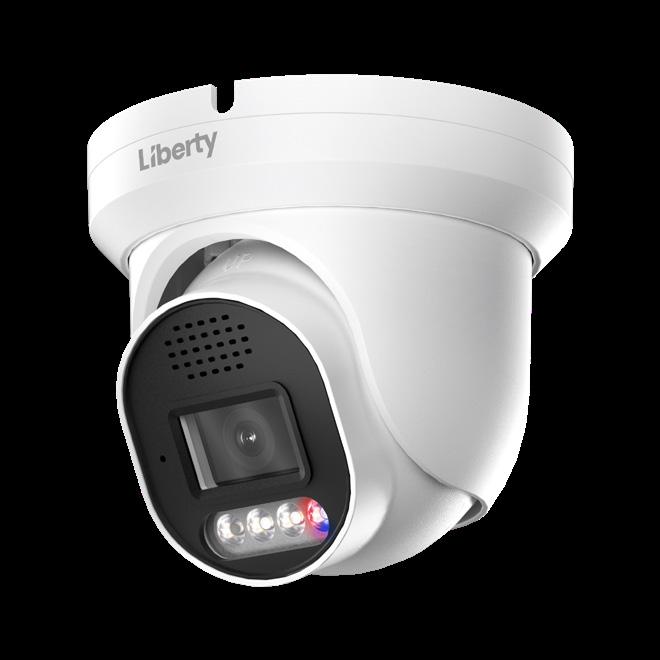

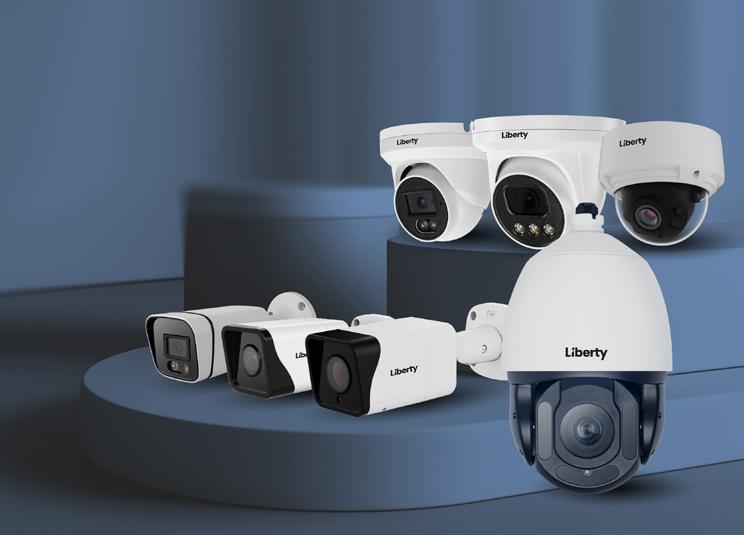

Advantage IP Cameras
• 5MP AI, PoE cameras
• Supports AI face, body and vehicle recognition
• Active deterrent models with two-way audio
• Infrared and white light LED options
• True 120dB wide dynamic range
• Intelligent analytics
• SD card capability
• NDAA compliant
L3 ADVANTAGE SERIES IP CAMERAS
Max Resolution 5MP (2880x1620)
PoE IEEE 802.3af
AI Features
Smart Analytics
Wide Dynamic Range
Supports AI face, body and vehicle recognition*
Perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion, illegal parking
True 120dB wide dynamic range
Frame Rate 2880 x 1620 @ 25/30FPS
Lens Size 2.8 mm
LED Distance
True D/N - IR Lens
Free Mobile App Liberty-View mobile app for iPhone, iPad, Android and Android tablets
Free Software Liberty CMS, utility tool

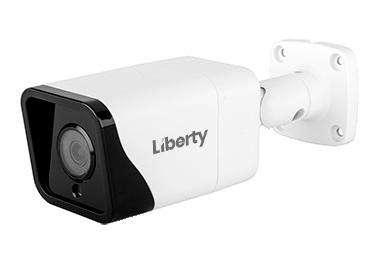

4MP IP Cameras
• 4MP AI, PoE cameras
• Supports AI face, body and vehicle recognition
• Infrared and white light LED options
• Intelligent analytics
• Audio line in/out and alarm
• SD card capability
• NDAA compliant

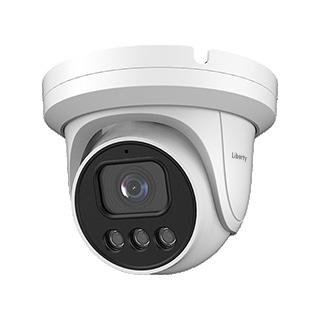

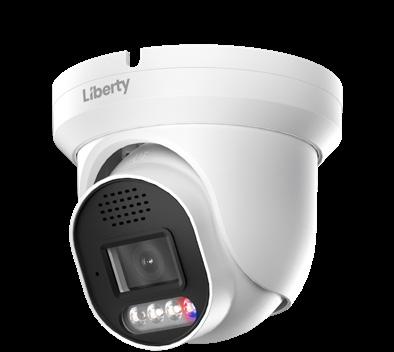

L3 SERIES AI 4MP IP CAMERAS
Resolution
AI Features Supports AI face, body and vehicle recognition*
Wide Dynamic Range True 120dB wide dynamic range
Frame Rate 2592 x 1520 @ 30FPS 2560 x 1440 @ 30FPS
Smart Analytics
Perimeter, single virtual fence, double virtual fence multi-loitering, wrong way, people counting, smart motion
SD Card Slot Supports 256GB max
True D/N - IR Lens Yes
Triple Streams Yes Compatibility ONVIF profile S/G/T compliant
Weatherproof Rating
Free Mobile App
Liberty-View mobile app for iPhone, iPad, Android and Android tablets
Free Software Liberty CMS, utility tool
* For use with Liberty L3 series AI NVRs
8MP IP Cameras
• 8MP AI, PoE cameras
• Supports AI face, body and vehicle recognition
• Infrared and white light LED options
• Intelligent analytics
• Audio line in/out and alarm
• SD card capability
• NDAA compliant
L3 SERIES AI 8MP IP CAMERAS
AI Features
Wide Dynamic Range
Smart Analytics
Perimeter, single virtual fence, double virtual fence multi-loitering, wrong way, people counting, smart motion

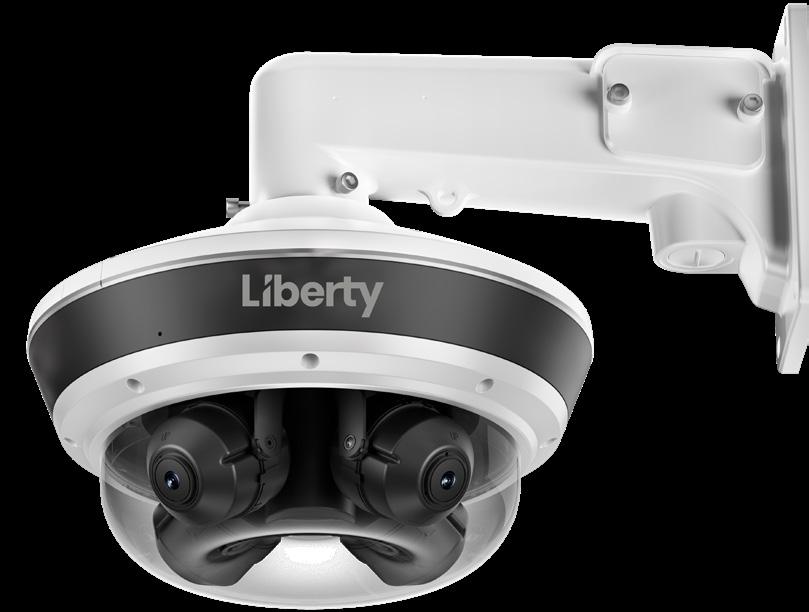

Surround View Specialty
IP Cameras
• Supports AI face, body and vehicle recognition
• 4MP PTZ, 8MP dual sensor, 12MP fisheye and 20MP (4x5) mlti sensor models
• 180° and 360° panoramic FOV capability
• Intelligent analytics
• SD card capability
• NDAA compliant

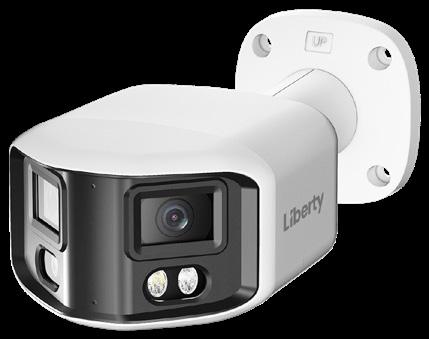

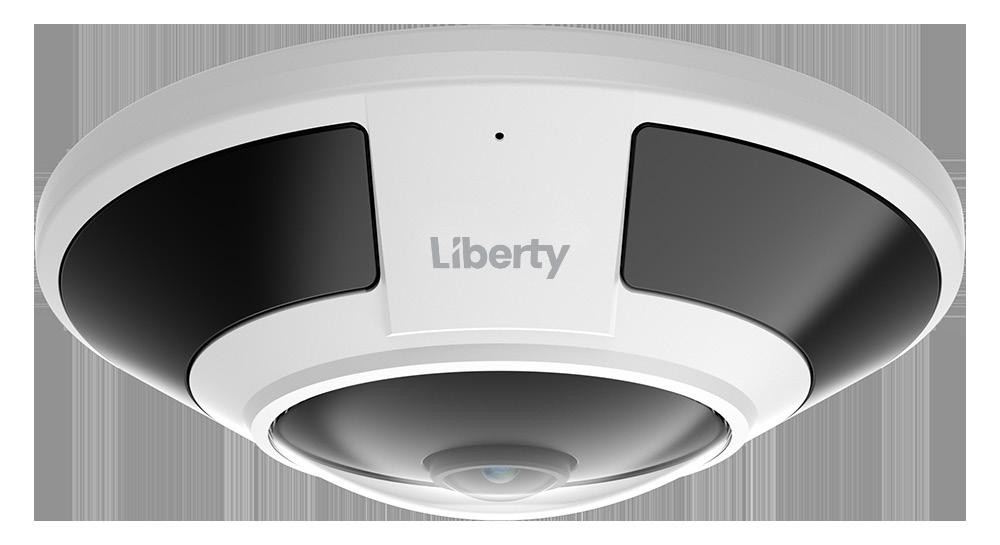

Surround View Specialty IP Cameras
L3 SERIES AI SURROUND VIEW SPECIALTY IP CAMERAS
AI Features Supports AI face, body and vehicle recognition*
Wide Dynamic Range True 120dB wide dynamic range
Smart Analytics
Perimeter, single virtual fence, double virtual fence, multi-loitering, wrong way, people counting, smart motion
SD Card Slot
True D/N - IR Lens
Free Mobile App
Liberty-View mobile app for iPhone, iPad, Android and Android tablets
Free Software Liberty CMS, utility tool
L3 SERIES IP CAMERA MODELS
Hybrid Video Recorders (HVR)
• 4, 8 and 16-channel 5MP hybrid DVRs
• Compatible with TVI, CVI and AHD formats
• Full hybrid - all channels analog or IP
• Up to 8TB (4Ch.) or 16TB (8 and 16Ch.) storage capacity
• Free Liberty-View mobile app and CMS software
• Simultaneous HDMI and VGA outputs
• NDAA compliant
L3 SERIES 5-IN-1 HYBRID HD ANALOG RECORDERS
Video Output
Record Frame Rate
Simultaneous VGA and HMDI main monitor outputs
Record Resolution 960 x 576(960H), 1280 x 720(720p), 1920 x 1080(1080p), 2560 x 1440(4MP), 2560 x 1920(5MP), 1280 x 1440(8MP-Lite)
7FPS@8MP Lite, 6FPS@5MP, 7FPS@4MP, 15FPS@1080p, 30FPS@720p and 960H
8FPS@8MP Lite, 7FPS@5MP, 8FPS@4MP, 15FPS@1080p, 30FPS@720p and 960H
Free Mobile App Liberty-View mobile app for iPhone, iPad, Android and Android tablets
Software Included Liberty CMS, utility tool Hybrid Video Recorder
L3 HVR SERIES MODELS
L3HVR4
L3HVR8
L3HVR16
Analog Cameras
• 5MP analog cameras
• Compatible with TVI, CVI and AHD formats
• True 120dB wide dynamic range
• Day/night with IR filter - auto switch
• IP66 or IP67 weatherproof ratings
• NDAA compliant
LA SERIES 5MP MULTI FORMAT CAMERAS
Multiple Formats
Video Output
L3 SERIES CAMERA MOUNTING GUIDE
L3IP4BS, L3IP4VFBS, L3IP8BS, L3IP8VFBS, LA5BIR80, LA5VFBIR120, LA5BFC60
L3IP8BDS180S
FEATURES:
Liberty’s L3 Mounting accessories include a hinged wall mount, pendent mount, junction boxes and pendent caps to make installation easier and cameras more aesthetically pleasing. The chart below shows accessories needed for different mounting applications.
L3IP12FE360S
Junction box
Pole
Junction box
Pole
Junction box
Pendent
Wall
Pole
Junction box
L3JB1 junction box
L3JB1 + L3POLEMT2 junction box + pole mount
L3JB1 junction box
L3JB1 + L3POLEMT2 junction box + pole mount
L3JB7 junction box
L3PC7 + L3CPM1 pendent cap + pendent mount
L3PC7 + L3HWM1 pendent cap + wall mount
L3PC7 + L3HWM1 + L3POLEMT2 pendent cap + wall mount + pole mount
L3JB2 junction box
L3IP4DS, L3IP4DS4, L3IP8DS, L3IP8DS4
L3IP4TS, L3IP4TS4, L3IP4TFCS, L3IP8TS, L3IP8TS4, LA5TIR80, LA5TIR100, LA5TFC100
Pendent
Wall
Pole
Junction box
Pendent
Wall
Pole
L3PC2 + L3CPM1 pendent cap + pendent mount
L3PC2 + L3HWM1 pendent cap + wall mount
L3PC2 + L3HWM1 + L3POLEMT2 pendent cap + wall mount + pole mount
L3JB3 junction box
L3PC3 + L3CPM1 pendent cap + pendent mount
L3PC3 + L3HWM1 pendent cap + wall mount
L3PC3 + L3HWM1 + L3POLEMT2 pendent cap + wall mount + pole mount
L3PC2 ~ L3PC7
L3JB1 ~ L3JB7
L3POLEMT2
L3CPM1
L3HWM1
Camera Mounting Accessories
L3 SERIES CAMERA MOUNTING GUIDE
FEATURES:
Liberty’s IP and analog PTZ products offer an included wall mount. Optional PTZ mounting accessories include a hinged junction box, pendent mount, outside corner mount and pole mount to make installation easier. The chart below shows all accessories needed for different mounting applications.
L3IP4VFDS, L3IP8VFDS, LA5VFDIR100, LA5VFDIR100IN
L3IP8TFCS
L3IP8WS
Junction box
Pendent
Wall
Pole
Junction box
Pendent
Wall
Pole
Junction box
Pendent
Wall
Pole
L3JB5 junction box
L3PC5 + L3CPM1 junction box + pendent mount
L3PC5 + L3HWM1 junction box + wall mount
L3PC5 + L3HWM1 + L3POLEMT2 junction box + wall mount + pole mount
L3JB6 junction box
L3PC6 + L3CPM1 junction box + pendent mount
L3PC6 + L3HWM1 junction box + wall mount
L3PC6 + L3HWM1 + L3POLEMT2 junction box + wall mount + pole mount
L3JB4 junction box
L3PC4 + L3CPM1 junction box + pendent mount
L3PC4 + L3HWM1 junction box + wall mount
L3PC4 + L3HWM1 + L3POLEMT2 junction box + wall mount + pole mount

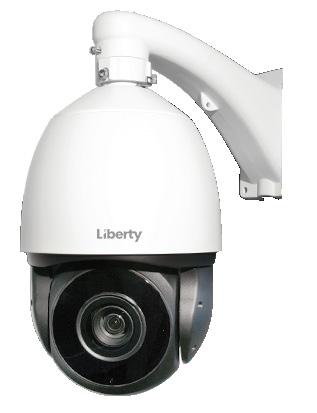

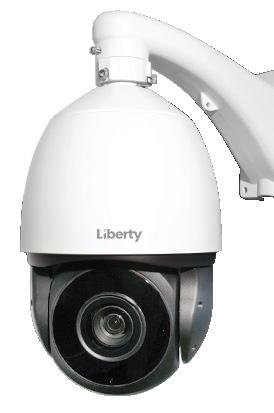

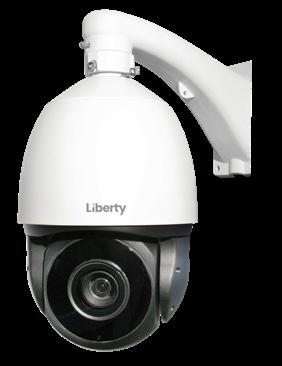

L3IP4PTZ30XS, LA5PTZ33X
Wall mount Included wall mount
Junction box
Corner mount
Pendent
Pole
L3PTZJB Included wall mount + junction Box
L3PTZJB + L3PTZCRNMT - Included wall mount + junction box + corner Mount
L3PTZPENDMT Included wall mount + pendent mount
L3PTZJB + L3PTZPOLEMT - Included wall mount + junction box + pole mount

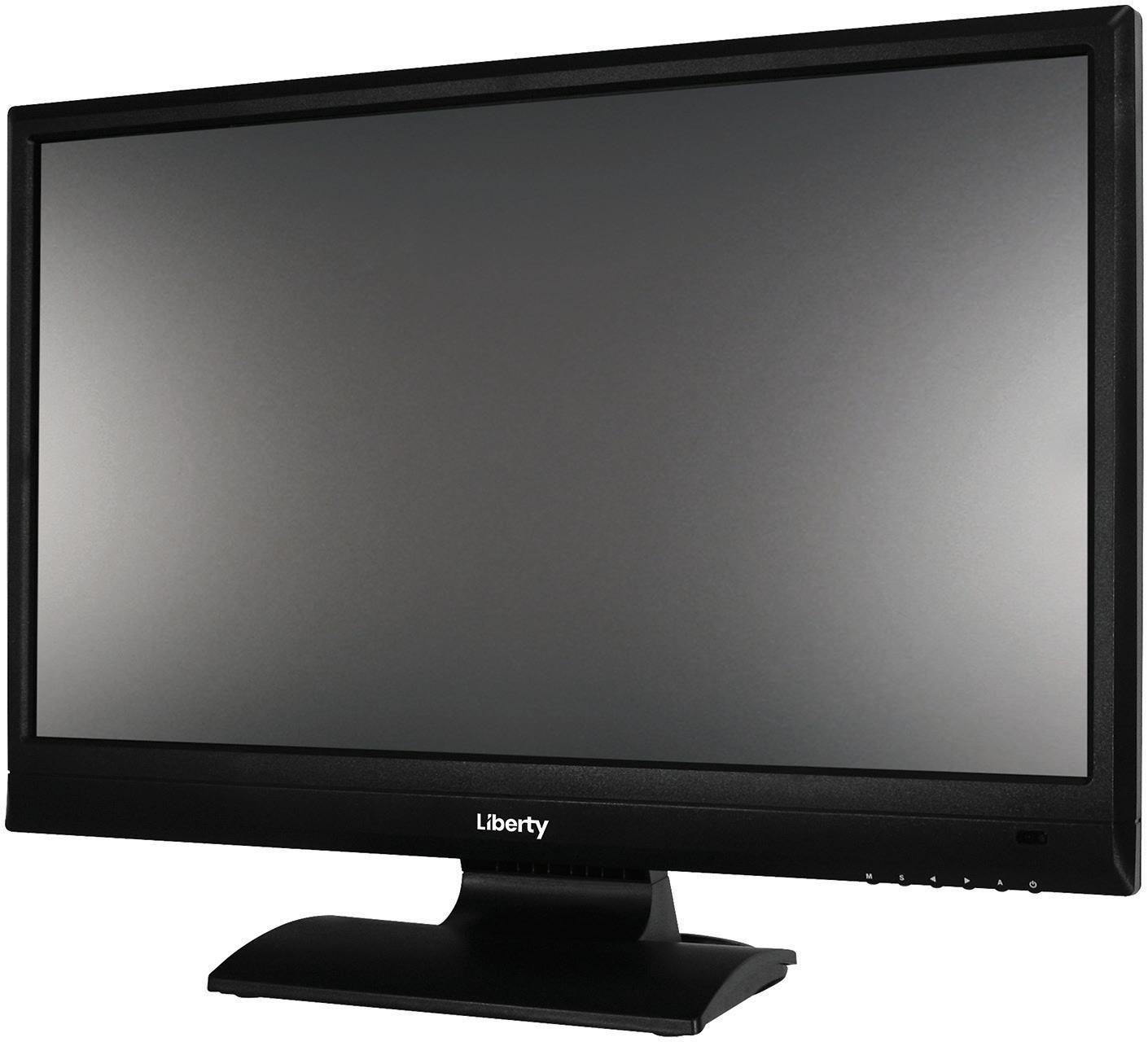

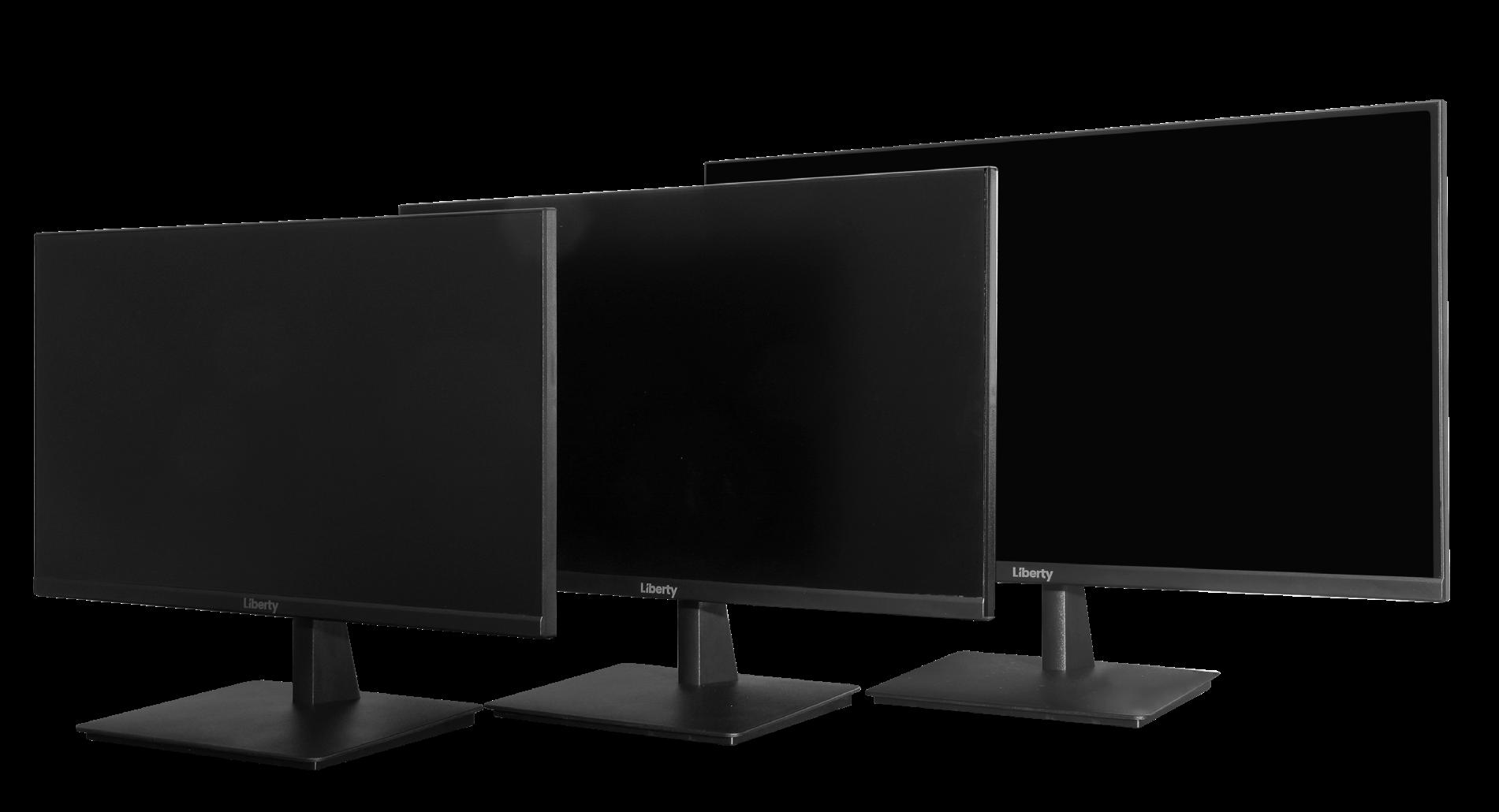

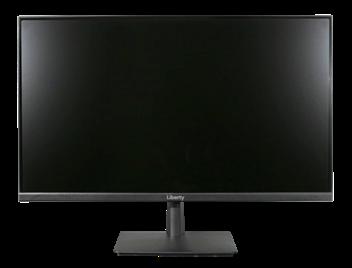

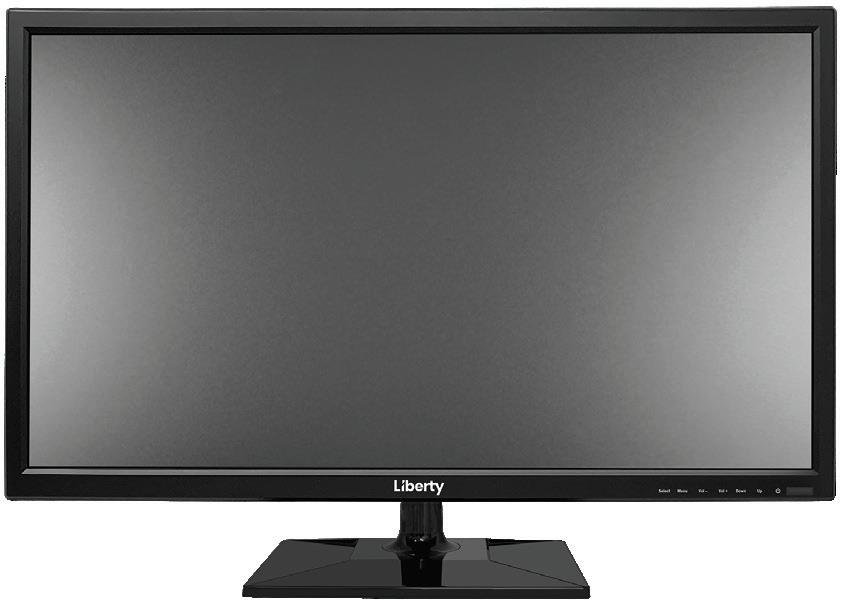

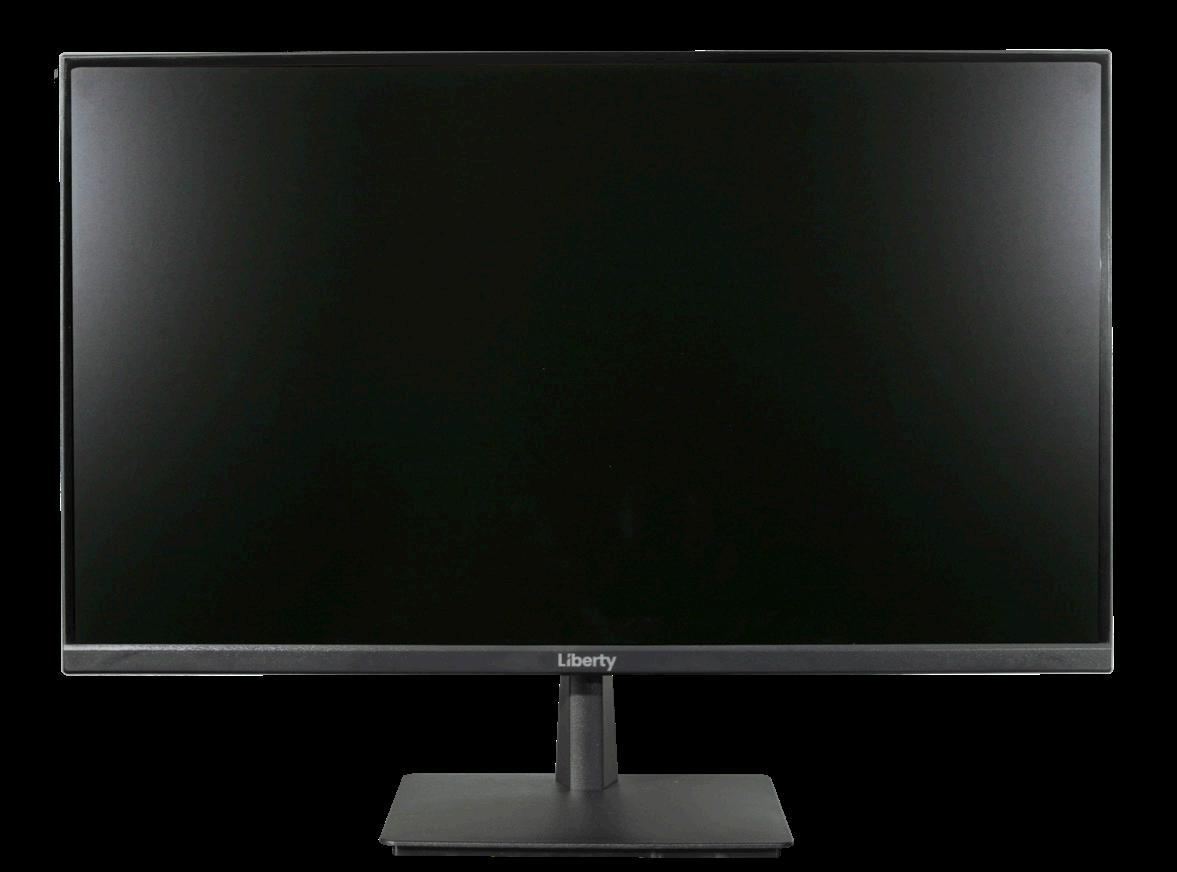

Advantage Security Monitors
• Security rated panels for 24/7 use
• 22", 24" and 27" options
• 1080p resolution
• NDAA compliant
• 3-Sided slim line bezel
• HDMI and VGA inputs
• Includes desk stand and HDMI cable
ADVANTAGE SERIES SECURITY MONITORS
Screen Size (Active) 21.5" diagonal 23.8" diagonal 27" diagonal
Aspect Ratio 16:9 widescreen
Max Resolution 1080p
Supported Resolution 720 x 400; 640 x 480; 800 x 600; 1024 x 768; 1280 x 1024; 1366 x 768; 1440 x 900; 1600 x 900; 1680 x 1050; 1920 x 1080
Pixels 1920 x 1080
Video Inputs HDMI and VGA
Audio Inputs PC audio (3.5 mm)
Viewing Angle
Horizontal: 178°, vertical: 178°
Bezel 3-sided slim line bezel
Brightness 250 cd/m2
Contrast 1,000,000 : 1 DCR (1000 : 1 static CR)
Response Time 8 ms
VESA Maounting
Power Supply 3 amp 12 Volt DC / external Weight (with Stand)
W x D x H (with Stand)
Certfifications CE andd FCC

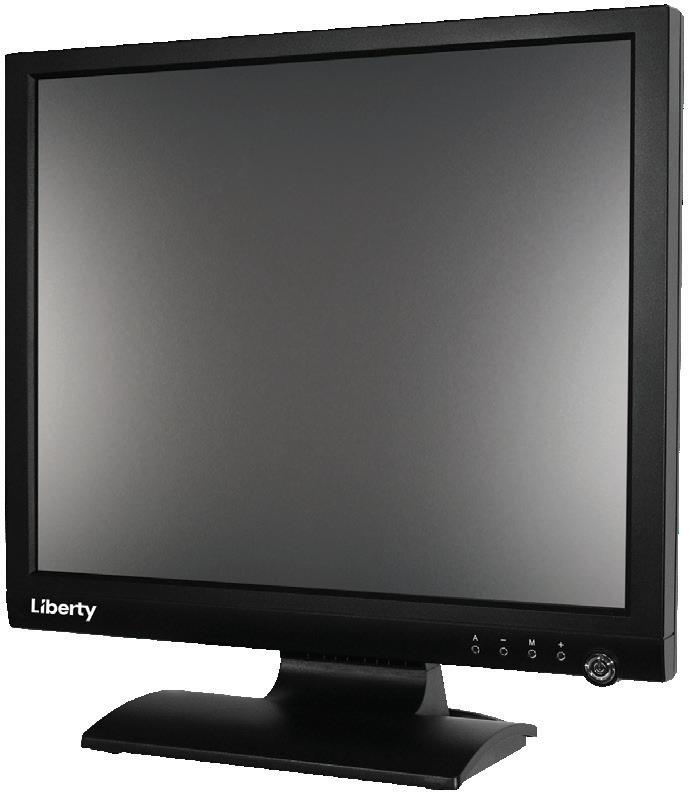

LSM Series Monitors
• Security rated panels for 24/7 use
• 17" to 32" screen size options
• 1080p and 4K resolutions
• Desktop stand, VGA and HDMI cables included
• IR remote included on most models
• NDAA and TAA compliant
LSM SERIES SECURITY RATED LED MONITORS
REAR PANEL CONNECTIONS:

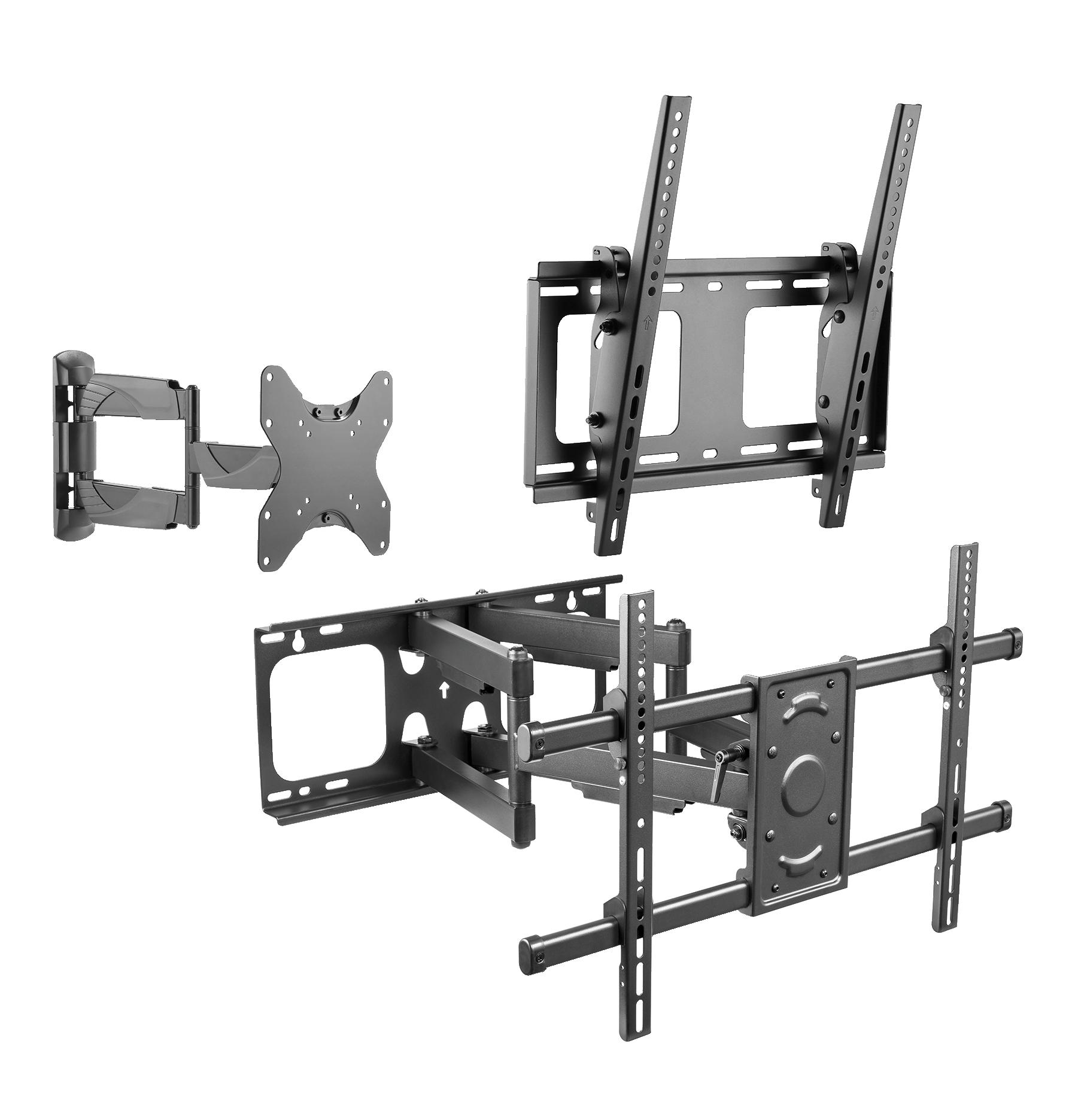

TV and Monitor Display Mounts
• Fully articulating options for 13"–90" displays
• Up to 143 lb weight capacity for articulating models
• Tilting only options for 32"–90" displays
• Up to 176 lb weight capacity for tilting models
• VESA 75 x 75 to 800 x 400 compatibility
• Supports flat and curved screens on most models
• UL/CUL certified
LIBERTY DISPLAY MOUNTS

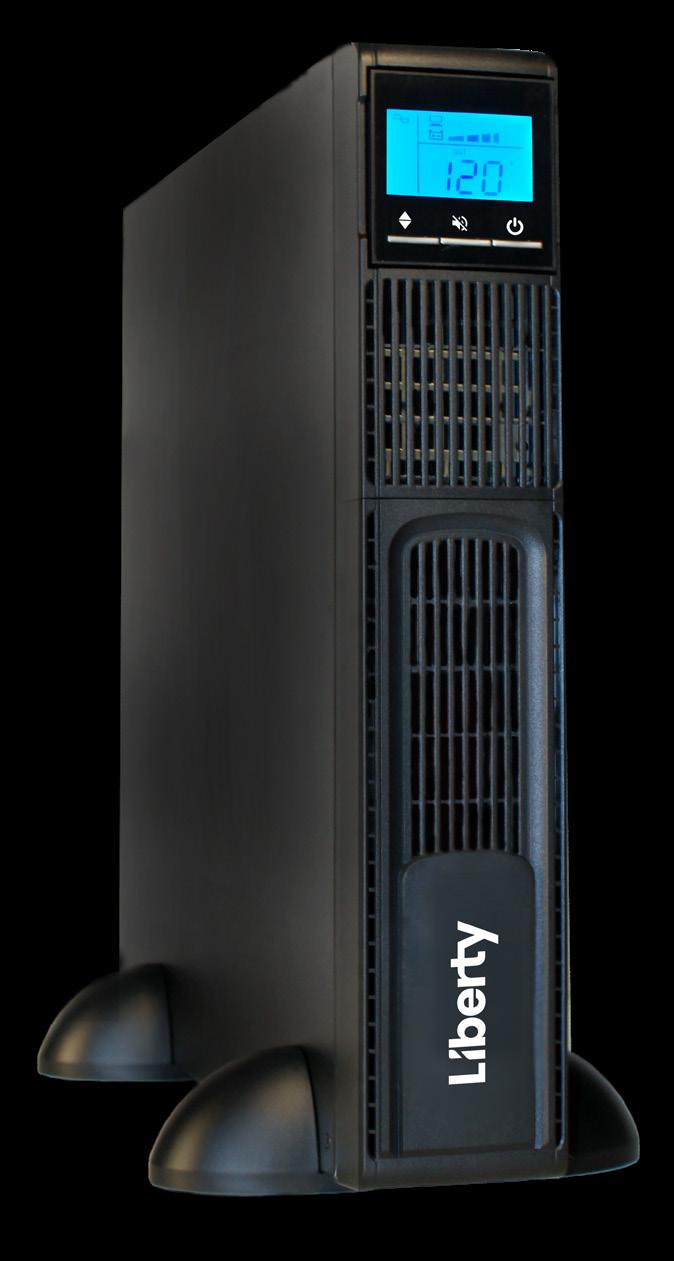

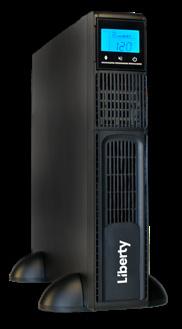

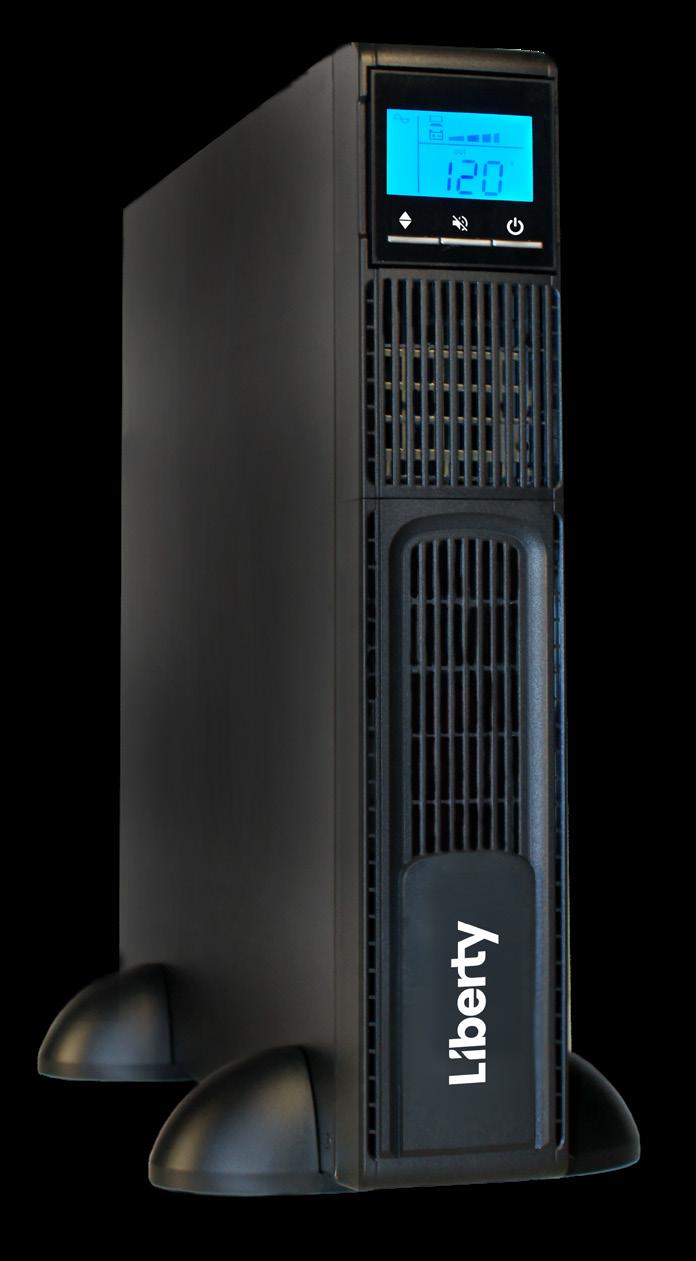

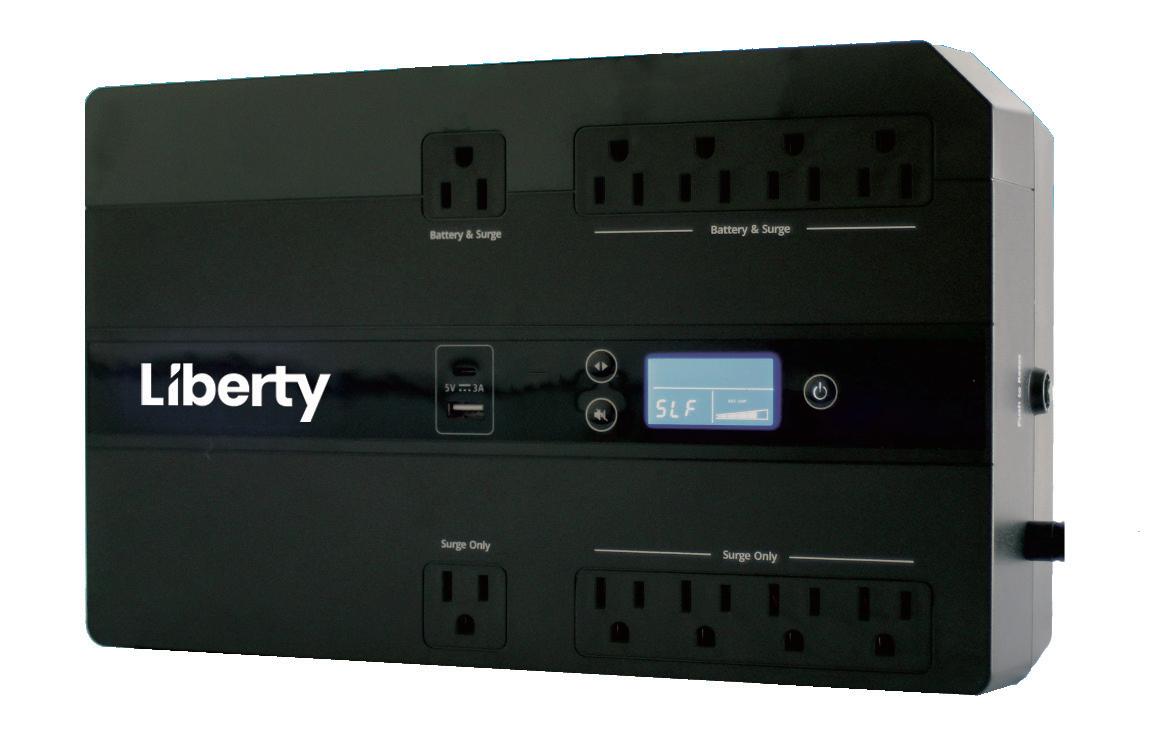

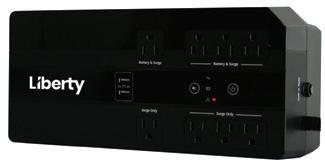

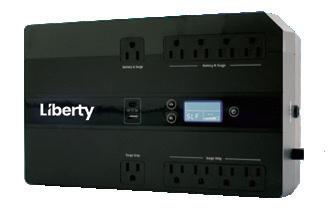

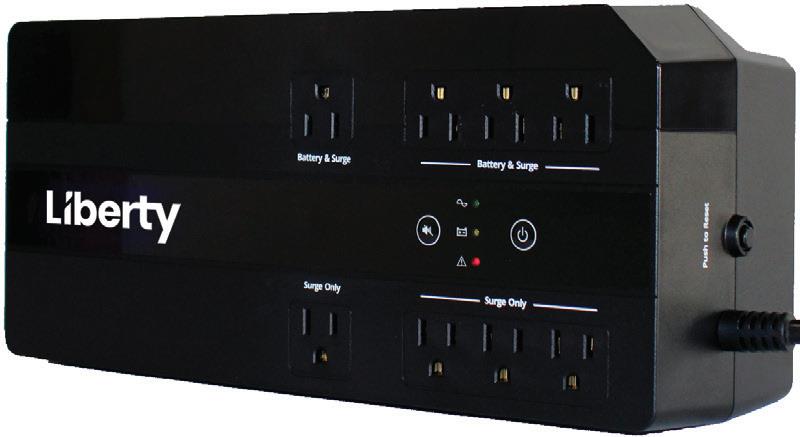

Uninterruptible Power Supplies (UPS)
• Tower, desktop wall-mount and rack-mount options
• Management and monitoring software included
• NEMA 5-15R outlets
• USB charging ports
• Coax surge protection port
• RJ45 ethernet surge protection port
UNINTERRUPTIBLE POWER SUPPLIES (UPS)
Max Output
Power Topology
Mounting / Installation Desktop, floor
Output Receptacles and Surge (4) 5-15R (surge only) / (4) 5-15R (battery and surge)
Tower/desktop
(5) 5-15R (surge only) / (5) 5-15R (battery and surge)
Rack-mount / tower / wall-mount (optional kit)
(5) 5-15R (surge only) / (5) 5-15R (battery and surge) (8) NEMA 5-15R
Voltage Output (Battery Operation)
Wave Form Simulated sine wave
Battery System Hot swappable battery, sealed, non-spillable, valve regulated, maintenance-free, lead acid
Typical Run Time on Battery
Compliance
Unit Size (L x W x H) Net (with Rack Ears Installated)
(324
cTUVus (UL1778 5th edition), CE, FCC Class B, RoHS2, Energy Star 2.0
Warranty 3 Years electronics / 2 years batteries
* Runtimes are estimated figures, and will vary based on conditions, age of batteries, and other factors
cTUVus (conforms to UL1778 5th edition and CSA 222 no. 107.3:2014 /R201710), FCC Class B, RoHS2, Energy Star 2.0, DoE 10 CFR Part 430 Subpart B compliant
cTUVus (tested to UL1778), CE, RoHS2, Energy Star, RoHS2, Energy Star 2.0
Three-year limited parts and labor warranty

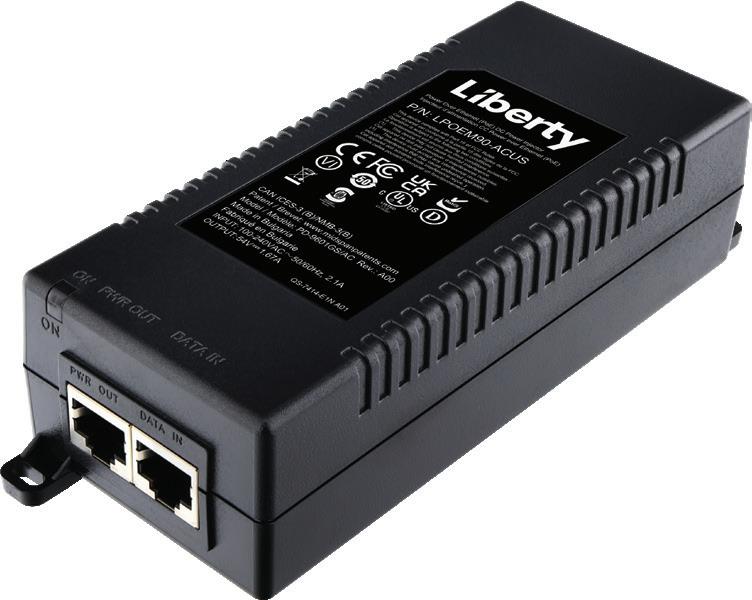

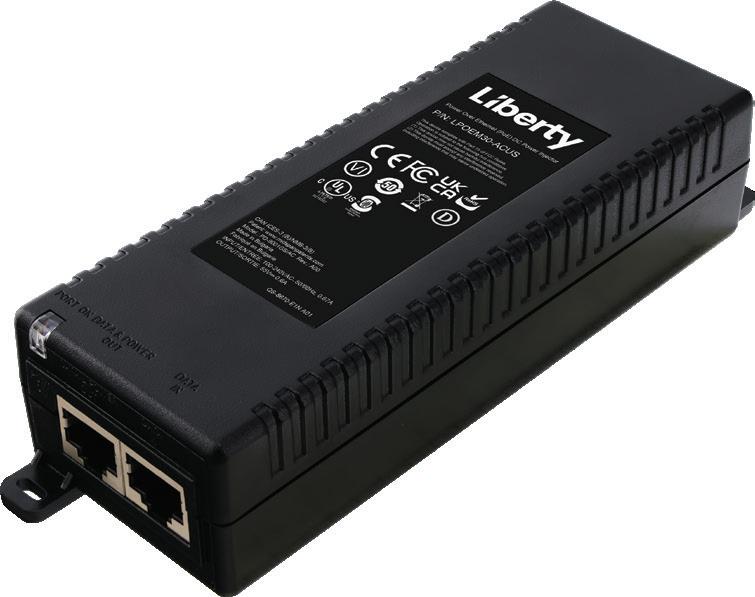

PoE Midspans
• IEEE 802.3af backward compatible
• Output power of 30W, 60W or 90W is guaranteed
• Supports 10/100/1000Base-T applications
• Safe: low-power devices receive only the power they need
• Automatic detection and protection of non–standard ethernet terminals
• DOE level VI efficiency compliant
LIBERTY POE MIDSPANS
Number of Ports 1
Data Rate 10/100/1000 Mbps
AC Input Power Requirement
AC input voltage: 100 to 240 VAC
AC input current: 0.67A
AC frequency: 50/60 Hz
AC input voltage: 100 to 240 VAC
AC input current: 1.1A
AC frequency: 50/60 Hz
AC input voltage: 100 to 240 VAC
AC input current: 1.35A AC frequency: 50/60 Hz Output
Power over Ethernet Output Spare pairs 4/5 (+), 7/8 (–) nominal output voltage: 55 VDC
Dimensions
Net Weight
Connectors
Indicators
g (.45 lb)
Data pairs 1/2 (−), 3/6 (+) spare pairs 7/8 (−), 4/5 (+) output voltage: 52 VDC nominal
Data pairs 1/2 (−), 3/6 (+) spare pairs 7/8 (−), 4/5 (+) output voltage: 54 VDC nominal
g (.61 lb)
Shielded RJ-45, EIA 568A and 568B
AC power - blinking blue / channel power indication: green
Hazardous Substances CE, WEEE
Warranty 3-years
Reliability
Electromagnetic Emission and Immunity
g (.61 lb)
FCC Part 15, Class B / EN 55032 Class B (emissions) / EN55035 (immunity) / VCCI
Safety UL/IEC/EN 62368-1

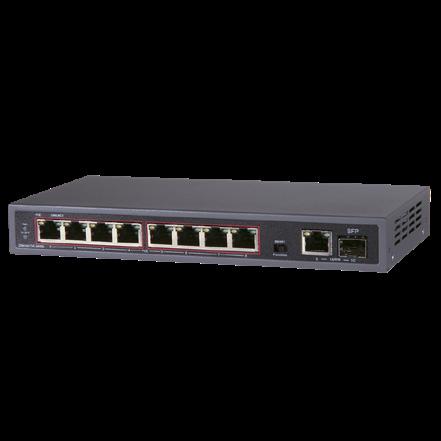

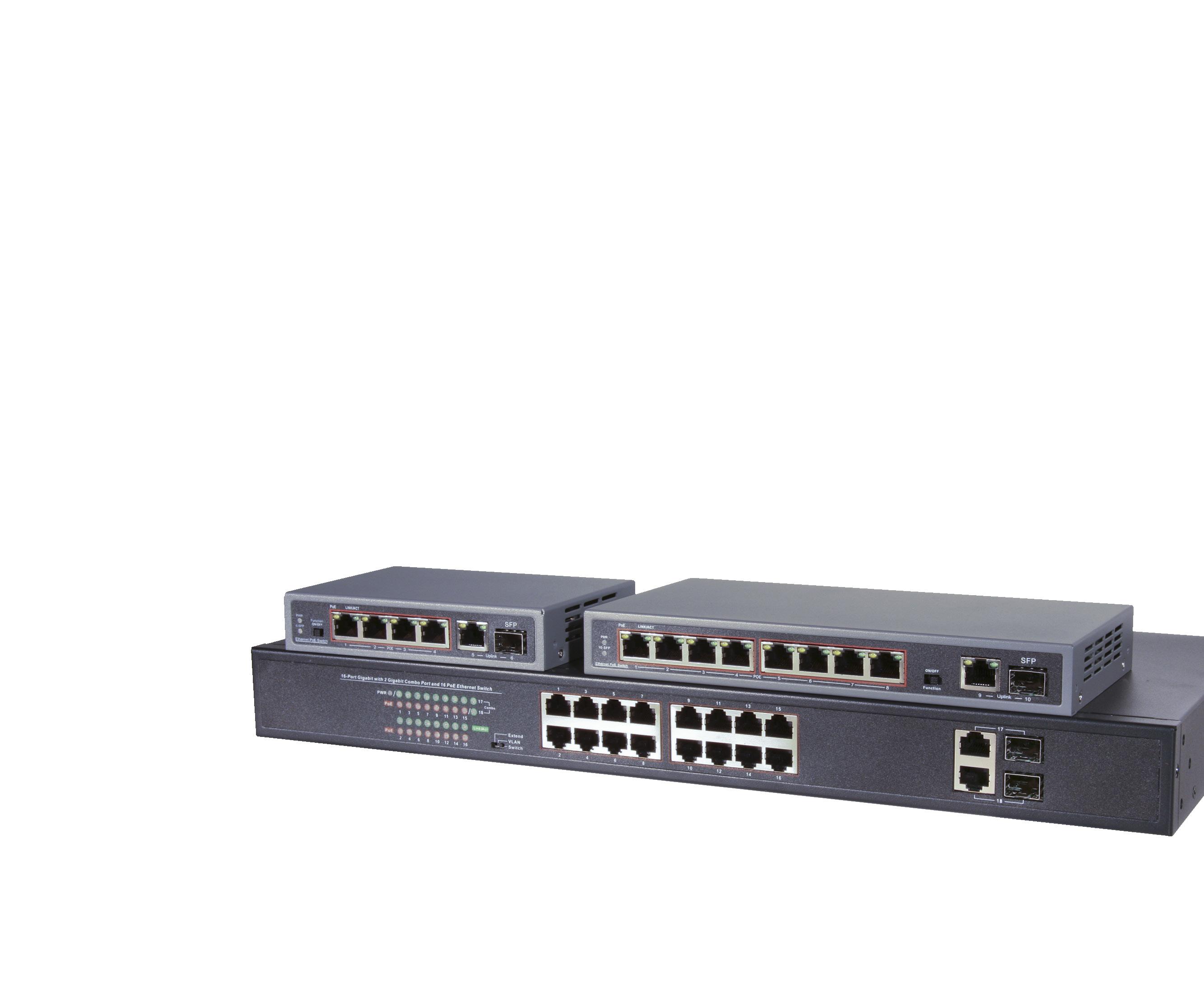

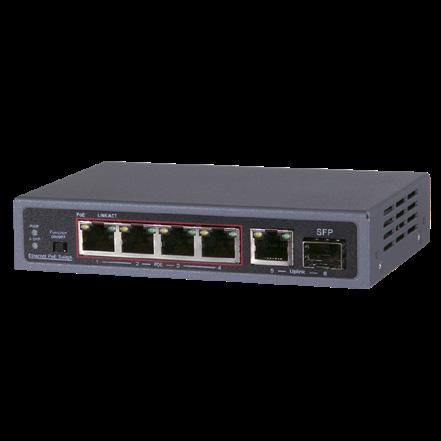

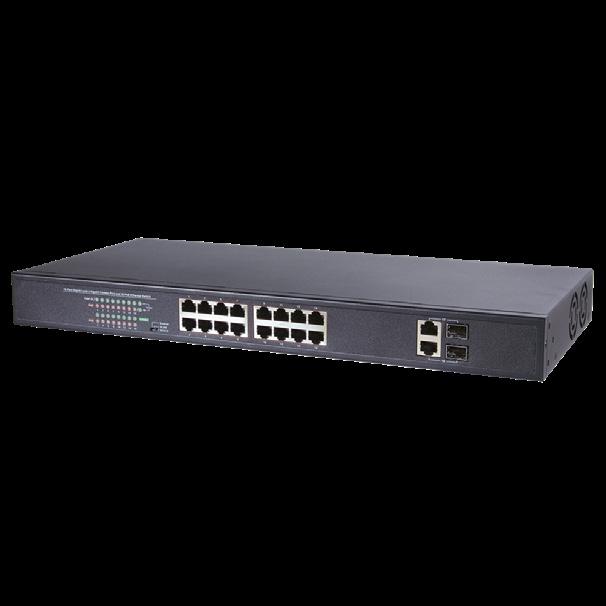

Gigabit PoE Switches
Liberty Unmanaged Gigabit PoE switches provide up to 30W PoE power per PoE port and include RJ45 and SFP uplink ports.
• Meets IEEE 802.3af/at standards
• 10/100/1000 Mbps PoE ports
LIBERTY POE+ SWITCHES
normal and V-LAN mode,
extend mode Extend Mode

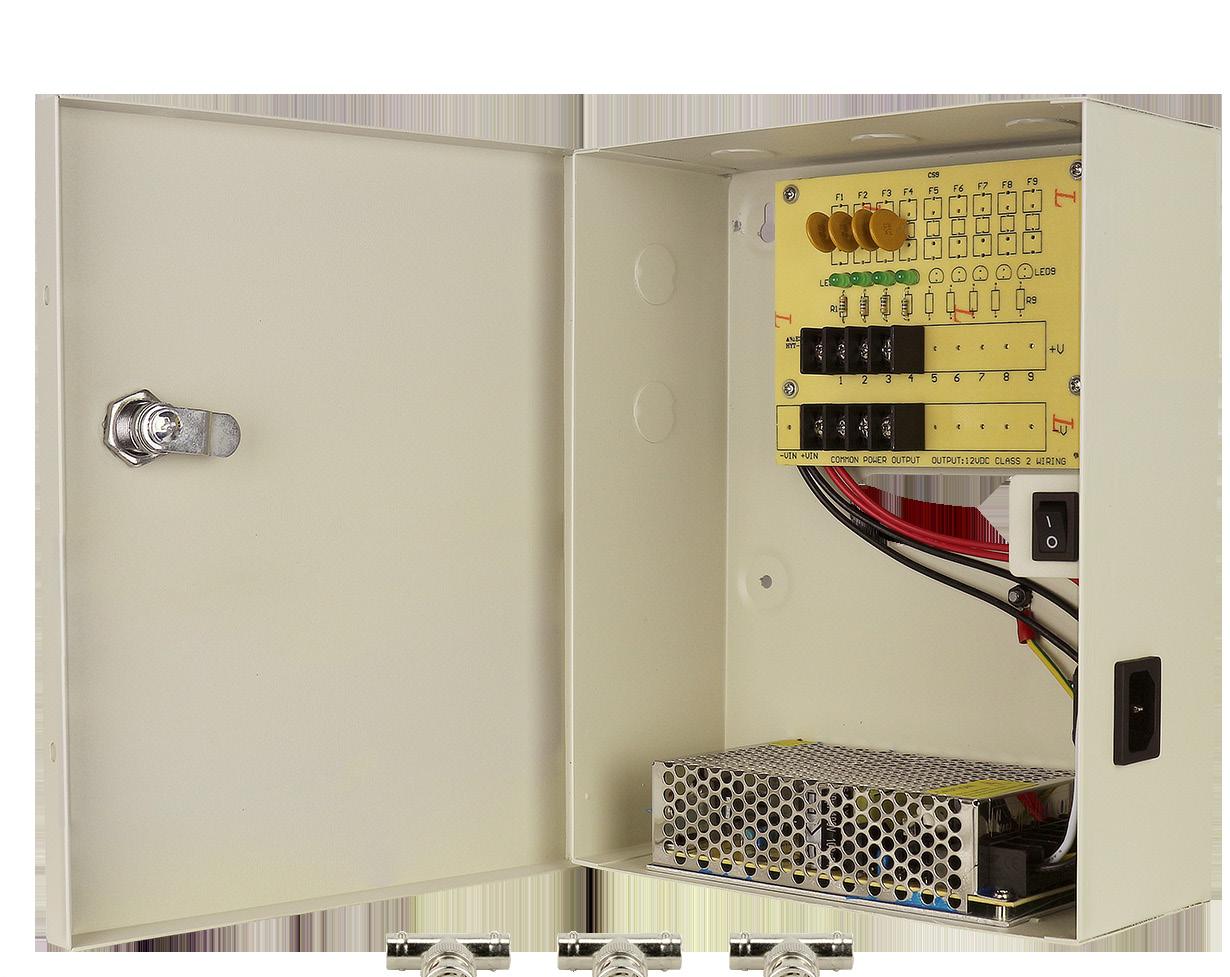

Power Supplies and Accessories
Liberty offers various power supplies and other accessories needed to complete your system.
• Single, multi-channel, metal cased 12 Volt DC power supplies and connectors
• Up to 10 Amp max power output

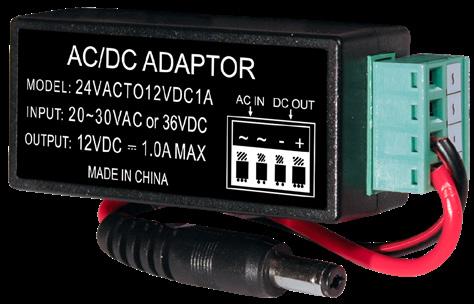

• AC to DC voltage converters

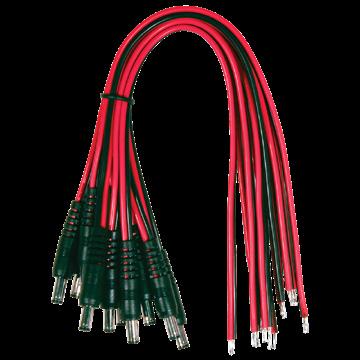

• 12 VDC male and female connectors
• 1 amp output
•
• Class II, UL listed
• 120V AC input
• 4Ch.
• 5 amp
• Metal case
• Indoor use
• 5 amp total, 1.25A/Ch. output
• 9Ch.
• 10 amp
• Metal case
• Indoor use
• 10 amp total, 1.1A/Ch. output
• 18Ch.
• 10 amp
• Metal case
• Indoor use
• 10 amp total, 560mA/Ch. output
Video Accessories

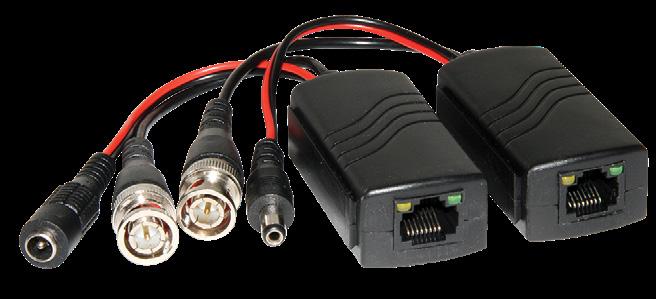

• Screw terminal and RJ-45 video baluns for analog video over UTP cable
• Pre-made RG59 BNC to BNC coax patch cables
• BNC connectors and adapters for RG59 coax cable
HD ANALOG VIDEO ACCESSORIES
BALUNS, GROUND LOOP CORRECTOR:
• For up to 5MP cameras
• Supports TVI, CVI, AHD, 960H formats
• Passive, no power required
• 350M (960H/720p)
• 250M (1080p)
• 200M (4MP-5MP)
BNC male to screw terminal

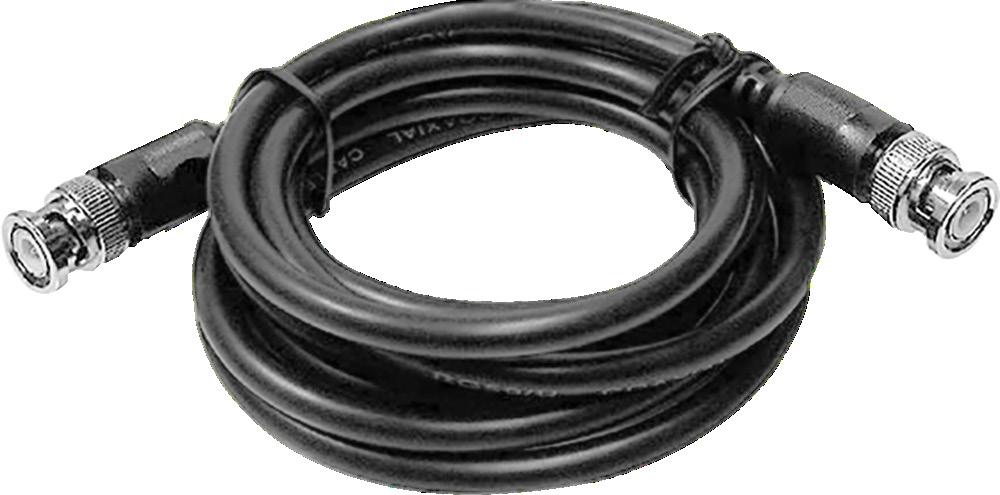

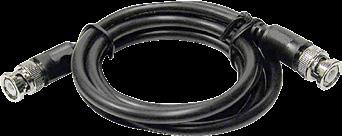

BNC CABLES:
• For video applications
BNC male to RJ-45 DC male and DC female power
• PVC jacket
• Converts coax to UTP cable
• Pass through power only (LVPBPAIR)
• Eliminates ground loops (LGLC)
Video ground loop corrector
BNC male to BNC female connections 12V rms transient voltage supressor 600VDC isolation voltage

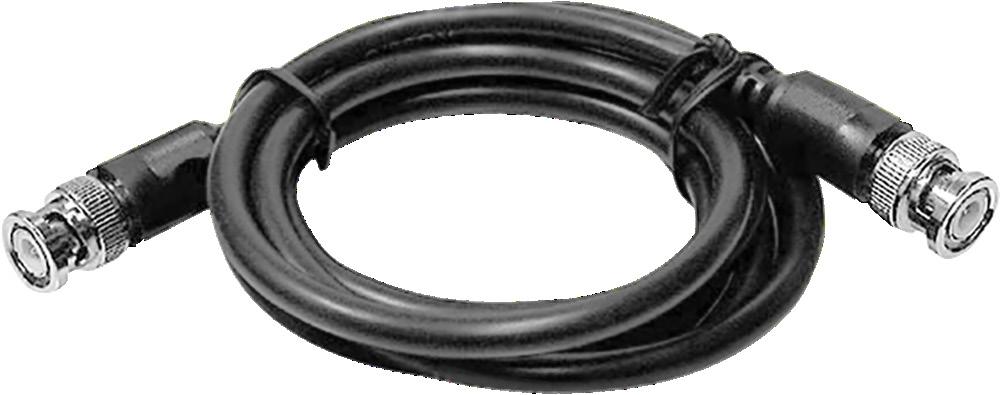

• BNC to BNC

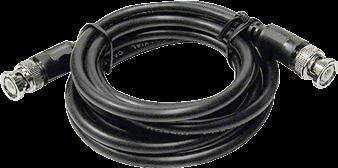

RG59U patch cable RG59U patch cable
3-foot cable length
BNC male to male

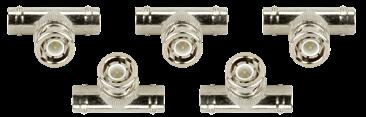

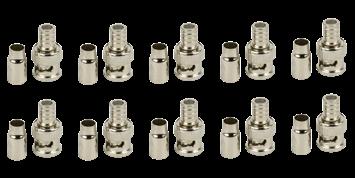

BNC CONNECTORS AND ADAPTERS:
• Ideal for CCTV applications
2-piece crimp connector for RG59 Twist-on connector for RG59
• Cable type: RG59U
6-foot cable length
BNC male to male
• Zinc body with copper contacts

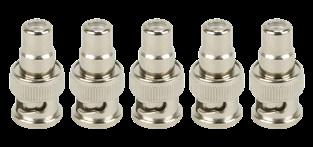

Female to female splice connector
Video balun with bare lead to 4" BNC pigtail
Video balun with bare lead to 4" BNC pigtail

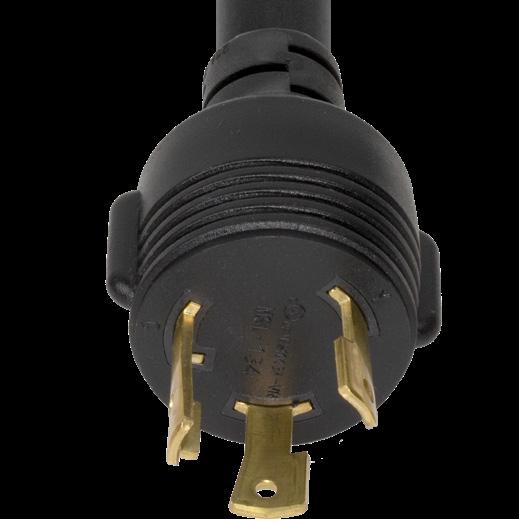

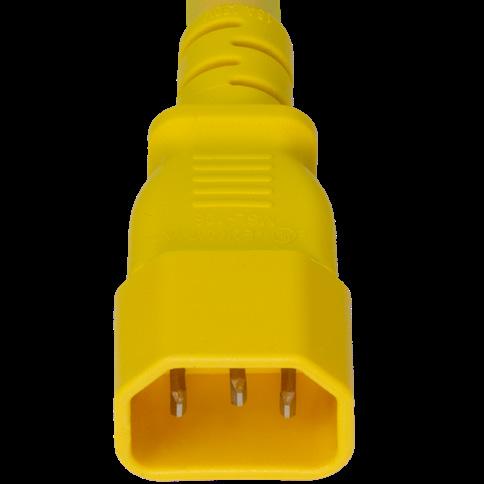

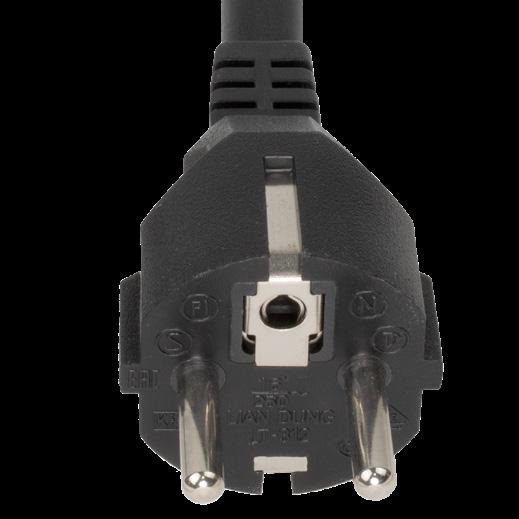

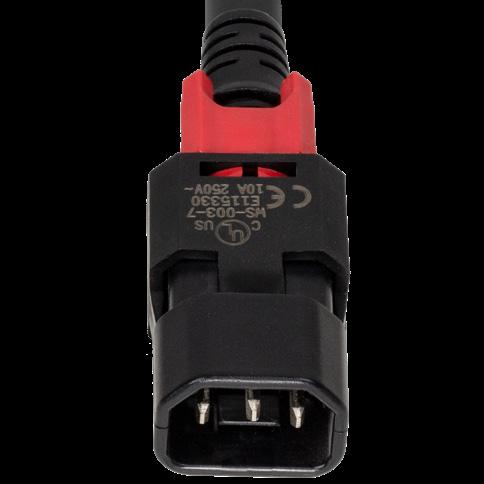

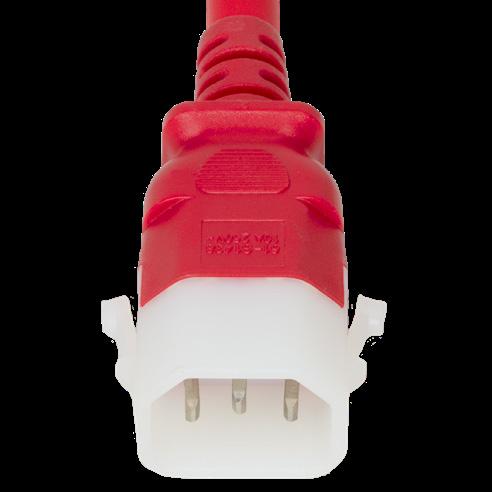

Power Cords
• Data center and commercial-grade power cords
• Twist-Lock, P-Lock, D-Lock, Z-Lock, NEMA, IEC 60320,
SAF-D-GRID and international power cords
• Multiple color options
• Standard and custom lengths available
Black / White / Grey / Red / Blue / Purple / Yellow / Orange / Green / Pink

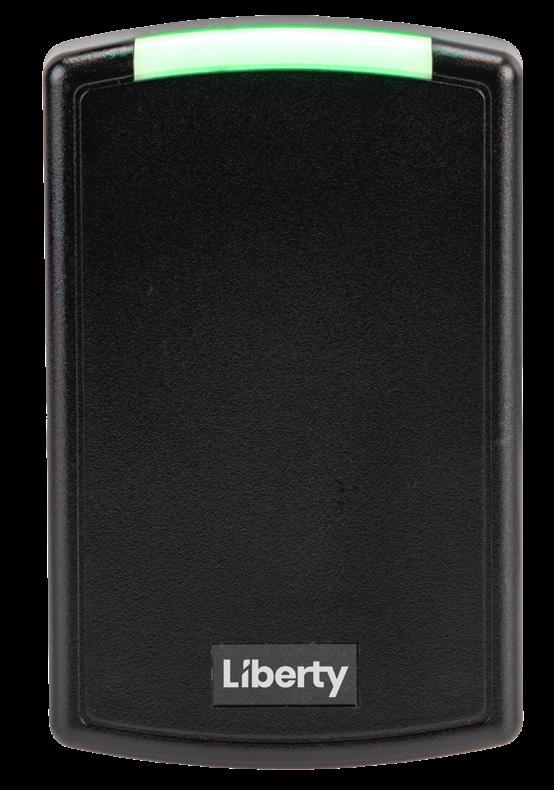

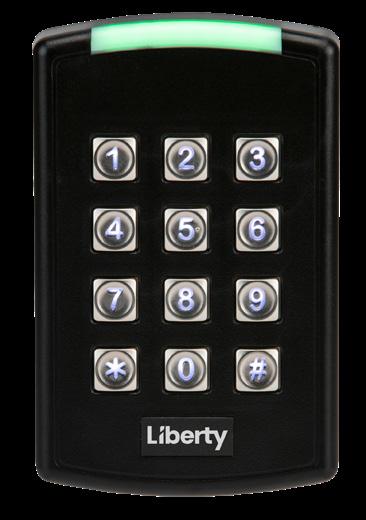

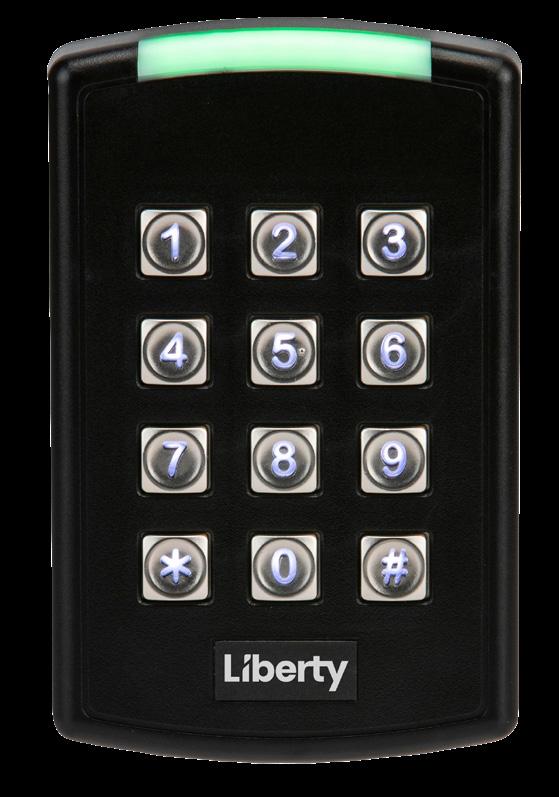

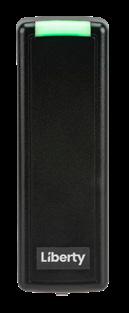

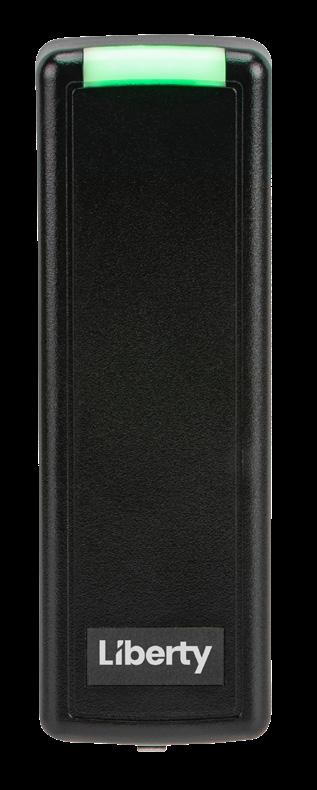

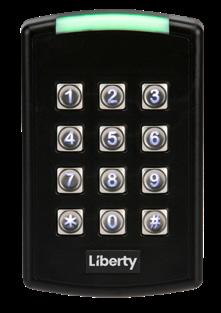

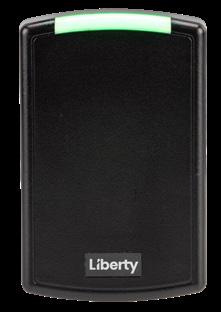

Access Control Readers
• OSDP Autodetect
• Multiple technologies in a single reader: Proximity, Smart, NFC and BLE
• OSDP secure channel and remote firmware upgradability

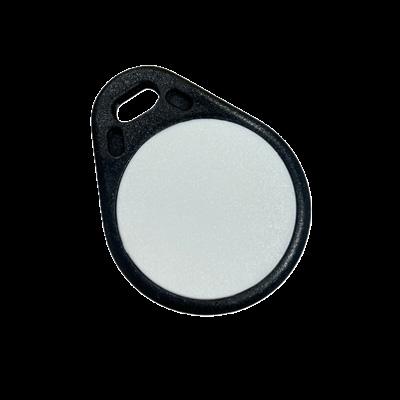

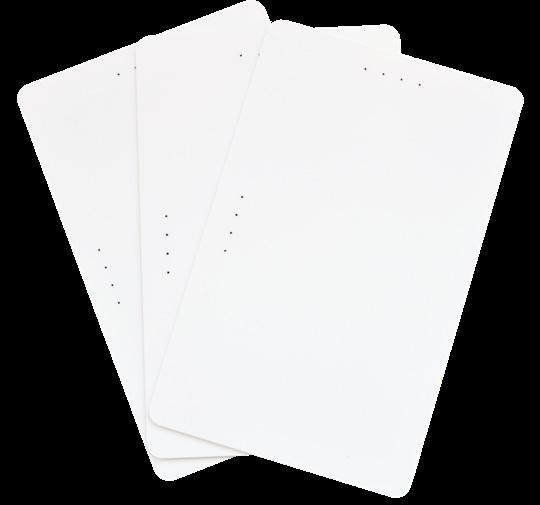

• LEAF credential support for secure, open, interoperability
• Wiegand/OSDP readers work with MyPass mobile credentials
Access Control Reader
ACCESS CONTROL READERS
Current
Voltage 5-16 V DC
Temp Range UL tested -35° to 66°C and EN -40° to 70°C and 95% humidity environmental rating and state UL294 suitable for outdoor use
Read Range
Dimensions
Shipping Dimensions
EV2/EV3: 2.2’’ 125kHz up to 4’’
129.5 x 43.2 x 18 mm (5.1’’ x 1.7’’ x 0.71’’)
EV2/EV3: 2.5’’ 125kHz up to 4’’
129.5 x 82.6 x 18 mm (5.1’’ x 3.25’’ x 0.71’’)
152.4 x 76.2 x 50.8 mm (6’’ x 3’’ x 2’’) 152.4 x 101.6 x 50.8 mm (6’’ x 4’’ x 2’’)
Shipping Weight 7 oz (.4 lb) 10 oz (.63 lb)
HS Code
8471.60.9030
Security Level Utilizes EAL6+ cryptographic module
Country of Origin Assembled in the USA with globally sourced components
Warranty Lifetime 3 years
kHz, 13.56 mHz & Mobile
