BALL ADR ECO
FAR 5.3 proposed UNITS 128 36 – Studio 68 – One
18 – Two
06 – Three
BALL ARD ECO
ZONING NC3P - 75 (M) PROGRAM Mixed-use building with an aspiration towards affordable housing, primarily composed of retail and housing, located within a 7-story structure with 6 over 1 construction. SIZE 101,084 SQFT
Bedroom
Bedroom
Bedroom PROPOSED BY Vi L Nguyen

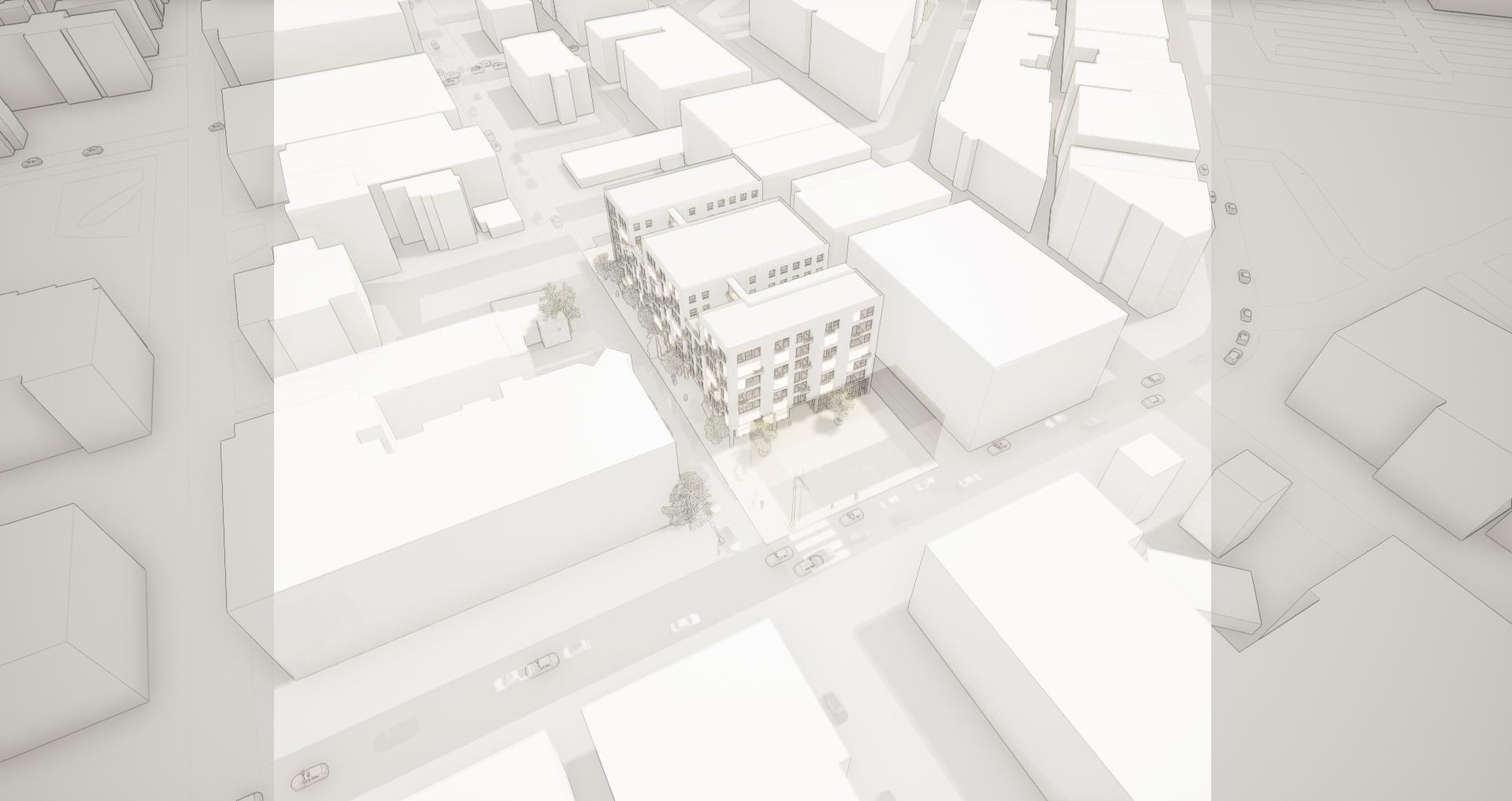

24th Ave NW NW 56th St NW Market St
MARKET
STREET
BALL ARD ECO
site
BALL ARD ECO
BALL ARD ECO

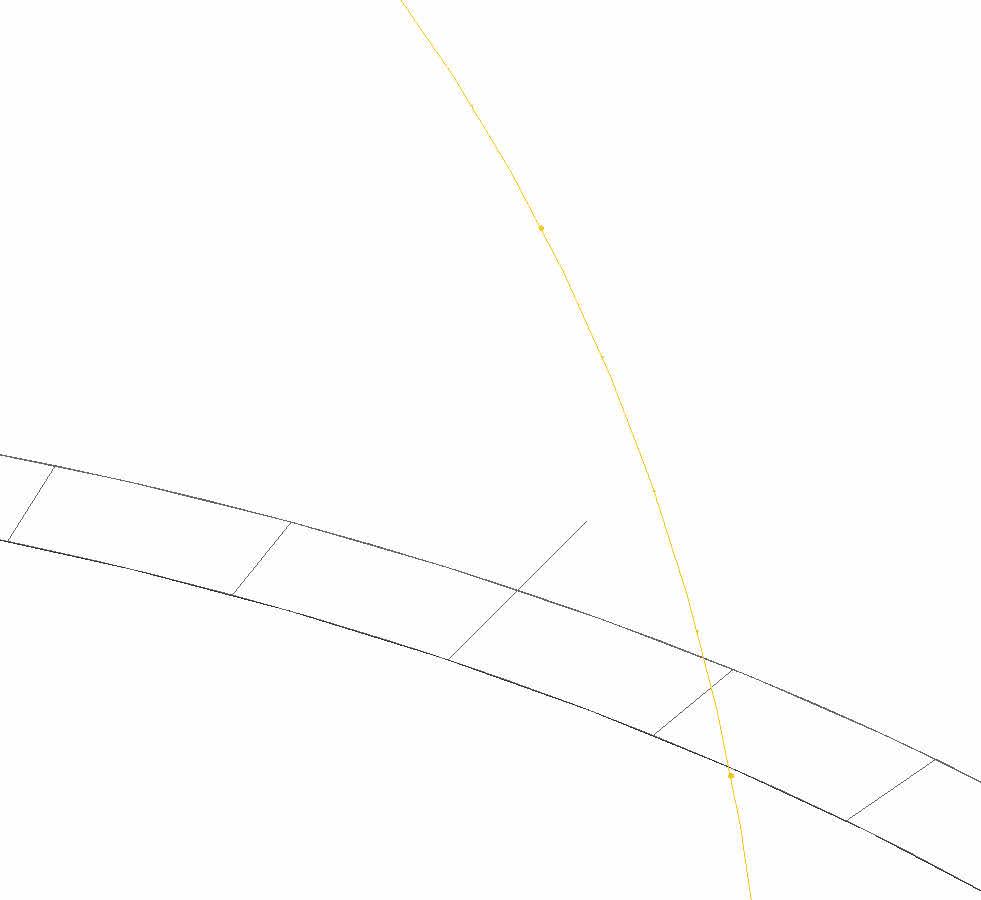

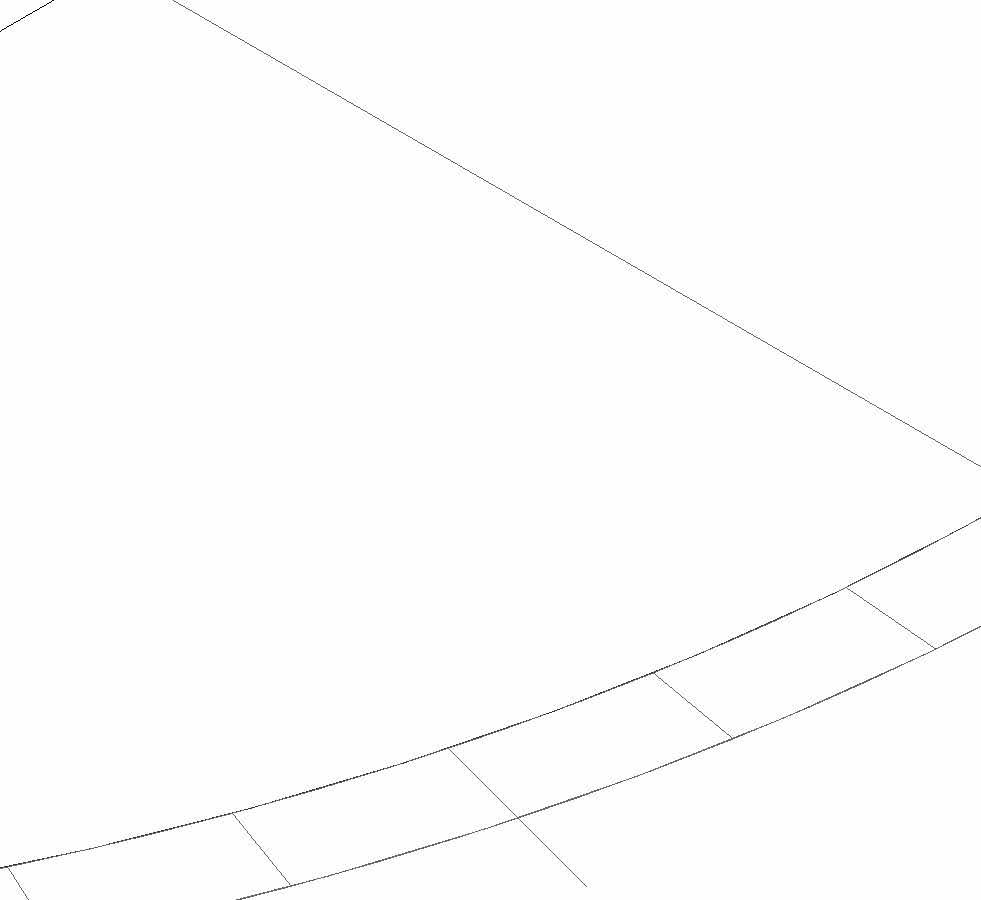

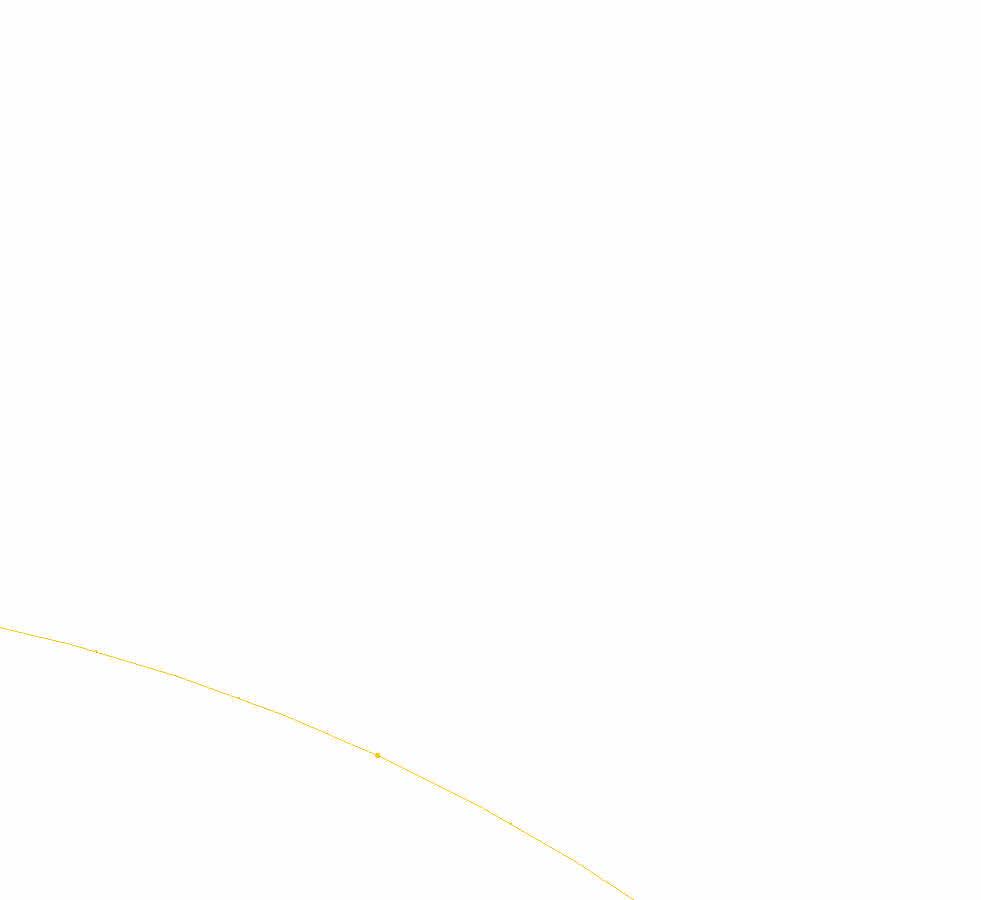

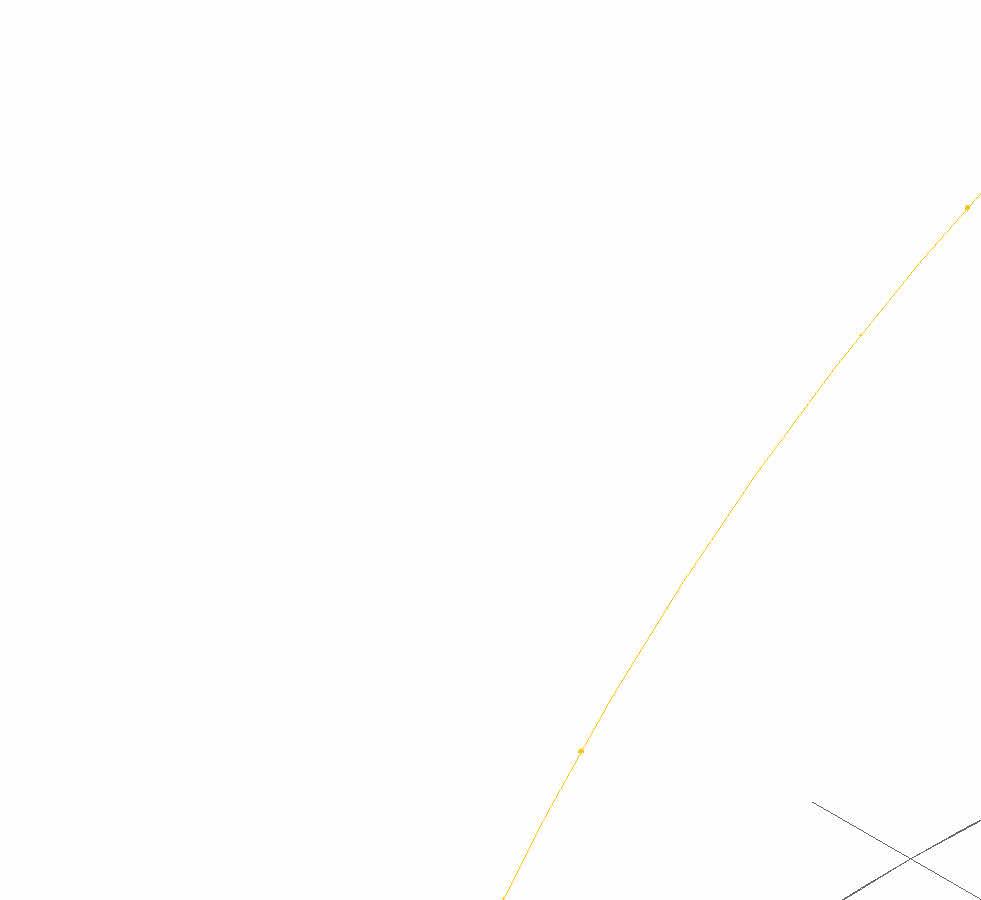

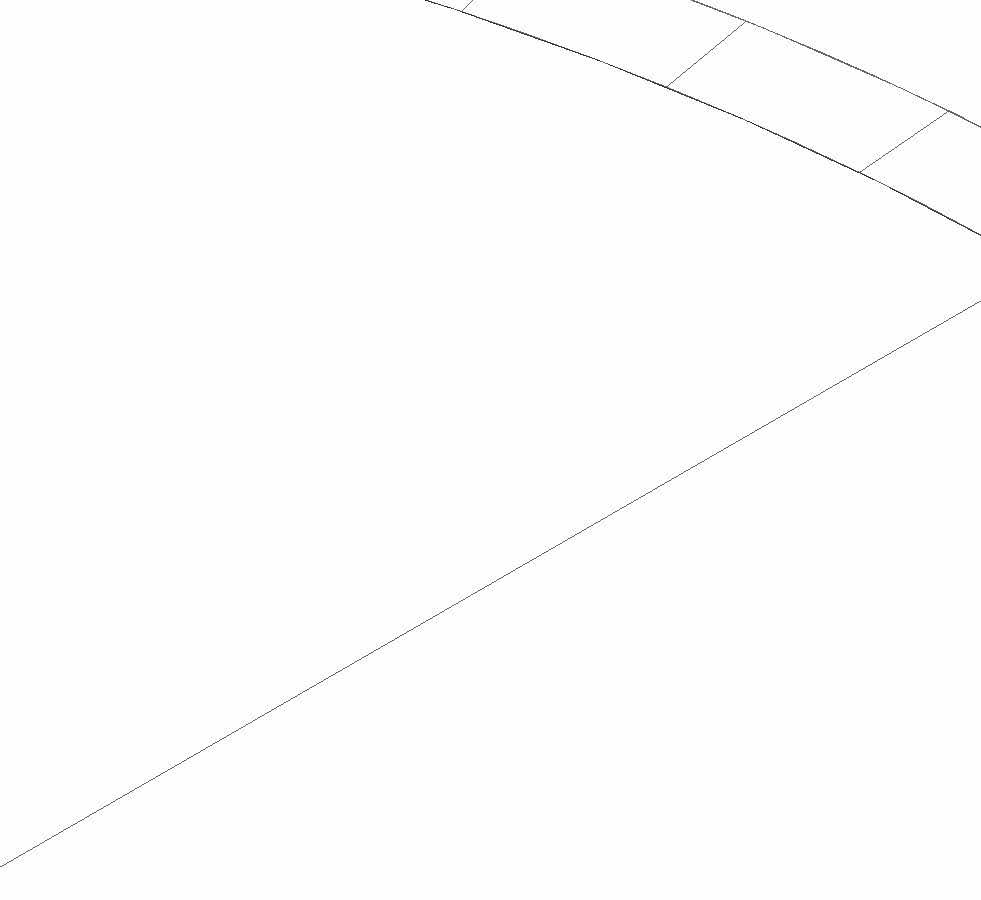

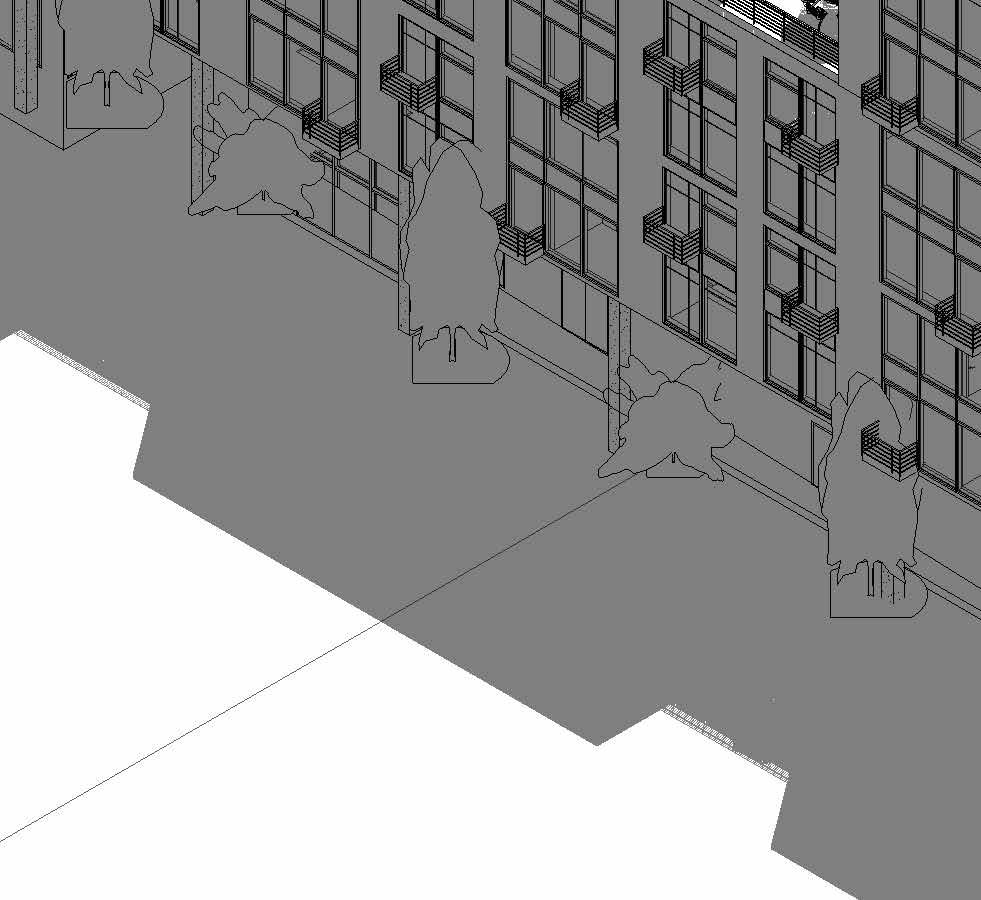

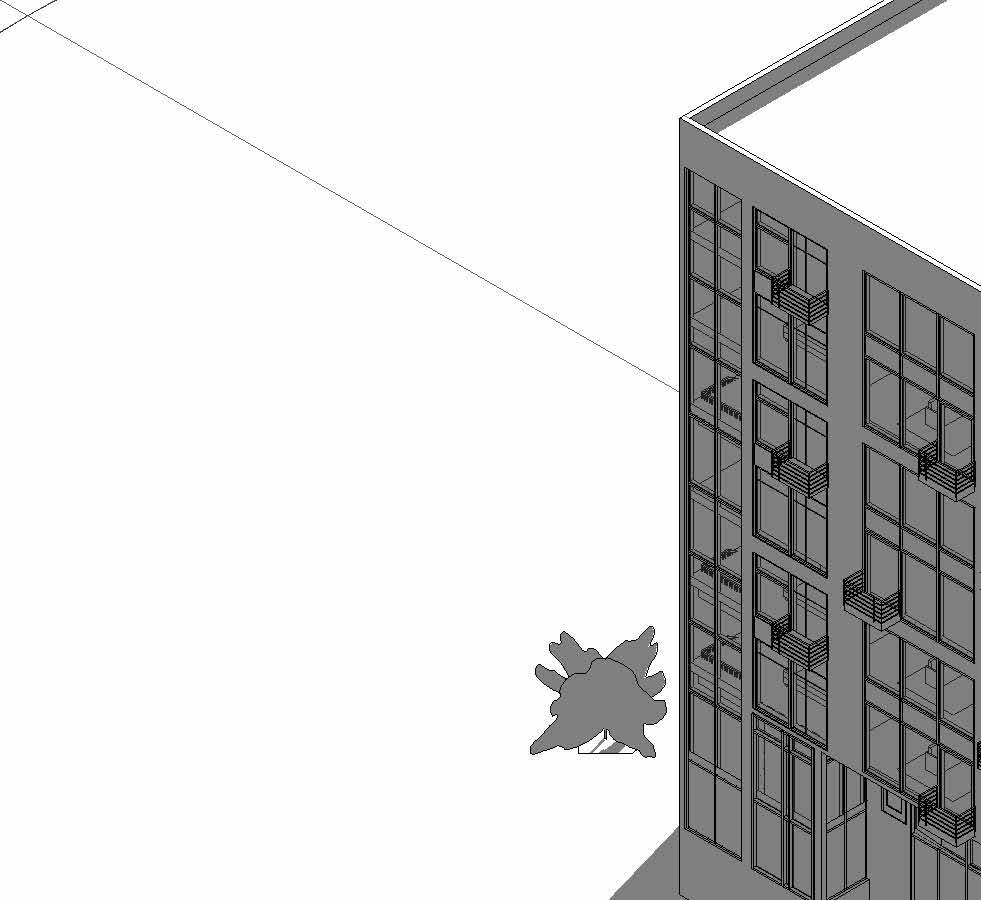

Winter Solstice Summer Solstice March Equinox
NW
BALL ARD ECO

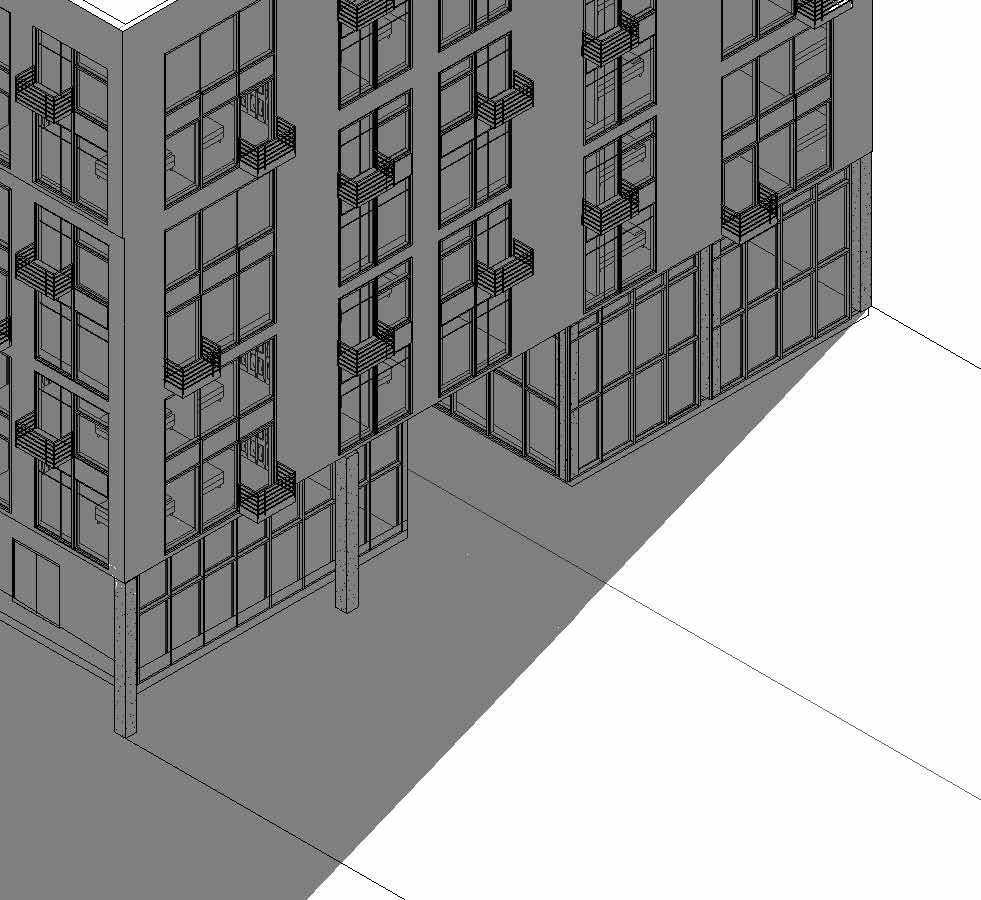

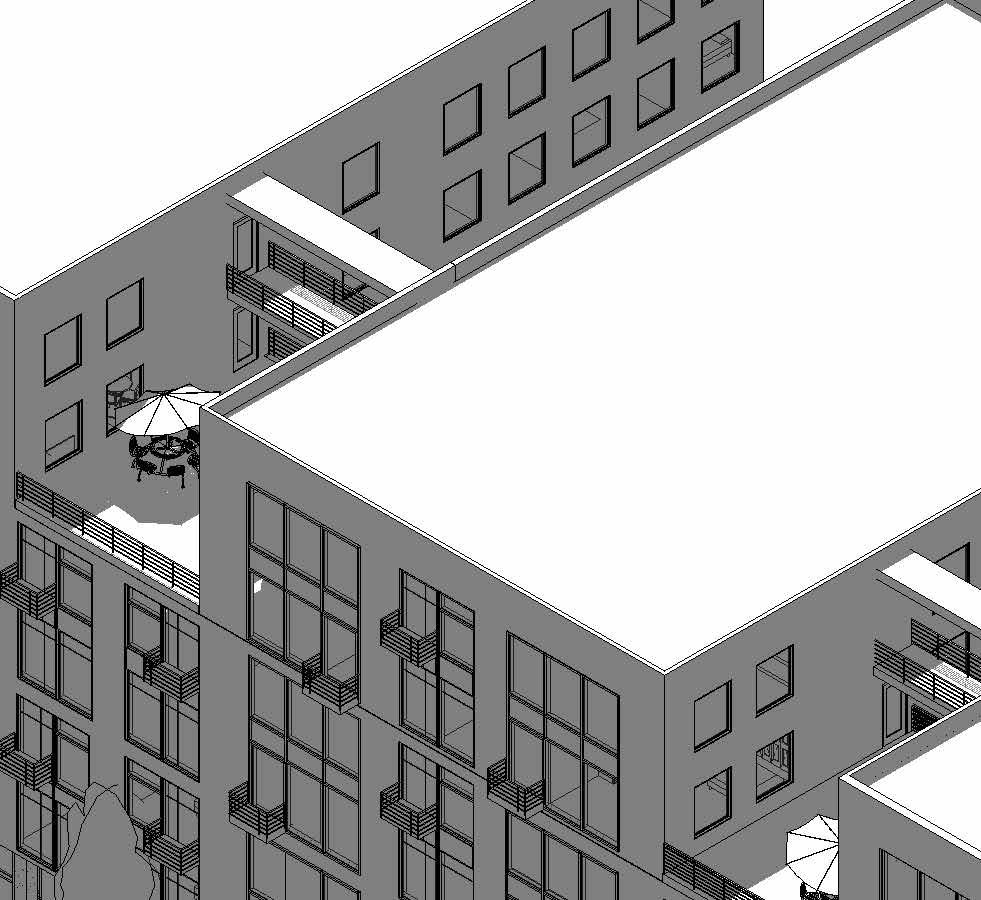

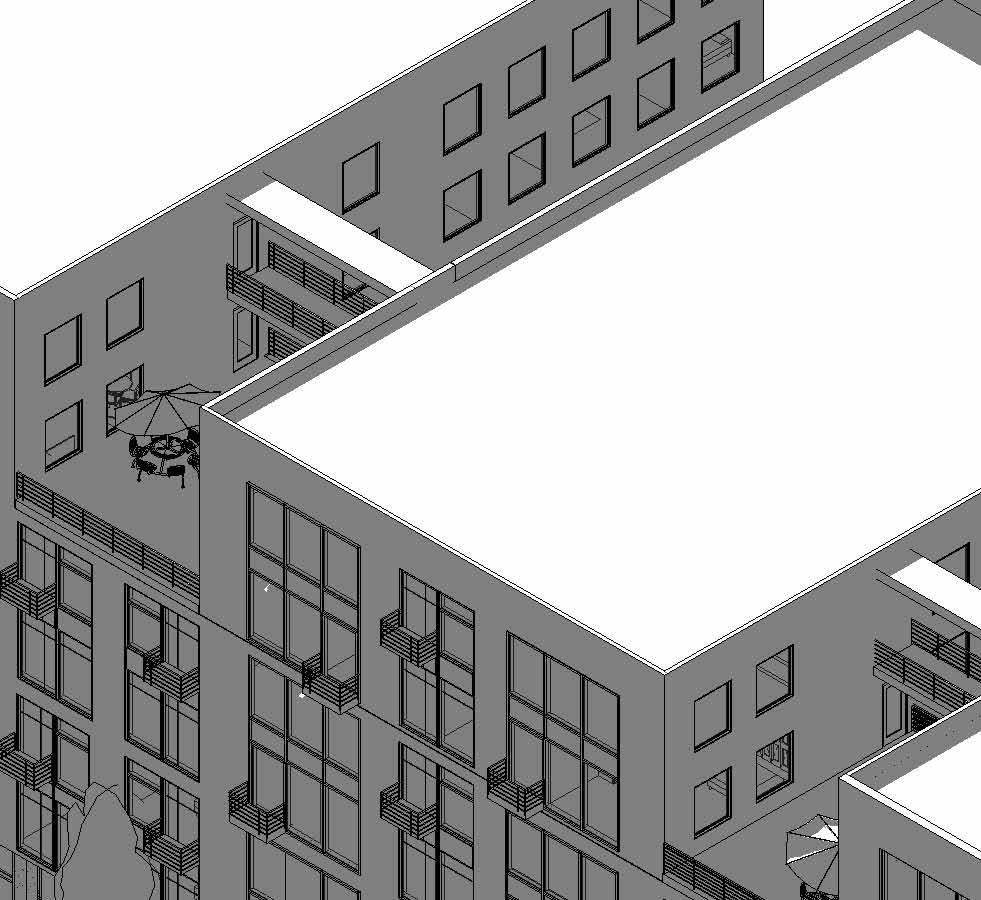

Podium 6 over 1 type of construction.
Six stories of wood construction over
A concrete construction (reinforced concrete column 18x18 and a concrete slab) on the ground floor.
LEVEL 5, 6
LEVEL 1 - 4
BALL ARD ECO
GROUND
LEVEL 5, 6
Housing
Institutional Space
Commercial Space
Common Spaces GROUND
LEVEL 1 - 4
BALL
ECO
ARD
More Less
vertical circulation
commercial foot traffic egress stairs
LEVEL 1 - 4
LEVEL 5, 6 residential
GROUND
BALL ARD ECO
Level 5 (both accessible)
Open to ground
Open to level 1 courtyards
Level 1 (only one accessible)
Outdoor amenities
Ground walkway
BALL
ECO
ARD
LOBBY/ LEASING OFFICE
RETAIL RETAIL RETAIL RETAIL
ECO FIKA RETAIL ECO EVENTS C
ECO LAUNDRY
GROUND FLOOR
BALL ARD ECO 0 5’ 20’ 45’
PLAN
RETAIL RETAIL
TYPICAL
BALL ARD ECO
0 5’ 20’ 45’
FLOOR PLAN 1-4
GREEN ROOF ROOF TERRACE A
COMMUNITY GARDEN ROOF TERRACE
BALL ARD ECO TYPICAL FLOOR PLAN 5-6
B 0 5’ 20’ 45’
TYPICAL FLOOR PLAN 1-4 BALL ARD ECO
0 5’ 20’ 45’ 3 BEDROOM
GREEN ROOF ROOF TERRACE
35’-0” 33’9” TYP. 3 BEDROOM
BALL ARD ECO
TYPICAL
1
FLOOR PLAN 1-4 BALL ARD ECO GREEN ROOF ROOF TERRACE
BEDROOM
34’-8”
27’0” 18’6”
24’-9”
TYPE A 1 BEDROOM
TYP. 1 BEDROOM
BALL ARD ECO
TYPICAL FLOOR PLAN 1-4 BALL ARD ECO
0 5’ 20’ 45’ 2 BEDROOM
GREEN ROOF ROOF TERRACE
BALL ARD ECO OPTION A - 2 BEDROOM OPTION B - 2 BEDROOM OPTION C - 2 BEDROOM 26’2” 27’-10” 27’9” 25’9” 34’ -7” 41’ -0”
TYPICAL FLOOR
1-4 BALL ARD ECO
0 5’ 20’ 45’ STUDIO
PLAN
GREEN ROOF ROOF TERRACE
TYPE A STUDIO
BALL ARD ECO
TYP. STUDIO 26’-3 ” 13’0” 15’-0” 27’0”
BALL ARD ECO
SECTION A
BALL ARD ECO
SECTION B SECTION C
BALL ARD ECO
ECO
BALL ARD
BALL ARD ECO
BALL ARD ECO
BALL ARD ECO
BALL ARD ECO
ECO
BALL ARD
BALL ARD ECO Thank you. Question about ECO?
