SITE

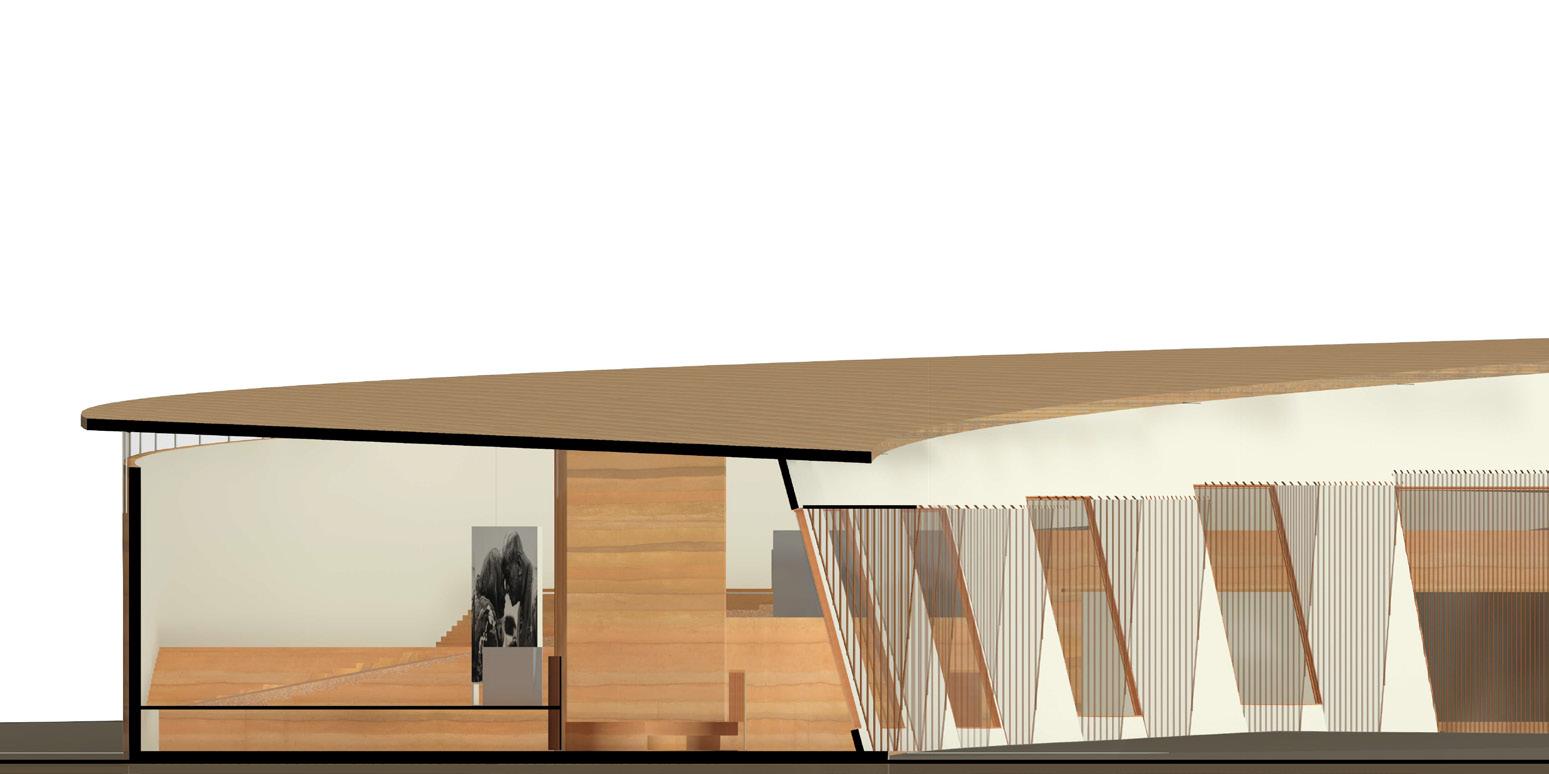

GALLERY TO THE INDIGENOUS FUTURE

First Semester Graduate Project (12 Weeks Duration )

Context

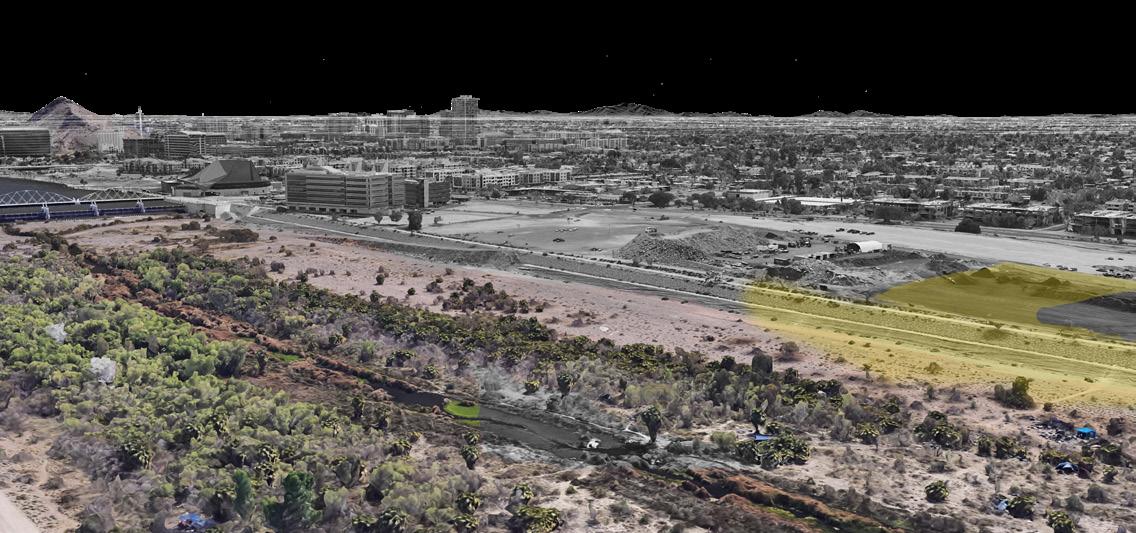

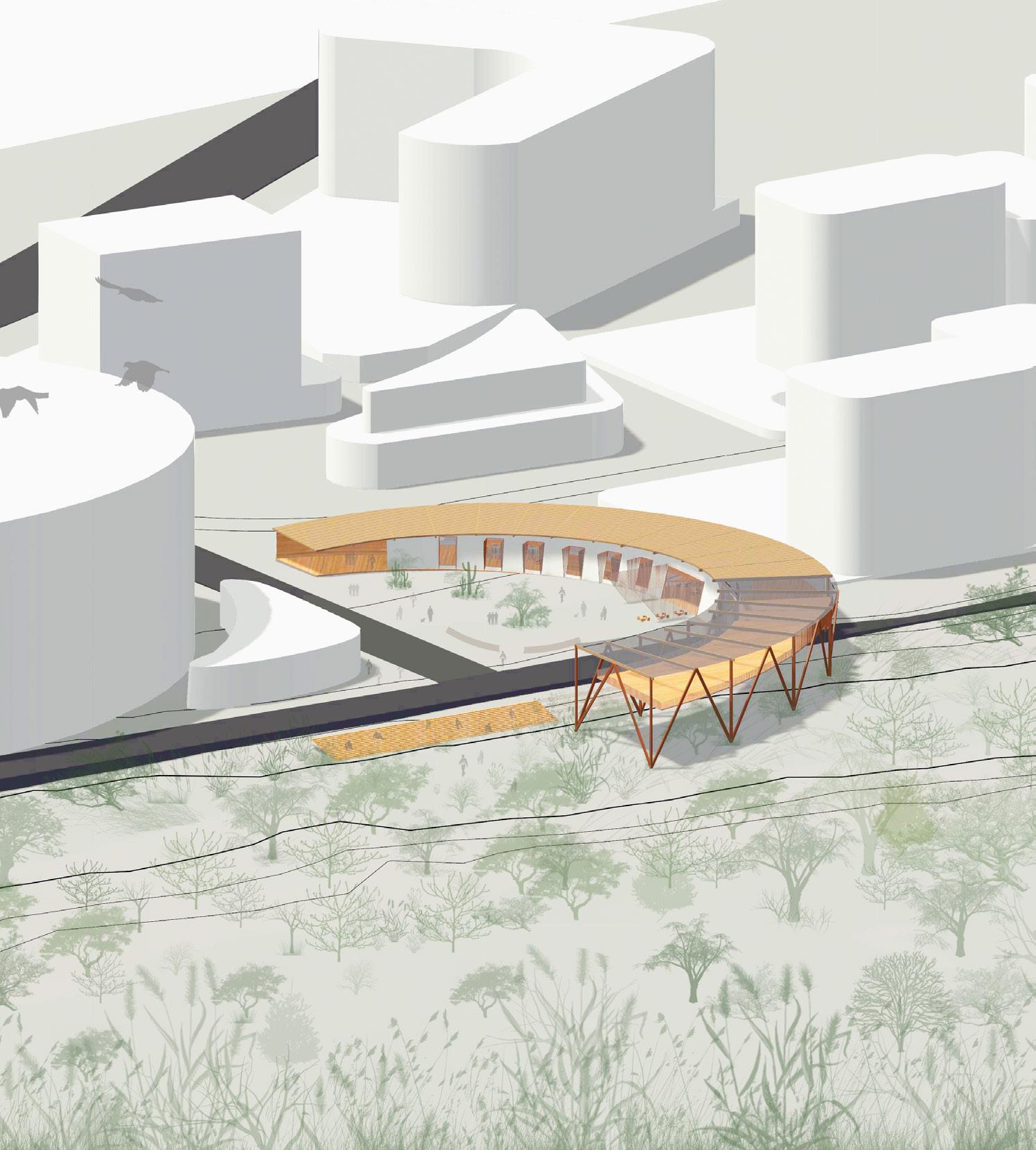

The site is in the middle of upcoming proposed development in the city of Tempe on the bank of Rio Salado habitat, to the west of the Tempe town lake. Adjacent to the site will come the Tempe Arena, hence making the site location and the project a key asset for the Urban and Natural Environment of the city.

Project Brief

The Gallery to the Indigenous Future is an attempt to promote O’odham presence in urban environments and equitable tribal relations with the city of Tempe that go beyond a land acknowledgment. The builtform aims to create dignified and resilient built environment for the Indigenous people and create a platform to showcase what past, present and future of Indigenous communities offers.

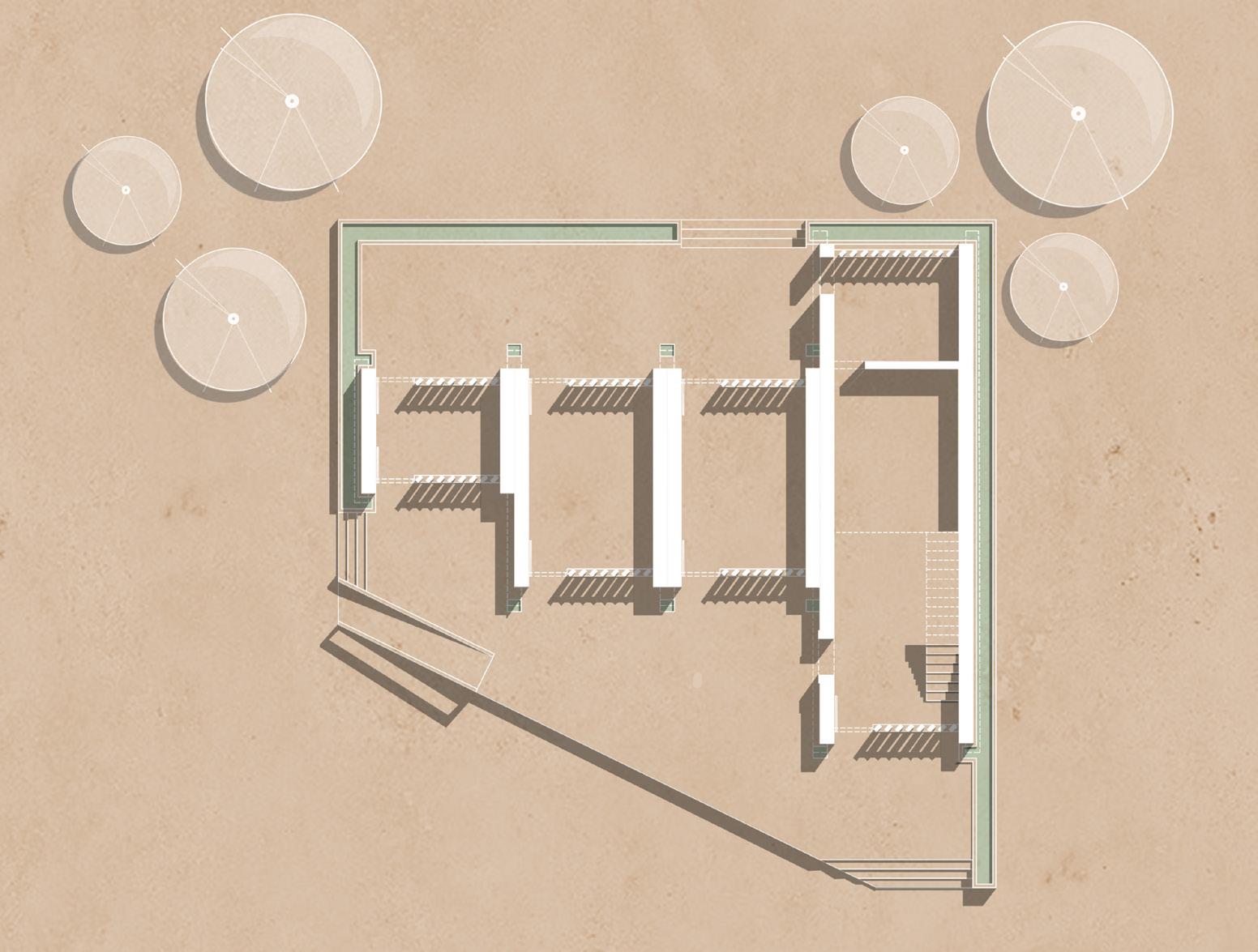

SITE PLAN

Rammed Earth

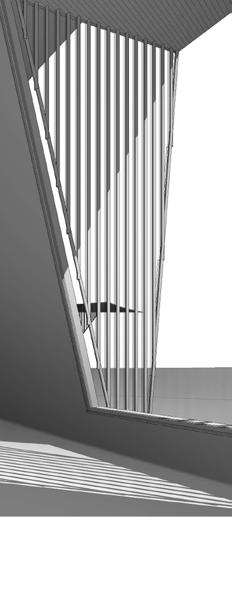

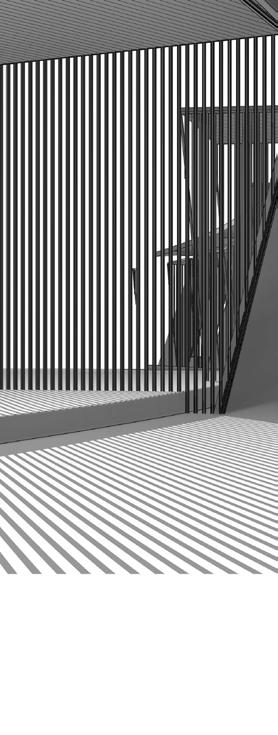

Mesquite Wood Screen

Mass Timber

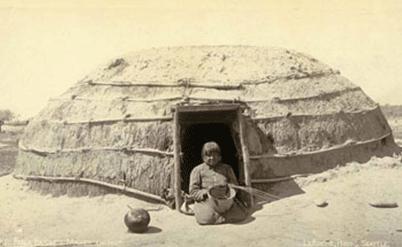

A structural form-informed by indigenous knowledge, worldview and cosmology

SOLAR STUDY

Summer Solstice

Spring Solstice

Winter Solstice

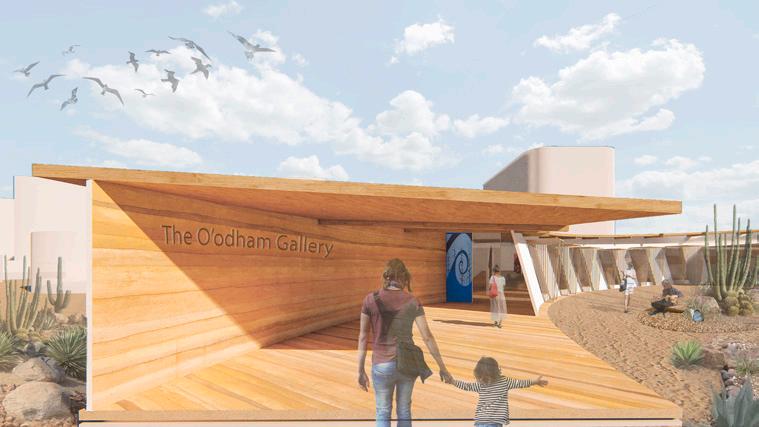

Front Entry

Front Entry

G+0 ft

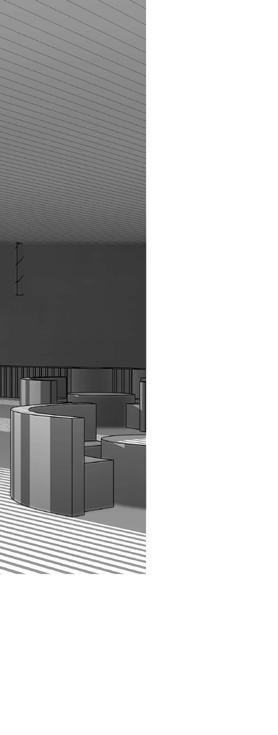

Gallery to the Indigenous Future

Fashion Gallery

G+10 ft

Sports Gallery

G+15 ft

Art Gallery

G+20 ft

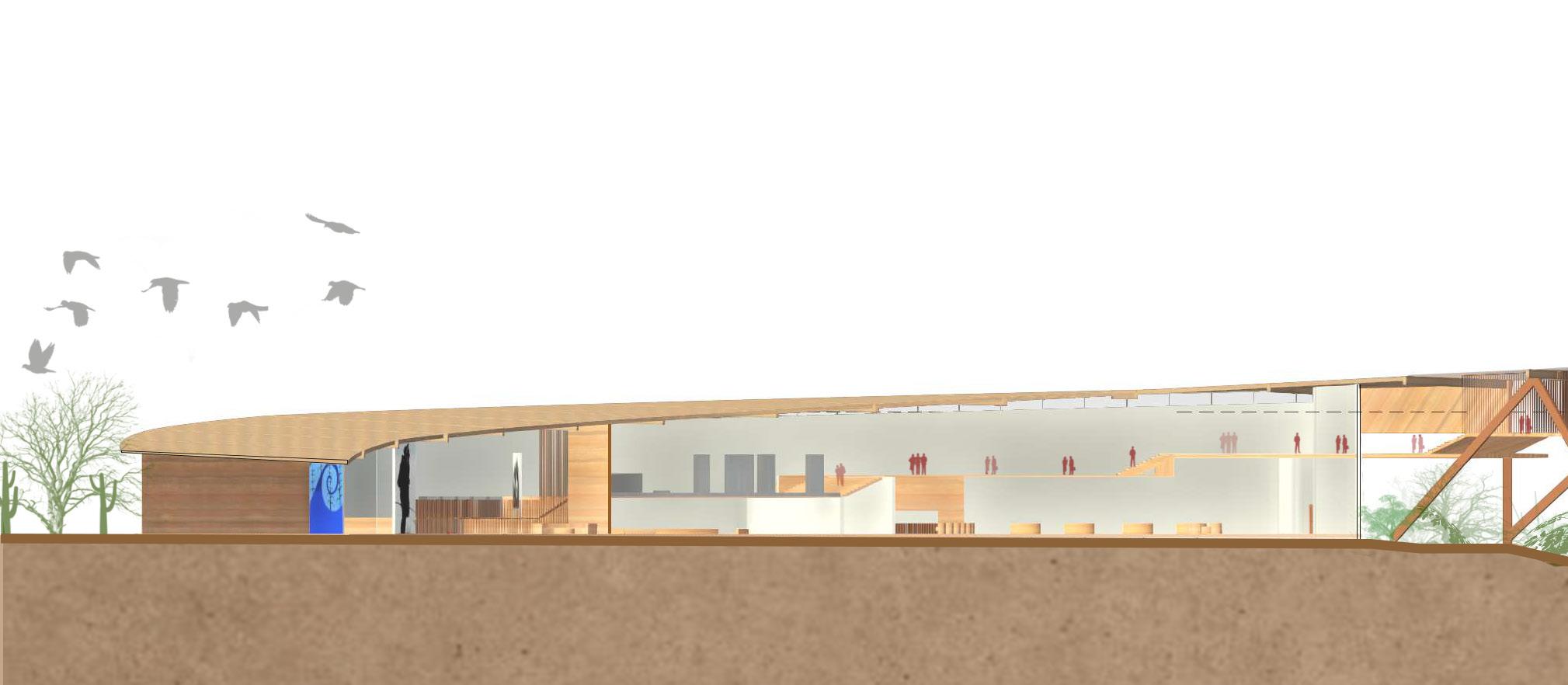

River Story

G+25

Cafe

Photography Gallery Digital Gallery

Photography Gallery

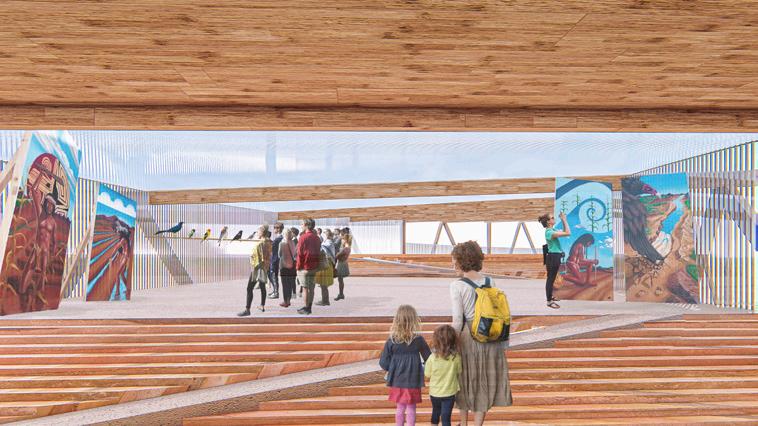

River Story Gallery

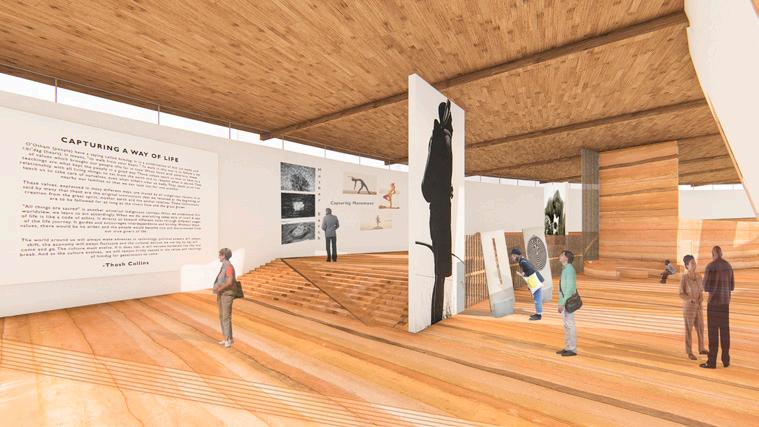

Capturing a Way of Life

Artist: Chelsey Luger

Thosh Collins, Photographer (Onk-Akimel O’Odham/ Haudenosaunee)

Artwork: Su:dagi Haicu A:ga (Water’s Story)

“The Continuum”

Artists: Dwayne Manuel (Salt River)

Jacob Butler (Salt River)

Thomas “Breeze” Marcus (Tohono O’odham)

G+25 ft

Story Gallery

Urban Lab

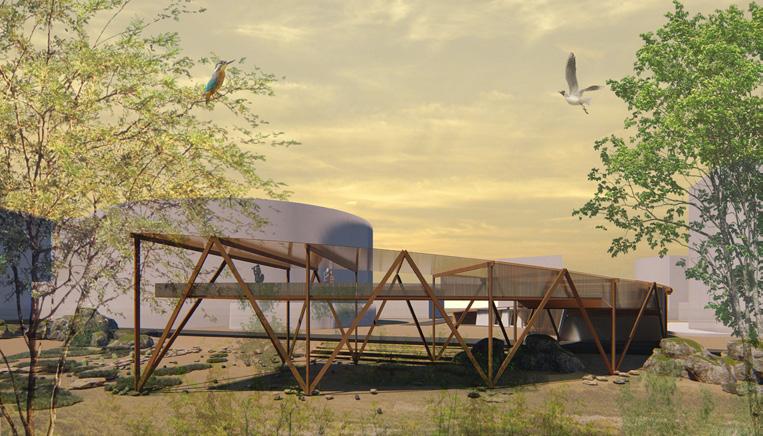

River Viewing Deck

Rio Salado Habitat

Native Landscape and Riparian edge

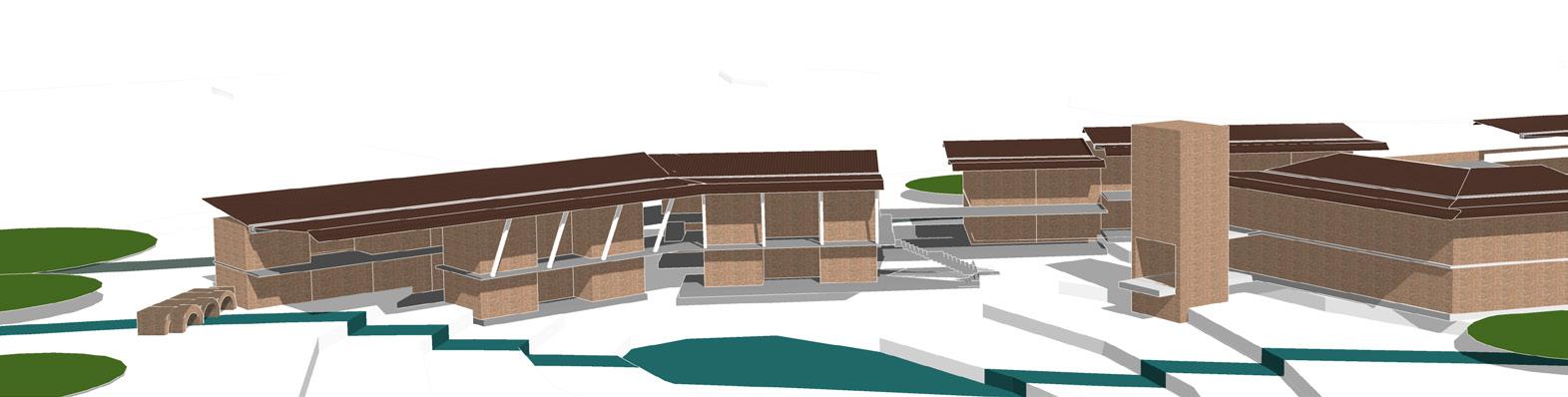

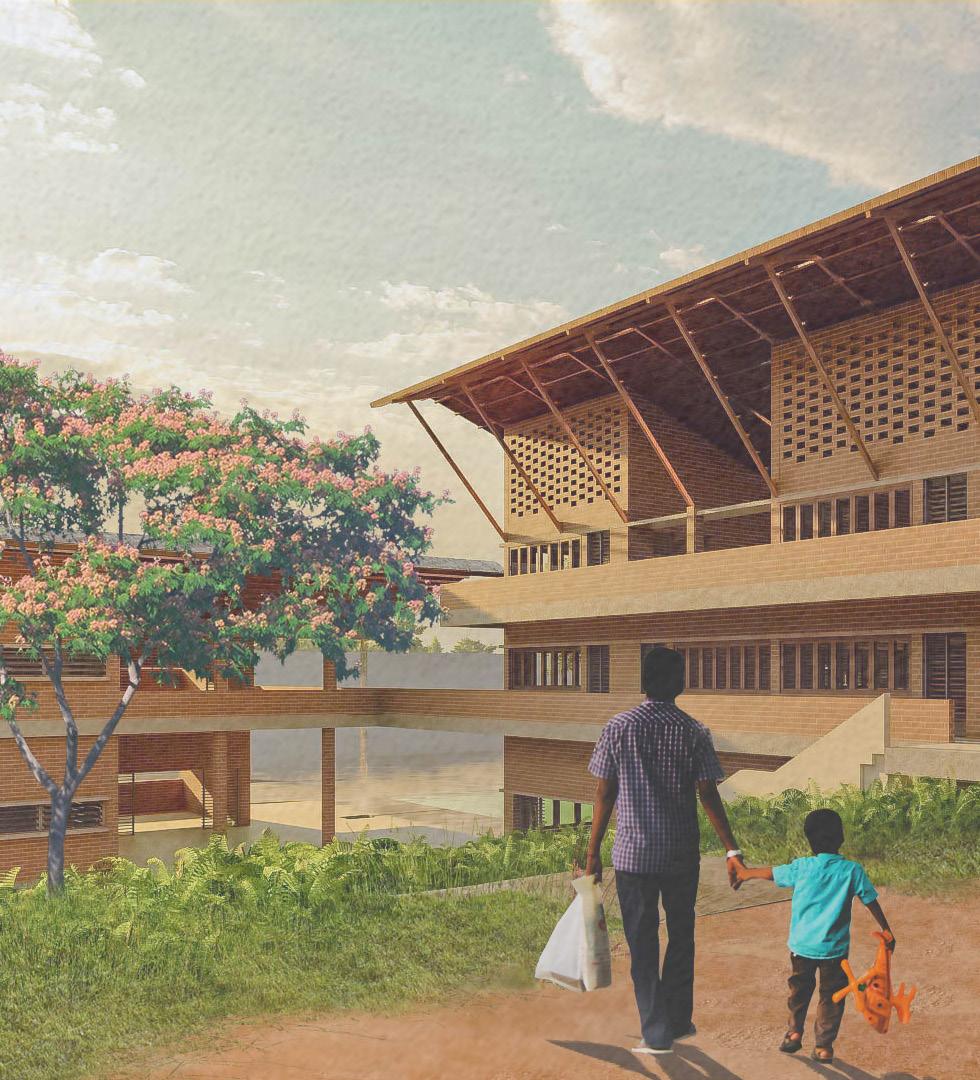

CENTRE FOR SIMPLE LIVING

Fifth Year Thesis Project (24 Weeks Duration )

Context

The site is in the rural backdrop of Jambghoda wildlife sanctuary with water channel for irrigation passing across the site. It is surrounded by undulating hilly tracts covered by natural vegetation,plantations and cultivated lands. The climate is hot and dry.

Project Brief

A Living-Learning based demonstration and teaching centre to bridge the gap between rural and urban realms of India and establish a platform to create, share, learn and restore nature. A retreat to help people bring more meaning and vitality into their lives. Create a holistic and programmatic vision of what as a society one needs to contribute for a sustainable and conscious living by demonstrating practical solutions for self-sufficiency.

Admin

Manufacturing workshop

Vertical circulation

Community kitchen and dining

Accommodations

Learning workshops

Utilities

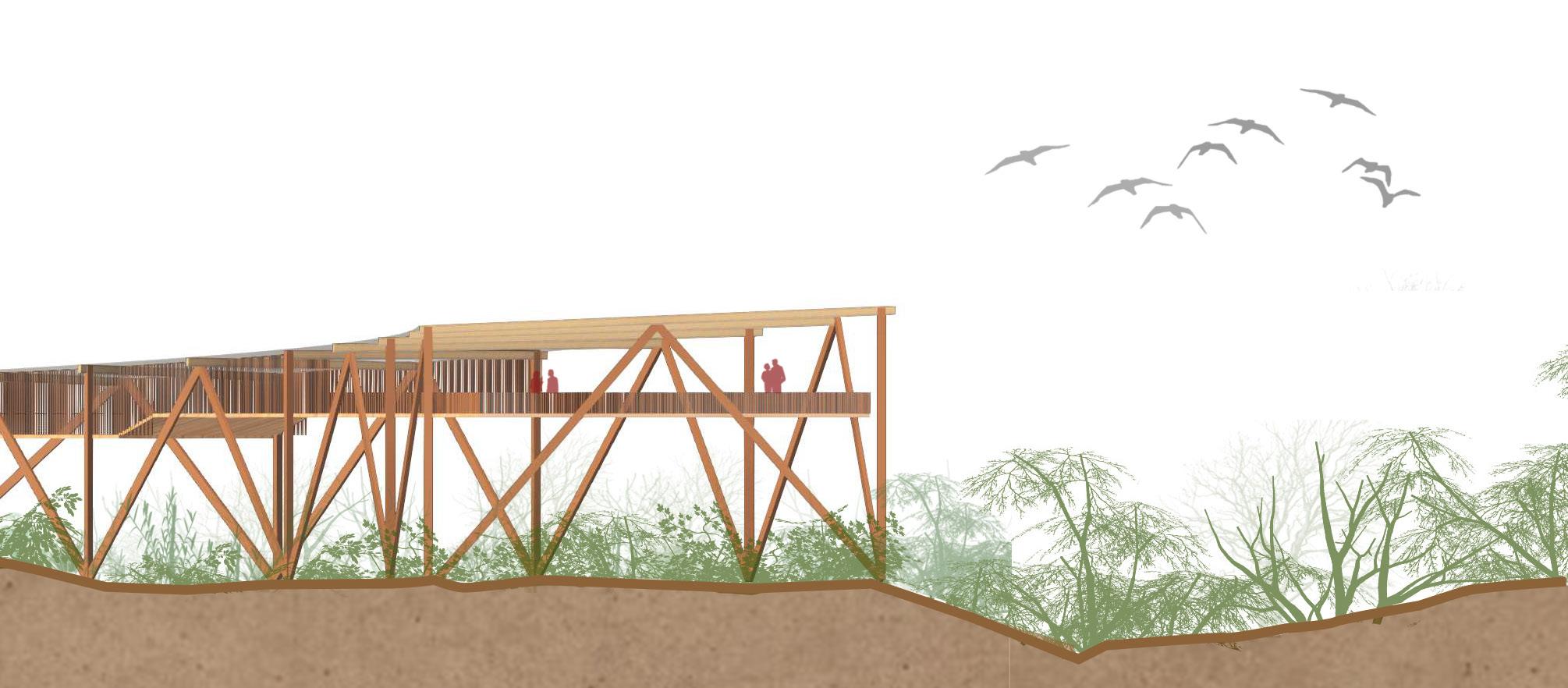

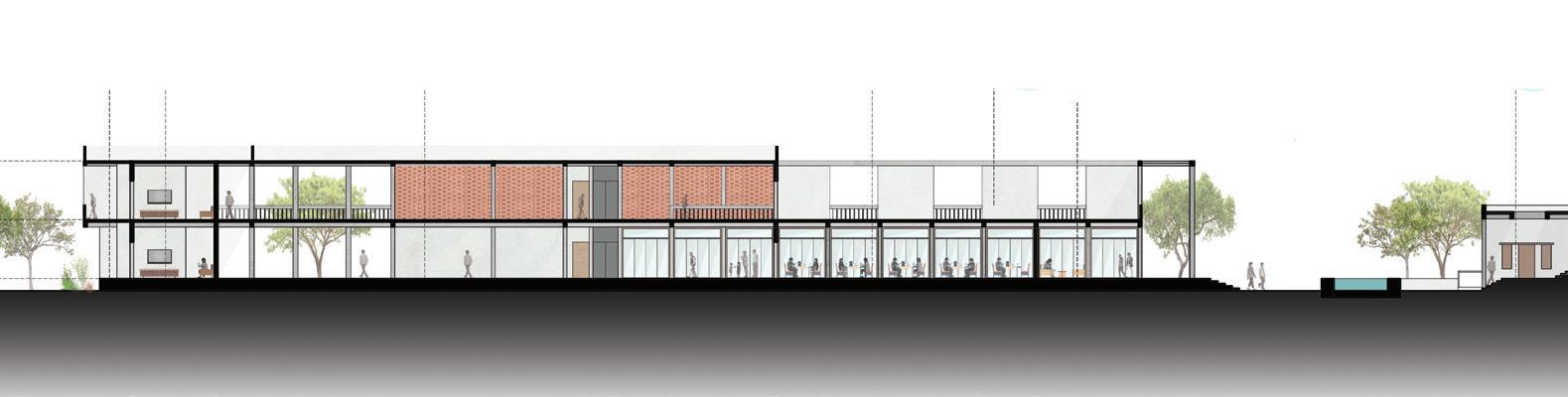

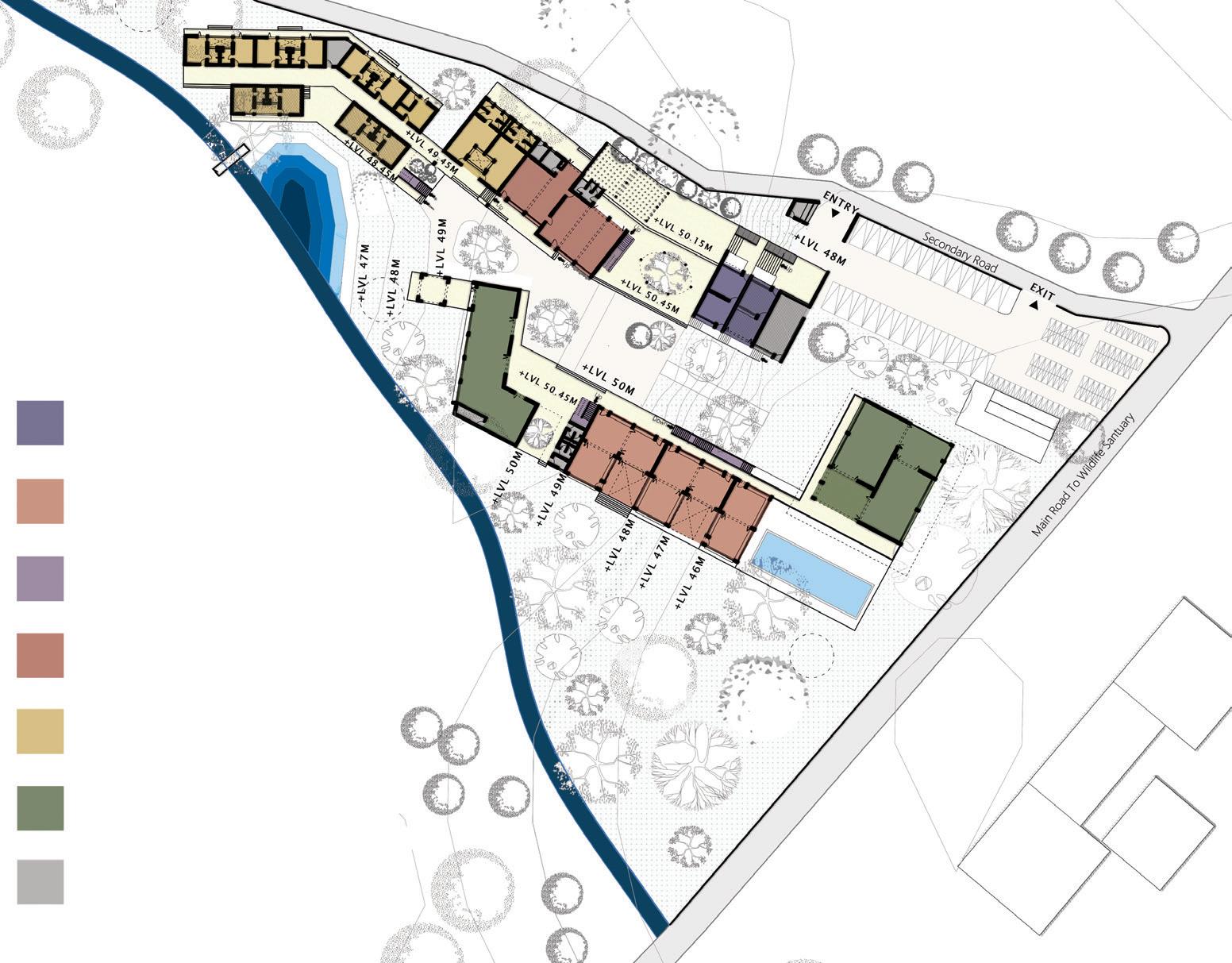

Respecting the existing contours on site opening the ground spaces as semi-open covered spaces.

Considering the contours certain part is taken below ground floor to receive advantage of geo- thermal cooling.

Combination of double height, semi open and courtyard spaces.

Interlinking the building with courtyards and forming street typology inside the campus controlled the character and atmosphere during the hot summers.

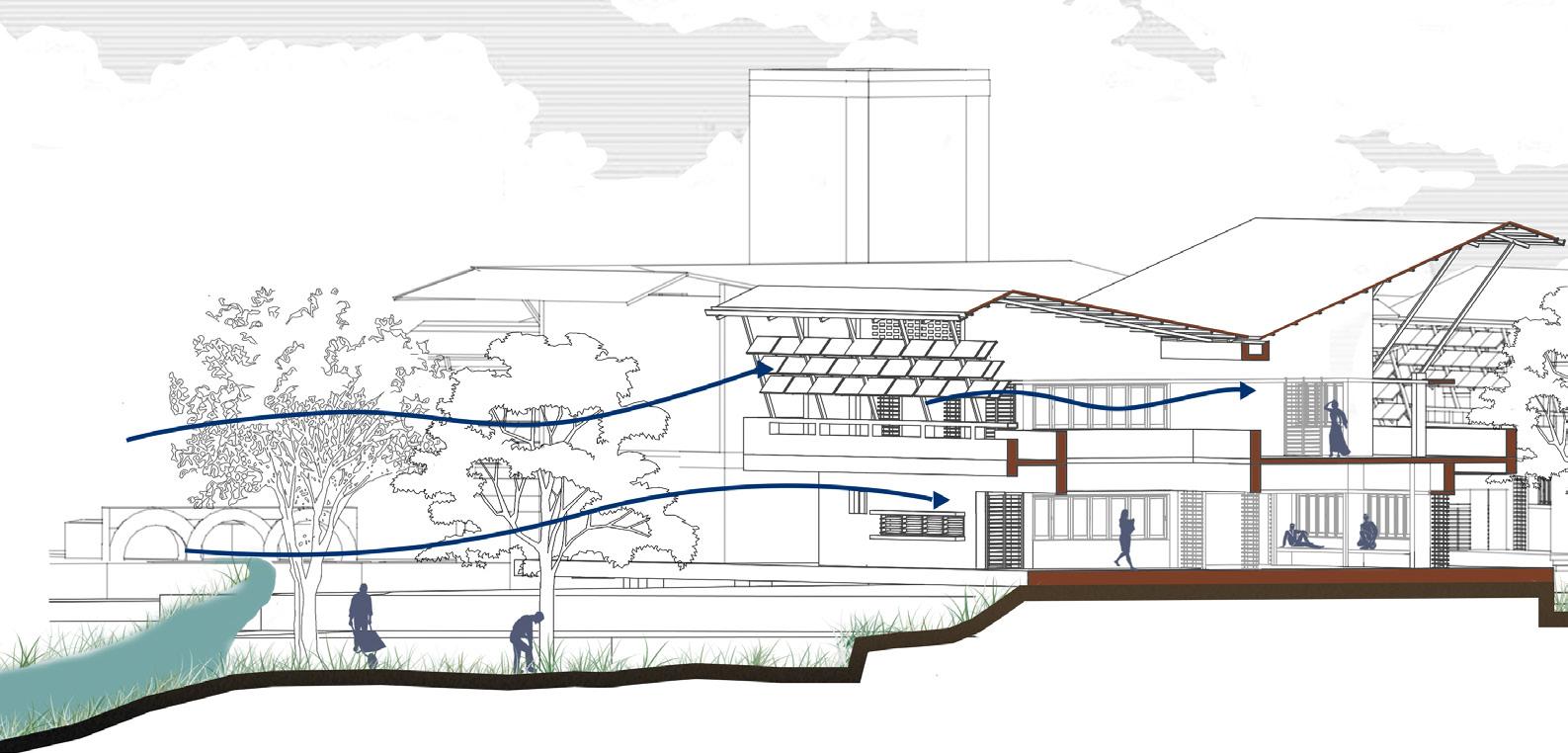

Dense native vegetation in south west direction (Channel cool air with high pressure through water stream)

Natural context specific design solutions

Rain water harvesting and Permaculture

Light vegetation (Hot air rising

Critical Regionalism, materiality, local skills empowerment

Climate Responsive and responsible

vegetation and courtyard in north rising up creating low pressure)

Design goal involves development of an sustainable design, studying the aspects of critical regionalism in architecture.

URBAN TRANSIT CENTER

Urban Design Studio, Semester-1

(12 Weeks Project )

Context

Urban transit center is located at very prominent location in the Vadodara city. It is at the junction formed by the Central bus station, Railway station, MS University and Kadak Bazar. As a part of the Urban Design Studio the area of 1 Km radius from the Railway Station.

Project Brief

Area analysis by studying and overlapping various layers and come with a design proposal. Proposal for redesigning existing shopping center was taken as an attempt to create transit oriented, sustainable and economic development with maximum user involvement having the scope of making “a lively point of public life”. The design approach was sensitive yet a dynamic approach focusing towards public interaction with the built form. The idea emphasized on the maintaining the current nature of the city yet allowing a growth in terms of planning.

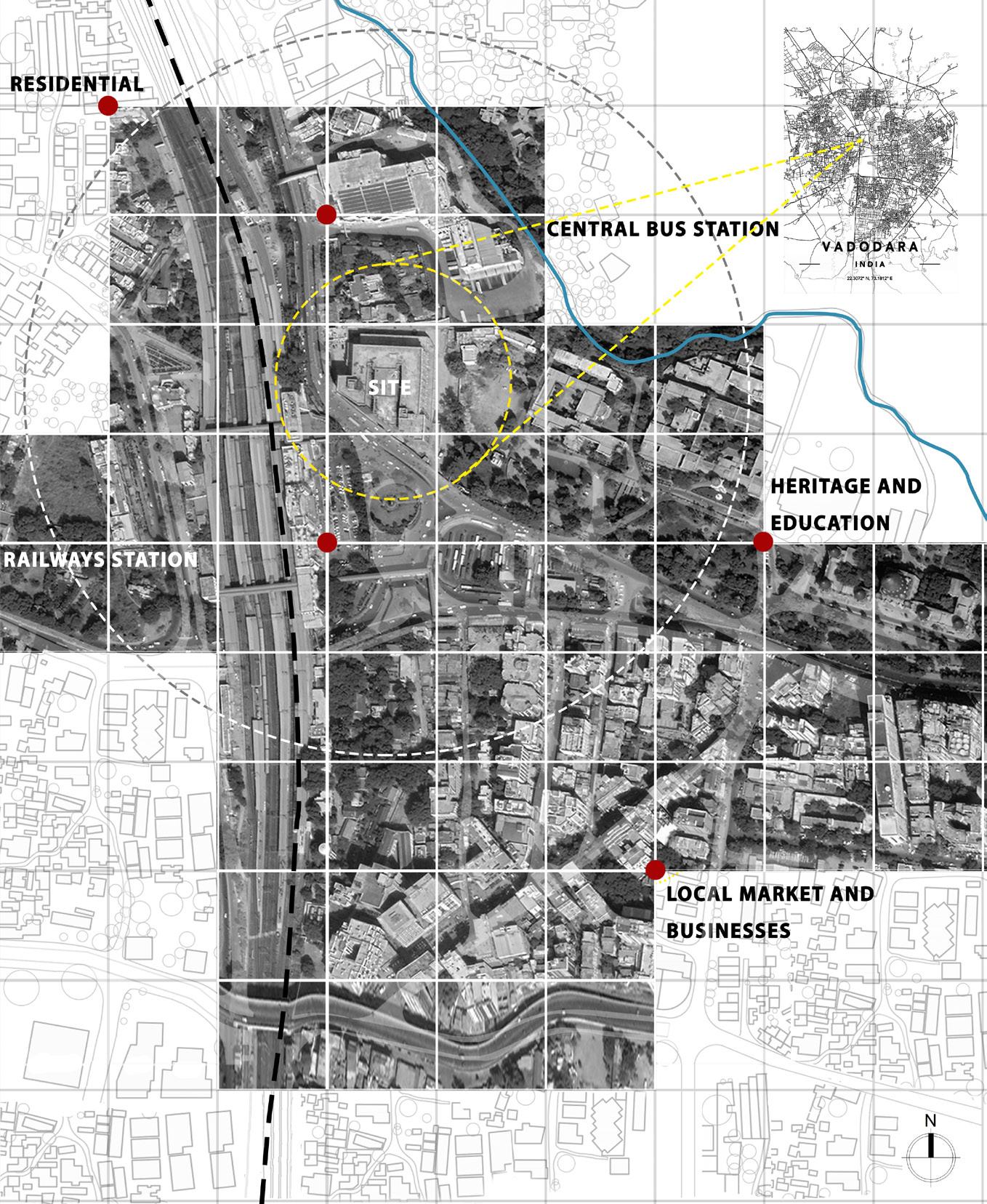

LAND USE MAPPING

CONNECTIVITY MAPPING

MASSING DENSITY MAPPING

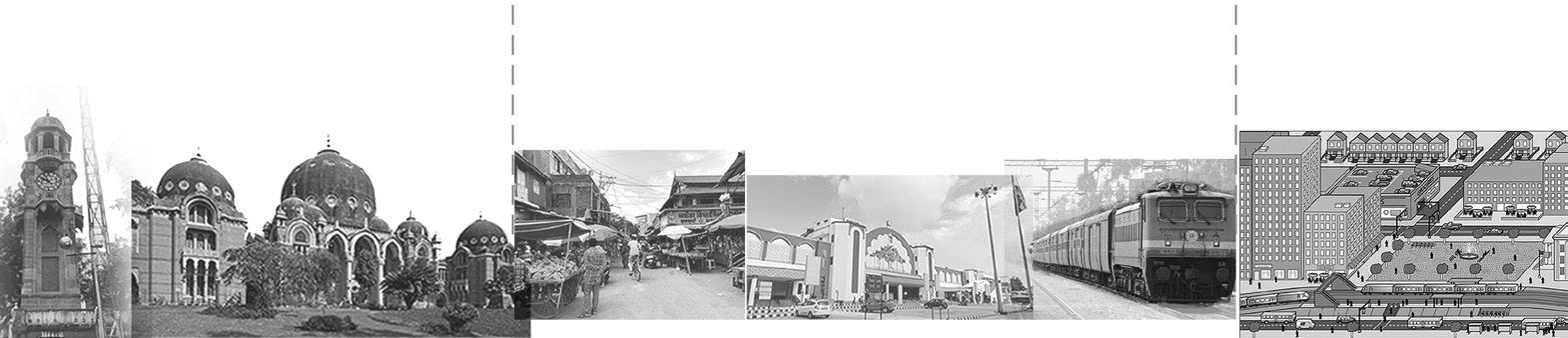

PAST- HERITAGE - CULTURE - EDUCATION

FUTURE- TRANSIT ORIENTED - SUSTAINABLE DEVELOPMENT

PRESENT- BUSINESS - TRANSPORTATION

Activity Frontage (Visually and Physically Permeable)

Trees and planting (Visually Permeable, Physically Permeable/ Impermeable)

Paved Area

Open Spaces

Walk ways

Pedestrian Movement

Vehicular Movement

SITE LAYOUT

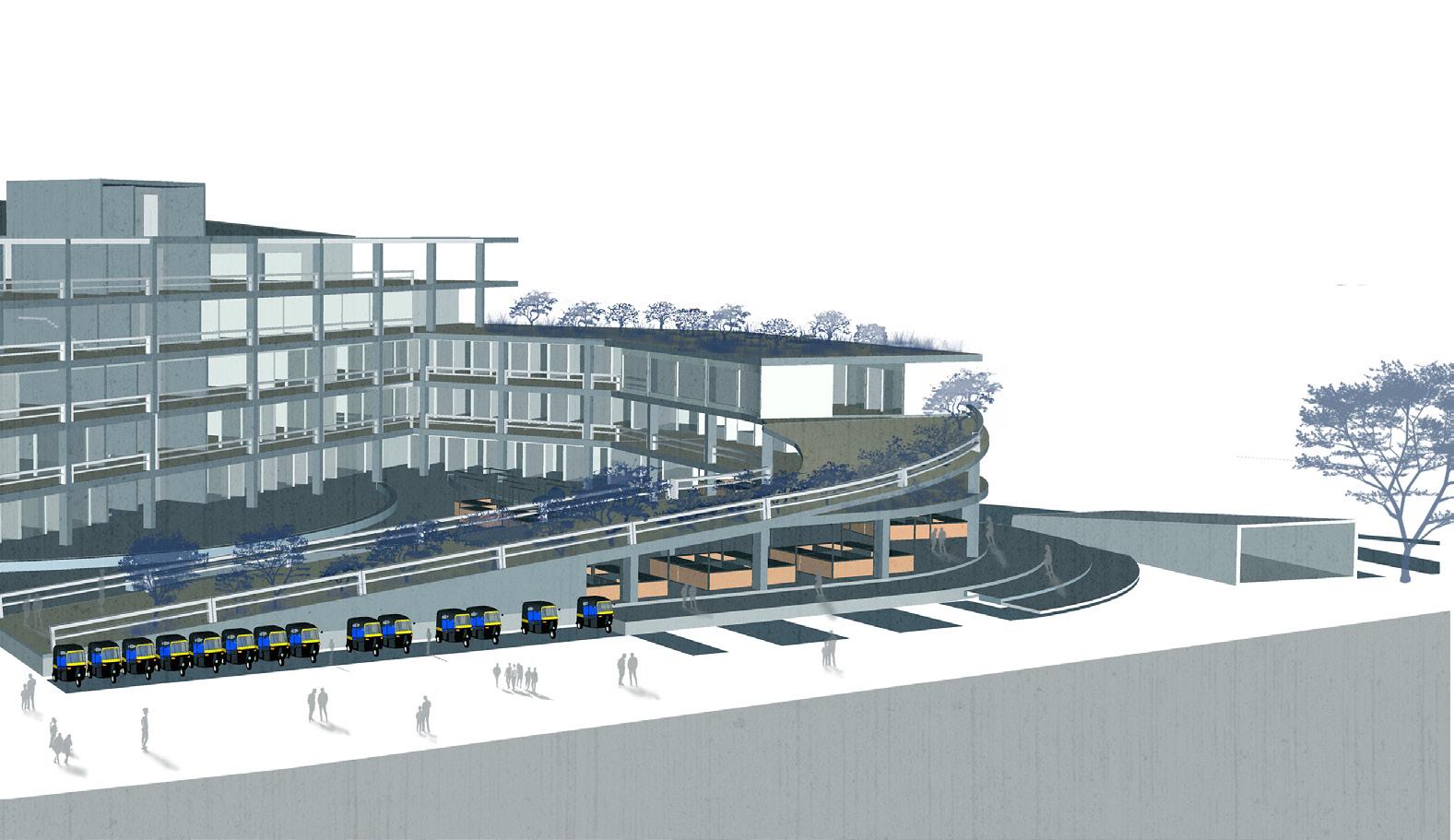

Ramp for to the shopping till the second floor for easy accessibility and a walking experience of street shopping

Recreational Spaces for Travelers

Lower Mass at the front Connect to the Context sense of openness

Visual Link to the Heritage

Entrance to the city through Railway Station

Public Plaza

Exhibition

Flea Market

Public Gathering

Knowledge Exchange Center

Urban Transit Center

First Floor Plan

Second Floor Plan

City Bus Stop

Shops

City Information Centre

Management office

Students’ experience Center

Vertical Circulation

Services

Restrooms

Hotel

Restaurant

Dormitory

Urban Farm

Third Floor Plan

Fourth Floor Plan

Participatory Facade with main road and Railway Station activates public engagement with the building and the context

Physical Linkage of Smart City Bus Hub and Central Bus Station

front for Visual Context and give a Heritage

Physical Connection with the University

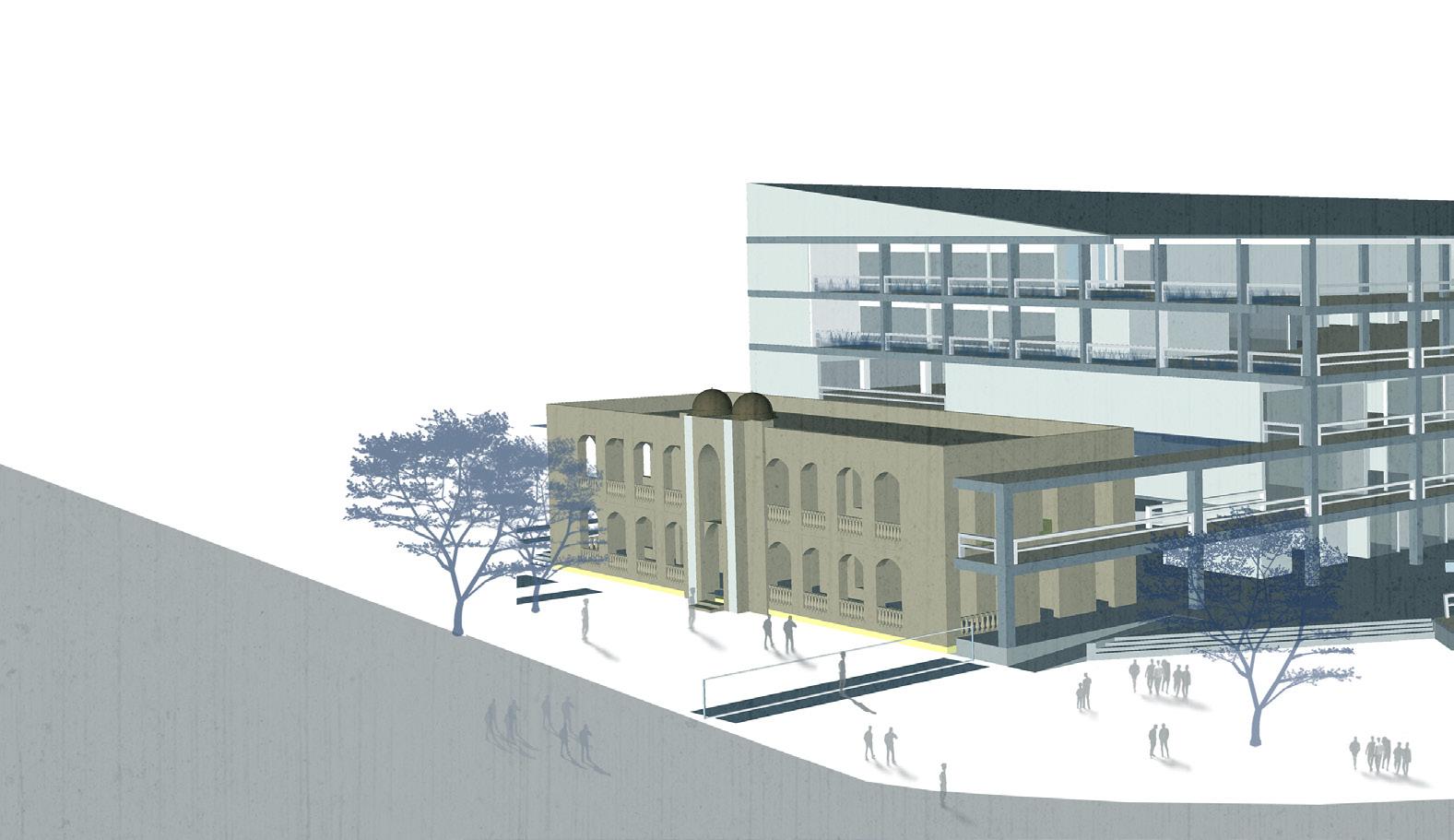

Adaptive Reuse of Damjirao Dhramashala located on the site which holds a heritage value for over 100 years will serve the purpose of the city information center.

Open Public Plaza includes flexible planning approaches adapting different activities that would add to the city’s socioeconomic infrastructure.

Urban farm and Green roof systems are adopted to promote green lifestyle. Green roof will help to mitigate extremely hot summers and improve micro climate.

Participatory Facade for Visual and Physical Linkage with the building and the context.

SPORTS CLUB

Fourth Year Design Studio, Semester-2

(16 Weeks Project )

Context

The site is existing sports club where there is a historic colonial building with a huge polo ground in east. The site area is 10,000 sq.m.

Project Brief

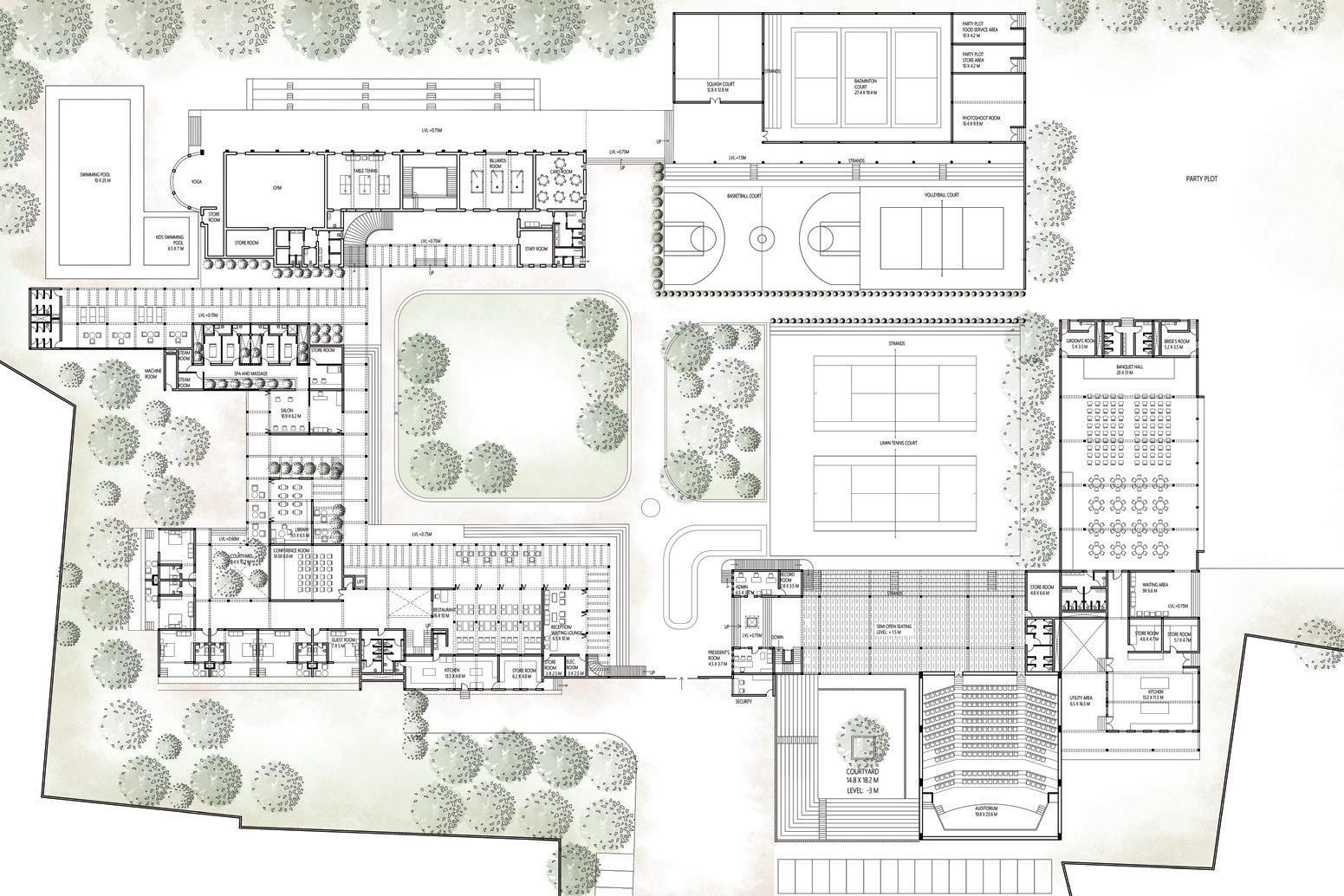

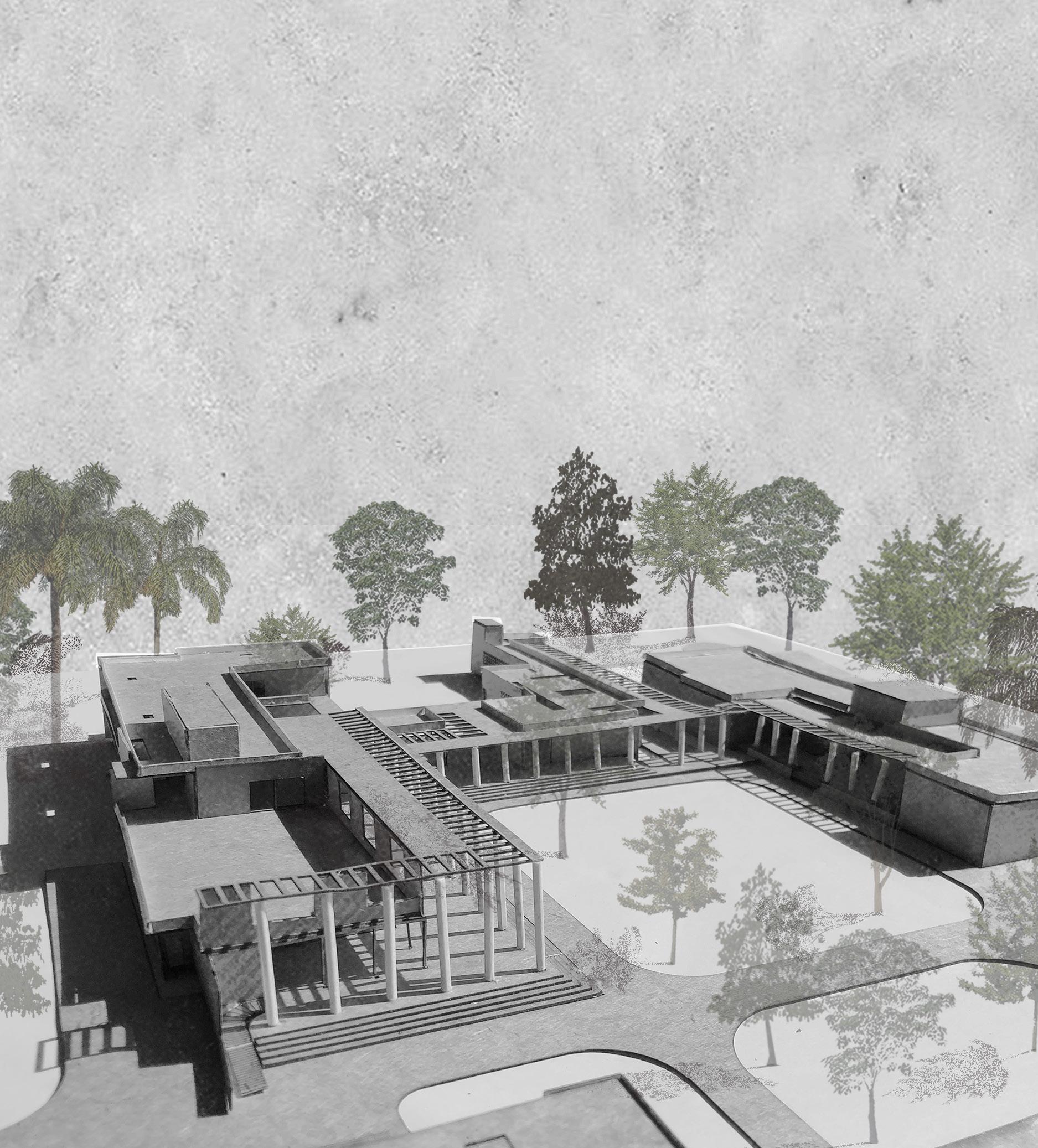

The design exercise constituted conceptualizing the built form and designing of the utilities and services of the club. Adaptive reuse of the existing building was done. The main aim of design was to create a lively points of circulation that allows the pause and direct human interactions.

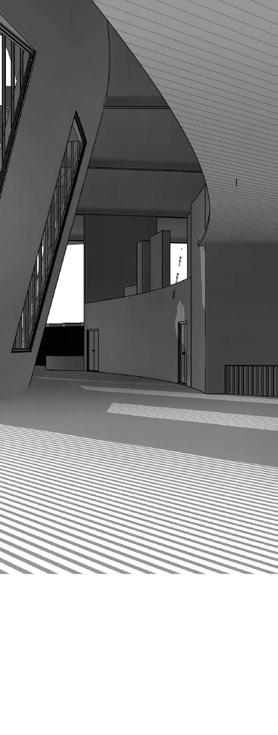

A: Circulation forms the spines of the spaces which creates a visual focal point by capturing dynamics of light and shadow.

B: A gradual transition encouraged starting from the pergola-covered double height corridor, which acts as the main circulation, up to a semi open verandah and eventually to the enclosed spaces.

C: Formal and informal interaction is encouraged through the use of pause points and strategic movement for the public.

D: The main materials are stone, brick jali and concrete, that help unify the new to the existing colonial building in terms of language.

E: Wide steps and platforms located in the sporting facility hold cultural activities and also connect the building to the landscape.

SPACES AS A NARRATIVE

F: The sports facilities are planned in two levels, The structure is designed as a non- building that emerges from ground allowing private- public space balance.

The spatial experience is emphasized by the changes of scale and the occasional breaking of the form of the corridor.

The concept aims to establish a relationship of people with built and open environment.

pavilion

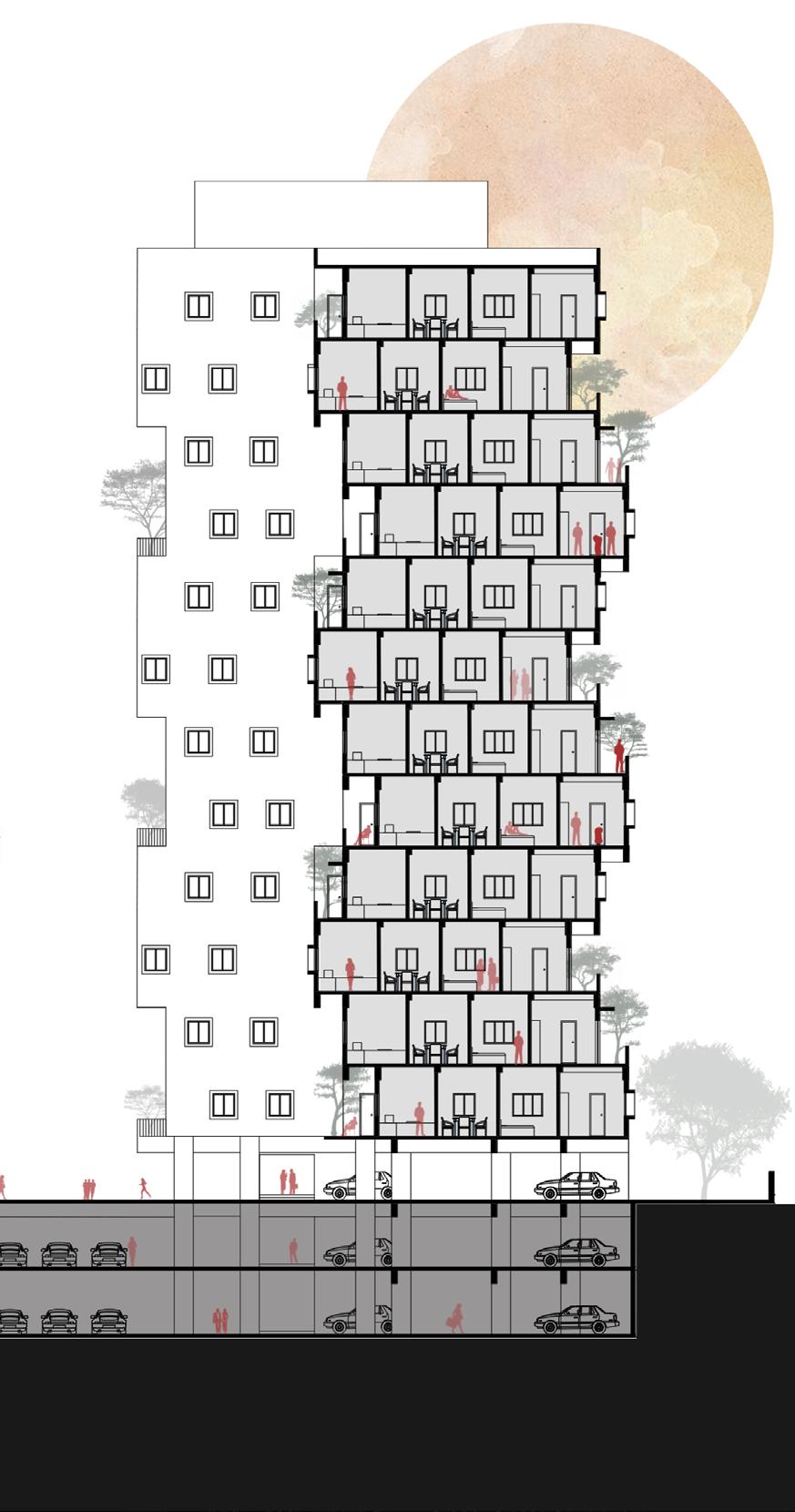

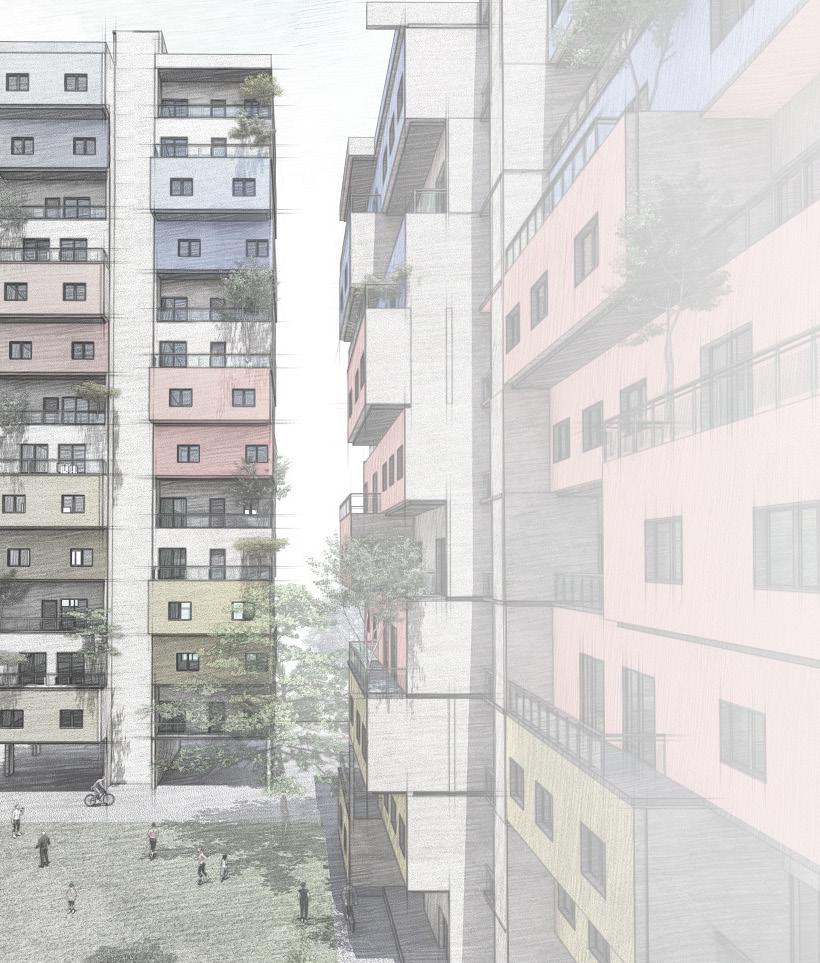

COMMUNITY HOUSING

Third Year Design Studio, Semester-1 (12 Weeks Project )

Context

The site is located in a growing residential zone in Vadodara. It has a lake in the west and a canal in the east. The high line tension road connects the site.

Project Brief

Design program intended to form 300 housing units for of 2, 3, 4 and 5 BHK by considering the government by laws with maximum permissible height of up to 13 floors. The project aims to rethink the approach to large-scale commercial development, making it possible by being conscious of the needs and demands of local society, rapid urban growth and pressing environmental challenges.

Modular Planning

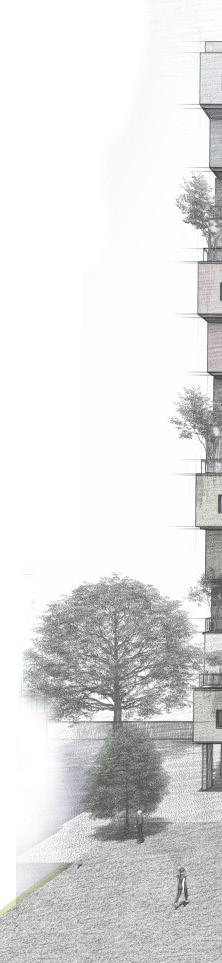

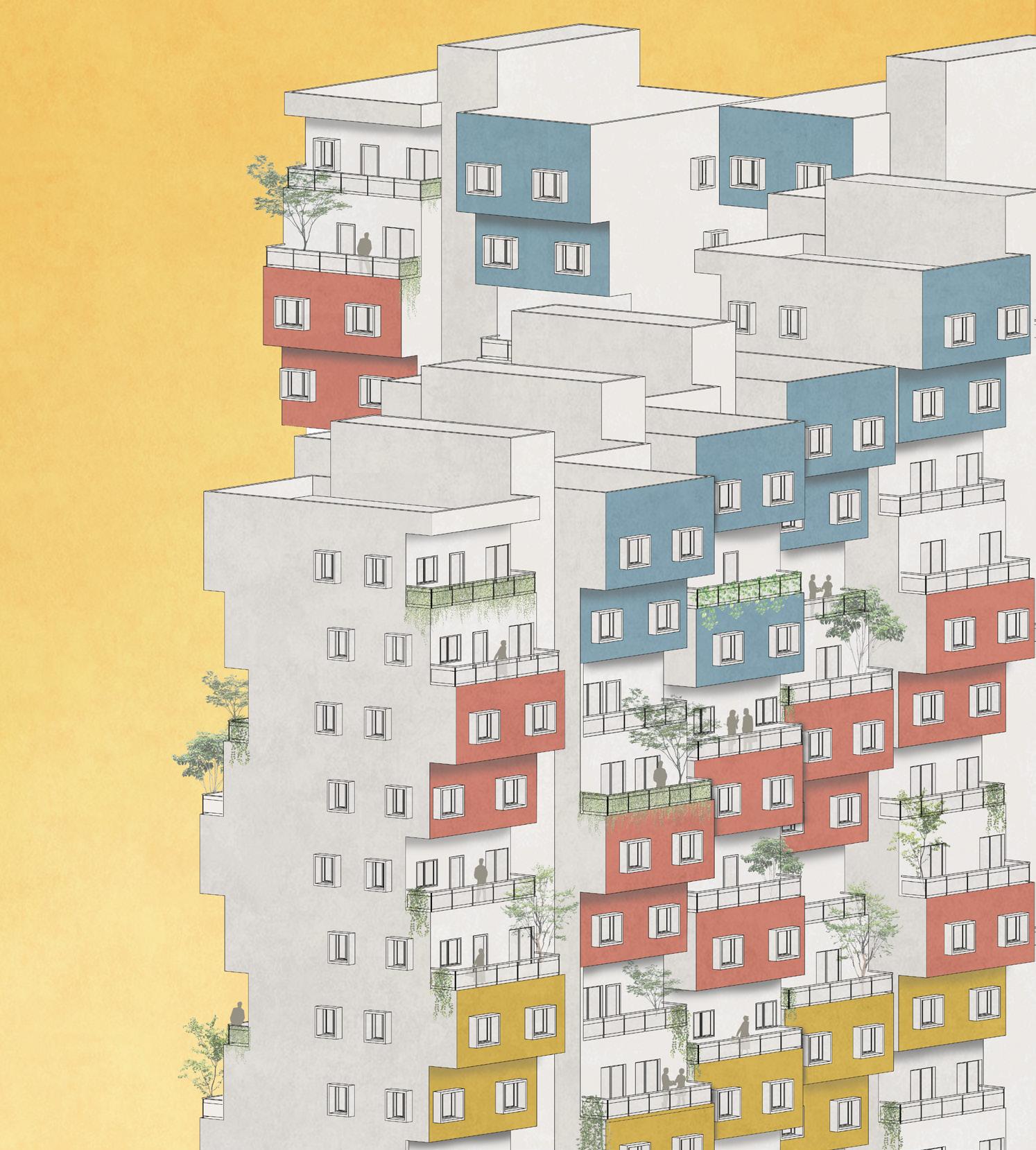

Staggered Floor Plates creating green terraces

Centrally located circulation Creating unobstructed wind flow

Continuous massing and shared walls reducing heat conductivity from extreme hot outdoor climate

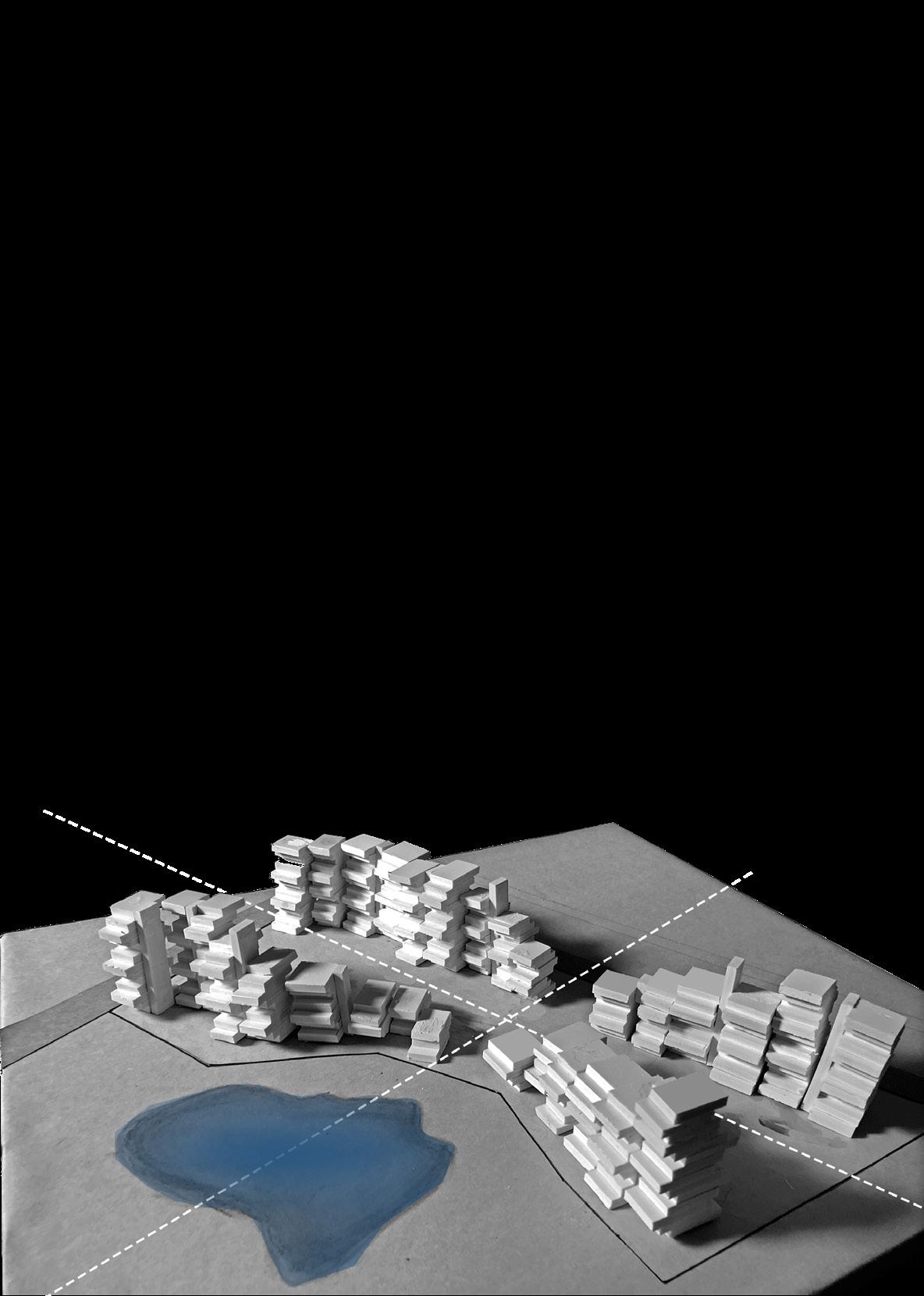

CONCEPTUAL MODEL

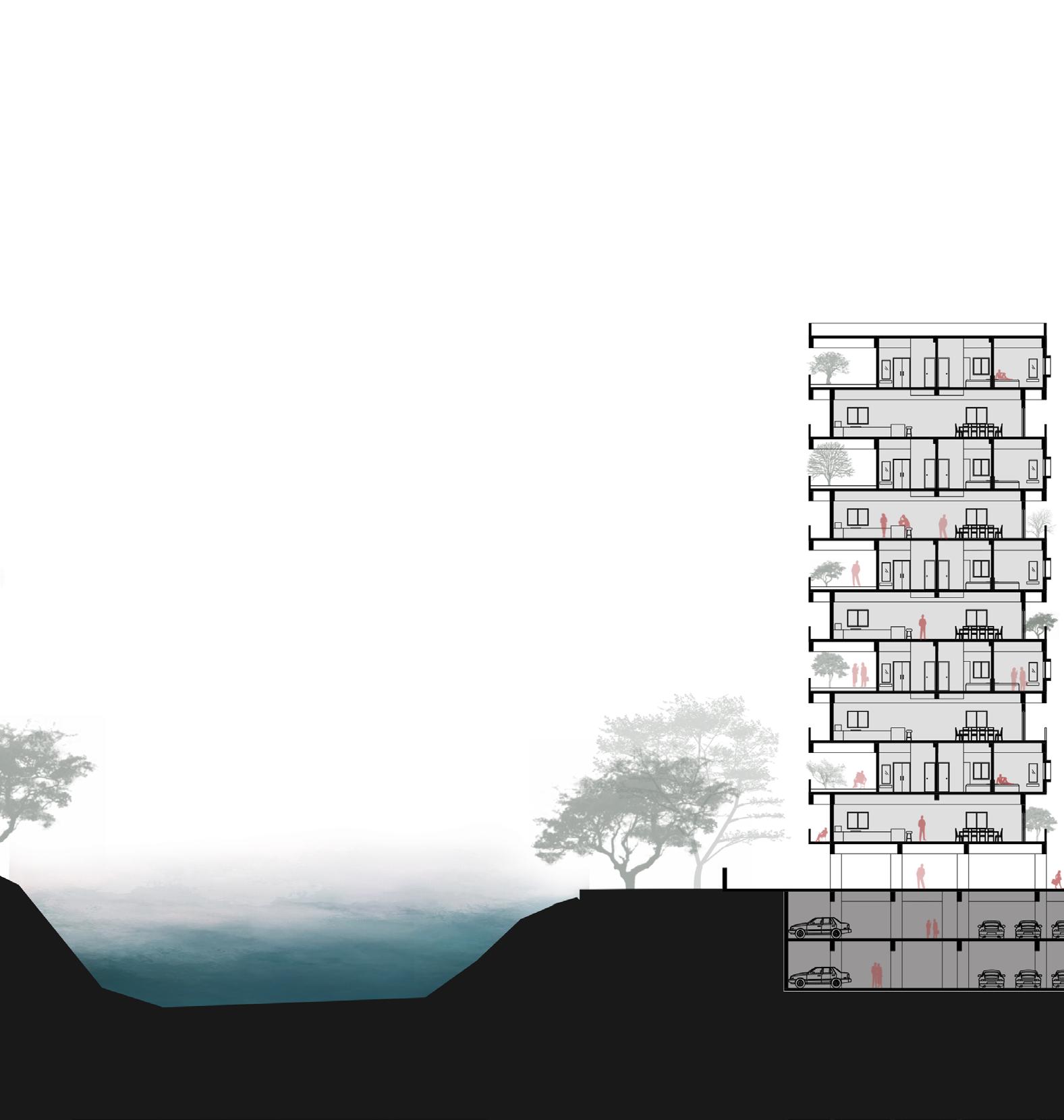

Responsive design toward the natural context. Building orientation allows optimum advantage of capturing view toward lake in the west and canal in the east.

All the building blocks overlook at the central open space. This space acts as a pivot for social engagement.

Gardens located on every level trying to break the dichotomy between land and building, and provide an area that is attractive as well as functional for the user group.

Second Floor Plan

2BHKUnit

2BHKUnit

3BHKUnit

First Floor Plan

4BHKUnit

5BHKPenthouse

First Floor Plan

Ground Floor Plan

The horizontal floor planes are shifted to provide adequate space for trees to grow as well as encourage the light ventilation.

This shifting also balances the greenery, creating a blend of structure and nature, rather than allowing one element to dominate and the second to feel like an after-thought.

The internal living areas are organized to take full advantage of the gardens and site features which adds a feeling of connect will ground even being located in apartment.

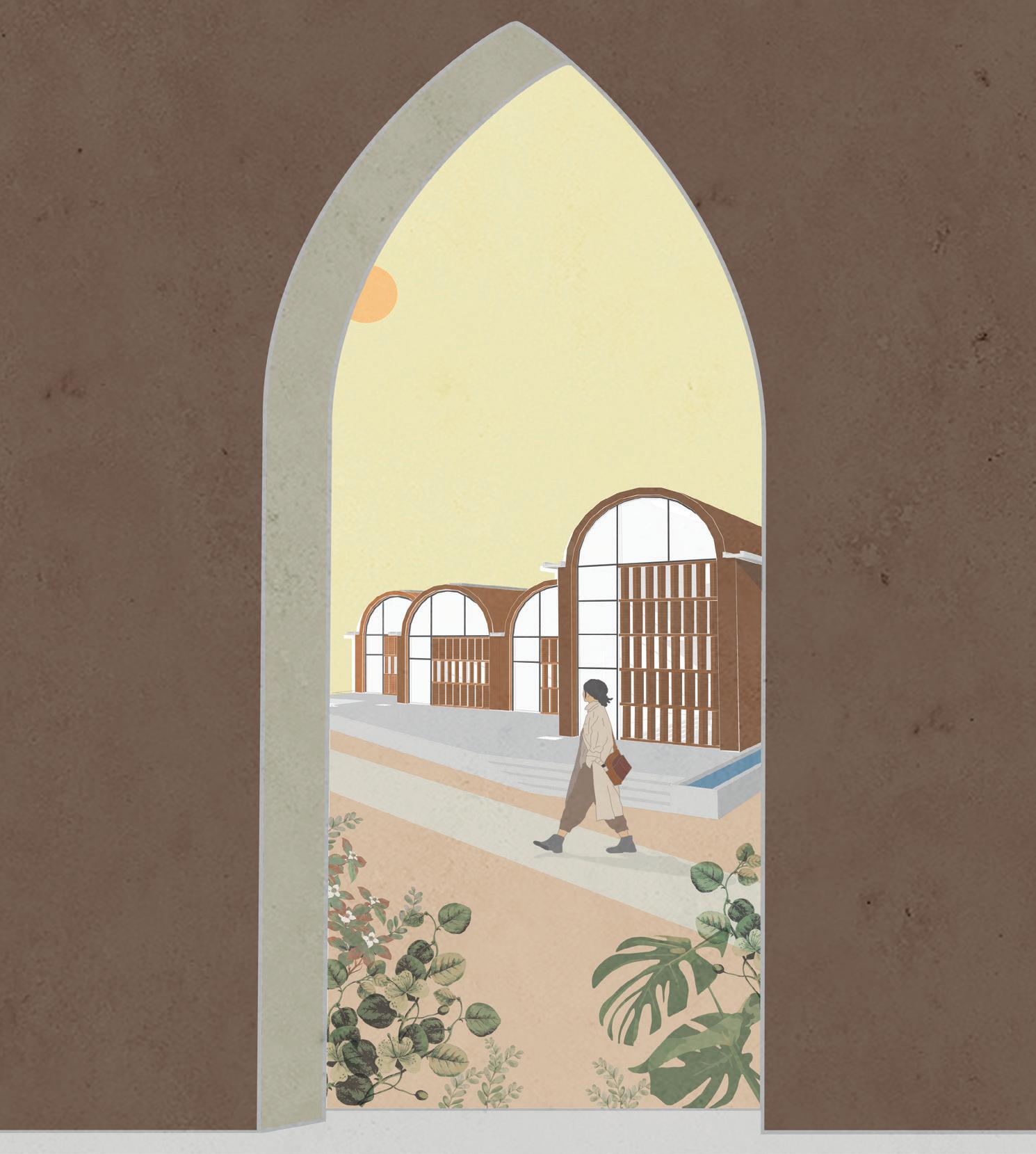

CAFETERIA

First Year Design Studio, Semester-2 (4 Weeks Project )

Context

The location of the cafeteria besides (east) the historic D N hall building is a strategic one, as it connects with all the three buildings of the architecture department at MSU.

Project Brief

Design approach was intended to create space not only to eat but a place for retreat, a public square, an amphitheater, a garden, and a place of work. One can truly experience the campus life as they make their way through the carefully designed journey that exerts a form of control on every user moving through the built form, making circulation more than just a route to get from point A to B.

Vault is used as contemporary architecture gesture to subtly compliment the historic arches in the context and suit to the local climate.

Natural light from the slit in the textured brick vault gives sense of axis to the space.

WATER

Water influenced design through its dynamic and fluid nature yet evoking sentiments of calmness.

2.

5.

4.

4.

2.

1.

3.

Cafeteria

Legends

1. Recreational Activities

2. Cafe

3. Reading Room

4. Outdoor Cafe

5. Kitchen and Services

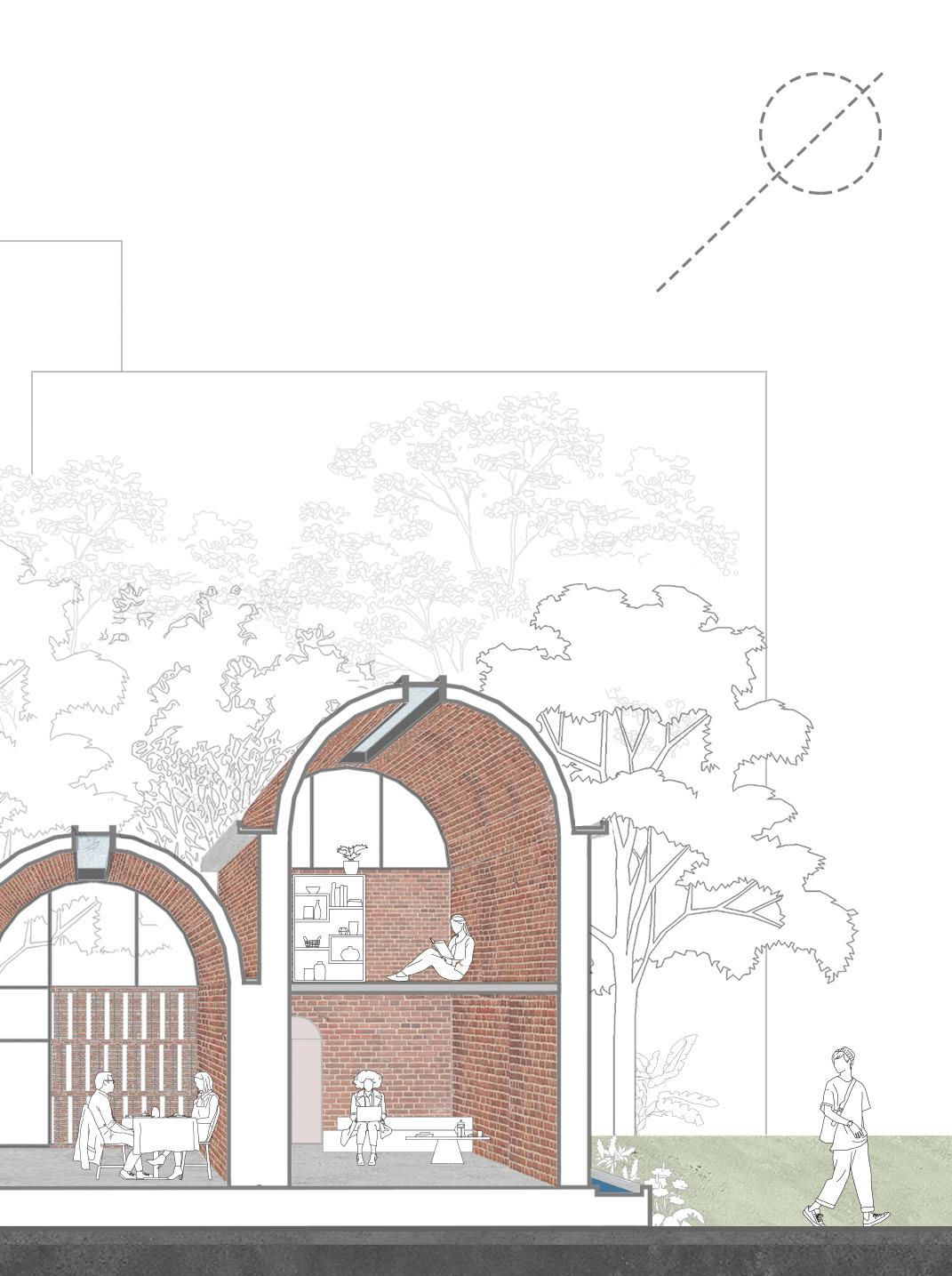

Slit opening in the vault that dispersed natural light into space. At the end of the space lies the opening with brick jali creating a play of light and shadow.

Rainwater is playfully channeled through the vaults, funneled along the site by the slick channels to water troughs.

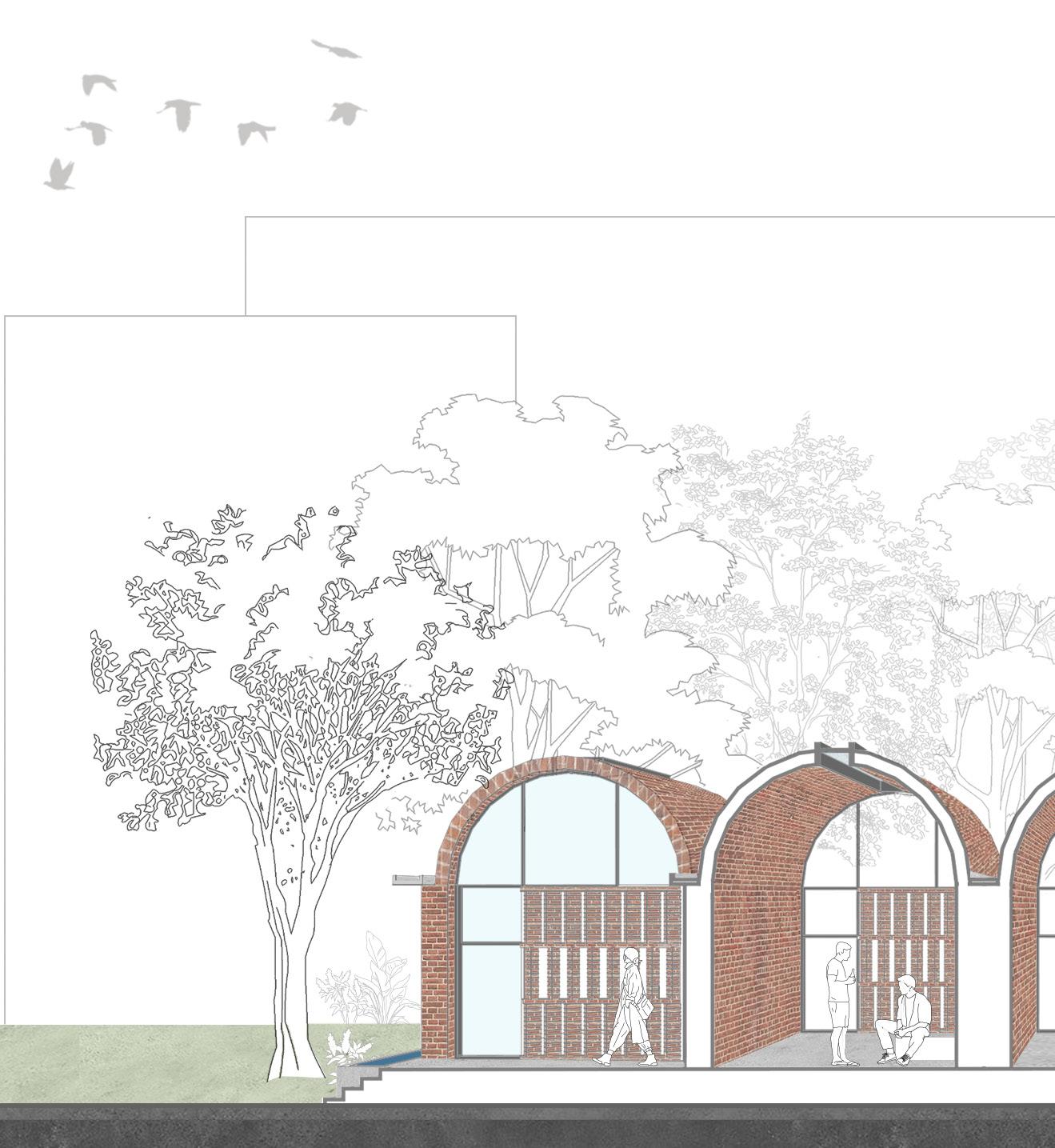

Bold red brick vaults resting on the load bearing brick walls form different volumes in the design. It is still a simple and repetitive form of logic.

TENSILE ROOF Advanced Building Construction

Materials and Specifications (2 Weeks Duration )

This exercise was holistic approach towards market research, form development, structural design and construction details. Properties and load distribution in light weight roof structures was studied by making models. The joinery details were worked out after studying different systems of construction in the present day as well by understanding the works of Ar. Frei Otto.

Corner Plate

Anchorage Connection

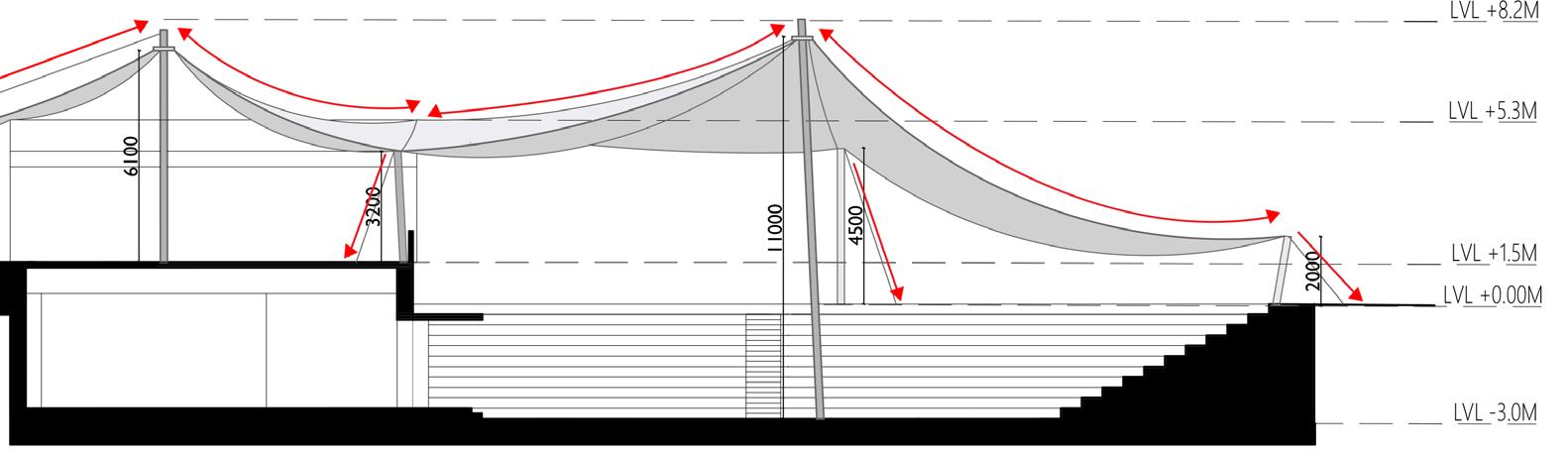

Tensile Roof

Hyperbolic Paraboloid Form

Arch Vaulted Form

Conic Form

Staggered corner connection on shaft

Membrane Rope Connection

Plate Wall Connection

TECTONICS OF BAMBOO

Basic Design Studio, Bamboo Workshop (2 Weeks Duration )

Guide: Prof. Sankalp, Prof. Mayur Gupta

Teamwork with 40 classmates

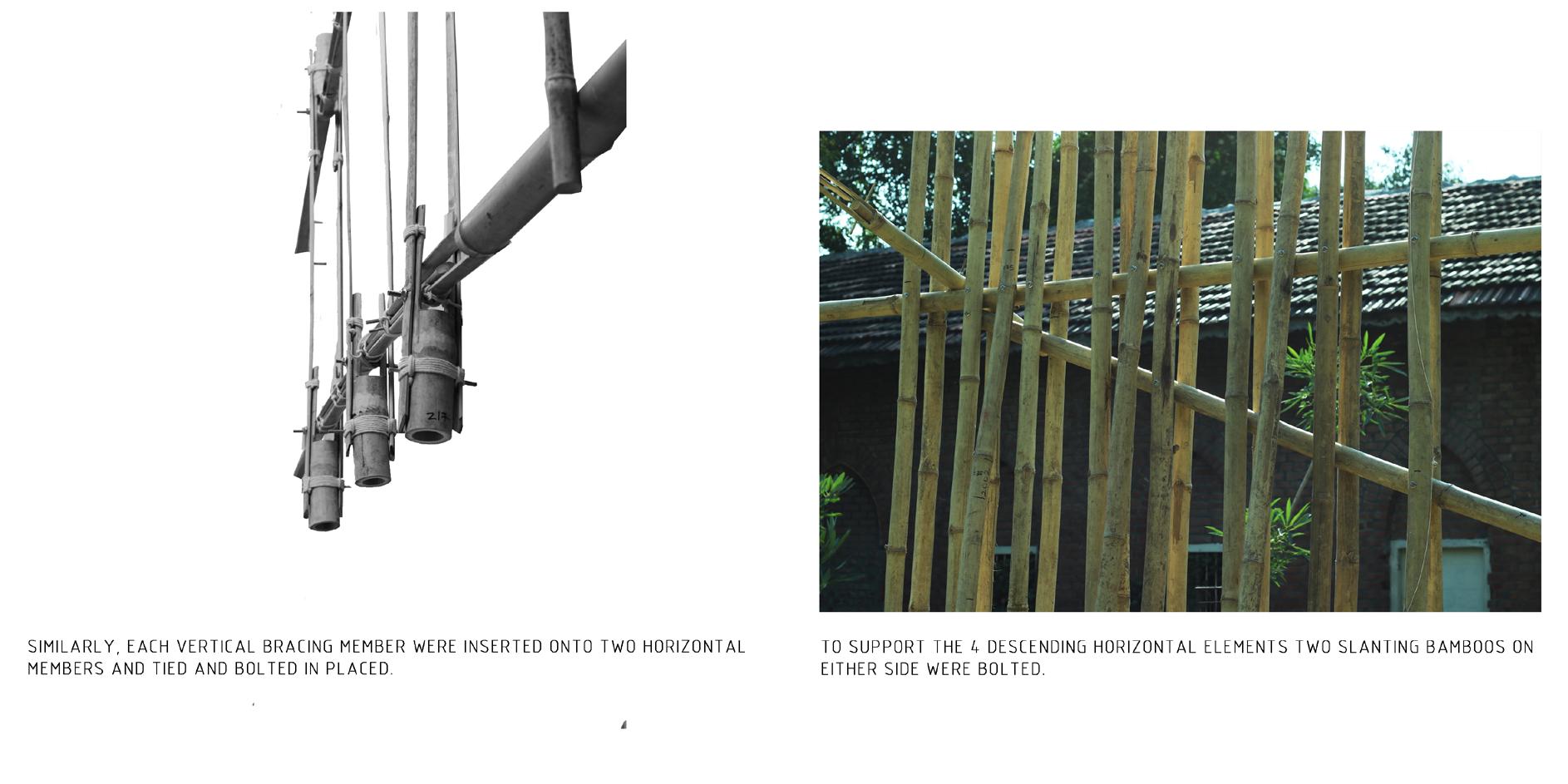

Role: Managing material and resources, work on making modular piece for assembly, handling assembly with the teams.

Bamboo is one of the key materials at the forefront of the climate change movement for a sustainable future. We perceive this material through the lens of contemporary design, thereby imbuing in it new potentials. Through this design, we intend to find a balanced optimization of extents of construction by hand and by machine. The modular system adopted is a pragmatic short term realization which we hope may trigger the gradual shift in consciousness towards greater harmony and balance.

CULTURAL LANDSCAPE

Location: Shore Temple, Mahabalipuram, Tamil Nadu, India. History of Architecture, Travel Studio

Year:2019

Cultural heritage includes the tangible and intangible aspects and also components of natural heritage associated with a particular group or society, which is inherited from the past generations.

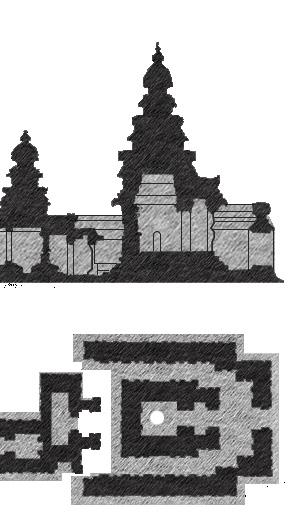

Located closed to the east cost of India, the group of monuments at Mahabalipuram dates back to as early as the 7th century CE. It is one of the most important architectural edifices of India. The study involved understanding the architectural language of the shore temple and draw inferences from visual encounter from live experience in comparison with what studied in classes of history of architecture.

Cultural Landscape

finial (stupi)

neck (griva) tower (shikhara)

larger shiva shrine (vimana)

The pyramidal shrine, made with finely cut local granite stone. It is 60 ft high, sitting on a 50 ft square platform.

finial (stupi)

archway

chaitya window motif

nandi

shrine Womb Chamber (Garbha-griha)

ARCHITECTONICS

First Year Design Studio

To imagine the movement of a human within the architectonic composition in different planes of dimensions varying in multiples of one unit sq. area.

Perception of a space from different position and the role of colour in defining the nature of the space.

Physical model in three planes, with different colour asigned to a direction. It allowed understanding of space from eye level.

‘I don’t not believe architecture has to speak too much. It should remain silent and let nature in the guise of sunlight and wind.’

-Tadao Ando
