Royal welcome
TRAPEZOIDAL PAVILION ROOFS AND FACADES, CLAD IN AURUBIS’ NORDIC ROYAL GOLDEN COPPER ALLOY, DEFINE THE WELCOMING CHARACTER OF A NEW CHILDREN’S NURSERY BUILDING.
Arcadia Nursery brings together two existing University of Edinburgh nursery facilities, into a single, purposebuilt complex. Although conceived as a free-flowing series of interconnected spaces internally, externally each age group’s playroom is clearly expressed as an inviting and domestic – but also contemporary – form, creating a sense of belonging and ownership for each age group. The resulting three pavilion roofs are clad in Nordic Royal golden copper alloy, as well as some facades complementing adjacent timber cladding.
Malcolm Fraser Architects selected Nordic Royal for its warm and friendly persona, so crucial to a nursery setting. Having used bronze on other projects, the designers felt that this would become too dark, whereas Nordic Royal will stay light, both in terms of the colour and visual weight, sitting well alongside the timber cladding. Double lock, standing seam joints were used to give structure to the pitched roofs but the Nordic Royal wall cladding is installed with a reverse coulisseau joint, avoiding projections that children might catch themselves on at low level.
Nordic Royal is produced by Aurubis, part of the world’s leading integrated copper group and largest copper recycler. Other copper alloys include Nordic Bronze and Nordic Brass – now also available pre-weathered. In addition to Nordic Standard copper, other Aurubis Architectural surfaces include Nordic Green and Nordic Blue factory-applied patinas developed with properties and colours based on the same brochantite mineralogy found in natural patinas all over the world. Nordic Brown pre-oxidised copper gives either light or dark brown oxidisation that otherwise takes time to develop in the environment.
For more information, visit: www.aurubis.com/finland/architectural or email: g.bell@aurubis.com
Aurubis – Enquiry 64
Feature preview
Paul Groves reveals what this month’s articles have in store
THIS MONTH WE TAKE A LOOK AT A WIDE VARIETY OF PRODUCT AREAS, INCLUDING ONE THAT IS BECOMING INCREASINGLY IMPORTANT FOR TAKING A LONGTERM VIEW OF A BUILDING’S USEFUL LIFE - ACOUSTICS.
In practice the noise coming from pipe systems is usually from two sources: first from the sound energy from water and air turbulence in the pipe, but the most noise will be generated from vibration of the pipe as a result of the water flow. This latter source can be transmitted through the wall by the pipe supports or the seals as the pipes pass through different floors.
For the specifier the simplest answer is to use the quietest material possible for the pipes, which independent studies continue to show is cast iron, performing significantly better than the best “acoustic” plastic systems.
“You can reduce the noise from vibration transfer by using special pipe clips, dampners and clamps, all manufacturer’s offer bracket solutions for this purpose, enclose the pipework within a mass of 15Kg/m2 and lag the pipes with 25mm unfaced mineral fibre as described in Building Regulations Doc E,” explains Mike Rawlings, Marketing Manager for Saint Gobain PAM UK.
To find out by how much you can reduce the noise using these solutions, an independent consultancy TVVL in Holland conducted 200 tests on different waste water systems and combinations of noise reduction factors. The tests first measured the noise from bare pipe made from a number of different materials, including cast iron and a number of plastic and acoustic plastic systems without insulation. They used a flow rate of 3l/s, which they deemed comparable to the flow generated by a WC being flushed.
The differences in noise ranged from 61.0dB(A) for the worst performer down to 51.0 dB(A) for a vertical pipe and from 64.5 dB(A) to 50.5 dB(A) for a horizontal pipe. Measurements were taken at offset points and changes in direction. In all cases the best performing or quietest material was cast iron.
TVVL then extended the tests to include the effects of external acoustic insulation and other noise reduction measures.
The tests concluded that if you used both glass wool plus an enclosure constructed from gypsum board you could reduce the noise (or sound pressure level) by up to 30dB(A) in walls. Using acoustic heavy sound proofing in the ceiling can reduce noise by up to 25dB(A).
The report demonstrated that pipe systems can get down to the acoustic levels required for most buildings, but for materials other than cast iron it requires significantly more insulation to do so.
Harnessing the light fantastic
INTEGRATED SYSTEMS ARE THE WAY FORWARD FOR PV TECHNOLOGY. SPECIFICATION TAKES A LOOK AT SOME INNOVATIVE PV PRODUCTS NOW ON THE MARKET
As a fast-growing proportion of the UK population is now realising, you don’t need to live somewhere warm and sunny to benefit from the energy producing potential of solar photovoltaic (PV) panels.
PV systems require light rather than heat, and the UK receives 60% of the amount of sunlight (or solar radiation) that shines down at the equator. And while it’s true that the more light PV panels receive, the more electricity they can generate, just like solarpowered calculators, they still work on cloudy days.
In a single hour, the sun transmits more energy to the earth's surface than the world uses in a year. PV panels and tiles convert this energy into electricity, making it a simple, clean, cost-effective and dependable way to power our lives. PV technology is fast-moving and the range of ingenious and increasingly cost-effective integrated PV products is hard to keep up with.
Solarcentury’s new Sunstation, for example, is building-integrated photovoltaic (BIPV) solar roof system designed to meet customer demand for an aesthetically pleasing yet competitively priced on-roof system.
It has been designed, says Solarcentury, with expert input from engineers, installers and architects. Sunstation “is the result of Solarcentury’s extensive BIPV technical knowledge, together with feedback from installers, accrued over the last 10 years since the launch of the company’s previous award-winning BIPV product”.
Sunstation’s sleek black panels sit low to the roof battens so they’re completely flush with the roof. It is quick and easy to install, Solarcentury explains: “The system clicks together, there’s no unwieldy sub-frame,and it comprises just seven elements; so it can be installed in a day”
An average-sized Sunstation system comprises around half the number of parts
required for a typical on-roof system, the company says, and it is the first BIPV module available on the market that is manufactured on the main PV factory line, rather than assembled by hand. It is this, combined with its low part count, that makes Sunstation cost competitive with on-roof solar systems. “Our research tells us that 90% of installers believe there will be considerably more adoption of BIPV if the price matches on-roof systems,” says Jon Sturgeon, Solarcentury’s head of product development. “We also know that homeowners have always wanted a solar option that preserves the look of their roof,” he adds. Sunstation is tested and certified to the same industry standards as the roofing it will replace.
Polysolar develops, designs, and projectmanages building integrated photovoltaic (BIPV) solutions. The award-winning Cambridge-based developer and producer of innovative low-cost solar PV glass for the BIPV market, describes its unique thin-film solar PV glass as the first truly transparent alternative for conventional architectural building materials, generating renewable energy and a return on investment.
Polysolar’s products provide an attractive finish to a building while enabling environmental targets and building and planning regulations to be met, the company says. “Indeed our contribution to BREEAM environmental assessment method can be sufficient to extend classification by a whole category”.
The Polysolar product range is enhanced by an all black higher powered micromoprh unit (PS-D series). It is also introducing a range of BIPV products that address different architectural requirements, including a new range of high performance transparent glazing panels, facade cladding panels and flexible roofing panels.
Everything you need to know about
Our research tells us that 90% of installers believe there will “ be considerably more adoption of BIPV if the price matches on-roof systems. We also know that homeowners have always wanted a solar option that preserves the look of their roof. “
Installations such as the Willmott Dixon building at the Building Research Establishment in Watford provide the company with an opportunity to showcase the virtues of its transparent product. From this, strategic supply chain links were created, which now places Polysolar as one of the country’s and the world's leading providers of BIPV solutions.
Colour-coordinated PV innovation
Glass and solar products manufacturer Romag recently installed its newly developed terracotta-coloured Intecto integrated solar tile at Gentoo Homes’ Beechbrooke site in South Shields.
The Intecto tile has been designed with aesthetics in mind, to blend seamlessly with terracotta concrete and clay tiles. It is also available in black, grey and brown “and can be tailored to work with almost all tiling systems". “At Gentoo we are always striving to be innovative and deliver high environmental standard across our developments,” says managing director Barry Walker. "Our customers have been asking whether solar can be incorporated into our housing developments as they recognise the value of renewable energy and the financial benefit this technology can deliver. We are delighted to be the first to install Romag's innovative Intetco system here at Beechbrooke."
PV technology explained
Photovoltaic technology is the term used to describe the hardware that converts solar energy into usable power, by generating electricity from light.
At the heart of photovoltaic (PV) technology is a semi-conductor material which can be adapted to release electrons, the negatively charged particles that form the basis of electricity. The most common semiconductor material used in photovoltaic cells is silicon, the element most commonly found in sand, which also happens to be the second most abundant of the materials comprising the earth's mass.
PV cells have two layers of semi-conductors, one positively charged and one negatively charged. When light shines on the semiconductor, the electric field across the junction between these two layers causes electricity to flow, generating DC (direct current). The greater the intensity of the light, the greater the flow of electricity.
British-made and built to last
FOR A NUMBER OF YEARS, THE RISE OF OVERSEAS MANUFACTURING HAS BEEN INEVITABLE WITH CHEAPER FOREIGN-MADE GOODS FLOODING VIRTUALLY EVERY UK MARKET. NOW IN THIS AGE OF AUSTERITY, WHEN PRICE TRADITIONALLY BECOMES AN EVEN MORE DECISIVE FACTOR, DOMESTIC MANUFACTURERS ARE ENJOYING A LONG-OVERDUE REVIVAL AMID AN EXPLOSION OF CONSUMER INTEREST IN QUALITY, BRITISH-MADE GOODS.
As our shops, roads and homes have been swamped with foreign imports, this has had a devastating impact on a manufacturing industry that was once the envy of the world. Government after government may have done little to stop this on-going demise, but some British-based manufacturers are fighting back.
Based in North London since 1946, the Lonsdale Metal Company has been supplying patent glazing and rooflights to the commercial and residential sectors for close to 70 years. So where has Lonsdale succeeded where so many others have failed? The family business prides itself on understanding its customers and strives to deliver guaranteed quality and added value with every single product.
Construction has always been ‘price-driven’, but in some sectors – such as glazing and rooflights – this is beginning to change. Driven by the customer demand for quality products and the need for manufacturers to survive the competition, quality has also had to increase against the background of improved standards worldwide.
In the rooflight industry where new technology comes thick and fast, companies must do the same as any other sector with success reliant upon quality, service and product development. Manufacturers have to retain focus on their product, employees and target market if they are to thrive – especially when contending with tightened regulations, the on-going recession and an influx of foreign imports.
“We have been supplying the glazing industry with aluminium systems since the 1940s,” said Stephen Burgess, Managing Director, Lonsdale Metal Company. “Our customers, technology and the industry may have changed but our ethos will always remain the same – to offer well designed, easy to install products at the lowest possible prices without any compromise on quality.” Lonsdale’s customers, rooflight and glazing contractors, rely on suppliers and manufacturers that can deliver quality time and time again. As manufacturers invest a lot of time and effort into delivering design and performance standards to give clients peace of mind, it is vital that contractors utilise this expertise to pass quality on to their customers. And the manufacturer must not forget the end user.
According to a 1998 report by the Construction Task Force, “the construction industry tends not to think about the customer”. Little may have changed over the last 17 years as many construction companies still complete little research on what the end user actually wants, nor attempt to raise customers' aspirations or educate them to be more discerning. But Lonsdale continues to buck the trend.
For building and home owners looking to avoid dreary, cheap and cheerful plastic systems, the aluminium and glass roof from Lonsdale can be a competitive alternative. Combine this with the system’s 40 year design life and low maintenance and Lonsdale delivers exactly what the customer wants – a rooflight that is built to stand the test of time.
Lonsdale rooflights feature on some of UK’s most prestigious, famous and iconic buildings – including 10 Downing Street, Buckingham Palace, Windsor Castle and the British Museum. A quintessentially British company that achieves success against the odds, Lonsdale continues to set the standard for rooflight packages with the system of choice for discerning homeowners, the Royal Family and the Prime Minister.
Lonsdale – Enquiry 68
Single ply: get it right first time
DECADES OF RESEARCH AND DEVELOPMENT HAVE GONE INTO THE DESIGN AND MANUFACTURE OF MODERN WATERPROOFING SYSTEMS, AND SO IT’S VITAL TO GET THE SYSTEM SELECTION AND INSTALLATION RIGHT FIRST TIME. NOW, WITH CONSTRUCTION SITES FACING EVEN SMALLER BUDGETS, TIGHTER DEADLINES AND EVER MORE STRINGENT BUILDING REGULATIONS, THE QUALITY OF THE WATERPROOFING SPECIFICATION HAS NEVER BEEN SO IMPORTANT.
Waterproofing typically accounts for only 3 - 5% of a project’s overall budget but it must never be undervalued. With water ingress a key factor in up to 75% of building failures post-construction, the waterproofing membrane is the first line of defence and so should be considered at the earliest possible stage in the design and build process.
How can you be sure that your waterproofing system will deliver proven performance and remain watertight in the long term? With a proven track record and designed with an efficient installation process in mind, SikaTrocal single ply roofing membranes combine long term performance, fast application and an unrivalled freedom of design that make them ideal for virtually any roof application.
Longevity is key
Whether obvious or unforeseen, roof problems cause disruption and are a significant expense to building owners. Unfortunately, problems will be inevitable as the roof ages and deteriorates so it’s vital to choose a roofing membrane that delivers long term performance with an application that is relatively simple, quick and hassle-free.
Single ply can provide one of the best all round solutions to achieve cost effective, durable and sustainable systems. Single ply roofing membranes generally have a design life of in excess of 30 years, ensuring whole life performance is maintained whilst minimising the impact on the environment.
Speed of the essence
Single ply ensures today’s fast track programmes can be met on site. Providing a quick and clean approach, they achieve initial waterproofing rapidly so that the concrete ground works can commence very early and minimise disruption on site by avoiding hot melt adhesives.
Mechanically fastened roofs are generally the fastest and most economical to install and because of their lightweight nature, will often enable savings to be made on the supporting structure. The Sika-Trocal disc fixed method secures both membrane and insulation with one fixing, reducing labour costs and minimising the amount of fasteners by up to 50% when compared with traditional Single Ply mechanical fixing methods. As well as offering speed of installation, single ply membranes offer many other benefits. The selection of a high performance, low maintenance single ply roofing system will help to prevent heat loss, as well as water and air penetration, to create a waterproof, thermally efficient building envelope. This will add value where it matters –on the bottom line.
Proven to perform
Once the single ply membrane and installation method has been specified, the relationship between the manufacturer and the roofing contractor becomes absolutely crucial. Sika-Trocal operates an approved contractor scheme that will assure the client that their roofing system will be installed by a high quality and trusted applicator.
By utilising the expertise of the manufacturer and producing highly detailed plans before the project begins, you can get the job right first time, every time. Whatever the project, specifiers, contractors and their clients must turn to manufacturers and designers they can trust to ensure a quality specification that meets the very highest standards.
Whether mechanically fixed or adhered, coloured or black, lacquered or not, single ply still provides one of the best all round solutions to achieve cost effective, durable and sustainable systems. For high levels of performance, a fast and clean installation, long term guarantee, industry standards and versatility – choose a single ply waterproofing membrane that will always come out on top.
Ahead of its time
WHY IS A CONCRETE INNOVATION DEVELOPED A DECADE AGO EXPERIENCING UNPRECEDENTED GROWTH SINCE THE RECOVERY? GAVIN WHITE, PRODUCT MANAGER AT MARLEY ETERNIT, DISCUSSES THE RISE OF THIN LEADING EDGE CONCRETE SLATES AND WHY THEY ARE HELPING SPECIFERS TO MEET THE BUDGETARY AND AESTHETIC DEMANDS OF TODAY’S PRIVATE HOUSING MARKET.
Thin leading edge interlocking concrete tiles, made to replicate the look of natural slate on a budget, are not a new invention. In fact, one of the first products launched into the market was our own Edgemere slate, over a decade ago. While sales have grown steadily since it was launched, we have seen sudden unprecedented demand since the recovery, particularly in the last year.
With the wider financial recovery and schemes such as Help to Buy giving a significant boost to house building, it is really no surprise that demand for all roofing products has grown significantly in the past couple of years. However, we have noticed that sales of our thin leading edge concrete slates are disproportionately high. Since the start of 2012, demand has more than doubled and we have seen a 46% increase in the last year alone. The biggest increase has been in private housing development, while it still remains popular for both social housing new builds and refurbishment.
So, what is driving this growth in specification for a product that has been around for ten years?
Getting a premium aesthetic for a small budget is the driving force behind the surge in specification for thin leading edge concrete slates. Not only are they a cost effective alternative to natural slate but they are also an affordable upgrade to standard concrete interlocking tiles.
One particular trend we have noticed is the use of our Edgemere slates on new private housing developments seeking to differentiate themselves with a contemporary exterior and high internal specification. Using a concrete interlocking slate over a standard tile gives specifiers the chance to elevate the exterior aesthetic, giving a premium slate look without much additional cost, enabling them to maximise the external look on a budget and in turn, spend more on internal specifications.
There has clearly been an aesthetic shift in private housing, where specifers seek a sleeker slate look. Fifteen years ago, it would have been fairly common practice for a development of four bedroom houses to all be roofed in traditional interlocking concrete tiles. However, these days a development like this often has thin concrete or fibre cement slates to give a more contemporary aesthetic.
New innovations over the past couple of years have also made these slate effect tiles even more convincing. For example, we launched a riven version of Edgemere, which has proved popular with specifiers looking for a closer match to natural slate to meet planning requirements.
In addition, the added environmental value they bring is a key factor in their specification. Independent carbon certification, the ability to achieve an A+ rating in the BRE’s Green Guide to Specification and certification to the BES 6001 standard for Responsible Sourcing, means they can help to achieve extra material credits under one of the current UK environmental assessment methods.
With the ability to help specifiers meet the budgetary, sustainability and aesthetic challenges of today’s competitive market, we expect that thin leading edge concrete slates will increasingly become the standard specification for new housing.
Bilco improves roof top safety with the new Step Over Stair
Bilco has launched its new Step Over Stair range, providing a safe means of passage in the form of a short stairway over rooftop obstacles such as air conditioning or ventilation ductwork. The Step Over Stair is available in either mill finished aluminium or galvanised steel and is designed to precise specifications, according to each site’s requirements. It is available as fixed (with penetrative fixing) or as a free standing stair. The fixed stair is bolted to the roof to provide a permanent safe route over long-term hazards in frequently accessed areas.
Bilco –Enquiry 74
Brett Martin fits the bill for Waitrose at flagship distribution centre
As part of a highly innovative building envelope, 13,000m2 of Energysaver GRP composite rooflights from Brett Martin Daylight Systems were specified to bring maximum daylight into and reduce energy demands at the flagship Magna Park in Milton Keynes. The giant new Waitrose distribution centre includes a 940,000ft2 roof, 15% of which is made up of Energysaver rooflights. These are innovative triple skin factory assembled insulating rooflights (FAIRs) for composite roofs manufactured from GRP. They offer high quality diffused natural daylight, thermal performance and ready-to-fit convenience for wide-span buildings.
Brett Martin Daylight Systems –Enquiry 78
Moduglass quartet illuminate manuscripts at Enfield Library
Extensive refurbishment and redevelopment work at a library in the London Borough of Enfield has included the installation of four large, high performance rooflights from the Jet Cox range.
The project includes a more comfortable and better lit interior environment to which the Jet Cox Moduglass rooflights will make a significant contribution. The set of four, five-section Moduglass rooflights have been manufactured and supplied to the main contractor, Borras Construction Limited, ready for installation onto the prepared deck.
The Moduglass Range is available with the choice of two, three, four or five compartment assemblies, which are conventionally located on top of the manufacturer’s RO16 insulated upstands. The range is compatible with virtually any type of roofing membrane including single ply, hot melt, GRP and lead, copper or zinc. The rooflights themselves are fabricated from polyester powder coated aluminium extrusions to RAL9010, which offer both low maintenance and optimum transmission of natural daylight.
The quartet supplied for the Palmers Green project was all finished in white. As with alternative rooflights in the Jet Cox Glass Products range, the Moduglass units are covered by the company’s 10 year Guarantee.
JET COX –Enquiry 76
Boningale GreenSky, the award winning green roof department of Boningale Nurseries, has helped to create Scotland’s largest wildflower and sedum green roof on a new £842 million hospital complex in Glasgow. Boningale GreenSky won the contract from Frosts Landscape Construction Ltd to supply and deliver 40,000 specially grown sedum plug plants, cuttings and wildflower seed for the hospital’s multifaceted green roof. Patient rooms will have views over the biodiverse sedum and wild flower roofs, which have been formed over 10 areas stretching more than 6,000m2
Boningale –Enquiry 75
First class stamp of approval for Seamsil
SEAMSIL has been specified and used to secure the long term performance of the roof at one of Royal Mail�s main UK retail outlets. It�s over 20 years since Delvemade invented its patented silicone external repair system, for cut edge corrosion on profiled plastisol/PVDF coated steel roof sheeting. This results in corrosion of the profiled steel roof sheets. If not treated quickly and effectively, the damage could lead to the need for partial or complete roof replacement. The SEAMSIL installation at Birmingham Mail Centre was undertaken by approved contractor Mayfair Refurbishments.
Delvemade –Enquiry 77
Handmade heritage and modern looks blend at Homebuilding and Renovating Show
Marley Eternit’s brand new range of authentic Canterbury handmade clay tiles were matched with Cedral Click weatherboard on a full-sized timber framed show at the National Homebuilding & Renovating Show at the NEC. The roof featured 2,000 clay roof tiles which were all handmade by traditional craftsmen at Marley Eternit’s specialist facility in Keele, while Cedral Click weatherboard was used for speedy construction with a modern look. The Canterbury tiles are available in three colours and a mix of Loxleigh, Burford and Chailey tiles were blended to create a unique patchwork of colours.
Marley Eternit –Enquiry 79
Ubbink offering more to flat roof ventilation
Ubbink group have manufactured and supplied the UK market with flat roof vents and terminals for over thirty years. The range has grown in previous years with the introduction of terminals which have the ability to duct from 100mm to 180mm. Previously there has been some confusion for specifiers when trying to source the correct flat roof vent or terminal to suit their project. Therefore Ubbink group have produced a wider range of flanges to help aid specifiers and installers fit ventilation with ease. There are 3 new flanges to add to the existing range of felt and asphalt Ubbink already offer; PVC, EPDM and Bitumen.
Ubbink –Enquiry 81
VMZINC roof for £6.8M Cambridge Uni project
A VMZINC standing seam roof in pre-weathered QUARTZ-ZINC has been installed on the £6.8 million Ash Court student accommodation project at Girton College Cambridge. Designed by Allies & Morrison, it is an extension to the Grade II-listed college buildings and comprises 50 ensuite bedrooms, a fitness centre and indoor swimming pool. Passivhaus principles were followed following ambitious environmental targets set by the college. Use of triple-glazed windows, heat recovery ventilation systems, photovoltaics, ground source heat pumps and an upgraded heating system prompted RIBA Special Sustainability and Green Apple awards.
VM Zinc –Enquiry 82
UK Roofing Awards 2015 winners revealed
The winners of the tenth UK Roofing Awards were announced at a ceremony hosted by BBC’s Louise Minchin and NFRC CEO Ray Horwood at the Hilton London Metropole. This was an extra special year for the UK Roofing Awards as it was also the tenth anniversary since it all began in 2006. To mark the occasion two companies received recognition of their roofing excellence throughout the 10 year period and were presented with an Outstanding Achievement in Roofing Award - Lakesmere Limited and Karl Terry Roofing Contractors Ltd. You can view this year’s winners and finalists projects at www.nfrc.co.uk/roofing-awards-2015.
NFRC –Enquiry 83
LEVATO MONO
porcelain paver system
As specifi ed at Wokingham Medical Centre, Berkshire Barbara Weiss Architects
The Levato Mono porcelain paver system is the pinnacle of external raised fl ooring technology; enabling the specifi cation of lightweight, slip resistant and attractive raised fl ooring solutions, combining incredible technical properties with uncompromising aesthetics; making them the ideal choice for commercial and domestic use alike.
20mm po cr le a ni pav sre 40 8x 0 45 9x 0 60x60 75x75
30x120 40x120 60x120 fl oor’ – installation over single ply membranes retE an l orp cud t - ez or ma ni t ne a cn e uqer i er d – o ff e nir g massive over-life savings resistant ig lh y slip er is s at tn ; 1R 1 na d a hc ie ev d up to +65
in the BS pendulum test 2 resistance Timber & stone effects ; 40+ fi nishes available ew t
edI la for bal oc ni se , or fo et arr ces
commercial & residential use rous re & frost proof e gi h -t a jd su t ba le s pu po tr morf
9mm up to 550mm a dn p azzai s, f ro ob th
t: 0845 2700 696 e: info@thedecktileco.co.uk www.thedecktileco.co.uk
Using fixed Flushglaze rooflights for natural lighting
Situated in a prestigious London location, just north of Alexandra Palace, this Edwardian terraced house incorporates a range of interventions to make the perfect family home. Andrew Mulroy Architects Ltd focused on designing a large kitchen extension to the rear of the property with a large skylight was incorporated into the design plan. Glazing Vision supplied their fixed Flushglaze rooflight for the requirement of natural lighting; this large, single pane of toughened, triple-laminated glass was installed above the dining area. It maximises the amount of natural daylight that now floods the new living space.
Glazing Vision –Enquiry 87
Wakaflex lead-free flashing – the cost-effective answer to lead theft
Wakaflex is a BBA-certified lead-free flashing in a range of colours. It can be stretched by up to 60% without using a forming tool and is ideal for roofing abutment work, particularly for deeply profiled and double-lapped tiles, and sealing all types of flue penetration. Wakaflex has a smooth facing and a high-strength, self-adhesive backing which provides immediate weatherproofing. Cut by knife or scissors, it is not susceptible to thermal movement and can therefore be laid in long lengths without fixing clips.
Klober –Enquiry 88
Kingspan OPTIM-R slims down terrace retrofit
The Kingspan OPTIM-R Balcony & Terrace System and Kingspan Thermaroof TR27 LPC/FM have been installed as part of a roof terrace retrofit. With an aged thermal conductivity of 0.007 W/m∙K, Kingspan OPTIM-R panels can provide an ultra-thin solution for hard to insulate areas. The Vacuum Insulation Panels feature a microporous core which is evacuated, encased and sealed in a thin, gastight envelope. The Kingspan OPTIM-R Balcony & Terrace System also incorporates Kingspan OPTIMR Flex infill panels, which can be cut to fit around penetrations and used to fill any small gaps in the insulation layer.
Kingspan Insulation –Enquiry 89
T TAARRTSPPA AN AOMENNARP ADE
, Eerr,tBased in Colches e had the pleasurve hax, w, Esse eds of businesses, orking with hundre of we had the pleasur eds of businesses,
om price based upon rtCus tsemenequirom price based upon r
01206 230 553
Howarth makes waves at Mercia Marina

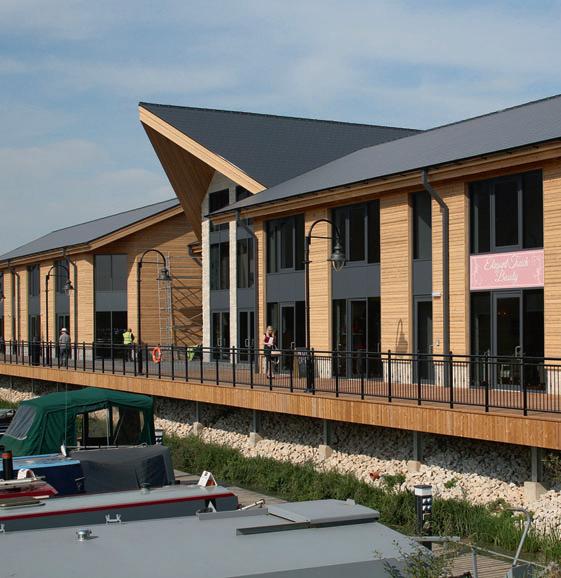

THERMALLY TREATED REDWOOD CLADDING AND DECKING FROM HOWARTH TIMBER AND BUILDING SUPPLIES HAS BEEN INSTALLED AT MERCIA MARINA IN DERBYSHIRE, TO CREATE A STUNNING FINISH WHICH REMAINS IN KEEPING WITH THE NATURAL SURROUNDINGS OF THE BUILDING.
The marina, in Willington, is Europe’s largest inland marina and boasts a plethora of biodiversity and wildlife. Howarth’s cladding and decking therefore suits the surrounding natural environment whilst ensuring a sleek appearance in its high profile location.
The high quality Thermo-D cladding, which was installed at The Boardwalk - the marina’s retail accommodation - co-ordinates aesthetically with the thermally treated redwood decking which was also selected for the marina.
The Boardwalk boasts a bar and restaurant in which customers can wine and dine, along with a farm shop and a host of boutique retailers.
Not only was the premium thermally treated redwood chosen for its aesthetic properties, it was also specified due to the lack of use of chemicals during production, which enhances the environmental qualities of the building. It was also bespoke to the project, having been UV treated and then brushed to reveal the grain.
Further benefits of the cladding and decking include its ability to maintain the same size and shape, its durability, stability and strength. The timber is PEFC certified has a decreased risk of mould and improved thermal and hygiene qualities.
Along with this, the timber offers improved wood preservation and weather resistance and can be painted, stained and fire treated to class 0.
Robert Neff, partner and general manager at Mercia Marina, said: “To suit the location, we very much wanted a wood cladding that would maintain its natural word colour and be robust. The Howarth Timber wood we used promises both. The building is now a landmark in South Derbyshire and looks fantastic.” Phil Barman of Howarth Timber, said: “Timber cladding and decking is increasingly being specified by local authorities, architects and developers, largely in part for its environmental credentials, but also for its ease of working, natural beauty, performance and competitive price.
“Timber is one building material that has unrivalled pedigree for use in construction, which is why timber is an ideal choice for use as an external cladding and decking.”
For more information about Howarth Timber visit www.howarth-timber.co.uk
www.enquire.to/spec - ENQUIRY 94
Building for the Future
THE UK’S LARGEST UNDERCOVER COAL YARD AND CASH AND CARRY HAS RECENTLY BEEN CONSTRUCTED BY SCM CONSTRUCTION USING RUUKKI COMPOSITE PANELS TO THE ROOF AND WALLS.
Situated near the Pennines in Halifax, West Yorkshire is a new and exciting energy distribution centre serving domestic and industrial customers with solid fuel, bottled gas and air products compressed gasses, seven days a week.
Future Proof Building
Ace Energy has been trading on the existing site for almost 20 years and decided to make the improvements to future proof the building and to offer a new way to store and distribute its fuel products. The owner wanted to create a legacy for his years in business that he could always be proud of and requested that the contractor SCM approached the project in the same way.
First Class Composite Panels
Two large warehouse facilities have been constructed giving extra capacity to store a total of 8500 tonnes of solid fuel on pallets and 1500 tonnes of loose coal in the undercover coal yard. Ruukki SP2D wall panels and SP2C roof panels were chosen by SCM because of their high quality and good looks, they are also very easy for the contractor to work with on site. SCM appreciated Ruukki’s interest in the project and efforts to ensure deliveries and requirements were met and that time schedules were adhered to. This level of detail helped deliver a superb project on time and to such a high level of execution.
Bespoke Solution
SCM who have over 20 years’ experience in the industry, were recommended to the client. They designed the colour scheme and aesthetics that were bespoke for the client in order to achieve the exact look he was trying to attain. This project is the forth and largest SCM have constructed using Ruukki composite panels and more of similar developments are already in the pipeline.
Access Restrictions
All works were carried out around the day to day operations as the site remained operational throughout. However, there were access issues on this project, that to many people, appeared to be insurmountable. To the rear is a river and at the gable end permission to work on the neighbouring land was rejected. In these areas handling 12m panels safely and efficiently made many back away from the project. The solution was to install the panels from the inside of the building which was done expertly and without causing delays on site.
“The client on this project is absolutely delighted with the end result and I am looking forward to duplicating projects of this nature and can only see that our company success in this regard will be using Ruukki as a partner for materials,” said Nick Beresford, SCM Construction.
Complete Energy Efficiency
Not only is this building aesthetically pleasing on the eye but is energy efficient in itself and the benefits can also be passed on to the consumers. Due thermally efficient and air tight Ruukki composite panel construction customers can save up to 15% moisture content on solid fuel products and therefore receive extra volume of fuel on each purchase. The development does not stop here, as plans are in place to install power points to recharge electric vehicles and are installing 200 kilowatts of solar panels on the industrial unit roof. The warehouse will be heated with biomass renewable and rain water is being harvested for reuse on site.
The coal depot has attracted much interest and has a waiting list of tenants ready to occupy the end units which have been created.
Find out more about Ruukki Panels visit www.ruukki.co.uk or contact 0121 704 7300.
Solutions for cladding with Crown Trade protective coatings
Crown Trade Fast Drying Cladding Finish provides an economical and effective way to refurbish and protect buildings at a masterstroke. From the Crown Trade Protective Coatings range, Fast Drying Cladding Finish has been specifically developed to adhere to pre-coated and weathered metal cladding and other external features that have become dull and discoloured over time. The water-based, single pack coating breathes new life into tired exteriors transforming metal cladded surfaces with an easy to achieve refurbishment process that offers outstanding protection against the elements.
Crown Trade – Enquiry 98
Winner of the 2015 RIBA London Award features AluK systems Multiple panel façades provide myriad design options
The Hunter Douglas multiple panel façade system (MPF) presents architects and designers with an unequalled creative solution that offers myriad design options for any building.
Ideal for façades and exterior ceilings for buildings that are designed with a uniform architectural appearance or highly architectural effect, this versatile and robust solution for both low and high rise buildings is one of Hunter Douglas’s most specified systems.
Hunter Douglas has been developing groundbreaking ventilated façade systems for more than 40 years and is at the forefront of innovation, offering a huge range of shapes, joint options, materials, finishes and colours.
Developed to resist high wind loads, the MPF system incorporates cranked corners that are precisely integrated with the support systems. The joints can also be open or closed, offering another creative option for architects.
The panels can be laid horizontally, diagonally, or vertically for maximum effect and their concealed fixing system allows free thermal movement with an easy-to-install method.
MPF is manufactured in a plank panel format in aluminium, zinc or copper, and can be delivered with flat or variable parabolic surfaces to suit a multitude of architectural designs.
Hunter Douglas – Enquiry 100 A building with positive energy exploiting the resources of two key materials
The new Regional Environmental City building in Pantin, France, by Fassio and Viau with DuPont Corian in the Glacier White to the façade and DuPont Tyvek breather membrane as a weather barrier. The combination of Corian façade together with a Tyvek breather membrane maximises the benefits of these two hi-tech DuPont products to help create an original, durable and sustainable design by architects Fassio and Viau. Tyvek is naturally vapour-open but air and water tight. The versatility of Corian allowed for complex specifications and precise tolerances on this project, including forming to five different angles.
DuPont Corian – Enquiry 99
Eltherington inspires with Metal Showcase
Eltherington, has unveiled its Metal Showcase, an inspirational new 20 page ‘look-book’ style brochure. Metal Showcase features the company’s full range of high quality metalwork facades which, over the last 55-plus years, have been specified on some of the UK’s most recognisable and iconic buildings. Each of Eltherington’s architectural metalwork solutions has its own section within Metal Showcase, to make the guide easy to use and to allow designers to quickly identify their preferred ‘look’.
Eltherington – Enquiry 101
Burntwood School, a renewal project by Allford Hall Monaghan Morris (AHMM) has received the 2015 RIBA London Award for architecture excellence. Collaboration with the AluK Project Team led to working on initial detailing for the scheme, creating bespoke curtain walling and window systems solutions. AluK’s 72BW HI window system and SG52 curtain walling system were supplied for the Curriculum Buildings which forms the bulk of the accommodation for the school. For the Performing Arts Building the architects specified the SG52 and bespoke SL52 curtain walling systems.
AluK – Enquiry 102
Freefoam launch new style double shiplap cladding
Freefoam has launched Fortex Pro, a new style double shiplap board, that features an increased width of 333mm and thickness of 9mm creating a stronger board through improved profile design. Colour choice is important for any exterior building product and as colour specialists Freefoam have now added four new colours to this product range, Misty Grey, Cement Grey, Slate Grey and Cappuccino, making a total of ten. The combination of all these new features and the addition of superior colourfastness and weatherability properties using advanced skin technology makes Fortex Pro the perfect choice for all building professionals.
Freefoam Plastic – Enquiry 103
imber Product Guide Timber Product Guide
New guide to timber products from Timbmet
Timbmet, one of Europe’s major suppliers of timber and panel products, has released a new 96 page comprehensive ‘‘Timber Product Guide’. Aside from more than 30 hardwood species (most of which are FSC or PEFC certified), Timbmet also provides a wide range of Manufacturing Services, including bespoke mouldings and fire retardant products. The Timber Product Guide details all of these, includes technical information on the timber species available, and in addition contains information on the Timbmet Flooring collection, and Timbmet Engineered Components. To order a copy of the contact 01865 860350 or email oxfsales@timbmet.com.
Timbmet – Enquiry 107
Lighter weight and better thermal conductivity for H+H
ROCKPANEL Brilliant in 16 shimmering designs
With 16 designs, the new ROCKPANEL Brilliant series offers a versatile colour palette, whether the accent is to be bold or subtle. The broad spectrum of the ROCKPANEL Brilliant assortment ranges from natural brown, aubergine or green hues through cooler colours like grey or blue and on to a striking red or orange, inspiring and supporting innovative design concepts. Applied on an aluminium or steel substructure, these boards can meet the requirements for European fire class A2-s1, d0. This means that they can also be used for buildings where greater fire safety is needed or preferred.
ROCKPANEL – Enquiry 106
New medical centre is better by design thanks to Senior
A range of products supplied by Senior Architectural Systems has helped to give a healthy new look to a purpose built Primary Care Resource Centre in Buckley, north-east Wales. Senior’s SCW+ aluminium curtain walling system has been used to create a welcoming entrance by providing natural light and stunning views across the common. In addition to the use of the thermally efficient aluminium SPW 600/e window system, Senior’s thermally broken polyamide SPW 501 commercial door system has been specified for the centre’s automatic doors and emergency exits.
Senior Architectural Systems – Enquiry 108
Levolux shapes up at Mabledon Place
A transformed 1970’s office block at One Mabledon Place in central London has been reborn as ‘The Halo Building’, with the addition of a distinctive roof screening solution, from Levolux. The 80,000ft2 , eleven-storey office building, which is attached to a five-storey annex building, was originally home to the trade union Unison. Following a multi-million pound refurbishment project it has been completely refurbished inside and out, including alterations to its existing facade and extensive roof level works. Located on one of London’s busiest high streets and designed to achieve a BREEAM ‘excellent’ rating by Bennetts Associates, the project demanded meticulous planning and a collaborative approach, particularly when it came to delivering the highly visible roof screening solution. As the UK’s leading solar shading and screening specialist, Levolux was chosen to, supply and install a custom screening solution, comprising vertical mesh panels, topped by extruded aluminium Aerofoil Fins, arranged into horizontal panels. In total, Levolux installed 244m2 of fixed, vertical mesh panels, measuring 2.3 metres high, extending around the perimeter of the roof. The vertical panels are designed to screen unsightly plant and equipment from view. Each panel is formed from galvanised steel for long lasting good looks and features rectangular perforations measuring 76mm by 25mm.
Above the vertical mesh panels are 62 horizontal panels incorporating 12 Aerofoil Fins. Each Fin measures 100mm deep by 23mm thick, and is fixed between aluminium side plates. The horizontal panels are fitted within a steel frame by others, allowing them to project 1.9 metres out across a perimeter walkway and an outer balustrade, extending past the building’s external envelope.
Levolux – Enquiry 109
H+H has lowered the density of its High Strength and Super Strength Grade Celcon Blocks from 750 kg/m3 to 700 kg/m3, leading to an improvement in thermal conductivity and lighter weight blocks. The change has been accredited by the British Board of Agrément (BBA) in a new certificate issued to the manufacturer. The thermal conductivity of the blocks is now 0.18 W/mK, down from 0.19, bringing about greater thermal performance, enabling U-Values to be reduced further and diminishing heat loss at junctions. High and Super Strength Grade Celcon Blocks are available in thicknesses of 100mm, 140mm and 150mm.
H+H – Enquiry 110 NVELOPE supports transformation of student accommodation in Nottingham
NVELOPE has provided effective structural support for newly created student accommodation in Nottingham, via its NV2 system for concealed fix and structural bonding applications. A variety of cladding façades were used on the £60 million redevelopment project, including terracotta tiles provided by Telling Architectural and aluminium rainscreen cladding from Downer, part of Omnis Industries Ltd, which has achieved a unique, contemporary aesthetic for the new residence. NVELOPE’s NV2 system is ideally suited for structural bond and concealed fix vertical cladding applications. All NVELOPE products and systems are BBA certified.
NVELOPE – Enquiry 111
