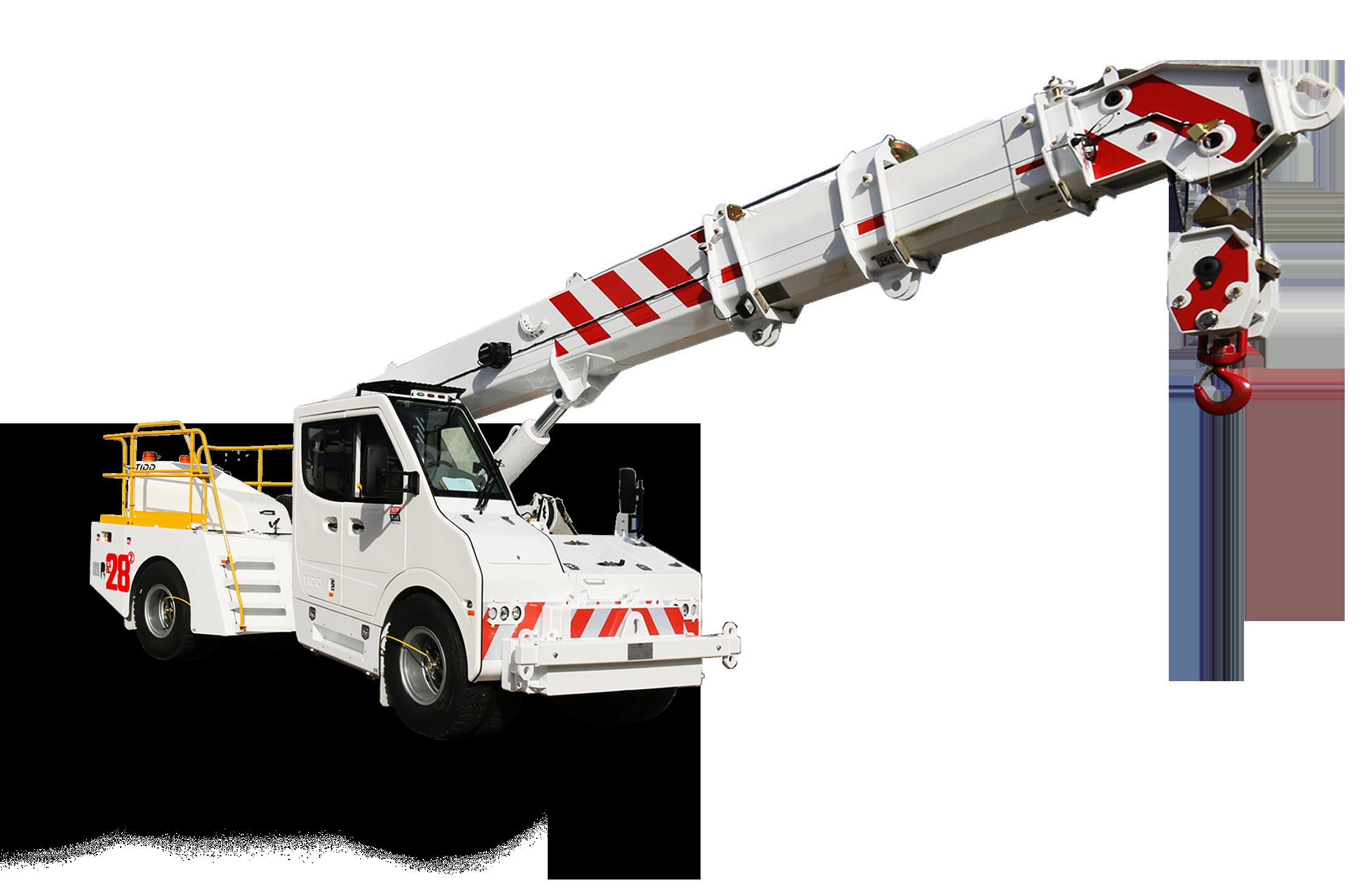

TRT TIDD PC28-2 Parts Manual by TRTMADEPOSSIBLE

NZ | 48 Maui Street, Pukete Industrial Estate PO Box 10076, Te Rapa, Hamilton 3241 +64 7 849 4839 | sales@trtaust.com.au www.trt.co.nz

AUS | 1028 Lytton Road, Murarrie, QLD 4172 +61 7 3890 8800 | sales@trtaust.com.au www.trtaustralia.com.au

Front Chassis - 2000

Cab Mounting (313-2001)

TAPPED HOLES

3mm, 6mm, 8mm, 10mm SHIMS AVAILABLE, USE AS REQ'D.

1 7-8 HARDENED WASHER ZC ECWAH78CW 8

2 M24 NUT ECNYLM24ZC 6

3 M24 X 60 G-8.8

4 M24 X 90 G-8.8

ECBOHM246088ZC 2

ECBOHM249088ZC 6

5 PC22-200-P112 LARGE WASHER 2

6 PC22-200-P78 ROPS PACKER 1

7 PC22-200-P79-10MM ROPS FRAME SHIM - 10mm 2

8 PC22-200-P79-3MM ROPS FRAME SHIM - 3mm 2

9 PC22-200-P79-6MM ROPS FRAME SHIM - 6mm 2

10 PC22-200-P79-8MM ROPS FRAME SHIM - 8mm 2

Cab Mounting (313-2001)

3mm, 6mm, 8mm, 10mm SHIMS AVAILABLE, USE AS REQ'D.

1 7-8 HARDENED WASHER ZC ECWAH78CW 8

2 M24 NUT ECNYLM24ZC 6

3 M24 X 60 G-8.8 ECBOHM246088ZC 2

4 M24 X 90 G-8.8

ECBOHM249088ZC 6

5 PC22-200-P112 LARGE WASHER 2

6 PC22-200-P78 ROPS PACKER 1

7 PC22-200-P79-10MM ROPS FRAME SHIM - 10mm 2

8 PC22-200-P79-3MM ROPS FRAME SHIM - 3mm 2

9 PC22-200-P79-6MM ROPS FRAME SHIM - 6mm 2

10 PC22-200-P79-8MM ROPS FRAME SHIM - 8mm 2

*note: for the assemblies #11-15, 45-50 refer to the contents page for component part numbers.

Front Chassis Bolt On Parts(313-2001)

Front Axle & Suspension (PC22-203)

DRAWING#

Front Brake Pot Assembly - RH (PC22-807)

HOSE TAIL CIRCUIT 2

3/8" HOSE TAIL CIRCUIT 2

Front Brake Pot Assembly - LH (PC22-808)

313-72.10021A Exploded

Planetengetriebe planetary gear drive engrenage planétaire

Blatt Nr. / sheet no. / feuillet no. 2 / 682 . 4

313-7210021a Exploded

Brems e brake frein

Blatt Nr. / sheet no. / feuillet no. 2 / 992.4

313-7210021a Exploded

Turret Handrail (PC22-236)

Ute Hand Rail (PC22-237)

DRAWING#

Locker Rubber Mat Assembly (PC22-299)

Front Suspension Mounting (313-2001-D07)

ADAPTOR 1.1/4" BSPF X 1/2" BSPF

DETAIL

ACCUMULATOR SET TO 66BAR. FILLED WITH HYDROGEN.

Suspension Ram - RH (313-6100-RH)

SEAL KIT

SEAL KIT NUMBERS ARE RELATIVE TO CYLINDER SERIAL NUMBERS

CYLINDER SERIAL # INCLUDES THE LETTERS EXAMPLE SERIAL # SEAL KIT # CYLINDER BRAND COMMENTS

TRT 313-6100 REV F 2019110005-ZX PC313-6100ZSK ZXIN -

313-6100-C 20L 001H-FX289 PC313-6100HSK HIMC- - PC-20949SK VICTA FOR PC 25 ONLY

HKG-NP-90-1717

ADAPTOR ON REVERSE SIDE N12 BUNG

Suspension Ram - LH (313-6101-LH)

Frampton Joint Repair Kit - (PC22-201RK)

2 SETS PER SUSPENSION CYLINDER

4 SETS TOTAL PER CRANE

PRIOR TO INSTALLATION CLEAN ALL GALLERIES AND SURFACES TO REMOVE ANY CONTAMINATION FROM HARDENING PROCESS

Hydraulic Centre (313-2001-D09)

Manual

Handle (313-2001-D11)

1 HKG-BP-90-0904 9/16 JIC MALE X 1/4 BSP ADJ ELBOW 1

2 HKG-BP-90-1408 7/8" JIC MALE X 1/2" BSP ADJUSTABLE ELBOW 1

3 HKG-BX-1708 1.1/16" JIC MALE X 1/2" BSP MALE 1

4 HKG-G-J-171717 1 1/16 JIC MALE X 1 1/16 JIC MALE X 1 1/16 JIC FEMALE 1

5 HKG-J-G-171717 1 1/16 JIC MALE X 1 1/16 JIC FEMALE X 1 1/16 MALE 1 6 RXR940203324 SUSPENSION LOAD VALVE 1

1 - OFF PER UNIT

Hold Brake Solenoid Assembly (PC22-817)

1 BF68IM6-6N ADAPTOR 3/8" X 3/8" NPT M 1

2 BF69IM6-6N ADAPTOR 90 3/8" X 3/8" NPT M 1

3 PC55B14PI501JD SOLENOID VLV 24V NC HOLD BRAKE 1

DRAWING# PC22-817

1 - OFF PER UNIT x REV C

LOCATION P:\PC MOBILE CRANE\PC20 PARTS AND ASSEMBLIES\PC22-817

Brake Valves (313-2001)

VIEW FROM UNDERNEATH

Brake Modulator Front RH (PC22-811)

NOTE ORIENTATION OF FITTINGS

Control Centre Parts (313-2001-D08)

Front Jumbo Tank Assembly (PC22-819)

1 BF322064 BUSH REDUCING 3/8 M X 1/4 F 1

2 BF33256 NIPPLE 3/8" NPT 1

3 BF400006 TEE 3/8" BSPP MALE - 3/8" BSPT M/F 1

4 BF69IM6-6N ADAPTOR 90 3/8" X 3/8" NPT M 1

5 BX285849 VALVE SAFETY ST3 1/4" 175 PSI 1

6 BX800350 VALVE SAFETY ST3 1/4" 150 PSI 1

7 SL140270 PRESSURE PROTECTION VALVE 'PR3' 1

Front Auxiliary Tank Assembly (PC22-820)

Front Steering Ram Mount (PC22-205-D1)

Front Light Mount (PC22-207)

Cab - 2500

DETAIL A SCALE 1 : 5

LH Outer Assembly (PC22-251)

RH Lower Locker Assembly (PC22-253)

New RH Lower Locker Assembly (PC22-383)

STEEL BOLTED ASSEMBLY FOR CRANES PC28020035 & ONWARD

Front Door Assembly (PC22-255)

Front Door Assembly (PC22-255)

FRONT DOOR UPPER HINGE ASSEMBLY

PCFRB FRONT DOOR LOWER HINGE ASSEMBLY

PC18035 DOOR LATCH ASSEMBLY

Front Door Hinge Upper (PCFRT)

Front Door Hinge Lower (PCFRB)

SCALE:1:1.5

DRAWING#

Front Door Latch (PC18035)

Front Window (PC22-271)

Rear Door Assembly (PC22-256)

Rear

Door Hinge Lower (PCRB)

Rear Door Latch (PC18036)

DRAWING#

Rear RH Window Assembly (PC22-272)

Dash Assembly (PC22-258)

Dash Assembly (PC22-258)

Rear POD Assembly (PC22-261)

Fridge Locker Assembly (PC22-262)

Evaporator Assembly (PC22-263)

FOR VEHICLES PC28-20037 AND PRIOR

6 PC22-265-P10

Floor Assembly Rev D (PC22-265)

FOR VEHICLES PC28-20038 AND AFTER

REPLACEMENT MAT SUPPLIED AS UNCUT SHEET. FOR PRE-CUT SHEET USE P/N PCTM2010.

1 PC22-265-P01 FLOOR 1

2 PC22-265-P02 FRONT STEP 1

3 PC22-265-P03 REAR STEP 1

4 PC22-265-P04 FOOT REST 1

Front

Locker Assembly (PC22-370)

Front Locker Assembly (PC22-370)

BOLTS TO BACK WALL OF CAB

TO FLOOR OF CAB

AS A LOOM KIT

BOLTS

2 EXPLODED VIEW

Interior Trim & Grab Handles Assembly (PC22-269)

Window Assembly LH (PC22-273)

DRAWING#

Double Check Shuttle - Front (PC22-814)

1 BF68IM6-6N ADAPTOR 3/8" X 3/8" NPT M 1

2 BF69IM6-6N ADAPTOR 90 3/8" X 3/8" NPT M 2

3 BX278614 VALVE SHUTTLE DOUBLE CHECK 1

Rear Chassis - 3000

32 M6 WASHER

ECWAFM6125ZC 16

33 M6 X 12 SS BUTTON HEAD ECCAPSM6124B 6

34 M6 X 20 G-8.8 ECBOHM62088ZC 8

35 M8 NYLOCK NUT ECNYLM8ZC 4

36 M8 WASHER

ECWAFM817Z 2

37 M8 X 25 G-8.8 ECBOHM82588ZC 2

38 M8 x 25 BUTTON HEAD SCREW ECCAPSM8254B 6 ITEM

39 M10 NYLOCK NUT

40 M10 X 55 G-8.8

41 M12 NYLOCK NUT

42 M12 X 50 X 1.5 G-8.8

43 M12 X 60 G-8.8

44 MBA0004770103

DESCRIPTION QTY.

ECNYLM10ZC 4

ECBOHM105588ZC 4

ECNYLM12ZC 2

ECCUPM1250G 3

ECBOHM126088ZC 2

ELEMENT PRIMARY FUEL FILTER 1

45 NUMBER PLATE NUMBER PLATE 1

46 PC-2.2216-005

47 PC-B-BK-0808

48 PC22-200-P97

316 STAINLESS HINGE 6

MALE BSPP BULKHEAD 1

DRIVE SHAFT LOOP 1

49 PC22-200-P119 DOOR LATCH 1

50 PC22-300-P67

51 PC22-300-P120

52 PC22-303

53 PC22-304

54 PC22-304

55 PC22-305

56 PC22-310

57 PC22-343

58 PC22-345

59 PC22-347

60 PC22-348

COMP. BULK HEAD 1

BREATHER TUBE 1

REAR AXLE SUSPENSION ASSY 1

STEERING RAM MOUNT 1

TRANSFER CASE ASSY 1

SPRING HANGER LINK 2

HARD PIPE ASSY 1

SPARE WHEEL MOUNT 1

FUEL TANK INSPECTION 1

AIR INTAKE COMPONENTS 1

61 PC22-352 BOLT ON BUMP 2

62 PC22-357

63 PC22-362

64 PC22-363

65 PC22-364

66 PC22-365

67 PC22-803

68 PC22-806

ISOLATOR/STARTER ASSY 1

COMP TO DRIER PIPE ASSY 1

GREASER ASSY - OPTION 1

CRANK HANDLE ASSY 1

EMERGENCY STEERING BLOCK ASSY 1

BRAKE MODULATOR REAR ASSY 2

4 PORT RELAY REAR ASSY 1

69 PC22-813 REAR QR1C ASSY 1

70 PC22-818

71 PC22-824

REAR AIR TANK ASSY 1

PRESSURE REGULATOR ASSY 1

72 PC221-4TURN LOCK 1/4" TURN - FLAT 1

73 PCFCLTIDD FUEL CAP LOCKING TIDD 1

74 PCGE80SX

ANGULAR CONTACT SPHERICAL PLAIN BEARING 2

75 PCRSM0801007LN WIPER SEAL 80 X 100 X 7MM 2

76 PCRSM12014010LN WIPER SEAL 120 X 140 X 10MM 2

77 WA4324150060 AIR DRYER 8.5BAR 24V C/W BP UNLOAD 1

32 M6 WASHER

ECWAFM6125ZC 16

33 M6 X 12 SS BUTTON HEAD ECCAPSM6124B 6

34 M6 X 20 G-8.8 ECBOHM62088ZC 8

35 M8 NYLOCK NUT ECNYLM8ZC 4

36 M8 WASHER

37 M8 X 25 G-8.8

38 M8 x 25 BUTTON HEAD SCREW ECCAPSM8254B 6 ITEM

ECWAFM817Z 2

ECBOHM82588ZC 2

39 M10 NYLOCK NUT

40 M10 X 55 G-8.8

41 M12 NYLOCK NUT

42 M12 X 50 X 1.5 G-8.8

43 M12 X 60 G-8.8

44 MBA0004770103

DESCRIPTION QTY.

ECNYLM10ZC 4

ECBOHM105588ZC 4

ECNYLM12ZC 2

ECCUPM1250G 3

ECBOHM126088ZC 2

ELEMENT PRIMARY FUEL FILTER 1

45 NUMBER PLATE NUMBER PLATE 1

46 PC-2.2216-005

47 PC-B-BK-0808

48 PC22-200-P97

316 STAINLESS HINGE 6

MALE BSPP BULKHEAD 1

DRIVE SHAFT LOOP 1

49 PC22-200-P119 DOOR LATCH 1

50 PC22-300-P67

51 PC22-300-P120

52 PC22-303

53 PC22-304

54 PC22-304

55 PC22-305

56 PC22-310

57 PC22-343

58 PC22-345

59 PC22-347

60 PC22-348

COMP. BULK HEAD 1

BREATHER TUBE 1

REAR AXLE SUSPENSION ASSY 1

STEERING RAM MOUNT 1

TRANSFER CASE ASSY 1

SPRING HANGER LINK 2

HARD PIPE ASSY 1

SPARE WHEEL MOUNT 1

FUEL TANK INSPECTION 1

AIR INTAKE COMPONENTS 1

61 PC22-352 BOLT ON BUMP 2

62 PC22-357

63 PC22-362

64 PC22-363

65 PC22-364

66 PC22-365

67 PC22-803

68 PC22-806

69 PC22-813

70 PC22-818

71 PC22-824

ISOLATOR/STARTER ASSY 1

COMP TO DRIER PIPE ASSY 1

GREASER ASSY - OPTION 1

CRANK HANDLE ASSY 1

EMERGENCY STEERING BLOCK ASSY 1

BRAKE MODULATOR REAR ASSY 2

4 PORT RELAY REAR ASSY 1

REAR QR1C ASSY 1

REAR AIR TANK ASSY 1

PRESSURE REGULATOR ASSY 1

72 PC221-4TURN LOCK 1/4" TURN - FLAT 1

73 PCFCLTIDD FUEL CAP LOCKING TIDD 1

74 PCGE80SX

ANGULAR CONTACT SPHERICAL PLAIN BEARING 2

75 PCRSM0801007LN WIPER SEAL 80 X 100 X 7MM 2

76 PCRSM12014010LN WIPER SEAL 120 X 140 X 10MM 2

77 WA4324150060 AIR DRYER 8.5BAR 24V C/W BP UNLOAD 1

TRT LOGO 24" X 24" 1

30 KOTRTFLAP24 MUD FLAP TRT LOGO 24" X 24" 1

31 M6 NYLOCK NUT ECNYLM6ZC 8

32 M6 WASHER ECWAFM6125ZC 16

33 M6 X 12 SS BUTTON HEAD ECCAPSM6124B 6

34 M6 X 20 G-8.8 ECBOHM62088ZC 8

35 M8 NYLOCK NUT ECNYLM8ZC 4

36 M8 WASHER ECWAFM817Z 2

37 M8 X 25 G-8.8 ECBOHM82588ZC 2

38 M8 x 25 BUTTON HEAD SCREW ECCAPSM8254B 6

39 M10 NYLOCK NUT

40 M10 X 55 G-8.8

41 M12 NYLOCK NUT

42 M12 X 50 X 1.5 G-8.8

43 M12 X 60 G-8.8

44 MBA0004770103

DESCRIPTION QTY.

ECNYLM10ZC 4

ECBOHM105588ZC 4

ECNYLM12ZC 2

ECCUPM1250G 3

ECBOHM126088ZC 2

ELEMENT PRIMARY FUEL FILTER 1

45 NUMBER PLATE NUMBER PLATE 1

46 PC-2.2216-005

316 STAINLESS HINGE 6

47 PC-B-BK-0808 MALE BSPP BULKHEAD 1

48 PC22-200-P97

DRIVE SHAFT LOOP 1

49 PC22-200-P119 DOOR LATCH 1

50 PC22-300-P67 COMP. BULK HEAD 1

51 PC22-300-P120

52 PC22-303

53 PC22-304

54 PC22-304

55 PC22-305

56 PC22-310

BREATHER TUBE 1

REAR AXLE SUSPENSION ASSY 1

STEERING RAM MOUNT 1

TRANSFER CASE ASSY 1

SPRING HANGER LINK 2

57 PC22-343 HARD PIPE ASSY 1

58 PC22-345

59 PC22-347

60 PC22-348

SPARE WHEEL MOUNT 1

FUEL TANK INSPECTION 1

AIR INTAKE COMPONENTS 1

61 PC22-352 BOLT ON BUMP 2

62 PC22-357

63 PC22-362

64 PC22-363

65 PC22-364

66 PC22-365

67 PC22-803

ISOLATOR/STARTER ASSY 1

COMP TO DRIER PIPE ASSY 1

GREASER ASSY - OPTION 1

CRANK HANDLE ASSY 1

EMERGENCY STEERING BLOCK ASSY 1

BRAKE MODULATOR REAR ASSY 2

68 PC22-806 4 PORT RELAY REAR ASSY 1

69 PC22-813 REAR QR1C ASSY 1

70 PC22-818 REAR AIR TANK ASSY 1

71 PC22-824

PRESSURE REGULATOR ASSY 1

72 PC221-4TURN LOCK 1/4" TURN - FLAT 1

73 PCFCLTIDD FUEL CAP LOCKING TIDD 1

74 PCGE80SX

ANGULAR CONTACT SPHERICAL PLAIN BEARING 2

75 PCRSM0801007LN WIPER SEAL 80 X 100 X 7MM 2

76 PCRSM12014010LN WIPER SEAL 120 X 140 X 10MM 2

77 WA4324150060 AIR DRYER 8.5BAR 24V C/W BP UNLOAD 1

Rear Chassis (313-3001)

32 M6 WASHER

ECWAFM6125ZC 16

33 M6 X 12 SS BUTTON HEAD ECCAPSM6124B 6

34 M6 X 20 G-8.8 ECBOHM62088ZC 8

35 M8 NYLOCK NUT ECNYLM8ZC 4

36 M8 WASHER

ECWAFM817Z 2

37 M8 X 25 G-8.8 ECBOHM82588ZC 2

38 M8 x 25 BUTTON HEAD SCREW ECCAPSM8254B 6 ITEM

39 M10 NYLOCK NUT

40 M10 X 55 G-8.8

41 M12 NYLOCK NUT

42 M12 X 50 X 1.5 G-8.8

43 M12 X 60 G-8.8

44 MBA0004770103

DESCRIPTION QTY.

ECNYLM10ZC 4

ECBOHM105588ZC 4

ECNYLM12ZC 2

ECCUPM1250G 3

ECBOHM126088ZC 2

ELEMENT PRIMARY FUEL FILTER 1

45 NUMBER PLATE NUMBER PLATE 1

46 PC-2.2216-005

47 PC-B-BK-0808

48 PC22-200-P97

316 STAINLESS HINGE 6

MALE BSPP BULKHEAD 1

DRIVE SHAFT LOOP 1

49 PC22-200-P119 DOOR LATCH 1

50 PC22-300-P67

51 PC22-300-P120

52 PC22-303

53 PC22-304

54 PC22-304

55 PC22-305

56 PC22-310

57 PC22-343

58 PC22-345

59 PC22-347

60 PC22-348

COMP. BULK HEAD 1

BREATHER TUBE 1

REAR AXLE SUSPENSION ASSY 1

STEERING RAM MOUNT 1

TRANSFER CASE ASSY 1

SPRING HANGER LINK 2

HARD PIPE ASSY 1

SPARE WHEEL MOUNT 1

FUEL TANK INSPECTION 1

AIR INTAKE COMPONENTS 1

61 PC22-352 BOLT ON BUMP 2

62 PC22-357

63 PC22-362

64 PC22-363

65 PC22-364

66 PC22-365

67 PC22-803

68 PC22-806

ISOLATOR/STARTER ASSY 1

COMP TO DRIER PIPE ASSY 1

GREASER ASSY - OPTION 1

CRANK HANDLE ASSY 1

EMERGENCY STEERING BLOCK ASSY 1

BRAKE MODULATOR REAR ASSY 2

4 PORT RELAY REAR ASSY 1

69 PC22-813 REAR QR1C ASSY 1

70 PC22-818

71 PC22-824

REAR AIR TANK ASSY 1

PRESSURE REGULATOR ASSY 1

72 PC221-4TURN LOCK 1/4" TURN - FLAT 1

73 PCFCLTIDD FUEL CAP LOCKING TIDD 1

74 PCGE80SX

ANGULAR CONTACT SPHERICAL PLAIN BEARING 2

75 PCRSM0801007LN WIPER SEAL 80 X 100 X 7MM 2

76 PCRSM12014010LN WIPER SEAL 120 X 140 X 10MM 2

77 WA4324150060 AIR DRYER 8.5BAR 24V C/W BP UNLOAD 1

Rear Transmission Mount (PC22-326)

Mercedes MTU Engine (OM906LA)

Engine data plate

The engine data plate is located on the righthand side of the engine below the exhaust manifold. The engine data plate data is stamped into the crankcase.

Example: engine data plate for non-road vehicles (off-highway engine)

: Manufacturer's name ; Engine model designation = Type approval number ? Engine number

Allison 3000 Transmission

Rear Axle Assembly (PC22-303)

SEAT WELDED TO AXLE

TUBES WELDED TO AXLE

WELDED TO AXLE

3/8" HOSE TAIL CIRCUIT 2

Rear Axle 72.10020

(313-72.10020A)

Exploded

2 SETS PER UNIT

AUTO-GREASING FITTING FOR CTI TRACTION AIR OR

STANDARD FITTING FOR MANUAL GREASING

FITTING

Rear Grill (313-3013)

FILTER ELEMENT

FILTER BOTTOM

FILTER HOSE

Rear Handrail Assembly (313-5540)

Bump Stop (PC22-352)

DRAWING#

Rear Electrical Locker Assembly (313-3009)

Rear Locker Assembly (313-3009)

LHS

Rear Locker Assembly (313-3009)

O-RING & BACKING RING SUPPLIED WITH FILTER

High Pressure Filter Assembly (PCHPM621NR1)

1 PC-HPM621NR1-BASE HP FILTER SPIN ON BASE 1

2 PC-HPM621NR1-BODY HP FILTER BODY 1

3 PC0361004 ELEMENT KIT HP 10MIC WITH BOWL O RINGS 1

Crank Handle Assembly (PC22-364)

Brake Modulator - Rear (PC22-803)

**NOTE ORIENTATION OF FITTINGS

Rear Air Tank Assembly (PC22-818)

Pressure Regulator Assembly (PC22-824)

1 BF69IM4-4N ADAPTOR 90 1/4" NPT MALE TO 1/4" NYLON 1

2 BF71SIM4-4N TEE 1/4 - 1/4 NPTM BRANCH 1

3 PCR56M5VS2 PRESSURE REG & RELIEF 1/4" 1

1 7-16 HARDENED WASHER ZC ECWAH716CW 6

2 M12 SPRING WASHER ECWASM12ZC 6

3 M12 X 30 G-8.8 ECBOHM123088ZC 6

DRAWING#

LOCATION

DRAWN BY RJC

SCALE:1:11

Boom - 5000

Base Boom Assembly (313-5001)

DRAWN

DRAWING#

Base Boom Assembly (313-5001)

Top Outer Wear Pad Assembly (PC22-530)

Winch Rope Roller (PC22-514)

UNIT

TO SUIT 14MM ROPE

Compensating Sheave 14MM (313-5526-ST)

LOCATION P:\313 PC GEN 2\313 PARTS AND ASSEMBLIES\313-5526 DRAWING# 313-5526

MOLY

Tele Boom 3 With Boom Tip (313-5005)

1 Circlip DIN 472 - 150 x 4 150 INTERNAL CIRCLIP 1

2 PC-6314-2RSR 70X150X35 - DEEP GROOVE 1

3 PC22-511-P1 14MM BOOM TIP SHEAVE 1

Hook Block 27.6T (313-5006-D2)

1 313-5529 RETRACT ROPE 11MM 1

Extend Rope 16MM (313-5531)

SAFE WORKING LOAD OF ROPE AND SWAGED SOCKET = 4,600KG

ROPE HAS 81 kN MINIMUM BREAKING FORCE

4:1 FACTOR OF SAFETY. MINIMUM BREAKING 18,400KG

Tele 1 Cylinder Assembly (313-6002)

CYLINDER DATA PLATE.

CYLINDER ID FOUND IN THIS AREA.

SEAL KIT

2 313-6002

Cylinder Tip Guide Assembly (313-6010)

Tele 2 Cylinder Assembly (313-6003)

CYLINDER DATA PLATE.

CYLINDER ID FOUND IN THIS AREA.

A2B Assembly (313-5008)

Drive Shafts - 6000

Drive Line (313-9000)

REAR AXLE

FRONT AXLE

Gearbox

Centre Pivot Shaft (PC22-903)

Centre To Front Axle Shaft (313-9004)

Hydraulic Cylinders, Hoses, & Adaptors - 7000

Suspension

Cylinder RH (313-6100)

SEAL KIT

SEAL KIT NUMBERS ARE RELATIVE TO CYLINDER SERIAL NUMBERS

CYLINDER SERIAL # INCLUDES THE LETTERS EXAMPLE SERIAL # SEAL KIT # CYLINDER BRAND COMMENTS

Suspension Cylinder LH (313-6101)

SEAL KIT

Tele Cylinder 1 (313-6002)

SEAL KIT

SEAL KIT NUMBERS ARE RELATIVE TO CYLINDER SERIAL NUMBERS

CYLINDER SERIAL # INCLUDES THE LETTERS

Tele Cylinder 2 (313-6003)

SEAL KIT

SEAL KIT NUMBERS ARE RELATIVE TO CYLINDER SERIAL NUMBERS CYLINDER

Luff Cylinder (313-6004)

BRONZE BUSH

PC313-6004-007

SEAL KIT

SEAL KIT NUMBERS ARE RELATIVE TO CYLINDER SERIAL NUMBERS

BRONZE BUSH PC313-6004-008

Steer Cylinder With Sensor (313-6005)

SEAL KIT

Steer Cylinder Without Sensor (313-6006)

SEAL KIT

SEAL KIT NUMBERS ARE RELATIVE TO CYLINDER SERIAL NUMBERS

Counterweight Cylinder (313-6007)

SEAL KIT

SEAL KIT NUMBERS ARE RELATIVE TO CYLINDER SERIAL NUMBERS

CYLINDER SERIAL # INCLUDES THE LETTERS EXAMPLE SERIAL #

1 - OFF PER MACHINE

Hydraulic Hose List

PC28 HOSE KIT SPECIFICATION SHEET

Hose Adaptor List

ADAPTOR KIT SPECIFICATION

HOSE 313-7601-A TELE RAMS

G-J-90-1717 1 1/16 JIC MALE FEMALE 90DEGREE

G-N-1714 JIC 1 1/16 MALE TO UNO 7/8 MALE

G-J-90-1414 JIC 7/8 MALE FEMALE 90

HOSE 313-7602-A WINCH

G-N-1717 JIC 1 1/16 MALE TO UNO 1 1/16 MALE

G-NP-45-1417 JIC 7/8 MALE 45 DEG TO UNO 1 1/16 POSITIONAL

HOSE 313-7603-A

3/8 BSPP TO 9/16 JIC MALE

B-G-0409 1/4 BSPP TO 9/16 JIC MALE

G-N-0909 JIC 9/16 MALE TO UNO 9/16 MALE

G-BP-90-0904 JIC 9/16 MALE TO BSPP POSITIONAL 1/4

G-G-G-090909 JIC 9/16 MALE TEE

HOSE 313-7604-A DIESEL TANK AND FUEL

ML-MX-2216 METRIC LIGHT TO METRIC STUD 22MM-16MM

ML-MX-2216X75 SAME AS ABOVE BUT WITH 75MM EXT

A-12 3/4 BSPT PLUG

A-A-90-0808 BSPT 90 1/2-1/2

HOSE 313-7605-A

ADAPTOR KIT SPECIFICATION

HOSE 313-7610-A

Hose Adaptor List

ADAPTOR KIT SPECIFICATION

HOSE 313-7611-A

HOSE 313-7612-A

HOSE

ADAPTOR KIT SPECIFICATION

HOSE 313-7614-A HYDRAULIC TANK

LPBV-24 LOW PRESSURE BALL VALVE 1 1/2

A-12 BSPT 3/4 PLUG

A-A-2424 BSPT MALE MALE 1 1/2

A-A-1624 BSPT MALE MALE 1 - 1 1/2

G-BP-90-0904 JIC MALE 9/16 - BSP POSITIONAL 90 1/4

G-BP-90-1408 JIC MALE 7/8 90 - BSP POSITIONAL 1/2

A-BP-90-0404 BSPT 1/4 - BSPP POSITIONAL 90 1/4

HOSE 313-7616-A LUFF RAM

G-NP-90-2121 JIC 1 5/16 MALE TO UNO 90 POSITIONAL 1 1/16

G-GK-1414 JIC BULKHEAD MALE MALE 7/8

HOSE 313-7617-A PRIORITY VALVE AND SHUTTLE

G-BX-2116 JIC 1 5/16MALE TO BSP CAPTIVE MALE 1

B-J-0409 BSPP 1/4 TO 9/16 JIC FEMALE

G-N-0907 JIC 9/16 MALE TO UNO 7/16 MALE

G-BP-90-1204 JIC 3/4 MALE TO BSPP POSITIONAL 1/4 90

B-G-0412 BSPP 1/4 TO 3/4 JIC MALE

G-BP-G-090409 JIC-BSPP POSITIONAL-JIC 9/16-1/4-9/16

G-BX-1408 JIC MALE 7/8 TO BSPP CAPTIVE 1/2

B-B-0404 1/4 BSPPM - 1/4 BSPPM STRAIGHT

G-BP-90-0904 JIC 9/16 MALE TO BSPPM POSITIONAL 1/4 90

B-G-0409 BSPP 1/4 TO 9/16 JIC MALE

1/4 DOWTY SEAL

Hose Adaptor List

ADAPTOR KIT SPECIFICATION

HOSE 313-7618-A RAM DIVERTER KIT

G-BX-1708 JIC 1 1/16 MALE TO BSPP CAPTIVE 1/2 6

HOSE 313-7619-A REXROTH MAIN CONTROL

G-BX-2112 JIC 1 5/16 MALE TO BSPP 3/4 CAPTIVE SEAL 4

G-BX-2120 JIC 1 5/16 MALE TO BSP CAPTIVE MALE 1 1/4

G-BX-1408 JIC 7/8 MALE TO BSPP CAPTIVE 1/2

G-BX-2620 JIC 1 5/8 MALE TO BSP CAPTIVE MALE 1 1/4 1

G-BX-0908 JIC 9/16 MALE TO BSPP CAPTIVE 1/2

B-G-0409 BSPP 1/4 TO JIC 9/16 MALE

BX-TP-04M16 1/4 BSPP MALE TO 16MM TEST POINT

G-BX-1708 JIC 1 1/16 MALE TO BSPP 1/2 CAPTIVE

HOSE 313-7620-A SUSPENSION VALVE AND ACCUMULATOR

G-NP-90-1717 JIC MALE 1 1/16 TO UNO POSITIONAL 90 7/8

N-12 1 5/16 UNO PLUG

G-BP-90-1408 JIC MALE 7/8 TO BSP POSITIONAL 90 1/2

G-BP-90-0904 JIC MALE 9/16 - BSP POSITIONAL 90 1/4

G-G-J-171717 MALE MALE FEMALE JIC TEE 1 1/16 1

G-J-G-171717 MALE FEMALE MALE 1 1/16 JIC TEE 1

G-BX-1708 JIC 1 1/16 MALE TO BSPP 1/2 CAPTIVE

HOSE 313-7621-A BACK UP STEERING

G-NP-90-2121 1 5/16 JIC TO 1 5/16 UNO POSITIONAL 90

G-NP-90-1717 1 1/16 JIC TO 1 1/16 UNO POSITIONAL 90

B-G-0409 BSP 1/4 - JIC 9/16 1

B-G-1217 BSP MALE 3/4 TO 1 1/16 JIC MALE

ADAPTOR KIT SPECIFICATION

HOSE 313-7622-A ORBITAL

G-BP-90-0904 JIC 9/16 TO BSP POSITIONAL 90 1/4 1

G-BP-45-1408 JIC 7/8 TO 45 POSITIONAL BSP 1/2 4

G-J-45-0909 JIC 9/16 MALE 45 DEG TO JIC 9/16 FEMALE 1

HOSE 313-7623-A SLEW SAFE AND STEERING

G-NP-G-171417 JIC MALE TO UNO MALE TO JIC MALE 1 1/16 - 7/8 - 1 1/16 2

G-BP-45-1408 JIC 7/8 MALE 45 DEG TO 1/2 BSPP POSITIONAL 2

G-BP-90-1708 JIC 1 1/16 MALE 90 DEG TO 1/2 BSPP POSITIONAL 2

G-NP-90-1714 JIC MALE 1 1/16 TO UNO POSITIONAL 90 7/8 2

HOSE 313-7563-C SUMP DRAIN

Spreadable Bar (Optional)

Decal Assembly

Decals (313-4002)

DRAWING#

Decals

Decals (313-4002)

Counterweight

Counterweight Lifting Chain Assembly (313-3074)

DETAIL A SCALE 1 :

Traction Air

OF THE CRANE

FRONT

TOP VIEW OF FRONT AXLE

FRONT OF THE CRANE

1 313-8011-002 ANTI-ROTATING PLATE 1

2 313-8013-001 TA FRONT PIPE LEFT 1

3 313-8013-002 TA FRONT PIPE RIGHT 1

4 313-8013-003 TA FRONT PIPE RIGHT 1

5 PEA7-0404 ADAPTOR JIC/BSPT BRASS 2

6 TA68IM6-4N ADAPTOR 3/8" X 1/4" NPTM 2

7 TABV4 VALVE BALL COMPACT HANDLE YELLOW 2

8 TACS3M16C 16 DIA BLOCK ASSY 6

9 TALF9000013 BARREL NIPPLE 1/4 BSP FOR HR COUPLING 3

5 TAAG900407 ELBOW 4-4C3MXS 90 DEG JICM X BSPT 2

6 TABV4 VALVE BALL COMPACT HANDLE YELLOW 2

7 TACA0204 ADAPTOR CPMPACT 1/8"-1/4" 2

8 TADCACI GASKET ROTOR TO BRIDGE 1
