UV technology

UV filtration

What it is and how it works

Ultraviolet is a term used to describe the wavelength between the blue violet range of the visible spectrum and the shorter wavelength or X-rays.

The ultraviolet spectrum is divided into three separate bands: (1) UVa from 315nm to 400nm (2) UVb from 280nm to 315nm (3) UVc from 200nm to 280nm

UVc is often referred to as the germicidal wavelength, because of its ability to destroy micro-organisms. The lamps in all our UV sterilisers emit a wide range of ultraviolet with its most significant part at a wavelength of 253.7nm, which has been found to be the most efficient for germicidal action.

When water is passed through a UV steriliser, micro-organisms contained in the water encounter UVc radiation emitted from the germicidal lamp. The UVc radiation penetrates the cell membrane and thereby either destroys or debilitates the microorganism.

Different micro-organisms vary in their susceptibility to UVc radiation.

The most sensitive and hence, the easiest treated, are some bacteria and most phototrophic organisms such as those often found in ponds and aquaria. Bacteria, such as Escherichia coli which can contaminate drinking water supplies, are easily controlled by relatively low levels of UVc and therefore low level UVc radiation has been employed by the drinking water industry for many years.

The most resistant micro-organisms to UVc are protozoans which may, when compared to simple bacteria, require several hundred times the radiation dose to destroy them.

Generally, the larger the organism, the larger the UV dose required to damage it. There are many hazardous and pathogenic aquatic organisms that can be controlled given the correct UVc radiation dose.

Correct application will dramatically reduce the likely spread of most primary infections such as Oodinium sp. and Cryptocaryon sp., at the same time almost eliminating the risk of secondary bacterial infection which is so often the real cause of fish loss. This is achieved by controlling potential populations of heterotrophic bacteria which are often associated with an unhealthy aquatic environment.

Factors Affecting Germicidal Action

Lamp Temperature

It is important that the UV lamp reaches its optimum operating temperature of 40°C otherwise the lamp will not generate the maximum amount of UVc radiation possible, and the efficiency of the unit will be compromised.

For this reason, all UV water sterilisers must be fitted with a protective fused quartz glass sleeve, which keeps the UV lamp from direct water contact, which would otherwise act as a coolant. Units should also feature sealed end caps which help to maintain the lamp and the air around it at its constant optimum running temperature.

The protective sleeve employed must be manufactured from fused quartz glass, which allows the highest possible amount of UV light to penetrate the water.

Other materials should not be used as they can have a significant impact on the effectiveness of the steriliser by significantly reducing the amount of UVc that reaches the water.

Water Clarity

Dirty or turbid water with suspended particles will absorb the UVc radiation and dramatically reduce the effectiveness of the unit. It is important to ensure that the UV steriliser is placed at the end of the filter circuit, before the water returns to the holding tanks to ensure that the water passing through the steriliser is as clear as possible.

Dissolved organic compounds also reduce the distance of penetration of the UVc radiation. Typically, in any aquatic environment with fish or other animals present, there is a gradual build up of phenolic compounds and other organic dyes. This build up of organic dyes is often referred to as ‘yellow water syndrome’ and can be dramatically reduced by filtering through a good quality activated carbon (e.g. HR Carbon) or by using ozone gas.

titanuv technology

Having been used on a large scale by TMC’s commercial branch in public aquaria retailers and aquaculture facilities for 2+ years, we are now bringing this exclusive technology to the hobby.

Specially developed photocatalytic lining

Constructed from an exclusively formulated high UV stabilised compound designed for its ultra-low toxicity.

Chambered lamp for optimum efficiency and contact time

5215 Pro Pond titan uv

Fused quartz glass sleeve

Code: 5215 Model:550

Code:

Code: 5216 Model:850

The science behind it

UV Light reacts with photocatalytic lining

Oxidising hydroxyl radicals are formed

Neutralising single-celled water borne algae, organic matter, odours and micro organisms. Destroying phenols and other pollutants

Resulting in clear water and harmless carbon dioxide

FRESHWATER & MARINE

Using the latest photocatalytically enhanced UV technology the titanUV is up to 1.3 times more effective than a standard UV.

The photocatalytic reaction produces hydroxyl radicals, attacking organics in the water whist neutralising waterborne pathogens such as harmful bacteria.

The titanUV technology provides a safer alternative to ozone for even cleaner water.

Inspiring synergy between people and nature

The truth about UV Sterilisers

Safe for all types of aquaria and desirable tank inhabitants; UV technology reduces pathogen levels in the water, lowering the risk of infection to both animals and fish keepers!

• Kills most harmful bacteria and viruses and eliminates water-borne algae;

• Only targets the micro-organisms floating in the water, so the good bacteria needed for processing ammonia remain healthy in your filter system, rock and substrate;

• Improves water quality by breaking down organics;

• Decreases the levels of fungi such as yeast and moulds;

• Reduction of odours in the water;

• Creates a cleaner environment to safely introduce new tank inhabitants;

• Significantly reduces the spread of disease in the aquarium;

titanUV

The next generation of UV sterilisers

This photocatalytically enhanced form of sterilisation is 33% more effective than a standard UV steriliser;

Increased capacity means that these units are more energy efficient – the same amount of power treats more water.

Specially selected photocatalytic material protects and further improves the lifespan of the high UV resistant plastic body.

Production of highly reactive hydroxyl radicals works like ozone to oxidise organic and in-organic matter and further improve water clarity (see more on page XX).

COMPLETELY SAFE: the reaction is all contained within the unit, producing only clean water and carbon dioxide.

FRESHWATER & MARINE

Bursting the myth about AQUARIUM STERILISERS

Vecton UV sterilisers are suitable for single livestock tanks and for other smaller applications including agriculture, horticulture and hydroponics.

Q.

“But a UV steriliser will kill the good bacteria that my aquarium needs ?”

A.Vecton & Vecton Titan UV targets ONLY the microorganisms floating in the water, so the good bacteria needed for processing ammonia remain healthy in your filter system, rock and substrate.

Q.

“How does the Vecton titanUV compare with the standard Vecton?”

A.Both are UV aquariums sterilisers. The photocatalytic reaction created by the Vecton titan uv technology makes it 33% more effective than the standard Vecton and provides a safer alternative to ozone for even cleaner water.

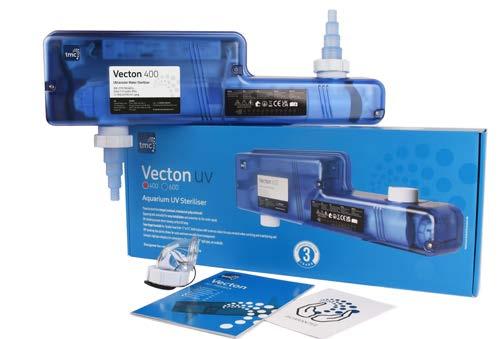

Vecton UV

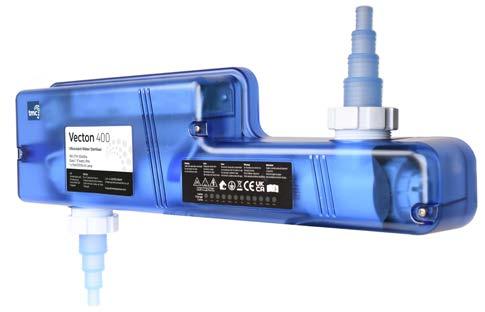

Code: 5212 Vecton 400

Code: 5213 Vecton 600

• Manufactured from impact resistant, translucent polycarbonate.

• Opposing inlet and outlet for easy installation and connection to the water supply.

• UV shield to prevent direct viewing vof the UV lamp.

• Four stage hosetails for flexible hose from ½” to 1¼”, held in place with screw on collars for easy removal when servicing and maintaining unit.

• 90° pivoting clear plastic elbow, for easier and more versatile hose management.

• Compact, rigid pipe adaptors, for connection to 32mm, 40mm or 1” rigid pipe, are available.

UV Shield

Included in the box:

• Four stage hosetails for flexible hose from ½” to 11/4”

• Gaskets and locking nuts for the above

• 90 Degree elbow 2 way for easier installation

• Instruction manual & guarantee card

• Vecton titan uv unit

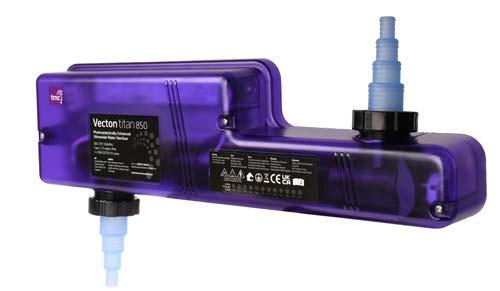

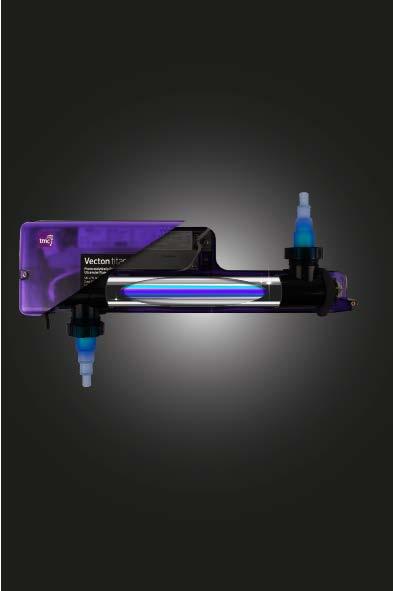

Vecton titanuv

Photocatalytically Enhanced

Aquarium UV Steriliser

Code: 5215 Vecton 550

Code: 5216 Vecton 850

• 1.3 times more effective than a standard UV steriliser, making it more energy efficient.

• The photocatalytic reaction provides a safer alternative to ozone for even cleaner water.

• Specially selected photocatalytic material protects and further improves the lifespan of the high UV resistant plastic body.

• UV shield to prevent direct viewing of the UV lamp.

• Manufactured from impact resistant, translucent polycarbonate.

• Opposing inlet and outlet for easy installation and connection to water supply.

• Four stage hosetails for flexible hose from ½” to 1¼”, held in place with screw on collars for easy removal when servicing and maintaining unit.

Designed for all aquaria

UV Shield

Four-Stage Hosetails

90° Pivoting Elbow Included

Included in the box:

• Four stage hosetails for flexible hose from ½” to 11/4”

• Gaskets and locking nuts for the above

• 90 Degree elbow 2 way for easier installation

• Instruction manual & guarantee card

• Vecton titan uv unit

Constructed from an exclusively formulated high UV stabilised compound designed for its ultra-low toxicity.

*-EU codes should be selected for EU market due to plug specifications

Translucent hosetails will glow when UV is on (glow visible in low levels of light)

Chambered lamp for optimum efficiency and contact time Fused quartz

Specially developed photocatalytic lining

UV technology means HEALTHY AQUARIUMS

glass sleeve

Inspiring synergy between people and nature

UV

Aquarium Sterilisers Overview

codes should be selected for EU market

Inspiring synergy between people and nature

UV Pond Clarifiers

Tropical Marine Centre pioneered the development of UV water cleansing systems and has manufactured them successfully since the late 1970s. There are now four pond ranges available:

Pro Clear Ultima UV30 & UV55

Pro Pond UV15, UV25, UV55 & UV110

Pro Pond Advantage UV110

Pro Pond Titan UV UV110

How Do They Work?

Ultraviolet radiation at a wavelength of 254 nanometers is extremely effective in halting the reproduction of algae. The algae readily absorbs the UV light which damages its DNA structure and makes it flocculate (clump together) allowing it to be trapped in a mechanical filter.

TMC’s range of UV pond clarifiers work on this principle. At the heart of each UV unit is an ultraviolet lamp sealed inside a quartz sleeve. As water is pumped through the unit, ultraviolet light from the lamp destroys the green, single-celled water borne algae (which make garden ponds murky and unattractive), leaving the water crystal clear.

page 16

Choosing the correct size

The main factors which govern the model you will need are:

• Pond size

• Flow rate

• Stocking level

• The amount of sunlight the pond is subject to.

Use the 4 Factors above to select the correct model for your pond. Still unsure?

Have a look at the comparison table at page 27 or get in touch: tropicalmarinecentre.com

Pro Clear Ultima

Professional UV Pond Clarifier for Large Ponds

The guaranteed solution for green water*

Code: 5233 Model:30

Code: 5234 Model:55

• 45° rotating hosetails allow easy installation of pipework in any orientation.

• Removable hosetails to quickly disconnect pipework for maintenance in situ.

• Transparent end caps make it easy to see if UV lamp is working.

• All wires concealed in an ergonomic, sleek casing for improved water shedding.

• Easy lamp changes and full range of spares available.

Designed for large ponds

Green Water enters unit

Transparent end caps make it easy to see if the UV lamp is working

Treated water returns to pond

45° rotating hosetails allow easy installation of pipework in any orientation

Removable hosetails to quickly disconnect pipework for maintenance in situ

Transparent end caps make it easy to see if UV lamp is working Easy lamp changes and full range of spares available

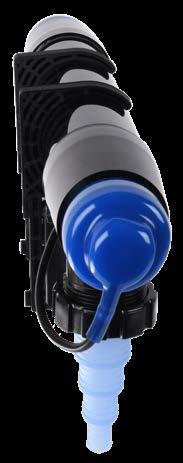

Pro Pond UV

The guaranteed solution for green water* Easy to install, use and maintain

Code: 5304 UV 15

Code: 5305 UV 25

Code: 5307 UV 55

Code: 5308 UV 110

• New energy efficient electronic control gear.

• Transparent end caps make it easy to see if UV lamps are working.

• Easy access to working parts making maintenance quick and easy.

• Easy lamp changes and full range of spares available.

• Supplied with wall/fence mounting kit.

• 2 x Multi-stage hosetails included for use with flexible hose.

• Supplied complete with 5m cable.

Designed for ponds

Pro Pond UV15

Code: 5304

Model:

Pro Pond UV 15w

Optimum Pond Size: 13,500 litres

Max. Pond Size: 15,000 litres

Max. Flow Rate: 6,750 l/h

2 x Multi-stage hosetails included for use with flexible hose from 1/2” to 11/4”

Supplied complete with 5m cable

1 x 15W High Output UV Lamp

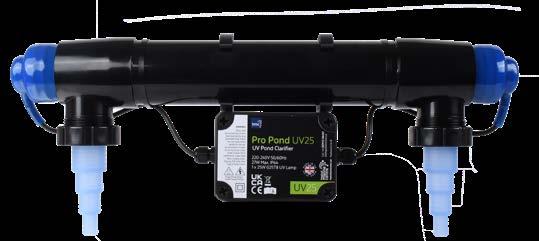

Pro Pond UV25

Code: 5305

Model:

Pro Pond UV 25w

Optimum Pond Size: 18,000 litres

Max. Pond Size: 20,000 litres

Max. Flow Rate: 9,000 l/h

2 x Multi-stage hosetails included for use with flexible hose from 1/2” to 11/4”

Supplied complete with 5m cable

1 x 25W High Output UV Lamp

Pro Pond UV55

Code: 5306

Model:

Pro Pond UV 55w

Optimum Pond Size: 45,000 litres

Max. Pond Size: 55,000 litres

Max. Flow Rate: 22,500 l/h

Can be used with pressure filters or pressure circuits such as sand filters & venturis.

Maximum pressure rating 3 bar/43.5psi

Universal 2” and 63mm solvent weld inlet and outlet ports to take rigid pipe

2 x Multi-stage hosetails included for use with flexible hose from 1”, 11/4” to 11/2”

Supplied complete with 5m cable

1 x 55W High Output UV Lamp

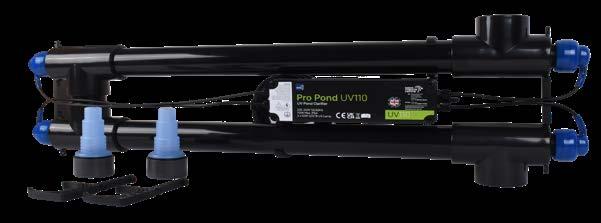

Pro Pond UV110

Code: 5307

Model:

Pro Pond UV 110w

Optimum Pond Size: 72,000 litres

Max. Pond Size: 75,000 litres

Max. Flow Rate: 36,000 l/h

Can be used with pressure filters or pressure circuits such as sand filters & venturis.

Maximum pressure rating 3 bar/43.5psi

Universal 2” and 63mm solvent weld inlet and outlet ports to take rigid pipe

2 x Multi-stage hosetails included for use with flexible hose from 1”, 11/4” to 11/2”

Supplied complete with 5m cable

2 x 55W High Output UV Lamps / 110W Total

BOTH UV lamps ALL THE TIME

All models include:

2x Multi-stage hosetails

Supplied with 5m cable

Wall/fence mounting kit

Unlike other pond brands

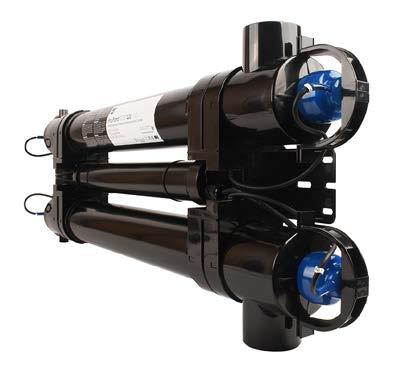

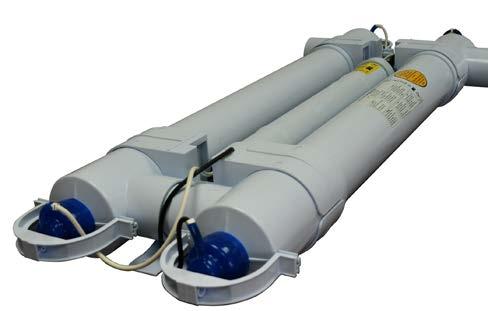

Pro Pond

Professional UV Pond Clarifier for Large Ponds

The guaranteed solution for green water*

Code: 7027 UV 110

• Can be used with pressure filters or pressure circuits such as sand filters & venturis. Maximum pressure rating 3bar/43.5psi.

• Universal 2” and 63mm solvent weld inlet and outlet port to take rigid pipe.

• Hosetails included for use with flexible hose.

• 2 x 55W High Output UV Lamps / 110W Total.

• Transparent end caps make it easy to see if UV lamps are working.

• Easy lamp changes and full range of spares available.

Designed for large ponds

System placement

Pro Pond Advantage UV 110*

Suitable for pond up to 72,000 litres

16,000 imp. gallons

18,700 US gallons

Maximum flow rate per h 36,000 litres/h

8,000 imp. gallons/h

9,400 US gallons/h

Inlet/Outlet size 2” and 63mm (dual port size)

Maximum pressure rating 3bar / 43.5psi

Unit weight 6.6Kg Approx.

Unit dimensions (LxWxH) 964 x 367 x 109mm (unpacked )

Lamp 2 x 55W G55T8 UV Total Power Consumption 112W Max.

50/60Hz

Class 1 / IP64

*-EU codes should be selected for EU market due to plug specifications

Can be mounted on a horizontal or vertical surface like a fence or a wall

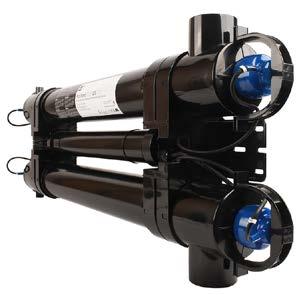

Pro Pond titanuv

Photocatalytically Enhanced Professional UV Pond Clarifier

• 1.5 times more effective than a standard UV clarifier.

• Resultant hydroxyl radicals oxidise organics to clear the water even further.

• The photocatalytic reaction provides a safer alternative to ozone for even clearer water.

• Can be used with pressure filters or pressure circuits such as sand filters & venturis. Maximum pressure rating 3bar/43.5psi.

• Universal 2” and 63mm solvent weld inlet and outlet port to take rigid pipe.

• 2 x 55W High Output UV Lamps / 110W Total.

• Translucent lamp caps make it easy to see if UV lamps are working.

Code: 7032 UV 110 Suitable for

• Hosetails included for use with flexible hose.

• Easy lamp changes and full range of spares available.

Designed for large ponds

2.Oxidising hydroxyl radicals are formed

1.UV Light reacts with photocatalytic lining

3.Neutralising single-celled water borne algae, organic matter, odours and micro organisms. Destroying phenols and other pollutants

4.Resulting in clear water and harmless carbon dioxide

Constructed from an exclusively formulated high UV stabilised compound designed for its ultra-low toxicity.

Translucent lamp caps make it easy to see if UV lamps are working

Chambered lamp for optimum efficiency and contact time

Specially developed photocatalytic lining

a

or

Fused quartz glass sleeve

UV Pond Clarifiers Overview

*-EU codes should be selected for EU market due to plug specifications

UV

Choosing your pond clarifier

UV Lamps & Quartz Sleeves

The importance of quality UV lamps and quartz sleeves in a saltwater aquarium UV sterilization system cannot be overstated.

Quality UV lamps are designed to emit the appropriate spectrum of UV light, particularly UV-C, which is most effective at sterilization. High-quality lamps produce consistent UV output over their lifespan, ensuring reliable sterilization of waterborne pathogens such as bacteria, viruses, and algae. This is essential for maintaining a healthy environment in a saltwater aquarium, where diseases can quickly spread among marine organisms.

Quality sleeves are designed to resist fouling, mineral deposits, and chemical corrosion, which can degrade UV transmission and damage the lamp. By keeping the lamp clean and isolated, a high-quality quartz sleeve helps maintain consistent UV output and prolongs the lifespan of the UV sterilization system.

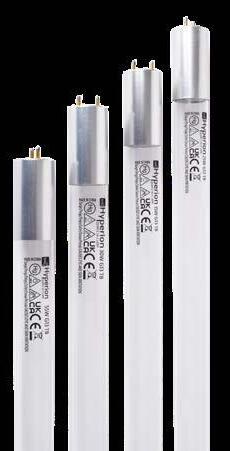

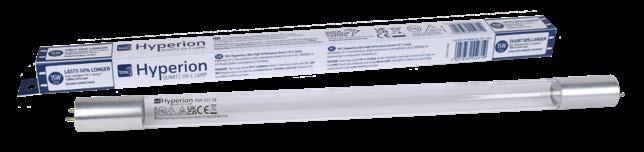

Hyperion

Ultra High Performance

Quartz UV-C Lamps

Code: 6053-HP

Code: 6054-HP

Code: 6055-HP

Code: 6056-HP

• The next evolution of UV-C lamp technology in the aquatics hobby.

• Manufactured under the strictest quality control conditions.

• Robust lamp ends.

• Last 50% longer than the standard lamps.

• Improved UV-C transmittance.

• Maintained output for up to 12000 hours (85% output).

• Ideal for all models of POND CLARIFIERS and UV aquarium sterilisers.

Designed for pond and aquaria

MARINE FRESH WATER PONDS

Following two years of extensive research, development and testing we are excited to introduce our new range of Hyperion Ultra High Performance Quartz UV-C Lamps.

Manufactured under the strictest quality control conditions, the Hyperion UV-C lamps last 50% longer than the standard, offering improved UV-C transmittance and maintained output for up to 12000 hours (85% output).

Lasts

Our Hyperion UV-C lamps are a direct replacement for other 15, 25, 30 & 55W linear UV-C lamps and can be used in ALL BRANDS of UV Pond Clarifiers and Aquarium Sterilisers.

50% longer

than standard UV-C Lamps 12000hr to 85%

OUTPUT

We have even thought about the lamp ends – making them more robust and ensuring that they protect the plastics at the ends of the clarifier/steriliser bodies – only delivering UV-C where it hits the water to be treated.

Quartz Sleeves UV Lamps

Inspiring synergy between people and nature

Biosystems is the commercial division of Tropical Marine Centre, and incorporates both the Biofiltration and Biolumen lighting.

We have been manufacturing and distributing filtration components and complete plug and play recirculating filtration systems for over 20 years, using them in our own livestock holding facilities for nearly 50 years.

From this hands-on understanding of how water filtration systems impact water quality and ultimately animal welfare, we have refined our designs to produce products that have been trusted across the globe in applications ranging from fish farming, shellfish holding, and depuration, to public aquaria, retail and research facilities.

P6 Twin Titan Floor Mounted Code: T 7010-55

P8 Floor Mounted Code: 7003-55

UV Sterilisers

Titan UV Sterilisers
