Lighting
Lighting should be a carefully considered part of any life support system. It plays a key role in the biology and welfare of most animals and plants. In plants the need for light is well known, but LED technology allows light output to be tailored to be as efficient as possible. In animals the type of light used can greatly effect visual acuity. This in turn improves feeding responses and stress levels. The control of light can also have strong biological effects which help further with animal health and welfare.
Biosystems have been active in LED lighting since 2007. Our experience in lighting in harsh environments, teamed with our background in animal husbandry and biology places us perfectly for this field. We are active in most areas where plants or animals are involved: Aquaculture, agriculture (including pig, poultry, cattle and insect breeding), race horses and horticulture. We have kitted out facilities including research institutes and public aquaria, offering spectrally tuned lighting with a high level of control. Our equipment is designed with robust, high quality components to withstand harsh conditions; giving the user the best results possible. These include improvements in welfare, production outcomes and costs.

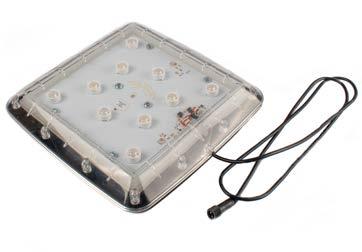

AquaRay MiniTile
Small size LED tiles for use in laboratories or for lighting large areas where even light spread is important. Delivers smooth spectrum light that is tailored to suit the needs of both humans and livestock. Includes patented NP Technology (where stated).
Red NP Ocean Blue
Code: BLM-MT-120RD
Code: BLM-MT-120OB
Biologically-optimised spectrum (see colour options). Fully dimmable.
Robust construction (ABS, acrylic and aluminium).
IP67 (including connectors).
Passively cooled—no moving parts.
Hand built in the UK.
High quality branded components.
Slides easily into aluminium mounting rail for flexible mounting options, including suspension and catenary wire.
Up to 4 tiles can be powered from a BioLumen Power Pod. (sold separately)
Available separately
• BioLumen PowerPod 1/2/3/4
• 4m Light Extension Cable

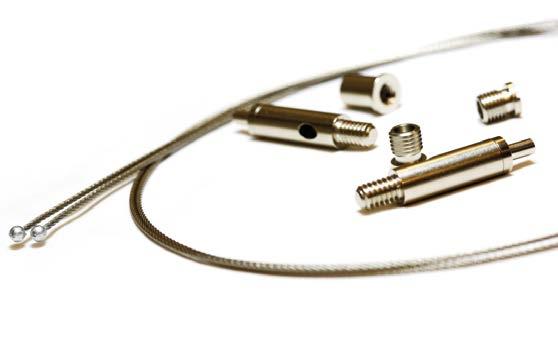

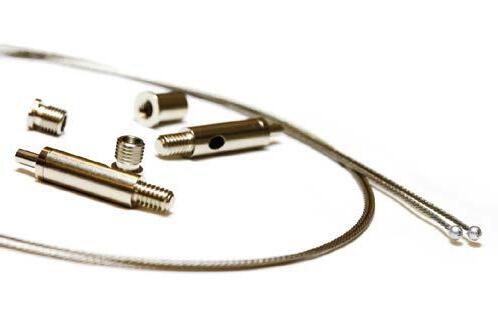

• BioLumen Aluminium Catenary Mount
• Biolumen Master Control
• BioLumen Signal Bus Cable
• BioLumen Signal Bus 4m Extension Cable
• BioLumen Signal Bus 10m Extension Cable
4 x NP blue, 1 x 6500k white
4 x 6500k white, 1 x 630nm red Red
NP Ocean Blue
AquaRay CV MiniTile
Small size LED tiles for use in sensitive applications such as research facilities and hatcheries. Delivers smooth spectrum light and ultra-low level dimming when teamed with the CV Power Pod Pro.
Natural Daylight Code: BLM-MTV-120ND
Dimmable to ultra-low levels.
Natural Daylight spectrum.
Robust construction (ABS, acrylic and aluminium).
IP67 (including connectors).
Passively cooled—no moving parts.
Hand built in the UK.
High quality branded components.
Slides easily into aluminium mounting rail for flexible mounting options, including suspension and catenary wire.
Up to 14 MiniTiles can be powered from a Biolumen CV Power Pod Pro 180W, or 2 from a Biolumen CV Power Pod Pro 30W.
Available separately
• Biolumen CV Power Pod Pro 30W/180W
• 12V 2/3/4 way splitter cable
• BioLumen Aluminium Catenary Mount
• Biolumen Master Control
• BioLumen Signal Bus Cable
• BioLumen Signal Bus 4m Extension Cable
• BioLumen Signal Bus 10m Extension Cable
4 x 6500k white

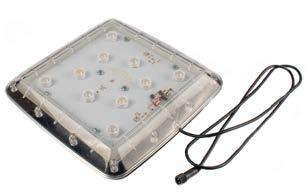

AquaRay Tile
Medium size LED tiles for use where higher light levels are needed. Delivers smooth spectrum light that is tailored to suit the needs of both humans and livestock.
HD Natural Daylight Natural Daylight ColourPlus
Code: BLM-T-120CCP
Code: BLM-T-120NP
Code: BLM-T-120OB
Biologically-optimised spectrum (see colour options).
Fully dimmable.
Robust construction (ABS, acrylic and aluminium).
IP67 (including connectors).
Passively cooled—no moving parts.
Hand built in the UK.
High quality branded components.
Slides easily into aluminium mounting rail for flexible mounting options, including suspension and catenary wire.
Up to 4 tiles can be powered from a BioLumen Power Pod. (sold separately)
Available separately
• BioLumen PowerPod 1/2/3/4
• 4m Light Extension Cable
• BioLumen Aluminium Catenary Mount
• Biolumen Master Control
• BioLumen Signal Bus Cable
• BioLumen Signal Bus 4m Extension Cable
• BioLumen Signal Bus 10m Extension Cable
4 x 6500k white, 2 x 630nm red, 2 x 460nm blue, 2 x 520nm green
10 x 6500k white
HD Natural Daylight
ColourPlus
10 x 6500k white
Natural Daylight
AquaRay NP Tile
Medium size LED tiles for use where higher light levels are needed. Delivers smooth spectrum light that is tailored to suit the needs of both humans and livestock. Includes patented NP Technology.
Coral ColourPlus
NP Blue
NP Ocean Blue
HD NP Ocean Blue
Code: BLM-T-120CCP
Code: BLM-T-120NP
Code: BLM-T-120OB
Code: BLM-T-60OB
Biologically-optimised spectrum (see colour options).
Fully dimmable.
Robust construction (ABS, acrylic and aluminium).
IP67 (including connectors).
Passively cooled—no moving parts.
Hand built in the UK.
High quality branded components.
Slides easily into aluminium mounting rail for flexible mounting options, including suspension and catenary wire.
Up to 4 tiles can be powered from a BioLumen Power Pod. (sold separately)
Available separately
• BioLumen PowerPod 1/2/3/4
• 4m Light Extension Cable
• BioLumen Aluminium Catenary Mount
• Biolumen Master Control
• BioLumen Signal Bus Cable
• BioLumen Signal Bus 4m Extension Cable
• BioLumen Signal Bus 10m Extension Cable
4 x NP blue, 4 x 6500k white, 2 x 410nm NUV
4 x NP blue, 2 x 6500k white, 2 x 410nm NUV, 1 x 660nm red
Coral ColourPlus
NP Ocean Blue
10 x NP blue
NP Blue
4 x NP blue, 4 x 6500k white, 2 x 410nm NUV
HD NP Ocean Blue

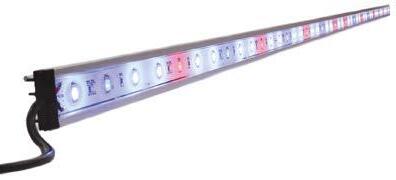

AquaRay Strip
LED strips for use in laboratories or large scale lighting installations. Delivers smooth spectrum light that is tailored to suit the needs of both humans and livestock. Includes patented NP Technology (where stated).
NP Blue
NP Ocean Blue NUV
Code: BLM-S-120NP
Code: BLM-S-120OB
Code: BLM-S-120NUV
Biologically-optimised spectrum (see colour options). Fully dimmable.
Robust construction (ABS, acrylic and aluminium).
IP67 (including connectors).
Passively cooled—no moving parts.
Hand built in the UK.
High quality branded components.
Slides easily into aluminium mounting rail for flexible mounting options, including suspension and catenary wire.
Up to 4 strips can be powered from a BioLumen Power Pod. (sold separately)
Available separately
• BioLumen PowerPod 1/2/3/4
• 4m Light Extension Cable
• BioLumen Aluminium Catenary Mount
• Biolumen Master Control
• BioLumen Signal Bus Cable
• BioLumen Signal Bus 4m Extension Cable
• BioLumen Signal Bus 10m Extension Cable
5 x 410nm NUV
5 x NP blue
NP Blue
NUV
3 x NP blue, 2 x 6500k white
NP Ocean Blue

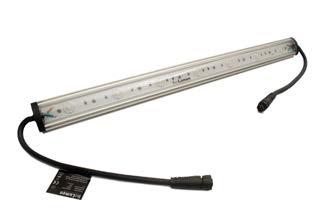

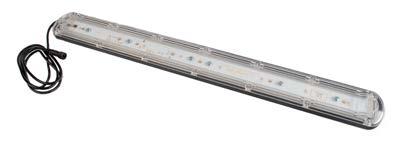

Series 500
Daisy-chained LED strips designed for hostile environments. For use in laboratories or large scale lighting applications. Delivers smooth spectrum light that is tailored to suit the needs of both humans and livestock. Including NUV and Patented NP technology (where stated).
Blue Natural Daylight Red
Code: BLM-500-B
Code: BLM-500-ND
Code: BLM-500-R
Biologically-optimised spectrum (see colour options).
Fully dimmable.
Extra robust construction (ABS, acrylic and & silicone rubber).
Daisy chained for simple installation.
IP67 (including connectors).
Rubber cabling for low temperatures
Passively cooled—no moving parts.
Slides easily into aluminium mounting rail for flexible mounting options, including suspension and catenary wire.
Surface mounting also available allowing light to be angled
Up to 8 units powered from a BioLumen CV Power Pod. (sold separately)
Available separately
• BioLumen CV Power Pod
• BioLumen Signal Bus Cable
• BioLumen Signal 4m extension cable
• BioLumen Signal 1m extension cable
• BioLumen Aluminium Catenary Mount
• Biolumen Master Control
• Aluminium Surface Mounting Brackets
• 4m Light Cable
• 1m Light Cable
• Cable end cap
• Opaque diffuser
4 x 6500k white, 2 x 660nm red, 1 x 410nm NUV
4 x 6500k white, 2 x NP blue, 1 x 410nm NUV
Blue
Red
7 x 6500k white
Natural Daylight

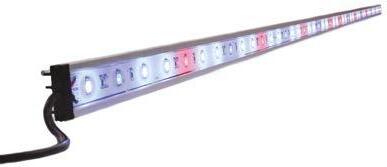

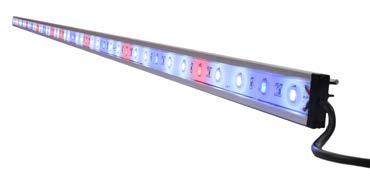

AquaBar T-Series Strip
Slimline cost efficient, IP67 LED strips for use in laboratories and general lighting.
Ultra Daylight Colourplus
Reef White
Fiji Purple
20x20mm cross section.
Available in 4 colours and 3 lengths.
Biologically optimised spectrum.
Codes: 3715/3717/3719
Codes: 3721/3723/3725
Codes: 3732/3733
Codes: 3734/3735
Two control systems available separately: *BioLumen Control system for hardwired centralised control of various types of light. *AquaBar Professional Control system for wireless control of Aquabar lighting.
Robust construction (aluminium and optically clear silicone).
IP67 (including connectors).
Passively cooled—no moving parts.
Can be fixed to a surface and angled, or slid into aluminium mounting rail for further mounting options.
Up to 4 long strips can be powered from a BioLumen Power Pod. (sold separately)
Available separately
• BioLumen CV Power Pod
• 2/3/4 way cable splitter
• BioLumen Master Control
• AquaBar Professional Control System
• Basic Power Supply for 1, 2 or 4 lights
• Fixing Brackets
• BioLumen Aluminium Catenary Mount
• Clip-on Opaque Diffuser
7000K White and 450nm Blue LEDs
All 7000K White LEDs
Ultra Daylight Reef White
7000K White, 650nm Red and 450nm Blue LEDs
Colourplus
7000K White, 650nm Red, 450nm Blue and 410nm NUV LEDs
Fiji Purple
Biolumen Apollo
High power LED light designed for covering large areas with high light levels or punching light through deep water.
Bio Cool White
Bio Natural Daylight
Bio Warm White
Bio Blue
Bio Green
Code: TBC
Code: TBC
Code: TBC
Code: TBC
Code: TBC
Waterproof to IP67, with heat sink fitted for passive cooling in air. Apollo Puck version also available, giving IP69 to 5m depth (no heatsink required for passive cooling in water).
Available in 5 colour spectra.
Dimmable to 0.1% and off for smooth sunrise/sunsets.
Compatible with Biolumen control systems.
Addressable to enable application of programs to individual lights.
Remotely mounted driver for easier servicing.
Robust construction (aluminium).
Passively cooled—no moving parts.
Mounts using attached bracket allowing light to be angled up to 40°.
Built in short circuit, over current, over voltage and over temperature protection.
• 180W Driver
• 120° borosilicate lens
• Mounting bracket
Available separately
• Pipe strut clamp
• Biolumen Master/Pro Control
• Biolumen Signal Bus Cable
• Biolumen Signal Bus 4m Extension Cable
• Biolumen Signal Bus 10m Extension Cable
• 90° borosilicate lens
1 x 465nm blue COB
1 x 10000K white COB
Bio Cool White
Bio Blue
1 x 3000k white COB
Bio Warm Daylight 1 x 510&450nm green/blue COB
Bio Green

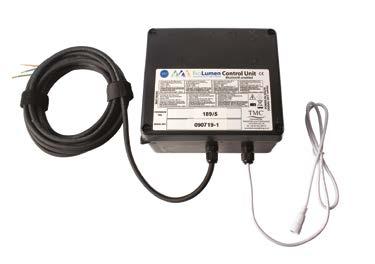

Lighting Controllers
Control is an important part of any lighting system. Proper control of light can improve welfare whilst also resulting in cost savings.
Biosystems offer a wide range of control options to be used with various lights, from wireless control systems designed with retailers in mind (AquaBar Pro) to hardwired largescale controllers that can offer seasonal variation (Biolumen Pro Control).
With the right level of control you can achieve more than you might think…
AquaBar Pro
Fully automated wireless control of your lights with the AquaBar Professional Control System.
Modular and fully scalable, this system is a great addition to any AquaBar lighting system, and if you’re a retailer it will bring you a step closer to a 5* rating on your pet trade license.
Uses built in RF communication to form its own mesh network. No need for Wifi.
Simple ‘drag and drop’ programming interface.
Programmable from any windows based device via USB-A dongle.
Plugs inline between PSU and lights – easy to upgrade and scale.
Addressable to enable application of programs to individual lights.
Controls up to 100W of AquaBar lights.
Allows multiple programs to run simultaneously.
Set on time, off time, ramp time and max intensity for each day of the week.
Manual override key fob available separately.
Battery backup Clock Node available separately, which also allows inclusion of a motion sensor to dim the lights when no footfall.
Controllers can be linked up to level and temperature sensors (available separately) to monitor.
AquaBar Pro System Component Explanation
The AquaBar Pro Node is the main control hardware. You can plug one node per power supply to control up to 100W of lights (4 x 4ft AquaBars). This also connects to temperature and level sensors.
The AquaBar Pro USB Dongle plugs into any Windows-based device (USB-A port required), and communicates to the system to allow programming.
The AquaBar Pro Clock Node (optional) has a battery backup to store the time in the event of a power failure. This way the lights will restart after a power outage without the need of a Windows-based device. The clock node is also the interface device for PIR sensors.
The AquaBar Pro Fob (optional) allows for simple manual override of the system without interrupting the program; moving the lights to their next programming phase (i.e. on/ off).
AquaBar Pro System Diagram
AquaBar T-Series Lights & AquaBar Power Supplies (available sepately)
PIR SENSOR
AquaBar Pro PIR Connector Cable (available sepately)
MOVEMENT SENSOR
Light can be programmed to go up/down in intensity to improve energy efficency
AquaBar 2, 3 & 4 Way Splitter Cables (available sepately)
AquaBar
AquaBar
AquaBar
Code
AquaBar Pro Dimmer Node APNODE
AquaBar Pro USB Dongle APDONGLE
AquaBar Pro Temperature Sensor APTEMPP
AquaBar Pro Level Sensor APFLOAT
AquaBar Pro Override Fob APFOB
AquaBar Pro Clock Node APCLOCK
AquaBar Pro PIR Sensor APPIR
AquaBar Pro PIR Cable APPIRCAB
Other equipment required?
AquaBar lights and power supply
AquaBar Pro Dimmer Node and Windows-based device with USB-A port
AquaBar Pro Dimmer Node
AquaBar Pro Dimmer Node
AquaBar Pro Dimmer Node and USB Dongle
AquaBar Pro Dimmer Node, USB Dongle and power supply
AquaBar Pro Clock Node, AquaBar Pro PIR Cable and power supply
AquaBar Pro Clock Node, any normally closed sensor relay
Basic System Included
• 1 x AquaBar Pro Node per rack
• 1 x AquaBar Pro USB Dongle
Full Package Included
• 1 x AquaBar Pro Node per rack
• 1 x AquaBar Pro Temperature Sensor per rack
• 1 x AquaBar Pro Level Sensor per rack
• 1 x AquaBar Pro USB Dongle
• 1 x AquaBar Pro Clock Node
• 1 x AquaBar Pro Override Fob
Available separately
• AquaBar Pro PIR Connector Cable
• AquaBar T-Series Lights
• AquaBar Power Supplies
• AquaBar 2,3&4 Way Splitter Cables
AquaBar Led Lights
PSUs and Splitter cables are available separately in a range of lengths and colours
Biolumen Basic Control
Provides accurate timing and dimming of up to 30 BioLumen PowerPods/Signal Converters or other BioLumen compatible light sources. Along with the specific spectra of BioLumen lighting, this controller can be used to entrain animals’ internal clocks, therefore regulating hormone production and improving wellbeing.
Allows for simple programming using on, off and ramp times or seasonal variation based on latitude/longitude coordinates.
Compatible with all BioLumen lighting as well as some third party products.
Programmable over USB/Bluetooth from a windows device.
Applies up to 4 distinct lighting programs. Programs are addressable to all or user defined groups of lights.
Includes drift functionality, allowing for gradual changes to programs over user defined period.
Available separately
• BioLumen CV Power Pod
• BioLumen CC Power Pod
• Ecoxotic Cannons • BioLumen Signal Bus
Biolumen Pro Control
The world’s most comprehensive biological lighting controller. Provides accurate timing and dimming of up to 128 BioLumen Power Pods/Signal Converters or other BioLumen compatible light sources. Along with the specific spectra of BioLumen lighting, this controller can be used to entrain animals’ internal clocks, therefore regulating hormone production and improving wellbeing.
Allows for simple programming using on, off and ramp times or seasonal variation based on latitude/longitude coordinates. Low maintenance and easy to clean.
Custom programs can be applied allowing for complete flexibility in control, including the ability to overlay onto other programs (e.g. separate solar and lunar phases addressed to the same lights).
Programmable over LAN/Wifi from any web browser, via a super-intuitive user interface.
Applies up to 4 distinct lighting programs.
Programs are addressable to all or user defined groups of lights
Capable of running an independent program for every single unit connected.
Includes drift functionality, allowing for gradual changes to programs over user defined period.
Compatible with all BioLumen lighting as well as some third party products.
Available separately
• BioLumen CV Power Pod
• BioLumen CC Power Pod
• Ecoxotic Cannons
• BioLumen Signal Bus Cable
• BioLumen Signal Bus 4m Extension Cable
• BioLumen Signal Bus 10m Extension Cable
Biolumen Agri Control
With a simple push button, LCD screen interface, and manual override switches included, this controller provides accurate timing and dimming of up to 64 Biolumen PowerPods or other Biolumen compatible light sources. Along with the specific spectra provided by Biolumen lighting units, this controller can be used to entrain animals’ internal clocks, therefore regulating hormone production, improving welfare and productivity.
Allows for simple programming using on, off and ramp times to mimic sunrise and sunset
2 channels, allowing 2 separate programs to run simultaneously.
Manual override switches for each channel (100% On, Auto, User set low level and Off).
No sudden light changes; eliminating the possibility of stress associated with light shock.
Compatible with all Biolumen lighting.
Can be used with other dimmable lighting (DALI or 0-10V – please specify when ordering).
Simple user interface with push buttons and LCD screen.
Mounting Systems, Cables and Accessories
Mounting systems, cables, and accessories are crucial for installing lights in aquariums and water facilities for several reasons.
Water and electricity pose significant risks when combined. Proper mounting systems, high-quality cables and accessories help ensure that electrical connections are secure and installed away from sources of water.
Mounting systems allow lights to be positioned optimally to ensure even distribution of light, which is essential for the health of aquatic life.
High-quality mounting systems and cables are designed to withstand the harsh conditions of aquatic environments, including humidity and water splashes, thus extending the lifespan of the lighting system.
AquaRail Length 2415mm mounting rail
AQR2415
AquaRail Length 1610mm mounting rail AQR1610
AquaRail Length 1090mm mounting rail AQR1090
AquaRail Length 540mm mounting rail AQR540
AquaRail Length 308mm mounting rail AQR308
AquaRail Length 158mm mounting rail AQR158
AquaRail Length 100mm mounting rail AQR100
AquaRail Suspension kit
AquaRail T-Bar Suspended ceiling clip
BioLumen Aluminium Catenary Mount 1200mm
BioLumen Aluminium Catenary Mount 400mm
BioLumen Aluminium Catenary Mount 180mm
Stainless steel self tap eyelet to anchor catenary wire
Stainless steel wire grip (to create loops in steel rope, recommend 2 per loop for security)
Stainless steel catenary wire, 2mm
Turnbuckle for tensioning catenary wire
Suspend/surface-mount
Suspend/surface-mount
Suspend/surface-mount
Suspend/surface-mount
Suspend/surface-mount
Suspend/surface-mount
AQRSUSKIT Suspend
AQRTBARCLIP Suspend
AQRFOOT1200 Caternary wire
AQRFOOT400 Caternary wire
AQRHOODFOOT Caternary wire
BLM-SS-EYEB Caternary wire
BLM-SS-GRIP Caternary wire
BLM-SS-ROPE Caternary wire
BLM-SS-TURNB Caternary wire
