Pond

Inspiring synergy between people and nature

UV Pond Clarifiers

Tropical Marine Centre pioneered the development of UV water cleansing systems and has manufactured them successfully since the late 1970s. There are now four pond ranges available:

Pro Clear Ultima UV30 & UV55

Pro Pond UV15, UV25, UV55 & UV110

Pro Pond Advantage UV110

Pro Pond Titan UV UV110

How Do They Work?

Ultraviolet radiation at a wavelength of 254 nanometers is extremely effective in halting the reproduction of algae. The algae readily absorbs the UV light which damages its DNA structure and makes it flocculate (clump together) allowing it to be trapped in a mechanical filter.

TMC’s range of UV pond clarifiers work on this principle. At the heart of each UV unit is an ultraviolet lamp sealed inside a quartz sleeve. As water is pumped through the unit, ultraviolet light from the lamp destroys the green, single-celled water borne algae (which make garden ponds murky and unattractive), leaving the water crystal clear.

Choosing the correct size

The main factors which govern the model you will need are:

• Pond size

• Flow rate

• Stocking level

• The amount of sunlight the pond is subject to. Have a look at the comparison table at page 17 or get in touch:

Pro Clear Ultima

Professional UV Pond Clarifier for Large Ponds

The guaranteed solution for green water*

Code: 5233 Model:30

Code: 5234 Model:55

• 45° rotating hosetails allow easy installation of pipework in any orientation

• Removable hosetails to quickly disconnect pipework for maintenance in situ

• Transparent end caps make it easy to see if UV lamp is working

• All wires concealed in an ergonomic, sleek casing for improved water shedding

• Easy lamp changes and full range of spares available

Designed for large ponds

Green Water enters unit

Transparent end caps make it easy to see if the UV lamp is working

Treated water returns to pond

45° rotating hosetails allow easy installation of pipework in any orientation

Removable hosetails to quickly disconnect pipework for maintenance in situ

Transparent end caps make it easy to see if UV lamp is working

lamp changes and full range of spares available

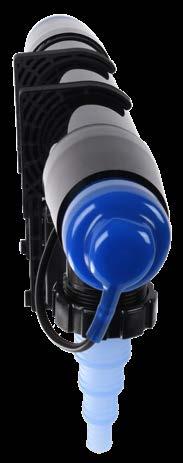

Pro Pond UV

The guaranteed solution for green water* Easy to install, use and maintain

Code: 5304 UV 15

Code: 5305 UV 25

Code: 5307 UV 55

Code: 5308 UV 110

• New energy efficient electronic control gear

• Transparent end caps make it easy to see if UV lamps are working

• Easy access to working parts making maintenance quick and easy

• Easy lamp changes and full range of spares available

• Supplied with wall/fence mounting kit

• 2 x Multi-stage hosetails included for use with flexible hose

• Supplied complete with 5m cable

Designed for ponds

Pro Pond UV15

Code: 5304

Model:

Pro Pond UV 15w

Optimum Pond Size: 13,500 litres

Max. Pond Size: 15,000 litres

Max. Flow Rate: 6,750 l/h

2 x Multi-stage hosetails included for use with flexible hose from 1/2” to 11/4”

Supplied complete with 5m cable

1 x 15W High Output UV Lamp

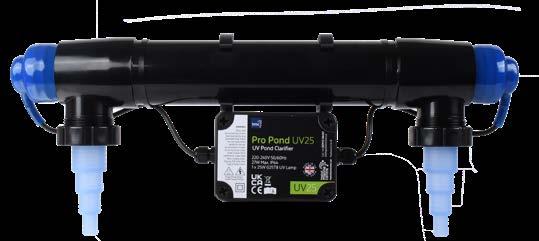

Pro Pond UV25

Code: 5305

Model:

Pro Pond UV 25w

Optimum Pond Size: 18,000 litres

Max. Pond Size: 20,000 litres

Max. Flow Rate: 9,000 l/h

2 x Multi-stage hosetails included for use with flexible hose from 1/2” to 11/4”

Supplied complete with 5m cable

1 x 25W High Output UV Lamp

Pro Pond UV55

Code: 5306

Model:

Pro Pond UV 55w

Optimum Pond Size: 45,000 litres

Max. Pond Size: 55,000 litres

Max. Flow Rate: 22,500 l/h

Can be used with pressure filters or pressure circuits such as sand filters & venturis.

Maximum pressure rating 3 bar/43.5psi

Universal 2” and 63mm solvent weld inlet and outlet ports to take rigid pipe

2 x Multi-stage hosetails included for use with flexible hose from 1”, 11/4” to 11/2”

Supplied complete with 5m cable

1 x 55W High Output UV Lamp

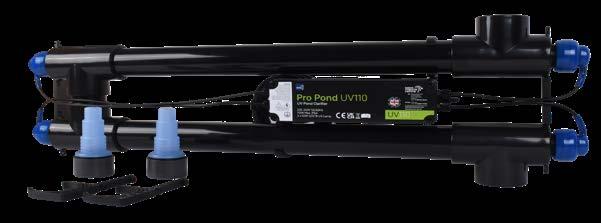

Pro Pond UV110

Code: 5307

Model:

Pro Pond UV 110w

Optimum Pond Size: 72,000 litres

Max. Pond Size: 75,000 litres

Max. Flow Rate: 36,000 l/h

Can be used with pressure filters or pressure circuits such as sand filters & venturis.

Maximum pressure rating 3 bar/43.5psi

Universal 2” and 63mm solvent weld inlet and outlet ports to take rigid pipe

2 x Multi-stage hosetails included for use with flexible hose from 1”, 11/4” to 11/2”

Supplied complete with 5m cable

2 x 55W High Output UV Lamps / 110W Total

BOTH UV lamps ALL THE TIME

All models include:

2x Multi-stage hosetails

Supplied with 5m cable

Wall/fence mounting kit

Unlike other pond brands

*-EU codes should be selected for EU market due to plug specifications

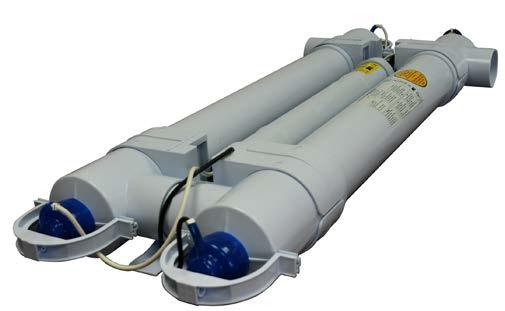

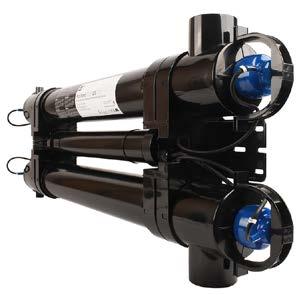

Pro Pond

Professional UV Pond Clarifier for Large Ponds

The guaranteed solution for green water*

Code: 7027 UV 110

• Can be used with pressure filters or pressure circuits such as sand filters & venturis. Maximum pressure rating 3bar/43.5psi

• Universal 2” and 63mm solvent weld inlet and outlet port to take rigid pipe

• Hosetails included for use with flexible hose

• 2 x 55W High Output UV Lamps / 110W Total

• Transparent end caps make it easy to see if UV lamps are working

• Easy lamp changes and full range of spares available

Designed for large ponds

*Guarantees clear water if installed in accordance with the manufacturer’s instructions and the unit is the correct unit for the pond capacity, stocking level and location

System placement

Pro Pond Advantage UV 110*

Suitable for pond up to 72,000 litres

16,000 imp. gallons

18,700 US gallons

Maximum flow rate per h 36,000 litres/h

8,000 imp. gallons/h

9,400 US gallons/h

Inlet/Outlet size 2” and 63mm (dual port size)

Maximum pressure rating 3bar / 43.5psi

Unit weight 6.6Kg Approx.

Unit dimensions (LxWxH) 964 x 367 x 109mm (unpacked )

Lamp 2 x 55W G55T8 UV Total Power Consumption 112W Max.

50/60Hz

Class 1 / IP64

*-EU codes should be selected for EU market due to plug specifications

Can be mounted on a horizontal or vertical surface like a fence or a wall

titanuv technology

Having been used on a large scale by TMC’s commercial branch in public aquaria retailers and aquaculture facilities for 2+ years, we are now bringing this exclusive technology to the ponds.

Specially developed photocatalytic lining

Constructed from an exclusively formulated high UV stabilised compound designed for its ultra-low toxicity.

lamp for optimum efficiency and contact time

Chambered

Fused quartz glass sleeve

Code: 5215 Pro Pond titan uv

The science behind it

UV Light reacts with photocatalytic lining

Oxidising hydroxyl radicals are formed

Neutralising single-celled water borne algae, organic matter, odours and micro organisms. Destroying phenols and other pollutants

Resulting in clear water and harmless carbon dioxide

Using the latest photocatalytically enhanced UV technology the titanUV is up to 1.3 times more effective than a standard UV.

The photocatalytic reaction produces hydroxyl radicals, attacking organics in the water whist neutralising waterborne pathogens such as harmful bacteria.

The titanUV technology provides a safer alternative to ozone for even cleaner water.

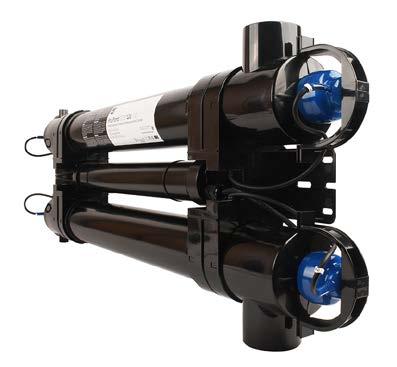

Pro Pond titanuv

Photocatalytically Enhanced Professional UV Pond Clarifier

Code: 7032 UV 110

• 1.5 times more effective than a standard UV clarifier

• Resultant hydroxyl radicals oxidise organics to clear the water even further

• The photocatalytic reaction provides a safer alternative to ozone for even clearer water

• Can be used with pressure filters or pressure circuits such as sand filters & venturis. Maximum pressure rating 3bar/43.5psi

• Universal 2” and 63mm solvent weld inlet and outlet port to take rigid pipe

• 2 x 55W High Output UV Lamps / 110W Total

• Translucent lamp caps make it easy to see if UV lamps are working

• Hosetails included for use with flexible hose

• Easy lamp changes and full range of spares available

Suitable for ponds up to:

Litres

Designed for large ponds

2.Oxidising hydroxyl radicals are formed

1.UV Light reacts with photocatalytic lining

Suitable for pond up to

3.Neutralising single-celled water borne algae, organic matter, odours and micro organisms. Destroying phenols and other pollutants

4.Resulting in clear water and harmless carbon dioxide

Constructed from an exclusively formulated high UV stabilised compound designed for its ultra-low toxicity.

Translucent lamp caps make it easy to see if UV lamps are working

Specially developed photocatalytic lining

US

Maximum flow rate per h 36,000 litres/h 8,000 imp. gallons/h

9,400 US gallons/h

size

Chambered lamp for optimum efficiency and contact time

on a horizontal or vertical surface like a

Fused quartz glass sleeve

UV Pond Clarifiers Overview

*-EU codes should be selected for EU market due to plug specifications

UV

Choosing your pond clarifier

UV Lamps & Quartz Sleeves

UV pond clarifiers utilize UV lamps to kill algae and harmful bacteria in ponds, thus clarifying the water. These devices are commonly used in ponds and water features to maintain water clarity and quality. The UV lamp emits ultraviolet light, which disrupts the DNA of algae and bacteria, effectively neutralizing them.

Quartz sleeves are an integral part of UV pond clarifiers. They serve as a protective barrier between the water and the UV lamp. The quartz sleeve allows the UV light to pass through while keeping the lamp separated from the water. This prevents water from coming into direct contact with the lamp and ensures efficient transmission of UV light into the water.

Maintenance of UV pond clarifiers typically involves periodic replacement of the UV lamp and regular cleaning of the quartz sleeve to ensure optimal performance. Additionally, it's essential to monitor the flow rate of water through the clarifier to ensure proper exposure to the UV light. UV pond clarifiers are a popular and effective method for maintaining water quality in ponds, helping to create a healthy environment for aquatic life.

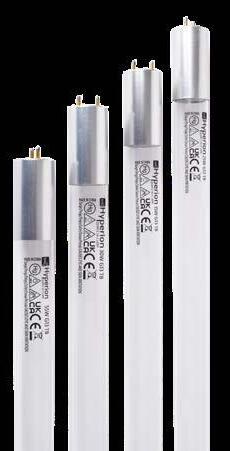

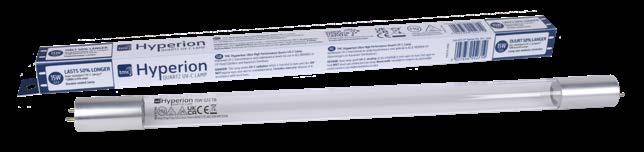

Hyperion

Ultra High Performance

Quartz UV-C Lamps

Code: 6053-HP

Code: 6054-HP

Code: 6055-HP

Code: 6056-HP

• The next evolution of UV-C lamp technology in the aquatics hobby

• Manufactured under the strictest quality control conditions

• Robust lamp ends

• Last 50% longer than the standard lamps

• Improved UV-C transmittance

• Maintained output for up to 12000 hours (85% output)

• Ideal for all models of POND CLARIFIERS

MARINE FRESH WATER PONDS

Following two years of extensive research, development and testing we are excited to introduce our new range of Hyperion Ultra High Performance Quartz UV-C Lamps.

Manufactured under the strictest quality control conditions, the Hyperion UV-C lamps last 50% longer than the standard, offering improved UV-C transmittance and maintained output for up to 12000 hours (85% output).

Lasts

Our Hyperion UV-C lamps are a direct replacement for other 15, 25, 30 & 55W linear UV-C lamps and can be used in ALL BRANDS of UV Pond Clarifiers and Aquarium Sterilisers.

50%

longer

than standard UV-C Lamps 12000hr to 85%

OUTPUT

We have even thought about the lamp ends – making them more robust and ensuring that they protect the plastics at the ends of the clarifier/steriliser bodies – only delivering UV-C where it hits the water to be treated.

Quartz Sleeves

Pumps

Pumps play a crucial role in maintaining the health and functionality of ponds, whether they are natural or man-made.

Pumps circulate water within the pond, preventing stagnation. Stagnant water can lead to various problems such as algae blooms, mosquito breeding, and foul odors. By keeping the water moving, pumps help maintain oxygen levels and distribute nutrients evenly throughout the pond.

Algae thrive in still water with abundant sunlight and nutrients. By maintaining water circulation and filtration, pumps help to inhibit the growth of algae by limiting the availability of these essential resources.

Overall, pumps are essential components of pond ecosystems, contributing to water quality, oxygenation, filtration, and overall ecosystem health. Proper selection, installation, and maintenance of pumps are crucial for ensuring the long-term success and sustainability of ponds.

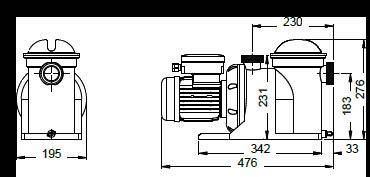

Argonaut AG Series Pumps

The Argonaut AG Series of pumps are a cost effective, reliable range of pumps, suitable for use in both freshwater and saltwater applications. The European manufactured motors are suitable for lower flow applications with enough head to still drive most mechanical filters

Code: 7290

Code: 7291

Code: 7292

Code: 7293

Argonaut AG8

Argonaut AG10

Argonaut AG14 Argonaut AG16

• Heavy duty long life IP55 rated motor.

• Quiet running 55dB rating.

• High grade stainless steel motor shaft.

• AISI 316 carbon/ceramic mechanical seal.

• 1.65 Litre strainer basket and clear body lid for easy inspection.

• Quick connect barrel unions for UPVC pipe (supplied with both 1.1/2” or 50 mm).

• Drain plug, self-priming up to 1.8 metres.

• Suitable for ponds.

MARINE FRESH WATER PONDS

Pump Inverter 1.1kW

The Pump Inverter enables the water flow rate of a water pump to be adjusted to optimise flow requirements. This is achieved by adjusting the speed of the pump, resulting in significant energy savings

Code: 7322-EU

Pump Inverter 1.1kW

• Up to 80% ENERGY SAVING.

• Up to 25% QUIETER pump operation.

• Touch screen controls.

• User friendly interface with power consumption indication.

• 4 timer program functionality.

• Adjustable running speeds from 1200 ~ 2900 rpm with 50rpm increments.

• Suitable for single phase pumps up to 1.1kW.

• In built soft start.

• IP65 (Fanless cooling).

MARINE FRESH WATER PONDS

Ozone Generators

Ozone generators can play a significant role in maintaining water quality and promoting a healthy environment in ponds..

Ozone is a powerful oxidizing agent that effectively kills bacteria, viruses, and other pathogens present in the water. By eliminating harmful microorganisms, ozone generators help to purify the water and create a safer environment for fish, plants, and other aquatic life.

By eliminating pathogens and reducing the organic load in the water, ozone generators help to minimize the risk of disease outbreaks among fish and other aquatic inhabitants. This promotes a healthier ecosystem and reduces the need for chemical treatments.

Ozone generators can be valuable tools for pond owners seeking to maintain water quality, control algae, and create a thriving aquatic environment. However, proper installation, monitoring, and maintenance are essential to ensure effective and safe operation of ozone systems in ponds.

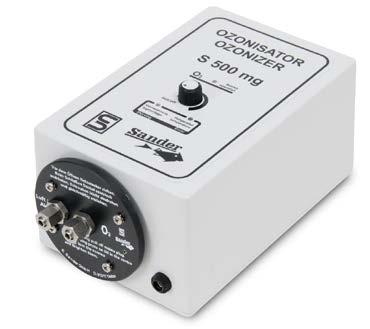

Sander Ozone Generators

Effectively reduces organics, pesticides, dyes, ammonia, nitrates, pathogens, proteins and alga. Effectively improves filtration

Code: 5454-S

Code: 5455-S

Code: 5458-P

Sander S500

Sander S1000

Sander XT2000

• The high quality components guarantee reliable ozone production at low energy consumption.

• The ceramic ozone electrode is reliable and can be cleaned easily, if required.

• A trimmer allows for continuous adjustment of ozone output required for the individual application.

• The XT2000 model is equipped with a large touch screen display for quick access and fine control of all the operational parameters.

• The XT2000 is a professional tool for the ambitious aquarist and is perfectly suited for freshwater, ponds and marine water applications.

Accessories

Filter Media

Water Chemistry

Product

Tropic Marin Elimi-Phos Rapid

Size

Description

Tropic Marin® Elimi-Phos Rapid is a highly-effective solution based on lanthanum which binds phosphates rapidly and eliminates it from the water. As a result, the phosphate concentration is efficiently reduced in next to no time to a range between 0.2–0.4 mg/l (ppm)

Tropic Marin KH/Alkalinity Test Kit - Freshwater/ Saltwater

500ml The alkalinity in saltwater aquariums should range from 6 to 9 °dH. The alkalinity in freshwater aquariums should not fall below 3 °dH. The Tropic Marin® KHTest kit makes it possible to quickly determine the alkalinity of your aquarium water by ease of use and high accuracy

Tropic Marin Phosphate Test Kit - Freshwater/Saltwater

With the Tropic Marin® PO4-Test the phosphate content can be determined using a finely-tuned colour chart which has a concentration range of 0.03 – 3 ppm

Tropic Marin Nitrite / Nitrate Combination Test Kit - Freshwater/Saltwater

With the high resolution Tropic Marin® Nitrite/Nitrate-Test Professional the nitrite and nitrate concentrations can be determined with a particularly high accuracy in the low concentration range between 0 and 1 ppm for nitrite and between 0 –20 ppm for nitrate

Tropic Marin Ammonia / Ammonium Test Kit - Freshwater/ Saltwater ICP-MS Test single 50+

With the Tropic Marin® Ammonium/Ammonia-Test the ammonium/ammonia total concentration can be determined with the help of a finely tuned colour chart which includes a concentration range from 0.02 – 3 mg/l. Crucial is the total ammonia concentration which is the result of the ammonia/ammonium total concentration depending on the temperature and the pH-value

Easy, fast and accurate Detection level 1000 times higher than ICP-OES test
