The choice is wide, the market is full of LEDs, which one should you pick?
Here are some simple questions to ask yourself to help you narrow down your search:
At which level of reefkeeping are you? Beginner, intermedium or experience?
Reef Pulsar page 16
Do you like app controlled high tech light or prefer to keep it simple?
What’s in your tank? Different corals require different light spectrum. Identify your tank inhabitants needs is essential to pick the best light for them to thrive.
What’s your budget?
Size of your tank?
Still unsure? Have a look at the comparison table at page.

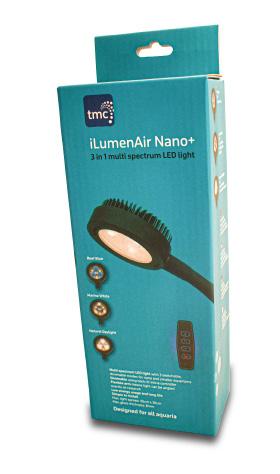

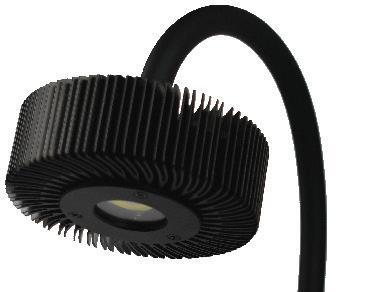

iLumenAir Nano+
3 in 1 multi spectrum LED light
• Multi spectrum LED light with 3 switchable, dimmable modes.
• For nano and smaller aquariums.
• Dimmable using back-lit inline controller.

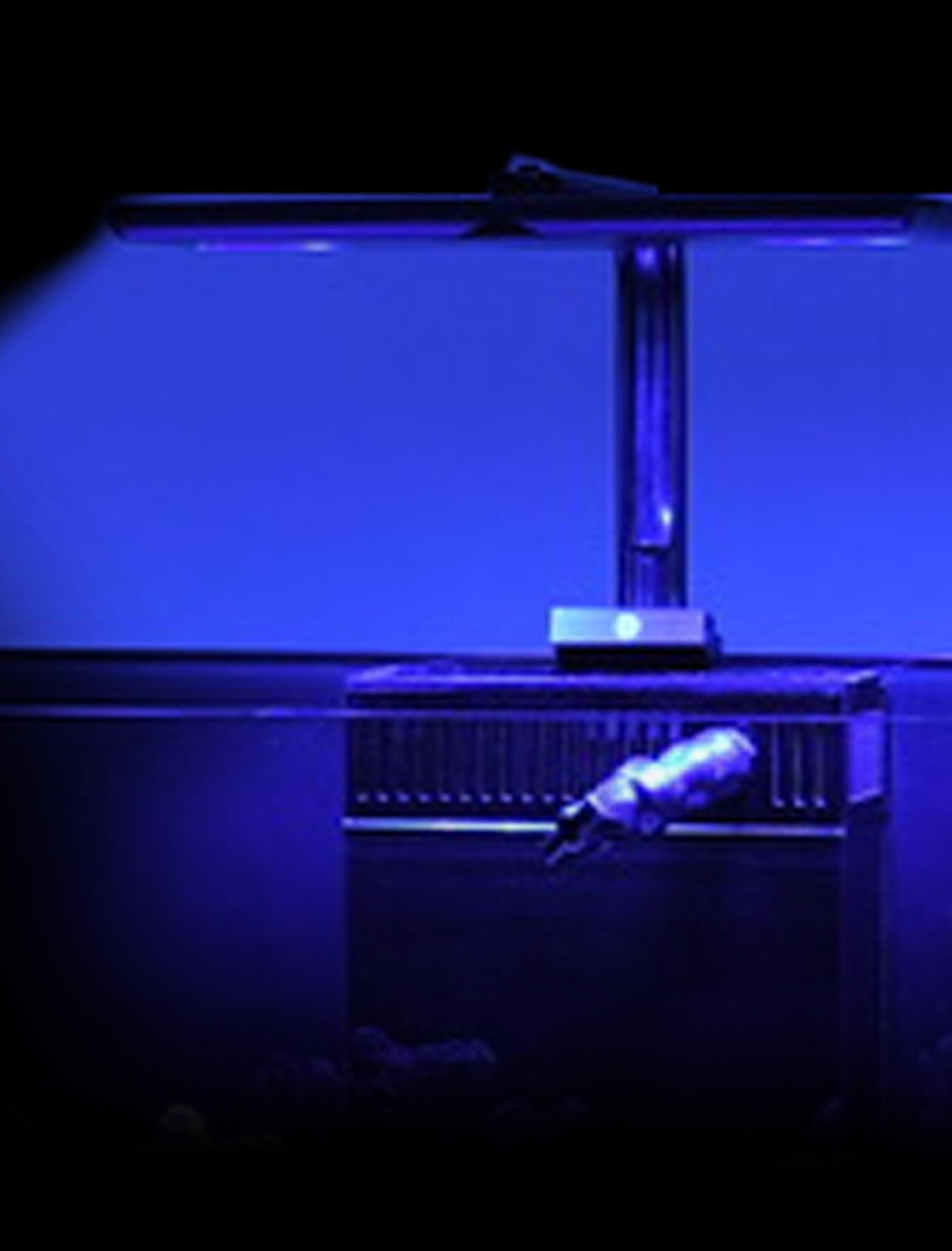

• Flexible arm means light can be angled exactly as required.
• Low energy usage and long life.
• Simple to install.
• Max. light spread: 30cm x 30cm.
Designed for all aquaria Code: 9195
Flexible arm means light can be angled exactly as required
Reef Blue 3W
3 x 450-465nm
Reef Blue 3W
3 x 450-465nm
Marine White 3W
3 x 450-465nm
Marine White 3W
3 x 450-465nm
3 x 6500K LEDs = 12000K
3 x 6500K LEDs
Natural Daylight 3W
Natural Daylight 3W
3 x 6500K LEDs
3 x 6500K LEDs
Perfect for refugiums!
Perfect for refugiums! 1200K

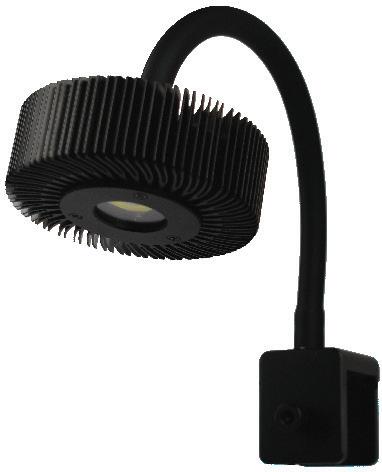

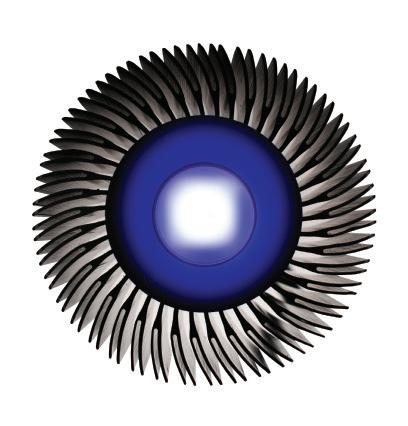

iLumenAir Micro+
Full spectrum reef ready LED
Code: 9198
• Multi spectrum LED light with 3 switchable, dimmable modes for nano and smaller aquariums.
• Dimmable using back-lit inline controller.
• Flexible arm means light can be angled exactly as required.
• Low energy usage and long life.
• Simple to install.
Designed for all reef aquaria

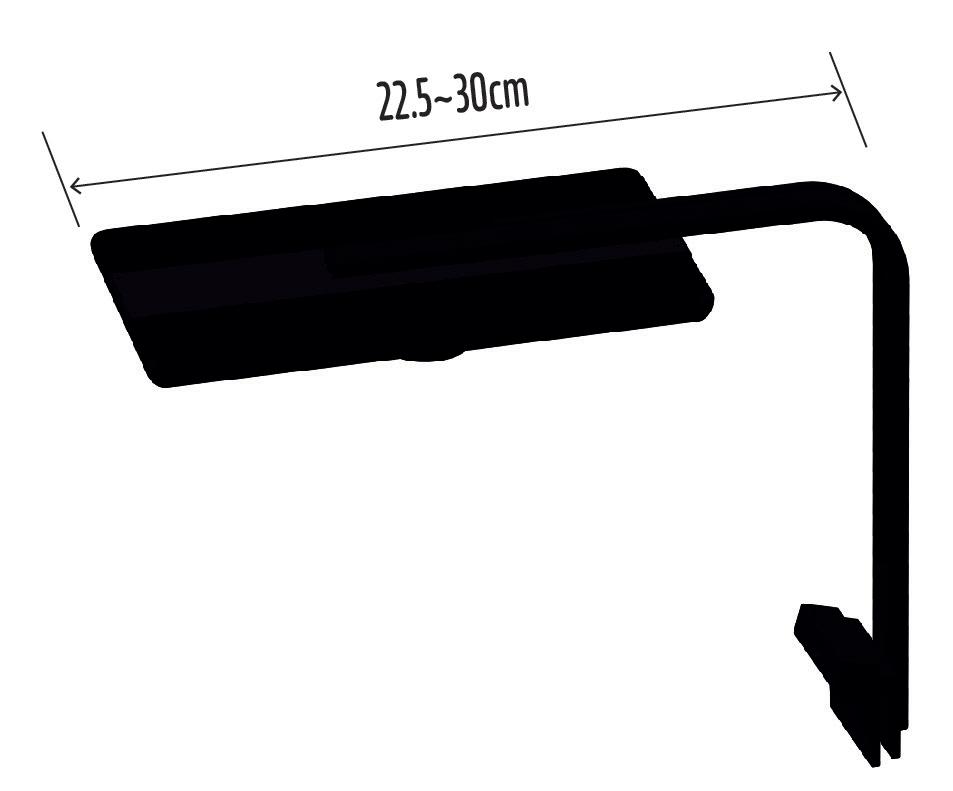

INSTALLATION DIAGRAM
INCREASE BRIGHTNESS
SWITCH MODE
DECREASE BRIGHTNESS ON/OFF
MODE 1 Natural Daylight
Press +/- to increase/decrease brightness
MODE 2 Fiji Blue
Press +/- to increase/decrease brightness
MODE 3 SET Marine White
Pressing + will increase brightness of Natural Daylight and decrease brightness of Fiji Blue
Pressing - will decrease brightness of Natural Daylight and increase brightness in Fiji Blue
MODE 4 DIM Marine White
Once you set the Marine White to your preferred levels, press +/- to increase/decrease brightness.
x 450K
Model: 9238 Natural Daylight
x 6500K Fiji Blue
x 450K

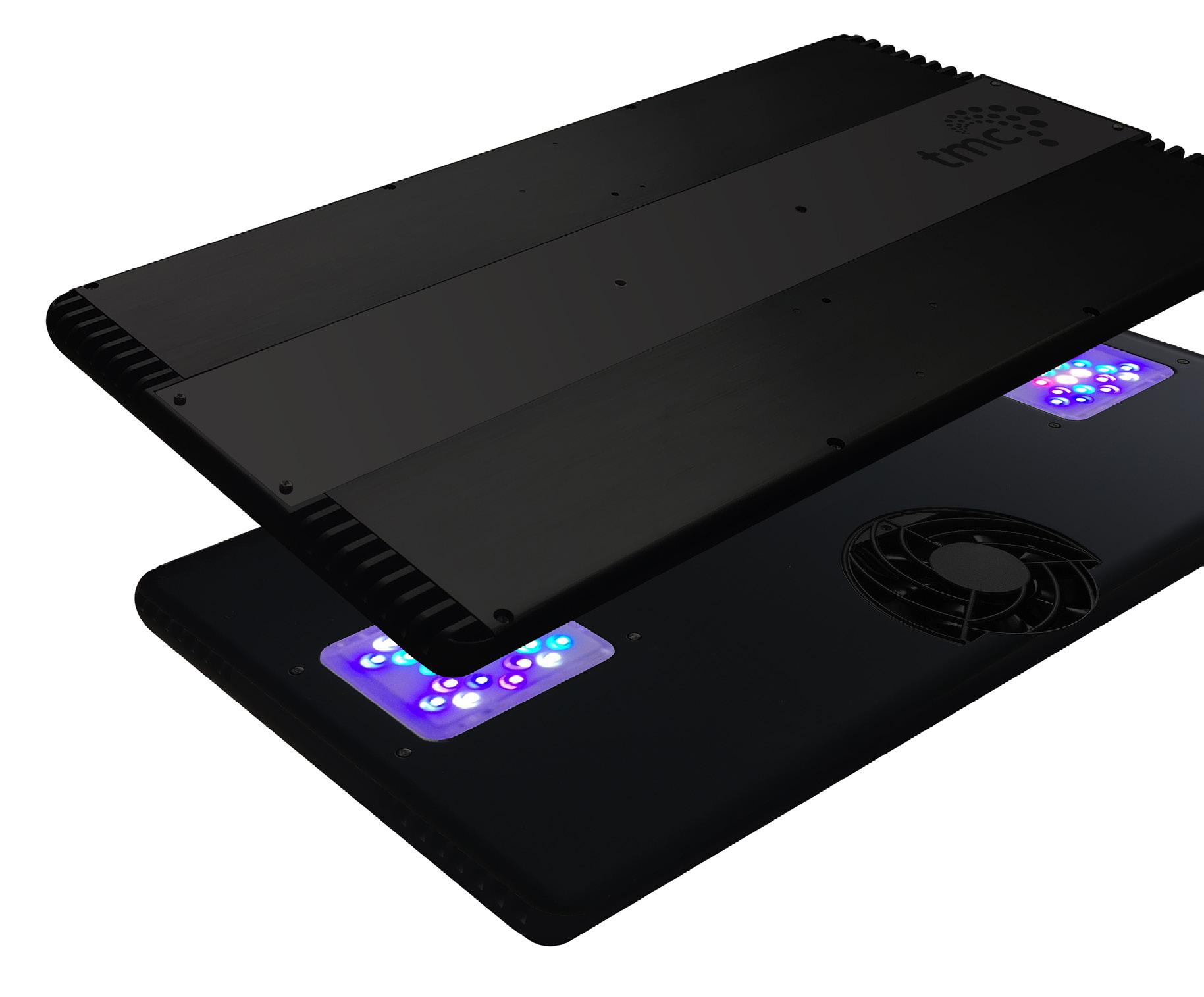

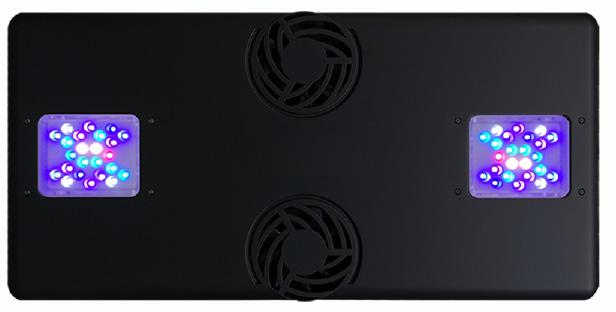

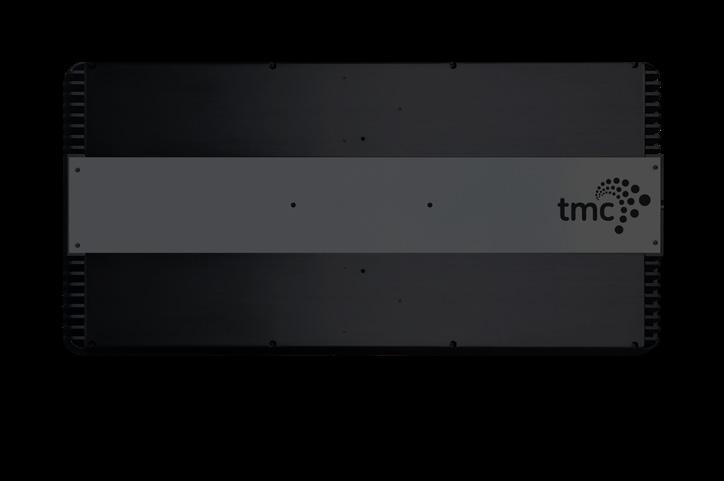

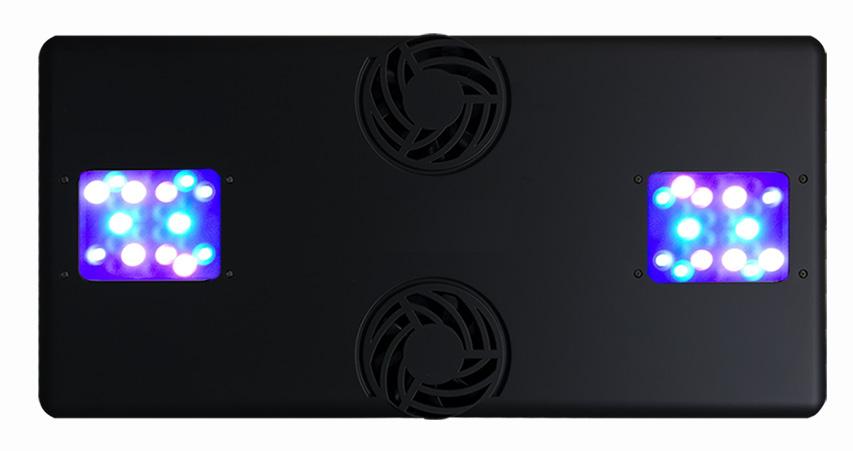

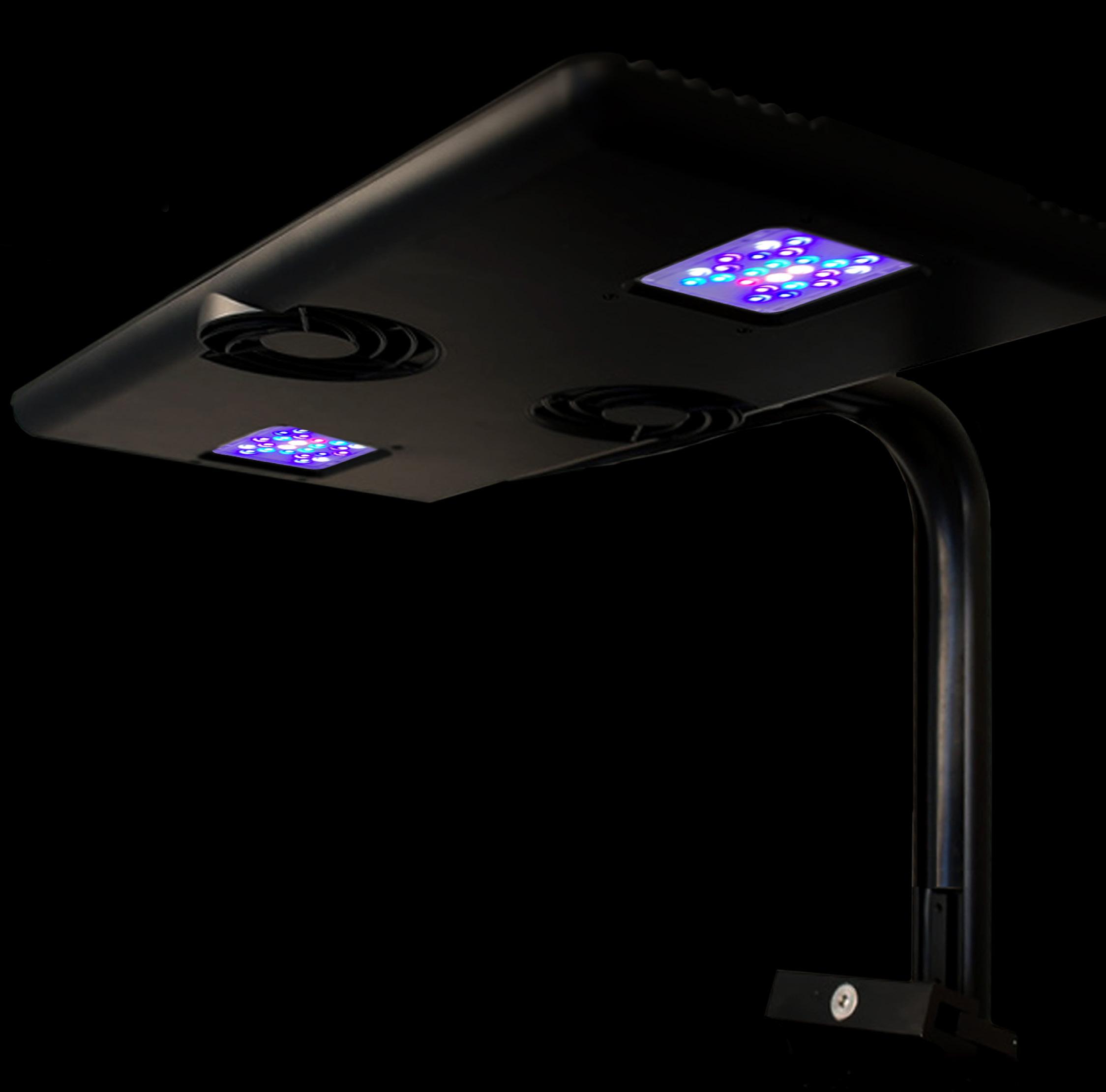

Reef Pulsar
Slim Design & Ultra High Output
For Optimal Lighting Environment 6 or 8 Channels
Code: 9265 LPS 6
Code: 9267 SPS 8
• Full spectrum, reef-capable lighting.
• Unique, aspherical optics offer even colour blending.
• Whisper-quiet, thermally controlled and IP55 splashproof fans.
• Uses the latest Osram LEDs to ensure stable quality and maximum light output.
• Built-in bluetooth, for easy control and programming via the app.
• Six (LPS-6) or Eight (SPS-8) individually adjustable channels.
• Multiple lights can be paired and synchronize with the app.
Designed for modern reef aquaria

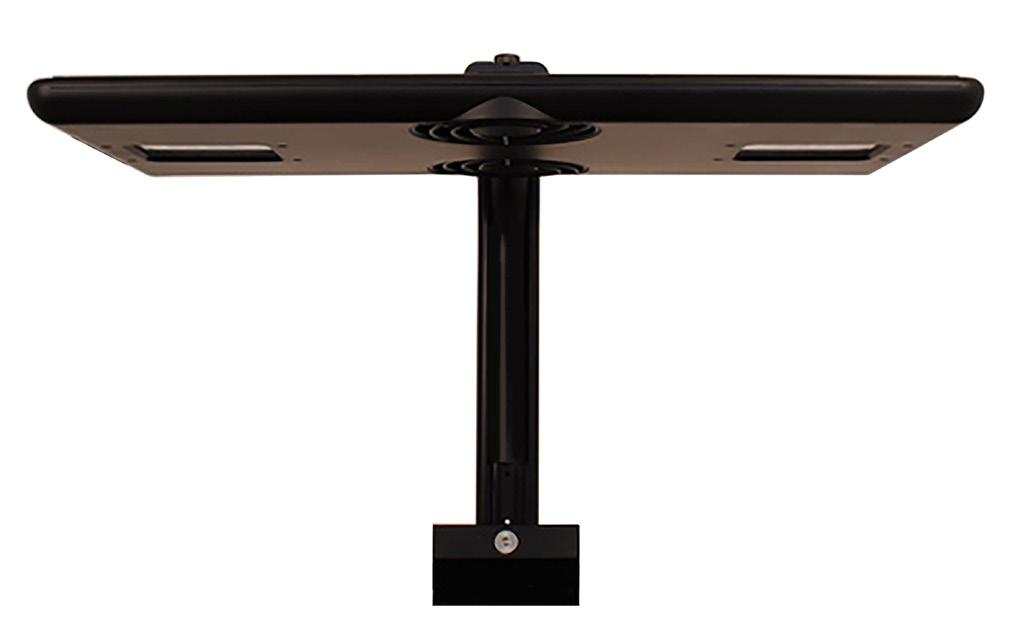

Solid anodised aluminium mounting bracket included
Suitable for glass thicknesses of 8mm + Multiple lights can be paired and synchronize with the TMC Link app
Link
TMC
Spectrally tuned to meet the needs of deep and shallow water reef species
6 OR 8 CHANNELS ULTRA HIGH OUTPUT FOR OPTIMAL LIGHTING ENVIRONMENT
WHISPER-QUIET, THERMALLY CONTROLLED AND IP55 SPLASHPROOF FANS
Model LPS-6*
Code:9265 SPS-8* Code:9267
Weight 1.2kg 1.2kg
Weight incl. Bracket 1.85kg 1.85kg
Total Power Consumption 107W 164W
Total Luminous Flux 4320lm 8536lm
PSU Voltage/Power 100-240V 50/60Hz
Optimum Aquarium
Minimum
*-EU codes should be selected for EU market due to plug specifications

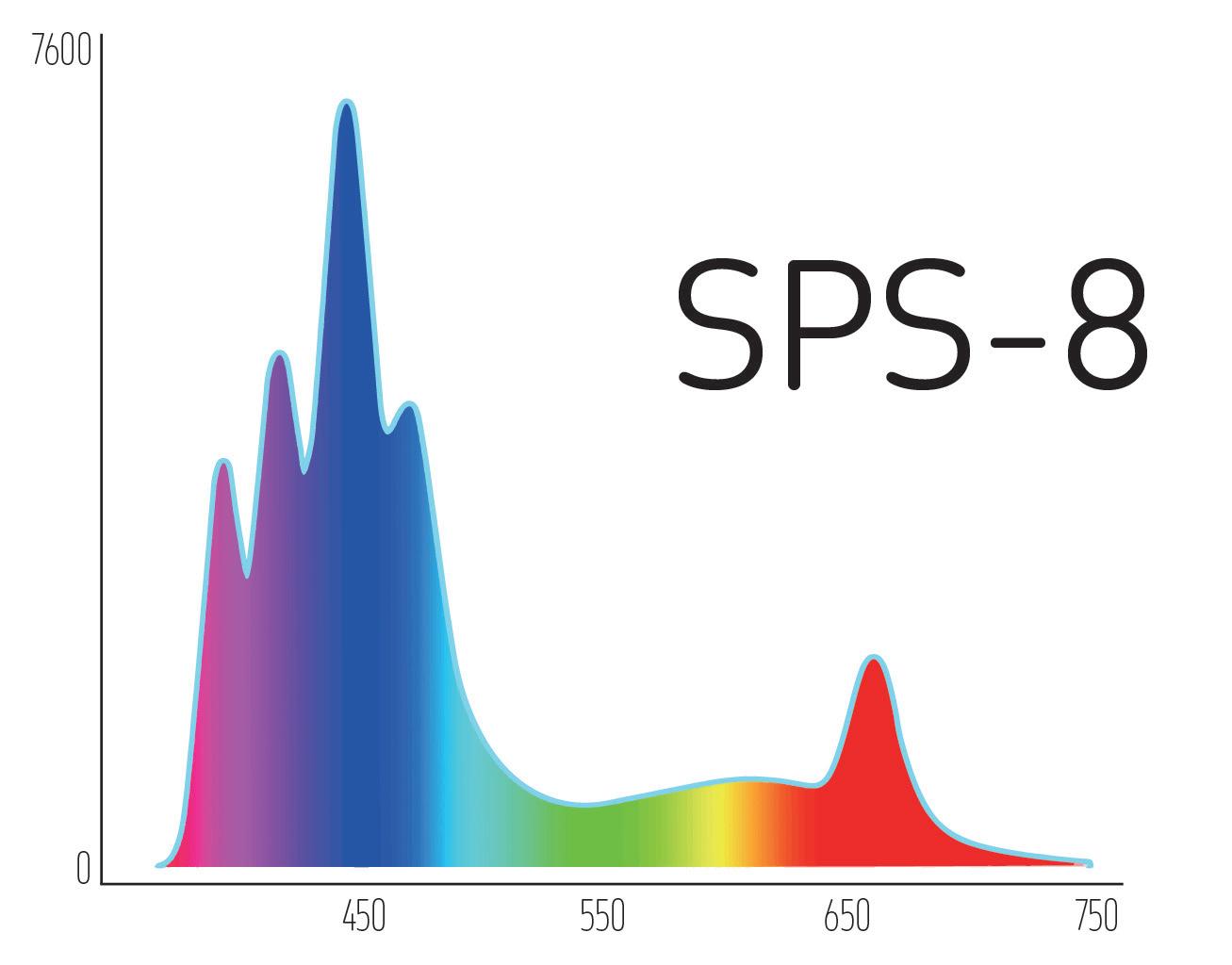

The SPS-8 offers higher level of control (8 channels) and higher PAR levels with the inclusion of more warm whites and red to mimic the light on the shallow reefs of the tropics.
CH1 6500K / 3000K R a95
CH2 450nm
CH3 470nm
CH4 505nm
CH5 420nm
CH6 400nm
LARGE POLYP STONY CORALS & SOFT CORALS

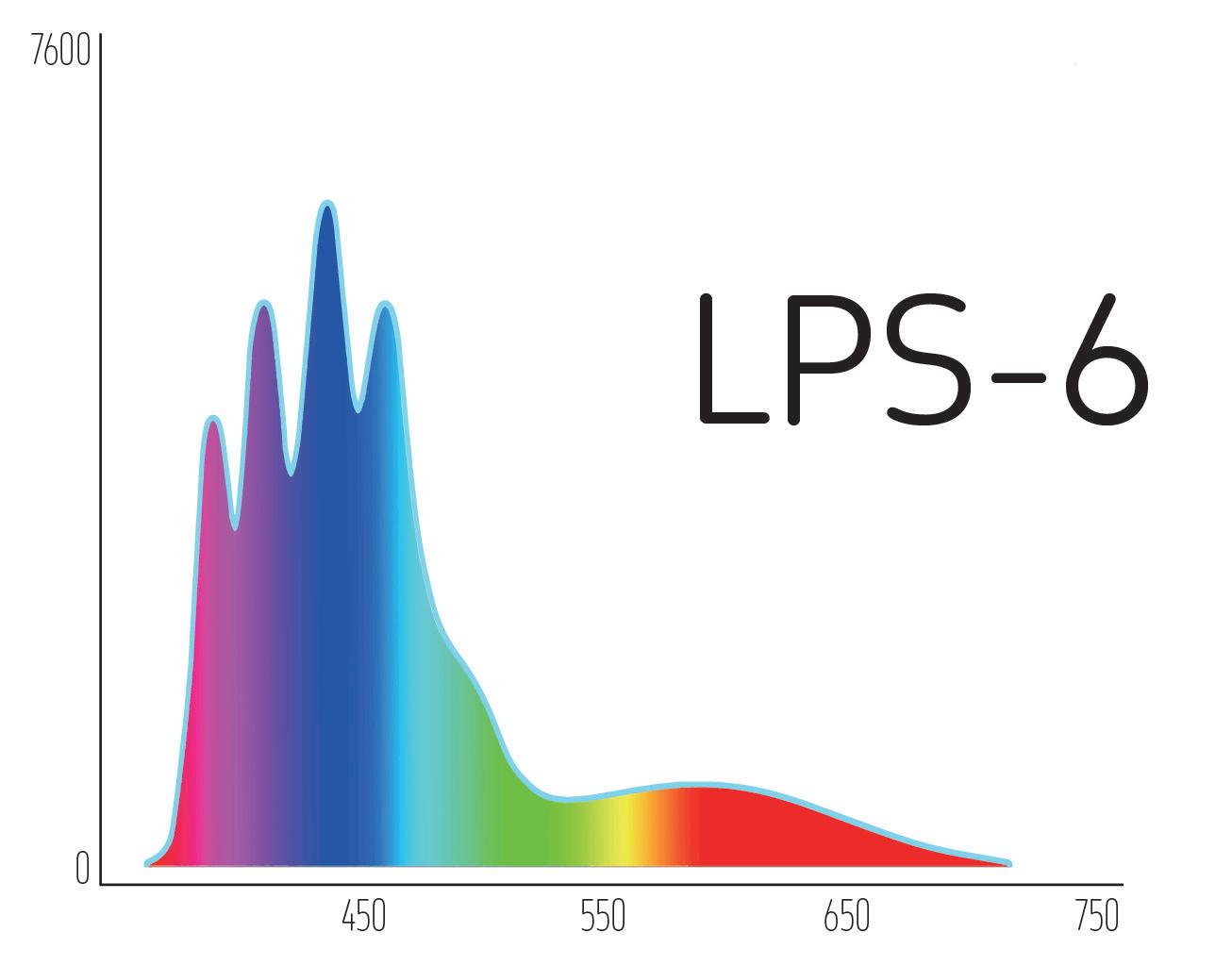

The LPS-6 has 6 channels of control with a bluer spectrum and lower maximum light output for animals that live deeper in the reefs (10m+).
The SPS-8 offers higher PAR levels to mimic the light on the shallow reefs of the tropics.

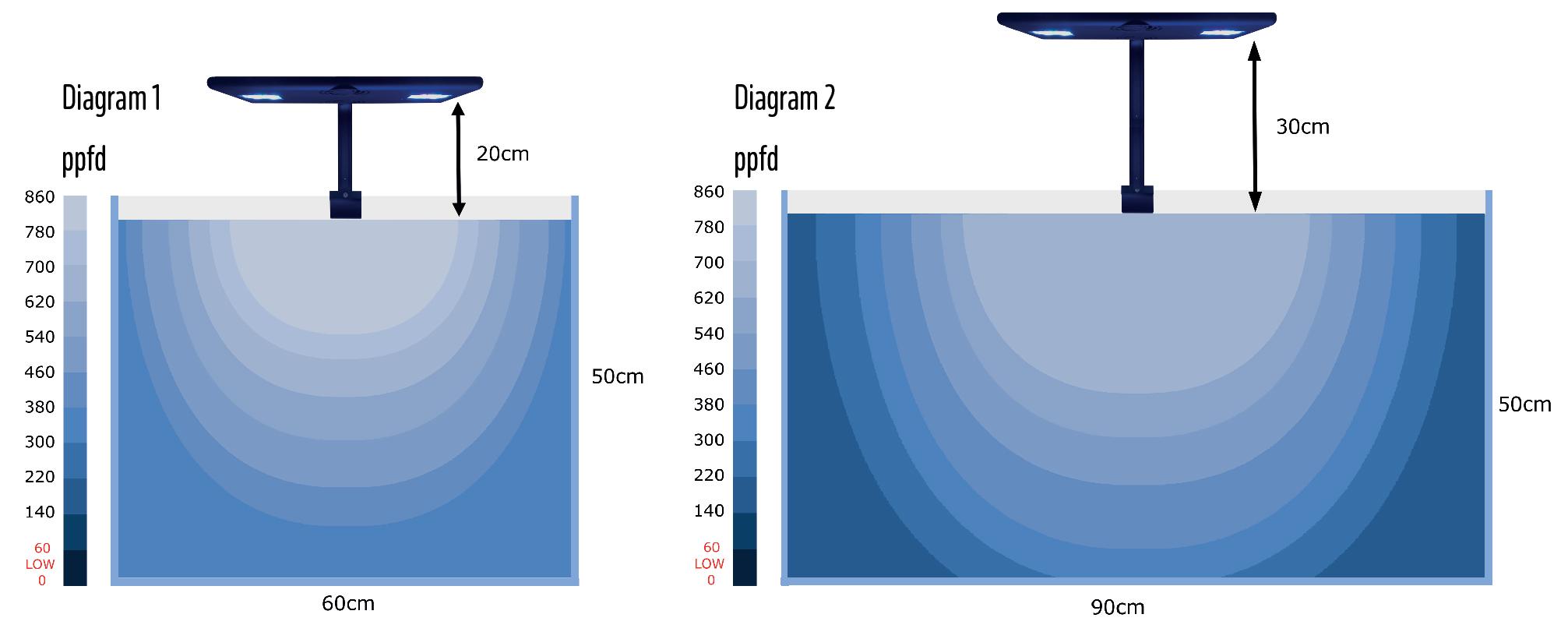

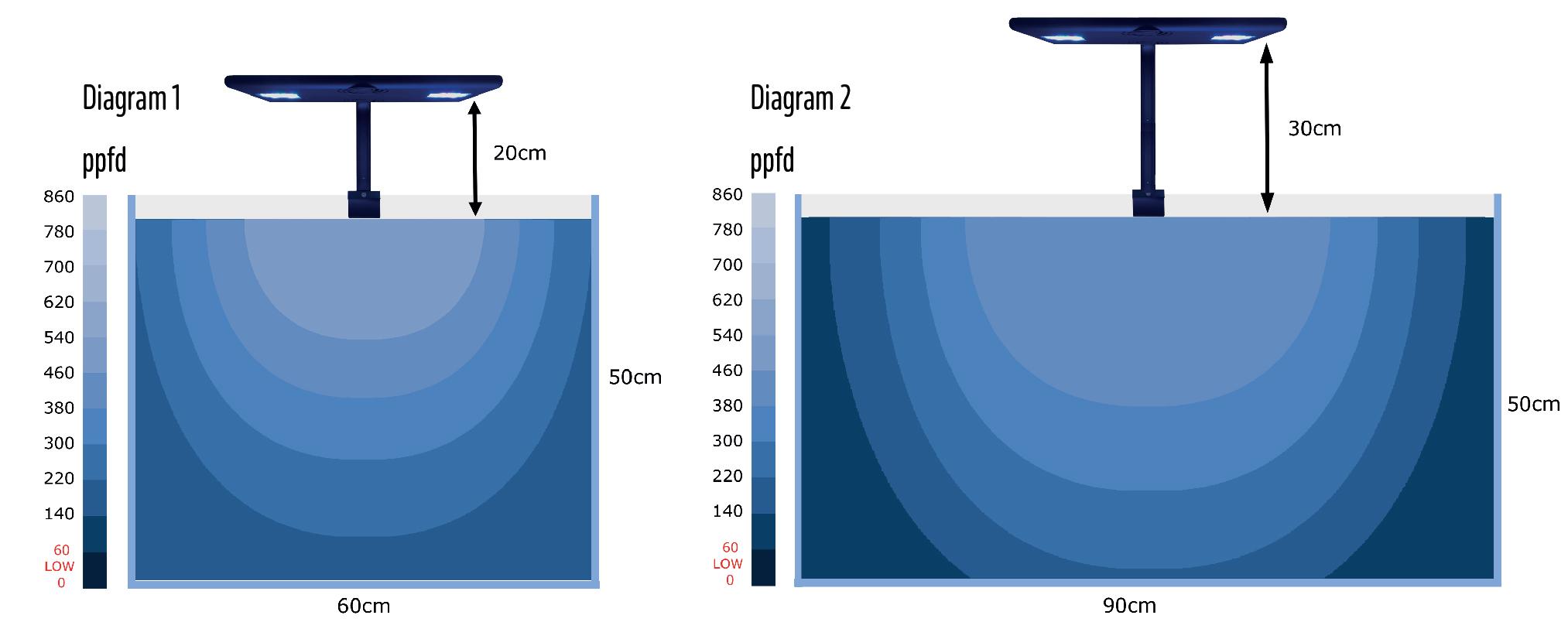

Diagram 1: tank size 60cm x H50cm
Diagram 2: tank size 90cm x H50cm
The LPS-6 offers a lower maximum light output specific for animals that lives deeper in the reef at 10m or more.
Diagram 1: tank size 60cm x H50cm
Diagram 2: tank size 90cm x H50cm

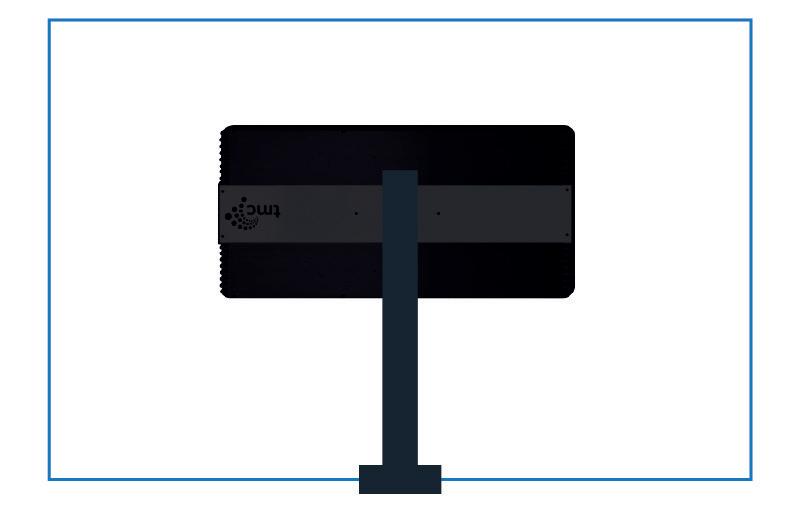

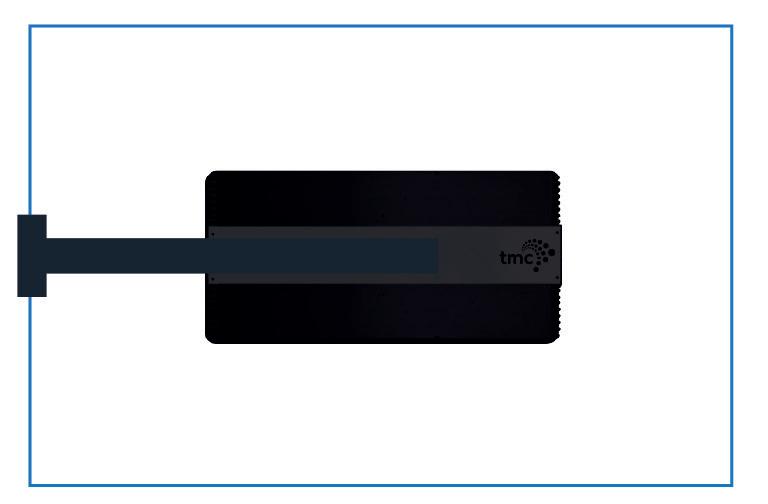

TWO MOUNTING OPTIONS
to suit your preference and aquarium’s needs
Dimensions
Not suitable for mounting in aquarium hoods
Suspension kit available - sold separately
Mimic light spectrum based on depth of ocean water

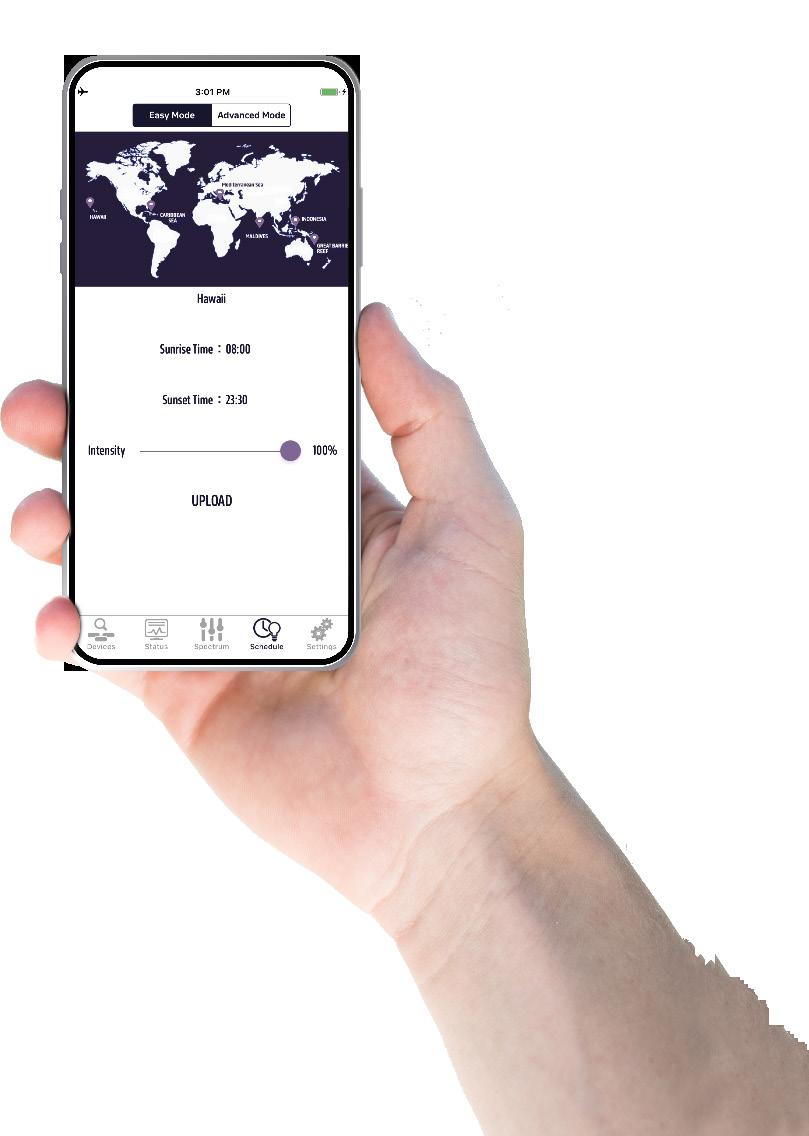

Automatically programs lights based on reef location
Acclimation mode to allow corals to slowly adapt to their new lighting enviroment
Advance mode to send unique lighting program
Review 24 hour program in 1 minute
Colour Control
Create a unique QR code to share your ligh setting
Cloud simulation with adjustable probability
Storm simulation with adjustable probability
TMC Link
Highly Optimised Smart Reef LED
P5 & P9
• Fully Optimised High PAR Reef LED.
• Built in Wi-Fi, for easymcontrol and programming using FAViA, TMC’s ecosystem app.
• Specially designed ultra-clear glass optics provide excellent colour blending and consistent light distribution.
• Fully programmable including 10 pre-set lighting modes developed for optimal coral growth, coloration and fluorescence.
• Built in timing and dimming with a range of effects included.
• Minimalist design incorporating a whisper-quiet thermally controlled fan.
• Three individually adjustable channels spectrally tuned for reef tanks by independent coral researchers.
• Supplied with adjustable aquarium mounting bracket for easy installation.
Model P5* Code: 9290 P9* Code: 9291
Max Power 50W 90W
Voltage 24V 24V
Max amp. 2.12A 4A
PSU Voltage 100-240V 50/60Hz 100-240V 50/60Hz
Total Lum. Flux (lm) 3000lm 5000lm
Dimensions 13 x 13 x 2.5cm 13 x 13 x 2.5cm
*-EU codes should be selected for EU market due to plug specifications

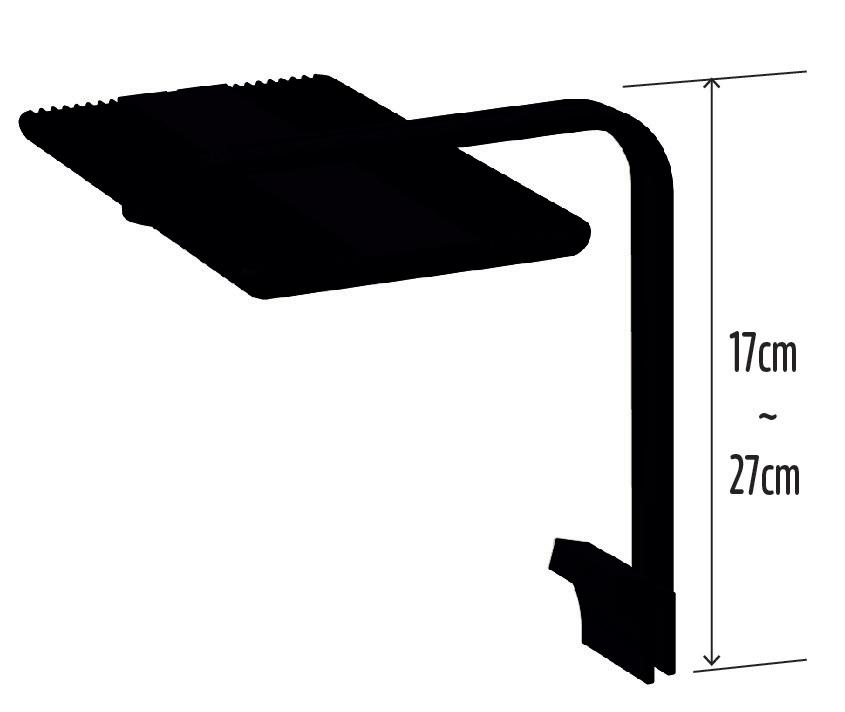

Supplied with adjustable aquarium mounting bracket for easy installation

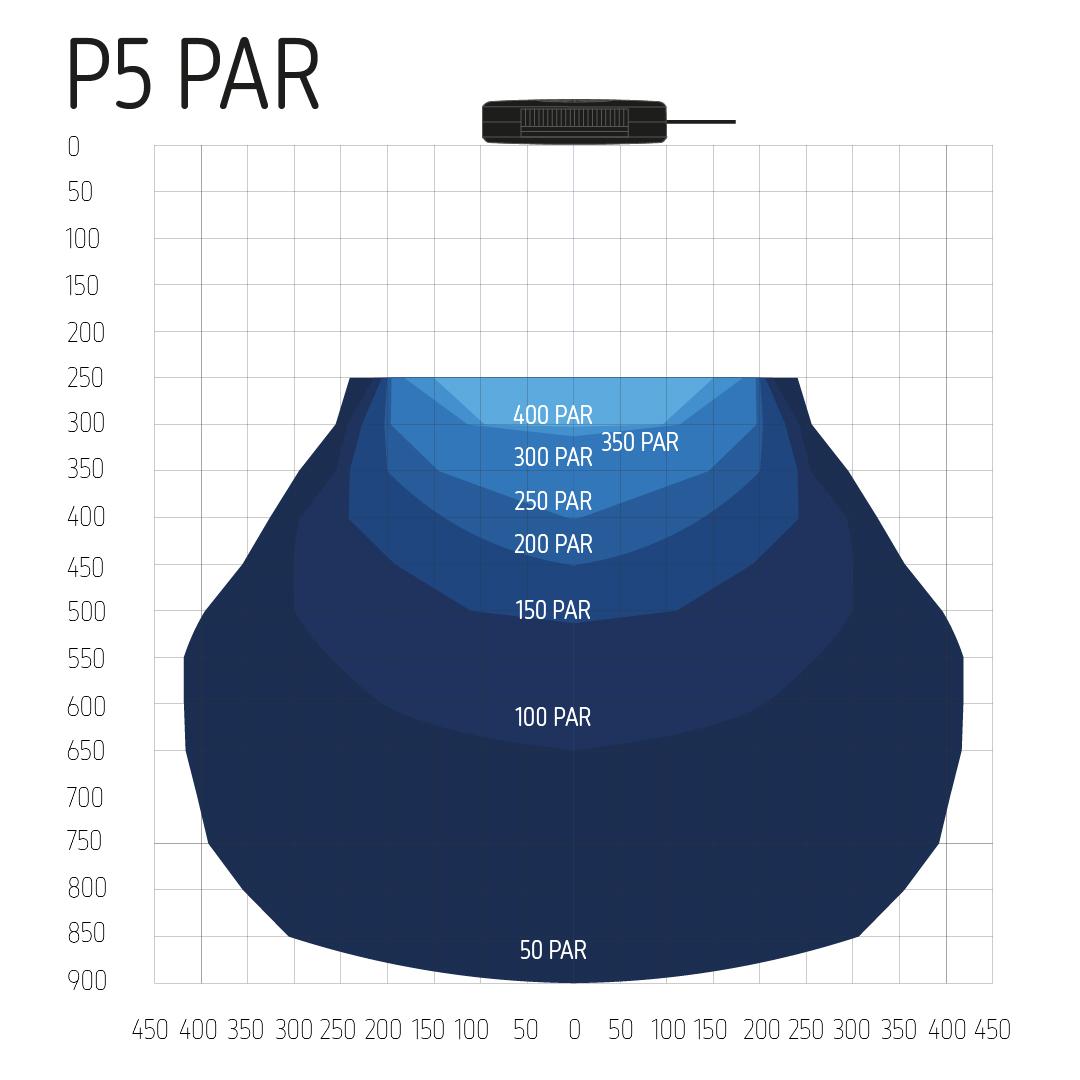

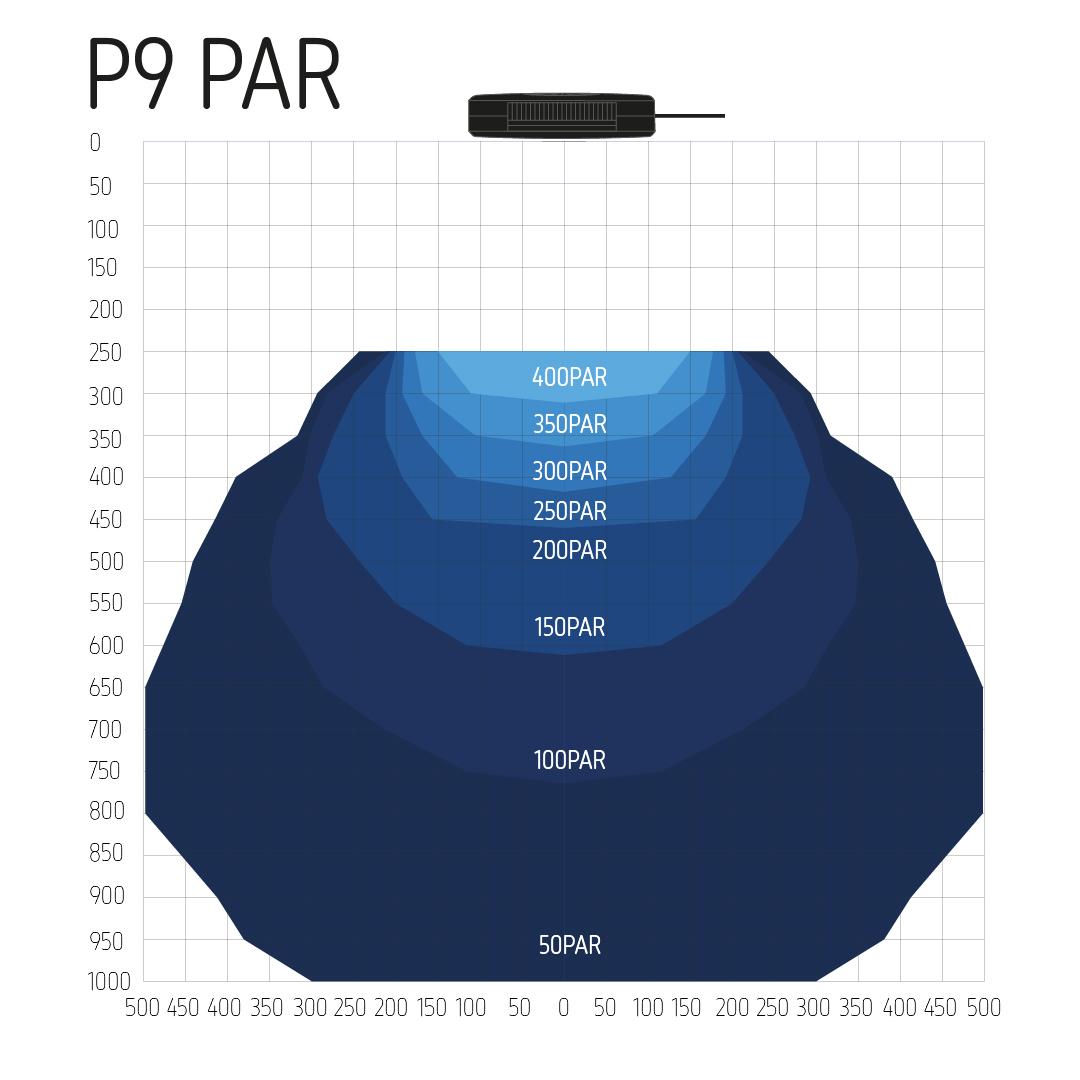

LED, Spectra and PAR
Reef Daylight 9000-10000K
White to mimic the intense sunlight of the tropics.
Specially designed ultra-clear glass optics provide excellent colour blending and consistent light spread.
AquaRay offers three individually adjustable channels spectrally tuned for reef tanks by independent coral researchers:

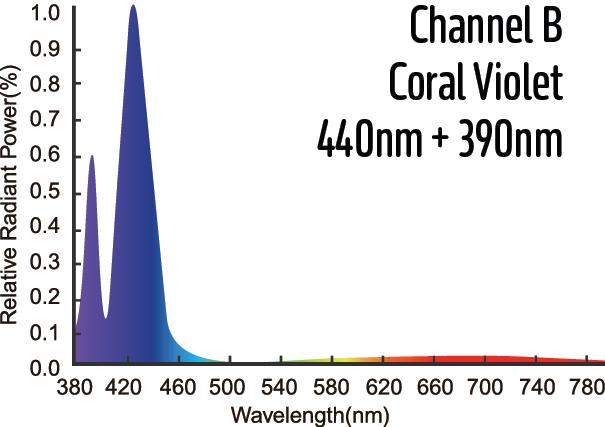

Coral Violet 440nm + 390nm

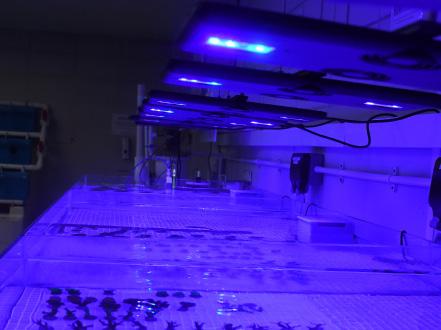

Developed in partnership with independent coral research labs, this spectrum is proven to positively affect coral pigmentation and fluorescence.
Blue 450nm
The perfect blue to stimulate fantastic displays of coral fluorescence.
Fiji
TMC Link App

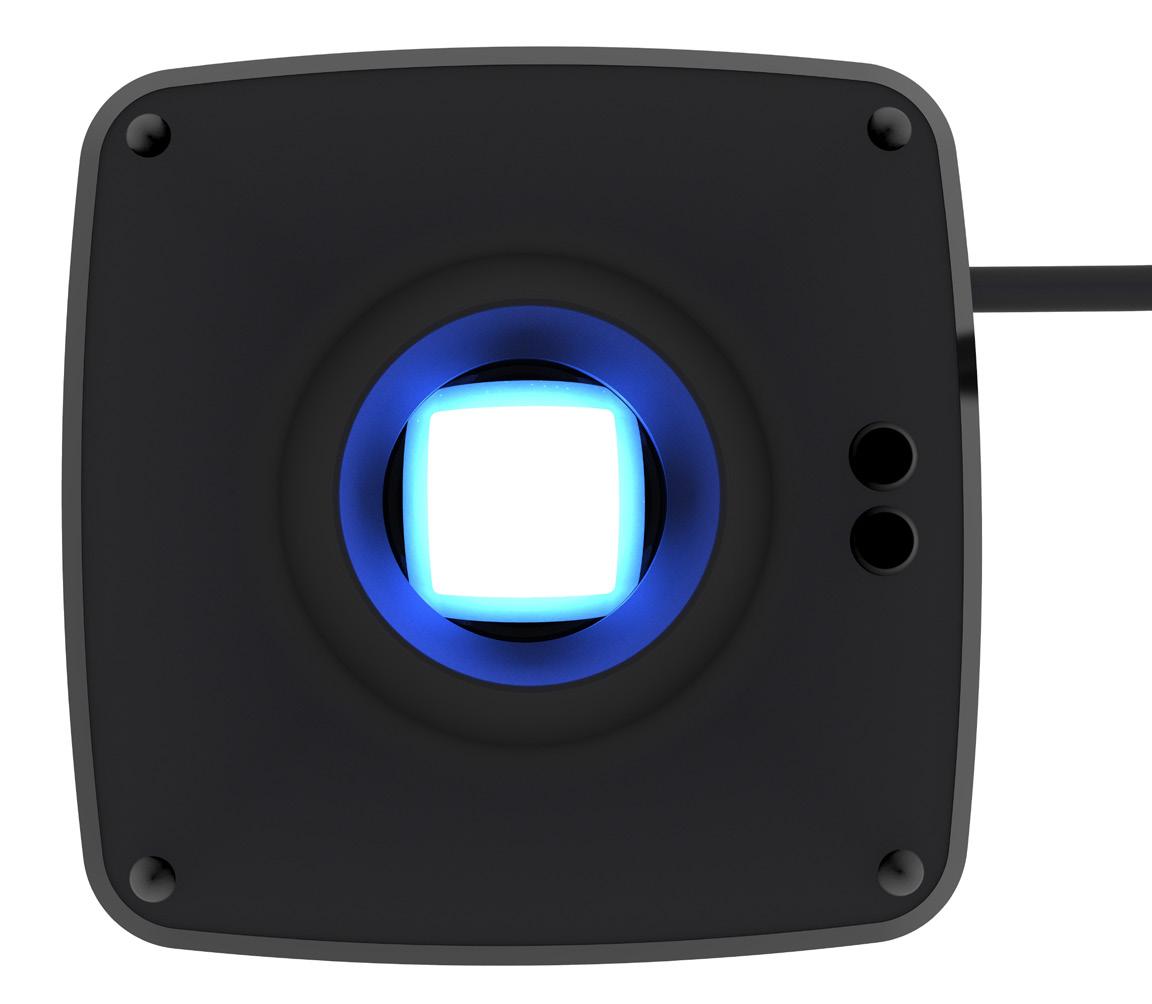

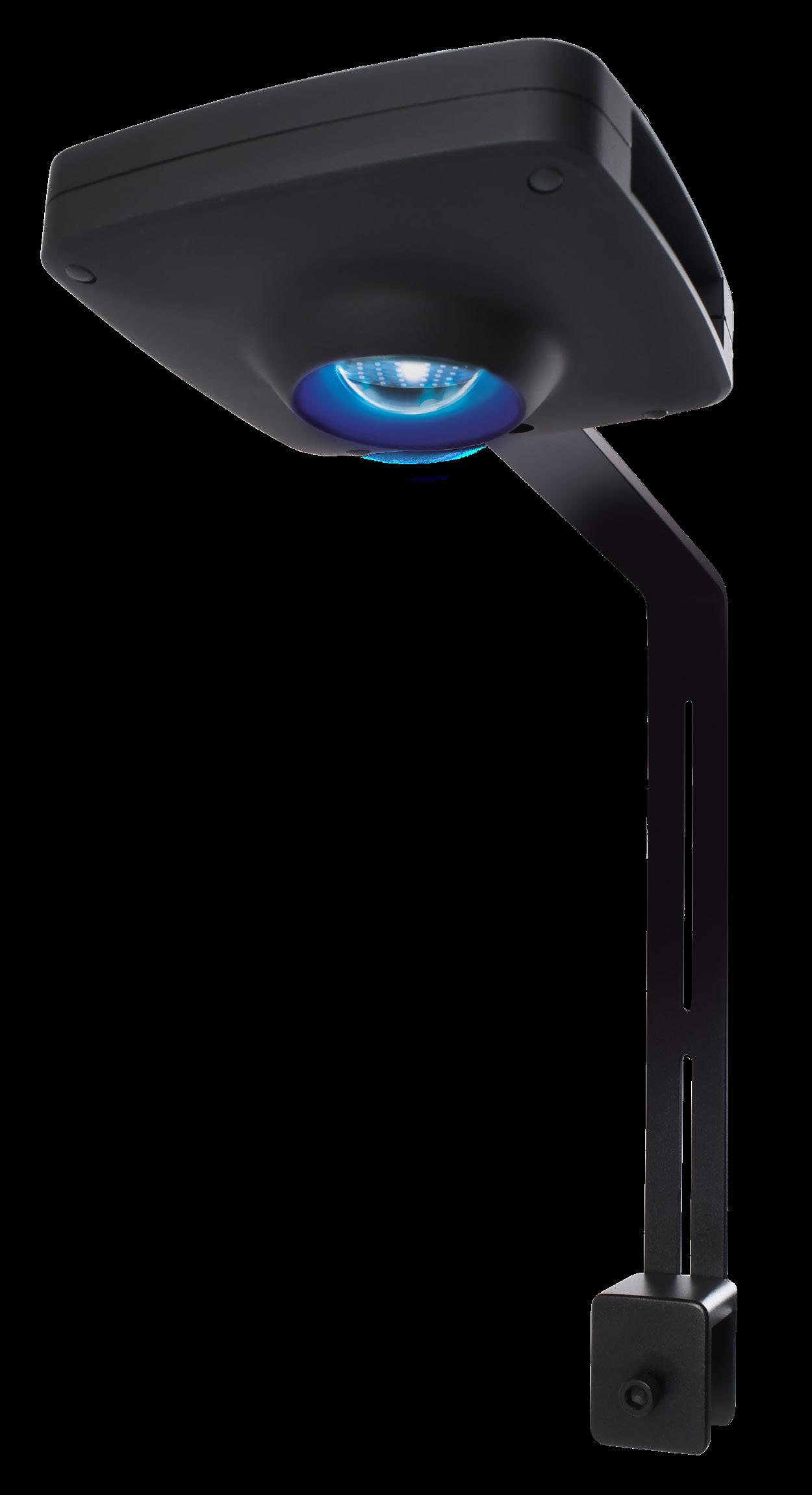

Highly Optimised Smart Reef LED

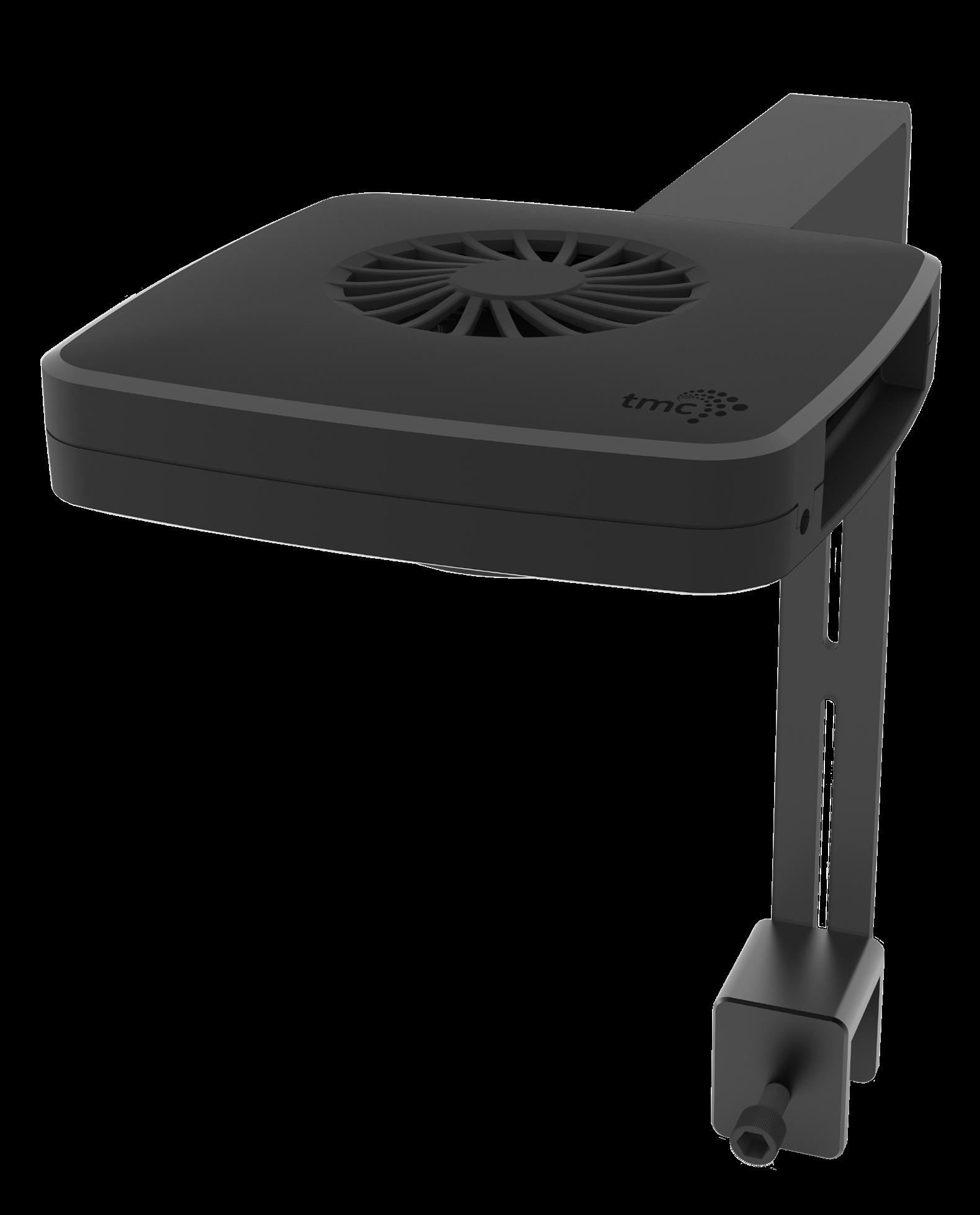

Code: 9302 AquaRay® P2
• Fully Optimised High PAR Reef LED.
• Built in Wi-Fi, for easymcontrol and programming using FAViA, TMC’s ecosystem app.
• Specially designed ultra-clear glass optics provide excellent colour blending and consistent light distribution.
• Fully programmable including 10 pre-set lighting modes developed for optimal coral growth, coloration and fluorescence.
• Built in timing and dimming with a range of effects included.

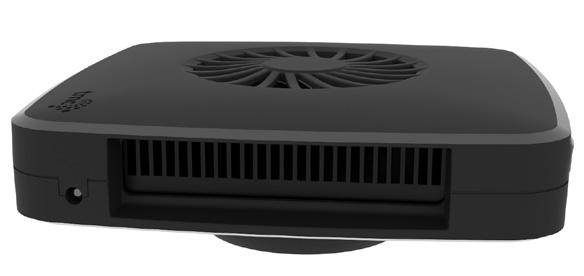

• Minimalist design incorporating a whisper-quiet thermally controlled fan.
• 3 Individually adjustable channels spectrally tuned for reef tanks: Reef Daylight, Coral Violet and Fiji Blue.
• TMC’s exclusive design for the no-nonsense reefkeeper
Designed for modern reef aquaria

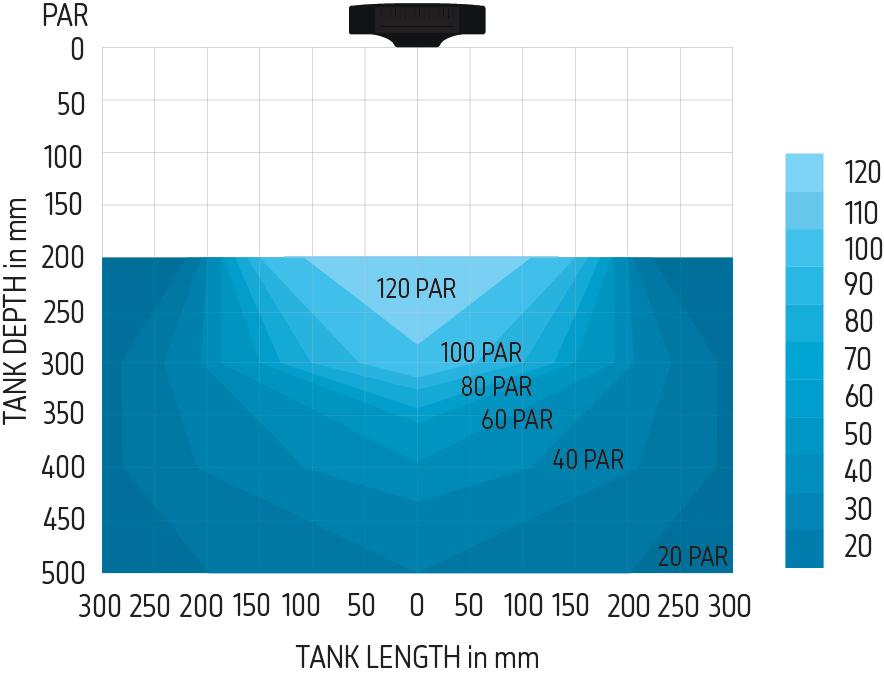

LED, Spectra and PAR

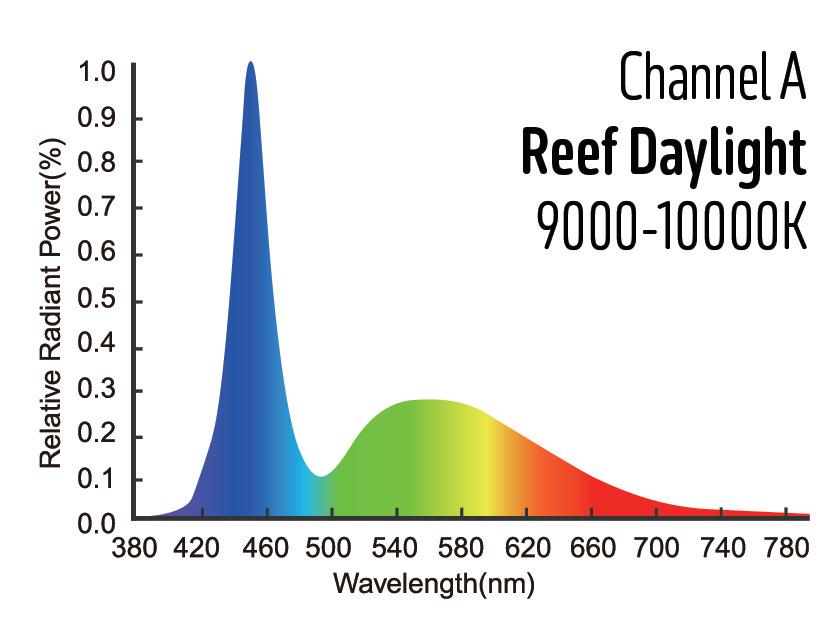

Reef Daylight 9000-10000K
White to mimic the intense sunlight of the tropics.
Specially designed ultra-clear glass optics provide excellent colour blending and consistent light spread.
AquaRay offers three individually adjustable channels spectrally tuned for reef tanks by independent coral researchers:

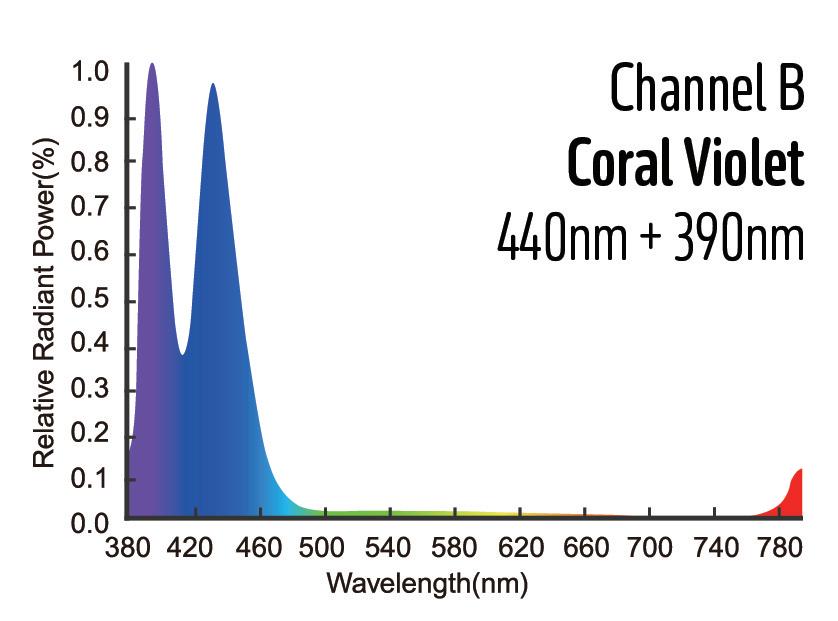

Coral Violet 440nm + 390nm
Developed in partnership with independent coral research labs, this spectrum is proven to positively affect coral pigmentation and fluorescence.

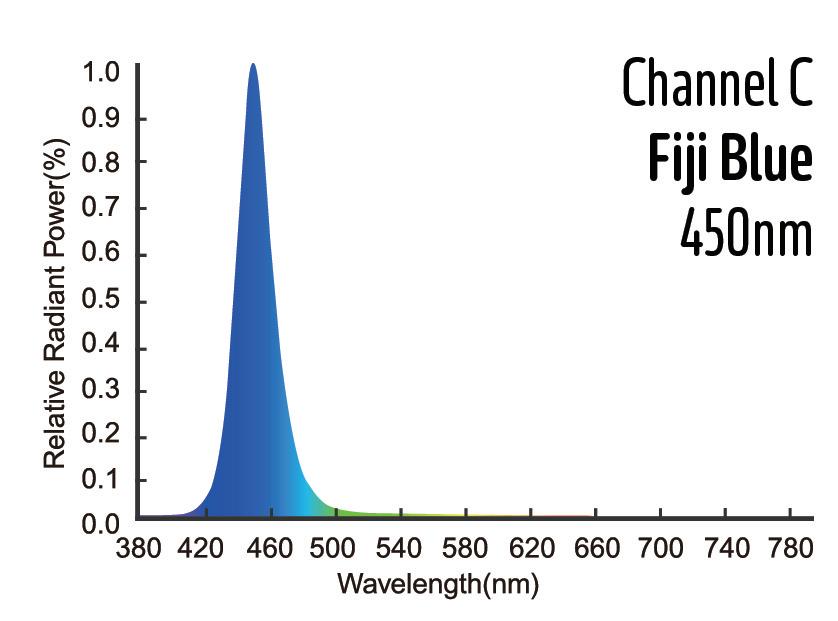

Fiji Blue 450nm
The perfect blue to stimulate fantastic displays of coral fluorescence.
Model
Max Power 24W
Voltage 24V
Max amp. 1A
PSU Voltage 100-240V 50/60Hz
Total Lum. Flux (lm) 1500lm
Dimensions 11.5 x 11.8 x 2.5cm
*-EU codes should be selected for EU market due to plug specifications
Suitable for glass thicknesses of ≥5mm
Not suitable for mounting in aquarium hoods
Fully programmable including presets lighting modes for fantastic coral growth and incredible fluorescence
10 Preset lighting modes to get the most of your aquarium easily
Built in timings and dimming with a range of effects including storm, cloud, sunrise, sunset, twilight and moonlight
Ultra-clear glass optics provide excellent colour blending and consistent light spread
Built in Wi-Fi and easy control via an all-new app ecosystem (iOS & Android)
Whisper-quiet fan incorporating a thermally controlled fan, allowing full enjoyment of your display
Built in Wi-Fi, for easy control and programming using FAViA, TMC’s ecosystem app
Built in timings and dimming with a range of effects including storm, cloud , sunrise, sunset, twilight and moonlight
AUTO CLOUDY
ACCLIMATION FUNCTION LUNAR

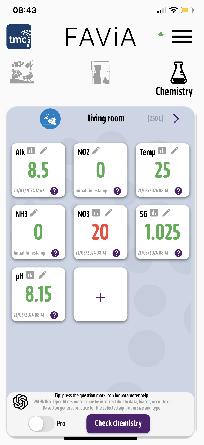

FAViA: The only App you need
FAViA is not just an app... it’s the foundation for an advance monitorning and control ecosystem.
Seamlessly connect and control your aquarium equipment directly from your device.
Adjust lighting, pumps, filtration, and more with precision, ensuring the perfect enviroment for your aquatic friends.*
Future development*** FAViA when paired with a Hub will show you your live parameters (pH, SG, Temperature) and send you push notifications for these. More features will be unlocked for FAViA compatible devices such as more set points for AquaRay lighting schedules, mimicking the weather at a set location or even controlling the equipment anywhere in the world (as long as there is an internet connection with FAViA and the Hub)
