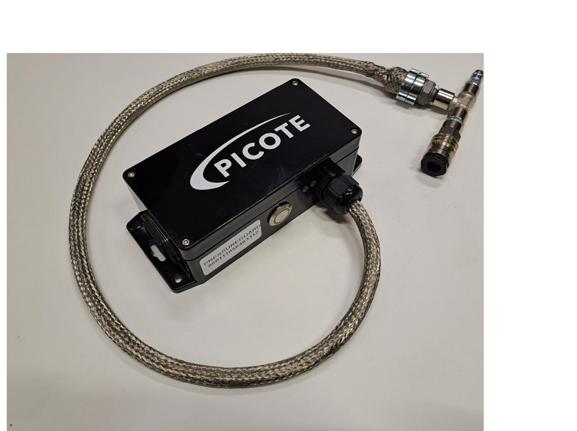

Vericure Curing Monitoring System (CMS)
The CMS constantly monitors the temperature of a liner throughout the curing process, producing a thoroughly cured, data-validated liner . It identifies potential issues in real time, improving quality control and reducing labour, equipment & fuel costs.
Scan the QR Code to find out more.
Editor’s Welcome
Austen Lees
PUBLISHER
Paul Harwood pharwood@westrade.co.uk
EDITOR
Austen Lees editorial@trenchless-works.com
MANAGING EDITOR
Leigh Abbott labbott@westrade.co.uk
SALES DIRECTOR
Trevor Dorrell tdorrell@westrade.co.uk
DESIGN & PRODUCTION
Ioan Lucian Sculeac lucian@westrade.co.uk
CHINESE AGENT
Lexi Di lexi.di@bestexpo.cn
COPYRIGHT
Trenchless Works is published 12 times a year by Westrade Group Ltd I Carotino House| Bury Lane I Rickmansworth I WD3 1ED I UK
Contributions: Contributions are invited and articles should be emailed to editorial@trenchless-works.com. No responsibility can be taken for drawings, photographs or written contributions during delivery, transmission or when with the magazine. In the absence of an agreement, the copyright of all contributions, regardless of format, belongs to the publisher. The publishers accept no responsibility in respect of advertisements appearing in the magazine and the opinions expressed in editorial material or otherwise do not necessarily represent the views of the publishers. The publishers accept no responsibility for actions taken on the basis of any information contained within this magazine. The publishers cannot accept liability for any loss arising from the late appearance or non-publication of any advertisement for any reason whatsoever. ISSN 2049-3401
Firstly, I just wanted to say a big thank you to everyone who supported our NoDig Roadshow in Reading this month. We’ll include a full write up in the July issue, but it was the perfect ‘pick me up’ following another rather lacklustre England performance in the Euros the night before. It would be remiss not to make a special mention of SES Water, Thames Water and Wessex Water together with all our sponsors for their support.
In this issue you can read about FFRP vs. CIPP in trenchless rehabilitation, a fascinating article from Nuflow, Primus Line also feature detailing their overland piping system for a German paper mill, and Bodenbender renovate 250-year-old pipes in a world heritage site. Another great article is by Herrenknecht Tunnelling Machinery (HTM), in China on page 36 where a machine of this diameter has only been used twice before in the history of tunnelling!
In the Trenchless Asia feature on page 66, you hear from Michael
Wong at Pipesolution Inc who gives great insight into the rapidly developing trenchless market in the Philippines and wider South East Asian region. Sponsoring the event and impressing on visitors with their HDD rigs live at Trenchless Asia, Vermeer, Drillto, XCMG and DCI, are also featured, as well as news about the bespoke training programme delivered by JBP Trenchless Training. Trenchless Asia is on next month, and not one to miss! Stay up to date with the event online via our social media and Trenchless Works news.
Finally, just a reminder that we are always on the lookout for opinion, thought leadership and unique content from the trenchless and underground utilities sectors. If there’s an issue you’d like to talk about, please just drop me a line and we’ll do our best to include you in an upcoming edition.
Austen
To submit editorial for Trenchless Works next issue please email copy and images to: editorial@trenchless-works.com by the 12th of the month. Submissions arriving after this date cannot be guaranteed inclusion in that month’s issue. For Trenchless Works sponsorship and advertising rates please email: tdorrell@westrade.co.uk
ARTICLE
Editor’s Welcome
NEWS
Thames Water wins share of £40m in Ofwat’s latest Water Breakthrough Challenge
Jet Aire project awarded Ofwat funding
ProKASRO confirms Australasian service facility
Vision for growth
New hire for Primus Line

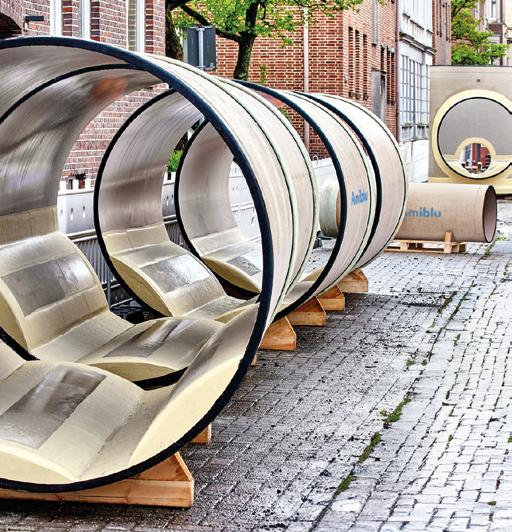

PIPELINE REHABILITATION
Soaring through options
New overland piping system for German paper mill
Trenchless in a world heritage site
Shining a bluelight on LED system technology
TUNNEL BORING

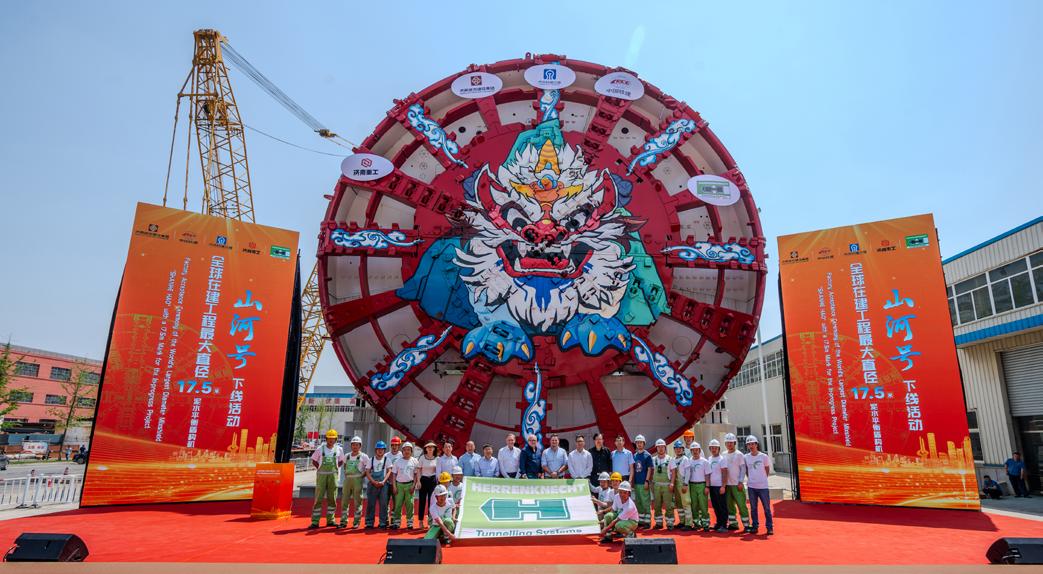

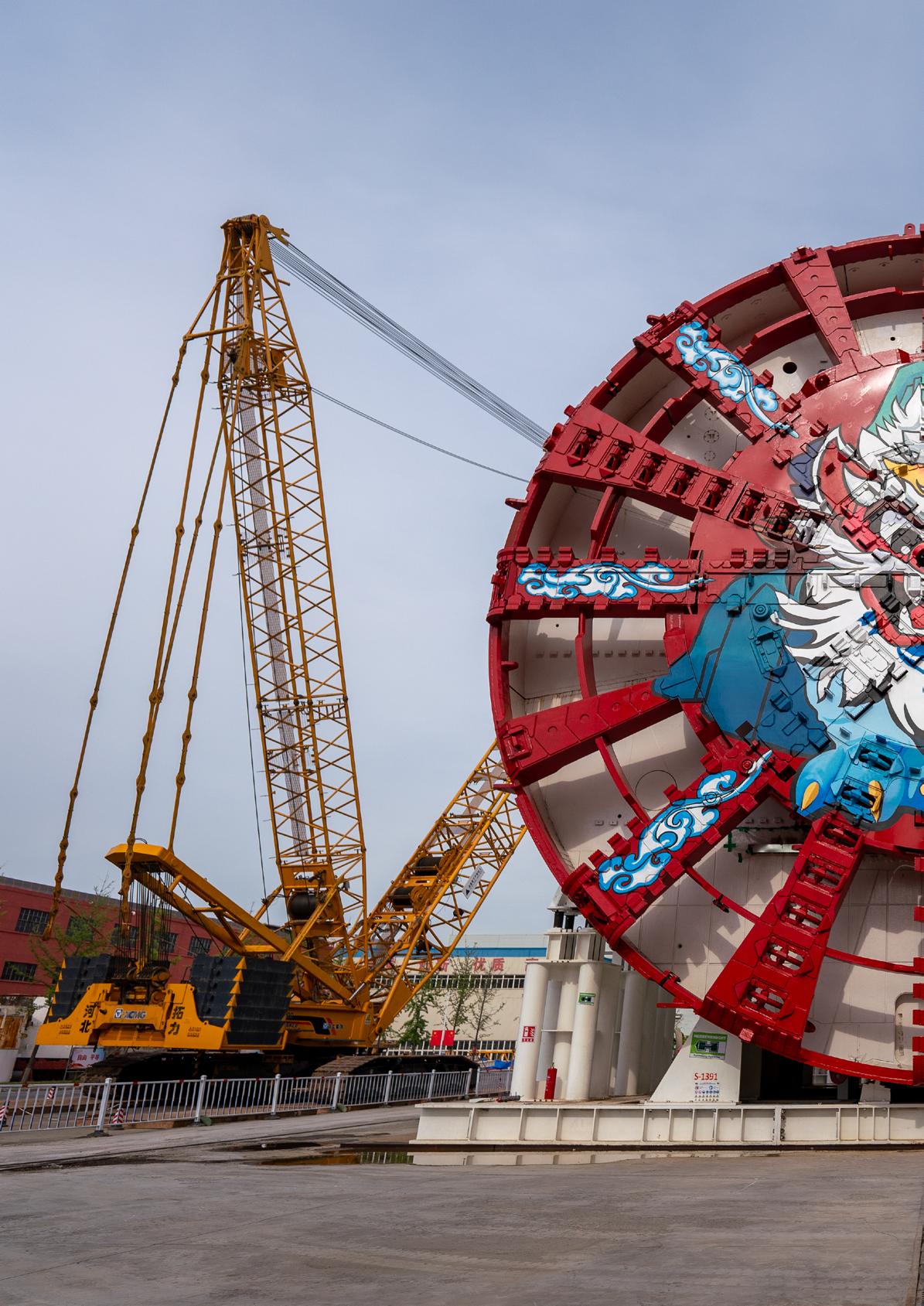

HERRENKNECHT mega project in China
TUNNELLING

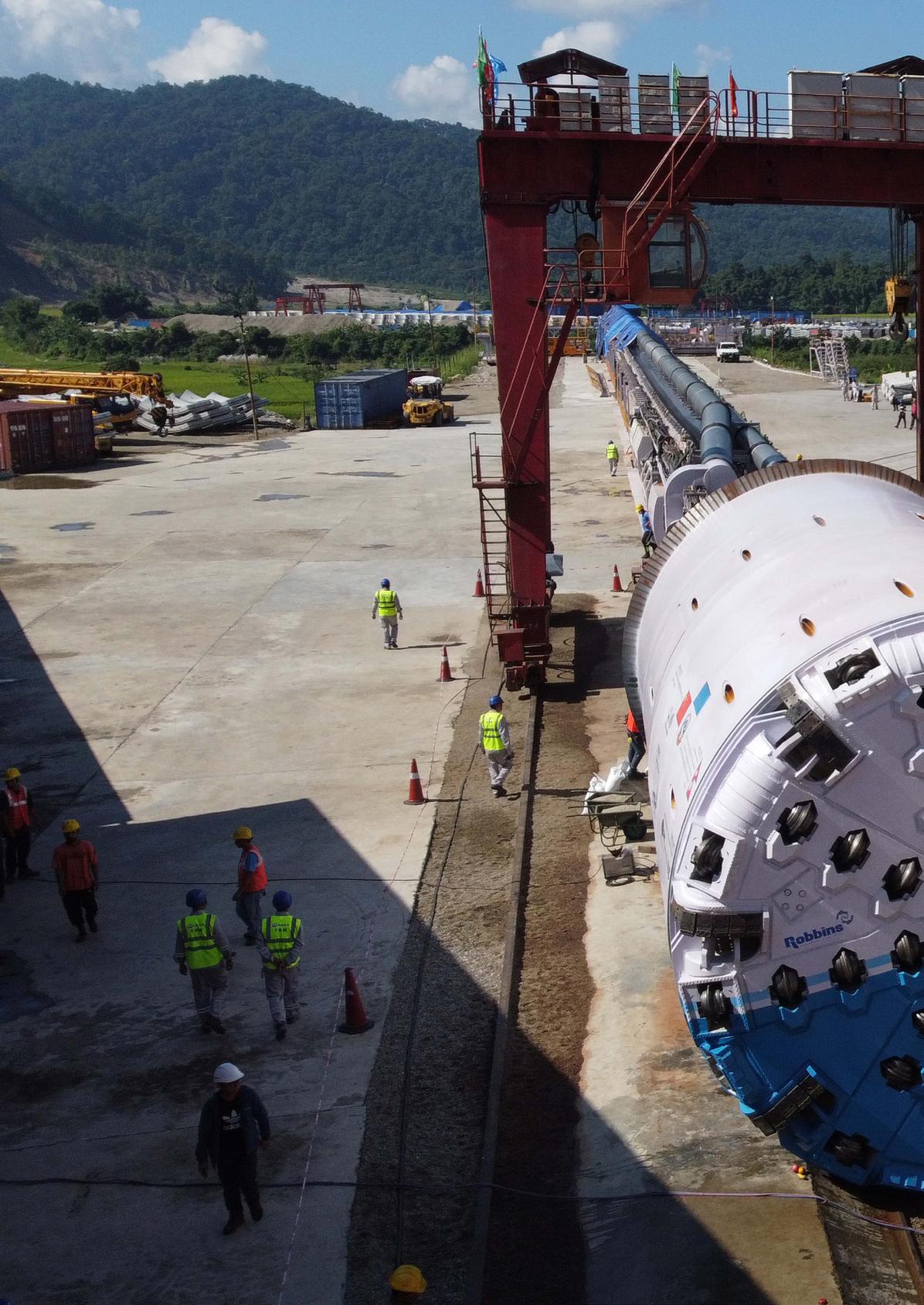

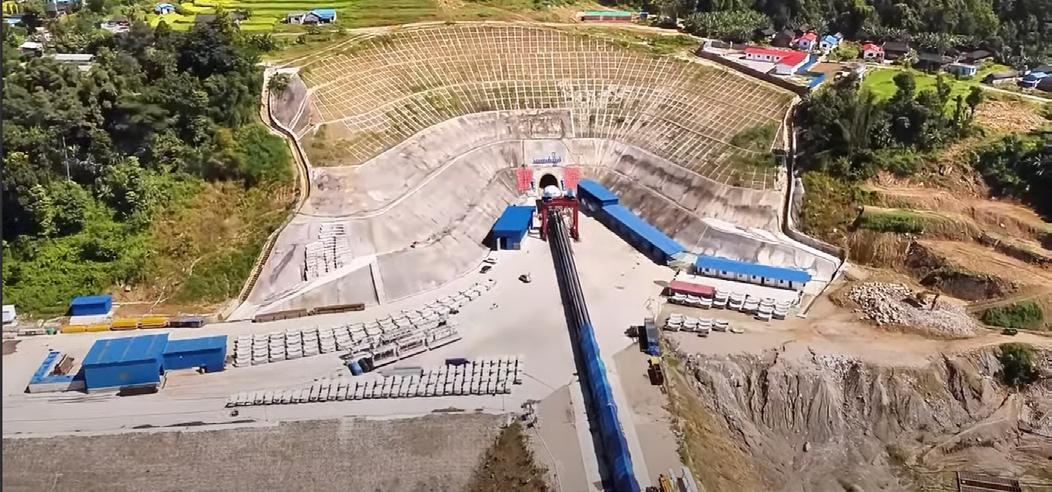

Swift Robbins TBM breaks through 11 months early in Nepal

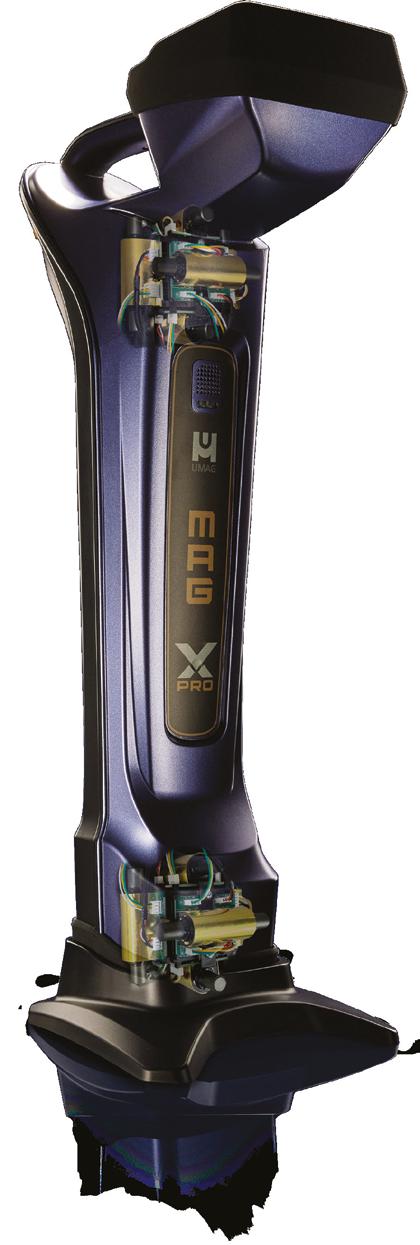

SUPPORT EQUIPMENT
The inspect before invest approach
Jersey Trenchless revolutionises infrastructure inspections

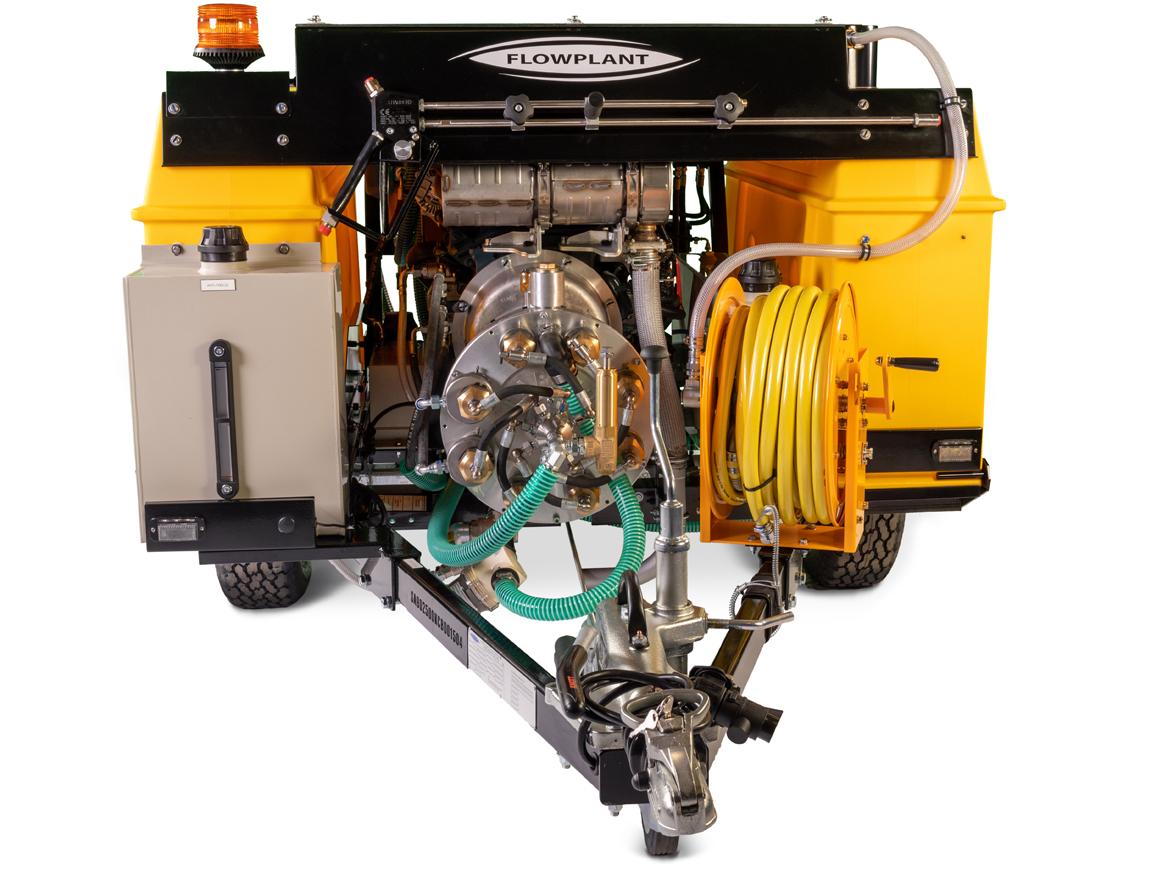

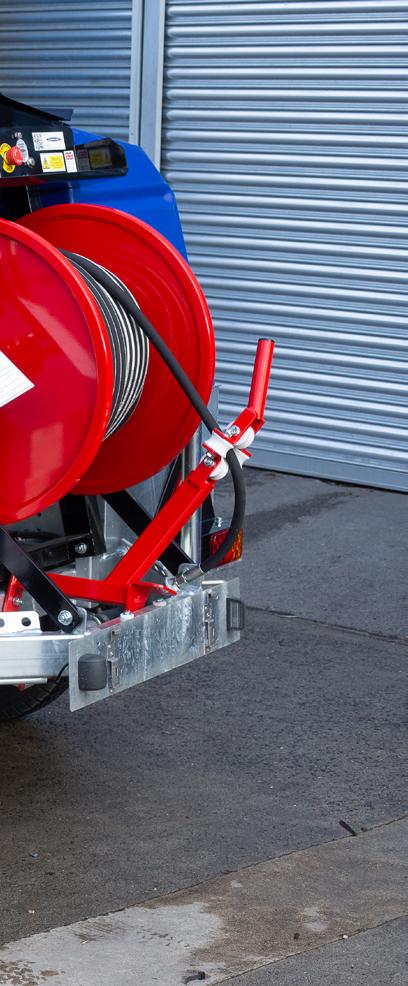

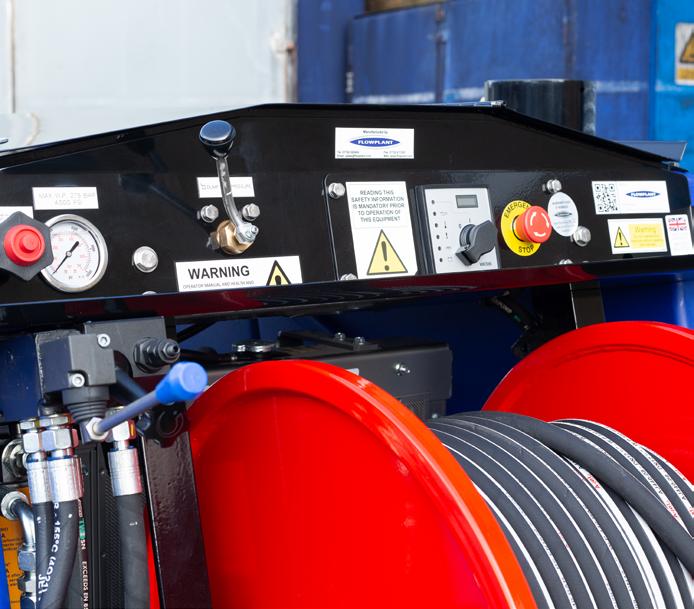

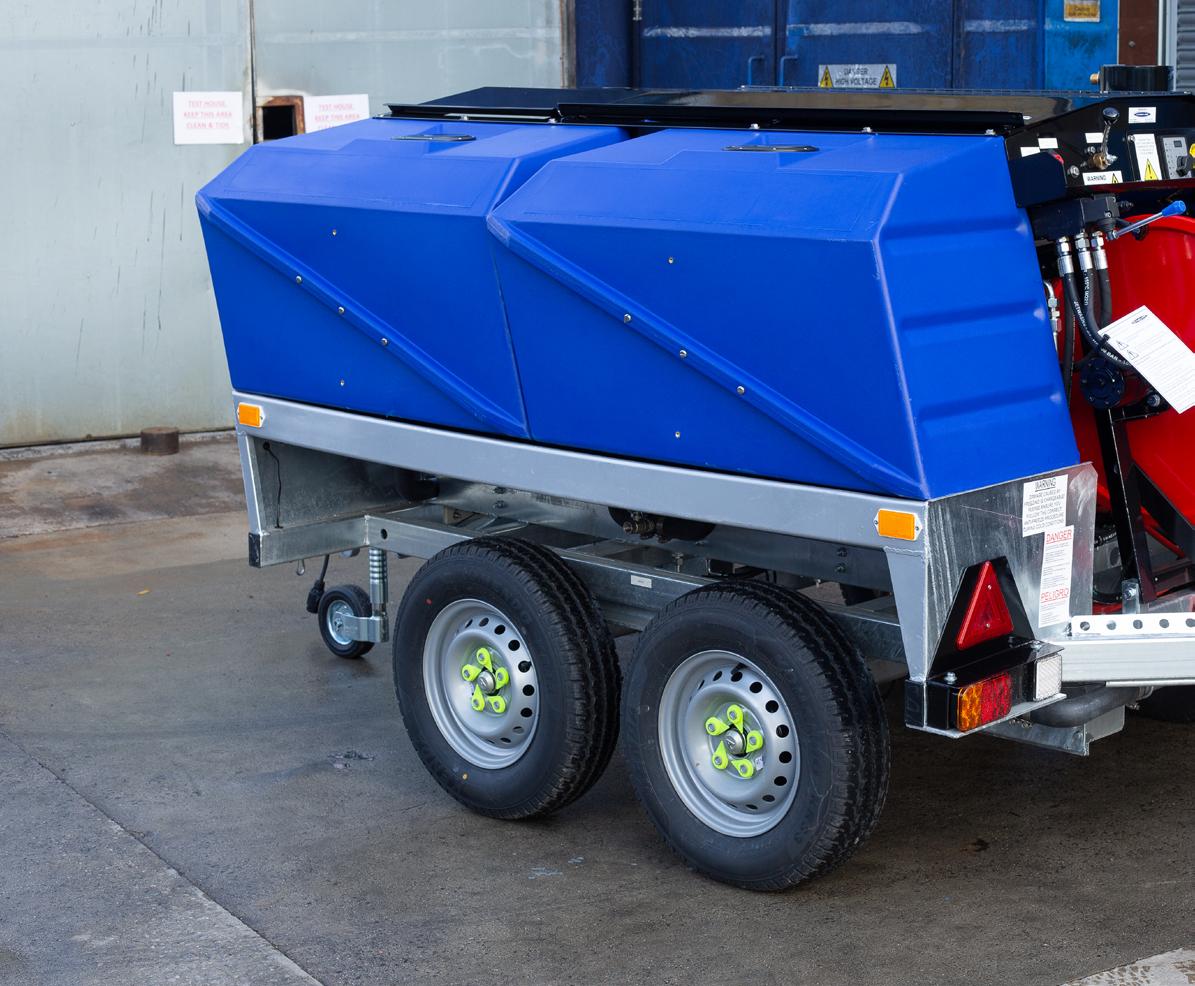

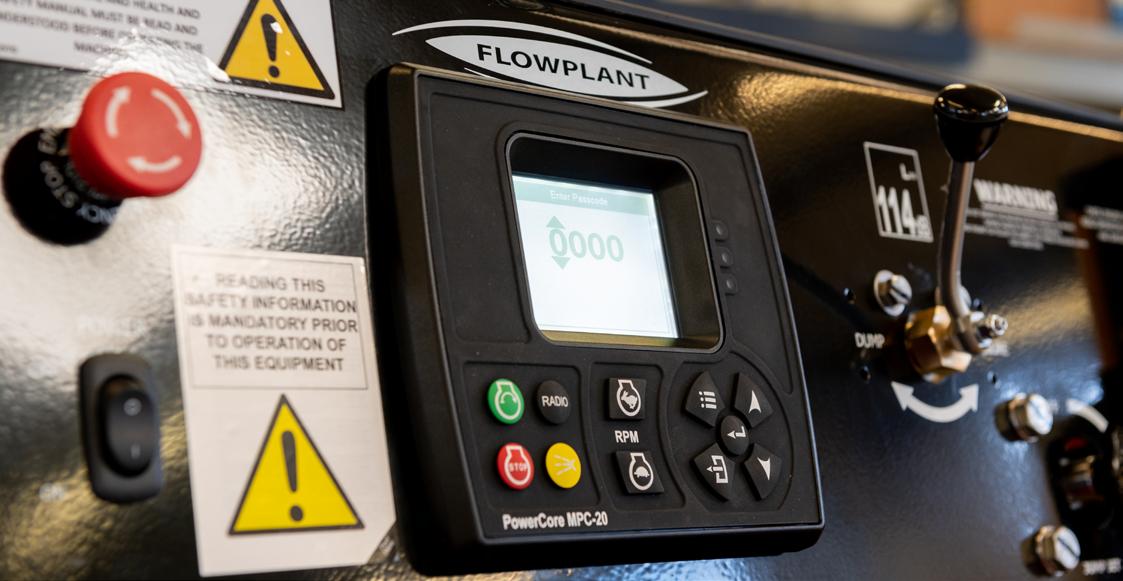

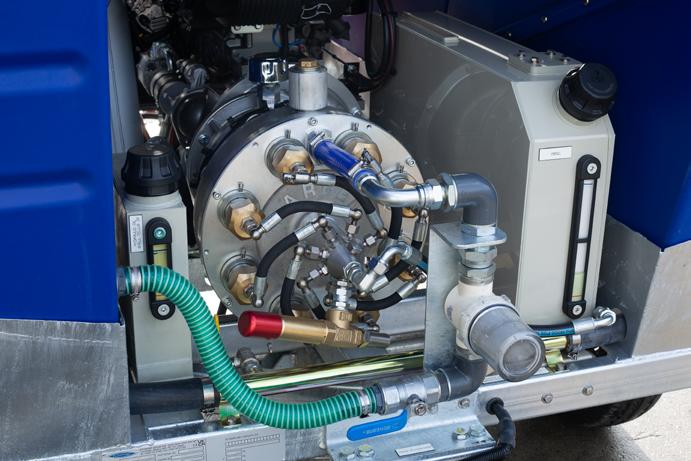

Revolutionising drain cleaning - the power of Flowplant’s harben pump
FOCUS ON TRENCHLESS TRAINING
Beyond the classroom - exploring other trenchless training experiences

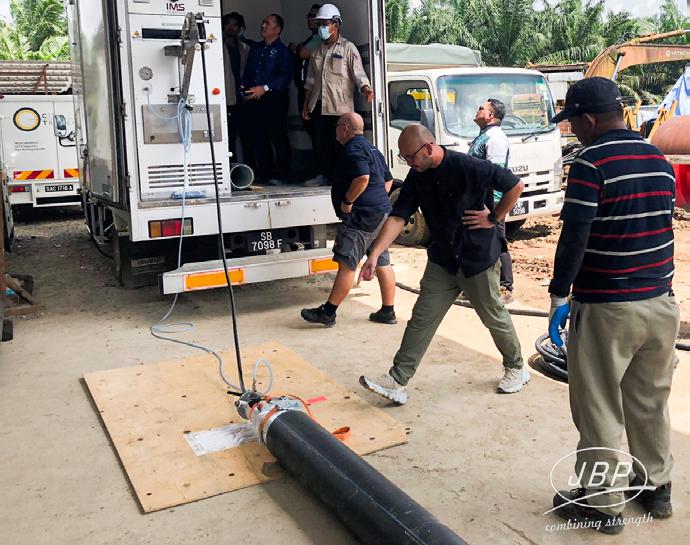

The difference between distributor and solution supplier - a JBP Trenchless case study
TRENCHLESS ASIA 2024
Trenchless Asia 2024: The Philippines gears up for groundbreaking infrastructure event

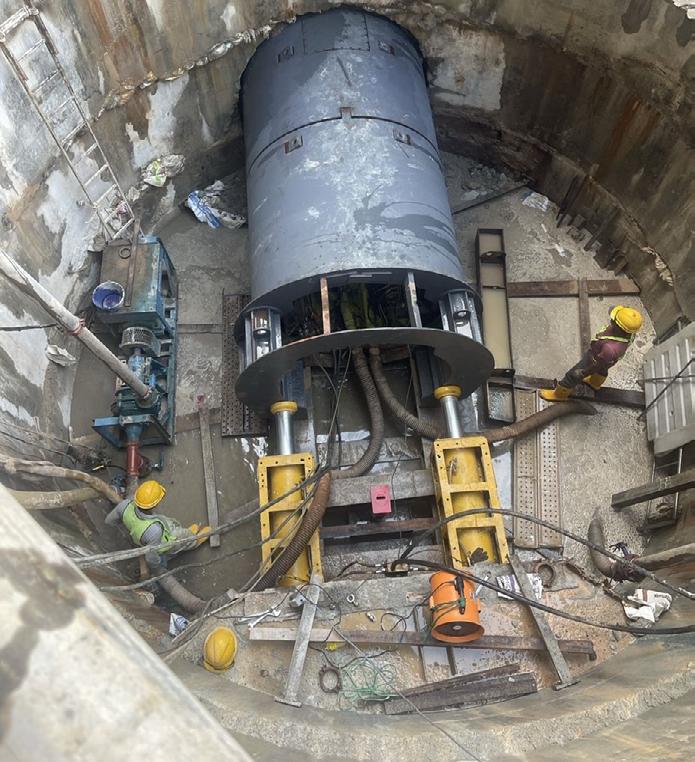

South East Asia – A high growth market

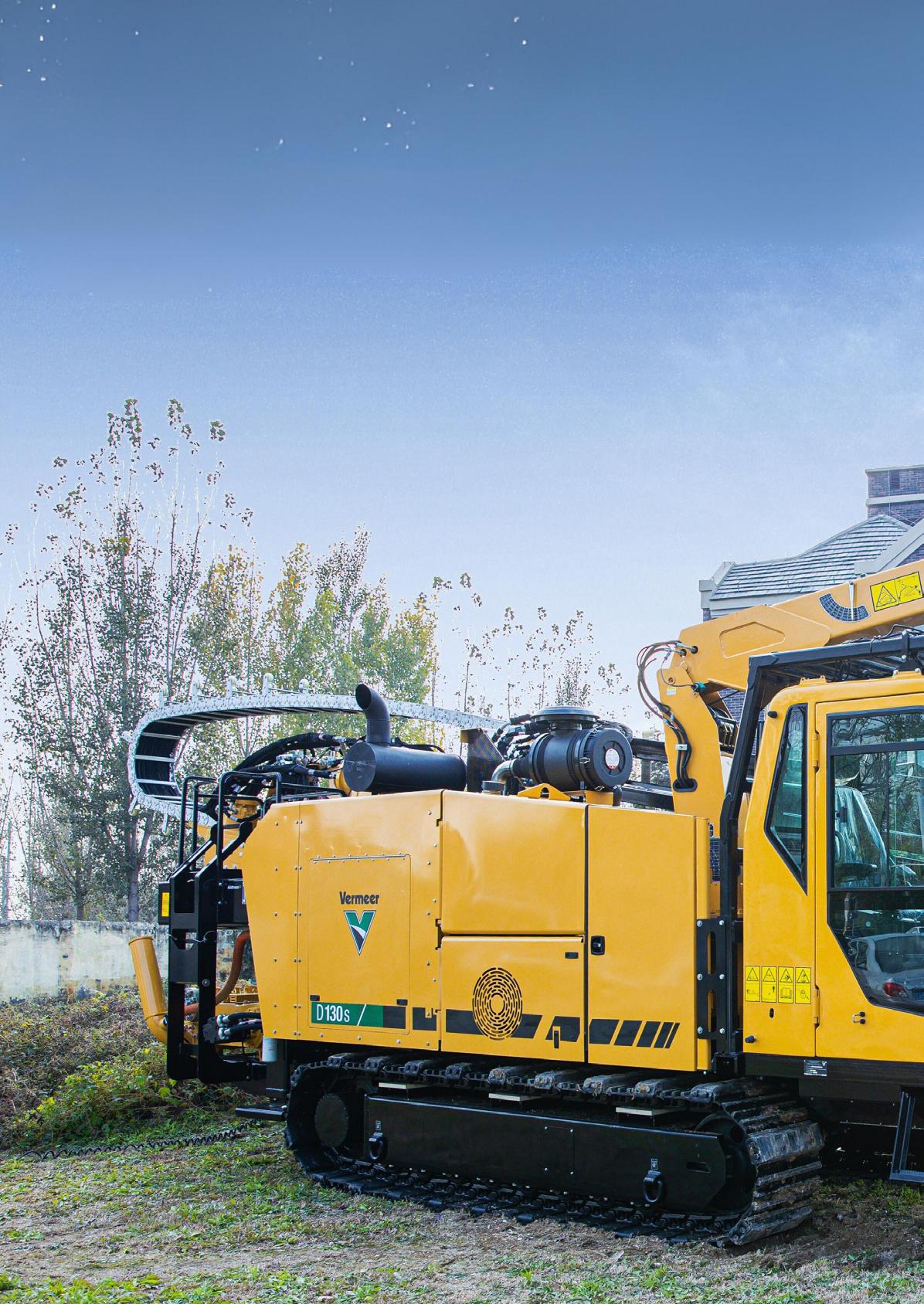

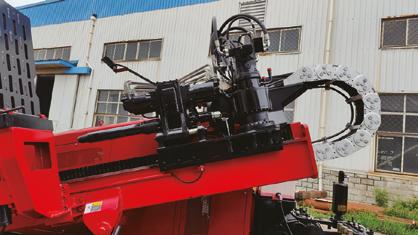

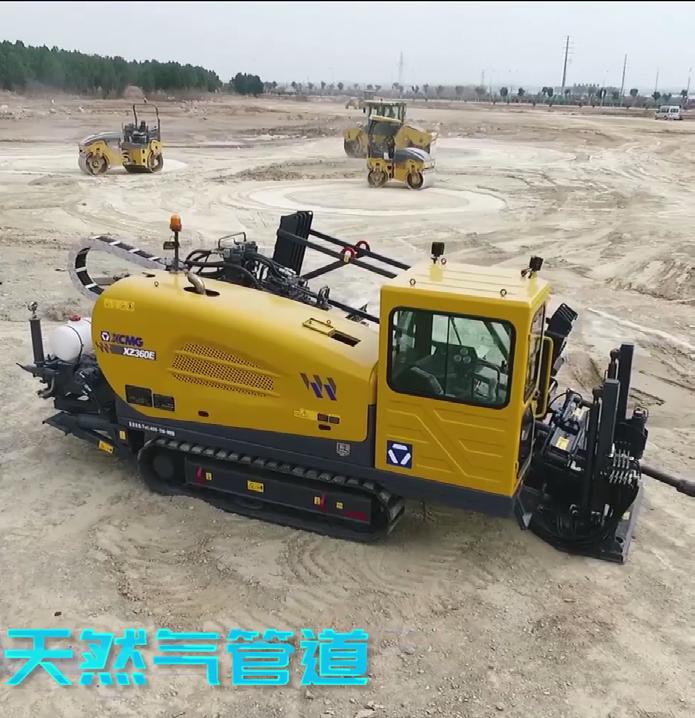

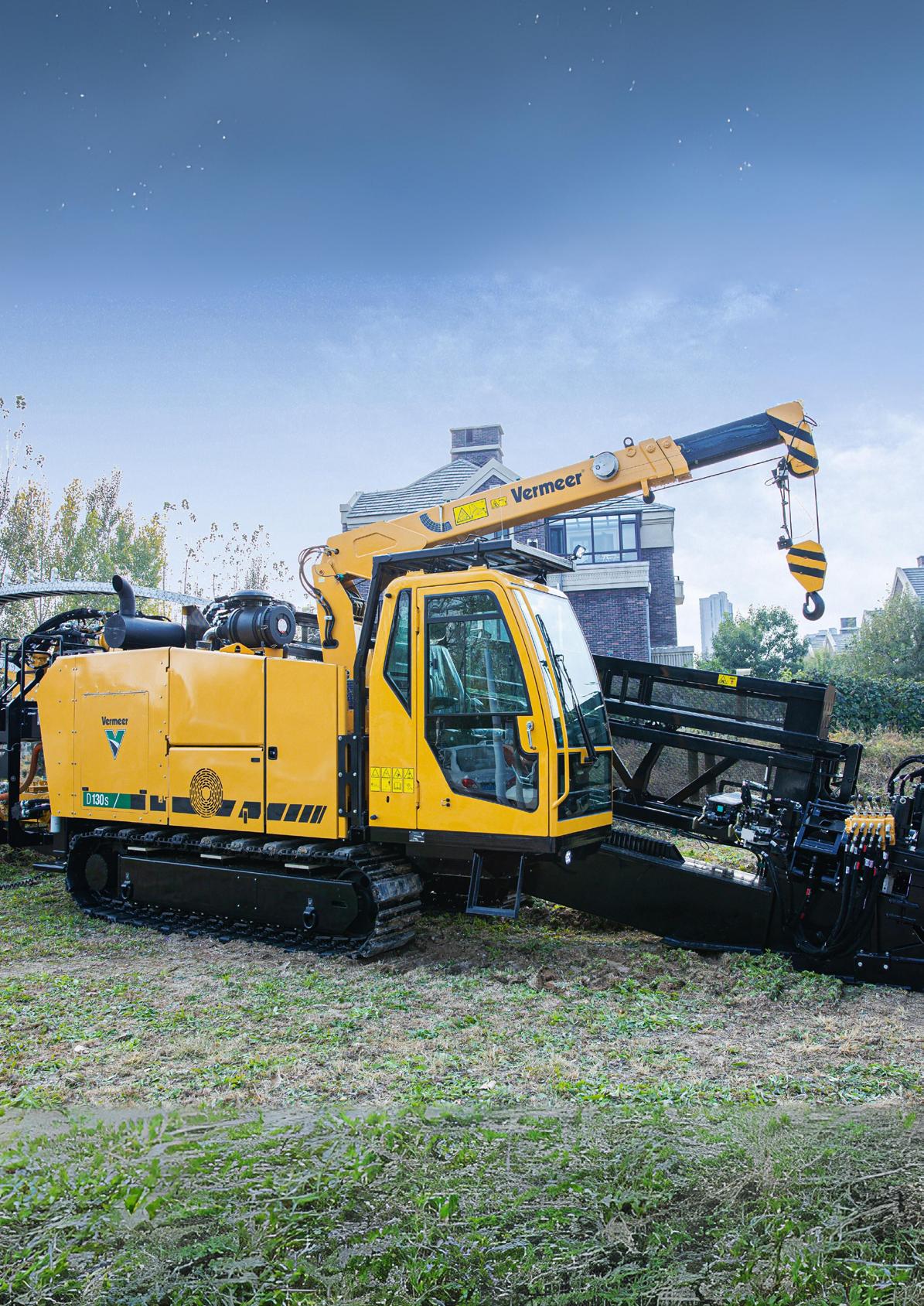

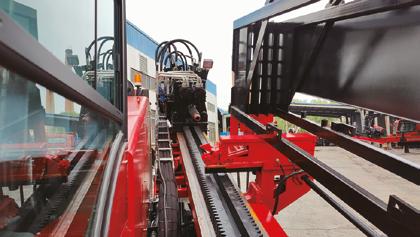

Vermeer D130S for job productivity

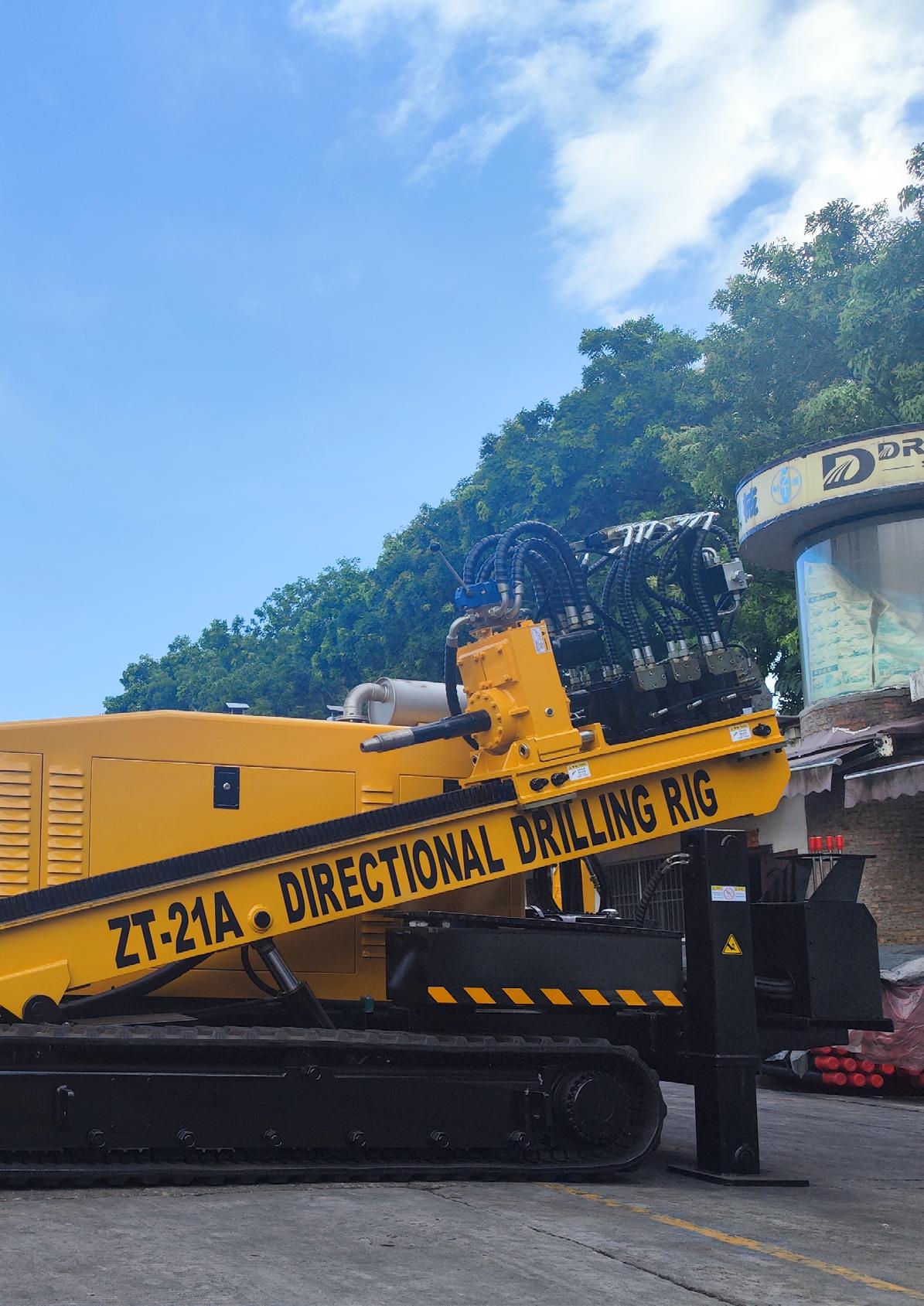

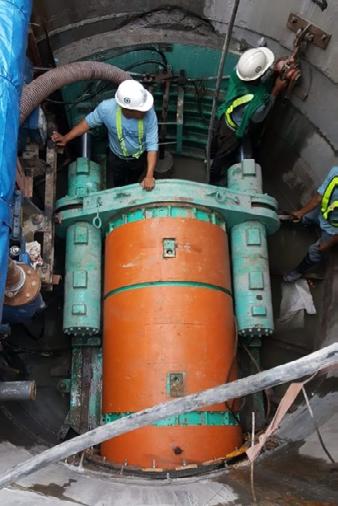

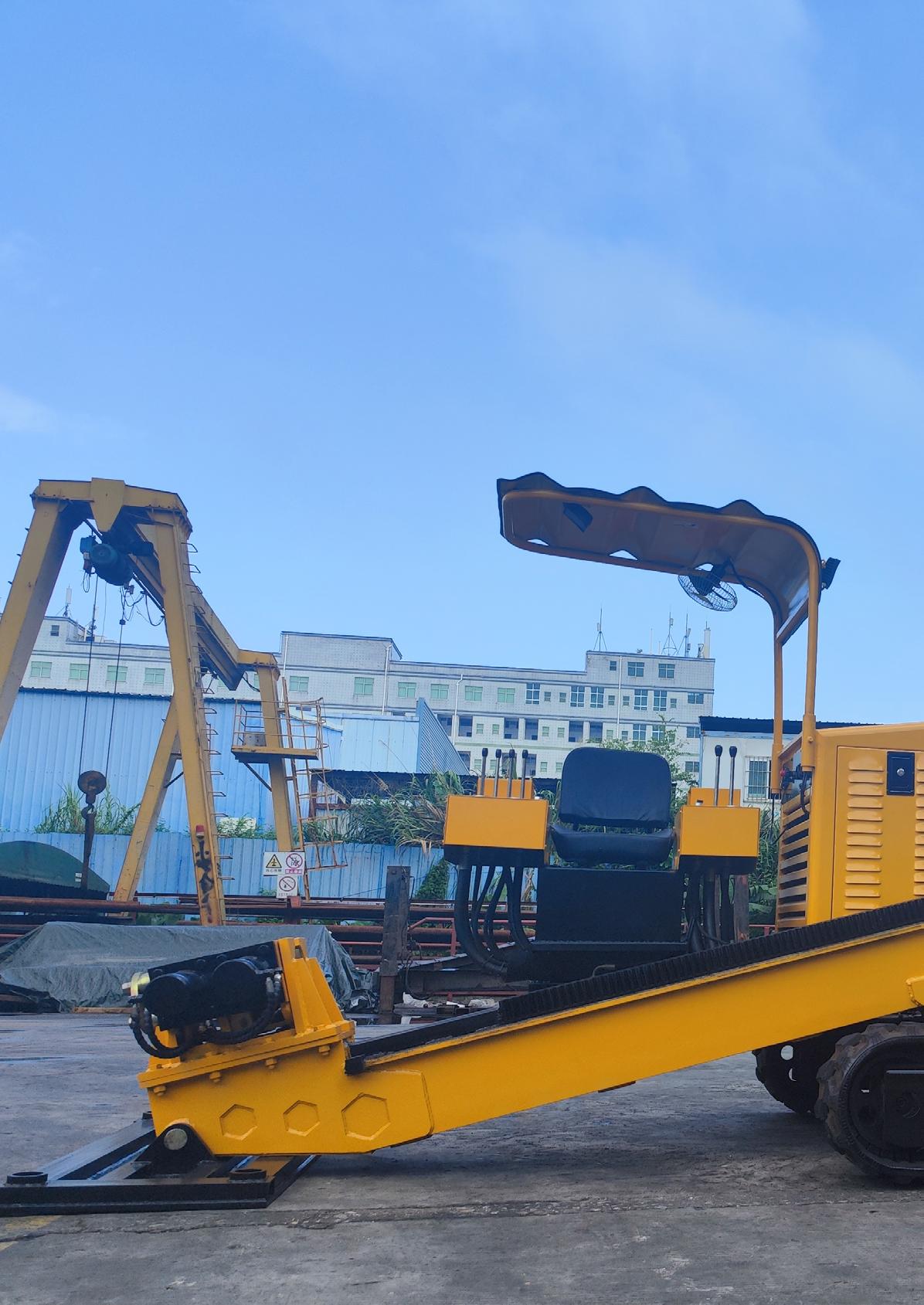

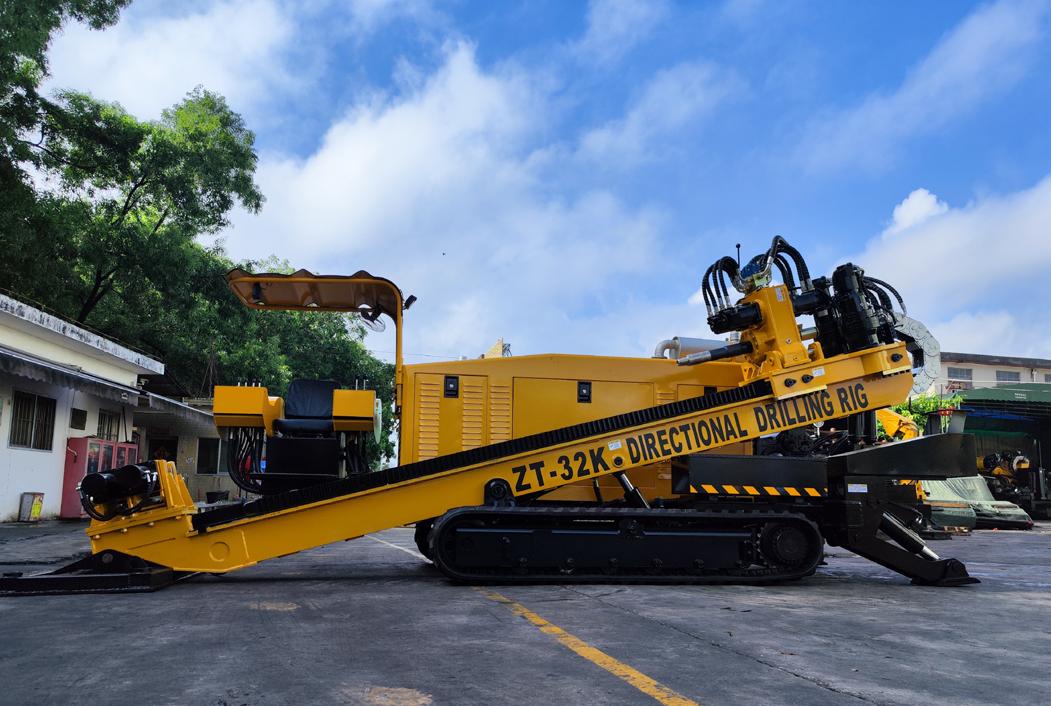

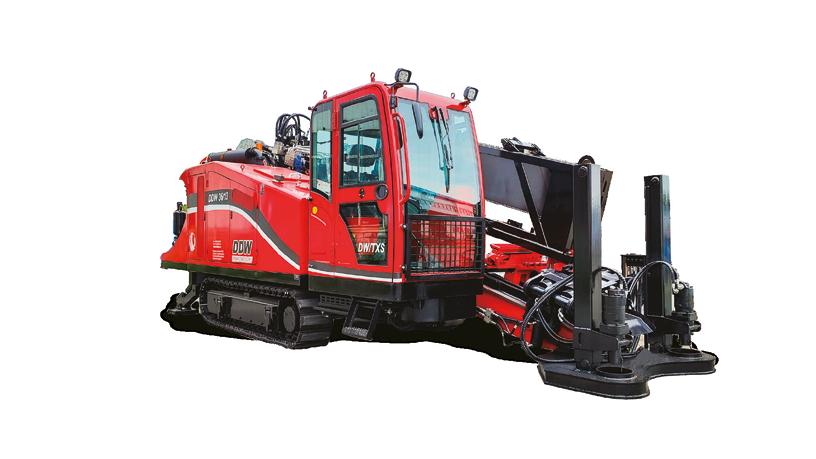

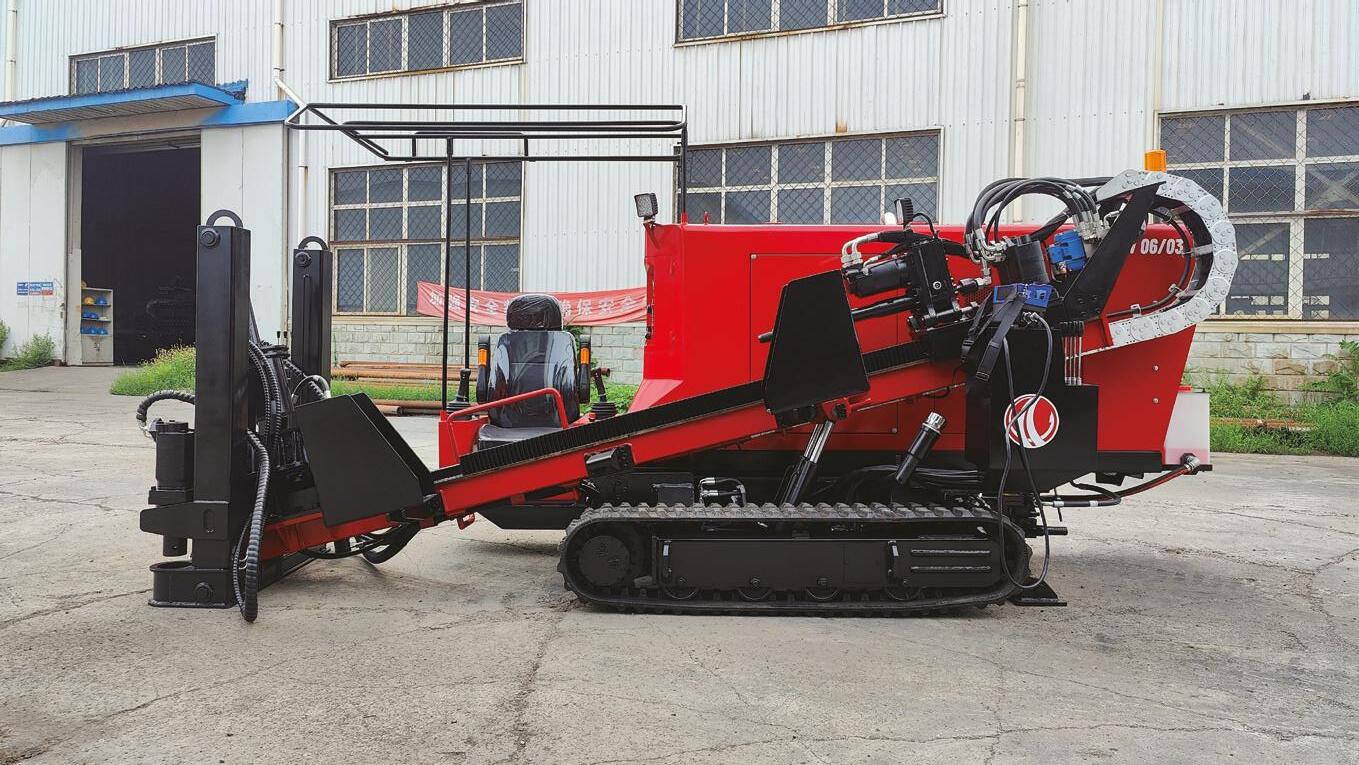

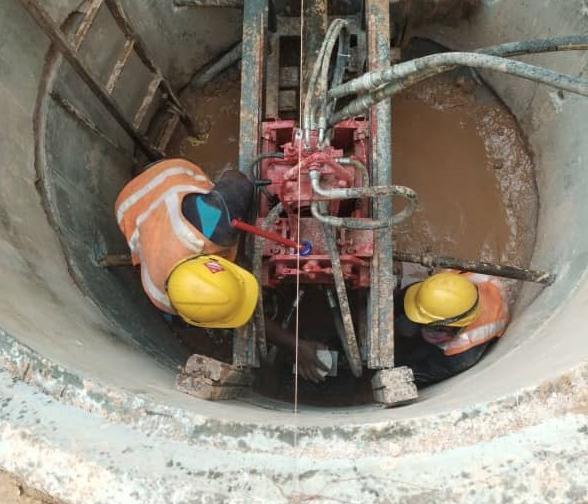

Drillto - making underground pipe laying easier

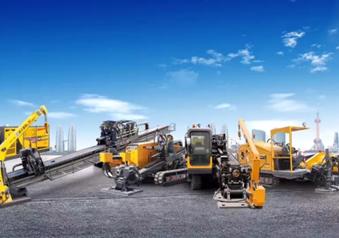

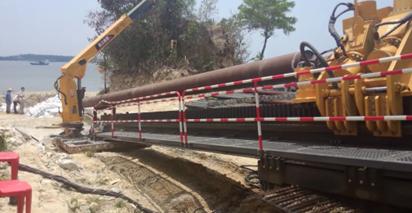

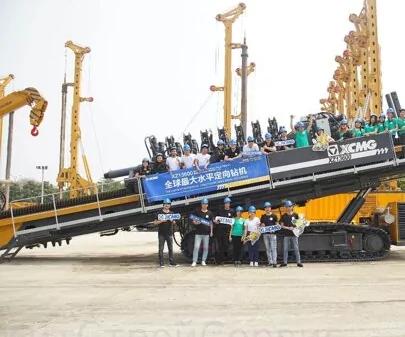

XCMG gives underground space another possibility!

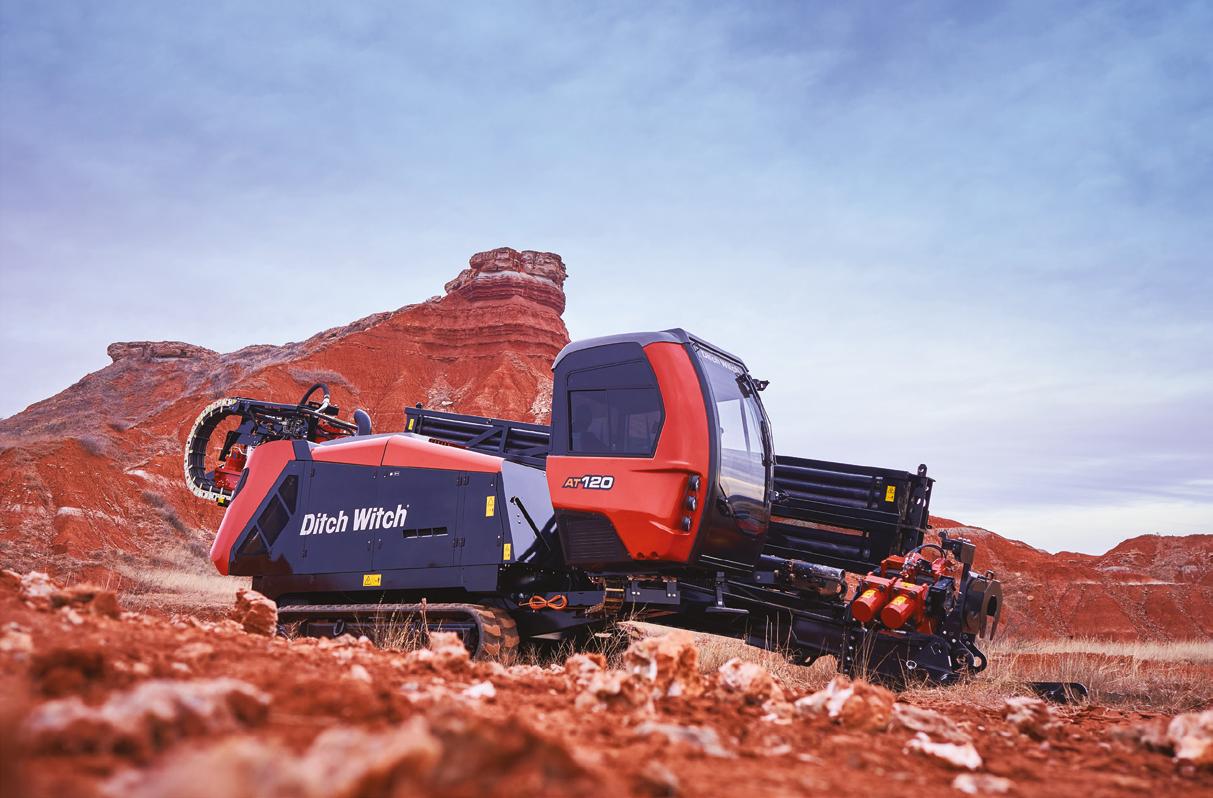

The emphasis in on APPLIED

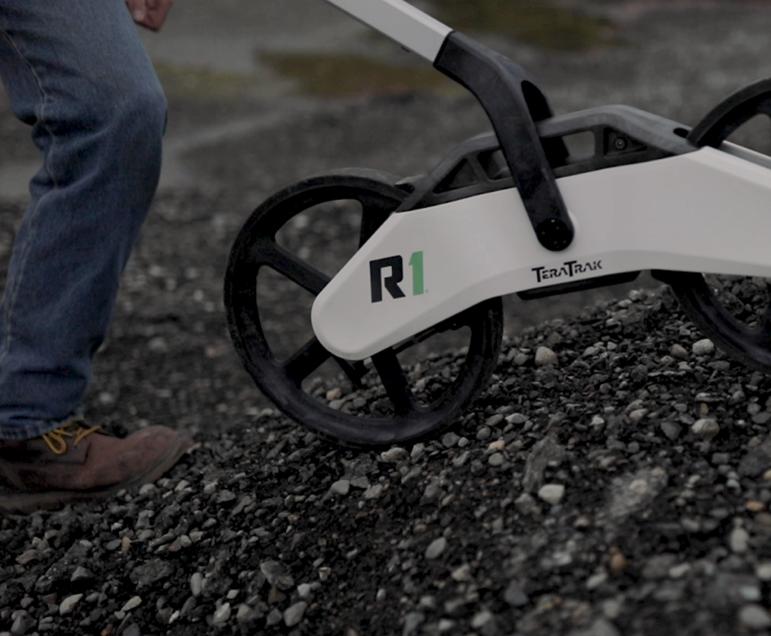

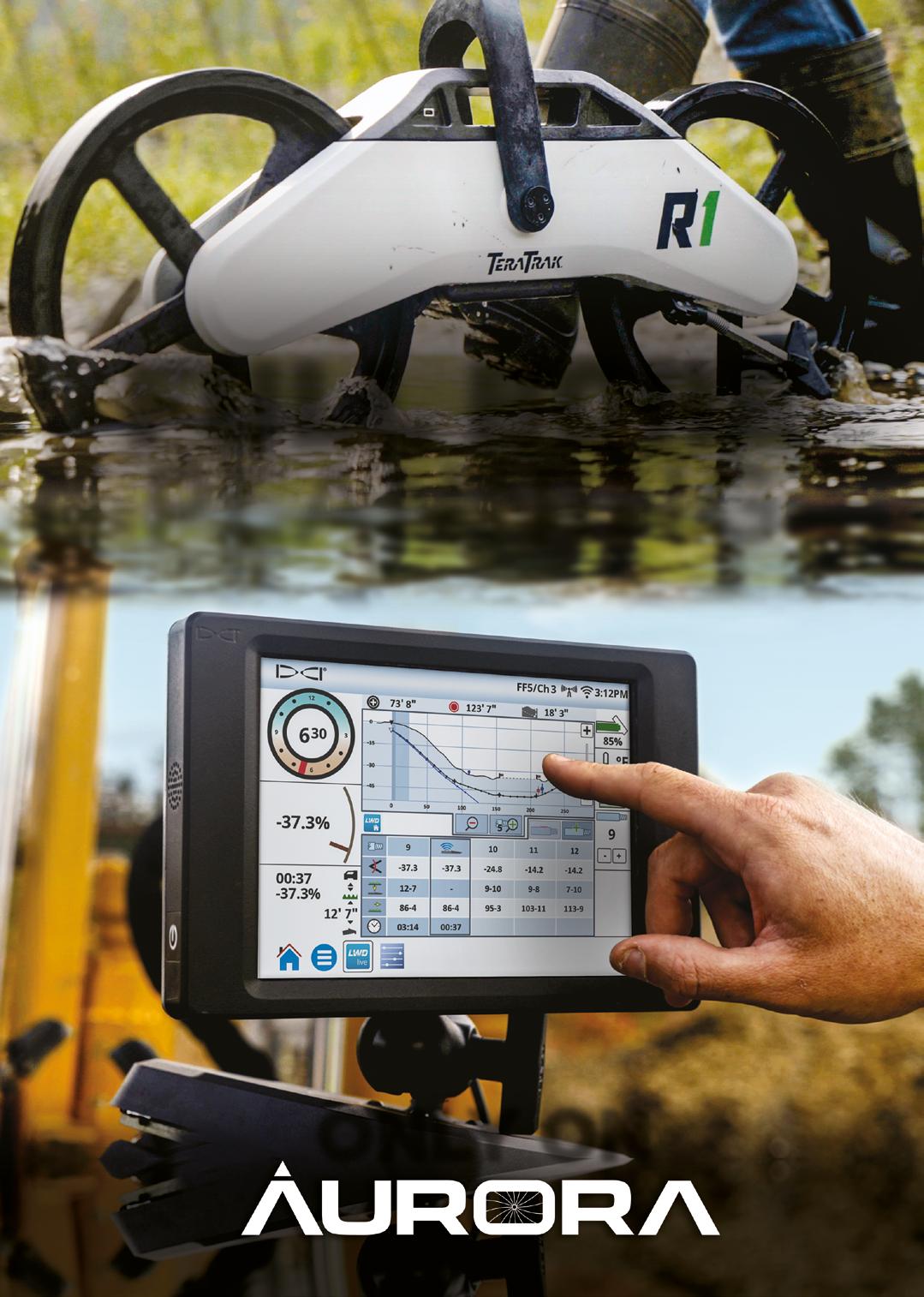

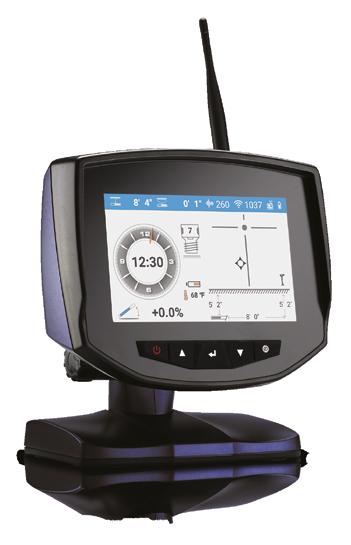

How to minimise job site downtime with full bore plans from the TeraTrak R1
UKSTT SOCIETY NEWS
A message from the Chair
Membership services report
ISTT SOCIETY NEWS
A message from the Chair
ISTT Educational Webinar
NASTT SOCIETY NEWS EVENTS AND MEETINGS

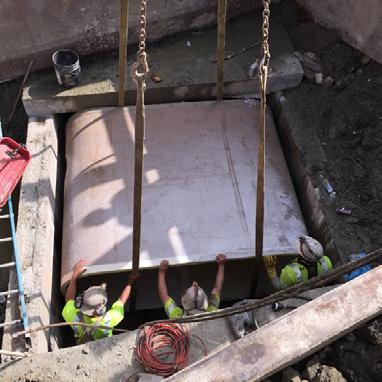

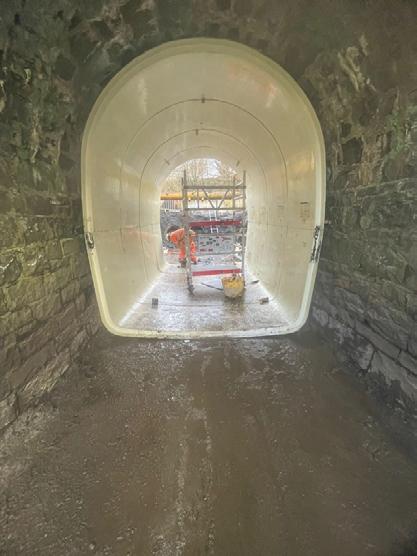

Any shape Any size

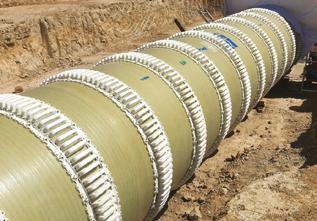

GRP structural lining systems

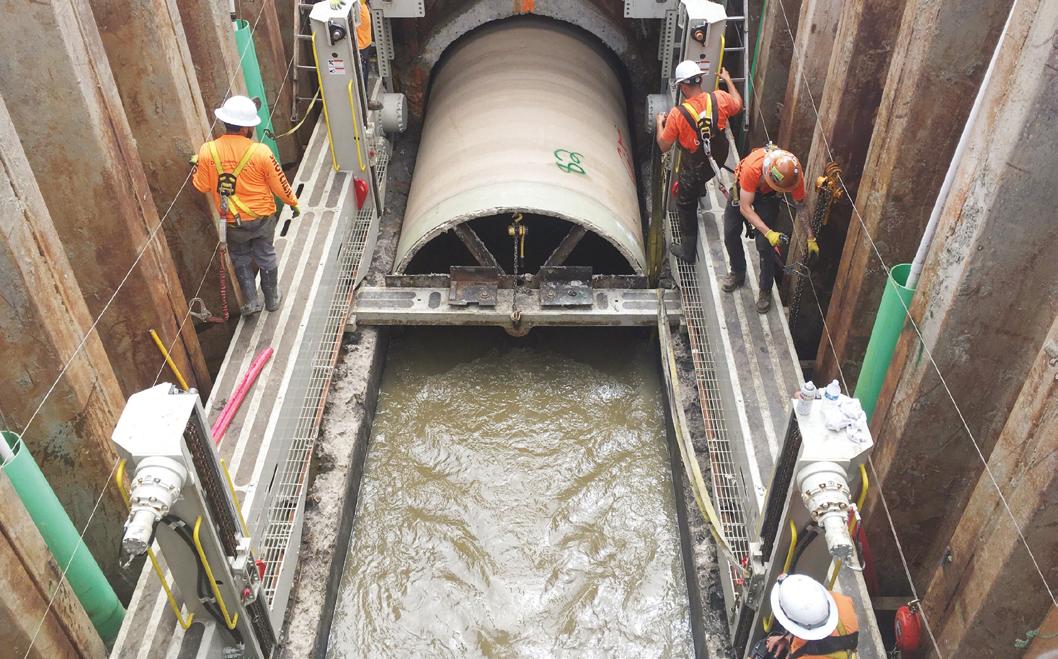

For over four decades, Channeline has been a global leader in the custom design and manufacture of high-quality, fully structural glass reinforced plastic (GRP) lining systems in any shape, and any size, for the trenchless rehabilitation of existing sewers, tunnels, culverts, stormwater, and other buried structures. With a worldwide presence in over 30 countries, we offer turnkey, innovative, and sustainable solutions with a design life of 150 years, for our clients, consultants, and contractors from design to installation.
Channeline International Fiber Glass Manufacturing L.L.C.
E-mail: info@channeline.com
Wastewater
Stormwater
Rail and road culverts
Tunnels
Seawater cooling network
Custom
Thames Water wins share of £40m in Ofwat’s latest Water Breakthrough Challenge
An innovative solution by Thames Water that would fix leaks without the need to dig trenches or disrupt residents and road users is one of the winners of a £40m competition from Ofwat, the economic water regulator.
The ‘No Dig Leak Repair’ project, led by Thames Water, will use the funding to examine how technologies like robotics and trenchless repair methods could help fix leaks in the future without the need to dig trenches and all the associated disruption this causes.
Other Thames Water projects to win funding include a bid to explore the potential of converting sludge into valuable products like biochar, a bid to incentivise sustainable urban drainage, and a bid to expand the use of robotic technology for inspecting and repairing rising mains.
In total, Thames Water projects
received almost half (£16.9m) of the total funding that is available.
Nevil Muncaster, Engineering and Asset Director, from Thames Water said: “We are constantly striving to evolve our business, and find new ways to do things better for the benefit of our customers and the environment. This funding will be invaluable in helping us progress some of our most exciting and innovative ideas, ones that really could change the water industry for the better.”
Helen Campbell, Senior Director, Ofwat said: “There are big challenges in the water industry that must be solved, some are well known and others are less so. In our fourth Water Breakthrough Challenge we called for solutions with potential to deliver wide-scale, transformational change for customers, society and the environment – and that’s exactly
what today’s winners have done. From raingardens to prevent flooding to green energy from treated sewage, innovations to cut the water sector’s carbon footprint to robots that patrol the pipe network, the winners are all helping shape a more sustainable and efficient water sector.”
The Water Breakthrough Challenge is part of a series of competitions from Ofwat, run by Challenge Works with Arup and Isle Utilities, designed to drive innovation and collaboration in the sector to benefit individuals, society and the environment. It supports initiatives that help to tackle the biggest challenges facing the water sector, such as achieving net zero, protecting natural ecosystems and reducing leakage, as well as delivering value to society.
For more information, visit the Water Breakthrough Challenge website.

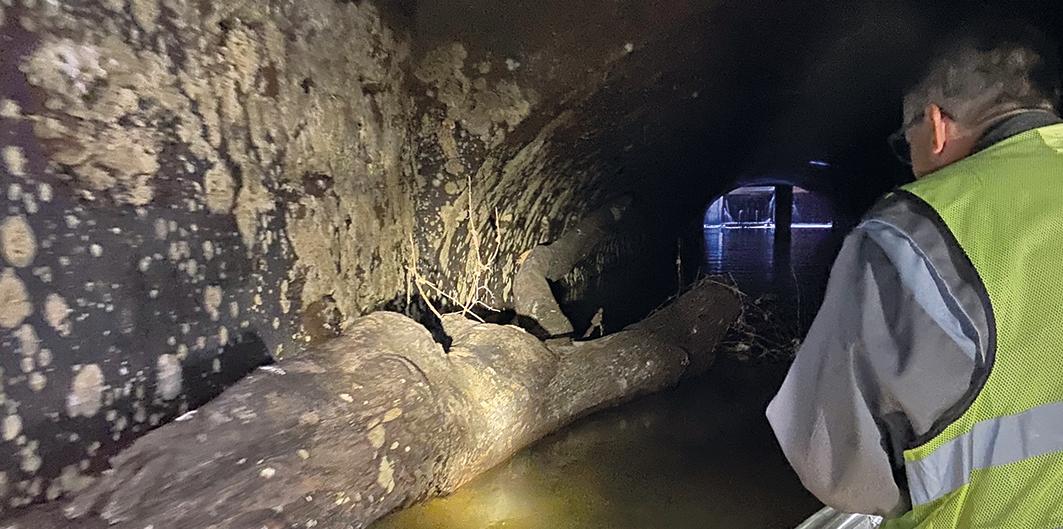

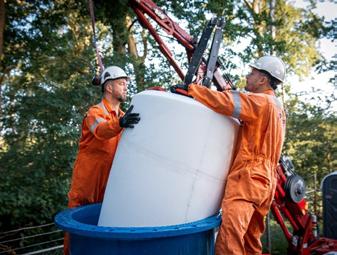

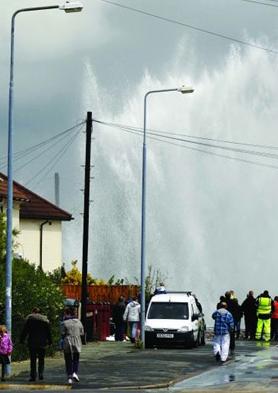

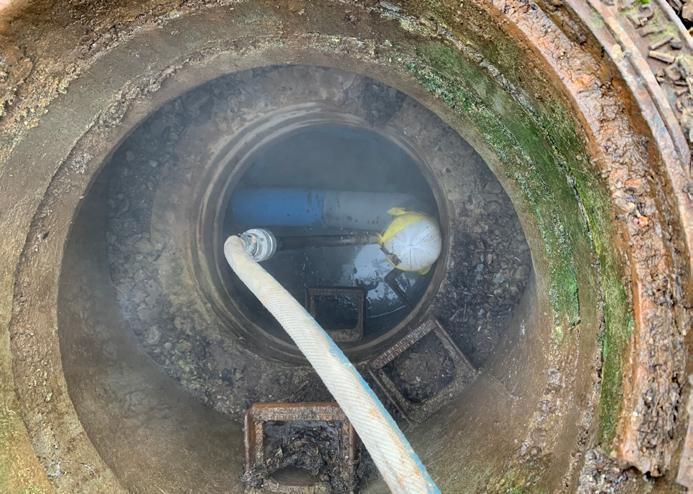

Thames Water engineers assessing leaks

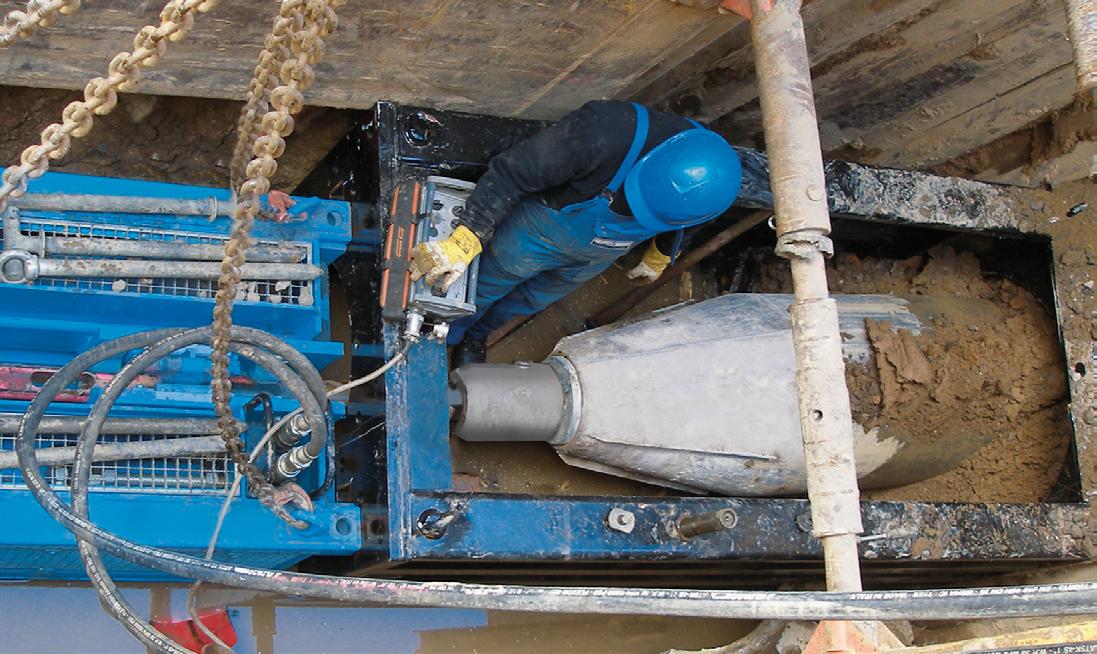

GRUNDOBURST systems are used to replace defective pipes up to ND 1,200 quickly and gently underground, without reducing hydraulic capacity.
The result is a new, loadbearing pipeline in the existing route. Plus the complete renewal allows
for even more hydraulic capacity by pulling in larger diameters.
Pipe rehabilitation could not be more sustainable.
Find out more online or contact us: T: +49 2723 808-0 M: info@tracto.com
Jet Aire project awarded Ofwat funding
Jet Aire has been named as part of a project team awarded £1.2m in the Ofwat Breakthrough Innovation Challenge for research into developing the world’s first blockage clearing pipebots.
Working with Northumbrian Water, the University of Sheffield, as well as a number of other universities, WASC’s and suppliers, this project aims to find a way to proactively detect build-ups before they become a blockage, eradicating spills and sewer flooding and its devastating impact on customers.

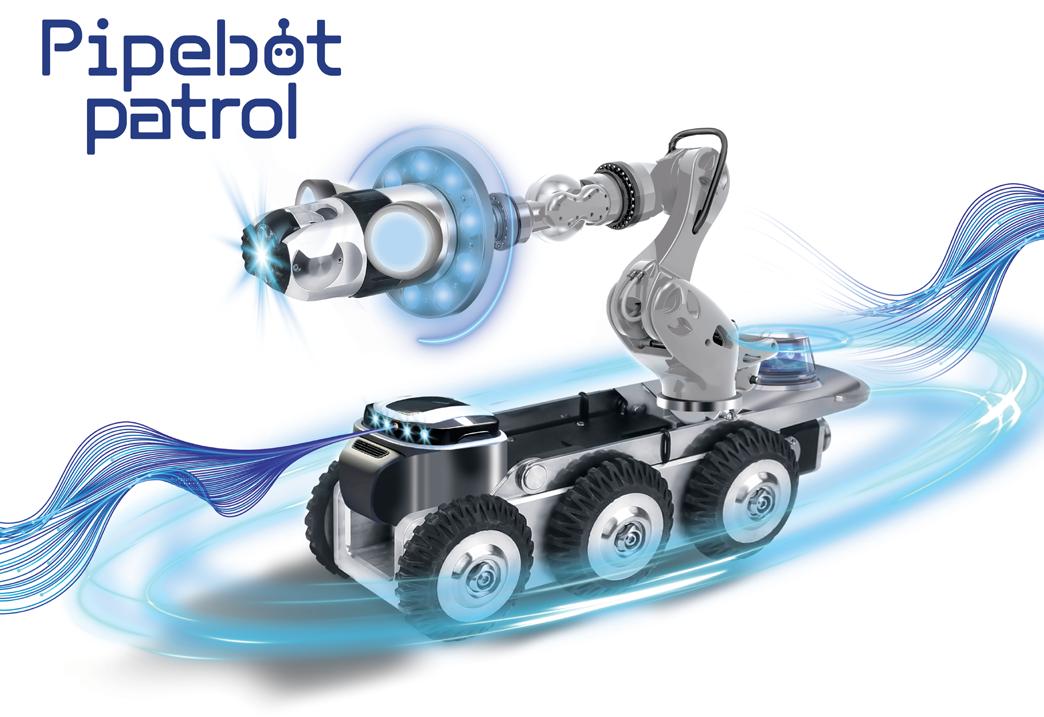

The innovative technology will see a truly autonomous pipebot
that will live in the sewer for 30 days at a stretch, patrolling to understand the network and detect blockage build-up then alerting maintenance teams.
There are over 40,000 incidents of internal and external sewer flooding in the UK every year which cause devastating damage to customers’ properties. A significant proportion of these are because of blockages in sewer pipes.
Dean Blackburn, North East Area Manager, Jet Aire said: “Current approaches using smart networks are reactive, based on detecting rising water levels in sewers to estimate where blockages might be.
However, it is often too late to allow maintenance teams to locate and clear the blockage before flooding occurs. Pipebot makes this process proactive. We are very excited to be supporting this project which could be the first step in delivering the world’s first blockage clearing pipebots.”
For more information, visit: www.waterinnovation. challenges.org/breakthrough4/

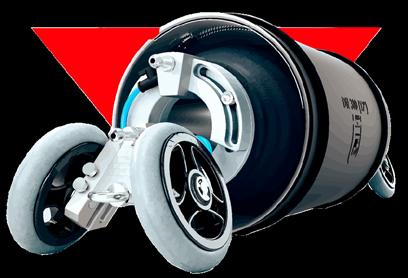

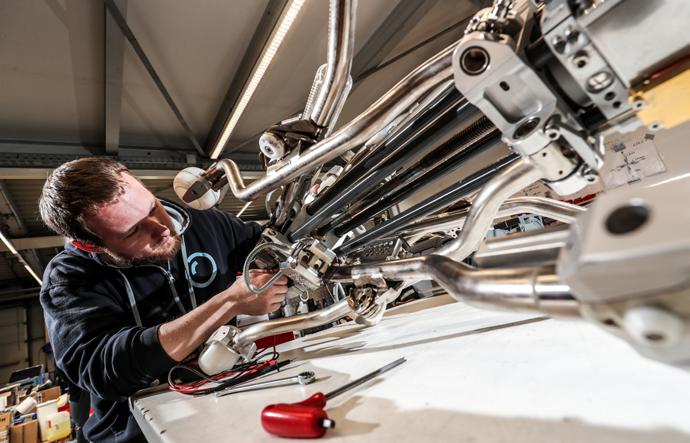

For Spoutvac (Bucher Municipal), Sales Manager, Andrew Gladman, also commented: “Partnering with ProKASRO as the market leader in both sewer robotics and UV lining equipment develops both the knowledge and customer base for Spoutvac (Bucher Municipal). Service and aftersales support is a big focus for both companies and having met the team at ProKASRO we are confident that the shared goals and objectives can be achieved, leading to improved service and communication for our customers within Australia and New Zealand”.
“
Due to changes within the Australian/New Zealand marketplace, it became more apparent that a reliable and open service partner was required to support our new and existing customers.

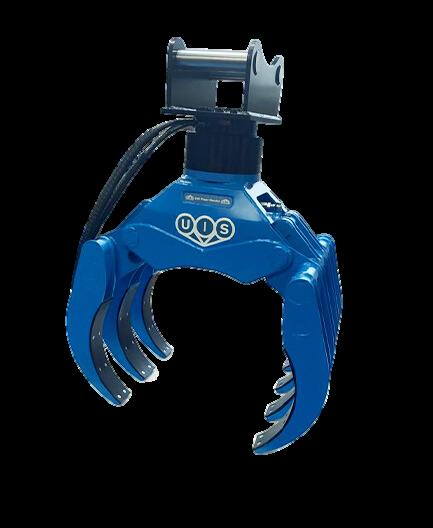

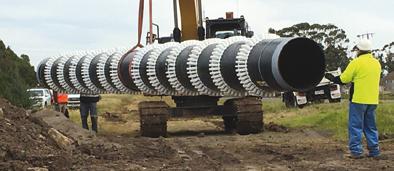

Power Handler
A safer and more compliant way of handling large diameter GRE, HDPE pipe, Ducting’s, Carbon Steel/Ductile Iron and Concrete Pipes.
With the UIS Power Handler™ excavator attachment, you are selecting the powerful all-in-one solution for pipe handling on a large scale like no other.
Control of the pipe from the comfort of the excavator cab. With the capability to rotate the pipe 360° the UIS Power Handler™ offers control to the operator like no other product when handling and lowering pipes safely into open trenches.
Available in 3 sizes (Handler)
6
(Pusher)
Power Push.
The UIS Power Push™ excavator attachment offers a faster, safer and more compliant way of inserting new PE pipe and cable & is fully approved for operation on both live and dead insertions.
Power Push™ is easily attached to the excavator arm with minimal operator contact, removing the risk of injuries which may occur during manual projects. Once attached, Power Push is fully operated and controlled from the safety of the excavator cab.
The Power Push™ excavator attachment is compatible for use with the majority of excavators from 1.5T up to 25T and can also be used for slip lining / manoeuvring & rerounding PE pipe of diameters up to 900mm.
the
Vision for growth
Warren Steele heads up Vermeer UK & Ireland
In 2023, to better commit to the customers and staff in the greater United Kingdom & Ireland region, Vermeer Corporation assumed ownership of Vermeer UK. With this ownership transition, Brian Sporrer was placed as General Manager of Vermeer UK. Under Brian’s leadership, the Vermeer UK team saw growth in the markets they served, a local resurgence in the Vermeer brand and a stabilisation within the Vermeer UK team focused on long-term success.
Part of this stabilisation plan was to hire local leadership with a vision for growth. In December 2023, Warren Steele joined the Vermeer UK team, and in April 2024 was appointed as a Director to the UK Board. Warren has extensive experience in the industrial equipment and environmental services industry, and a desire to strengthen both the Vermeer
team and brand in region.
Warren Steele said “Vermeer have had a solid base for over 30 years in the UK and Ireland. With the change in ownership in February 2023, the business has the backing of Vermeer Corporation in Pella. The ability to make aggressive and sustainable commercial decisions, along with a great team, will allow the business to grow by offering a wider product range to the market. Later in 2024, we look forward to introducing a range of “Big Iron” to the territory, thereby drawing new and more diverse customers into the Vermeer family. Vermeer are proud of our team, customers and heritage in the UK and Irish markets, and we aim to be the go-to machine supplier for the trenchless sector.”
Vermeer UK thank Brian for his work to establish stability
and a trajectory of success in the region and look forward to Warren’s strategic leadership driving continued growth.
“ The ability to make aggressive and sustainable commercial decisions, along with a great team, will allow the
business to grow by offering a wider product range to the market. Later in 2024, we look forward to introducing a range of “Big Iron” to the territory, thereby drawing new and more diverse customers into the Vermeer family.
New hire for Primus Line
Paris Johnston has recently joined Primus Line as a Primus Line Business Development Manager for UK and Ireland.
water and utilities sectors.
Paris will also benefit from the fact that he is already familiar with the Primus Line range, having previously worked for one of the company’s UK partners. “I am very excited about the opportunity to represent Primus Line in the UK and Irish markets,” comments
Paris is currently being mentored by Simon Compton, who was formerly responsible for the UK and Ireland. Simon will be taking up a new position in South East Asia to further develop Primus Line’s markets
Soaring through options
FFRP vs. CIPP in trenchless rehabilitation
by Dion Pohorille
Both in Africa and Europe
I have noticed many people birding these days, frankly for me birding can get a touch predictable. Sure, the sweet songs of warblers and the vibrant colours of hummingbirds are delightful. Coming from sub-Saharan African Savannahs we were less exposed to two more common Northern Hemisphere pitch black birds found on every church steeple or city fence. Personally, I prefer a touch of these enigmatic Corvidae, the raven and the crow. These black harbingers of change have perched themselves in myth and folklore for centuries, symbolising everything from wisdom to transformation. As
we delve deeper into the world of trenchless pipe rehabilitation, a similar sense of revelation unfolds.
Just like watching a raven soaring through the sky or scaling a rickety crow’s nest affords a breathtaking panoramic view, understanding the intricacies of FFRP (Flexible Fabric Reinforced Pipe) and CIPP (Cured-in-Place Pipe) grants us a much wider understanding of pipeline rehabilitation. We are no longer limited to a narrow perspective. Instead, “just as these birds fly,” we can explore the most efficient and effective solutions for the rehabilitation of our underground infrastructure. >
CIPP: The agile crow

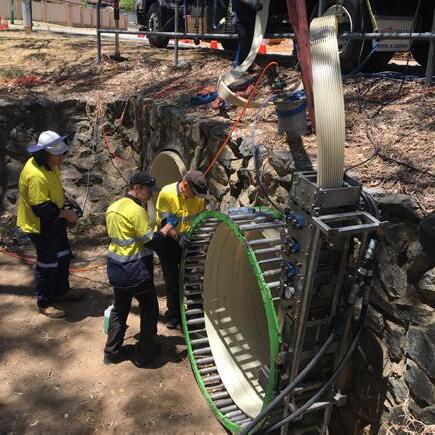

Much like the crow, a highly manoeuvrable bird known for navigating tight spaces, some types of CIPP can excel in tackling complex pipeline geometries. The resinsaturated liner, resembling the crow’s compact body and flexible wings, can in certain applications handle 90-degree bends with exceptional agility. This makes CIPP ideal for certain situations where the existing pipeline negotiates sharp changes in alignment, similar to a crow navigating a complex network of branches. Additionally, CIPP’s ability to access a pipeline from a single point to cure in place is much like a crow accessing shiny treasures in tight spaces with military precision.
FFRP: The soaring raven
The raven, with its impressive wingspan and ability to soar above for long time periods, mirrors the core strengths of FFRP. This method utilizes a long continuous, flexible
liner with embedded fabric reinforcements, as the raven’s broad wings allow it to soar for long distances, the strength to allows for significantly longer pulling distances, often exceeding a kilometre in one go, thus minimising the need for additional access points. However, FFRP’s inherent tough bursting and temperature resistance composition limits its ability to handle sharp bends. While it can navigate 45-degree bends, complex 90-degree manoeuvres or tight spaces are better suited for CIPP’s agility. In situations where there are longer sweeping bends with radii exceeding five times the pipeline diameter, FFRP’s extended reach is achieved, similar to how a raven’s powerful wings allow for efficient soaring.

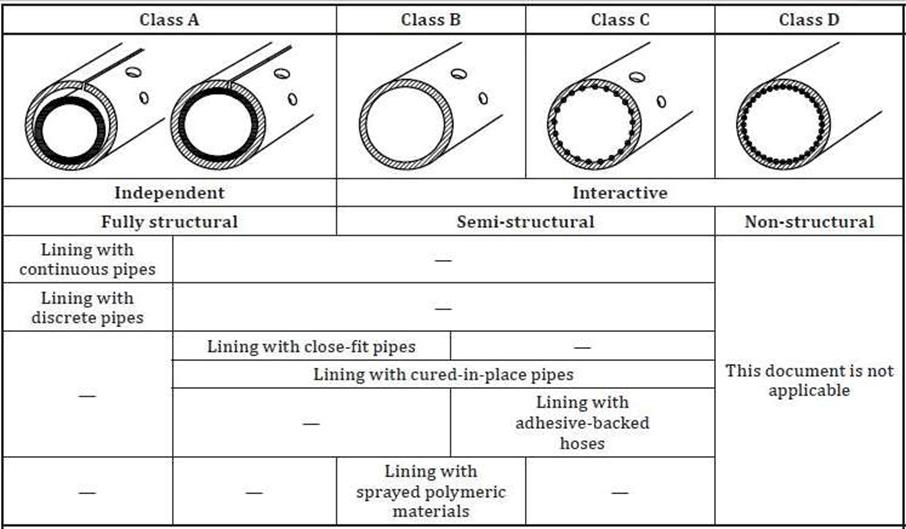

The importance of a close fit
Regardless of the CIPP or FFRP choice, achieving a close-fit liner allows for cost effective material options offering longevity and operating capabilities withstanding internal and
external forces and protecting the host pipe from corrosion. This approach enhances the inherent strength of the existing host pipe, allowing it to contribute to the overall structural integrity of the rehabilitated system. The host pipe can then assist in handling internal bursting pressures and external loads, thus maximising the effectiveness of the rehabilitation process.

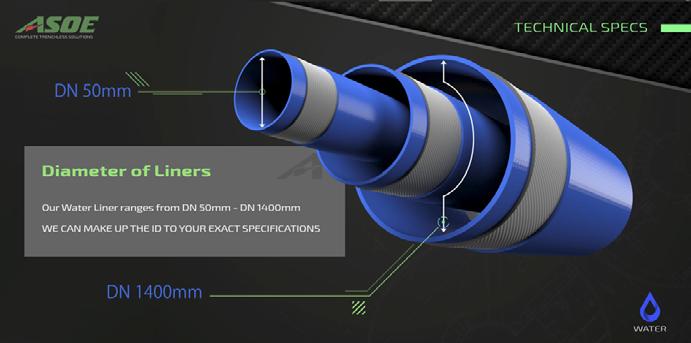

This philosophy underlies our core approach at ASOE. On demand liner solutions can be manufactured from nominal diameters of 50mm to 1400mm if requested to match the exact inside diameter of the host pipe. This unique ability to tailor the looms and extrusion process embraces the individual requirements of each pipeline, thus overcoming the outdated “one-size-fits-all” mentality. In today’s world of adaptability, the “one size fits all approach” limits budgets and trenchless design capabilities. This is why ISO 11295 below gives the interactive Class C specification for FFRP allowing the liner to
interact with the host pipe as one entity, connected together by pressure.
This is not to say that there are not situations where in design an annulus gap is accounted for. This is where ASOE uses Kevlar (Aramid) in the lining manufacturing process.
As ASOE’s vision and core values centre around the environment and cost effectiveness we strive wherever possible to use less Kevlar. Hence the use of more cost-effective Polymer yarns are used in the manufacturing of linings for gravity pipelines. However ASOE does use Aramid as all the ASOE oil, gas high temperature and pressure liners require this material for these applications.
Close fit allowing T connections: FFRP has previously struggled with T connections especially when air release, scour or other valves need to be installed. With a tight close fit liner the ability to install a T connection once the lining has been placed will now become possible as the final stages of certifying and testing this technology are taking place. Asset owners will soon be able
to connect place T connections for smaller pipes or valves to T off the main FFRP. With an annulus gap connecting a T piece is not possible.
Ultrasonics (UT) & close fit: UT is a key non destructive testing (NDT) method relying , it relies on sound waves. Dissimilar materials in liners and pipes, along with air gaps ( annuli), weaken these waves.
Water filling the gap certainly offers a slight improvement, but inconsistencies and complex wave interactions make it this unreliable. A close fit lining regardless of being CIPP or FFRP ensures a far better, direct sound path for accurate flaw detection through the liner and in the host pipe.
This is particularly important for smart pigging, a common oil and gas practice. Pigs are cleaning and inspection tools propelled through pipelines. A close fit lining allows for efficient pigging enabling comprehensive NDT inspections. Unlike municipal utilities, where internal inspections are less advanced and more focused on CCTV coding, whereas pigging’s prevalence in oil and
gas pipelines demands higher resolution inspections making es a close fit system essential for reliable NDT.
Intelligent assessment: the key to choosing wisely
Through a combination of visual inspections, understanding the host pipelines environmental conditions, advanced surveying techniques, and the material testing has been done, engineers can pinpoint the exact nature and extent of the pipeline deterioration. This allows for a more nuanced approach to rehabilitation. For instance, if the primary concern is internal leaks and joint failures on these pipe assets with limited access, FFRP’s ability to handle high pressures and long lengths then ASOE becomes the ideal solution, similar to how a raven’s larger wingspan is perfectly suited for extended soaring. Conversely, pipes with multiple sharp bends, severe structural weaknesses, vacuum conditions or where external loadings exist, one would benefit from CIPP’s capabilities, mirroring the Crow’s resilient and efficient manoeuvrability. >
Summary:
• Installation Speed: FFRP boasts the fastest installation times among trenchless pipe rehabilitation methods, as it can be put into service immediately after installation. CIPP typically requires a curing process, although UV and silicate resins help to reduce curing times.
• Environmental Impact: FFRP offers a significant advantage with minimal environmental concerns related to volatile organic compounds (VOCs) and styrene, which are common with CIPP resins. VOC free epoxies are too expensive on large diameter pressure projects, so FFRP is also generally considered a healthier option for installation crews.
• Application Suitability: While CIPP works well for both gravity and pressure pipes, FFRP is not suitable for gravity flow applications.
• Energy Consumption: FFRP requires less on-site energy compared to CIPP.
• Cost and Logistics: CIPP requires handling and storage of resins, making shipping more expensive and logistically complex compared to FFRP, which is always dry and can be shipped in long lengths. Additionally, CIPP equipment is generally more expensive, limiting its use in some emerging markets.
• CIPP can be used for patching remotely, as FFRP can only be done in continuous lengths, making CIPP a far wider used solution.
• Circumferential adaptability: some CIPP manufacturers produce 3D systems meaning the
liner produced by European manufacturers can expand up to 50% and Asian systems can expand up to 70% circumferentially thus moulding into the shape of the host pipe, whereas (FFRP) from ASOE only has a maximum expansion of 10%.
• Connections for ancillary components and TBranches: CIPP is ahead of FFRP in the race to perfect T connections – this remains an inhibiting factor and although the FFRP community is in the test phases of T connections CIPP has already perfected this art making it a proven and tested method, although not every CIPP practitioner has mastered this art.
• Maturity: CIPP has more than 5 decades of case studies and history whereas FFRP has only been around for 2 decades.
• Length: CIPP can be used up to a maximum of 300 meters in one installation whereas FFRP can go many Kilometres in one length.
• Diameter: CIPP has been used in up to 2400mm in diameter, whereas FFRP only used in up to 1400mm
A synergy for optimal flight
In many cases, the optimal solution may be a combination of both CIPP and FFRP, just as
the skies can accommodate both the raven and the crow. CIPP can be employed for targeted reinforcement in sections with sharp bends or complex geometries, while FFRP can address internal leaks and extend the rehabilitation throughout the remaining, straighter sections of the pipeline. This hybrid approach maximizes the benefits of each technology, delivering a costeffective and structurally sound rehabilitation solution, ensuring the effective and efficient operation for your underground infrastructure.
It was this combination of technologies that resulted in ASOE receiving the (SASTT) Trenchless Technology award of Excellence during Covid in 2020 when both CIPP and FFRP were combined on a single project navigating 8 bends on a DN500mm pressure pipe system. The partners in the US on the other side of the pond have also had huge success with ASOE under the brand “Bullet Liner” where both CIPP patching and FFRP were used successfully on pressurised sewer and potable water mains.
For more information on CIPP or FFRP please contact us
www.asoepipe.co.uk or email to dpohorille@nuflow.com
•
•
Connection
New overland piping system for German paper mill

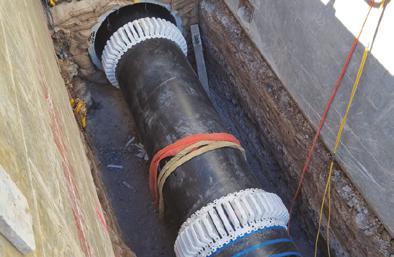

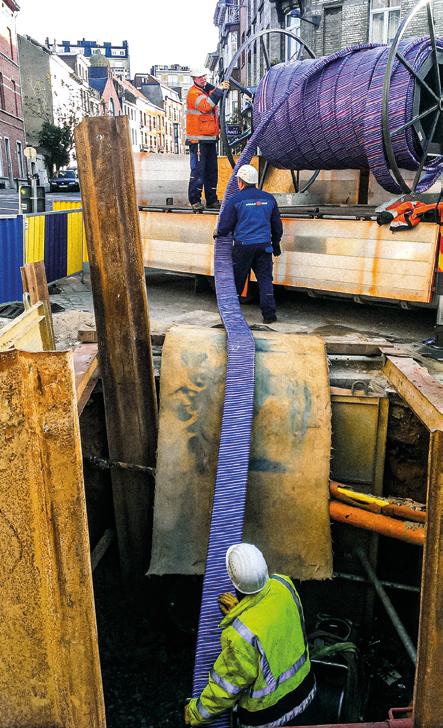

Rädlinger Primus Line GmbH utilised its self-developed and reusable Primus Line® Overland Piping system to return treated wastewater from a German paper mill to an above ground river.
Low water levels and aquatic ecology are a major issue throughout Europe. As a result, the constraints on businesses that rely on water extraction from rivers, streams and lakes, such as this paper mill in southern Germany, are also increasing.
The mill operator takes water from a mid-mountain stream for paper production and had returned it to a canal several hundred metres below the point of withdrawal. For environmental reasons, the paper mill was instructed to return the purified process water to the extraction spot. In order to achieve this the company approached Rädlinger primus line GmbH who were able to offer a suitable solution employing the Primus Line® Overland Piping system.
What is Primus Line® Overland Piping?
Primus Line® Overland Piping is a reusable solution specifically designed for above-ground pipelines in order to safely transport demanding and potentially hazardous media such as industrial wastewater, brine, process water etc.

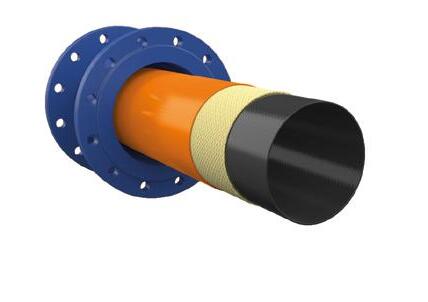

The system consists of two components: an aramidreinforced liner and specially developed connectors.

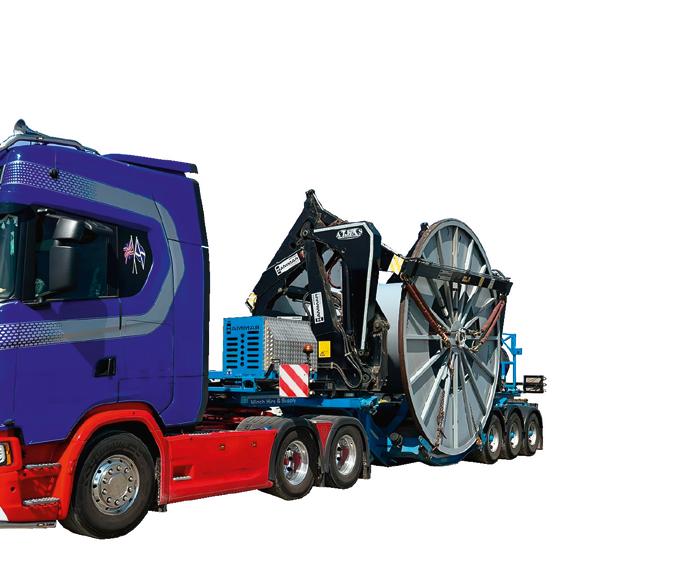

Up to 4,000m of the flexible pipe can be supplied on a reel, unrolled and laid directly – even in difficult terrain. (Figure 1) The pipe naturally conforms to the surface structure. Depending on the diameter (nominal widths from DN 150 to DN 350), the maximum operating pressure ranges from 56 to 20 bar. The inner layer is made of thermoplastic polyurethane (TPU), which is corrosion resistant and offers a high abrasion and chemical resistance that even withstands contact with highly corrosive hydrocarbons. The Kevlar® fabric reinforcement gives Overland Piping its high tensile strength, enabling it to completely absorb very high operating pressures. The TPU outer layer protects against UV radiation and abrasion and provides the flexibility required for multiple installations and the ability to roll up the reusable system.
The connectors ensure a leakfree joint. Specially designed high-pressure end fittings with flanges or special quick couplers are used to connect the pipework. They can also be connected to pumps or other pipework. >
Current industry practice of increasing friction factor to

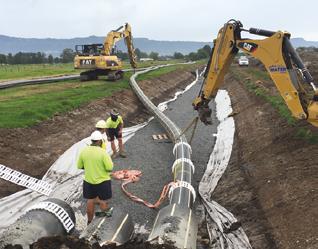

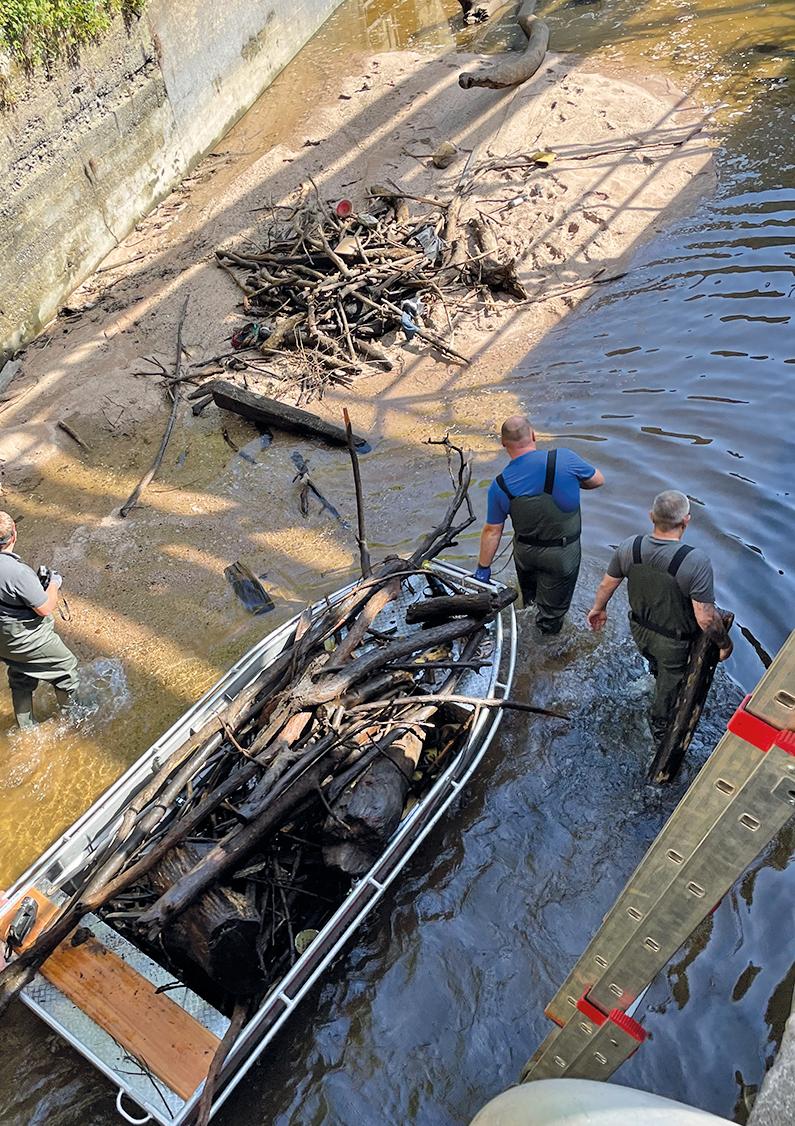

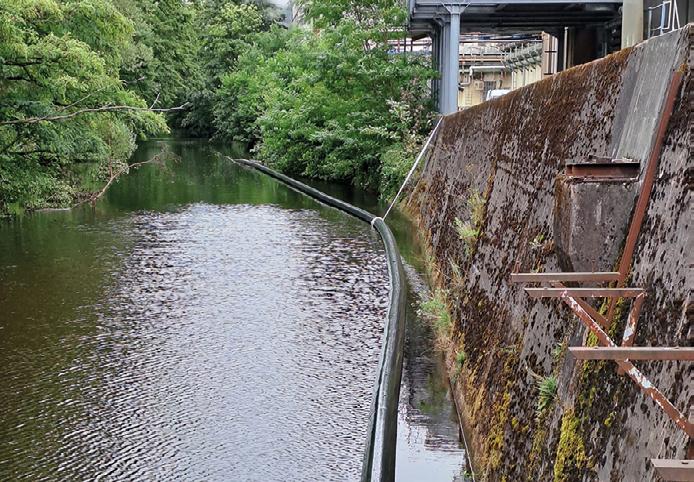

Clearing work in the riverbed prior to installation
Adapts to the surface: flexible, above-ground pipe
Project planning for wastewater recirculation with Primus Line®
The wastewater recirculation line of the mill had a total length of 690m and was to be installed above ground via a raft water canal. The volume of recirculated wastewater varies between 600 and 1,200 cubic metres per hour. Due to its temporary use during the summer and autumn months, the original plan was to roll up the system, store it for the rest of the year and then roll it out again – a classic use case for the reusable Primus Line® Overland Piping system.
However, during an onsite visit, the project team decided to leave the pipeline permanently in the canal due to the difficult access in some areas. The Primus Line F-Liner that is used as Overland Piping system was also suitable for
this case of application and met all the requirements in terms of service life, temperature, UV and abrasion resistance. It also withstands the alternation between several months of operation and shutdown. In addition, its shape remains stable whether the canal is filled with water or not.
As a result of the flow rate calculation, an F-Liner with a nominal diameter of DN 350 was selected, operating at a pressure rating of PN 10. Due to its low friction coefficient (k = 0.028 millimetres), it can also handle the highest flow rates.
One of the challenges of project planning was determining the installation sections. The curved course of the canal as well as structures that had to be passed such as a lock and a building containing the mill’s own hydropower plant prevented installation in one section.
Primus Line’s engineers also had to consider the ongoing operation and traffic on the mill site which had to be maintained while the winch and reels were put in place. In the end, three sections with lengths of 440m, 200m and 50m were defined.

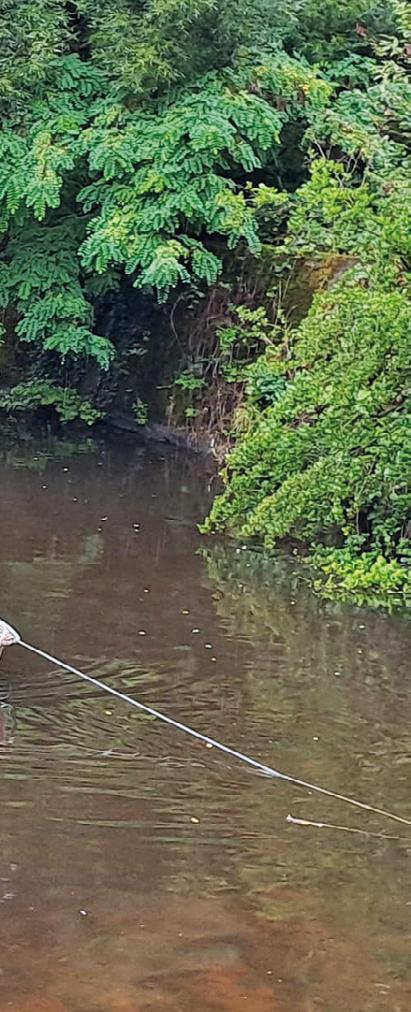

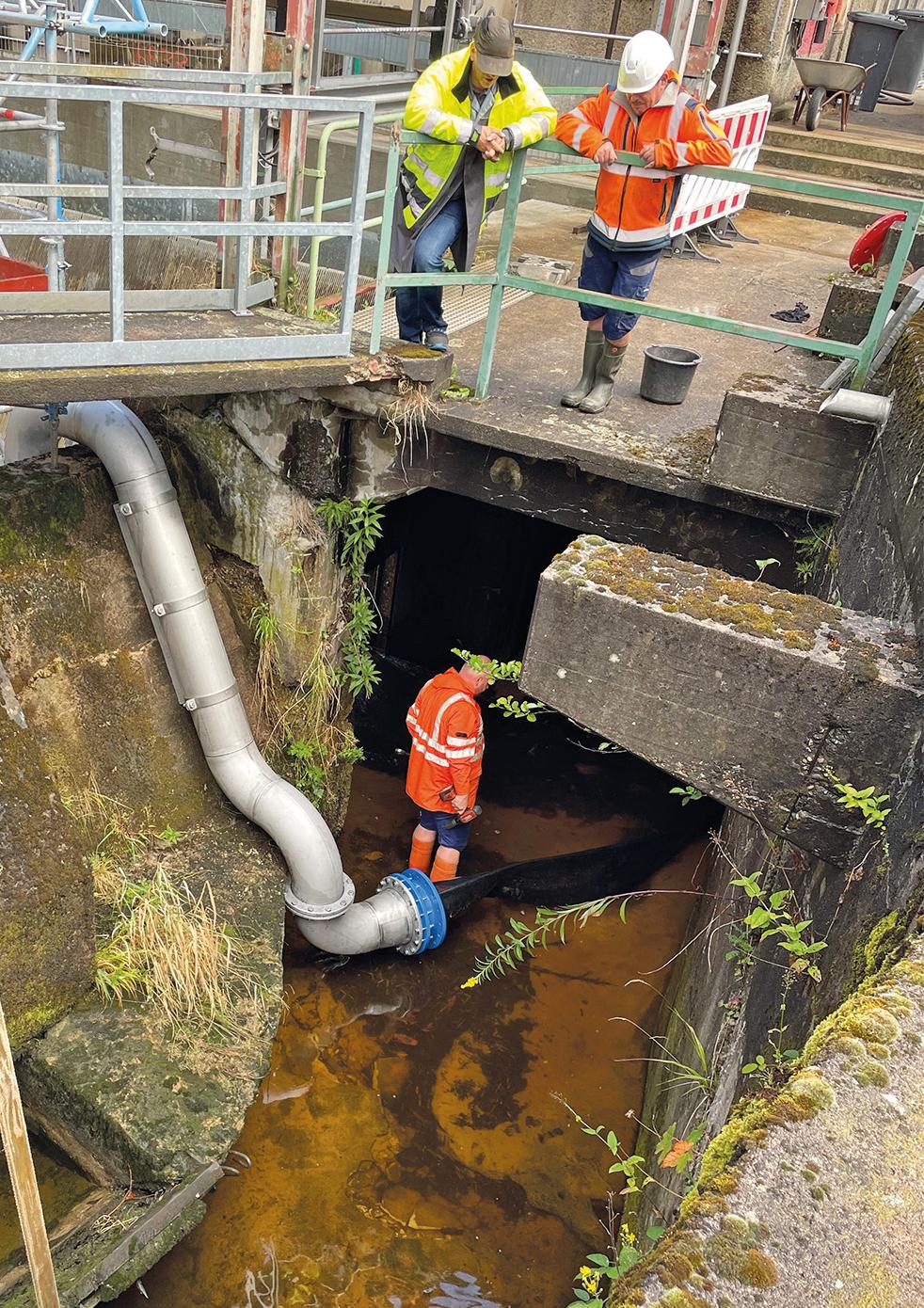

Pipeline in the river bed
After intensive preplanning, safety training for the installation team from Rädlinger primus line GmbH, and setting up the construction site, work could begin.
In order to place the liner in a safe and stable manner, both during installation and in future operation, the Primus Line installation team had to first remove any logs and branches from the canal. This clearing work was done using a boat and a winch.
A boat and a winch were also then used to lay the pipeline. The team placed the end of the liner with the installed connector in the boat and attached the end of the winch line to the connector. The pull of the winch then gradually unwound the liner and placed it in the canal. In this way, Primus Line laid the three sections one after the other: 200m under the hydropower plant, 50m near the lock and 440m up to the wastewater intakes.
A total of six connectors was necessary to link and connect the pipelines. Some were mounted on pontoons and some were pre-installed before the liner was laid. The liner was then pressurised with water, set up and brought into its circular shape. This allowed the liner to sink to the bottom of the canal. After a final pressure test, the pipeline was returned to service after a three-week construction period. About half of this time was taken up with the removal of the wood. >
Clearing work in the riverbed prior to installation
At this position, the liner is pressurised with water and lowered to the canal floor
Advantages over HDPE pipes
Primus Line® Overland Piping is the result of consistent development of a technology that Rädlinger primus line GmbH has been using for more than 20 years for the trenchless rehabilitation of pressure pipes. The Bavarian company’s aboveground solution is now also being used all over the world, including France, Canada and Norway, to reliably transport brine, domestic sewage and process water.
In all of these projects, the flexible pipeline based on the aramid-reinforced liner has prevailed over aboveground HDPE pipes, for several reasons. These include significant advantages in terms of mobilisation and equipment requirements. The fabric-reinforced liner is transported on reels, saving space. Installation only requires a mini-excavator or winch and simple hand tools. There is no need for machinery, manpower or time to be spent on complex welding to make the connection. Installation and dismantling times are correspondingly shorter. Primus Line normally take one or two days to lay 6km of their liner. Lengths of 1,000m and more in one section reduce the number of joints and
Connection of the liner with connector for crossing the lock
weak points. The liner easily adapts to the unevenness of the surface. By comparison, installing the same length of HDPE pipe takes about 25 to 30 days, with increased additional labour costs. Dismantling the same length of pipe also takes only one to two days with Primus Line® Overland Piping, as the liner is simply rolled up, compared with seven to ten days for HDPE. The subsequent storage requirements for HDPE pipes are up to ten times greater than for liners on reels. In addition to storage and transport costs, operating costs are on average also lower due to minimal mobilisation and demobilisation costs and lower manpower requirements.
In addition to cost and efficiency, the low use of machinery also contributes to the environmental friendliness of the Overland Piping system. It can be installed in sensitive
environments such as protected areas, nature parks or rivers without major environmental impact. This avoids emissions and reduces the carbon footprint.
The middle layer of the threelayered Primus Line® Overland Piping system ensures the safety of the flexible pipe: It is made of seamlessly woven Kevlar®. This synthetic fibre is up to ten times stronger than steel and twice as strong as glass fibre or nylon. The flexible pipe therefore has a very high factor of safety (FoS). The burst pressure is at least 2.5 times higher than the allowable operating pressure. The entire production process is closely monitored. Sensors and cameras continuously capture the process parameters and provide the basis for extensive wall thickness and consistency control mechanisms. In addition, every liner produced
is subjected to an in-house pressure test before being delivered to the construction site.
Fast installation in emergency cases
Primus Line® Overland Piping also provides a solution in the event of catastrophes such as landslides, floods or forest fires that cause pipeline damage or failure. A single container can hold two to four kilometres of flexible pipe with the appropriate fittings. In case of an emergency, the flexible and spoolable Primus Line® aboveground pipe can be installed immediately and – depending on the environmental conditions – within a short period of time. In addition, the Primus Line® Overland Piping system has a very long service life – depending on the type of use and the conditions.
Trenchless in a world heritage site
A major tourist attraction and historic park with 250 year old pipes that need to be renovated!
Covering an area of 2.4km2, Bergpark Wilhelmshöhe in Kassel (Germany) is the largest mountain park in Europe. In 2013, the park was declared a UNESCO World Heritage Site and the German National Tourist Board ranks it among the top 100 sights in Germany. Its famous water features including Wilhelmshöhe Palace, the Hercules statue and Kassel’s landmark, play a big part in attracting over 750,000 visitors a year.
There are 14 historic buildings in the lower Bergpark between the entrance and the castle plateau, some of which are now used for catering. All of the wastewater pipes and sewers here will be renovated in accordance with current regulations. This involves a total of around 1,200m of rainwater, wastewater and mixed water pipes with nominal diameters from DN 100 to DN 150 and around 2,650m of pipes from DN 100 to DN 600.
The project team
The owner is the state of Hesse; the Museumslandschaft Hessen Kassel MHK acts as its representative and user. The client is the northern branch of the Landesbetrieb Bau und Immobilien Hessen (LBIH) in Kassel. Construction supervision is the responsibility of AGC - Aqua Geo Consult GmbH, Kassel; Hermanns HTIBau GmbH & Co KG, Kassel, is responsible for construction. The upgrading, renewal and
renovation of the historical sewers, some of which are up to 250 years old and have a box section, is being carried out by Hermanns itself; SwietelskyFaber Kanalsanierung GmbH, Blomberg, has been commissioned with the sections to be renovated without trenches. Hoses and resins were supplied by Bodenbender GmbH from Biedenkopf.
In order to protect the vegetation, especially the trees, some of which are centuries old, and not to disturb the visitors, the client and users set strict guidelines. These included as much trenchless refurbishment as possible and carrying out the construction work during the winter months when there are less visitors.
History: A refugee founds the Kassel canal network
Construction of Bergpark began in 1680: Landgrave Karl and his successors had a Baroque park laid out that was unique in a European garden design - Italian terraced gardens were smaller, French Baroque parks extended across the plain. Today’s design is based on English landscape parks, especially in the lower area.
In “Cassel”, as the town was called until 1927, underground drainage channels leading into the low-lying Fulda existed centuries ago. The canals, which were made of quarry stone and often only covered with slabs or completely unlined, were not connected. >

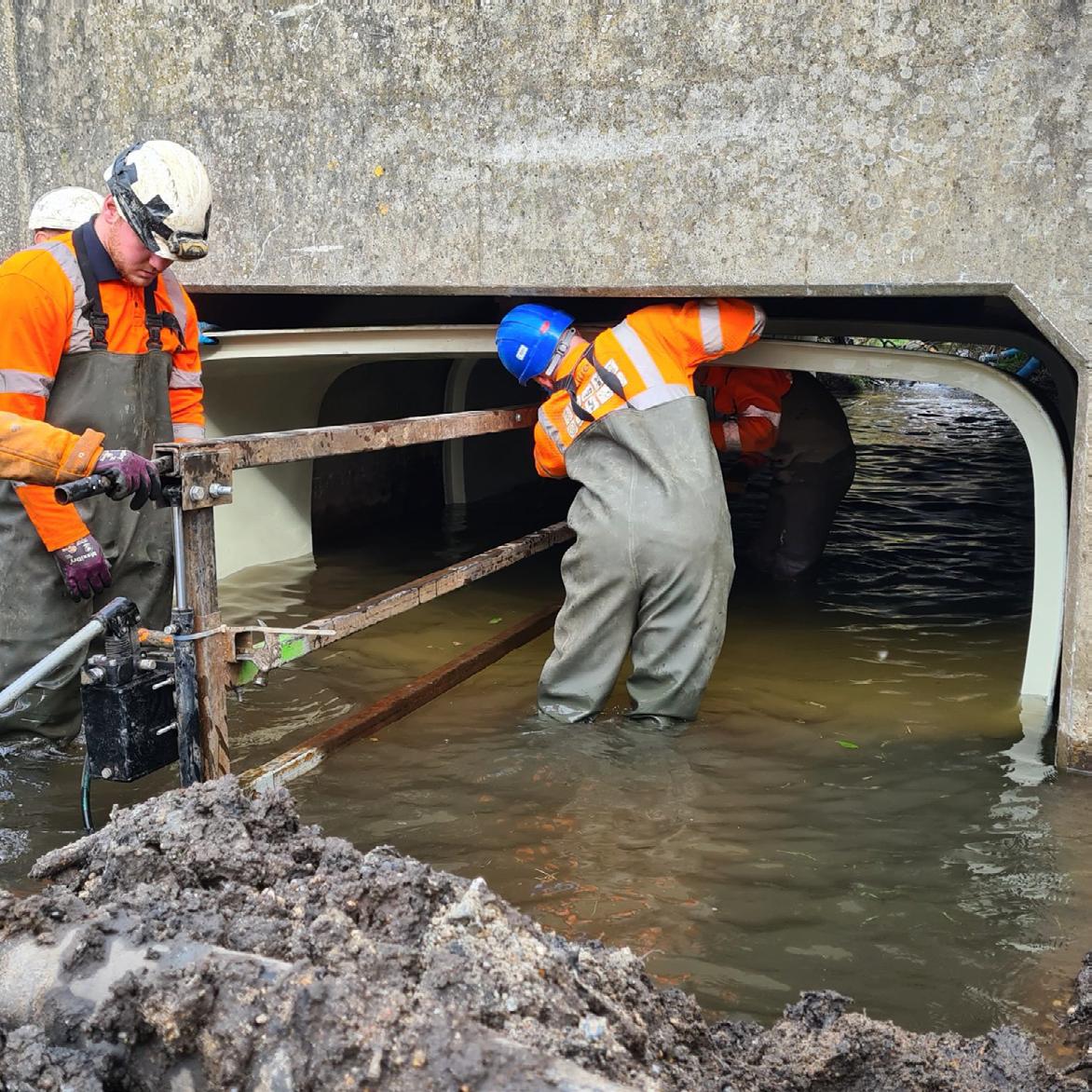

Clearing work in the riverbed prior to installation
Around the turn of the 18th century, the Huguenot master builder and engineer Paul du Ry (1640-1714), who had fled France, developed an interconnected sewer system for the Huguenot settlement in the Oberneustadt. He was also involved in the construction of the cascades in the new Bergpark.
Du Ry had previously acquired extensive knowledge of hydraulic engineering in Maastricht in the Netherlands. This was one of the reasons why Landgrave Charles, a devout Calvinist and one of the first to offer asylum to persecuted French Protestants, brought him to Kassel.
Some areas of the Bergpark were already canalised during construction, primarily for surface water. The entire canalisation took place from
the beginning of the 20th century. This means that some of the canals that are not considered to be from the time of construction. These are now being renovated without trenches and are more than 100-year-old - “antiques” from before the First World War.
Bernd Schäfer, deputy manager of the Swietelsky Faber branch in Blomberg and the project manager, is delighted to be working on the landmark in his home town: “We’ve refurbished pretty much everything from airports to hospitals - but we haven’t yet worked on a World Heritage Site.”
Economic miracle without monument protection: patched up with mortar & co.

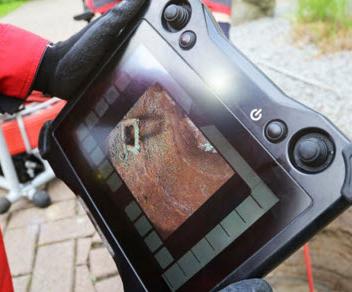

The camera inspections at the start of the project delivered some surprises: Some of the old
plans were very accurate and only required a few corrections. Other pipes took detours that are no longer comprehensible today or deviated greatly from the old documentation or assumed routes.

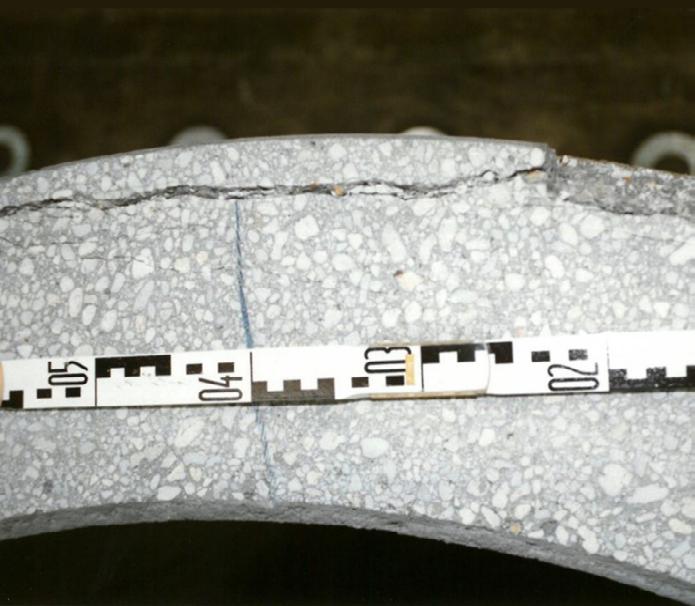

The damage analysis for the implementation planning confirmed previous expectations: In leaking pipes, the lush vegetation had caused severe damage due to root ingrowth. The old joints were also no longer “sewage-proof”.
In addition, the renovators came across sections of pipe that had been “repaired” with mortar and the like in the 1950s and 60s without regard for the protection of historical monuments, but in an economically miraculous manner. >

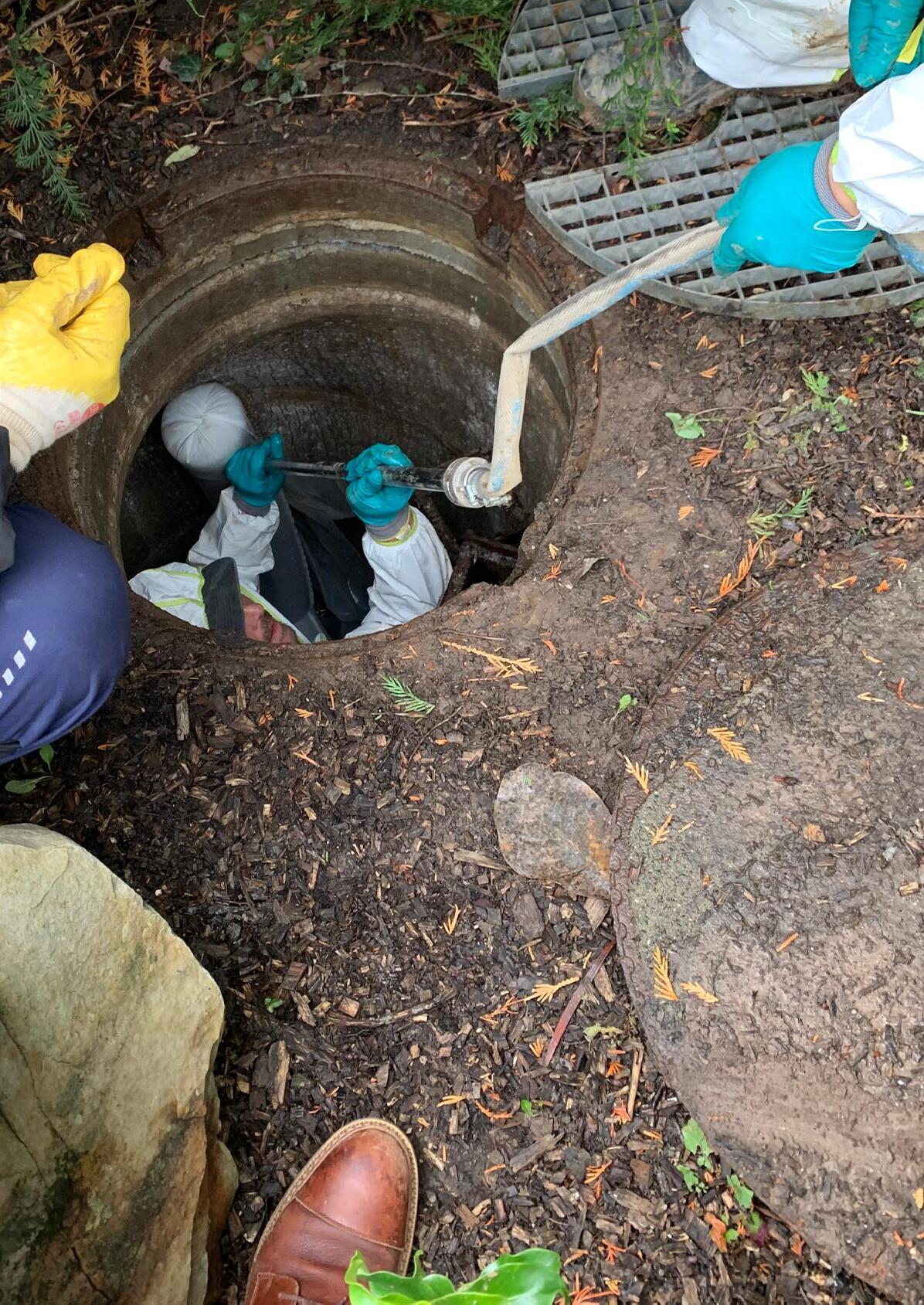

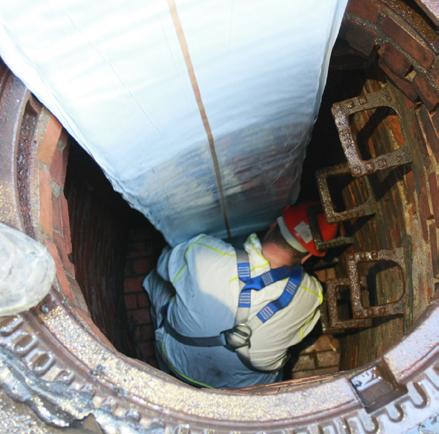

Where possible, historical renovation is now being carried out. The old sewer sections are still being used for surface water and supplemented with an additional pipe. For around 1,000m it was possible to dispense with replacing the pipes using the open trench method and to carry out trenchless renovation with pipe liners.
Bodenbender: Resins for the special requirements of sewer rehabilitation
Swietelsky-Faber utilised products from Bodenbender GmbH in Biedenkopf, Hesse, for the refurbishment: “We know the material, we know how it reacts at different temperatures - and if there are any difficulties, we can be sure that our partner will be on site immediatelyeven providing an alternative product if required.” SwietelskyFaber has been working with Bodenbender for around 20 years: “We have always found Bodenbender to be extremely reliable and flexible,” says Schäfer.
Bodenbender is one of the pioneers in house connection rehabilitation with pipe liners. Originally a pipe and sewer cleaner itself, the company developed its own resins and liners together with Bayer AG in the early 1990s. The aim was to develop a resin for the special requirements of sewer
rehabilitation. It had to adhere perfectly to various substrates, harden quickly and “spill-free” for immediate milling and be easy to process even with large temperature differences. Above all, it should be possible to correct errors so that the material does not have to be milled out if the inliner bulges after curing.
In 1991, the Point-Liner® was launched; this was followed in 1994 by the PL® Point-Liner system, which was supplied as a perfect fit; other products followed. Today, Bodenbender is active throughout Europe and Australia. The company also offers its customers and users comprehensive training at its in-house academy and on site. “We not only understand our customers’ business, we also master it ourselves,” says
Jonas Bodenbender, Technical Director of
the company.
The right liners and resins for every challenge
Bodenbender offers precisely tailored quantities and mixtures, but from here the customer takes over: “We first measure the pipe liners directly on site and adjust the resin accordingly,” explains Schäfer. This means that a product with a short curing time can be used for short pipe liners. For long liners, a longer pot life helps to work carefully and accurately. In Kassel, 1m to 50m long liners made of needle felt or polyester were used, depending on the condition, location, nominal width, dimensional jumps and bends of the sewer.
“We also coped well with special challenges such as jumps in nominal width, the wrinkle-free adaptation of the inliners to the old pipes, difficult bends, and the transitions of the pipes into the sections,” says Schäfer: “However, there is another reason why the work is going even better than planned, the mild winter with low temperature differences has actually made it easier for us.”
One-Stop
Shining a bluelight on LED system technology
Innovation and best in class solutions underpin Bluelight’s exciting growth story
By Niklas Ernst, CEO, Bluelight
Eight years ago, the Bluelight business concept was first presented in a small corner of the Aarsleff A/S booth at IFAT 2016. Today, Bluelight has become the undisputed leader in pure LED / CIPP system technology, generating a worldwide total of over €30M profitable revenue per year.

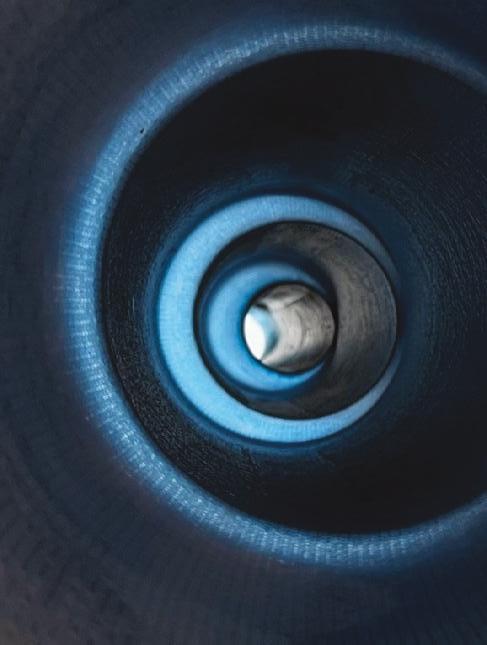

Over the years, fully cured and approved CIPP solutions have been constantly developed, improved and produced with Bluelight’s growing network of partners including Hammerhead Trenchless, Bluelight Lining ltd, Vivax srl, Grupo Mejoras, Radeton sro and Sewer Equipment Company (SECA) increasingly contributing the market’s success.

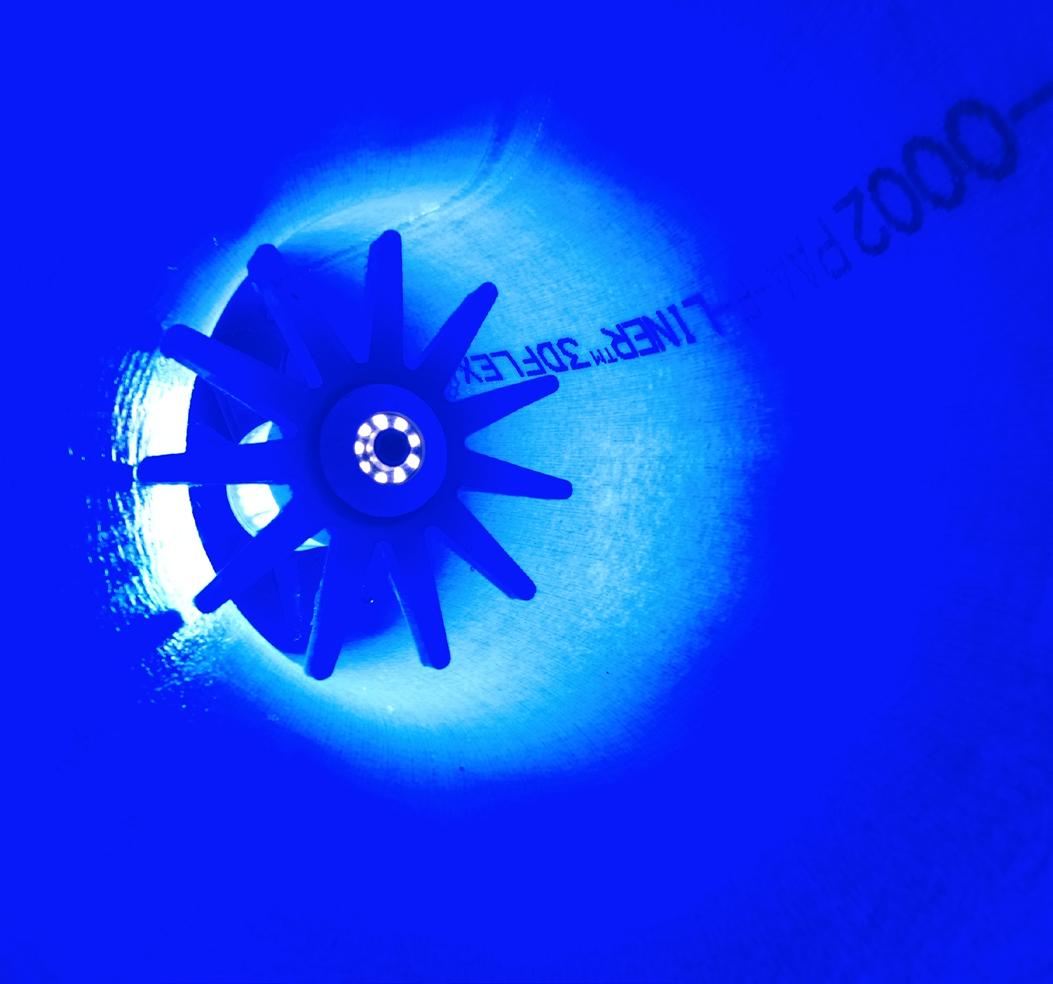

In 2022 Bluelight released its next generation of LED curing hardware, offering new displays, software, and interchangeable baskets. In addition to the four baskets that had already been released, a fifth even smaller head basket with 64 diodes and a longer 125m power version with 696 diodes, were released at this years’ IFAT in Munich. Both new baskets will expand the hardware options for clients very soon.
There are now more than 400 Bluelight systems up and running worldwide, curing more than 700 tons of styrene free Vinylester resin per year. This is alongside more than 300km of flexible invertible lateral CIPP lining per year with diameter ranges between 70mm and
400mm. The flexible PAA F Liner range based on TPU coated synthetic fibres is just about to be extended to the next generation of fully new designed 3D flex+ liners. These will appear in six different diameter combinations, once production lines are fully established. Additionally, the company has met a recent increased demand for non-flexible pull-in CIPP, which is delivered by PAA GF liners based on seamless GFRP carriers. This new type of Bluelight CIPP liner is mainly impregnated with the exclusive Polyblue 450 resin and is available in a diameter range between 150mm and 600mm at wall-thicknesses of 3.2mm, 4.0mm or 5.0mm. >
Besides top-quality LED curing hardware, and a wide range of perfectly suited CIPP solutions, the Bluelight business concept is committed to delivering dedicated service and support to ensure every customer always gets the best out of the system they purchase.
Reflecting on Bluelight’s success its CEO, Niklas Ernst, said: “Our business model has never been solely about selling the maximum number of curing units. Instead, the focus is always on developing sustainable partnerships with every user of our system
technology. Our durable and robust hardware can perform under the toughest of site conditions, offering customers reliable curing of approved and perfectly matched CIPP and resin systems.”
Looking forward the company’s development focus includes new combinations of LED preheating with LED polymerisation (European patent pending) to further improve the curing quality and speed in bigger diameter pipes. On the resin side, development is focused on optimising solutions for utilisation in
buildings, as whilst all the current light curing resin systems on the market can be used in rainwater downpipes, they are still limited for a broader use in wastewater downpipes.
Always conscious of avoiding false promises, Bluelight has delivered the next level of customer comfort, security, efficiency and quality into a diverse range of markets and is a credit to the dedicated team that visualised and has gone on to drive its success.
HERRENKNECHT mega project in China
The 17.5-meter TBM “Shanhe” is ready for the construction site in Jinan

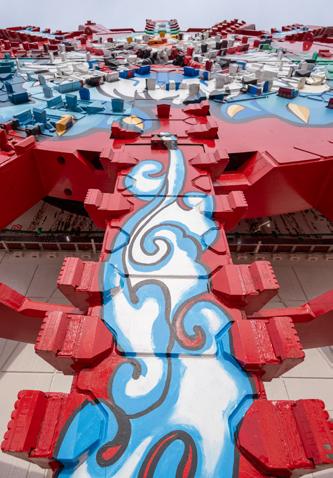

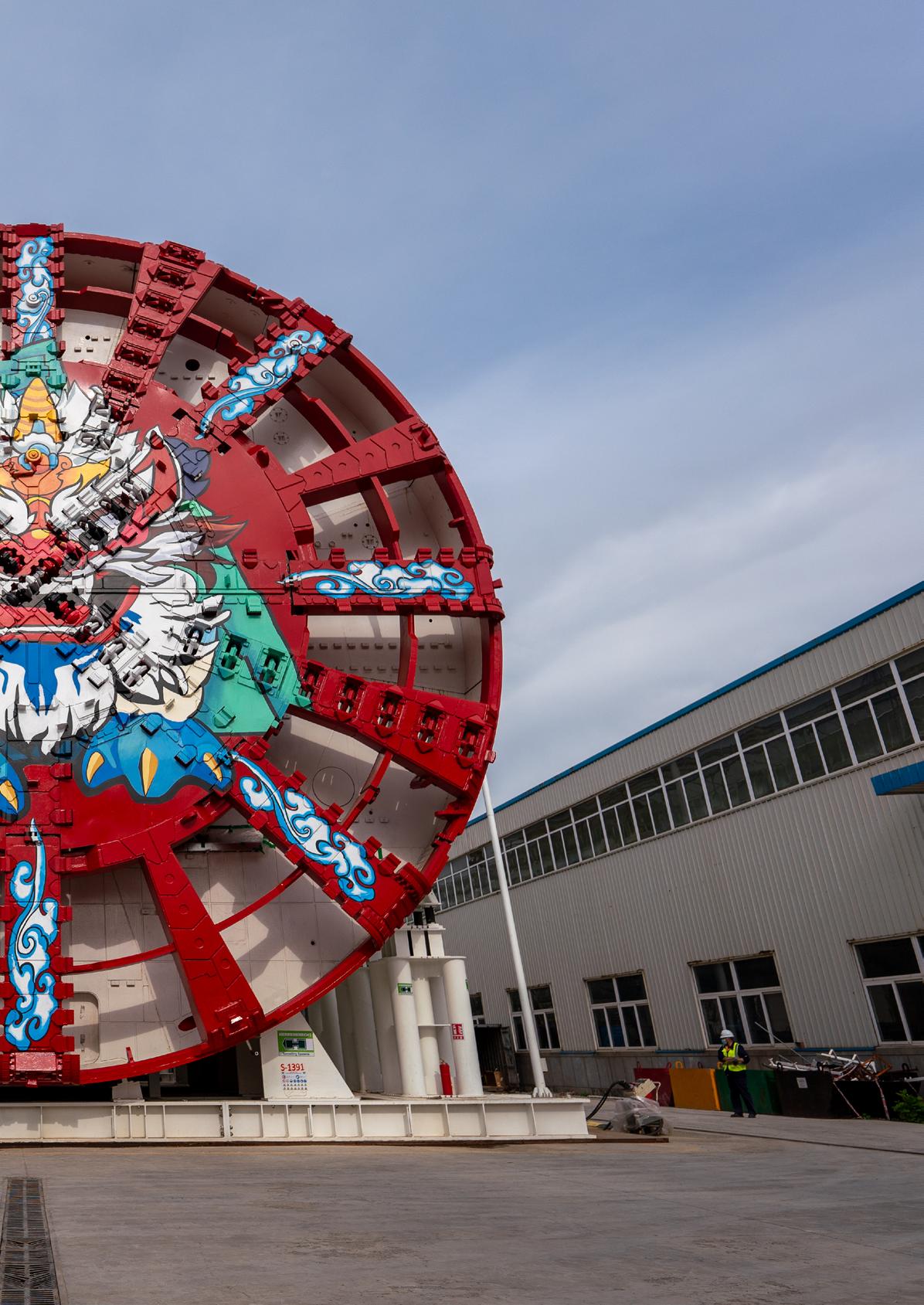

The Herrenknecht TBM “Shanhe” with a diameter of 17.5 meters and the face of a qilin creature painted on its cutting wheel
Herrenknecht has built a Mixshield tunnel boring machine (TBM) for the construction of a two-storey road tunnel, with three lanes in both directions, in the eastern Chinese city of Jinan.
The Mixshield technology is designed for the extreme conditions of the upcoming undercrossing of the Yellow River and the TBM is currently being dismantled, transported, and then reassembled on the construction site. A machine of this diameter has only been used twice before in the history of tunnelling - the largest was in 2015 in Hong Kong, also a Herrenknecht Mixshield, with a diameter of 17.63m.
The order for the Herrenknecht subsidiary, Herrenknecht Tunnelling Machinery (HTM), in China was a challenging one. The request was for a machine to cross under the Yellow River in Jinan in eastern China, in a geological environment with high groundwater pressure, and to create just one tunnel tube for both directions of travel. A correspondingly large diameter was therefore required - 17.5m over a section of 3.3km.
Jinan is located around 400km south of Beijing and has a population of nine million. It is the capital of the Chinese province of Shandong and an important business location. The road tunnel project to cross under the Yellow River is the second one in 2024 with tunnelling scheduled to begin later in the year. The project aims to improve the connection between the two sides to the north and south of the Yellow River.
Adaptations to the geology
To adapt to the clay, sand and silt geology, and the 7.5 bar groundwater pressure under the Yellow River, a Mixshield TBM was selected. The Mixshield technology developed by Herrenknecht is an advance on conventional slurry technology. The support pressure in the excavation chamber is precisely managed using an automatically controlled air cushion. This means that heterogeneous geologies and high water pressures of more than 15 bar can be controlled safely even with very large excavation diameters. An individual new slurry circuit was designed especially for TBM “Shanhe”.
“We have also equipped the machine with our special telescopic camera in order to better monitor the tool change and the face,” says Herrenknecht’s project manager Zhao Bin, who has already supervised several projects for clients in China. Most recently, he supervised the two TBMs that are also crossing under
the Yellow River just a few kilometres away from the new construction site and building a road tunnel with two tubes. The shield diameter of the two Mixshields for the Jinan Jiluo Road North Extension Tunnel project was 15.71m.
Connection for millions of people
Wang Hai is Deputy General Manager of the Herrenknecht office in Beijing and is advising the customer on the challenging project. He says: “Thanks to its efficiency, the new single-tube tunnel supports the national strategy of ecological protection and high-quality development of the Yellow River Basin. It removes a bottleneck of traffic across the river and is calculated to absorb 7.4% of the traffic volume in one go.”
Project data for Jinan Huanggang Road Yellow River crossing tunnel
• Client: Jinan Urban Construction Group Co
• Contractors: China Railway 14th Bureau Group Co.
The factory acceptance ceremony with representatives of manufacturer
Herrenknecht on the picture
Swift Robbins TBM breaks through 11 months early in Nepal
Double
The
the
Shield machine overcomes mountainous terrain at Sunkoshi Marin
6.4 m diameter Robbins Double Shield TBM was refurbished and incorporated many of
components from the 5.03 m diameter machine used at Bheri Babai (BBDMP)
On May 8 in Nepal’s Sindhuli District a crowd of people attending the breakthrough of a speedy TBM had much to celebrate. The 6.4 m diameter Robbins Double Shield machine had overcome incredibly challenging geology to cross the finish line 11 months ahead of schedule.
Nepal’s Sunkoshi Marin Diversion Multipurpose Project (SMDMP), at 13.3 km in length, is one of the longest TBM-driven tunnels through the Himalayan Mountain range and is only the second such tunnel to be completed in the country. >
“The overall design of the Robbins TBM is proven, and the equipment’s performance and integrity are excellent. Additionally, its adaptability to the Himalayan geological conditions is very impressive,” said Mr. Liu Fengfan, SMDMP Project Manager for contractor B-2/COVEC (China Overseas Engineering Group Co. Ltd and China Railway No. 2 Engineering Group Co Ltd).
Ground conditions included two major fault zones with challenging and varied geology ranging from highly jointed mudstone, sandstone and
conglomerate to quartzite, granite, and more. The tunnel was bored through mostly igneous rock with maximum overburden of 1,320 m.

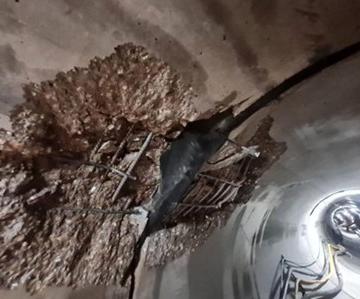

The TBM and its experienced crew were able to persevere through multiple instances of the shield becoming trapped with bypass tunnels required to free it, including one instance 4 km into tunneling that required 27 days’ worth of work to free the machine from collapsing and squeezing ground. Despite the challenges, the crew were able to more than make up the time with swift advance rates including
an impressive 1,503.3 m in one month and 72.6 m in one day, both project records set in March 2024.
The success of the machine, despite adversity, is in part due to its proven design. The refurbished TBM was originally used at a smaller diameter on Nepal’s first TBM-driven tunnel, the Bheri Babai Diversion Multipurpose Project (BBDMP). The design incorporates many of the same components of that original machine, and the process involved final assembly on location at the jobsite. It’s something the contractor sees as
The crowd had much to celebrate – the Robbins TBM and its crew overcame challenging geology to achieve swift advance rates including an impressive 1,503.3 m in one month
a positive: “One of the highlights is that this machine integrates the overall structure of the 5.06 m diameter TBM from the Bheri Babai project. After upgrading to 6.4 m diameter, all new front shield components were not assembled in the factory. Instead,
we adopted Onsite First Time Assembly (OFTA). This was very effective, and I find it particularly noteworthy,” said Mr. Jin Haikuan, Deputy Project Manager & TBM Production Manager for B-2/ COVEC. >

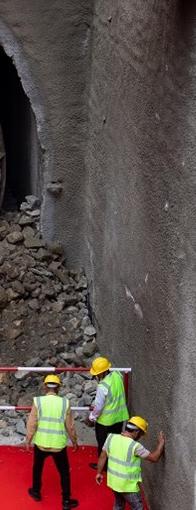

The 6.4 m diameter Robbins Double Shield TBM broke through nearly one year early at Nepal’s Sunkoshi Marin Diversion Multipurpose Project (SMDMP) on May 8, 2024
At a breakthrough ceremony attended by Nepal’s Prime Minister Pushpa Kamal Dahal, the crowd celebrated an epic TBM breakthrough 11 months ahead of schedule
TUNNELLING
With tunneling complete, the work of providing both power and water can begin. The tunnel is connected to a new 28.6 MW surface powerhouse on the Marin River to alleviate the shortage of power supply in the area. It will also be used for farmland irrigation in the districts of Dhanusha, Mahottari, Sarlahi, Rauthat and Bara in the Terai Plain, diverting water from the Sunkoshi River
to the Marin River for the project owner, the Department of Water Resources and Irrigation under Nepal’s Ministry of Energy, Water Resources & Irrigation.
The project’s successful completion is a triumph not only for the communities benefiting, but also for the future of tunneling in Nepal.
“B-2/COVEC and Robbins have
successfully introduced and spread TBM technology in Nepal and shown the advantages of it. This country needs more tunnels,” said Robbins President Lok Home at the breakthrough ceremony. “To have these good performances on these first two projects is really a good thing for the country and our industry.”
The crowd had much to celebrate – the Robbins TBM and its crew overcame challenging geology to achieve swift advance rates including an impressive 1,503.3 m in one month
125,000+
ADVERTISING PACKAGE
Print and Digital Magazine
Philippine Resources Journal offers both print and digital advertising. The online digital magazine is interactive and read by thousands Your company advert will be hyperlinked to your website, as well as the option to embed a corporate company video
Bi-monthly interactive newsletter Website
Philippine Resources Journal currently has 10,000 newsletter subscribers. Each newsletter is interactive and all of our advertising partners have their company logo shown with a hyperlink to their website
Our website had over 125,000+ views in 2023! All advertising partners have their company logo on our website, which is hyperlinked to their website
Social media exposure
Philippine Resources Journal offers social media exposure to our advertising partners Philippine Resources has had over 1 million social media impressions! Our social media accounts are updated daily with the latest industry news
The inspect before invest approach
Everyone uses water daily, however, we rarely think about the pipelines that transport thousands of gallons of water below us, both clean and used.
By Rients Jansma and Annegien van der Bij, Acquaint

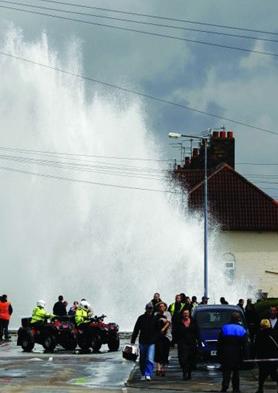

Consequences of DN1000 Main Burst in Liverpool, Summer 2011
As many pipelines reach the end of their theoretical lifespan, more problems seem to arise. These problems, such as leakages and wall-thickness degradation, have a massive environmental impact combined with high maintenance costs.
Not every pipeline falls victim to these occurrences, as 50% of
the pipelines that theoretically need to be replaced are in fact still in good condition. In the worst-case scenario, pipeline owners make huge investment decisions replacing pipelines that are practically in good condition. The pipeline condition assessment tools of Acquaint provide the data to make well considered decisions in the near future. >
Ultrasonic technology in pipeline condition assessment
The Acquarius performs internal inspections in any pressurised water or wastewater pipeline with a diameter starting at DN200. Using ultrasonic technology, the Acquarius assesses the condition of drinking water transport mains and sewer force mains in a single run. Suited for both wastewater and drinking water the ultrasonic technology detects over ten different failure mechanisms. The technology works for all types of materials, such as concrete, asbestos cement, cast iron, ductile iron, steel and HPDE/PVC/GRP.

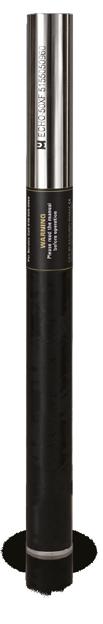

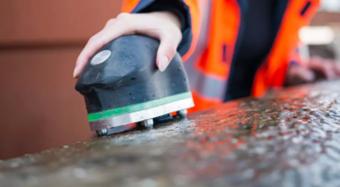

The PipeScanner allows you to perform comprehensive pipeline condition assessments in a flash. The tool allows external condition assessments of pipelines with a diameter starting at DN50. The PipeScanner is suitable for use with asbestos cement, cast iron, steel and HPDE/PVC pipelines. The tool measures wall thickness degradation, leaching, corrosion and deterioration due to H2S.

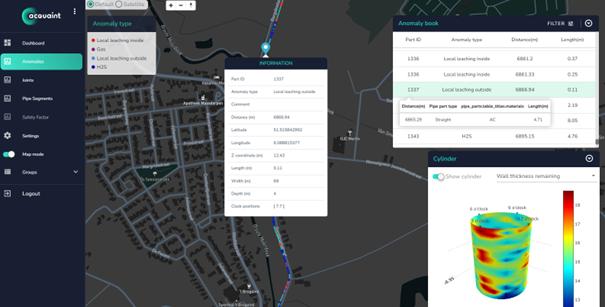

Interactive insights
Acquaint’s dashboard provides all the inspection and geographical data in one place. It is an online overview to give a quick and easy insight into
the detected anomalies and failure mechanisms. Within the dashboard every anomaly, joint and pipe segment is visualised and can be individually zoomed into. Users can find critical values and monitor these locations closely. Acquaint utilizes Artificial Intelligence to streamline processes and speed up data analysis, ensuring faster dashboard delivery for pipeline inspections.
The dashboard offers an up-todate overview in a user-friendly platform to be fully in control of the pipeline network, including all condition reports.
Want to know more about pipeline condition assessment? Contact Acquaint at info@acquaint.eu or have a look at www.acquaint.eu.
PipeScanner

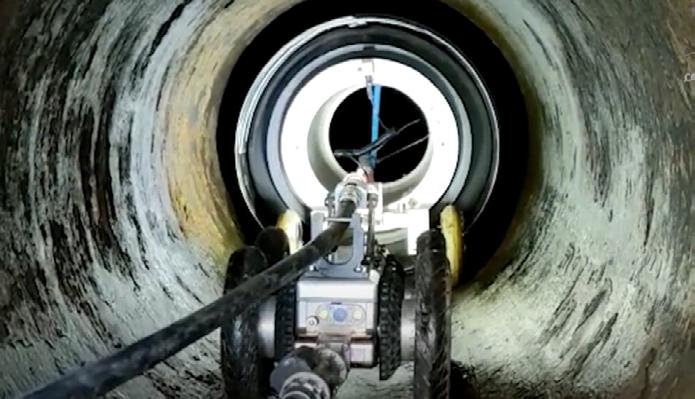

Jersey Trenchless revolutionises infrastructure inspections
Advanced video camera technology is saving time, money and inconvenience
Historically, diagnosing issues within the hidden systems of a buildings has required invasive methods, significant time and considerable expense. Jersey Trenchless is changing all of this with their advanced video camera inspections, offering a quick, cost-effective, and thoroughly non-destructive alternative. In doing so, they are helping to save property owners time, money, and the inconvenience of traditional inspection methods.
The high-resolution cameras used by Jersey Trenchless provide clear and detailed views of the inside of pipes and conduits, allowing their team of experts to accurately identify blockages, leaks, breaks, and other issues that could potentially lead to costly repairs if left undetected. This service is essential for anyone experiencing problems with their plumbing, electrical, or sewer systems, or for those looking to prevent future issues.
The advanced video camera inspection technology represents a significant leap forward to understand and diagnose the hidden infrastructure of any property. In addition to identifying problems, Jersey Trenchless also offers a comprehensive range of repair solutions. Utilising trenchless technology, they can repair most issues identified during the inspection without the need for extensive excavation, further saving property owners time and money.
