architecture portfolio - selected works joy an chew

contents selected works

04 08 12

cal poly pomona school of architecture - spring '21

scientist's retreat - fall '21 silverlake mixed-used development - spring '22

What makes a classroom different than any other building? What makes a studio space different than any other classroom? This project centers around the relationships of the spaces, and consequently, the relationships between their inhabitants. It’s about the connections between the students with each other; between the students and faculty; between the architecture department and the rest of the campus. Despite being a central gathering place for architectureadjacent activities, the buildings seamlessly integrate with the campus around it.

The plinth base of this tower was developed through a series of mutations performed on abstract linework, which was strategically extruded, subtracted, and booleaned to create inhabitable spaces for laboratories, lecture halls, and other public spaces. Each of these spaces is easily accessible from all sides including the main campus. The tower form was derived from subdividing the triangular base shape with the same linework that created the plinth and subtracting various segments from each floor to create unique pockets of space usable for lounging, studying, or socializing. The plinth and tower are linked

5 4

Figure 7: Interior rendering of the northwest corner of the tower Figure 8: Exterior rendering of the plinth program Cal Poly Pomona School of Architecture California State Polytechnic University, Pomona | Pomona, CA

Figure 9a: Ground floor plan

Figure 9b: Eleventh floor plan

Figure 10a: Concept diagramFigure 10b: Facade derivation diagram

Figure 9c: Twelfth floor plan

Figure 10c: Longitudinal section

7 6

The disctinction between private and public is important to a scientist's retreat; to the separation of work and play. This project embraces a large degree of separation between spaces that are open to the public and spaces that are reserved for scientists and residents.

The publicly accessible space is on one extreme of the project; the private living quarters are entirely contained on one side of the site and can be accessed through a reserved central circulation core. The roof deck atop the private quarters is the only shared space between scientists and visitors.

The program is grid-based and monolithic, heavily covered by the roofs, but floor to ceiling windows allow residents to fully absorb the mountain views and allow natural light to flow in.

9 8

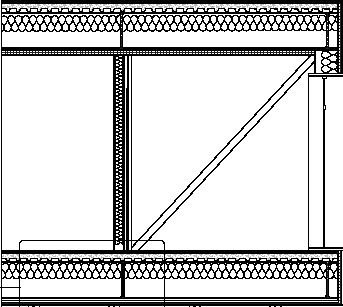

Figure 11b: Concept diagramsFigure 11c: Wall section detail

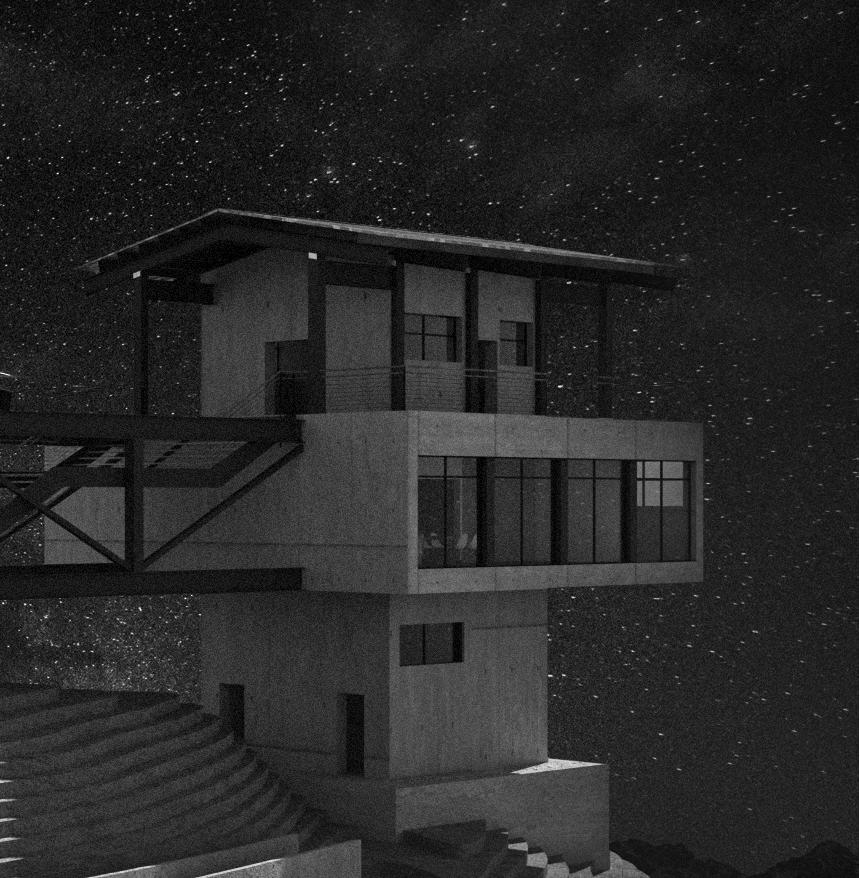

Figure 11a: Exterior rendering Figure 12: Exterior rendering of the retreat facility

MASSING DIAGRAM PROGRAM/CIRCULATION DIAGRAM SEMI-PUBLIC SHRINKINGAND SLICING TWOBLOCKS CIRCULATION PUBLIC PRIVATE WALL SECTION WALL ELEVATION WOODVENEEREDFLOOR BATTINSULATION PANELSUPPORTS LEGEND FIBERCEMENTPANELS BATTINSULATION GYPSUMBOARD METALRIDGECAP CORRUGATEDMETALSHEET RIGIDINSULATION

ARC 3011L - Scientist's Retreat Vetter Mountain | Los Angeles County, CA

11 10 Figure 13: Floor plans

14b: Longitudinal section LOWER FLOOR PLAN GROUND FLOOR PLAN UPPER FLOOR PLAN 041632 20'-0"10'-0"10'-0"20'-0"20'-0"20'-0"20'-0"10'-0"10'-0" 140'-0" A 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 BCDEFGHJK ABCDEFGHJK RESEARCH OFFICE ADA RESTROOM STORAGE RESEARCH LABORATORY STORAGE BEDROOM BEDROOM KITCHEN/DINING MEETING DECK A UP UP A A A A A UP

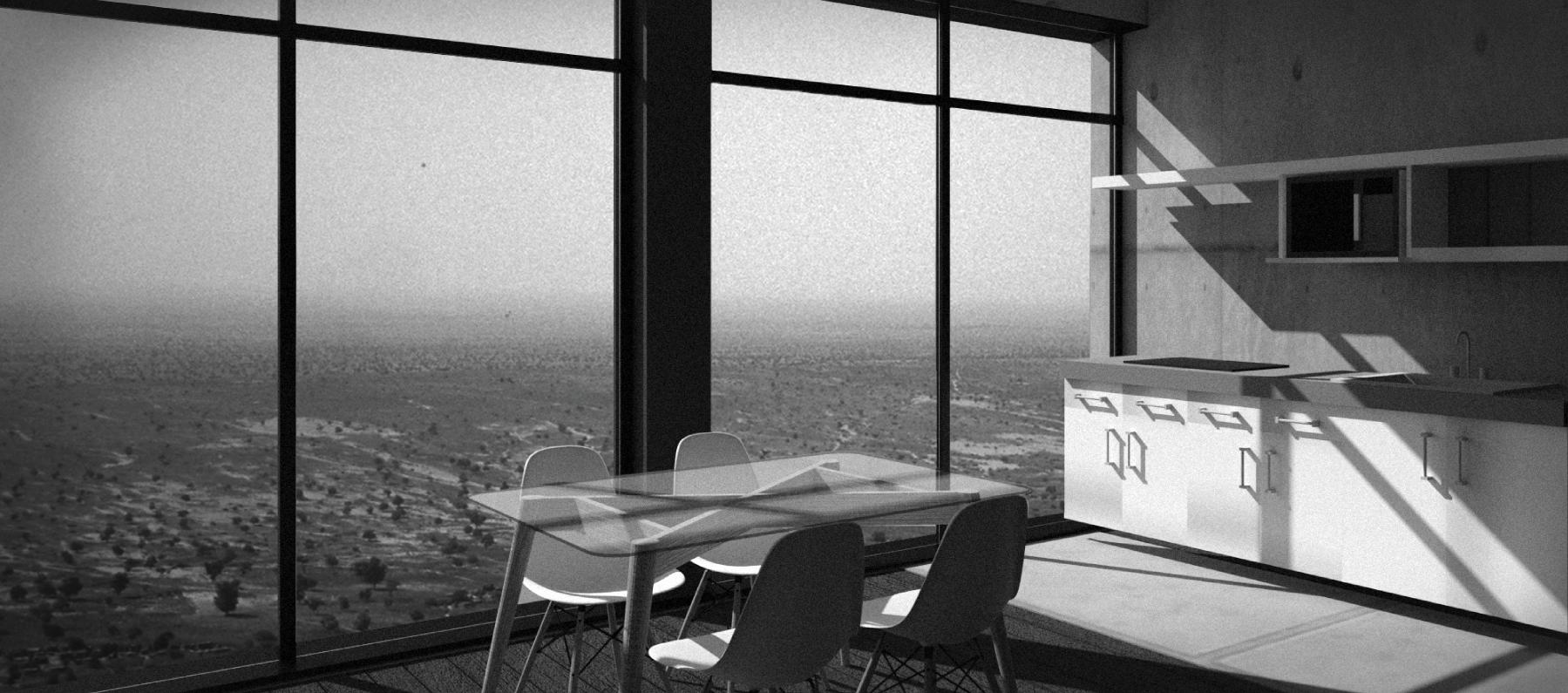

14a: Interior rendering SECTION A GROUND FLOOR EL. 31'-0" LOWER FLOOR 32 16 0 UPPER FLOOR RESEARCH OFFICE

Figure

Silverlake, Los Angeles, California

The goal for this projecet was to create a mixed-used residential and commercial development for the city of Silverlake, Los Angeles, California. The requirements for this development were to include at least 12 residential units, of which there must be three types: one-bedroom units, two-bedroom units, and townhouses.

This project addresses the intersections between need for community and human interaction, balance between public and private space, and the need for ownership and dignity in housing.

The resultant development features 12 housing units spread across the second and third floors, with a cafe, bookstore, and thrift store on the ground floor accessible by both residents and the public, and 12 parking spaces underground.

13 12 Figure 15b: Process diagrams of the project development Figure 16: Proposed plan for the modernization of Wilmington Town Square Park ARC3021L - Silverlake Mixed-Use Development CORNER OF EFFIE AND OCCIDENTAL NORTHEAST PERSPECTIVE 3 STUDIO UNITS 1 ONE BEDROOM UNIT FROM LOBBY LEVEL 04 ELEVATOR SKY BRIDGES FROM LOBBY TO PARKING TO FLOORS 1-4 EGRESS STAIR FROM OCCIDENTAL TO FLOORS 1-4 EGRESS STAIR SITE ACCESS SHEAR WALL DIAGRAM SITE CONSTRAINTS CREATING A COURTYARD DEFINING THE TOWERS OPENING TO THE STREET 1 STUDIO UNIT 2 ONE BEDROOM UNITS LEVEL 03 1 STUDIO UNIT 2 TWO BEDROOM UNITS LEVEL 02 CAFE BOOKSTORE BOUTIQUE GROUND LEVEL SILVERLAKE BLVD. EFFIE ST. N. OCCIDENTAL BLVD. X-DIRECTION SHEAR WALL Y-DIRECTION SHEAR WALL

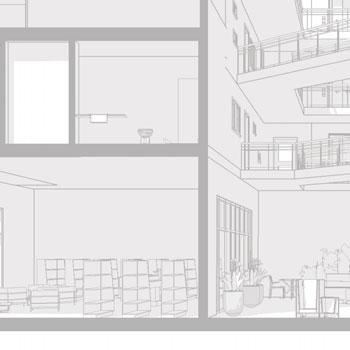

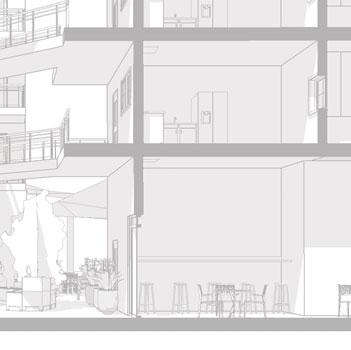

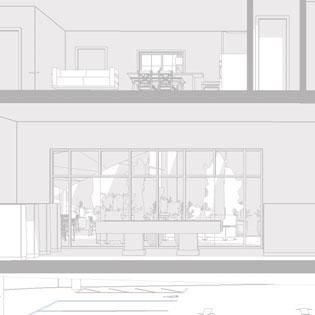

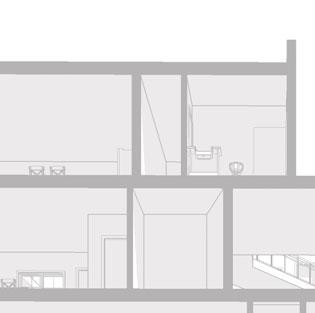

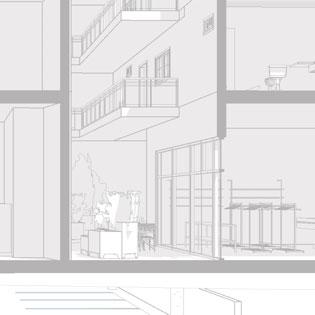

15 14 Figure 13: Building cross-sections Figure 14b: Exterior building elevations 1 2 3 3 3 4 0481632 0481632 1 2 3 4 7 7 5 6 6 LEGEND SECTION A 1. LOBBY 2. BOOKSTORE 3. BOUTIQUE 4. STORAGE 5. STUDIO UNIT 6. ONE BEDROOM UNIT 7. TWO BEDROOM UNIT LEGEND SECTION B 1. BOOKSTORE 2. CAFE 3. STUDIO UNIT 4. TWO BEDROOM UNIT 0481632 0481632 SILVERLAKE BOULEVARD EFFIE STREET WEST ELEVATION NORTH ELEVATION Level 0'0" Level 15'0" Level 25'0" Level 35'0" Level 45'0" EDCBA Level1 0'0" Level2 15'0" Level3 25'0" Level4 35'0" Level5 45'0" 1234567 0481632
