Food model, an art of previewing food from menu. It is the best advertisement art for food and helps in increasing our appetite.

Content

- Design Manifesto

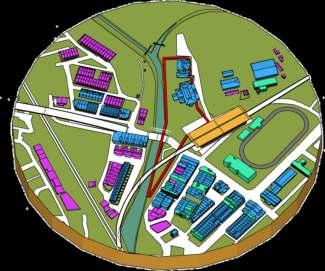

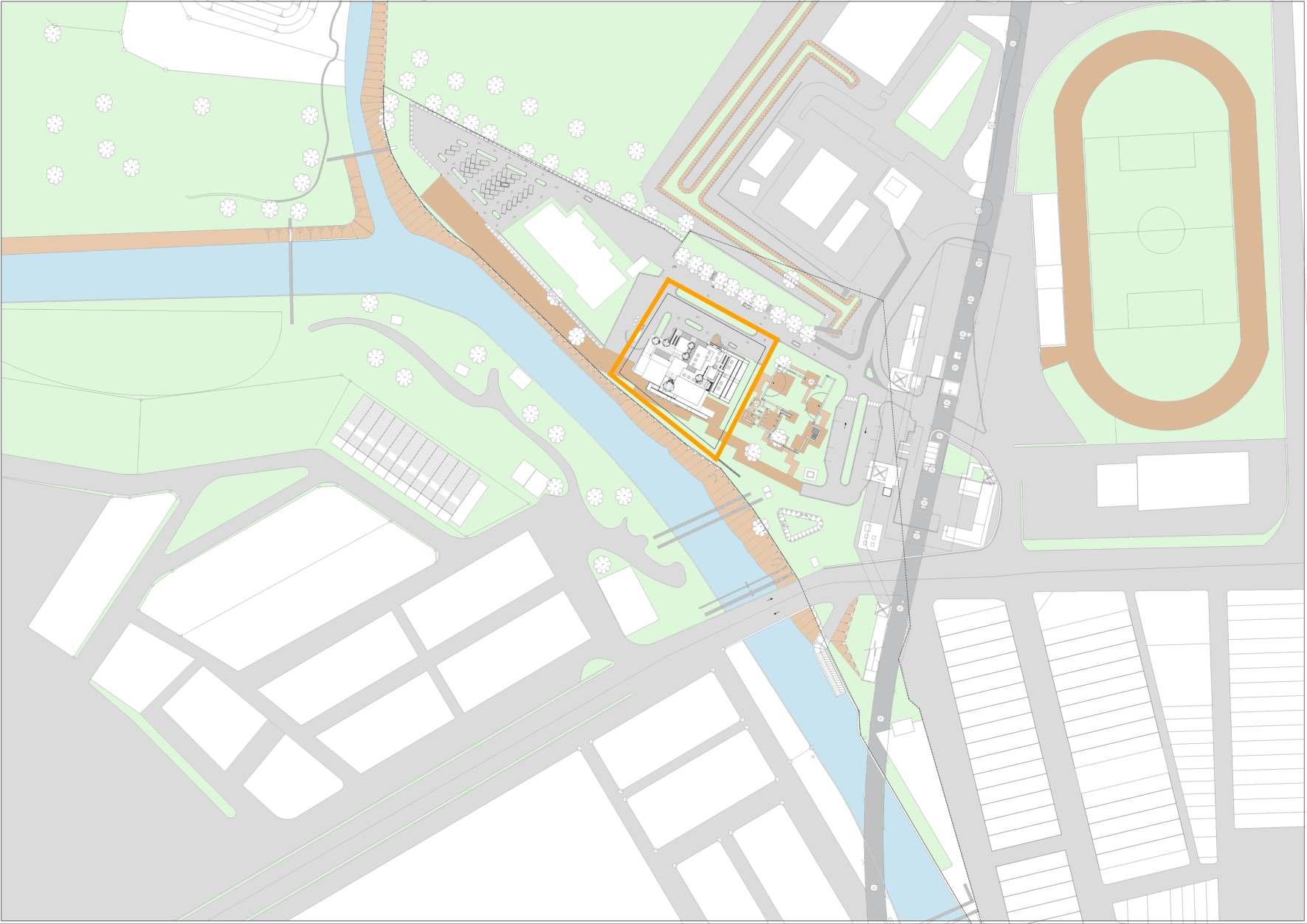

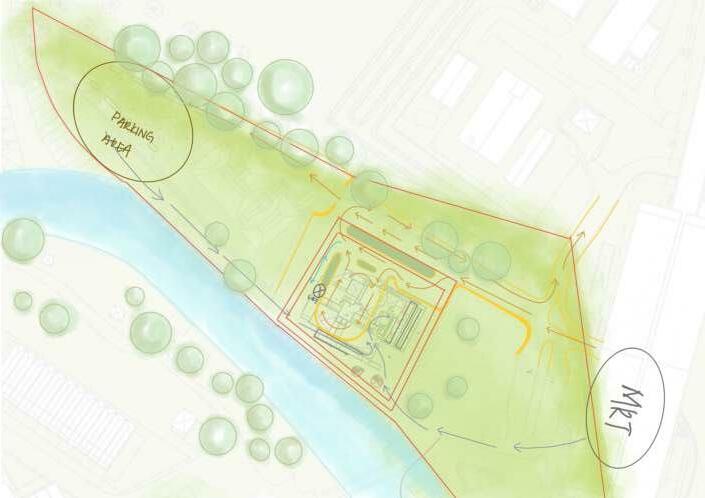

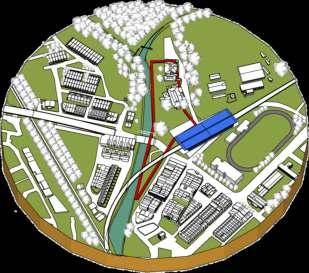

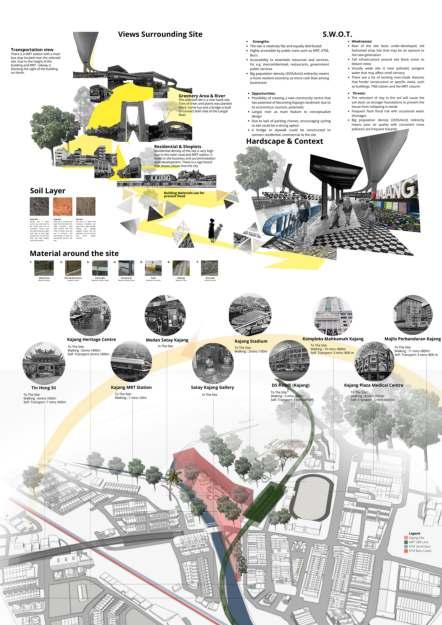

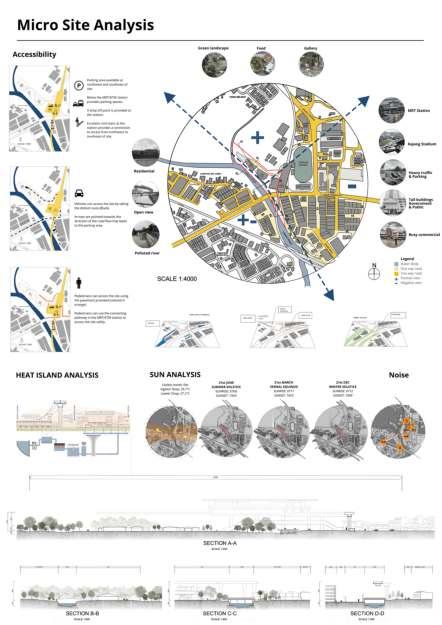

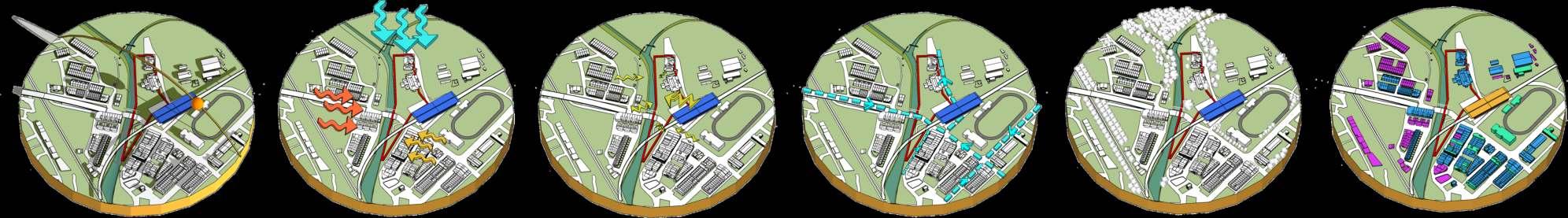

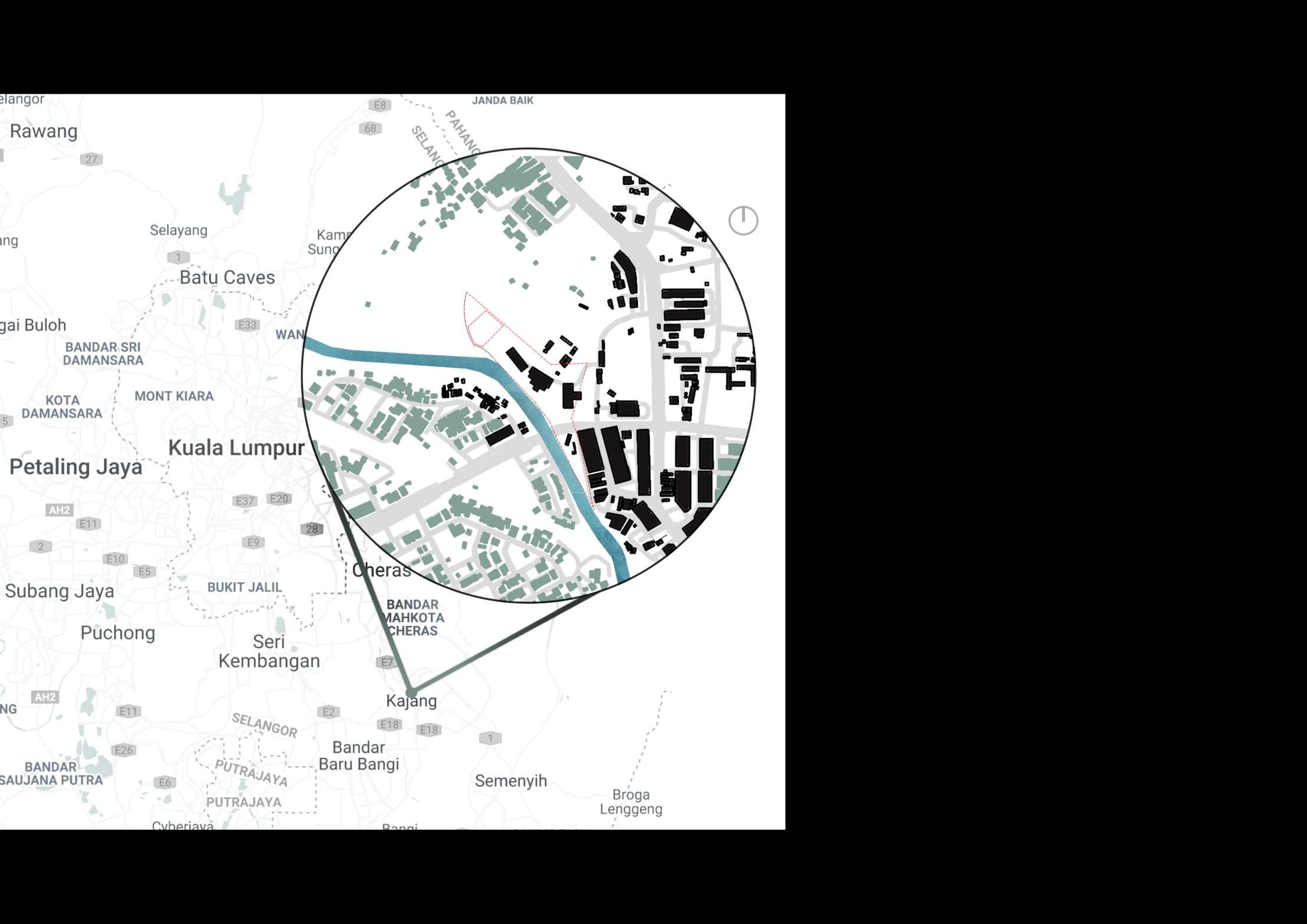

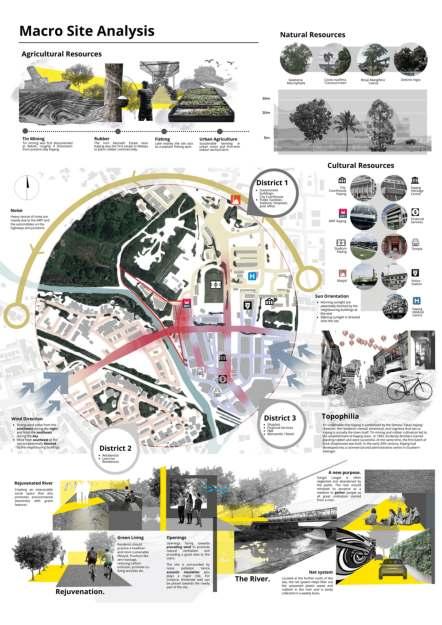

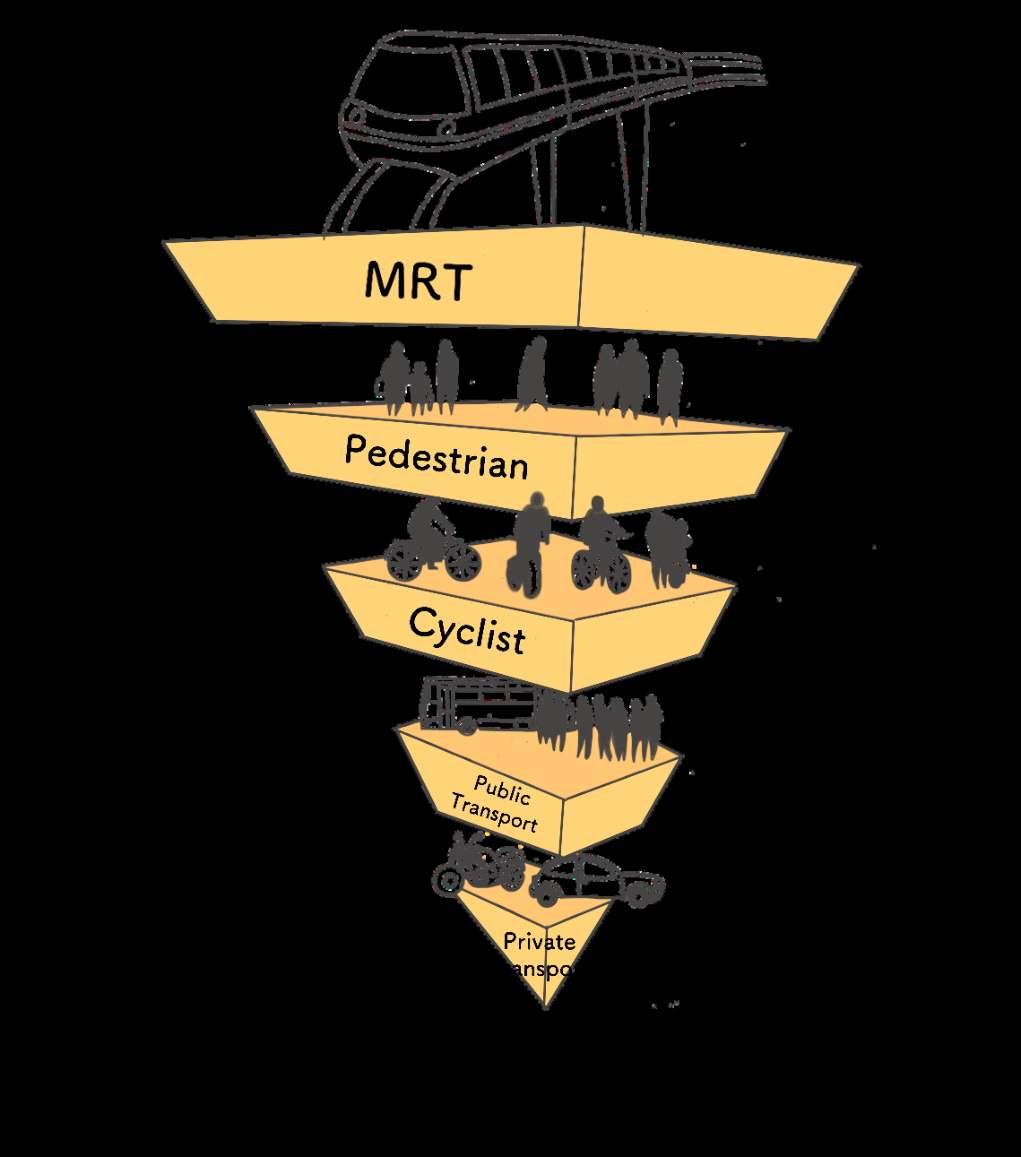

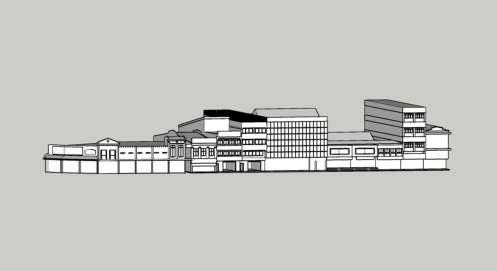

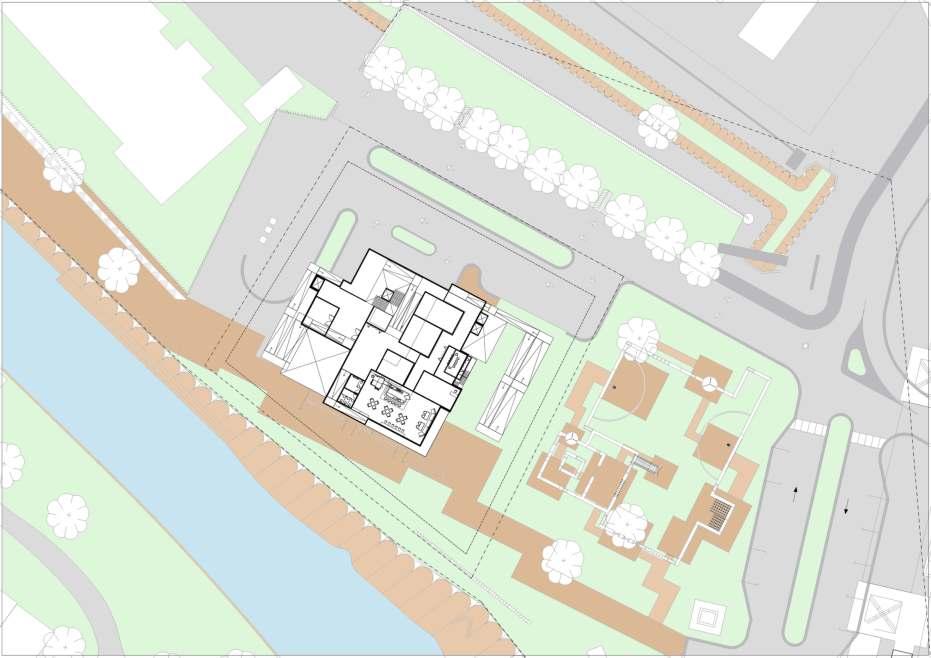

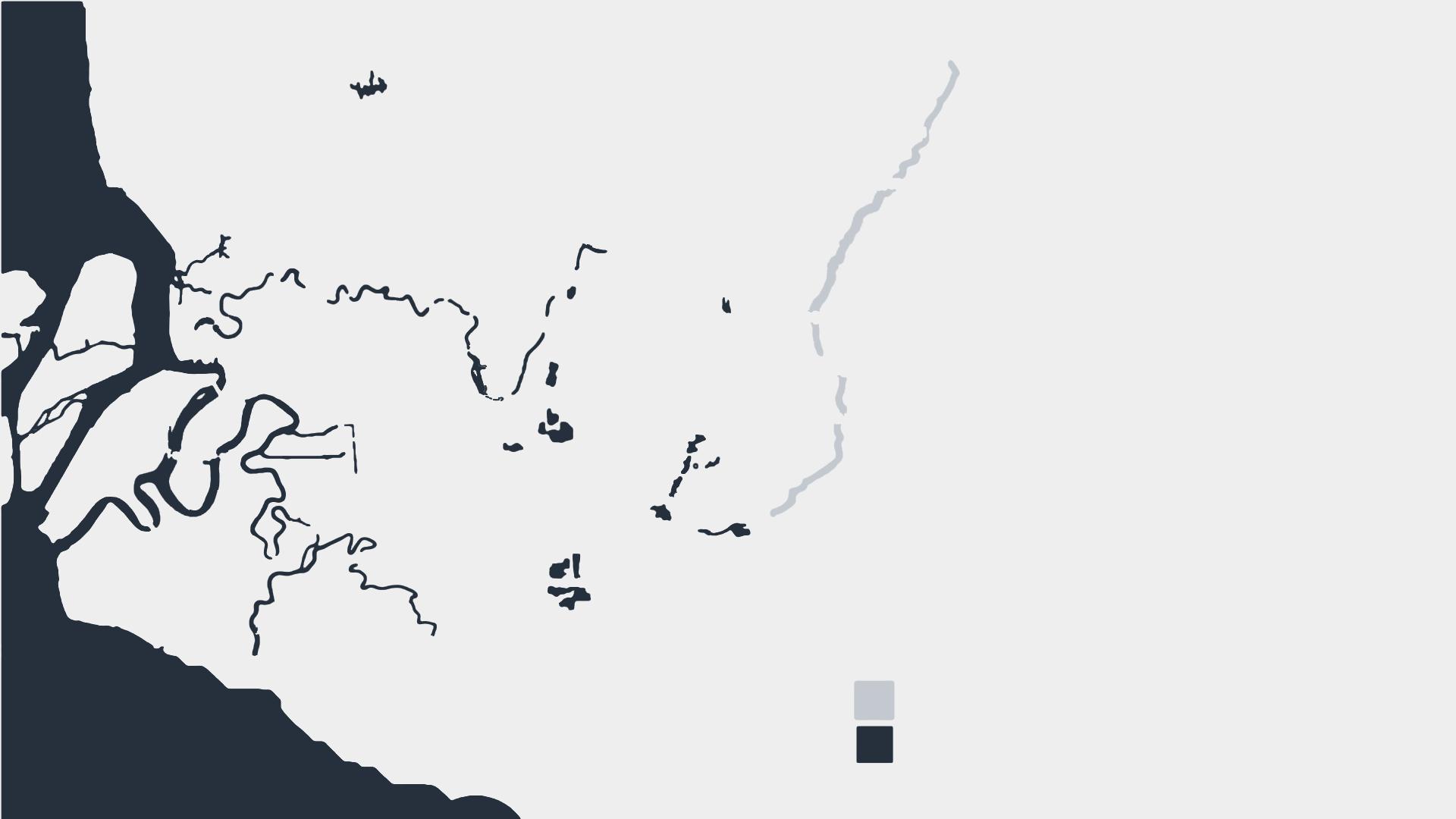

- Site Analysis

- Pavilion & Tectonic Element

- Forage Art Galler

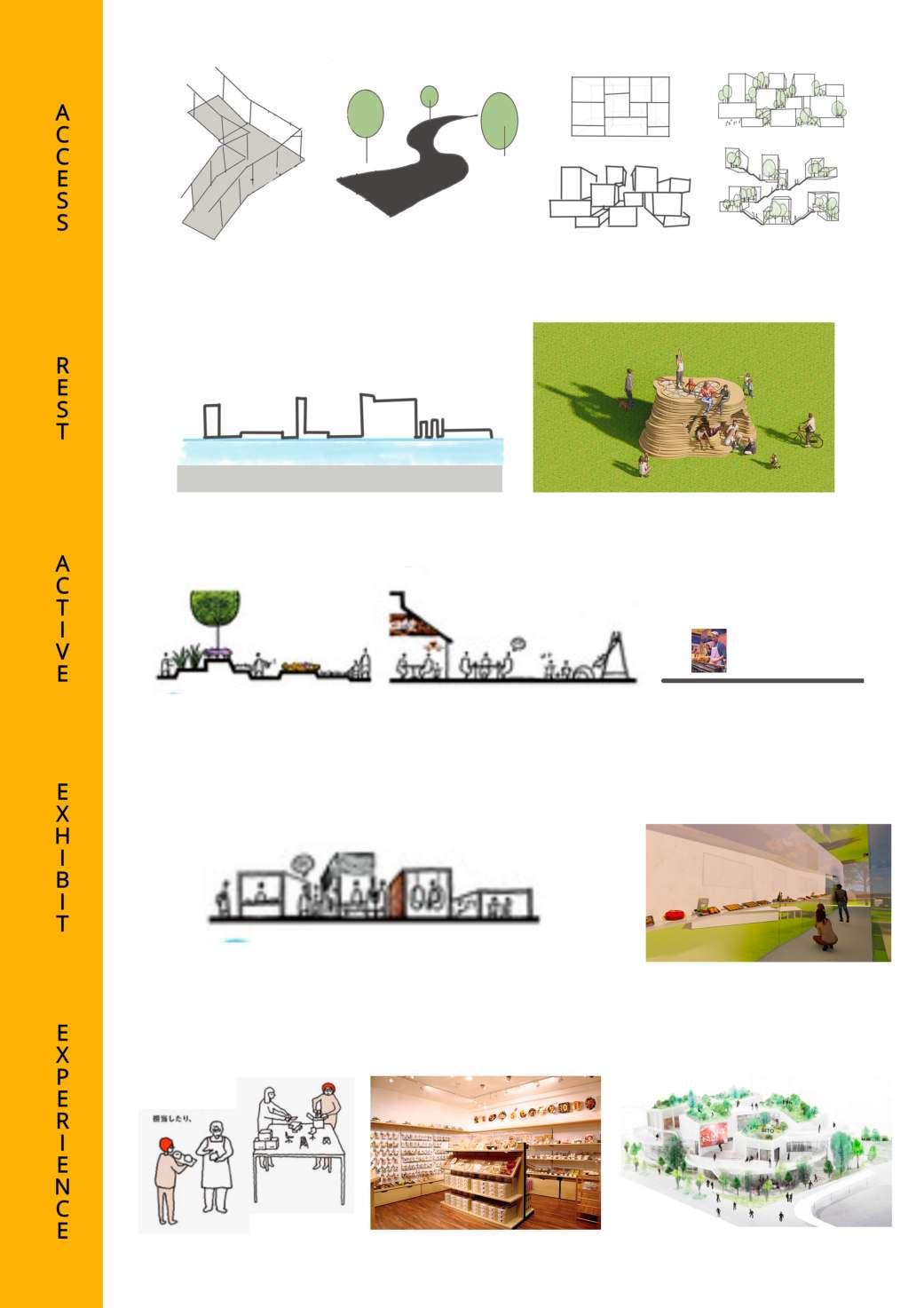

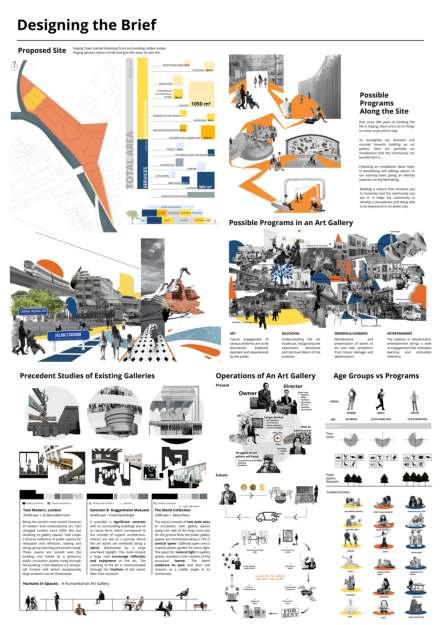

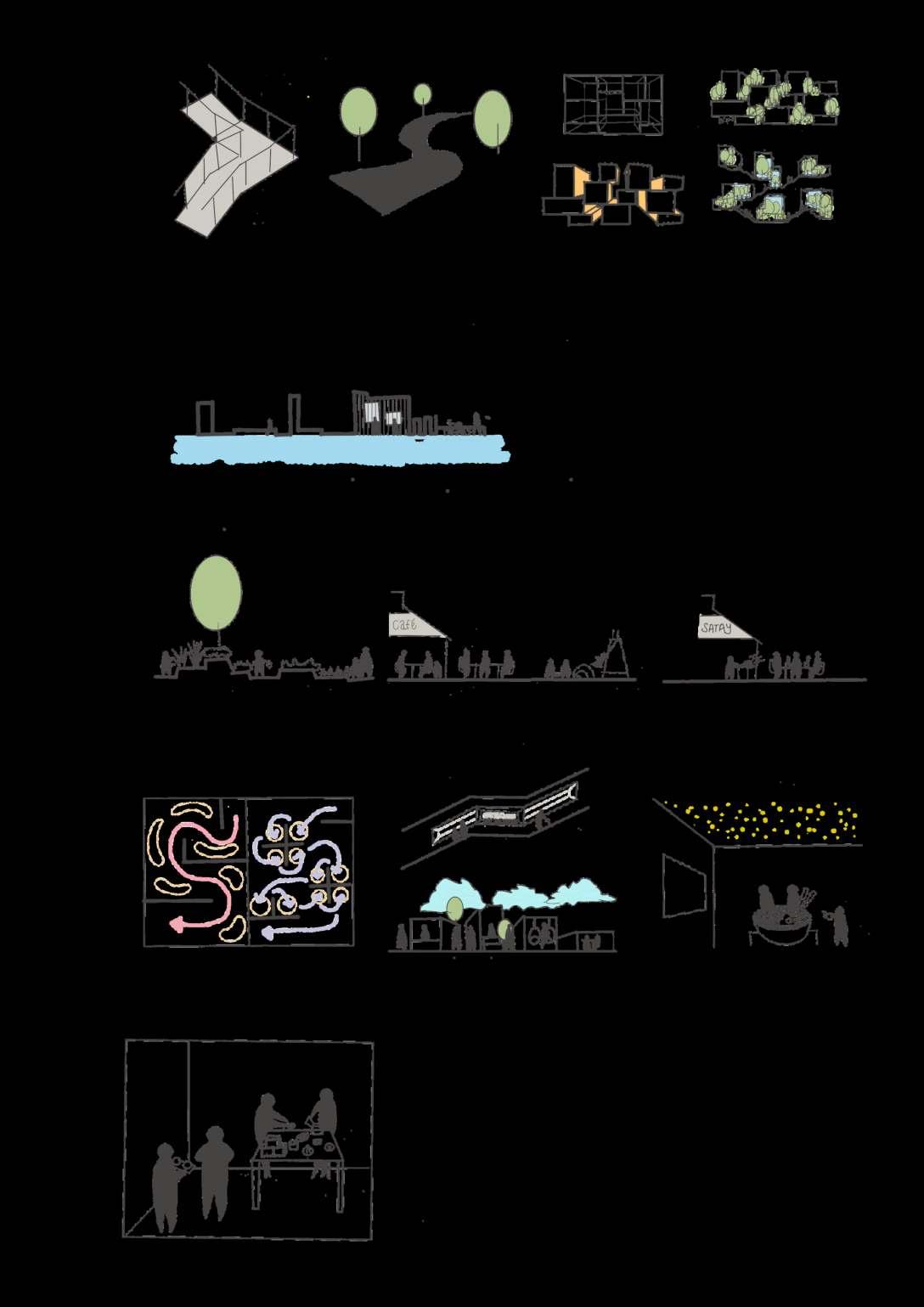

Design Manifesto

Food Model

Food models ("shokuhin sampuru"), also known as fake foods or food samples are a model or replica of a food item made from plastic, wax, resin or similar material. These models are commonly used in restaurant street displays in Japan and Korea to represent the dishes available inside.

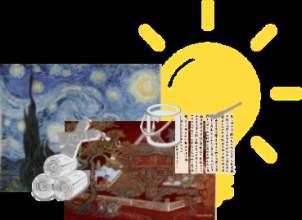

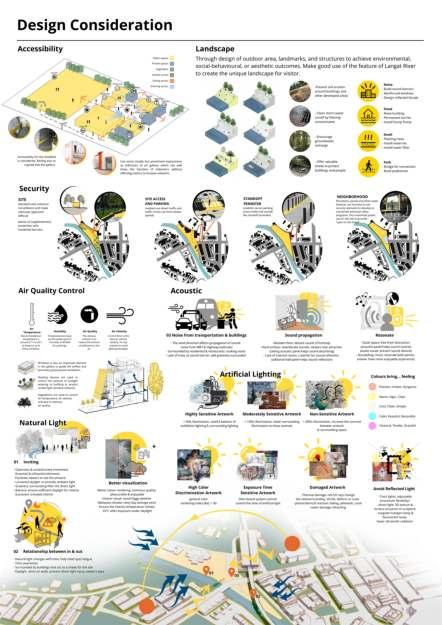

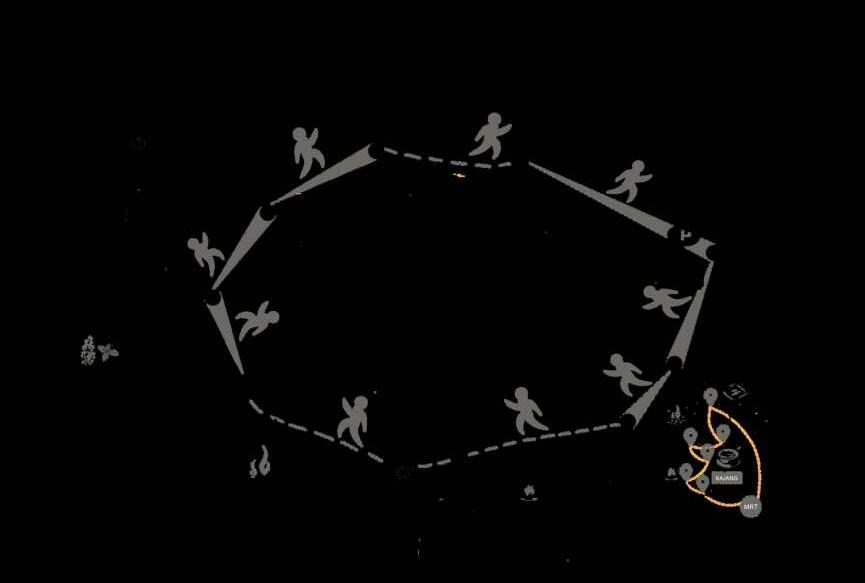

Highly Sensitive Artwork Moderately Sensitive Artwork

Exposure Time Sensitive Artwork

DALI-based system control: control the time of artificial light

Artwork

Damaged Artwork

- photochemical reaction: fading, yellowish, crack - water damage: bleaching

Acoustic Considerations

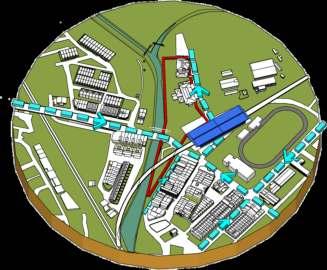

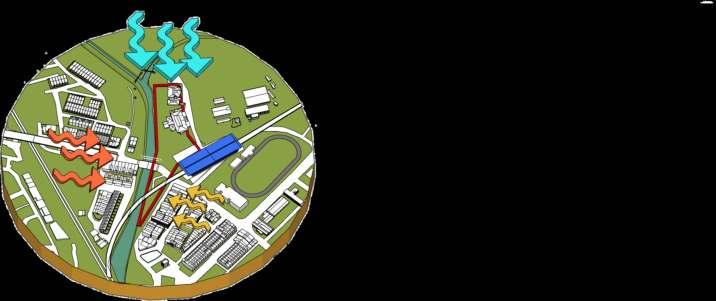

03 Wind Direction

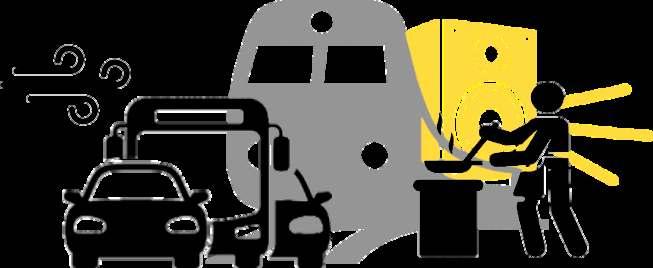

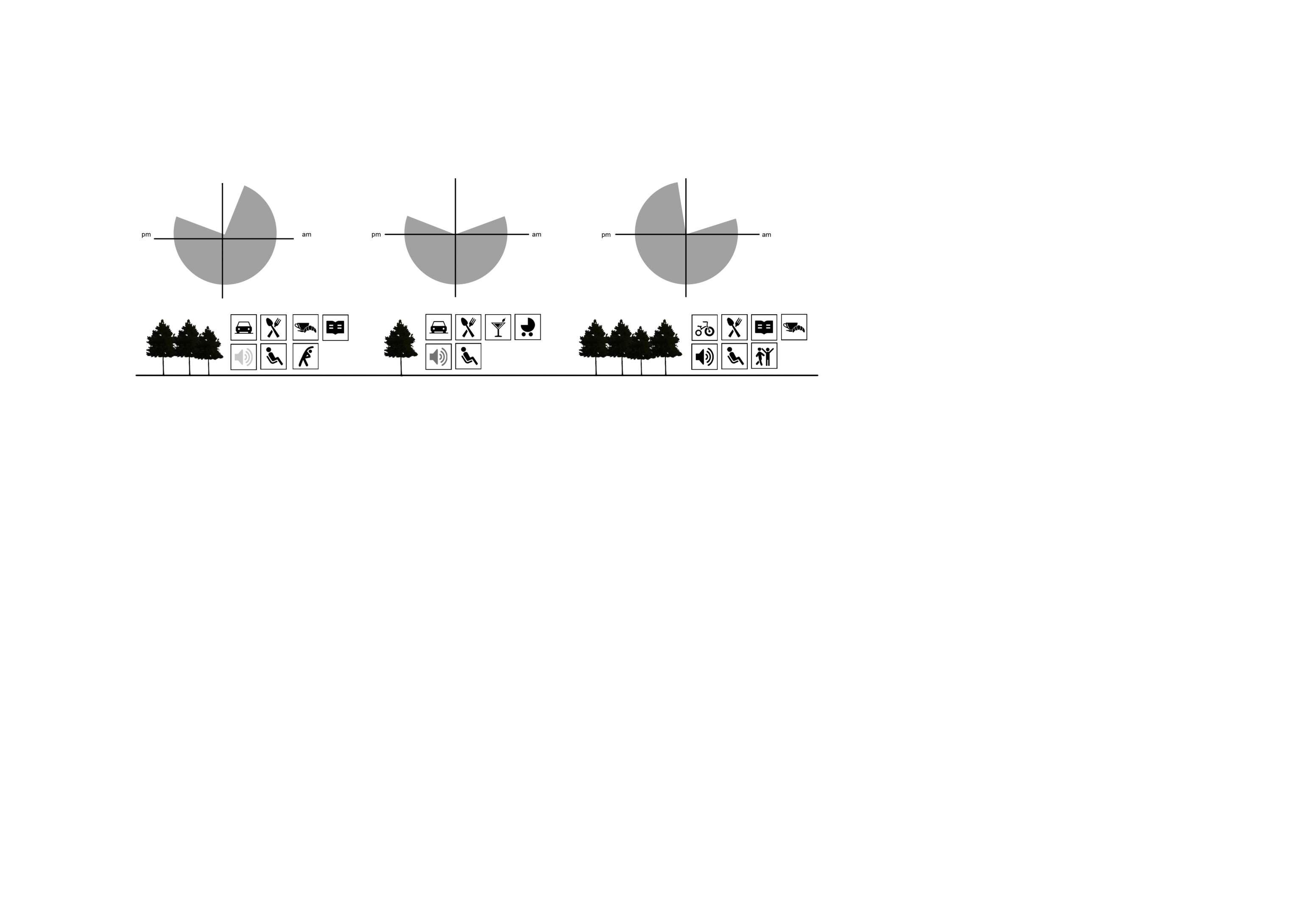

- The wind direction affects propagation of sound: noise from MRT & Highway (vehicles)

- Surrounded by residential & restaurants

- Lack of trees as sound barrier: add greenery surrounded

Colours bring... feelings!

Passion, Irritant, Gorgeous

Warm, Vigor, Clear

Cool, Clean, Simple

Calm, Peaceful, Recondite

Classical, Tender, Graceful

Avoid Reflected Light

- Track lights: adjustable (maximum flexibility)

- direct light: 3D texture & surface structure of sculpture

- tungsten halogen lamp & fluorescent lamp: lower ultraviolet radiation

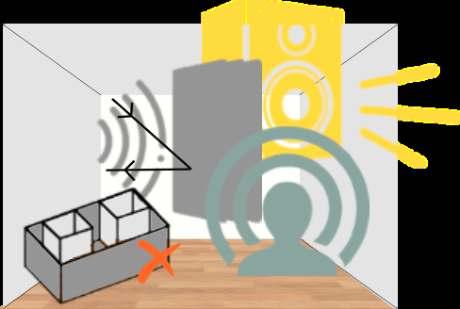

Sound propagation

- Soft surface: absorb sound of footstep (acoustic panel)

- Hard surface: reverberate sounds, viewers lose attraction

- Lack of internal walls: no barrier for sound reflection (aditional wall panel helps sound reflection)

Sound Resonation

- Quiet space: free from distraction (acoustic panel helps sound control) (Audio visual: prevent sound disturbance)

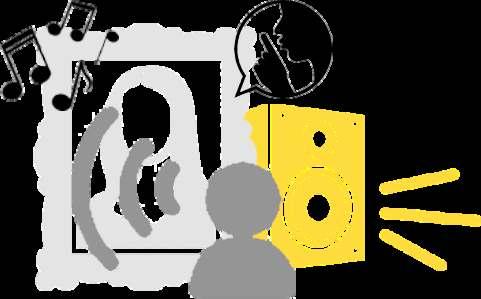

- Storytelling: music resonate both parties (viewer have more enjoyable experience)

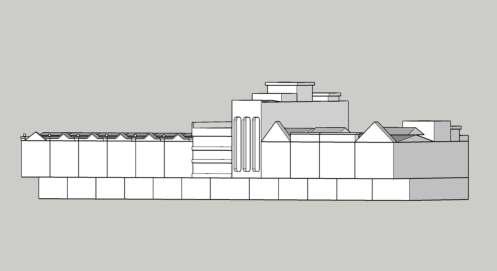

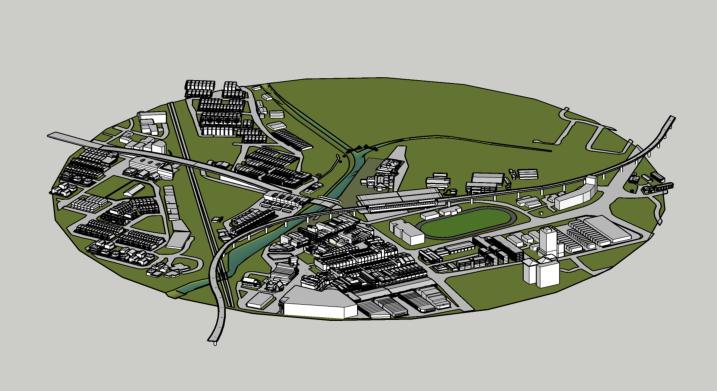

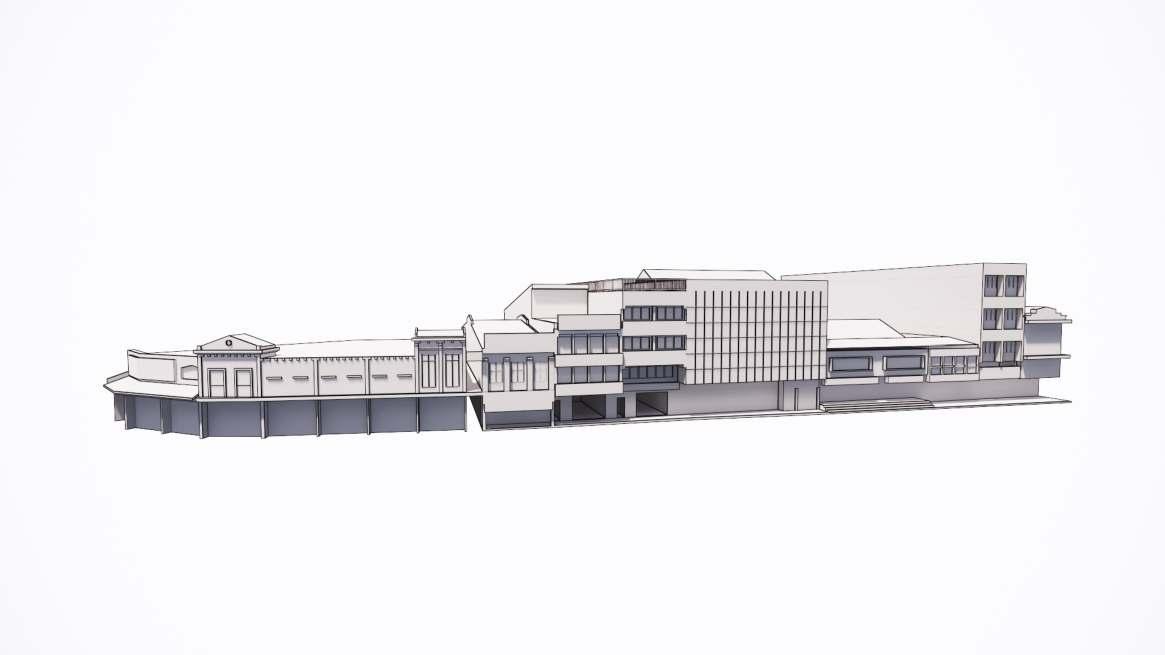

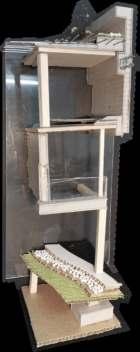

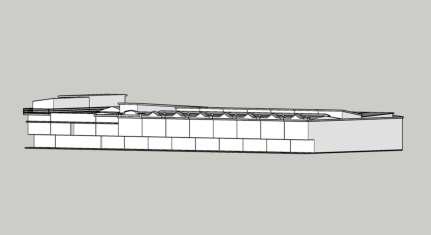

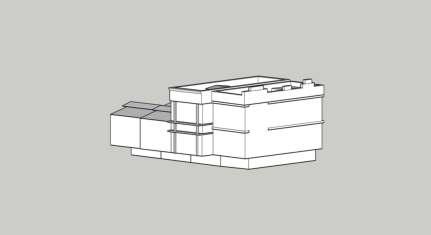

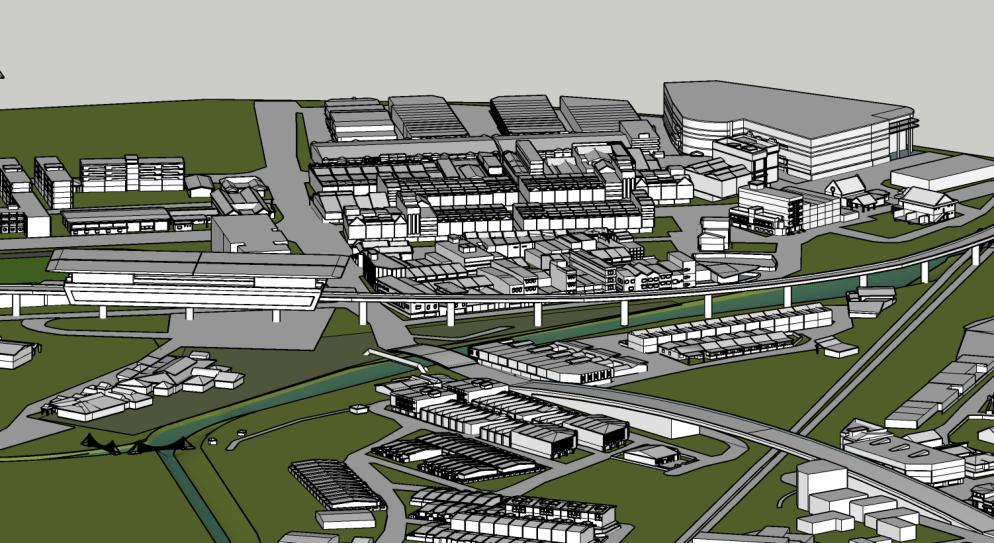

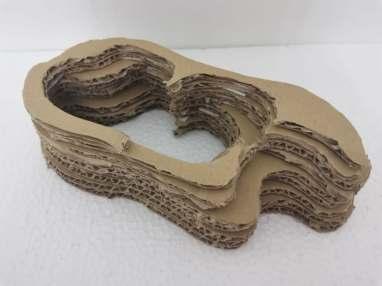

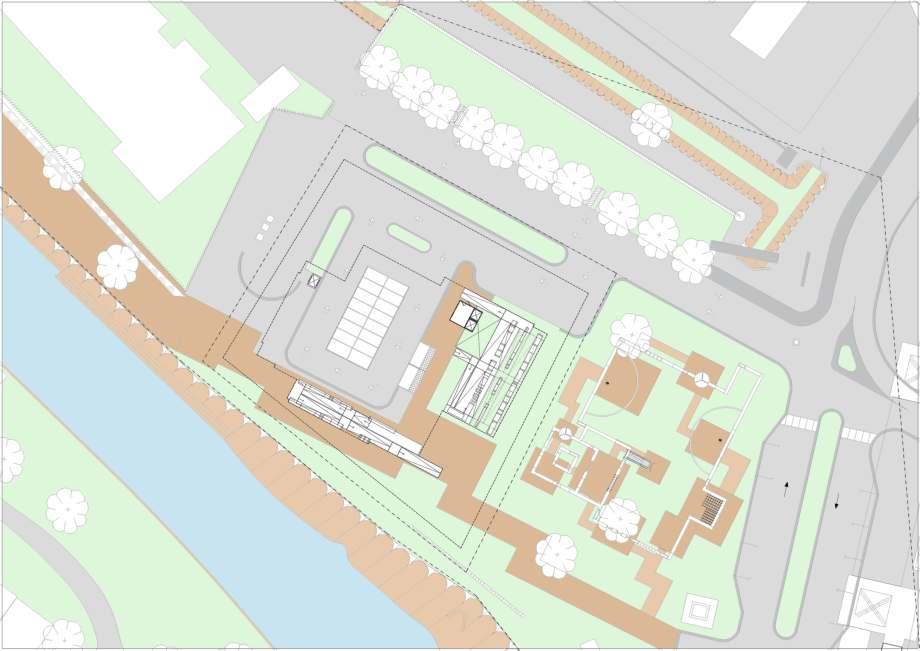

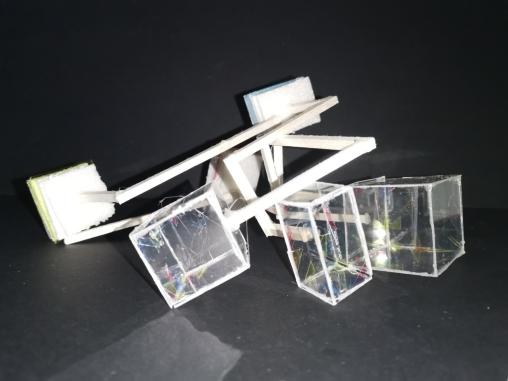

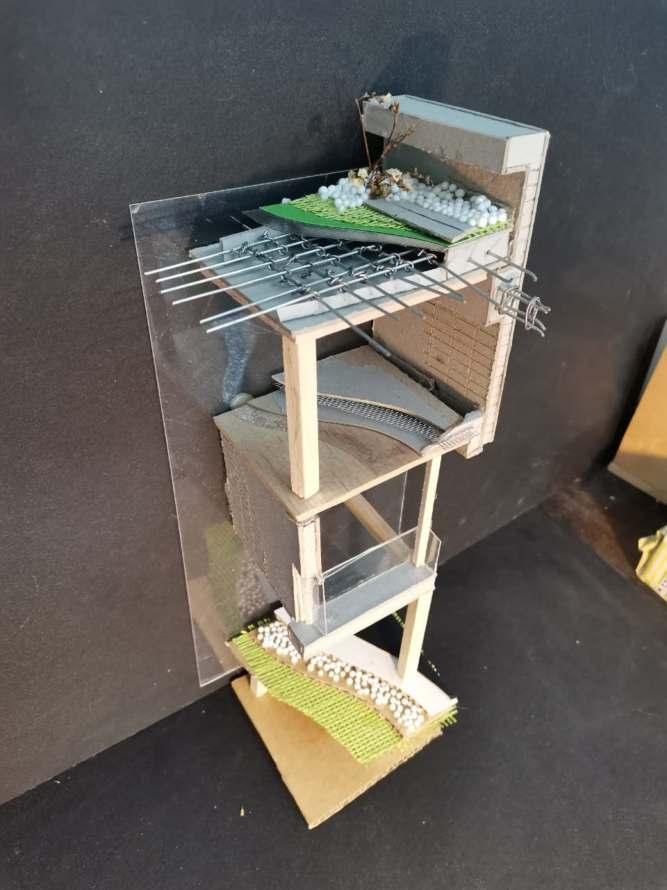

Massing Model

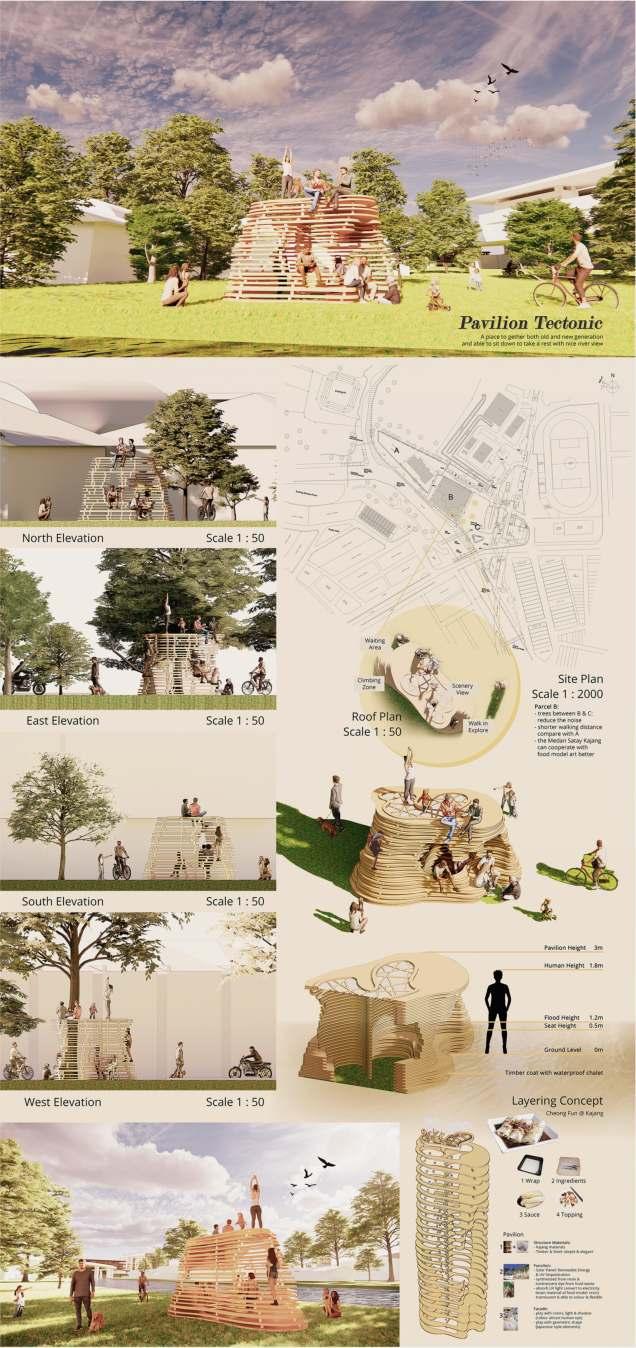

Pavilion & Tectonic Element

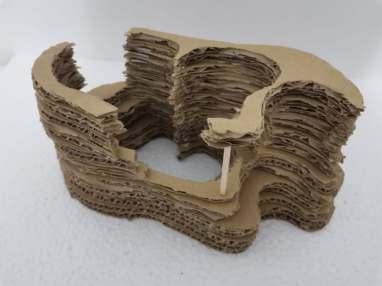

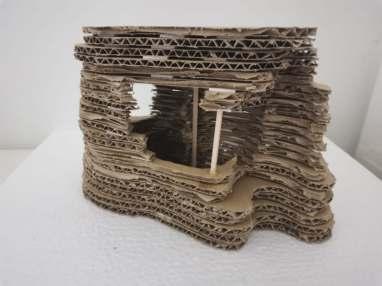

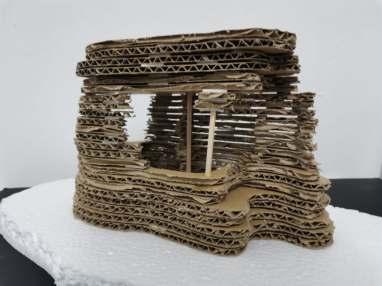

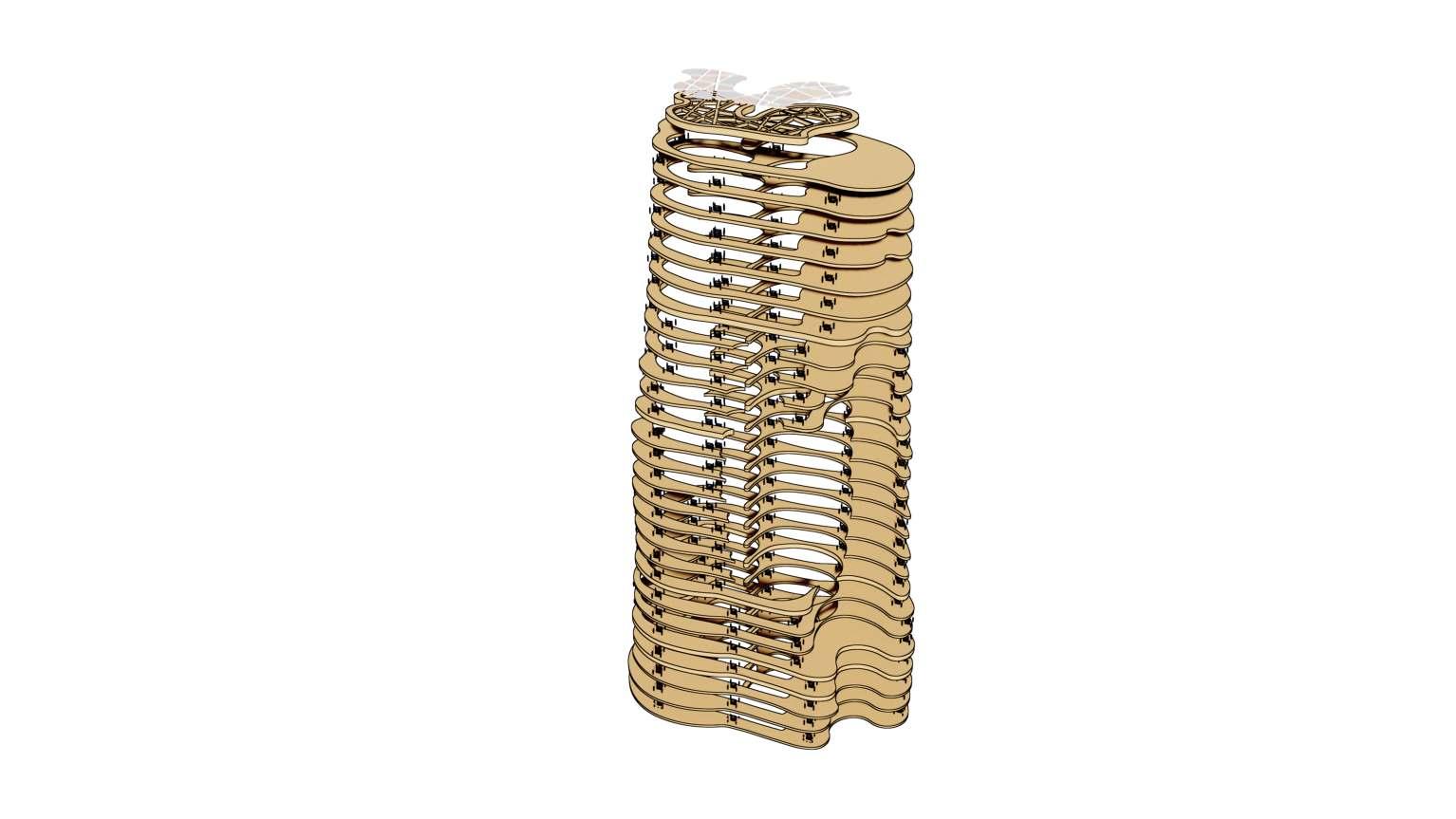

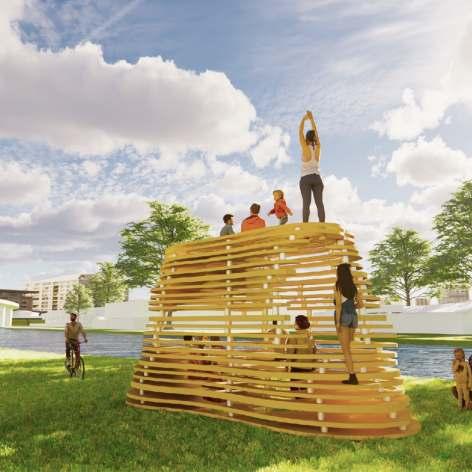

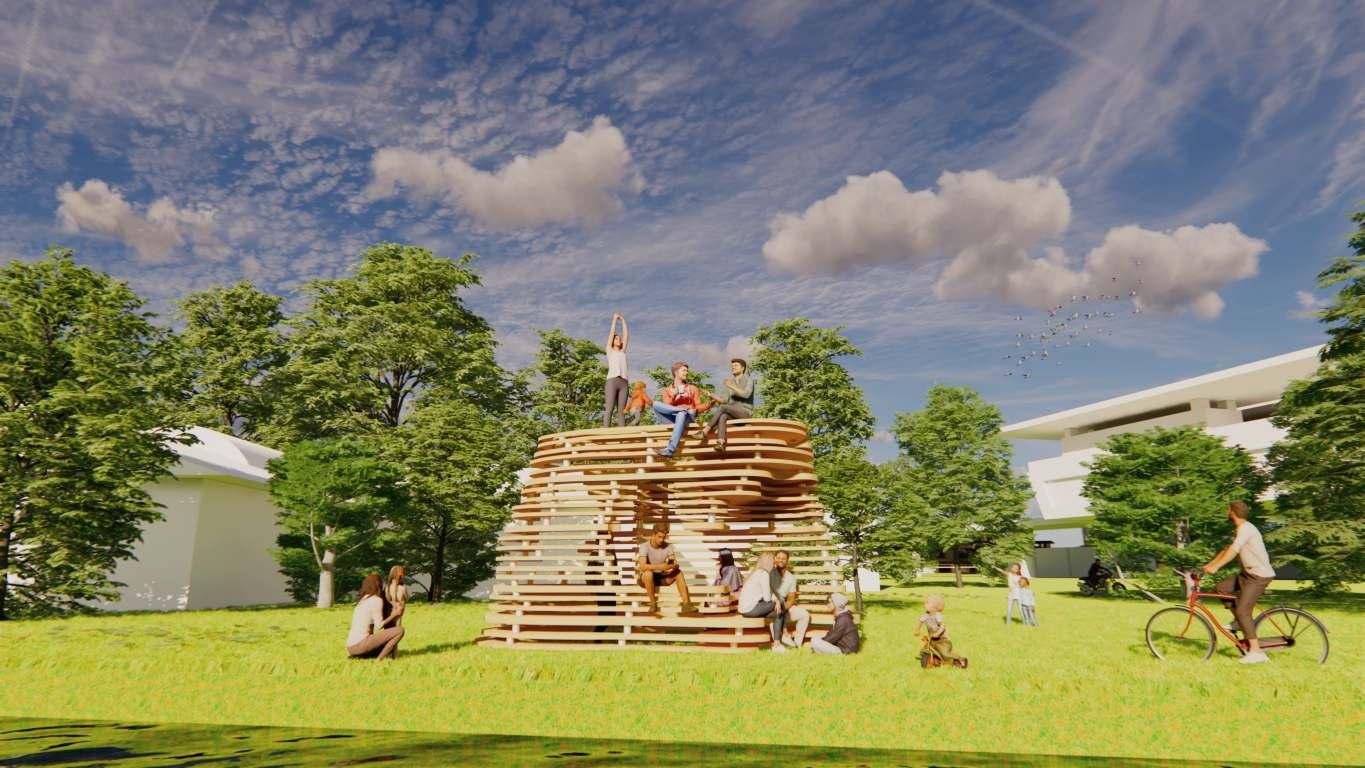

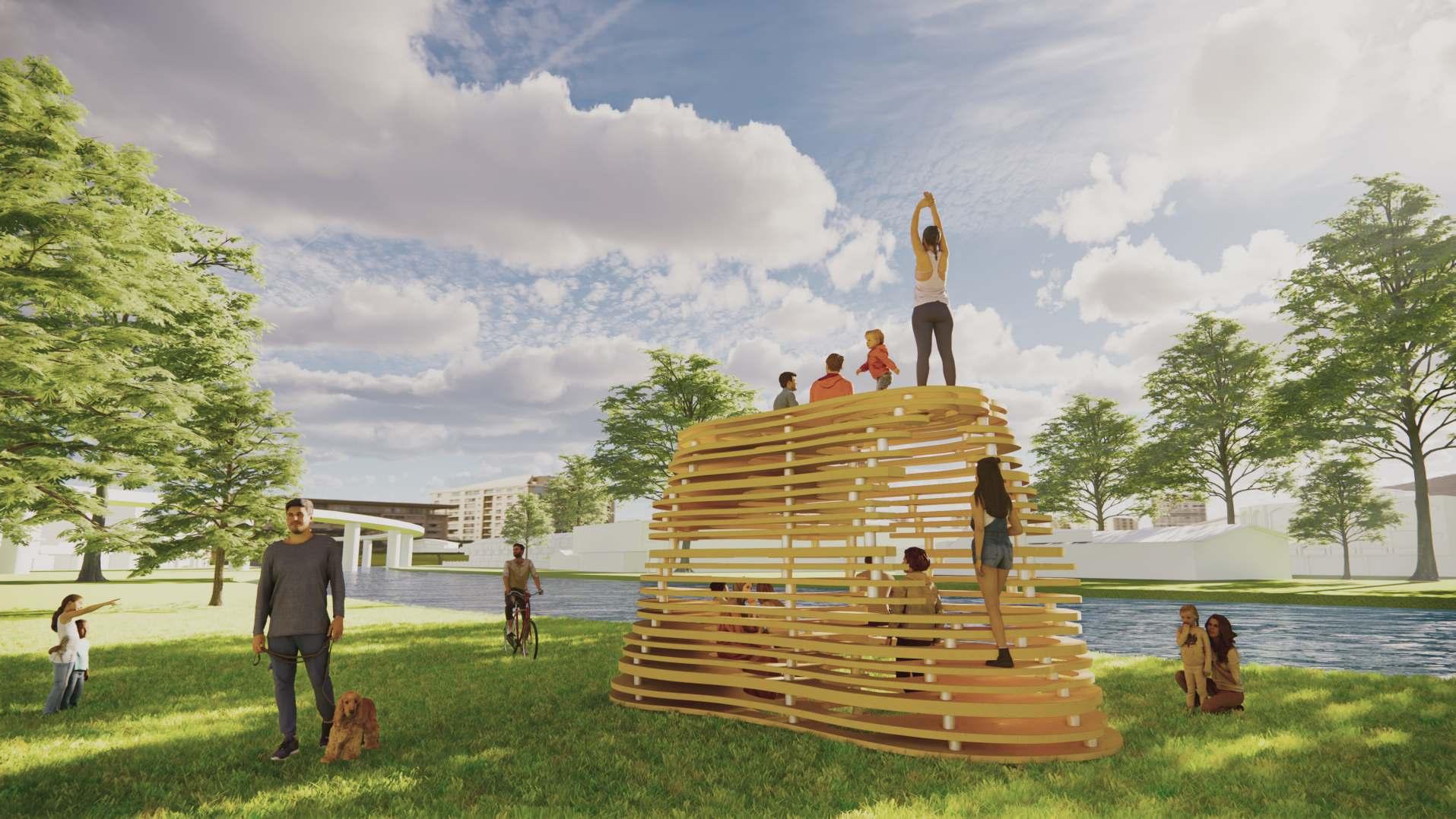

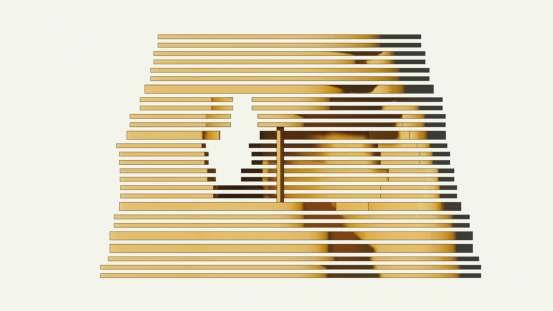

Carve Cave

A place to gether both old and new generation and able to sit down to take a rest with nice river view.

STRUCTURE MATERIALS

Red Oak Wood

nailing and screwing exposed to sunlight - very heavy wood: use lighter wood to replace

Machines well: pre-boring that recommended for Hard and stiffness: high-crushing strength

Durable, Long-lasting wood: less likely to warp when good water resistant properties: nearby the Langat River highly resistant to wear and tear: for kids play around

Heavy Duty Galvanised Elevated Post Base Support

Corrosion Resistant Water-Resistant Able to withstand heavy load Easily to joint

Expanded Polystyrene Foam (EPS)

Large-scale expanded polystyrene blocks Lightweight: sufficient support on the loading weights

Density coefficient: good impact resistance Independent bubble structure: small area of damage will not affect the entire surface Low water absorption: good anti-permeability

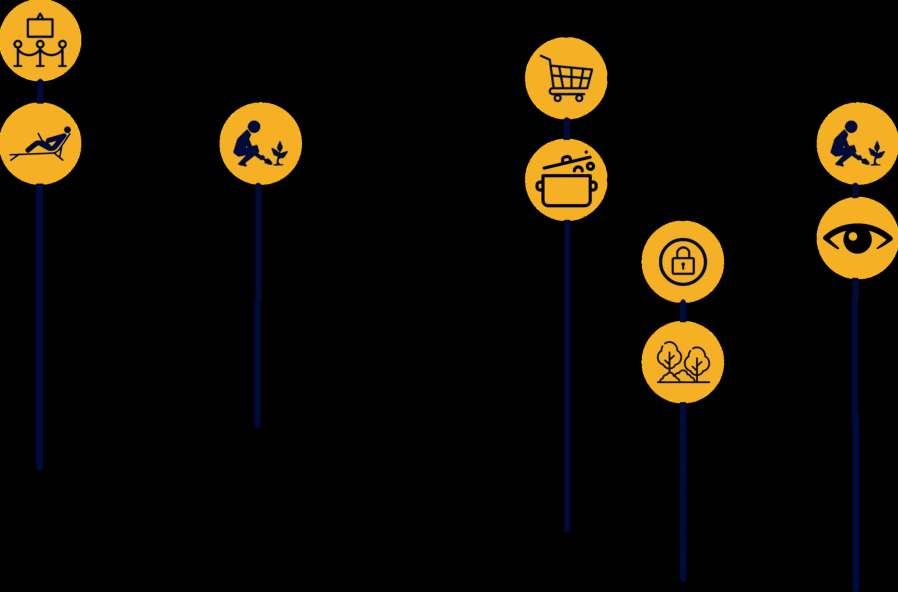

Pavilion Activities

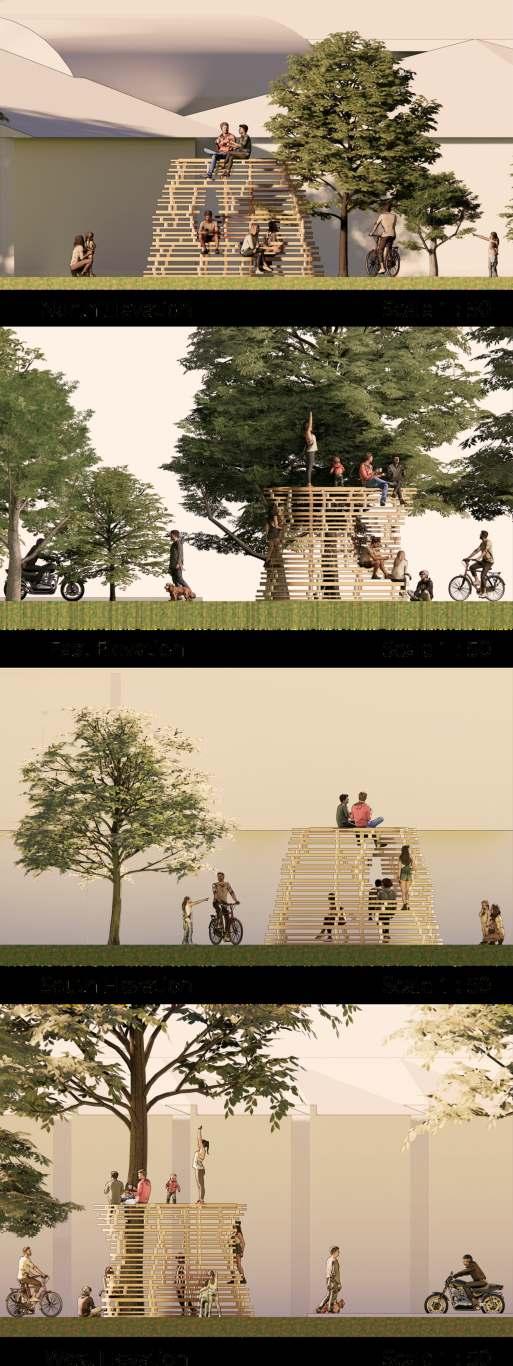

Pavilion Elevations

Forage

Art Gallery

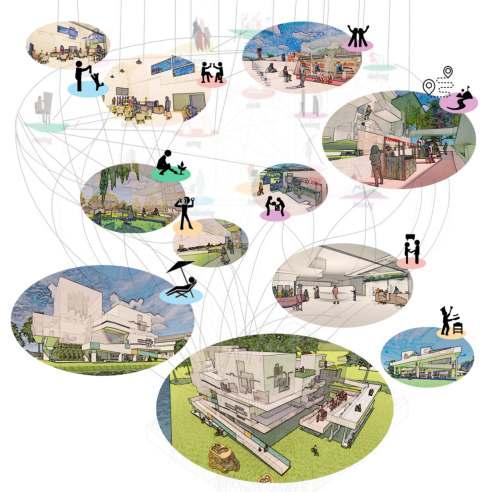

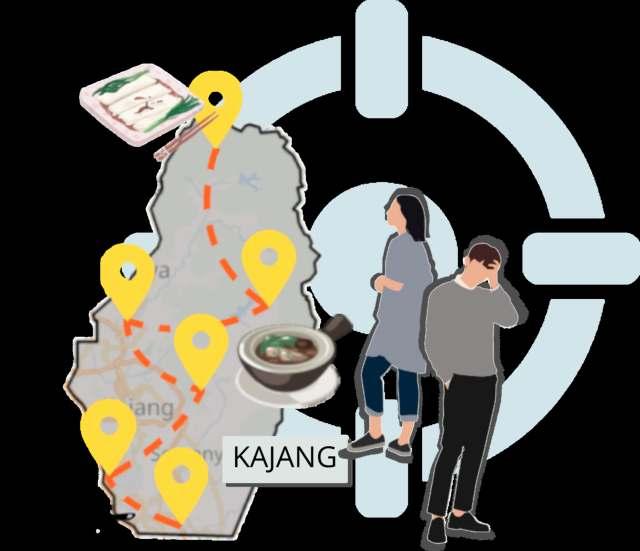

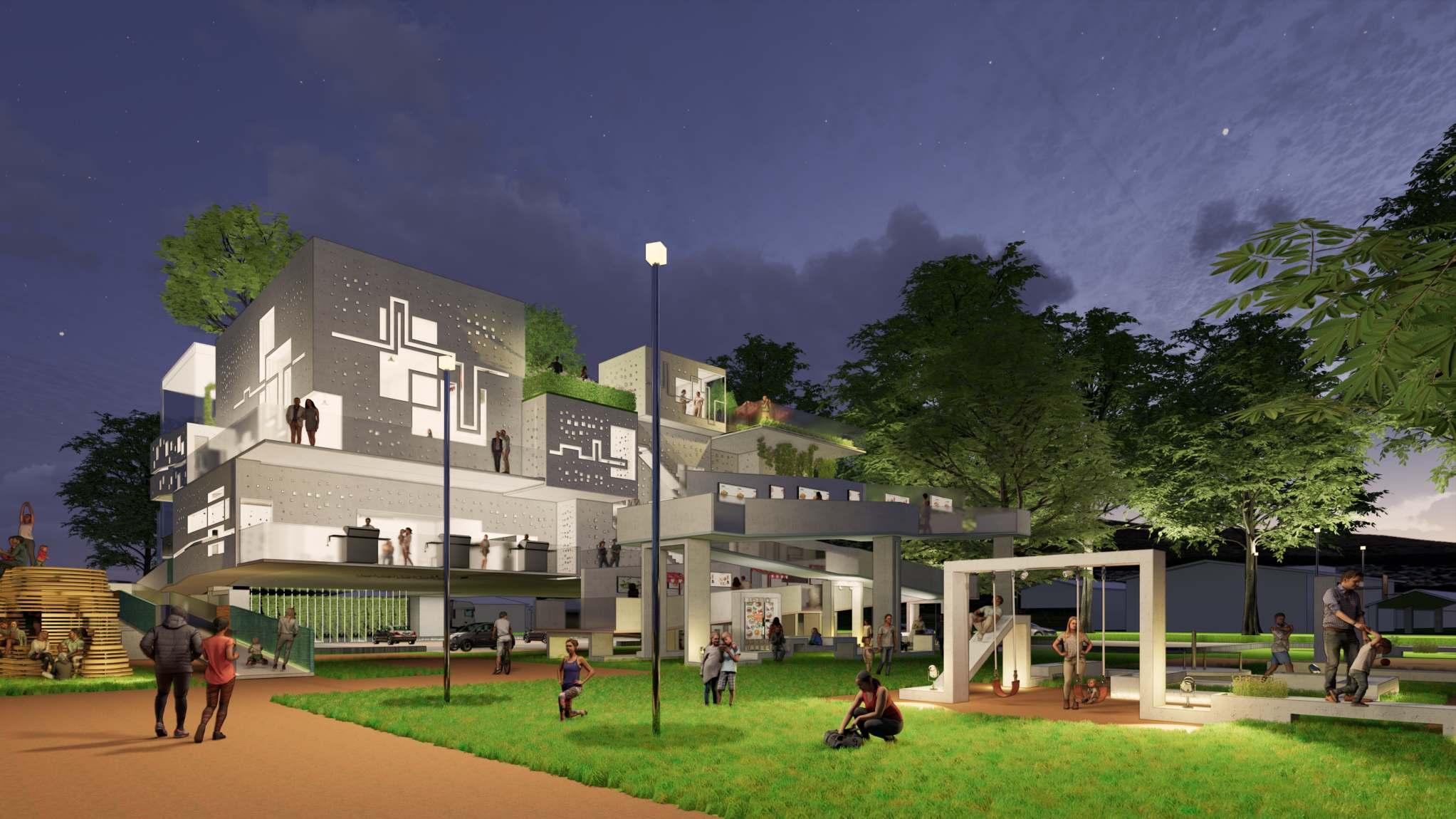

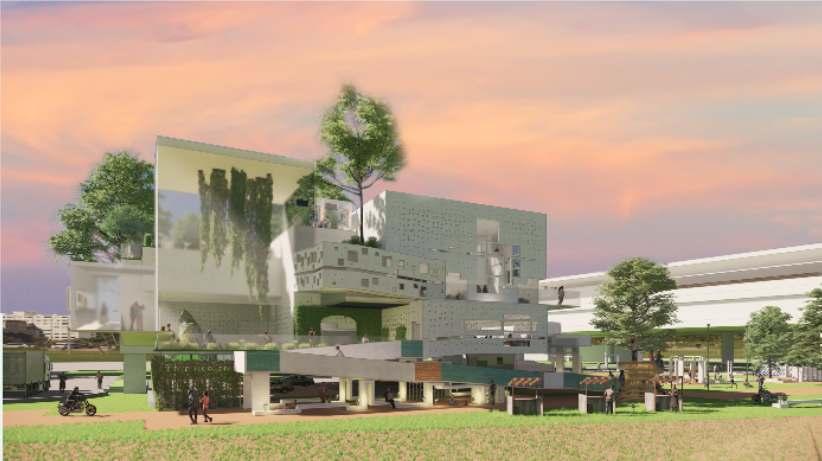

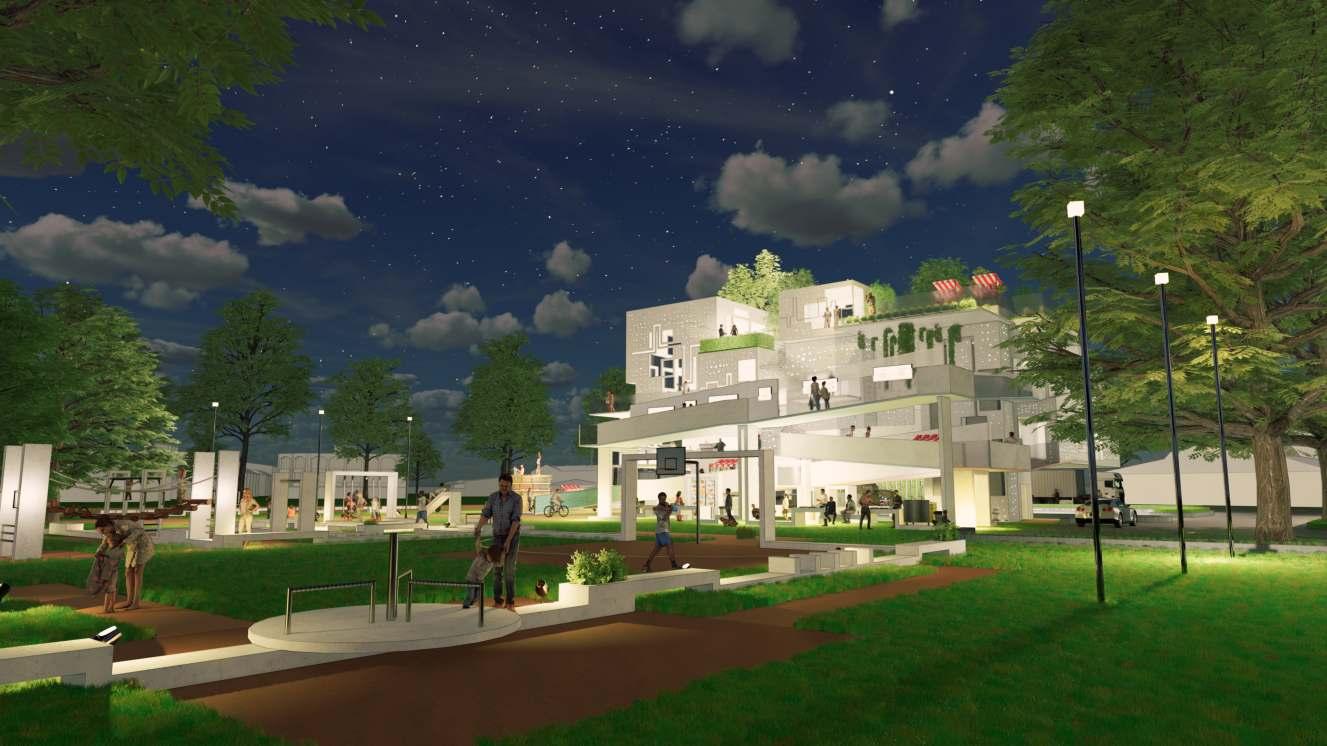

Forage Art Gallery is a place to help us explore more culinary delicacy in Kajang along with preview area

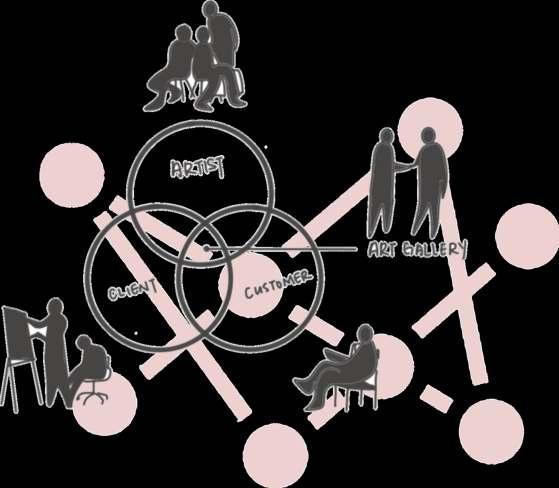

This gallery specializes in food model, an art of previewing food from menu. Forage, which brings the meaning of searching widely for food, will be a platform to connect all users such as artist, rotating vendors, visitor and family members.

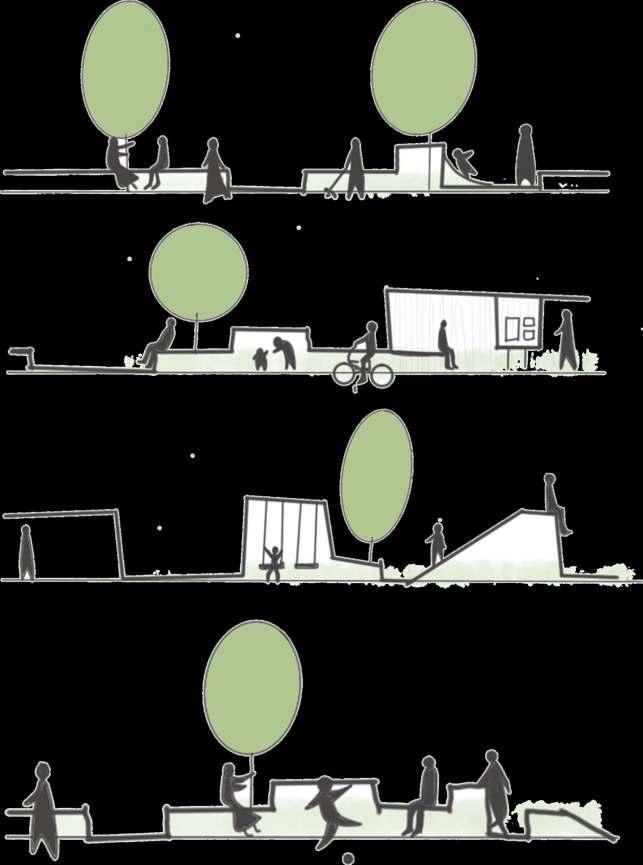

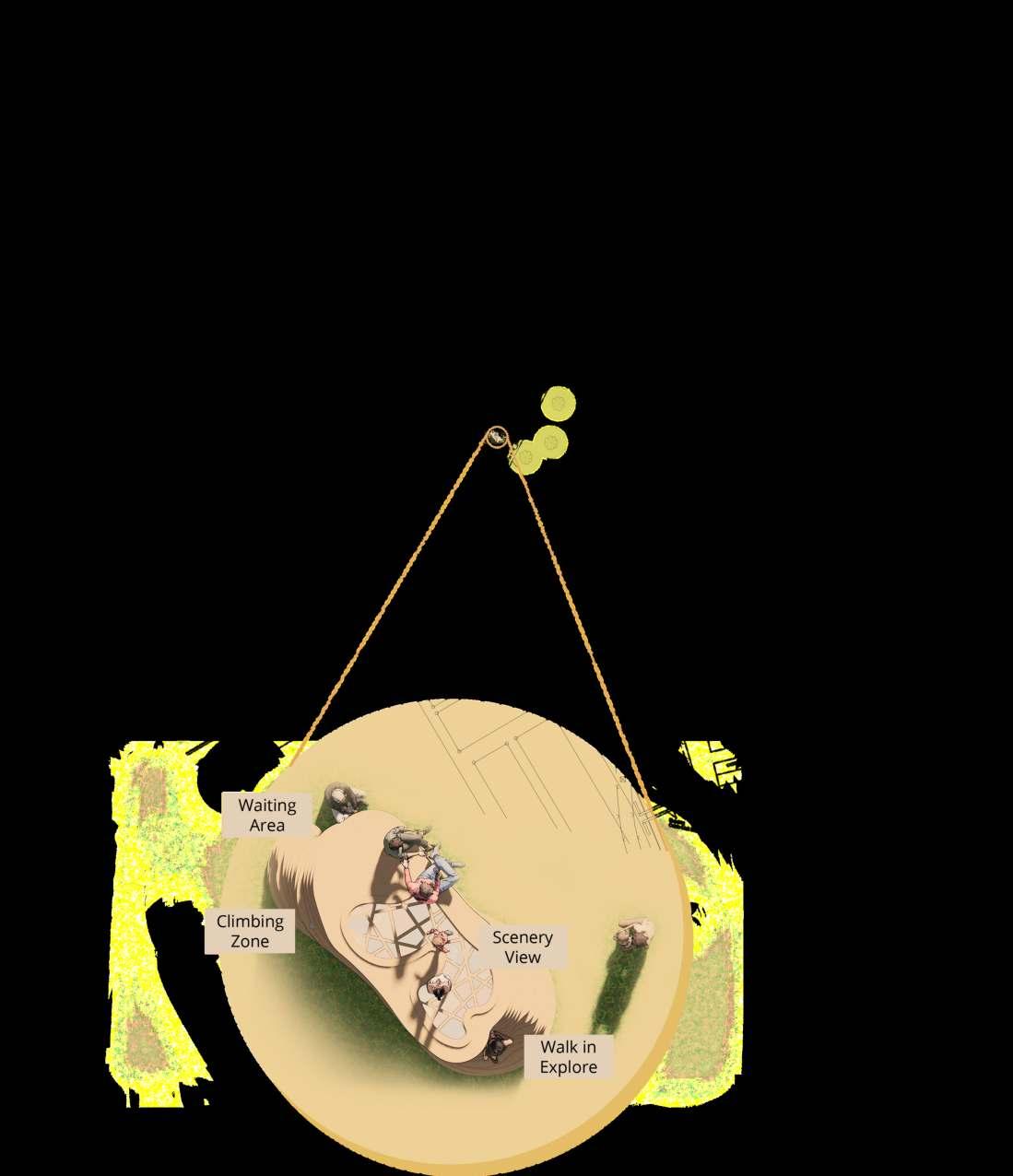

Bonding-Playscape

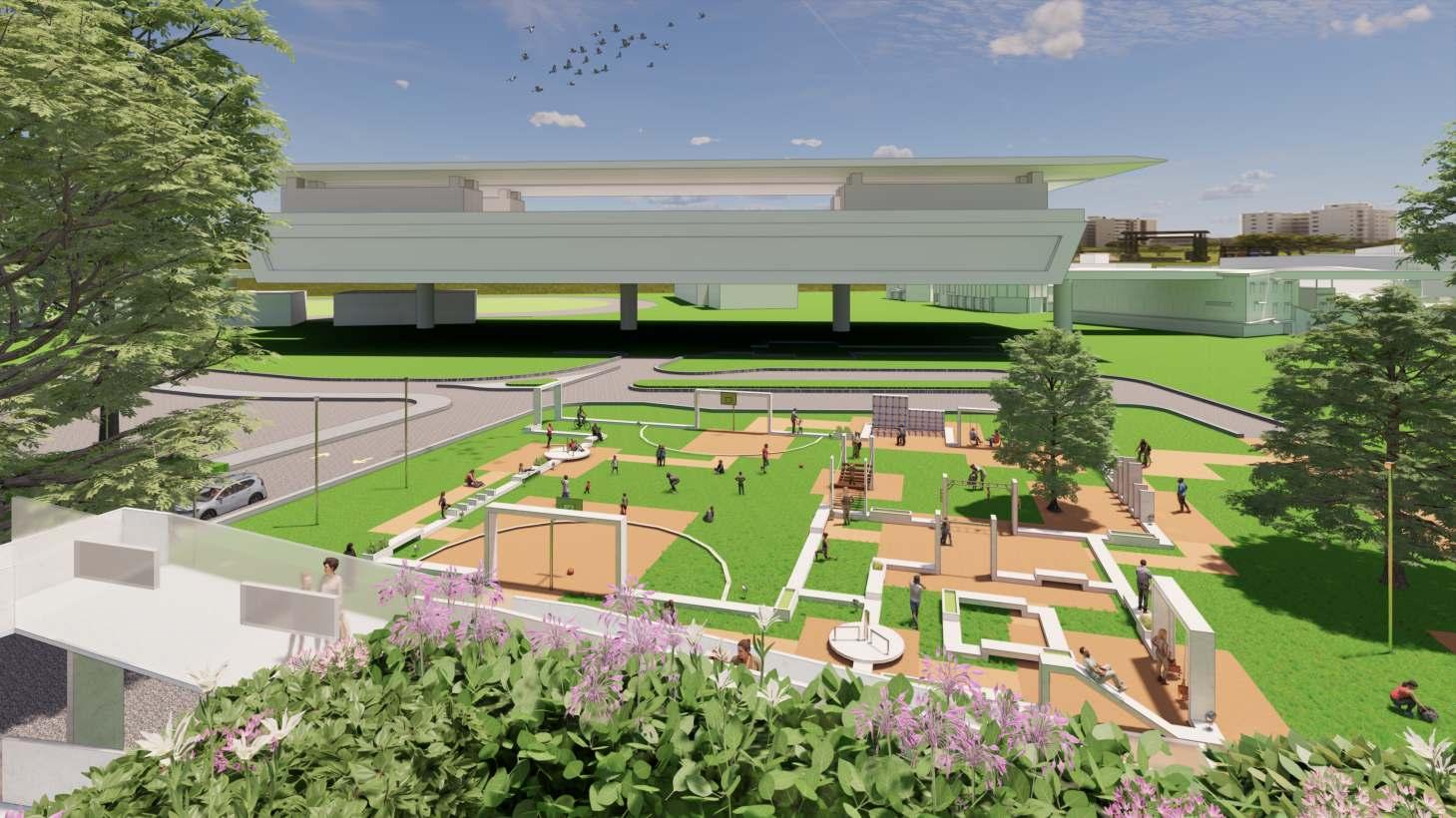

Playscapeviewfromartistgarden: Aspacetoattractmorevisitortoincreaseinteractivebetween3parties

BONDING

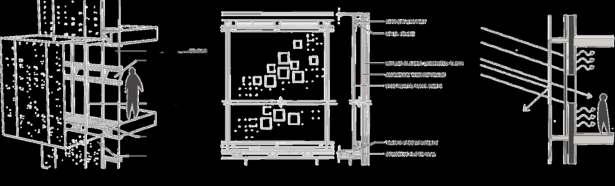

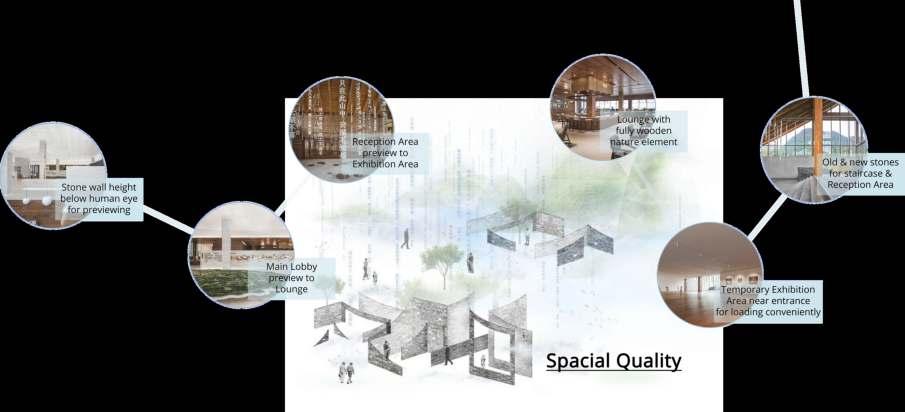

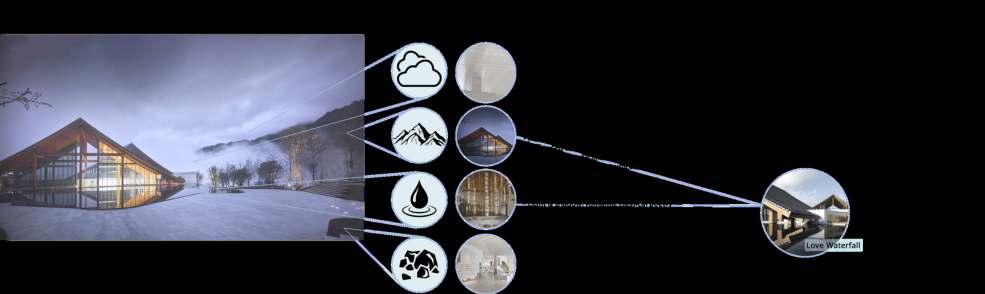

Spacialdesignelementsinspiredbysitecontext PerforatedFacadedesign

ItaimasalandmarkofChongqingSimianMountainandaccordingtothemasterplanning,thecomplex willbecomethestartingpointofthenewtouristresortoutsidethescenicspot.TheArtGallery,whichis the key of the whole project, located in the highest point of the terrain. The design team has chosen to createagiantarchitectureservingastheconnectionbetweenmountainsandthegentleslope.

MedanSatay

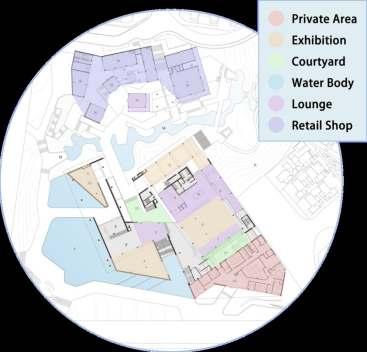

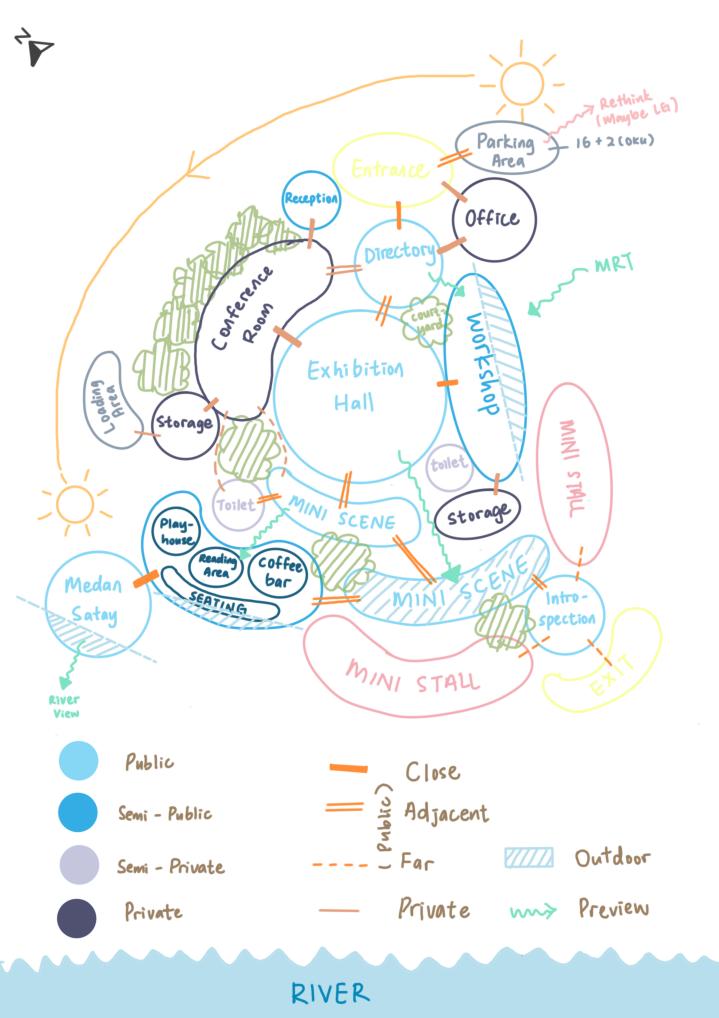

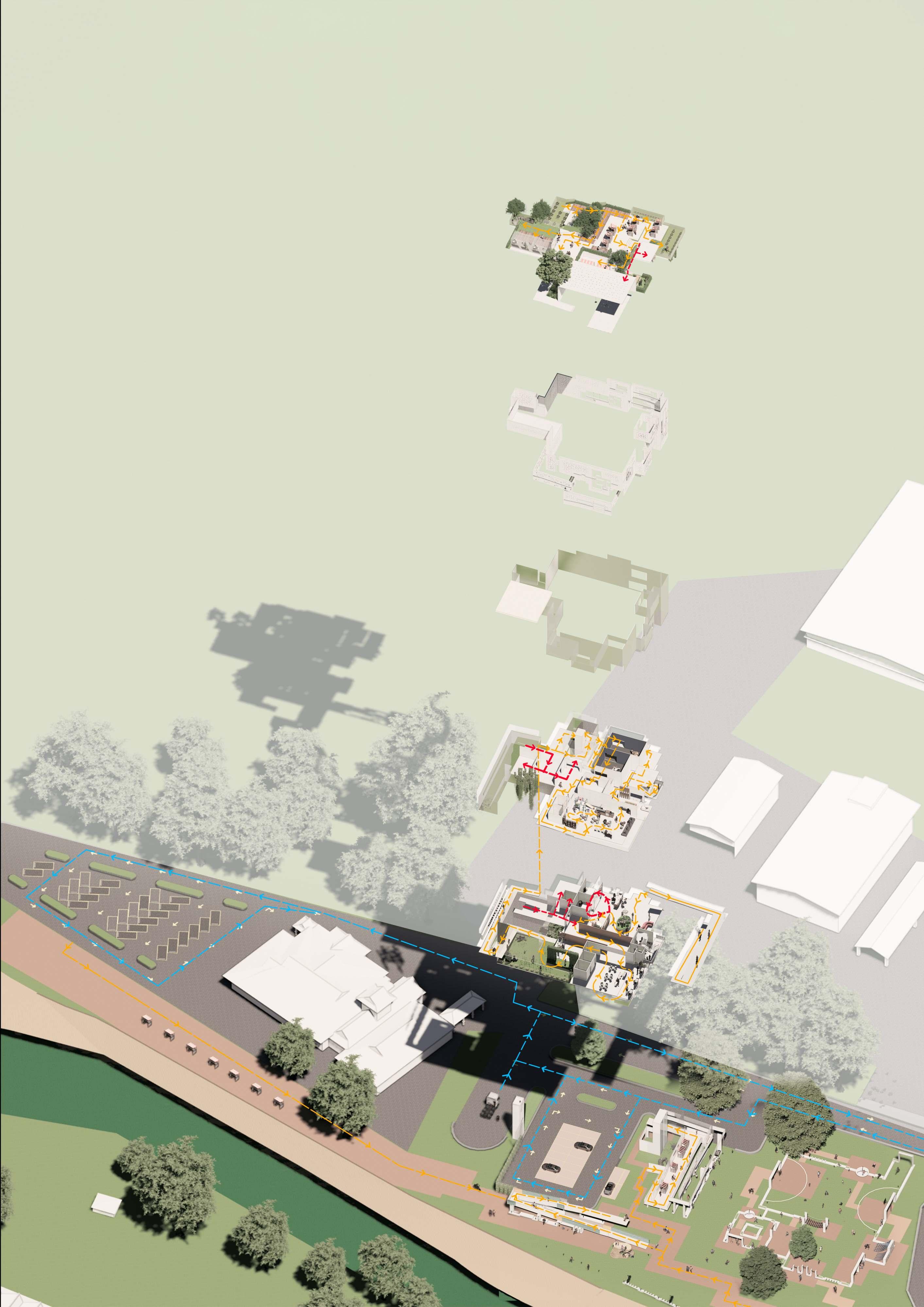

Circulation

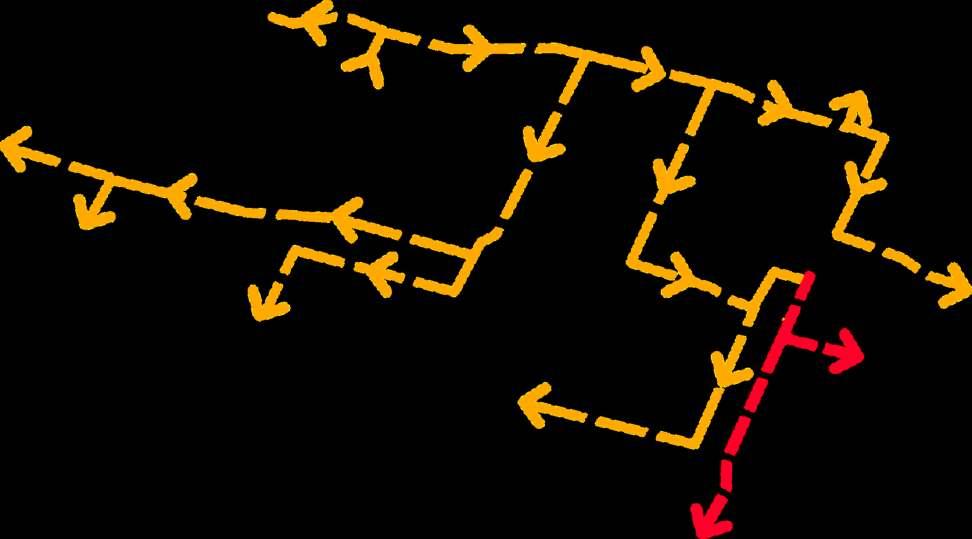

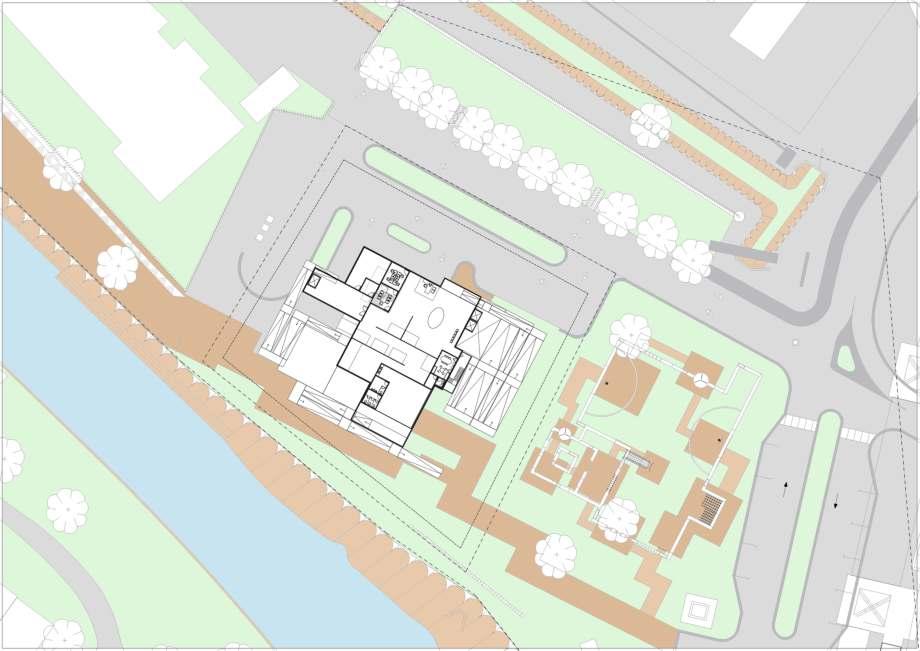

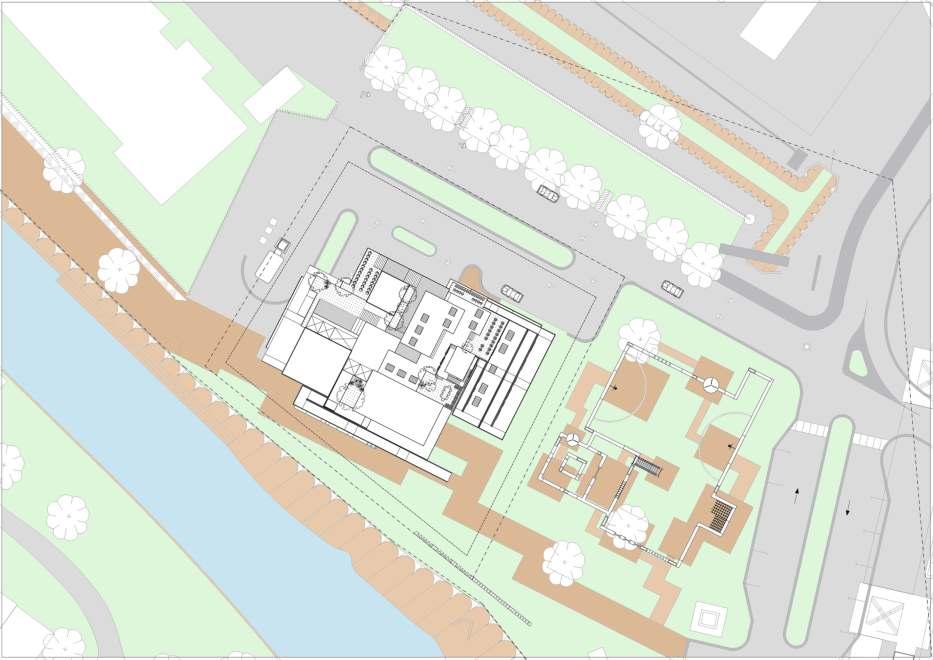

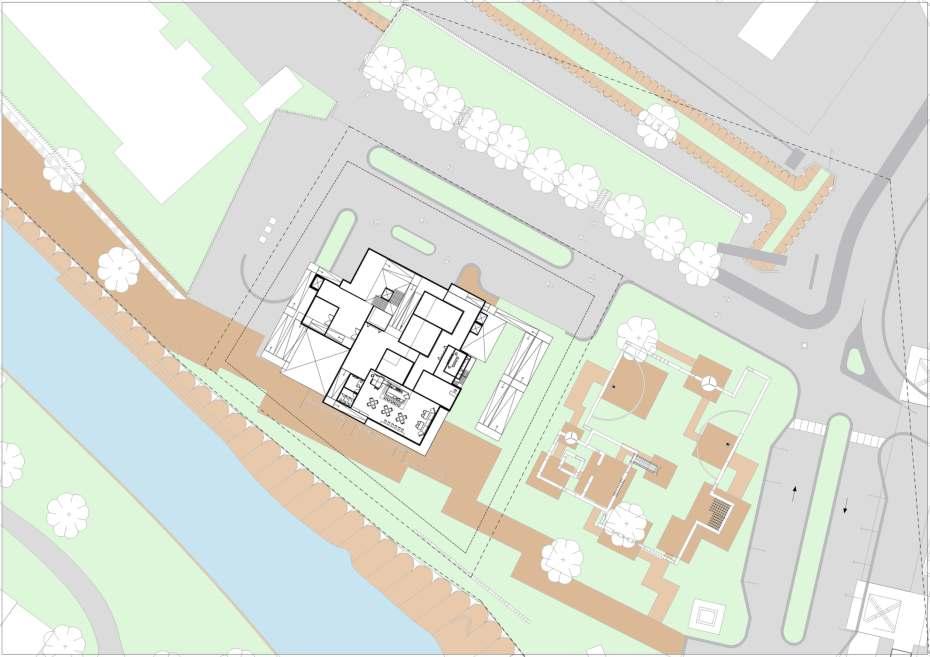

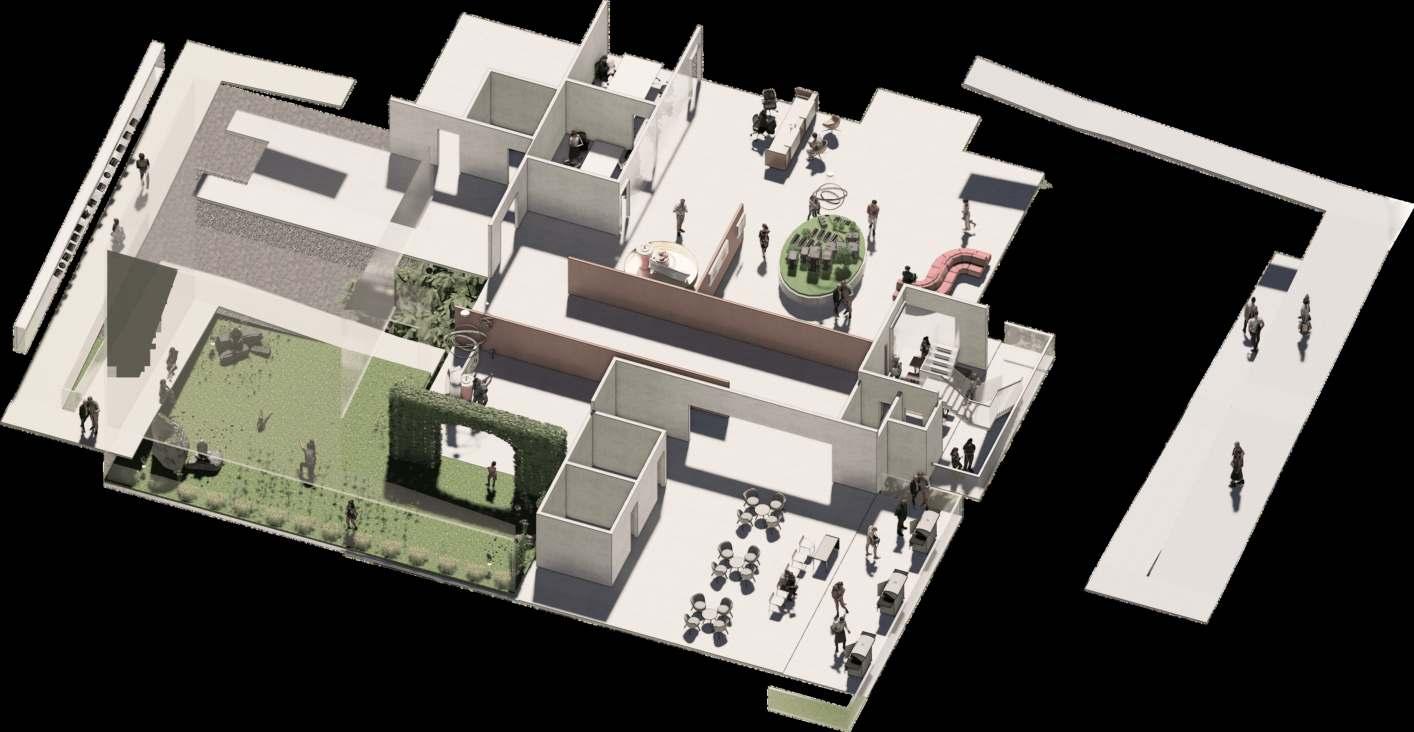

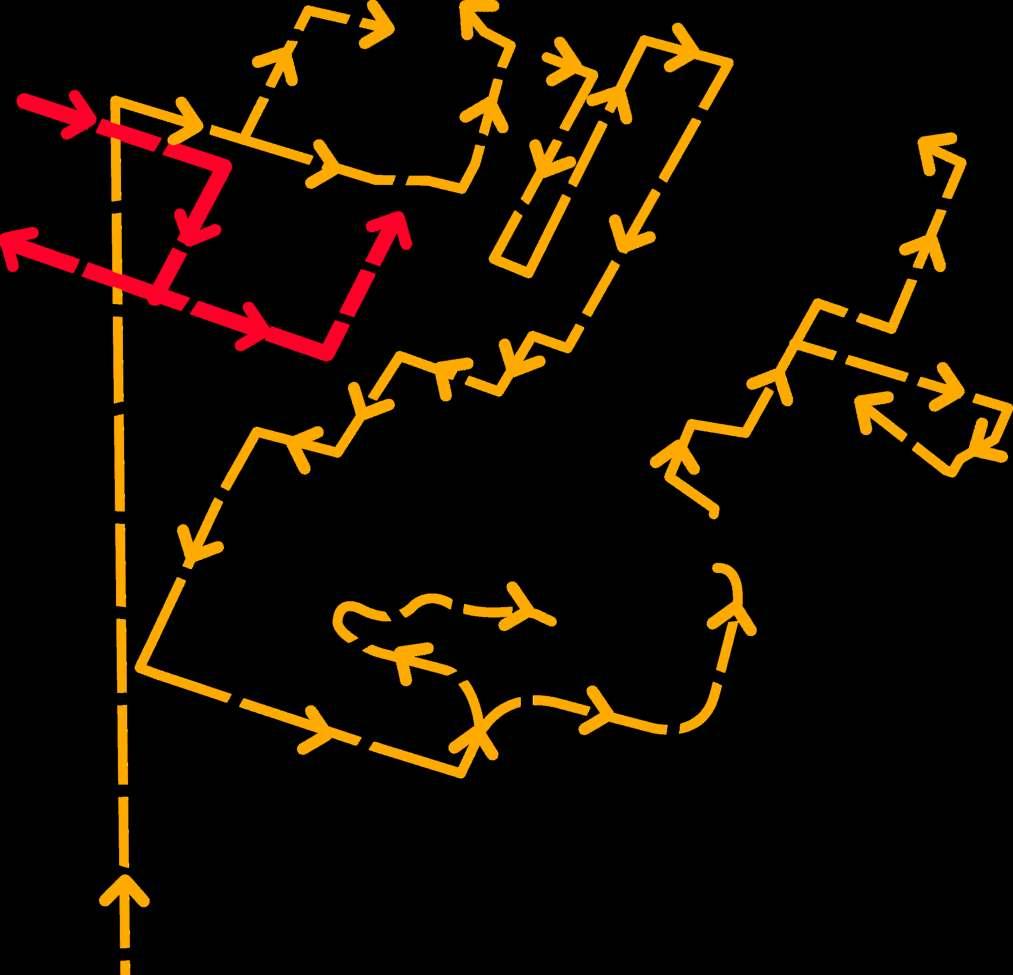

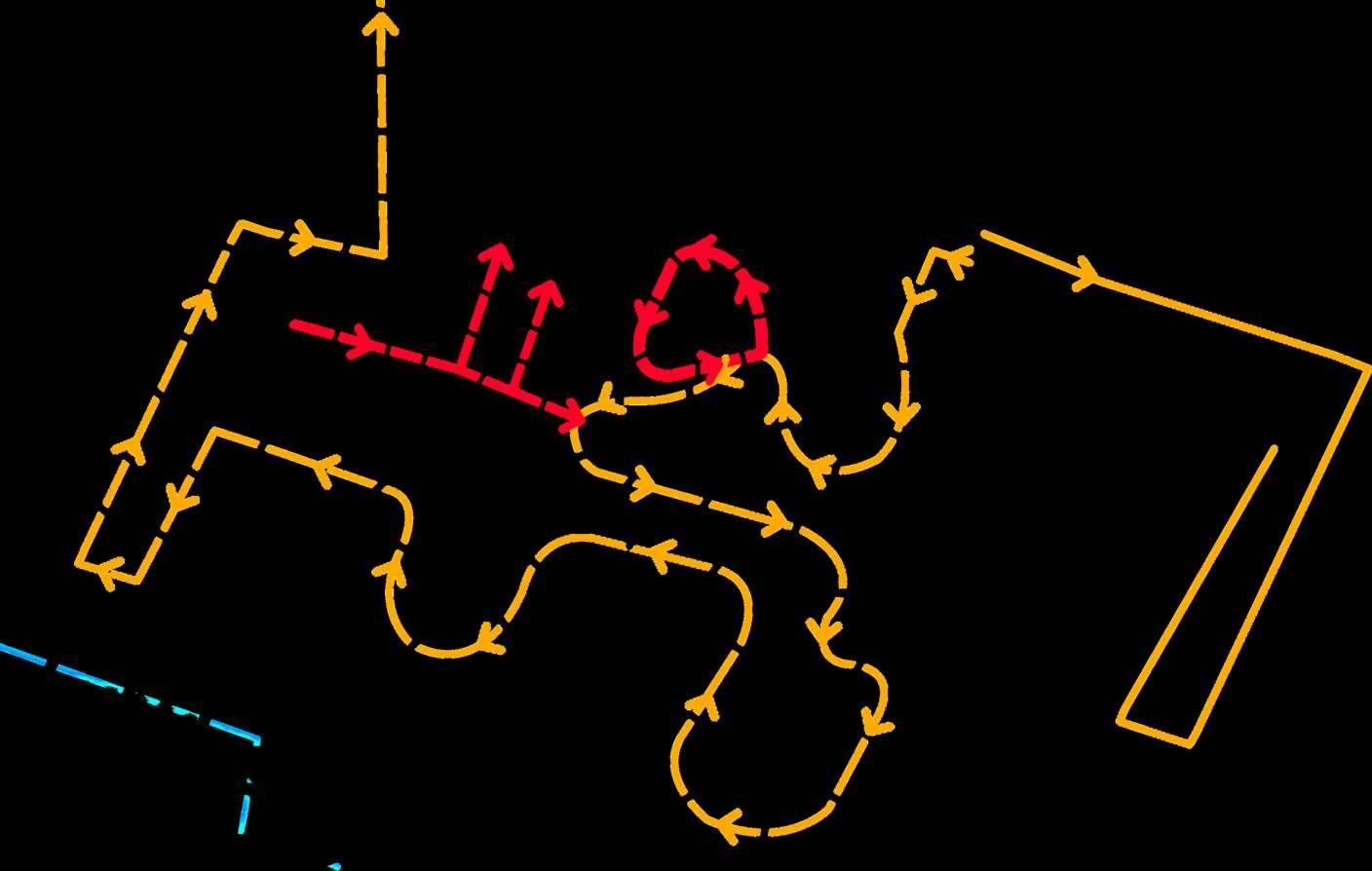

Flow:ParkingArea-MainLobbyTemporaryExhibition-MedanSatayRampExhibition-RoofActivitiesEncloseExhibition-Lounge-WorkshopParkingArea

ROOFGARDEN

RampActivities

Journeystart...

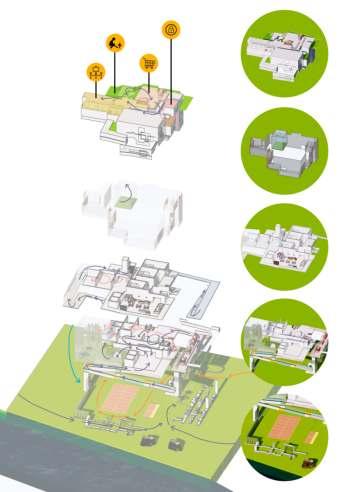

FirstFloor

-MainLobby

P:ArtistOffice-Storage-ServerRoom Workshop

-TemporaryExhibition-MedanSatay -Courtyard-RampExhibition

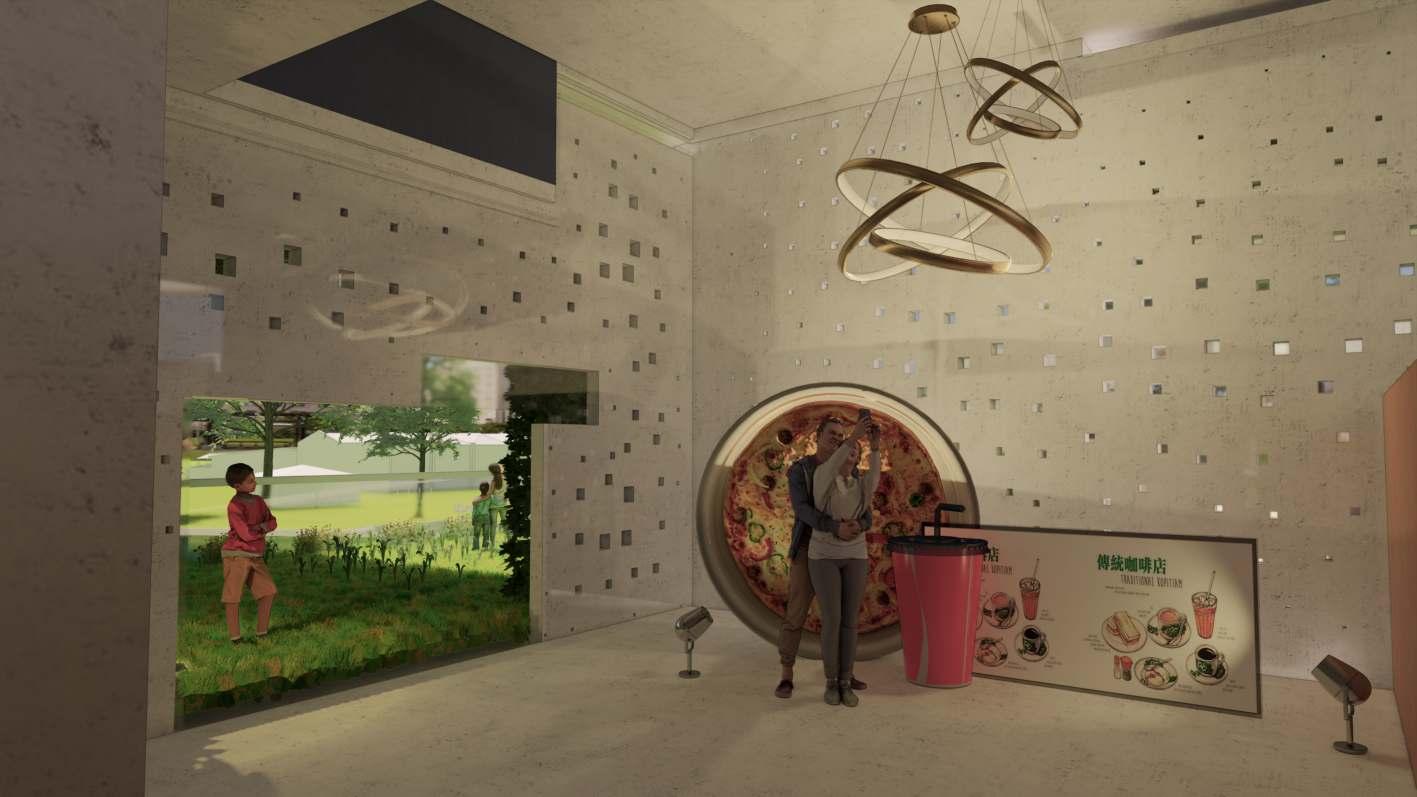

TemporaryExhibition

Different miniscenedependsonthefestival,seasonorevents

MedanSatay

TherailingoframpremainthecolourtoneofMedanSatay

Keepthememorieswhilewalkingtherampjourney

5pmviewfromriverside

TakeaBreak!Enjoytheriverview afterhavingthedelicioussatay Previewtorampexhibition

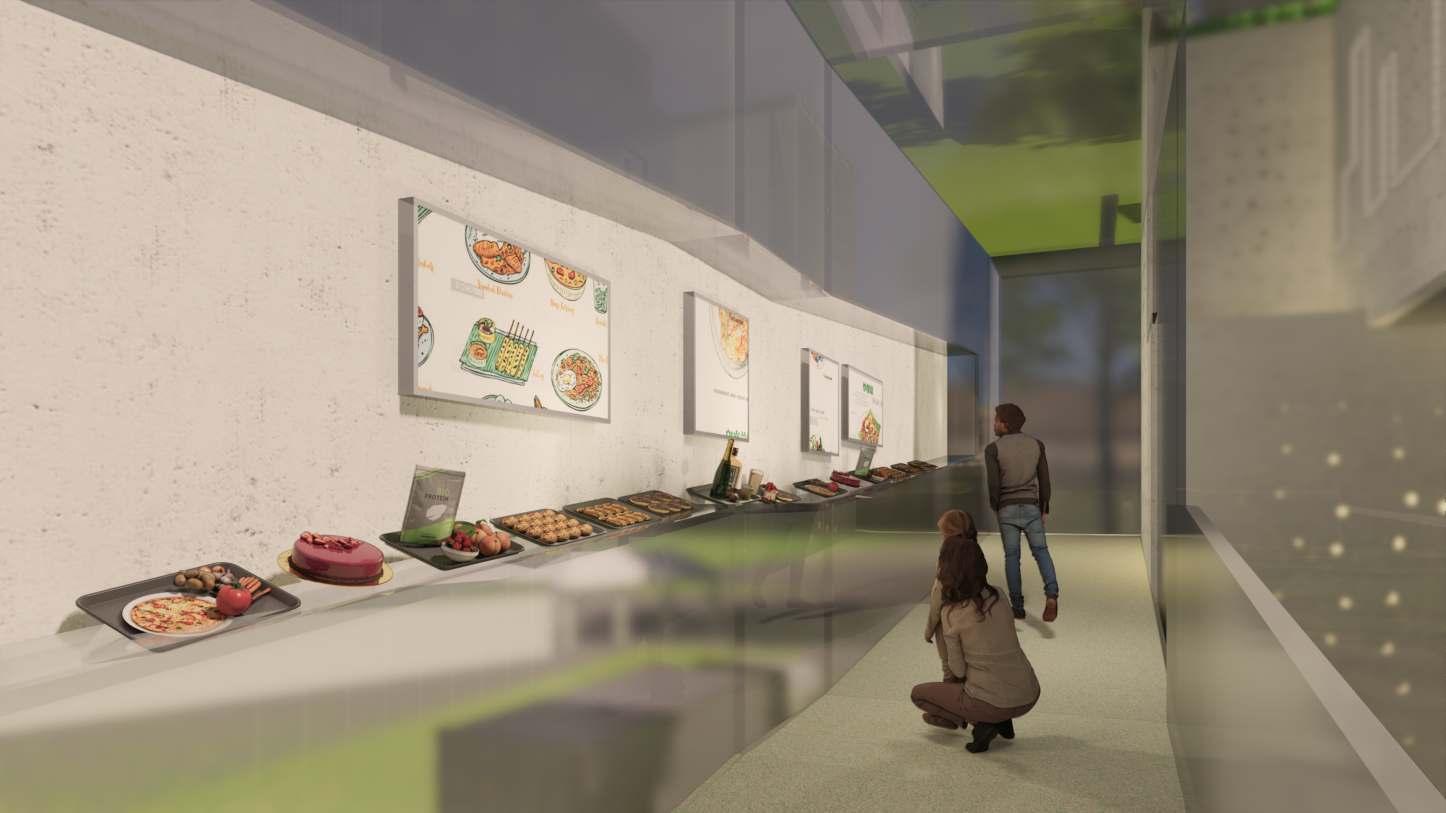

RampExhibition

Acloserviewof1:1ratiofoodmodel..Let'senjoythedetailingitbrings Frostedglassisusedforanti-glazing

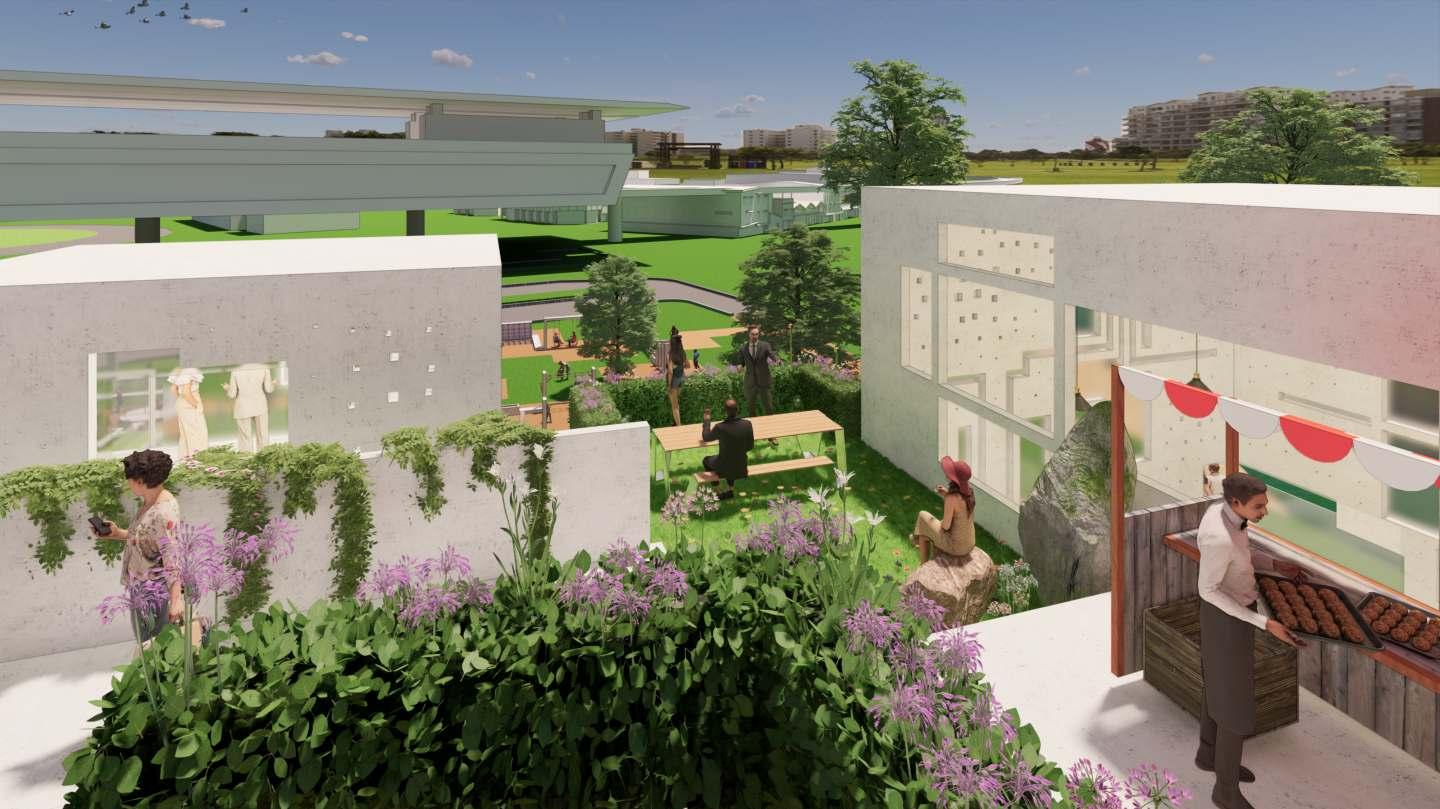

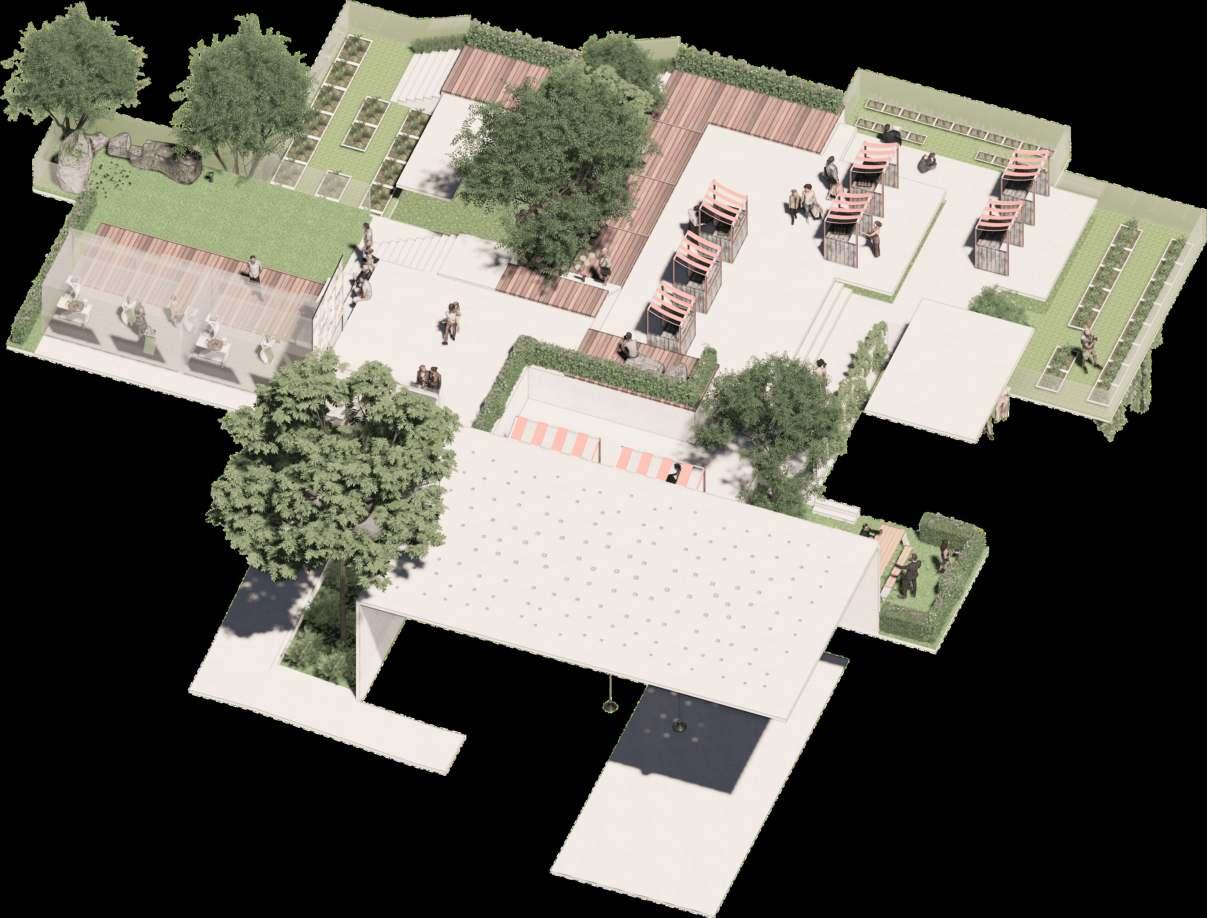

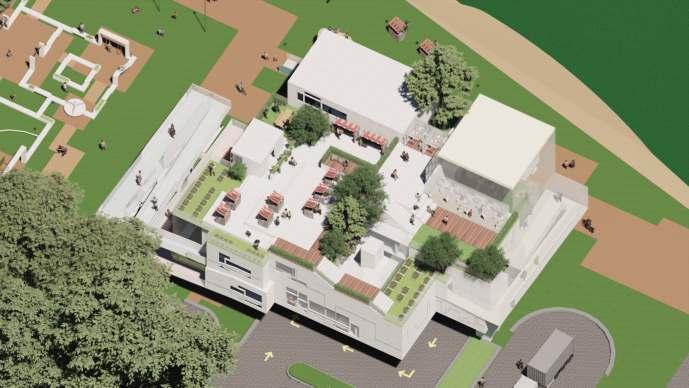

RoofTop

-FoodPlaza-PlantingZone

OutdoorExhibition-Garden

P:ArtistWorkhop-ArtistGarden

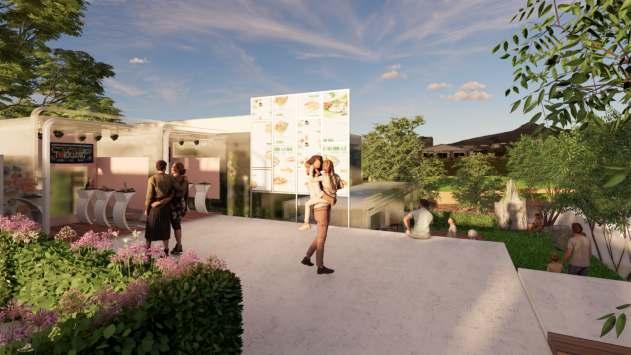

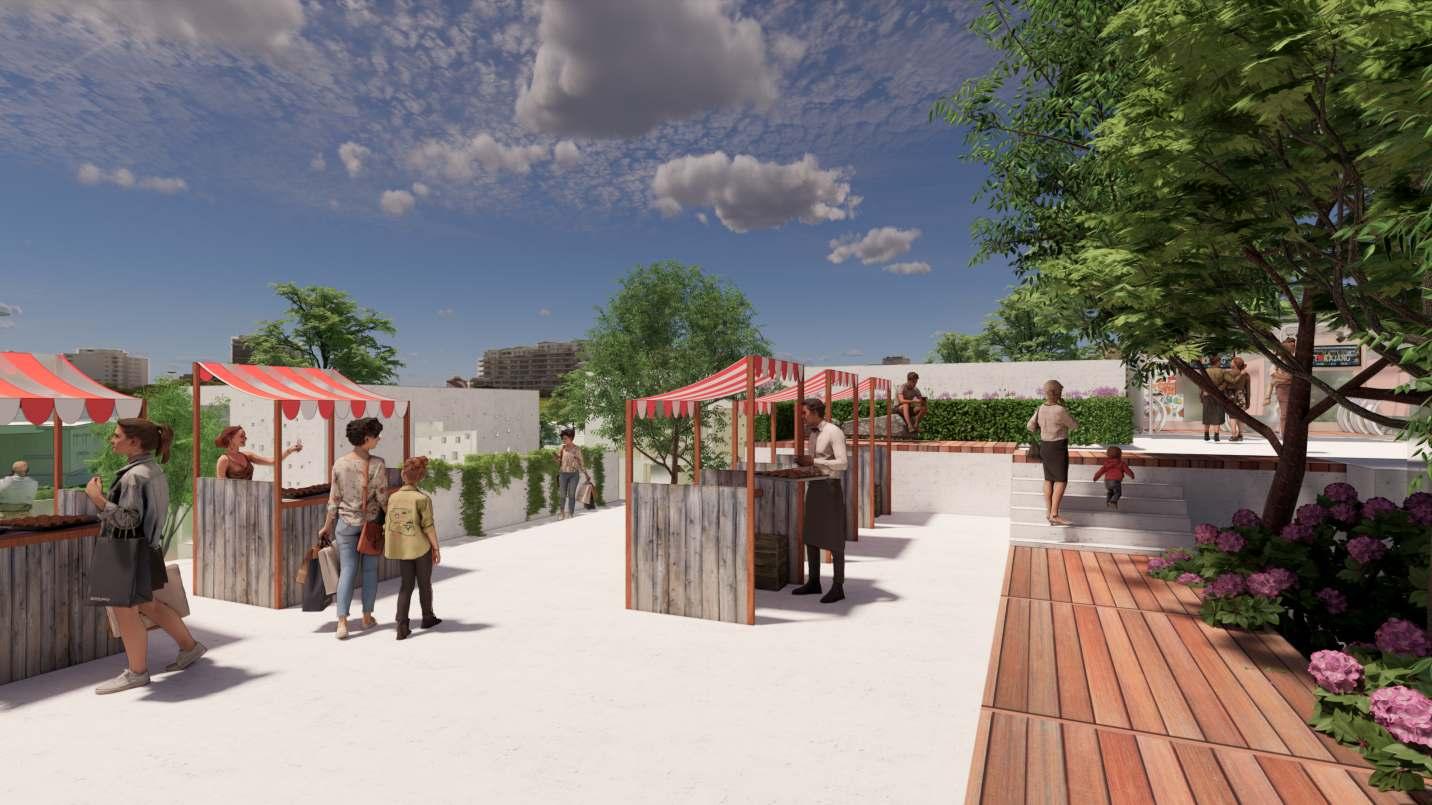

FoodPlaza

Eatinginafullygreens areawithfreshair

Sometimesitmaybeaspaceforoutdoorworkshop&competitiontoo

ROOFTOP

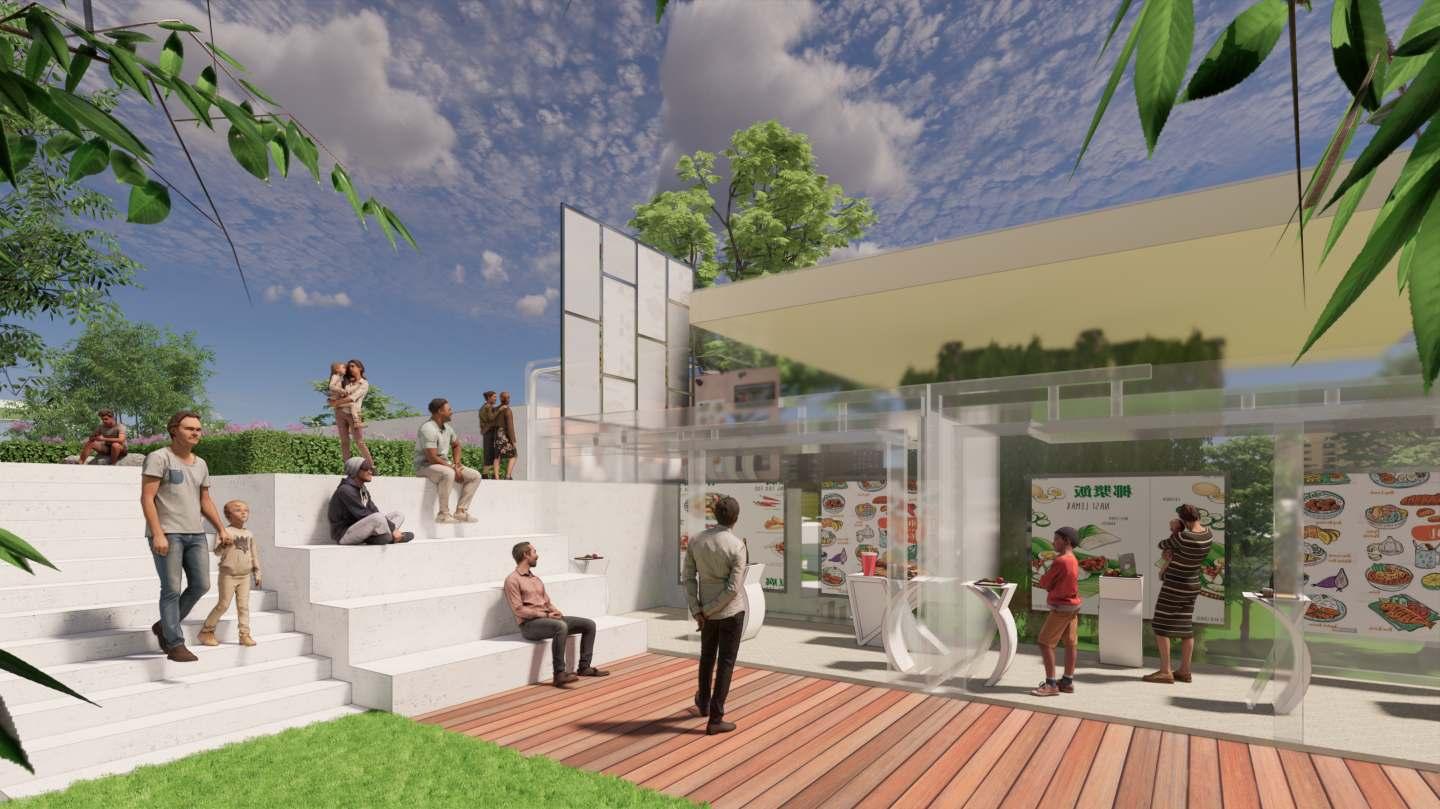

OutdoorExhibition

ROOFTOP

Let'sseewhatwillhappeniffoodmodelshowingundersunlight Awaytoprovetheusefuloffoodmodel

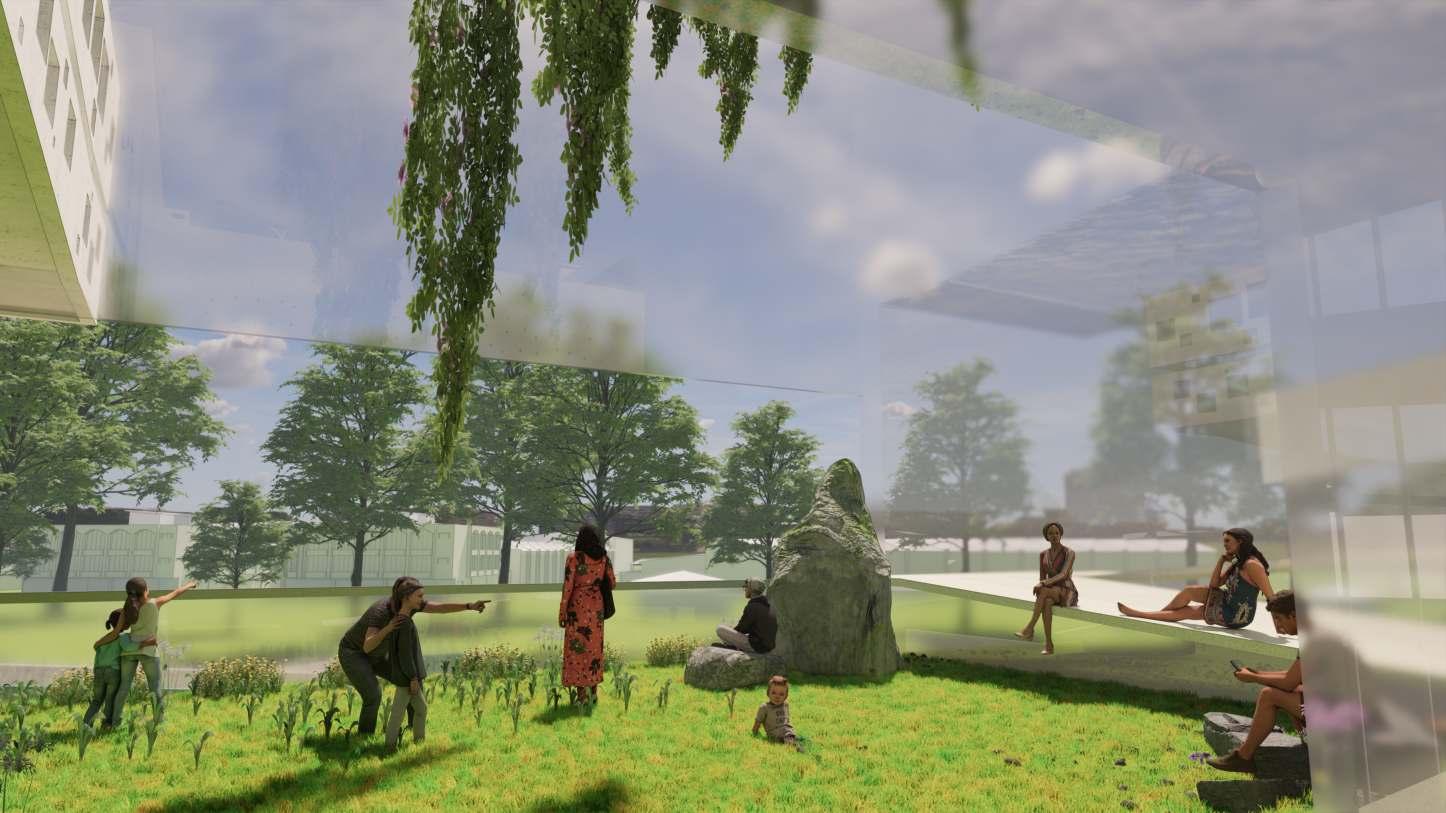

ArtistGarden

Bestviewofhumancirculation Spacetoconnectartistandvisitor

ROOFTOP

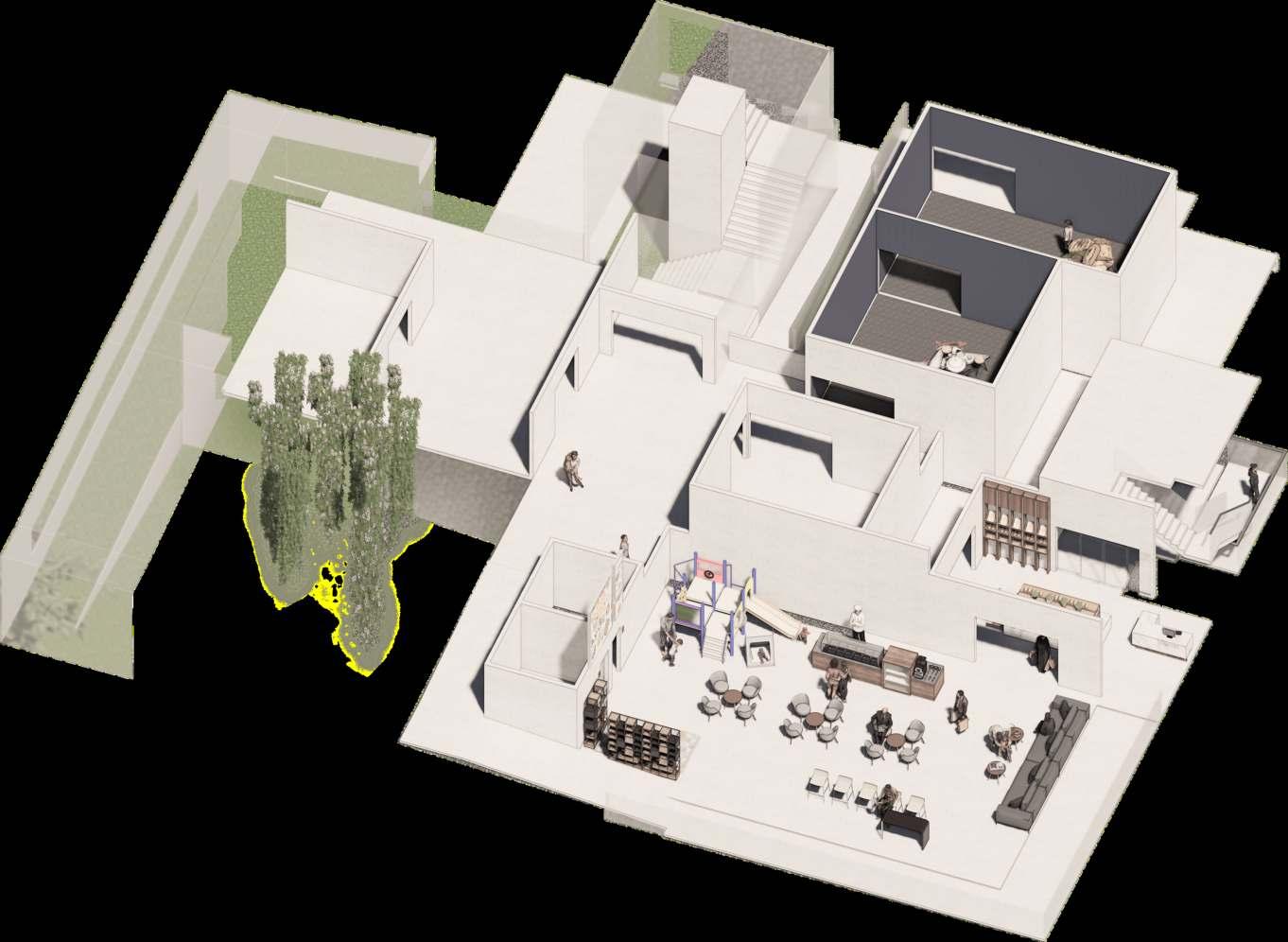

SecondFloor

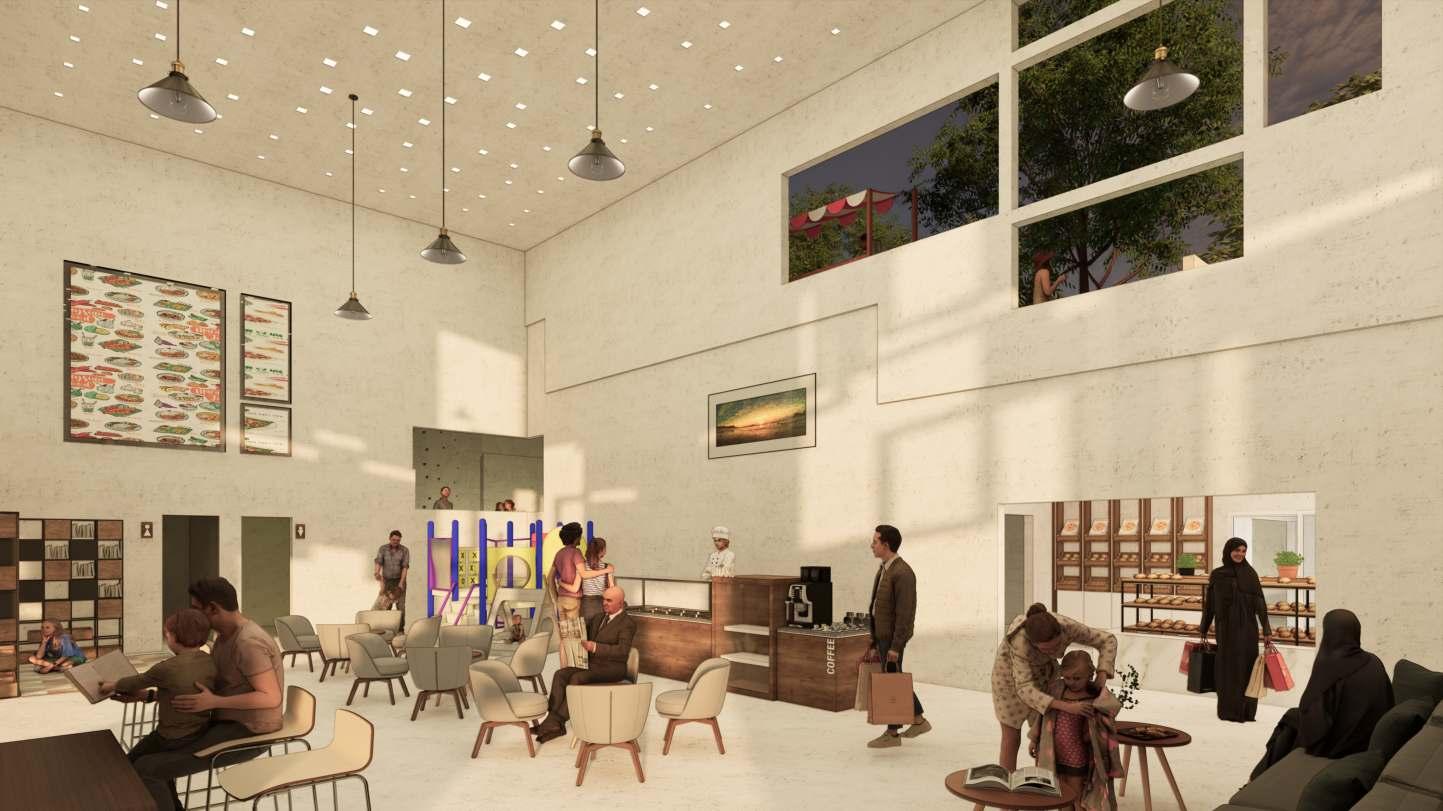

-EncloseExhibition Lounge-Cafe-Playhouse Souvenir-Workshop

P:Storage-Display

of

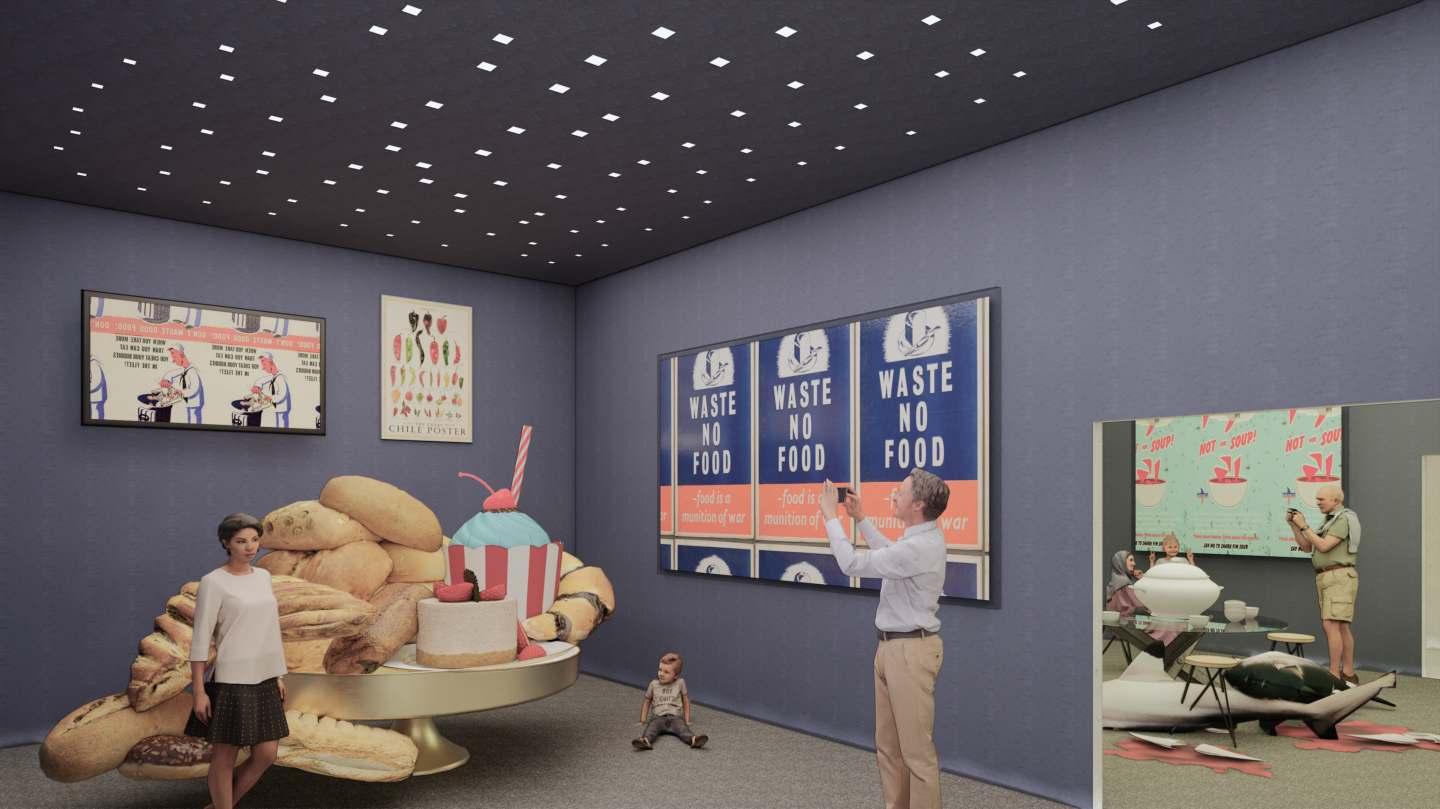

EncloseExhibition

waste

Dark&Compact:Awareness

food

Differentminisceneofthemewithbigscalefoodmodelphotozone

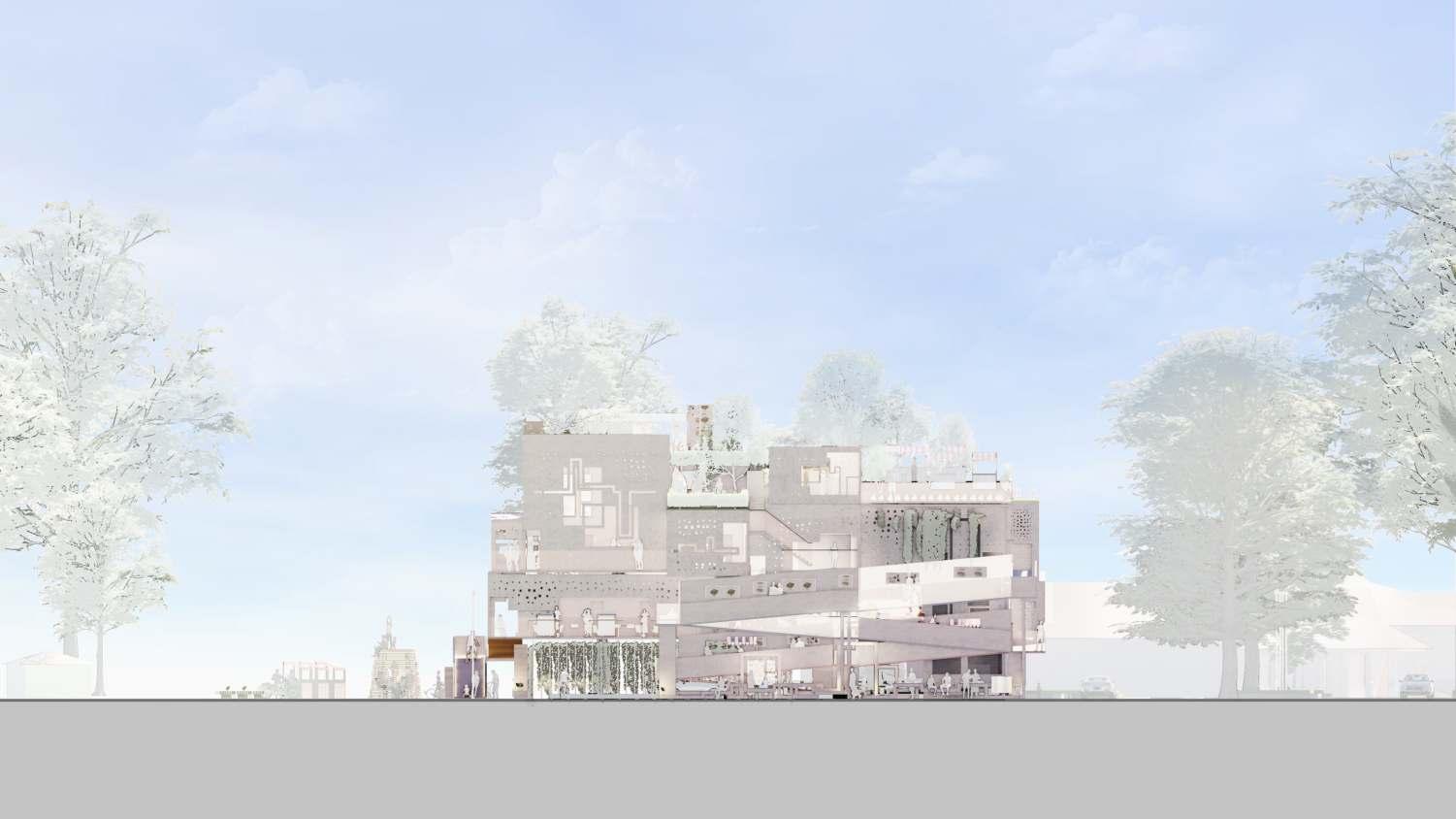

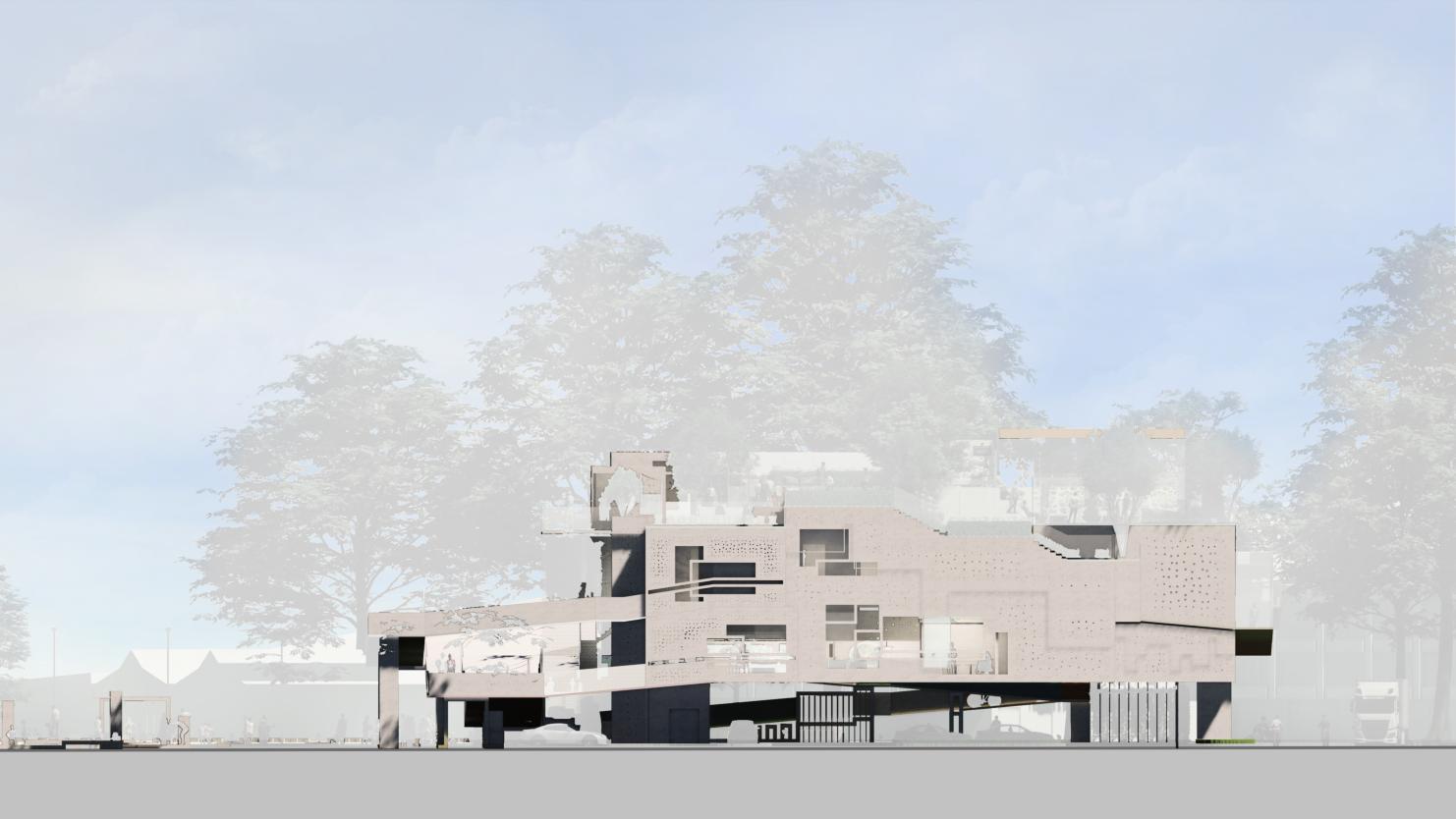

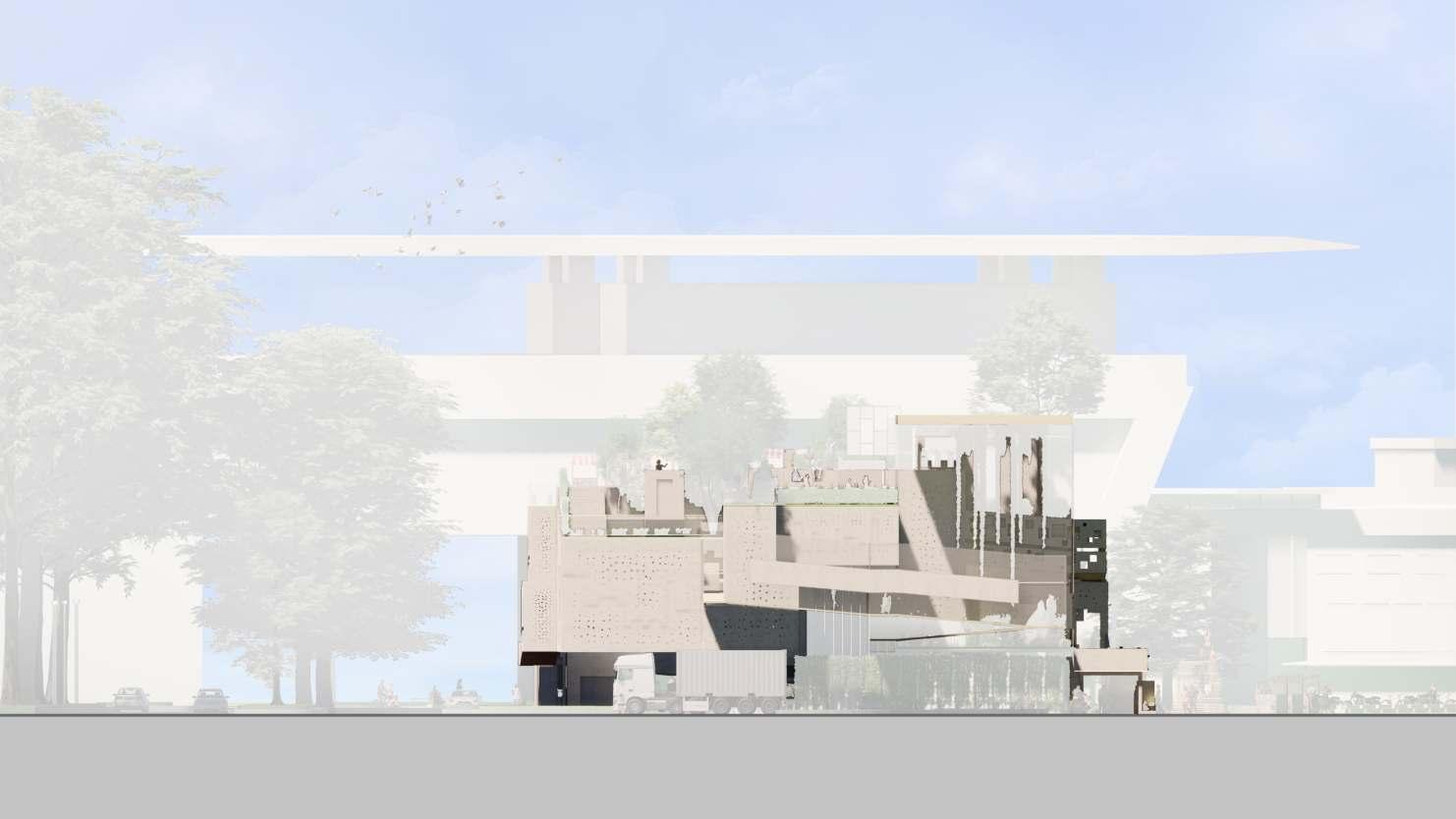

NorthElevation

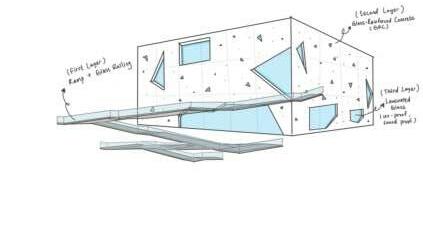

CURTAINWALL

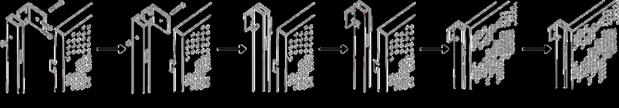

GFRCFACADE

EastElevation

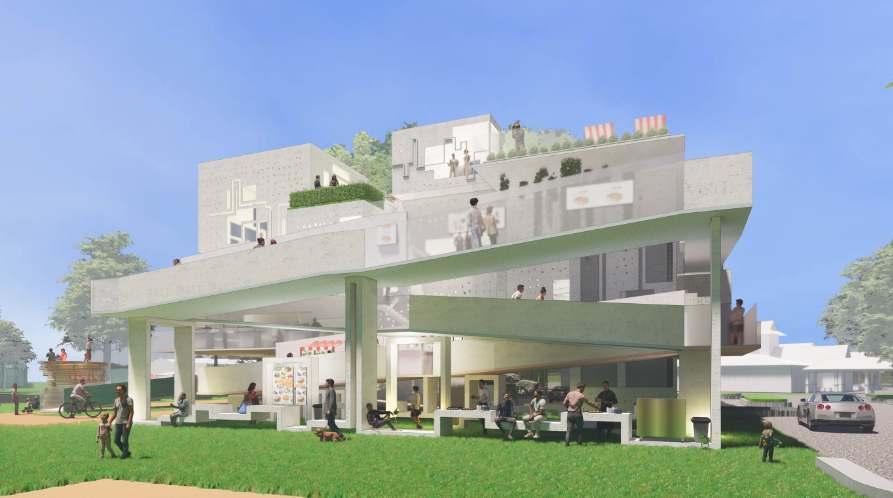

ViewfromMRT

Rampsupportactivitiesunder:foodplaza,miniatureartsselling,seating,playscape

MostoftheactivitiesfacingMRTtoattractpeople

ViewfromRiver

Theramprailingkeepthecoloursofexistingbuilding

MostoftheRestAreafacingRiverforrelaxing&eye-comfortview

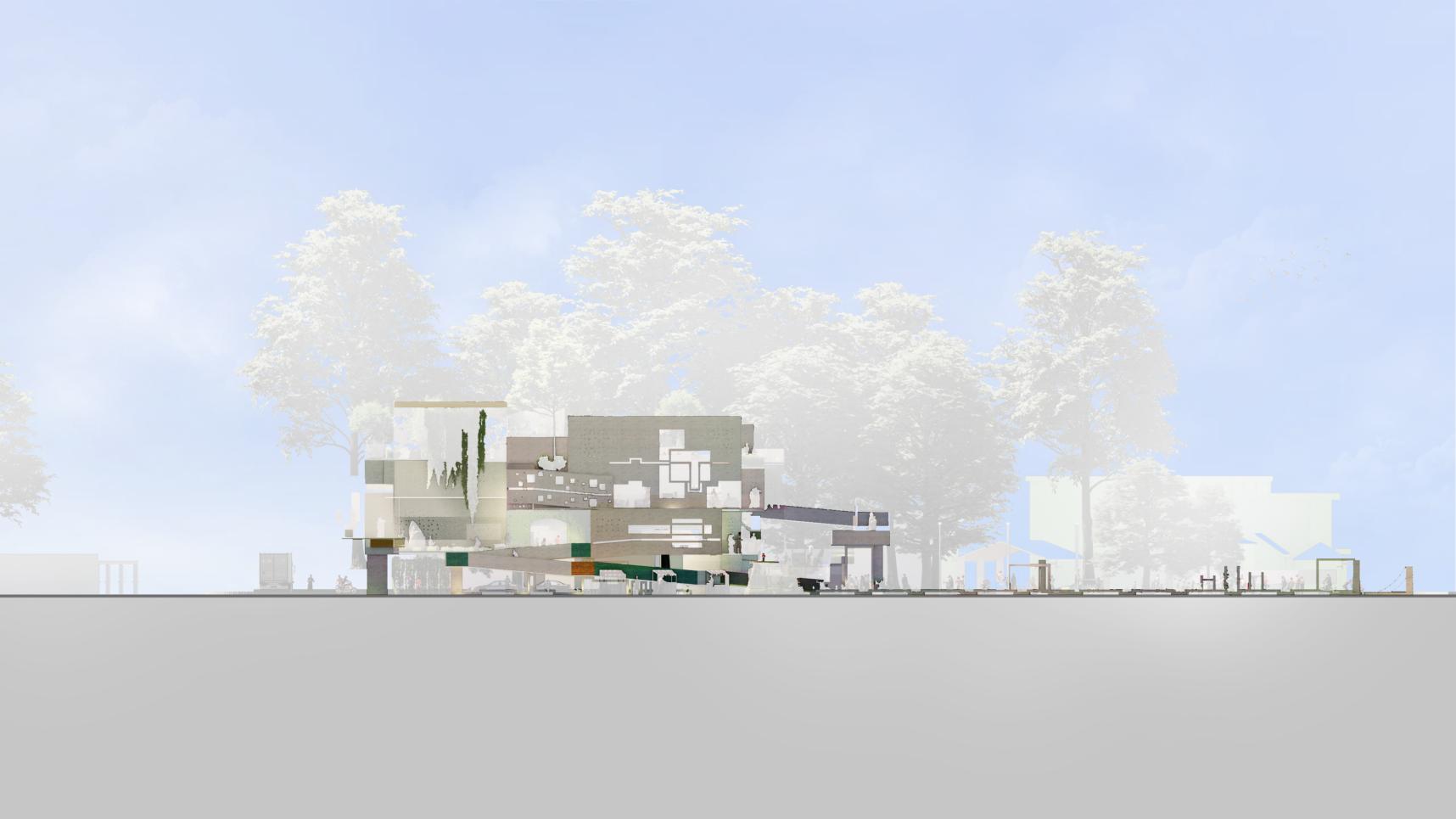

SouthElevation

WestElevation

ViewfromSatayGallery

BITUMENROAD

ROOFGARDEN

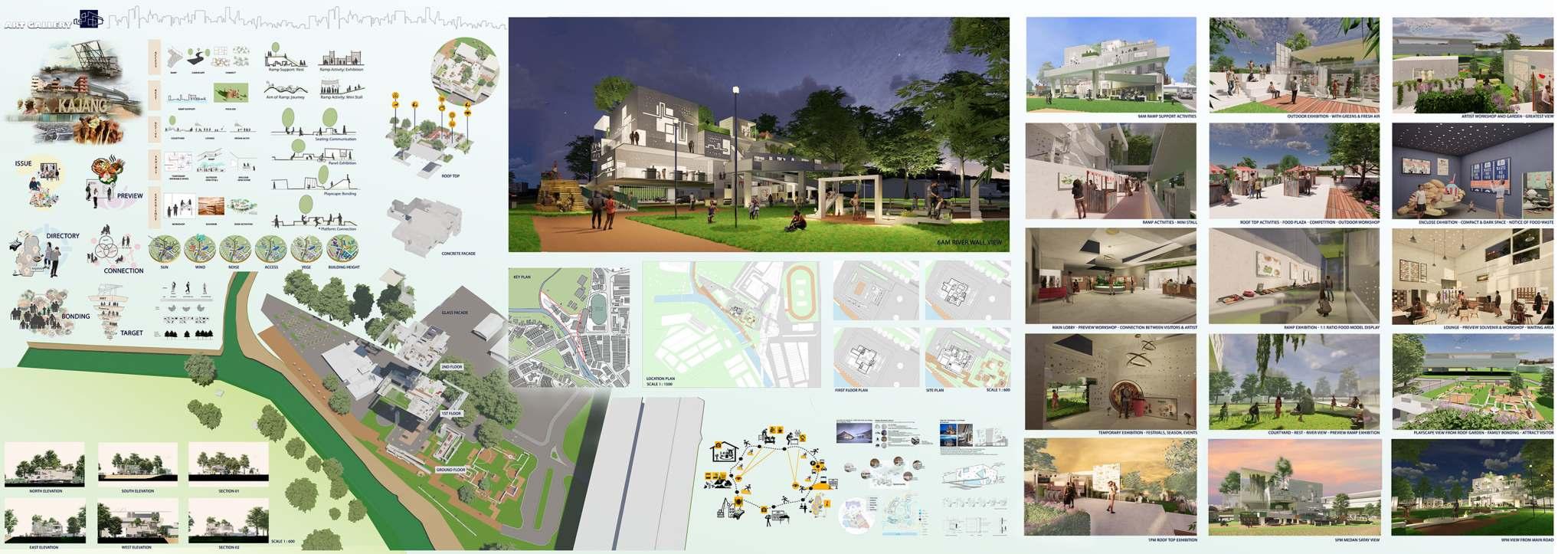

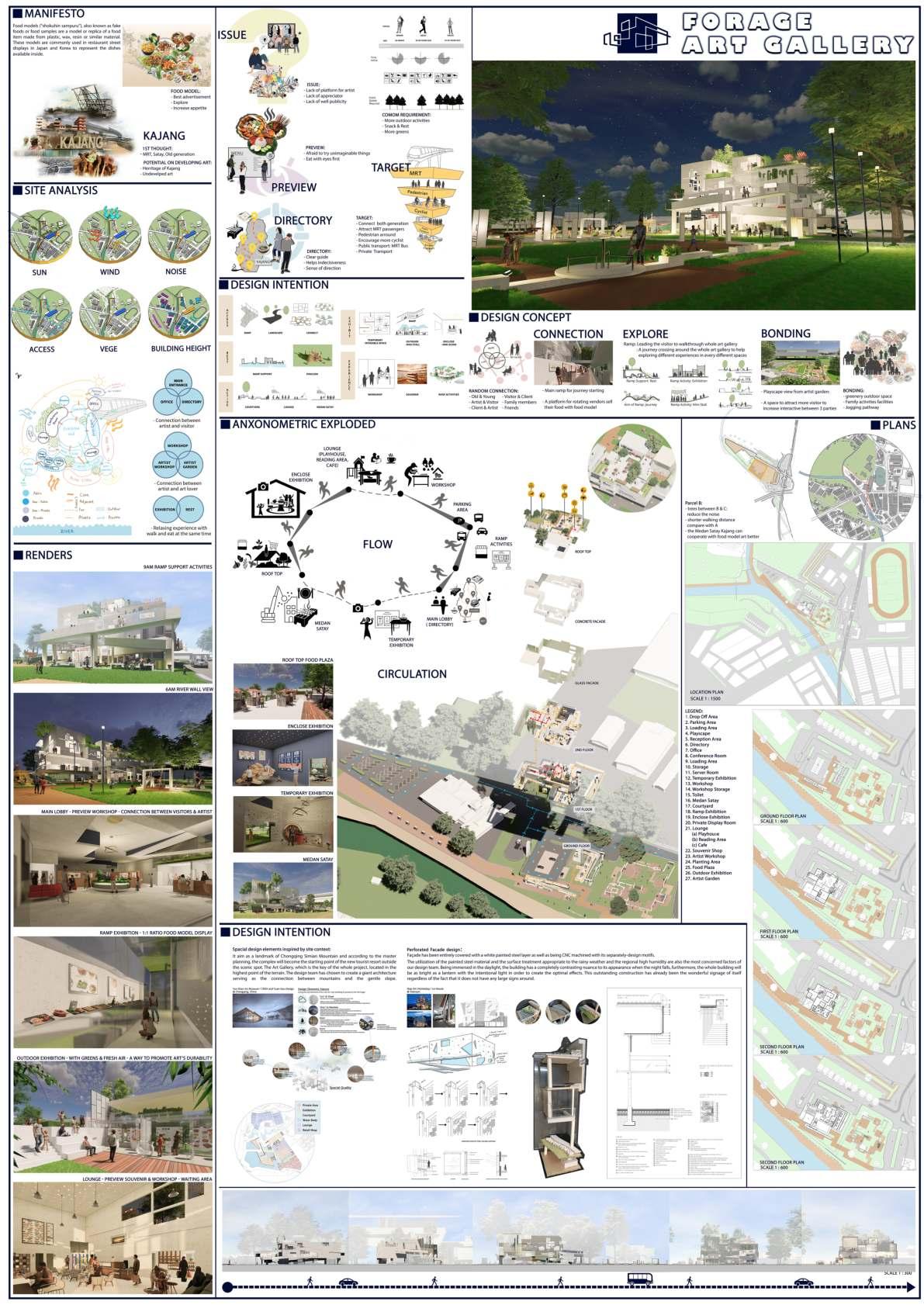

Finalboard
