Conversions Division Case Studies

Case Studies: Engineering Process Enclosures S Jones Conversions division is the UK’s leading container conversions specialist. We design and manufacture bespoke containers, enclosures and plant rooms for the safe and compliant housing of engineering processes, equipment and machinery.

For decades, we have specialised in providing clients with Contained Space Solutions®. This brochure contains a small selection of the thousands of container conversion projects we've completed for some of the most reputable engineering companies in the UK.

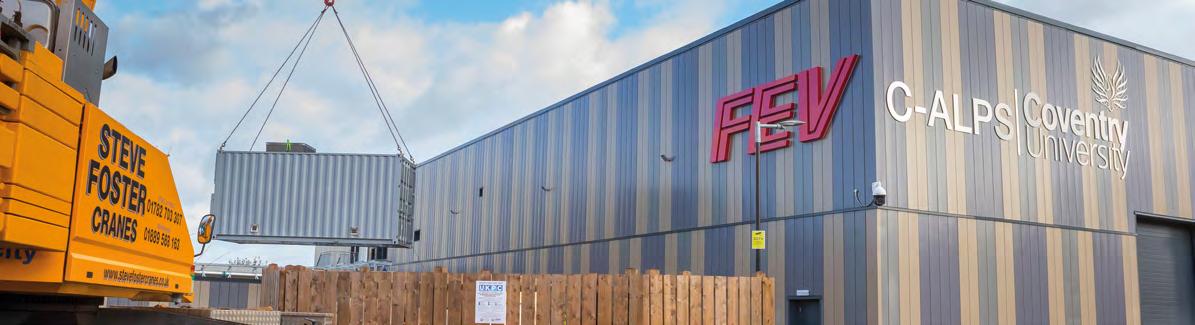

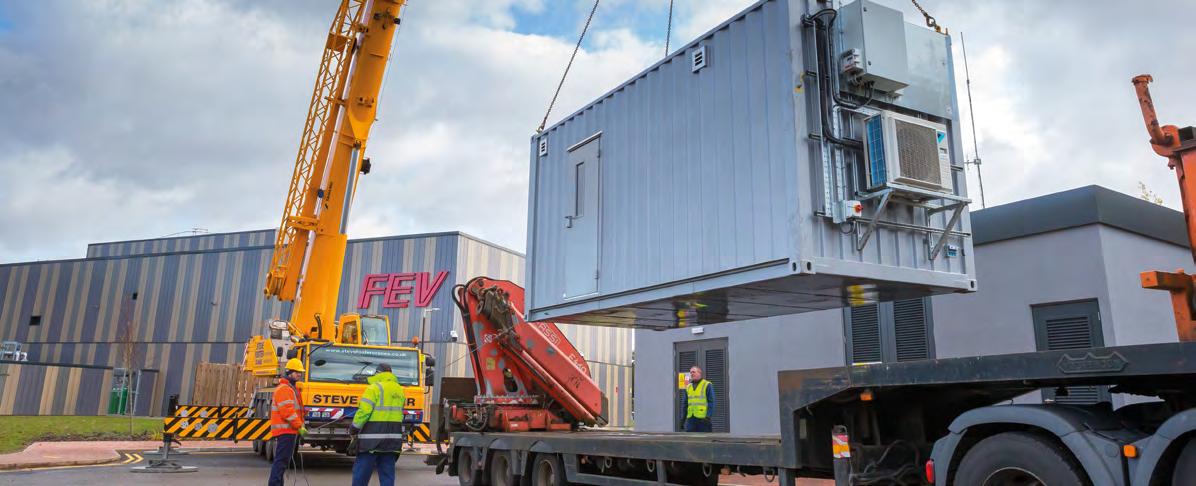

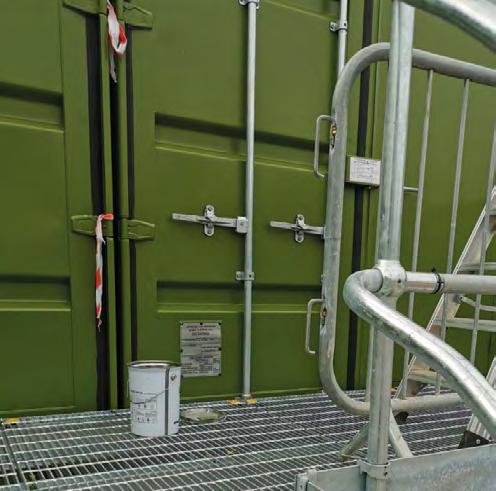

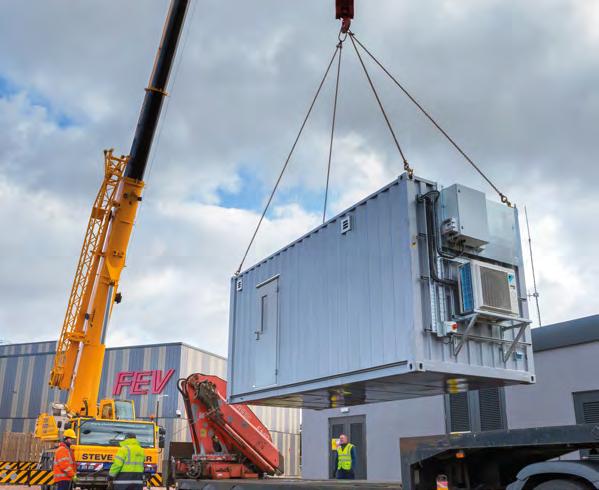

State of The Art Lithium-ion Battery Storage for Coventry University In 2019, Coventry University collaborated with global engineering specialist FEV Group to develop a stateof-the-art low carbon technology centre.

The Challenge As part of their mission to build, test and further improve on future-proof powertrain concepts,

Named C-ALPS (Centre for Advanced Low-Carbon

Coventry University reached out to our specialist

Propulsion Systems), the £50m centre enables leading

shipping container conversions team for a 20ft

international automotive and aerospace organisations

fire-resistant lithium battery store.

to develop the next generation of electric, hybrid and internal combustion engines.

This needed to come complete with ATEX Zone II interior electrical and HVAC installations, explosion venting and fire protected storage shelving.

1

What Coventry University Had To Say: “It has been over five years since I worked with S Jones on the very first bespoke container for battery storage. Having the ability to store our new and used Lithiumion batteries safely plays a key part in the

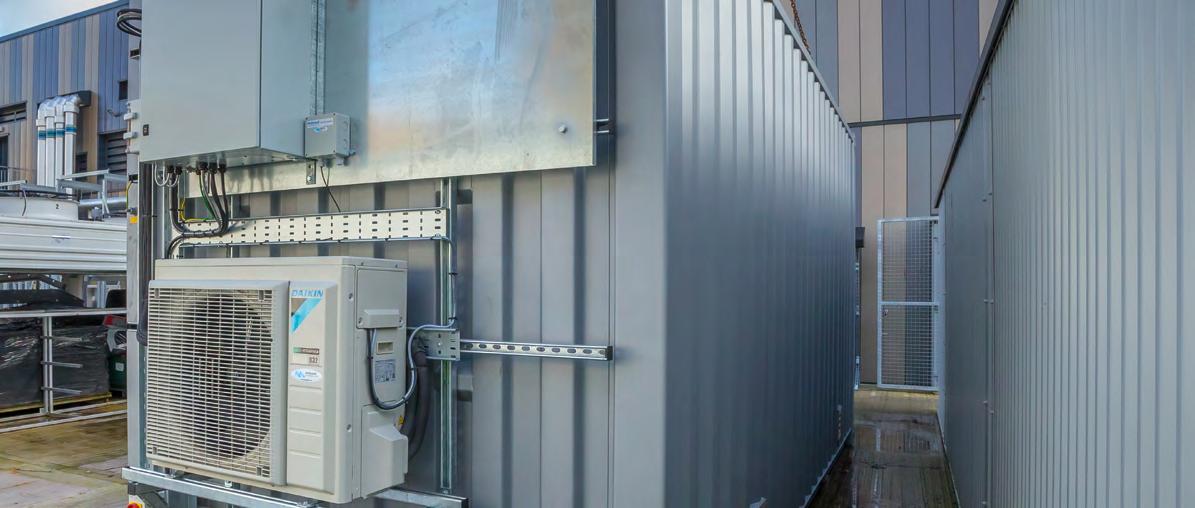

The S Jones Lithium Battery Storage Solution After working with Coventry University on the specification, we used our CAD (Computer Aided Design) expertise to generate an accurate visual representation of the shipping container that would ensure full functionality prior to build.

Building from this design, we then fabricated the battery store in our purpose built workshop before

operations of our research centre. I am very pleased to see how the design of the container has evolved over the years to include many new features to meet the latest safety requirements, making it the industry’s best practice for battery storage.

Thank you so much for doing a great job!”

Professor Yue Guo, Chair of Battery Systems – Coventry University

repainting it in our professional paint booth.

2

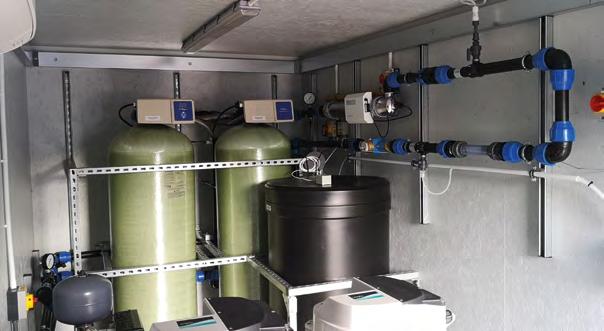

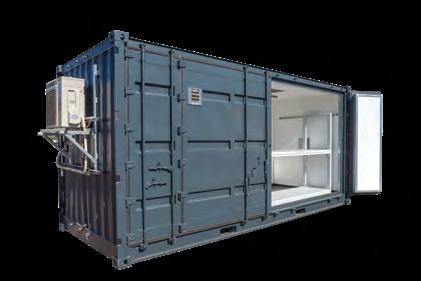

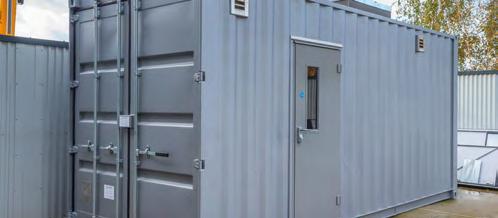

Custom-Built Plant Rooms for Global Water Treatment Leader Culligan, a leading water treatment supplier, is committed to delivering state-of-the-art products and water solutions while minimising the impact on the environment. The company has been working to provide better water for their customers in their working environments around the world for over 80 years.

The Challenge and Solution Culligan contacted us with a requirement for secure temperature controlled enclosures for their equipment to be housed in.

What Culligan Had To Say: “We find that our customers are requiring a ‘Plug and Play’ solution for their water treatment systems more and more. Culligan has the expertise to provide these solutions. With our inhouse team we have the capabilities to provide a complete turn-key solution to suit the customer’s requirements.

We wanted to use a professional company for our container conversion project, which is why we partnered with S Jones Conversions. They demonstrated early on in the project that they

After discussions with our conversions specialists,

could deliver the design and high-quality finish

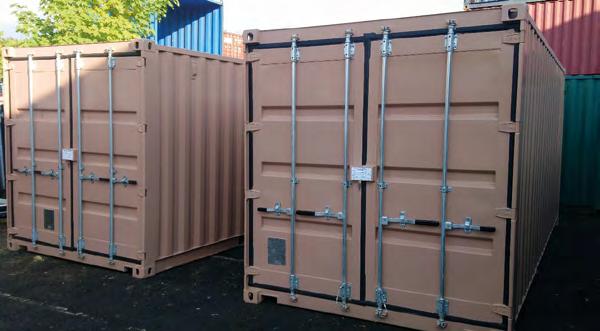

two 20ft double door containers were chosen. Vinyl

we required. Their technical expertise is

floor was fitted for easy cleaning, HVAC and gland

extensive, which means if we have a problem,

plate pipes were built into protected recesses and

they will have a solution!”

finished with twin pack paint to enhance UV protection as the containers will be located in Afghanistan.

3

Andrew Woods – Culligan (UK) Ltd

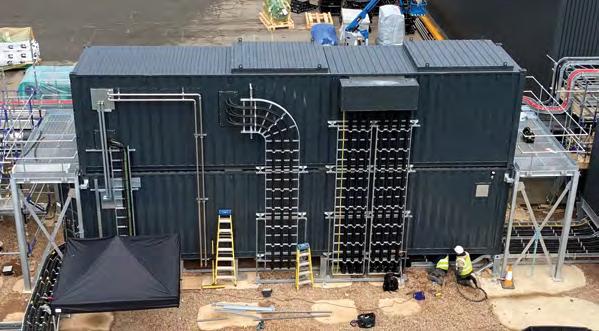

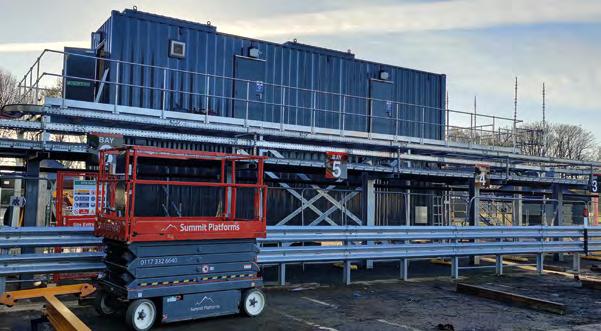

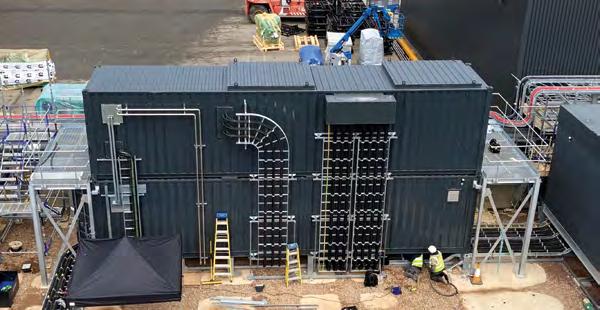

Housing Cummins’ Energy Regeneration Processes In Bespoke Containers As part of their sustainability efforts, Cummins wanted to house equipment for a ground-breaking solution that would recover electricity from their diesel engine generator test process.

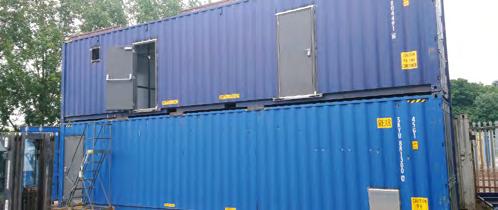

Involving the stacking of two containers, the project provided a welcome challenge for our talented team, seeing us design and manufacture the containers entirely in-house.

The two bespoke 40ft high cube containers allow Cummins to safely and compliantly house the equipment necessary to sell back energy to the national grid at a time when sustainability has never been higher on the national agenda.

What Cummins Had To Say: “S Jones were adaptive and flexible throughout the engineering phase, especially considering the effects of Covid-19 and the lockdown at the time.”

“S Jones’ designers were engaging and contributed creative ideas to help us achieve this challenging project.”

4

Charles Petersen, Project Coordinator – Cummins Power Systems Ltd

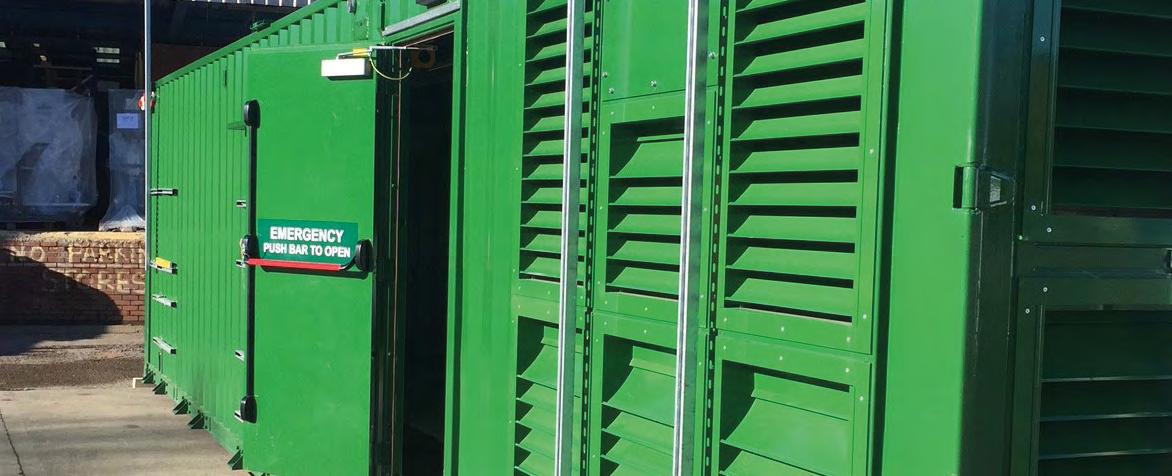

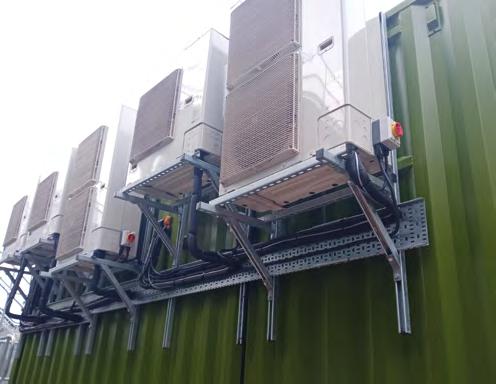

Enabling Liquid Air Energy Storage with Siemens June 2018 saw the official opening of the world’s first liquid air energy storage plant, designed and developed by Highview Power and housed at project partner Viridor’s, Pilsworth site in Bury.

The Challenge Given their durability and versatile interiors, Siemens recognised that there would be many benefits to housing their technology inside of a shipping

The plant is enhanced with Siemens technology, to

container. As a result, Siemens reached out to

provide instant energy on demand. The combined

S Jones directly to ensure their requirements for a

system can store enough energy for around 5000

containerised solution could be fully met.

homes for several hours, with fast response.

5

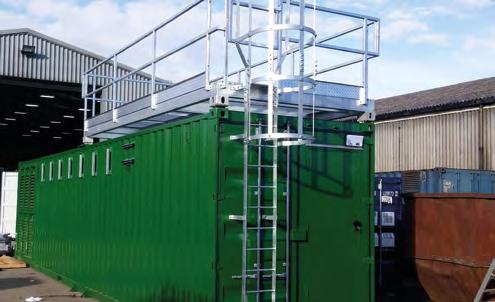

The Solution Utilising a wealth of experience, S Jones delivered a number of innovative and vital elements to this revolutionary project, including: Agile Digital Visualisation: S Jones created a detailed 3D CAD design model of the container which imported the relevant Siemens technology needed to power the plant.

This visualisation was used in Siemens virtual reality simulator enabling S Jones to guide the customer around the art of the possible, enabling quicker decision making and stakeholder engagement for the customer.

Risk Mitigation: S Jones installed sound attenuated linings and a fire alarm system to ensure compliance with health and safety standards, alongside corporate mitigation measures, throughout the operational lifespan of the container plant.

Expert Engineering Knowledge: One of the biggest challenges of the container was creating enough space to accommodate the sheer scale of the technology required to run the plant efficiently.

We provided complex structural modifications such as a galvanized steel roof platform and a sub floor stiffening structure to ensure our client had peace of mind that the plant would run safely and effectively.

In-house Proofing and Fabrication: S Jones provides end-to-end customer experience, from initial concepts through to the final design sign off.

We completed the fabrication of the container in our workshop in the West Midlands, offering Siemens the opportunity to see their vision turned into a reality, every step of the way.

What Siemens Had To Say: “S Jones provided a flexible approach to this prototype design, allowing multiple design changes to be included throughout the build.

This allowed our engineers to fully develop this world-first concept. The results are a high quality solution, fully meeting our requirements”

Kevin Patterson, Project Manager – Siemens 6

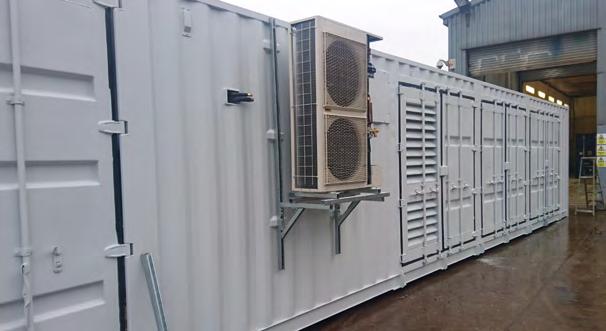

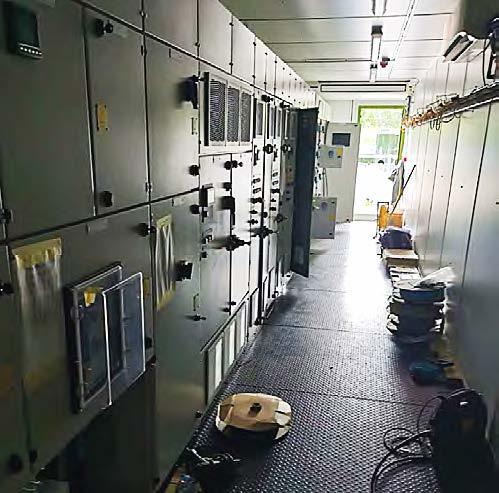

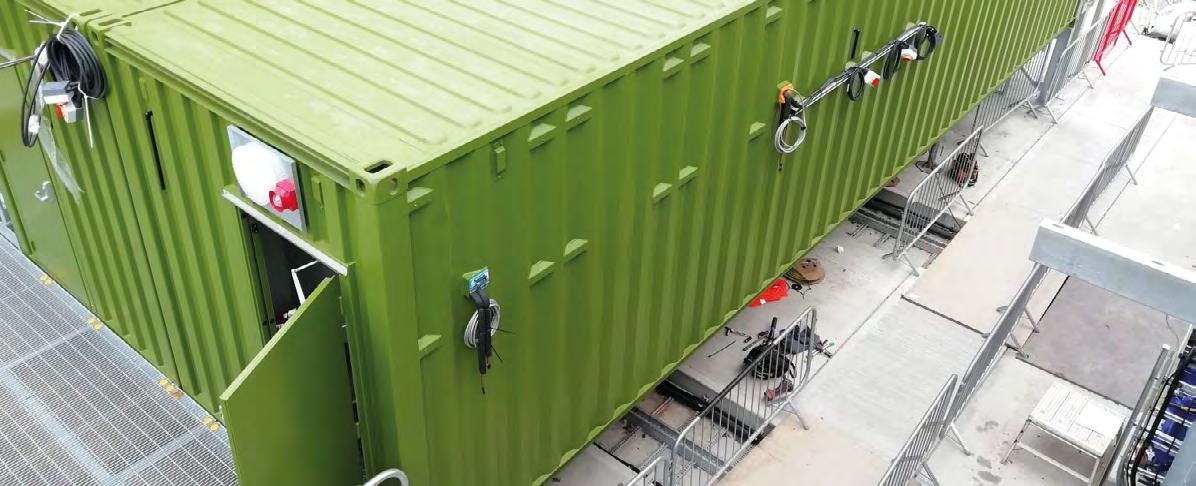

Supporting HS2 with Bespoke Switchgear Containers For CEMA The Challenge

The Solution

To assist rapid re-development of a water abstraction

S Jones customised designs and paid special

and treatment site required by the HS2 project,

attention to provide a non-standard height product

CEMA were asked to supply and deliver circa 25m

capable of being installed in the reduced space

cable between two Motor Control Centres (MCC in

available. Certified designs of the busbar systems had

separate, repurposed shipping containers. This was

to be maintained and incorporated, together with

carried out in collaboration with the S Jones

bespoke design and build of a Power Quality Filter

Conversions team.

(PQF) system within the space limitations. Special

Given the pandemic, it was agreed to complete all the build and MCC installation off-site to minimise risks by performing the majority of the work in a controlled environment.

7

measures for environmental monitoring and control within the containers were also necessary to provide effective heating and cooling for the equipment, alongside the PQF, contained Variable Speed Drives and other significant heat-generating equipment.

Safely On Site, On Schedule To assist with the turn-key solution, the container had to be equipped with a certified Fire Alarm system (interconnected with the MCC) to effectively cut the power by tripping the Mains and Generator Air Circuit Breakers in the event of an alarm. Together with the alarm system, general domestic services were built into the container customisation and connected back to the MCC. Following the build and witness-testing by the clients, the MCCs were installed into the containers at CEMA's factory, re-built and re-tested prior to delivery.

Specialist lifting and transport equipment was employed to enable the completed units, weighing

Thinking Outside of The Box The original concept of providing high-volume forcedair ventilation of the container was dismissed as being too noisy and not cost-effective. As a result, we modelled the worst-case heat-gain scenario, taking into account insulation values of the custom container build (including the solar gain relative to the geographical location and external colour of the container) to identify the most economic airconditioning solution for the buildings.

Field cabling access to the MCC was developed with an innovative approach adopted for cable glanding.

Given the height restrictions within the container cable, glanding space within the MCC had become compromised. To counter this, we applied our out-ofthe-box thinking by relocating the gland plates to the underneath of the containers, which were to be suspended above ground to provide cabling access from below.

8

twelve tonnes each, to be delivered to the site on schedule.

What CEMA Had To Say: “S Jones presented themselves and their capability far in excess of their competitors.

Their understanding of the client requirements and the attention to detail was paramount to the success of the project.

Working directly with Andrew and Les meant we had direct access for timely and knowledgeable decisions and guidance. We would highly recommend S Jones for all partners on future schemes.”

Graeme Morley, Managing Director – CEMA Ltd

9

Client Equipment Integration Highlighted below are many of the elements we change to provide enclosures and work spaces that clients need: 3D CAD design – A modified container with a lot of specialist equipment involved can be a very crowded space. Not only is there the equipment for controlling the internal environment, but also the client’s own equipment together with adequate access requirements. To ensure that everything fits appropriately, and to greatly assist in the design process, we have used 3D CAD for many years. This is an area of our specific expertise and has also been used to seamlessly integrate with client's own VR suite facilities.

Surface treatments – We are one

Shell and structure – To a greater or

among the very few companies with a

lesser extent, we can modify the

‘whole container’ heated and air filtered

original designs of shipping containers.

paint booth. This facility enables us to

Where this has structural implications,

apply a variety of specialist coatings

we design reinforcements whilst also

recommended by the manufacturers,

enabling the required 'functionality' of

ensuring optimal application and

the shell in terms of connection and

maximum performance lifespan.

access points for services, personnel, equipment and its maintenance. When

Our multi-stage preparation and

required, we can have the modified

application processes enable us to

container proof-lead tested and

control both the coating of new

certified using accredited suppliers. We

structures and the overcoating of

can design and certify modified

existing container paint systems. We

containers so that they can be shipped

can, for extreme requirements, shot

under container CSC regulations.

blast containers back to bare steel to SA2.5 before reapplying client required paint systems.

Lining treatments – As part of controlling the internal environment of an enclosure, it is likely that a

Ancillary equipment – As part of creating enclosures for

lining will be required. This will include a combination

equipment operations, environment control and risk/hazard

of: temperature, sound, hygiene, fire containment/

management, we use a variety of technical solutions to provide:

exclusion, vapour control, etc. Where specific

power supply and delivery, temperature and humidity control,

performance is required, especially for temperature,

ventilation (including positive pressure enclosures), gas

sound/acoustic and fire management, these will be to

detection, smoke and fire control, ESD (electrostatic discharge)

an engineered specification.

control, etc.

10

Containers Converted into Mobile Water Treatment Plants Transvac are the world’s leading provider of awardwinning Ejector Solutions and have been using

What Transvac Had To Say:

S Jones Containers since 2015.

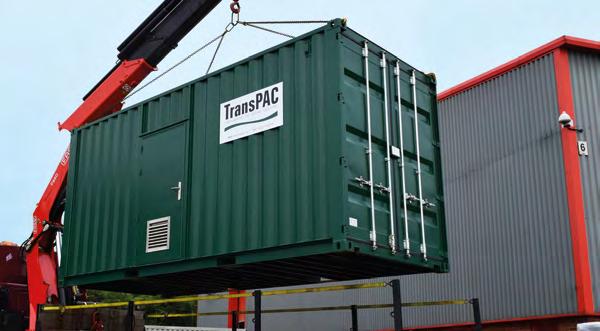

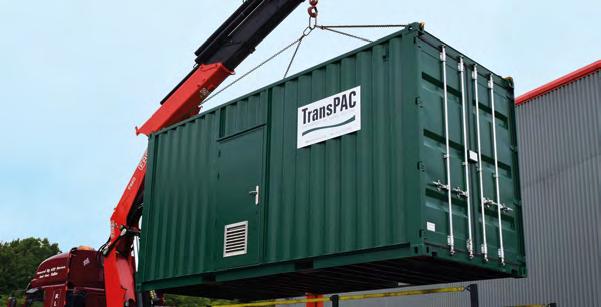

“The product we built using S Jones Containers is called the ‘TransPAC’. The TransPAC is a fully mobile,

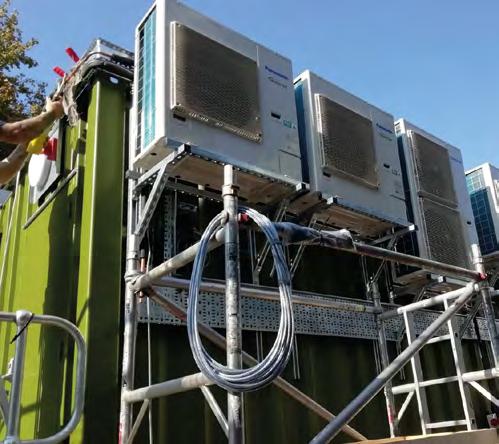

The Challenge and Solution Transvac purchased 20ft containers painted in a green RAL colour to match their logo. Previously, they used containers with a single side opening but have progressed their end product design to include a double opening as it provides easier access to both sides for installation and maintenance purposes.

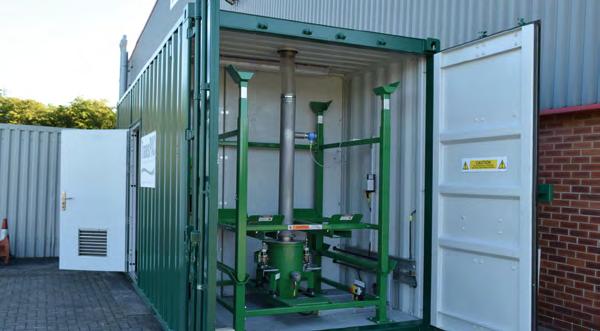

As evident in the photo above, a stud wall was installed into the container, as good access from both

all-in-one, ‘plug and play’ system that doses Powdered Activated Carbon (PAC) at a specified rate into water treatment works sites. PAC is used to tackle taste and odour issues, remove pesticides (including the notoriously difficult Metaldyhyde) and algae blooms.

The main benefits of having the full system installed into a container are that it is kept secure, vandal resistant, takes up a small amount of space on site,

ends is key. Converting shipping containers into water

requires no groundwork to install and can be literally

treatment plants is yet another demonstration of the

picked up and moved elsewhere if problems arise on

huge flexibility of design the S Jones Conversions

other sites of a more urgent nature.”

team can deliver.

11

Craig Favill, Sales Manager – Transvac Systems

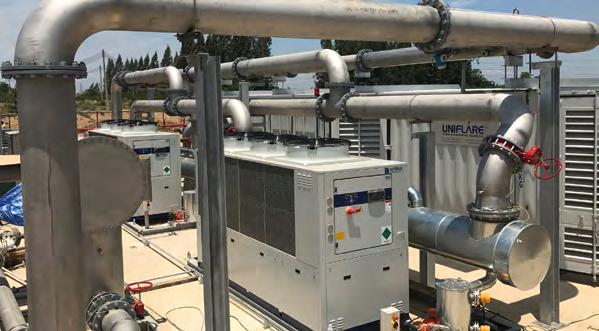

Delivering a Containerised Solution for Landfill Gas Generation Our relationship with Uniflare goes back to 2008.

Previous Uniflare projects include an equipment

Over the years, we’ve delivered 13 projects for the

container enclosure in the desert sands of Saudi

global environmental technology company.

Arabia, demonstrating how we are able to deliver costeffective solutions to the most remote locations.

The Challenge and Solution Our latest project involved delivering a bespoke containerised renewable energy system that has been shipped to Thailand.

The 40ft high cube shipping container is being used to process methane waste gas on landfill gas sites and houses three gas compressors and a control room.

The compressors are used to compress bio gas 55% methane and 45% carbon dioxide, at the rate of 4500 cubic metres per hour, feeding a CHP (Combined Heat & Power generator.

The extent of works covers external structural modifications, six sets of cargo doors on the sides,

What Uniflare Had To Say: “Uniflare completes projects for the UK, Europe and worldwide. We work with S Jones Containers because of their ability to deliver completely bespoke units using 3D CAD modelling expertise.

This complements our way of working as all Uniflare projects are a bespoke build to exacting customer requirements.”

Trevor Beardsmore, Purchasing – Uniflare

louvres and fan vents, together with an insulated lining designed to work in high temperature and high humidity climates.

12

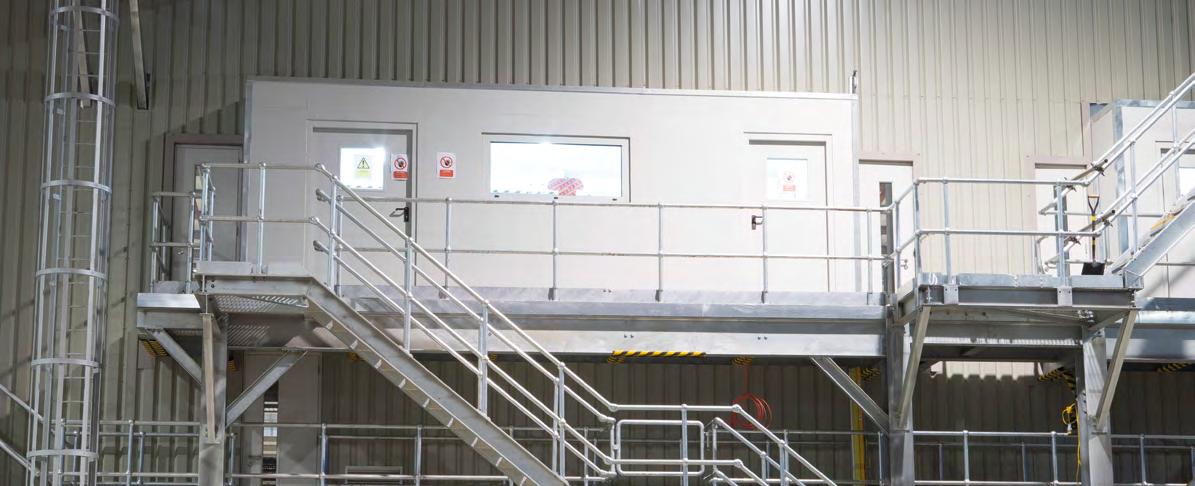

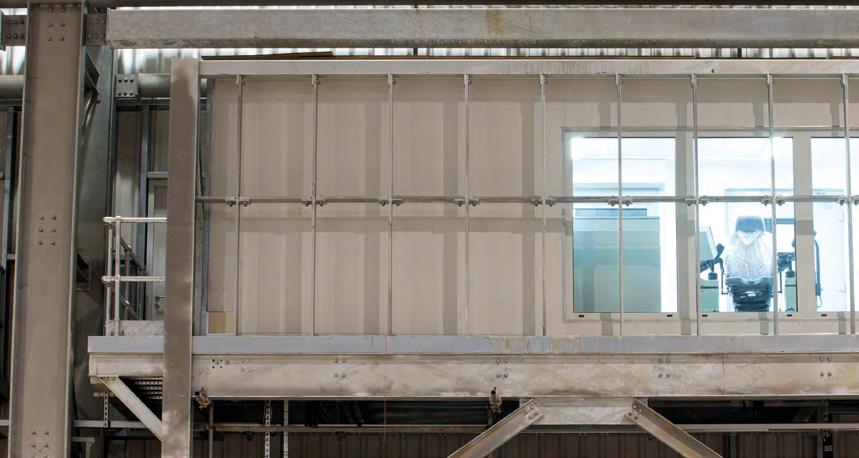

Delivering Three Bespoke Enclosures For Galliford Try We were approached by construction group

These vehicles deliver their waste to the Rail Transfer

Galliford Try to design and provide dual-purpose

Loading Station where it gets transferred into sealed

cabins at their client’s SUEZ, Knowsley Rail Transfer

shipping containers inside the building. The containers

Loading Station.

are then transported onwards by rail to an energy-

The Transfer Station is part of an operation which

from-waste facility at Wilton on Teesside.

handles up to half a million tonnes of residual (currently non-recyclable) waste collected annually

The Challenge

from homes in Merseyside and Halton.

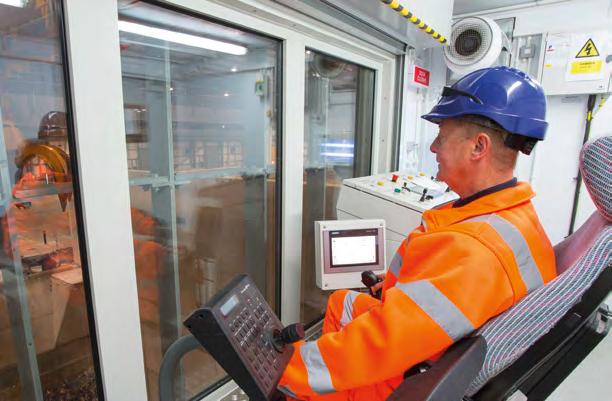

Our remit was to provide a control cabin for crane

Waste that has been collected by local councils is

operations and meeting rooms with large viewing

transported to the site by both large road vehicles

panels of specialised fire retardant glass.

from existing waste transfer stations and by a

There was also a requirement to meet the compulsory

limited number of refuse collection vehicles.

13

specifications for two-hour fire-rated personnel refuges.

Project Manager Les Newick said, “This was an

controlled conditions to generate electricity and heat.

extremely challenging brief. The rail head has been

This offers a far more environmentally-friendly and

modified as a waste compaction site where residual

cost-effective way of disposing of Merseyside and

waste is compressed into containers and then loaded

Halton’s waste than landfill.

onto trains. The operation is scheduled to handle 90 HGVs delivering into the facility and two trains transporting waste out per day.”

What Galliford Try Had To Say:

Critical to the project was the two-hour integrity of

“S Jones Containers got to grips with the brief

the external fire cladding, large glass windows with

immediately and understood the safety critical

30-minute fire protection rating and two-hour rated

nature of the commission. The risk of fire in this

internal fire shutters over the windows designed to

kind of installation is something that can be

shut automatically in the event of a fire alarm.

mitigated but never eradicated and we need to ensure first and foremost that staff are

The S Jones Solution

protected.

Working from Galliford Try’s initial concept drawings

S Jones Containers rose to the occasion and

and the fire protection specifications, the S Jones

delivered a technically challenging solution on

Conversions team designed and manufactured the

time and on budget. We have already

three bespoke enclosures.

approved S Jones Containers to work on our

As a result, once the compacted waste leaves the Knowsley rail head, it is now transported to the Teesside facility where it is thermally treated under

next project.”

Ken O’Hare, Project Manager – Galliford Try

14

Ready to talk? Contact Andy Nicholls Tel: +44 (0) 1922 741 756 Email: andrew.nicholls@sjonescontainers.co.uk

www.sjonescontainers.co.uk/container-conversions

S Jones Containers Ltd. Anglian Road, Aldridge, Walsall, West Midlands, WS9 8ET
