portfolio technical

Construction darwings / working drawings

SHRUTI BONDARDE

Internship Work

Interior Design Intern

The Gettys Group, Chicago, USA- Jun 2024-Aug 2024

Office Work

Junior Architect Designers Concept, Pune, India- Jun 2021-Mar 2022

Master’s Work

SCAD MFA Interior Design Project

02 05 03

Freelance Work

Interior Design Work in India

Internship Work

Architecture Intern Kunal and Deepali Associates, Ahmedbad, India- Jan 2018 - Oct 2018

Internship Work

Interior Design Intern

The Gettys Group

Chicago, IL

June 2024 - August 2024

1. Posh-

A boutique hotel in Bloomington, Indiana, USA. The hotel has king, queen and double queen and ADA type guestrooms. Public areas include reception, terraces, a restaurant with bar. Involved in Design Documentation Phase.

Role-

- Developing Finish + furniture schedules, Furniture Plans, RCP, Finish Plans.

- Material Sample Procurement and Co-ordination with Vendors.

- FF&E, fabric and finishes selection.

2. Apartments by Marriot Bonvoy- A residential building Apartments by Marriot Bonvoy in Nashville, Tennessee, USA with both- long term lease apartments as well as short term lease apartments.

Involved in Concept and Schematic Design Phase.

Role-

- Conceptualization, brainstorming and research.

- Developing mood boards- overall and space wise.

- Creating presentation deck.

- Schematic space planning .

3. Tapestry Ballstate- A hotel in Muncie, Indiana, USA. Involved in Design Documentation Phase.

Role-

- Picking up Redlines for Schedules, Floor Plans, Finish Plans, Elevations and Specifications.

- Material Sample Procurement and Co-ordination with Vendors.

4. Renaissance- A Marriot International hotel in Schaumburg, Illinois, USA.

Involved in Design Documentation Phase.

Role-

- Picking up Redlines for Schedules, Floor Plans, Finish Plans, Specifications.

- Material Sample Procurement and Co-ordination with Vendors.

// Hand Sketching, AutoCAD, Sketchup, Bluebeam, Spexx, Photoshop, InDesign

RESIDENTIAL LOBBY

AMB LOBBY

GAMING LOUNGE

CO-WORKING AREA

FIREPLACE LOUNGE

Master’s

‘Tis the place to be

SCAD, Savannah, USA

Winter 2023

Freelance Work

Apartment Interior Design

Bungalow Interior Design

Home Office Interior Design India

May 2020 - August 2022

Freelance Work

Freelance Work | March 2021 - August 2022

Site: Warje, Pune, India

The clients are a family of five- a young couple, their 8 year old son and parents. The clients had two requisites-

1. Vaastu should be followed as much as possible 2. Need plenty of storage spaces.

Client’s functional needs- Vaastu Norms followed

1. Entrance door facing the east.

2. Master Bedroom should lie in the South-west corner- Thus, the couple opted for a smaller bedroom, in the designated corner.

3. All beds should have a South-north orientation. (head towards the south direction while sleeping.)

4. Cooking facing the south direction.

5. No mirror facing the south.

6. Study table oriented to face the user towards north.

7. ‘Mandir’ in the north-east direction, since mandir cannot be place in the bedroom which lies in the designated direction, the mandir is placed in the north-east side of the living room.

Client’s functional needs- Storage Spaces

1. The living room has been has been divided using partitions to create a store room and Mandir room. This space otherwise would have been wasted in unnecessary circulation space.

2. Storage cabinets have been made in the niches created by columns and beams.

3. The double walls in the bedrooms have been demolished to make storage niches.

4. A 7” storage unit is made at the entrance to keep keys, umbrellas, caps, the kid’s cricket bat/badminton rackets etc; that acts as a partition as well

Furniture Plan

Lights Specification-

1. Panel Lights- 12W 4000K Daylight/Natural Light

2. COBS- 3W 4000K Daylight/Natural Light

3. LED Strip Light- 3000K Warm White

Schedule for Switch Boards

with

3/4 inch thick Plywood pasted with main laminate selected with 4mm Grooves.

Note-

1. Drawings not to scale. Only for Presentation purpose.

2. Art Work not yet purchased by client

Materials and Finishes Used in TV Panel-

1. Laminate- Main and Secondary- 0.75mm thick

2. 4mm grooves in laminate Entrance Requisites-

1. Space for shoe storage

2. Space for a seat to wear shoes on

3. Space to store keys, caps, umbrella, cricket bat, badminton rackets(kid’s)

4. Space to keep Laundry, milk cards, old newspapers.

Requiste 4

Safety Door

ElevationInside+Outside

Main Door

ElevationInside+Outside

Shoe Partition- Elevation

Requiste 1 Requiste 3

Shoe Partition- Plan

Requiste 2

Shoe PartitionSide Elevation

PartitionBack Elevation

Shoe

Client’s Aesthetic needs- The clients wanted a living room that was lively. They were open to using bright colours, thus, shades of green and pink along with brown, cream and grey is used. Diamond pattern is used in the highlighter cream laminate and curtains.

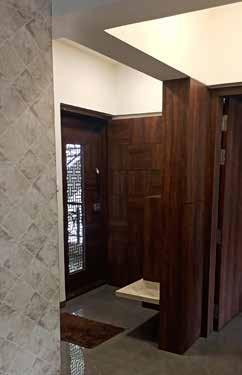

Site Picture- Ongoing

Elevation - Living Room

Main Laminate0.75mm

Highlighter Laminate

UpholsteryDining Chairs

UpholsterySofa

Tapestery Marble- polished, Dining & Center table Top

Accent Wall PaintRoyal Luxury Emulsion water based paint

Floor TileGrey Vitrified tiles

Material Palette- Living Room

Note-

1. Drawings not to scale. Only for Presentation purpose.

2. Art Work not yet purchased by client

Materials and Finishes Used in TV Panel-

1. Laminate- Main and Secondary- 0.75mm thick

2. 4mm grooves in laminate

3. 1” grooves for handle, and 1” dummy groove to maintain symmetry.

TV Panel- Elevation

Counter- Elevation

Actual Site Picture

Client’s Aesthetic needs- To add playfullness to the child’s room, the main laminate chosen is criss-crossed. Plain pastel shades of blue, green, and yellow are chosen along with the main laminate to make the space lively. The dominant colour amongst the pastel laminates is blue.

Site Picture- Ongoing

Elevation - Kid’s Room

green

blue Main laminate

UpholsteryBedback Fabric

yellow

Material Palette- Kid’s Room

Client’s Aesthetic and functionality needsThe kid, Arnav, wanted colourful cupboards. His mother wanted assigned storage spaces for the smallest of things- books, games, school bag, paper rolls, space to display trophies and pictures, space to hang art work and timetables etc. Also, kid shouldn’t be distracted by the display unit. Hence, the pergola.

Elevation - Kid’s Room Wardrobe

Plan - Kid’s Room Wardrobe

May 2020 - Feb 2021

Site: Hadapsar, Pune, India

Clinets Functional and Aesthetic Needs- My parents had just one preferrance- they wanted the design to be classy, not flashy. Designing my own house had many pros and cons:

Pros I knew my parents’ choices, their mindset and I could easily plan the interiors in a way that caters to their daily routine. I also had the utmost freedom in designing. Cons: With the freedom, came a lot of responsibilty, pressure and eye rolls.

Different options of living room layout during design process

Electrical Plan with switch specifications

Functionality and Aesthetics- The living room is thoughtfully planned. The Main door is shifted in the north east corner to make a separate entrance foyer. The mandir has been placed in the north-east corner of the living room in adherence to vaastu norms. The wall in between the toilet area and living room has been broken and a partition has been build to make the living room area larger and the passage for toilet smaller.

The living room has earthy tones of golden, brown, red, black and green in various materials used. Geometric patterns are used-

1. In the door of the mandir as a CNC cut-out.

2. In the ceiling and TV-unit as 6mm grooves in veneer.

3. In the safety grill which is made of mild steel finished in golden deco paint.

Elevation - Living Room

Floor TileBiege Vitrified tiles.

Veneer-

The veneer selected is reddish brown with tints of gold that came out after polishing.

Tapestry-

The curtain is cream and golden coloured with geometeric pattern in the base colour itself.

UpholsteryDark brown fabric for sofas.

Charcoal sheetThe charcoal sheets brings more earthen colour shades into the space.

Material Palette- Living Room

Site Picture- Staircase

Site Picture- Mandir

Site Picture- Living Room Seating Area

Client’s functional needs- For my own room, I always wanted a seat near the large window, where I could read books, work or just have cup of tea! And I did just that! The window seat has drawers below it for storage. As the room is of a minimal size, I designed a foldable study desk that merges with the bookshelf.

Client’s aesthetic needs- I am a person who loves colour. But I did not want to disrupt the house theme of earthen tones. So, I settled for an eccentric colourful curtain with ethnic design pattern. I added the same patterned cloth to the window seating.

Site Picture - Window Seating Site Picture - ArtWork on Bed Wall

Picture- Bookshelf View

Elevation - My Room

TapestryThe curtain is bright coloured with ethnic patterns.

UpholsteryBedback and window seat fabric.

VeneerIt has ‘peacock’ shades that is the light greenish shades in the golden base.

Material Palette-

Home

Interior design small scale project | June 2022 - August 2022

Roles: Concept development, planning, making drawings, co-ordinating with various vendors involved

Site: Karad, India

Typology: Home Office

Completed: August 2022

Client’s Functional Needs- Client being a lawyer needed a lot of book storage. Also, needed atleast 3 seating for his clients, and a big desk to fit his books, laptop, and other law material.

Furniture Plan

Bookshelf Elevation

Actual Site photo

Bookshelf Elevation

Table Side Elevation

Table Front Elevation

Table Plan

Office Work

Junior Architect at Designer’s Concept

Pune, India

June 2021 - March 2022

Junior Architect at Designers Concept, Pune

Architectural and Interior design comprehensive project

Roles: Concept development, planning, making drawings, co-ordinating with various vendors involved

Site: Pune, India

Typology: Sales Office and Sample flat

The project demanded to design a sales office and sample flat building for a future apartment building. As the building is a temporary structure, aerocon partitions are used for walls, with MS columns and framing. For the interiors, all furniture is modular which can be easily dismantled later on.
