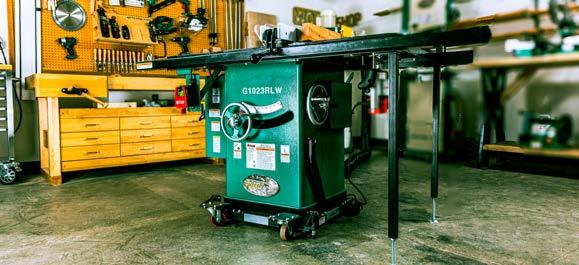

Time-tested classics, our popular G1023RL series table saws deliver the power and stability you need for professional-level production. They come with unstoppable 240V motors, sturdy one-piece steel stands, and precision-ground cast-iron tables. Variations include a router table extension, 7' rails, and power options for shops of all sizes.
Review of G1023RL on grizzly.com “
Excellent table saw with power to spare. I needed a saw to cut through thick hardwood and this saw has delivered!”
— dleatherman62
• Motor: 3 HP, 240V, single-phase, 14A
Router table (G1023RLW & G1023RLWX only)
I upgraded from a Grizzly contractor saw to a cabinet saw for my new 3,000-square-foot shop and it's been great! For the price and quality, you'll be hard pressed to find a better deal!”
— marshall.dodge
Review of G1023RLX on grizzly.com
• Motor (G1023RLW): 3 HP, 240V, single-phase, 14A
• Motor (G1023RLWX): 5 HP, 240V, single-phase, 23A
• Rip capacity: 32" right, 14" left of blade
• Max. depth of cut @ 90°: 3"
• Table size: 48" x 27"
• Arbor: 5⁄8" Dia., 4200 RPM
• Dimensions: 66" W x 47" D x 40" H
• Motor: 3 HP, 240V, single-phase, 14A
• Rip capacity: 60" right, 14" left of blade
• Max. depth of cut @ 90°: 3"
• Table size: 74" x 27"
• Arbor: 5⁄8" Dia., 4200 RPM
• Dimensions: 84" W x 47" D x 40" H
• Shipping weight: 558 lbs.
• Rip capacity: 32" right, 14" left of blade
• Max. depth of cut @ 90°: 3"
• Table size: 40" x 27"
• Arbor: 5⁄8" Dia., 4200 RPM
• Dimensions: 66" W x 47" D x 40" H
• Shipping weight: 508 lbs.
• Shipping weight: 550 lbs.
7' rails with table extension
Table Saws
10" 2 HP Hybrid Table Saw
with Heavy-Duty One-Piece Steel Stand
• Motor: 2 HP, 120V/240V (prewired for 120V), single-phase, 15A/7.5A
• Rip capacity: 30" right, 15" left of blade
• Max. depth of cut @ 90°: 31⁄4"
• Table size: 401⁄
• Arbor: 5⁄8" Dia., 3450 RPM
• Dimensions: 64" W x 401⁄4" D x 36" H
• Shipping wt: 324 lbs.
G0771Z
$131500
$118300 Plus $25500 freight
10" 3 HP Cabinet Table Saws

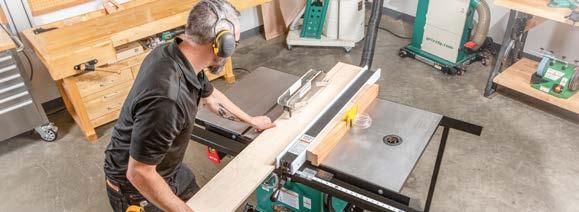

10" 2 HP Benchtop Table Saw
with Portable Stand
• Motor: 2 HP, 120V, single-phase, 15A
• Rip capacity: 311⁄8" right, 12" left
• Max. depth of cut @ 90°: 31⁄2"
• Table size: 281⁄2–351⁄8" W x 23" D
• Arbor: 5⁄8" Dia., 4400 RPM
• Dimensions: 57" W x 281⁄2" D x 36" H
• Shipping wt: 72 lbs.
Regular $66500 Sale $59800 Plus $19900 freight

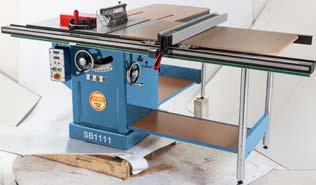

with Digital Readouts for Rip Width, Blade Angle, and Blade Height
Both Models
• Motor: 3 HP, 220V, single-phase, 13A
• Max. depth of cut @ 90°: 31⁄8"
• Arbor: 5⁄8" Dia.,
• Rip capacity: 36" right, 18" left of blade
• Table size: 451⁄4" W x 27" D
Table extensions can support a full sheet of plywood (SB1111 only)
• Dimensions: 75" W x 47" D x 431⁄2" H
• Shipping weight: 607 lbs.
• Rip capacity: 52" right, 18" left of blade
• Table size: 76" W x 655⁄8" D
• Dimensions: 911⁄2" W x 73" D x 431⁄2" H
• Shipping weight: 742 lbs.
Table Saws
Sliding Table Attachment for Table Saws
Turn your table saw into a sliding table saw! This attachment mounts to your table saw, allowing you to rip and crosscut plywood and large panels with ease. Made with precision components for pinpoint accuracy and professional-level production.
⊲ Crosscut and miter entire sheets of plywood
⊲ Anodized aluminum components for durability and corrosion resistance
⊲ Fits Grizzly G0771Z, G0899, G0962, and G1023RL-Series table saws, SawStop PCS Cabinet and CNS Contractor Table Saws, and Shop Fox W1837 hybrid table saw
• Max. crosscut length: 60"
• Max. rip capacity: 48"
Precision miter fence with Easy-Lock adjustment
T32737
Regular $72900
• Sliding table: 47" x 87⁄8"
• Extension table: 235⁄8" x 83⁄4"
Micro-adjustable, anodized aluminum flip stops
Sale $65600 Plus $3995 shipping
Extreme Series 5 HP and 71⁄2 HP 12" Cabinet Table Saws with Digital Readout for Blade Angle
These Extreme Series saws provide a full 4" of cut depth, and feature digital blade angle readouts for precision bevels. They come with 1" arbors and heavy-duty miter gauges. Available in different size and power options to suit your shop's needs.
36" Rip Capacity
• Max. rip: 36" right, 18" left of blade
• Table size: 481⁄4" x 303⁄4"
• Dims: 75" W x 44" D x 421⁄2" H
• Shipping weight G0696X: 756 lbs.
• Shipping weight G0697X: 698 lbs.
G0696X — 5 HP, 220V, Single-Phase, 24A
Regular $307500
Sale $276700 Plus $34900 freight
G0697X — 71⁄2 HP, 220V/440V*, 3-Phase, 19.5A/10A
Regular $328500
Sale $295600 Plus $34900 freight
52" Rip Capacity
• Max. rip: 52" right, 18" left of blade
• Table size: 783⁄4" x 691⁄2"
• Dims: 911⁄2" W x 791⁄2" D x 421⁄2" H
• Shipping weight: 895 lbs.
G0606X1 — 71⁄2 HP, 220V/440V*, 3-Phase, 19.5A/10A
Regular $362500
Sale $326200 Plus $39900 freight
* This machine is prewired for 220V. We can rewire to 440V in a few days’ time for a fee of $405. Please contact Grizzly Technical Support at (570) 546-9663 before placing your order.
Sliding Table Saws

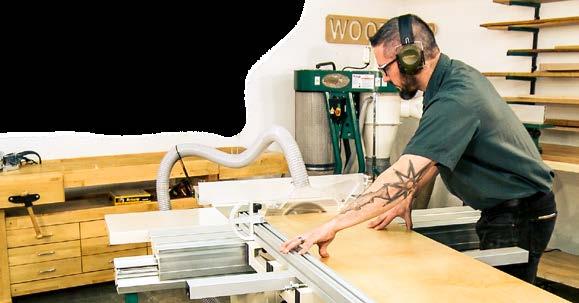

Conquer Your Cut List with Power and Precision
Get professional-grade performance on every build with a Grizzly G0623X Sliding Table Saw—offering power, precision, and reliability with unrivaled after-purchase support so you can do your best work and stay on schedule.
10" 5 HP Sliding Table Saw
• Motor options: 5 HP, 230V, single-phase, 19A
• Max. cut width right of blade: 33"
• Max. cut width left of blade: 781⁄2"
• Max. crosscut length: 63"
• Max. cut depth @ 90°: 3
• Blade tilt: 0–45°
• Main arbor speed: 4000 RPM
• Main table size: 40" W x 47" D
• Sliding table size: 63" x 121⁄4"
• Floor space required: 150" W x 123" D
Auxiliary 21⁄2" dust port at the blade for maximum dust collection
with V-Helical Cutterhead and Quick-Release End-Mounted Fence
Joint and plane all with one space-saving machine! Featuring a V-helical cutterhead for smooth-as-silk finishes and a quick-release endmounted fence for easy conversion and more clearance at the back of the machine. Ideal for anyone looking to start or expand a small pro shop.
• Motor: 5 HP, 220V, single-phase, 25A
• Max. cut width: 12" jointer, 113⁄4" planer
• Max. stock thickness planer: 8"
• Jointer table size: 14" x 591⁄2"
• Fence size: 6" x 511⁄4"
• Planer table size: 121⁄4" x 231⁄8"
• Planer feed rate: 22 FPM

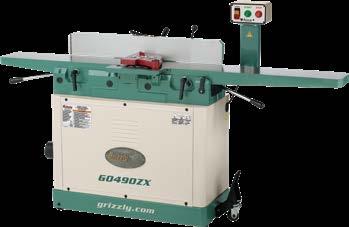

Parallelogram Jointers
Our “parallelogram” jointers have tables that pivot on four points of contact, with their motion forming a parallelogram shape as they are adjusted up and down.
This makes table adjustments smoother and more precise, even with long and heavy cast-iron tables.
In addition, this setup keeps the tables closer to the cutter, which adds a degree of safety during operation.
Featuring a spiral cutterhead for superior stock removal and a smooth finish, this jointer is built for precision and efficiency. The parallelogram tables ensure accurate adjustments, while the powerful 3 HP motor handles tough hardwoods. A top choice for serious woodworkers looking for quality and performance.
• Motor: 3 HP, 220V, single-phase, 14A
• Max. cut width: 8"
• Max. cut depth: 1⁄8"
• Table size: 8" x 76"
• Fence size: 36" x 5"
• Dimensions: 761⁄2" W x 24" D x 451⁄2" H
• Shipping weight: 593 lbs.

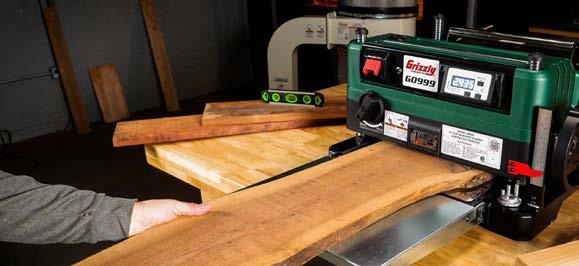

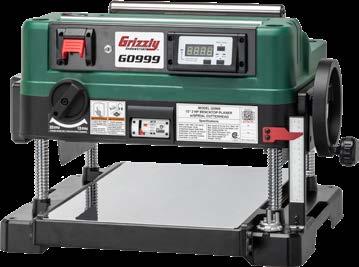

Benchtop Planer
15" 2 HP Benchtop Planer
with Spiral Cutterhead and Digital Readout (DRO)
Finally, a 120V portable benchtop planer that can handle 15" wide boards! Set up your small shop for bigger jobs with this largecapacity, feature-rich benchtop planer.
⊲ Digital readout for finished thickness
⊲ Micro-adjustable depth stop with 5-presets
⊲ Board return rollers
⊲ Powerful 2 HP, 120V motor with spiral cutterhead
4-Row spiral cutterhead with 32 indexable carbide inserts that can be rotated up to 3 times to expose a new sharp edge
Digital readout for board thickness
Board return rollers
Depth stops
Planers
15" 3 HP Heavy-Duty Benchtop Planer
with 3-Knife Cutterhead
• Motor: 3 HP, 240V, single-phase, 14A
• Max. stock width: 15"
• Max. stock thickness: 81⁄4"
• Table size: 15" x 201⁄8"
• Dimensions: 32" W x 28" D x 231⁄2" H
• Shipping weight: 388 lbs.
Gas spring-assisted head elevation for easy height adjustments
G0815 — 15" 3 HP BT Planer Regular $166500
$25500
15" 3.7 HP Planer
with Spiral Cutterhead and Built-In Mobile Base
• Motor: 3.7 HP, 220V, single-phase, 17A
• Max. stock width: 15"
• Max. stock thickness: 8"
• Table w/extensions: 15" x 421⁄2"
• Dimensions: 37" W x 421⁄2" D x 451⁄2" H
• Shipping weight: 669 lbs.
G0453ZX
Spiral cutterhead features indexable carbide inserts that can be rotated up to 3 times to expose a new sharp edge
20" 5 HP Planer
with Helical Cutterhead
• Motor: 5 HP, 220V, singlephase, 23A
• Max. stock width: 20"
• Max. stock thickness: 8"
• Table w/extensions: 20" x 56"
• Dimensions: 39" W x 56" D x 41" H
• Shipping weight: 811 lbs.
G1033X
Helical cutterhead features
13" 2 HP Benchtop Planer
with Spiral-Style Cutterhead
• Motor: 2 HP, 120V, 15A
• Max. stock width: 13"
• Max. stock thickness: 6"
• Table w/extensions: 14" x 331⁄4"
• Dimensions: 30" x 34" x 20"
• Shipping weight: 88 lbs.
W1877 Regular $83500
2-Year Warranty
Spiral-style cutterhead features indexable carbide inserts that can be rotated up to 3 times to expose a new sharp edge
20" 5 HP Planer
with Spiral Cutterhead and Built-In Mobile Base
• Motor: 5 HP, 220V, singlephase, 22A
• Max. stock width: 20"
• Max. stock thickness: 8"
• Table w/extensions: 207⁄8" x 555⁄8"
• Dimensions: 44" W x 56" D x 45" H
• Shipping wt: 942 lbs.
G0454ZX
Spiral cutterhead features indexable carbide inserts that can be rotated up to 3 times to expose a new sharp edge
20" 5 HP Planer
with Helical Cutterhead and Variable-Speed Feed Rate
• Motor: 5 HP, 220V, singlephase, 23A
• Max. width: 20"
• Max. thickness: 8"
• Table size: 20" x 56"
• Feed rate: 10–28 FPM
• Dimensions: 461⁄2" W x 56" D x 46" H
• Shipping wt: 820 lbs.
SB1109
Regular $471900
Helical cutterhead features indexable carbide inserts positioned at a slight angle for the smoothest possible finishes
2-Year Warranty
Grizzly Drum Sanders
We've got everything you need for flattening, finishing, rough sanding, and thicknessing from small benchtop drum sanders to industrial-size wide-belt sanders.
Luthiers, cabinetmakers, and furniture makers have been running Grizzly sanders for over 40 years, and for good reason: our industrial quality and unbeatable U.S.-based support. If you're running a shop, run Grizzly.
Ideal for sanding large panels and dimensioning stock, and built to last with a heavy-duty steel frame and a powder-coated finish for years of dependable use.

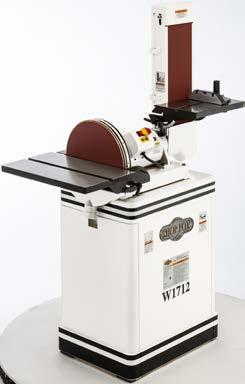

with Tilting Platen and Dual-Position Table with Miter Gauge
• Motor: 1⁄2 HP, 120V, single-phase, 4.3A
• Sanding belt size: 4" x 36"
• Sanding belt speed: 1320 FPM
• Belt platen size: 4 3⁄4" x 11 1⁄2"
• Belt platen tilt 0–90°
• Disc size and type: 6", PSA
• Disc speed: 2200 RPM
• Table size: 5 3⁄8" x 7"
• Table tilt 0–45°
• Dimensions: 20" W x 16 1⁄2" D x 25" H
• Shipping weight: 36 lbs.
1⁄2 HP 1" Belt / 6" Disc VS Combo Sander
• Motor: 1⁄2 HP, 120V, single-phase, 4A
• Sanding belt size: 1" x 30"
• Sanding belt speed: 1900–3200 FPM
• Disc size and type: 6", PSA
• Disc speed: 2000–3450 RPM
• Dimensions: 21" W x 12" D x 17" H
• Shipping wt: 33 lbs.
1⁄3 HP 1" Belt / 8" Disc Combo Sander
• Motor: 1⁄3 HP, 110V, single-phase, 4A
• Sanding belt size: 1" x 42"
• Sanding belt speed: 3000 FPM
• Belt platen size: 1" x 4"
• Belt table size: 6" x 7"
• Disc size and type: 8", PSA
• Disc speed: 1725 RPM
• Disc table size: 4" x 10"
• Table tilt (each): 0–45°
• Dims: 191⁄2" W x 26" D x 14
• Shipping wt: 64 lbs.

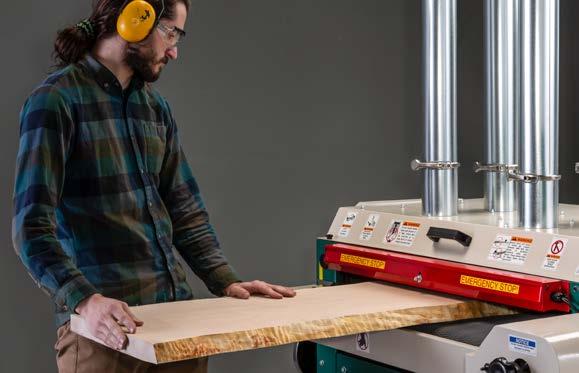

Wide-Belt Sanders
15" 5 HP Open-End Wide-Belt Sander
• Main motor: 5 HP, 220V, single-phase, 30A
• Max. board width: 15" single pass, 30" double pass
• Max. board thickness: 6"
• Sanding belt speed: 2300 FPM
• Feed rate: 16.4, 23, 32.8 FPM
• Sanding belt size: 16" x 48"
• Air requirement: 2 CFM at 75 PSI
• Dimensions: 291 8" W x 381 ⁄2" D x 641⁄2" H
• Shipping weight: 930 lbs.
G0819 Regular $718900 Sale $647000 Plus $39900 freight
24" 10 HP Wide-Belt Sander
• Main motor: 10 HP, 220V, singlephase, 50A
• Max. board width: 243⁄8"
• Max. board thickness: 6"
• Sanding belt speed: 3500 FPM
• Feed rate: 15–49 FPM
• Air requirement: 75 PSI
• Sanding belt size: 25" W x 60" L
• Dimensions: 40" W x 50" D x 68" H
• Shipping weight: 1650 lbs. Sand up to 30" wide!
G9962Z Regular $13,38900 Sale $12,05000 Plus $49900 freight
18" 5 HP Wide-Belt Sander
• Main motor: 5 HP, 220V, single-phase, 30A
• Max. board width: 171⁄2"
• Max. board thickness: 6"
• Sanding belt speed: 3500 FPM
• Feed rate: 16, 23, 33 FPM
• Sanding belt size: 181 ⁄2" x 48"
• Air requirement: 57–75 PSI, 2 CFM
• Dimensions: 37" W x 30" D x 57" H
• Shipping weight: 1008 lbs.
G0527 Regular $908500 Sale $817600 Plus $49900 freight
43" 25 HP Double-Head Wide-Belt Sander
• Main motor: 25 HP, 220V/440V* (prewired 220V), 3-phase, 64.9A/32.5A
• Max. workpiece dimensions: 43" W x 6" Th
• Front drum speed: 3500 FPM
• Reardrum speed: 2600 FPM
• Feed rate: 14–60 FPM
• Air requirement: 75 PSI
• Dust port size (x8): 5"
• Dimensions: 63" W x 601⁄2" D x 68" H
G0581
Regular $28,11500 Sale $25,30300
Plus $79500 freight

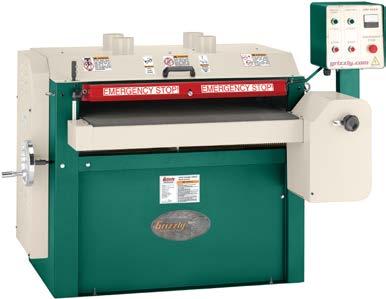

37" 15 HP Wide-Belt Sanders
with Options for 60" or 75" Sanding Belt Length
Both Machines:
• Main motor: 15 HP, 220V/440V* (prewired 220V), 3-phase
• Min. circuit size: 50A/30A
• Max. stock dimensions: 361⁄2" W x 6" Th
• Sanding belt width: 37"
G0539 — With 60" Belt Length
• Main motor amperage: 36.7A/18.4A
• Min. stock length: 14"
• Dimensions: 53" W x 491⁄2" D x 661⁄2" H
• Shipping weight: 1781 lbs. Regular $15,22500 Sale $13,70200
Plus $59900 freight
• Shipping weight: 3384 lbs. *
• Sanding belt speed: 2600 FPM
• Feed rate: Variable, 15–49 FPM
• Dust port size (x3): 5"
• Air requirement: 75 PSI
G0446 — With 75" Belt Length
• Main motor amperage: 36A/18A
• Min. stock length: 9"
• Dimensions: 561⁄2" W x 52" D x 74" H
• Shipping weight: 1887 lbs. Regular $16,79500 Sale $15,11500
Plus $59900 freight
Sawmills
13" 2 HP Electric Sawmill
Save Money and Mill Your Own Lumber!
Finally, a 110V sawmill for homeowners and hobbyists! Mill logs and resaw timbers up to 13" in diameter. Just plug it in and go without the noise of a gas motor! The saw head glides smoothly along the track on ball-bearing rollers, and the modular track system makes it easy to add lengths for whatever your job requires.
⊲ Ball-bearing rollers provide smooth movement of saw carriage
⊲ Six leveling feet for stabilizing sawmill
⊲ Two adjustable work stops and clamps for securing your workpiece during cut
⊲ Easy to store in less than 4' x 7' of storage space
T33224
Optional 3' Track Extension Regular $83900
Sale $75500 Plus $19900 freight
28" Portable Gas-Powered Sawmill with 131⁄2 HP Briggs & Stratton® Engine
Work stops & clamp secure log to track
With its powerful Briggs & Stratton® engine, this sawmill is ready to mill logs anywhere. The saw head glides smoothly on ball-bearing rollers and the modular track system allows you to add lengths as necessary.
• Gas engine: 131 2 HP Briggs & Stratton®
• Included track length: 144"
• Maximum log diameter: 28"
• Maximum cut width: 22"
• Maximum cut thickness: 7"
• Blade size: 145" (1" wide)
• Overall dimensions: 75" W x 144" D x 56" H
• Shipping weight: 993 lbs.
G0901
Gas-Powered Sawmill
Regular $629500
Sale $566500 Plus $49900 freight
⊲ Blade lubricant/coolant system for clean cuts and extended blade life
⊲ Hand throttle controls blade speed
⊲ Locking hand crank sets cut thickness in 1
⊲ Leveling feet for stabilizing sawmill on uneven ground
T31677
Optional 6' Track Extension
Work stops & clamp secure log to track
Ball-bearing rollers for smooth carriage movement 4" Dust port
Modular track system allows you to add optional extensions
Wood Lathes
16" x 46" 2 HP Variable-Speed Wood Lathe
with Cast-Iron Legs and Digital Readout for Spindle Speed
Features a swiveling head that can be positioned anywhere along the bed and a built-in digital readout for spindle speed. Shift-on-the-fly control for easy speed changes from 600–2400 RPM.
• Motor: 2 HP, 120V, single-phase, 13A
• Swing over bed: 16"
• Distance between centers: 46"
• Variable speed: 600–2400 RPM
• Dimensions: 80" W x 21" D x 46" H
• Shipping weight: 316 lbs.
8" x 13" 1⁄3 HP Benchtop Wood Lathe
with Two Tool Rests
• Motor: 1⁄3 HP, 120V, single-phase, 4A
• Swing over bed: 8"
• Distance between centers: 13"
• Spindle speed: Variable, 750–3200 RPM
• Dimensions: 29" W x 101⁄2" D x 13" H
• Shipping wt: 52 lbs.
16" x 24" 2 HP Variable-Speed Wood
Lathe with Cast-Iron Legs and Digital Readout for Spindle Speed
• Motor: 2 HP, 220V, 5.6A
• Swing over bed: 16"
• Spindle speed low: 100–1300 RPM
• Spindle speed high: 150–2900 RPM
• Dimensions: 601⁄2" L x 23 W x 48" H
• Shipping weight: 388 lbs.
Heavy-duty cast-iron bed and legs for reliable stability
14" x 37" 3⁄4 HP Wood Lathe
with Copy Attachment
• Motor: 3⁄4 HP, 110V, single-phase, 11A
• Swing over bed: 14"
• Distance between centers: 37" (32" with copy attachment)
• Spindle speeds: 10, from 600–2400 RPM
• Dimensions: 62" W x 24" D x 48" H
• Shipping wt: 164 lbs.
16" x
42" 2 HP Variable-Speed Wood Lathe
with Digital Readout for Spindle Speed
• Motor: 2 HP, 220V, 8A
• Swing over bed: 16"
• Distance between centers: 42"
• Spindle speed: Variable, 100–3200 RPM
• Dimensions: 771⁄2" W x 221⁄2" D x 47" H
• Shipping weight: 394 lbs.
Variable frequency drive (VFD) for
Wood Lathes
16" x 46" 2 HP Variable-Speed Wood Lathe
with Digital Readout for Spindle Speed
• Motor: 2 HP, 110V, single-phase, 14A
• Swing over bed: 16"
• Distance between centers: 46"
• Spindle speed: Variable, 600–2400 RPM
• Overall dimensions: 721⁄2" W x 19" D x 48" H
• Shipping wt: 354 lbs.
G0462
Regular $117500
Sale $99900 Plus $25500 freight
22" x 42" 3 HP Variable-Speed Wood Lathe
with Digital Readout for Spindle Speed
• Motor: 3 HP, 240V, 8A
• Swing over bed: 22"
• Distance between centers: 42"
• Spindle speed: Variable, 100–3200 RPM
• Dimensions: 81" W x 23" D x 491⁄2" H
• Shipping weight: 611 lbs.
2-Year Warranty
W1852
Regular $441500
Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
Sale $397300 Plus $34900 freight
241⁄2" 3 HP Heavy-Duty Direct-Drive Smart Wood Lathe
An advanced, feature-rich wood lathe with multiple setup options. Featuring Grizzly's Growl-Tech™ auto-adjusting smart motor with electronic variable speed, an 18" bed extension with 5 mounting locations, a swingaway tailstock, comparator kit, and more. Serious turners, this is the lathe you've been waiting for!
⊲ Digital controls with 8 auto-adjusting speed presets
⊲ Ultra-quiet direct-drive 3 HP motor for smooth speed adjustments with no belts or pulleys
⊲ Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
⊲ Computer-controlled motor amperage maintains consistent RPM as the load changes
⊲ 4 programmable functions for various operations
⊲ 3 Speed ramp up modes for quick starts, general turning, and heavy workpieces
⊲ Slow-speed 50 RPM mode for finishing workpieces
⊲ Auto-shut off after 5 minutes of free spin
⊲ 180° Swiveling headstock
⊲ Swing-away tailstock attachment for easily removing tool rest
• Motor (G4181): 1 HP, 240V, singlephase, 4.2A /2.5A
• Motor (G7873): 1 HP, 240V, 3-phase, 3.4A/2.5A
• Feed speeds: (4) 13, 26, 33, 66 FPM
• Max. height of rollers: 7"
• Min. workpiece length: 7"
• Horizontal travel (G4181): 17"
• Horizontal travel (G7873): 181⁄8"
• Shipping weight: 144 lbs.
G4181 — Single-Phase
Regular $125900 Sale $112000 Plus $6995 shipping
G7873 — 3-Phase Regular $135900 Sale $120900 Plus $6995 shipping
3-Roller, 1⁄4 HP, 4-Speed Power Feeder
• Motor: 1⁄4 HP, 120V, single-phase, 2.5A
• Feed speeds: 20, 26, 33, 43 FPM
• Max. height of rollers: 6"
• Min. workpiece length: 5"
• Horizontal travel: 10"
• Rollers: (3) synth. rubber, 1
• Roller suspension: 3⁄4"
• Shipping weight: 80 lbs.
W1765 Regular $117500 Sale $104500 Plus $3995 shipping
2-Year Warranty
3-Roller, 1⁄2 HP, 4-Speed Power Feeder
• Motor: 1⁄2 HP, 220V, single-phase, 2.9A
• Feed speeds: 9.5, 15, 25, 38 FPM
• Max. height of rollers: 7"
• Min. workpiece length: 6"
• Horizontal travel: 16"
• Rollers: (3) 2" W x 4" dia.
• Roller suspension: 1"
• Shipping weight: 107 lbs.
G4179 Regular $111500
Sale $99200 Plus $5995 shipping
7-Roller, 2⁄3 HP, Variable-Speed Power Feeder
With servo motor for enhanced torque and speed control
• Motor: 2⁄3 HP, 220V, single-phase, 2.3A
• Feed speed: Variable, 7–86 FPM
• Max. height of rollers: 71⁄2"
• Min. workpiece length: 6"
• Horizontal travel: 163⁄4"
• Rollers: (7) 23⁄8" W x 25⁄16" dia.
• Roller suspension: 3⁄8"
• Shipping weight: 129 lbs.
T33295 Regular $179500
Sale $159700 Plus $6995 freight
Drill Presses
High-Precision Drill Presses
with Laser Guides, LED Work Lights, and Push-Button Depth Stops
Designed to give you pinpoint precision with minimal setup time, each of these models comes with a laser guide for accurate alignment, an LED work light recessed into the headstock, and a push-button spindle depth stop.
14" 12-Speed Benchtop Model
• Motor: 3⁄4 HP, 120V, single-phase, 7.5A
• Swing: 14"
• Spindle taper: MT#2
• Spindle travel: 31⁄4"
• 12 Speeds: 340–2860 RPM
• Drill chuck: 1
", JT3
• Max. spindle to table: 157⁄
• Table size: 11 1 4" x 11
• Dimensions: 15" W x 251 ⁄ 2 " D x 39" H
• Shipping wt: 116 lbs.
14" 3⁄4 HP Drill Press
with Laser and DRO
• Motor: 3⁄4 HP, 110V, single-phase, 9A
• Swing: 14"
• Spindle taper: MT#2
• Spindle travel: 31⁄4"
• Spindle speeds: 12, from 140–3050 RPM
• Drill chuck: 3⁄64"–5⁄8"
• Table size: 113⁄8" x 113⁄8"
• Table swivel: 360°
• Table tilt: 90° L/R
• Dimensions: 14" W x 24" D x 64" H
• Shipping weight: 156 lbs.
17" 12-Speed
Floor Model
• Motor: 11⁄4 HP, 120V, singlephase, 13A
• Swing: 17"
• Spindle taper: MT#4
• Spindle travel: 43⁄4"
• 12 Speeds: 210–3020 RPM
• Drill chuck: 1⁄8"–5⁄8", JT3
• Max. dist. spindle to table: 27"
• Table size: 141⁄8" x 141⁄
• Dimensions: 17" W x 31" D x 68" H
• Shipping wt: 245 lbs.
17" 1 HP Drill Press
• Motor: 1 HP, 110V, single-phase, 10A
• Swing: 17"
• Head swivel: 360°
• Spindle taper: MT#3
• Spindle travel: 31⁄4"
• Spindle speeds: 12, from 140–3050 RPM
• Drill chuck: 1⁄16"–5⁄8", JT3
• Table size: 14" dia.
• Table tilt: 90° L/R
• Table swivel: 360°
• Dimensions: 15" W x 271⁄2" D x 66" H
• Shipping weight: 235 lbs.
17" Variable-Speed
Floor Model with Spindle Speed DRO and 360° Head Swivel
• Motor: 1 1 ⁄4 HP, 120V, single-phase, 11.9A
• Swing: 17"
• Spindle taper: MT#2
• Spindle speed: — Low: 200–720 RPM
— High: 700–2200 RPM
• Drill chuck: 5⁄8", JT3
• Max. spindle to table: 25
• Table size: 14" x 14"
• Dims: 17" W x 30" D x 67" H
• Shipping wt: 232 lbs.
20" 3⁄4 HP Tapping Drill Press
with Laser Guide, LED, Variable Speed, and DRO
• Required power source: 120V, single-phase, min. 20A circuit
• Motor: 1 HP, 120V
• Swing: 20"
• Head swivel: 360°
• Variable spindle speed: — Low: 0–600 RPM
— High: 0–2100 RPM
• Drill chuck: 5⁄8", JT3
• Tapping capacity: 1 ⁄ 2 "
• Table size: 15" x 161 ⁄4"
• Dimensions: 22" W x 331 ⁄ 2" D x 70" H
• Shipping weight: 496 lbs.
8" Benchtop Drill Press
• Motor: 1⁄3 HP, 120V, single-phase, 2.3A
• Swing: 8"
• Spindle taper: JT33
• Spindle travel: 2"
• Spindle speed: 5, 740–3140 RPM
• Drill chuck: 1⁄16"–1⁄2", JT33
• Drilling capacity: 1⁄2" Mild steel
• Max. distance spindle to table: 7 1⁄2"
• Table size: 6 1⁄2" x 6 1⁄2"
• Table tilt: 45° L/R
• Table swivel: 360°
• Dimensions: 9" W x 171⁄2" D x 231⁄2" H
• Shipping weight: 36 lbs.
34" 1⁄2 HP Radial Drill Press
• Motor: 1⁄2 HP, single-phase, 120V, 4.7A
• Swing: 34"
• Spindle taper: JT33
• Spindle travel: 31⁄4"
• Spindle speeds: 5, from 550–3000 RPM
• Drill chuck: 1⁄16"–5⁄8", JT33
• Table size: 123⁄16" dia.
• Table swing: 360°
• Table tilt: 90° L/R
• Head tilt: 90° L–45° R
• Dimensions: 14" W x 32" D x 641⁄2" H
• Shipping weight: 147 lbs.
Drill Presses
131⁄4" Oscillating Benchtop Drill Press
A drill press that doubles as an oscillating spindle sander!
• Motor: 3⁄4 HP, 110V, singlephase, 9A
• Swing: 131⁄4"
• Spindle travel: 31⁄8"
• Spindle speeds (x12), 250–3050 RPM
• Drill chuck: 1–16mm, JT33
• Table size: 123⁄8" diameter
• Table swing: 360°
• Table tilt: 90° L/R
• Dimensions: 15" W x 24" D x 38" H
• Shipping weight: 123 lbs.
Heavy-Duty 15" 2 HP Drill Press
• Motor: 2 HP, 220V, single-phase, 8.6A
• Swing: 15"
• Spindle taper: R-8
• Spindle travel: 45⁄8"
• Spindle speeds: 12, 140–2436 RPM
• Drill chuck: 1⁄64"–1⁄2", B16
• Table size: 14" x 15"
• Table swivel: 360°
• Table tilt: 60° L/R
• Dimensions: 23" W x 35 1⁄2" D x 67" H
• Shipping weight: 772 lbs.
16" Benchtop Variable-Speed Tapping Drill Press
• Required power source: 120V, single-phase, min. 15A circuit
Keep all your drill press accessories at your fingertips! This swiveling, swinging tray holds a 29-pc. drill bit set and has space for your chuck key, wedge, and even a cup of coffee!
The swinging tray arm mounts to your drill press column and is compatible with a wide range of models.
Comes with mounting harware. Bits sold separately.
T33682
Regular $2395
Sale $1995
Tray swivels for easy access to your bits and swings out of the way when not in use!
29-Pc. M35 HSS Cobalt Hex Shank Drill Bit Set
Set features 29 M35 HSS cobalt quick-release hex shank bits with chip breaker point and variable helix flute design. Comes in a hard plastic case with index.
Sizes included:
• Standard bits 1⁄16"–1⁄2" in 1⁄64" increments
T33843
Regular $11795
Sale $10500
51-Pc. M2 HSS TiN-Coated Metric Drill Bit Set
• Metric bits 1.0–6.0 mm in 0.1 mm increments
• 135° split point
• Round shank
T33686
Regular $5695
Sale $5125
6" Heavy-Duty Drill Press Vise
Designed specifically for drilling, this vise features an open base for the drill bit to pass through and slots for mounting to your drill press table with T-clamps (not included).
• Jaw size: 6" x 23⁄8
• Max. jaw opening: 55⁄8"
T33880
Regular $15795
Sale $13741
29-Pc. M2 HSS TiN-Coated Drill Bit Set
• Sizes: Standard bits 1⁄16"–1⁄2" in 1⁄64" increments
• 135° split point
• Round shank
T33685
Regular $7395
Sale $6200
60-Pc. M35 HSS Cobalt Drill Bit Set
• Numbered sizes 1–60
• M35 HSS with 5% cobalt
• 135° split point
• Fully ground flutes
• Universal round shank
• Includes metal case with index
T34127
Regular $5295
Sale $4500
29-Pc. M35 Cobalt Step Point Drill Bit Set
Drill stainless steel, titanium, and hardened alloys without the need for a pilot hole. Step point design offers up to 45% faster cuts and keeps the bits sharp up to four times longer than traditional bits. Sizes 1 ⁄ 16"–1 ⁄ 2" in 1 ⁄ 64" increments.
T34017
Regular $15595
Sale $14000
Drilling Bits & Accessories
25-Pc. M2 HSS TiN-Coated Round Shank Brad Point Bit Set
• Sizes: 1⁄8"—1⁄2" in 1⁄64" increments
T33691
Regular $9495
Sale $8525
8-Pc. Tungsten Carbide 3⁄8" Hex Shank Forstner Bit Set
• Sizes: 1⁄4"—1" in 1⁄8" increments, and 1
T33694
Regular $5695
Sale $5125
16-Pc. Titanium-Coated 3⁄8" Hex Shank Forstner Bit Set
• Sizes: 1⁄4"—21⁄8" in 1⁄8" increments
T33695
Regular $10495
Sale $9400
Large Drill Bit Grinder
29-Pc. M2 HSS TiN-Coated Quick-Release Hex Shank Brad Point Bit Set
TiN-coated quick-release brad point drill bits for reliable drilling through the hardest materials without the need for pilot holes. Sizes 1⁄16"–1⁄2" in 1⁄64" increments.
T34202
Regular $7495
Sale $6700
16-Pc. Tungsten Carbide 3⁄8" Hex Shank Forstner Bit Set
• Sizes: 1⁄4"—21⁄8" in 1⁄8" increments
T33696
Regular $14795
Sale $13300
115-Pc. M2 HSS TiN-Coated Drill Bit Set
• Standard bits 1⁄16"–1⁄2" in 1⁄64" increments
• Lettered bits A–Z
• Numbered bits #1–#60
• 135° split point
• Round shank
T33684
Regular $17900
Sale $16100
This machine offers precision sharpening for bits from ⅝"–2" in diameter. Featuring robust construction and an easy-to-use jig system, this grinder delivers a consistent point angle for perfectly sharpened large-diameter bits.
G0686
Regular $262500
Sale $229500
Plus $5995 shipping
• Precision jig with calibrated carriage handwheel, 2-axis adjustable center, and adjustable stops
• Motor: 1⁄2 HP, 110V, single-phase, 6800 RPM
• Miter angle: 50°–150°
• Overall dimensions: 151⁄2" W x 25" D x 19" H
• Shipping weight: 77 lbs.
Sharpens bits up to 2" in diameter!
16"-Long drill tray

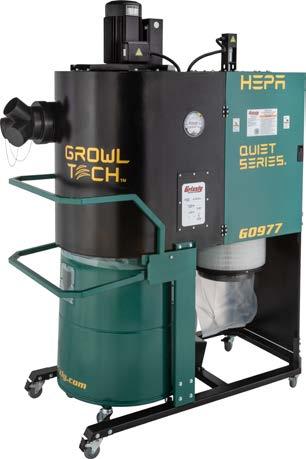

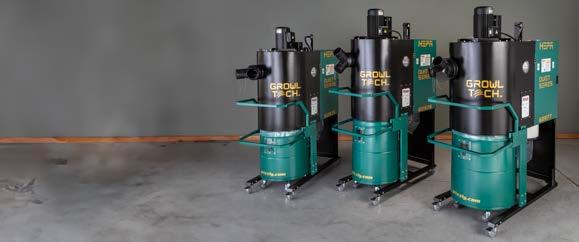

Quiet Series®

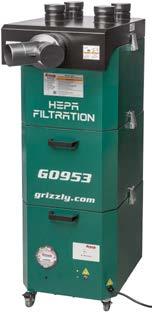

Portable HEPA Cyclone Dust Collectors
These advanced dust collectors combine 2-stage cyclone separation with HEPA filtration and our GROWL-TECH™ technology, which monitors machine performance, automates filter cleaning and full-drum shutoff, and more.
For next-level dust collection, choose a GROWL-TECH™ Quiet Series® and set your shop up for success.
Automatic Filter Cleaner
Motorized paddle brushes come on at regular intervals to knock dust off the filter into a collection bag, improving airflow and filter life
Filtration Stages
1. Outer pleated cartridge, 95% @ 0.2-2 microns
2. Internal MERV-17 HEPA, 99.97% @ 0.3 microns
Quick-Release Drum
Quick-release collection drum with casters for easy dust disposal
Dust Collection and Air Filtration
Quiet Operation
These models offer significant noise reduction over competitors, with ratings of 74–75 dB
HEPA Filtration
MERV-17 HEPA canister filter removes 99.97% of particles down to 0.3 microns
Cyclone Separation
2-Stage separator diverts most of the dust into the quick-release collection drum before it reaches the filter
• Maintains optimal airflow
• Prolongs filter life
GROWL-TECH™ Technology
Monitors machine status and automates routine maintenance with a pressure gauge, filter status indicators, automatic filter cleaner, and full-drum indicator with automatic shutoff
Mobile Frame
Locking casters on the base allow you to easily position and secure the dust collector where you need it
Remote Control
Included remote with timer function for controlling your dust collector from anywhere in the shop
• 120V/240V (prewired for 120V), single-phase, 9A/4.5A
• Inlet size: 4"
• Airflow capacity: 800 CFM
• Max. static pressure: 5.67"
• Collection capacity: 15.7 Gal.
• Dimensions: 393⁄4" W x 153⁄4" D x 541⁄2" H
• Shipping weight: 59 lbs.
2-Year Warranty
Collect from up to two machines running simultaneously
2-Stage cyclone separation diverts dust into collection drum
Quick-release drum with casters for easy dust disposal
2-Year Warranty
Dust Collection and Air Filtration
11⁄2 HP Dust Collector, 2.5-Micron
• Motor: 11⁄2 HP, 110V, single-phase, 16A
• Inlet size: 6" with two 4" adapters
• Airflow capacity: 1280 CFM
• Max. static pressure: 10.1"
• Filtration rating: 2.5-Micron
• Collection capacity: 40 Gal.
• Dimensions: 33 1 ⁄ 2 " W x 21 1 ⁄4" D x 78" H
• Shipping weight: 94 lbs.
W1685
Regular $61500
Sale $55300
Plus $19900 freight
2-Year Warranty

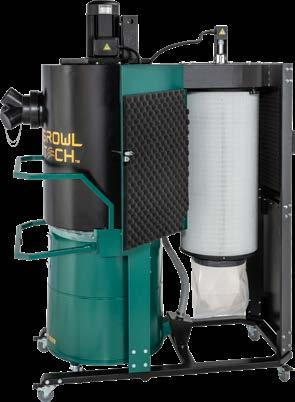

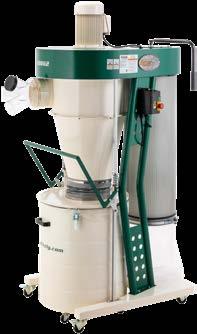

2 HP Cyclone Dust Collector, 1-Micron
with Remote Control and Quick-Release Drum
Features 2-stage cyclone separation and built-in filter cleaning to enhance performance and prolong filter life, a remote-controlled magnetic switch with thermal overload protection, and casters for easy mobility. An ideal dust collector for small- to medium-sized shops.
• Motor: 2 HP, 220V, single-phase, 9A
• Inlet size: 7" with three 4" adapters
• Airflow capacity: 1023 CFM @ 1.2" SP
• Max. static pressure: 10.9"
• Filtration rating: 1-Micron
• Collection capacity: 20 Gal.
• Dimensions: 28 1 ⁄ 2 " W x 52" D x 70" H
• Shipping weight: 294 lbs.
G0861
Regular $173500 Sale $156100
Plus $19900 freight
2 HP Dust Collector, 2.5-Micron
• Motor: 2 HP, 220V, single-phase, 12A
• Inlet size: 6" with two 4" adapters
• Airflow capacity: 1550 CFM
• Max. static pressure: 12.3"
• Filtration rating: 2.5-Micron
• Collection capacity: 40.4 Gal.
• Dimensions: 33 1 ⁄ 2 " W x 21 1 2 " D x 78" H
• Shipping weight: 107 lbs.
W1666
Regular $67900
Sale $61000
Plus $19900 freight

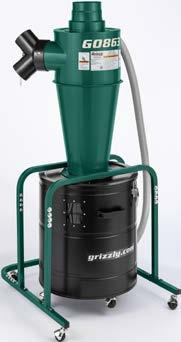

The “Grizzly Growler” Chip Separator
Convert your single-stage dust collector to a cyclone separator!
This cyclone separator diverts chips and large particles from your single-stage dust collector into a 20-gallon drum, extending your filter life and helping to maintain optimal airflow.
The drum features a vacuum equalizer, allowing the use of plastic liner bags, a sight window with full drum indicator, and casters for easy mobility.
• Designed for dust collectors up to 3 HP
• Inlet: 6" with 2 x 4" "Y" adapter
• Outlet: 7" with 6" reducer
• Collection capacity: 20 Gal.
• 16-Gauge steel construction
• Dimensions: 251⁄2" W x 22" D x 67" H
• Shipping weight: 47 lbs.
G0863
Regular $52500 Sale $47200
Dust Collection and Air Filtration
Benchtop Downdraft Table
2-Year Warranty
Great for portable sanders, this lightweight and easy-to-store benchtop downdraft table connects to your dust collection system and features work surfaces lined with dust collection holes. Internal baffles optimize airflow, non-skid work surfaces stabilize your workpieces, side and back curtains help direct the airflow, and rubber feet reduce vibration and prevent slipping.
• Overall dimensions: 40" W x 20" D x 91⁄2" H
• Dust port size: 4"
• Approximate wieght: 32 lbs.
W1733A
$26900
$24200
Hanging HEPA Air Filters
Capture fine particles down to 0.3 microns with carbon filtration to eliminate odors. Air monitoring systems indicate when max filtration is required, and filter status indicators let you know when the filters need to be replaced.
⊲ Timer settings: 2, 4, 6, 8 hours
⊲ Pre-filter: Nylon mesh screen
3-Speed Model
• Motor: 1⁄6 HP, 110V, single-phase, 2A
⊲ Primary filter: MERV-17 HEPA, 0.3-Micron
⊲ Secondary filter: Activated carbon
5-Speed Model
• Motor: 1⁄3 HP, 110V, single-phase, 2.8A
• Airflow capacity: 400, 500, 620 CFM
• Dimensions: 171⁄2" W x 211⁄2" D x 121⁄2" H
• Shipping weight: 36 lbs.
T33150 Regular $58900
$53000
Heavy-Duty Double Air Filter
with Remote Control
• Motor: 1⁄3 HP, 120V, single-phase, 3A
• Airflow capacity: 1400 CFM
• Primary filtration: 5-Micron
• Secondary filtration: 1-Micron
• 5 speeds: 800, 900, 1000, 1100, 1200 RPM
• Dimensions: 301⁄8" L x 197⁄8" W x 163⁄8" H
• Shipping weight 74 lbs.
• Airflow: 800, 1000, 1200, 1300, 1400 CFM
• Dimensions: 201⁄2" W x 271⁄2" D x 201⁄2" H
• Shipping weight: 68 lbs.
Benchtop Dual-Fan Air Filter
• 5-micron pleated filter
• 2 independently switched fan motors
• 200 CFM each motor
• Clear plastic dust hood helps direct airflow
• 2 auxiliary 110V outlets
• Dimensions: 207⁄8" L x 81⁄4" W x 101⁄2" H
• Shipping weight: 24 lbs. Two auxiliary power outlets for 110V tools
T33151 Shown
ORDERING INFORMATION
■ INTERNET: www.grizzly.com® Shop online 24 hours a day. It’s fast, easy and secure. Visit often since we have many specials and discontinued items not offered in our catalog or retail stores.
■ FAX 1-800-438-5901: You can fax your order directly to us.
■ PHONE 1-800-523-4777: Call our toll-free number between 8:00 am – 8:00 pm, Mon – Fri or 8:30 am – 6:00 pm ET on Saturdays to speak with a salesperson. Or leave a message after hours. Follow the voice prompts to place your order.
■ SPANISH: Hablamos Español - Llámenos al 1-800-523-4777.
PRICING POLICY
Due to rapidly changing market conditions, our terms, conditions, pricing, and policies are subject to change without notice at any time, and are updated on grizzly.com® as necessary.
CUSTOMER SERVICE
SHIPPING YOUR ORDER: We make every e ort to ship your order within 24 hours. Most orders go out the same day. Due to our centrally located warehouses, motor freight shipments usually arrive in 7–10 business days. Standard orders (non-freight items) typically arrive in 2–3 business days. This information should be used as a general guide and is not guaranteed.
NON-FREIGHT ITEMS: Non-freight items are assessed a shipping and handling fee based on the total price of the items. Due to size and weight restrictions, some items require additional shipping and handling charges. These items are individually noted. Orders that do not include freight items will be shipped by ground transportation unless otherwise specified. Shipments less than 1 lb. may be shipped by USPS or UPS SurePost. Orders shipped outside of the lower 48 U.S. states will be quoted at current shipping rates. Special handling costs or shipping fees may be added to your order, and all orders may be subject to a fuel surcharge. Shipping charges for some parts may vary from published charges.
SHIPPING AND HANDLING CHARGES: (Non-Freight Items to the Lower 48 U.S. States)*
$0.01–$14.99 add $8.99
$15.00–$24.99 add $12.99
$25.00–$49.99 add $16.99
$50.00 or more* ............ FREE!
We Ship Internationally! Order online or call 360-647-0801 option 6 for a no-hassle, allinclusive quote for shipping orders internationally.
*Oversize items do not count toward the free shipping minimum merchandise value and are charged shipping and handling. Oversize items are identified by individually assigned shipping rates located on their item pages.
*Gift certificates do not count toward the free shipping minimum merchandise value and are not charged shipping and handling for standard shipping methods.
TRUCK FREIGHT ORDERS: We have a flat rate shipping program for most freight items so you know exactly what your cost will be. This applies only to the Lower 48 U.S. States. We have listed the shipping charge for each machine next to the price (a fuel surcharge may be added). Items under 150 lbs. may ship by small parcel carrier. See inside order form for an example of how to apply this change to your order.
Orders that contain freight as well as additional S/H charges due to oversize restrictions and non-freight items must include the flat rate shipping fee per item and the S/H fee based on the total dollar amount of those non-freight items. All orders may be subject to a fuel surcharge.
Truck freight orders require a delivery appointment and we require a valid daytime phone number in order to complete delivery. Truck drivers are not required to give assistance unloading. Please be prepared for this “curbside” delivery, as you are responsible for unloading the item(s) and placing them in your shop. This normally takes a couple of “friends.” Your location must be tractor-trailer accessible. Some carriers reserve the right to charge a limited access delivery fee, which will be added to your invoice if applicable. If you need assistance unloading or moving your shipment into your shop or home, special delivery options are available for an extra cost. We o er liftgate service for a discounted rate on most machines.
SHIPMENTS OUTSIDE THE CONTINENTAL U.S.: Orders will be quoted at current rates. Items will be shipped via the most cost-e ective service. Special handling costs, additional shipping fees, and applicable brokerage fees may be added to your order.
BACKORDERS: If not specified, out of stock items will automatically be placed on backorder and shipped immediately when available. Credit cards will not be charged until item(s) are shipped.
SHIPPING DAMAGE: When you receive your shipment from the trucking company, it is extremely important to inspect and note any damage that might be suspect. If you notice holes, dents, tears, etc. you must open and inpsect the contents to ensure the product is not damaged. Notate all damage on the form or tablet used to sign for delivery. These notations will allow us to make a claim for shipping damage on your behalf. Failure to do so makes it extremely di cult to make a claim. If there is shipping damage and you have noted it, you may submit an online ticket to our Customer Service Department, call 1-800-523-4777, or fax us at 1-800438-5901. We will take care of all the necessary arrangements to have the problem resolved.
Scan to submit an online ticket to Customer Service.
RETURNS: Should you decide to return an item(s) for any reason, be it for refund, exchange, or warranty, please call 1-800-523-4777 or submit an online ticket to our Customer Service Department. We will take you step by step through the return process. Returns for refund or exchange must be within 30 days of purchase. Original shipping and handling charges are not refundable. All returns must be in original packaging, unused, and in resalable condition. All non-defective returns are subject to a 10% restocking fee. The restocking fee may be waived if items are exchanged for product of equal or greater value. All merchandise must be shipped to us using an authorized return label that we provide when setting up your return. We will not accept returns sent to us without prior authorization.
TECHNICAL SERVICE AND PARTS: Please contact our Technical Service Department at 1-570-546-9663 Monday through Friday, between the hours of 8:00 AM–6:00 PM ET before sending or bringing any item back for service. For machinery, please have your serial number available. If it is determined that the best course of action is to send the item back to us for service, we will make every e ort to repair and return it to you in a timely manner. You may also call this number to order parts or visit our parts store online
DARN IT! We make every e ort to be exact with our photography, prices, specifications, and copy. Sometimes errors do occur and we apologize for them. We reserve the right to make changes and correct errors at any time.
PRIVACY POLICY: We respect your right to privacy and do not disclose your personal data to other organizations.
CREDIT TERMS: We o er credit terms to qualifying companies and government entities; apply for an account online at grizzly.com® Terms and Conditions contained in customer purchase orders, order forms, or otherwise are superseded in their entirety by our terms as stated on our website and herein unless expressly agreed to by us in writing.
FINANCING: We o er financing for individuals and businesses. For individuals, we offer Affirm Financing on grizzly.com® during checkout. For businesses, we o er financing through Clicklease. Visit our website, call 1-800-523-4777, or scan the code for more information on Clicklease.
Scan to apply for business financing through Clicklease.
LIMITED WARRANTY
Grizzly warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, improper wiring, alterations, lack of maintenance or consumable parts. This is Grizzly’s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant or represent that our merchandise complies with the provisions of any laws, acts or electrical codes. We do not reimburse for third party repairs, services, or any expenses related to moving machinery to and from carrier vehicles or residences. In no event shall Grizzly’s liability under this warranty exceed the purchase price paid for the product and any legal actions brought against Grizzly shall be tried in the State of Washington, County of Whatcom.
• We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of our products.
• To take advantage of this warranty please call our Customer Service Department at 1-800-523-4777. Proof of purchase must accompany the merchandise. Manufacturers reserve the right to change specifications at any time as they constantly strive to achieve better quality products.
• Please Note: Merchandise covered by a manufacturer’s warranty must be sent directly to the manufacturer for repair or replacement.
CALIFORNIA COMPLIANCE SURCHARGE
Our carriers have started to assess a surcharge to cover increasing costs for regulatory compliance for shipments into California. The current surcharge of $15.00 for freight shipments will be added to all California shipments. Orders with freight and small parcels will only incur the freight surcharge. This surcharge is subject to change. Please see grizzly.com® for updates.
CALIFORNIA PROP. 65 INFORMATION
Some products shown in this catalog can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
†1
†2
†3
Cancer & Reproductive Harm - www.p65warnings.ca.gov
Cancer - www.p65warnings.ca.gov
Reproductive Harm - www.p65warnings.ca.gov
Scan to order parts online.
Turning Tools and Accessories
M2 Cryo Parting Tools
Pointed blades make these parting tools ideal for intricate details on bowls and spindles.
M2 Cryo Gouges
5035
M2 Cryo Skew Chisels
Versatile turning chisels with various profiles set at a skewed angle for controlled detail work.
M2 Cryo Turning Tool Sets
Fluted blades with rounded noses and long beechwood handles for roughing out, hollowing bowls, and shaping spindles.
Wood Lathe Tool Holder
Easily mounts to your lathe with a swing arm and rotating tray for quick positioning. Holds up to 14 tools. Includes all mounting hardware.
Carbide Insert Pen Turning Tools, 3-Pc. Set
Perfect for pen turning. Includes 3 tools with square, round, and diamondshaped carbide inserts. Features 85 ⁄ 8 " long ergonomic beechwood handles for comfort and control.
Two high-quality cryogenically hardened turning tool sets curated for common uses. Each set features ergonomic beechwood handles and comes with a custom storage box with fitted foam inserts.
Set • 3⁄4" Roughing out gouge •
Spindle gouge •
Skew chisel
Carbide Insert Hollow Turning Tools, 3-Pc. Set
Designed for hollowing bowls and other concave surfaces. Includes 3 tools with straight, curved, and slightly curved shafts. Features 15" long ergonomic beechwood handles for maximum comfort and control.
Luthier Kits
Ukulele Kits
Acoustic Guitar Kit
Includes a basswood body with koa variant veneer, mahogany neck, laurel fingerboard and bridge, and chrome hardware.
These ukule kits feature a basswood body with choice of veneer, mahogany neck, laurel bridge, and chrome hardware. Easy to play, lightweight, and compact. Experience the melody of Aloha!
Violin Kit
Solid spruce face with fiddleback maple sides and back—a gorgeous base for your choice of finish. Comes with a bow and rosin.
Electric Guitar Kits
Get building and get rocking! These kits feature a solid mahogany body with a choice of maple veneers, maple fingerboard and neck, chrome hardware, PVC pearl dark red pickguard, tremelo bar, bridge humbucker, two single-coil pickups, and guitar strap buttons.

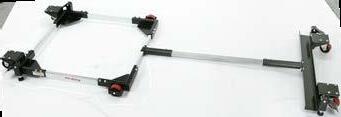

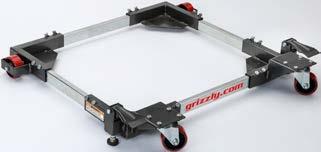

Workbench Accessories, Stands, and Mobile Bases
Benchtop Machine Stands with Power Outlets
Excellent stands for woodworking and metalworking equipment up to 500 lbs. They feature durable steel construction, two 120V outlets, two USB charging ports, and a storage shelf. Easy to assemble.
• Leg construction: 12-Gauge steel
• Top and shelf construction: 16-Gauge steel
• Electrical outlets: 120V (x2)
•
• Height: 36"
Heavy-Duty Mobile Machine Stand
300 Lb. Capacity
Designed for use with benchtop machines. Features a storage shelf and footpedal-operated built-in mobile base.
Measures 21" W x 27" L x 291⁄2" H.
Mobile Miter Saw Stand
• Works with most miter saws and benchtop planers
• Foot-operated pedal for setup or takedown
• Removeable lever-action machine mounts
• Full-width aluminum bed
• Optional extra set of mounting bars for quickly swapping tools on and off
Adjustable workpiece support 571⁄2"–124"
Tool Table Plus
700 lb. Capacity
Ideal for benchtop tools like planers, lathes, and sanders, this table features a wide top and tall base for greater support and a comfortable working height.
• Table top: 40" W x 14" D x 11⁄4 Th
• Height: 33"
Heavy-Duty Workbench Stand
Build your own workbench. Heavyduty square column steel legs with adjustable foot pads and rectangular steel cross braces. Dimensions: 26" W x 26" D x 32" H.
25" x 96" x 11⁄2" Thick
Parawood Butcher Block Top
Extremely durable parawood with maintenance-free UV coating and a urethane-based satin finish to bring out the grain.
• Resistant to stains and most solvents
• Easy cleanup with warm soapy water
Bear Crawl® Heavy-Duty Mobile Bases
Put your machine on wheels for a more effiecient and productive shop. Our Bear Crawl® Mobile Bases hold up to 1200 lbs. and come in various sizes for table saws, bandsaws, jointers, and more!
T28922 — Cub Bear Crawl®
Size: 14" x 14" – 221 ⁄ 2 " x 221 ⁄ 2
Regular $12095 Sale $10800
T28000 — Bear Crawl® Size: 19" x 21" – 291 ⁄ 2 " x 291
Angled lock bolts for easy adjustment
T28923 — Papa Bear Crawl®
1200 Lb. capacity for all three models!
Adjustable rubber leveling feet
Table Saw Extension Kit for Bear Crawl® Mobile Bases
Add 18"–44" in length to your Bear Crawl® Mobile Base. Ideal for table saws with extension tables. NOTE: This item does not fit G1023RLW, G1023RLWX, and G1023RLA40 table saws.
Attaches to your Bear Crawl® mobile base (sold separately)
3" Swivel casters with toe-flip-stop levers
Mini Mobile Base
Toe-flip-stop levers
T28347
Designed to support extension table legs of cabinet table saws
Adjusts from: 12" x 13 1 ⁄ 2 " to 18" x 221 ⁄4". 1000 lb. capacity.
Non-marring polyurethane casters with reinforced/ welded posts 2-Year Warranty
South Bend® 14" x 40" 16-Speed, 3-Phase Metal Lathe
with Fagor® DRO and Allen Bradley® Controls
A robust, feature-rich lathe offering a Fagor® 2-axis DRO, high-precision Allen Bradley® controls, a large 14" swing over bed, built-in coolant system, micrometer carriage stop, and much more. With the South Bend® name you get the legacy of precision, reliability, and U.S.-based expert customer support with a 2-year warranty. Check out the specs and features below. If you're looking to invest in your machine shop, now is the time.
• Main motor: 5 HP⁄2.5 HP, 220V, 3-phase 14A/10A
• Swing: 14" Over bed, 8.66" over cross slide
• Distance between centers: 40"
• Spindle nose: D1-5 camlock
• Spindle bore: 1.57"
• Spindle taper: MT#5
• Spindle speeds: (16), 50–2570 RPM
• Tailstock taper: MT#3
• Thread ranges:
—Inch: 2–72 TPI (45 threads)
—Metric: 0.2–14mm (39 threads)
—Modular: 0.3–3.5 (18 pitches)
—Diametral: 8–44 (21 pitches)
• Longitudinal feed range: 0.002–0.067 IPR
• Cross feed range: 0.001–0.034 IPR
• Number of feed selections: 17
• Dimensions: 803 4" W x 321⁄8" D x 543⁄8" H
• Shipping weight: 2498 lbs.
Safety chuck guard with micro-switch shut-off DRO
2-Year Warranty
6" x 10" Variable-Speed Combo Lathe/Mill
Lathe:
• Swing over bed: 6"
• Swing over cross slide: 3"
• Distance between centers: 10"
• Carriage travel: 7"
• Cross slide travel: 2 7⁄8"
• Tailstock quill travel: 1"
• Spindle speed: Variable, 100–2000 RPM
• Inch threads: 5, from 16–24 TPI
• Spindle bore: 11⁄32
• Tailstock quill diameter: 3⁄4"
Mill:
• Swing: 4"
• Spindle taper: MT#2
• Spindle speed: Variable, 100–1300 RPM
• Spindle travel: 1 1⁄8"
• Maximum tool bit size: 3⁄8"
• Drilling capacity in steel: 8mm
• Distance from spindle to table: 4 1⁄2"
• T-slots: (2) 5⁄16" width, 2" spacing
Motor & Body:
• Lathe motor: 1⁄5 HP, 110V, singlephase 1.8A
• Mill motor: 1⁄5 HP, 110V, single-phase 1.8A
• Dimensions: 241⁄2" W x 21" D x 221⁄2" H
• Shipping weight: 95 lbs.
Full-length rounded corner back splash
Built-in apron lubrication system
Foot brake
Auto-feed stop clutch
Halogen work light Coolant system
Milling Machines
7" x 29" 1 1⁄2 HP Mill/Drill
with Power Head Elevation and DRO
• Motor: 1 1⁄2 HP, 110V, single-phase, 12A
• Spindle taper: R-8
• Spindle-to-column max.: 91⁄16"
• Spindle-to-table max.: 125⁄8"
• Spindle travel: 35⁄64"
• Spindle speed: 2-Range variable
— Low 80–1700 RPM
— High 280–5000 RPM
• Vertical head travel 133⁄8"
• Table size: 71⁄16" x 291⁄8"
• Dimensions: 371⁄2" W x 32" D x 681⁄2" H
• Shipping weight: 574 lbs.
G0935
Regular $481900
Sale $433700 Plus $34900 freight
6" x 27" 1 HP Variable-Speed Mill/Drills
with Mirror Display Digital Readout (DRO)
• Motor: 1 HP, 110V, single-phase, 11A
• Spindle taper: R-8
• Spindle-to-column max.: 61⁄2"
• Spindle-to-table max.: 123⁄8"
• Spindle travel: 23⁄4"
• Spindle speed: Var., 100–2000 RPM
• Vertical head travel: 91⁄4"
• Table size: 63⁄8" x 271⁄2"
Mirror display DRO for spindle speed and room temp. (both models)
X-axis power feed (G0983 only)
• Dimensions & Shipping wt. (G0982): 341⁄2" W x 241⁄2" D x 651⁄2" H, 360 lbs.
• Dimensions & Shipping wt. (G0983): 421⁄2" W x 241⁄2" D x 651⁄2" H, 384 lbs.
G0982 — Base Model
Regular $263900
Sale $237500
Plus $25500 freight
G0983 — w/ DRO & Power Feed Regular $379500 Sale $341500 Plus $25500 freight
6" x 20" 3⁄4 HP Variable-Speed Mill/Drill
• Motor: 3⁄4 HP, 110V, single-phase, 10A
• Spindle taper: R-8
• Spindle-to-column max.: 65⁄8"
• Spindle-to-table max.: 83⁄4"
• Spindle speeds: 2-Range variable
— Low 50–1000 RPM
— High 100–2000 RPM
• Vertical head travel: 81⁄4"
• Column tilt: 45° L/R
• Table size: 53⁄4" x 19 3⁄4"
• Dimensions: 193⁄4" W x 21" D x 301⁄4" H
• Shipping weight: 204 lbs.
G0758
Regular $191500
Sale $172300 Plus $19900 freight
8" x 30" 11⁄2 HP Vertical Mill with Power Feed and 45° Head Tilt
• Power requirement: 120V/230V, single-phase, 60 Hz
• Output current (120V): 20–30A
• Output current (230V): 20–40A
• Duty cycle (120V): 60% @ 30A
• Duty cycle (230V): 50% @ 40A
• Max. material thickness: 1⁄2"
• Protection class: IP21S
G0878
Regular 44900 Sale $40400
160A AC/DC TIG Welder
• Power requirement: 120V/230V, single-phase, 60 Hz
• Output current range 120V: 10–110A
• Output current range 230V: 10–160A
• Duty cycle (120V): 35% @ 110A
• Duty cycle (230V): 25% @ 160A
• Max. material thickness: 3⁄16"
• Protection class: IP21S
G0883 Regular 83900 Sale $75500
15A Bandsaw Blade Welders
Repair broken bandsaw blades or fabricate new ones from bulk stock. Each blade welder features a shear, grinder, and welding/annealing station.
T27555 — 110V, 2.0 kVA
• Carbon steel blade width: 1⁄8"–1⁄2"
• Bi-metal blade width: 1⁄8"–3⁄8"
Regular $76500
Sale $66500
T27556 — 220V, 4.2 kVA
• Carbon steel blade width: 1⁄8"–3⁄4"
• Bi-metal blade width: 1⁄8"–5⁄8" Regular $97500
Sale $87700
Double-End Spot Weld Cutter
85A Stick Welder
• Power requirement: 120V, single-phase, 60 Hz
• Min. circuit size: 20A
• Output current range: 10A–85A
• Duty cycle: 25% @ 85A
• Max. material thickness: 3⁄16"
• Electrode size: 1⁄16"–3⁄32"
• Protection class: IP21
G0880 Regular 16595 Sale $11588
180A Stick Welder
• Power requirement: 120V/230V, single-phase, 60 Hz
• Output current (120V): 30–105A
• Output current (230V): 30–180A
• Duty cycle (120V): 60% @ 105A
• Duty cycle (230V): 30% @ 180A
• Max. material thickness: 3⁄8"
• Electrode size: 1⁄16"–5⁄32"
• Protection class: IP21
G0881 Regular 32500 Sale $29200
200A MIG Welder
• Power requirement: 120V/230V, single-phase, 60 Hz
• Output current (120V): 30A–100A
• Output current (230V): 30A–200A
• Output voltage: 15.5V–24V
• Duty cycle (120V): 35% @ 100A
• Duty cycle (230V): 25% @ 200A
• Max. material thickness: 3⁄8"
• Wire diameter: 0.030" & 0.035"
• Wire feed speed: 80–600 IPM
• Protection class: IP21S
G0882 Regular 64500 Sale $58000
Essential for auto body restorations, this double-end spot weld cutter removes spot welds without damaging the underlying panel. Arbor fits 1 ⁄4" and larger drills. Comes with a protective case with fitted foam insert and includes the following:
Save money by sharpening your own chainsaw chains. Designed for chains ranging from 0.050"–0.070" gauge, this 120V sharpener will pay for itself after just a few uses.
• Chain pitch: 1⁄4", 0.325", 3⁄8", 0.404"
• Vise angle: 0–30° L/R
• Grinding wheel: Corundum, 100-grit
• Left wheel: 120-Grit aluminum oxide
• Dimensions: 16" W x 121⁄2" D x 151⁄2" H
Buffing Assembly (motor not included)
Add any 1 ⁄ 3 HP or larger motor for a versatile dual-arbor buffing system. Features a three-step pulley and drive belt system and includes a V-belt, wheel flanges, and arbor nuts.
• Min. recommended motor size: 1⁄3 HP
10" Variable-Speed Wet Sharpener
Features a 2 1 ⁄ 2 " wide, 220-grit A/O grinding wheel that runs in a water bath and a leather stropping wheel that removes burrs and hones your tool to a razor-sharp edge.
• Recommended motor speed: 1725 RPM
• Arbor size (ea.): 81⁄4" L x 3⁄4" dia.
• Max. buffing wheel: 10"
20" Universal Knife Grinder
Ideal for sharpening cutterhead knives, plane irons, and straight edge chisels. Grinds bevels from 20°–70° and takes blades up to 20" long.
• Motor: 1⁄2 HP, 110V, 3A
• Max. blade dimensions: 20" L x 11⁄2
• Includes 120-grit stone with 1⁄2" bore
Grinders, Buffers, and Sharpeners
3" x 79" 4 HP 2-Wheel Belt Grinder/Sander
• Motor: 4 HP, 220V, 3-phase, 11A
• Sanding belt speed: 3937 FPM
• Platen: 3" x 201⁄2", 0°–30° tilt
• Contact wheel dia.: 8"
• 4" dust port
• Dimensions: 39" W x 221⁄2" D x 48" H
• Shipping weight: 248 lbs.
G0489
Regular $111500 Sale $99900 Plus $19900 freight
3" x 78" Knife-Making Grinder
2" x 72" 1 HP Knife Grinder/Belt
Sander/Buffer
• Motor: 1 HP, 110V, single-phase, 14A
• Belt size: 2" x 72"–76" range
• Belt speed: 3600 FPM
• Left arbor: 81⁄2" extension with 5⁄8" arbor
• Dimensions: 383⁄4" W x 291⁄2" D x 39" H
• Shipping weight: 115 lbs.
G1015
Regular $75500
Sale $67100 Plus $9995 freight

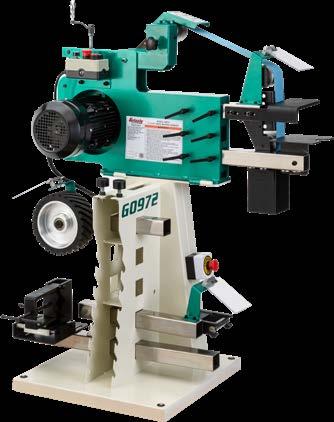

Grinding options for knife-making and beyond. The G0972 handles contact wheel, platen, slack belt grinding, and even pipe notching with ease, and its pivoting frame shifts seamlessly from vertical to horizontal positions. Whether you're shaping, profiling, or beveling, this 3 HP workhorse delivers precision and power for all serious knifemakers and metal fabricators.
Frame tilts 90° for horizontal and vertical grinding!
Grinding Attachments:
Contact wheel grinder
Platen with tool rest
Pipe notching grinder
Metal Dust Collection

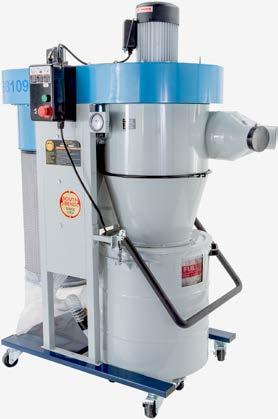

11⁄2 HP Metal Dust Collector
A powerful 3-stage metal dust collector with casters for easy mobility. Connect up to two machines at a time with the 650 CFM airflow running through dual 4" dust ports.
• Motor: 11⁄2 HP, 240V, single-phase, 9A
• Airflow capacity: 650 CFM
• Impeller size: 123⁄4"
• Main inlet size: 6"
• Adapter inlet size (x2): 4"
• Filtration rating: 1-Micron
• Dimensions: 20" W x 281⁄2" D x 43" H
• Shipping weight: 199 lbs.
Grizzly Metal Dust Collection
Capture the fine metal particles that come from sanding, grinding, soldering, and polishing metal with one of our powerful dust collection machines. Whether you're looking for basic dust collection, advanced HEPA filtration, or fume extraction, we have precision-built dust collectors and downdraft tables designed for every need, built to the highest standards for safety and ease of use.

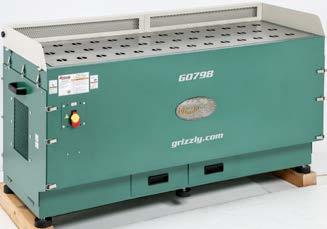

24" x 62" 3⁄4 HP Metalworking Downdraft Table
Ideal for a wide variety of metal sanding, grinding, soldering, and polishing applications. Features all-steel construction with 440 lb. load capacity, dual
3 ⁄4 HP motors with highly efficient squirrel cage impellers, up to 3700 CFM suction for capturing large particles, and four 200-micron filters.
• Motors (x2): 3⁄4 HP, 110V, single-phase, 6A
• Table surface: 233⁄4" x 611⁄2"
• Floor-to-table height: 291⁄2"
• Table load capacity: 440 lbs.
• Airflow capacity: 3700 CFM
• Inlet size: 8"
Dual 3⁄ HP motors!
• Outlet size: 10" x 8"
• Impellers (x2): 9 1⁄2" x 7" squirrel cage
• Filtration rating: 200-Micron
• Dimensions: 65" W x 24" D x 331⁄2" H
• Shipping weight: 349 lbs.
Metal Dust Collection

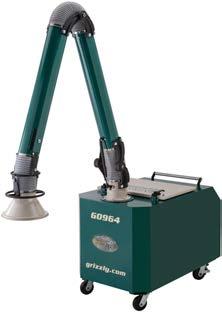

11⁄2 HP Portable HEPA Fume Extractor
with Articulating Extraction Arm
This fume extraction machine features a 10' articulating extraction arm for targeted suction. It features four-stage filtration with a V-cell MERV-17 HEPA filter that traps 99.97% of particles down to 0.3 microns.
Ideal for welding and plasma cutting, soldering, laser cutting, and working with harmful chemicals like hexavalent chromium and lead, as well as hazardous metals like stainless steel, aluminum, and coated metals.
⊲ 6" x 10' articulating extraction arm with damper for adjusting air flow
⊲ V-cell MERV-17 HEPA filter
⊲ Vacuum pressure gauge indicates when to clean and replace filters
This industrial downdraft table captures metalworking sparks, fumes, dust, and particles down to 0.3 microns. A powerful 2 HP motor provides 1350 CFM, creating the suction needed to capture larger metal particles. Additional features include 5 ⁄ 8 " holes for attaching jigs and fixtures, sides that open for larger projects, an overhead work light, pneumatic quick coupler, auxiliary power outlet, and more.
Position the arm where you need it for targeted fume and dust extraction
Easy access for filter changes
Auxiliary 120V outlet for hand-held tools
Vacuum pressure gauge with filter status indicators
Metal Dust Collection
11⁄2 HP HEPA Metal Dust Collector with Spark Deflector
Capture dry metal chips, swarf, dust, and welding and cutting slag flare-ups down to 0.3-microns for a safer, more productive shop environment. Features 2-stage HEPA filtration and a powerful 11 ⁄ 2 HP motor that produces 884 CFM airflow. A built-in vacuum pressure gauge indicates when filter cleaning or replacement is needed, and the air pulse button allows for pneumatic cleaning with an industrial quick coupler for easy use.
Built-in vacuum pressure gauge indicates filter status
• Motor: 11⁄2 HP, 120V/240V (prewired for 120V), single-phase, 18A/9A
• Airflow: 884 CFM @ 2.2" SP
• Max. static pressure (at 0 CFM): 8.3"
• Inlet size: 6"
• Collection capacity: 4.1 gallons
• Dimensions: 331⁄2" W x 29" D x 741 2" H
• Shipping weight: 661 lbs.
Easy access for filter changes
G0966
Regular $540900
Sale $486800 Plus $34900 freight
1 HP Portable 8-Stage HEPA Fume Extractor for CO2 and Fiber Laser Cutters
This dual-purpose HEPA fume extractor pulls harmful fumes and particulates through eight filtration levels to clean the air down to 0.3-microns.
What makes extraction better than venting laser fumes? Filtering laser fumes through an extractor allows you to maintain stable air temperature. Otherwise, when you blow the fumes out through a vent, you lose your valuable heated or cooled air.
⊲ Built-in pressure gauge with filter status indicators
⊲ Aluminum mesh spark arrestor
Filtration stages:
1. Pleated pre-filter, 2–10-micron
2. Bag, 1-micron
3. Pleated polyester, 1-micron
4. Activated carbon, Type 1000
5. Activated carbon, Type 3000
6. Activated carbon, Type 9000
7. Pleated pre-filter, 2–10-micron
8. HEPA, 0.3-micron
⊲ Three activated carbon bags filter harmful chemicals and gas
These affordable benchtop sandblast cabinets feature large viewing windows, built-in work lamps, and sealed glove ports. Each comes with a blast gun and ceramic tips.
Top Loading
• Working air pressure: 60–100 PSI
• Recommended air supply: 5–14 CFM
• Abrasive capacity: 10 lbs.
• Abrasive type: Dry only
• Lighting type: 15W LED
• Dimensions: 223⁄4" W x 19" D x 19" H
Side Loading
• Working air pressure: 60–100 PSI
• Recommended air supply: 5–14 CFM
• Abrasive capacity: 10 lbs.
• Abrasive type: Dry only
• Lighting type: 15W LED
• Dimensions: 271⁄2" W x 221⁄2" D x 24" H
* Item color may vary.
Sandblasting Media, 40#
• 100% Post-consumer recycled glass
• Non-damaging and residue-free
• Lightweight
• No crystalline silica
• T34117: R28/W28, 80 x 120 mesh 1 mil. profile
• T34118: R21/W21, 40 x 80 mesh 2 mil. profile
• T34119: R18/W18, 20 x 40 mesh 3 mil. profile
Portable Sandblaster
The M1115 Sandblaster is equipped with an industrial-duty blast nozzle, tank, ball valves, hoses, pressure gauge, and water separator.
• Working pressure: 65–125 PSI
• Blasting hose length: 8'
• Tank size: 20 gallons
• Fill port: 1"
• Tip bore sizes: 9⁄64", 1⁄8", 7⁄64", 3⁄32"
• Dimensions: 15" W x 271⁄2" D x 351⁄2" H
• Shipping weight: 55 lbs.
2-Year
Warranty
Quiet Series 6-Gallon Air Compressor
• 4.5 CFM @ 40 PSI / 3.5 CFM @ 90 PSI
• Oil-free pump for cleaner air and less maintenance
• Max. air pressure: 150 PSI
• Sound rating: 62 dB
• Features ball-valve drain control, air regulator, and two quick-coupler hose connections
• Shipping weight: 56 lbs.
60-Gallon 5 HP Air Compressor
• Motor: 5 HP, 230V, single-phase, 22.5A
• Airflow capacity: 18 CFM at 90 PSI and 20 CFM at 40 PSI
• Maximum air pressure: 150 PSI
• Dimensions: 30" W x 22" D x 68" H
• Large oil level sight glass
• Ball-valve drain and output control
• Fan pulley and cooling fin design to keep compressor cool
• W-cylinder cast-iron air compressor pump
• ASME-certified 60-gallon tank
• Shipping wt: 345 lbs.
Air Compressors
Quiet Series 2-Gallon Air Compressor
• 3.2 CFM @ 40 PSI / 2.5 CFM @ 90 PSI
• Oil-free pump for cleaner air and less maintenance
• Sound rating: 60 dB
• Features safety valve, air regulator, quickcoupler, and easy drain valve
• Shipping weight: 48 lbs.
80-Gallon 5 HP Air Compressor
• Motor: 5 HP, 230V, single-phase, 22.5A
• Airflow capacity: 18 CFM at 90 PSI and 20 CFM at 40 PSI
• Maximum air pressure: 150 PSI
• Dimensions: 311⁄2" W x 26" D x 67" H
• Large oil level sight glass
• Ball-valve drain and output control
• Fan pulley and cooling fin design to keep compressor cool
• W-cylinder cast-iron air compressor pump
• ASME-certified 80-gallon tank
• Shipping wt: 400 lbs.
20-Gallon 2 HP Portable Air Compressor
• Motor: 2 HP, 115V/230V (prewired for 115V), single-phase, 15A/7.5A
• Airflow capacity: 6.0 CFM at 90 PSI and 7 CFM at 40 PSI
• Maximum air pressure: 135 PSI
• Oil-lubricated belt drive
• ASME-certified 20-gallon tank
• Dimensions: 24" W x 23" D x 44" H
• Shipping weight: 215 lbs.
Extreme Series® 80-Gallon 71⁄2 HP Air Compressor
• Motor: 71⁄2 HP, 230V, single-phase, 31A
• 23 CFM @ 90 PSI / 28 CFM @ 40 PSI
• Dimensions: 40" W x 32" D x 73" H
• Threecylinder cast-iron oil-lubricated pump
• Wire-formed belt guard for more efficient cooling
• ASME-certified 80-gallon tank
• Shipping wt: 620 lbs.
Heavy-Duty Shop Presses
These powerful presses are designed for heavy use with sturdy H-frame construction, thick steel arbor plates, and welded pump cylinders for long-lasting performance and durability. They feature easy-toadjust tables, interchangeable ram ends for versatility, and liquid-filled pressure gauges for accurate readings even under the highest loads.
T34347 — 20-Ton
• Max. applied force: 20 Tons
• Ram max. stroke: 71⁄2"
• Ram piston diameter: 2.36"
• Ram face diameter: 1.89"
• Max. distance to table: 381⁄2"
• Min. distance to table: 7⁄8"
• Dimensions: 33" W x 271⁄2" D x 70" H
• Shipping weight: 234 lbs.
T34347
T34348 — 30-Ton
• Max. applied force: 30 Tons
• Ram max. stroke: 63⁄4"
• Ram piston diameter: 2.75"
• Ram face diameter: 2.28"
• Max. distance to table: 401⁄2"
• Min. distance to table: 2"
• Dimensions: 32" W x 39" D x 77" H
• Shipping weight: 335 lbs.
$19900 freight
30-Ton 3 HP Electric/Hydraulic Shop Press
Take your press work to a whole new level with our T1242 30-Ton Electric/Hydraulic Shop Press. Features a 3 HP, 220V, single-phase hydraulic pump motor, horizontally adjustable sliding piston head, easy-access push-button controls, 10" stroke, and table-to-piston distance of 7 3 ⁄4"–361 ⁄ 2 ". Includes carriage/table lifting chain, two table plates, and a full-size rear guard plate.
⊲ Electric/hydraulic functionality
⊲ Sliding head for off-center workpieces
⊲ Five table height positions with lifting chain for easy adjustments
⊲ Includes two table plates, pressure gauge, and rear guard plate
• Motor: 3 HP, 220V, single-phase, 13.5A
• Max. table-to-piston distance: 361⁄2"
• Min. table-to-piston distance: 7 3⁄4"
• Ram diameter: 2"
T1242 Regular $578500
• Stroke: 10"
• Working plate size: 30" W x 12 3⁄4" D
• Maximum workpiece width: 27"
• Dimensions: 50" W x 27" D x 72" H
• Shipping weight: 1232 lbs.
T34347
High-Quality Tap & Die Sets
Grizzly's comprehensive line of tap and die sets deliver professional-grade threading solutions for both SAE and metric applications. Choose between durable steel alloy, titanium nitride (TiN) coated, or M2 high-speed steel (HSS) for extreme durability and performance. Whether you're rethreading existing fasteners or creating new threads, these sets offer a range of sizes to suit various tasks. Organized in sturdy, portable cases, they ensure easy access and storage, making them an essential addition to any machinist's or mechanic's toolkit.
SAE Steel Alloy, 40-Pc.
#4-40 to 1⁄2-20, NPT 1⁄8-27
Includes plug taps, dies, adjustable tap wrench, die stock, T-handle tap wrench, & carrying case.
SAE TiN-Coated, 45-Pc.
1⁄4-20 to 1-14
Includes plug taps, dies, adjustable tap wrench, die stock, die adapter, T-handle tap wrench, screwdriver, & carrying case.
SAE M2 HSS, 39-Pc.
#4-40 UNC to 7⁄16-14 UNC
Includes plug tap and die for each size, adjustable tap wrench, 1" OD die stock, T-handle tap wrench, screw pitch gauge, screwdriver, and molded plastic carrying case.
Metric Steel Alloy, 40-Pc.
Includes plug taps, dies, adjustable tap wrench, die stock, T-handle tap wrench the following sizes:
M3-0.5 – M12-1.75
• NPT 1⁄8-27
Metric TiN-Coated, 45-Pc.
M6-0.75 to M24-3.0
Includes plug taps, dies, adjustable tap wrench, die stock, die adapter, T-handle tap wrench, screwdriver, & carrying case.
Metric M2 HSS, 110-Pc.
M2-0.4 to M18-1.5
Includes plug tap, bottoming tap, and die for each size, 1" OD die stock, 1 1 ⁄ 2 " OD die stock, two adjustable tap wrenches, T-handle tap wrench, and metal carrying case.
SAE/Metric Steel Alloy, 60-Pc.
Includes plug taps, dies, tap wrench, die stock, T-handle tap wrench, screw pitch gauge & screwdriver & the following sizes:
• #4-40 – 1⁄2-20
• M3-0.5 – M12-1.75
• NPT 1⁄8-27
SAE/Metric Steel Alloy, 110-Pc.
#4-40 to 3⁄4-16 and M6-1.0 to M18-1.5
Includes plug taps, bottoming taps, dies, adjustable tap wrenches, die stocks, T-handle tap wrench, & carrying case.
Metric M2 HSS, 39-Pc.
Includes plug tap and die for each size, adjustable tap wrench, 1" OD die stock, T-handle tap wrench, screw pitch gauge & screwdriver.
Sizes:
• #4-40 – 3⁄4-16
• M6-1.0 – M18-1.5
• NPT 1⁄8-27
• NPT 1⁄4-18
SAE/Metric M2 HSS, 110-Pc.
Includes plug tap, bottoming tap, and die for each size, 1" OD die stock, 11 ⁄ 2" OD die stock, two adjustable tap wrenches & T-handle tap wrench.
Sizes:
• #4-40 – 3⁄4-16
• M6-1.0 – M18-1.5
• NPT 1⁄8-27
• NPT 1⁄4-18
Clamps
6" and 12" One-Handed Bar Clamp Kit, 4-Pk.
The composite handles and triggers are ergonomically shaped for comfort and deliver powerful gripping. Each creates up to 330 lbs. of clamping force.
Adjustable Hand Clamps
These high-quality hand clamps allow one-handed operation with a steel ratcheting mechanism that adds tension and locks the clamp in place. A must-have for all woodworkers. T33438
Model Throat Sale
T33438 2" $358
T33439 3" $408
T33440 4" $408
T33391 Regular $3995 Sale $3515
One-Handed Bar Clamps with Reversible Jaws
These clamps offer one-handed operation and feature reversible quick-release jaws, allowing you to also use them as spreaders. They have large, non-marring padded jaws, profiled steel bars for rigid stability, and a clamping force of 330 lbs.
Model Throat Length Sale
T32779 35⁄16" 6" $1210
T32780 35⁄16" 12" $1386
T32781 35⁄16" 18" $1491
T32782 35⁄16" 24" $1579
T32783 35⁄16" 36" $1755
6" Ratcheting Track Clamp
This clamp secures your track saw track to your workpiece with up to 551 lbs. of force. This lightweight and easy-to-use clamp has a maximum clamping capacity of 6" with a throat depth of 23 ⁄4". Track saw guide slots make for secure and fast clamping.
Quick Gear Clamps
These ratcheting gear clamps can create up to 551 lbs. of clamping force! Featuring a carbon-steel bar for strength, a thermoplastic rubberized jaw pad to prevent marring, and a quick-release jaw.
Model Throat Length Sale
T32784 3" 4" $1388
T32785 3" 8" $1358 T32786 3" 12" $2019
T33440
Workshop Accessories
Sliding Table Attachment for Table Saws
Turn your table saw into a sliding table saw!
This attachment made from heavy-gauge extruded aluminum easily mounts to your table saw, allowing you to rip and crosscut plywood and large panels with ease.
⊲ Precision miter fence with Easy-Lock adjustment and stops at common angles
⊲ Fits Grizzly G0771Z, G0899, G0962, and G1023RL-Series table saws, SawStop PCS Cabinet and CNS Contractor Table Saws, and Shop Fox W1837 hybrid table saw
Anodized aluminum components for durability and corrosion resistance
Extendable fence supports large workpieces T-track-mounted
1000-Lumen Workbench Light Charging Station
• Two adjustable-position 500-lumen LED lights
• Eight 110V outlets and two USB charging ports
• Built-in cell phone holder
• Separate switches for outlets and lights
Multi-Function Magnetic LED Task Light
• Push-button selector switches between 100 and 300 lumens
Table Saw Crosscut Sled
Cut precise miters, crosscuts, and compound angles on hard-to-hold workpieces and wide boards. Fits 3 ⁄4" W x 3 ⁄ 8 " D miter slots.
• Miter range: 0–47.5°
• Fence size: 243⁄8" x 1⁄2" x 29⁄16"
• Fence T-slot size: 5⁄16"
Tenoning Jig
Fits left- and right-tilting table saws with a 3 ⁄ 8 " x 3 ⁄4" miter slot and designed for stock up to 3 1 ⁄4" thick.
Features a 4-outlet surge protector, 2 USB charging ports, 3 shelves, and 6 bays for hanging cordless power tools.
• Powerful magnet for easily mounting to ferrous metal surfaces
• Includes clamping bracket and two auxiliary mounts that can be screwed into walls, benches, and other surfaces
4-Pc. Digital Woodworking Set
Includes four popular digital tools: 7" Digital Protractor, Digital Caliper, Digital Depth Gauge and Digital Angle Block.
• Adjustable guide bar for eliminating loose play
• Bevel angle: 90°–75°
• Backstop angle: 90°–45°
* Additional assembly required for left-tilting saws.
12 Oz. Slipit® Sliding Compound
Cast-iron table sealant and bit/cutting blade lubricant. Reduces sliding friction and hang-ups. Repels moisture and dirt, and inhibits rust. Comes in a 12 oz. aerosol can. Contains no silicone or CFCs.
* Aerosols cannot ship via air service. Aerosols can only ship to lower 48 states.
Workshop Accessories
Moving Dolly
1000 Lb. Capacity
Features durable, reinforced polypropylene construction, locking swivel casters, and rubber skid plates to help secure your items. Measures 30
with casters mounted.
5" Multi-Jaw Rotating Bench Vise
This versatile vise features 360° rotating jaws designed to hold both flat and round stock, a 360° swiveling base, an anvil face, and aluminum jaw caps.
10" Legacy No. 4 Smoothing Plane with Depth Guides and Adjustable Hand Positions
This unique plane features an adjustable knob and tote for comfortable planing no matter your hand size, and removable depth guides for precision planing of thin workpieces.
• Lateral adjustment screws for fine-tuning hard and soft wood finishes
• Includes 2" steel blade sharpened to a 45° bevel
• 9½" Cast-iron sole
• Adjustable frog
Mobile Lumber Rack 1100 Lb. Capacity
A versatile rack with efficient storage and convenient mobility, crafted with precision from all-welded 16-gauge steel.
• Arm stops on each level
• Full-weld gussets on cantilever arms
• Dimensions: 601⁄2" W x 30" D x 581⁄2" H
Mobile Lumber/Plywood Cart 1100 Lb. Capacity
This cart provides storage for lumber and long materials, as well as sheet goods such as plywood and drywall.
• Robust 18-gauge steel construction
• Dimensions: 591⁄2" W x 451 ⁄ 2" D x 551⁄2" H
Grizzly Trucker Hats
80" European-Style Cabinetmaker's Benches
80"
European-Style
Cabinetmaker's Bench
with Two Large Storage Cabinets
• Top: 75" W x 241⁄4" D
• Shelf: 461⁄2" W x 151⁄2" D
• Compartments: (2) 22" W x 17" D x 135⁄8" H
• Dimensions: 80" W x 30" D x 34" H
For those who appreciate the simple, ingenious functionality of a European-style cabinetmaker's bench, we have two masterfully crafted options. Each has front and end vises with bench dogs for securing workpieces flat to the table for face work like planing and sanding. The tops feature a unique recess for quick access to tools, and a large open shelf underneath. Additional storage options include nine drawers or two large cabinets. Two large storage cabinets with full-length piano-hinge door
80"
European-Style
Cabinetmaker's Bench
with Nine 12" Felt-Lined Drawers
• Top: 75" W x 241⁄4" D
• Drawers: 12" W x 141⁄4" D x 3" H
• Shelf: 461⁄2" W x 151⁄2" D
• Dimensions: 80" W x 30" D x 341⁄4" H
recess for quick access to tools
Workbenches
48" x 20" Adjustable-Height Workbench with Butcher Block Top and 110V Power Station
Useful for assembly and glue-ups, layout work, machine stands, or even as an outfeed table. Set the height for your needs, and enjoy the convenience of a built-in power strip with four 110V outlets and two USB charging ports. The top is durable 11 ⁄4 -thick Hevea with a natural-grain finish. The legs are 18-gauge steel that can support up to 1300 lbs.
T34010
Regular $17900
Sale $16100
66" Butcher Block Workbench with Front Vise
Adjustable legs with leveling feet allow you to set the height from 31"–383⁄4"
A robust workbench with a front-mounted vise, an extra-deep table, and stout 3 1 ⁄ 8 " x 3 1 ⁄ 8 " legs for stability.
• Top: 66" W x 36" D x 3" Th
• End vise: 14" W x 5" H, 51⁄4" capacity
• Dimensions: 66" W x 42" D x 38" H
T34092
Regular $66900
Sale $59900 Plus $19900 freight
66" Butcher Block Workbench with End Vise, 6 Felt-Lined Drawers, and 2 Large Cabinets
• Top: 60" W x 193⁄4" D
• 4 Top drawers: 165⁄8" W x 125⁄8" D x 13⁄4" H
• 2 Bottom drawers: 165⁄8" W x 125⁄8" D x 27⁄8" H
• Compartments: (2) 19" W x 14" D x 12" H
• Dimensions: 66" W x 193 4" D x 34" H
T34094
Regular $74500
Sale $67000 Plus $19900 freight
72" Butcher Block Workbench with Front Vise and 6 Felt-Lined Drawers
• 2 Top drawers: 137⁄8" W x 141⁄4" D x 2" H
• 2 Middle drawers: 137⁄8" W x 141⁄4" D x 4" H
• 2 Bottom drawers: 137⁄8" W x 141⁄4" D x 6" H
• Dimensions: 72" W x 31" D x 38" H
T34090
Regular $69900
Sale $62900 Plus $19900 freight
Built-in power station with four 110V outlets and two USB charging ports
Tool Storage
Stacking Steel Tool Chests
Organize Your Tools in the Shop and on the Go
These stackable chests will keep your favorite tools ready at a moment's notice. With protective drawer liners and a durable powder-coated finish, they'll last for years to come.
H0839 - 9-Drawer Upper Chest Regular $41900 Sale $37700
Stacking Steel Tool Chest and Rolling Base
Modular Storage For Your Entire Tool Collection
Purchase as a set or individually to keep your tools organized in one place with the option to separate sections as needed. Each box features a protective rubber mat, ball-bearing drawer slides, and a key lock system to keep you tools secure.
H5651 - 4-Drawer Upper Chest Regular $44900
Sale $40400
Plus $19900 freight
H0838 - 6-Drawer Upper Chest Regular $33500
$29900
H0837 - 3-Drawer Lower Chest Regular $17900
$16100
42" Steel Tool Chest and Cabinet Set
Store 1200 lbs. of Tools in this Versatile Cabinet Combo
This durable 42" Tool Chest and Cabinet Set is designed to keep hundreds of tools safe and organized. It features a built-in power and charging station, soft-close ballbearing drawer slides, and sturdy double-walled, 21-gauge, all-steel construction. Never lose a tool again!
towel holder
H5650 - 4-Drawer Rolling Base Regular $55500
Sale $49900
Plus $19900 freight
Industrial Stainless-Steel Rolling Tool Cabinets
These tool cabinets are made from 430-grade stainless steel with a fingerprint-resistant finish. They each feature a durable 1½" thick rubberwood top, a flat-key central locking system, 6" casters, and 660 lbs. of load-bearing strength.
100-Lb. Capacity soft-close ball-bearing drawer slides Built-in power strip with USB ports 11⁄2"-Thick rubberwood top
oversize storage compartment
$19900
- 96" L, 24 Drawers
Locking casters
T27880 - 72" L, 15 Drawers
Red Oak Tooling Case
An eye-catching angular case with seven felt-lined drawers and a thick glass top—perfect for storing your lathe tooling, end mills, and other precision instruments. Measures 91 ⁄ 2 " W x 201 ⁄ 8 " D x 123 ⁄ 8 " H.
T34005
Regular $15595 Sale $13700
Tool Storage
9-Drawer Red Oak Tooling Chest
23" 18-Drawer Red Oak Mid Riser
Designed to stack with our 23" red oak tool cabinet series, or to be used on its own for benchtop storage. Measures 23 1 W x 111 ⁄ 2 " D x 121 ⁄4" H.
T33974
Regular $33500
Sale $29400
24" x 24" 6-Drawer Red Oak Utility Cart
Great as a shop stand for benchtop machines or a rolling workstation with ample room for tool and supply storage. Features large adjustable shelves, six feltlined drawers with ball-bearing slides, and a top lip that prevents items from falling off. Measures 30" W x 30" D x 38 1 ⁄ 2 " H.
T33976 Regular
A beautifully crafted compact tooling chest with chromeplated carrying handles and nine multi-sized felt-lined drawers for organizing small items. Measures 16" W x 8" D x 11" H.
T33977
Regular $20500
Sale $18000
23" 9-Drawer Red Oak Tool Chest
Features felt-lined drawers, chrome hardware, a machinist's mirror, and a spring-loaded locking pin that secures the drawers when the lid is closed. Measures 24" W x 11" D x 151 ⁄ 2 " H.
T33819
Regular $28500
Sale $25000
26" 10-Drawer Red Oak Tool Chest
Part of our stackable 26" red oak tool storage series, these premium tool chests offer style and unique drawer layouts. They feature felt-lined drawers, chrome hardware, a machinist's mirror, and a spring-loaded locking pin that secures the drawers when the lid is closed. Measures 26" W x 107⁄ 8 " D x 18
T33970
Hundreds of Tools & Machines!
Huge selection of incredible deals across all categories: Woodworking, metalworking, DIY, small shop, and industrial!
15" 2 HP Benchtop Planer with Spiral Cutterhead and Digital Readout
Finally, a 120V portable benchtop planer that can handle 15" wide boards!
⊲ Digital readout for board thickness
⊲ Micro-adjustable depth stop with 5-presets
⊲ Powerful 2 HP, 120V motor with spiral cutterhead
Tons of Shop Accessories!
Wide variety of dust collectors, workbenches, tool boxes, drill bits, and more—everything you need to outfit your shop!
Quiet Series® HEPA Cyclone Dust Collectors
These advanced dust collectors combine 2-stage cyclone separation with HEPA filtration and Grizzly's GROWL-TECH™ technology that monitors machine performance, automates filter cleaning, and more.
