Portfolio

彭潇/XIAOPENG

Personal Experience

PENGXIAO

F/MasterofArt

DateofBirth:18.08.1998

Tel.:+8617379700818

E-mail：pengxiaoshirley@163.com

Wechat:Oaixgnep818

2016-2021/NanchangUniversity/Architecture

·BachelorofArchitecture;

·GPA:83.33;

·Duringmyundergraduatestudies,Ipublishedtwopapersinnational-leveljournals andparticipatedinseveralprovincial-levelresearchprojectsonarchitecturalheritage conservation.Iwasalsoinvolvedinthesurveyingandmappingofmorethanten ancientvillages;

·06/2018,SecondPrizeat2018WorldUniversityStudents'BridgeDesignCompetition (Group);

·06/2022，Thesecondprizeof"FengheCup"ArchitectureGraduationDesign SelectionofJiangxiProvince（Individual）.

2021-2022/ManchesterSchoolofArchitecture（UniversityofManchester& ManchesterMetropolitanUniversity）

·MasterofArtinArchitectureandUrbanism；

·Maininterests:1.Architecturalconservationandurbanrevival;2.Streetsafetyand youthcommunitydesign.

Sept.2022-Dec.2022/CCTNShanghaiBranch

·Intern,andsubsequentlyhired；

·Duringtheinternship,participatedinandcontributedtoaprojectthatwonan award.

Jan.2023.-Aug.2024/CCTNShanghaiBranch

·ArchitecturalDesigner；

·Participatedinmultipleurbanrenewal/buildingrenovationprojects,includingthe bidding,schematicdesign,preliminarydesign,andconstructiondrawing;

·Beresponsibleforandledinternsintheproductionofbiddingdocuments,achieving thirdplaceinthebidding;

·Involvedinvarioustypesofprojectssuchasurbandesign,railstationdesign, exhibitioncenterdesign,commercialbuildingdesign,hoteldesign,andlandscape bridgedesign;

Aug.2024-PRESENT/IndependentArchitecturalDesigner

·Participatedinthearchitecturalandinteriordesignofseveralbuilding renovation/newconstructionprojects.

Certificates andSkills

·IELTS6.5；

·Softwares:

CAD/Sketchup/Photoshop/Indesign/Rhino/Vray/Revit/Grasshopper/Illustartor/Lumion

·Proficientinphysicalmodelmakingandskilledintheuseof3Dprintingtools.

Project Experience InCCTNShanghaiBranch

July.2023-April.2024/DongfengMotorFactoryRenovationProjectinShiyanCity,Hubei Province

·Biddingphase:Responsibleforinterpretingbids,organizingplanningdocumentsand siteboundaryconditions,draftingQ&Alists,andcommunicatingdesignboundary conditionswiththeclientandplanningdepartments;

Outlinebiddingproposaldocument,excavationofgeographicalinformation,drawing ofanalysisdiagrams;

·ConstructionDrawing:Responsibleforcommunicationandinformationsubmissionwith variousprofessionssuchasstructure,equipment,andbudget;Drawingplans,elevations, andsomewalldetaildrawings.

April.2023-April.2024/RenovationProjectofaPlotonYangliuqingRoad,PutuoDistrict, ShanghaiCity

·Biddingphase:Proposingoneproposalbasedonthechiefdesigner's sketches;Preliminaryoutlineofthetext,excavationofgeographicalinformation,drawing ofanalysisdiagrams;Sunlightcalculation,summarizingsiteboundaryconditions;Physical modelproduction.

Sept.2022-Jan.2023/UrbanDesignofQingdaoArtificialIntelligenceIndustrialDistrict ·Theprojectwonthethirdprizeofthe"2023QingdaoOutstandingPlanningandDesign Award"

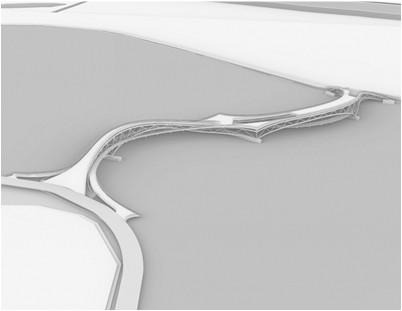

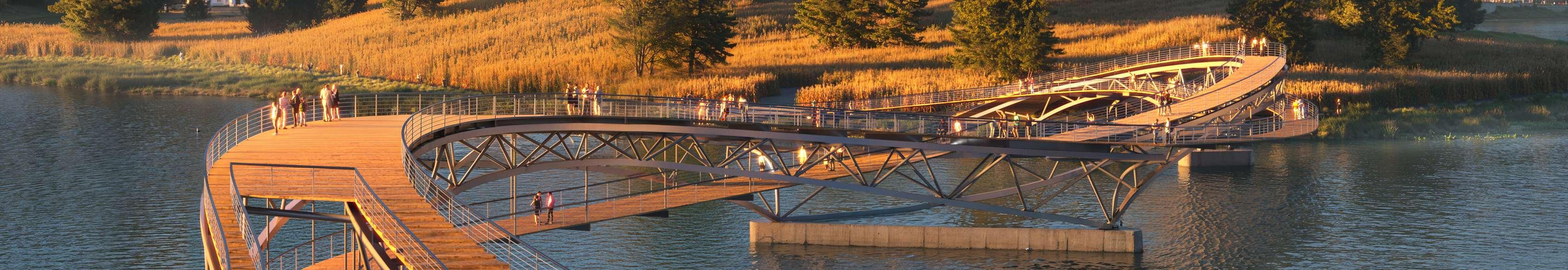

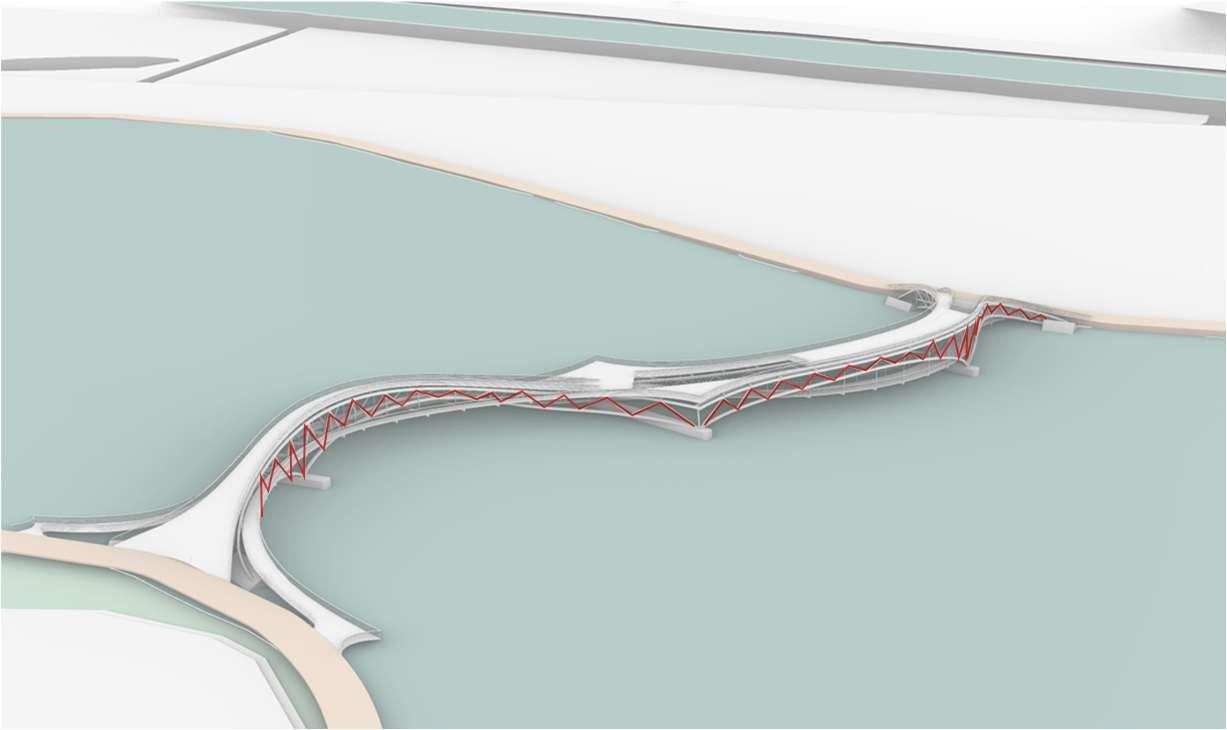

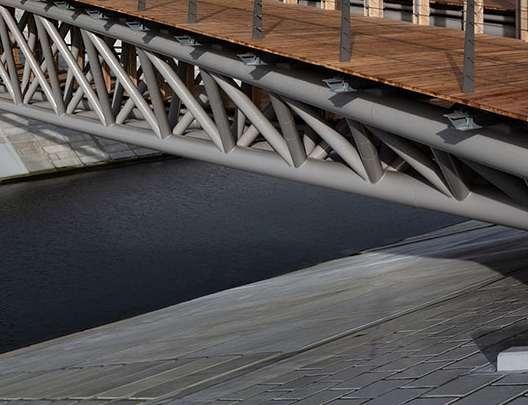

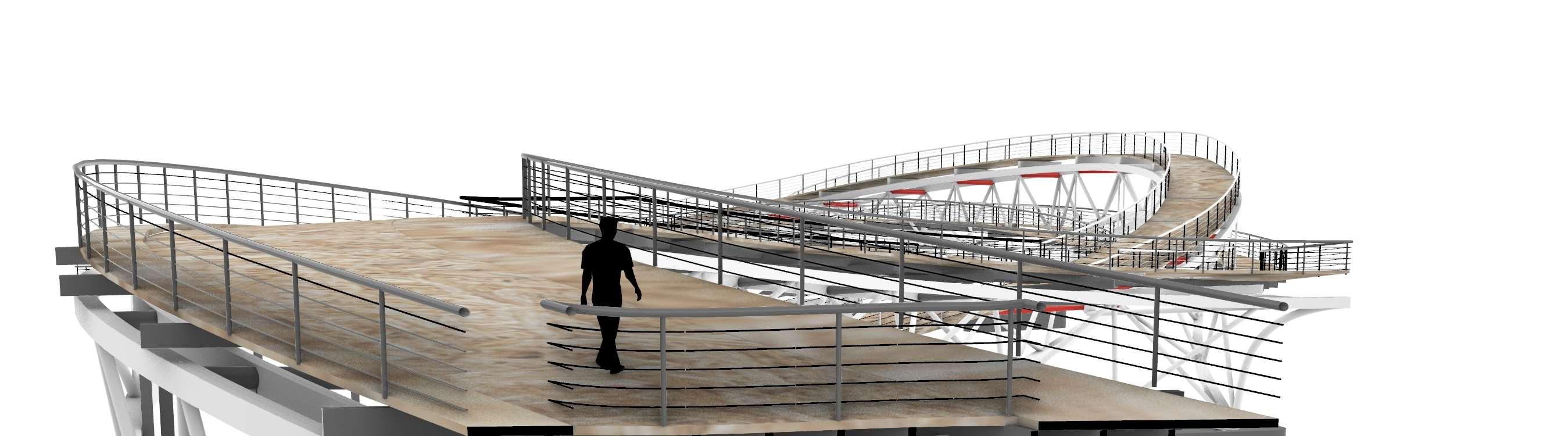

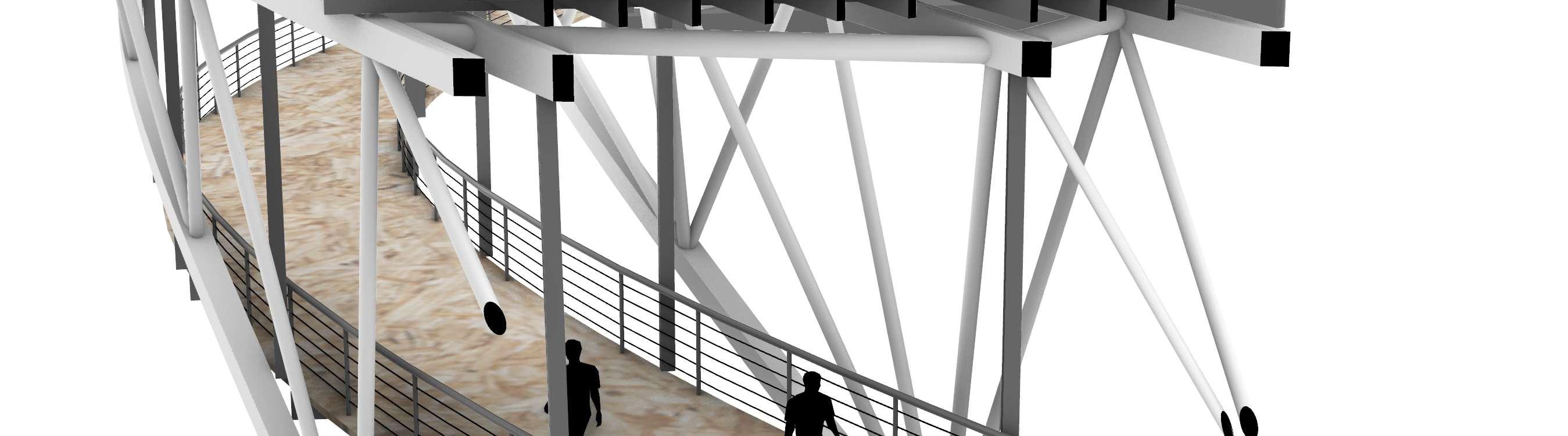

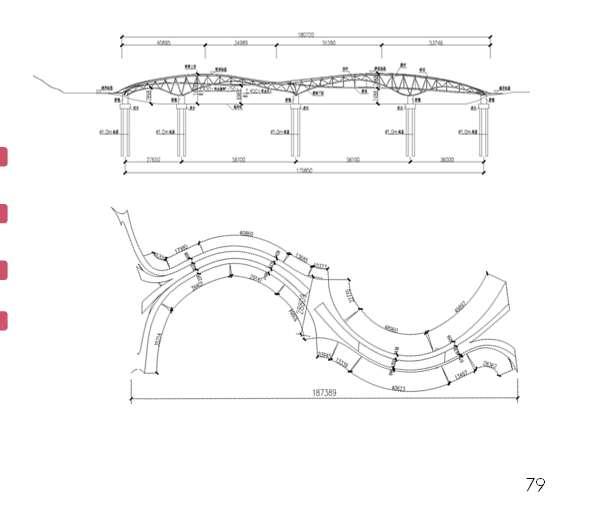

March.2024-May.2024/Bidding,FeiLongLakePedestrianLandscapeBridgeDesign Competition

·Theprojectwonthethirdplaceinthecompetition.

March.2023-May.2023/ConstructiondrawingoftheMinghuInternationalScienceand InnovationDistrict

May.2024/Bidding,BeijingLiXianStationProject

Sept.2022-Jan.2023/Urbandesign,JiabeiDistrict,JiaxiangCounty,ShandongProvince.

AsanIndependentDesigner

Sept.2024-March.2025/GuanshanLakeResortProjectinGuiyangCity ·Architecturalschemedesign;

·Independentlyconnectingwithconstructiondrawingsandothercooperative professions.

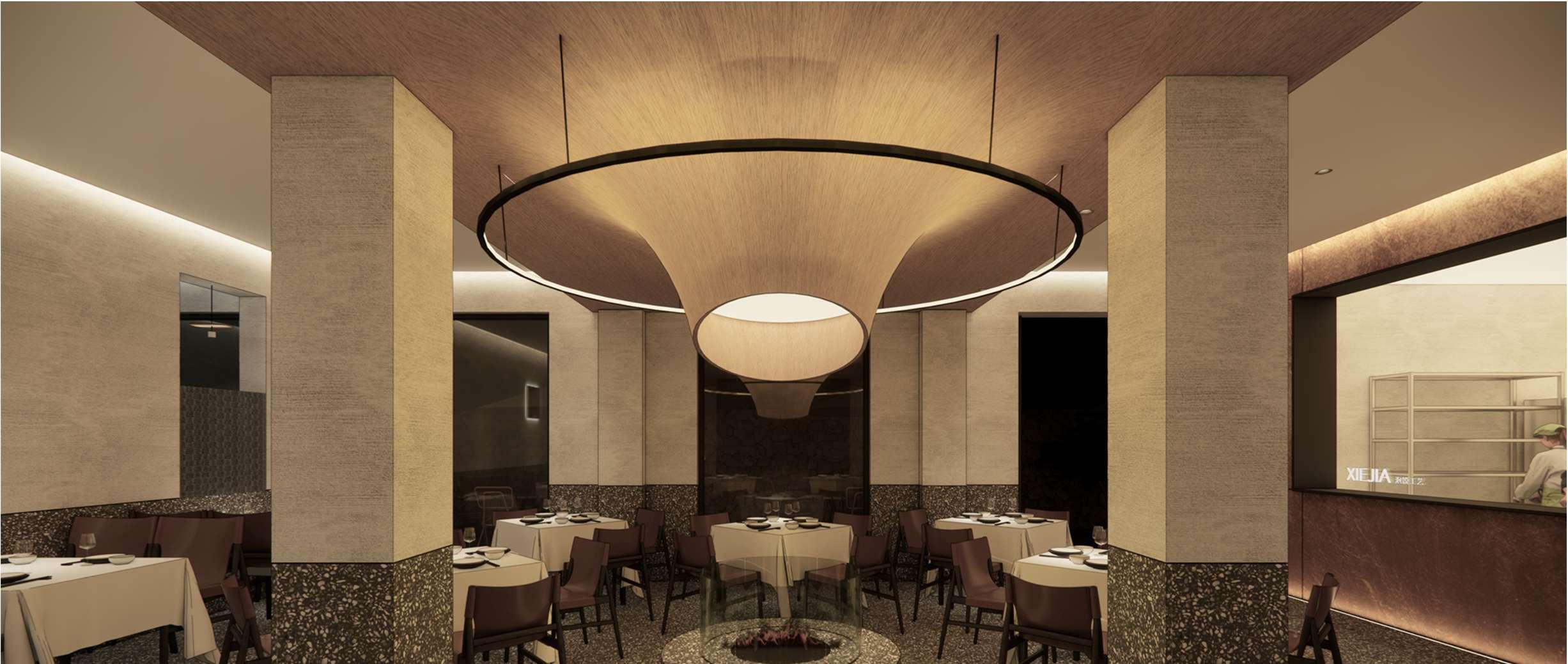

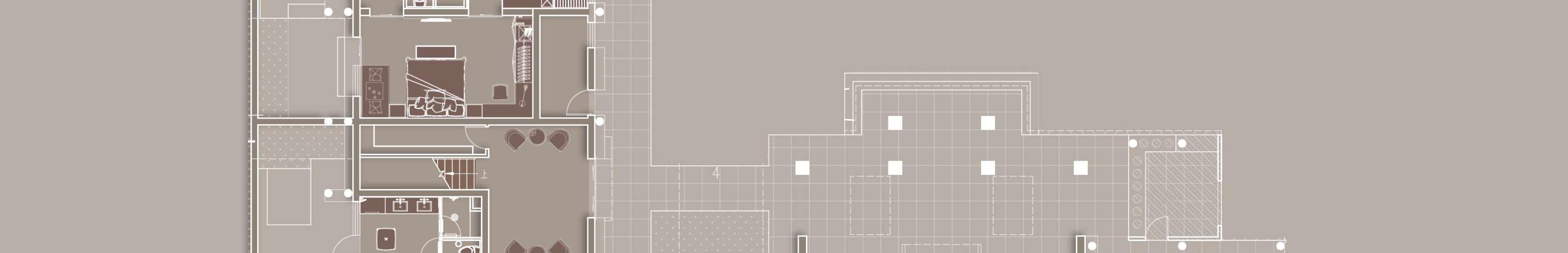

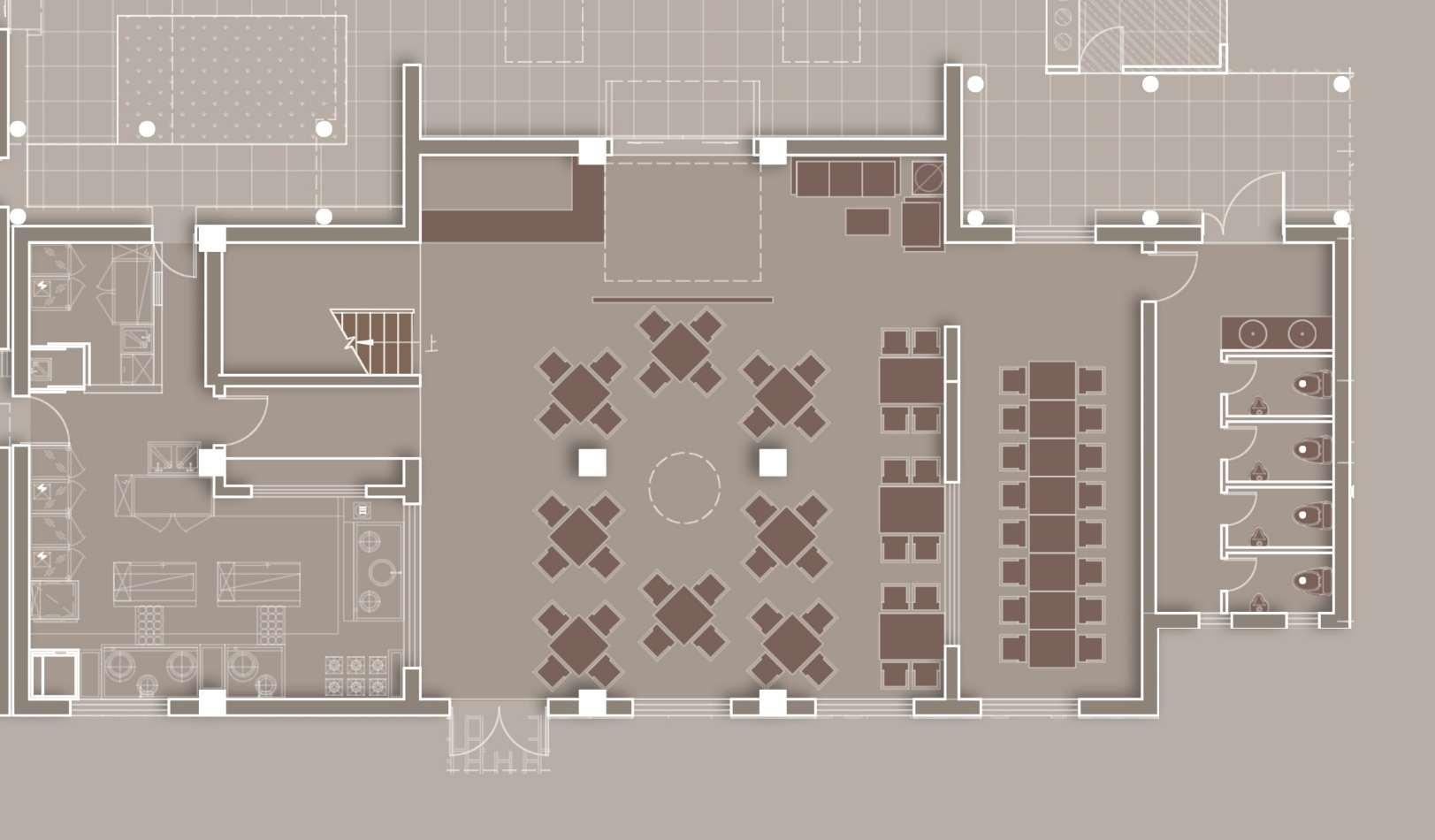

·Independentlycompletedtheinteriorschemeofspacessuchasrestaurants.

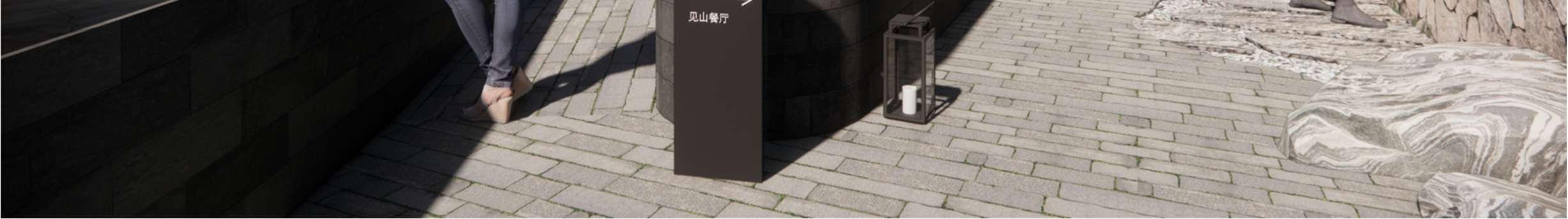

Sept.2024-Jan.2025/RenovationofXiejiaxiaoyuaninCherryValley,Xi'anCity ·Architecturalschemedesign;

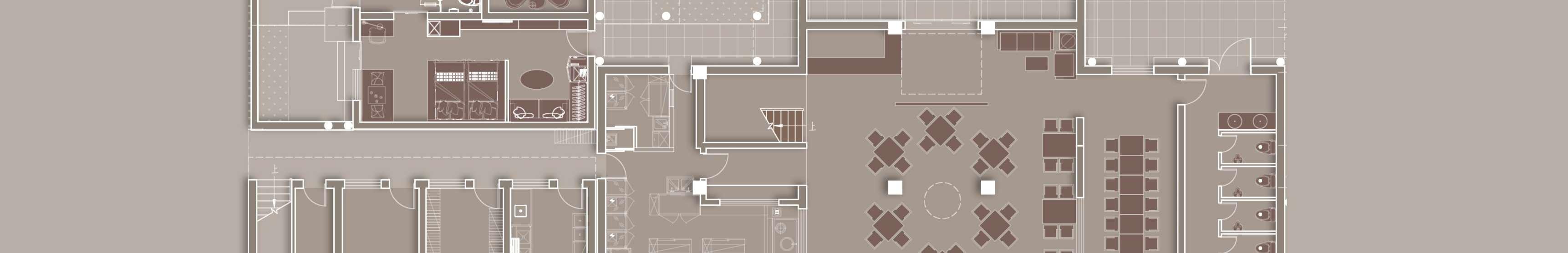

·Participatedintheinteriorschemedesignofspacessuchasrestaurantsandhotels.

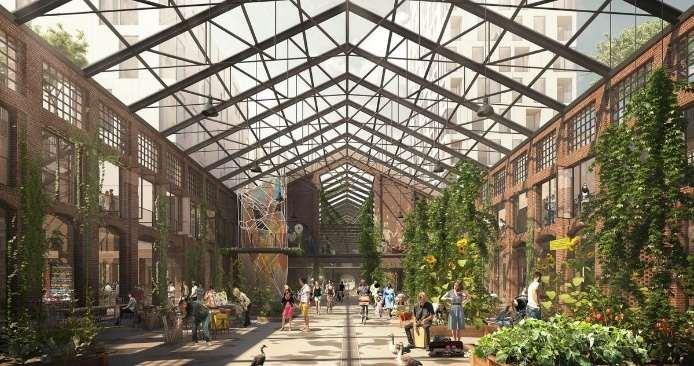

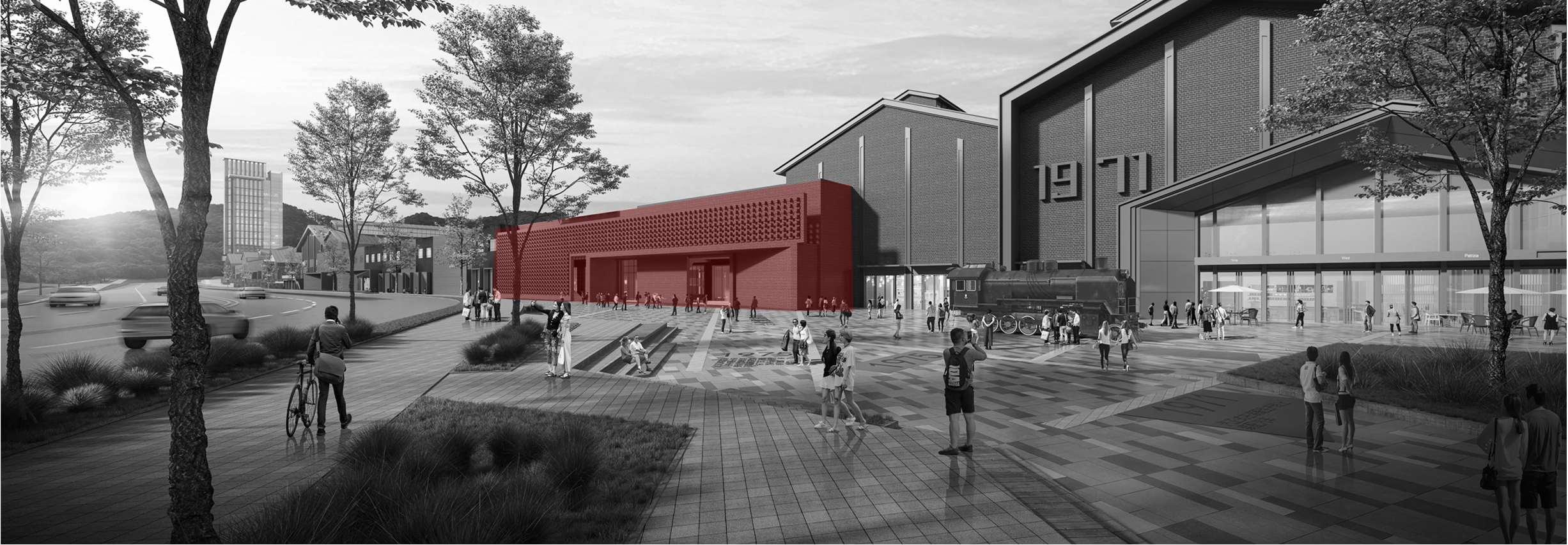

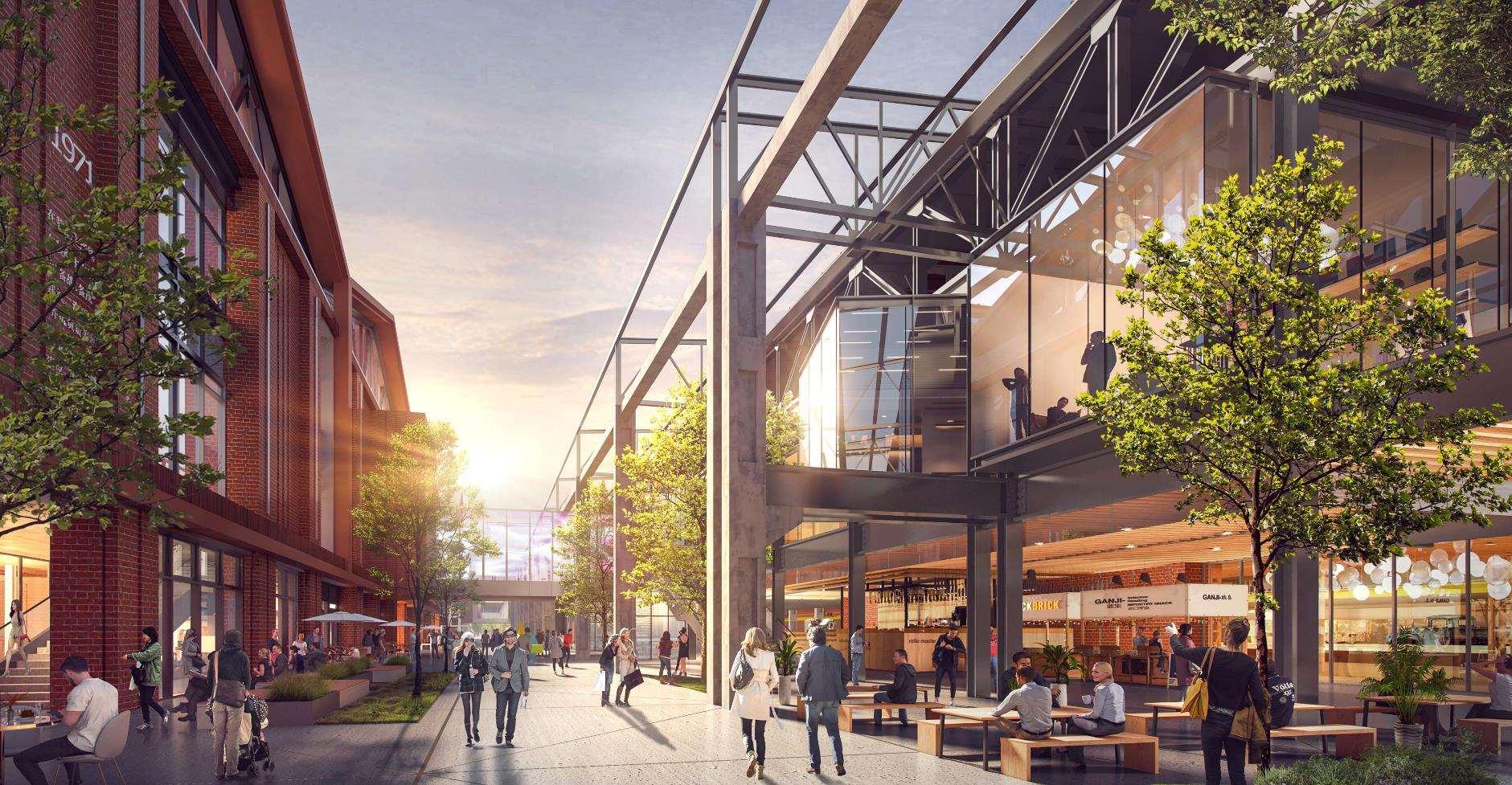

DongfengMotorFactoryRenovationProject inShiyanCity,HubeiProvince

FactoryRenovation/UrbanRenewal/ExhibitionArchitecturalDesign

CompletionYear:2024/ProjectStatus:UnderConstruction Participatedin:Bidding/ConceptDesign/PlanningDesig/ArchitecturalConcept Design/ExpandedPreliminaryDesign

CompletionYear:2024/ProjectStatus:ArchitecturalConceptDesign Participatedin:Bidding/ConceptDesign/PlanningDesig/Architectural ConceptDesign 02

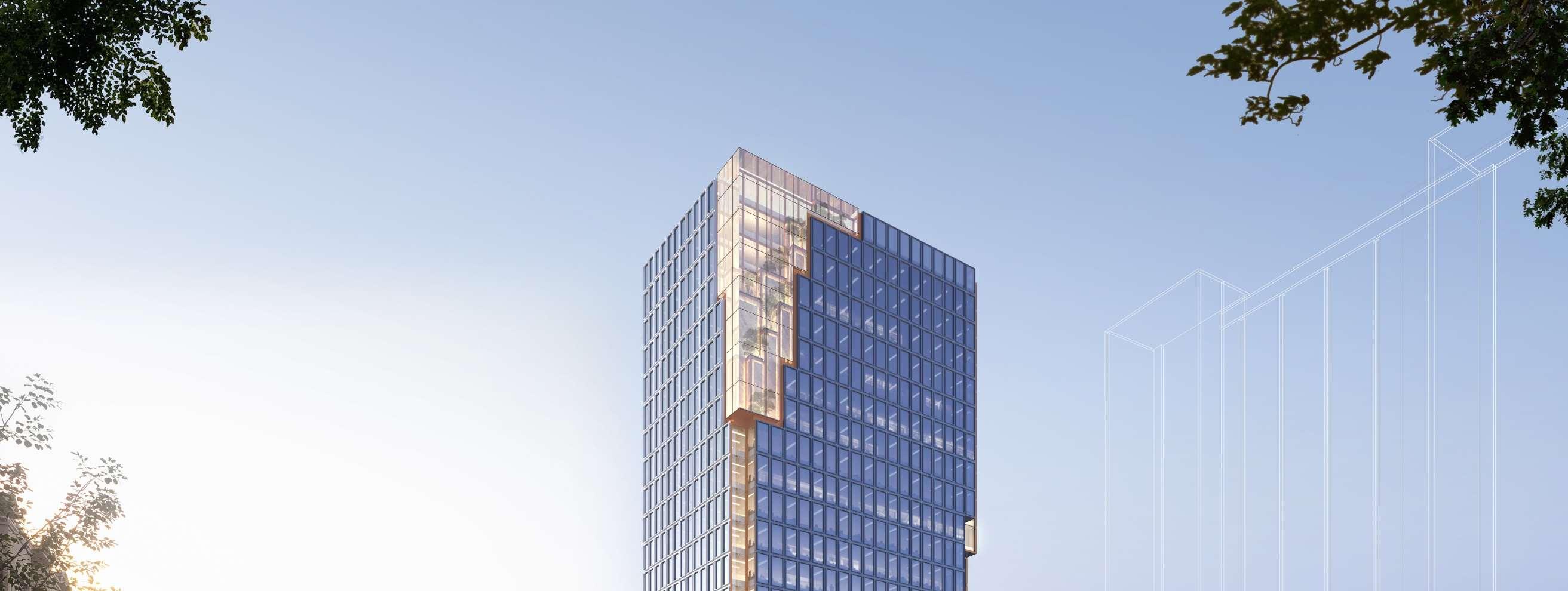

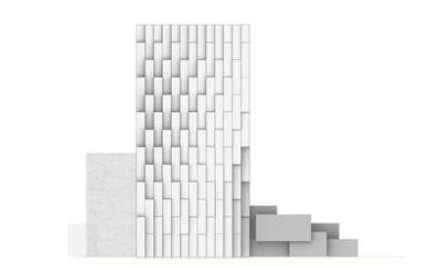

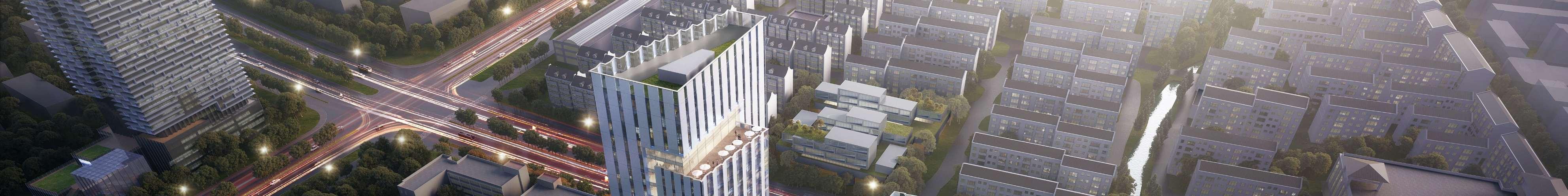

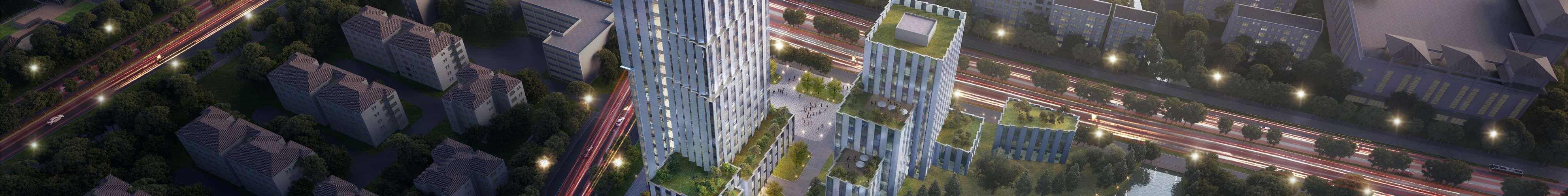

RenovationProjectofaPlotonYangliuqing Road,PutuoDistrict,ShanghaiCity

UrbanRenewal/Mixed-UseCommercialandOffice Buildings/PublicSpace

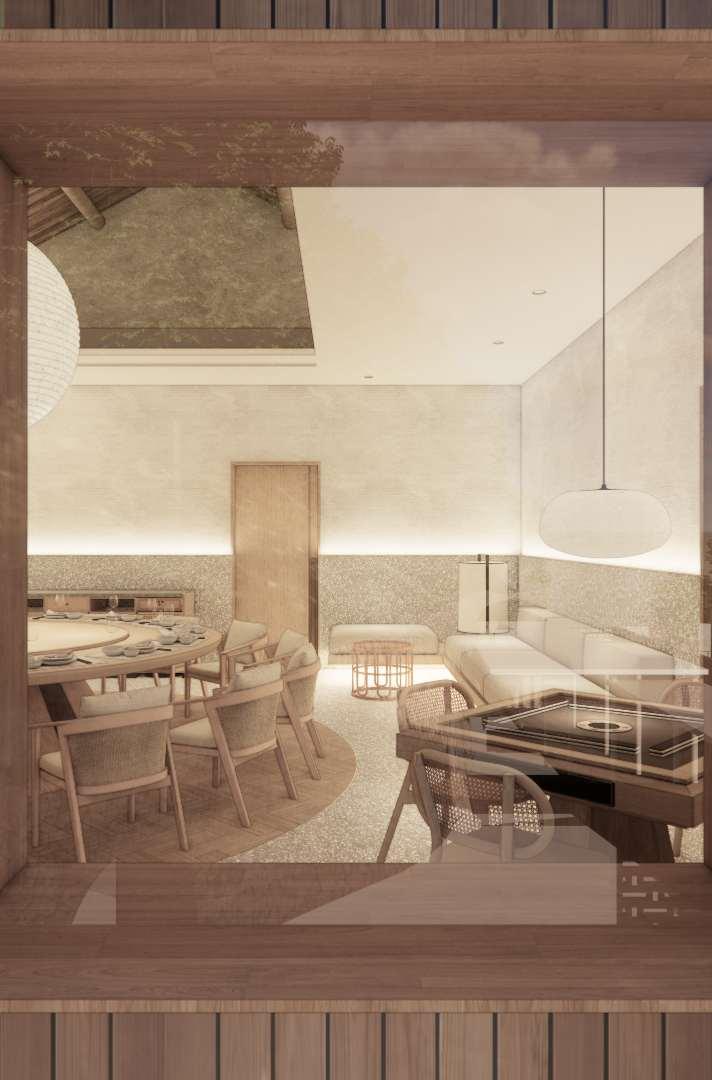

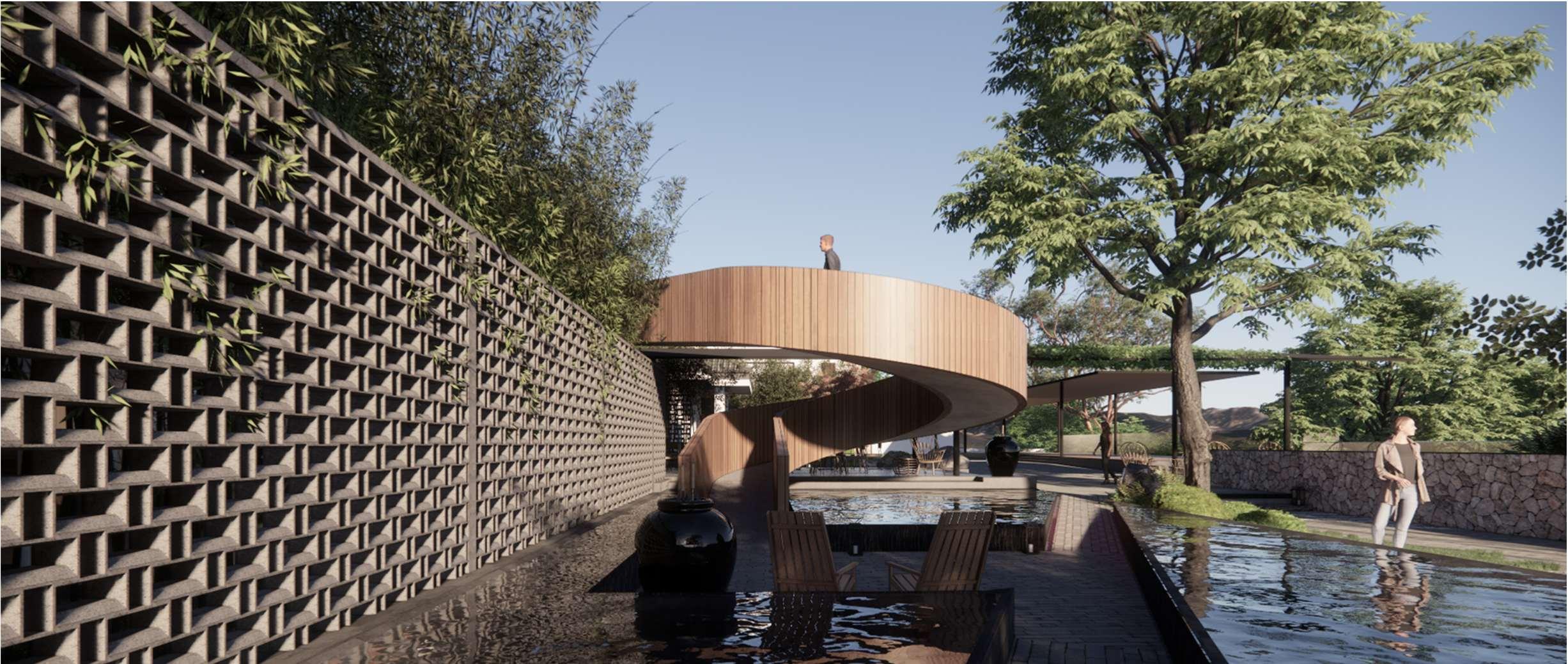

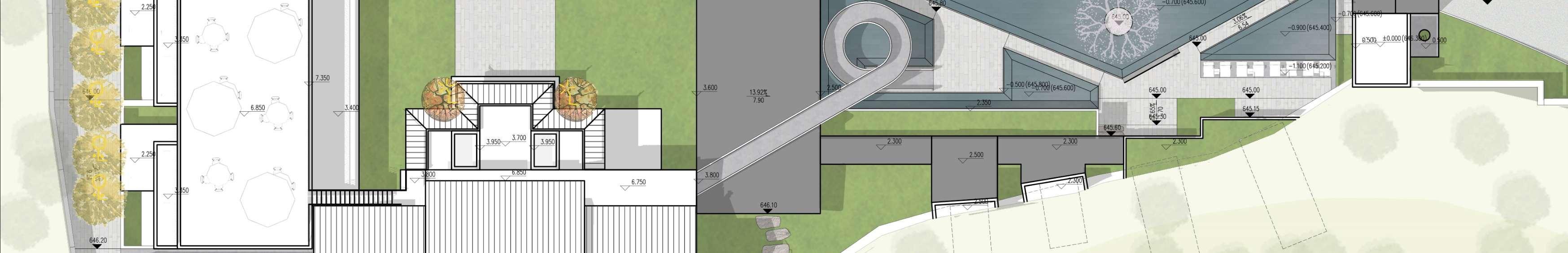

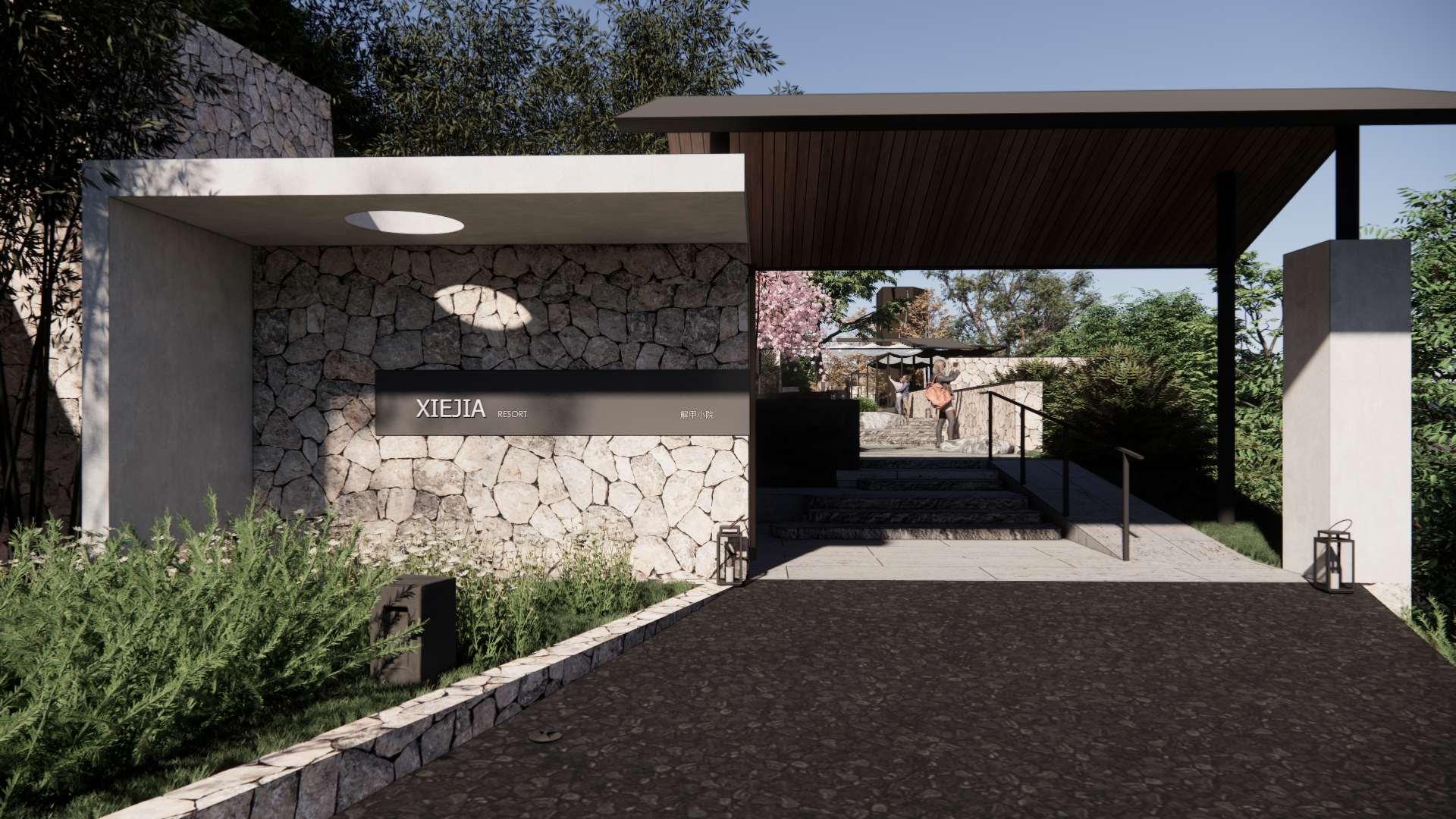

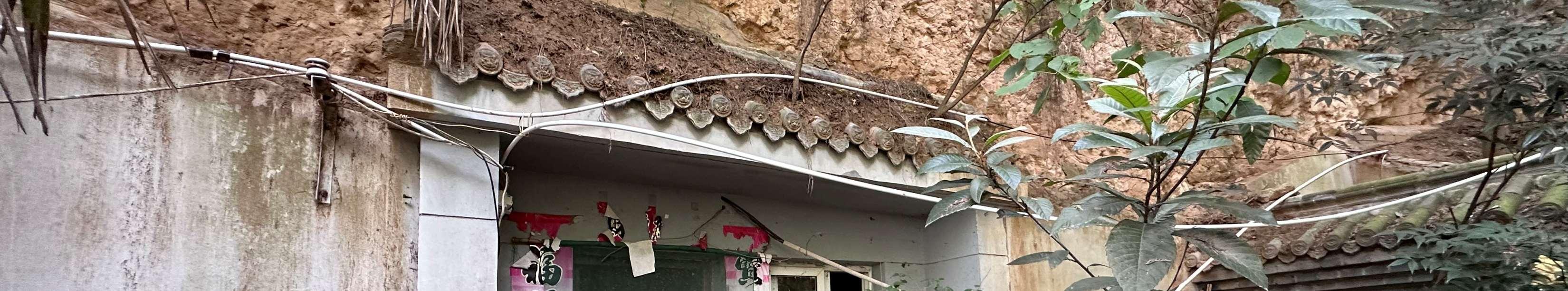

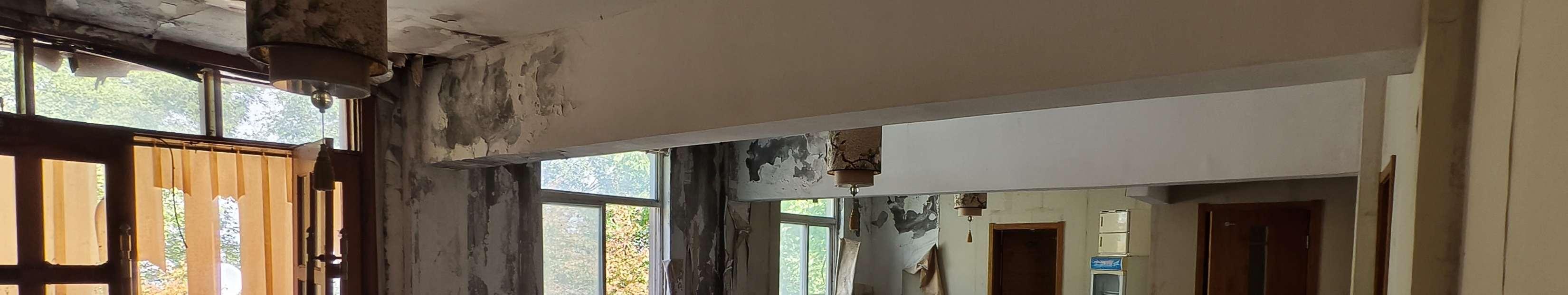

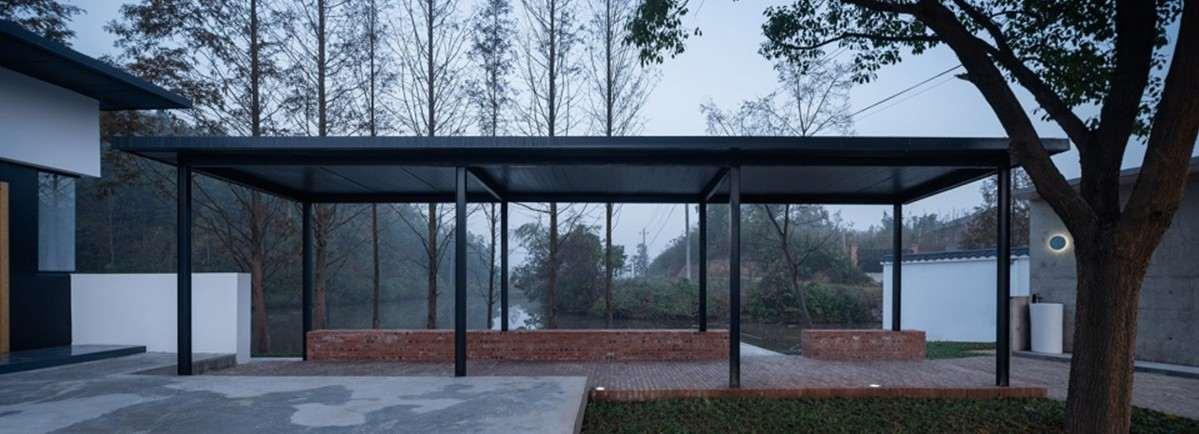

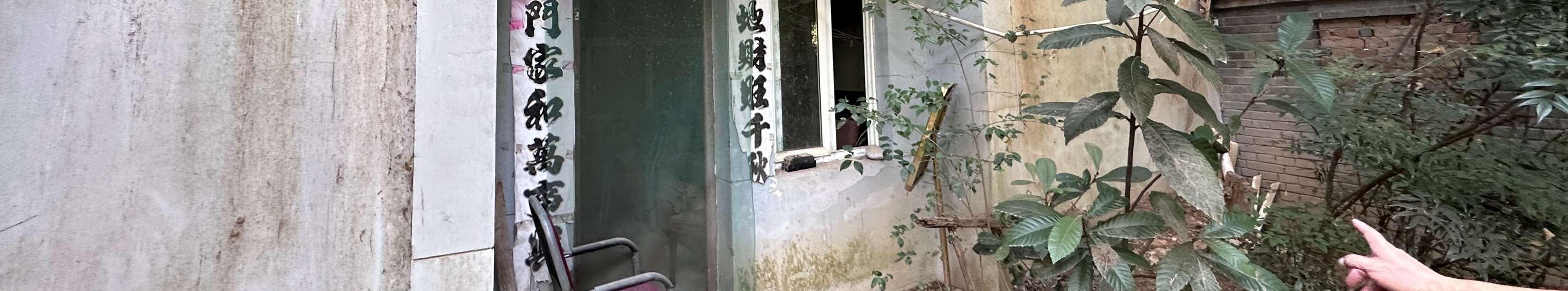

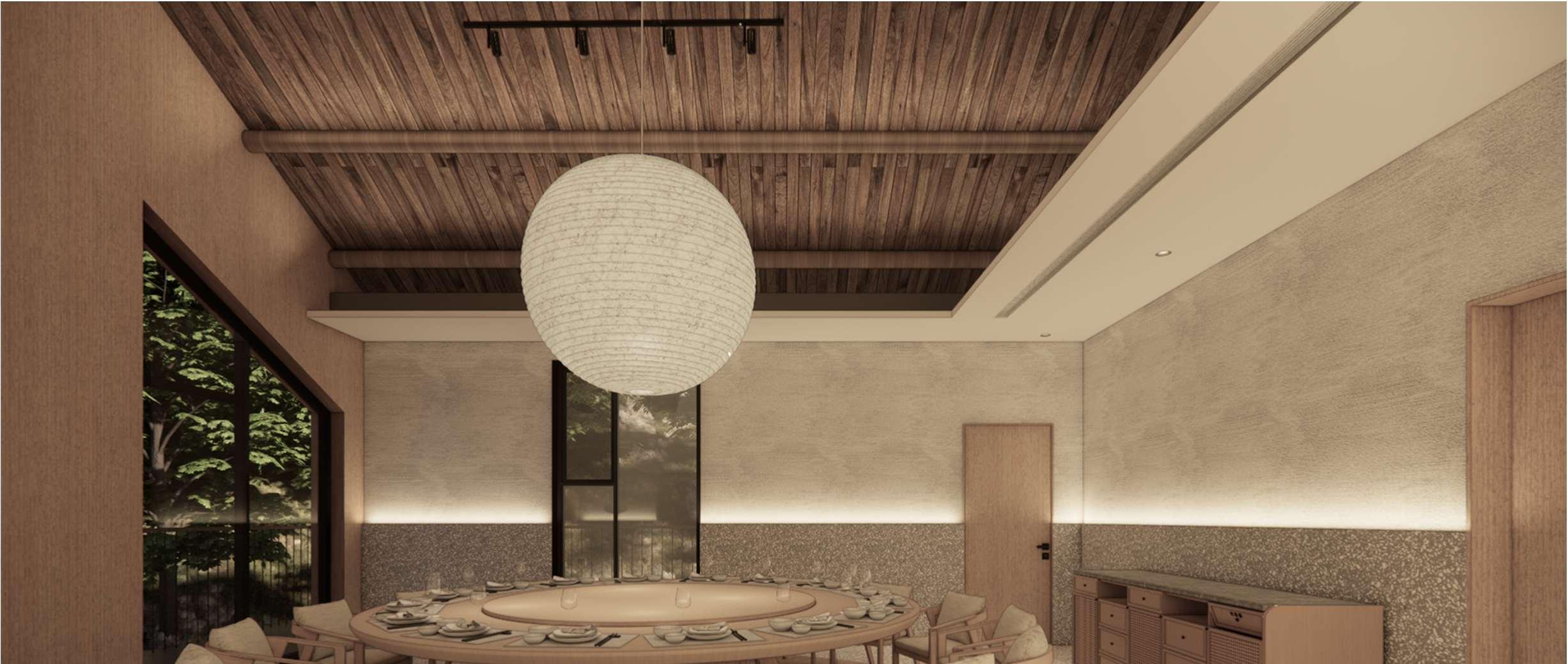

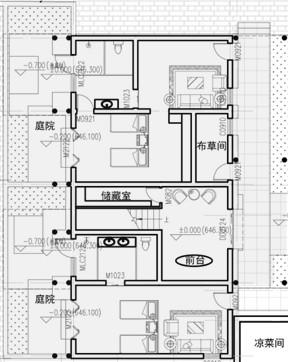

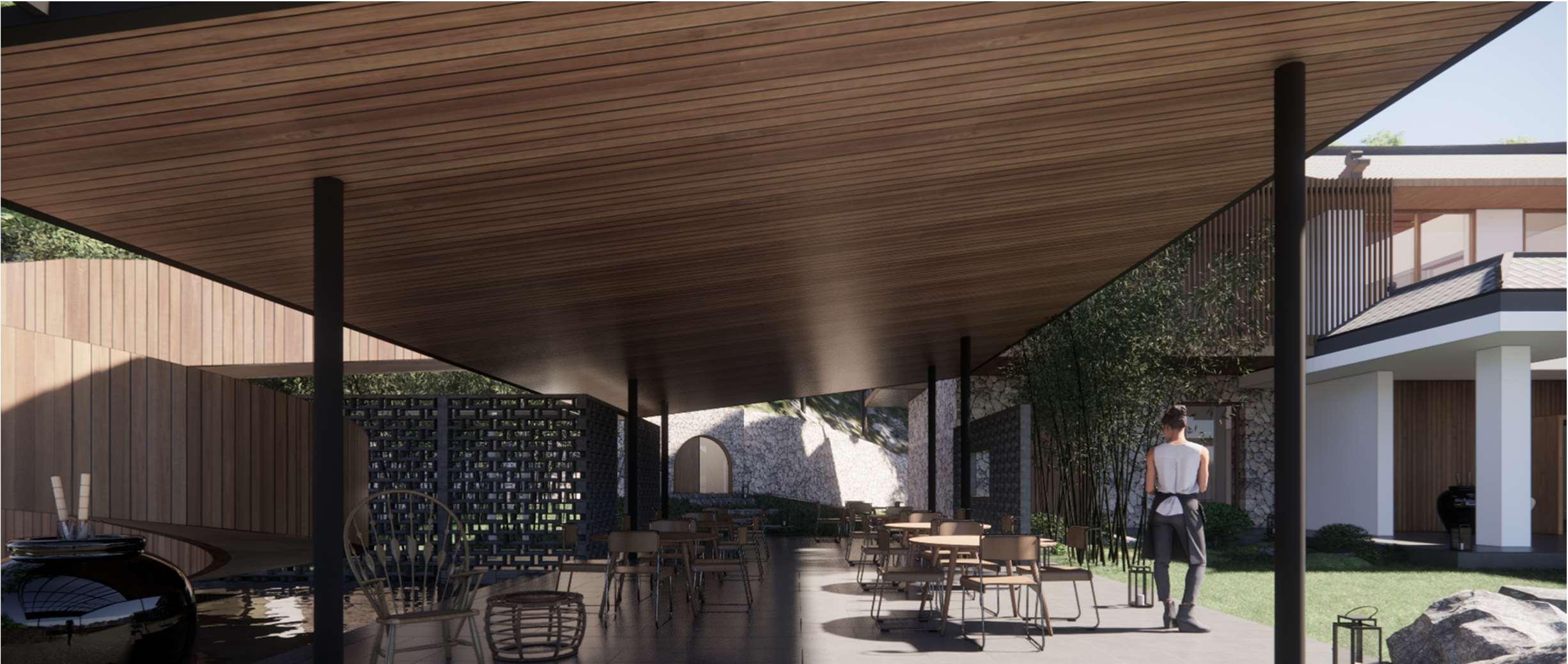

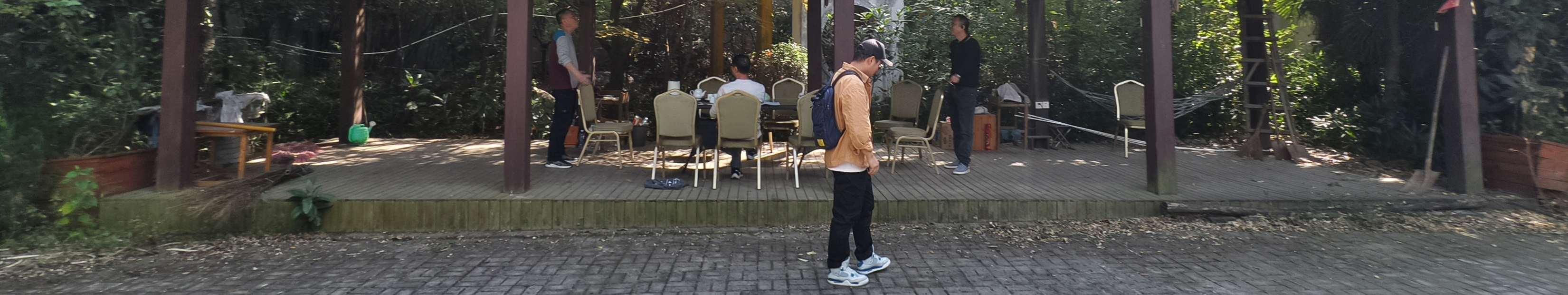

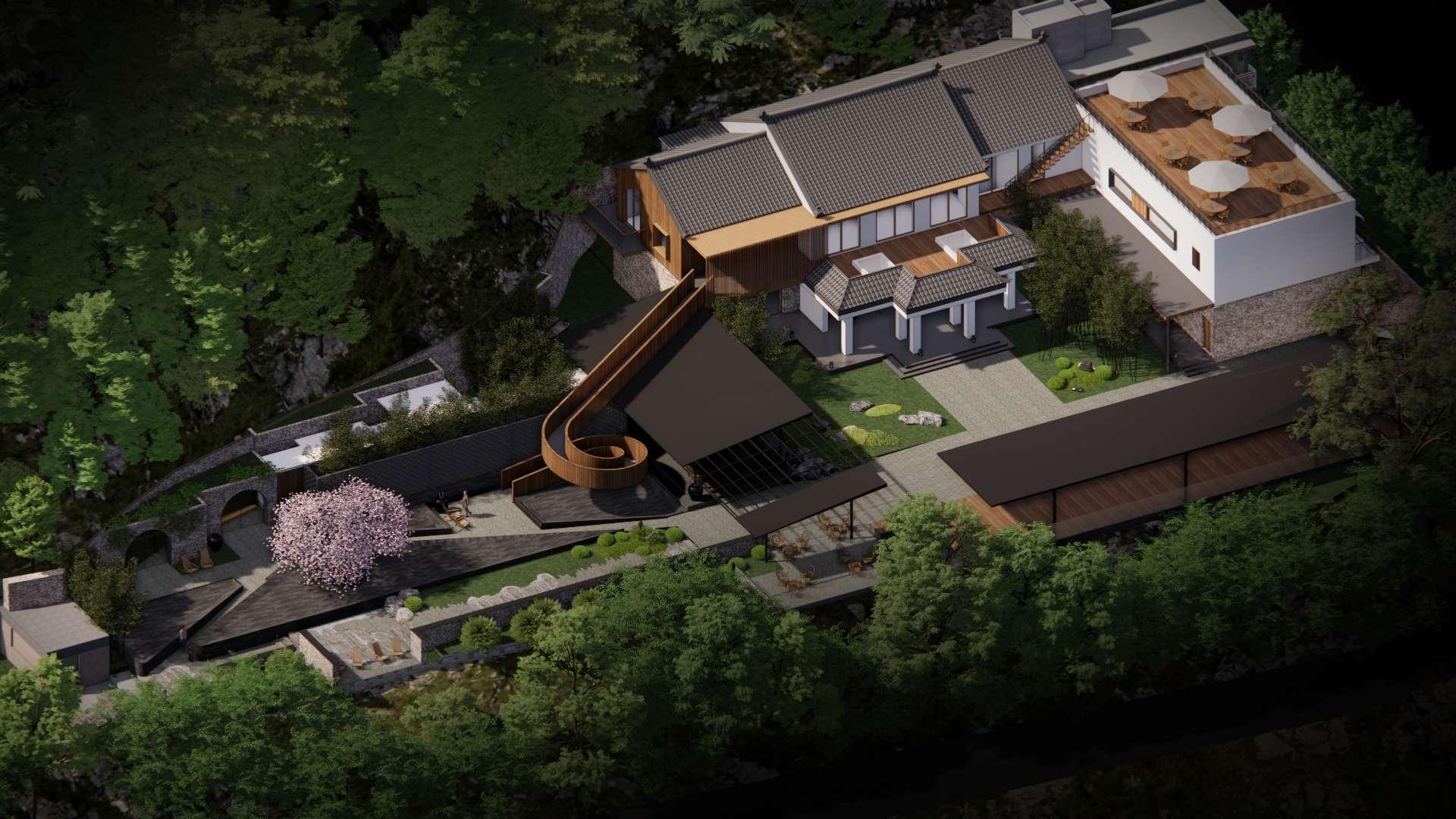

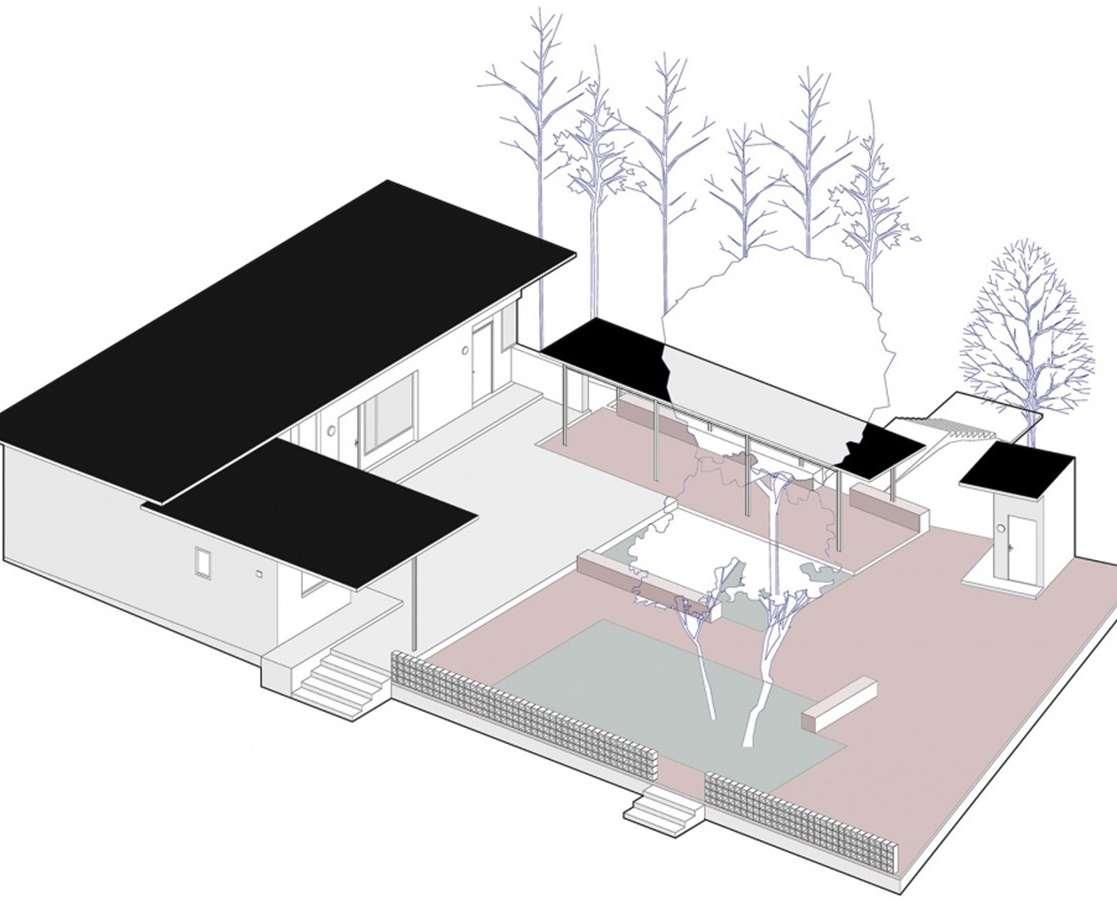

RenovationofXiejiaxiaoyuaninCherry Valley,Xi'anCity

CourtyardRenovation/RestaurantRenovation/HotelDesign

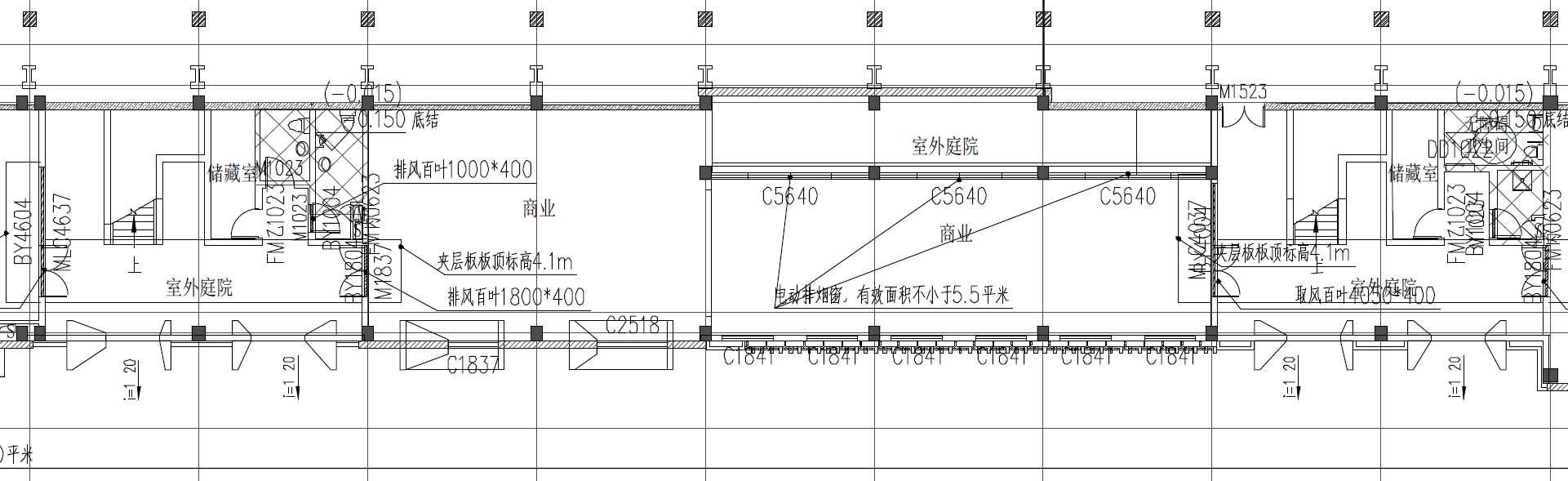

CompletionYear:2025/ProjectStatus:ConstructionDrawingPhase Participatedin:ArchitecturalConceptDesign/LandscapeConcept Design/InteriorConceptDesign

04 OtherWorks

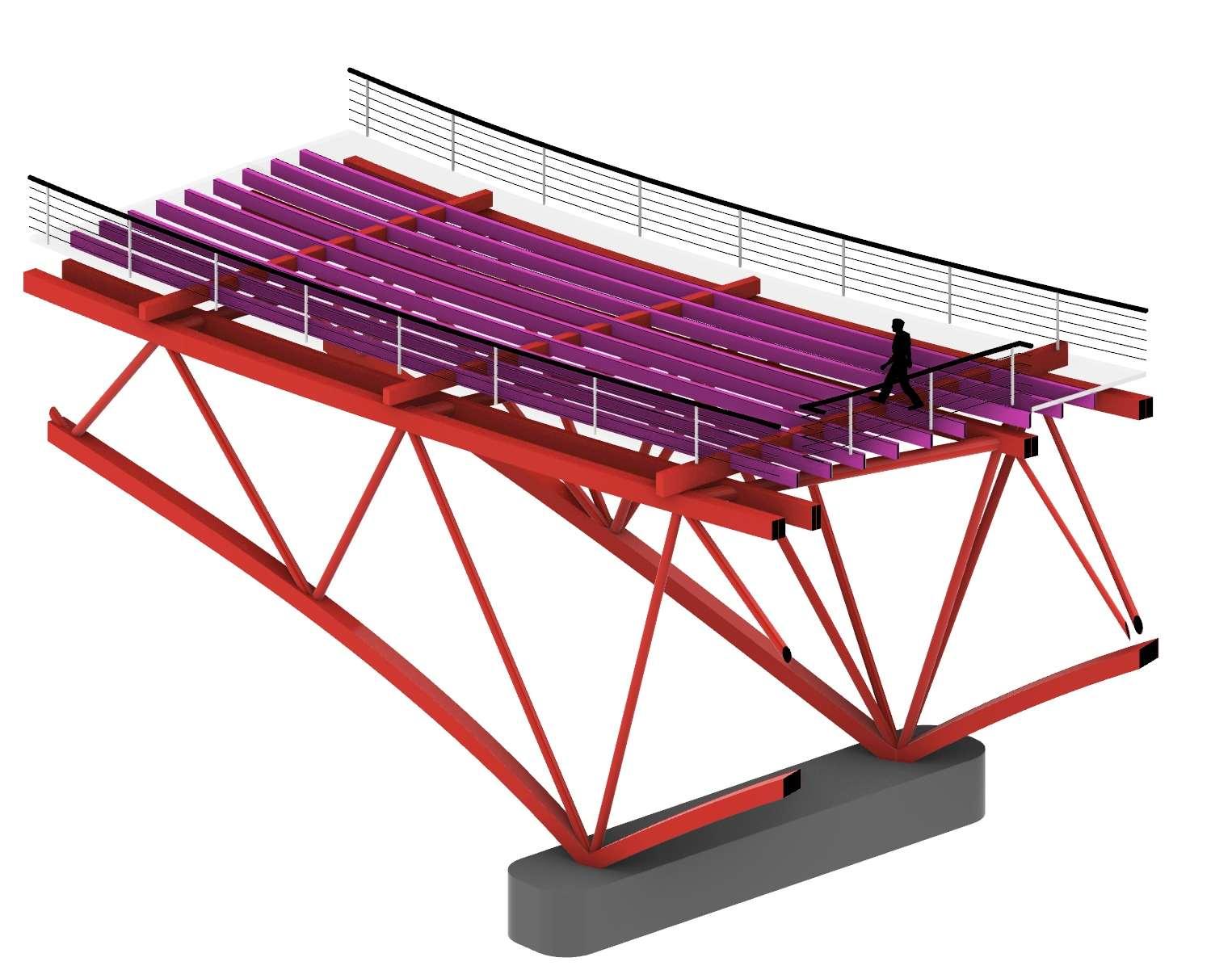

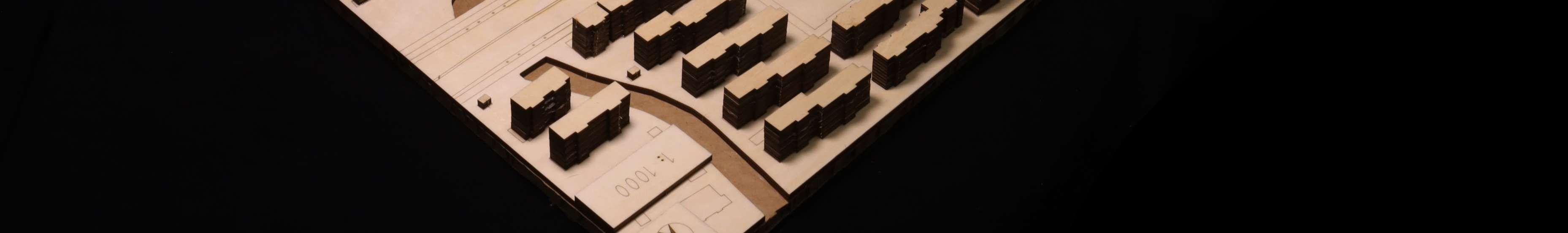

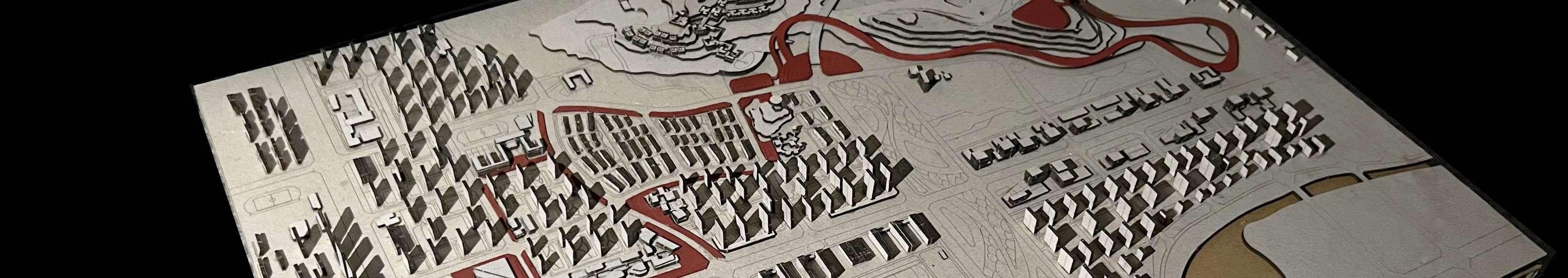

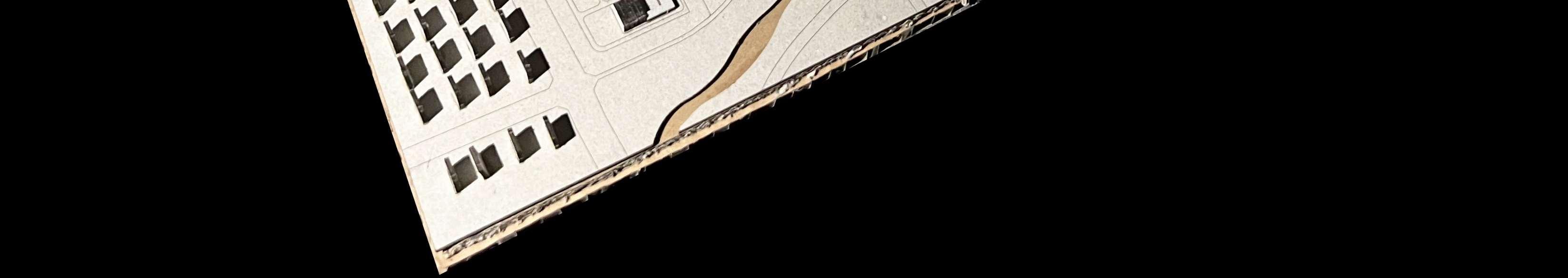

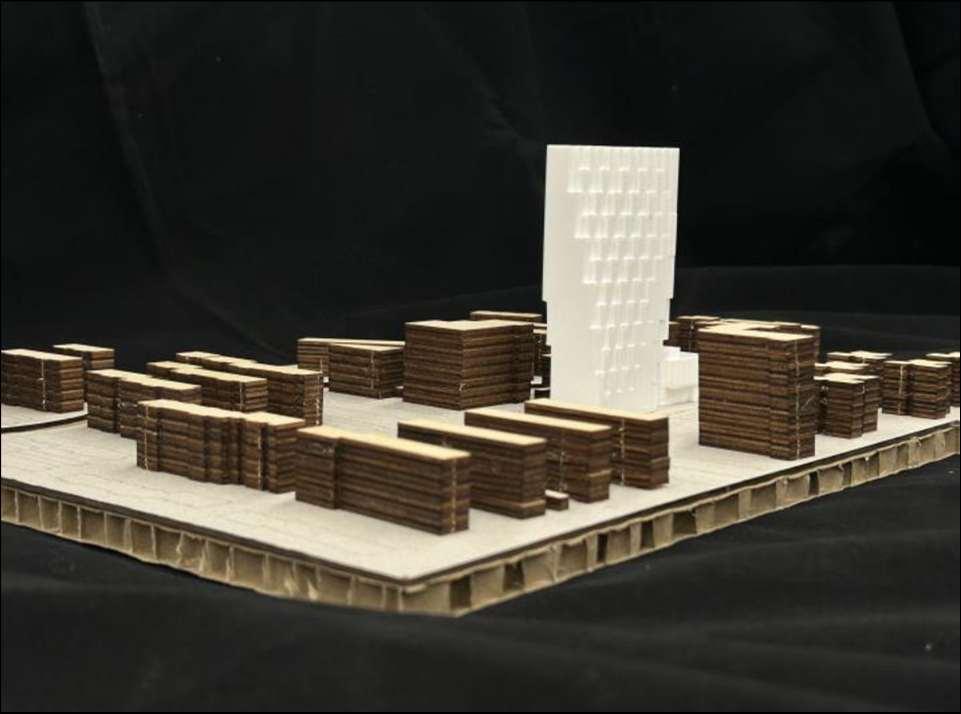

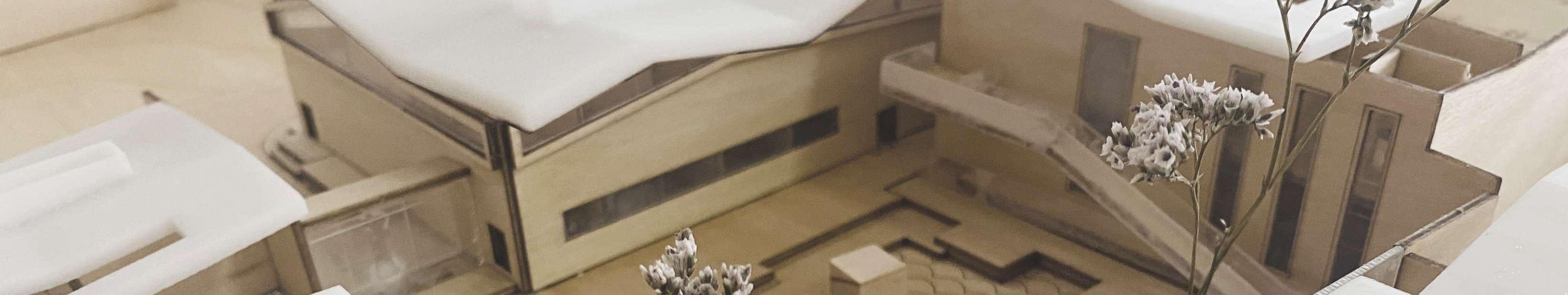

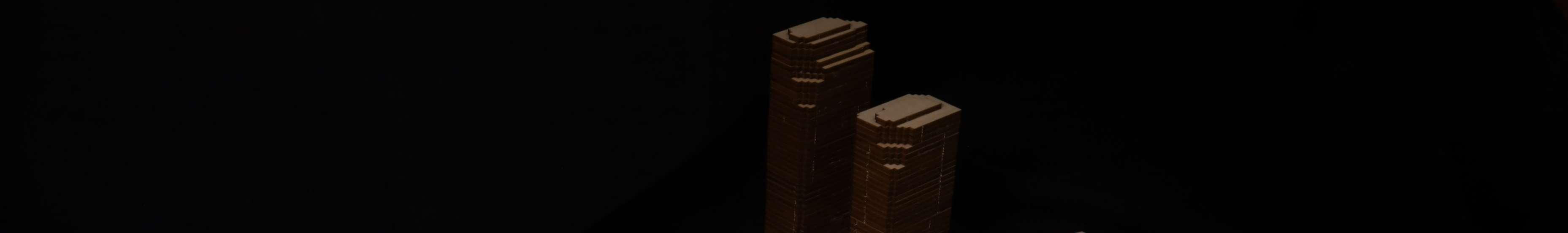

BridgeDesign/AuditoriumDesign/PhysicalModel/Photography

DongfengMotorFactoryRenovationProjectin

ShiyanCity,HubeiProvince FactoryRenovation/UrbanRenewal/ExhibitionArchitecturalDesign

CompletionYear:2024/ProjectStatus:UnderConstruction

Participatedin:Bidding/ConceptDesign/PlanningDesig/ArchitecturalConcept Design/ExpandedPreliminaryDesign

Introduction

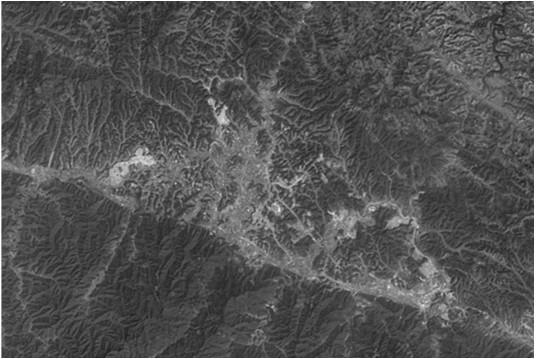

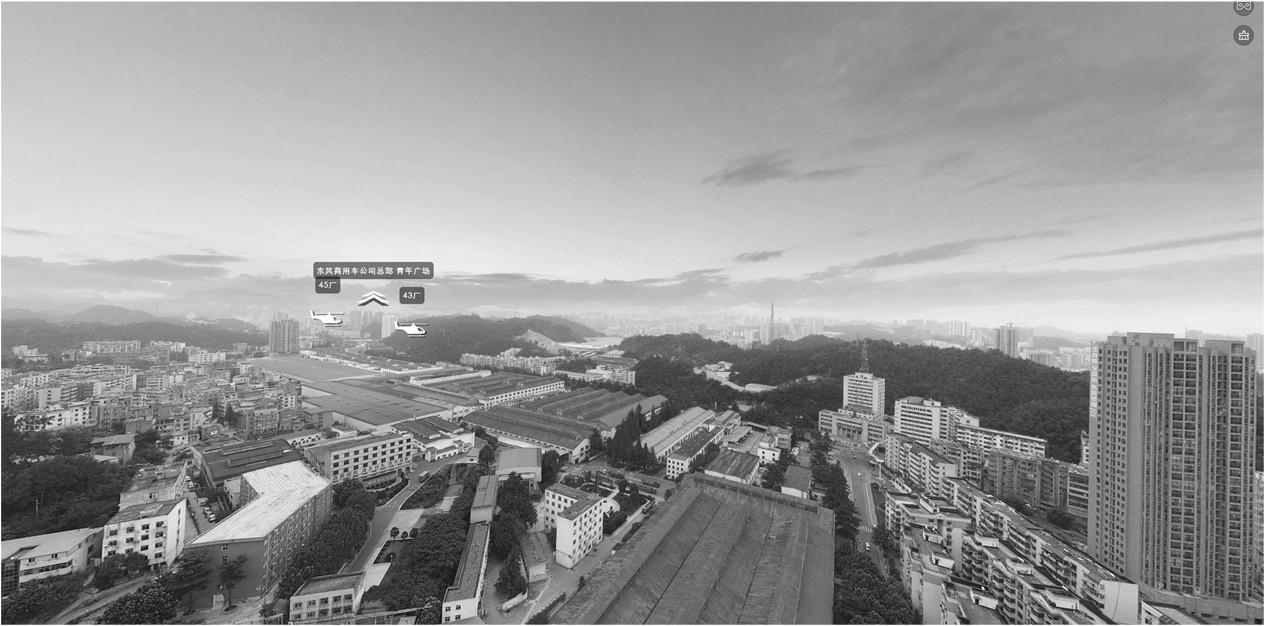

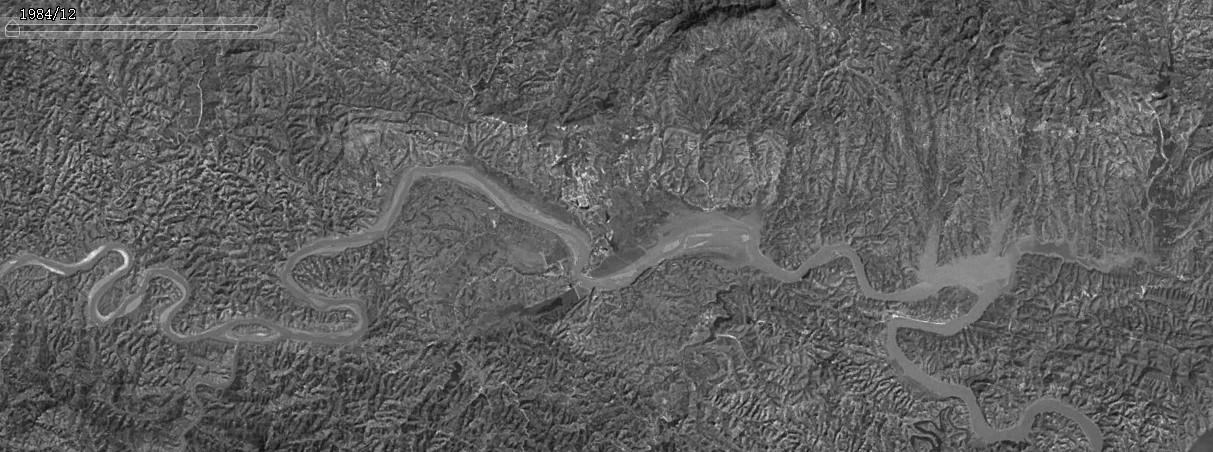

ThisprojectislocatedinShiyanCity,HubeiProvince,whichwastheoriginalsiteofDongfengMotor Corporation.Thesitehascomplexterrainwithsignificantelevationdifferences,andtheconditionof theexistingbuildingsvariesgreatly.Thedesignproposalincludesanoverallplanninganddesignof thesite,aswellasindividualarchitecturaldesignforeachbuilding.Iwasmainlyinvolvedinthe designoftheexhibitionbuildingandtheurbanmemorymuseum.

Shiyanisacitywithalonghistory,datingbackoveramillionyears.In1967,Shiyanbegantodevelop withtheestablishmentoftheSecondAutomobileManufacturingPlantbythestate.Itwasdesignatedas acounty-levelcityin1969andwaspromotedtoaprefecture-levelcityin1973.Today,Shiyanisnotonly theproductionbaseof"China'sNo.1,world'stop3"commercialvehiclesbutalsoboastsfamous attractionssuchasMountWudangandtheDanjiangkouReservoir.

Thisplaceholdsnotonlytheyouthofmanypeople, butalsotheirlives,work,destinies,anddreams...

DongfengMachineryPlant,PreciousMemoriesofGenerations

IntheeyesofthepeopleofShiyan,DongfengMotorisashiningbrand.Onceuponatime, beinga“Dongfengperson”wassomethingtobeextremelyproudof!Intheeyesofthe “old-timers”attheSecondAutomobileWorks,theycamefromalloverthecountry. Mechanicalprocessing,casting,forging,die-casting,stamping,welding,heattreatment, electroplating,painting,andassembly–thesearethefamiliarprocessesforthepeopleof Shiyan.Here,relationshipsevolvedfrommasterandapprenticetofriends,andfromindividuals toasinglefamily.ManypeoplededicatedtheirentirelivestoDongfengMotor.

THECITY

arebuiltandthrivebecauseofautomobiles.

Automotivecultureisthegeneticcode. Factoriesarethecarriersofurbanmemory.

IndustrialFactory“Cell”Characteristics

Core:Centeredaroundthefactory,withresidential areasandlivingamenitiesarrangedaroundit.

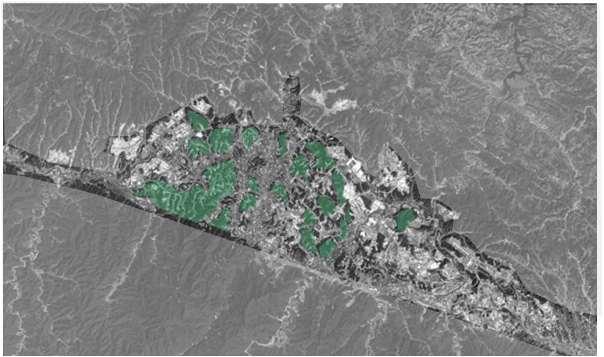

EcologicalRelationship:Isolatedfromtheecosystem, wherenatureactsasanaturalbarrier.

Connectivity:Poorurbaninteractionandweaklinkage betweenblocks.

SpatialFlexibility:Centeredaroundtheindustrial productionflow;limitedspatialflexibility.

TrafficFlow:Centeredaroundindustrialtransportation needs,withasingulartrafficflow.

Texture:Industrialfactorieshavealarge-scaletexture.

Considertherenewalofthecurrentindustrial“cells”frommultipleaspects

Theroletransformationofworkshopsbroughtbyurbandevelopmentmeansthatallworkshopsoccupyingcorelandresourcesfacetheissueofrenewal. OldworkshopsandfactoryareasarepartofShiyan'sautomotiveculturalchain,servingascarriersofthespiritualplacesofautomotiveculture.Theybearthe inevitablemissionofpreservingculturalmemory,continuingculturalgenes,andshapingculturalbenchmarks.

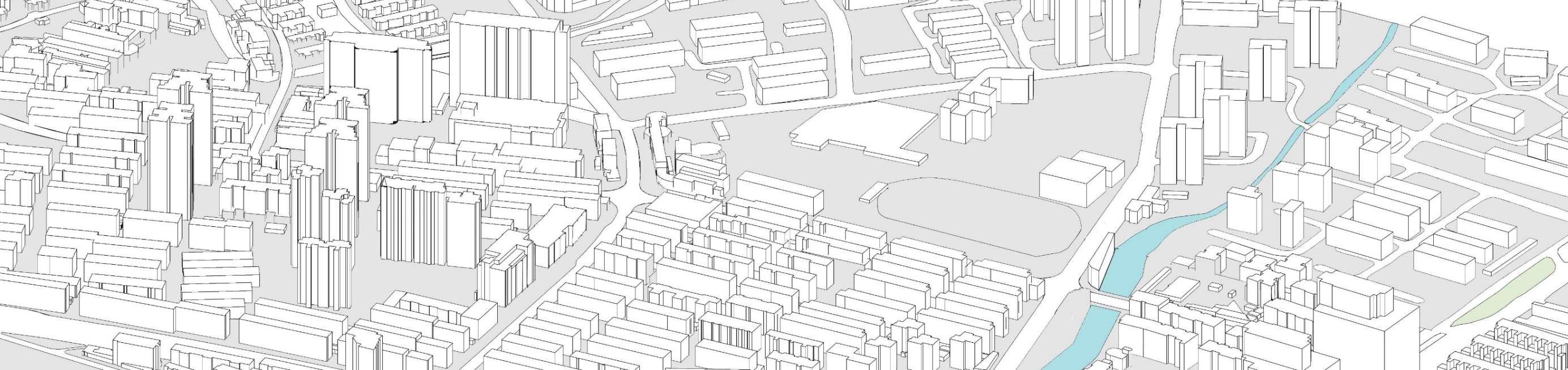

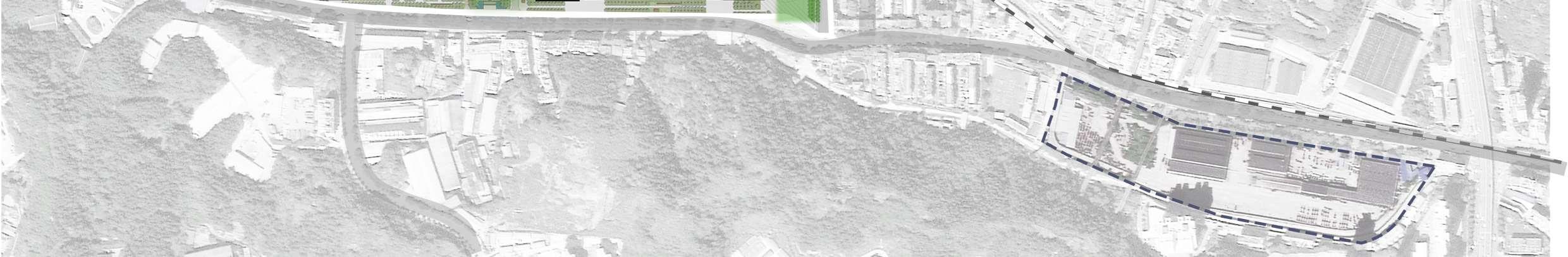

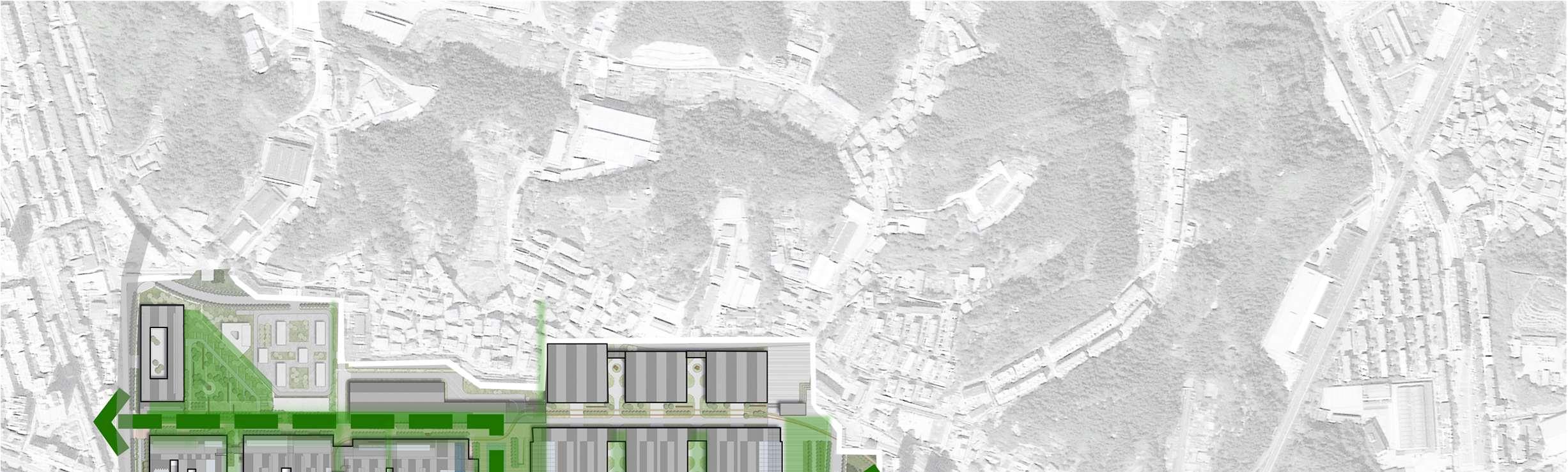

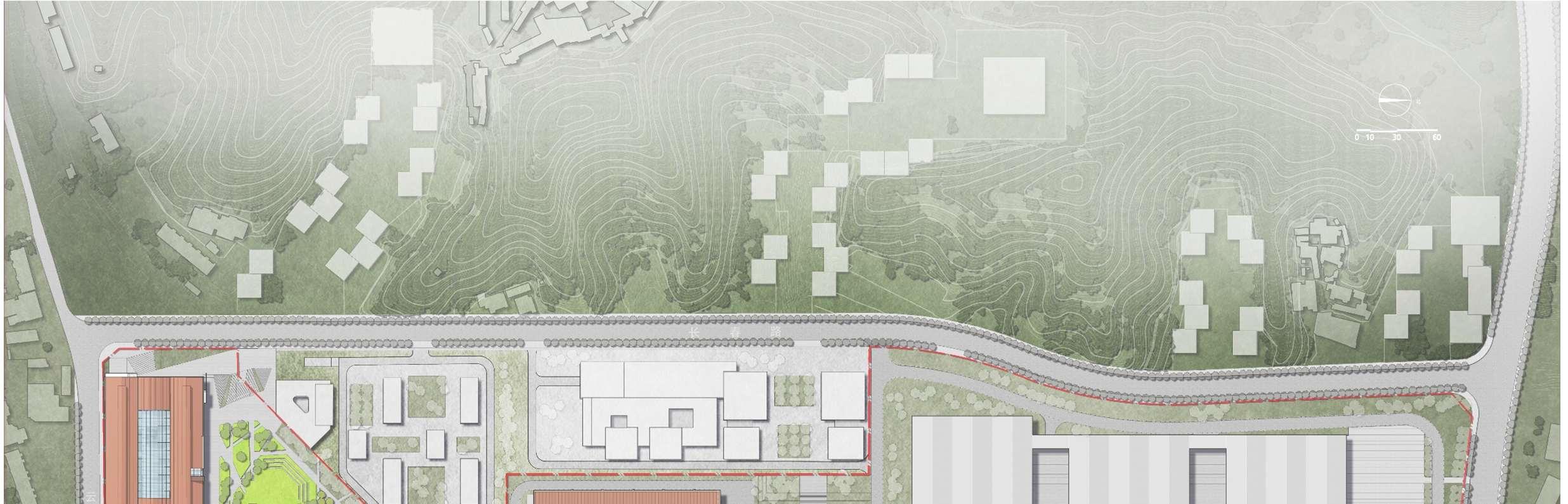

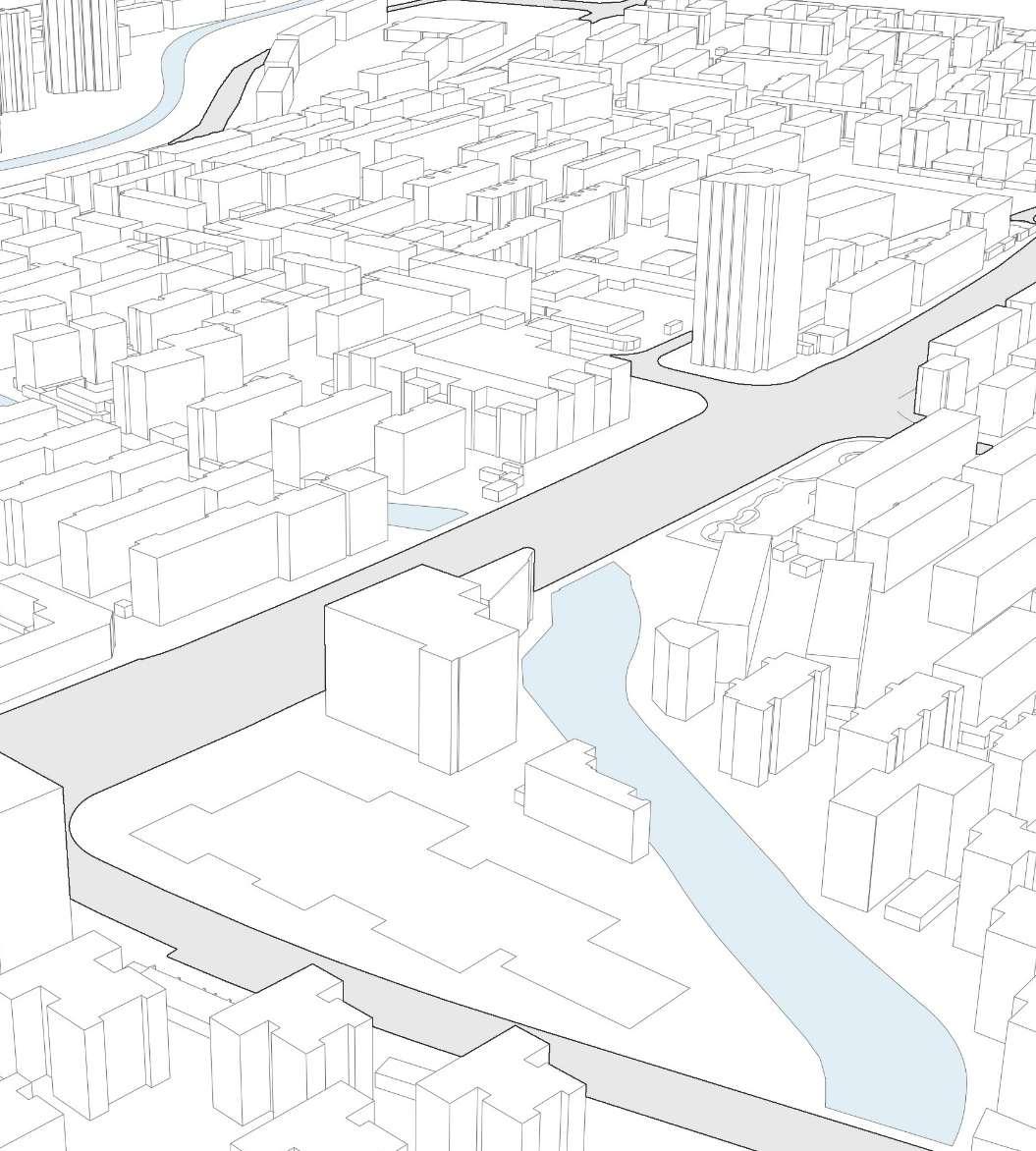

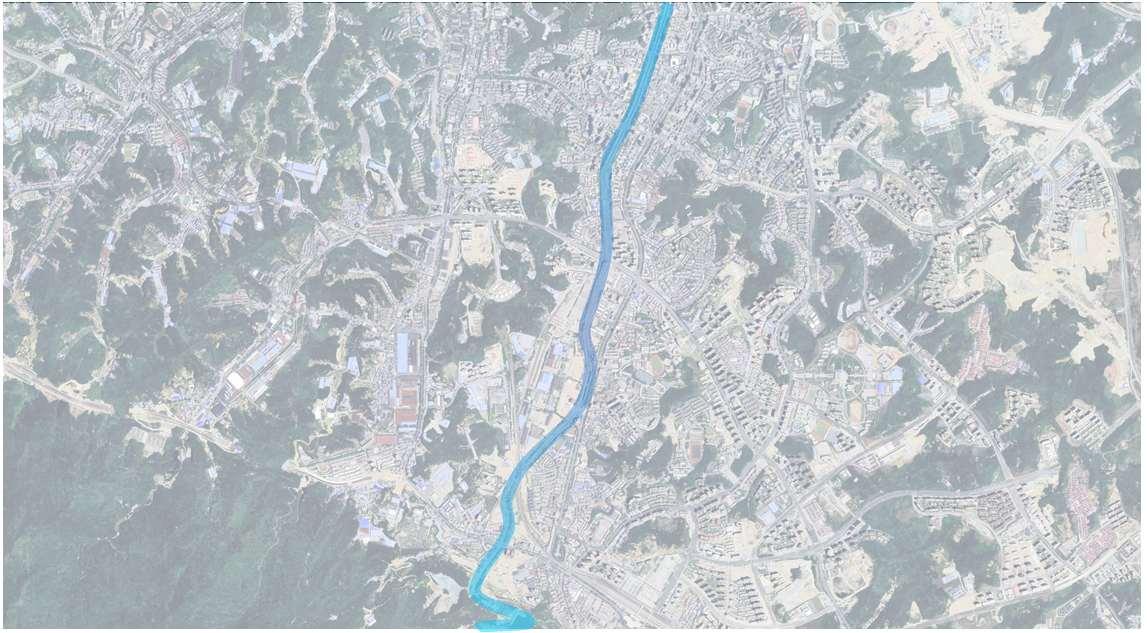

SiteAnalysis

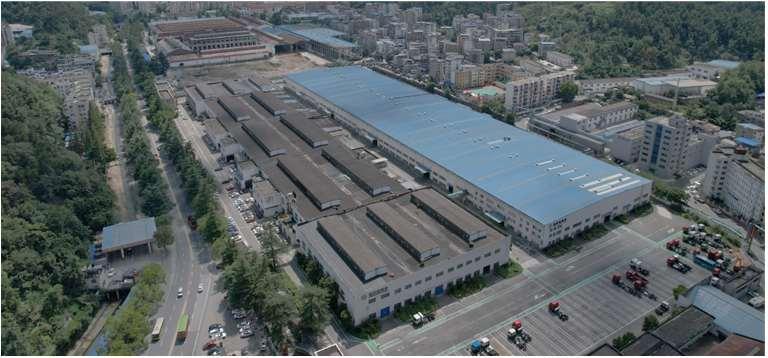

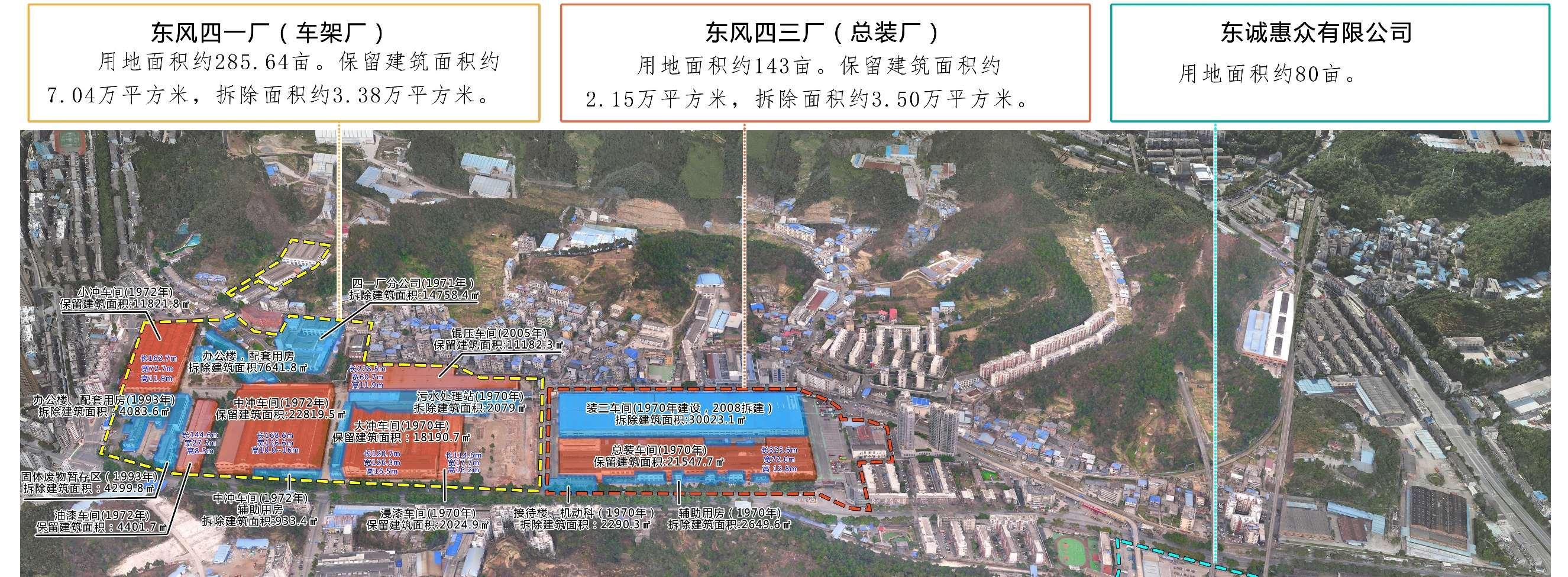

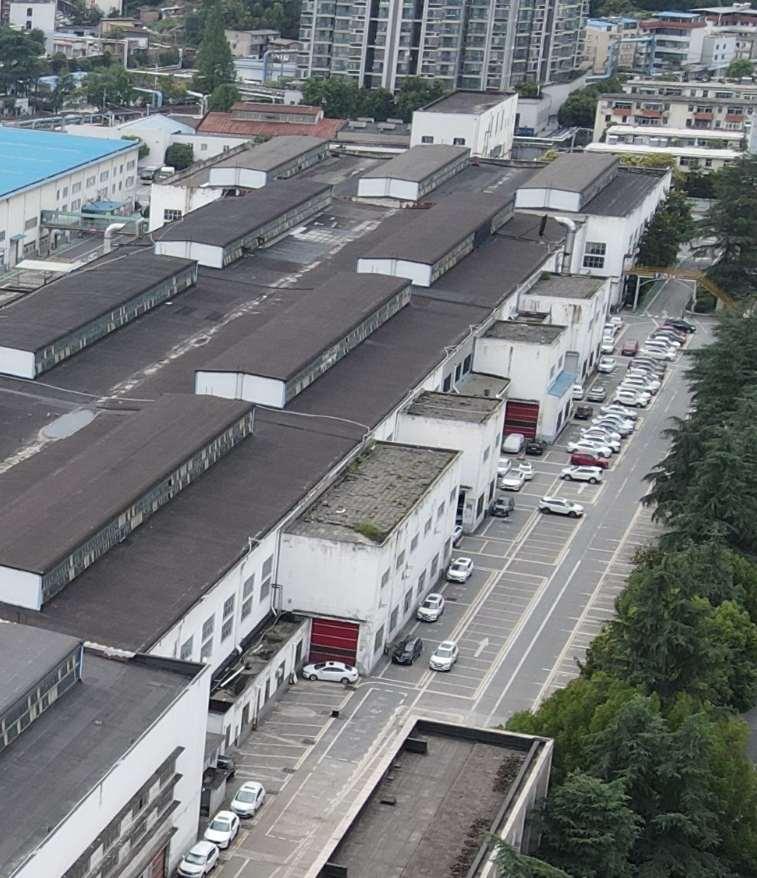

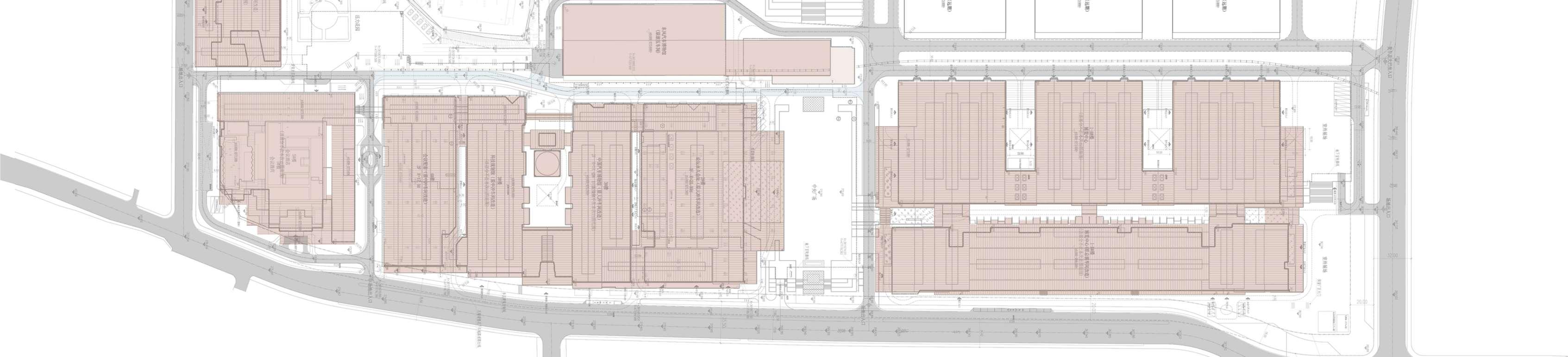

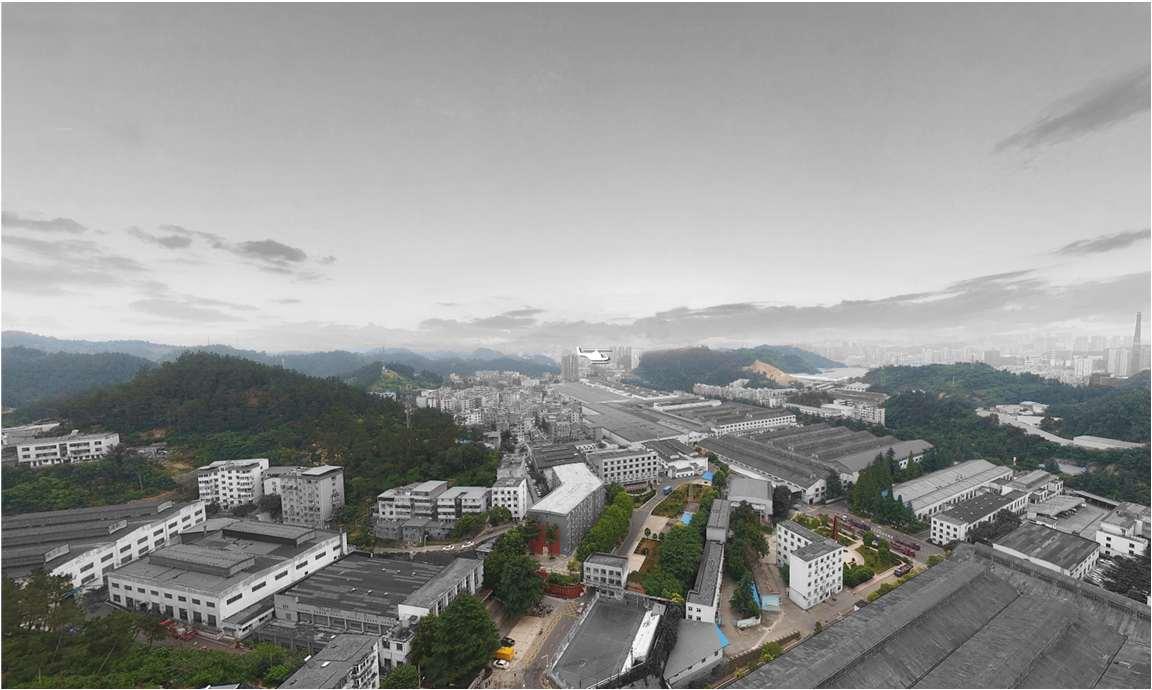

Thesiteconsistsofthreeparts: DongfengFactoryNo.41(Chassis Plant),DongfengFactoryNo.43 (AssemblyPlant),andDongcheng HuizhongCo.Thesurrounding environmentisrelativelymessy, withscatteredbuildinglayouts,and someareashaveabandoned buildingsandtemporarystructures. Theoverallplanningneedstobe optimized.

SiteAnalysis

Challenge1:Prominentcontradictionsinlanduse,highbuildingdensity,varying developmentintensity,andalowproportionoflandallocatedforroadfacilities.

Challenge2:Thequalityofcommercialservicesandpublicfacilitiesis severelylacking,leadingtoalossofvitality.

Challenge3:Poorconnectivitybetweenresourcesandstrongregionalenclosure.

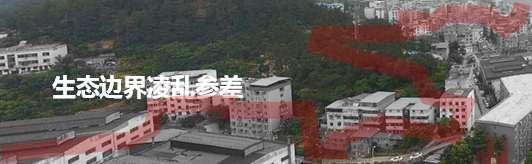

Challenge4:Thelandscapelacksvitality,publicspacesareseverely fragmentedandinneedofoptimization,ecologicalboundariesareirregular anddisjointed,andthereisexposedmountainterrain.

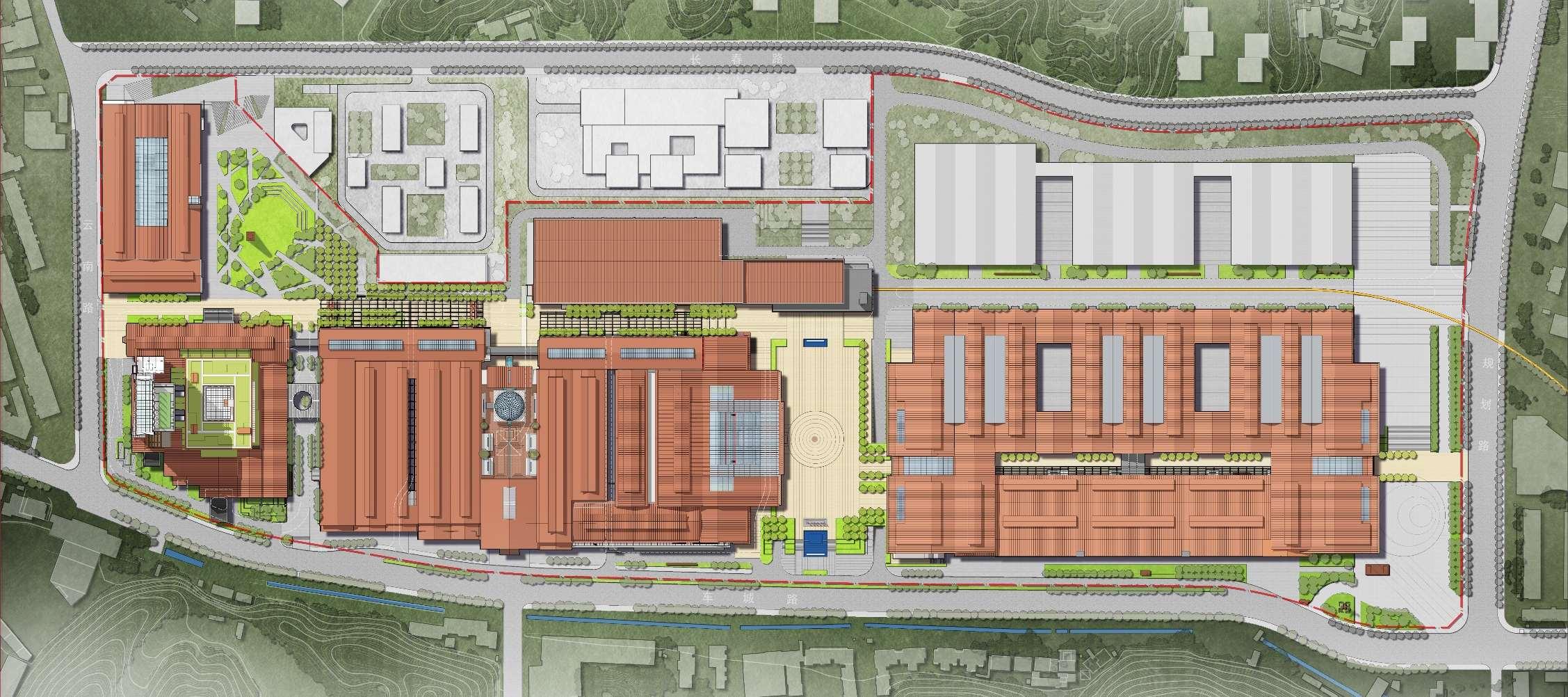

DesignTarget

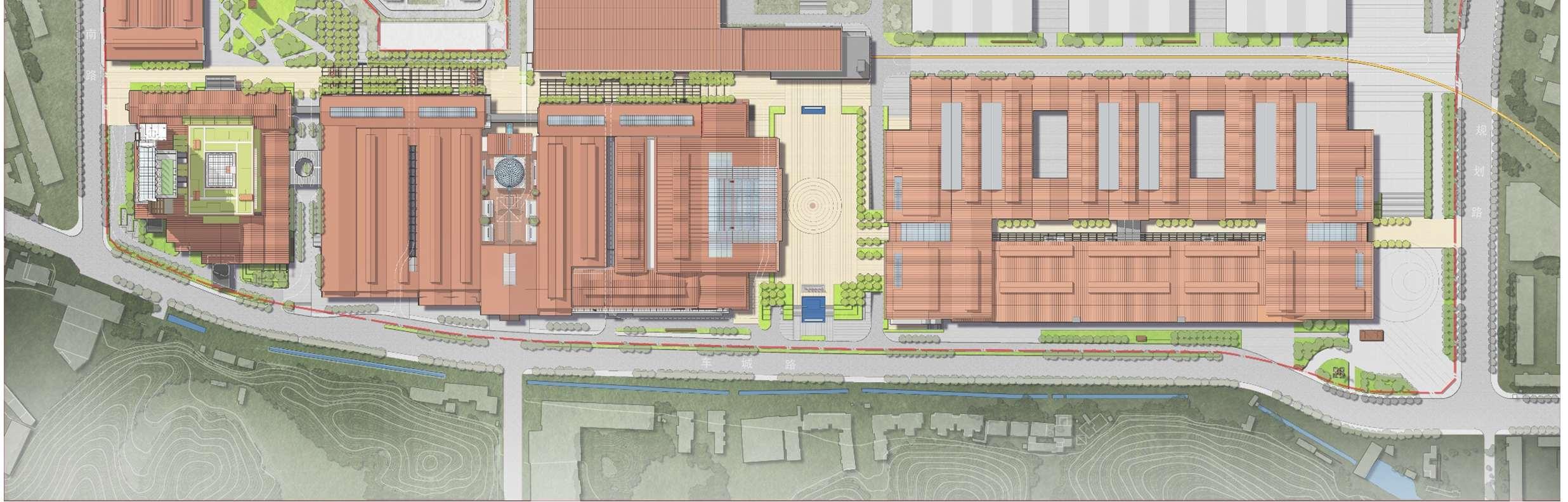

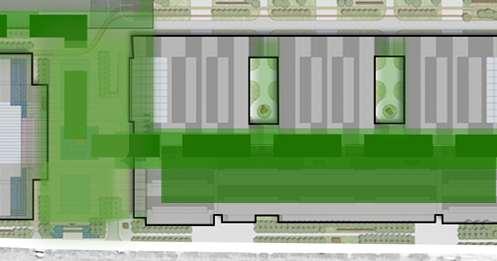

THEURBANFUNCTIONALVITALITYBELT, whichconnectsdiverseurbancomplexes,promotestheupgradingofurbanfunctionsandbringsnewopportunitiesfordevelopment.

2绿廊主题公园

3天空之环

4中央广场

5车城记忆时光月台

博览中心

12476 74333

不含室外雨蓬下 2810 26926

不含室外雨蓬下 1037 12713 ㎡配套功能区

十堰国际会展中心项目经济技术指标一览表

备注设计数值单位项目

不含室外雨蓬下496 15287 ㎡中国汽车博物馆其中

不含室外雨蓬下518 14144 ㎡科技规划馆

不含室外雨蓬下500 21600 ㎡东风汽车博物馆

不含室外雨蓬下 1850 47900 ㎡酒店

不含室外雨蓬下

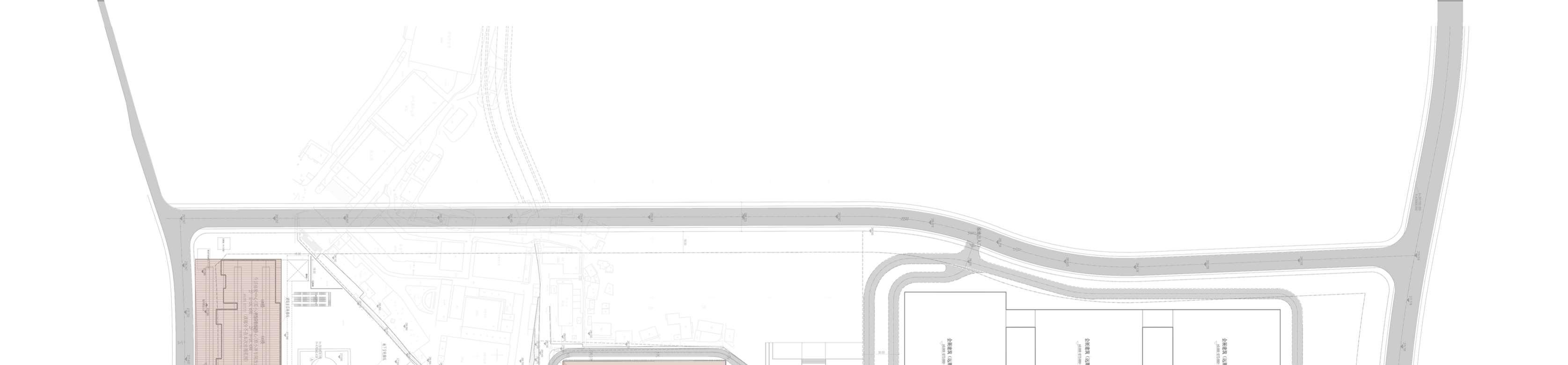

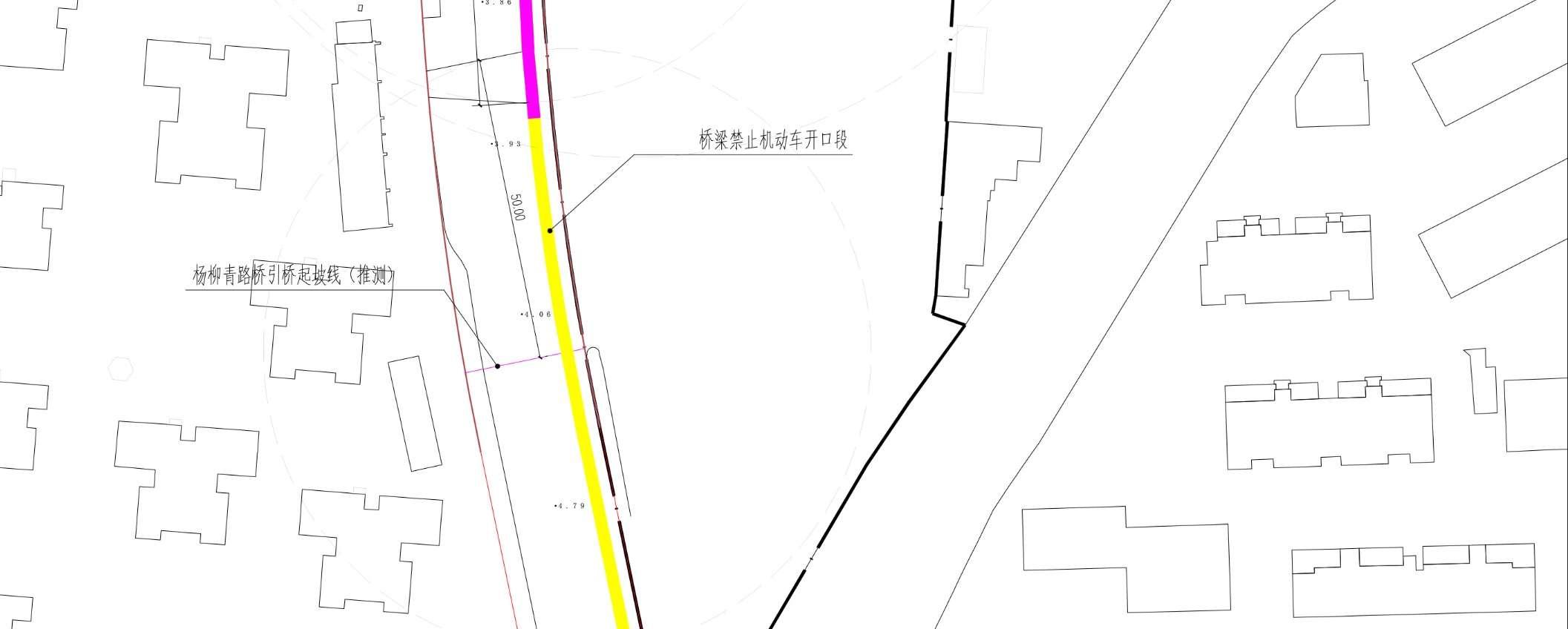

VerticalDesign

竖向设计难点：

•车城路和云南路的拓宽导致建筑边界距离道路边界非常近；

•新的建筑功能需要新增多个出入口，场地放坡需求很多；

•场地放坡和道路设计要满足现行消防要求。

竖向设计要点：

•整体分成三个台地进行设计；

•通过室外大板和下穿路解决一部分复杂的交通；

•通过室内台阶消解一部分高差。

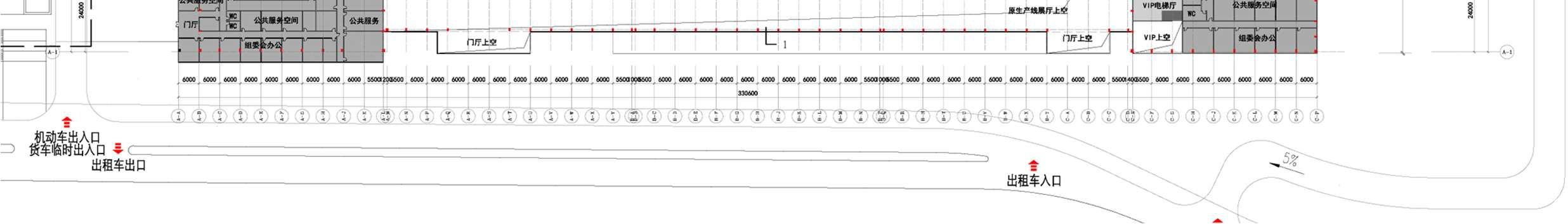

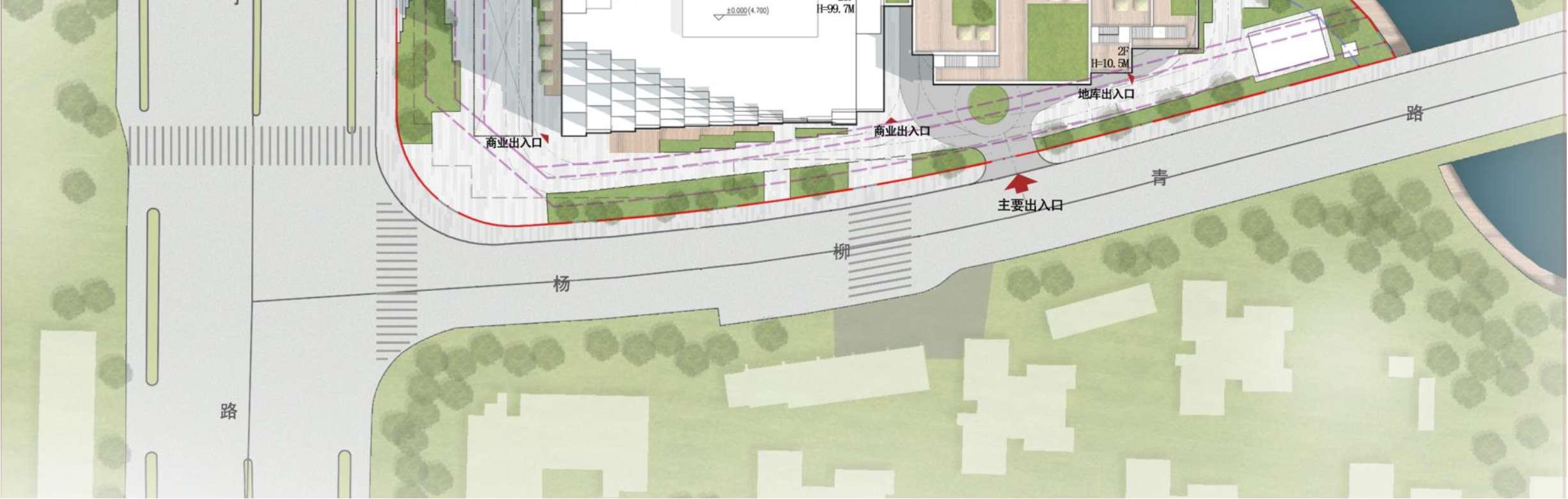

•1号出入口：大巴及货运，可左进左出

•2号出入口：次要出入口（北侧地库），右进右出

•3号出入口：次要出入口，辅道进出（重要展会期间VIP使用允许主道左进左出）

•4号出入口：次要出入口，辅道进出，只进不出

•5号出入口：场地出入口，可左进左出

•6号出入口：场地出入口，可左进左出

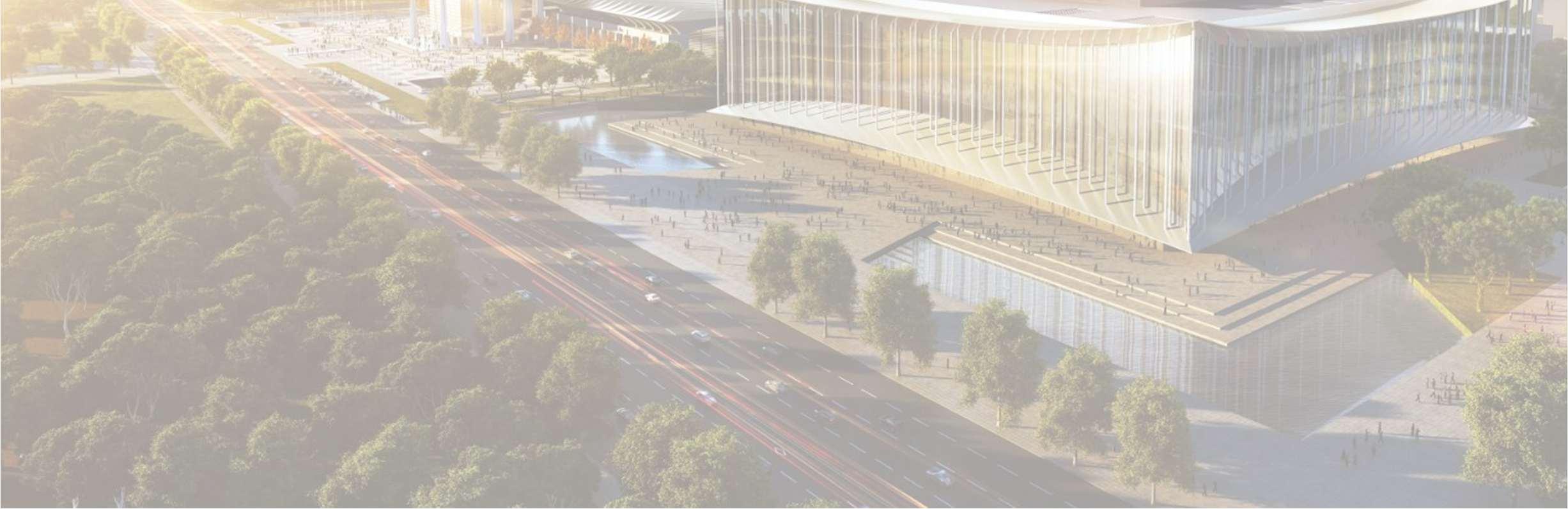

ArchitecturalDesign：ChinaAutomotiveComponentsExpoCenter

Usingexistingworkshopsand newlyconstructedbuildings tocreateapproximately 50,000squaremetersof exhibitionspace,theretained workshopareaandthenewly constructedareacan accommodatethreestandard exhibitionhallseachwitha netareaof7,900square meters,andonepublic exhibitionhallwithanareaof 6,600squaremeters,totaling around30,000squaremeters ofnetexhibitionarea.

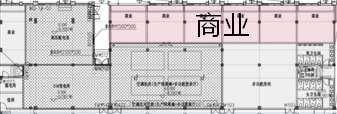

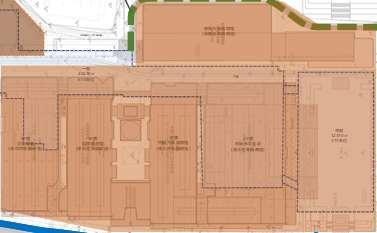

FunctionArrangement

通廊入口

登录厅入口

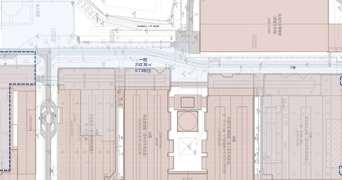

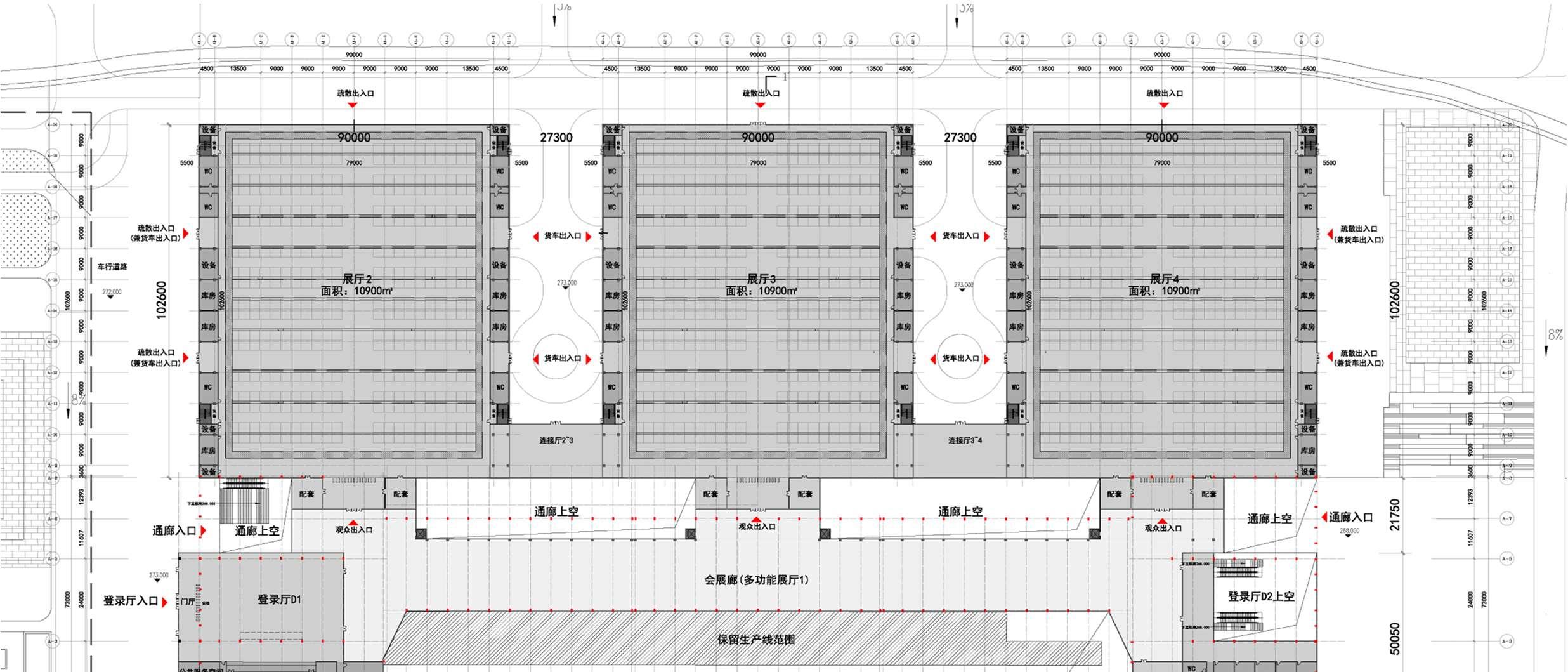

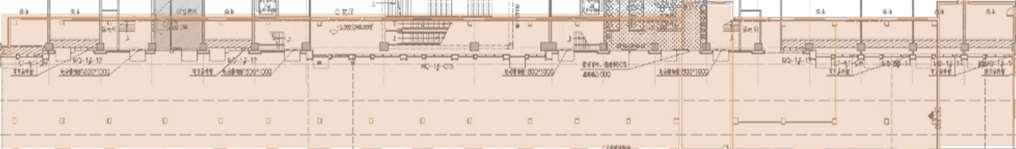

Elevation273.00: ExhibitionCenter(NewConstruction)Plan

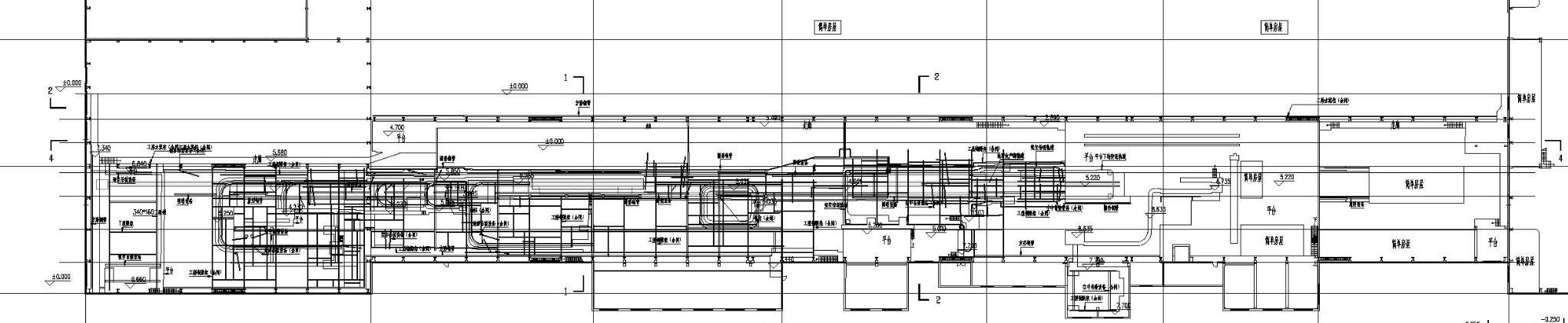

Elevation268.00: theFormerAutomotiveProductionLineGallery (Renovation)Plan

ExhibitionCenter(NewConstruction)：DesignBasis

Thetrendsintheconstructionandscaleofmajor urbanexhibitioncentresinChina

Accordingtothe"2022ChinaExhibitionDataStatisticalReport"releasedbytheChina ConventionandExhibitionEconomicResearchAssociation,therearecurrentlymore than300professionalexhibitionvenuesinuseinChina,distributedacrossvarious cities.Thesevenueshaveformedthefollowingfourphenomenabasedonurban classification.

VenueCaseStudies-IndicatorSummary

Conclusion:

Basedoncasestudies,thescaleofconventioncentersinsimilarcitiesis generallyaround140,000to150,000squaremeters.

杭州、成都、青岛、南京

新一线城市单一展览功能为主，

南通、厦门、珠海、福州等二线城市、特色城市、

省会城市

桂林、丽水、舟山、湘潭

以20万-30万平米建筑规

DesignCombiningRegularUsewithExhibitionUse

Theexhibitionhallscanbeusedas multifunctionalspacesaccording tooperationalneedsduringnonexhibitionperiods.Theycan accommodatehigh-standard activitiessuchasconferences, banquets,indoorperformances, filmandadvertisingshoots,and sportscompetitions,thereby increasingtheutilizationrate duringnon-exhibitiontimes.

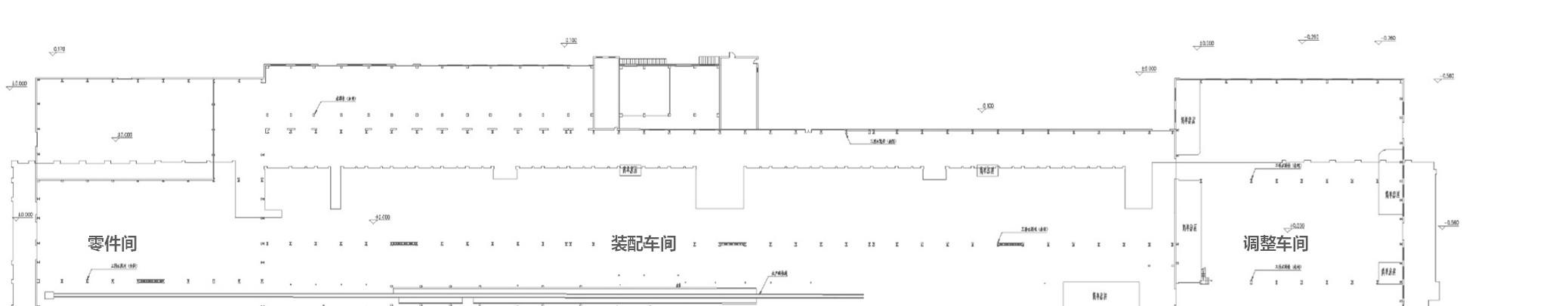

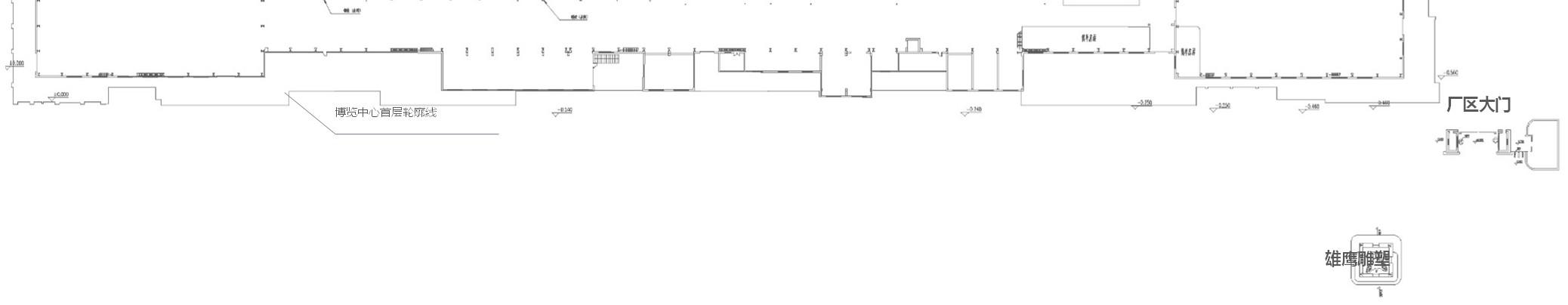

RenovationPlan：TheFormerAutomotiveProductionLineGallery

零件间西两跨：保护性拆除

保护性拆除：原有柱子（西一跨部分移到绿廊作

为装饰性构件）

拆除：梁、屋架、屋面、内墙、侧墙、山墙、检

修平台及走廊

装配车间西侧附属用房：

全部拆除

装配车间：保留并消隐

保留并消隐：原有柱子、梁、原生产线设备及设备检

修平台

原貌复建：屋架

拆除：屋面、侧墙、山墙

调整车间（中段）：

保留并消隐

保留并消隐：原有柱子

拆除：梁、屋架、屋面、山墙、夹

层板及平台

零件间东一跨：保留并消隐

保留并消隐：原有柱子、梁、屋架、原生产线设备及

设备检修平台

拆除：屋面、侧墙、山墙

装配车间东侧附属用房：

保留并消隐

保留并消隐：部分原有墙体

拆除：梁、柱、屋架、屋面

调整车间（东西侧）：保护性拆除

保护性拆除：原有柱子（移到绿廊作为装饰性构件）

拆除：梁、屋架、屋面、内墙、侧墙、山墙、夹层平台、房间及走道

保留并消隐：完全保留厂区大门及雄鹰雕塑

Demolitionand RenovationStrategy：

①WesternTwoSpansofthe PartsRoom:Protective Demolition：

Giventhedifficultyinretaining theoriginalstructureofthis areaandtheneedto accommodatefiretruckpassage afterrenovation,aprotective demolitionstrategyisadopted.

②EasternSpanoftheParts Room:RetainandIntegrate：

Thisareacontainssomeoriginal productionlineequipmentwith highretentionrequirementsfor itsappearance.Therefore,a strategyofretainingand integratingisused,withthe originalstructureservingas decorativeelementsandnew structuralcomponentsadded ontheoutside.

③AssemblyWorkshop:Retain andIntegrate：

Thisareacontainsmostofthe originalproductionline equipmentwithhighretention requirementsforitsappearance. Therefore,astrategyof retainingandintegratingisused, withtheoriginalstructure servingasdecorativeelements andnewstructuralcomponents addedontheoutside.

④WesternAncillaryRoomsof theAssemblyWorkshop: Demolish

Strategy：Preserve

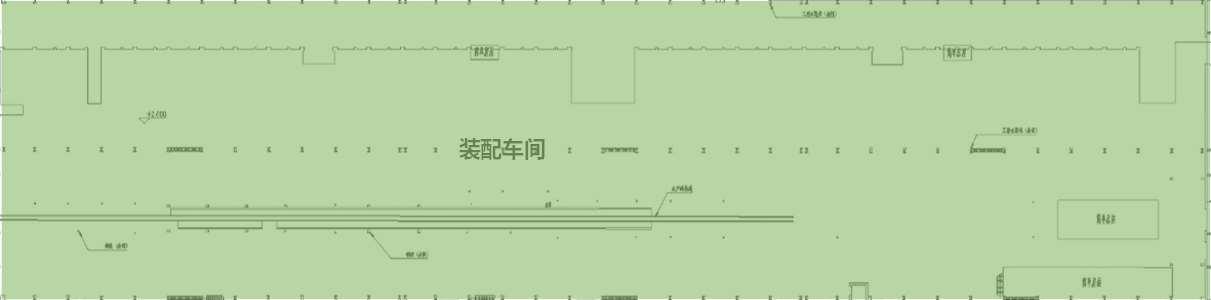

装配车间：

保留并消隐：原有柱子、梁、原生产线设备及设备检修平台原貌复建：屋架

拆除：屋面、侧墙、山墙 +Demolish

装配车间西侧附属用房：完全拆除

RenovationPlan

Theassemblyworkshop,beingthemainpartoftheoriginalproductionline, willbetransformedintoanexhibitionhallfortheoriginalproductionlineand amultifunctionalgallery.Tomeetthenewfunctionalandspatialrequirements, columnsandoverheadcranebeamswillberetainedasdecorativeelements, withanewframestructureaddedontheoutside.

DemolitionandRenovationContent: Retainandintegrate109columnsand99overheadcranebeams. Reconstructtheoriginalrooftrussesfor74frames.

①WesternAncillary Rooms

Thewesternancillaryrooms arelocatedintheareathatwill betransformedintothecentral greencorridorandthe commercialzoneofBuilding1A.Sincethereisnoneedto preservetheappearanceand theyobstructthepassageof firetrucks,theywillbe completelydemolished.

②RoofTrussDemolition andRenovationPlan

Aftertherenovation,the buildingheightwillnotbe significantlydifferentfromthe originalworkshopheight. However,sincetheoriginal roofcannotmeetthenew buildingfunctional requirementsfor waterproofingandthermal insulationasstipulatedbythe regulations,theroofmustbe demolishedandrebuilt.

③Theadaptabilityof theimplantedfunctional spaces.

Startingfromfunctional requirements, forpublicareaswithstrong publicattributes,the appearanceshouldbe preservedasmuchaspossible, whileforsupportingattribute areas,thereisnoneedto preservetheappearance,and somecolumnsandoverhead cranebeamsneedtobe removed.

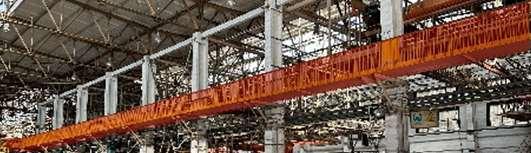

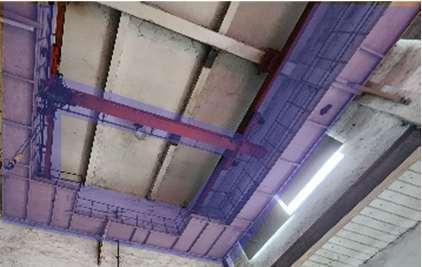

RenovationPlan：EquipmentRenovation

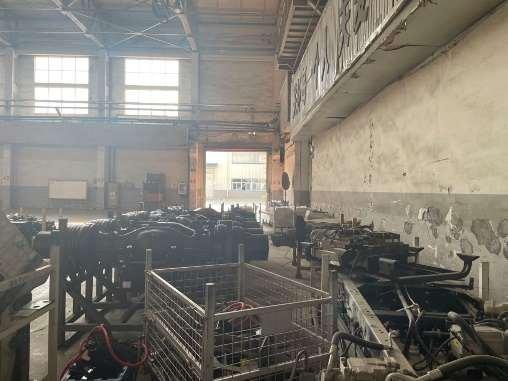

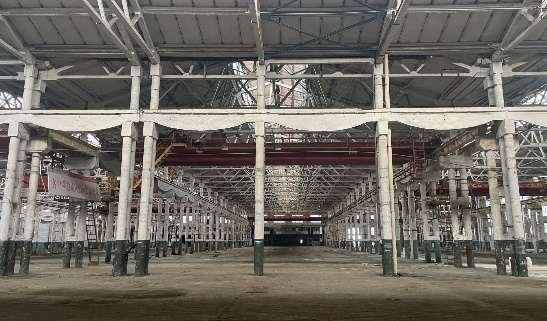

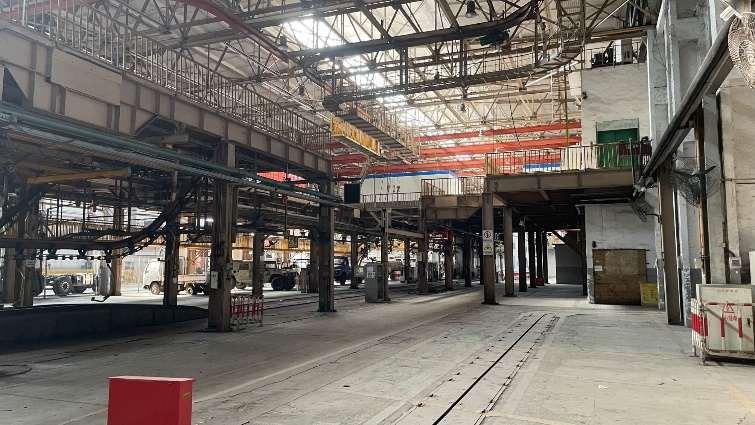

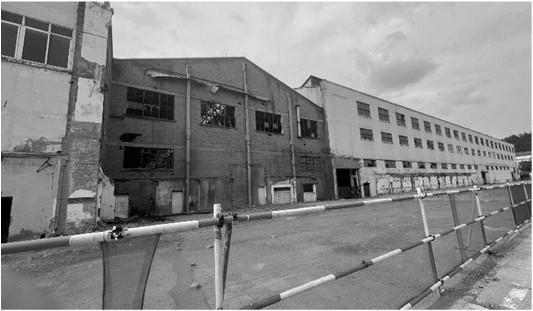

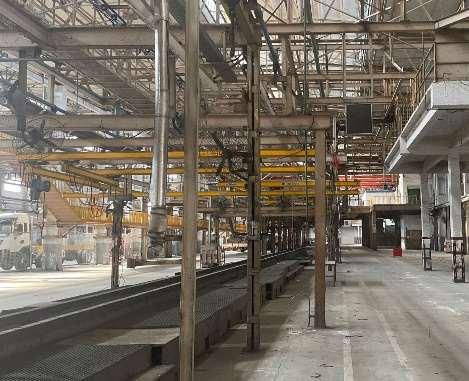

CurrentStatus

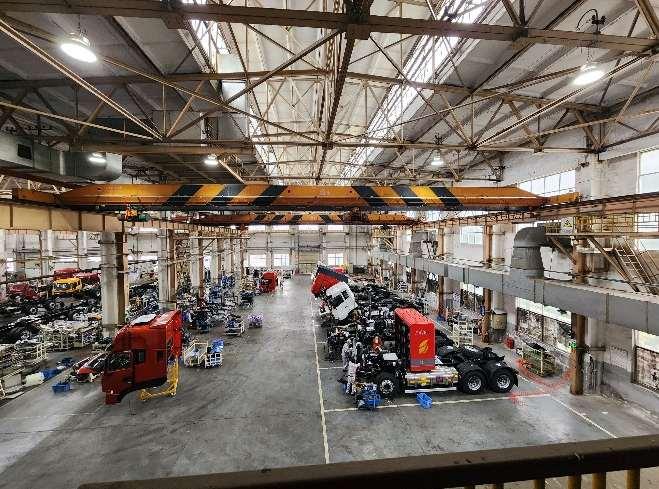

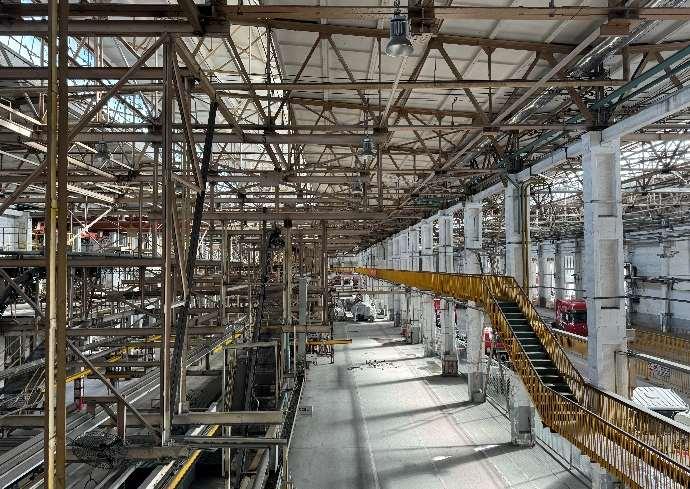

•AssemblyWorkshop:Theworkshopisasingle-story,multi-spanportalframestructure.

•Structure:ThesteelcomponentsareratedatGradeC.

•Trusses:Therearenoinstancesofbreakage,bending,loosening,orslipping,nordothey affectanyassociatedstructuralelements.

•Suspensions:Therearenumeroussuspensionsfromthelowerchordoftherooftrusses, withchaoticforcetransmissionandinconsistentjointconnections.

•Equipment:Theproductionlinehasundergonemultiplerenovations,andtheconnections oftheequipmentcomponentsarehighlyirregular.

DemolitionandRenovationRecommendations

•Structure:Fullyretaintheexistingstructure.Forsectionsthatconflictwiththenew structure,cutandweldthemtothenewstructure.

•GroundTracks:Removeportionsthatinterruptfireseparationzones;retaintherest.

•MezzanineInspectionPlatformsandCorridors:Fullyretainasdecorativeelements.

•OtherEquipment(Crane,Motors,Tracks,Lighting,etc.):Fullyretain.Adjusttheposition slightlyforpartsthatconflictwiththenewstructure.

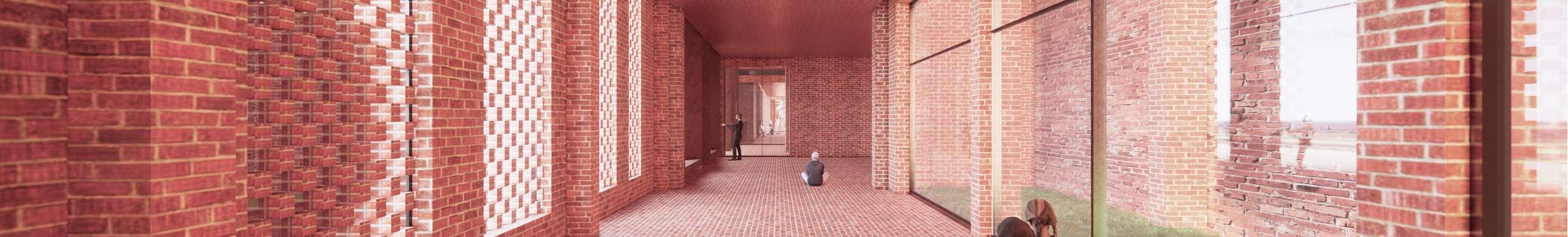

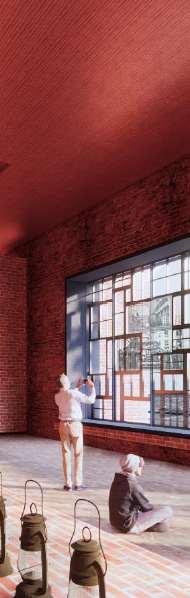

ArchitecturalDesign：CollectiveMemoryMuseumof“AutomotiveCity“

RenovationPlan

DemolitionandRenovationStrategy:

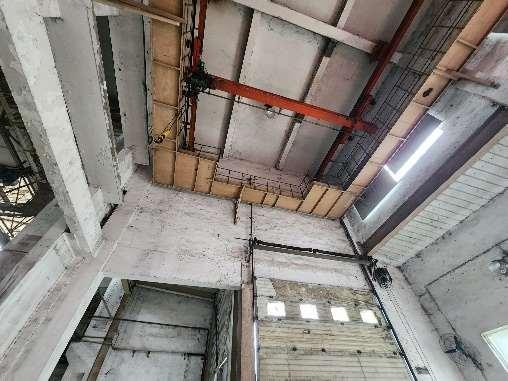

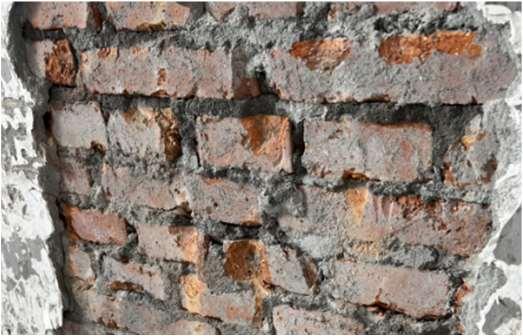

Theeasternancillaryroomsoftheoriginalassemblyworkshopmainlyfeature load-bearingwallstructures.Therefore,anewframestructurewillbeadded tothisarea,whilesomewallswillbepartiallyretainedaccordingtothe renovationstrategy.

RetainedWalls DemolishedWalls

ArchitecturalDesign：CollectiveMemoryMuseumof“AutomotiveCity“

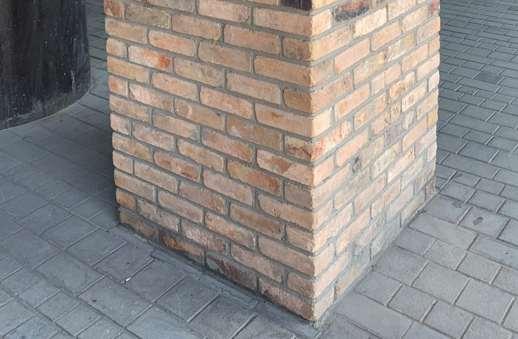

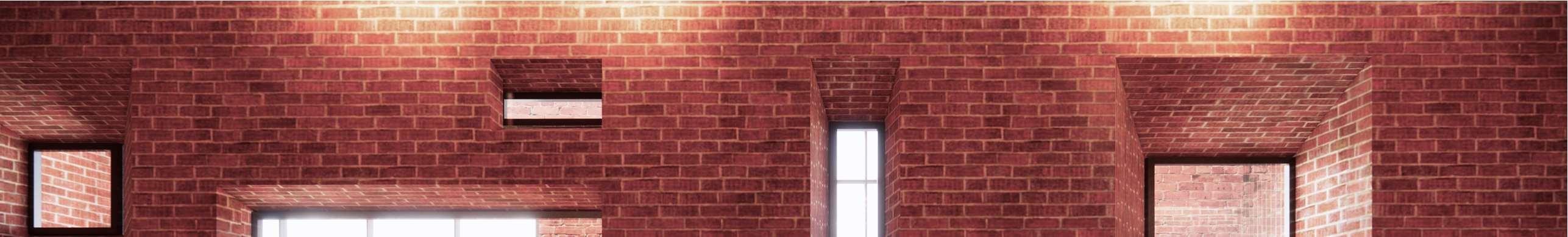

Option1： RetainandReinforce

Removethebaselayerandexteriorfinish, andcleantheexistingbrickwalls.

Option2： Demolishtheoldbricksandrebuild.

Cleantheoldbricksafterdemolition.

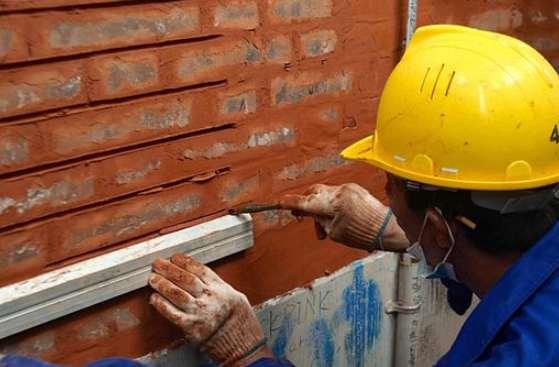

BrickPowderandMortarRepairRebuildtheexteriorwallswiththeoldbricks.

COMPARISON:ConstructionDifficultyandProcedures/QualityandSafetyControl/ InternalandExternalInterfaceTreatment/Schedule/Cost

方式二：拆除老砖重新砌筑方式一：保留加固

1.拆除主体结构前，需进外墙进行临时支撑。以保证拆除加固期间外墙的结构稳定，施工单位做专项支撑方案。

施工难度工序

质量安全控制

2、对保留外墙内侧做加固处理，采用单侧钢筋网或钢丝绳网-聚合物砂浆面层对原外墙加固处理。外侧做加固处理进行冲毛处理，并进行墙缝修补。

按图纸进行常规配筋及混凝土支模浇注

工期影响

1.对施工单位技术要求高

原有墙体局部风化破损比较严重，砌筑质量不高，饰面层铲除后风貌不佳，需要进行修复处理。

2.施工完成后检测难度大对于保留墙体的保温及防水处理比较复杂，可能有漏水隐患

常规施工方式

无论从前期的施工质量还是后期的质量检测手段均较为成熟

造价对比

施工工期主要取决于施工工序的安排及施工难度，从以往类似项目经验，方式一的施工工期，相较方式二增加约1/3

参照类似项目及初步核算：

1.加固原结构柱方案(方案一)和原貌复建(方案二)所用结构材料相当。

2.方案一比方案二增加保护性拆除措施费、二次检测费、植筋费用。经工经专业初步核算：方案一费用约为方案二的150%~180%。

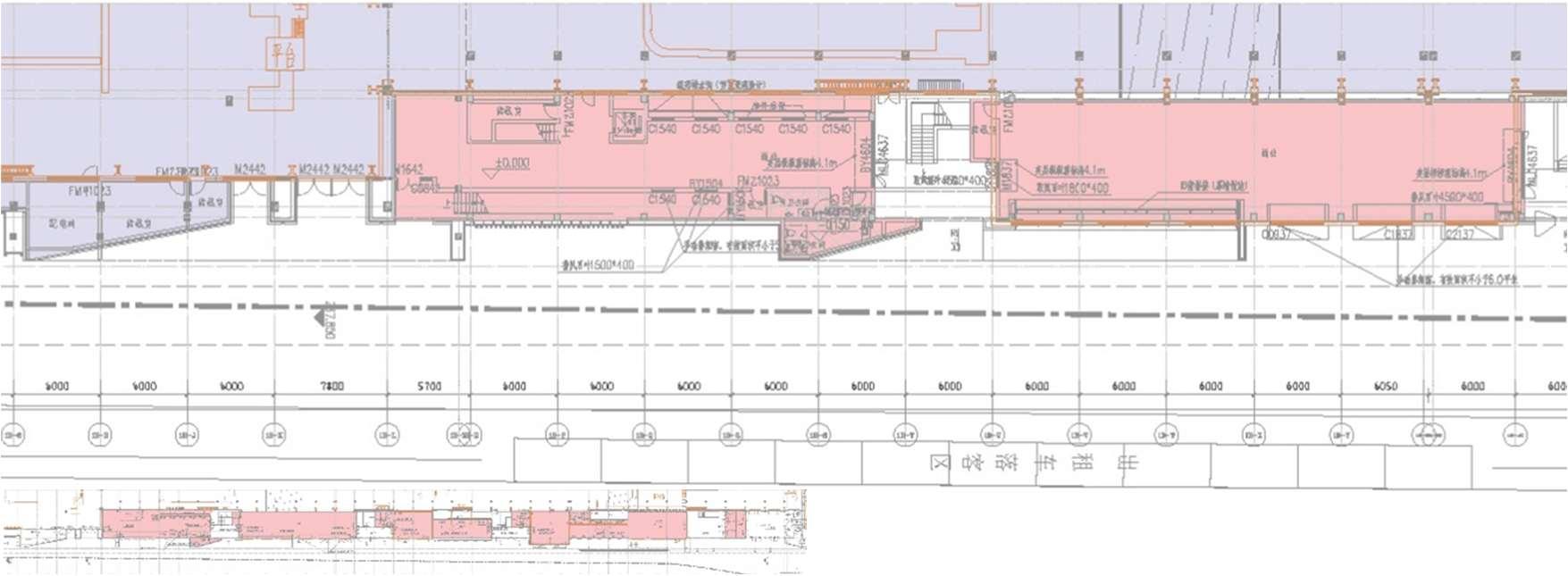

DesignProposalfortheFacadeofAncillaryRooms：The easternexteriorwallshouldbesubjecttoprotectivedemolition,followedby reconstructionusingtheoldbricks.

InfluencingFactors:Acomprehensiveconsiderationofvariousaspectsincludingtheretention ofarchitecturalappearance,cost,constructiondifficulty,andstructuralsafety.

DesignProposal:Itisrecommendedthatthissectionoftheexteriorwallbesubjectto protectivedemolitionandrebuiltwiththeoldbricksintheiroriginalappearanceandmaterial.

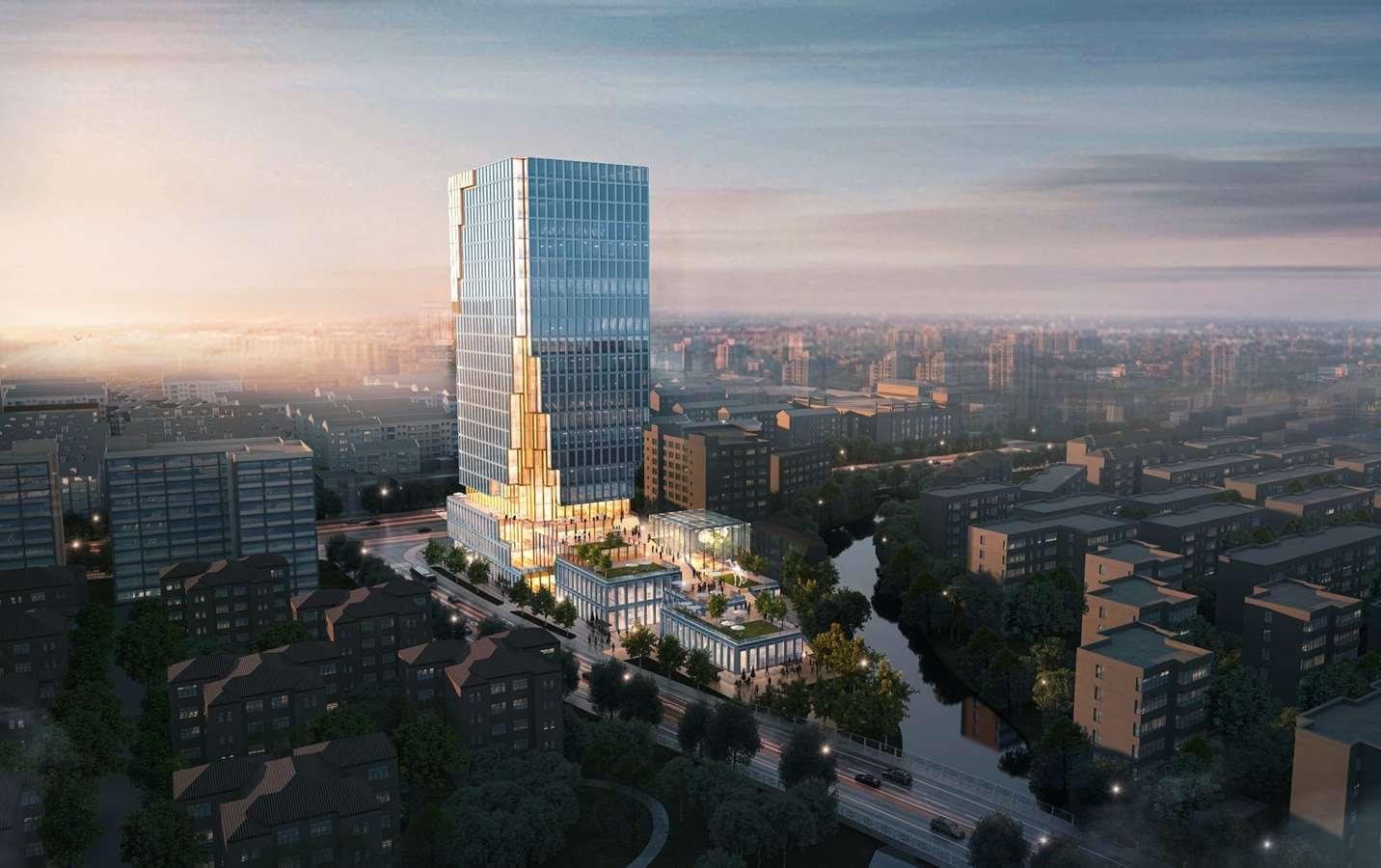

Introduction

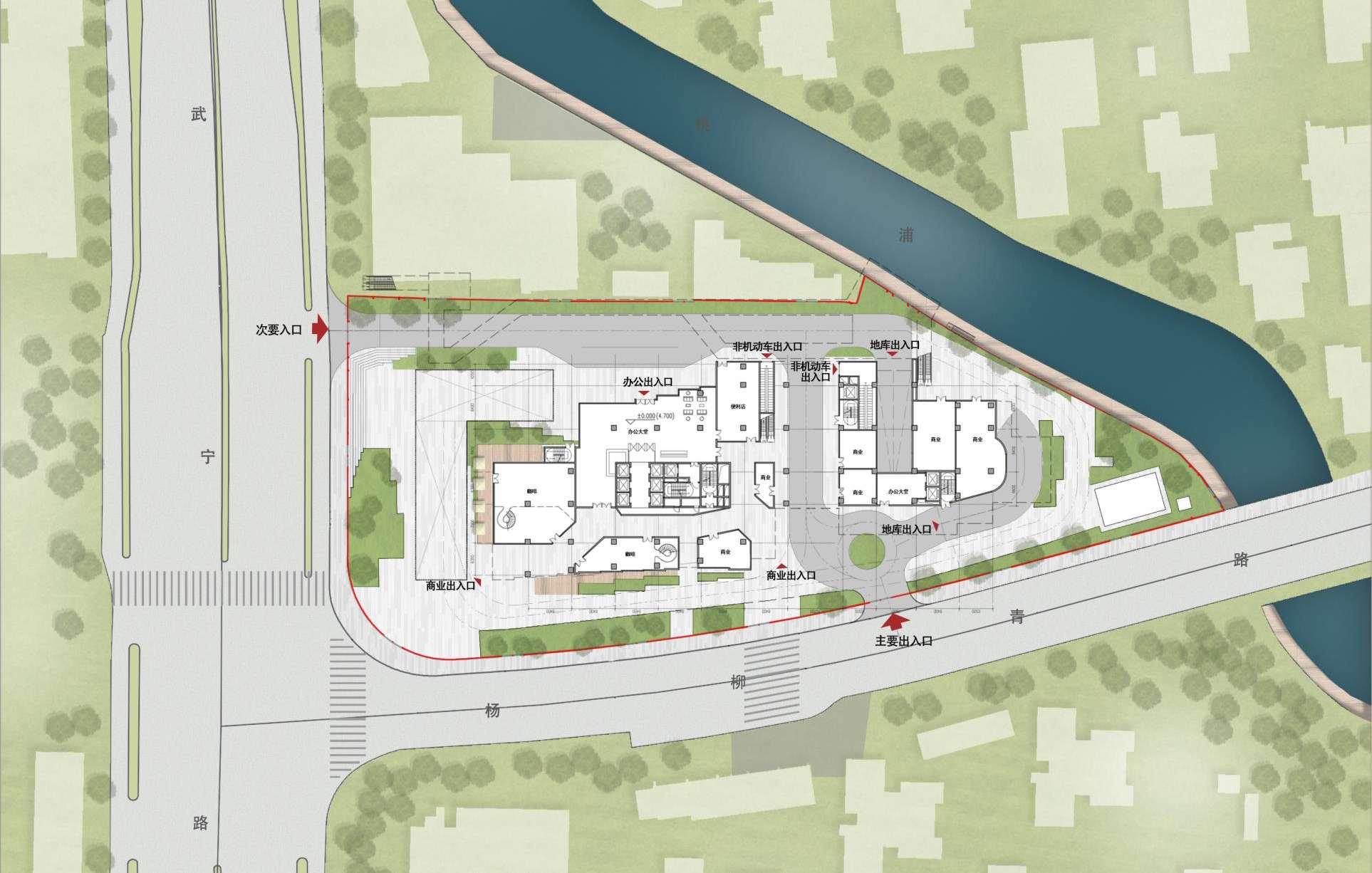

ThisprojectislocatedattheintersectionofYangliuqingRoadandWuningRoadinPutuoDistrict, Shanghai.Thecurrentstatusisafour-storysupermarketwithabasement.Thesiteissituatednearan oldresidentialcommunitywhereurbandevelopmentisrelativelymaturebutthelayoutissomewhat outdated.Boththesunlightandtrafficconditionsinthesurroundingareaarerelativelychallenging. Howtorekindleurbanvitalitythroughtheredevelopmentofthisplotundersuchchallenging conditionsisthefocusofthisproject.

BackgroundAnalysis:Policies

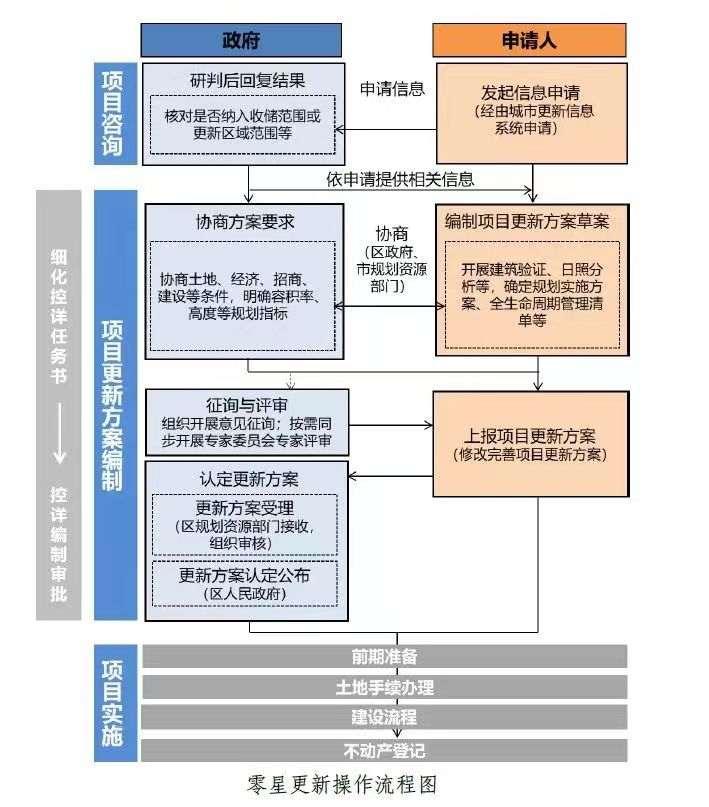

ThedefinitionoftherenewalmethodsintheShanghaiUrbanRenewalRegulations:

片区有机更新

结合区域更新方案，以更新统筹主体为主导的片区更新模式

由物业权利人对个别建筑物实施的更新

对既有建筑、公共空间实施的尺度极小的更新

而片区有机更新的范围内，如个别建筑物的物业权利人可以有条件的自主发起“零星更新”，此种更新如符合更新统筹主体的要求和区域更新方案，则可以进行规划变动、容积率调整、限高调整、组合供地等，其更新幅度相对较大。

文件名称时间/单位

2021.8

上海市

城市更新条例

上海市人民代表大会常务委

员会

上海市

城市更新指引

2022.11

上海市规划和自然资源局

上海市住房和城乡建设管理

委员会

上海市经济和信息化委员会

上海市商务委员会

重点内容

本市城市更新遵循规划引领统筹推进，政府推动、市场运作，数字赋能、绿色低碳，民生优先、共建共享的原则；城市更新项目依法享受行政事业性收费减免和税收优惠政策；鼓励存量产业用地根据区域功能定位和产业导向实施更新。

1.目标摘录：优化区域功能布局，推动产业转型升级；构建多元融合的15分钟生活圈；提升城市文化软实力；完善公共设施。

2.重点任务：促进存量产业用地转型升级，推动土地高质量利用；全方位升级商务集聚区与传统商圈，推进服务设施提标改造；提升公共空间网络与品质，推动各类附属空间对外开放；鼓励使用新材料新技术。

3.保障措施：零星更新项目可以以提供公共要素*为前提，按照规定，采取转变用地性质、按照比例增加经营性物业建筑量、提高建筑高度等鼓励措施。对于实现地区功能品质提升有重大贡献的零星项目，可以探索在区人民政府与实施主体协商土地、经济、招商、建设等其他条件的基础上，合理确定规划指标。

零星更新在符合整体规划的前提下（更新目标定位、公共要素*要求、开发强度、高度分区等）编制项目更新方案，实施城市更新，并提交必要的表单和意见汇总处理单据。

总结：

•市、区政府鼓励和支持城市更新，项目需提供“公共要素”，推动区域功能优化和产业转型升级，且与“15分钟生活圈”紧密挂钩。

•城市更新项目应以城市的提质增效为目标，重点实现公共空间景观环境的优化、文体等休闲空间的布局以及双创新业态空间的嵌入等。

•城市更新项目应以提质增效为目标，提供“公共要素”实现区域品质提升，创造宜居、宜创、宜业的空间。

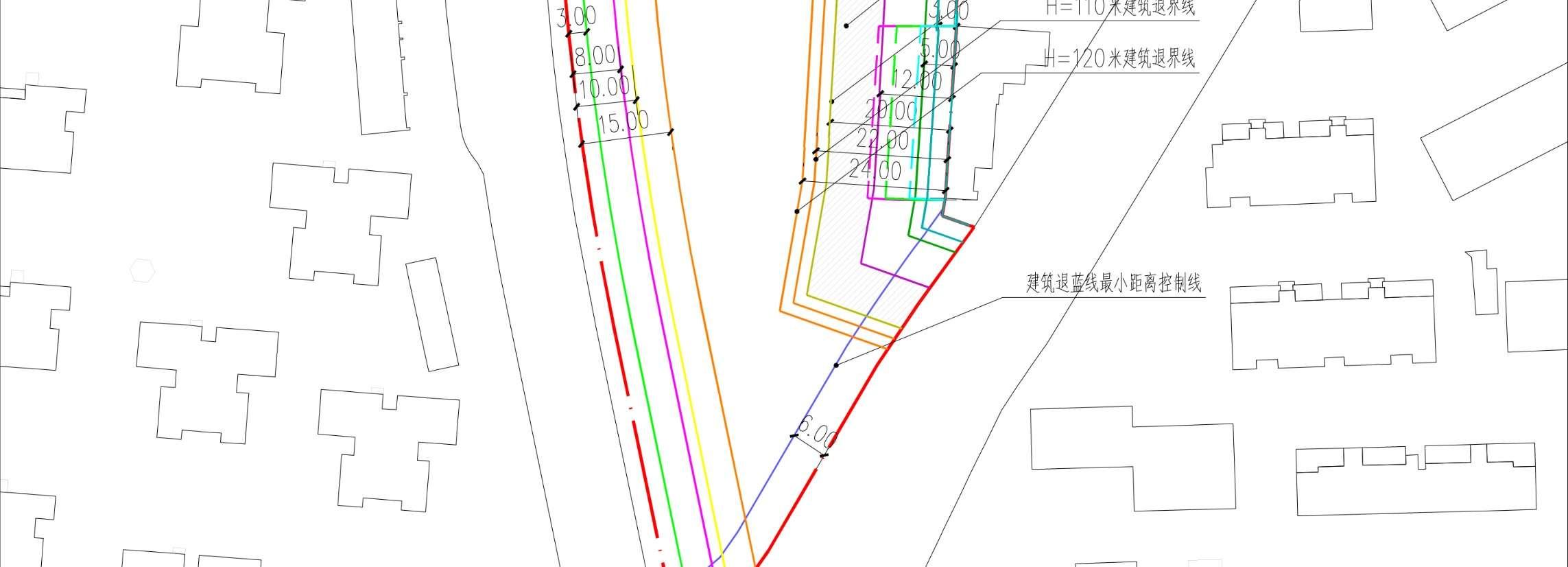

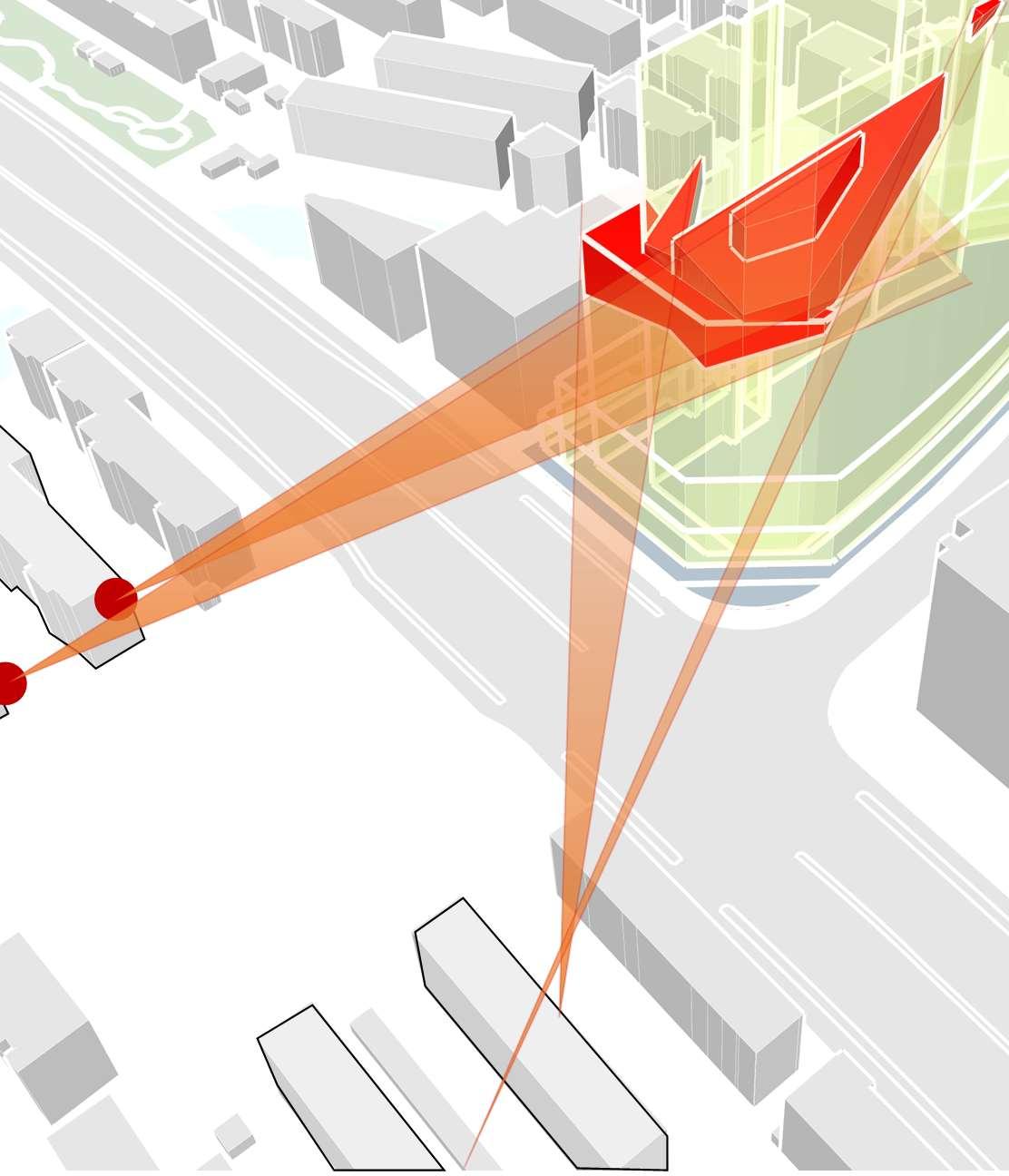

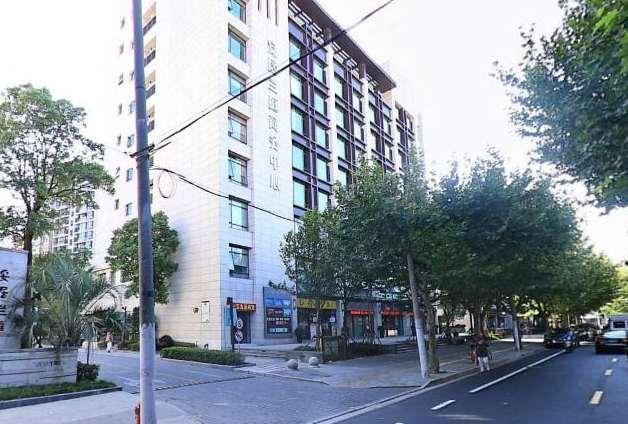

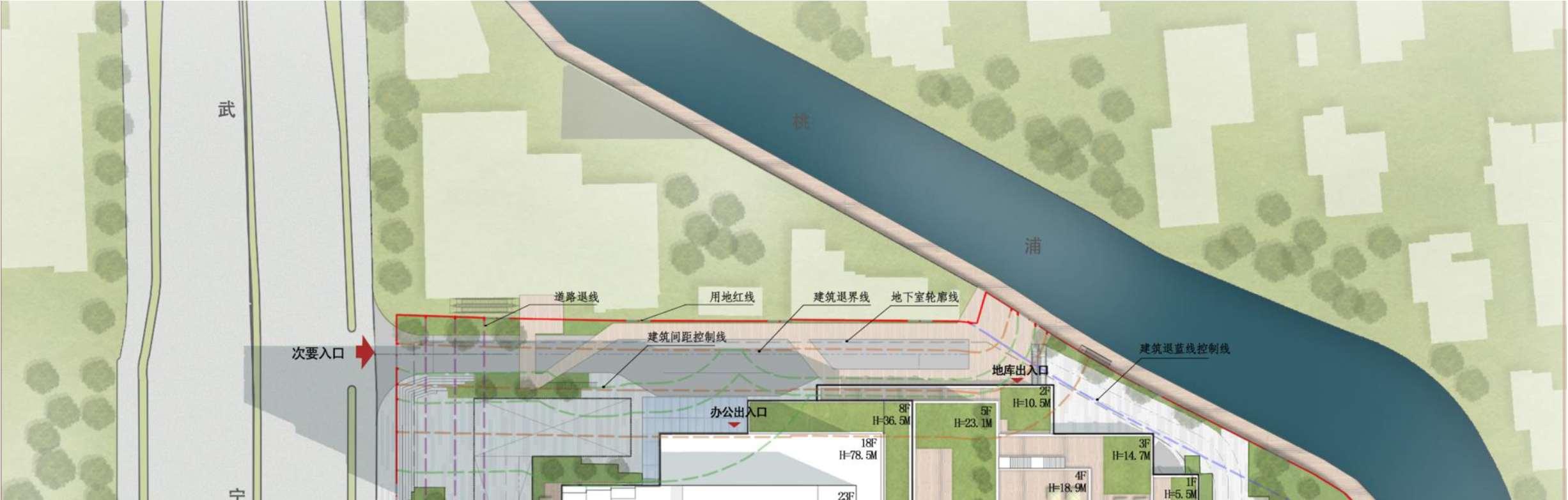

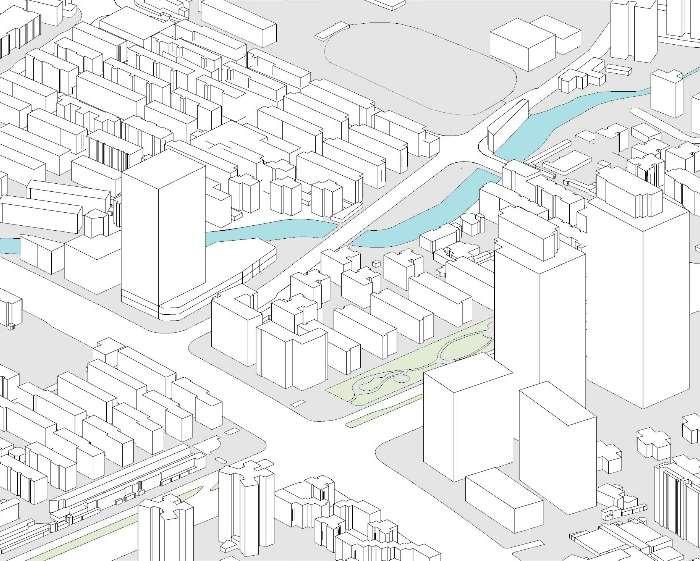

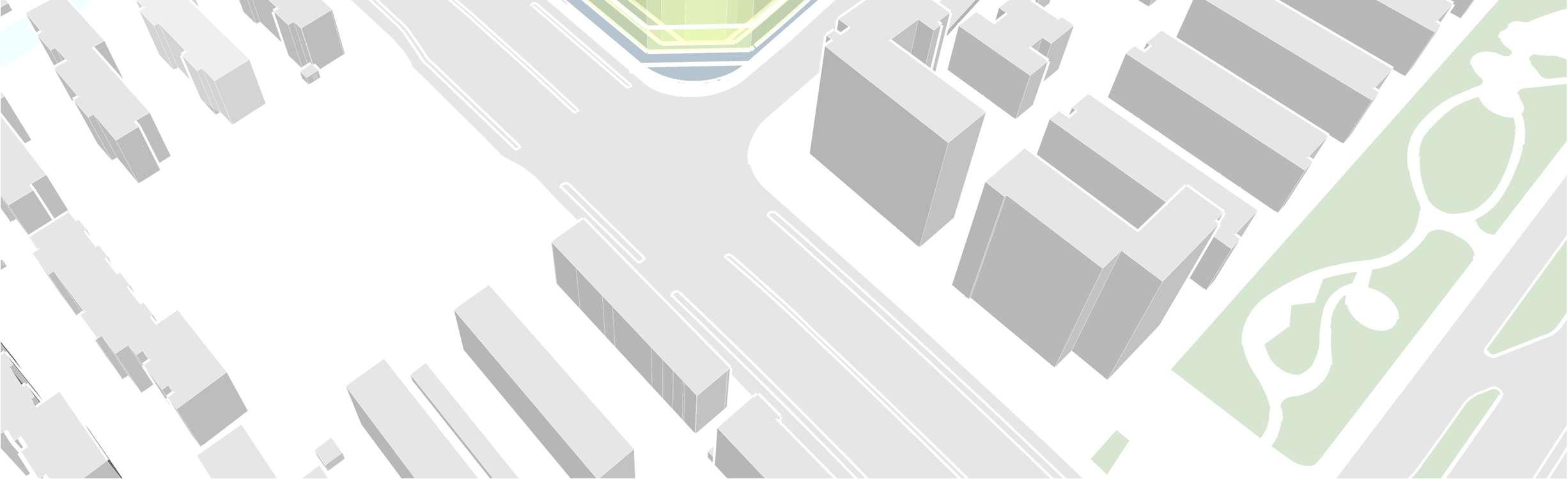

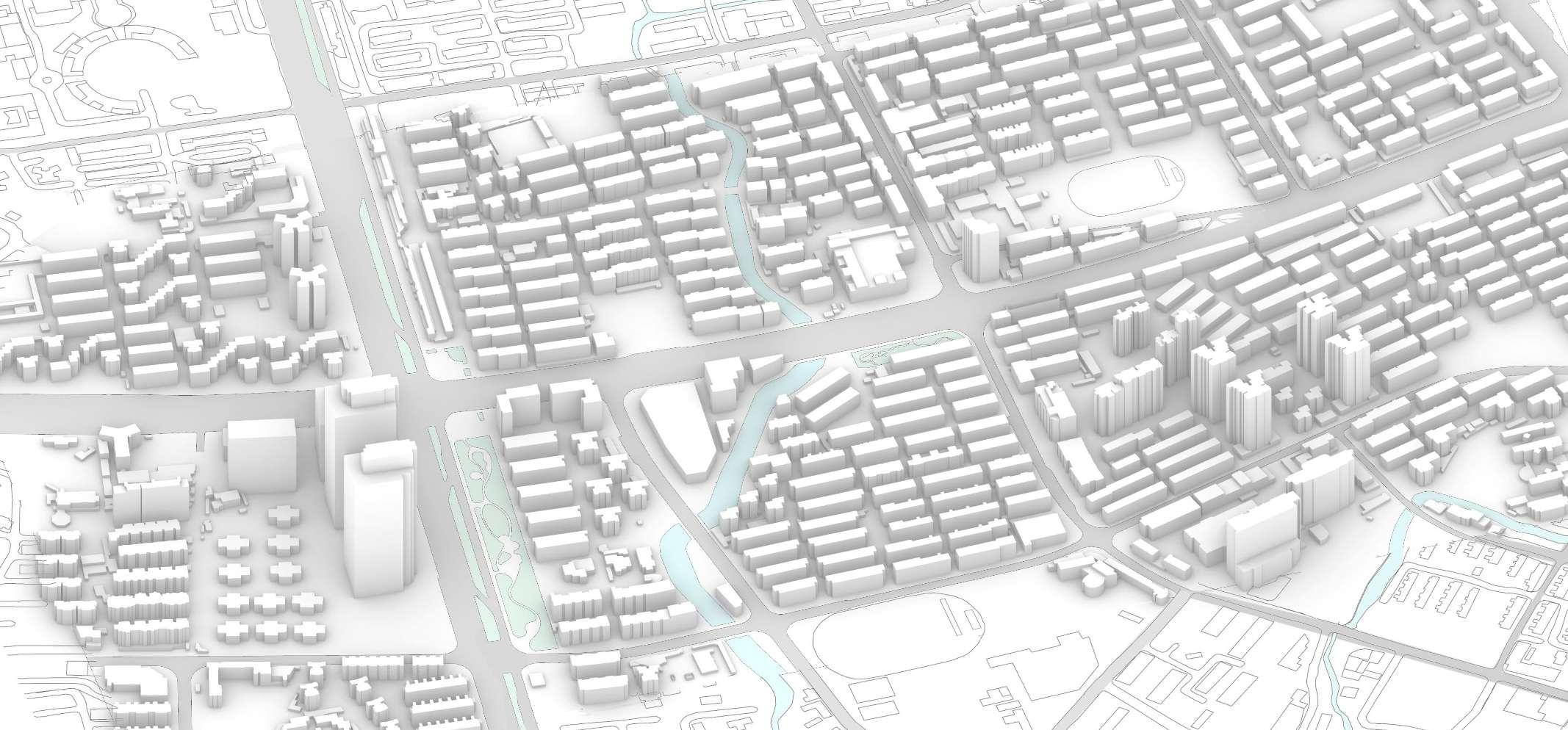

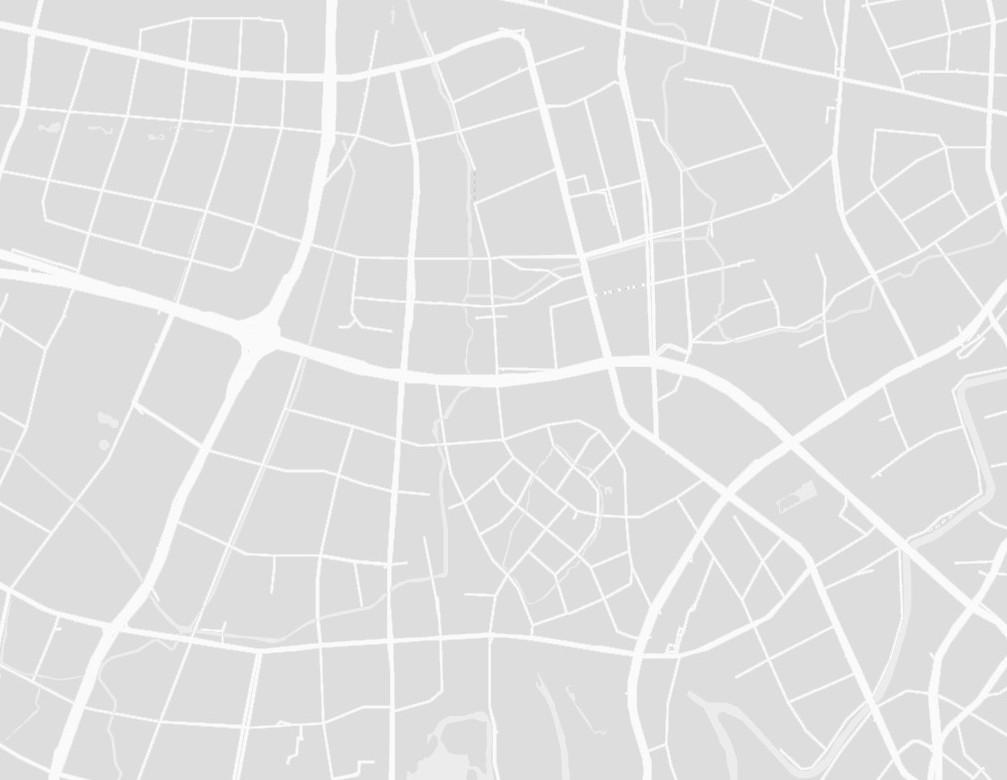

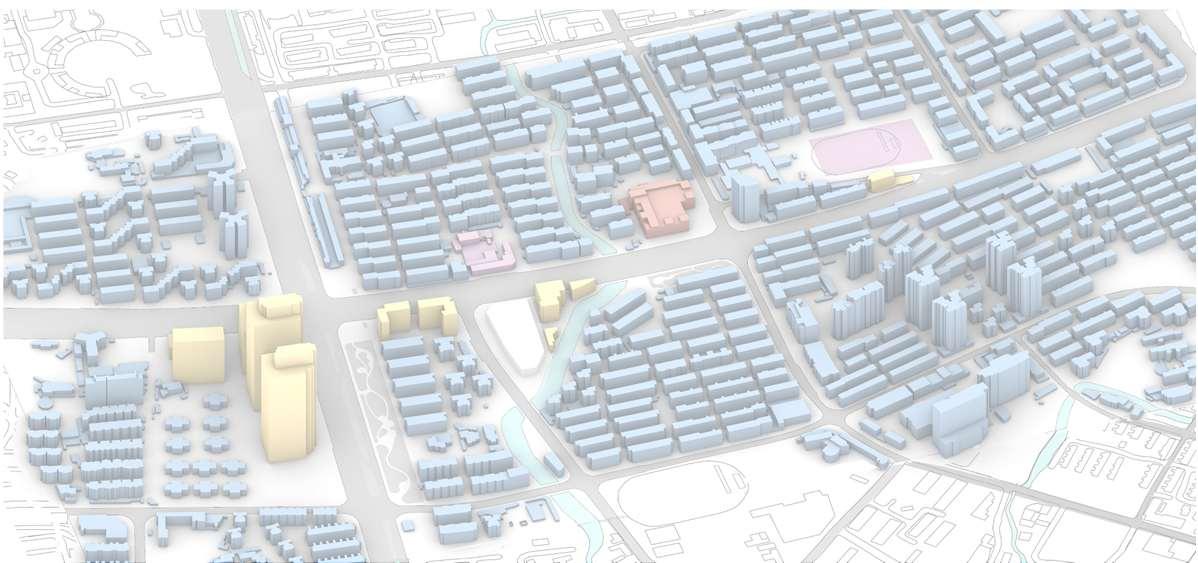

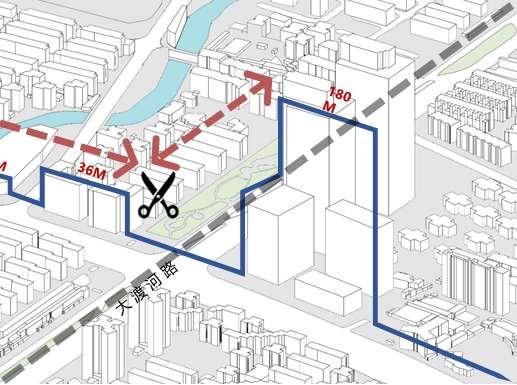

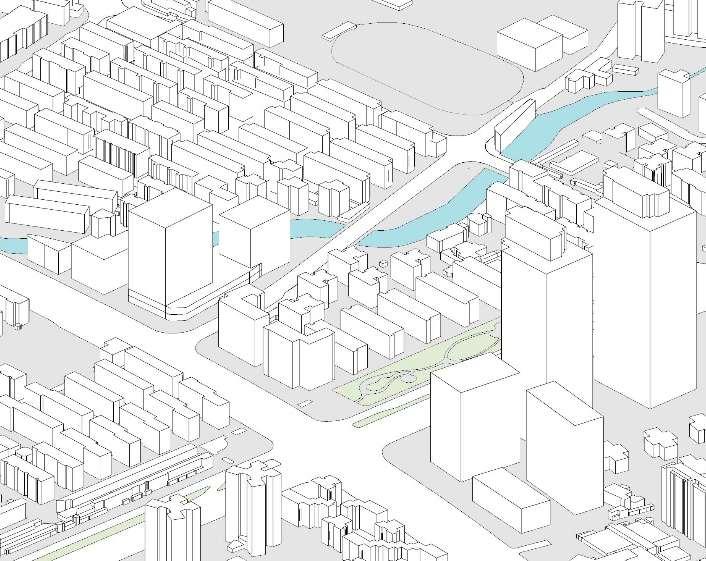

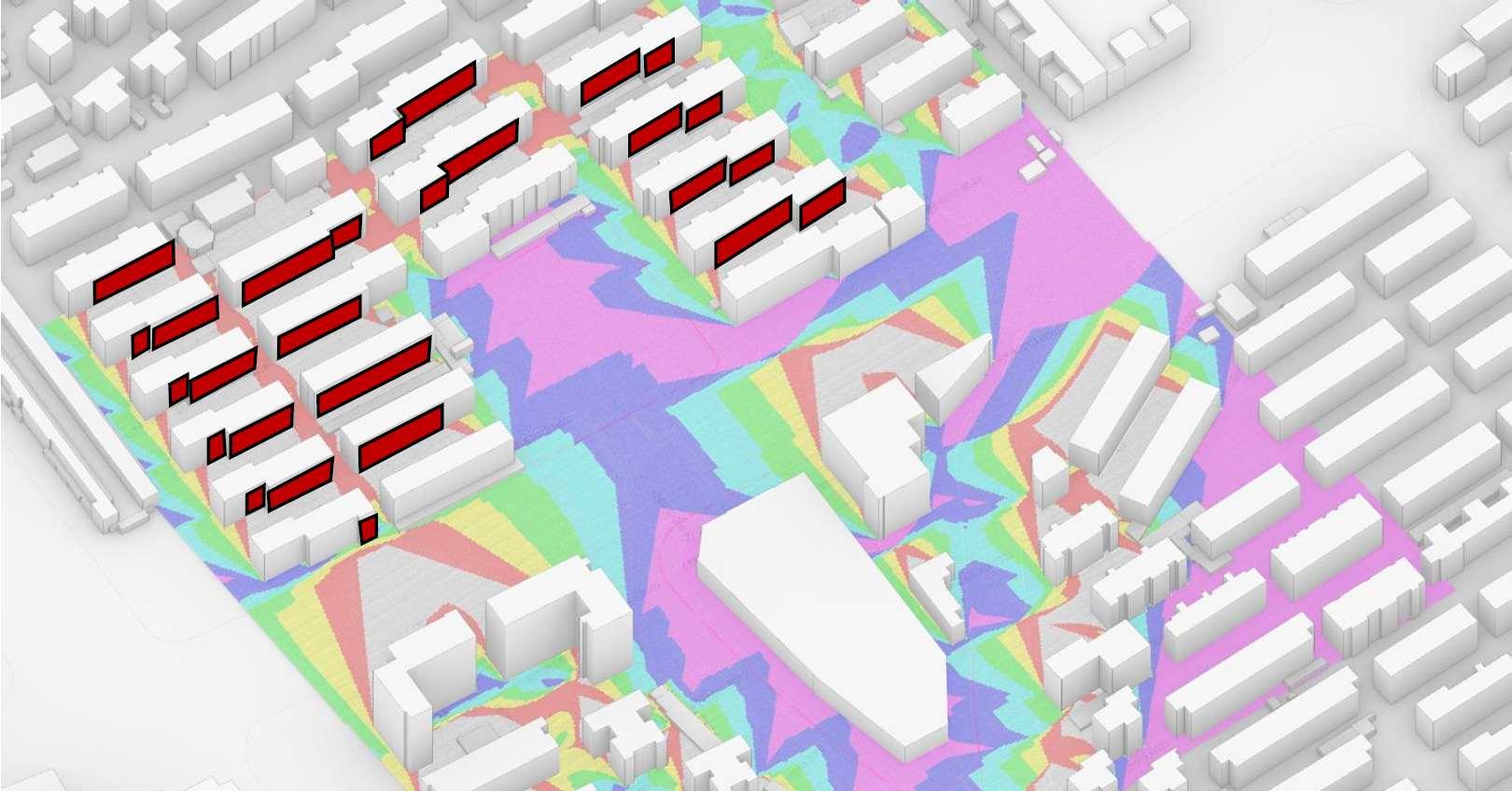

BackgroundAnalysis:SiteAnalysis

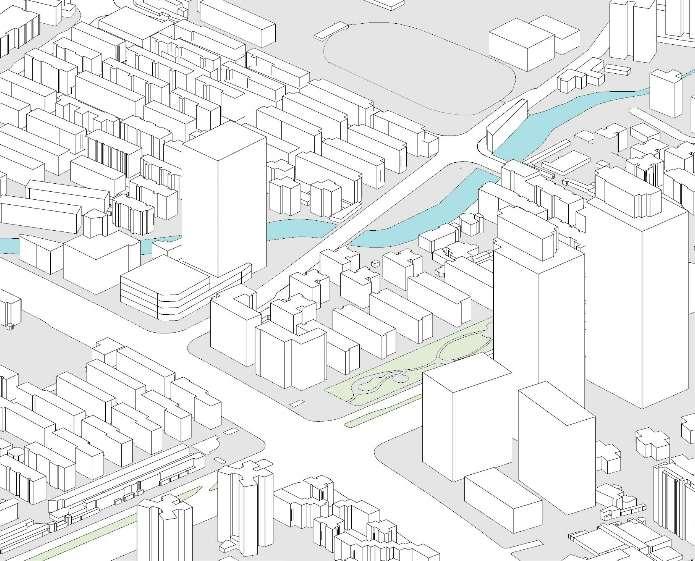

TheprojectislocatedatthecoreintersectionoftheWuningInnovationDevelopmentAxisinthetraditional communitysectionandtheTaopuRiverFacadeDevelopmentAxis.ItisalsoanimportanthubontheG2BeijingShanghaiExpresswayentrysectionintothecity.

WuningRoadservesasthewesterngatewaytoShanghai,wherethecurrentimageandpositioning aremismatched,especiallyinthetraditionalcommunitysectionwheretheprojectislocated.

上海门户一轴两翼

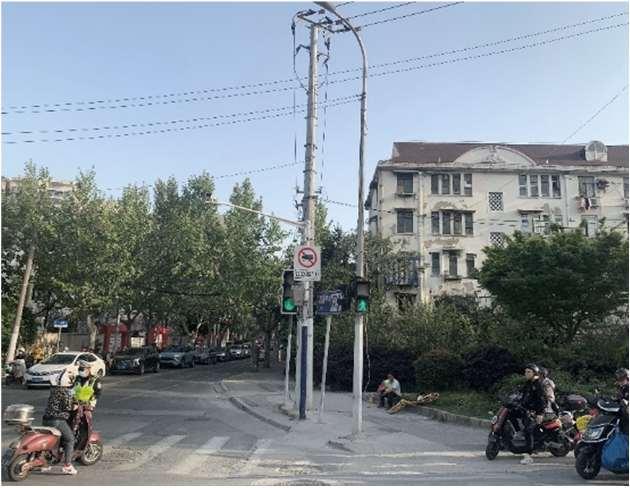

BackgroundAnalysis:ExistingProblems

1.AlongthetraditionalcommunitysectionoftheWuningDevelopmentAxis,thestreet-facingareasaremostly oldresidentialbuildings,andtheurbanimageurgentlyneedstobeimproved.

3.ThereisasignificantgapintheimageoftheWuningInnovationDevelopmentAxisbetweenthegateway businesssectionandthetraditionalcommunitysection.

2.Intheprocessofurbandevelopment,traditionalcommunityspaceshaveledtoalackofurbanopenspaces.The existingresidentialbuildingsalongbothsidesoftheTaopuRiveraremostlyclosetotheriverbanks,resultingina lackofpublicspace.

4.Thesiteisseverelyaging,lackinghigh-qualityofficespacestoattractyoungpeopletomovein.

UrbanPlanningGuidelines

1、UrbanMorphologyEnhancement:Onthebasisofrespondingtothe existingurbaninterface,completetheupgradeofurbanform.

2、GreenCorridorIntegration:Utilizetheexistingwatersystemtocreate greencorridorsthatintegrateopenspaces.

3、VitalitythroughCommunityServices:Bycreatingcommunityservice scenarios,transformbuildingsintourbandestinationsthatenhancevitality andcohesion.

4、FormandFacadeIntegration:Throughvolumecontrolandfacade vocabulary,improvethemorphologicalconnectionbetweenthegateway businesssectionandthetraditionalcommunitysection.

5、ThirdPlaceCreation:Shape“thirdplaces”andconstructinnovative spacesinvariousmodels.

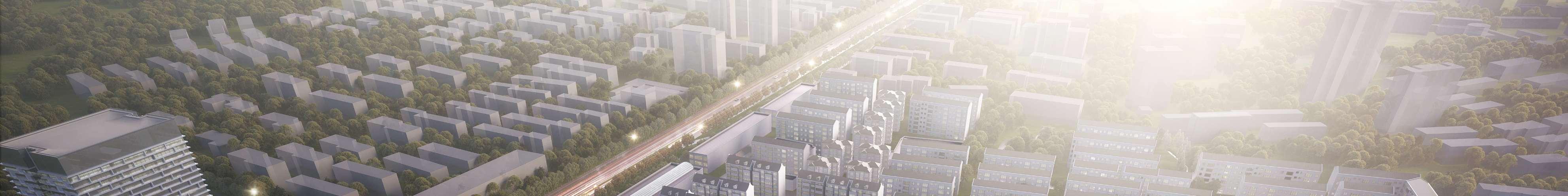

Throughastamp-collectingapproachtourbanrenewal, focusoncreatingdemonstrationunitsforarearenewalandestablishexemplarypractices. ItwilldrivetherebirthofWuningRoad’surbanimageandcreateasignificantlandmarkforShanghai’swesterngateway.

方案一单塔临路

设置100M办公塔楼，塔楼临武宁路，优化城市天际线，完成中信泰富180M超高层到传统社区段天际线的转换。

方案三双塔

设置60M+40M两栋办公塔楼，各自具备独自出入口，对未来运营较为灵活。

方案二单塔临河

设置100M办公塔楼，裙房局部拔高完成武宁路街角形态塑造。

方案四板楼

设置100M办公板楼，对东侧建筑压迫较小，但沿街面过长。

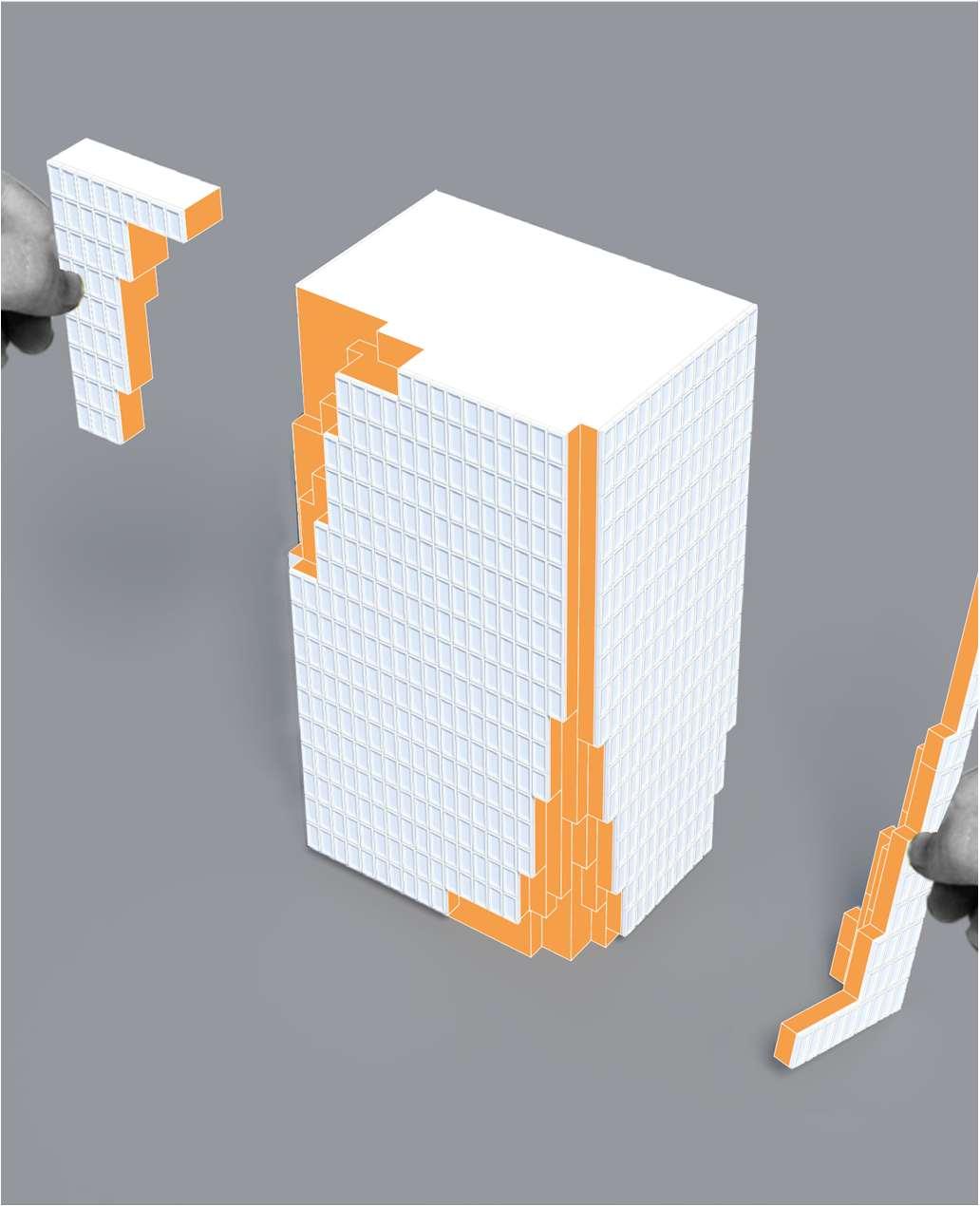

Carvingoutaportionofacompleteformisnotonlyasculpturaltechniquebutalsoanarchitecturalexpressionthatreturns overlyenclosedspacestothepublic.Apartofthebuildingisdesignedasanopenpublicspace,seamlesslyconnectingwiththe externalpubliclandscapeareas.Throughthisdesign,thebuildingisnolongeranisolatedentitybutformsanorganicconnection withtheurbanenvironmentandpublicspaces.Theopenpublicspaceprovidesavarietyoffunctions,includingsocializing,meeting, reading,retail,coffee,film,fitness,andleisure,meetingthediverseactivityneedsofurbanresidents

OFFICE

LANDSCAPE

如何将公共景观与办公空间联系起来,实现空间的多功能性和互动性?通过设计一条路径将公共景观区域引入办公大楼连接,增强公共景观的可达性和互动性，同时为办公人员和公众提供更多的交流机会。

城市之窗 WINDOW

OFFICE 公共 PUBLIC 公共景观 LANDSCAPE

OFFICE

低层为公共性较强的功能，如共享办公和商业，并与公共景观相连。

打破传统办公空间的界限，提升市民可活动空间，也为办公人员提供第三场所。

将塔楼的一部分设计为开放的公共空间，并与公共景观区域无缝连接。图中列出了该公共空间可能提供的多种功能，包括社交、会议、阅读、零售、咖啡、影视、健身和休闲等。这种设计旨在为城市居民提供一个多功能的公共活动场所，增强城市的公共性和互动性，同时提升城市空间的吸引力和活力。

新长征影剧院地块项目

CreatingPublicSpacesthatGiveBacktotheCity

ResearchonSunlightExposureIssues

日照计算逻辑-已不满足的不能再恶化，受影响的依然要满足1h

《上海市日照分析技术规范》沪规划资源建〔2021〕437号第九条（日照分析次序）

日照分析时，应先分析客体建筑的现状日照状况，再分析拟建高层建筑建设后的日照状况，以

便做出对比，明确遮挡影响。拟建建筑建设前客体建筑中已不满足日照规定的住户，在建设后不能增加日照影响。

确定主客体范围现状日照建设后日照

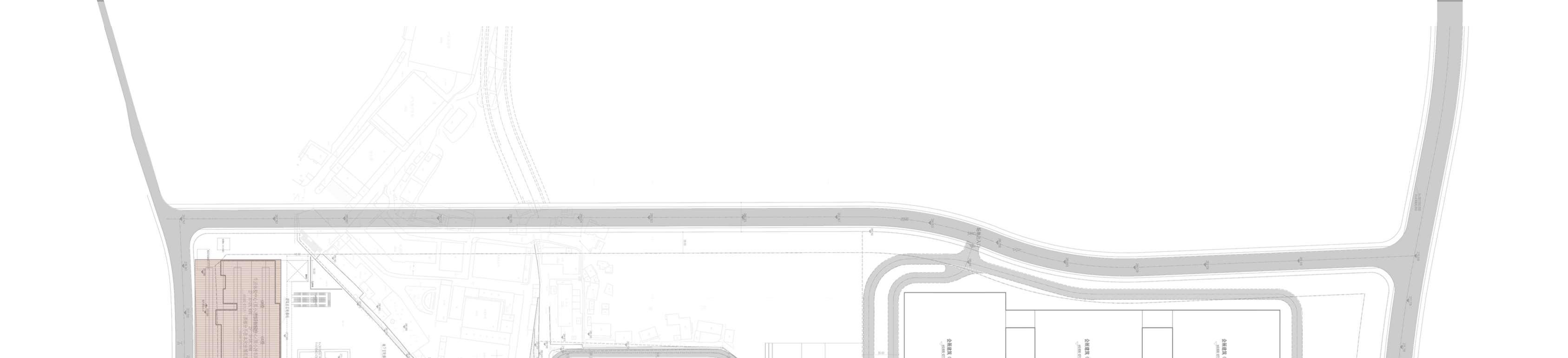

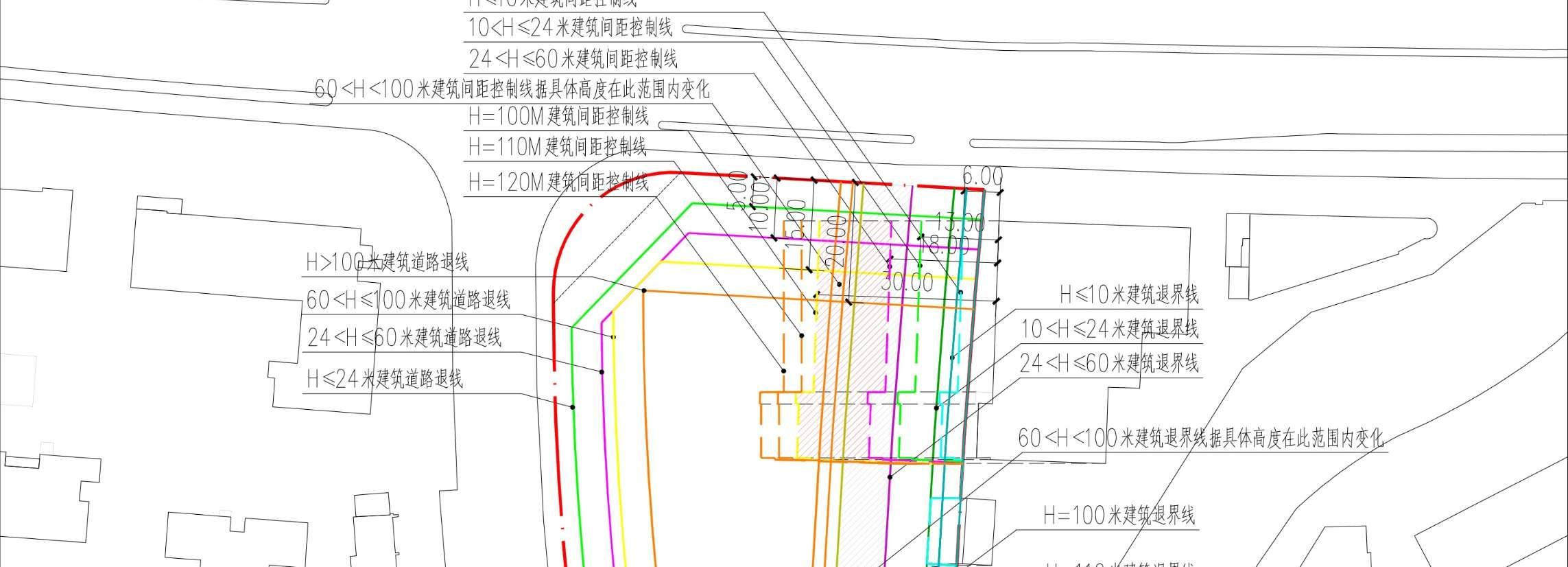

SiteTechnicalConditions

北侧、西侧退道路红线，

东侧退用地界线和建筑间距，

南侧退蓝线

按现行规范场地无法开口，需开口在场地最远端目前方案按照场地原状开口来考虑

(前序规划沟通意见：按原状考虑开口没有文件支持，但本案开口确实很困难，需要后续和交管局沟通后才能有结论)

现状机动车出入口

武宁路

现状机动车出入口

SiteTechnicalConditions

Themaximumbuildableoutlineofthebuildingformedunderthecombinedinfluenceofthesite‘ssetbackrequirementsandsunlight exposureconditions.

FormModification

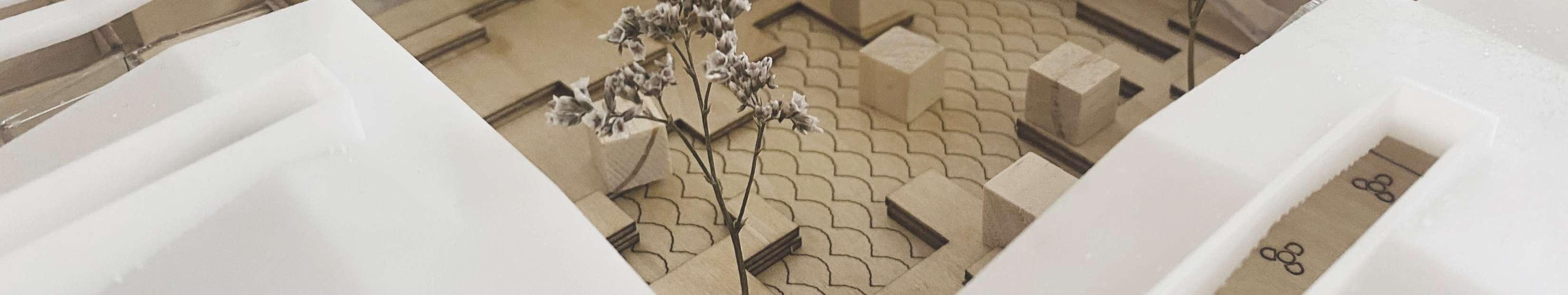

PhysicalModel

8.4*2.18.4*4.2

16.8*4.2（17m）16.8*4.2（13m）

RenovationofXiejiaxiaoyuaninCherryValley, Xi'anCity

CourtyardRenovation/RestaurantRenovation/HotelDesign

CompletionYear:2025/ProjectStatus:ConstructionDrawingPhase

Participatedin:ArchitecturalConceptDesign/LandscapeConceptDesign/Interior ConceptDesign

Introduction

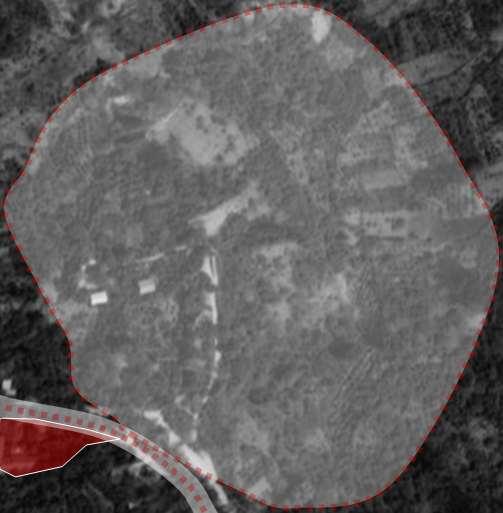

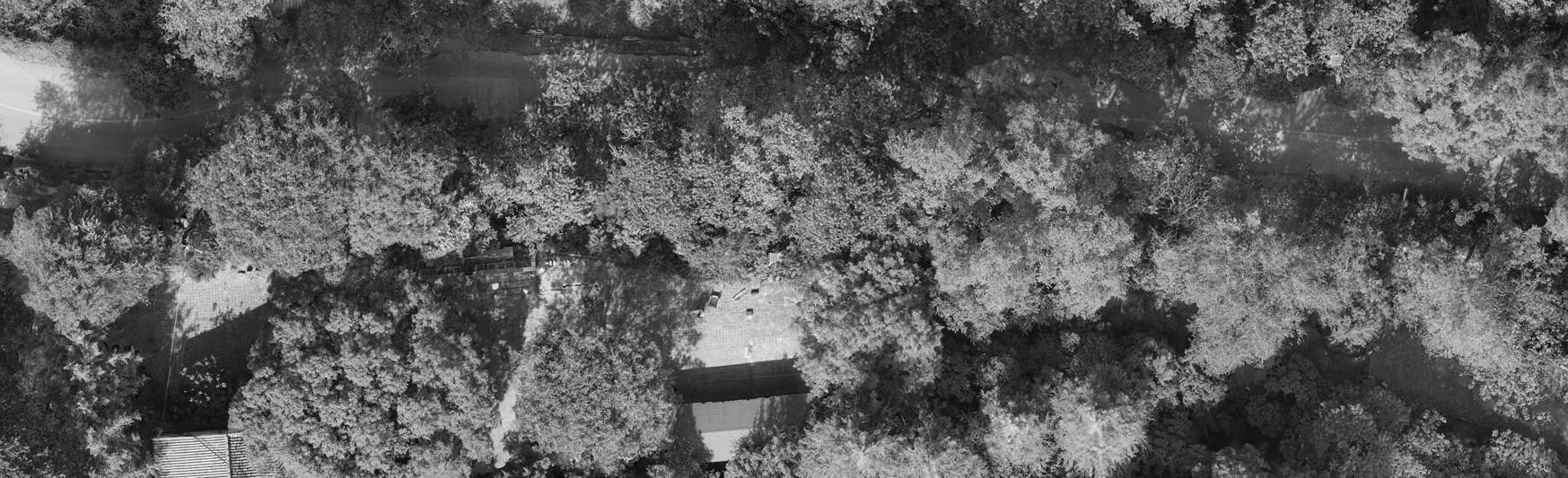

ThisprojectislocatedinasmallmountaincourtyardontheWhiteDeerPlaininthesuburbsofXi'an. Originallyastate-ownedguesthouse,thecourtyardcontainsthreetwo-storybrick-and-mortar buildingsandfourearthencavedwellings.Theplanistorenovateitintoanewtypeofcourtyard thatintegratesleisure,vacation,anddining.Thetargetcustomergroupispeoplewhocomefrom Xi'anforweekendandholidayvacations,meetingtheirneedsforweekendrelaxationandleisure.

通往西安市区

庭院深深樱谷白鹿

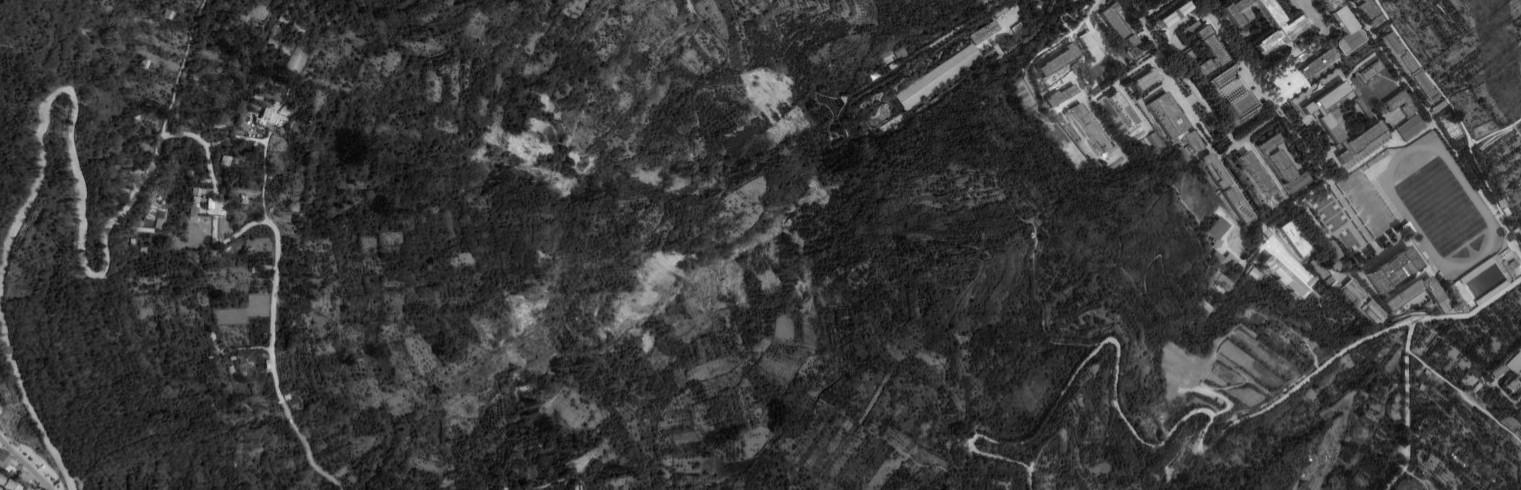

Theregionboastssuperiornaturalconditions,withamplesunlightanda suitabletemperature,makingitidealforcherrygrowth.Itishometoahighqualityten-thousand-mu(about667hectares)largecherrybaseinthe northwestregion.Moreover,theplannedCherryValleyTourismScenicArea onWhiteDeerPlainwilltransformWhiteDeerPlainintoagreenleisure landscapehighlightintheXi'anarea,integratingnaturalscenery,historical culture,andagriculturalexperience.However,thecurrentdesignofthesiteis notmodernenoughandlacksappeal.Itneedsfurtheroptimizationto enhanceitspublicnessandinteractivity.

WhiteDeerPlainisnotonlyblessedwithbeautifulnaturalsurroundingsbut alsorichinculturalhistory.Sinceancienttimes,WhiteDeerPlainhasbeena summerretreatandameltingpotofethniccultures,featuringhistoricaland culturalsitessuchastheHanBaMausoleum,knownasthe"Oriental Pyramid."ItisalsothehometownofthefamouswriterChenZhongshi,whose work"WhiteDeerPlain"hasdrawnglobalattentiontothisland.Thecultural historyofWhiteDeerPlainaddsuniquecharmtotheregionandprovides richculturalresourcesforthedevelopmentofCherryValley.
