Live Project - Madhya Pradesh (Disaster Resilience - Chattarpur - Khajurao - Bhopal)

DISASTER RESILIENCE & RECOVERY WORKSHOP

2 4 6

TOOLS SKILLS BUILDING 1

BUILDING 2

BUILDING 3

COMMUNITY

8

2022

1 3 5 7

TRAVEL

HANDS-ON WORKSHOP

DISASTER RESILIENCE ARCHADE FOUNDATION

MATERIALS

I I DISASTER RESILIENCE & RECOVERY WORKSHOP

TEAM LEADERS

ARCHADE foundation is a registered nongovernment organization (Trust) dedicated to constructive nation-building activities.

It is an initiative to engage the fraternity towards their social responsibilities through Architecture Research, Conservation Practices, Habitat Design, Holistic Education, Disaster Response and Skill Development.

INTRO– DUCTION We are aligned with the Gandhian Ideals and constitutional values. Functioning as a cohesive unit, we are dedicatedly working towards the welfare of society, natural environment and humanity at large. We are an open platform for every individual willing to serve the nation through their skills.

We believe in collective wisdom, unity, teamwork and shared responsibilities to achieve our goals.

AR. MOHITH VER M A

Quiatem qui di occus, ut temporp oressunt untum faccusam essinci endaepudis experep ersperibea quatisi tatempo rporia quatiat.

AR. PRITH VI M AH ADEVA N

Quiatem qui di occus, ut temporp oressunt untum faccusam essinci endaepudis experep ersperibea quatisi tatempo rporia quatiat.

RVS CHENNAI

AR. GAUR AV

Quiatem qui di occus, ut temporp oressunt untum faccusam essinci endaepudis experep ersperibea quatisi tatempo rporia quatiat.

ER. SETHUPATHI

Quiatem qui di occus, ut temporp oressunt untum faccusam essinci endaepudis experep ersperibea quatisi tatempo rporia quatiat.

A RCHADE FOUNDATION

The Gandhi Ashram around the country

It is located in the north-central part of

are built to develop a self-sustaining

the state of Madhya Pradesh, 40 km

way of life based on Mahatma Gandhi’s

from Khajuraho and 130 km from Jhansi.

principles of Swaraj and nonviolence.

It can easily be reached by bus and rail

In particular, the community seeks to

via the Harpalpur (45 km), Khajuraho

apply these principles to the problems

(40 km) or Jhansi (130 km) stations.

of the 21st century to find universally solutions. society

applicable A

and

communal economy

is

fostered through a self-reliant organic and rural lifestyle. An environment for learning is created and enriched through constructive activities and supplemented by nonviolent social

and

ecological

activism.

Introductory session in chattarpur gandhi ashram. this ashram is well known for its social viability in the town.

Gandhi Ashram Chattarpur is

GANDHI

Smarak

Nidhi

CHHATARPUR is known to take forward the gandhian thoughts such as organic farming

through

diverse

vegetable garden alongwith composting

of

different

types. It has library and sell Khadi clothing to promote local artisans. They have a training and resource centre that

creates a sense of

community and well being.

ecluded in the small city environment

Gandhi Ashram creates a sense of

of Chhatarpur, the Ashram’s primary

togetherness in thevalues and principles

campus comprises 34 acres of mixed-

of Gandhian thought and the life that

use land with a community of nearly one

one leads is simple but nonchallant.

hundred.

1.

TITLE 1

UNDERSTANDING

Materials

• Sandbags • Burnt Bricks • Bamboo Cane • Sun-dried Earth Blocks

MATERIAALS

In the disaster hit area there is a scarcity of materials and thus the materials that are used to REBUILD is most definitely REUSED. This workshop aims in creating a resilience mindset and bringing in expertise in assessing such situations for the students.

A sandbag or dirtbag is a bag or sack made of hessian (burlap), polypropylene or other sturdy materials that is filled with sand or soil and used for such purposes as flood control, military fortification in trenches and bunkers, shielding glass windows in war zones, ballast, counterweight, and in other applications requiring mobile fortification, such as adding improvised additional protection to armored vehicles or tanks.

RECYCLING MATERIALS

Materials The advantages are that the bags and contaminated by sewage in flood sand are inexpensive. When empty, the waters making them difficult to deal with bags are compact and lightweight for after flood waters recede.[1] In a military easy storage and transportation. They context, improvised up-armouring of

SUNDRIED BRICKS

can be brought to a site empty and filled tanks or armored personnel carriers with local sand or soil. Disadvantages with sandbags is not effective against are that filling bags is labor-intensive. cannons (though it may offer protection Without

proper

training,

sandbag against some small arms).

walls can be constructed improperly causing them to fail at a lower height Sandbags have traditionally been filled

EARTH AS BUILDING MATERIALS

than expected, when used in flood- manually using shovels. Since the control purposes. They can degrade 1990s, machine filling has become more prematurely in the sun and elements common, allowing the work to be done once deployed. They can also become more quickly and efficiently.

SANDBAGS

BRICKS

2.

TITLE 2

UNDERSTANDING

Tools

•Trowel •Spade •Drilling Machine •Circular Saw •Hammers •Welding Machines •Chisel •Torpedo level •Plumb bob

#Construction Tools Construction tools play an important role in any construction work as they provide a good finish and ease of work by reducing man work. There are different types of construction tools and equipment used in construction.

3.

TITLE 3

UNDERSTANDING

Skills

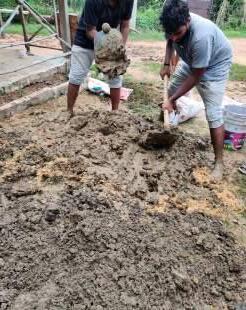

• Making Sand Bags - filling, knitting and ramming • Dismantling buildings • Cow Dung Plaster - mixing and plastering • Brick Course stacking • Cane fencing • Welding of roof members • Building a plinth

Skill

SKILL DEVELOPMENT

SINGLE DWELLING SPACE

BUILDING #1

This structure was a cow shed initially that got dammaged in a cyclone that hit the place. The nearby Banyan tree branch fell on the building and damaged the roof. The building is being re imagined and built as a single dwelling space.

DISMANTLING REBUILDING SANDBAGS BRICK SHEET ROOF

PROCESS CREATING SANDBAGS A sandbag or dirtbag is a bag or sack made of hessian (burlap), polypropylene or other sturdy materials that is filled with sand or soil and used for such purposes as flood control, military fortification in trenches and bunkers, The advantages are that the bags and sand are inexpensive.

When empty, the bags are compact and lightweight for easy storage and transportation. They can be brought to a site empty and filled with local sand or soil.

Disadvantages are that filling bags is labor-intensive.

CREATING PLINTH Plinth beam is a reinforced concrete beam constructed between the wall and its foundation. Plinth beam is provided to prevent the extension or propagation of cracks from the foundation into the wall above when the foundation suffers from settlement. Plinth beams distributes the load of the wall over the foundation evenly.

DISMANTLING

CREATING WALLS

Dismantling involves the careful deconstruction of building components for repair, re-use, re-purposing or recycling. Dismantling differs from deconstruction in that it can be undertaken as a means of conservation, maintenance and repair works, whereas deconstruction involves taking a building down, albeit in a careful way that aims to minimise waste and maximise re-use. Dismantling also differs from demolition in that it does not generally involve the clearance of an entire structure.

It is also natural building technique developed from historic military bunker construction techniques and temporary flood-control dike building methods. Standard earthbag fill material has internal stability. Walls are gradually built up by laying the bags in courses—forming a staggered pattern similar to bricklaying.

The walls can be curved or straight, domed with earth or topped with conventional roofs. Curved walls provide good lateral stability, forming round rooms and/or domed ceilings like an igloo.

BRICK PAVILION

BUILDING #2

The second building is the pavilion building that was designed and built as a homage to the dacoits who surrendered their weapons to the values of Gandhi.

FOUNDATION BRICK COURSE ARCH FRAME CREATING ARCH

PROCESS MARKING Site marking is one of the starting point of your construction. In this activity your Engineer and Meastri will identify pillar placements.

Once pillars placement is identified based on soil condition earth work will start. Engineer will mark the area around the piller. Earth workers will dig marked area Depending on soil condition pillar depth will vary. Some people perform puja before starting this marking.

BUILDING FOUNDATION Foundation is the lowest part of the building or the civil structure that is in direct contact with the soil which transfers loads from the structure to the soil safely.

Generally, the foundation can be classified into two, namely shallow foundation and deep foundation. A shallow foundation transfers the load to a stratum present in a shallow depth. The deep foundation transfers the load to a deeper depth below the ground surface.

CREATING FRAME WORK Creating a framework for the arch to stand. The arch has long been used in masonry structures. In fact, a brick masonry arch found in the ruins of Ur in Mesopotamia dates back to 1400 B.C. Today, the brick arch is used in construction to span over wall openings and add aesthetics, as the arch is the consummate definition of form and function. This Brick Brief addresses design considerations for brick arches in veneer construction.

CREATING ARCHES The brick arch is the consummate example of form following function. Its aesthetic appeal lies in the variety of forms which can be used to express unity, balance, proportion, scale and character. Its structural advantage results from the fact that under uniform load, the invoiced stresses are principally compressive.

Because brick masonry has greater resistance to compression than tension, the masonry arch is frequently the most efficient structural element to span openings.

SINGLE DWELLING SPACE

BUILDING #3

The third building was a single dwelling space that was restored and retrofitted by plastering and cane fencing that was redone.

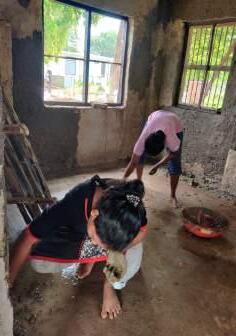

cowdung plastering cane fencing

collector Visit from the local

We have had the honour of the District Collector SANDEEP G R to have visited our site. He congratulated us for our end=eavours and asked suggestions and designs in their Urban City of Chattarpur.

Media Coverage

LOCAL NEWSPAPER ARTICLES

EVENT

Graced an Independance Day celebration

As a part of the Independence Day celebration, the district collector has invited us to a celebration happening here.

EVENT

Graced an Independance Day celebration at MAHARISHI VIDYA MANDIR

We all are here invited to share our experiences in MAHARISHI VIDYA MANDIR. It is one of the main schools of this region. Our students presented their experiences through small snippet of talk as well as 10min video. It was well received by the entire crowd.
