SVEA barrier system

Svea barrier system ™

High Performance Temporary Barrier System CE-certified and crash-tested according to AASHTO MASH TL-3, EN 1317-2 (capacity class T2, T3, N1, N2 and ISO 22343 for hostile vehicle mitigation.

Revision 2508

 SYSTEM

Ramudden Svea Barrier System

Svea barrier system - List of content Welcome to the Svea barrier system, where road safety meets innovation. This brochure presents a range of barrier sections and project-specific accessories for optimized traffic management. Discover our products, learn about their installation for various applications, and find detailed assembly instructions for seamless project implementation.

Attention! You will find all the illustrations and images showing local installations. Reflectors, signs, and certain accessories may vary between countries and are available for each respective region.

1

2

Svea Barrier

2

Barrier 5.7

AT-Fence

52

4

AT-Fence Components

53

Barrier 2.85

6

Installation Guide AT-Fence

54

Barrier 1.425

10

Barrier Installation

12

Barrier Accessories

59

Lifting

15

Storage and Maintenance

18

Barrier Lids

60

End Barrier

20

X3-Attachments

62

Barrier Hinge

21

Reflector/Sign Holders

62

Adaptors, SMA/Fence

68

Sound Panel

24

Technical Information

72

Detailed Wind Advisary

26

Sound Panel Introduction

28

Performance Data

73

Sound Panel Components

34

Sound Panel - Component Lists

77

Installation Guide Single Height

37

Installation Guide Double Height

44

Barbed Wire

50

Top Net

51

3

4

5

1

Ramudden Svea Barrier System

Work zone safety with unmatched performance and total modularity Svea is the fully modular freestanding barrier system that redefines safety and performance for temporary work zones. With total modularity, fast installation, and unmatched performance, Svea seamlessly adapts to any project requirements, providing superior protection and maximum flexibility.

Revolutionizing work zone safety Safety is of the utmost importance, which is why the Svea barrier underwent crash testing in accordance with MASH TL-3 criteria and EN-1317-2 standards across capacity classes T2, T3, N1, and N2; these tests yielded remarkable results. The exceptional performance of the CE-certified barrier system observed in these tests directly translates to enhanced safety and operational efficiency. Count on Svea to endure the most rigorous conditions, safeguarding both workers and the public.

Svea’s adaptability in action Respond swiftly to work site challenges with Svea’s flexibility. The innovative connection shape permits barrier removal mid-setup for emergency openings or temporary access. Choose from three lengths of barrier sections and an extensive range of accessories to suit varied applications with the option of a hinge element for enhanced adaptability, allowing barriers to turn up to 100° in each direction.

Quick and seamless one-step installation Svea’s patented connection system streamlines installations, guiding connections seamlessly. With only one person and a crane truck, MASH-compliant installations can be achieved in as little as ten minutes. The unique shape of the connection allows for barrier angles of up to 3° in every direction, accommodating vertical displacements of up to 140 mm / 5.5 inch while maintaining a secure link.

Ensuring durability through construction Every Svea barrier features an ISO 1461 hot-dip galvanized steel frame, providing long-lasting durability and minimal maintenance. This protective coating significantly extends the barrier’s lifespan by shielding the steel frame.

A wide range of accessories to enhance barrier flexibility The T-track on the Svea barrier allows for the quick attachment of various accessories, such as perimeter protection up to 4.5 meters / 14'9" high and supports for signs and lanterns. Crash-tested and CE-marked with the Sound Panel, the Svea barrier is designed for easy installation, featuring lightweight construction and fabric handles.

The Sound Panel reduces injury risk from road debris and lowers noise pollution by -24dB, enhancing both safety and security on the work site.

Ramudden Svea Barrier System

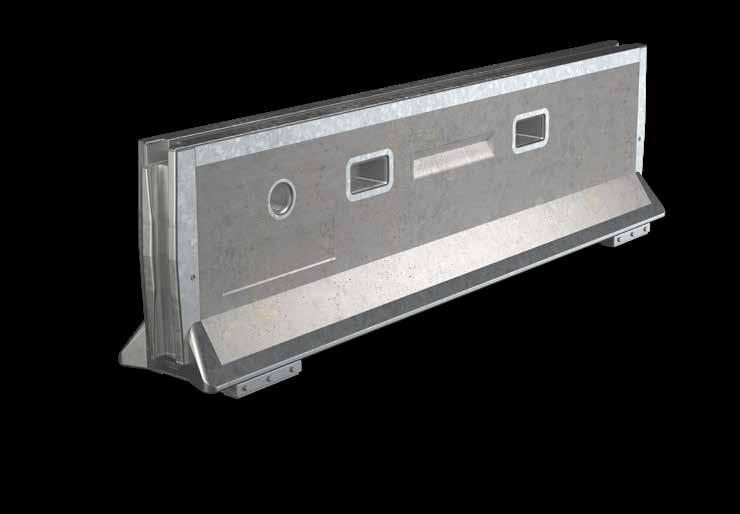

1 Svea Barrier Three length options allowing quick one-step installation and customization for any project •

All barrier sections have the same straightforward connection for rapid installation and removal.

•

Svea comes in three distinct lengths for varied application needs.

•

Barrier performance validated through AASHTO MASH and EN 1317-2 testing

•

Each barrier has a galvanized steel frame to protect against concrete chipping over its lifespan.

•

All steel components are hot-dip galvanized in compliance with ISO 1461, ensuring optimal durability.

•

Complete an approved setup in under 15 minutes.

•

ADA compliance.

•

ISO 22343 - Hostile Vehicle Mitigation approved.

2

3

Ramudden Svea Barrier System

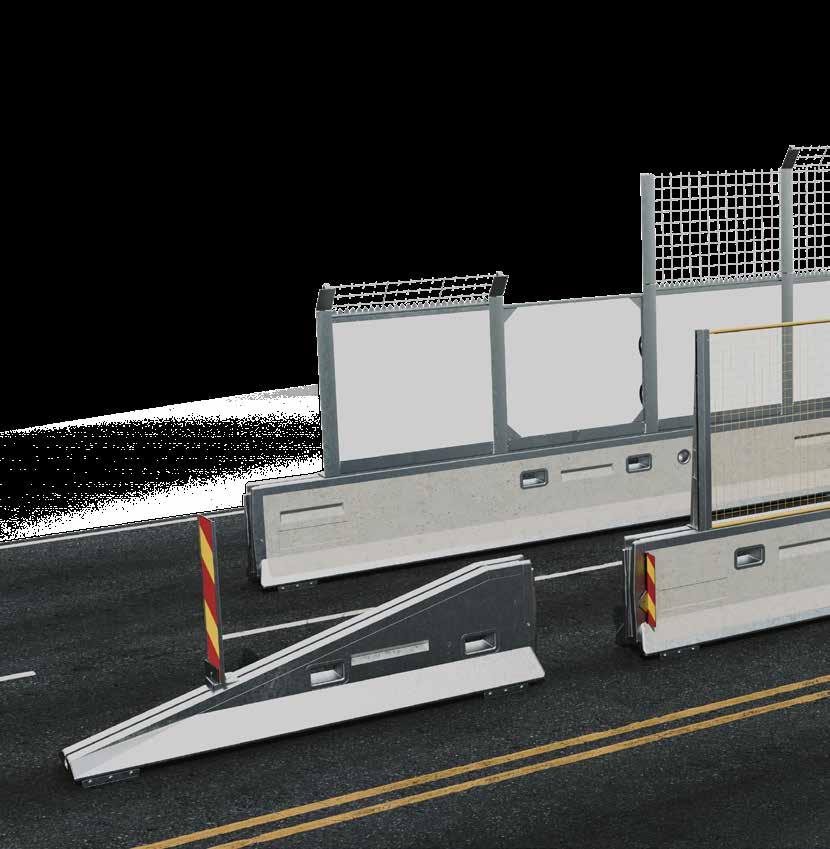

› Svea Barrier Product Family

300001 - Barrier 5.7 The longest available Svea barrier, ideal for saving installation time on longer setups.

Barrier length: 5.7 m / 18 ft 8 in Minimum installed length: T3: 45.6 m / 150 ft N2: 51.3 m / 168 ft

300002 - Barrier 2.85 Highly versatile and particularly favored in urban environments, where short setups are essential.

Barrier length: 2.85 m / 9 ft 4 in Minimum installed length: T2: 22.8 m / 75 ft T3: 28.5 m / 75 ft N2: 34.2 m / 112 ft TL-3: 54.2 m / 178 ft

300003 - Barrier 1.425 The small Svea barrier, ideal for situations where space is limited and a longer setup isn't feasible.

Barrier length: 1.425 m / 4 ft 8 in Minimum installed length: T2: 15.7 m / 17.2 yd

300116 - End Barrier Used for ending a setup when there is a risk of vehicles crashing in to the edge of a barrier.

300324 - Barrier Hinge Allows for a turning angle of up to 100° in both directions, perfect for navigating through challenging urban landscapes.

4

Ramudden Svea Barrier System

300001 - Barrier 5.7 The Svea 5.7 is designed for extended highway work zones, providing superior safety over long distances.

Its flexibility and compact working width also make it ideal for tight city streets, where space conservation is crucial.

Compliance •

EN 1317-2 T3/N2

•

CE 1137

Dimensions

Weight

Material

Turning radius

Length: 5760 mm / 224.4 in Height: 825 mm / 32.5 in Depth: 450 mm / 17.7 in

2550 kg / 5622 lbs

Concrete, steel & rubber

108 m / 354 ft

Lifting options

Sling

Forks

Lifting clamp

5

Ramudden Svea Barrier System

› T3 - Low angle containment Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

T3

45.6 m / 150 ft

8 pcs

W2

A

10 min

Minimum 45.6 mm / 150 ft Min. 45.6

W2

Min. 11.411.4 m /m37.4 ft Min.

Work Zone

0.8 m /0.8 31.5 in m

W2

Min. 11.411.4 m /m37.4 ft Min.

For complete crash test data, see page 75.

› N2 - Normal containment Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

N2

51.3 m / 168 ft

9 pcs

W4

C

11 min

Minimum 51.3 Min. 51m m / 168 ft

Min. 17.117.1 m /m56 ft Min.

W4

W4

Work Zone

Min. 17.117.1 m /m 56 ft Min.

For complete crash test data, see page 75.

1.0 m / 431.3 in m

W4

› N2 - Sound Panel + Top Net & Barbed Wire Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

N2

51.3 m / 168 ft

9 pcs

W4

C

11 min

Minimum 51.3 m / 168.3 ft Min. 51 m

Min. 17.117.1 m /m56 ft Min.

For complete crash test data, see page 75.

W4 Work Zone

W4 Min. 17.117.1 m /m 56 ft Min.

1.0 m / 43 in 1.3 m

W4

6

Ramudden Svea Barrier System

300002 - Barrier 2.85 The Svea 2.85 barrier provides an ideal balance of flexibility, quick installation, and a compact working width.

Its versatility makes it suitable for a range of road set-ups, adapting effortlessly to various configurations while guaranteeing safety without sacrificing efficiency. The shorter installation lengths streamline setup, saving both time and resources, and the narrow working width is perfect for constrained urban spaces.

Compliance: •

EN 1317-2 T2/T3/N1/N2

•

AASHTO MASH TL-3

•

CE 1137

Dimensions

Weight

Material

Turning radius

Length: 2910 mm / 112.2 in Height: 825 mm / 32.5 in Depth: 450 mm / 17.7 in

1280 kg / 2822 lbs

Concrete, steel & rubber

54 m / 177 ft

Lifting options

Sling

Forks

Lifting clamp

7

Ramudden Svea Barrier System

› T2 – Low angle containment Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

T2

22.8 m / 75 ft

8 pcs

W2

A

10 min

Min. 22.8 mm / 75 ft Min. 22,8

W2

Min. 8.55 m /m 28 ft Min. 8,55

W2

Work Zone

0.8 m /0,8 31.5min

W2

Min. 8.55 m /m 28 ft Min 8,55

For complete crash test data, see page 76-77

› T3 – Low angle containment Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

T3

28.5 m / 93 ft

10 pcs

W3

A

12.5 min

Min. 28.5 / 93 Min.m 28,5 mft

W3

Work Zone

Min. mm / 28 ft Min.8.55 8,55

Min. 8.55 m /m 28 ft Min. 8,55

For complete crash test data, see page 76-77

1.0 m 1,0 / 39 m in

W3

W3

› N1 – Normal containment Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

N1

28.5 m / 93 ft

10 pcs

W3

A

12.5 min

Minimum 28.5 m / 93 ft Min. 28,5 m

Min. 8.55 mm / 28 ft Min. 8,55

W3 Work Zone

For complete crash test data, see page 76-77

W3 Min. 8.55 m /m 28 ft Min. 8,55

1.0 m /1,0 39.4 m in

W3

8

Ramudden Svea Barrier System

› N2 – Low angle containment Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

N2

34.2 m / 112 ft

12 pcs

W5

C

15 min

Minimum 34.2 mm / 112 ft Min. 34.2

W5

W5

Work Zone

MinMin. 11.4 m / 37 11.4 m ft

1.7 m /1.7 67m in

W5

Min 11.411.4 m/m 37 ft Min

For complete crash test data, see page 76-77

› N2 – Sound Panel + Top Net & Barbed Wire Containment

Min. Installed length

Min. Amount

Working width

Impact severity

Installation time

N2

34.2 m / 112 ft

12 pcs

W5

C

15 min

MinimumMin. 34.234.2 m /m 112 ft

Min 11.411.4 m/ m 37 ft Min.

W4 Work Zone

W4 Min 11.411.4 m/m 37 ft Min

Svea 2.85 is also approved in N2 with added Sound Panel, Top Net and Barbed Wire. See chapter 2: Perimeter Protection for more information about these add-ons. For complete crash test data, see page 76-77

1.3 m / 51.2 in 1.3 m

W4

9

Ramudden Svea Barrier System

› TL-3 – AASHTO MASH Containment

Min. Installed length

Min. Amount

Working width

THIV

Installation time

TL-3

54.2 m / 178 ft

19 pcs

2204 mm / 87 in 34 km/h 25 min

1.9 m

Work Zone

Min 11.4 11.4 m / 37 Min. m ft

1.9 m / 74.8 in

Minimum 54.2 m / 178 ft Min 54.2 m

Min 11.411.4 m /m 37 ft Min

For complete crash test data, see page 76-77

› TL- 3 – Sound Panel + Top Net & Barbed Wire Containment

Min. Installed length

Min. Amount

Working width

THIV

Installation time

TL-3

54.2 m / 178 ft

19 pcs

1985 mm / 78 in

34 km/h 25 min

Work Zone

Min 11.4 m /m 37 ft Min 11.4

Svea 2.85 is also approved in TL-3 with added Sound Panel, Top Net and Barbed Wire. See chapter 2: Perimeter Protection for more information about these add-ons. For complete crash test data, see page 76-77

1.9 m

Min 11.411.4 m/m 37 ft Min.

1.9 m /274.8 yd in

Minimum 54.2 m / 178 ft Min 54.2 m

10

Ramudden Svea Barrier System

300003 - Barrier 1.425 The Svea 1.425 barrier stands out with its exceptionally short installed length, making it the go-to choice for situations where space is at a premium. This compact design offers unparalleled advantages in tight or restricted areas, ensuring maximum safety without compromising on space efficiency.

Compliance: •

EN 1317-2 T2

Dimensions

Weight

Material

Turning radius

Length: 1500 mm / 56.1 in Height: 825 mm / 32.5 in Depth: 450 mm / 17.7 in

655 kg / 59 lb

Concrete, steel & rubber

25 m / 88.5 ft

Lifting options

Sling

Forks

Lifting clamp

11

Ramudden Svea Barrier System

› T2 - Low angle containment Containment

Min. installed length

Min. Amount

Working width

Impact severity

Installation time

T2

15.7 m / 51 ft

11 pcs

W3

A

13.5 min

Minimum 15.7 Min. 15.7 mm / 51 ft

Min 4.3 mm/ 14 ft Min 4.3

For complete crash test data, see page 78

W3

Work Zone

W3

Min Min 4.3 / 14 4.7 yd Minm 4.3 m ft

1.0 m / 39.4 1.0 min

W3

Ramudden Svea Barrier System

12

Barrier Installation Connecting barriers is quick and effortless; just one smooth motion, and they’re securely linked; no screws or additional fittings are required, and there is no need to stand beside them. In addition to this, you have the ability to remove any barrier mid set-up without any hassle or disruption.

•

No need to stand close to the barriers when installing.

•

Disengage any barrier in the middle of a work zone with ease.

•

No need for screws or additional fittings.

› Installation Checklist % Conduct a risk assessment before assembly. % Inspect the barriers prior to every use to ensure they are not damaged and that the rubber feet are in good condition.

(For a full inspection protocol, see page 21). % Make sure that all barriers are connected properly. % When integrating barriers of different lengths in one installation, use the specified working width and minimum installation length from the barrier with the highest value. Example: In a T3 installation mixing the Svea 5.7 and Svea 2.85 barriers, the minimum installation length is 45.6 m / 150 ft (from Svea 5.7) and the working width W3 (from Svea 2.85). % Make sure that the surface behind the barrier is free from foreign objects, such as standing water, ice, and snow. % Make sure the barriers are placed on an asphalt, concrete or gravel surface. For a gravel surface, the Ev2 should be 77 MPa or higher, and the material has a fraction of 50 mm / 2 inches or less. This corresponds to machine compacted gravel.

!

Make sure that all barriers are connected

13

Ramudden Svea Barrier System

› Installation Remove any barrier in the middle of a setup Connecting a Svea barrier is quick and easy, and there is no need for screws or tools; the Svea can be easily disengaged or engaged in the middle of a setup. This feature is extra effective in emergencies where barriers must be removed to create a path for emergency vehicles.

Height difference All Svea barriers are flexible and can be placed on edges such as sidewalks or uneven surfaces without losing the engagement of the connection. The connection can withstand approximately 140 mm / 5.5 inches height difference.

± 140 mm 5.5 in

Ground angle The Svea barrier connection can withstand up to 3° change of angle, meaning it can be placed on light slopes without the need to disengage the connection. ± 3°

14

Ramudden Svea Barrier System

› Installation The interlocking distance of each Svea Barrier is evenly divisible.

[mm/ in]

5700 mm / 224.4 in

2850 mm / 112.2 in

1425 mm / 56.1 in

1425 mm / 56.1 in

2850 mm / 112.2 in

1425 mm / 56.1 in

1425 mm / 56.1 in

› Turn radius Refer to the different radius when setting up barriers on a curved road. Sometimes you can exclude the need of Svea Barrier Hinge by using a barrier with smaller turn radius. All barriers have a turn angle of 3°. ±3°

Svea 5.7: Turn radius 108 m / 354 ft

Svea 2.85: Turn radius 54 m / 177 ft

Svea 1.425: Turn radius 25 m / 88.5 ft

Ramudden Svea Barrier System

Lifting To think about before lifting •

Only use designated lifting tools.

•

Exercise caution regarding the risk of crushing.

•

Ensure the barrier is not stuck, frozen to the ground, or blocked in any way to avoid overloading the lifting equipment.

•

Never lift multiple connected barriers.

•

If using lifting forks, ensure that the forks and fork holes are free from snow and ice.

•

Ensure that the required documentation for the chosen lifting equipment is available and that instructions are followed.

!

Stand clear from moving barriers!

!

Never lift more than one barrier!

!

Never drag barriers!

Never lift a barrier if a person is in its path of motion.

Take caution to never lift a barrier above yourself or anyone else.

Lifting multiple barriers can pose significant risks, including strains on the lifting track, lifting tools, and the barrier connection.

Dragging barriers will damage the barrier’s rubber feet and put excessive tension on the lifting track and tools.

15

16

Ramudden Svea Barrier System

› Recomended lifting tools

1

Lifting Clamp The lifting clamp offers a quick and convenient method for lifting the Svea barrier.

Its design eliminates the need to stand close during setup, enhancing safety, especially in high-traffic areas.

Barrier 1.425

Barrier 2.85

%

%

2

Barrier 5.7

End Barrier

Barrier Hinge

%

Lifting Forks Lifting the Svea barrier with forks is a safe and precise method, ideal for efficiently handling and storing the barriers in the depot. Lifting the Barrier Hinge with forks is not an option

Barrier 1.425

Barrier 2.85

Barrier 5.7

End Barrier

%

%

%

%

3

Lifting Chain/Sling

Barrier Hinge

Lifting chains/slings are used for the end barrier and sometimes for straightforward barrier setups. A chain/sling is the only option for lifting the barrier hinge.

Barrier 1.425

%

Barrier 2.85

Barrier 5.7

End Barrier

Barrier Hinge

%

%

%

%

17

Ramudden Svea Barrier System

› WXS Lifting Clamp !

1

Full instructions on how to use the WXS Lifting Clamp see info sheet - 833412 Before starting the lift, ensure that the surface of the barrier is free from contaminants (ice/paint/oil/debris) that may reduce friction between the lifting jaws and the barrier. Position the lifting jaws center over the barrier and lower them slowly until they make contact with the barrier. Once they hit the barrier, a click will be heard; this indicates that the lifting jaws are in active mode and will grasp the barrier during the lift.

Center the jaws Lifting should always be done with the lifting jaws positioned directly above the center of gravity of the barrier.

Lifting the barrier at an angle risks overloading and damaging the lifting jaws.

2

Retake If the barrier is lifted at an angle, lower it carefully, move the lifting jaws closer to the center, and try again.

3

Lift slowly to ensure grip Start the lift slowly to ensure the center of gravity is aligned beneath the lifting jaws, and a secure grip is established.

18

Ramudden Svea Barrier System

Storage & Maintenance When the barriers are in storage the following safety precautions must be taken: •

Ensure each stack is separated by 70 mm / 2.75 inches to prevent compression of the rubber feet under extended heavy loads. Position the separating blocks on the concrete surface, not on the rubber feet.

•

A maximum of 3 barriers may be stacked in height.

•

Ensure that the ground has sufficient bearing capacity and that the setup surface is as flat and smooth as possible.

If the rubber feet are nearing the end of their lifespan, they can be easily replaced. Simply lift the barrier, unscrew the foot, and, if needed, replace the sockets holding the feet as well.

300661 - Rubber Foot 300025 - Rubber Foot Socket

Storage

Min 70 mm / 2.75 in

Exchangeable parts

Ramudden Svea Barrier System

› Inspection checklist Always inspect the barrier according to the checklist below before use. If any damage is detected, the product must be taken out of service for repair or recycling.

Before each use, a simple check is recommended: % Visually inspect the barrier components for any damage. % Look for signs of impact or damage from dropping during lifting or handling. % Check for wear on the rubber feet, ensuring there is at least 3 mm / 0.1 inch clearance between the rubber and the metal frame.

Annually check the Svea barrier for the following: % % % %

Cracks/rust in or around welds.

Cracks or deformations around lifting sockets.

Damage around the lifting slots, chipped concrete, or similar.

Wear on rubber feet. New feet have a thickness of 9 mm/ 0.35 inch mm to the metal frame.

Replace the foot when 3 mm / 0.1 inch remains.

Serial number can be found inside the IoT hole

For assessment of damaged barriers, contact Ramudden.

19

20

Ramudden Svea Barrier System

300116 - End Barrier The end barrier is to be added to the minimum installed length and should not be considered part of the minimum installation itself.

Dimensions

Weight

Material

Length: 870kg / 1918 lb 2900 mm / 114.2 in Height: 825 mm / 32.5 in Depth: 450 mm / 17.7 in

Steel, hot-Dip Galvanized Lifting options

!

For easier lifting use the End Barrier Lifting Chain - 300581

› Installation & Lifting !

End barrier makes the setup longer The end barrier is to be added onto the minimum installed length and should not be considered as part of the minimum installation itself.

Minimum installation length

1

.5” 13 5360

10.3 41 50”

300581

Position the lifting chain Place the lifting chain with the long part directed towards the lower end of the barrier and the short part towards the top of the barrier.

2

Attach lifting hooks & lift Attach the lifting hooks around the two pins on the top rail of the barrier. Ensure that the chain is not twisted and that the openings of the lifting hooks are facing outwards.

Lift the barrier carefully and be attentive to ensure that no person is within the barrier’s range of motion.

21

Ramudden Svea Barrier System

300324 - Barrier Hinge The Svea Barrier Hinge allows for a turning angle of up to 100° in both directions. Perfect for navigating through challenging urban landscapes.

Dimensions

Weight

Material

Width: 860 mm / 33.9 in Height: 825 mm / 32.5 in Depth: 450 mm / 17.7 in

110kg / 242.5 lb

Steel, hot-Dip Galvanized

Lifting options

› Installation

1

Lift

2

Lift the hinge using the two marked pins with a sling or chain rated for at least 110 kg / 250 lb.

Place the hinge Release the locking pins and place them in their parking positions at the top of the hinge.

± 100°

3

Adjust Adjust the hinge to the desired angle.

3

Place Place the next barrier.

3

Fine tune Fine tune the angle by lifting the barrier.

22

Ramudden Svea Barrier System

› Barrier set up with an angle The barrier angle will always be a weak point in the barrier installation. To ensure proper function of the barrier setup, it is vital that the instructions below are followed.

!

For traffic with a possible collision angle of 20° or less, make sure that: • • •

The speed of passing traffic is 70 km/h / 40 mph or less.

The working width of the barrier is W4, 10 m / 32 ft 1 in before and after the angle element.

At least 11.5 m / 37 ft 9 in feet of barrier is placed before and after the angle element.

For traffic with a possible collision angle of 20° or more, or where 11.5 m / 37 ft 9 in of barriers can’t be placed before and after the angle element, make sure that: •

The speed of passing traffic is 30 km/h / 15 mph or less.

•

The working width of the barrier is W5.

•

The total length of installed barrier is at least 34 m / 111 ft 7 in.

Min M in 1111.5 .5 m m/ 37 ' 1100 m 9" m/ 32

W5

W4

Min 3M4 m in 3 / 11 4 m1' 7"

' 10"

W5

W5

W4

10 m 32' 10" 10/ m

Min 11.5 / 37' Minm 11.5 m 9"

W4

W5

W4

W5

1.3 m

1.3 m / 51.2 in

Traffic with a possible collision angle of 20° or less.

1.7 m

1.7 m / 67 in

Traffic with a possible collision angle of 20° or more.

Ramudden Svea Barrier System

23

› Barrier section transport !

The hinge should be transported upright or lying down with the locking pins positioned upwards. If the hinge is transported with the locking pins downwards, there’s a risk of them falling out, leading to an unsafe lift the next time the hinge is moved.

Ramudden Svea Barrier System

2 Sound Panel Two height options and adaptable for any scenario % The Svea Sound Panel system offers rapid installation and effectively blocks passing traffic from viewing the worksite while reducing sound pollution. % The Sound Panel has undergone crash testing in compliance with EN 1317 and is CE-marked, ensuring quality and reliability. % The Sound Panel provides a prime location for displaying marketing messages or information regarding the ongoing work. % The Sound Panel can be installed at double height to meet heightened security needs. % To offer a budget-friendly solution, the AT-fence post can be combined with tongue and groove wood or plywood panels.

24

25

Ramudden Svea Barrier System

› Sound Panel The sound panel is available in either single or double height, depending on the requirements of your worksite.

Sound Panel - Single Height - Page 32

Sound Panel - Double Height - Page 47

Single height ensures swift installation, offering a height of up to 3.3 m / 10' 10" when equipped with a top net and barbed wire attachment.

Double-height installations provide a heightened level of security, reaching up to 4.6 m / 15 feet, with a top net and barbed wire installed to ensure extra protection around the work-site.

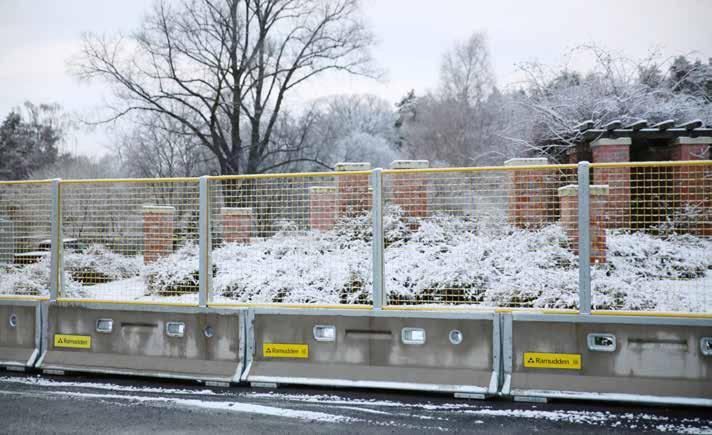

› AT-Fence

AT-Fence - Page 54 The AT-fence is an ideal solution when a taller barrier is necessary to prevent unauthorized access to worksites and to provide additional safety measures for cyclists, minimizing the risk of accidents. The AT-fence post can also be used to attach wood panels to the Svea barrier. This is a more afforable solution that is perfect for worksites where there is a risk of flying rocks or other debris. Height 2.15 m / 7 feet.

26

Ramudden Svea Barrier System

Detailed Wind Advisory

› Installation methods for high wind loads Wind load increases exponentially The Sound Panel system has a large surface area; therefore, wind stress is an essential factor to consider. Wind load increases exponentially with wind speed; for instance, if the wind speed doubles, the wind load will quadruple.

Wind load as function of wind speed

700

600

Wind Load [Pa]

500

400

300

200

100

0 0

5

10

15

20

25

30

35

Wind Speed [m/s]

For installation in areas with high wind exposure, such as bridges or vast open fields, it is essential to use methods that enhance stability and prevent the system from tipping over.

1 pascal = 0.1 kg per square meter. Additional aerodynamic factors will increase the actual pressure on each components.

Factor 1.2 for round components and factor 2.1 for square components

v [m/s]

v [ft/s]

P [Pa]

P [Psf]

1

3.3

0.6

0.0125

2

6.6

2.4

0.0501

3

9.8

5.4

0.113

4

13

9.6

0.200

5

16.4

15

0.313

6

19.7

21.6

0.451

7

23

29.4

0.613

8

26.3

38.4

0.801

9

29.5

48.6

1.014

10

32.8

60

1.253

11

36

72.6

1.516

12

39.4

86.4

1.803

13

42.7

101.4

2.118

14

45.9

117.6

2.458

15

49.2

135

2.813

16

54.5

153.6

3.205

17

55.8

173.4

3.622

18

59

194.4

4.063

19

62.3

216.6

4.530

20

65.6

240

5.020

21

68.9

264.6

5.536

22

72.2

290.4

6.077

23

75.5

317.4

6.643

24

78.7

345.6

7.233

25

82

375

7.848

26

85.3

405.6

8.487

27

88.6

437.4

9.151

28

91.9

470.4

9.840

29

95.1

504

10.554

30

98.4

540

11.292

31

101.7

576.6

12.055

32

105

614.4

12.842

Ramudden Svea Barrier System

› Warning - Winds! !

Doubled wind speed means 4 times higher pressure Tripled wind speed means 9 times higher pressure.

For example, a wind speed of 32 m/s / 71.6 mph gives more than 10 times the pressure of a wind speed of 10 m/s / 22.4 mph.

Surrounding terrain will affect the wind speed significantly Forecasted or reported wind data reflects the wind speed at meteorological stations, which are commonly situated in fairly open terrain with isolated obstacles like trees and small buildings (terrain category II).

The following terrain features will lead to increased wind speed compared to forecasted wind speed: •

Open fields, lakes, coastal areas.

•

Ridges, slopes, hills.

•

Steep-sided valleys (funnelling effect).

•

Towers or high-rise buildings.

27

Ramudden Svea Barrier System

Sound Panel Introduction The Svea Sound Panel is a noise reducing panel that is crafted with both efficiency and ease of use in mind. The lightweight construction and strategically placed fabric handles make up for an effortless installation on the Svea Barrier. The Panel also minimizes the risk of injuries caused by debris from passing cars on the road and mitigates noise pollution both within and outside the worksite by - 24 decibels. This is in line with standard ISO 10140-2.

"Excessive construction noise can hinder effective communication among workers, impacting teamwork, safety protocols, and overall productivity."

28

29

Ramudden Svea Barrier System

› Noise reduction, not only for the people passing by Noise is an inevitable by product of construction activities and impacts more than just hearing. Prolonged exposure to high noise levels can lead to stress, fatigue, and reduced productivity, affecting workers’ health. Excessive noise can also hinder effective communication among workers, impacting teamwork, safety protocols, and overall productivity.

The Svea Sound Panel helps mitigate this issue by reducing noise transmission by up to 24 decibels, enhancing communication and enabling teams to work more cohesively and efficiently.

-24 dB › Sound Panel, tested according to ISO 10140-2 Test result - Airborne sound insulation of sample Frequency/Hz

100

125

160

200

250

315

400

500

630

Airborne Sound Insulation /dB

12.1

17.0

17.7

16.4

19.6

19.9

22.1

23.6

25.0

Frequency/Hz

800

1000

1250

1600

2000

2500

3150

4000

5000

Airborne Sound Insulation /dB

25.1

25.4

16.8

18.8

33.8

43.8

51.3

56.7

52.6

Weighted Sound Reduction Index

Rw = 24dB

50

Note: According to the standard, the measurement frequency range is 100–5000 Hz, and the weight sound reduction index is calculated in the 100–3150 Hz range. The evaluation result of this report is based on the laboratory measurement.

Airborne Sound Insulation Base Line

40 30 20 10

0 12 5 16 0 20 0 23 0

31 5 40 0 50 0 63 0 80 0 10 00 12 50 16 00 20 0 25 0 00 31 50

0 10

Airborne Sound Insulation/ dB

60

Hz

30

Ramudden Svea Barrier System

› Banners Information or advertising mounted on the Sound panel provides perfect exposure. Choose Print board on each Sound Panel unit or a larger external banner.

Example of how you can apply a larger banner in desired dimensions on Svea with Sound panel.

Max 10 mm / 0.4 in

Ø 0.12 - 1.8 in Ø 3 - 4.5 mm Recommended screw size for banner mounting.

4130 mm / 162.6 in 2705 mm / 106.5 in

1250 mm / 49.2 in

1280 mm / 50.4 in

For even longer banners, add 1425 mm / 56.1 inch of banner per barrier.

Panels

Banner Length

1

1280 mm / 50.1 in

2

2705 mm / 106.5 in

3

4130 mm / 162.6 in

4

5555 mm / 218.7 in

5

6980 mm / 274.8 in

6

8405 mm / 330.9 in

7

9830 mm / 387 in

8

11255 mm / 443.1 in

Ramudden Svea Barrier System

› Print board With Print board you print your message on a rigid board material, recommended thickness 3-5 mm. These are mounted (clamped) or easily dismantled between each Sound panel's dividers, making them securely attached.

Print board size: 1270 mm / 50 in 1360 mm / 54 in

› Window Panels for the curious The Window Panel for Svea serves as a transparent viewing area, allowing passers-by to observe the activities inside the construction site. It satisfies the curiosity of onlookers by providing a glimpse into the inner workings of the space, fostering transparency and engagement with the surrounding environment.

31

32

Ramudden Svea Barrier System

› Adaptive Panels - Corner Panel The Corner Panel is used on top of the Barrier Hinge, it is fold-able for easy storage and can be lifted with crane at the top. Adjust the wings to fit in any corner.

50 mm / 2 in

› Corner Panel Tips & Tricks % Its not advised to lifting any of the Corner Panels by hand. % When performing a lift always make sure to tighten all bolts to minimize moving parts. % Adjust wing width by loosening screws. Each wing can be adjusted with 50 mm / 2 inch. % The Corner Panel Double Height can be used on a Single Height Sound Panel set up if aditional Top Net and Barbed Wire is used.

33

Ramudden Svea Barrier System

› Adaptive Panels – Odd-Job Whether it is a step up to the sidewalk or an incline where the angle of the road switches, Odd-Job can solve the situation and continue the Sound Panel set up without any disruptions.

Max width

345 mm / 13.6 in

495 mm / 19.5 in

Max height

2598 mm / 102.3 in

1320 mm / 52 in

Simply stack odd-jobs for double height

› Odd-Job Tips & Tricks

Made for odd situations

2A - 81 x 4.6 - 38951 OSI

Lock all screws before atempting any lifting.

Use lifting help and avoid lifing by hand.

Stack odd-jobs on top of each other for double height sound panel set up.

Use it to adjust the last post in a set up to line up with the barrier or even out the gap before a corner.

81x4.6 teviR dnilB

% % % %

Max angle ±5°

140 mm / 5.5 in

Min width

34

Ramudden Svea Barrier System

Sound Panel Components Components for both single and double-height setups are bracing, top net, and barbed wire. See the adaptive panels instructions for information on how to overcome any variations in the terrain or cornering.

› Sound Panels

300197 - Sound Panel 1365

300361 - Sound Panel 680

Dimensions: 1325x1365 mm / 52.2x53.7 in Material: Aluminium, steel and plastic Weight: 22 kg / 48.5 lb

Dimensions: 1325x680 mm /52.2x26.8 in Material: Aluminium, steel and plastic Weight: 11.5 kg / 25.4 lb

300368 - Sound Panel 1365 without Spikes

300370 - Sound Panel 680 without Spikes

Dimensions: 1275x1365 mm / 50.2x53.7 in Material: Aluminium, steel and plastic Weight: 22 kg / 48.5 lb

Dimensions: 1275x680 mm / 50.2x26.8 in Material: Aluminium, steel and plastic Weight: 11.5 kg / 25.4 lb

› Window Panels Exchange a Sound Panel to Window Panel to foster transparancey.

300371 - Window Panel 1365

300379 - Window Panel 680

Dimensions: 1325x1365 mm / 52.2x53.7 in Material: Aluminium, steel and plastic Weight: 22kg / 48.5 lb

Dimensions: 1325x680 mm / 52.2x26.8 in Material: Aluminium, steel and plastic Weight: 11.5 kg / 25.4 lb

300385 - Window Panel 1365 Without Spikes

300386 - Window Panel 680 Without Spikes

Dimensions: 1275x1365 mm / 50.2x53.7 in Material: Aluminium, steel and Plastic Weight: 22 kg / 48.5 lb

Dimensions: 1275x680 mm / 50.2x26.8 in Material: Aluminium, steel and plastic Weight: 11.5 kg / 25.4 lb

35

Ramudden Svea Barrier System

› Posts & Panel Locks

300530 - Panel Lock

300476 - Panel Lock Double Height

Dimensions: 125x40x90 mm / 5x1.6x3.5 in Dimensions: Material: Steel 75x120x55 mm / 3x4.7x2.2 in Weight: 0.4 kg / 1 lb Material: Steel Weight: 0.4 kg / 1 lb

300437 - Single Height Post

300460 - Double Height Post

Dimensions: 1320x125x185 mm / 52x5x7.3 in Material: Aluminum Weight: 5.5 kg / 12 lb

Dimensions: 1410x125x235 mm / 55.5x5x9.25 in Material: Aluminium Weight: 10 kr / 22 lb

› Barb Wire Barbed Wire making the system harder to scale and increases safety.

300184 - Barbed Wire 1410

300427 - Barbed Wire 725

300459 - Barbed Wire Post

Dimensions: 1410x290 mm / 55.5x11.4 in Material: Stainless Steel Weight: 1.5 kg / 3.3 lb

Dimensions: 724x290 mm / 28.5x11.4 in Material: Stainless Steel Weight: 1 kg / 2.2 lb

Dimensions: 220x125x90 mm / 8.7x5x3.5 in Material: Aluminium Weight: 1 kg / 2.2 lb

› Top Net Increase the installation without significantly increasing the wind load.

300447 - Top Net Post

300179 - Top Net 1410

300423 - Top Net 725

Dimensions: 940x125x90 mm / 37x5x3.5 in Material: Aluminium Weight: 2.5 kg / 5.5 lb

Dimensions: 1410x990 mm / 55.5x39 in Material: Steel Weight: 8 kg / 17.5 lb

Dimensions: 725x990 mm / 28.5x39 in Material: Steel Weight: 4.5 kg / 10 lb

36

Ramudden Svea Barrier System

› Bracing Brace any setup to increase its wind load capacity.

300474 - Top Strut Attachment

300579 - Strut connector

300403 - Strut attachment plate

Dimensions: 90x75x70 mm 3.5x3x2.75 in Material: Steel Weight: 0.5 kg / 1.1 lb kg

Dimensions: 210x45x40 mm / 8.3x1.8x1.6 in Material: Steel Weight: 1 kg / 2.2 lb

Dimensions: 180x150x160 mm / 7x6x6.3 in Material: Steel Weight: 2 kg / 4.4 lb

300523 - Horizontal Strut

300406 - Diagonal Strut

Dimensions: 1500, Ø48 mm / 59, Ø1.9 in Material: Steel Weight: 5.5 kg / 12 lb

Dimensions: 3050, Ø48 mm / 120, Ø1.9 in Material: Steel Weight: 12 kg / 26.5 lb

› Adaptive Panels Turn a corner or make up for gaps in a setup with the Odd-Jobb Panel.

300545 - Corner Panel

300546 - Corner Panel Double

300547 - Odd-job panel

Dimensions: 1320x530/530 mm / 52x20.9/20.9 in Material: Steel Weight: 25 kg / 55 lb

Dimensions: 2590x530/530 mm / 102x20.9/20.9 in Material: Steel Weight: 50 kg / 110 lb

Dimensions: 1320x365 mm / 52x14.4 in Material: Steel Weight: 11.5 kg / 25.4 lb

37

Ramudden Svea Barrier System

Installation Guide Single Height Single height Sound Panel ensures a swift installation, offering a height of up to 3.3 meters / 10 feet 10 inch when equipped with a top net and barbed wire attachment.

Compliant to •

EN 1317 - N2

•

AASHTO MASH TL-3

•

CE 1137

Tools Wrench 18 mm Wrench 30 mm

See page 79-80 for a complete list of componets.

› Single Height Checklist % Gather information about the wind conditions at the installation site. The system may be affected by strong winds through installation in open terrain, on a bridge, close to the coastline, etc. % Always brace the system if high wind is expected. % Control the expected wind conditions at the installation site against the specified wind speeds in this manual.

Make sure that the surface behind the barrier is free from foreign objects, such as standing water, ice, and snow. % Know that the wind pressure increases exponentially with the wind speed. % Ensure that the ground under the system is flat. If the barriers are leaning, the tipping resistance will decrease. % Check all components before installation, do not use components with visible damage. % Tighten all screws firmly. % Ensure that all barriers are connected. % Only use appropriate tools for the installation.

38

Ramudden Svea Barrier System

› Warning - Make sure the setup is on hard ground

!

Always ensure the barrier is placed on a perfectly flat and level surface to prevent tipping.

Maintaining a flat and level surface becomes increasingly crucial as the setup height increases.

If the barrier is not level, the centre of mass may shift, making the setup more prone to tipping from wind or other factors, posing risks of injury to workers or passers-by.

Once a barrier starts to tip, the entire setup is at risk, regardless of length. This can lead to exponential consequences and even the risk of death. It is essential to understand that a longer barrier setup is not inherently more stable than a shorter one unless properly turned or braced.

Know that the wind pressure increases exponentially with the wind speed. Wind calculations are based on a perfectly level and flat surface.

Soft Ground types:

Hard Ground types:

For softer ground types, use ground mats with appropriate properties.

•

Gravel

•

Rock

•

Compact sand

•

Cemented materials

•

Hard clay

•

Shale

39

Ramudden Svea Barrier System

› Wind Loads !

Know that the wind pressure increases exponentially with the wind speed. Wind calculations are based on a perfectly level and flat surface.

2150 mm / 7 ft 1 in

15 m/s 49.1 ft/s

2360 mm / 7 ft 9 in

15 m/s 49.1 ft/s

3100 mm / 110 ft 2 in

14 m/s 47.4 ft/s

3300 mm / 10 ft 10 in

13 m/s 42.5 ft/s

40

Ramudden Svea Barrier System

› Sound Panel Single Height Installation The most common setup. Easy and fast to install. Use any of the above panels for all set-ups of single height.

30 mm

1

2

3

18 mm

4

18 mm

5

6

41

Ramudden Svea Barrier System

› Sound Panel Single Height Installation

18 mm

7

!

8

Use a short panel to displace the post so that it does not coincide with the connection of the barrier.

42

Ramudden Svea Barrier System

› Adaptive Panel – Corner Installation Refer to this installation when installing the Adaptive Panel Corner Panel Double.

x4

18 mm 18 mm

1

2

3

30 mm 30 mm

4

5

6

18 mm

7

8

43

Ramudden Svea Barrier System

› Adaptive Panel – Odd Job Installation

30 mm

1

2

3

30 mm

4

5

6

18 mm

18 mm

7

8

Double Height: For double height, stack odd-jobs on top of eachother

9

44

Ramudden Svea Barrier System

Installation Guide Double Height Double Height Sound Panel offers a height of up to 4.6 meters / 15 feet when equipped with a top net and barbed wire attachment.

Tools Wrench 18 mm Wrench 30 mm

See page 71-82 for a complete list of components.

› Double Height Checklist % Gather information about the wind conditions at the installation site. The system may be affected by strong winds through installation in open terrain, on a bridge, close to the coastline etc. % Control the expected wind conditions at the installation site with the specified wind speeds in this manual. % Make sure that the surface behind the barrier is free from foreign objects, standing water, ice and snow. % Know that the wind pressure increases exponentially with the wind speed. % Ensure that the ground under the system is flat. If the barriers are leaning the tipping resistance will decrease. % Check all components before installation, do not use components with visible damage. % Tighten all screws firmly. % Ensure that all barriers are connected. % Only use appropriate tools for the installation. % Always install double height Sound Panels with bracings.

45

Ramudden Svea Barrier System

› Warning - Make sure the setup is on hard ground

!

Always ensure the barrier is placed on a perfectly flat and level surface to prevent tipping.

Maintaining a flat and level surface becomes increasingly crucial as the setup height increases. If the barrier is not level, the centre of mass may shift, making the setup more prone to tipping from wind or other factors, posing risks of injury to workers or passers-by.

Once a barrier starts to tip, the entire setup is at risk, regardless of length. This can lead to exponential consequences and even the risk of death. It is essential to understand that a longer barrier setup is not inherently more stable than a shorter one unless properly turned or braced.

Soft Ground types:

Hard Ground types:

For softer ground types, use ground mats with appropriate properties.

•

Gravel

•

Shale

•

Rock

•

•

Compact sand

Cemented materials

•

Hard clay

46

Ramudden Svea Barrier System

› Minimum footprint at specified wind load !

Know that the wind pressure increases exponentially with the wind speed. Wind calculations are based on a perfectly level and flat surface.

Double Height

3420 mm / 135 in

Wind speed

A

B

20 m/s / 65.6 ft/s

0.35 m / 1' 2"

1.0 m / 3' 3"

22 m/s / 72.2 ft/s

0.55 m / 1' 9"

1.2 m / 3' 11"

24 m/s / 78.7 ft/s

0.75 m / 2' 6"

1.4 m / 3' 7"

25 m/s / 82 ft/s

0.95 m / 3' 1"

1.6 m / 5' 3"

27 m/s / 88.6 ft/s

1.15 m / 3' 9"

1.8 m / 5' 11"

Double Height + Barbed wire

3620 mm / 143 in

Wind speed

A

B

20 m/s / 65.6 ft/s

0.35 m / 1' 2"

1.0 m / 3' 3"

22 m/s / 72.2 ft/s

0.55 m / 1' 9"

1.2 m / 3' 11"

24 m/s / 78.7 ft/s

0.75 m / 2' 6"

1.4 m / 3' 7"

25 m/s / 82 ft/s

0.95 m / 3' 1"

1.6 m / 5' 3"

27 m/s / 88.6 ft/s

1.15 m / 3' 9"

1.8 m / 5' 11"

Double Height + Top Net

4360 mm / 172 in

Wind speed

A

B

19 m/s / 62.3 ft/s

0.35 m / 1' 2"

1.0 m / 3' 3"

21 m/s / 68.9 ft/s

0.55 m / 1' 9"

1.2 m / 3' 11"

22 m/s / 72.2 ft/s

0.75 m / 2' 6"

1.4 m / 3' 7"

24 m/s / 78.7 ft/s

0.95 m / 3' 1"

1.6 m / 5' 3"

26 m/s / 85.3 ft/s

1.15 m / 3' 9"

1.8 m / 5' 11"

Double Height + Top Net & Barbed Wire 4550 mm / 180 in

Wind speed

A

B

19 m/s / 62.3 fps

0.35 m / 1' 2"

1.0 m / 3' 3"

21 m/s / 68.9 fps

0.55 m / 1' 9"

1.2 m / 3' 11"

22 m/s / 72.2 fps

0.75 m / 2' 6"

1.4 m / 3' 7"

24 m/s / 78.7 fps

0.95 m / 3' 1"

1.6 m / 5' 3"

26 m/s / 85.3 fps

1.15 m / 3' 9"

1.8 m / 5' 11"

47

Ramudden Svea Barrier System

› Sound Panel Double Height Installation

30 mm

1

2

18 mm

4

3

30 mm

5

6

48

Ramudden Svea Barrier System

› Sound Panel Double Height Installation

18 mm

7

30 mm

8

9

18 mm

18 mm

10

11

12

49

Ramudden Svea Barrier System

› Sound Panel Double Height Installation

18 mm

18 mm

13

Sound Panel Double Height Installation

14

15

50

Ramudden Svea Barrier System

Barbed Wire To enhance security, the barbed wire accessory can be installed on top of the sound panel, making the panel more difficult to climb and increasing the total height to 2.35 meters / 7 feet 9 inch. This installation refers to double height sound panel as well as single height.

Tools

Fasteners Wrench: 13 mm

Hex Nut: M8 ISO 4032 - M8-8 A2

Torx: T40

Torx Insert: M8x20 ISO 14583 - M8x20-8.8 A2

Torx: T30

Torx Insert: M6x20 ISO 14593 - M6x20-8.8 A2

› Installation

13 mm

T40

T30

1

2

3

51

Ramudden Svea Barrier System

Top Net To increase the installation height without significantly increasing the wind load, the top net accessory can be installed. This installation refers to double height sound panel as well as single height.

Tools

Fasteners Wrench: 13 mm

Hex Nut: M8 ISO 4032 - M8-8 A2

Torx: T40

Torx Insert: M8x20 ISO 14583 - M8x20-8.8 A2

Torx: T30

Torx Insert: M6x20 ISO 14593 - M6x20-8.8 A2

› Top Net Installation

13 mm

T40

3

1

2

4

T30

Ramudden Svea Barrier System

AT-FENCE

52

3 AT-Fence A more affordable solution for setups prone to damage The Svea AT-Fence offers a more affordable and more versatile solution for perimeter protection then the sound panels at construction sites, providing fast setup times and a transparent design ideal for areas where visibility into the construction site is not a concern. However, for areas where privacy or higher safety is desired, you can exchange the AT-Fence with wood panelling, perfect for blasting sites where the more expensive solutions would be prone to flying debris and damage.

Ramudden Svea Barrier System

AT-FENCE

AT-Fence Components Components for AT-Fence setup with Hinge to turn corners and Pin Lock to lock the Fence in place.

› AT-Fence The Svea AT-Fence offers a more affordable and versatile solution for perimeter protection at construction sites.

AT-Fence is available in two mesh sizes: 40x40 mm / 1.6x1.6 inch and 60x60 mm / 2.4x2.4 inch.

833191 - AT-fence 2100x1400

833075 - AT-fence 1400x1400

Dimensions: 2100x1400x25 mm / 82.7x55.1x1 in Material: Steel Weight: 12.5 kg / 27.6 lb

Dimensions: 1400x1400x25 mm /55.1x55.1x1 in Material: Steel Weight: 9.0 kg / 19.8 lb

› Posts

› Splicing & Locking

300464 - AT-Fence Post

300602 - AT-Fence Hinge

300611 - Pin Lock

8341960- Overlap Lock

Dimensions: 56.1x4x7.7 in Material: Steel Weight: 10.0 kg / 22 lb

Dimensions: 55.1x8.9x5.7 in Material: Steel Weight: 15.0 kg / 33 lb

Measure: 1.8x1.2x.24 in Material: Steel Weight: 10 g / 0.02 lb

Measure: 4.7x2.2x2.6 in Material: Steel Weight: 0.2 kg / 0.44 lb

53

54

Ramudden Svea Barrier System

Installation Guide AT-Fence The AT-fence is an ideal solution when a tall barrier is necessary to prevent unauthorized access to work-sites and to provide additional safety measures for cyclists, minimizing the risk of accidents. The AT-fence post can also be used to attach wood panels to the Svea barrier. This is a more affordable solution perfect for work-sites where there is a risk of flying rocks or other debris.

Tools

Fasteners Wrench: 16 mm

Hex Screw: M10x55

Wrench: 18 mm Wrench: 30 mm

› AT-Fence checklist % % % %

Make sure you read and fully understand how to how setup barriers before installing anything on top of the barriers.

Consider the wind situation in the area.

Consider wind when using the wood panel set-up. A solid wall will exponentially increase wind loads.

Make sure to lock the AT-Fence to the AT-Post to prevent cyclist from falling into the worksite if they collide with the barrier at a 90-degree angle.

55

Ramudden Svea Barrier System

› Make sure the AT Fence setup is on hard ground

!

Always ensure the barrier is placed on a perfectly flat and level surface to prevent tipping.

Maintaining a flat and level surface becomes increasingly crucial as the setup height increases.

If the barrier is not level, the centre of mass may shift, making the setup more prone to tipping from wind or other factors, posing risks of injury to workers or passers-by. Once a barrier starts to tip, the entire setup is at risk, regardless of length. This can lead to exponential consequences and even the risk of death. It is essential to understand that a longer barrier setup is not inherently more stable than a shorter one unless properly turned or braced.

Soft Ground types:

Hard Ground types:

For softer ground types, use ground mats with appropriate properties.

•

Gravel

•

Shale

•

Rock

•

•

Compact sand

Cemented materials

•

Hard clay

56

Ramudden Svea Barrier System

› AT fence Wind Limits !

Know that the wind pressure increases exponentially with the wind speed.

Wind calculations is based on a perfectly level and flat surface.

AT-Fence

2150 mm / 84.6 in

30+ m/s 100+ ft/s

2360 mm / 92.9 in

14 m/s 45 ft/s

Wood Panel

57

Ramudden Svea Barrier System

› AT-Fence Installation

30 mm

1

2

3

x4

4

5

› AT-Fence Corner installation x4

x4 18 mm 18 mm

18 mm

1

2

3

4

58

Ramudden Svea Barrier System

› AT-Fence Splicing

1

2

3

x4

18 mm

x2

16 mm

4

5

Wood Panels Refer to same installation guide when installing wood panels.

Ramudden Svea Barrier System

4 Barrier Accessories Accessories for all the needs of your worksite The T-track located on the top of the Svea Barriers enables rapid installation of various accessories to meet diverse requirements in high-traffic situations. The Svea barrier’s versatility truly shines in urban settings, offering a range of connection options for road signs, crash cushions, and additional fencing, ensuring effective adaptation when space is at a premium.

59

60

Ramudden Svea Barrier System

300395 - Fork Lift Cover Cap The forklift cover cap serves the purpose of sealing the holes in the barrier, effectively preventing any potential climbing hazards while also minimizing visibility into the work-site.

Dimensions

Weight

Material

Width: 240 mm / 9.45 in Height: 140 mm / 5.5 in Depth: 15 mm / 0.6 in

0.5 kg / 1.1 lb

Steel, hot-Dip Galvanized

› Installation

1

2

61

Ramudden Svea Barrier System

300410 - IoT Cover Cap The IoT Cover Cap is designed to seal the IoT opening when a HRS Intellitag® is not in use.

Dimensions

Weight

Material

Diameter: Ø 91 mm / 3.6 in Depth: 20 mm / 0-8 in

0,2 kg / 0.44 in

Steel, hot-Dip Galvanized

Tools

Fasteners Wrench: 13 mm

Hex Screw: M8x25 ISO 4017 - M10x55-8.8 A2

› Installation

1

13 mm

62

Ramudden Svea Barrier System

300233 - Cat Eye The Cat Eye is attached to increase the visibility of the Svea barriers.

Dimensions

Weight

Material

Width: 50 mm / 2 in Height: 30 mm / 1.2 in Depth: 30 mm / 1.2 in

10 g / 0.02 lb

Plastic

Tools

Fasteners Plug Screw M12x18

Torx T50

› Installation

T 50

63

Ramudden Svea Barrier System

300327 - Side Mounted Object Marker Attachment An attachment to fasten an object marker to the side of Svea barriers.

Dimensions

Weight

Height: 150 mm / 5.9 in Width: 75 mm / 2.95 in Depth: 20 mm/ 0.8 in

0.25 kg / 0.55 lb Steel, hot-Dip Galvanized

Tools

Fasteners Wrench 18 mm

Material

Hex Screw M12x40 ISO 4017 - M12x40-8.8 A2

› Installation

18 mm

1

2

3

64

Ramudden Svea Barrier System

300516 - Top Mounted Object Marker Attachment An attachment to fasten an object marker to the top of Svea barriers.

Dimensions

Weight

Material

Height: 160 mm / 6.3 in Width: 135 mm / 5.3 in Depth: 135 mm / 5.3 in

1.2 kg / 2.65 lb Steel, hot-Dip Galvanized

Tools Wrench: 18mm

› Installation

18 mm

1

2

3

65

Ramudden Svea Barrier System

300538 - End Barrier Object Marker Attachment An attachment to fasten an object marker to the top of Svea End barriers.

Dimensions

Weight

Material

Height: 200 mm / 7.9 in Width: 205 mm / 8.1 in Depth: 155 mm / 6.1 in

2.5 kg / 5.5 lb

Steel, hot-Dip Galvanized

Tools

Fasteners Wrench: 18 mm

Hex Screw: M10

Torx: T50

Torx Insert: M10x25

› Installation

18 mm

16 mm T 50

1

2

3

66

Ramudden Svea Barrier System

300624 - Sign Post Attachment An attachment to fasten a plastic sign post to the top of Svea barriers.

Dimensions

Weight

Material

Height: 160 mm / 6.3 in Width: 80 mm / 3.15 in Depth: 135 mm / 5.35 in

1.3 kg / 2.9 lb

Steel, hot-Dip Galvanized

Tools Wrench: 18mm

› Installation

18 mm 18 mm

1

2

67

Ramudden Svea Barrier System

300415 - Sign Post A steel post for attaching signs or beacon lights to the top of Svea barriers.

Dimensions

Weight

Material

Height: 860 mm / 33.85 in Width: 120 mm / 4.7 in Depth: 180 mm / 7 in

4 kg / 8.8 lb

Steel, hot-Dip Galvanized

Tools Wrench: 18mm

› Installation

18 mm

1

2

3

68

Ramudden Svea Barrier System

300623 - Fence Connection The fence connector facilitates the attachment of a standard temporary fence to the Svea barrier.

Dimensions

Weight

Material

Height: 2150 mm / 84.6 in Width: 215 mm / 8.5 in Depth: 150 mm / 5.9 in

9.5 kg / 20.95 lb

Steel, hot-Dip Galvanized

Tools Wrench: 18mm

› Installation - Sound Panel

18 mm

18 mm

1

2

69

Ramudden Svea Barrier System

18 mm

3

4

› Installation - AT-Fence

18 mm

1

2

18 mm

3

70

Ramudden Svea Barrier System

300422 - SMA Connector Kit This kit is designed for connecting a SMA Taurus to the Svea barrier, especially useful in scenarios where there's a risk of traffic impacting the end of the barrier.

Dimensions

Weight

Material

Height: 760 mm / 30 in Width: 370 mm / 14.6 in Depth: 360 mm / 14.2 in

23 kg / 50.7 lb

Steel, hot-Dip Galvanized

Tools

Fasteners Wrench: 21mm

Hex Flange Screw: M16x50 ISO 4162 - M16x0-8.8 HDG

Hex Screw: M16x60 ISO 4015 - M16x60-8.8 HDG

71

Ramudden Svea Barrier System

› Installation SMA connector x4

21 mm

1

3

2

Avoid tightening the screws too firmly. The adaptor plate should still be able to slide laterally. Final tightening will occur in a later step.

4

6

5

Tighten the adaptor plate against the barrier's coupling by levering with a screwdriver in the marked recess. Secure the screws firmly once the adaptor plate is tightened. Repeat the process on the other side.

21 mm

7

8

Optional

Ensure that the hood hooks securely onto the adaptor plate's hooks on both sides.

9

Optional

Ramudden Svea Barrier System

5 Technical Information Data and technical information for Svea Barrier system CE-certified and crash tested according to EN 1317-2 in capacity class T2, T3, N1, N2, and MASH TL-3.

Details regarding collision angles are specified within the relevant standards.

72

73

Ramudden Svea Barrier System

Performance Data Svea 5.7 m T3 - Low angle containment The performance figures relate to installation on an asphalt base in accordance with EN 1317-2.

Normal barrier installation EN 1317-2 T3 Barrier length

5.7 m / 18 ft 8 in

Barrier weight

2550 kg / 5622 lb

Min Barriers

8 pcs

Min installation weight

20,400 kg / 44,974 lb

Min installation length

45.6 m / 150 ft

Working width class/Working width dimension

W2: 0.8 m / 31.5 in

Tested length before/after work zone

11.4 m / 37 ft 5 in

ASI (Acceleration Severity Index)

0.6

THIV (Theoretical Head Injury Velocity)

11 km/h

Injury risk class

A

N 2 - Normal containment The performance figures relate to installation on an asphalt base in accordance with EN 1317-2.

Normal barrier installation

Svea - Sound Panel with Top Net & Barbed Wire

EN 1317-2 N2

EN 1317 N2 - Sound Panel

Barrier length

5.7 m / 18 ft 8 in

Barrier length

5.7 m / 18 ft 8 in

Barrier weight

2550 kg / 5622 lb

Barrier weight

2550 kg / 5622 lb

Min Barriers

9 pcs

Min Barriers

9 pcs

Min installation weight

22,950 kg / 50,596 lb

Min installation weight

22,950 kg / 50,596 lb

Min installation length

51.3 m / 168.3 ft

Min installation length

51.3 m / 168.3 ft

Tested length before/after work zone

17.1 m / 56 ft 1 in

Tested length before/after work zone

17.1 m / 56 ft 1 in

Working width class/Working width dimension

W4: 1.1 m / 43.3 in

Working width class/Working width dimension

W4: 1.1 m / 43.3 in

ASI (Acceleration Severity Index)

1.6

ASI (Acceleration Severity Index)

1.7

THIV (Theoretical Head Injury Velocity)

30 km/h

THIV (Theoretical Head Injury Velocity)

29 km/h

Injury risk class

C

Injury risk class

C

74

Ramudden Svea Barrier System

Performance Data - Svea 2.85 T2/ T3 - Low angle containment The performance figures relate to installation on an asphalt base in accordance with EN 1317-2.

Normal barrier installation

Normal barrier installation

EN 1317-2 T2

EN 1317-2 T3

Barrier length

2.85 m / 9 ft 4 in

Barrier length

2.85 m / 9 ft 4 in

Barrier weight

1280 kg / 2822 lb

Barrier weight

1280 kg / 2822 lb

Min Barriers

8 pcs

Min Barriers

10 pcs

Min installation weight

10,240 kg / 22,584 lb

Min installation weight

12,800 kg / 28,230 lb

Min installation length

22.8 m / 74 ft 2 in

Min installation length

28.5 m / 93 ft 6 in

Working width class/Working width dimension

W2: 0.8 m / 31.5 in

Working width class/Working width dimension

W3: 1.0 m / 39.4 in

Tested length before/after work zone

8.55 m / 28 ft

Tested length before/after work zone

8.55 m / 28 ft

ASI (Acceleration Severity Index)

0.7

ASI (Acceleration Severity Index)

0.4

THIV (Theoretical Head Injury Velocity)

17 km/h / 55.8 ft/s

THIV (Theoretical Head Injury Velocity)

11 km/h/ 36 ft/s

Injury risk class

A

Injury risk class

A

N1 - Normal containment The performance figures relate to installation on an asphalt base in accordance with EN 1317-2.

Normal barrier installation EN 1317-2 N1 Barrier length

2.85 m / 9 ft 4 in

Barrier weight

1280 kg / 2822 lb

Min Barriers

10 pcs

Min installation weight

12,800 kg / 28,230 lb

Min installation length

28.5 m / 93 ft 6 in

Working width class / Working width dimension

W3: 1.0 m / 39.4 ft

Tested length before/after work zone

8.55 m / 28 ft

ASI (Acceleration Severity Index)

0.6

THIV (Theoretical Head Injury Velocity)

16 km/h / 52.5 ft/s

Injury risk class

A

75

Ramudden Svea Barrier System

N 2 - Normal containment The performance figures relate to installation on an asphalt base in accordance with EN 1317-2.

Normal barrier installation

Svea - Sound Panel with Top Net & Barbed Wire

EN 1317-2 N2

EN 1317-2 N2 - Sound Panel

Barrier length

2.85 m / 9 ft 4 in

Barrier length

2.85 m / 9 ft 4 in

Barrier weight

1280 kg / 2822 lb

Barrier weight

1280 kg / 2822 lb

Min Barriers

12 pcs

Min Barriers

12 pcs

Min installation weight

15,360 kg / 33,643 lb

Min tested weight

15,360 kg / 33,643 lb

Min tested length

34.2 m / 112 ft 2 in

Min tested length

34.2 m / 112 ft 2 in

Working width class/Working width dimension

W5: 1.7 m / 67 in

Working width class/Working width dimension

W4: 1.3 m / 51.2 in

Tested length before & after work zone

11.4 m / 37 ft 5 in

Tested length before & after work zone

8.55 m / 28 ft

ASI (Acceleration Severity Index)

1.6

ASI (Acceleration Severity Index)

1.6

THIV (Theoretical Head Injury Velocity)

27 km/h / 88.6 ft/s

THIV (Theoretical Head Injury Velocity)

26 km/h / 85.3 ft/s

Injury risk class

C

Injury risk class

B

TL-3 - AASHTO MASH

Normal barrier installation

Svea - Sound Panel with Top Net & Barbed Wire

AASHTO MASH TL-3

AASHTO MASH TL-3 - Sound Panel

Barrier length

2.85 m / 9 ft 4 in

Barrier length

2.85 m / 9 ft 4 in

Barrier weight

1280 kg / 2822 lb

Barrier weight

1280 kg / 2822 lb

Min Barriers

19 pcs

Min Barriers

19 pcs

Min installation weight

24,320 kg / 53,616 lb

Min installation weight

24,320 kg / 53,616 lb

Min tested length

54.2 m / 178 ft

Min tested length

54.2 m / 178 ft

Working width

2204 mm / 87 in

Working width

1985 mm / 78 in

Dynamic Deflection

1807 mm / 71 in

Dynamic Deflection

1805 mm / 71 in

OIV (Longitudinal / Lateral)

4.00/6.58 m/s / 13.13/21.60 ft/s

OIV (Longitudinal / Lateral)

4.35/5.20 m/s / 15.39/24.48 ft/s

ORA (Longitudinal / Lateral)

-7.54 / -13.98 g

ORA (Longitudinal / Lateral)

-2.65 / -15.83 g

76

Ramudden Svea Barrier System

Performance Data - Svea 1.425 T2 - Low angle containment The performance figures relate to installation on an asphalt base in accordance with EN 1317-2.

Normal barrier installation EN 1317-2 T2 Barrier length

1.425 m / 4 ft 8 in

Barrier weight

655 kg / 1444 lb

Min Barriers

11 pcs

Min tested weight

7205 kg / 15884 lb

Min tested length

15.675 m / 55 ft 5 in

Working width class / Working width dimension

W3: 1.0 m / 39.4 in

Tested length before & after work zone

4.3 m / 14 ft 1 in

ASI (Acceleration Severity Index)

0.8

THIV (Theoretical Head Injury Velocity)

15 km/h / 49.2 ft/s

Injury risk class

A

77

Ramudden Svea Barrier System

Sound Panel - Component Lists Sound Panel Double Height

Sound Panel

Barbed Wire

Nr

Article

Description

Weight

Nr

Article

Description

Weight

5

300437

Single Height Post

5.5 kg / 12.1 lb

1

300184

Barbed Wire

1.5 kg / 3.3 lb

6

300530

Panel Lock

0.5 kg / 1.1 lb

2

300459

Barbed Wire Post

1.0 kg / 2.2 lb

7

300197

Panel Section 1365

22 kg / 48.5 lb

5

300437

Single Height Post

5.5 kg / 12.1 lb

8

300523

Svea Barrier

5.5 kg / 12.1 lb

6

300530

Panel Lock

0.5 kg / 1.1 lb

7

300197

Panel Section 1365

22 kg / 48.5 lb

8

300523

Svea Barrier

5.5 kg / 12.1 lb

78

Ramudden Svea Barrier System

Sound Panel Single Height

Top Net

Barbed Wire & Top Net

Nr

Article

Description

Weight

Nr

Article

Description

Weight

1

300447

Top Net Post

2.5 kg / 5.5 lb

1

300184

Barbed Wire

1.5 kg / 3.3 lb

2

300179

Top Net

8.0 kg / 17.6 lb

2

300459

Barbed Wire Post

1.0 kg / 2.2 lb

3

300437

Single Height Post

5.5 kg / 12.1 lb

3

300447

Top Net Post

2.5 kg / 5.5 lb

4

300530

Panel Lock

0.5 kg / 1.1 lb

4

300179

Top Net

8.0 kg / 17.6 lb

5

300197

Panel Section 1365

22 kg / 48.5 lb

5

300437

Single Height Post

5.5 kg / 12.1 lb

6

300523

Svea Barrier

5.5 kg / 12.1 lb

6

300530

Panel Lock

0.5 kg / 1.1 lb

7

300197

Panel Section 1365

22 kg / 48.5 lb

8

300523

Svea Barrier

5.5 kg / 12.1 lb

79

Ramudden Svea Barrier System

Sound Panel Double Height

Sound Panel

Barbed Wire

Nr

Article

Description

Weight

Nr

Article

Description

Weight

1

300474

Top Strut Attachment

0.3 kg / 0.7 lb

1

300184

Barbed Wire

1.5 kg / 3.3 lb

2

300530

Panel Lock

0.5 kg / 1.1 lb

2

300459

Barbed Wire Post

1,0 kg / 2.2 lb

3

300406

Double Height Strut

12 kg / 26.5 lb

3

300474

Top Strut Attachment

0,3 kg / 0.7 lb

4

300197

Panel Section 1365

22 kg / 48.5 lb

4

300530

Panel Lock

0.5 kg / 1.1 lb

5

300476

Panel Guide Double Height 0.5 kg / 1.1 lb

5

300406

Double Height Strut

12 kg / 26.5 lb

6

300460

Double Height Post

10 kg / 22.0 lb

6

300197

Panel Section 1365

22 kg / 48.5 lb

300476

Panel Guide Double Height

0.5 kg / 1.1 lb

300368

Panel Section 1365 without Spikes

7

7

22 kg / 48.5 lb

8

300460

Double Height Post

10 kg / 22.0 lb

8

300523

Horizontal Strut

5.5 kg / 12.1 lb

9

300403

Strut Attachment Plate

2,0 kg / 4.4 lb

9

300368

Panel Section 1365 without Spikes

22 kg / 48.5 lb

10

300579

Strut Coupler

1.0 kg / 2.2 lb

10

300523

Horizontal Strut

5.5 kg / 12.1 lb

11

300002

Svea 2,85 m

1280 kg / 2821.9 lb

11

300403

Strut Attachment Plate

2.0 kg / 4.4 lb

12

300579

Strut Coupler

1.0 kg / 2.2 lb

13

300002

Svea 2,85 m

1280 kg / 2821.9 lb

80

Ramudden Svea Barrier System

Sound Panel Double Height

› Top Net

› Barbed Wire & Top Net

Nr

Article

Description

Weight

Nr

Article

Description

Weight

1

300179

Top Net

8.0 kg / 17.6 lb

1

300184

Barbed Wire

1.5 kg / 3.3 lb

2

300447

Top Net Post

2.5 kg / 5.5 lb

2

300459

Barbed Wire Post

1.0 kg / 2.2 lb

3

300474

Top Strut Attachment

0.3 kg / 0.7 lb

3

300179

Top Net

8.0 kg / 17.6 lb

4

300530

Panel Lock

0.5 kg / 1.1 lb

4

300447

Top Net Post

2.5 kg / 5.5 lb

5

300406

Double Height Strut

12 kg / 26.5 lb

5

300474

Top Strut Attachment

0.3 kg / 0.7 lb

6

300197

Panel Section 1365

22 kg / 48.5 lb

6

300530

Panel Lock

0.5 kg / 1.1 lb

7

300476

Panel Guide Double Height

0.5 kg / 1.1 lb

7

300406

Double Height Strut

12 kg / 26.5 lb

8

300460

Double Height Post

10 kg / 22.0 lb

8

300197

Panel Section 1365

22 kg / 48.5 lb

9

300368

Panel Section 1365 without Spikes

22 kg / 48.5 lb

9

300476

Panel Guide Double Height

0.5 kg / 1.1 lb

10

300460

Double Height Post

10 kg / 22.0 lb

10

300523

Horizontal Strut

5.5 kg / 12.1 lb

11

300403

Strut Attachment Plate

2.0 kg / 4.4 lb

11

300368

Panel Section 1365 without Spikes

22 kg / 48.5 lb

12

300579

Strut Coupler

1.0 kg / 2.2 lb

12

300523

Horizontal Strut

5.5 kg / 12.1 lb

13

300002

Svea 2,85 m

1280 kg / 2821.9 lb

13

300403

Strut Attachment Plate

2.0 kg / 4.4 lb

14

300579

Strut Coupler

1.0 kg / 2.2 lb

15

300002

Svea 2,85 m

1280 kg / 2821.9 lb

81

Ramudden Svea Barrier System

Information General •

Always read the manufacturer's instructions to ensure that the product is used correctly and safely.

•

If anything is unclear, contact the manufacturer or your retailer.

•

Never mix products from different manufacturers.

•

Do never exceed the specified load limits.

Storage •

Store as far as possible in non-corrosive environment.

•

Store the products according to the manufacturer's intended way for example when stacking to minimize the risk of personal injury.

Symbols description

Recycle

Dimensions

Correct

Incorrect

Inspect

Inspect straightness

Inspect for cracks

Radius

Insert

Turn

Loosen

Tighten

Tighten with torque

Time

Replace

Weight

!

Be aware

Ramudden Global is a network of infrastructure safety companies providing urban and high speed traffic management, arboriculture, digital services and specialisms in infrastructure safety.

With over 5,000 employees across 12 different countries and sales of €1 billion a year, our success is down to our focus on our mission, ‘to get people home safely every day’. No matter where you are, our employees, our customers’ employees and the general public deserve to work, travel and move through the world safely. We believe this is what matters most.

It inspires our entrepreneurial spirit and creativity, sharing ideas and solutions to lead the way in innovation and governance to become a force for good. A caring force for a safer world. www.ramuddenglobal.com

Your Safety.

Delivered.

www.ramuddenglobal.com

With over 5,000 employees across 13 countries, Ramudden Global is the leading full-service provider of infrastructure safety solutions. Driven by our mission - "To get people home safely every day" - we harness innovative products, digital solutions, and professional services to ensure the highest quality in every project we undertake.

Revision 2508
