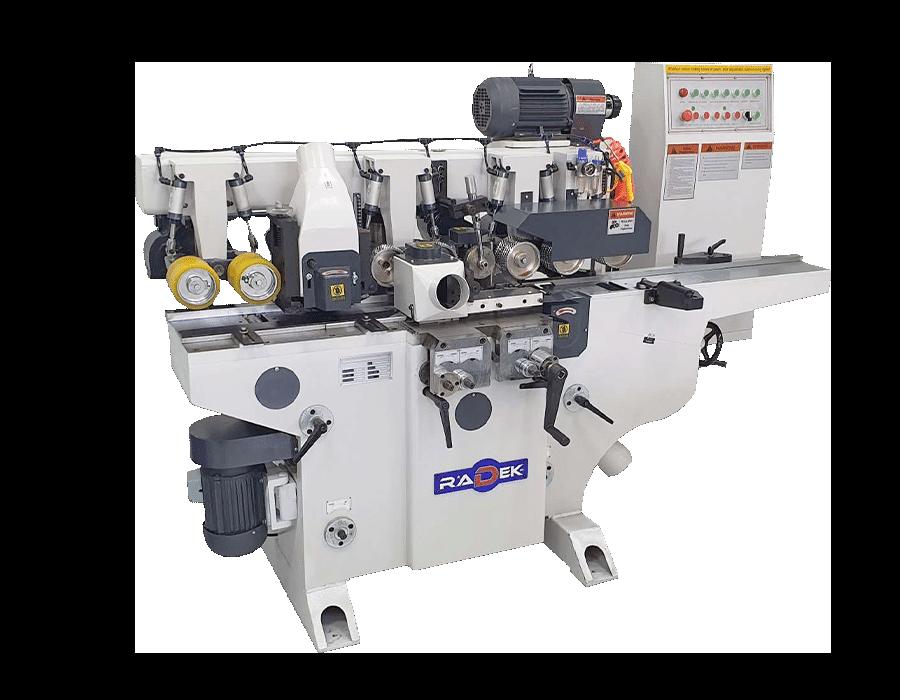

FOUR-SIDED PLANER
Designed for four-sided processing of workpieces. It is commonly used for precise planing, grooving, or shaping according to your choice, with speeds up to 20 meters per minute. Three features make it an excellent choice: compact dimensions that save space, economical power consumption, and ease of use and maintenance. The ma chine comes with 4 heads that allow you to attach knives (blades) in any desired shape.
Processing width
Processing thickness
Processing speed
Number of miling cutters
Rotational speed
Shaft diameter
Bottom cutter diameter
Top cutter diameter
Right cutter diameter
Left cutter diameter
Bottom motor power
Top motor power
Right motor power
Left motor power
Conveyor power
Height regulator power
Total power
Machine dimensions
Packing dimensions
Weight
18-120mm
8-100mm
6100rpm Ø40mm
Ø110-140mm
Ø110-140mm
Ø110-140mm
Ø110-140mm 2.2kW

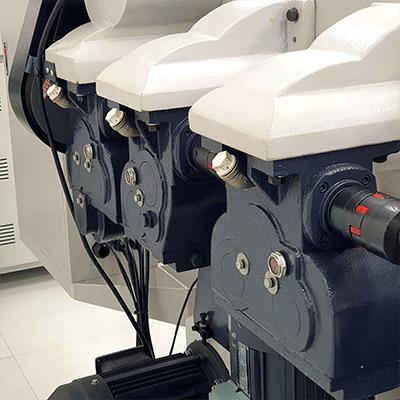

The machine consists of 6 separate motors:
Three 2.2kW motors, One 4kW motor, One 1.5kW motor, One 0.37kW motor.
SEPARATE MOTORS

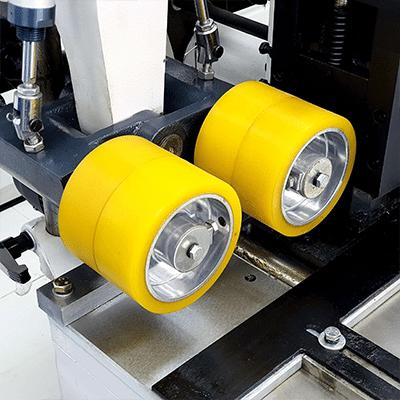

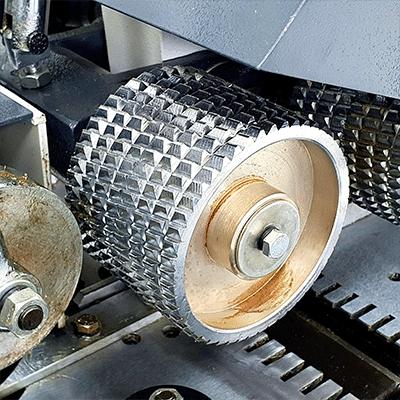

Driven by a cardan shaft for firm and smooth movement of the workpiece. Transport is done using toothed metal rollers at the front and smooth rubber rollers at the back to prevent potential damage to the workpiece.
TRANSPORT ROLLERS

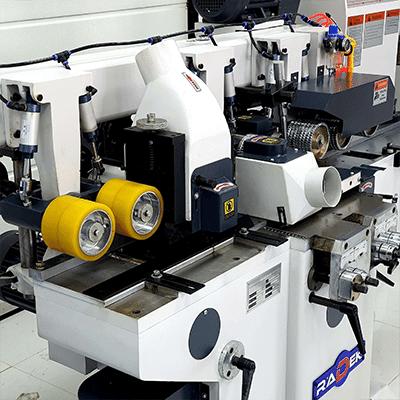

Horizontal and vertical rollers are placed in the work zone for maximum support during the transport of the workpiece. ADDITIONAL SUPPORT
The pressure of the transport rollers is automatically adjusted via the control panel. ROLLER ADJUSTMENT

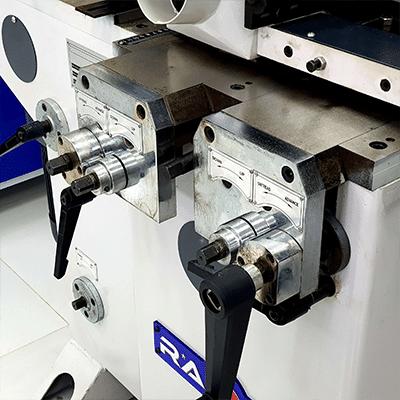

The position of the planer is mechanically adjusted using handles placed at the front of the machine. PLANER ADJUSTMENT
Several dust extraction openings are provided for connection to a dust collector (aspirator).
