CNC NESTING

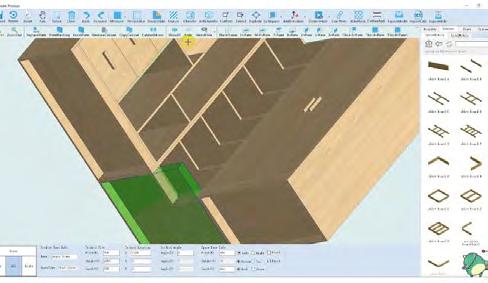

HAIXUN LICENSED SOFTWARE (OPCIONAL)
Sophisticated software enabling fast and efficient design and pro duction optimization, 3D preview and instant quotation generation with detailed pricing. Compatible with RADEK CNC drilling machines.

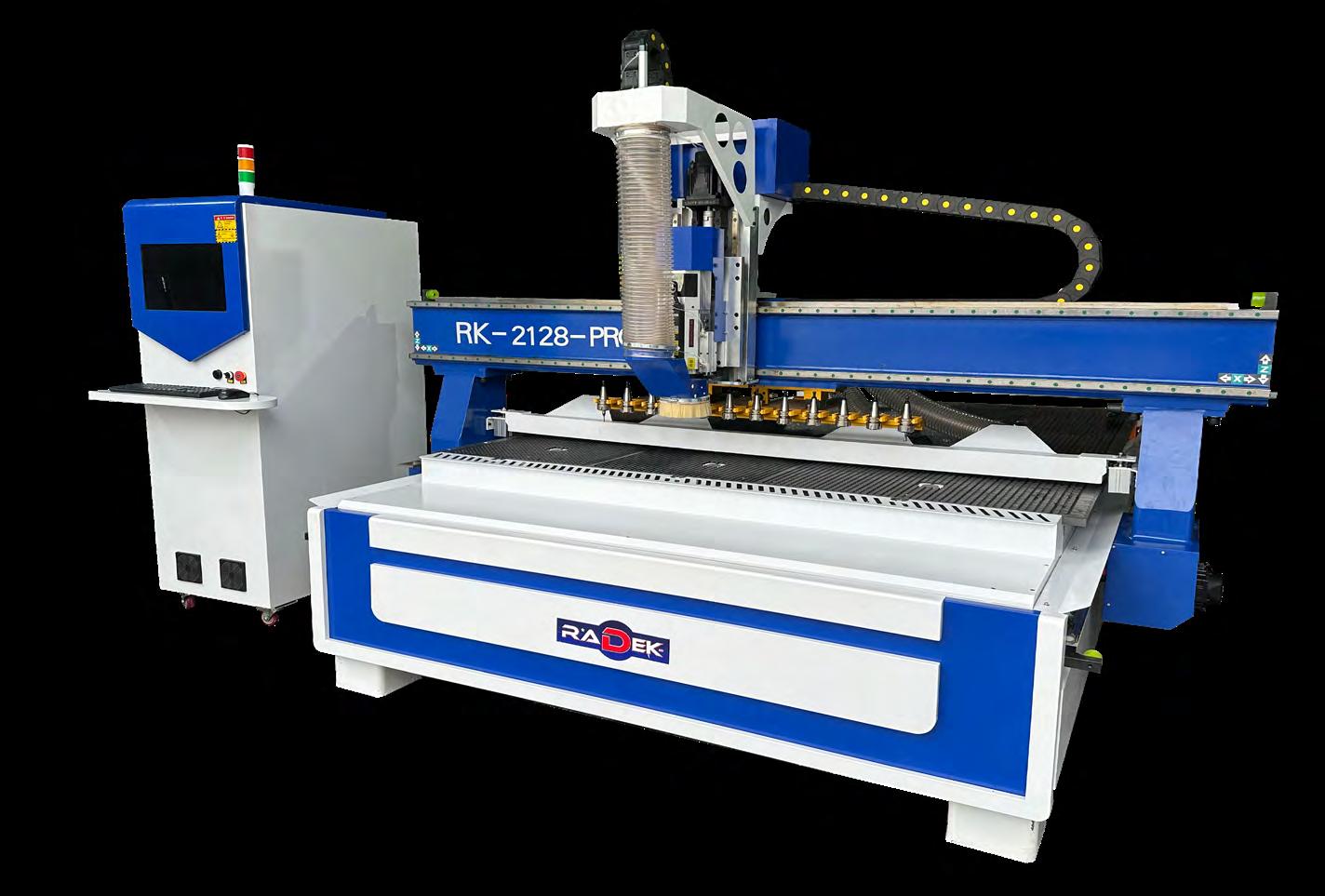

The CNC nesting machine RK-2128-PRO represents an optimized and cost-effective solution for manufacturers seeking a stable, precise, and fast machine at an accessible price. It is designed to deliver high productivity, precise cutting, and reliable operation, with the daily capacity to process a large number of panels without downtime and without requiring complex maintenance.

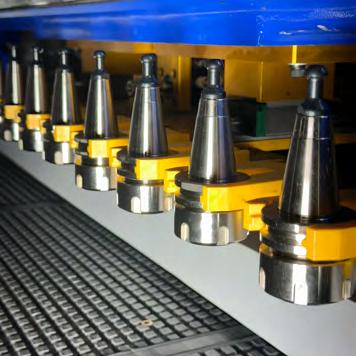

AUTOMATIC TOOL CHANGER
The automatic tool change system enables fast and secure tool switching without manual intervention. The magazine is mounted directly on the gantry, significantly reducing tool change time and eliminating the need for the machine to move to the end of the worktable. This system provides higher productivity, consistent precision, and maximum dynamics during complex multi-tool programs.
Working area
Main motor power
Main motor speed

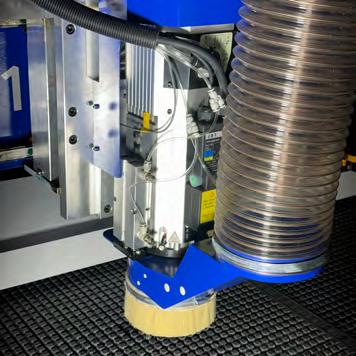

9kW INDUSTRIAL SPINDLE MOTOR
The 9kW industrial spindle ensures stable and continuous power for all types of materials. With 18,000 RPM and optimized air cooling, the motor guarantees clean cutting, fast processing, and minimal vibration even under high loads.

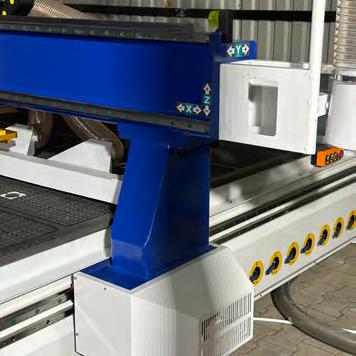

HEAVY-DUTY GANTRY STRUCTURE
Engineered from reinforced rectangular steel profiles, the gantry offers exceptional stability and vibration resistance. Additional internal reinforcements ensure a long service life and constant precision at high speeds. This construction guarantees reliable machining of large panels and durability even in production environments with intensive daily operation.
2100x2800x200mm 9kW
18.000rpm
Main motor cooling type
Movement motor type
Movement motor power
Worktable
Vacuum pump power
Vacuum pump capacity
Vacuum pump cooling type
Number of vacuum zones
Operating system
Processing speed
Main motor collet type
Collet clamp diameter
Number of tools (magazine)
Machine dimensions
Weight
Air-cooled
Servo motors (Leadshine)
1.5kW
Vacuum table + aluminum rails
7.5kW
320m³/h - 550m³/h
Water-cooled x10 Taiwan LNC
0-30m/min ER32
2-25mm x12
4050х3500х2850mm
3000kg

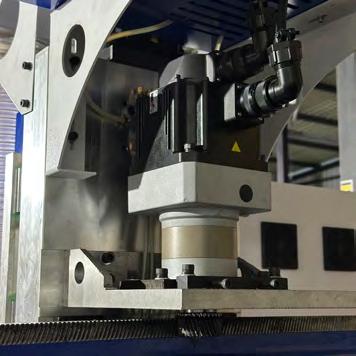

HIGH-PRECISION SERVO MOTORS
The servo motors are optimized for dynamic CNC machines, combining high torque with excellent accuracy. Paired with high-quality gear reducers from renowned manufacturers, they enable stable positioning and precise movement of the gantry and spindle without vibration or backlash. The system provides fast response, smooth motion, and reliable results in demanding industrial conditions.

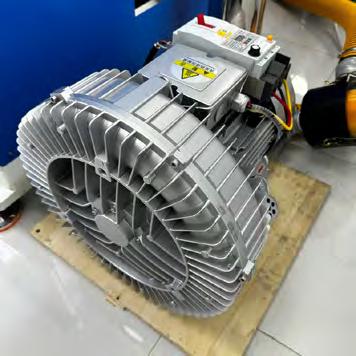

The machine is equipped with a high-efficiency vacuum pump with air cooling and a power rating of 7.5kW. The vacuum pump has a capacity of approximately 320m³/h - 550m³/h, enabling rapid vacuum generation and stable holding even during intensive continuous operation. The high air flow ensures uniform material adhesion across the entire vacuum working table.

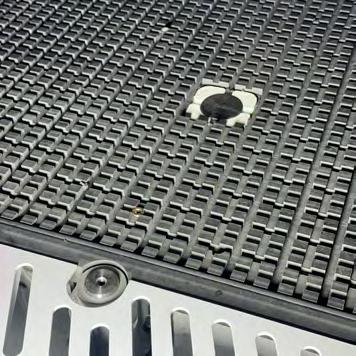

WORKTABLE
The worktable is manufactured from high-quality rigid material with exceptional resistance to wear and deformation. It is designed to ensure maximum sheet adherence when using the vacuum system, providing stable contact across the entire surface. Integrated aluminum “T” profiles offer additional mechanical clamping options for processing special shapes and smaller components.

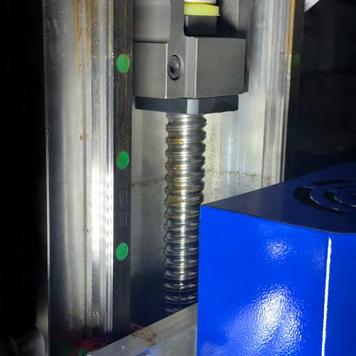

The Z axis is equipped with a high-precision ball screw, ideal for applications where vertical movement is critical. This system provides minimal friction, stable lifting and lowering of the spindle, and excellent repeatability during complex operations. The optimized transmission reduces component wear and increases reliability during long production cycles.

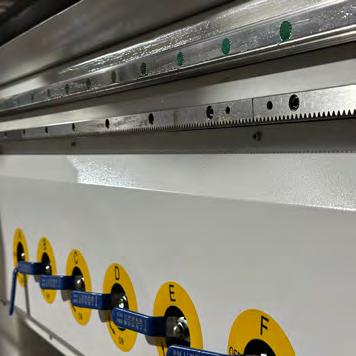

The X and Y axes utilize large cross-section linear guides combined with a helical rack for secure and precise movement. The system incorporates components from a renowned manufacturer known for long service life and stability at high speeds. This ensures smooth motion, low noise levels, and minimal vibration — directly contributing to higher accuracy and extended machine longevity.

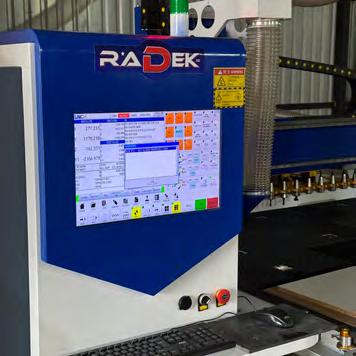

The LNC control system comes from a highly reputable Taiwanese brand, providing organized, efficient, and intuitive access to all machine functions. CONTROL SYSTEM
Z AXIS MOVEMENT
X AND Y AXIS MOVEMENT
VACUUM PUMP
