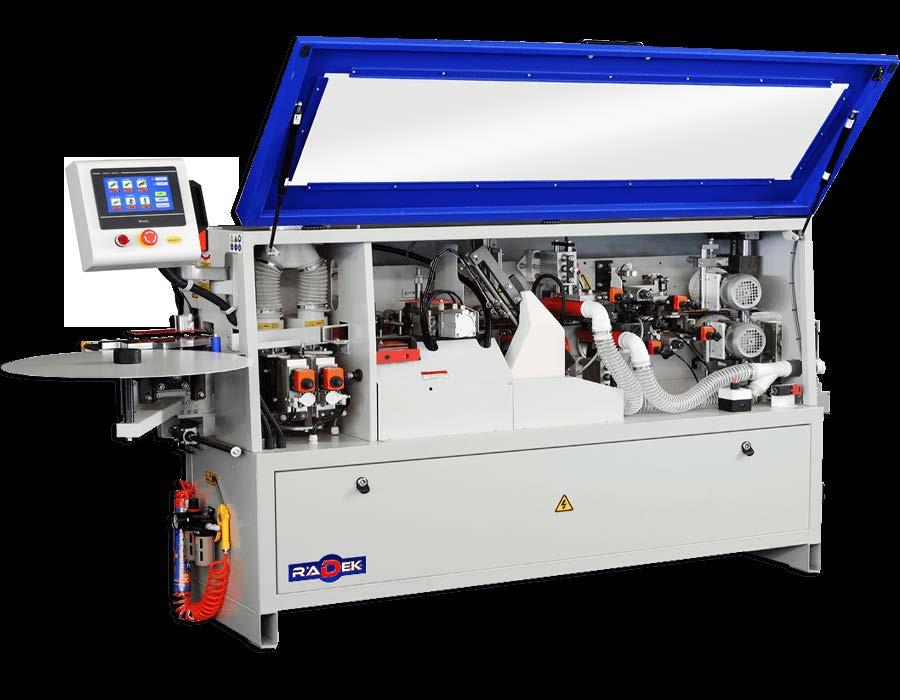

EDGE BANDING MACHINE
A compact edge banding machine with a perfect assembly of individual components to ensure flawless finishing. All machine parts are manufactured with absolute precision on high-end Japanese machines and inspected by expert engineers under strict quality control. A large touchscreen display detects errors and provides a quick resolution guide whenever a problem arises. It is ideal for small, medium and industrial-scale production.

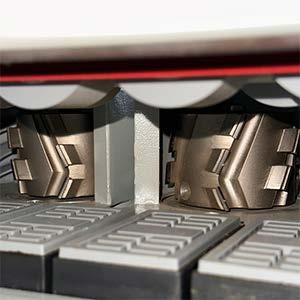

PRE-MILLING UNIT
Designed to eliminate cutting damage and guarantee a flat surface ideal for gluing. Made with diamond cutters that rotate in different directions.

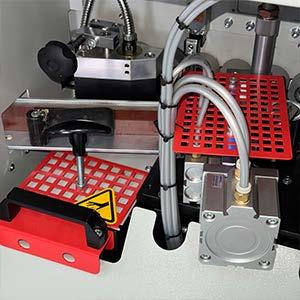

ADHESIVE APPLICATION
The canister is coated with Teflon and features a quick-detach system. It is designed for adhesive granules that require just 15 minutes to heat up.
Two pneumatic rollers apply pressure to the tape with adjustable regulators.
Panel width
Panel thickness
Edge band thickness
Panel length
Processing speed
Operating pressure
Total power
Machine dimensions
Packing dimensions
Weight
minimum 80mm
10-50mm
0.4-3mm
минимум 70mm
7m/min
6 bar
6.15kW
2730x1080x1230mm
2422x645x1245mm
780kg

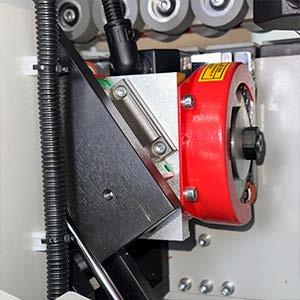

END CUTTING
Precise cutting of panel edges with two saw blades and high spindle speeds (12,000 RPM).
Precise processing of the upper and lower panel parts with two radius routers (R1, R2, R3) and high spindle speeds (12,000

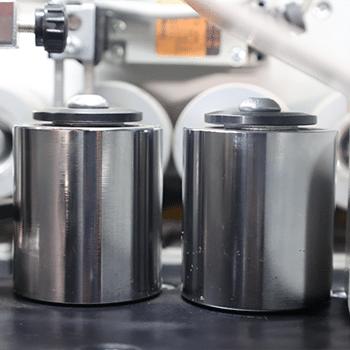

PNEUMATIC ROLLERS
RPM).

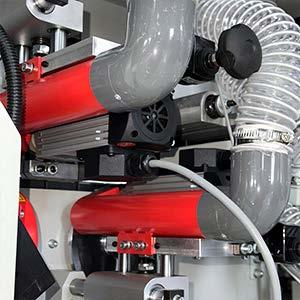

TRIMMING UNIT

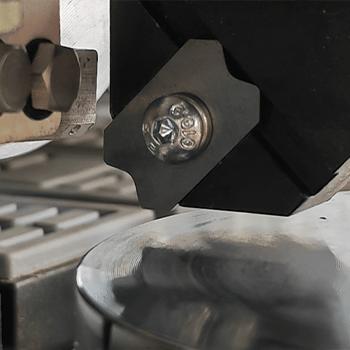

Scrapers with a radius for edge finishing to ensure smoothness.
RADIUS SCRAPING UNIT

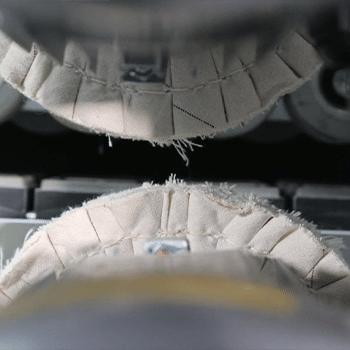

Final panel finishing by polishing for an even smoother surface.
BUFFING UNIT
