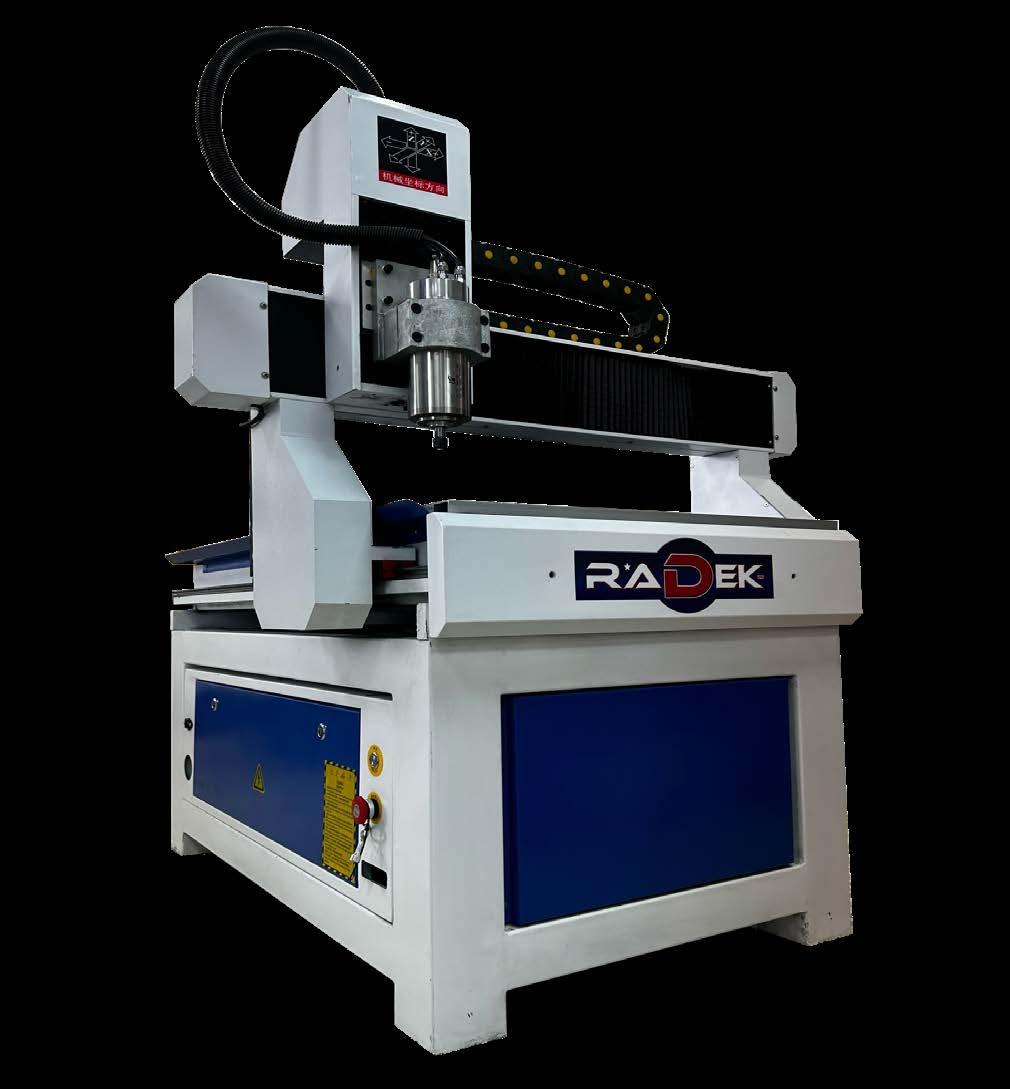

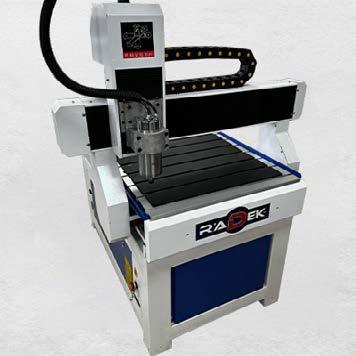

CNC ROUTER
CAPABILITIES
Endless possibilities for processing various materials such as wood, MDF, chipboard, plexiglass, forex, hardboard, plywood, alubond, and others. A great opportunity for starting a new business or expanding an existing one. Widely used in industries such as furniture manufacturing, decorative elements, icons, panel flattening, logo production and more.
EXCELLENT INVESTMENT
CNC routers are increasingly used across various industries as they are among the most important machines in any production facility. They are essential for improving and facilitating work. They significantly increase processing capacity and eliminate errors caused by human factors. The quality of work remains constant and unchanged.
Take your woodworking and panel processing projects to the next level. This CNC machine is designed for cutting, drilling and engraving, turning your ideas into reality. Equipped with an aluminum T-slot table, set of manual clamps, water-cooled motor, water circulation cooling pump, stepper motors for movement, set of tool holders and milling cutters and NC Studio operating system.
Constructed to provide excellent structural integrity and load-bearing capacity

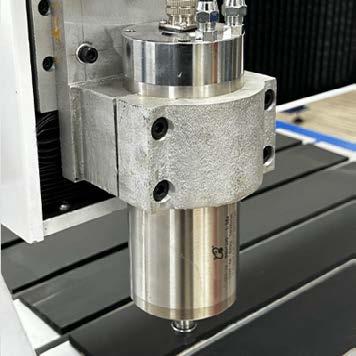

A powerful 1.5kW motor with 24,000 RPM and water cooling.

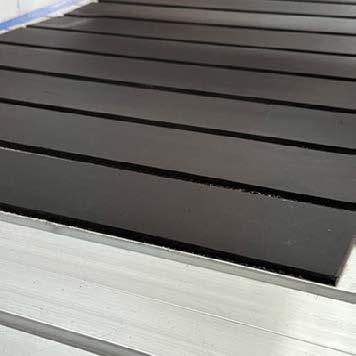

Optional aluminum table with T-slots or a vacuum table designed for use with a vacuum pump, made of special wear-resistant plastic. Additionally, it features integrated “T” aluminum rails that allow for manual piece fixation using clamps.
Working area
Main motor power
Main motor speed
Main motor cooling type
Movement motor type
Movement motor model
Worktable
Operating system
Processing speed
Main motor collet type
Collet clamp diameter
Machine dimensions
Weight
Stepper motors
86BHH-400B-35
Aluminum table with T-slots
NC Studio 0-3m/min
ER11
1-7mm
1304x1100x1500mm
250kg
and

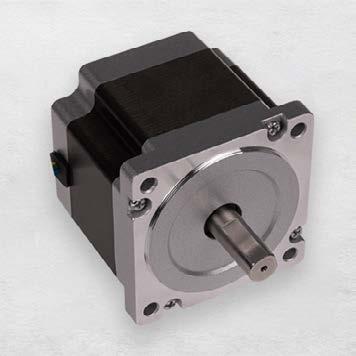

HIGH-PRECISION STEP MOTORS
Ensure precise positioning of the gantry and spindle, with a high movement speed of up to 3 meters per minute. Excellent quality and stability in operation.

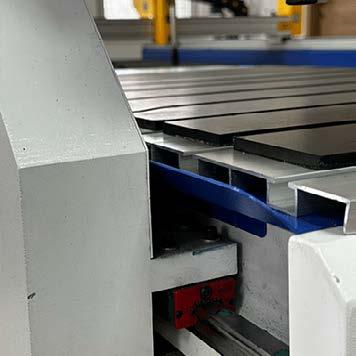

Axis movement occurs via linear guides and a rack-andpinion system, which is proven to be the best and most commonly used movement system in most CNC machines. This ensures smooth operation, low noise levels and significant reduction of additional loads, thereby increasing durability and longevity.
The Z-axis is considered the most heavily loaded, so a ball screw system is implemented, providing exceptional precision, low friction, maximum protection against rapid wear and prevention of overheating of frictional components during machine operation.

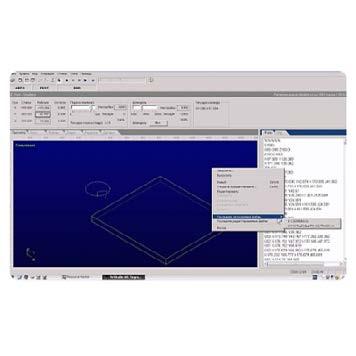

NC Studio operating system enables easy and organized access to all machine functions. NC STUDIO OPERATING
CONSTRUCTION
POWERFUL MOTOR

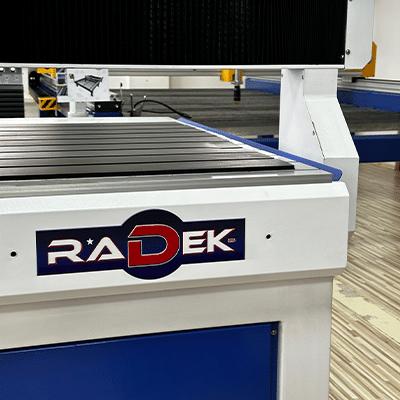

WORKING TABLE
SYSTEM

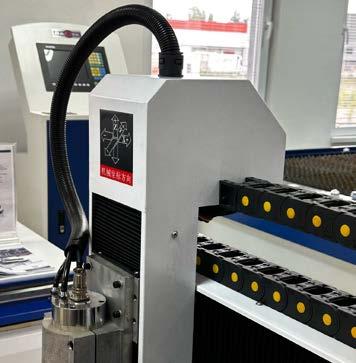

The gantry construction provides a high degree of rigidity, durability
high precision.
STURDY GANTRY
Z AXIS MOVEMENT
X AND Y AXIS MOVEMENT
