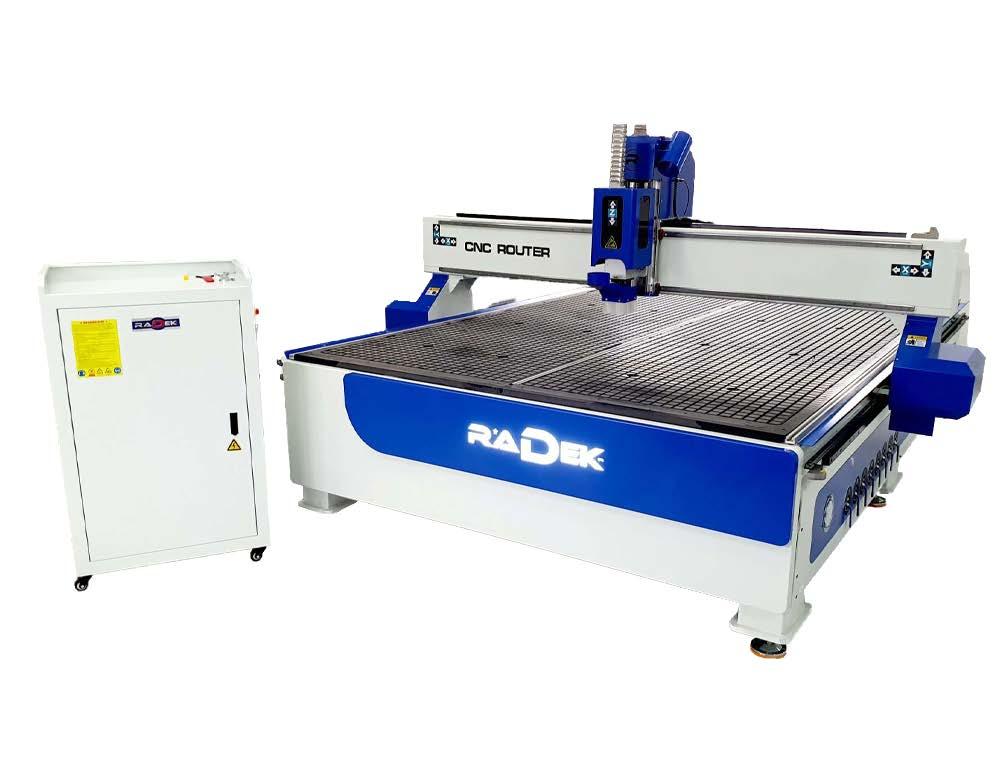

CNC ROUTER
CAPABILITIES

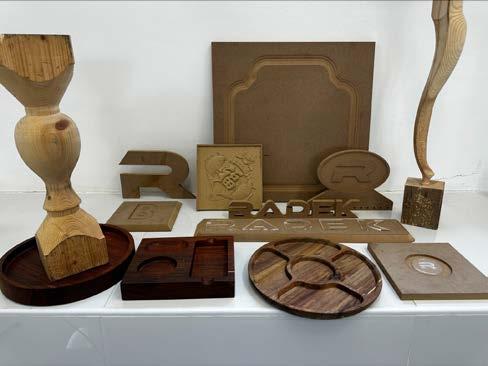

This CNC router offers endless possibilities in processing various materials such as wood, MDF, plywood, acrylic, foreks, particleboard and more. It’s an excellent opportunity for starting or expanding a business, commonly used in industries like furniture making, decorative elements, icons, logo creation and board flattening.

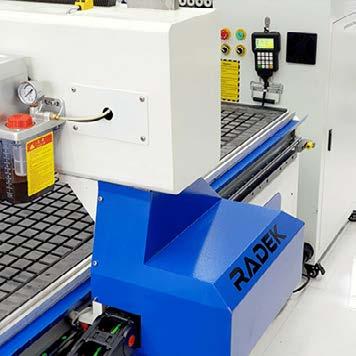

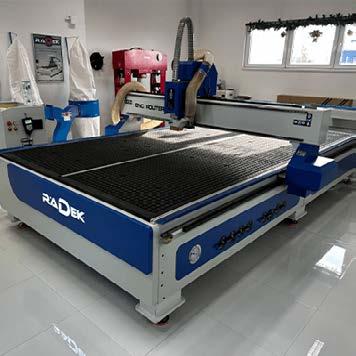

Take your woodworking and panel processing projects to the next level. This CNC machine is designed for cutting, drilling and engraving, bringing your ideas to life. With top-tier performance, quality and stability, this CNC router is a reliable and long-term investment. It comes equipped with a vacuum table, a vacuum pump, a tool calibration sensor, an automatic lubrication system, a dust collector with two bags, a flexible dust extraction hose, vacuum table seals, a set of tool holders and cutters, leveling feet, a flexible hose holder, a dust cover, a set of manual clamps and a Richauto controller.
CNC routers are essential machines in any production facility, enhancing efficiency and reducing human error. They significantly increase processing capacity, offering constant and unchanging work quality.
Ensures precise positioning of the bridge and spindle without deviations or errors and allows high-speed movement up to 20 meters per minute.
The machine features a massive structure, ensuring a high level of stiffness and resistance to both static and dynamic loads. The structure is made using high-precision CNC machining centers for metal, guaranteeing precision, quality and durability.

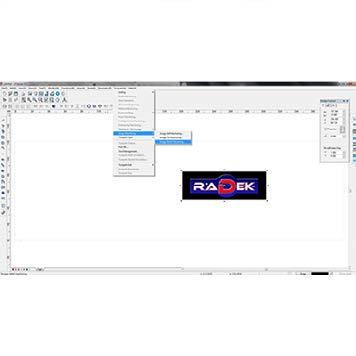

A sophisticated software with numerous options for quick and efficient design and drawing simulation previews.
MOTOR
Powered by a robust 6kW motor with 18,000 RPM and air cooling, this motor is designed to handle any challenge, regardless of the material or speed of processing.

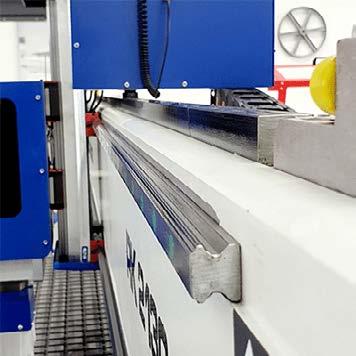

The movement of the axes is through linear guides (20mm) and toothed rack, from the highly renowned brand HIWIN from Taiwan, proven to be the best and most usable movement system for most cnc machines. It enables smooth operation, low noise and a significant reduction of all additional loads, thus increasing their durability and durability.

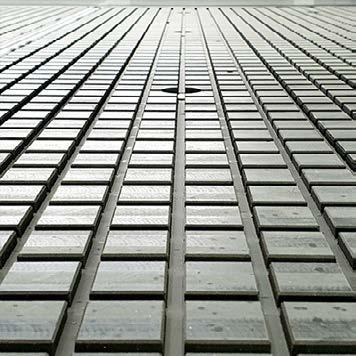

WORKING TABLE
The machine’s working table is made from wear-resistant special plastic and designed for use with a vacuum pump. It includes integrated aluminum “T” rails for manually securing pieces using clamps.

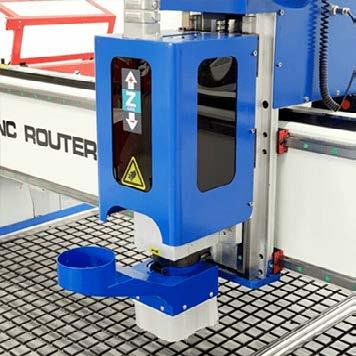

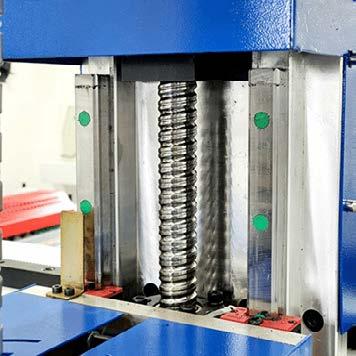

The Z axis is considered the most loaded and therefore a 25mm threaded spindle has been implemented, which enables exceptional precision, low friction of the elements, maximum protection against rapid wear, as well as prevention of heating of the elements that rub during machine operation.

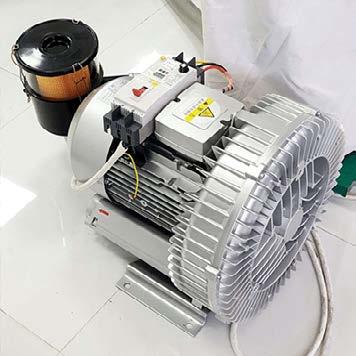

INDUSTRIAL VACUUM PUMP
Equipped with a powerful 7.5kW air-cooled vacuum pump with a capacity of 530m³ per hour, ensuring high absorption of workpieces.

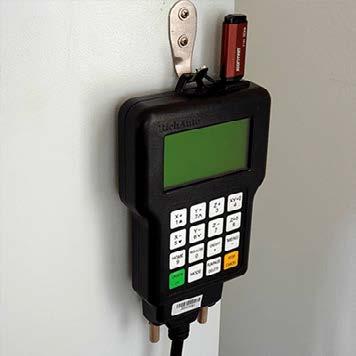

The Richauto controller simplifies machine operation and parameter adjustments compared to standard computer operating systems.
Built from rectangular steel profiles, structurally improved and reinforced inside, the bridge guarantees high strength, durability, and precision, offering a significantly better quality than other market alternatives. MASSIVE BRIDGE

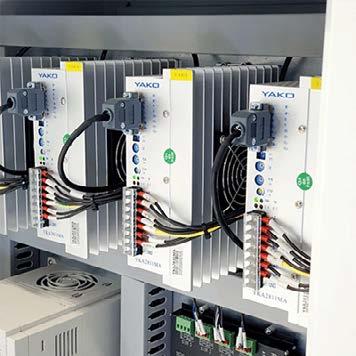

High-quality components from renowned manufacturers, including Schneider electronics, Yako drivers, Folinn inverters, HQD main motors, CW hybrid step motors, Hiwin rails, TBI spindles, etc. COMPONENTS
Working area
Optional working area
Main motor power
Main motor speed
Main motor cooling type
Movement motor type
Movement motor model
Worktable
Vacuum pump power

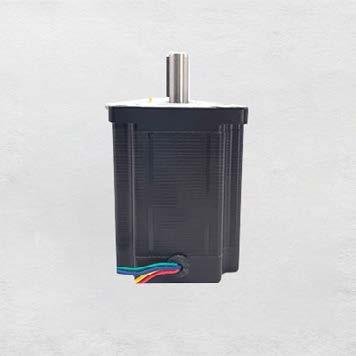

Hybrid stepper motors
Vacuum table + aluminum rails
Vacuum pump capacity
Vacuum pump cooling type
Number of vacuum zones
Operating system
Processing speed
Main motor collet type
Collet clamp diameter
Machine dimensions
Weight
530m³/h
Air-cooled x8
Richauto 0-20m/min ER32 2-25mm
3650x2900x2450mm 1650kg
X AND Y AXIS MOVEMENT
Z AXIS MOVEMENT
RICHAUTO CONTROLLER
