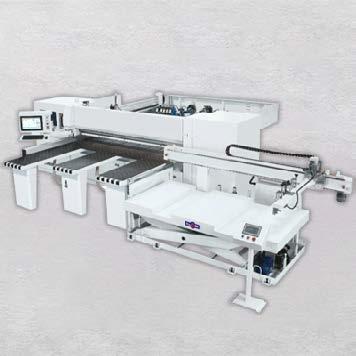

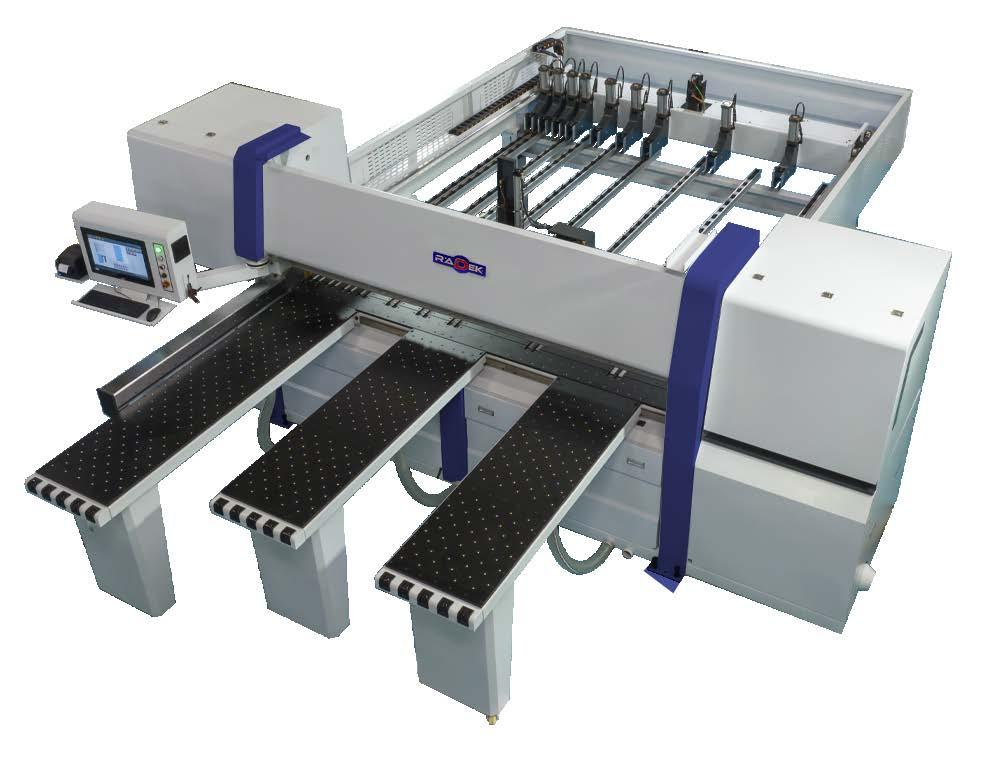

CNC PANEL SAW
Designed for high-quality cutting with maximum performance and precision. This machine stands out from other CNC cutters on the market due to its massive structure, power, high-end components and consistent cutting quality. Manufactured under strict quality and durability standards, it is an excellent long-term investment for boosting your company’s production and efficiency. It meets every requirement with outstanding performance, precision and capacity. You’ll be impressed in every aspect—visit us and see for yourself the craftsmanship and advantages of this machine.
The saw unit moves along two rails controlled by high-performance servo motors, ensuring maximum speed up to 120 meters per

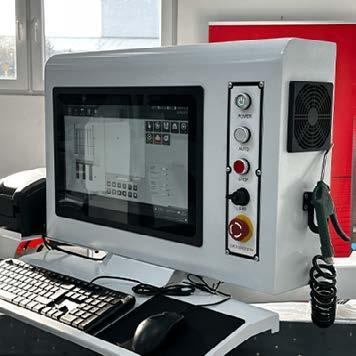

The interface is equipped with an industrial computer and has the simplest, most intuitive design, allowing operators to easily create layouts or import from optimization software. Well-defined functions for full work overview and easy adjustments.

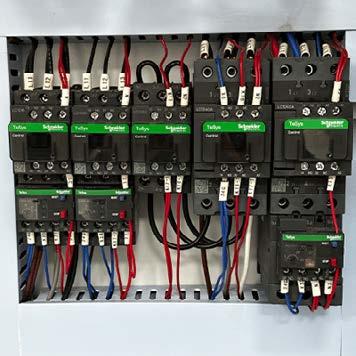

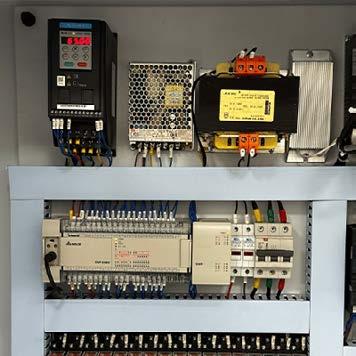

Electrical components from the renowned Schneider brand.
Air tables with round bearings provide efficient and easy panel movement. Additional air tables are also located in the cutting zone, facilitating work with small pieces and protecting them from damage.

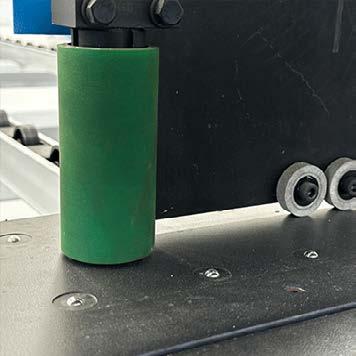

Additional support with side rollers for precise workpiece positioning.

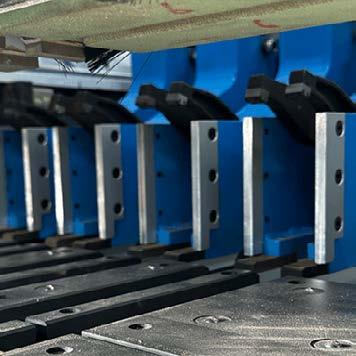

Pneumatic double-support clamps ensure stable fixation of panels without slipping. Controlled by precise servo motors without deviation or errors.
Included with the machine is a labeling machine for printing details on workpieces.
Possibility for an upgrade with a device for automatic material loading, aimed at saving time and personnel. The device consists of a lift table that automatically adjusts into position and a pusher that efficiently moves the panels without damaging them.

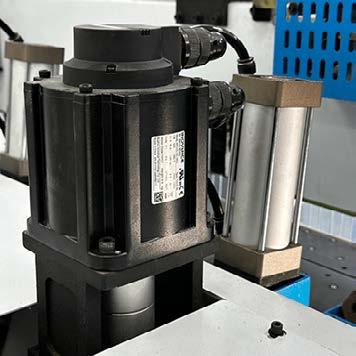

High-performance INVT servo motors for quick and precise execution of control commands, ensuring high-quality cutting.
Scoring saw power
Air
Maximum cutting thickness
Main blade diameter
Main blade shaft diameter
Scoring saw shaft diameter
Processing speed
Movement speed
Operating pressure
Total power
Machine dimensions
Packing dimensions
Weight 3200x3200 / 4200x4200
5600x6800x1900mm
5500x1330x1900mm
4050x600x1650mm
5800kg / 7200kg
Made of high-quality iron with significantly more weight than other CNC cutters on the market, effectively eliminating vibrations during operation, ensuring perfect cuts at all times.
CONSTRUCTION
minute.
offering
PRECISE LINEAR GUIDES
SERVO MOTORS
AIR TABLES
CLAMPS
SIDE ROLLERS
LABELING MACHINE
UPGRADE OPTION
